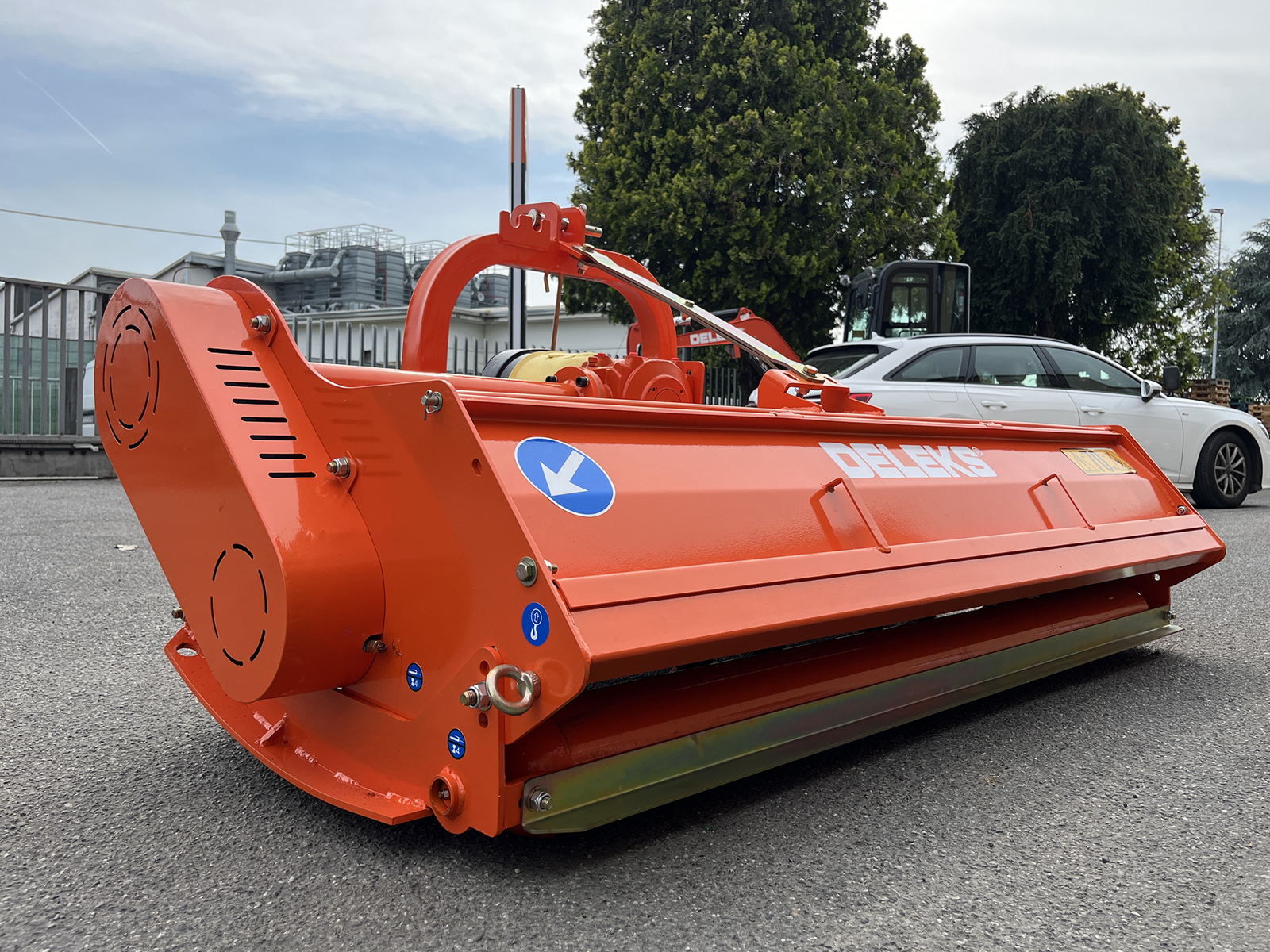

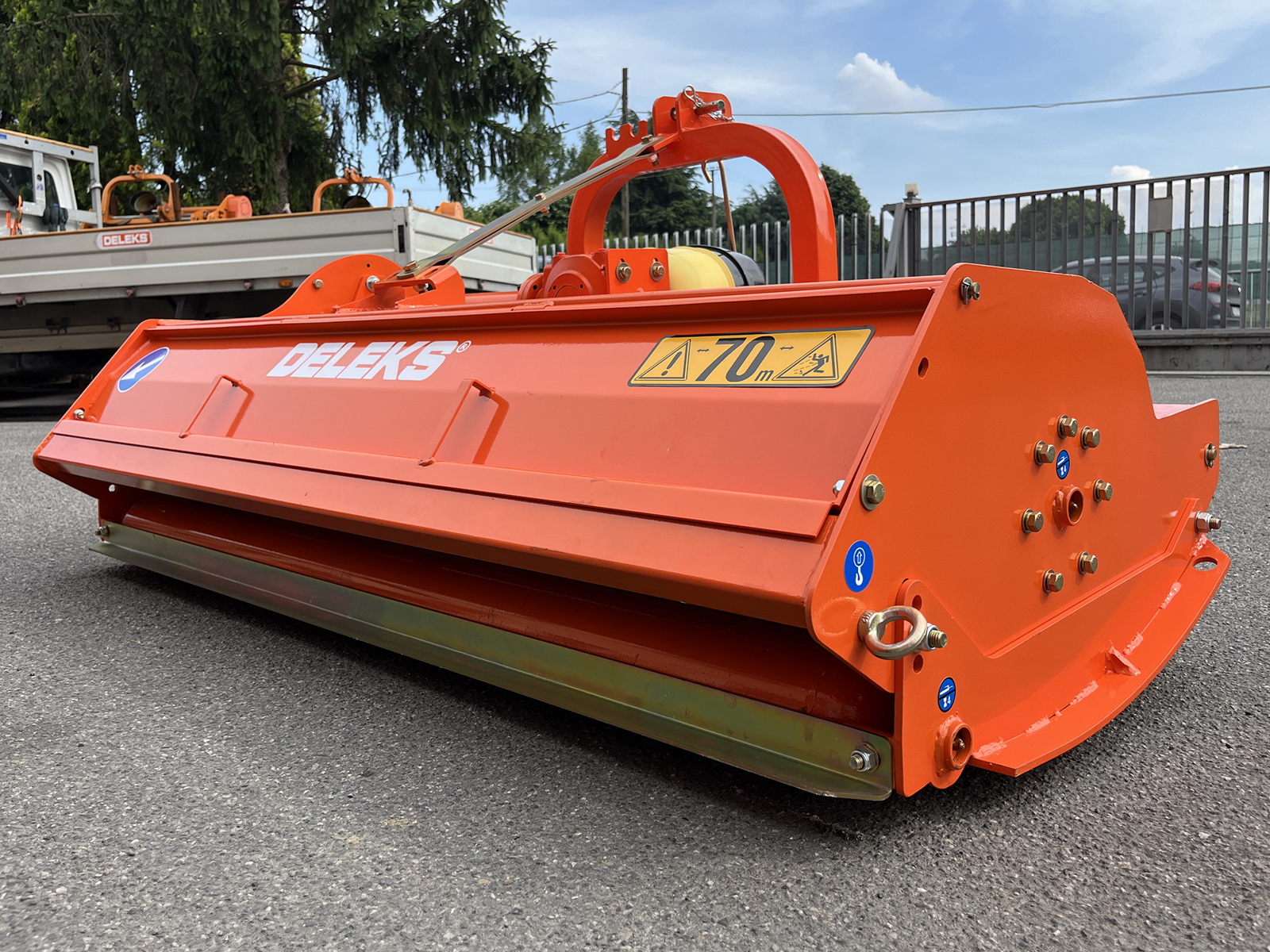

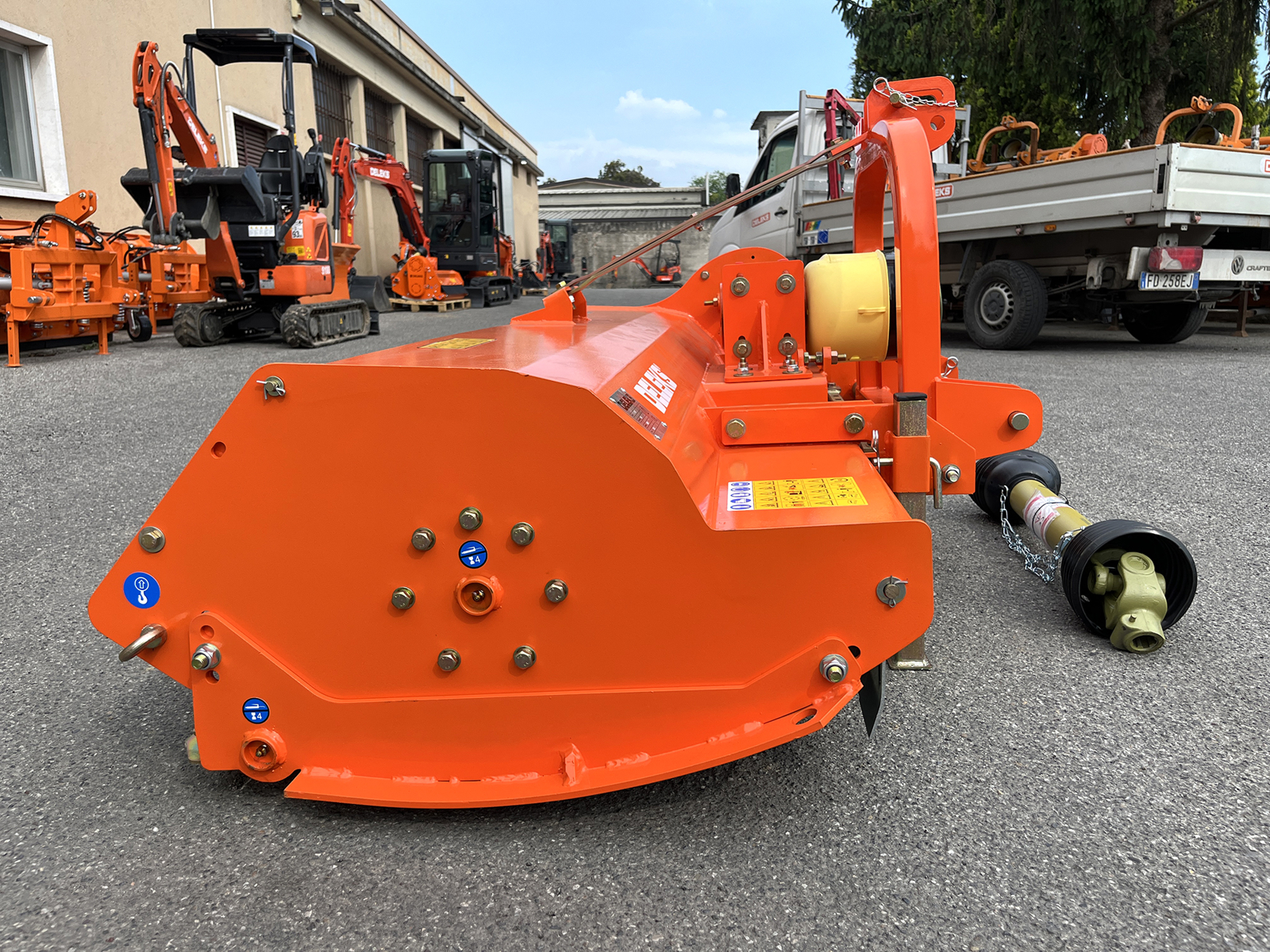

Adjustable sideshift flail mower for medium sized tractors shredder, mulcher mod. TIGRE-160

DETAILS

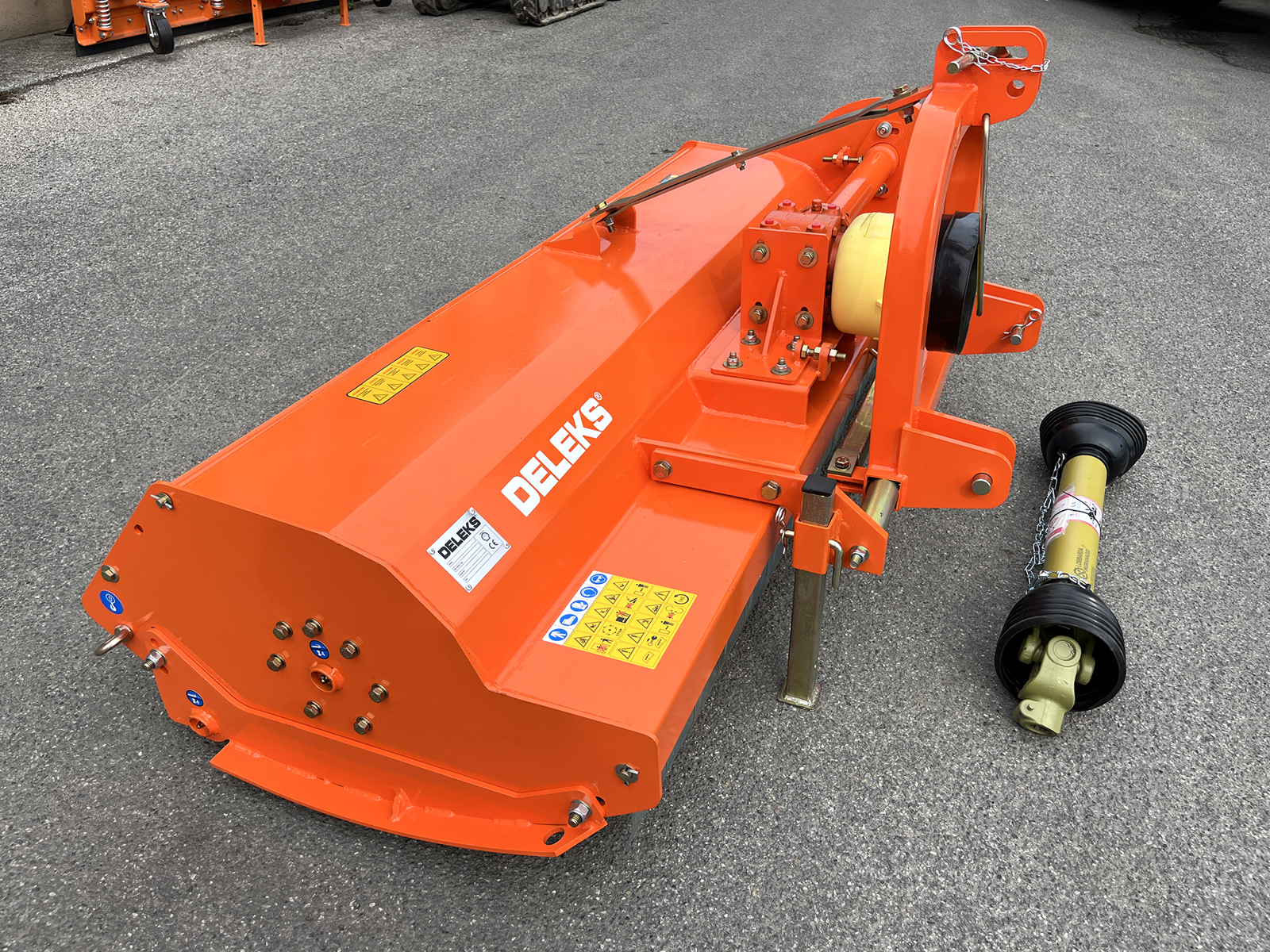

Shredder for tractor 160cm / 382kg with hammers - DELEKS® TIGRE-160 - 160.0 mm electronically balanced rotor - Pto shaft CE included.
OVERVIEW

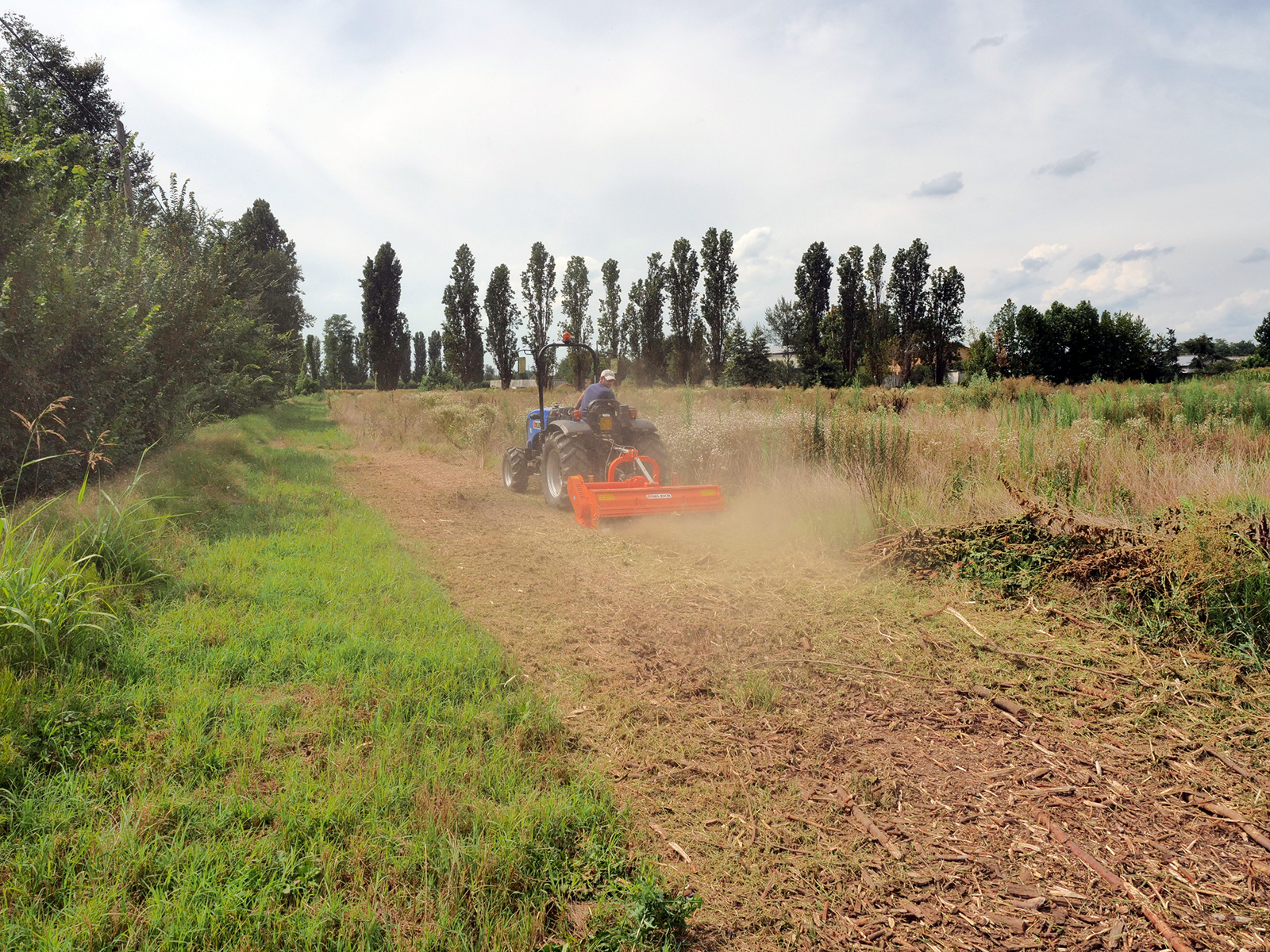

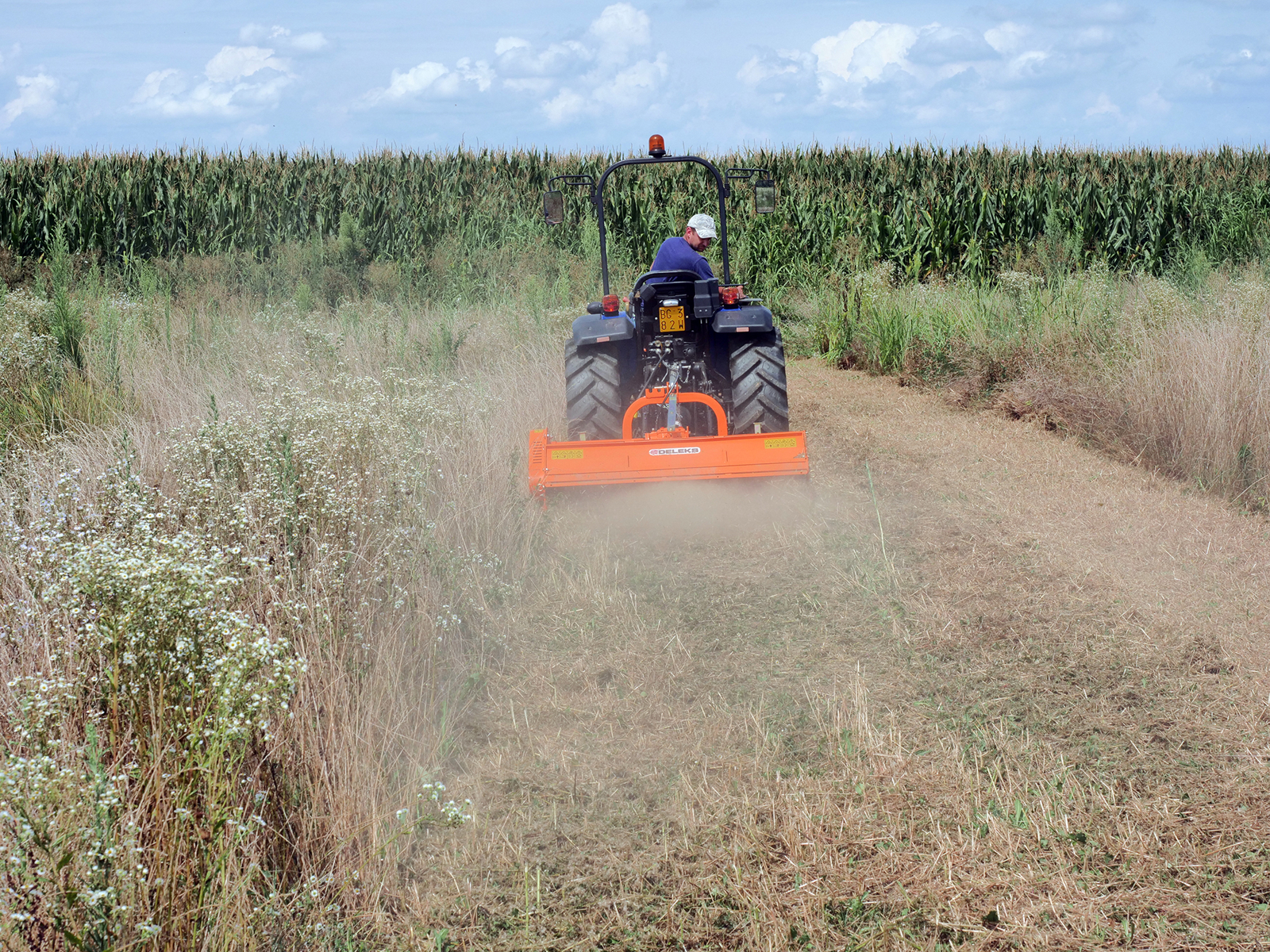

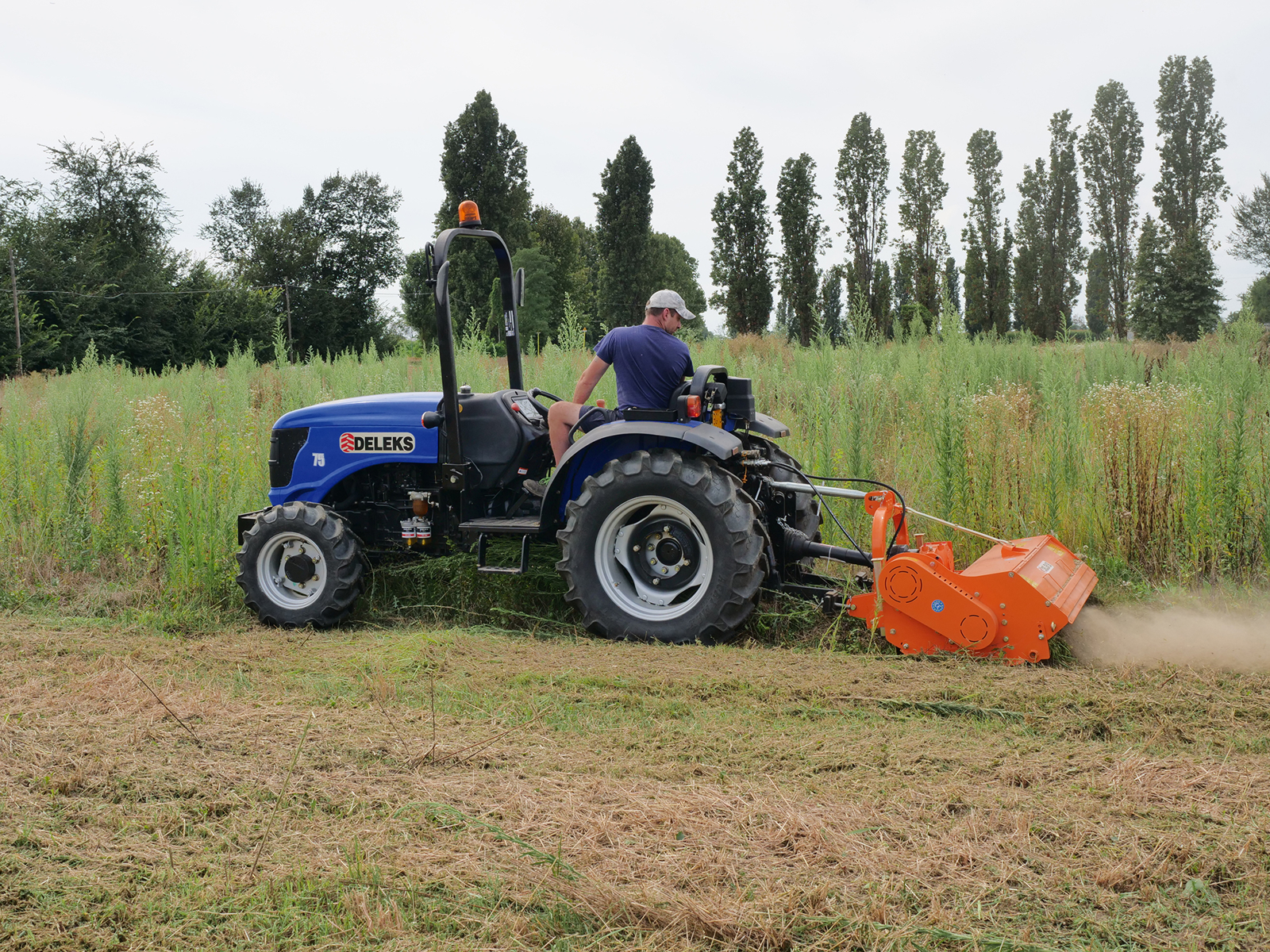

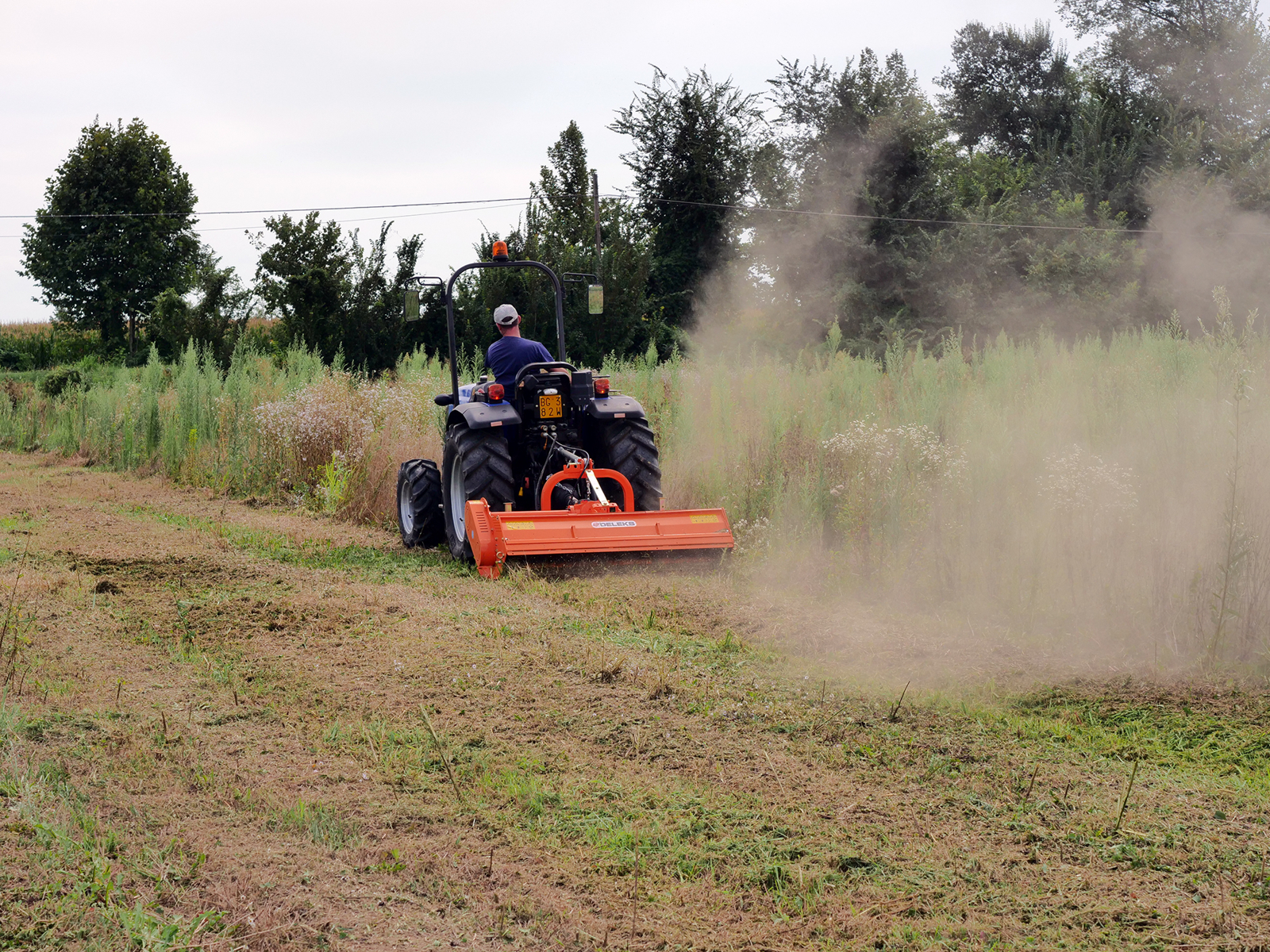

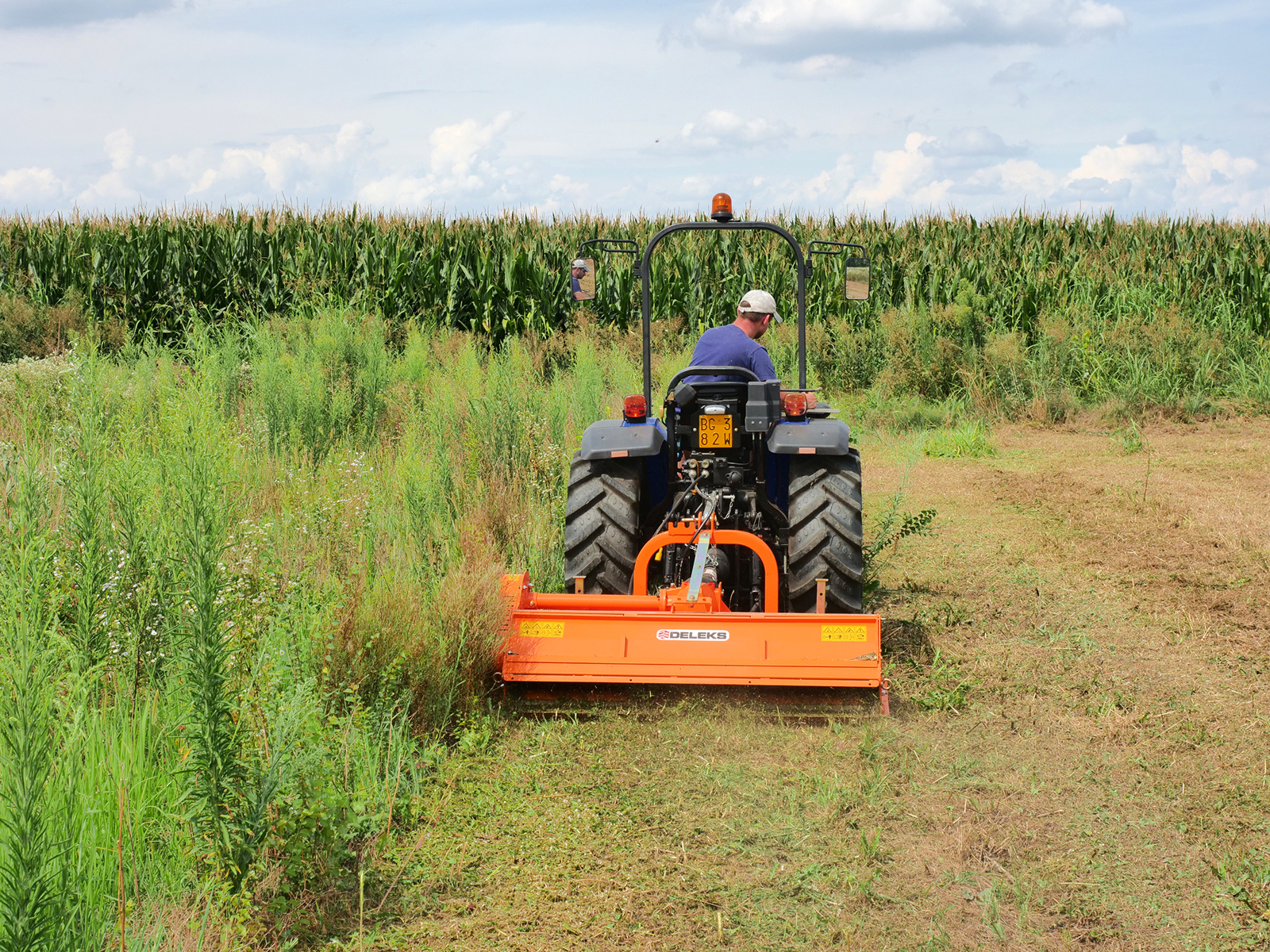

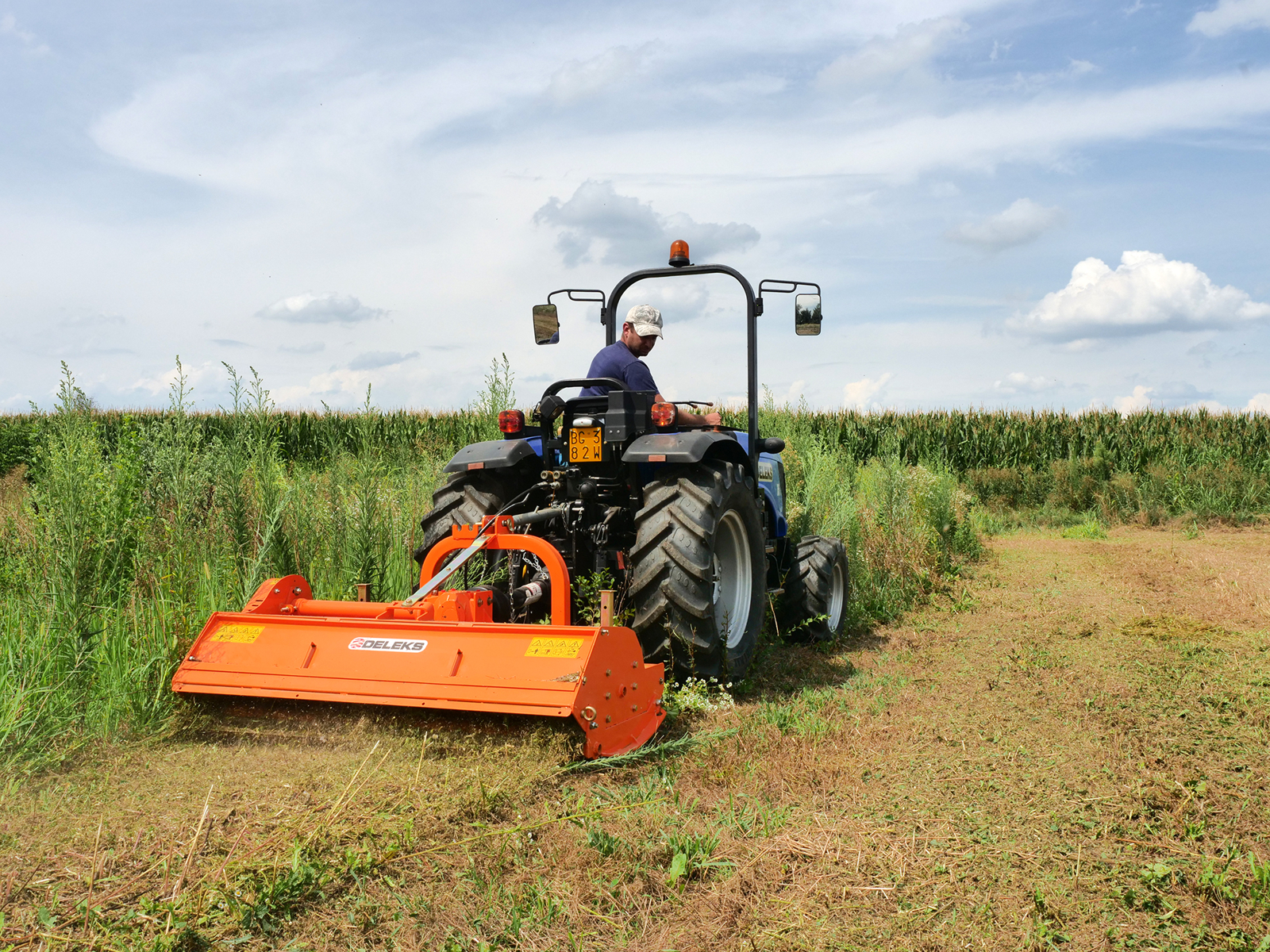

The TIGRE-160 flail mower has been designed for professional use in fields, meadows, parks, orchards etc. It is ideal mulching grass but is strong enough to handle shredding corn storks and heavy rushes. Thanks to it's solid frame and 160.0 mm rotor it can be used for work on the flat ground and verges. Compatible with all brands of tractors with Cat. 1-2 three-point linkage e.g Fiat, Ford, New Holland, Deutz-Fahr, Landini Mistral, Kubota L, New Holland T3030, Same, John Deere 3-4, Lamborghini Ego, etc.
BENEFITS & FEATURES
GB Bologna Gearbox with free wheel (Made in Italy) with 3 year warranty.
SKF long life rotor bearings.
Manual offset (hydraulic optional).

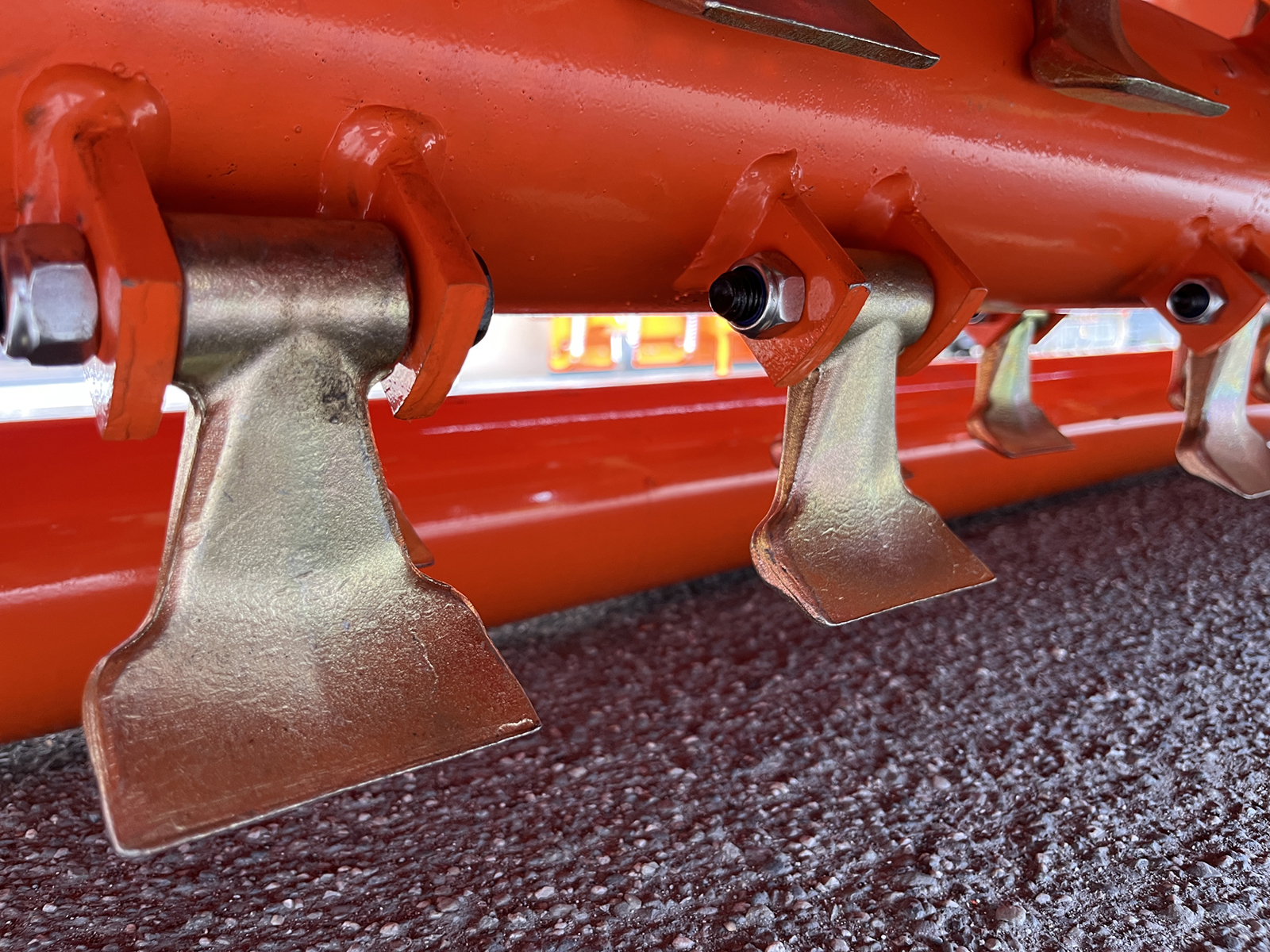

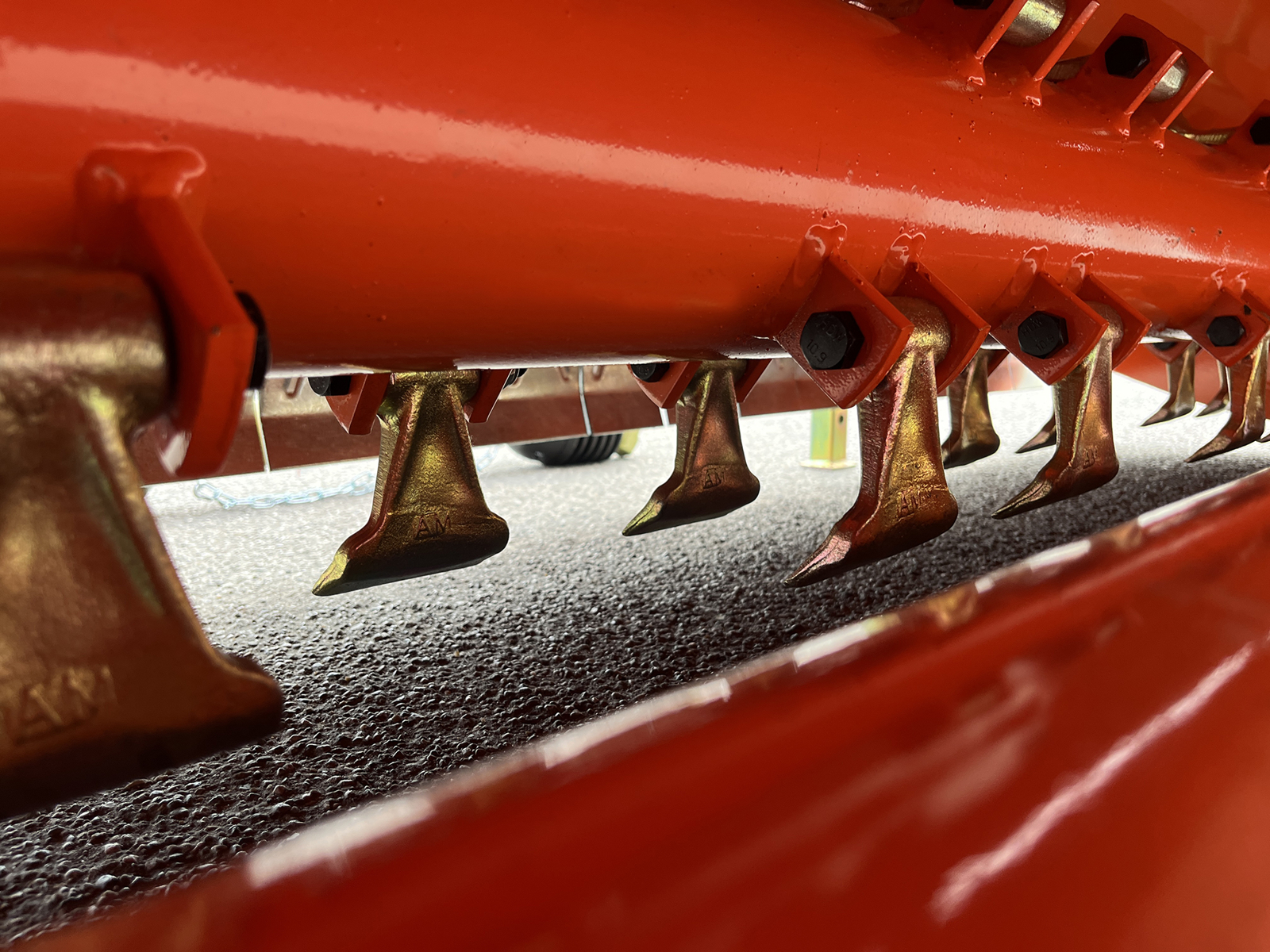

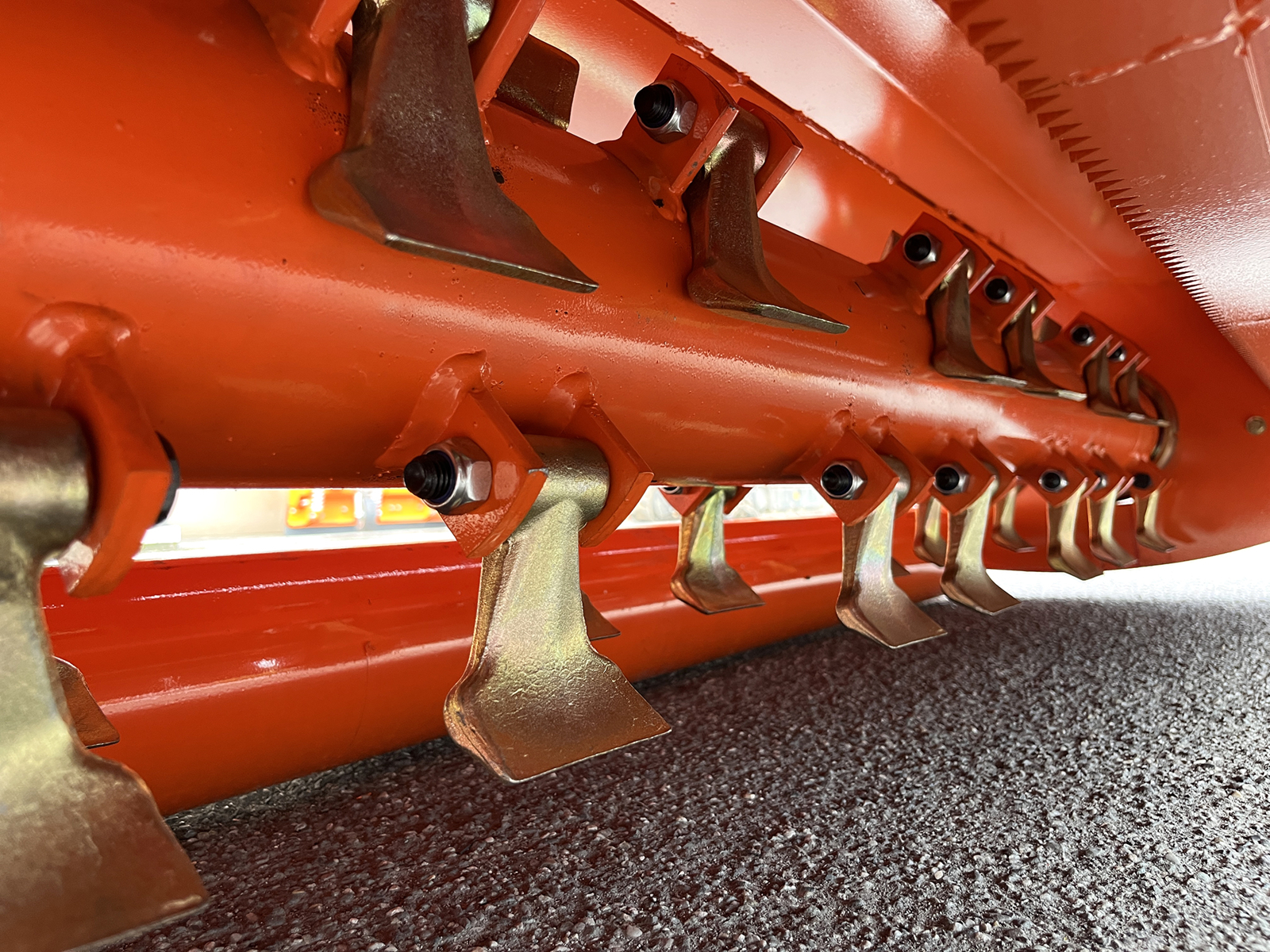

820g heat forged hammers to shred vegetation up to 4-5 cm thick.

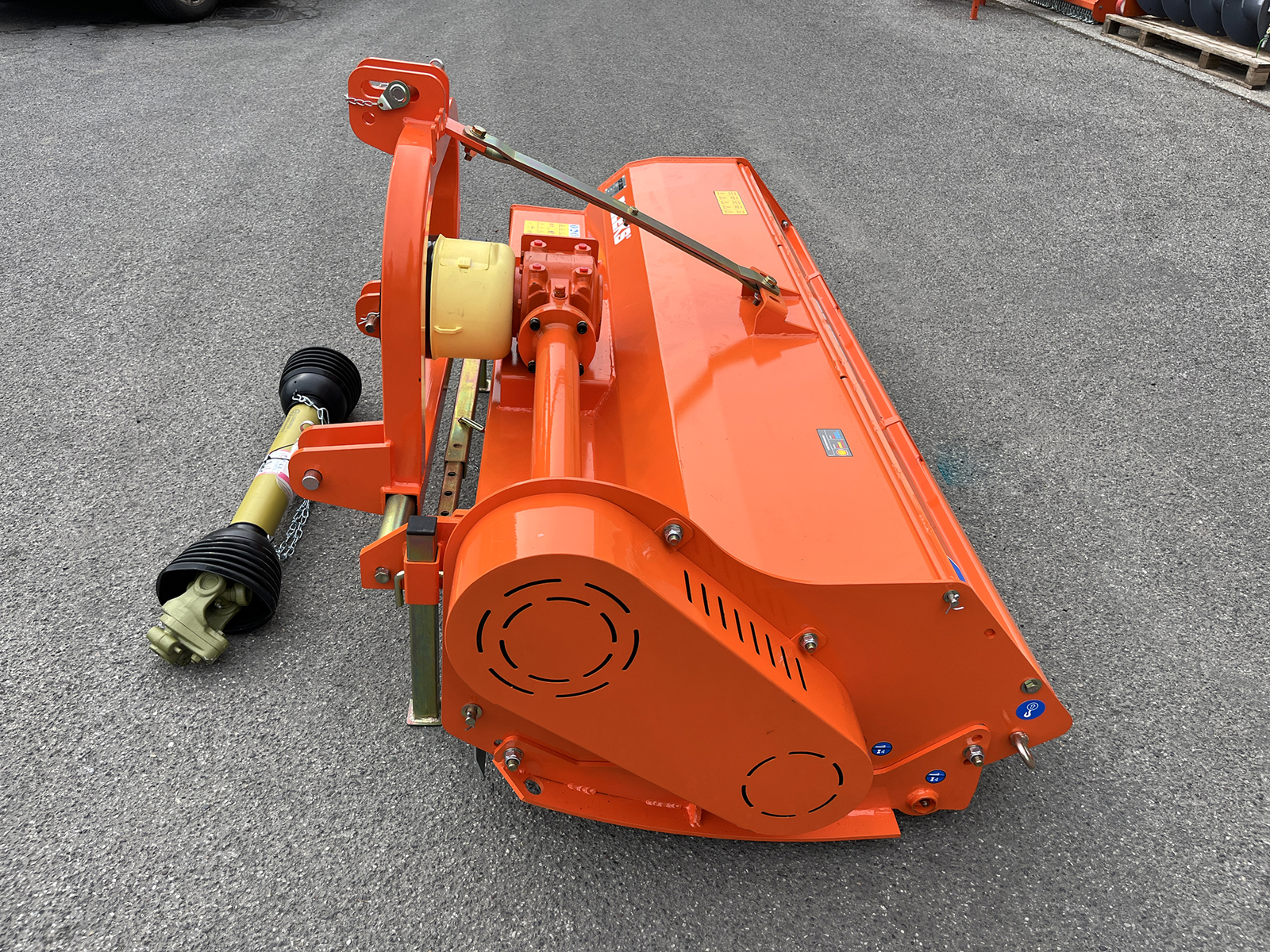

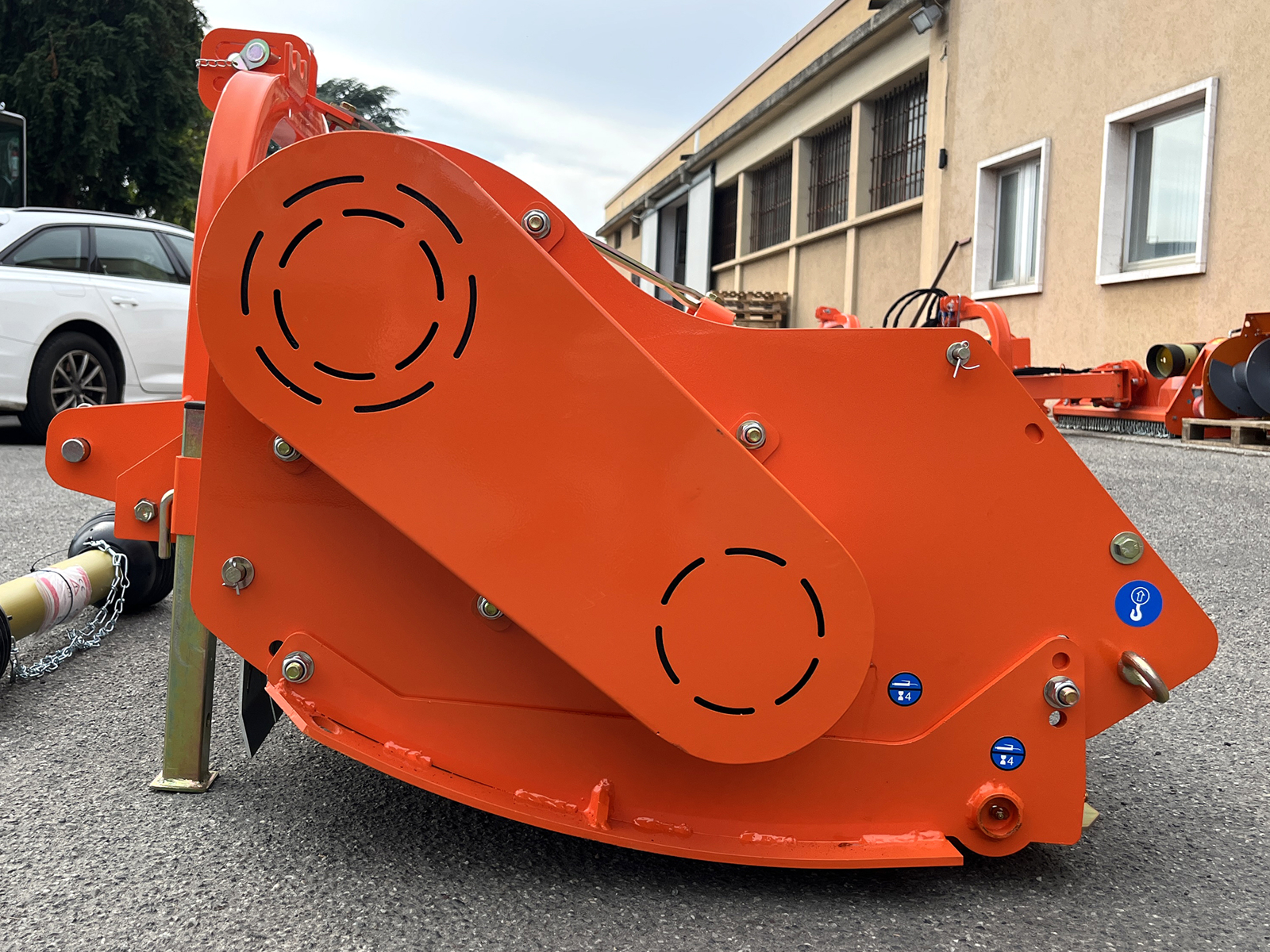

4 high resistance toothed belts, and external belt tensioner.

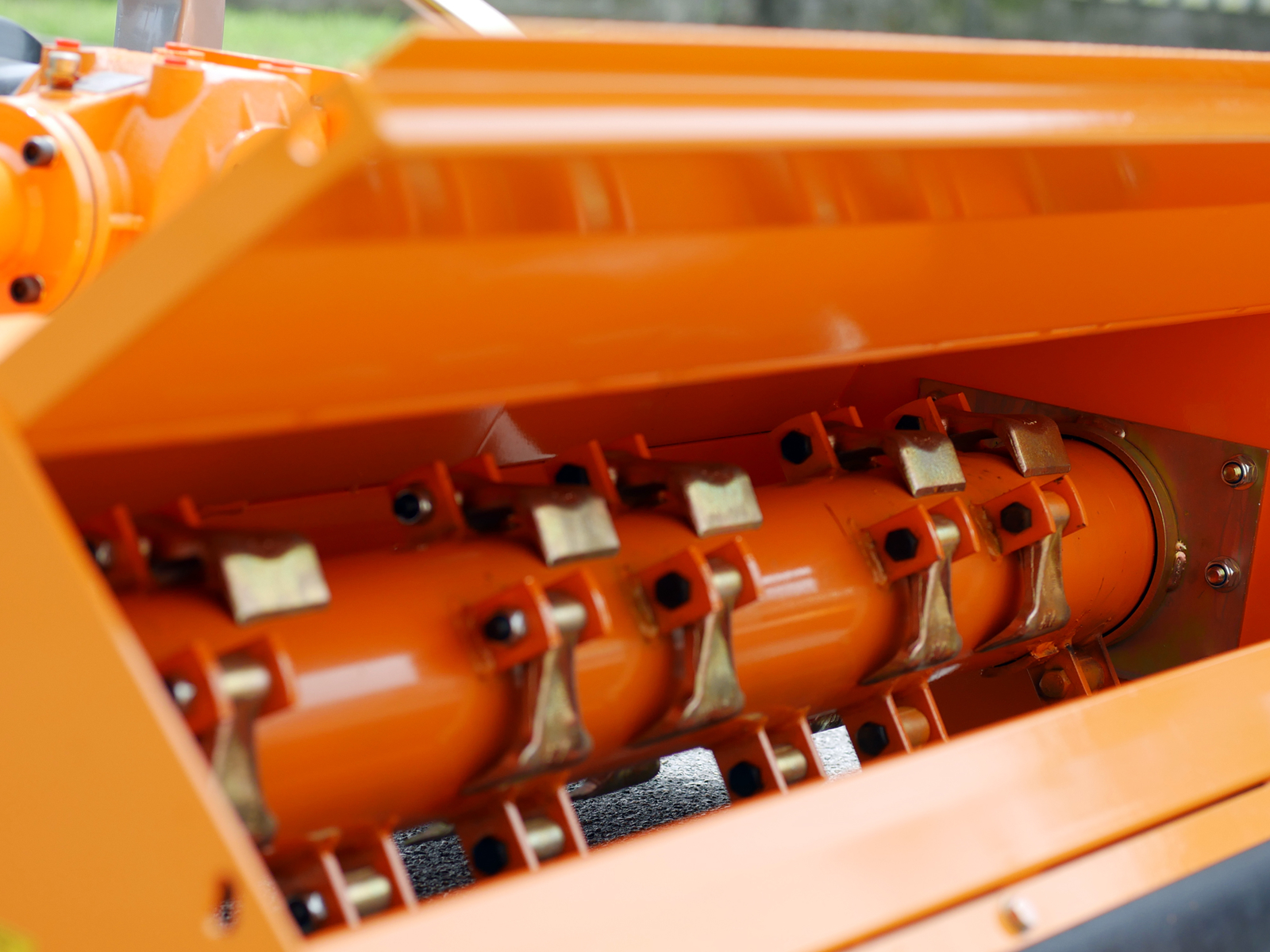

160.0 mm electronically balanced rotor.

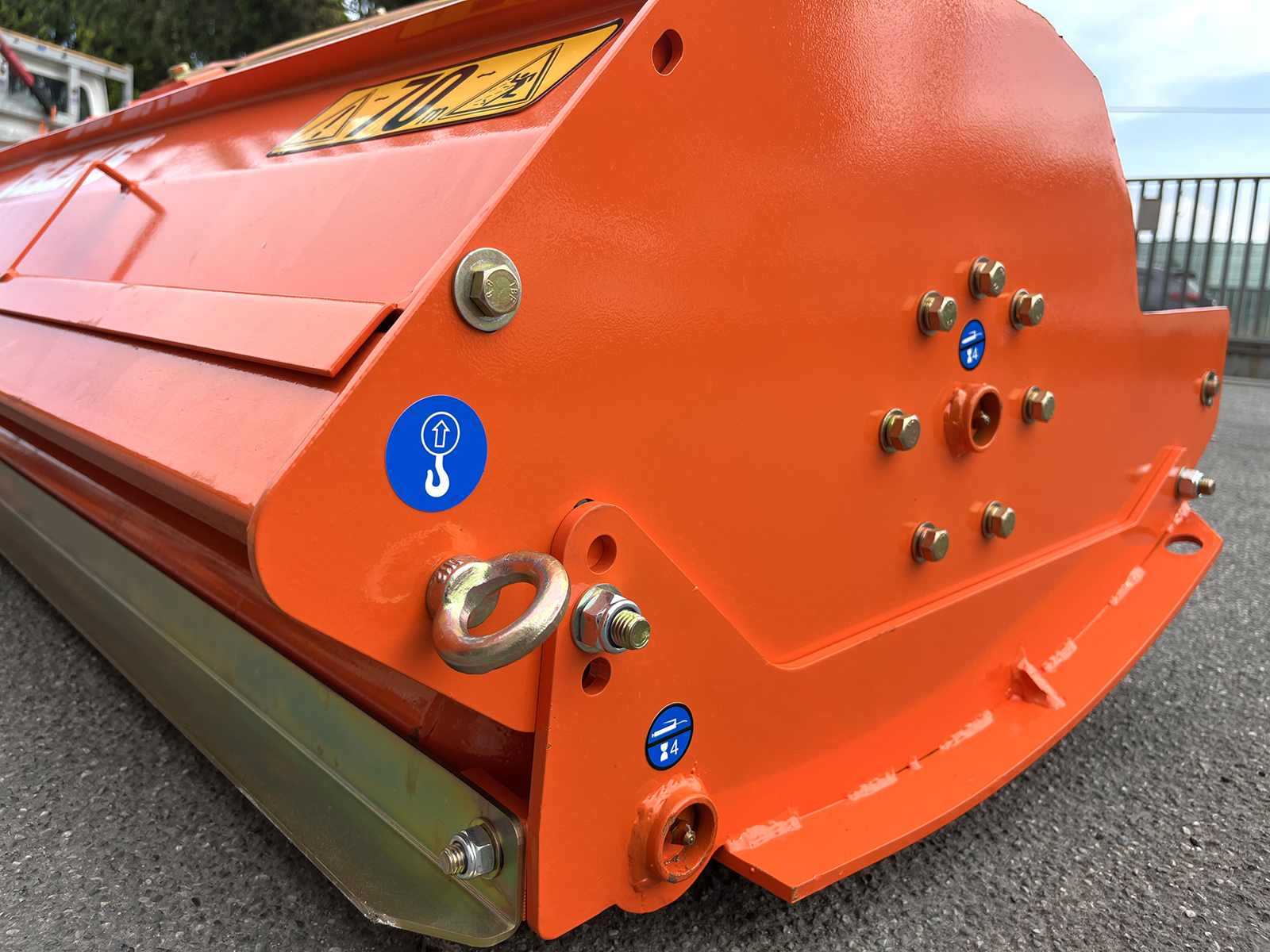

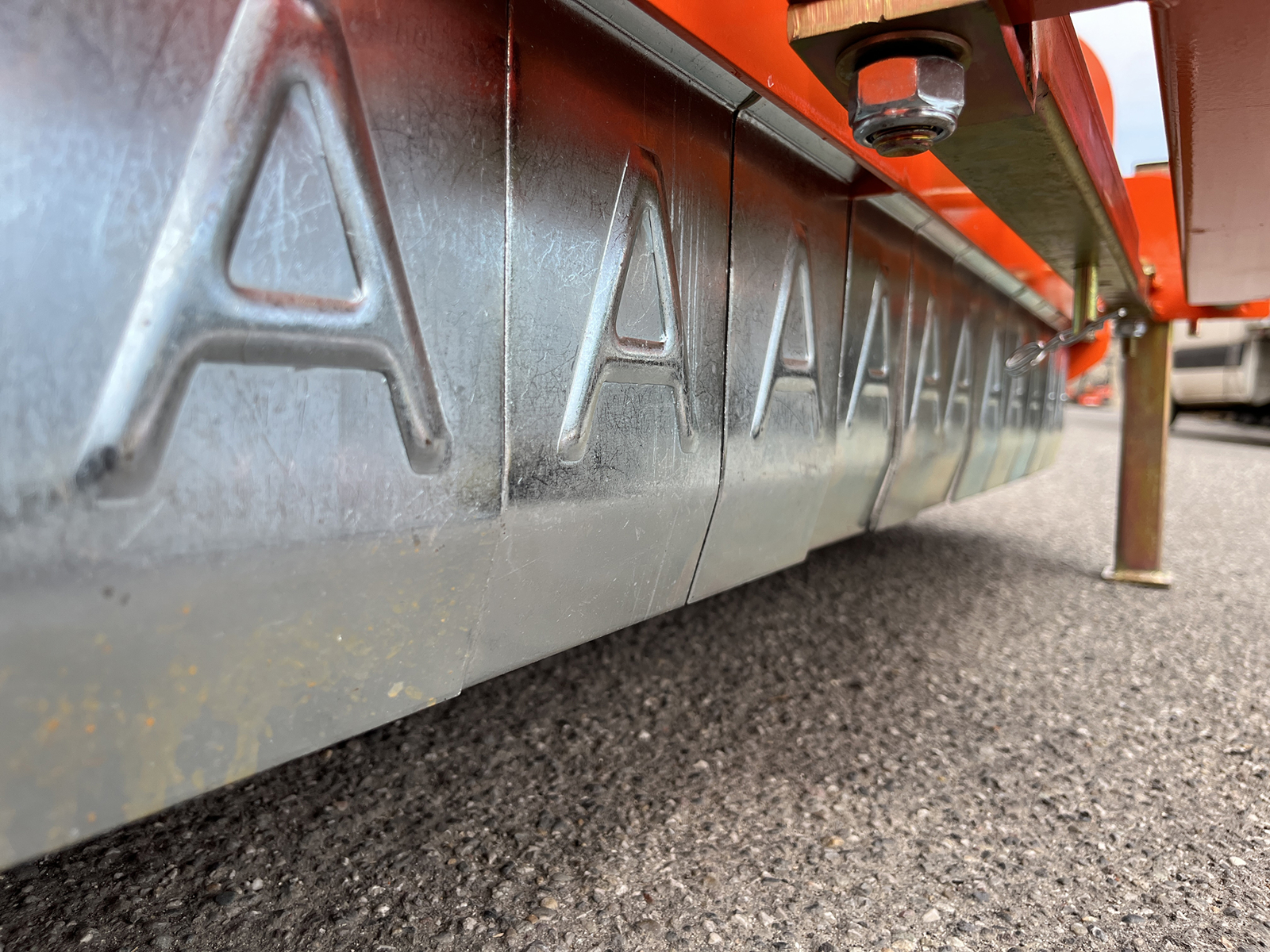

Self-cleaning rear roller and side skids.
Rear bonnet can be opened for maintenance purposes.
Reinforced rotor support fixed to the frame by 6 strong bolts for additional strength.

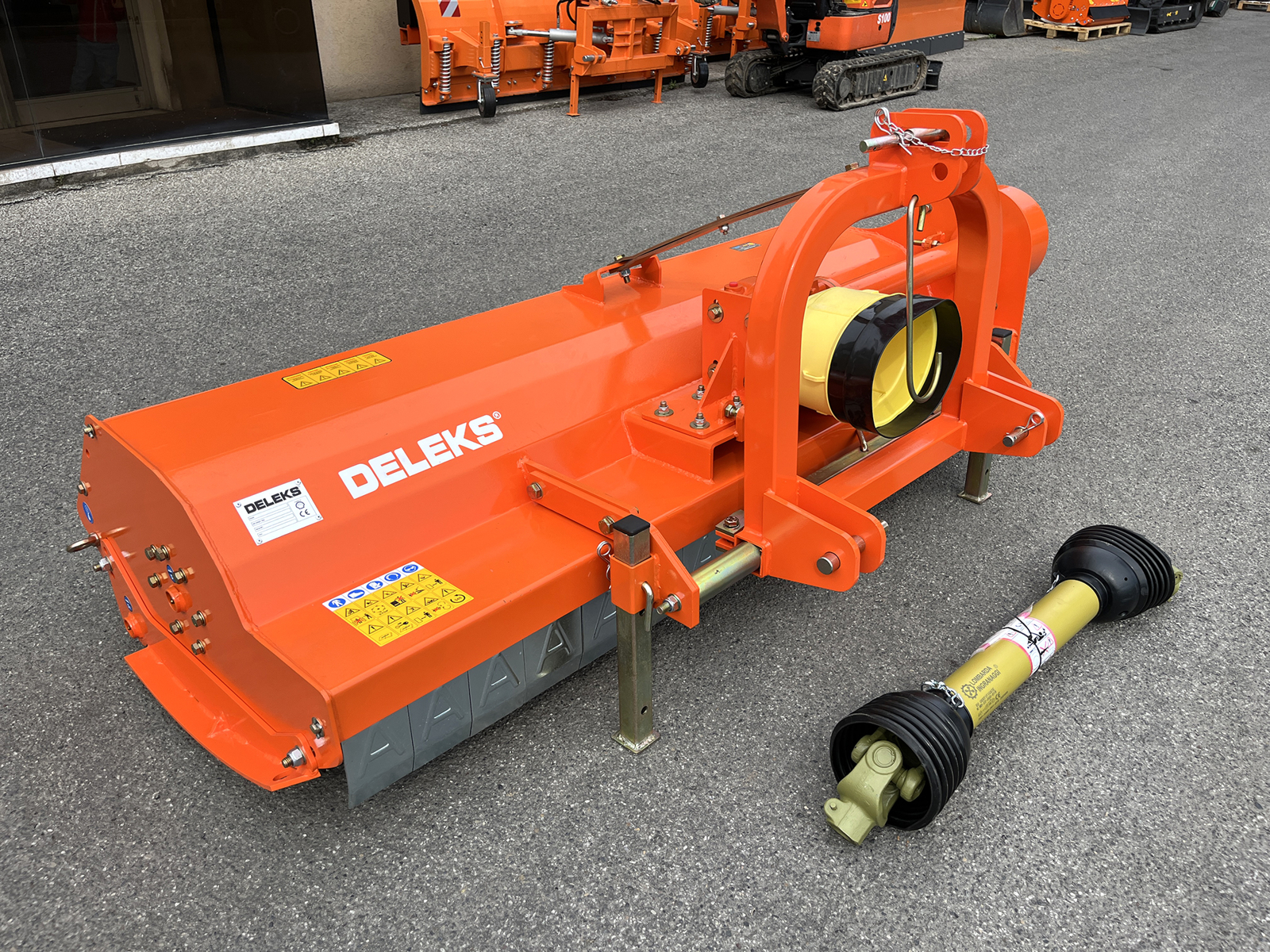

Pto shaft CE included.
CHARACTERISTICS
Characteristic | Units metric | Units US |
---|---|---|
Working width | 1600.0 mm | 5.23 ft |
Overall width | 1770.0 mm | 5.80 ft |
Min / Max cutting height | 5.0 - 65.0 mm | 0.2 - 2.55 in |
Weight | 382.0 kg | 842.2 lb |
Overall height | 915.0 mm | 3.0 ft |
Tractor Power Range | 40 - 90 Hp | 40 - 90 Hp |

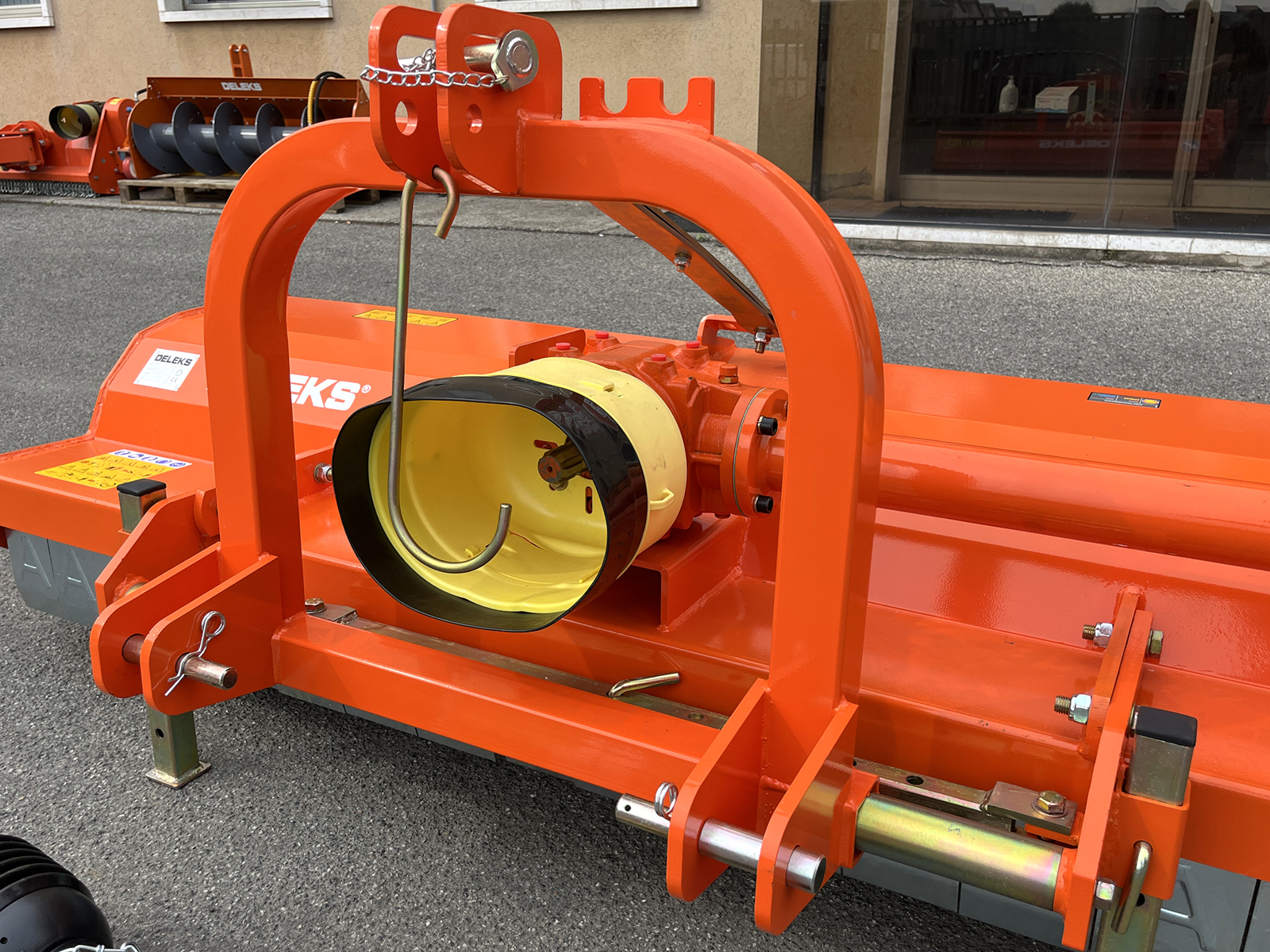

3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Position of the gearbox | 790.0 mm from left side / 805.0 mm from right side | 31.1 in from left side / 31.7 in from right side |
Hood height | 495.0 mm | 19.49 in |
Spacing between the 2 lower points | 550.0 - 660.0 mm | 21.65 - 26.00 in |
Number of Hammers | 24 | 24 |
Maximum cutting diameter | 40.0 - 50.0 mm | 1.57 - 1.97 in |
Overall length | 1220.0 mm | 4.0 ft |
Distance between pto attachment and ground | 400.0 mm | 15.75 in |
Main hood thickness | 4.0 mm | 0.16 in |
Sides thickness | 8.0 mm | 0.31 in |
Side plates thickness | 8.0 mm | 0.31 in |
Transmission: Drive method | V-Belts | V-Belts |
Transmission: Gearbox | GB Bologna (Italy) (3 year warranty) | GB Bologna (Italy) (3 year warranty) |
Transmission: PTO | 540 r/min | 540 r/min |
Transmission: Rotation of gearbox | Right side | Right side |
Transmission: Free wheel | √ | √ |
Transmission: RPM Rotor speed | 2050 rpm | 2050 rpm |
Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
Transmission: Top pulley ø | 189.0 mm | 7.44 in |
Transmission: Lower pulley ø | 150.0 mm | 5.90 in |
Transmission: V-Belts quantity | 4 | 4 |
Transmission: V-Belts size | 17x1250 | 17x1250 |
Rotor: diameter | 160.00 mm | 6.30 in |
Rotor: bearings type and size | SKF 6309 | SKF 6309 |
Rotor: balancing | Electronic | Electronic |
Rotor: sheet thickness | 8.0 mm | 0.31 in |

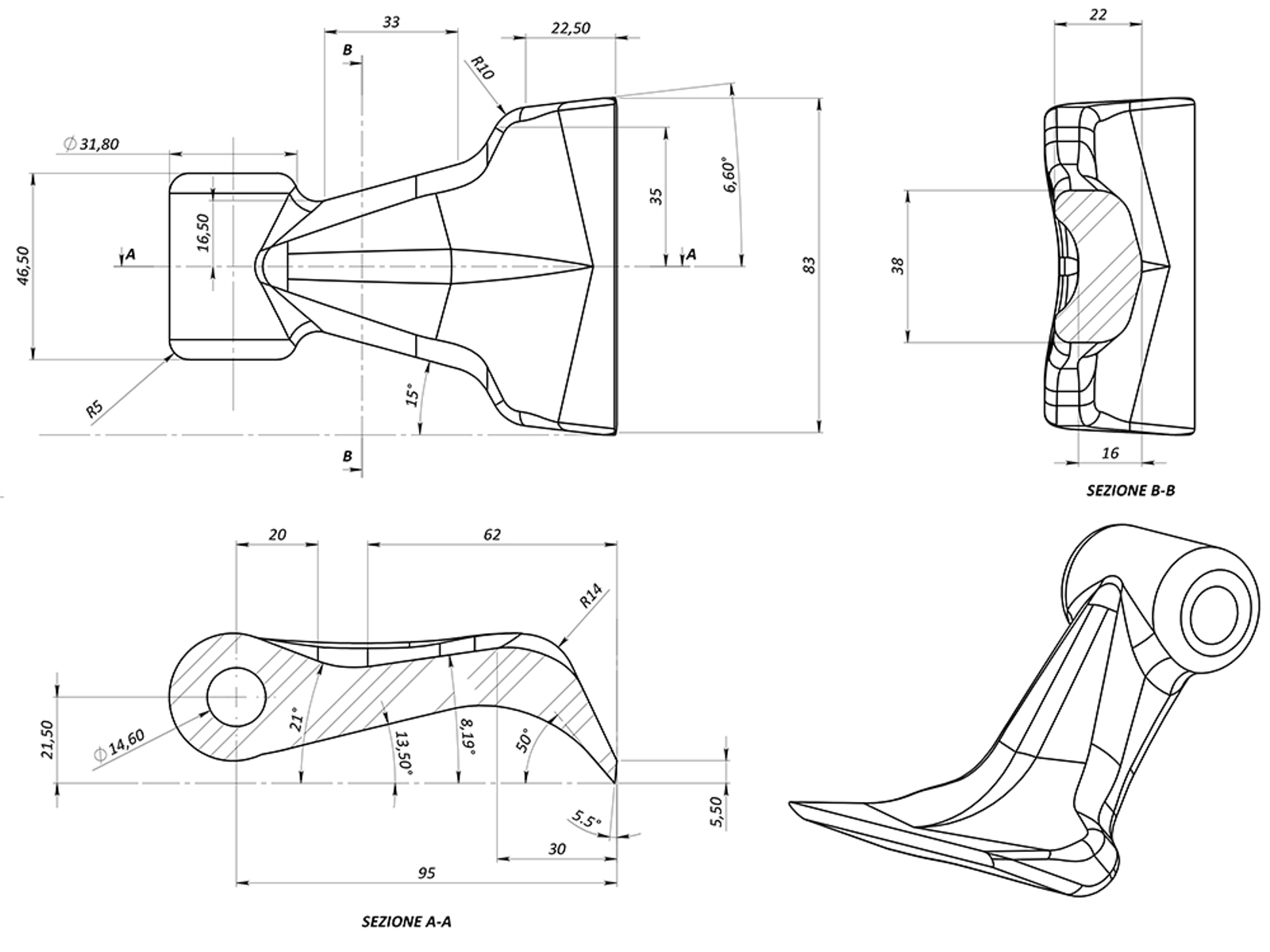

Hammers: Weight | 820.0 g | 29.0 oz |
Hammer: øhole | 15.0 mm | 0.6 in |
Hammer: base width | 82.0 mm | 3.23 in |
Hammer: top width | 45.0 mm | 1.77 in |
Hammer: Diagonal | 95.0 mm | 3.74 in |
Rear roller: diameter | 140.0 mm | 5.51 in |
Rear roller: sheet thickness | 5.0 mm | 0.2 in |
Rear roller: bearings type and size | 6205 | 6205 |
Pto shaft | CE 6x1000 mm | CE 6x1000 mm |
Hood length | 880.0 mm | 34.65 in |
Effective Displacement | 270.0 mm (Manual/Hydr.) | 10.63 in (Manual/Hydr.) |
Packing sizes | 1800.0*1000.0*750.0 mm | 5.90*3.28*2.46 ft |
