Multi-use Sideshift mulcher for Tractors - VOLPE-120

DETAILS

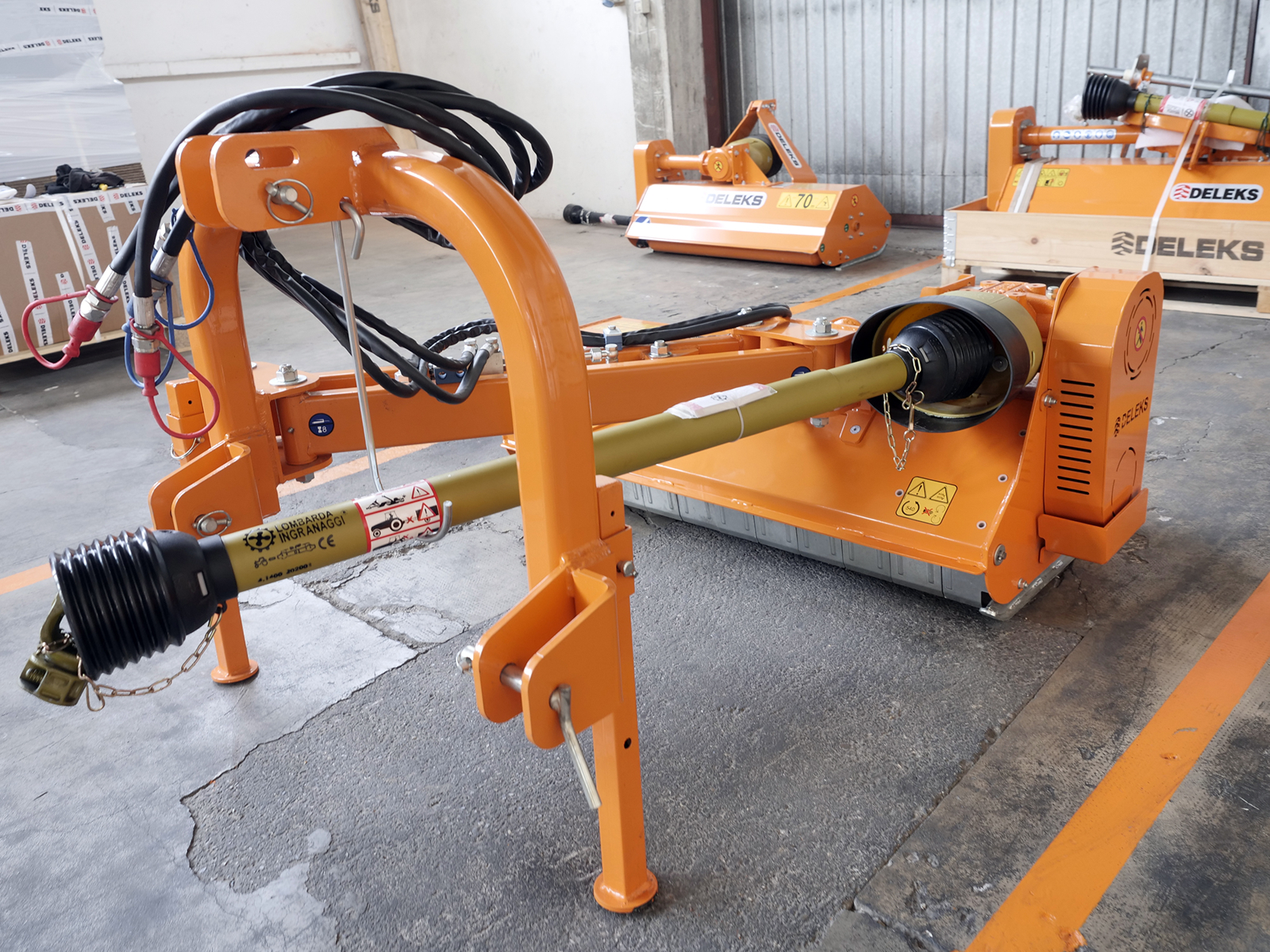

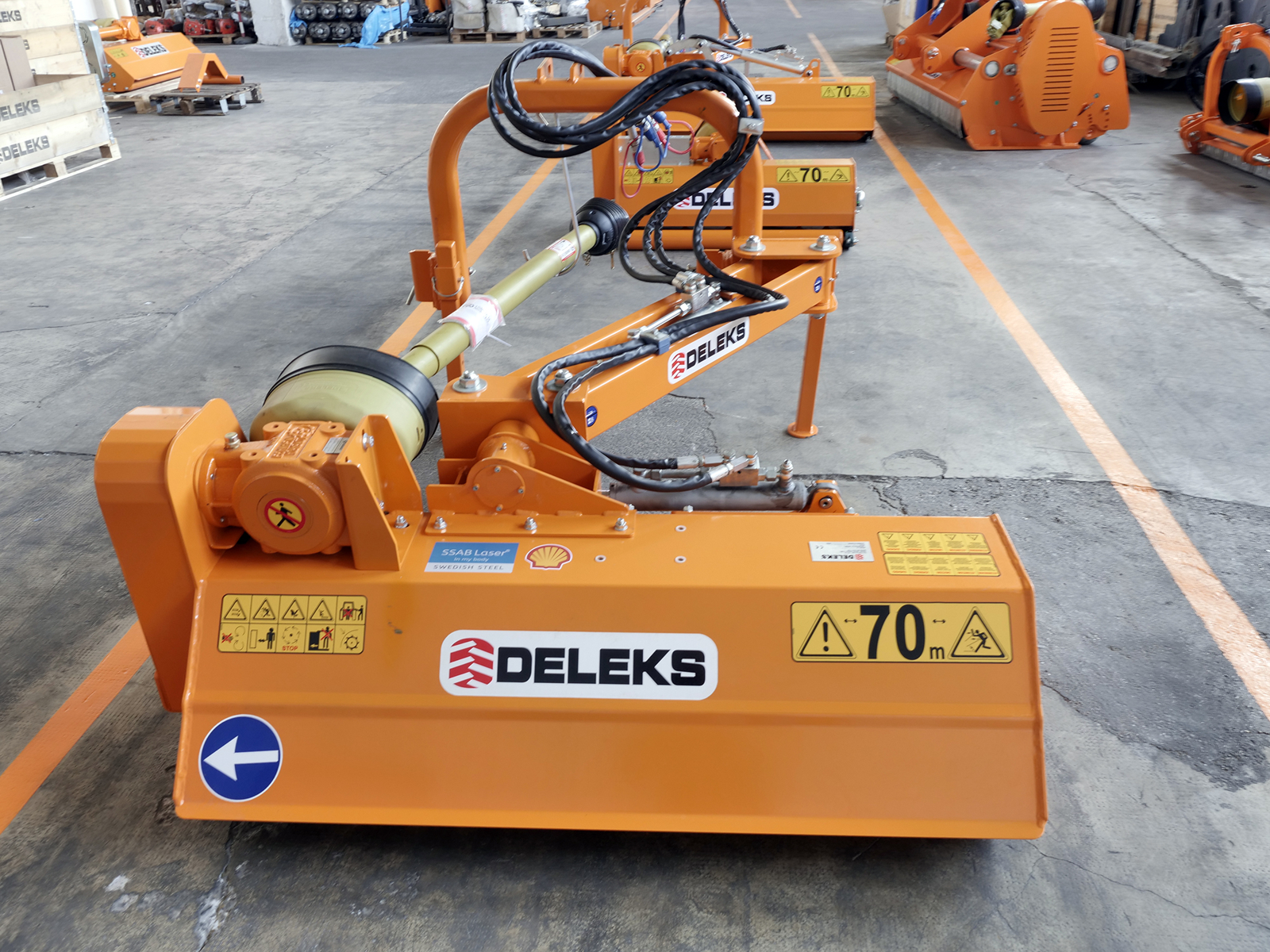

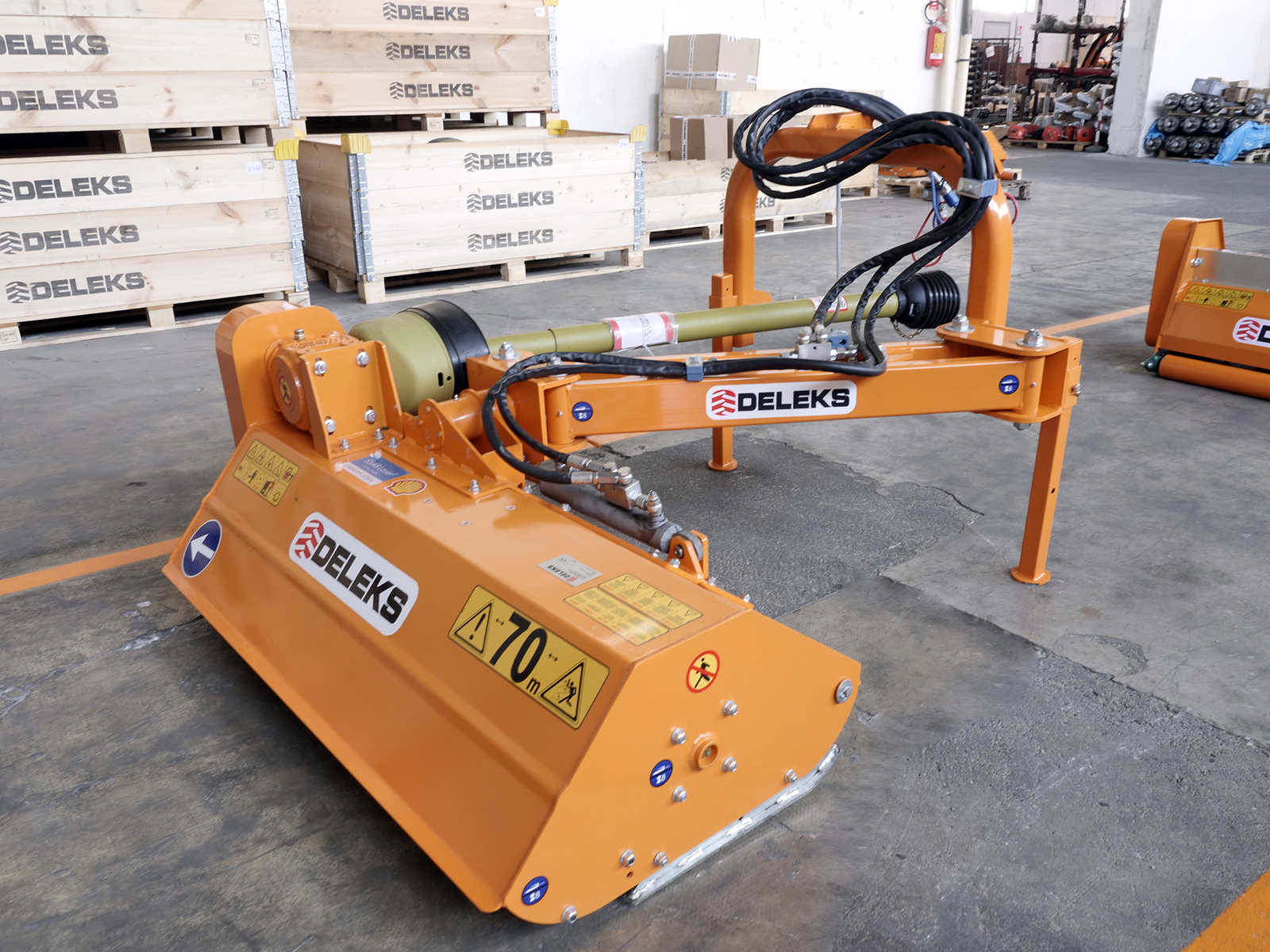

Offset Verge Flail Mower for Tractors, 120cm / 180kg, +88° / -60° - DELEKS® VOLPE-120 - Internal Gearbox - Pto shaft CE included.
OVERVIEW

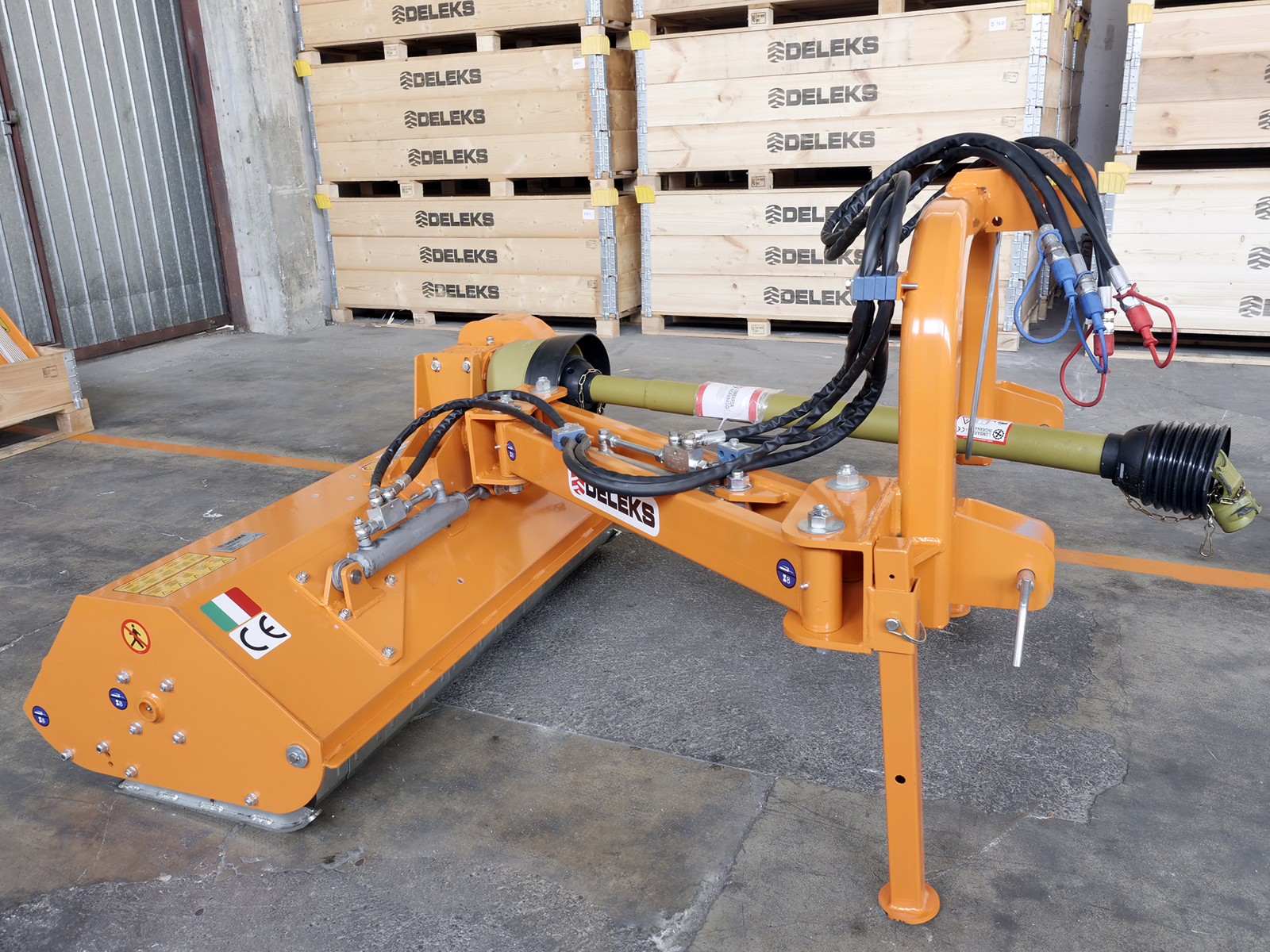

VOLPE-120 offset/inline light verge mower for use on 25-45HP compact tractors e.g New Holland Boomer 25-35, John Deere 2-3, Kubota, McCormick, Iseki, Yanmar, Lamborghini.

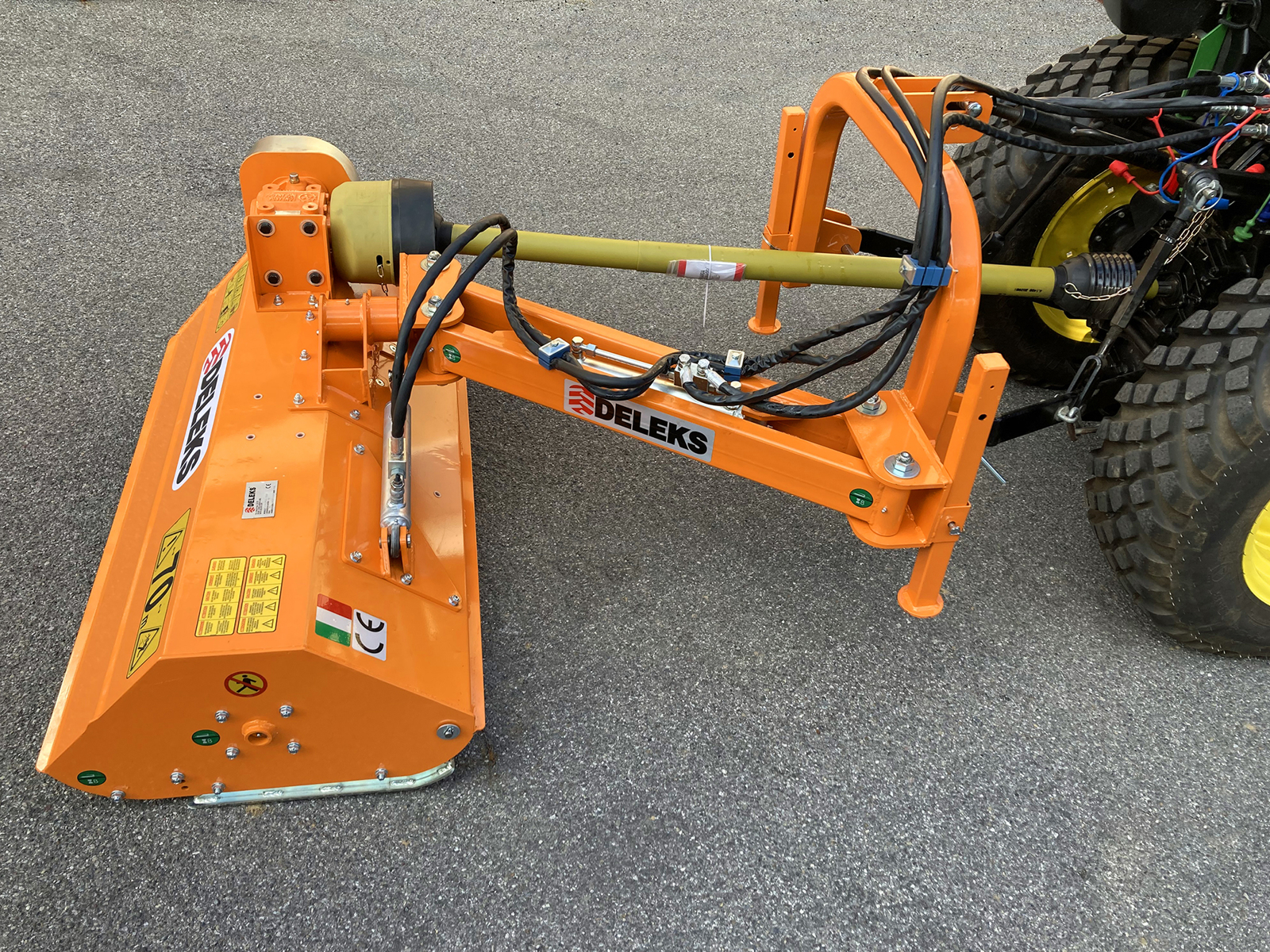

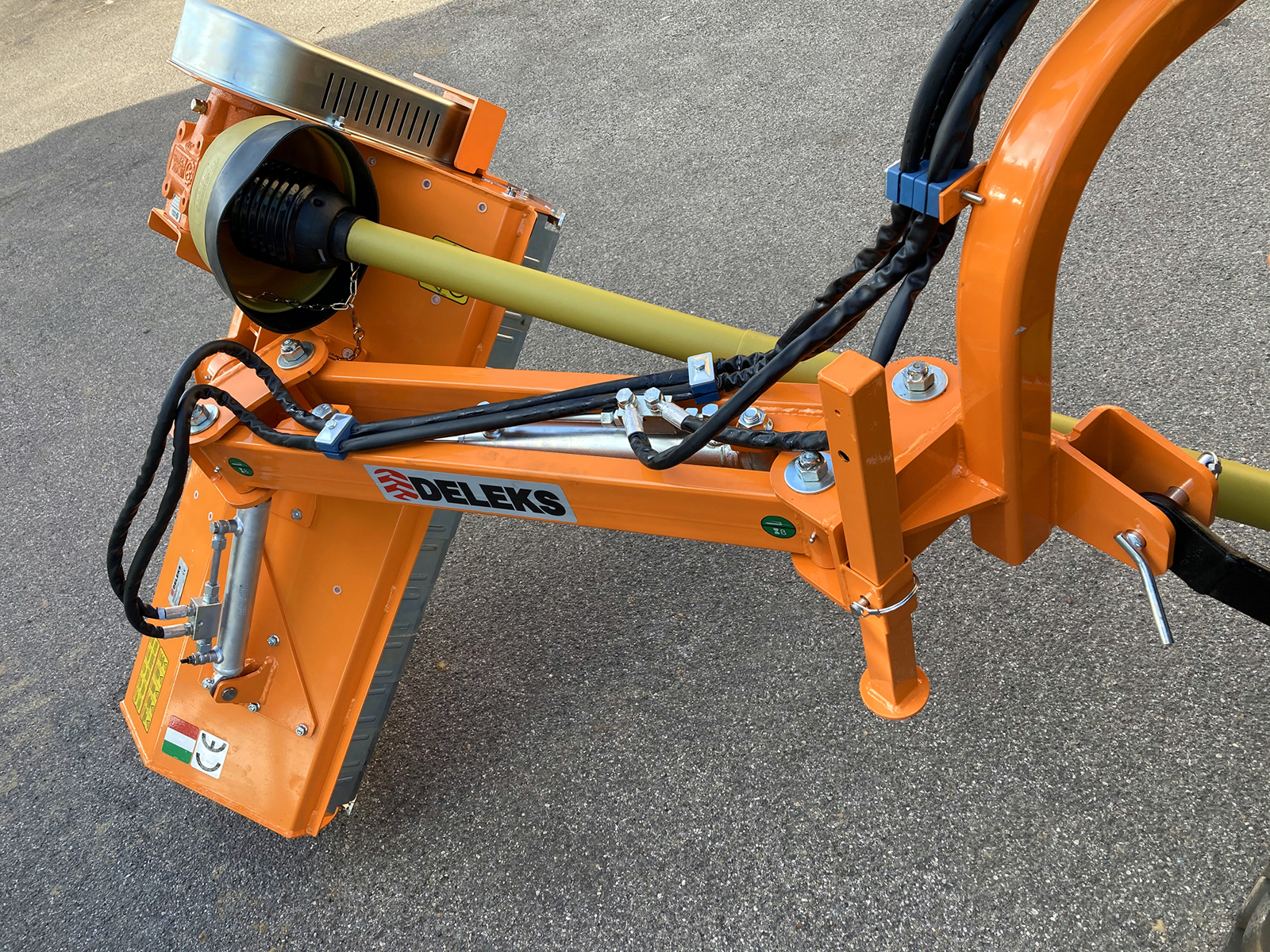

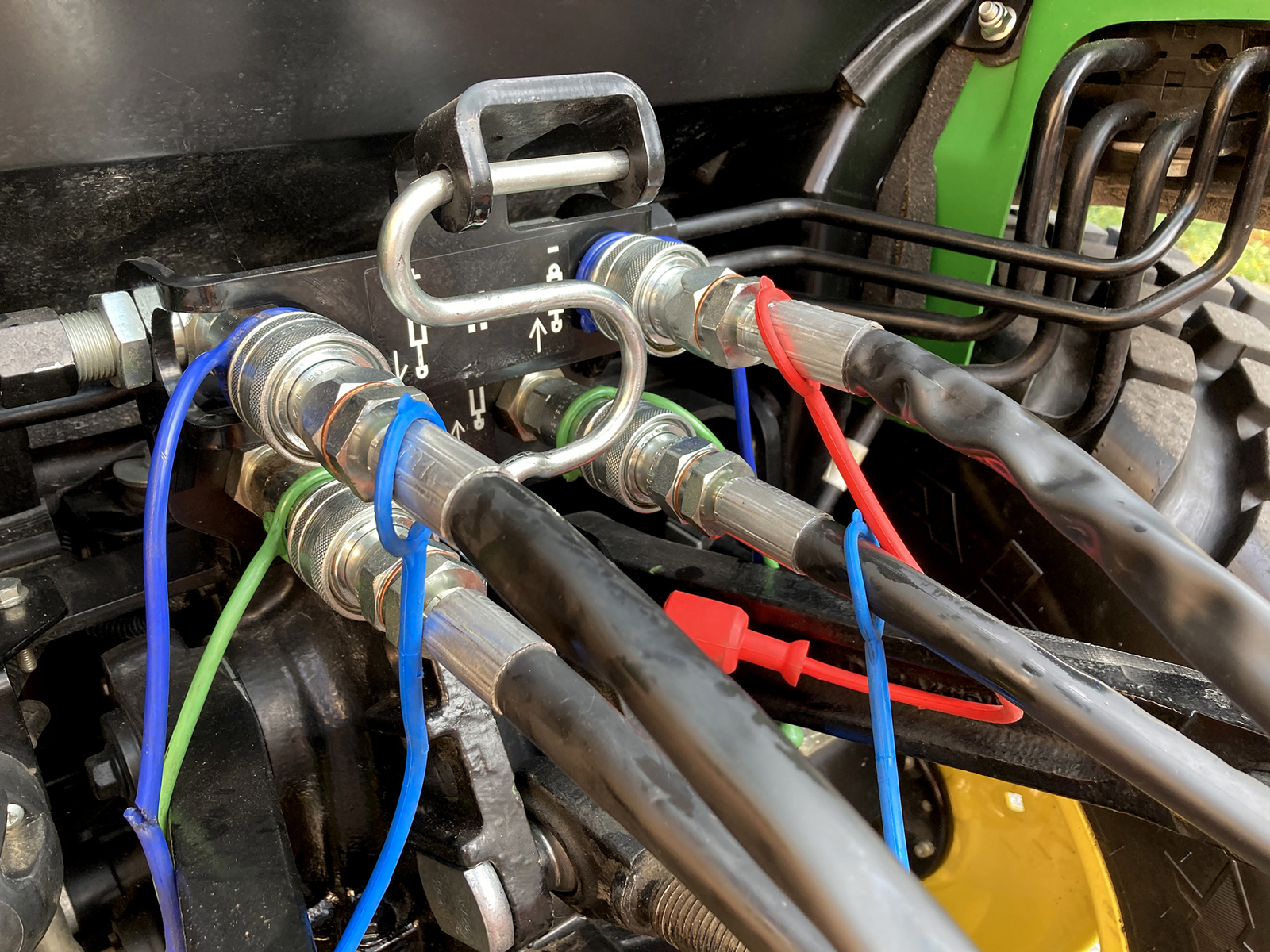

This mower can be hydraulic offset to the side and also angled for access to hard to reach areas. This requires 2 double acting spools on the tractor for the 4 hoses which then operate the left-right movement & the up-down tilt of the cutting head. This flail is ideal for cutting small twigs and branches (2-3cm) up to and around trees when used horizontally.

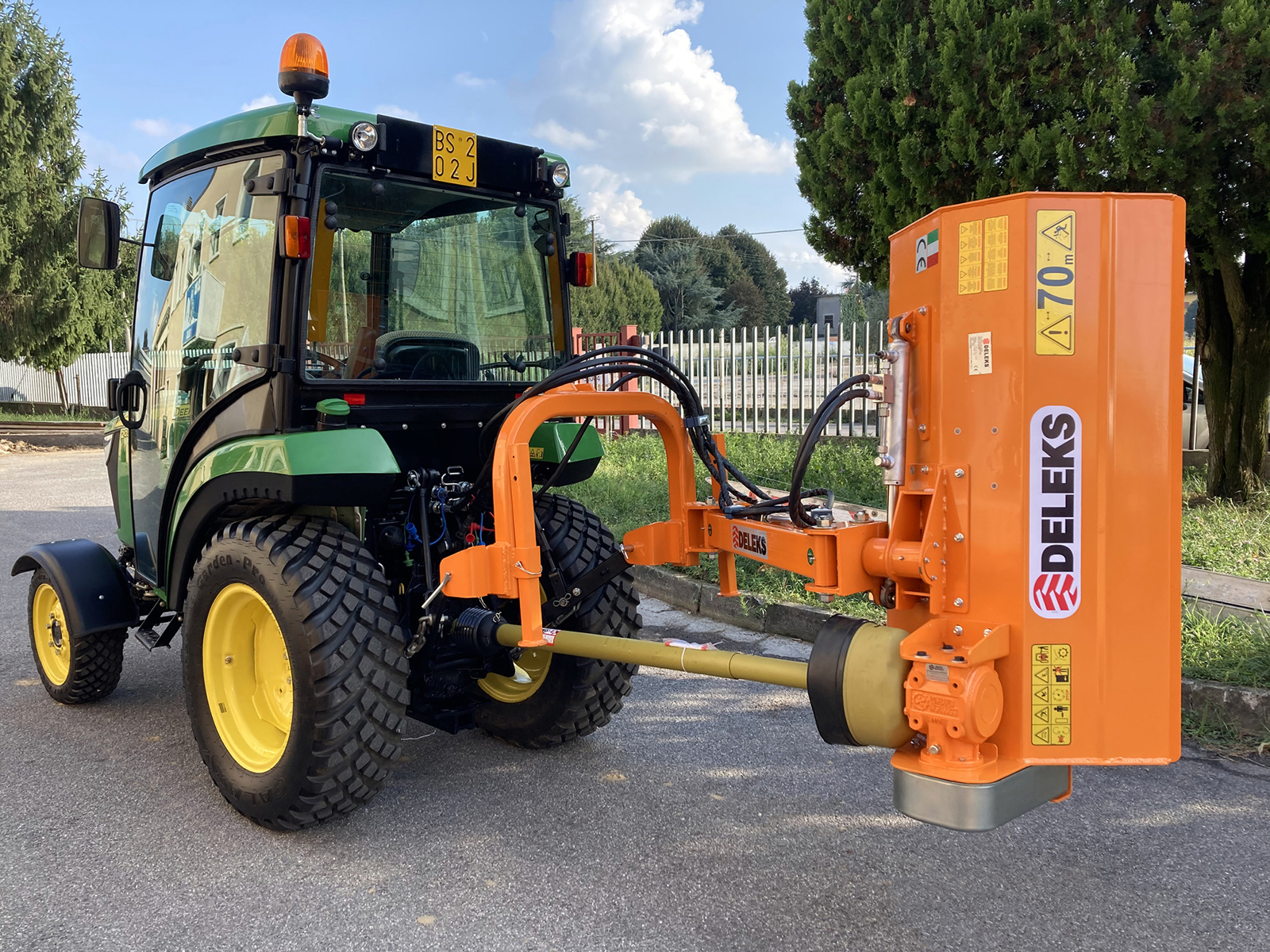

When tilted up or down the flail will cut slopes on verges or ditches. Finally it can be set up to cut vertically for the sides of lower hedgerows. 3 point linkage, Cat.1, 4 hydraulic pipes, Pto shaft 140cm CE included.
BENEFITS AND FEATURES
Frame entirely made with Swedish SSAB steel.

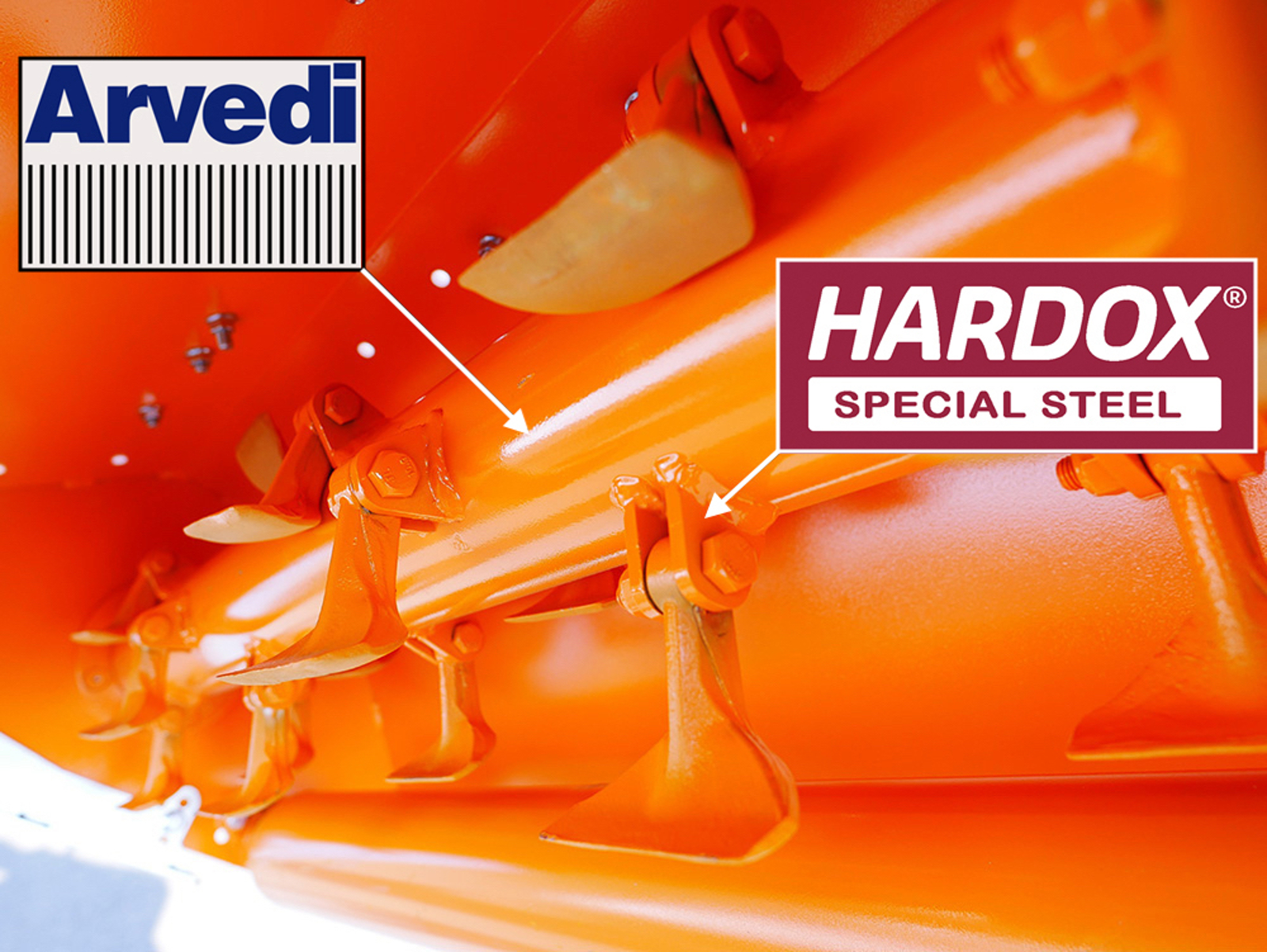

Rotor made with ARVEDI's tube, electronically balanced, 8mm thick S355 steel with hammers mounted on 6 rows instead of 4.
Hammers attachments HARDOX made.
SKF rotor bearings.

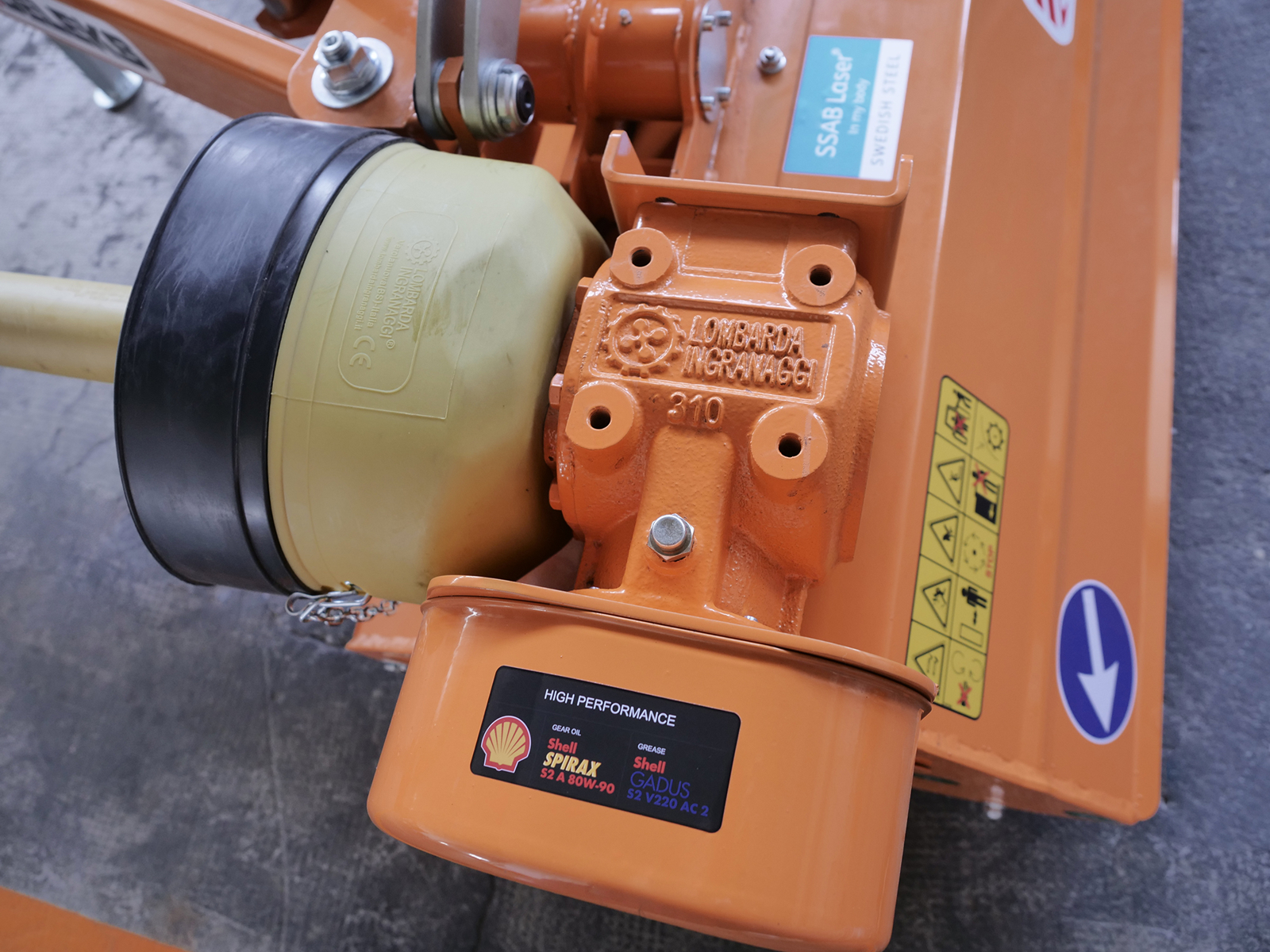

Gearbox P.T.O. 540 r.p.m. Lombarda Ingranaggi Srl with free-wheel (3 Years warranty).

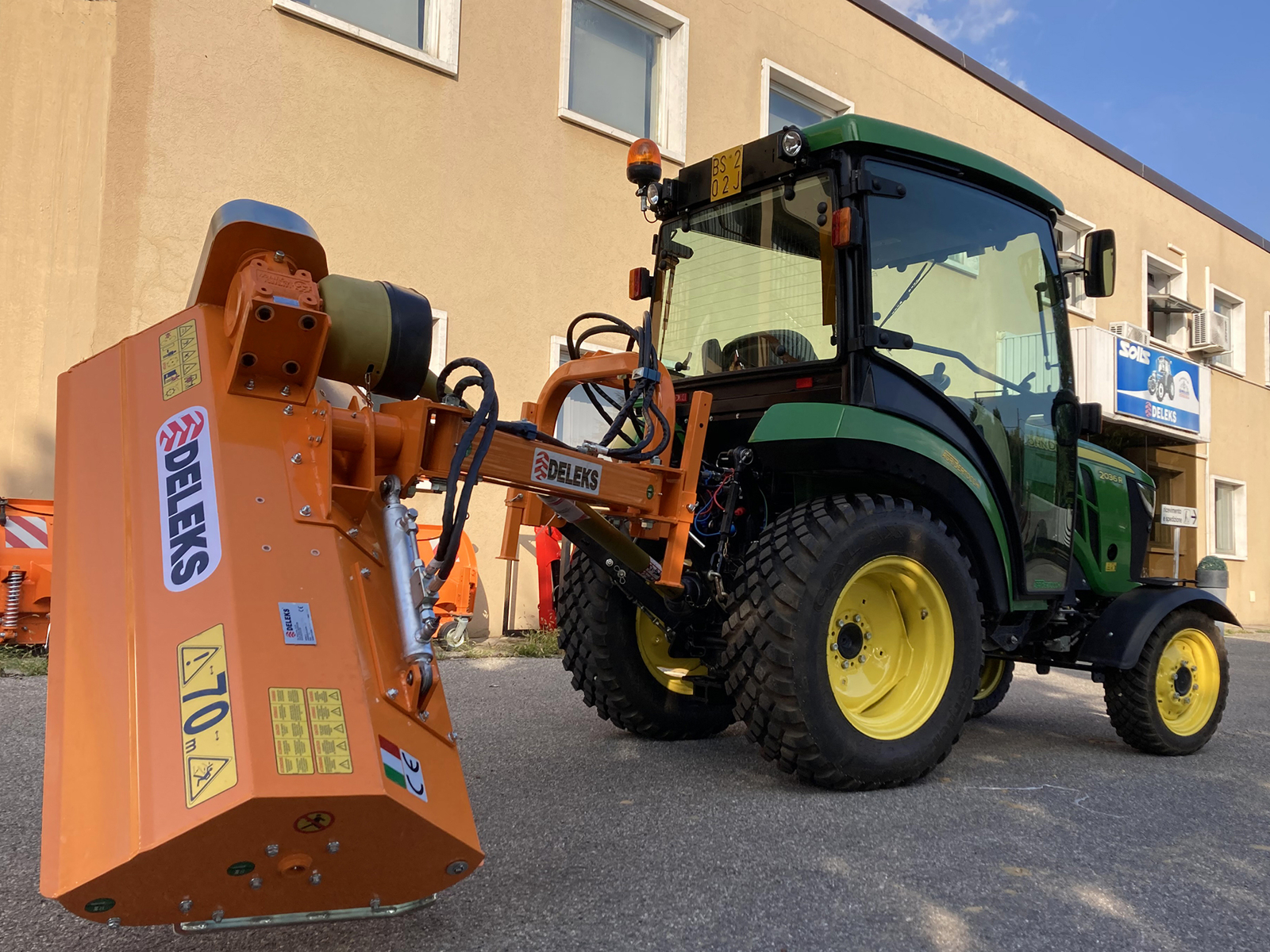

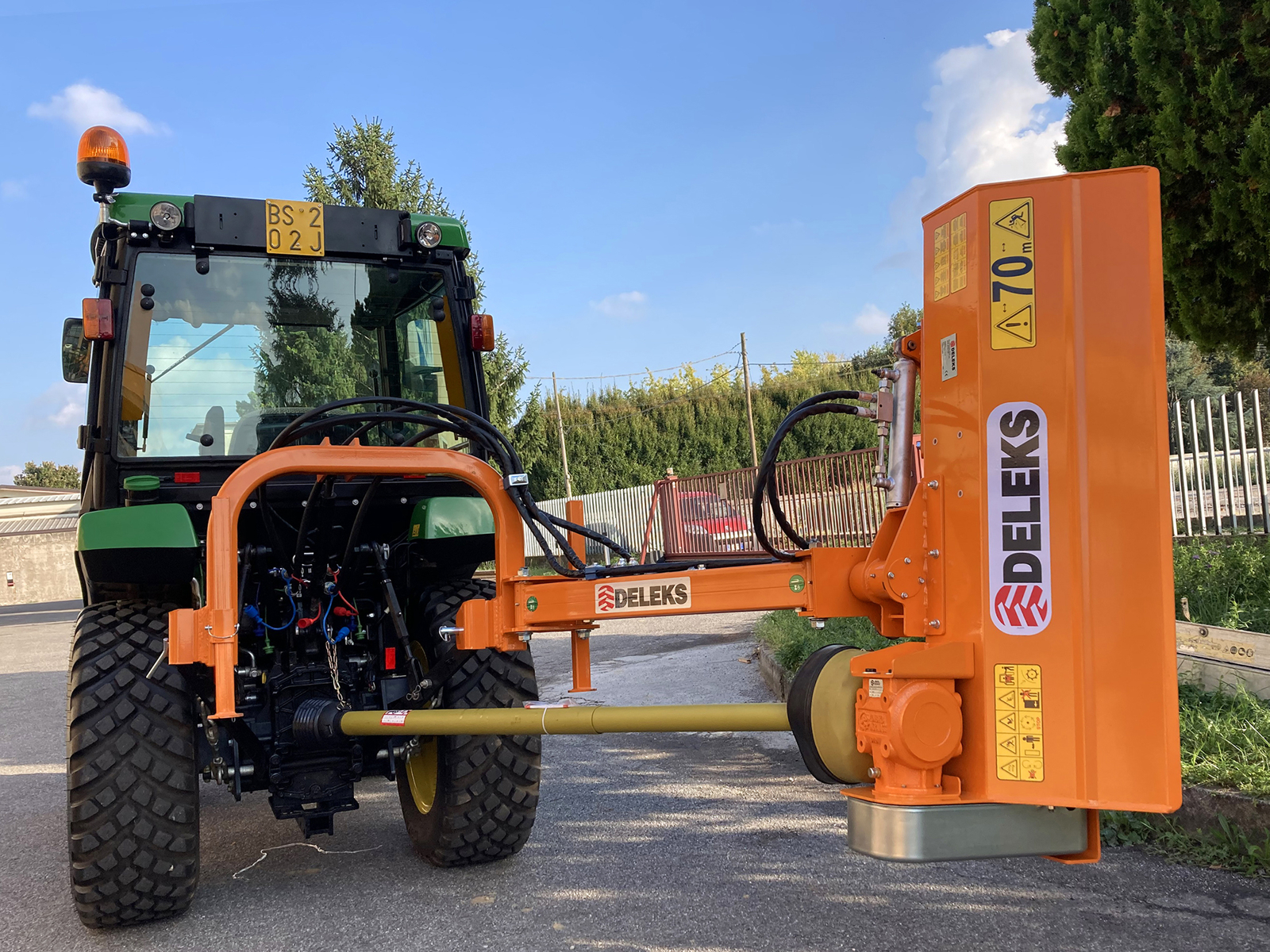

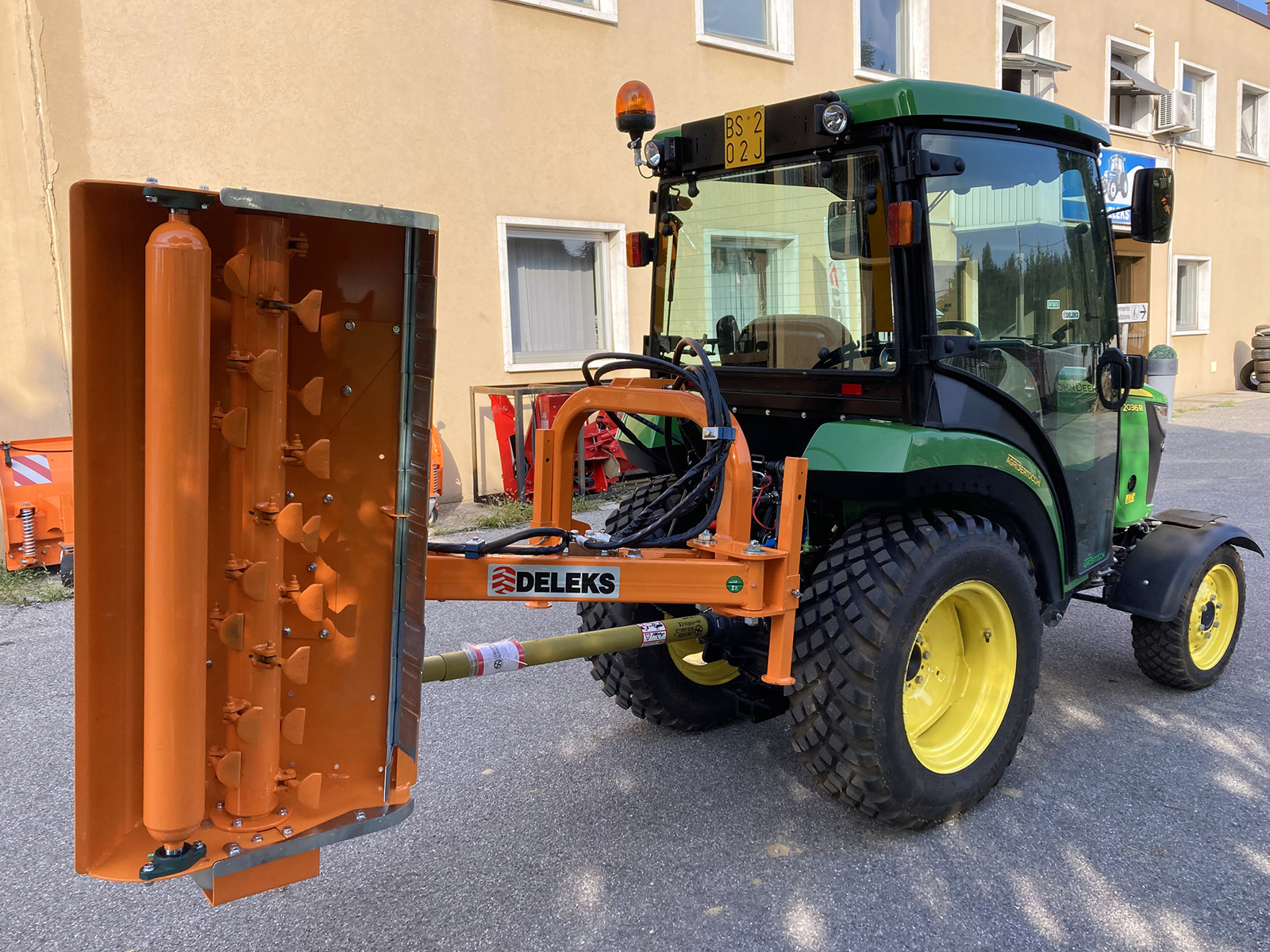

Can be hydraulically angled vertically (88º) or down (60º).
Operates horizontally inline or offset for verge or paddock.
It cuts between trees easily making it ideal for work in orchards.
Internal Gearbox to work directly behind the tractor or right of the central axis.
The body is equipped with an internal curb which diverts the air flow towards the rotor for a mulching effect.
The internal positioning of the roller gives more efficiency and reduced execution times. The cutted grass passes over the roller without being crushed and is disposed of more quickly.
330g heat forged hammers to shred vegetation up to 2,0-3,0 cm thick.
3 High resistance toothed belts, and external belt tensioner.
Adjustable roller unit and side skids.
CHARACTERISTICS
Characteristic | Units metric | Units US |
---|---|---|
Working width | 1200.0 mm | 3.94 ft |
Overall width | 1320.0 mm | 4.33 ft |
Min / Max cutting height | 10.0 - 45.0 mm | 0.4 - 1.77 in |
Weight | 180.0 kg | 397.0 lb |
Overall height | 750.0 mm | 2.46 ft |
Tractor Power Range | 25 - 45 Hp | 25 - 45 Hp |
3 point linkage | Cat. 1 (ø 19.0-22.0mm) | Cat. 1 (ø 19.0-22.0mm) |
Position of the gearbox | Internal | Internal |
Hood height | 370.0 mm | 14.5 in |
Spacing between the 2 lower points | 655.0 - 755.0 mm | 25.78 - 29.73 in |
Number of Hammers | 18 | 18 |
Maximum cutting diameter | 20.0 - 30.0 mm | 0.78 - 1.18 in |
Overall length | 1550.0 mm (closed) | 5.08 ft (closed) |
Distance between pto attachment and ground | 472.0 mm | 18.6 in |
Main hood thickness | 3.0 mm | 0.12 in |
Sides thickness | 5.0 mm | 0.20 in |
Side plates thickness | 6.0 mm | 0.23 in |
Transmission: Drive method | V-Belts | V-Belts |
Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) (3 year warranty) | Lombarda Ingranaggi Srl (Italy) (3 year warranty) |
Transmission: PTO | 540 r/min | 540 r/min |
Transmission: Rotation of gearbox | Right side | Right side |
Transmission: Free wheel | √ | √ |
Transmission: RPM Rotor speed | 3150.0 rpm | 3150.0 rpm |
Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
Transmission: Top pulley ø | 206.0 mm | 8.11 in |
Transmission: Lower pulley ø | 106.0 mm | 4.17 in |
Transmission: V-Belts quantity | 3 | 3 |
Transmission: V-Belts size | AX39 | AX39 |
Rotor: diameter | 102.0 mm | 4.01 in |
Rotor: bearings type and size | SKF UCF-207 | SKF UCF-207 |
Rotor: balancing | Electronic | Electronic |
Rotor: sheet thickness | 8.0 mm | 0.31 in |
Hammers: Weight | 330.0 g | 11.7 oz |
Hammer: øhole | 11.0 mm | 0.43 in |
Hammer: base width | 80.0 mm | 3.15 in |
Hammer: top width | 14.0 mm | 0.55 in |
Hammer: Diagonal | 75.0 mm | 2.95 in |
Rear roller: diameter | 102.0 mm | 4.01 in |
Rear roller: sheet thickness | 4.5 mm | 0.18 in |
Rear roller: bearings type and size | FL204 | FL204 |

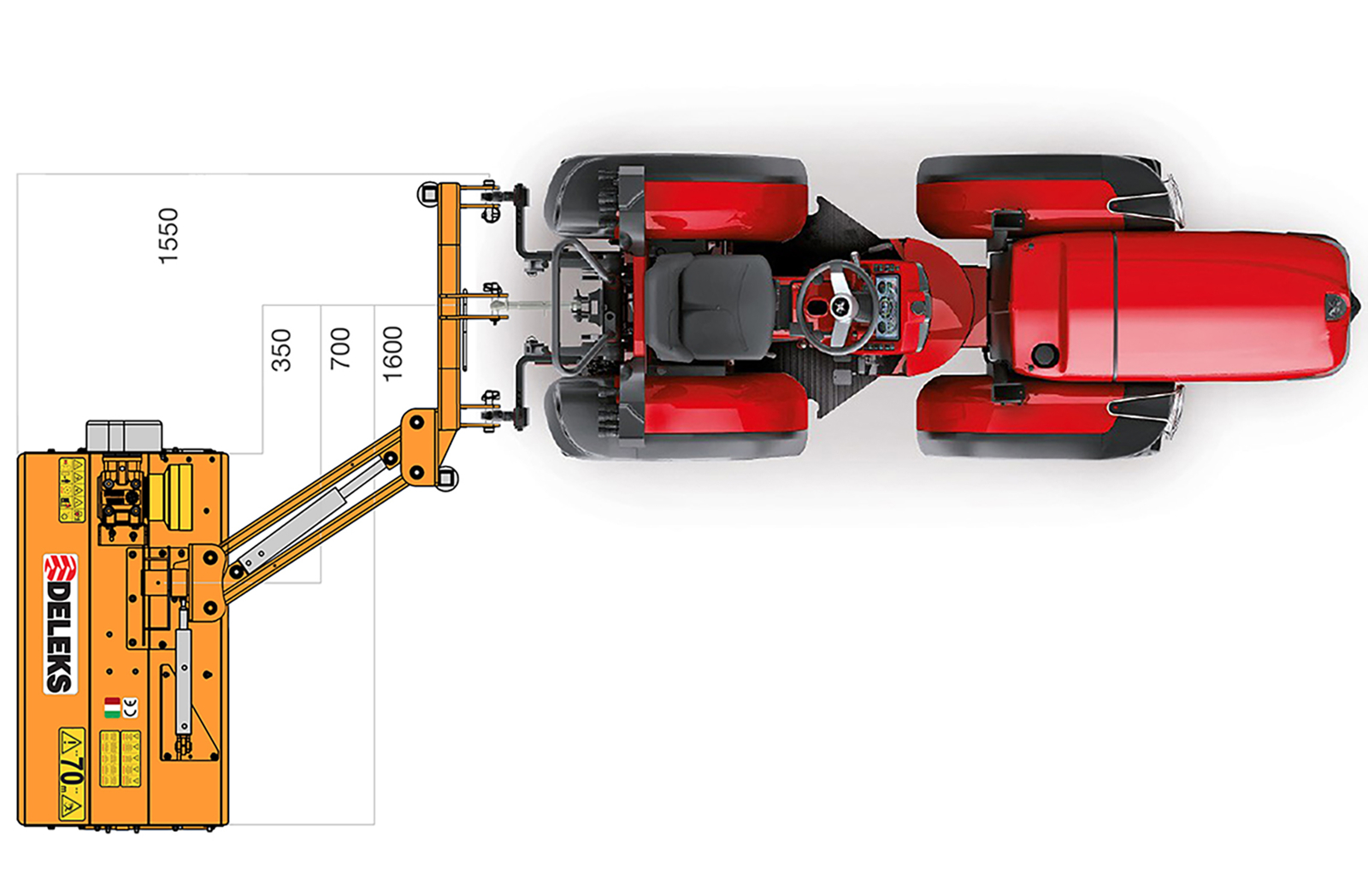

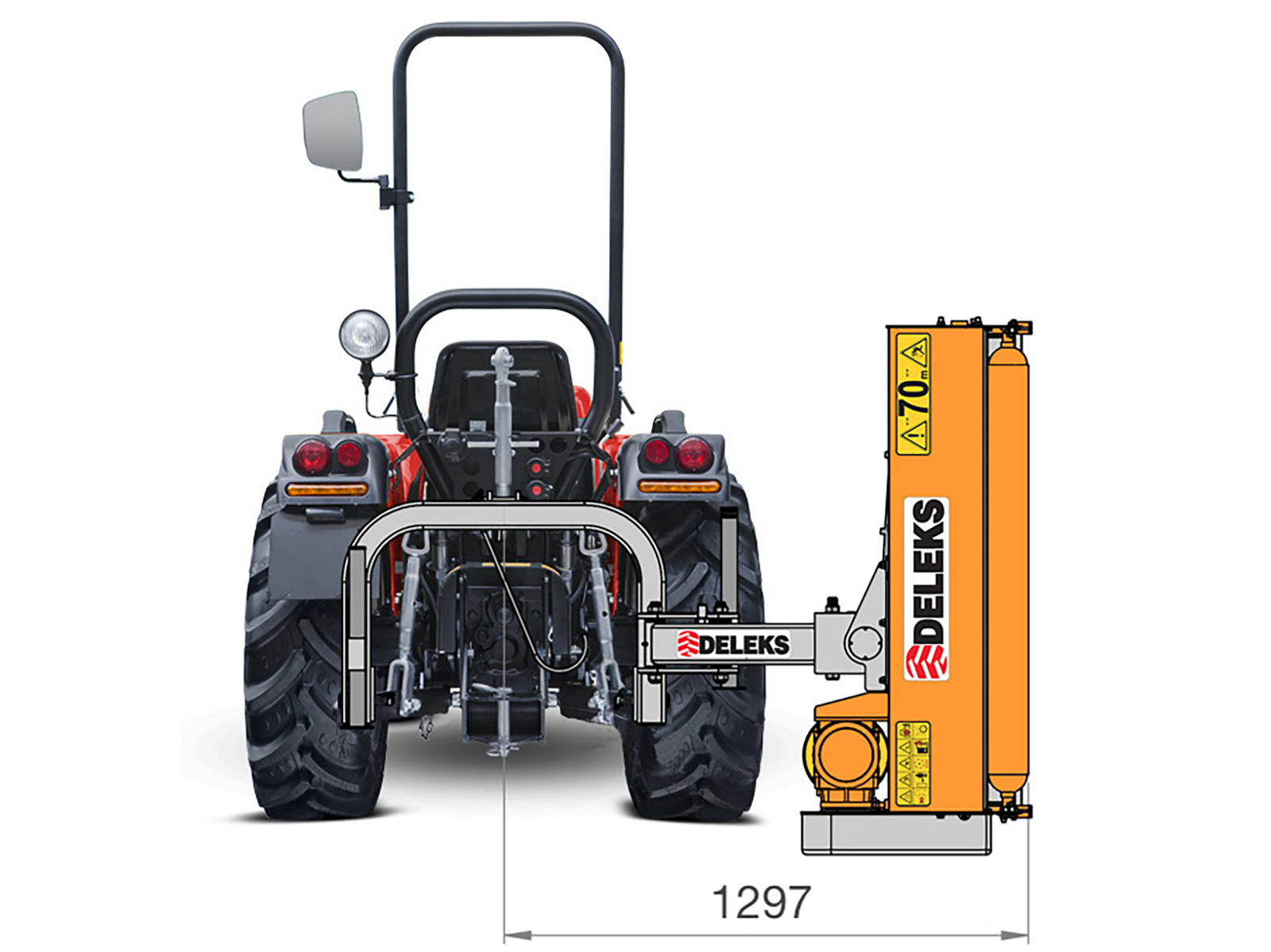

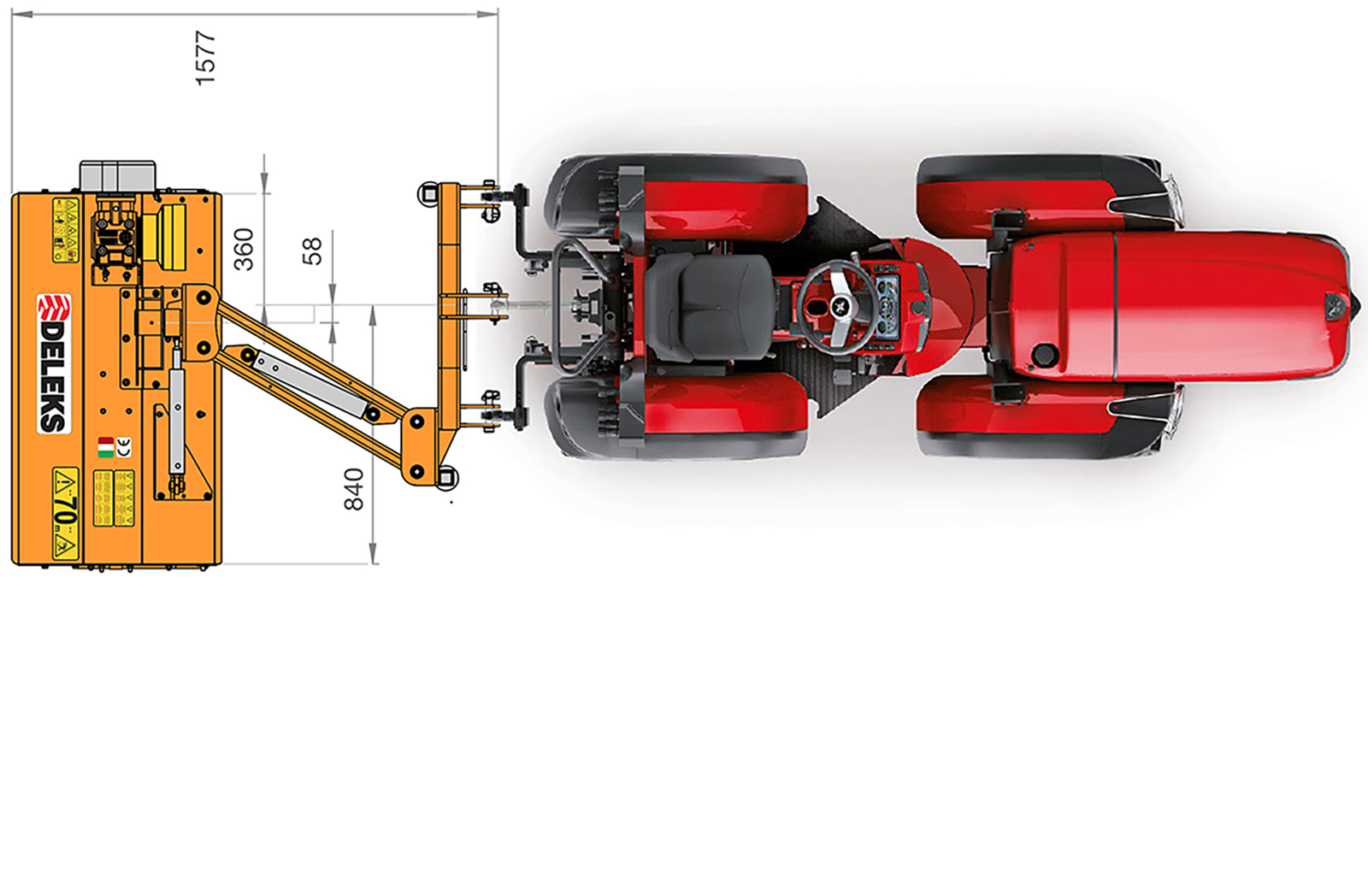

Displacement and Sizes | See pictures | See pictures |

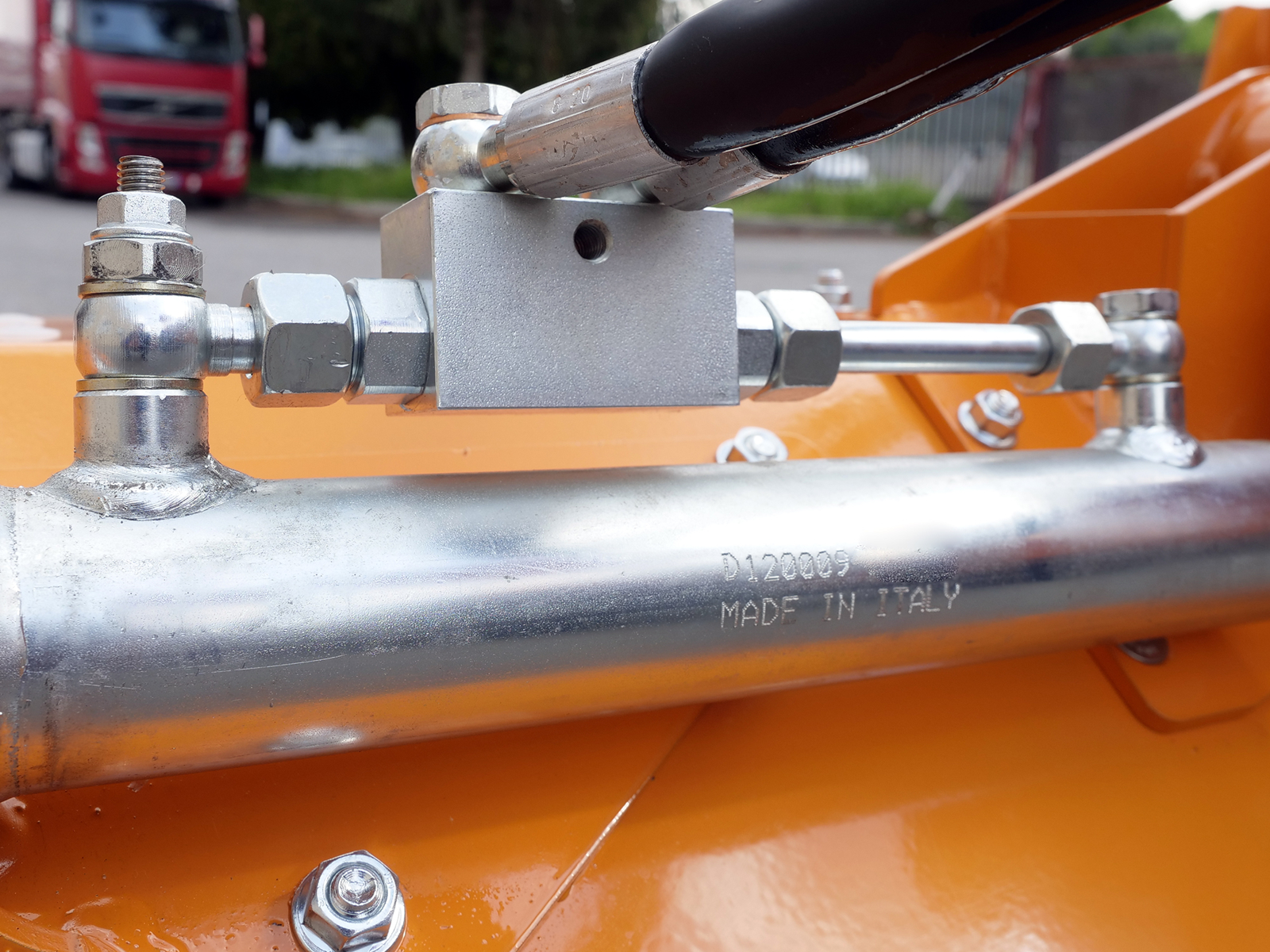

Hydraulic cylinder A diam. | 50.0-25.0 mm | 1.97 - 0.98 in |
Hydraulic cylinder B diam. | 60.0-30.0 mm | 2.36 - 1.18 in |
Min./Max. Relief Pressure | 120 - 150 bar | 120 - 150 bar |
Min./Max. Flow | 18 - 22 l/min | 18 - 22 l/min |
Hydraulic Hoses | WP 400 Bar, 1/2" Agri Standard | WP 400 Bar, 1/2" Agri Standard |

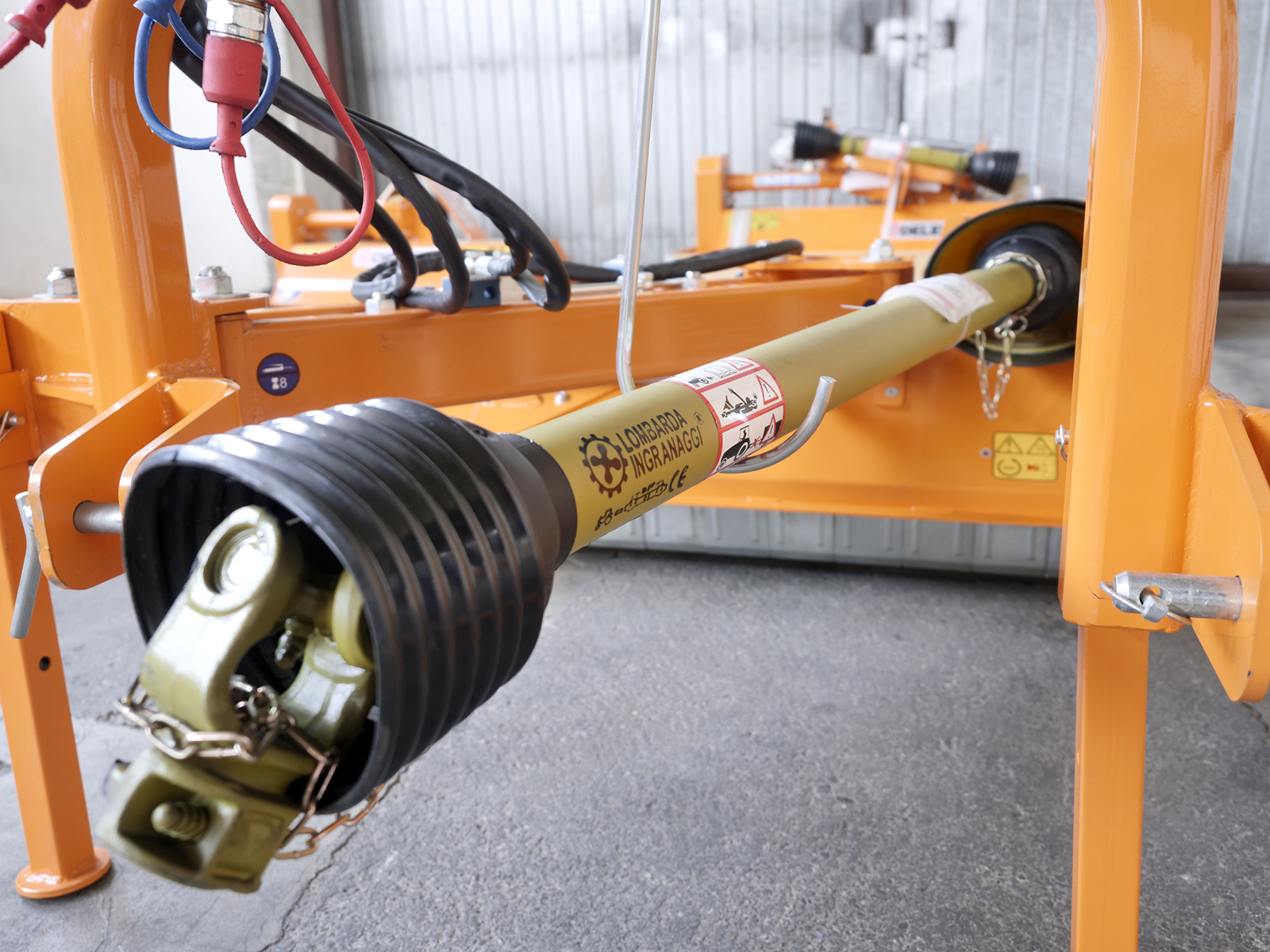

Pto shaft | CE 4x1400 mm | CE 4x4.60 ft |
Hood length | 665.0 mm | 26.20 in |
Packing sizes | 1350.0*850.0*700.0 mm | 4.43*2.80*2.30 ft |
Certifications
SSAB Acciaio Svedese Laser 355C: Specifiche e Certificazione | Download PDF |
ARVEDI / TUBINDUSTRIA: Certificazione | Download PDF |
Technical charts
Shell Spirax S2 A 80W-90 | Download PDF |
Shell Gadus S2 V220AC 2 | Download PDF |
Download PDF | |
Download PDF |
