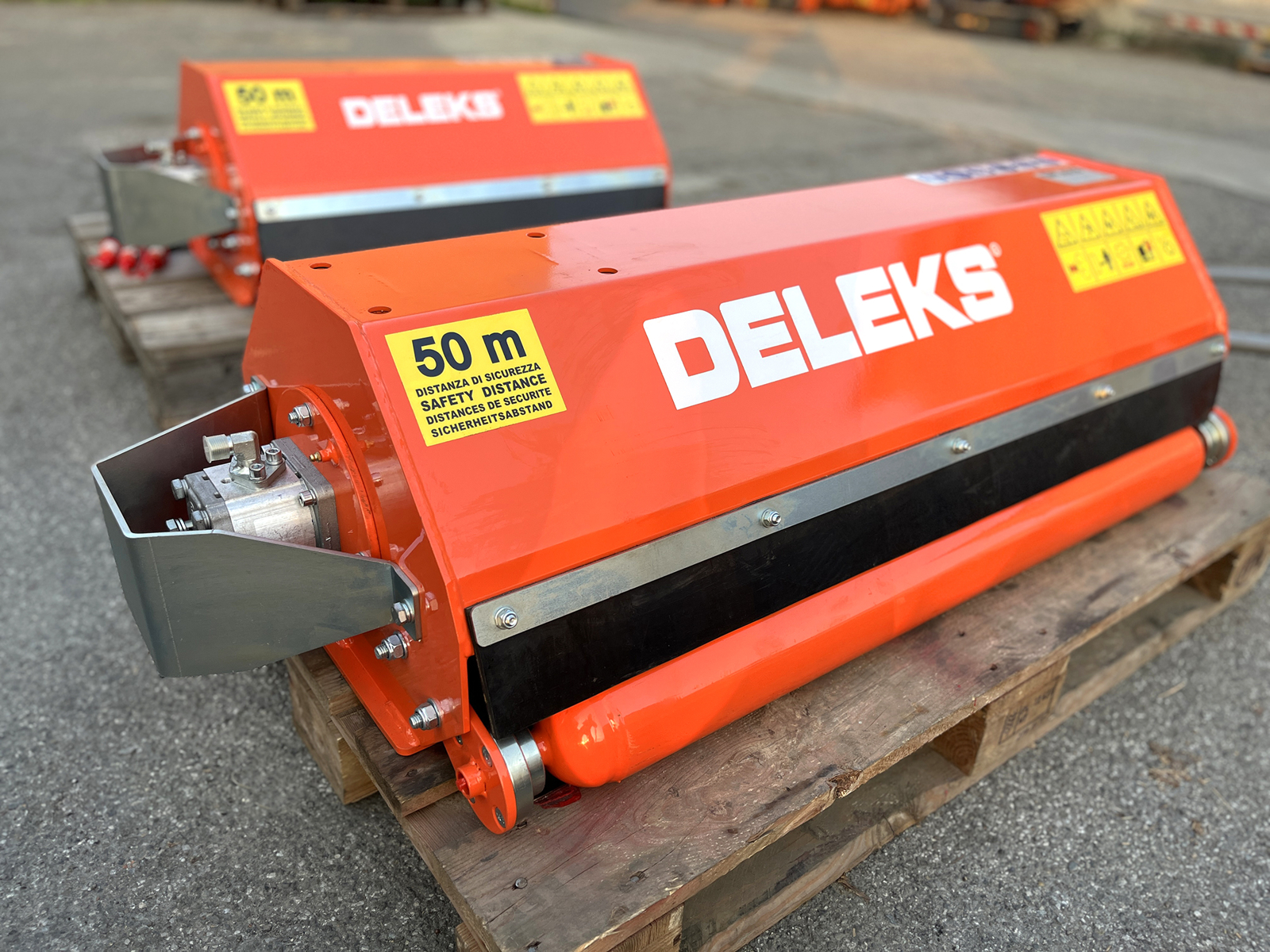

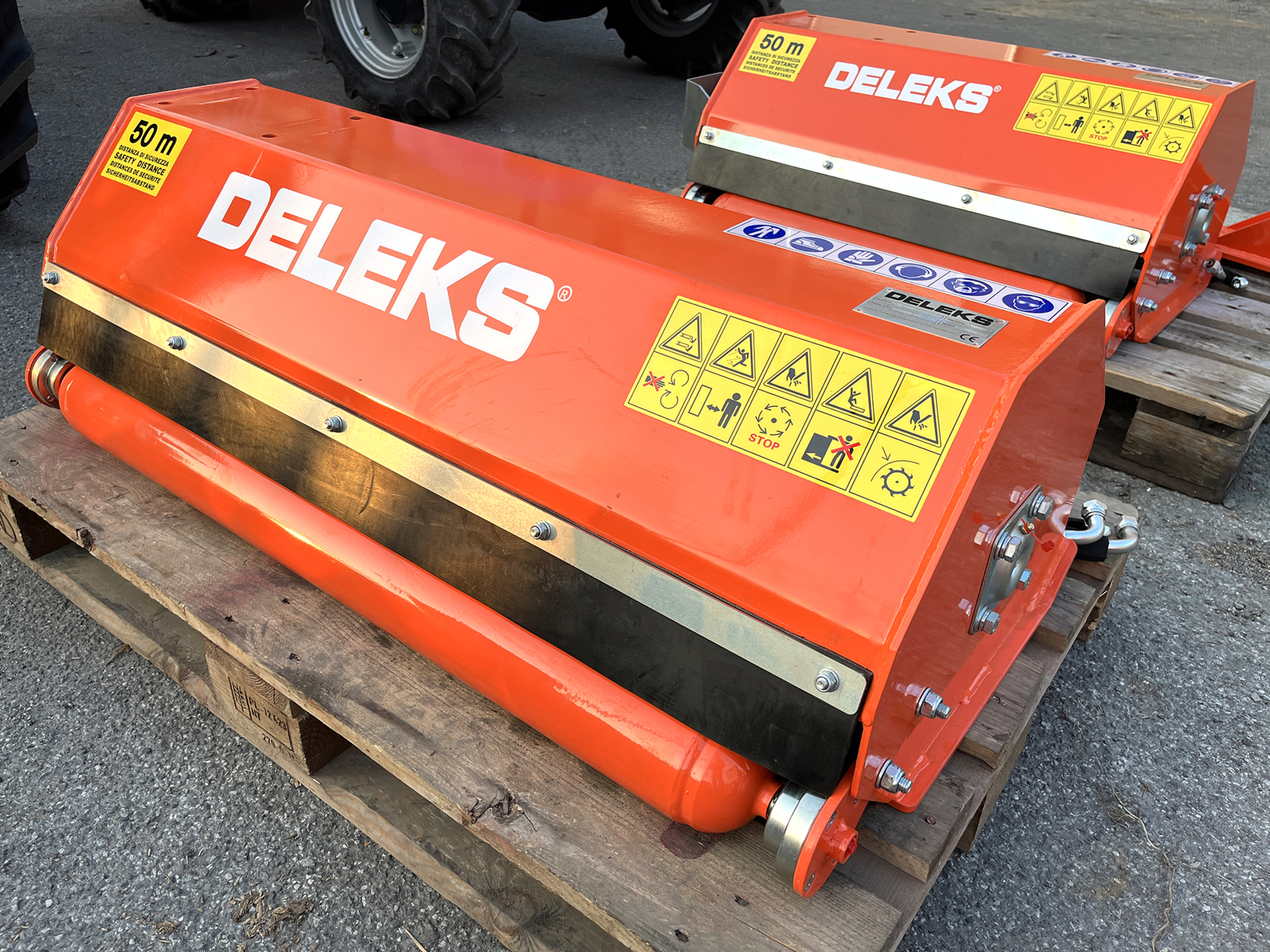

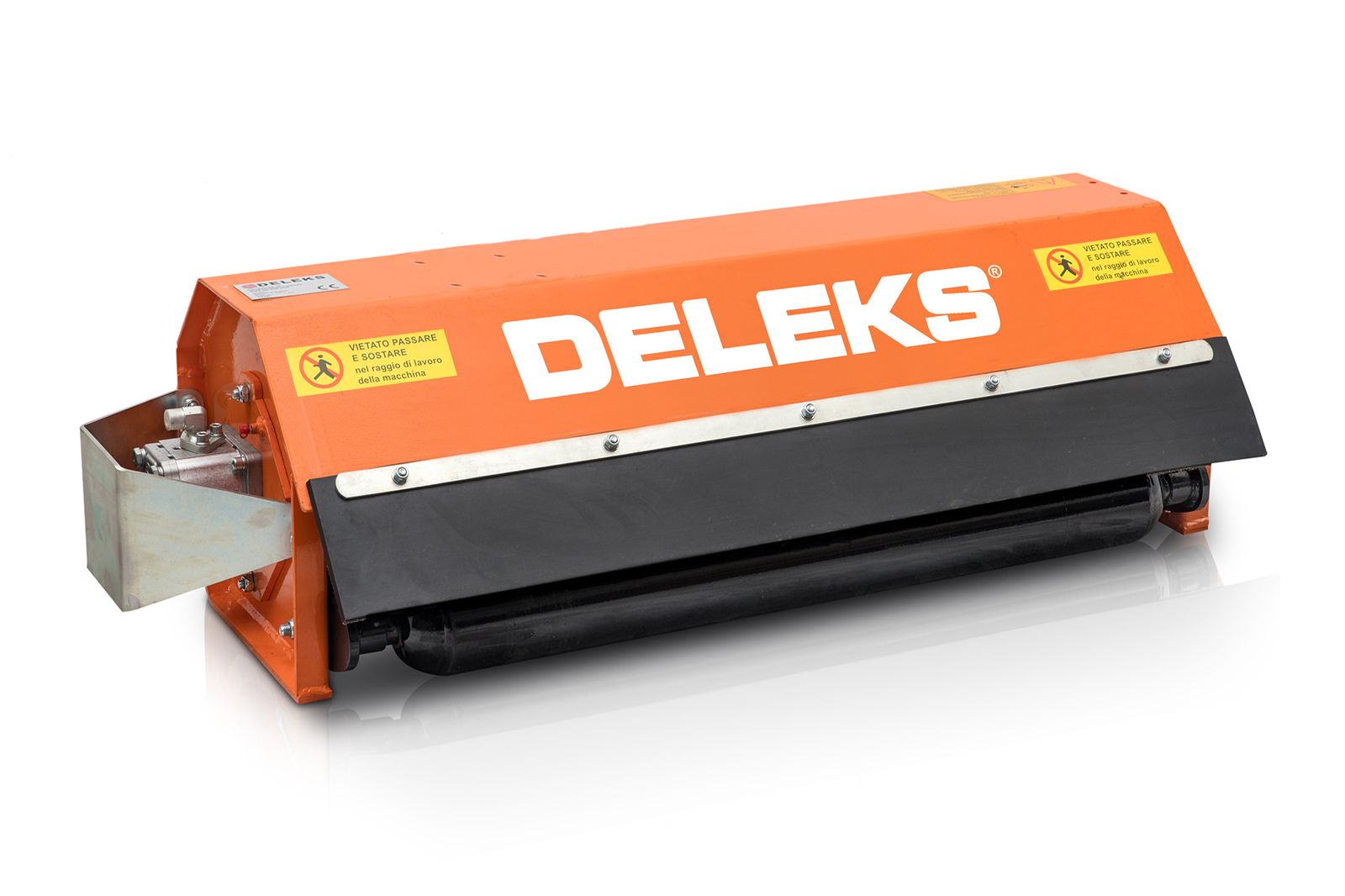

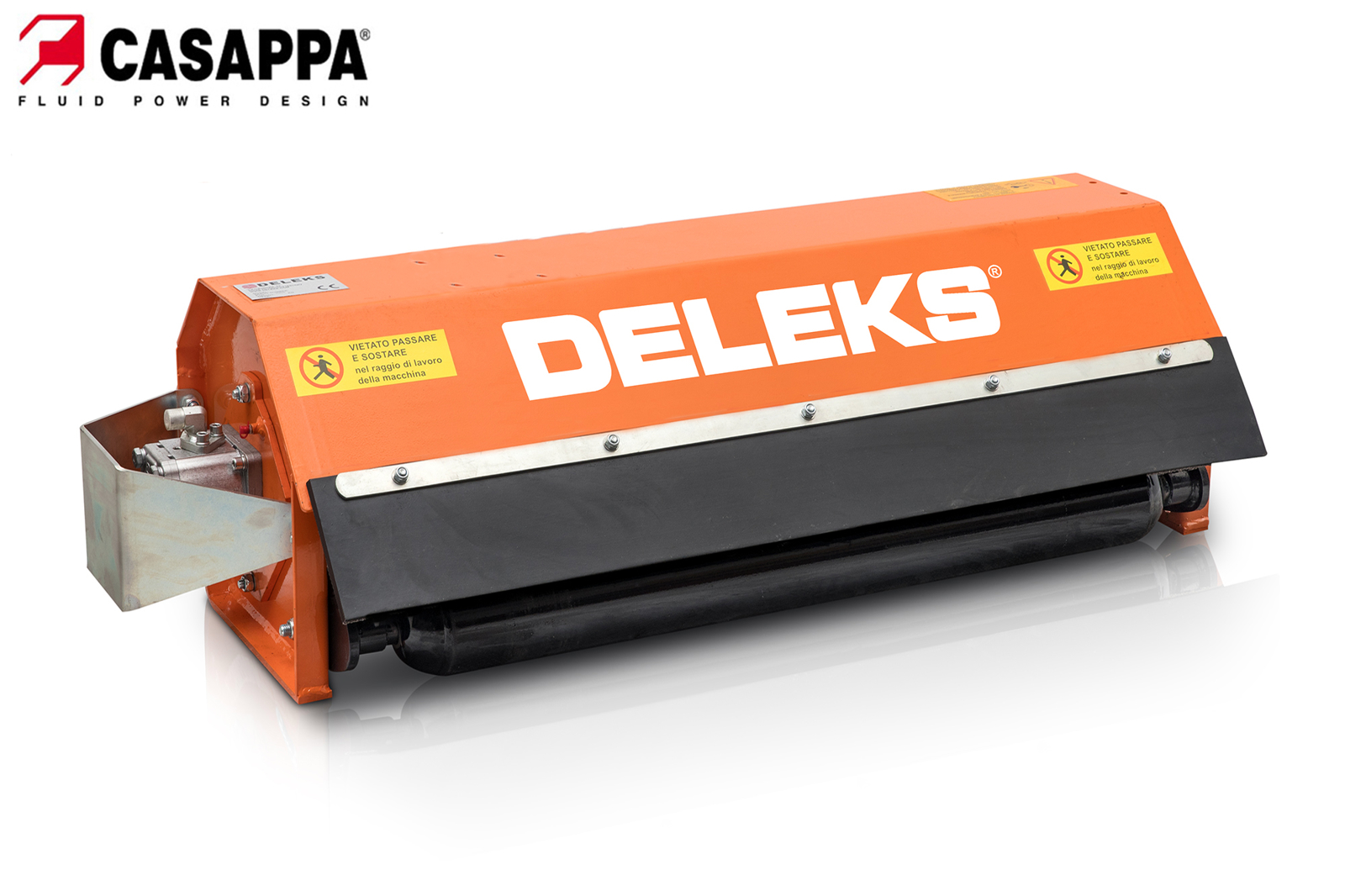

Miniexcavator Mulcher Head - 110cm - hydraulic shredder
DETAILS

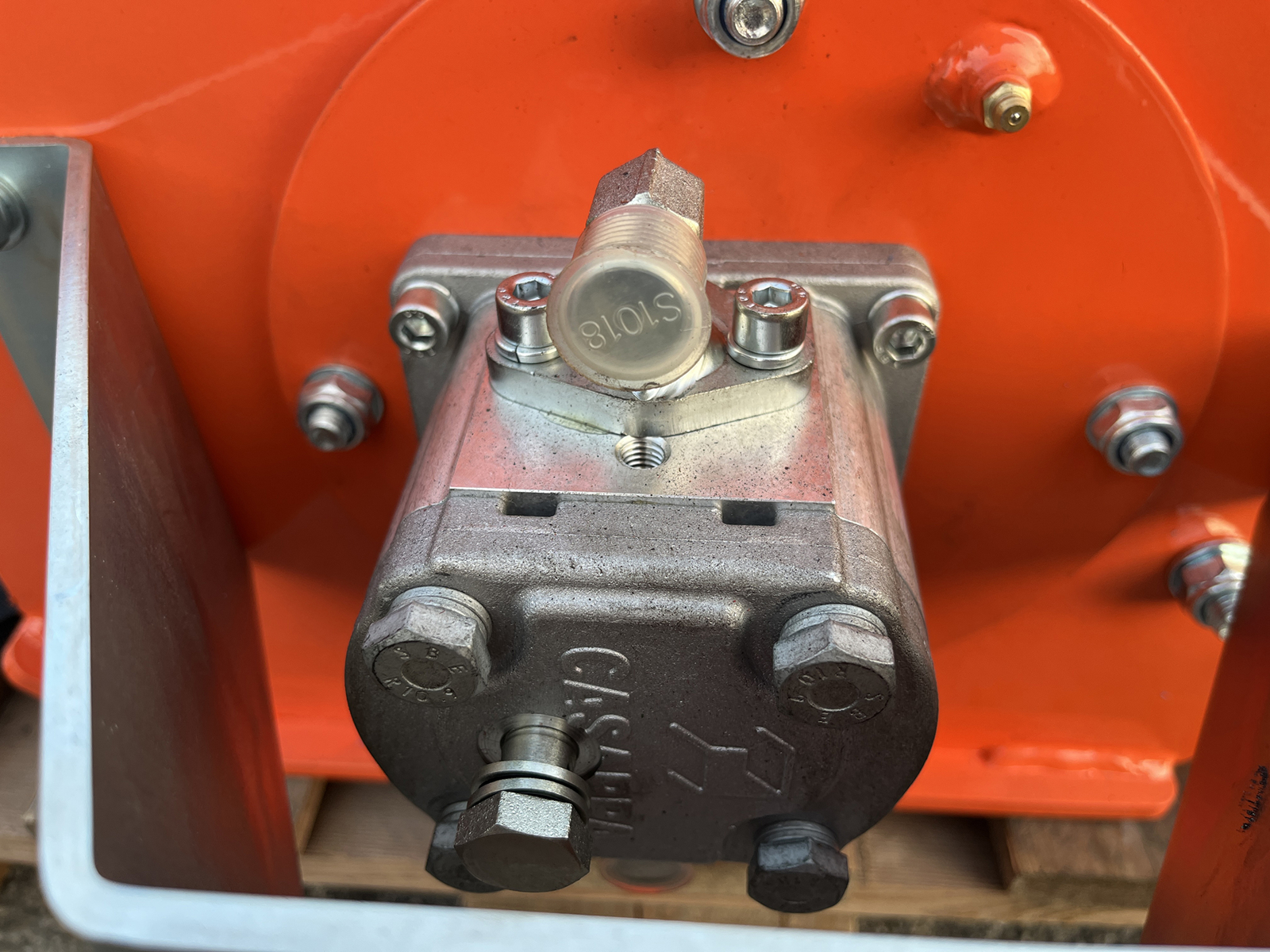

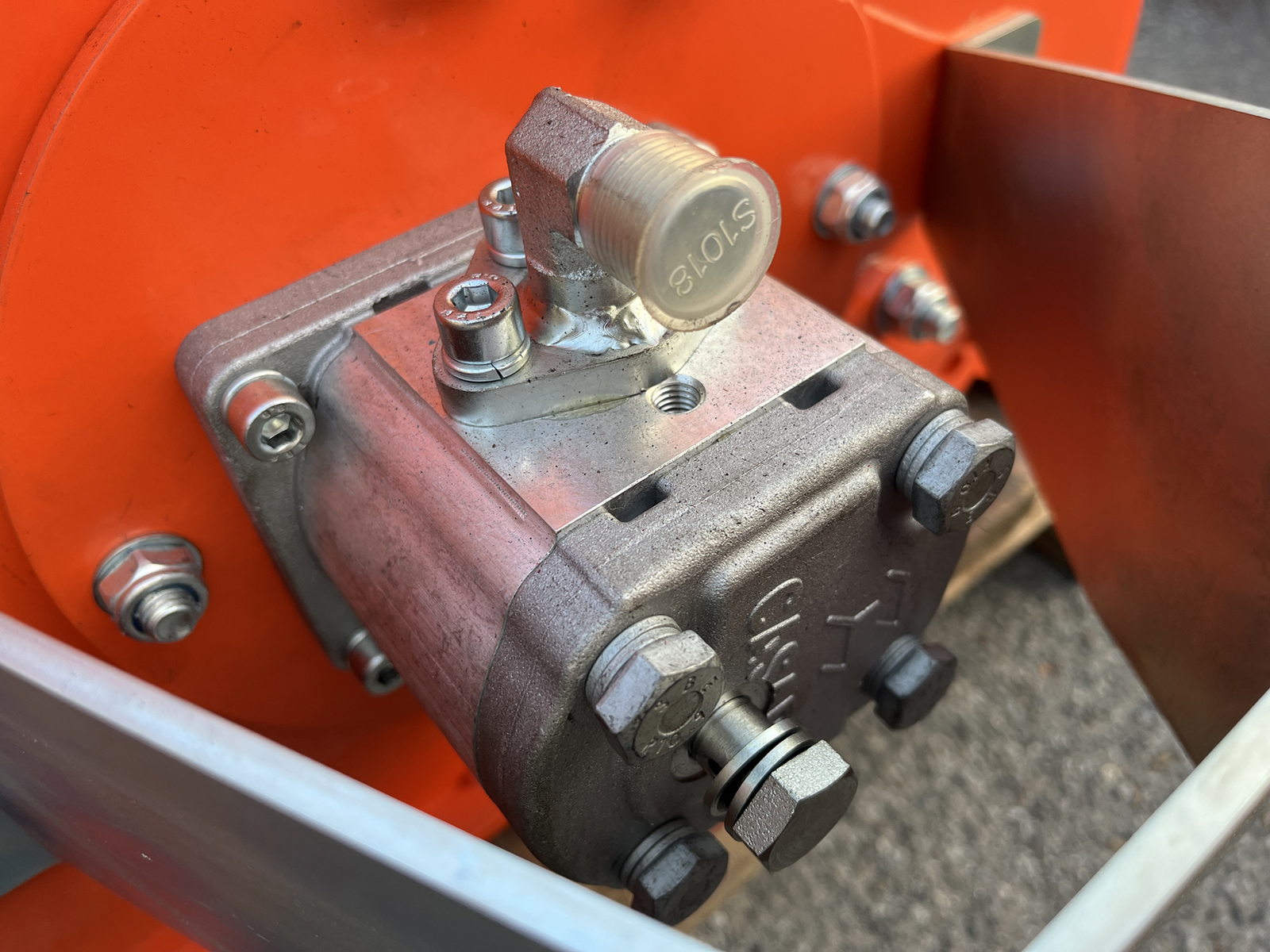

Digger Flail Shredder Head - DELEKS® - hydraulic brush cutter for mini excavators 1.0-2.0 ton- 110cm - Hydraulic motor Made in Italy, 2 years warranty
Shredder for mini excavators of 1.0-2.0 tons.
Hydraulic threscher, brush-cutter for brambles, bushes, ditches, banks, embankments, branches.
Suitable for Mini-excavator brands as Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, etc.

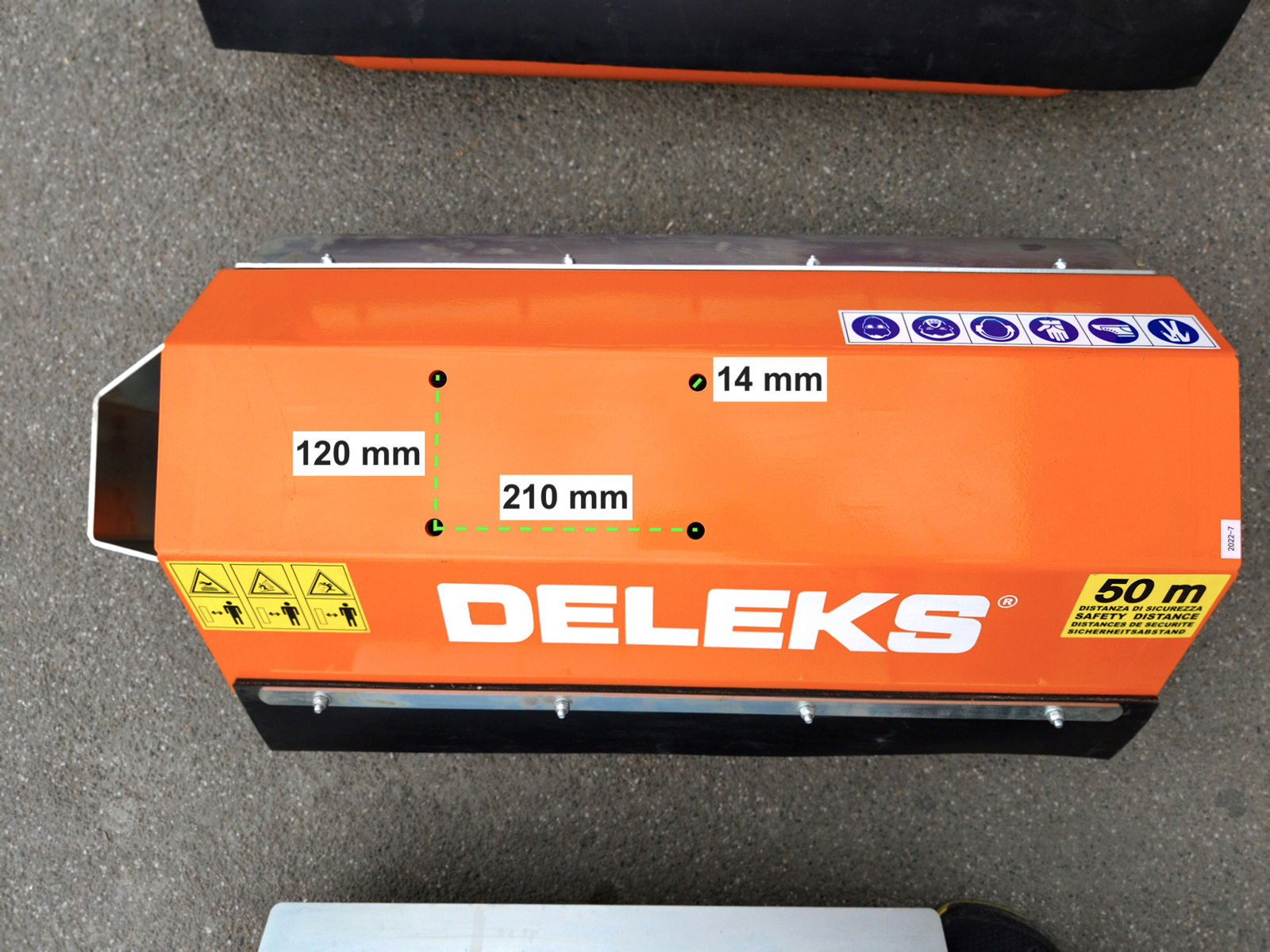

Attachment measures: see pictures (Alternatively we can make an ad-hoc linkage on design. An additional production cost will be applied).
Requirements for the operating machine:
a) Preferable with double pump:
1 for the crawler
1 for operation of the mulcher (pump capacity at least 25/30 l / min)

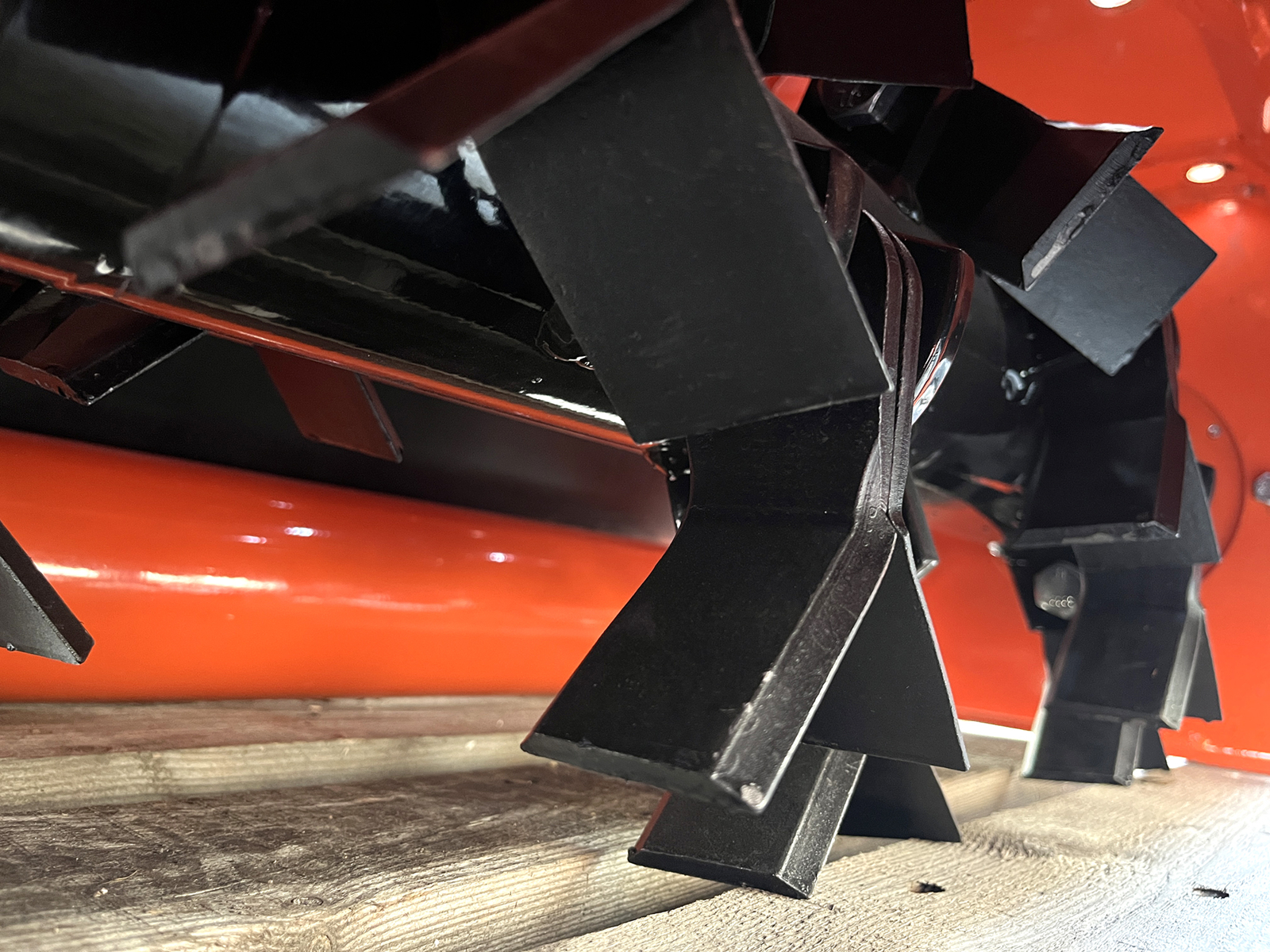

b) The rotation of the knives goes in both directions (a double-acting pedal is necessary).
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1100.0 mm | 3.60 ft |
| Overall width | 1320.0 mm | 4.33 ft |
| Min / Max cutting height | 20.0 - 80.0 mm | 0.8 - 3.15 in |
| Weight | 120.0 kg | 265.0 lb |
| Hood height | 360.0 mm | 14.2 in |
| Maximum cutting diameter | 30.0 mm | 1.2 in |
| Main hood thickness | 4.0 mm | 0.16 in |
| Transmission: RPM Rotor speed | 1500 r/min | 1500 r/min |
| Rotor: diameter | 108.0 mm | 4.25 in |
| Rotor: bearings type and size | UC207-6007 | UC207-6007 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 8.0 mm | 0.30 in |
| Rear roller: diameter | 102.0 mm | 4.00 in |
| Rear roller: sheet thickness | 4.0 mm | 0.16 in |
| Rear roller: bearings type and size | φ25 | φ25 |
| Min./Max. Relief Pressure | 120 - 150 bar | 120 - 150 bar |
| Min./Max. Flow | 25 - 30 l/min | 25 - 30 l/min |
| Hood length | 650.0 mm | 2.13 ft |
| Number of Blades | 44 | 44 |
| Blades: Weight | 330.0 g | 11.65 oz |
| Packing sizes | 1320.0*600.0*500.0 mm | 4.33*1.97*1.65 ft |
