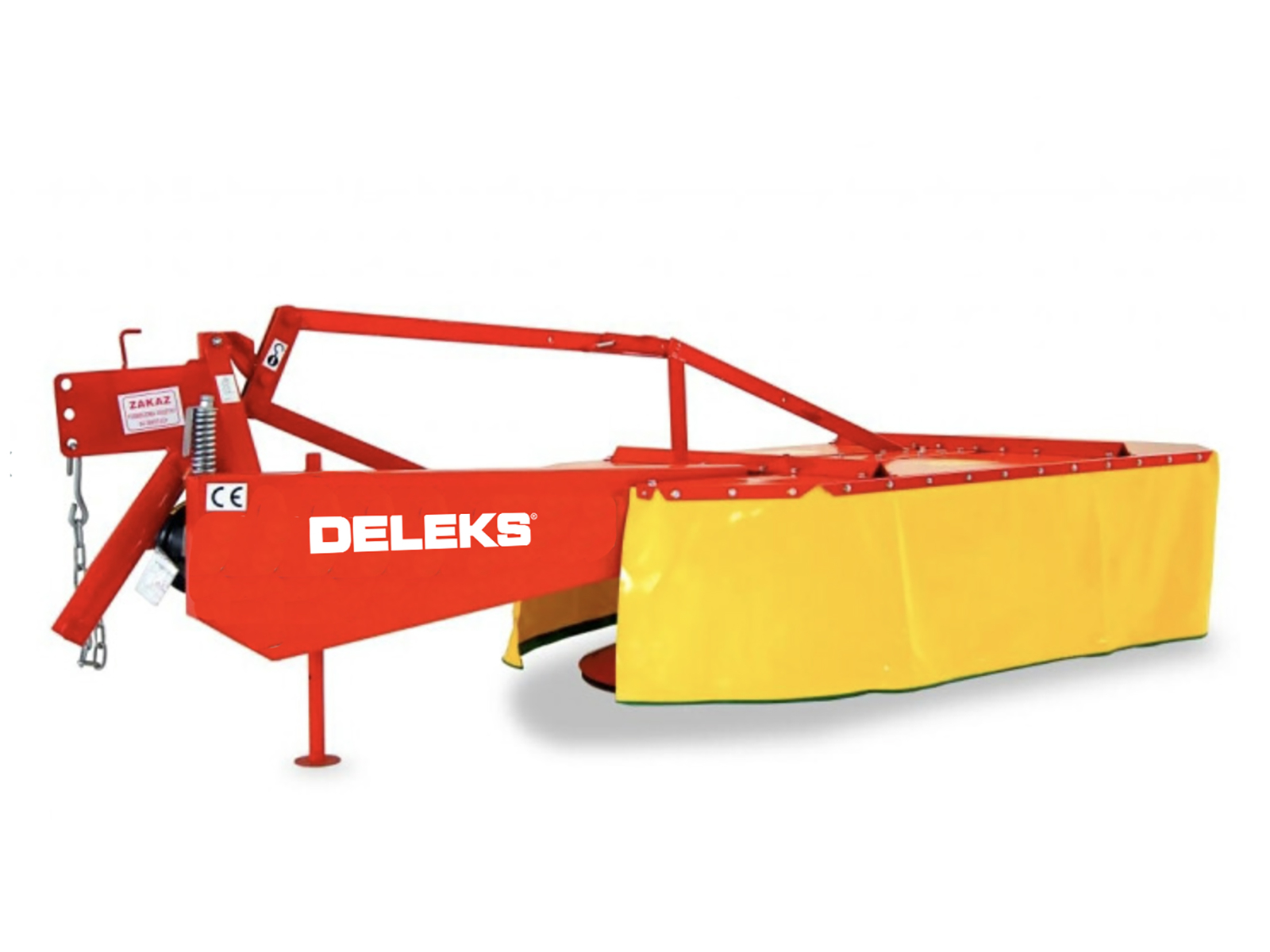

Drum mower for tractor - 185cm / 430kg - DELEKS® DFR-185 - Hydraulic lift - Pto shaft CE included.

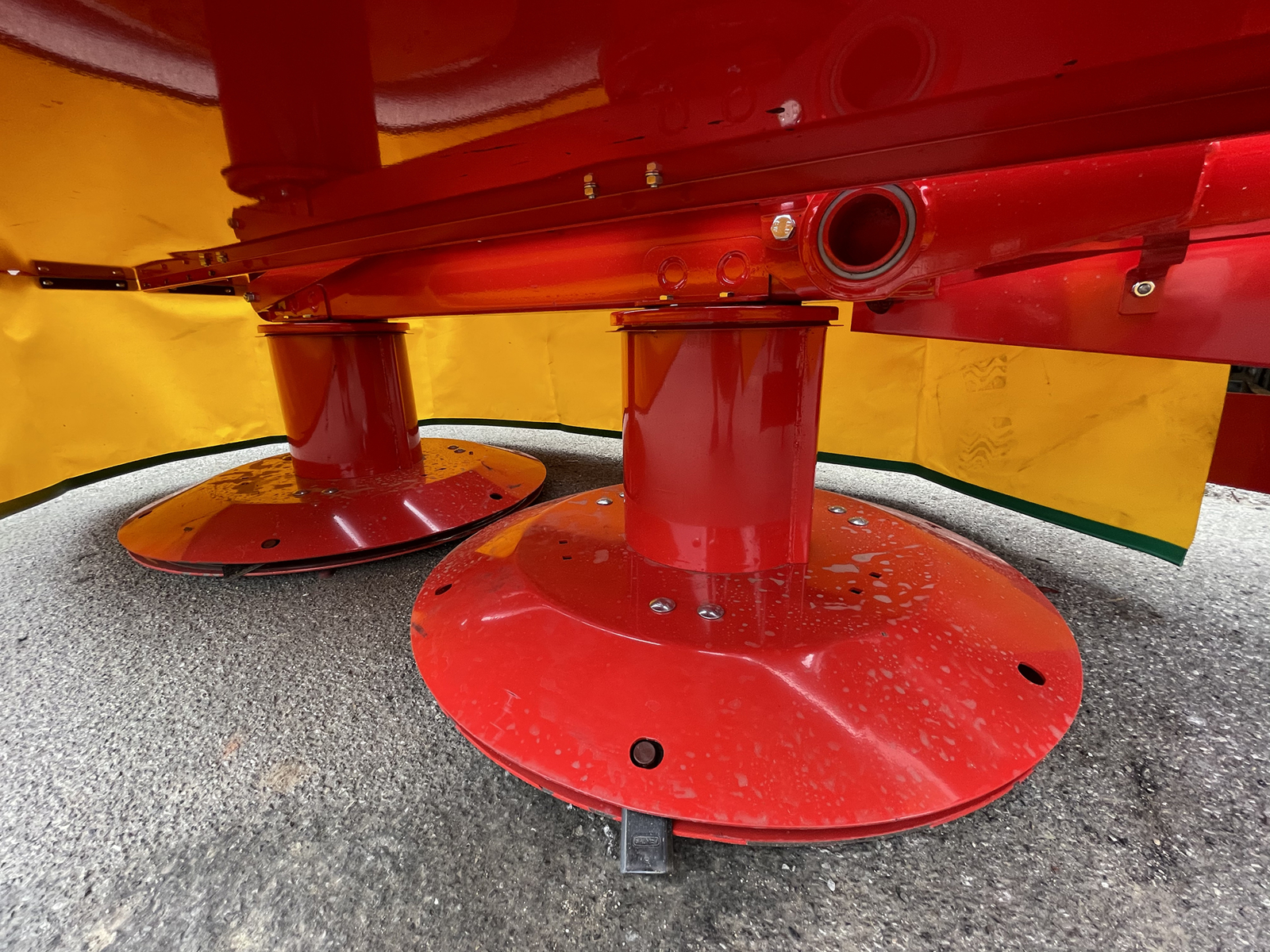

DFR-185H Rotary Drum mower considerably reduces the hay making times with its simple but solid and sturdy construction, the drum has a fixed supporting axle and appropriately sized transmission assemblies. It uses two discs to operate. The lower disc, which rotates freely, prevents the cutting disc from sinking into the soils so can be used on flat ground and uneven terrain. It fits all standard tractors 70-100 hp e.g Kubota L-M, Ford, McCormick, Massey Ferguson, John Deere 4-5, Fiat.
BENEFITS AND FEATURES
Can be lifted hydraulically for safe road transportation.
The lightweight design allows its use with low-powered tractors, on flat ground or on verges.
Safety Release to prevent damage
Easily accessible discs for changing blades.
Can be used in any conditions to make hay year round.
Spring locking system to allow for the mower to overcome obstacles and to keep the machine safe during transit.
Pto shaft CE included.
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
|Characteristic||Units metric||Units US|
|Working width||1800.0 mm||5.90 ft|
|Overall width||3300.0 mm||10.83 ft|
|Min / Max cutting height||50.0 mm||1.97 in|
|Weight||430.0 kg||948.0 lb|
|Tractor Power Range||70-100 Hp||70-100 Hp|
|3 point linkage||Cat. 2 (ø 25.0-28.0mm)||Cat. 2 (ø 25.0-28.0mm)|
|Spacing between the 2 lower points||670.0-790.0 mm||2.20-2.60 in|
|Overall length||1500.0 mm||4.92 ft|
|Distance between pto attachment and ground||530.0 mm||20.87 in|

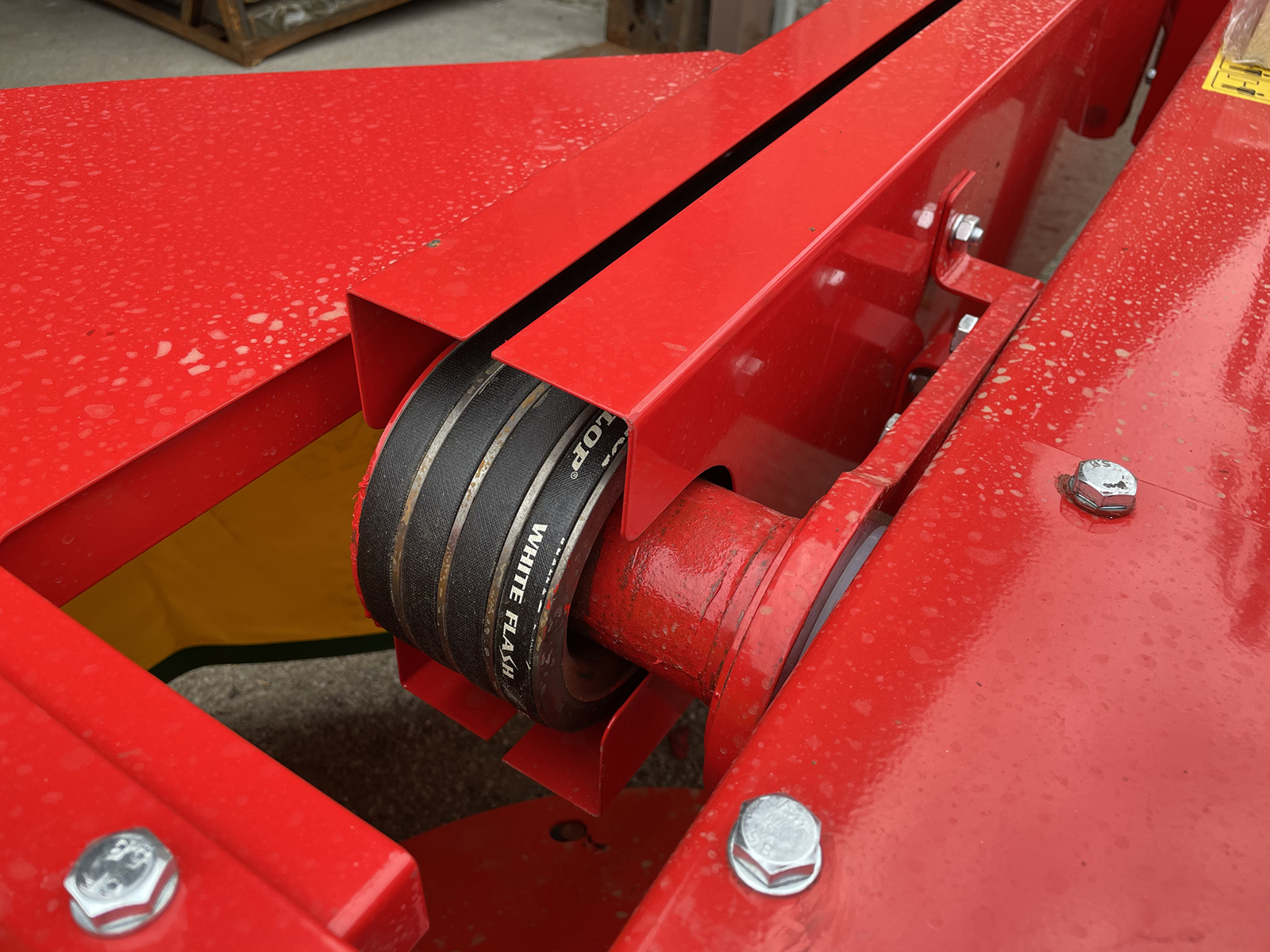

|Transmission: Drive method||V-Belts||V-Belts|
|Transmission: PTO||540 r/min||540 r/min|
|Transmission: Rotation of gearbox||Right side||Right side|
|Transmission: Free wheel||√||√|
|Transmission: Oil in the gearbox||Yes / SAE 120 - ISO 72925||Yes / SAE 120 - ISO 72925|
|Transmission: V-Belts quantity||4||4|
|Arm length||1250.0 mm||4.10 ft|
|Cover||Metal frame||Metal frame|
|Height of the drums||600.0 mm||23.62 in|
|Transmission||Bevel gears||Bevel gears|
|Pto shaft||CE 6x1000 mm||CE 6x1000 mm|
|Number of Blades||8||8|
|Blades: Weight||150.0 g||5.30 oz|
|Blades: Length/Width||95.0 / 48.0 mm||3.74 / 1.89 in|
|Blades: Diameter of the hole||18.0 mm||0.70 in|
|Packing sizes||1850.0*1000.0*2300.0 mm||6.07*3.28*7.54 ft|
