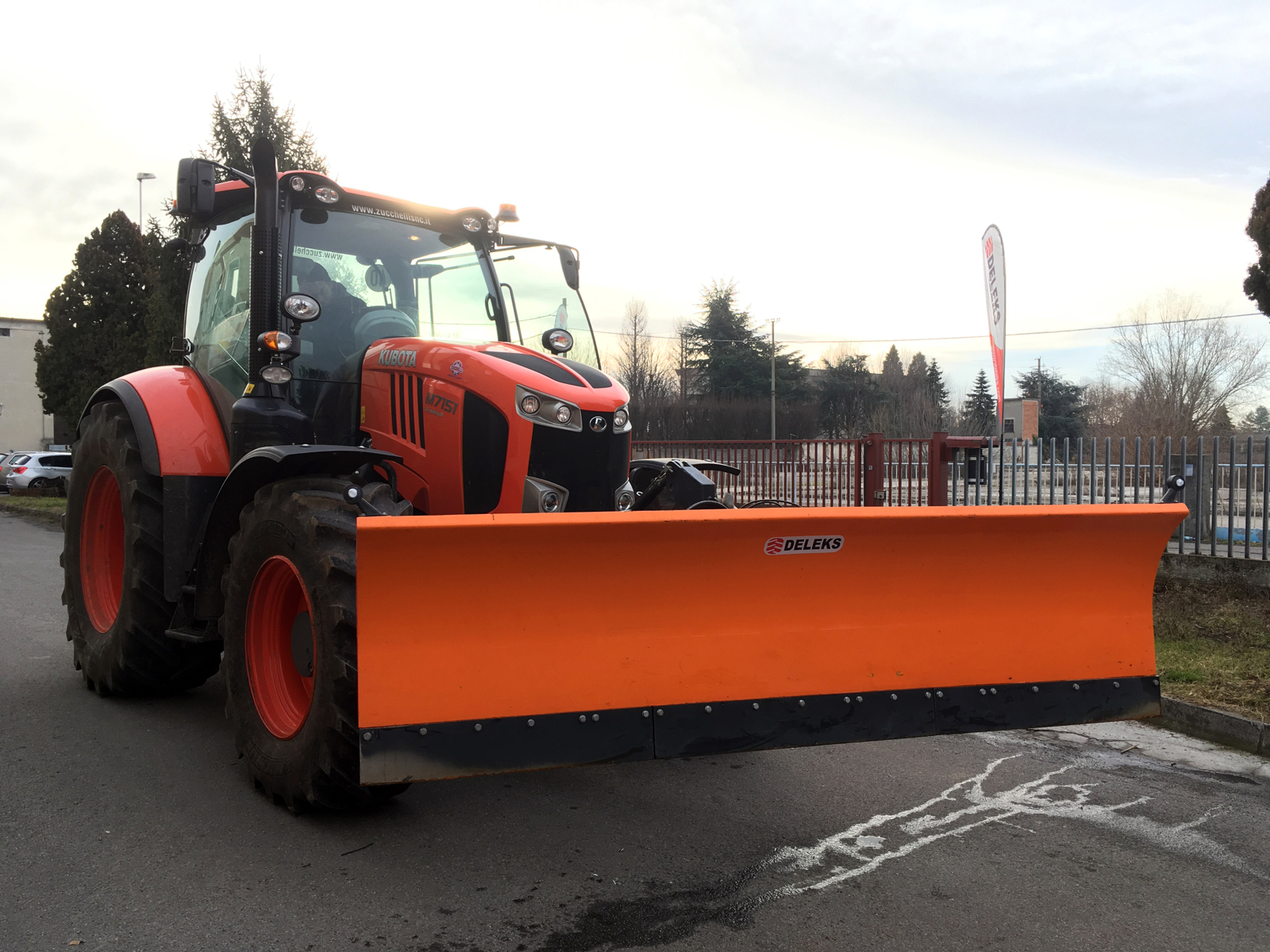

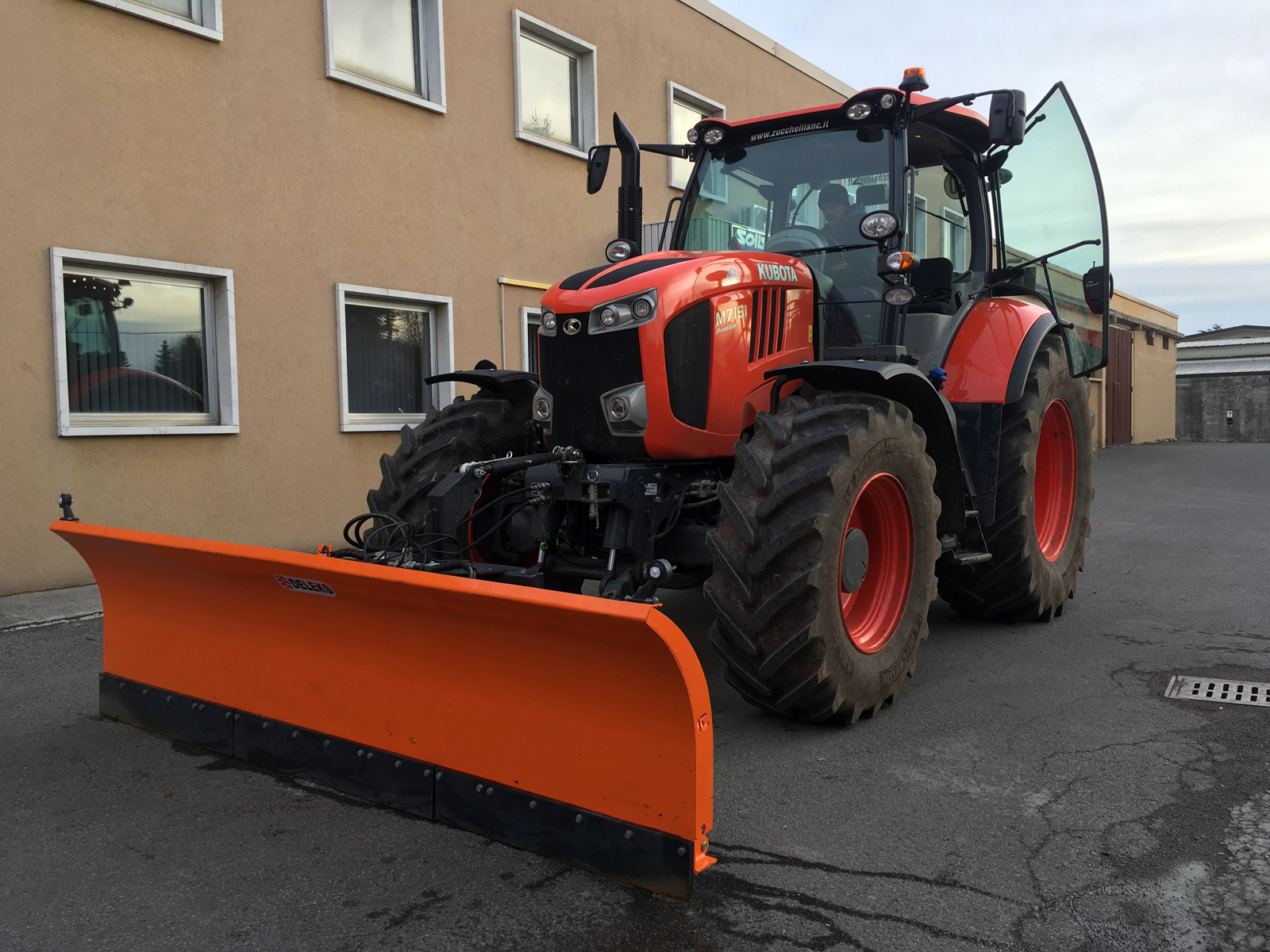

Three point linkage snowplow for tractor 300cm / 500kg - DELEKS® - Snow blade for frontal use
OVERVIEW

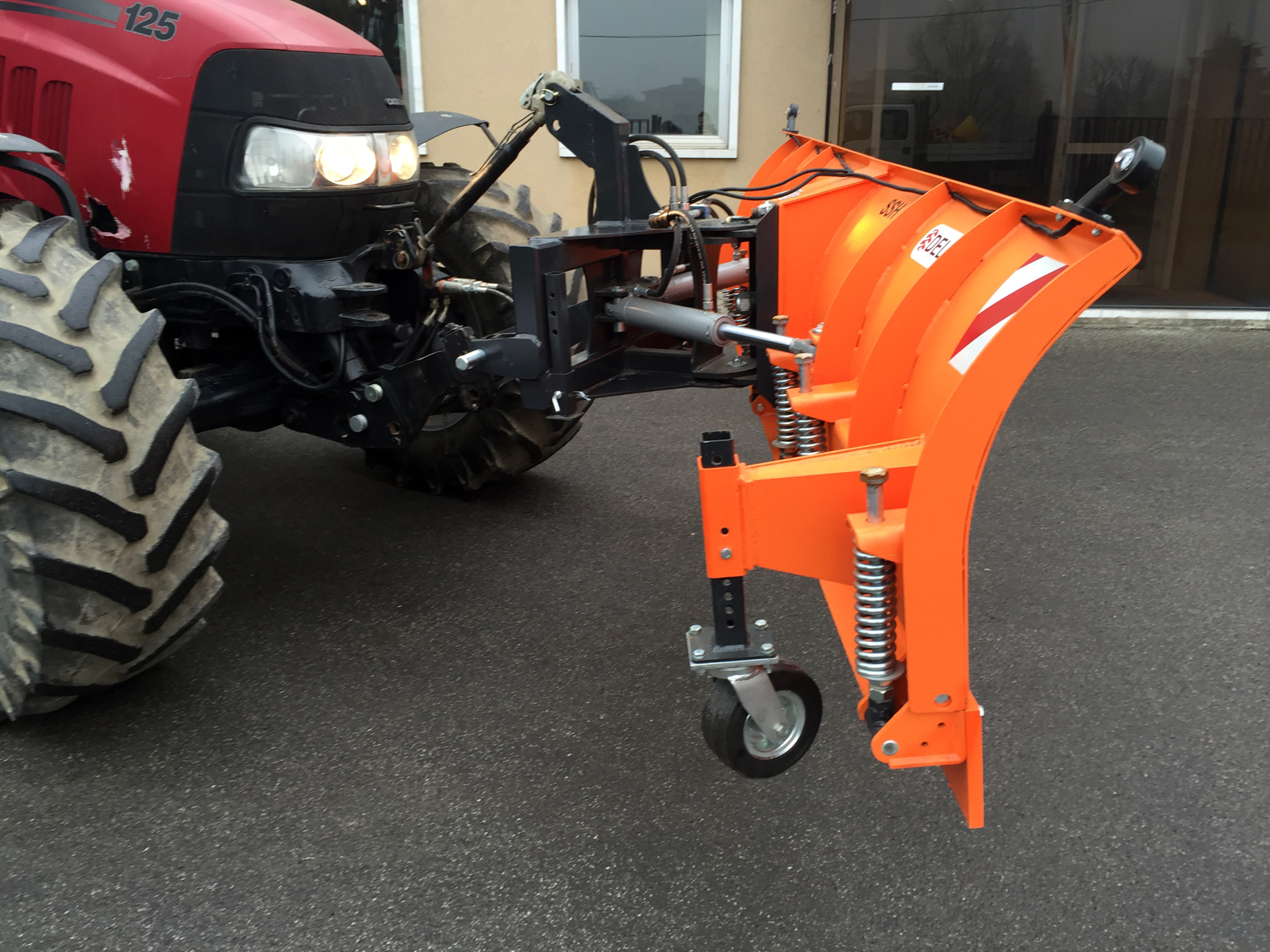

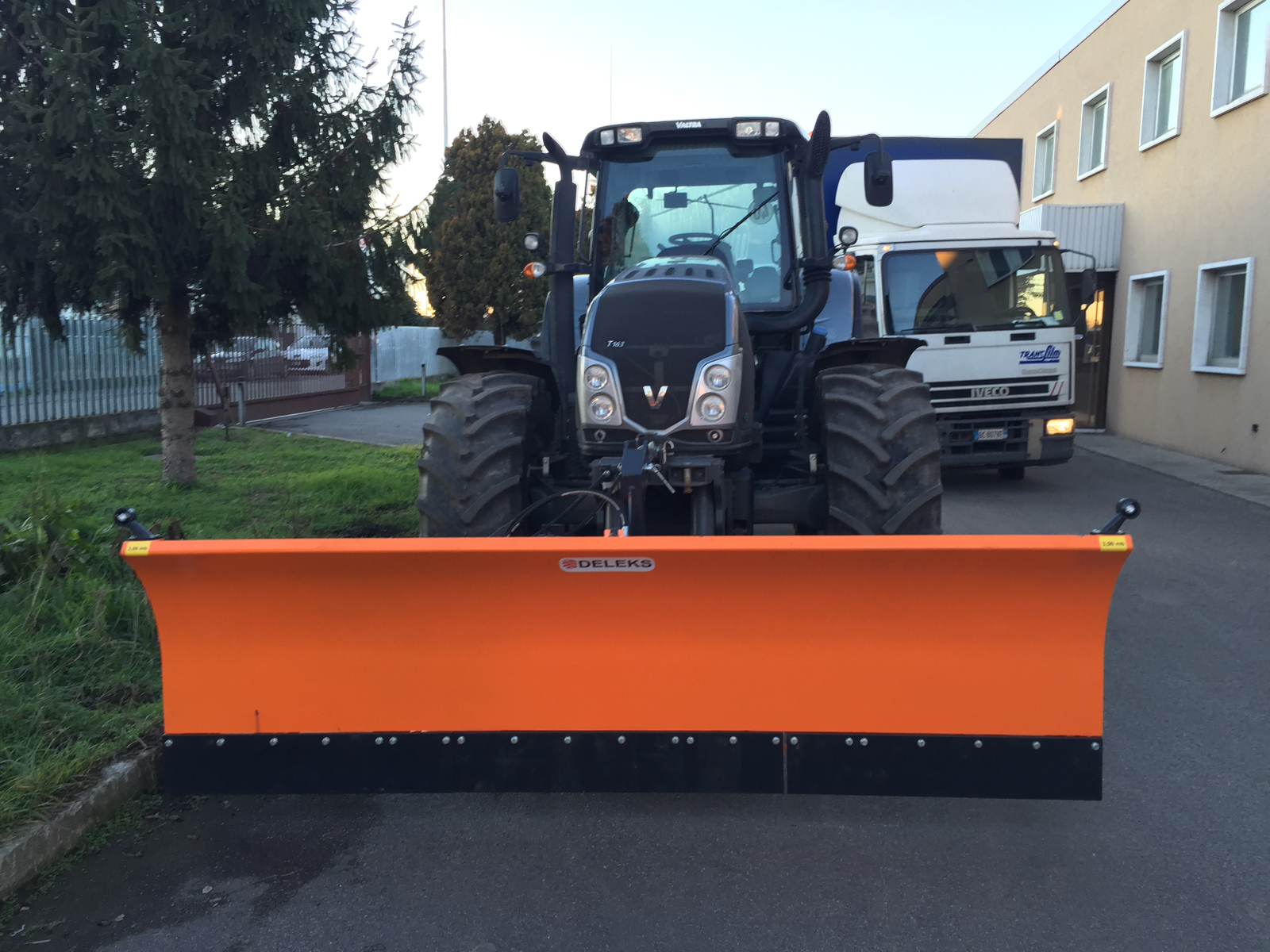

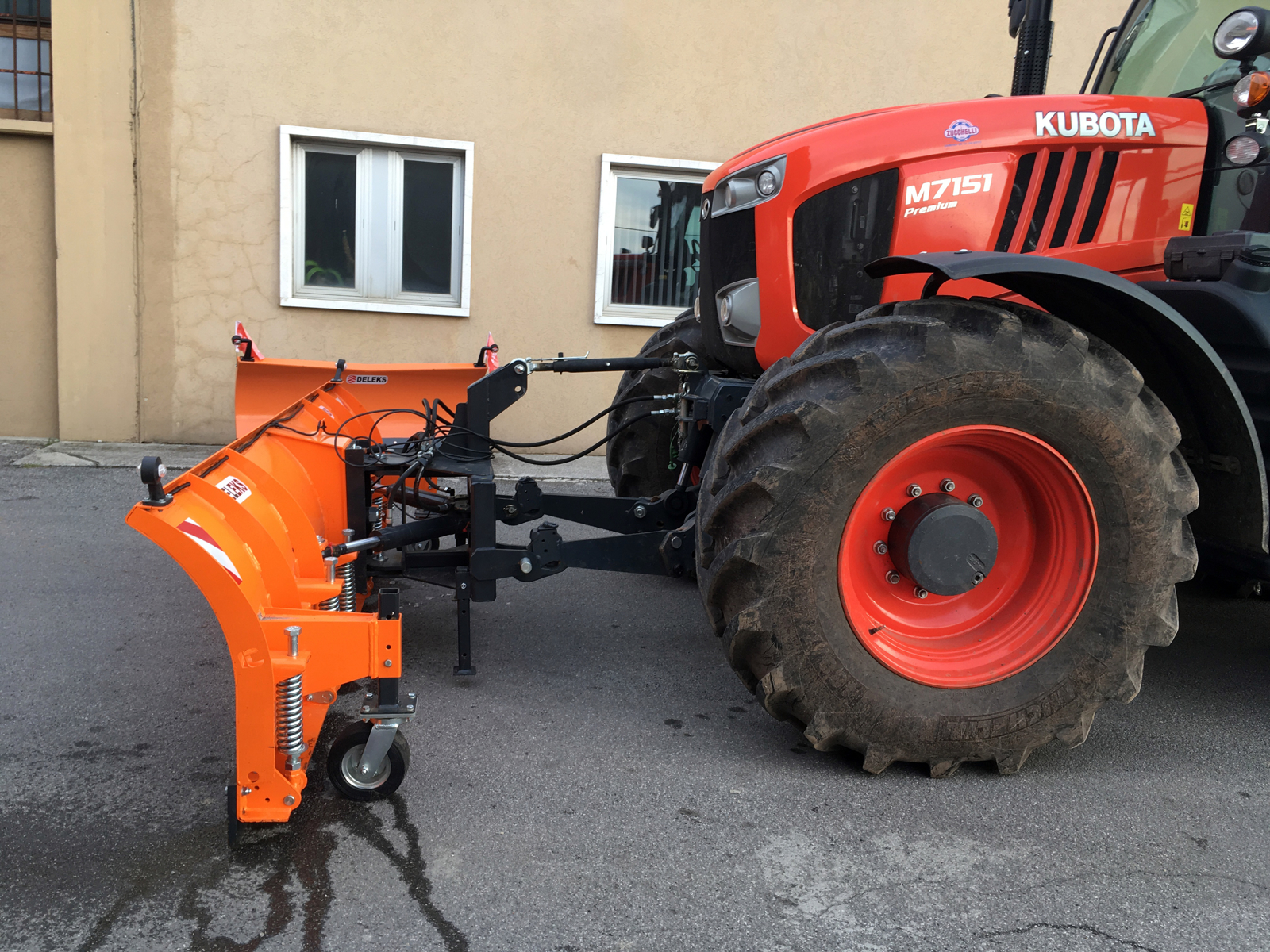

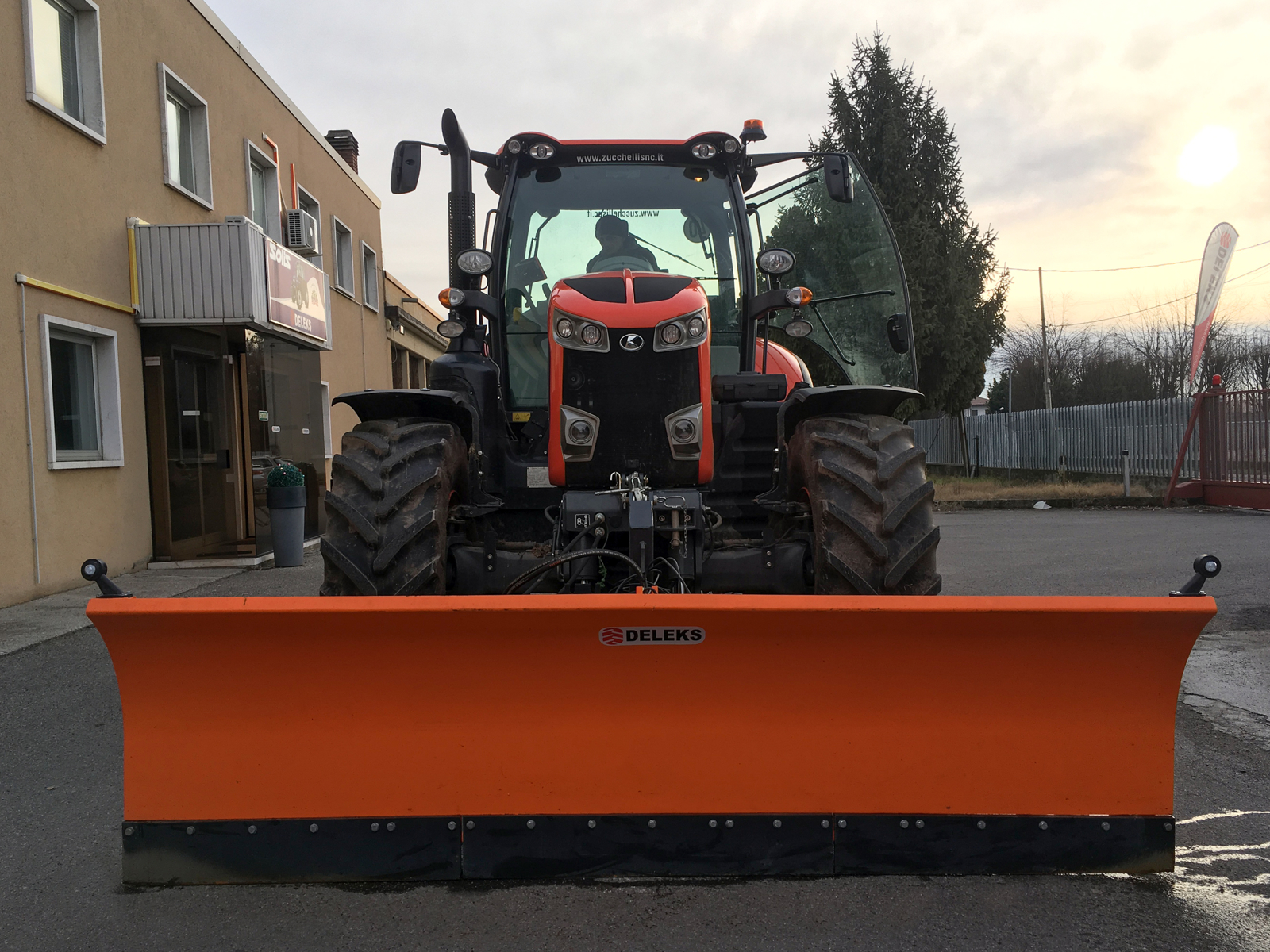

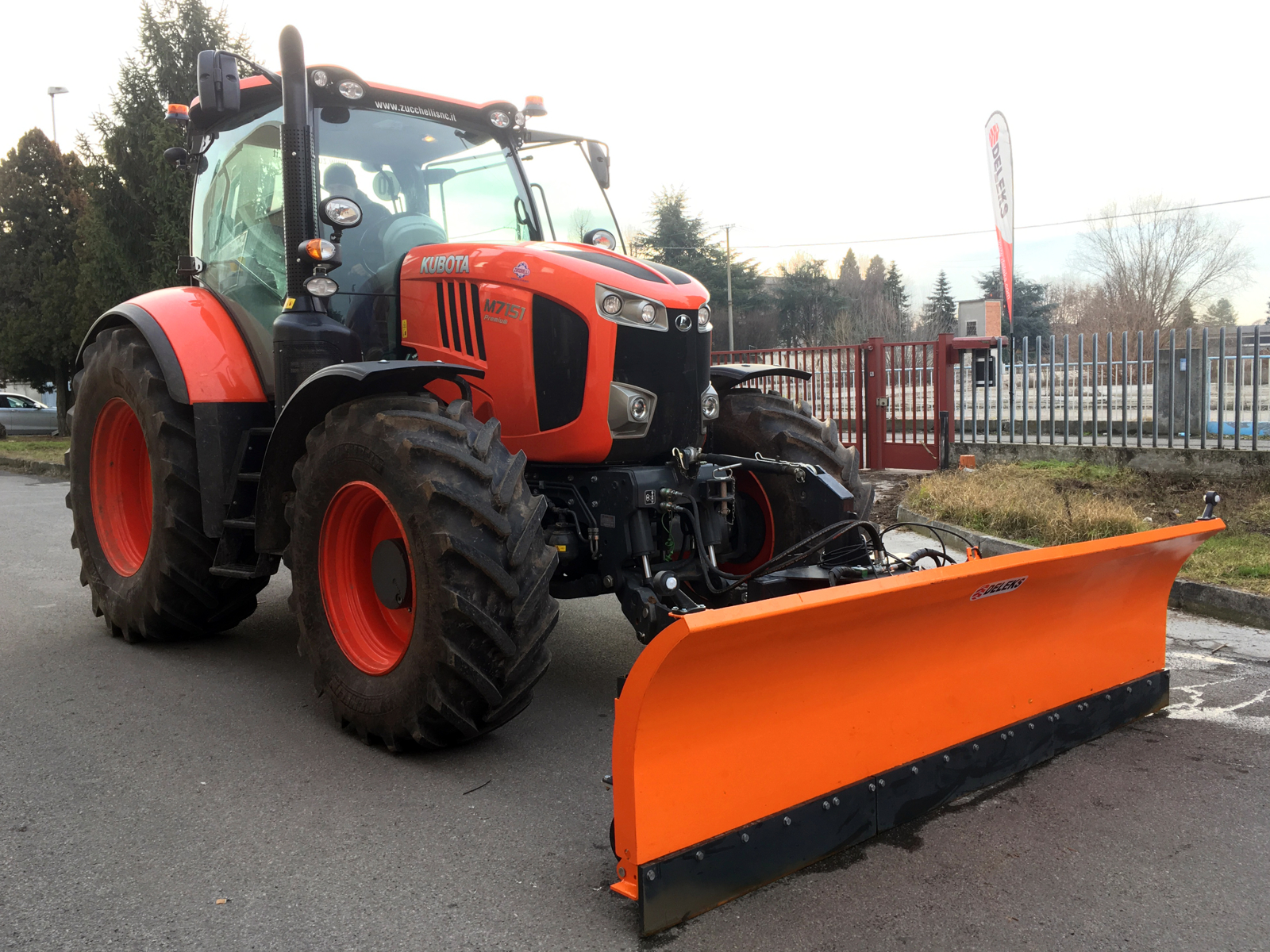

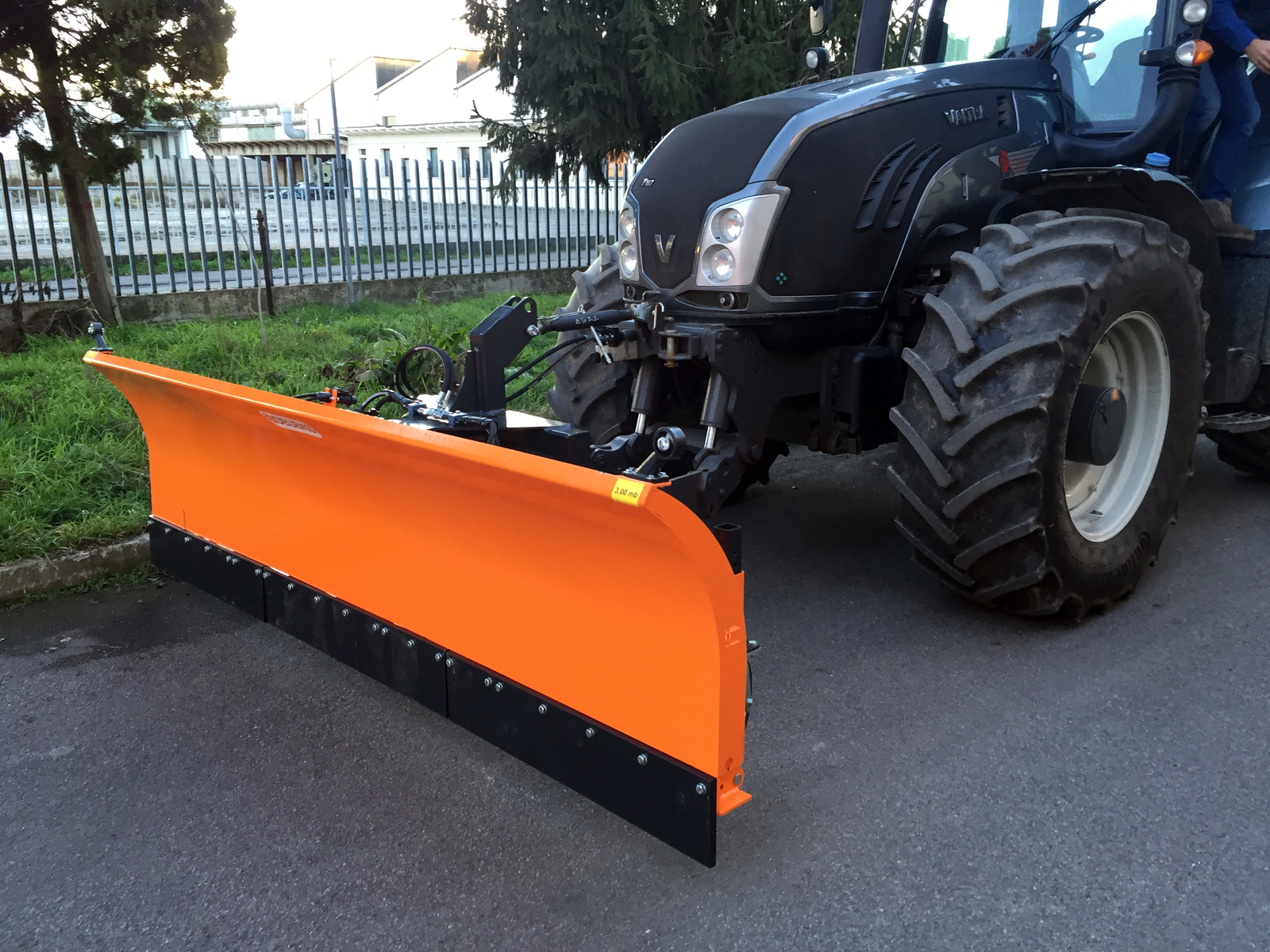

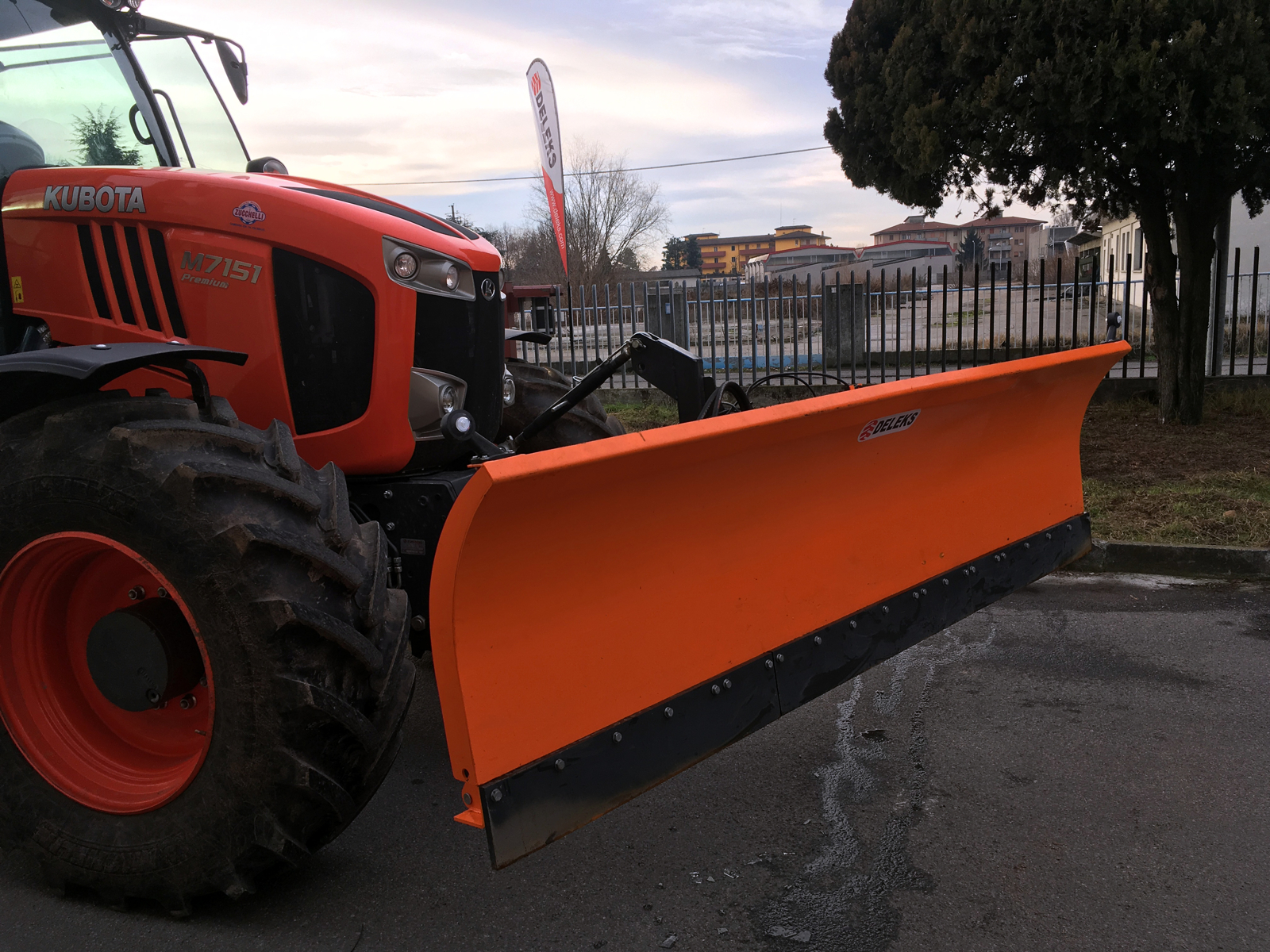

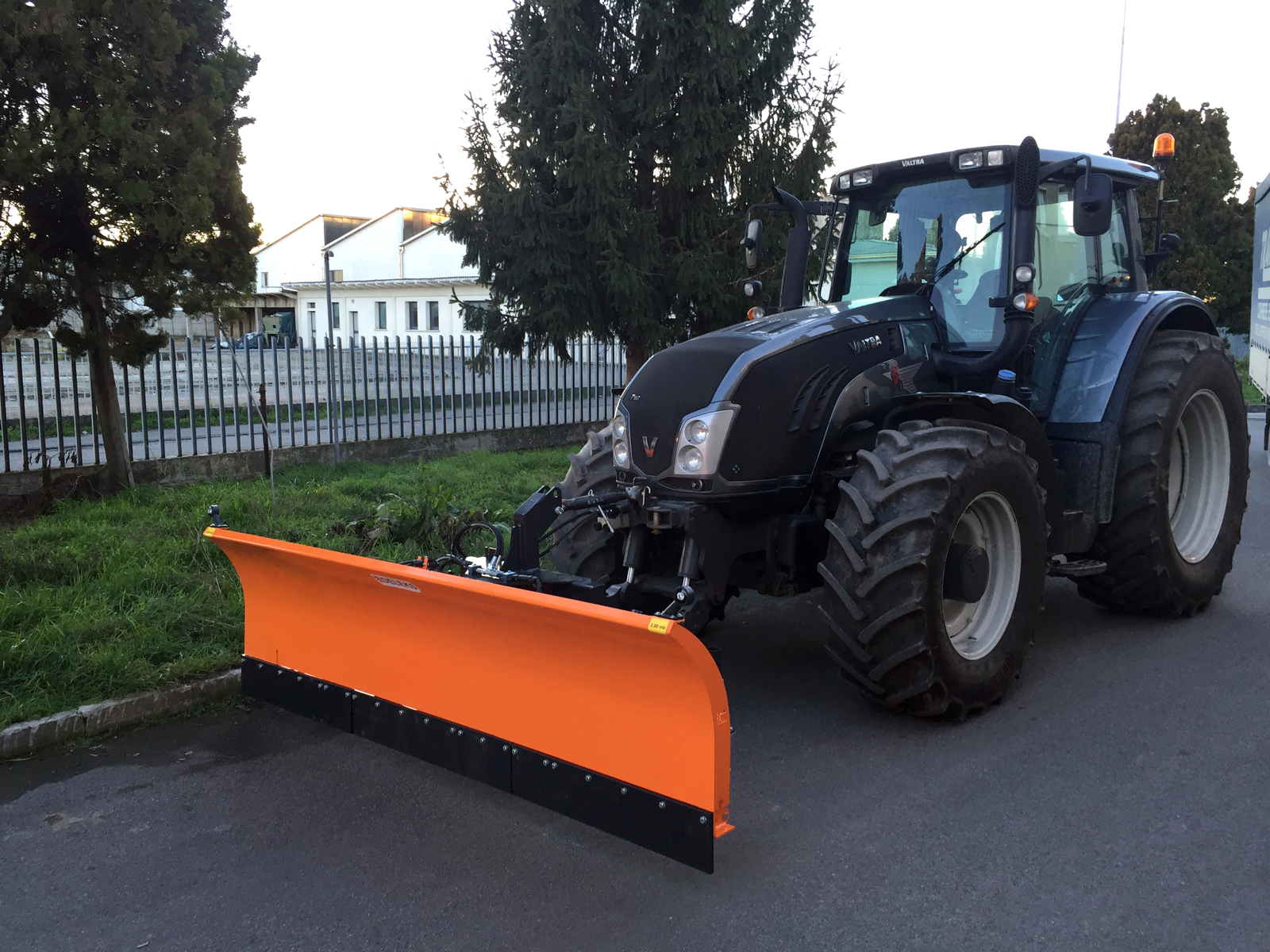

SSH-04 3.0-C Heavy-duty snowplow has been designed for larger tractors with 3-point hitch of Cat. 2-3, with power range from 90 to 130hp with rear or front linkage. Compatible with all tractors as Landini Power, M Kubota, Massey Ferguson, John Deere 5 Series, Same Explorer, Fiat, Case, Claas, Deutz-Fahr.

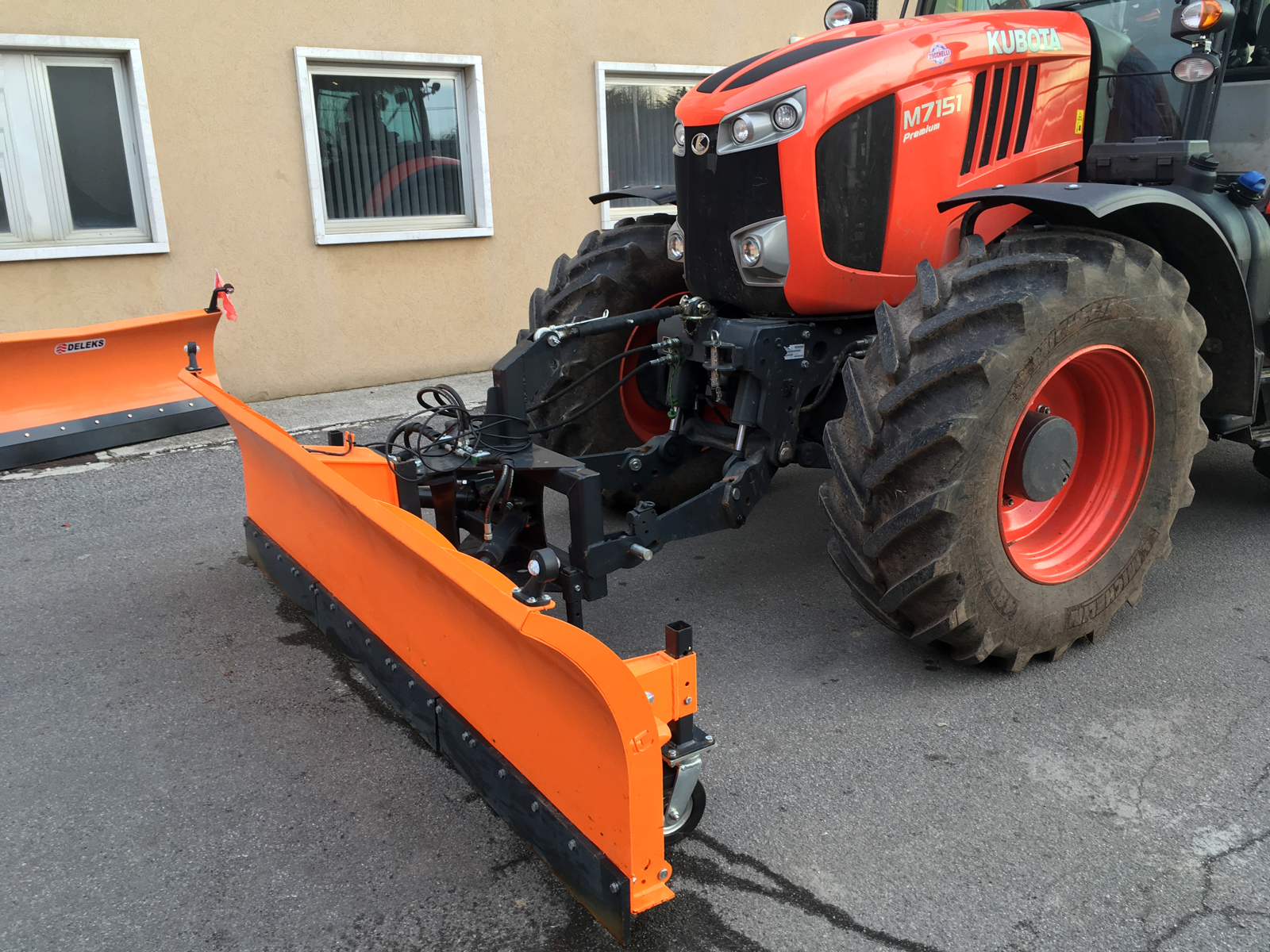

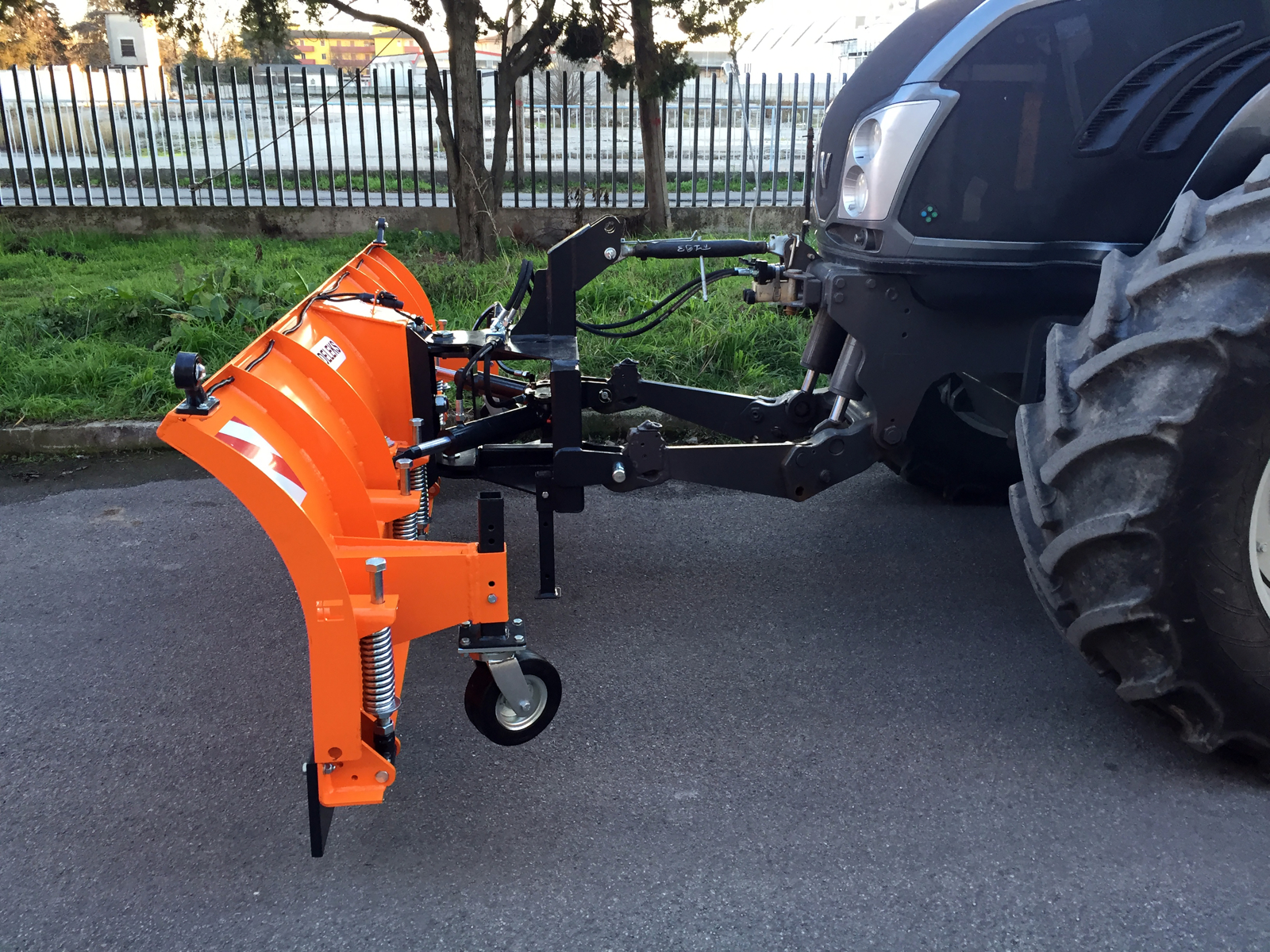

Angling of the plow is done hydraulically using two hydraulic cylinders and two hydraulic pipes 1.6m in length. Supplied with 2 support wheels and marker lights. Conforms to the EC Machinery Directive. 2 years Warranty.
BENEFITS AND FEATURES

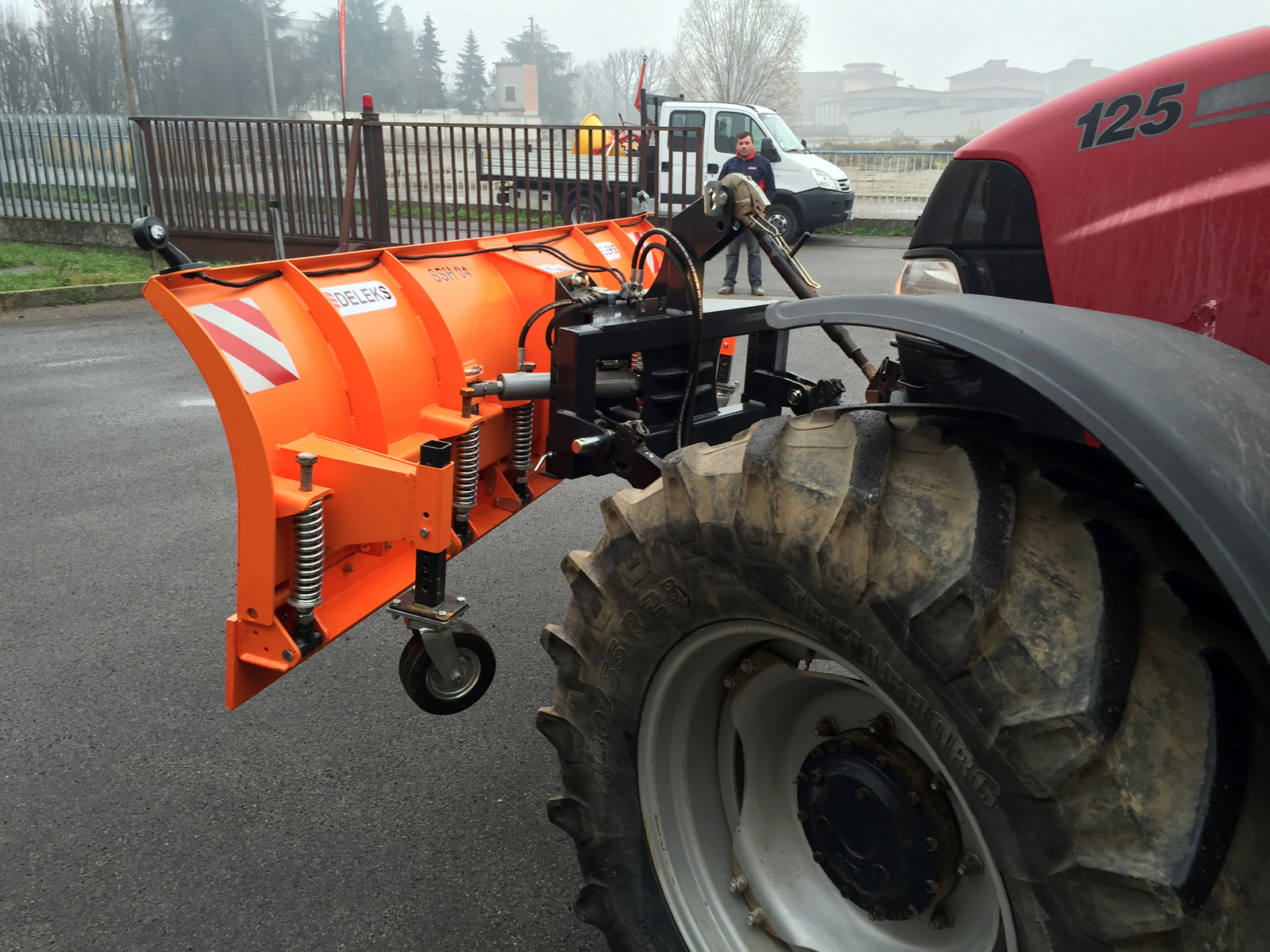

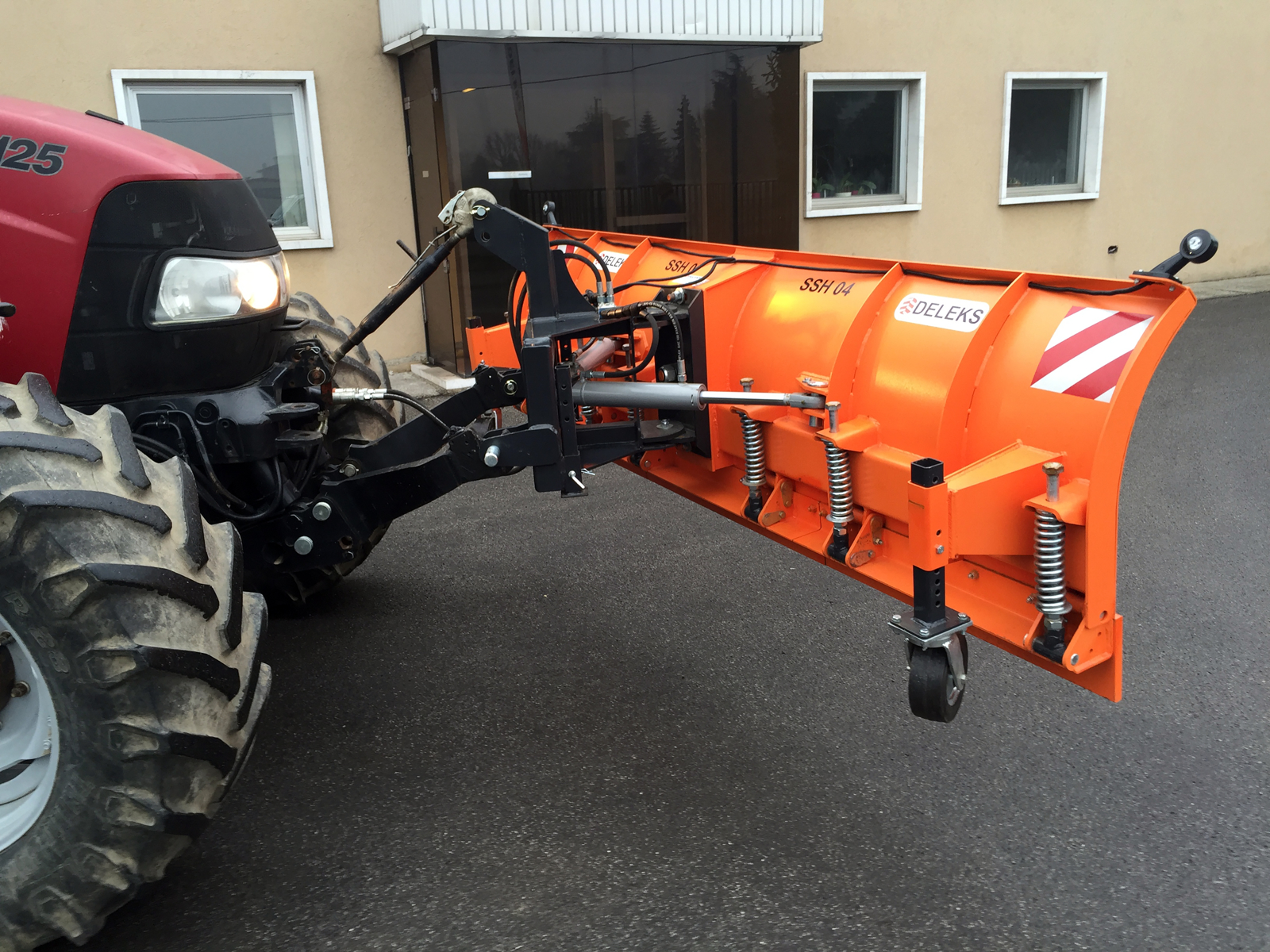

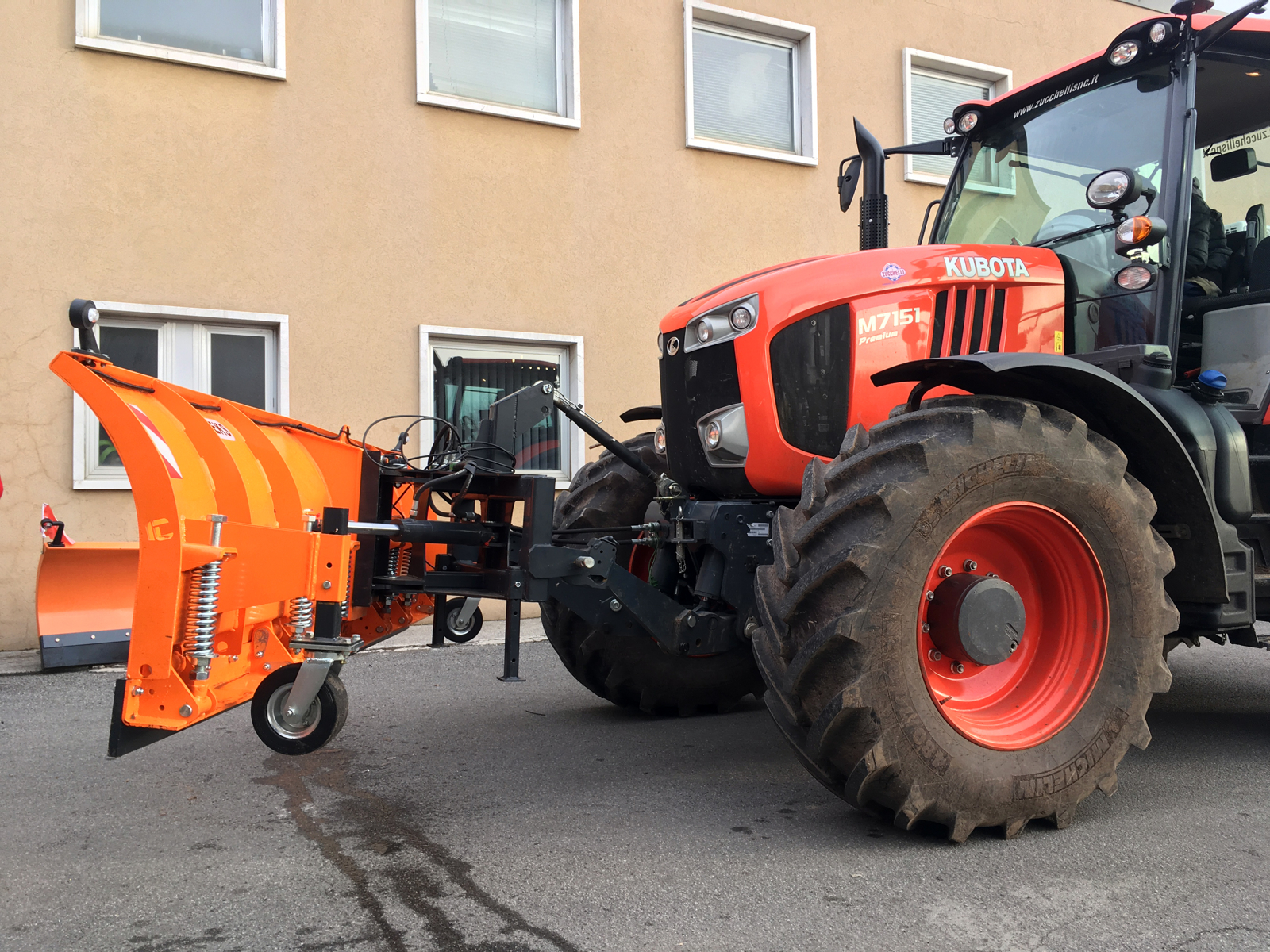

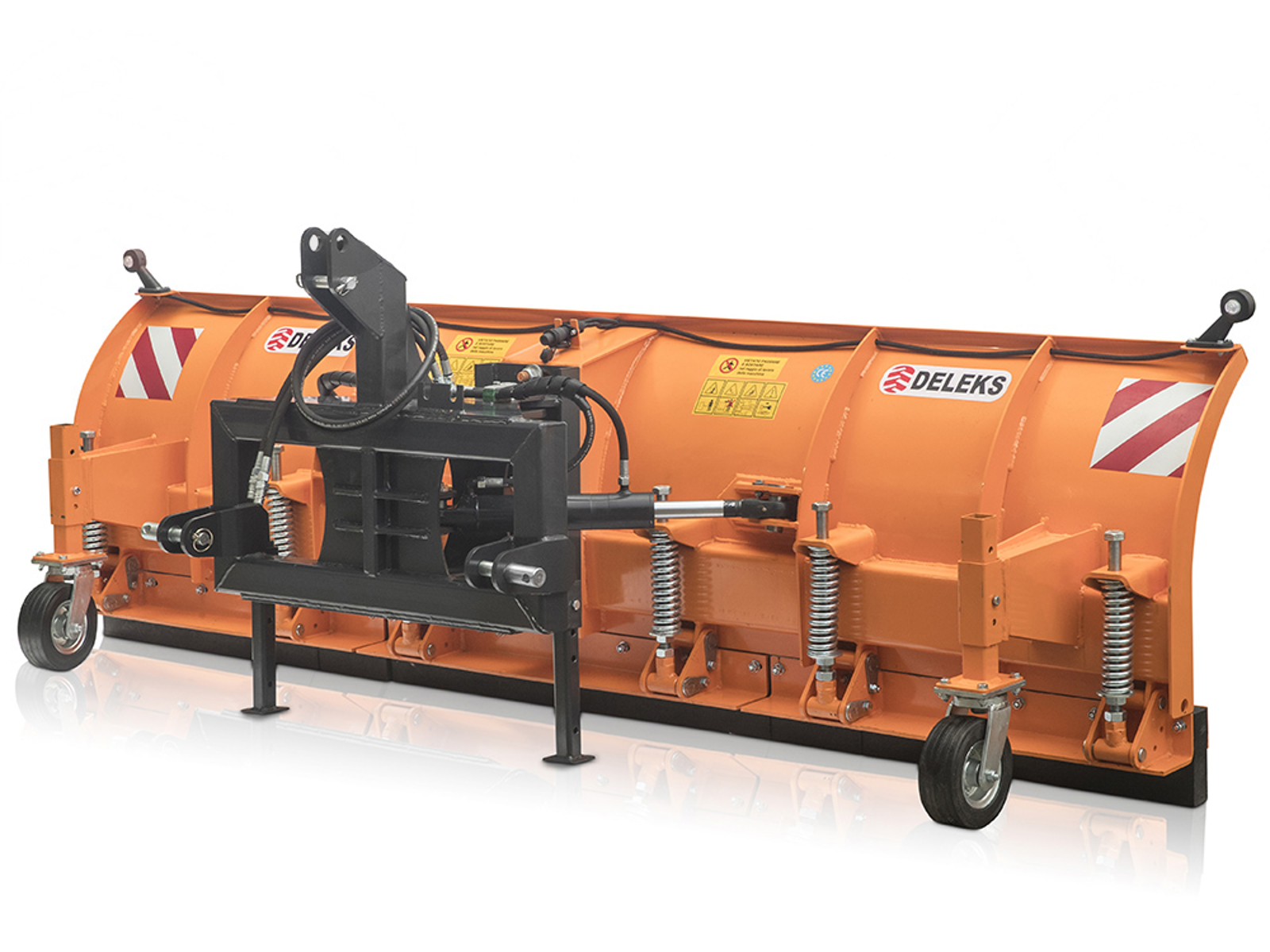

Shockproof system with 6 shock absorbing springs to operate in maximum safety.

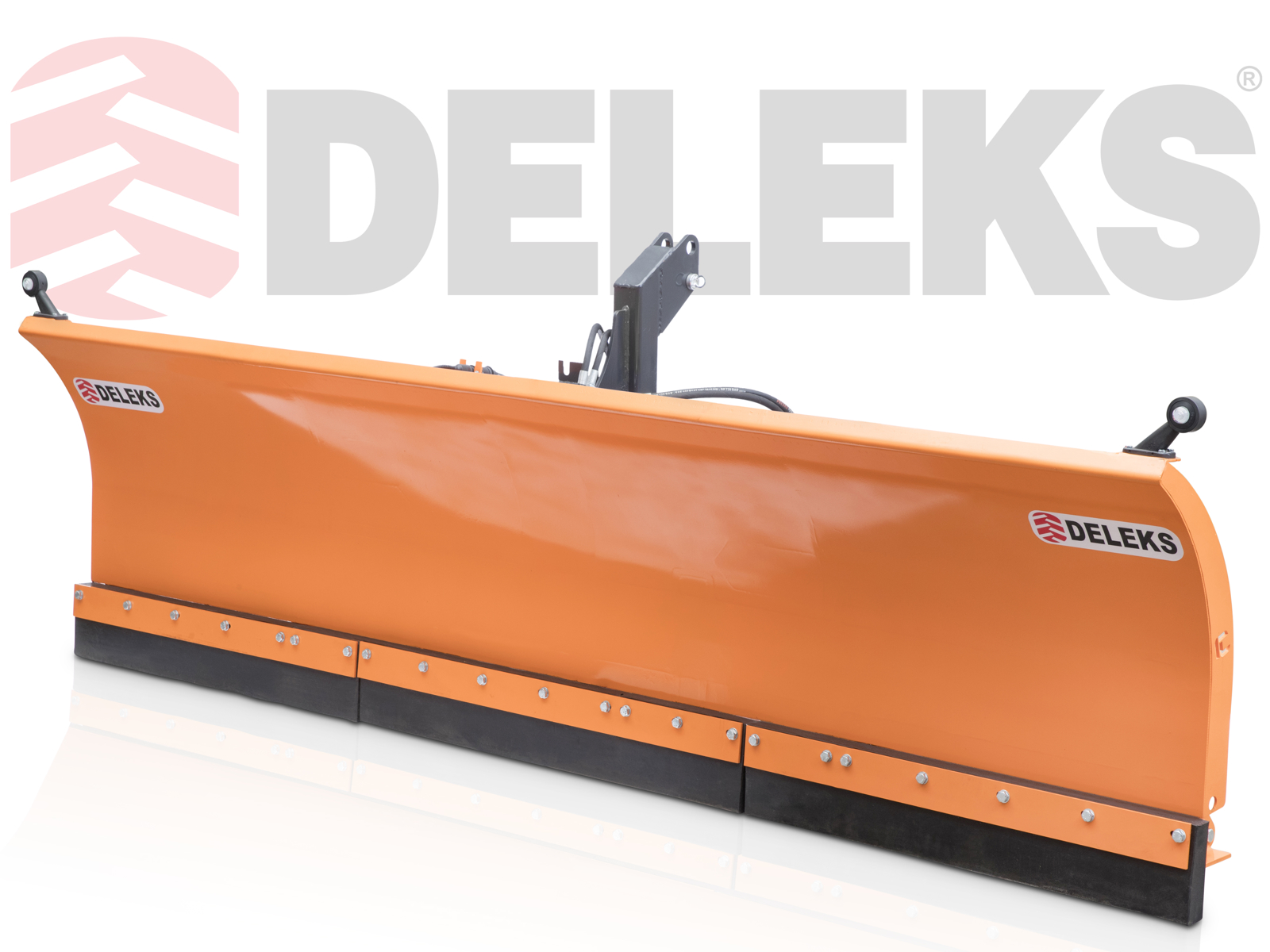

3 independent steel or rubber scraping elements.
Extreme ease of assembly and use.

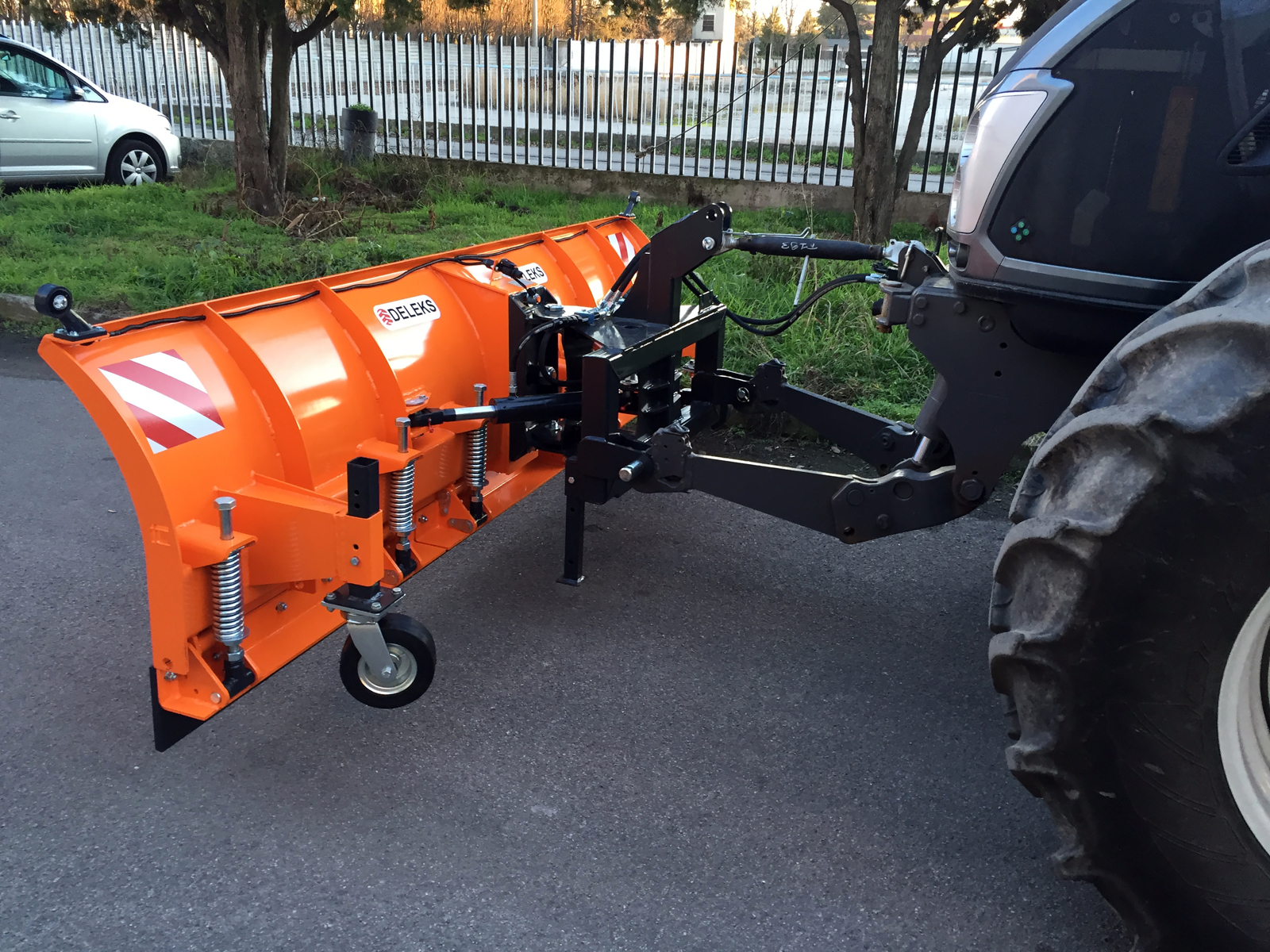

Support wheels allow the blade height to be adjusted.
The 3-point hitch is removable and replaceable with EURO linkage for tractor front-end loaders, or Telescopic loaders linkage e.g. MERLO, MANITOU, JCB, or Flat plate for after-sale customization.
Perfect adherence to the road surface and homologated for road use.
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 500 kg | 1100.0 lb |
| Overall height | 880.0 mm | 2.90 ft |
| Tractor Power Range | 90 - 130 Hp | 90 - 130 Hp |
| Overall Length | 900.0 mm | 2.95 ft |
| Spacing between the 2 lower points | 800.0-1040.0 mm | 31.50 - 40.95 in |
| Distance between the 2 lower points and ground | 300.0 mm | 11.80 in |
| Min./Max. Relief Pressure | 110 - 150 bar | 110 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min | 18 - 22 l/min |
| Interface | 3 point linkage cat. 2-3 | 3 point linkage cat. 2-3 |
| Angling (left/right) | 25° | 25° |
| Float | +/- 4° | +/- 4° |
| Blade Height | 880.0 mm | 2.90 ft |
| Side edge thickness | 7.0 mm | 0.28 in |
| Shock absorbers | 6 | 6 |
| Cutting Edge | Steel or Rubber | Steel or Rubber |
| Cutting Edge Height | 200.0mm / 250.0mm | 7.87 in / 9.85 in |
| Cutting Edge Thickness | 20.0mm / 55.0mm | 0.79 in / 2.16 in |
| Trip Edge Quantity | 3 | 3 |
| Distance betweens the bolts of the Trip Edge | 175.0 mm | 6.90 in |
| Lights | √ | √ |
| Removable Skid Shoes | Wheels | Wheels |
| Working width (angled) | 2600.0 mm | 8.53 ft |
| Hydraulic Hoses | 2 x 1600.0 mm / connections 1.2" AGRI, WP 400 bar | 2 x 5.25 ft / connections 1.2" AGRI, WP 400 bar |
| Overall width | 3000.0 mm | 9.84 ft |
| Main frame thickness | 4.0 mm | 0.15 in |
| Hydraulic cylinder/s ø | 73.0/36.0 mm | 2.87/1.41 in |
| Packing sizes | 3000*1000*1000mm | 9.84*3.28*3.28 ft |
