Snowplough for up to 3.0 ton Skid steer loaders, LNV-200-M

4.5

192 reviews

Available
Code LNV200MG
EAN 8053470231728
View all details.
TOTAL
2,900.00(2,446.73 £)VAT excl.
Free shipping

DETAILS

Snow plow, Snowblade 200cm/370kg for up to 3.0 ton Skid steer loaders - DELEKS® - 2 independent plowing elements - Hydraulically controlled plowshares.


OVERVIEW

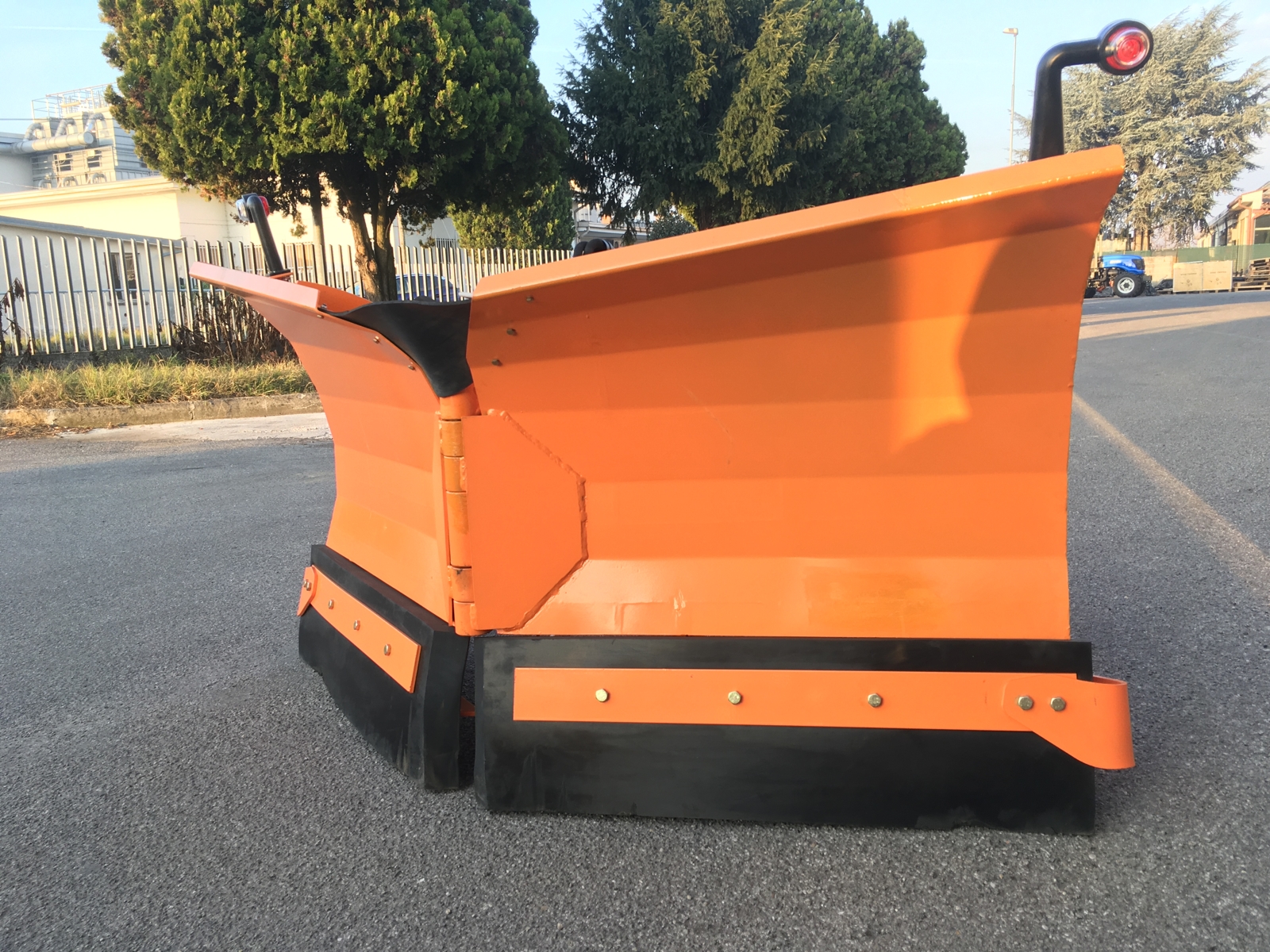

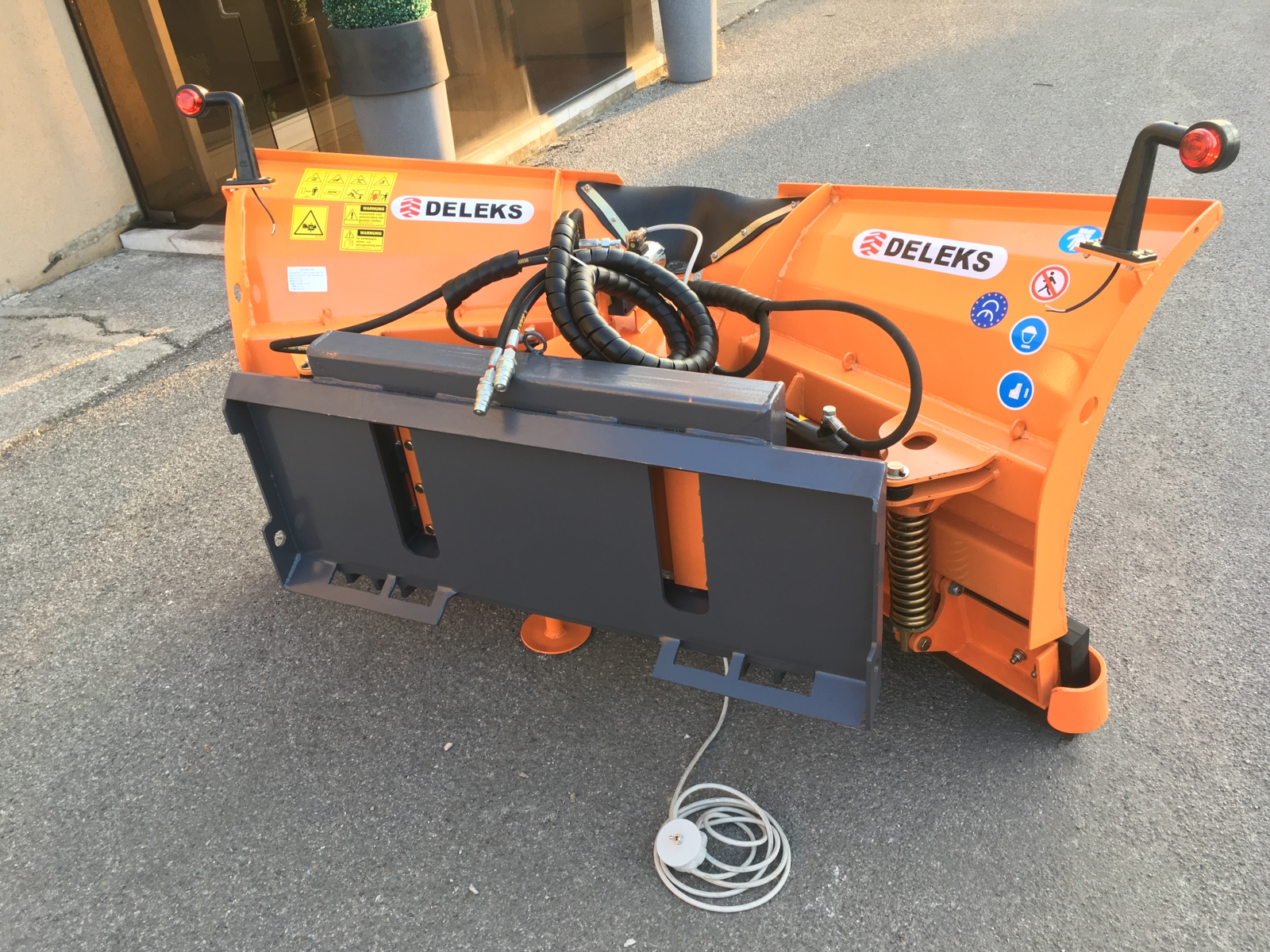

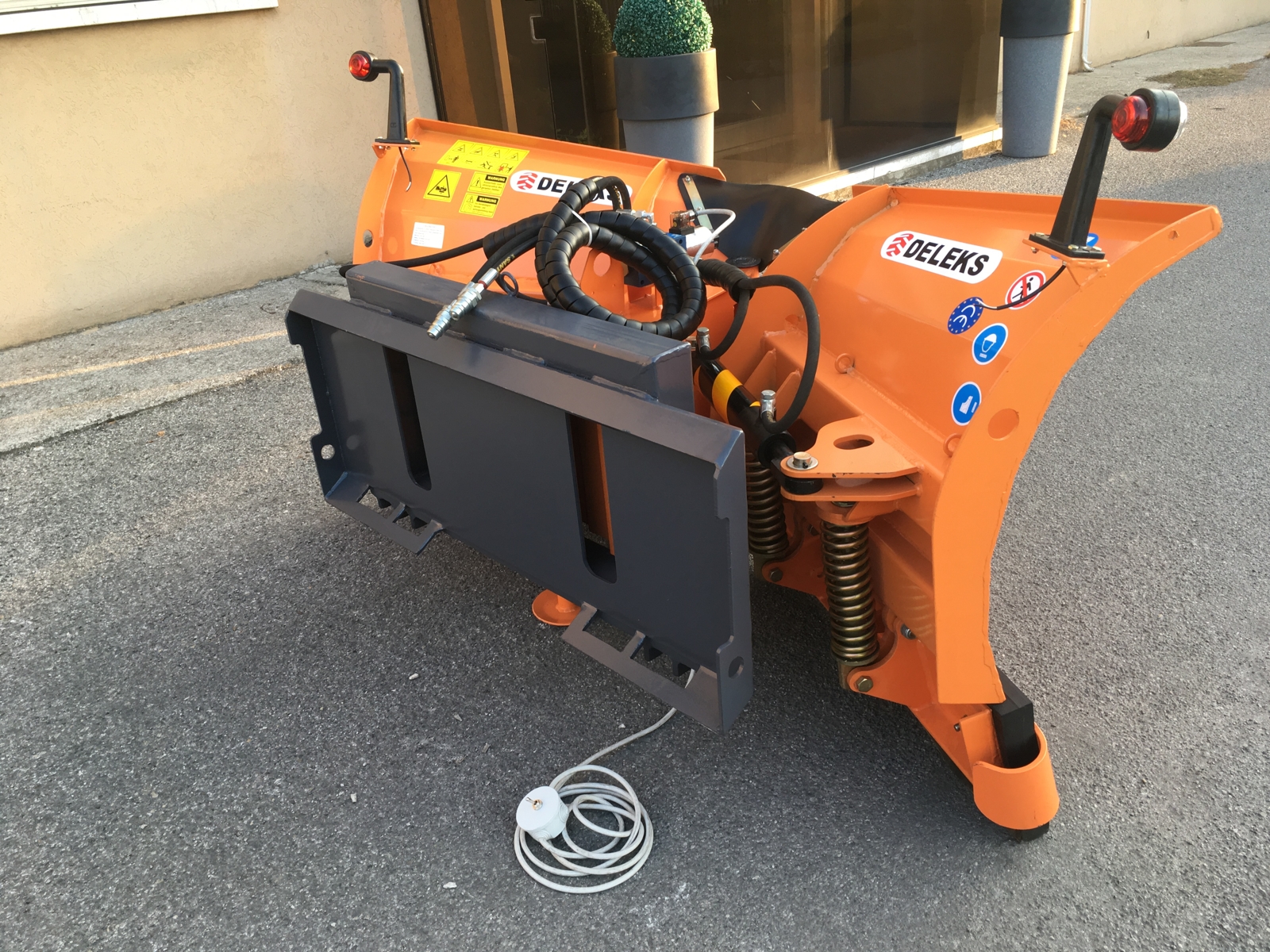

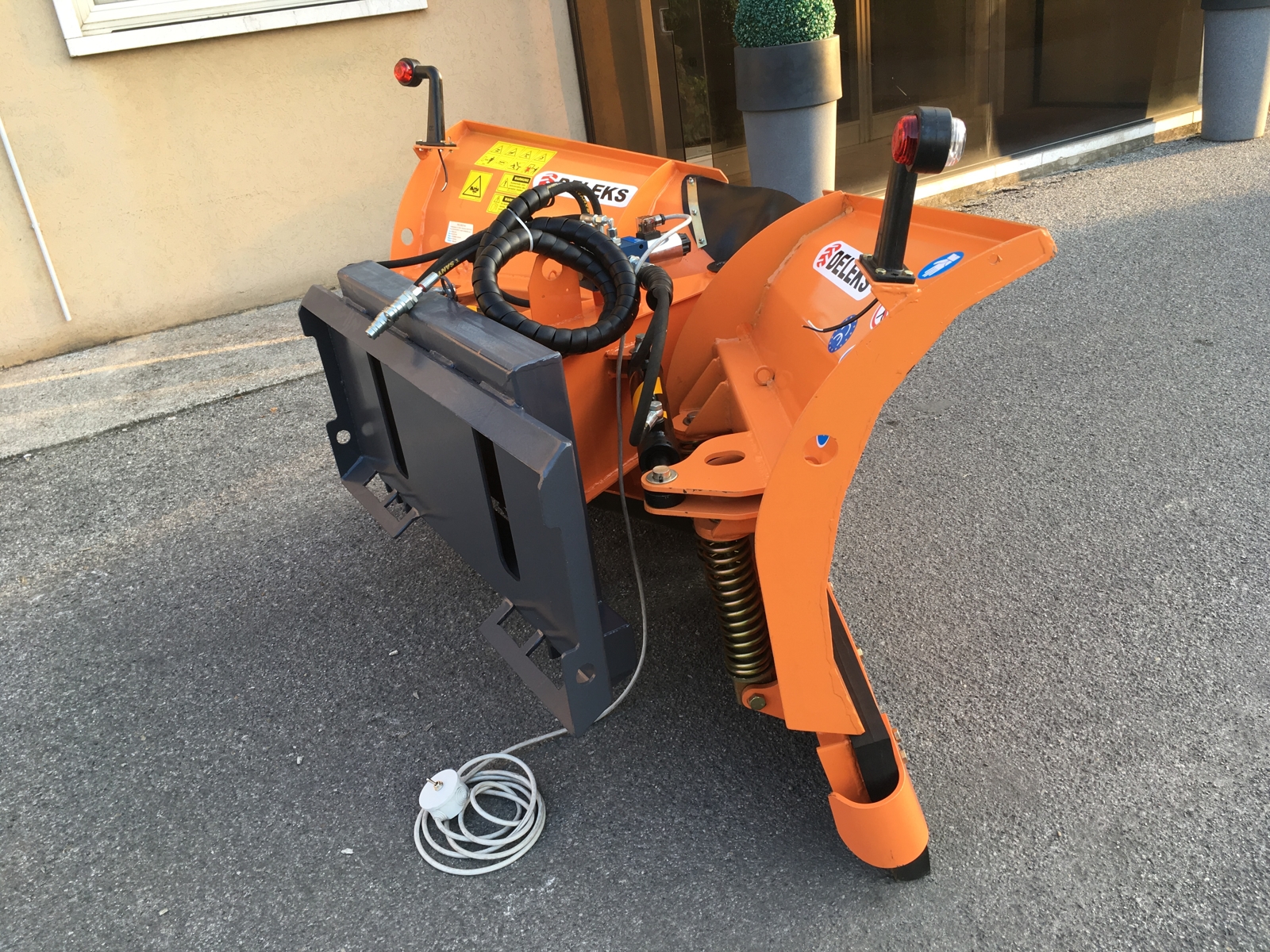

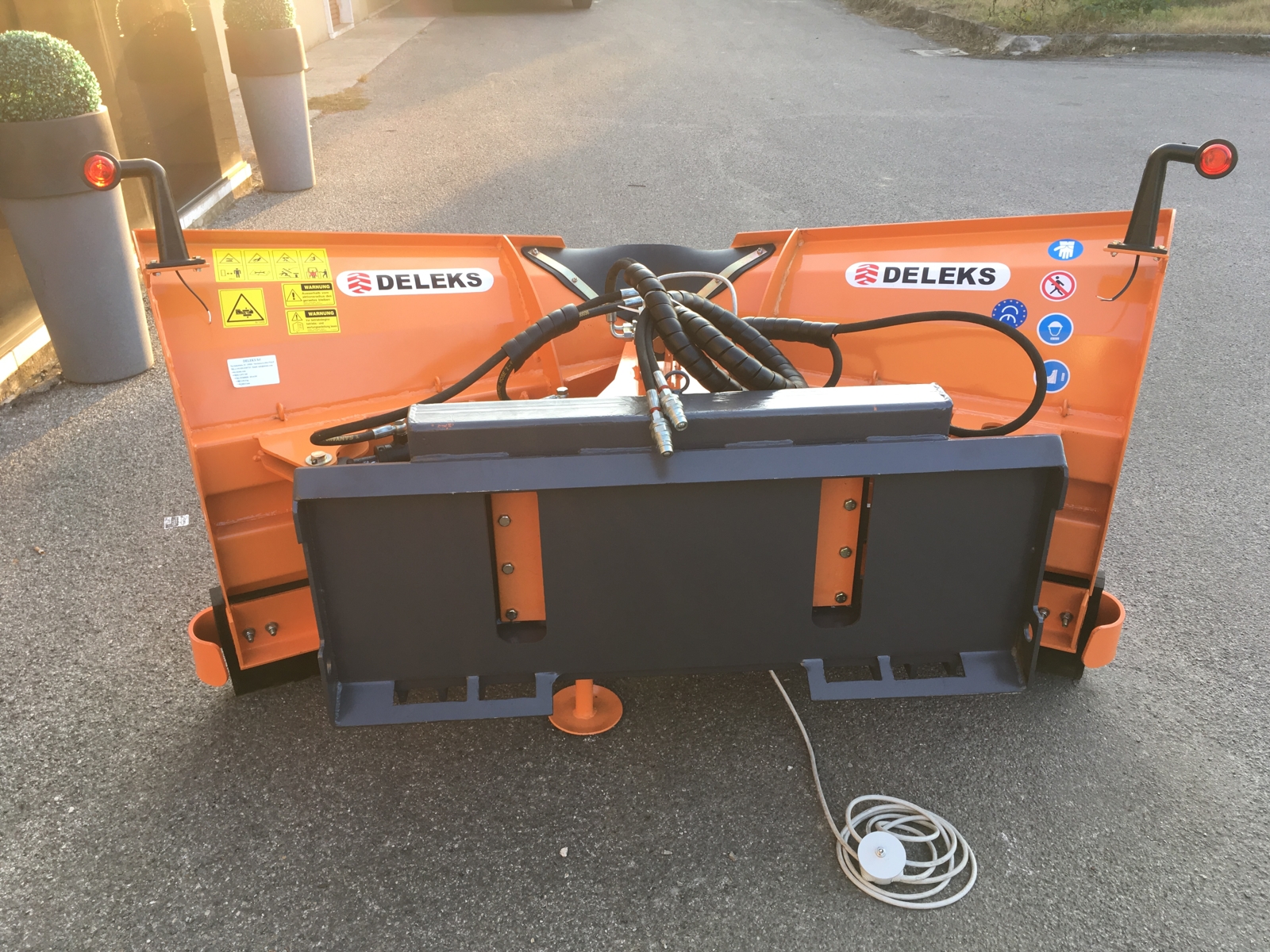

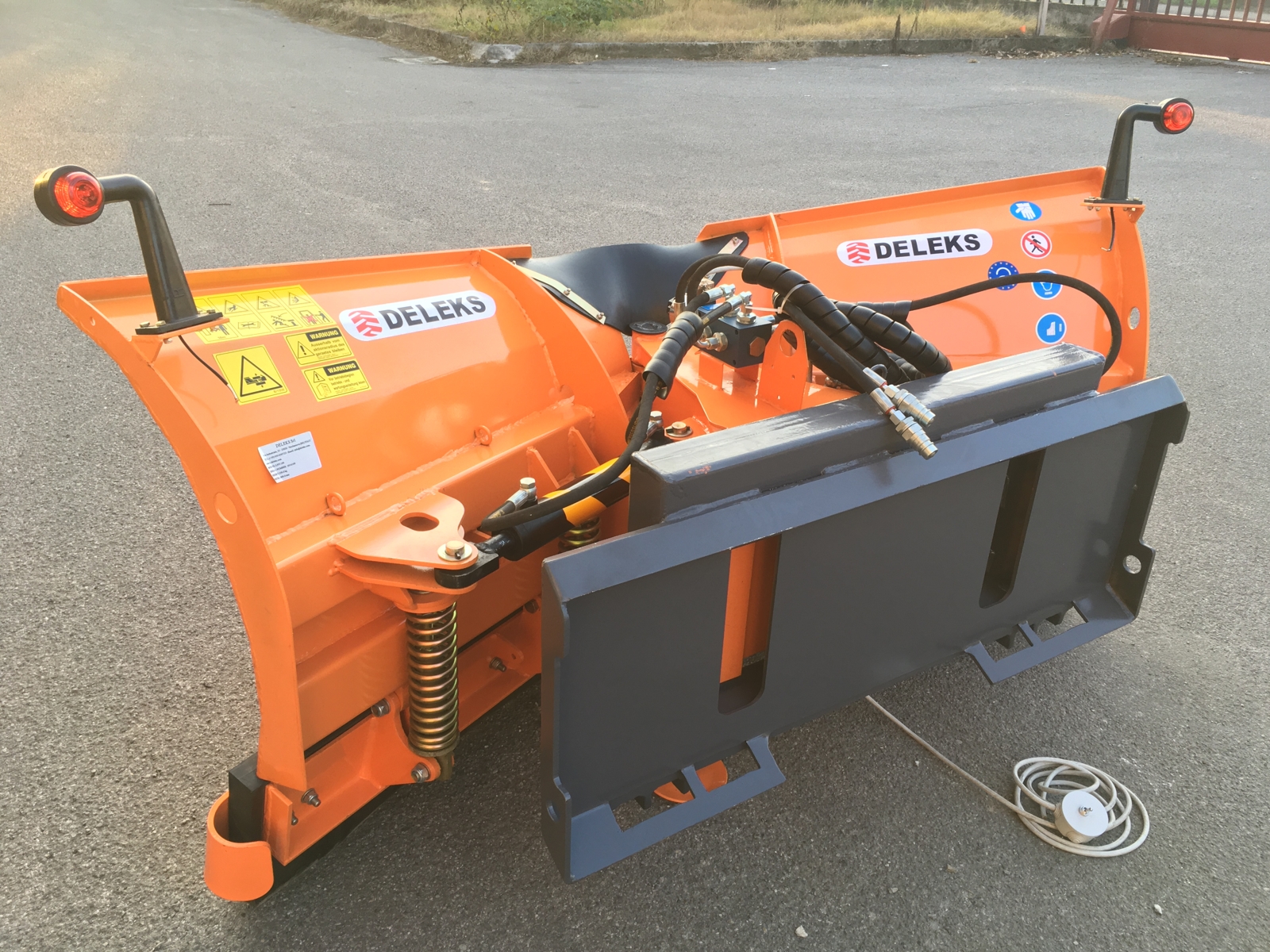

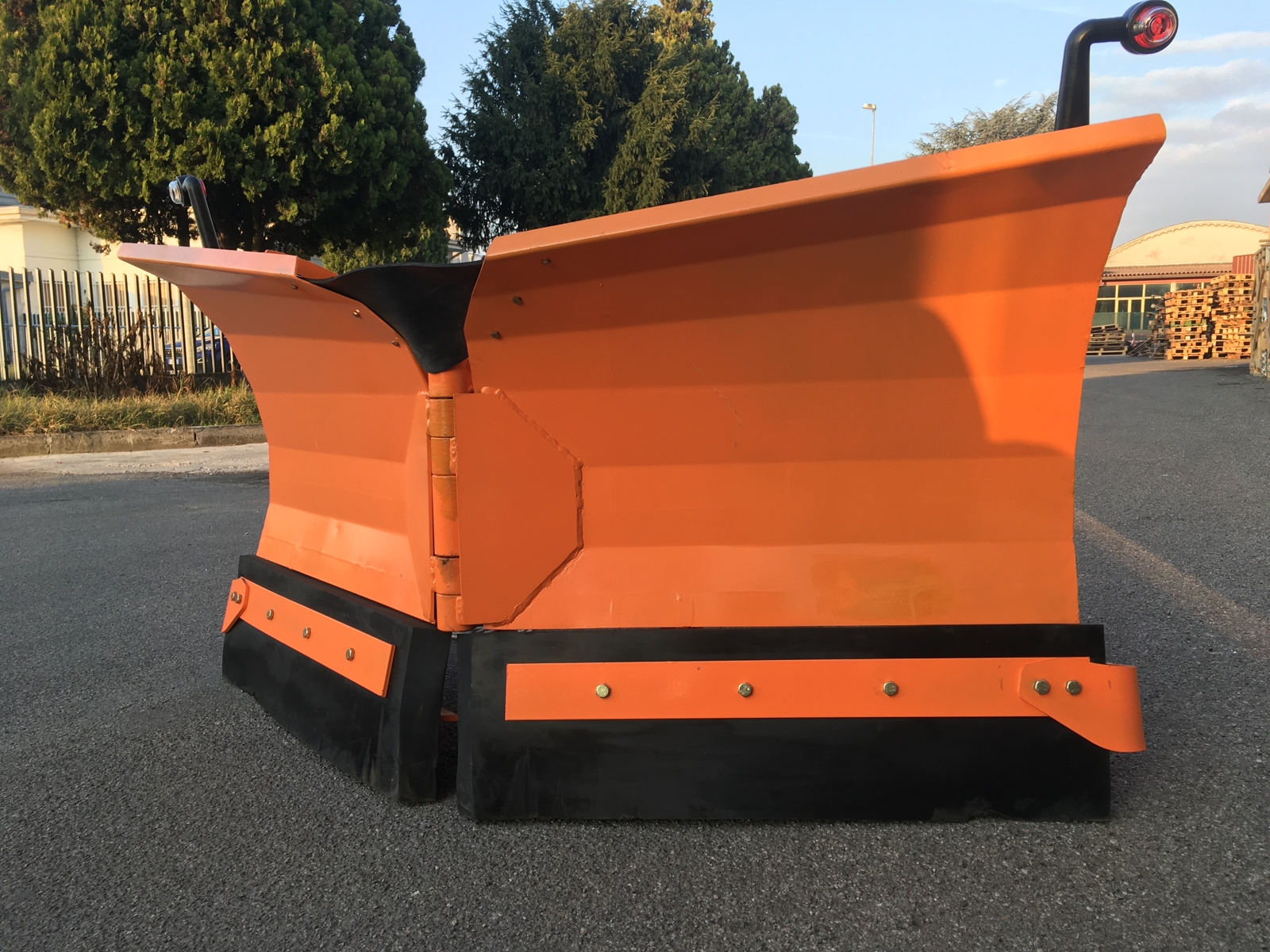

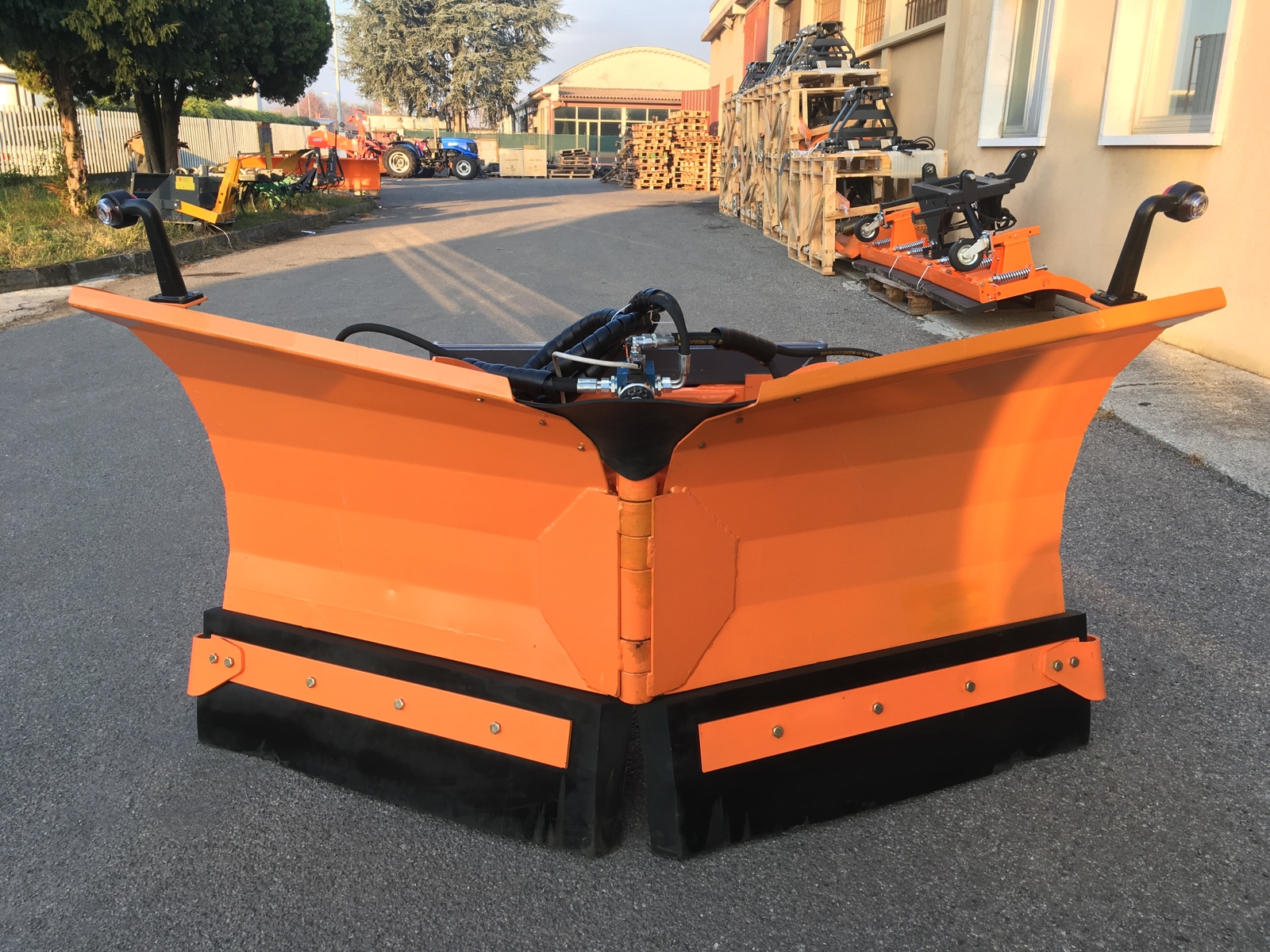

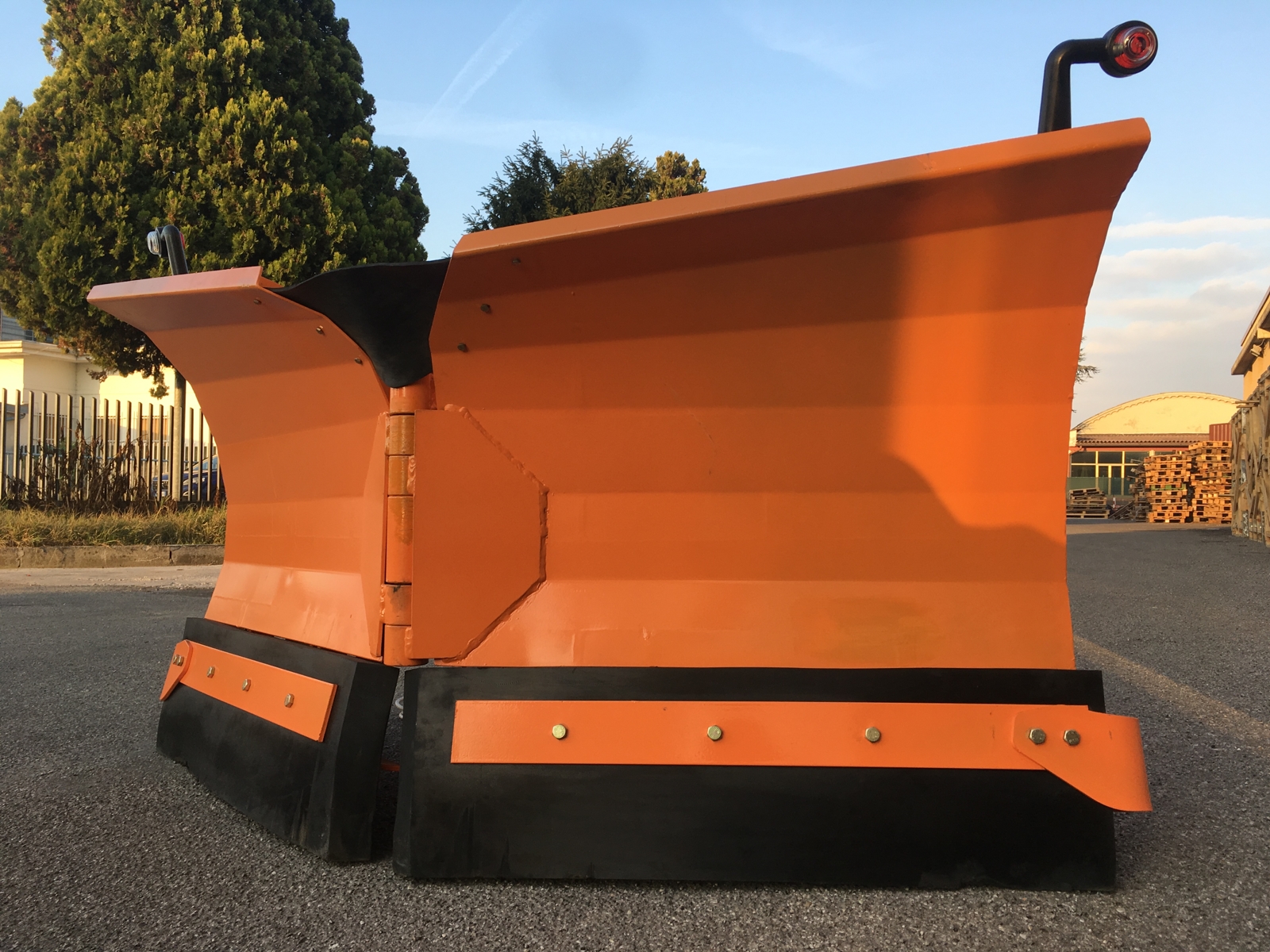

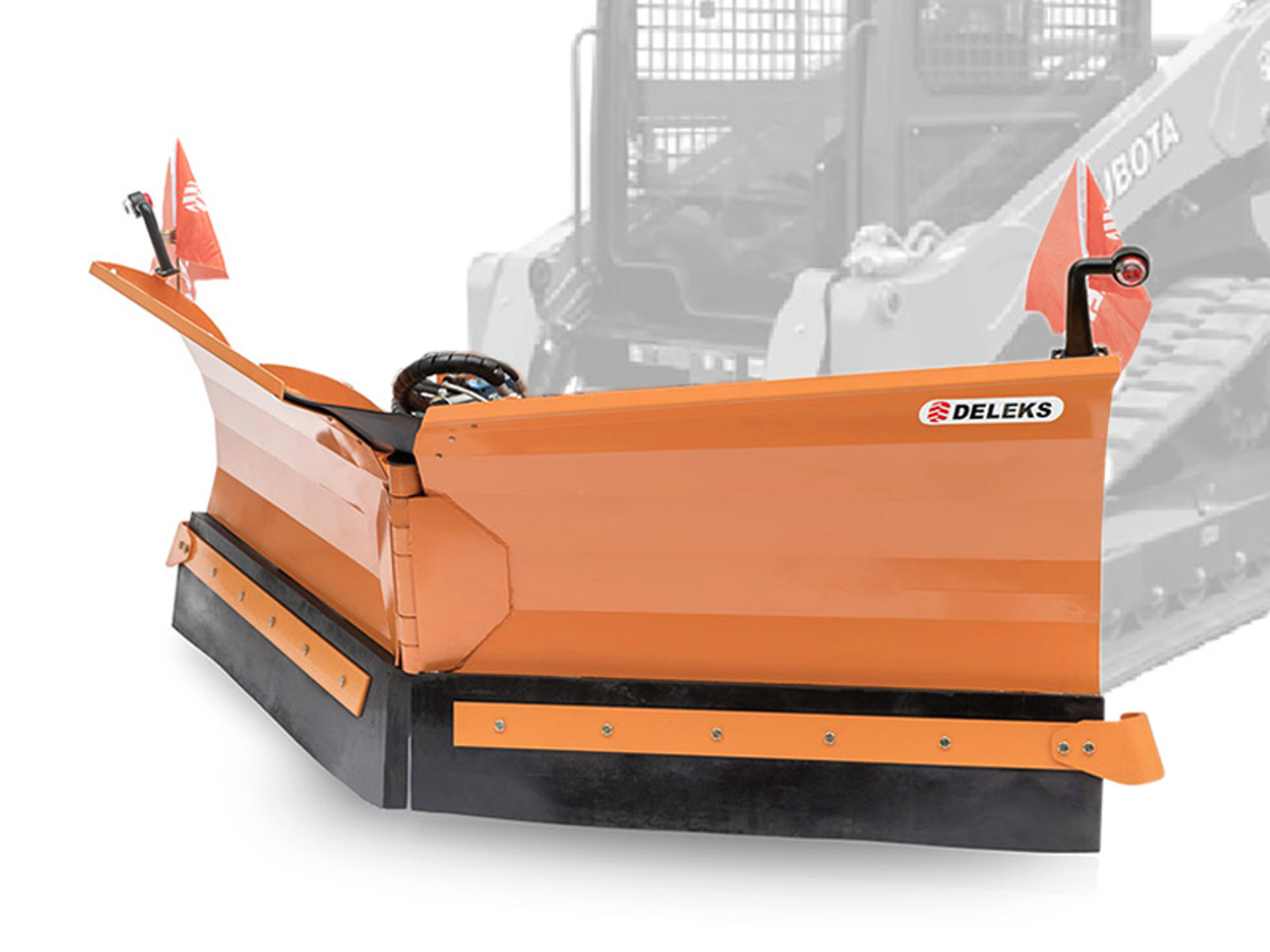

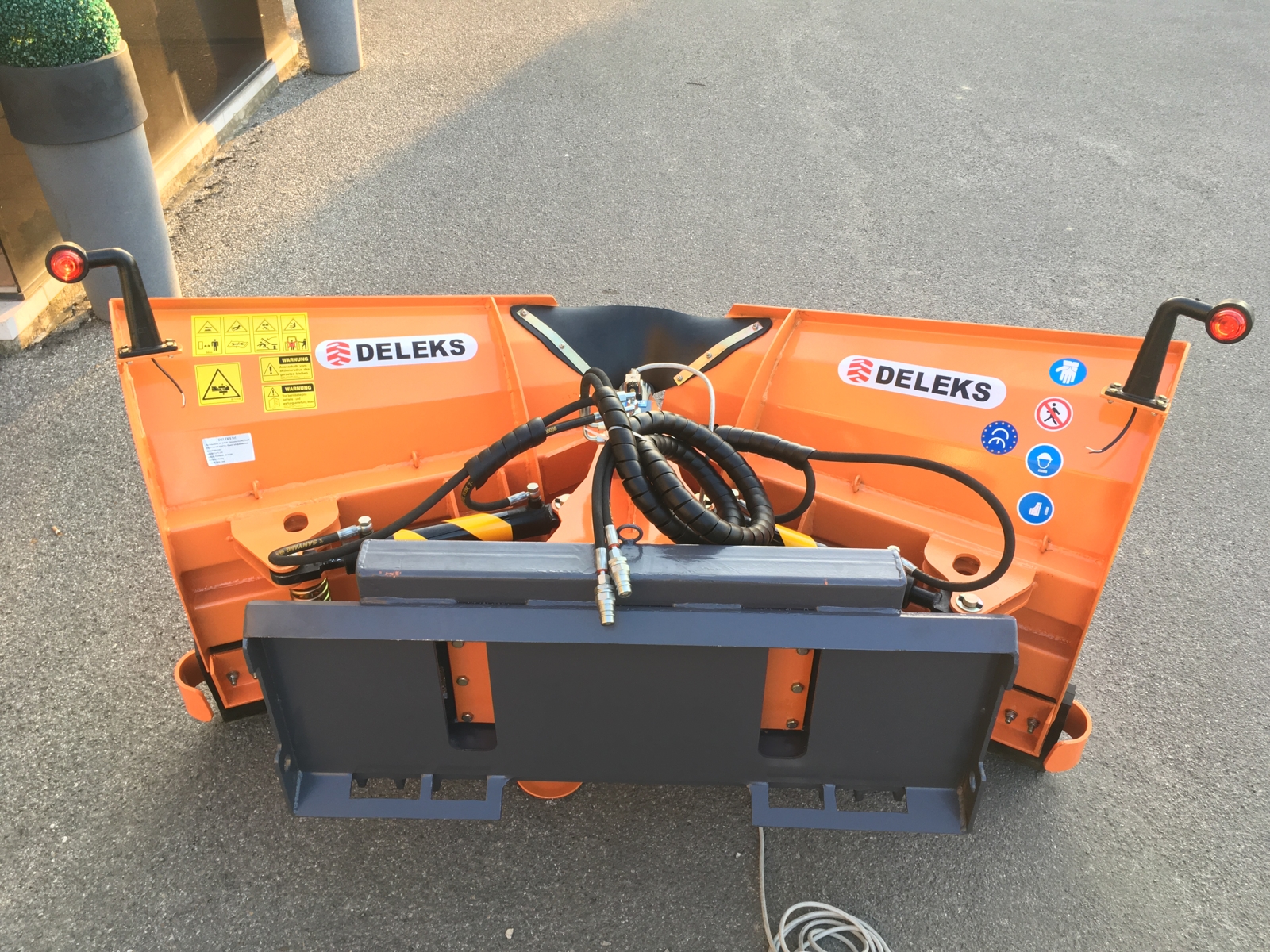

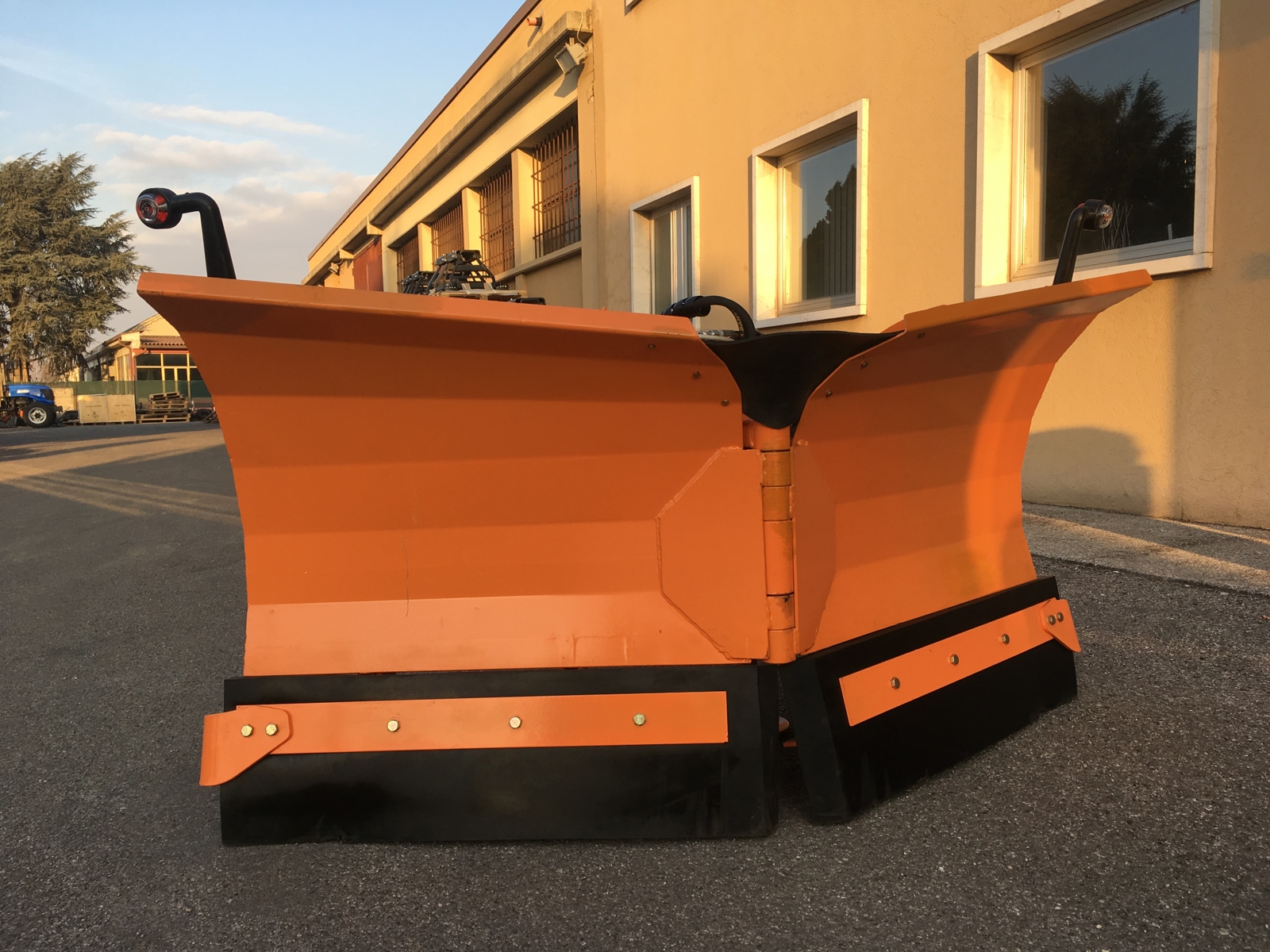

LNV-200-MG Strong and durable ‘V’ snowplow for skid steer loaders up to 3.0 ton. Compatible with all common brands e.g. Bobcat, JCB, Caterpillar, Case, etc.

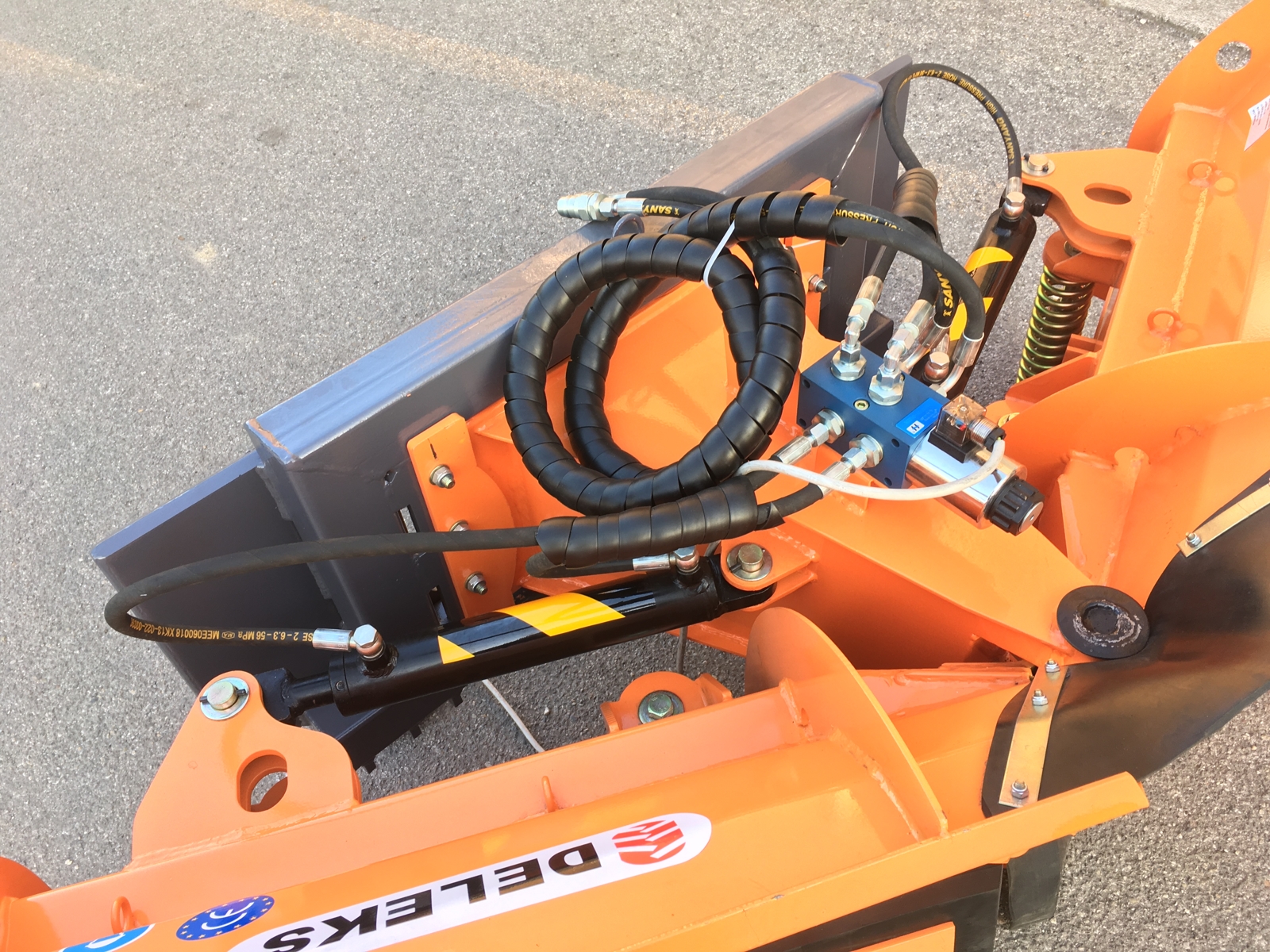

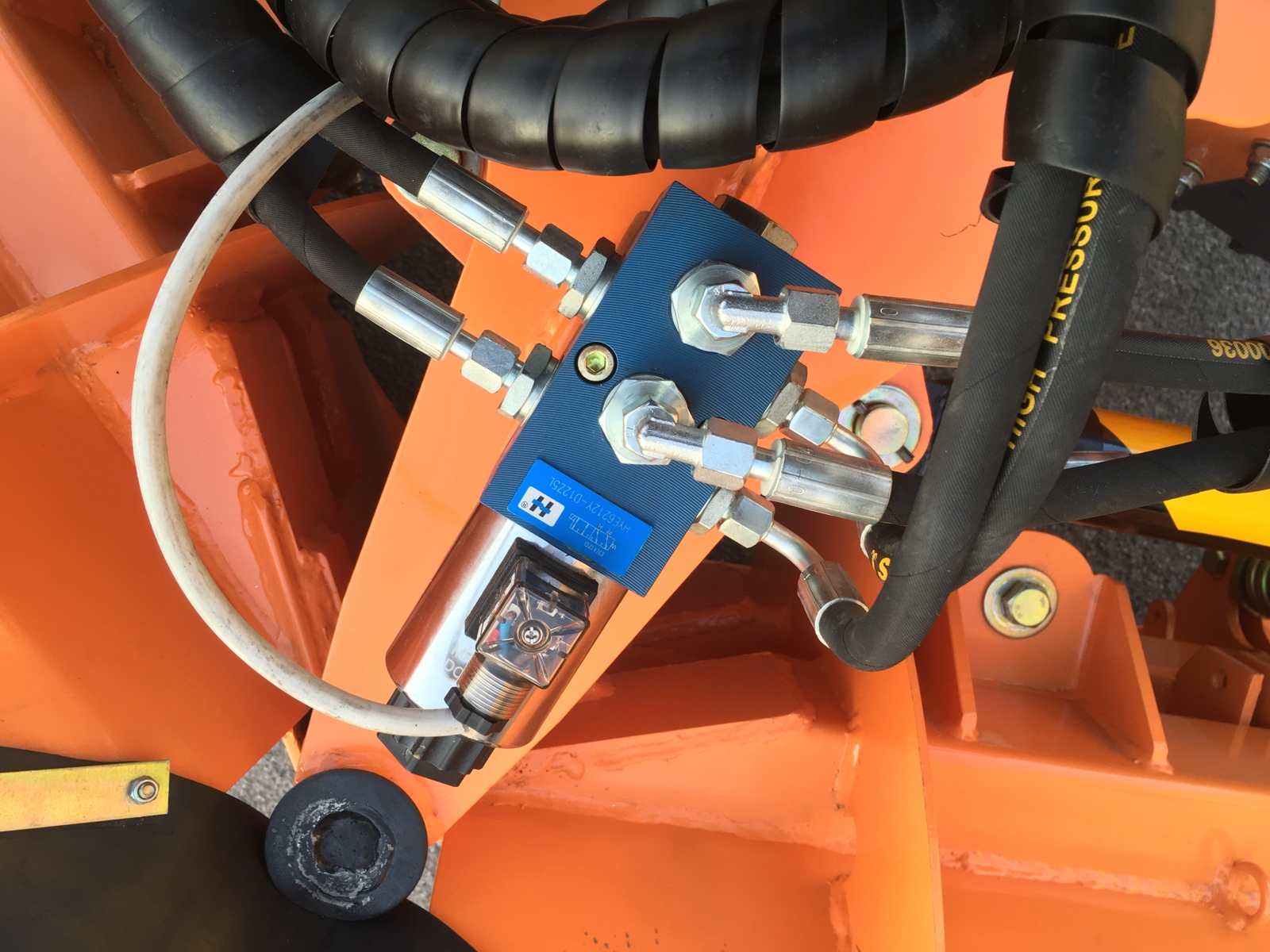

Angling of the plow is done hydraulically using two pistons, a 6-way solenoid valve and two hydraulic pipes (2.0m).

The plow has a replaceable rubber blade, spring swivel mount which makes the plow resistant to impact of obstacles. Supplied with marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.



BENEFITS AND FEATURES

Hydraulically controlled plowshares allow for four different working positions (open, closed, left and right).

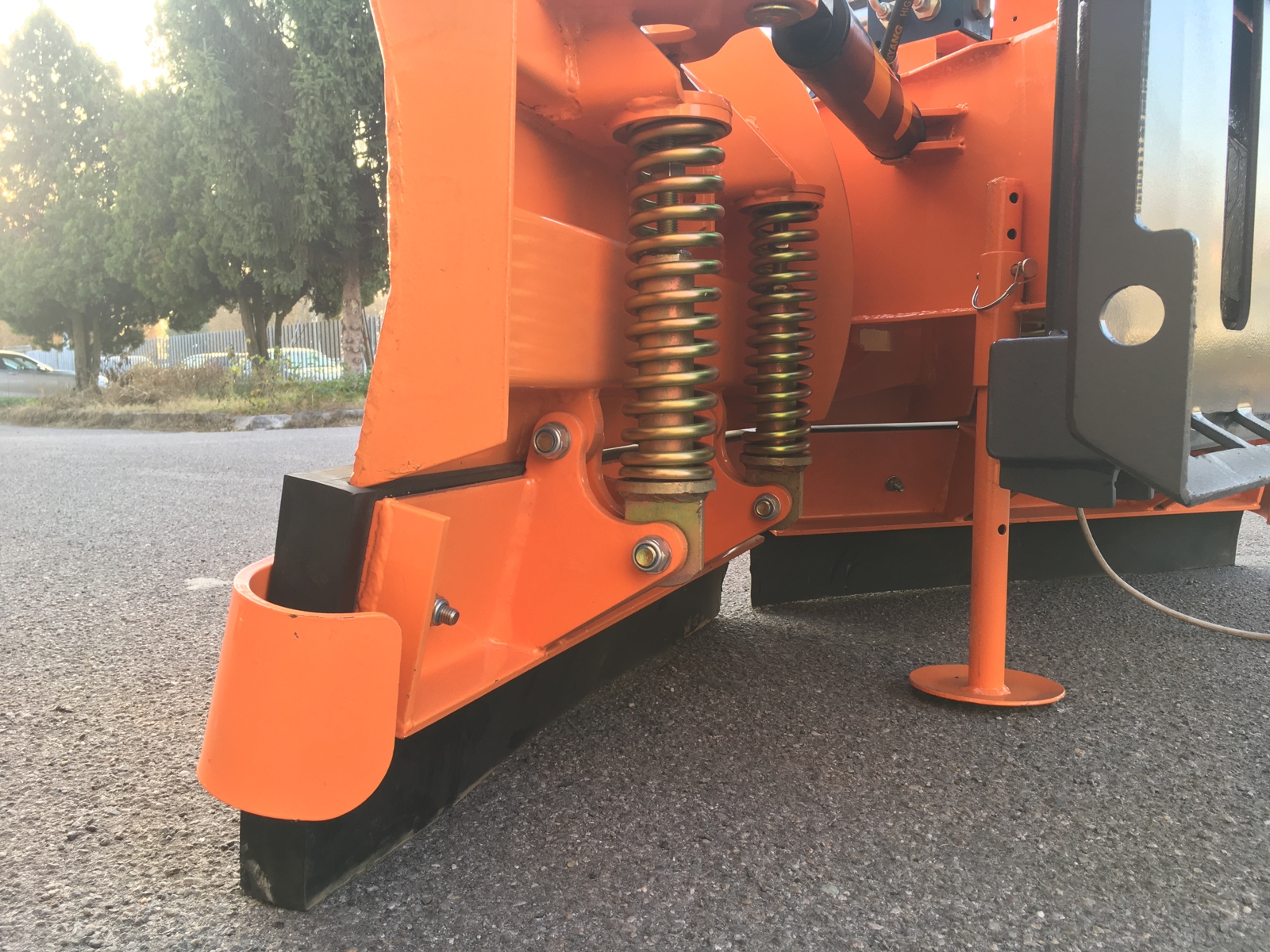

Anti-shock system with 4 shock absorbing springs to overcome obstacles safety.

2 independent plowing elements.

Lateral oscillation system which allows a perfect adherence to the road surface.

Extremely easy installation and usage.

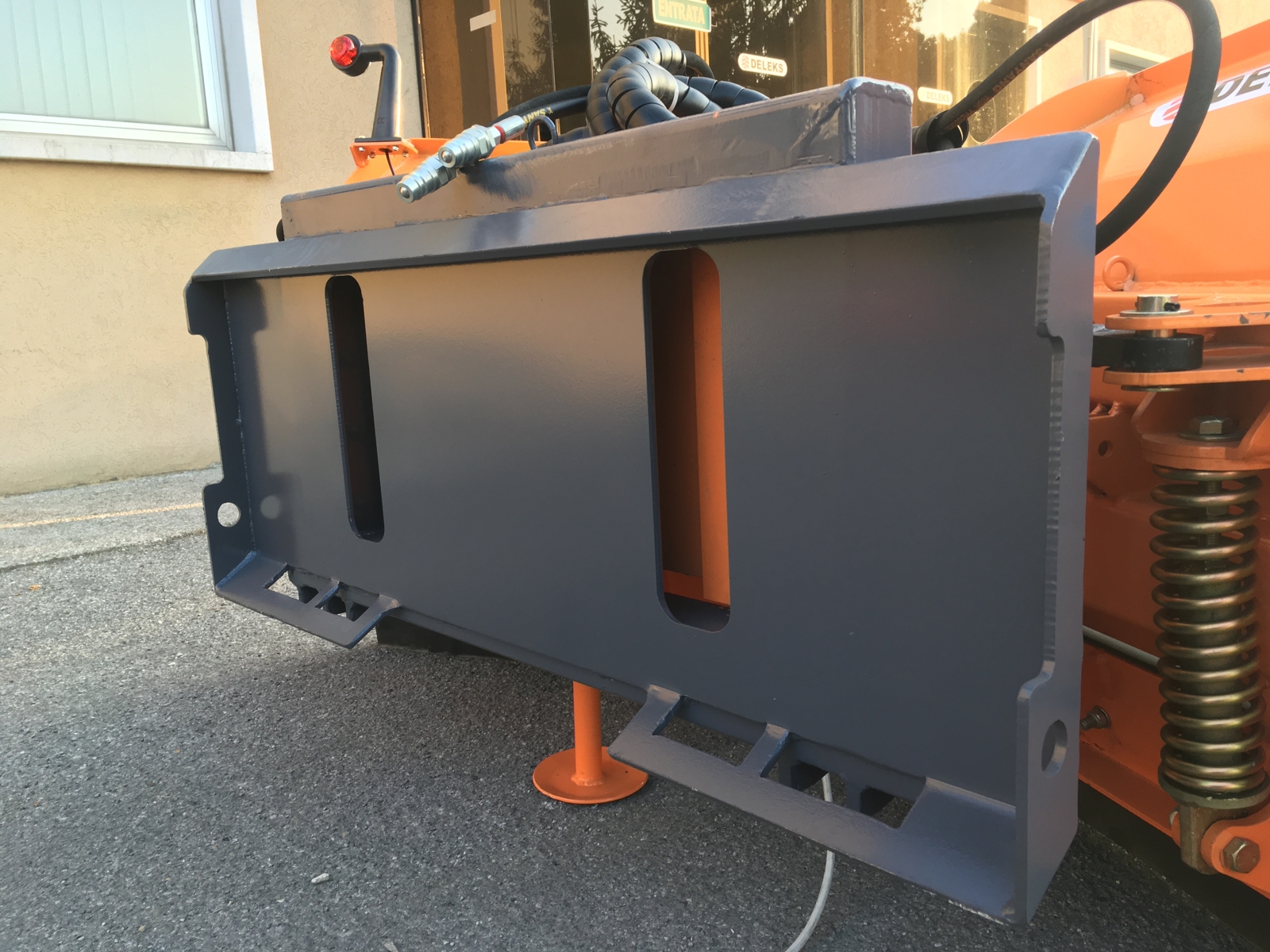

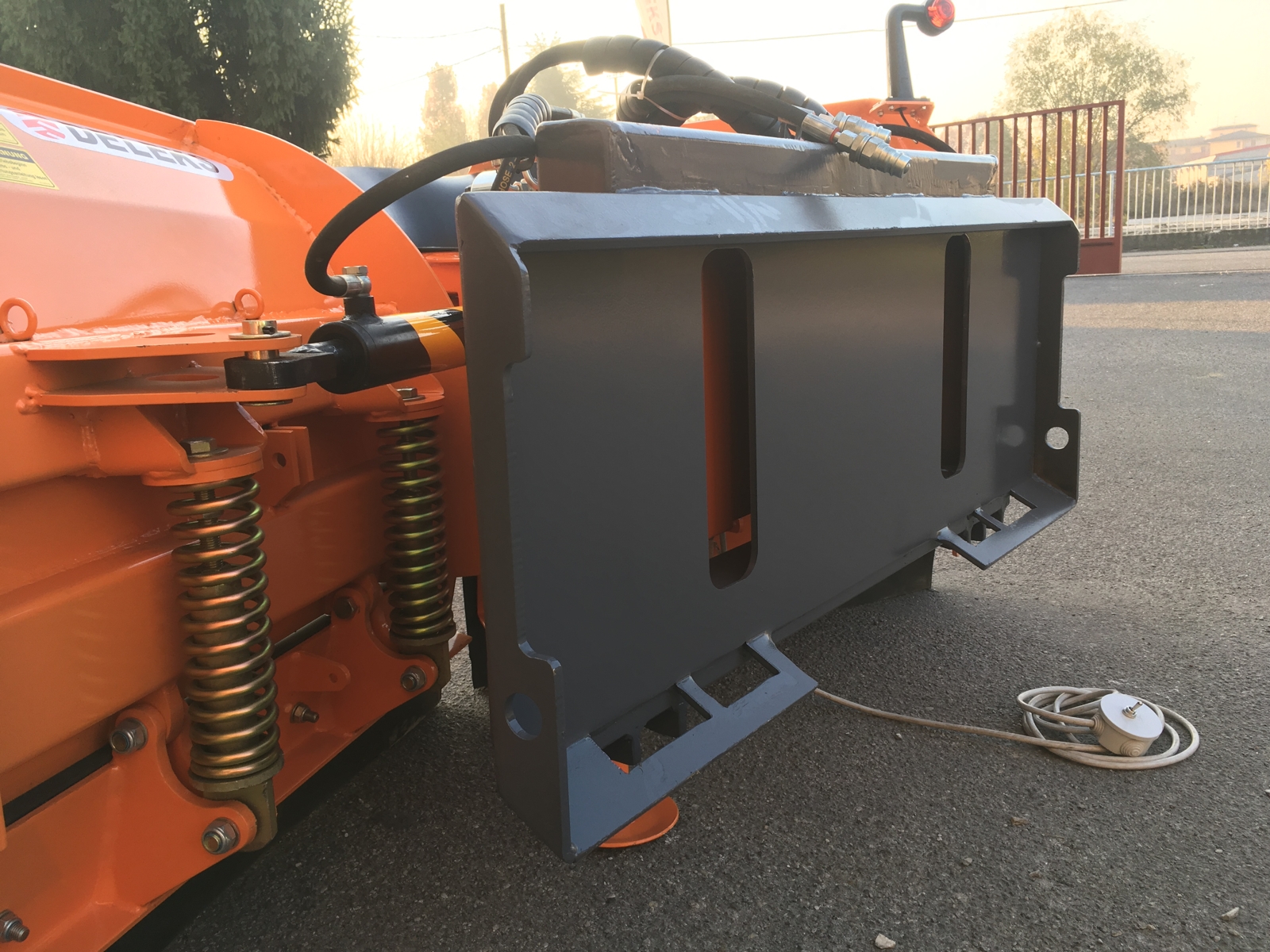

The Skid steer attachment is removable and replaceable with a 3-point hitch or EURO attachment.

Perfect adherence to the road surface and homologated for road use.



CHARACTERISTICS

Characteristic Units metric Units US
Weight 370.0 kg 815.70 lb
Overall height 1020.0 mm 3.35 ft
Overall Length 870.0 mm 2.85 ft
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface Universal for Skid Steer Loaders Universal for Skid Steer Loaders
Angling (left/right) 30° 30°
Float +/- 6° +/- 6°
Blade Height 920.0 mm 3.00 ft
Side edge thickness 5.0 mm 0.20 in
Shock absorbers 4 4
Cutting Edge Rubber Rubber
Cutting Edge Height 265.0 mm 10.43 in
Cutting Edge Thickness 50.0 mm 1.97 in
Trip Edge Quantity 2 2
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights
Removable Skid Shoes x x

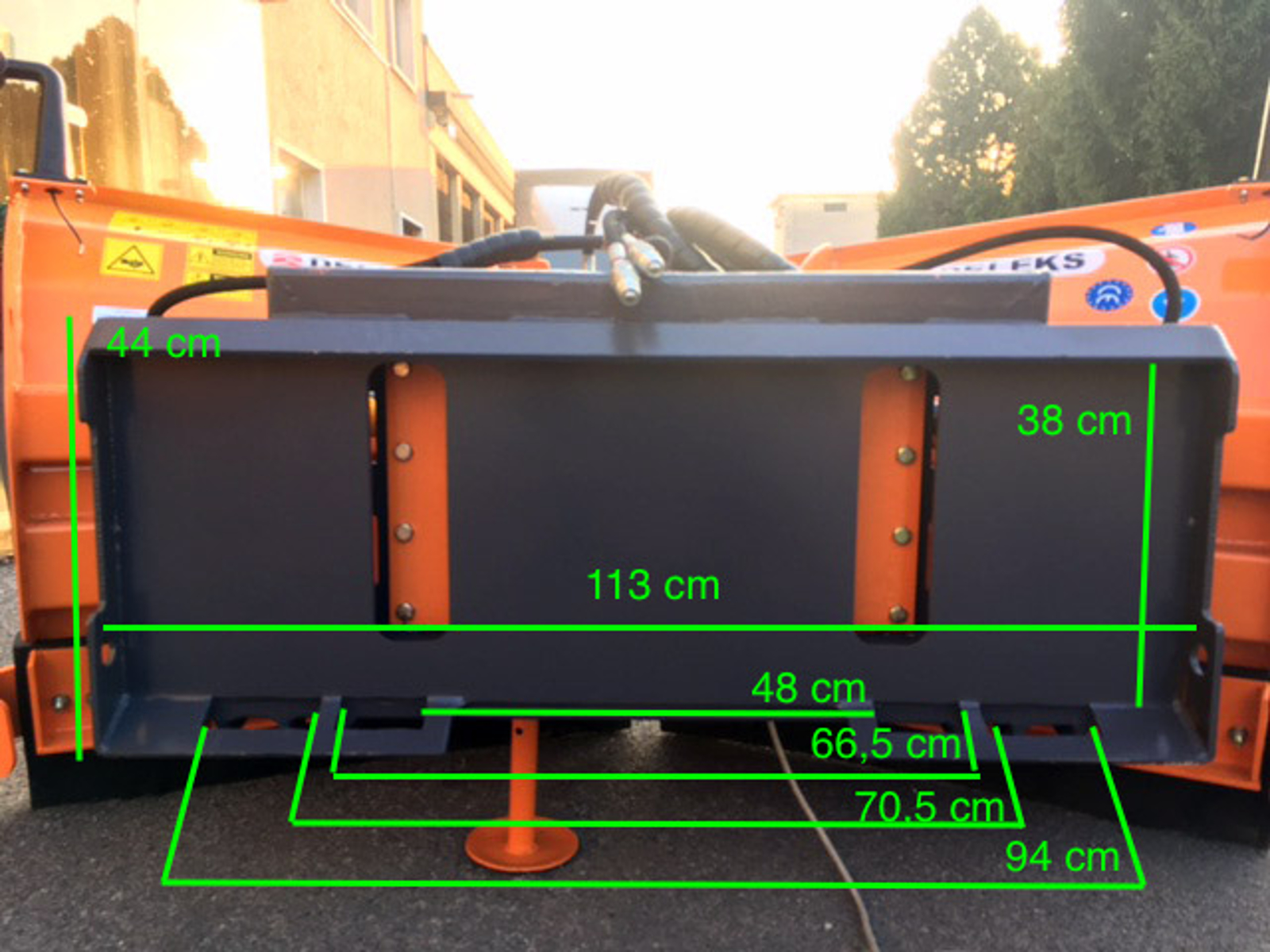

Universal attachment sizes See pictures See pictures
Working width (angled) 1900.0 mm 6.23 ft
Suitable on Skid Steer L. 3.0 t max Skid Steer L. 3.0 t max
Hydraulic Hoses 2 x 2000.0 mm / WP 400 BAR 2 x 6.56 ft / WP 400 bar
Overall width 2020.0 mm 6.60 ft
Main frame thickness 4.0 mm + reinforces 0.15 in + reinforces
Hydraulic cylinder/s ø 60.0/30.0 mm 2.36/1.18 in
Packing sizes 2050.0*1000.0*800.0 mm 6.73*3.28*2.62 ft

Optional

2 hydr pipes 4 00m fast connection set
2 Hydr. pipes 4,00m + Fast connection Set
170.00(143.43 £)VAT excl.
Available

4,00m - Quick Release Coupling 1/2"

Fast connection set.

2 springs snowblade lnv
2 springs snowblade LNV
100.00(84.37 £)VAT excl.
Available

LNV

couple marker lights ln
Couple marker lights LN
56.00(47.25 £)VAT excl.
Available

LN 175/250

spare rubber blade lnv 200
Spare rubber blade LNV-200
280.00(236.24 £)VAT excl.
Available

LNV-200
