Snowplough for up to 3.0 ton Skid steer loaders, LNV-250-M


192 reviews

Not available Notify me
Code LNV250MG
EAN 8053470231742
View all details.
3,165.00(2,670.31 £)VAT excl.
Free shipping

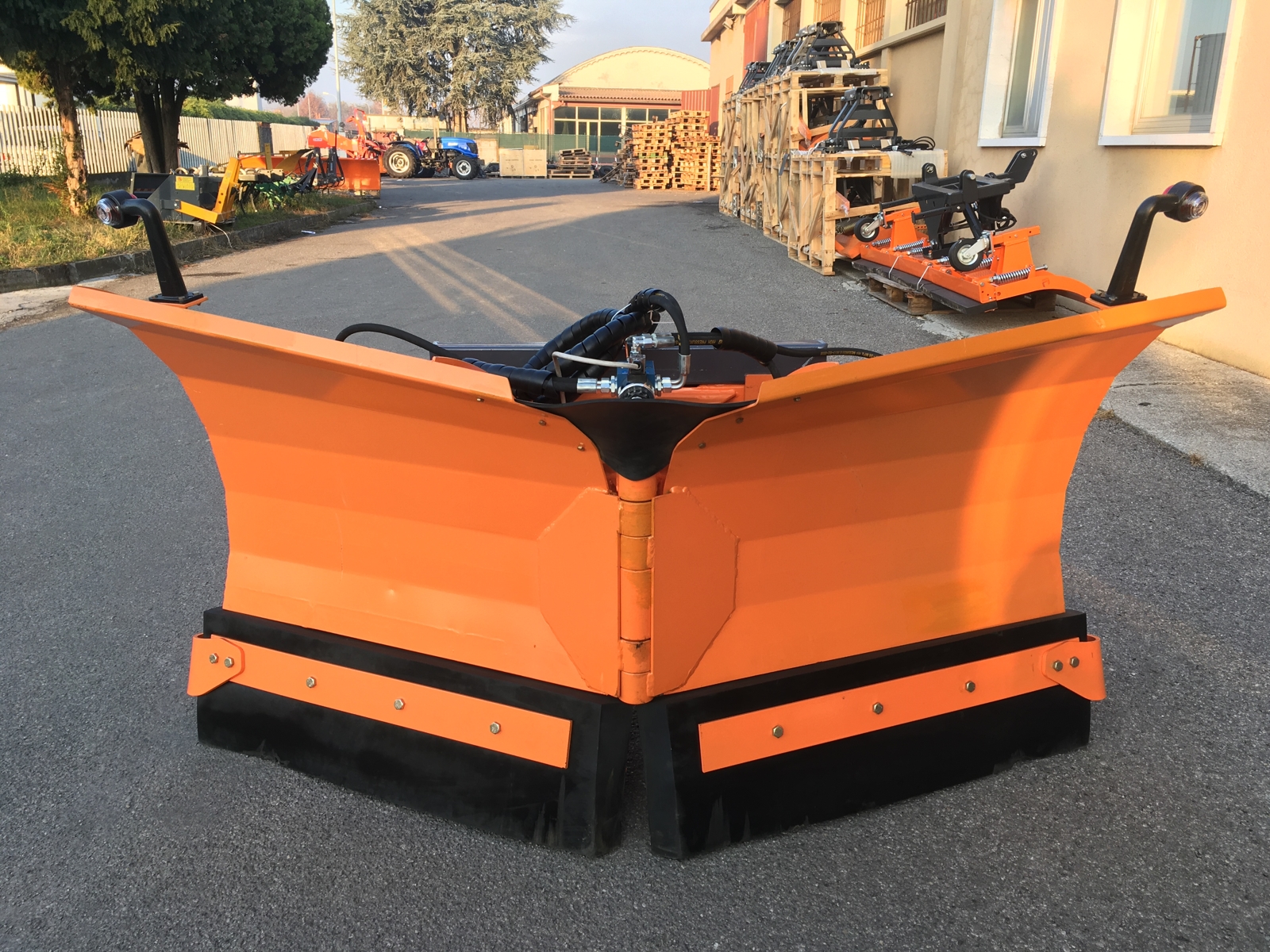

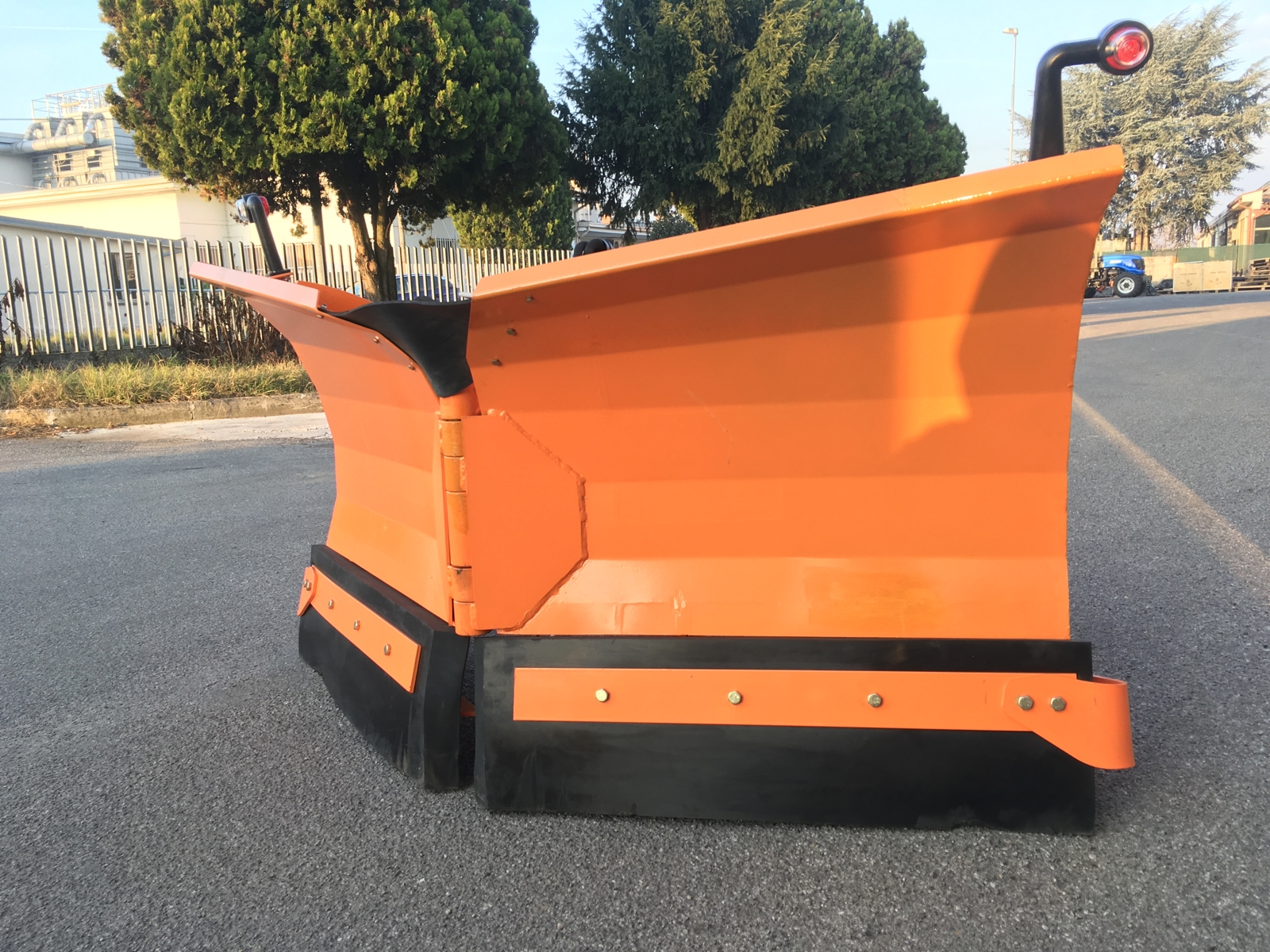

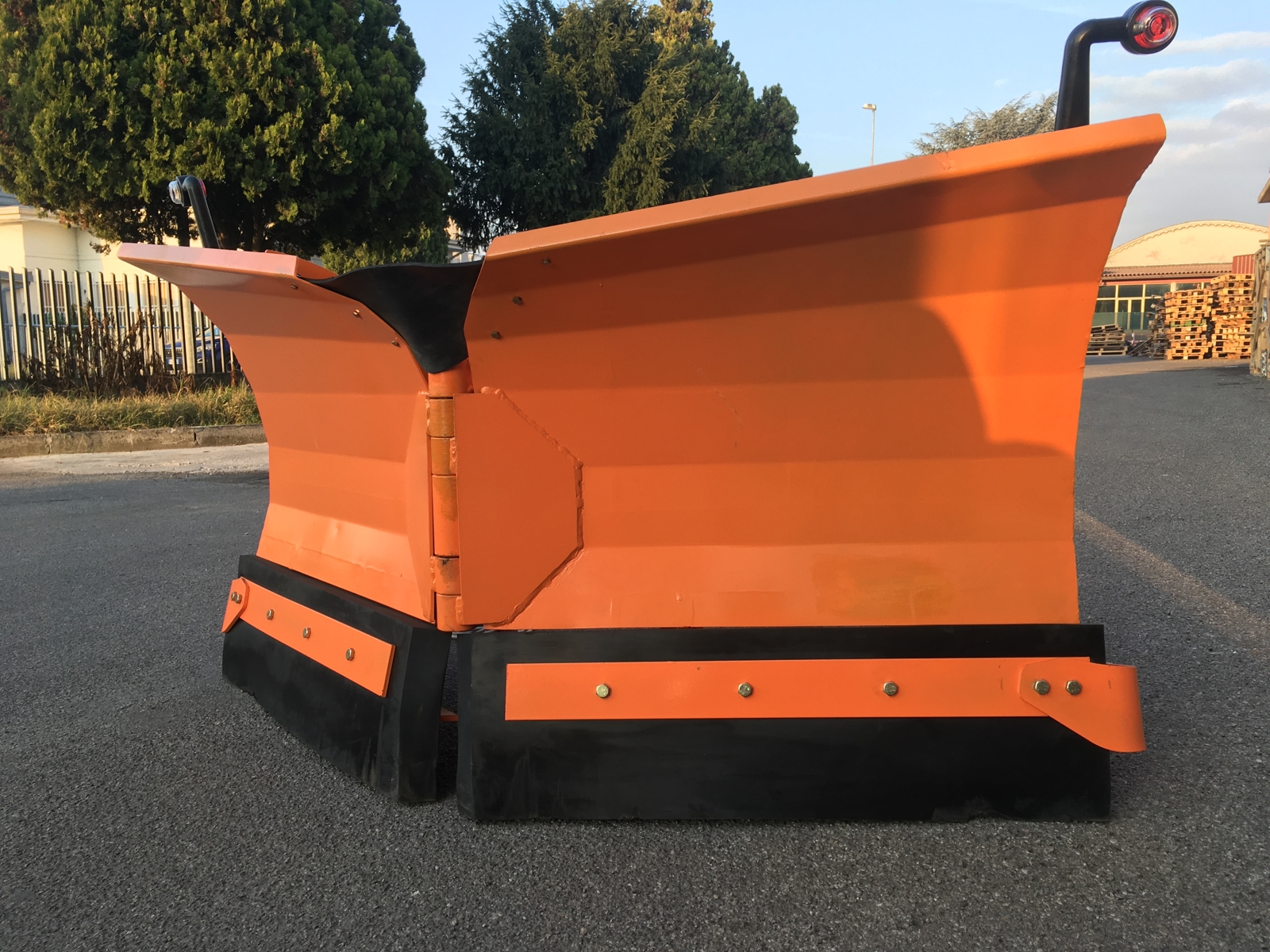

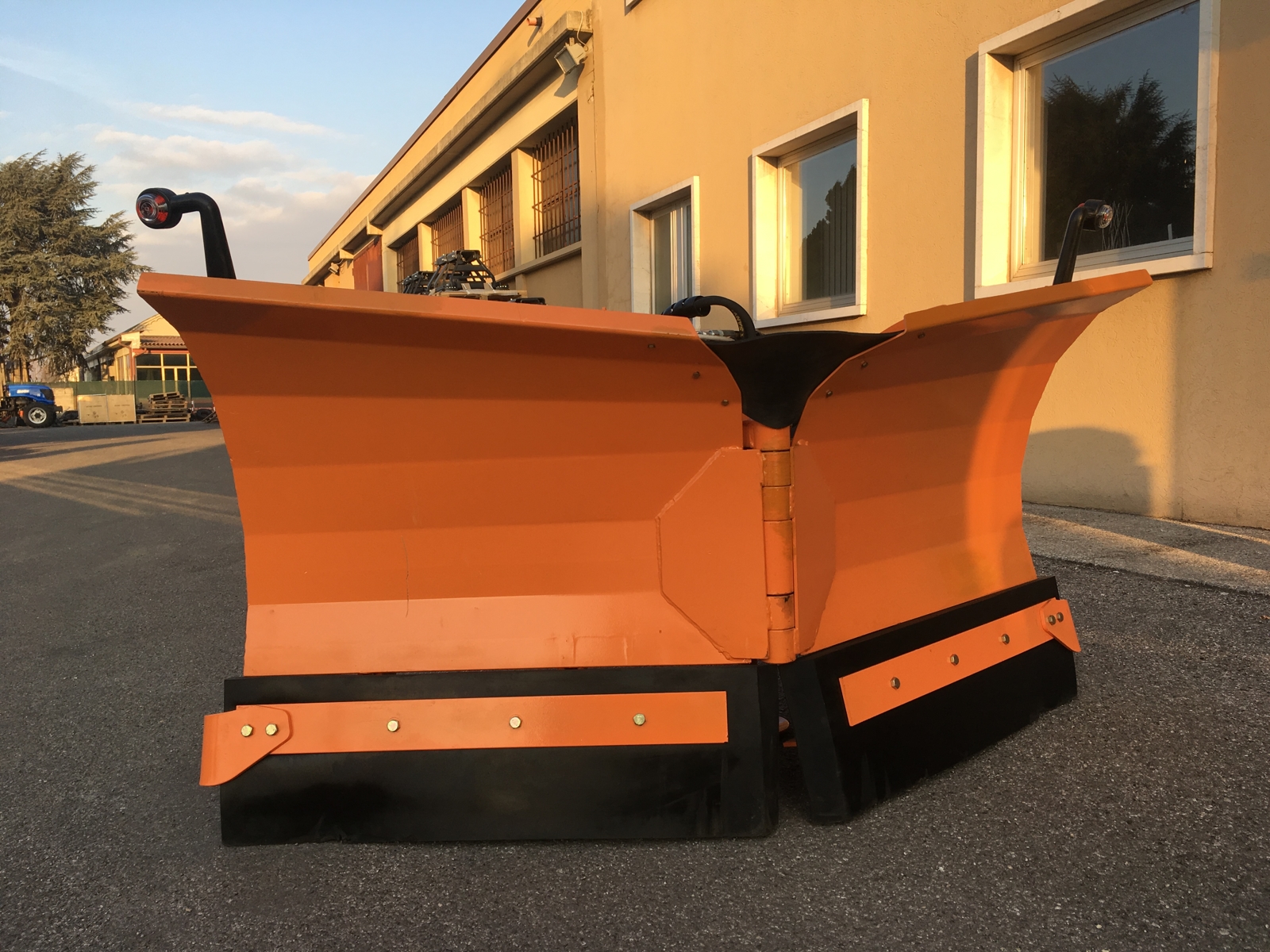

Snow plow, Snowblade 250cm/425kg for up to 3.0 ton Skid steer loaders - DELEKS® - 2 independent plowing elements - Hydraulically controlled plowshares.

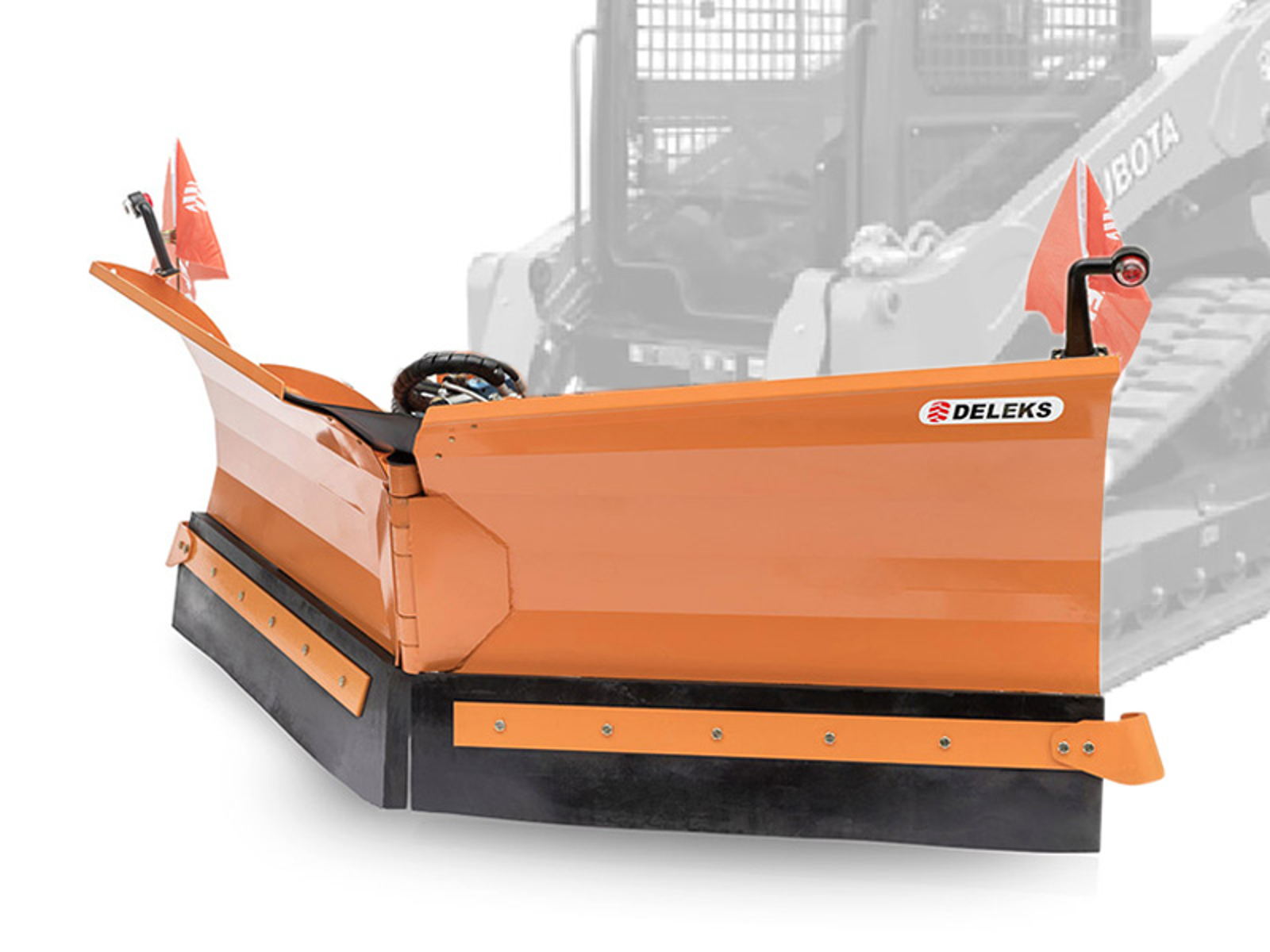

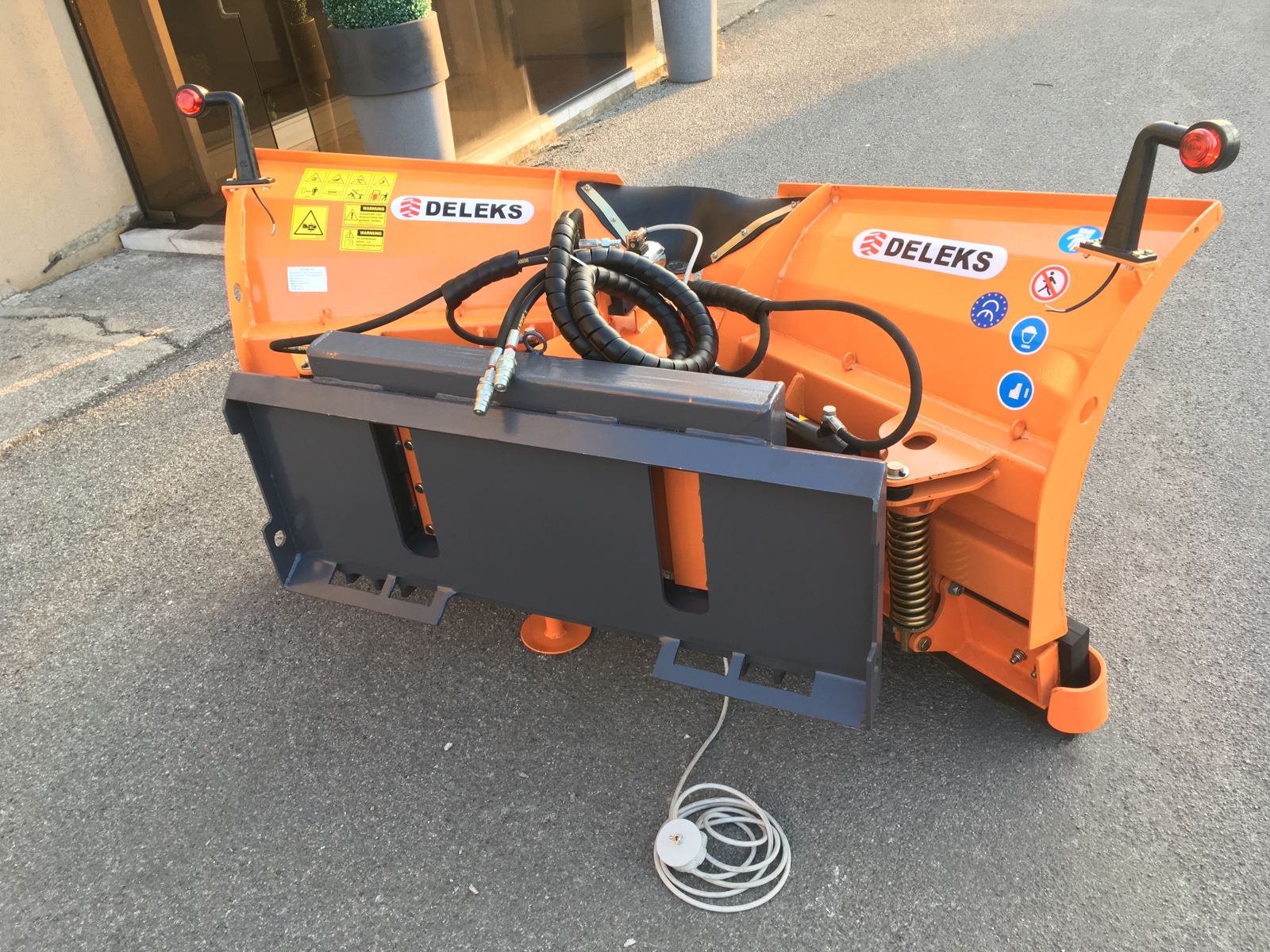

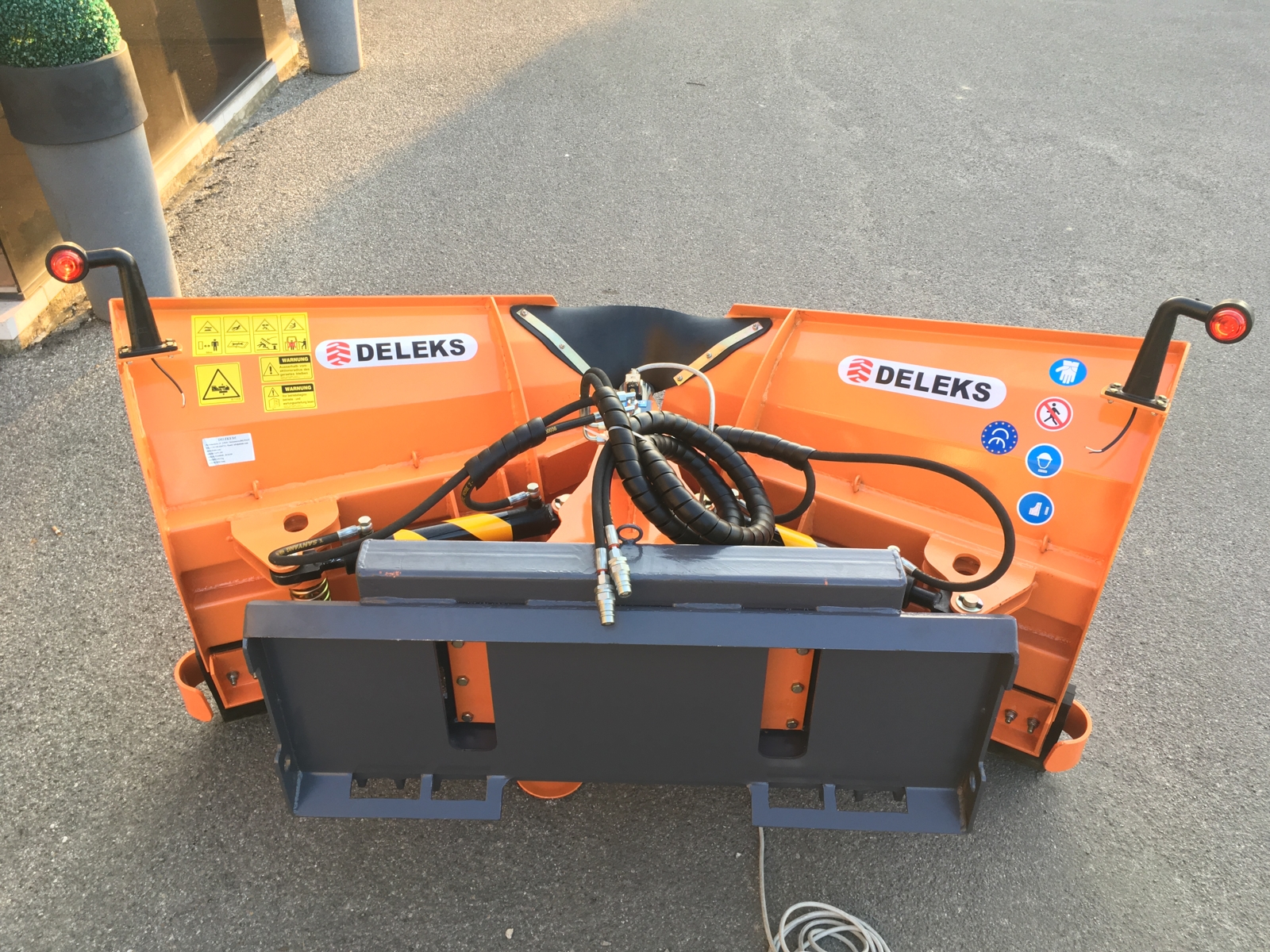

LNV-250-MG Strong and durable ‘V’ snowplow for skid steer loaders up to 3.0 ton. Compatible with all common brands e.g. Bobcat, JCB, Caterpillar, Case, etc.

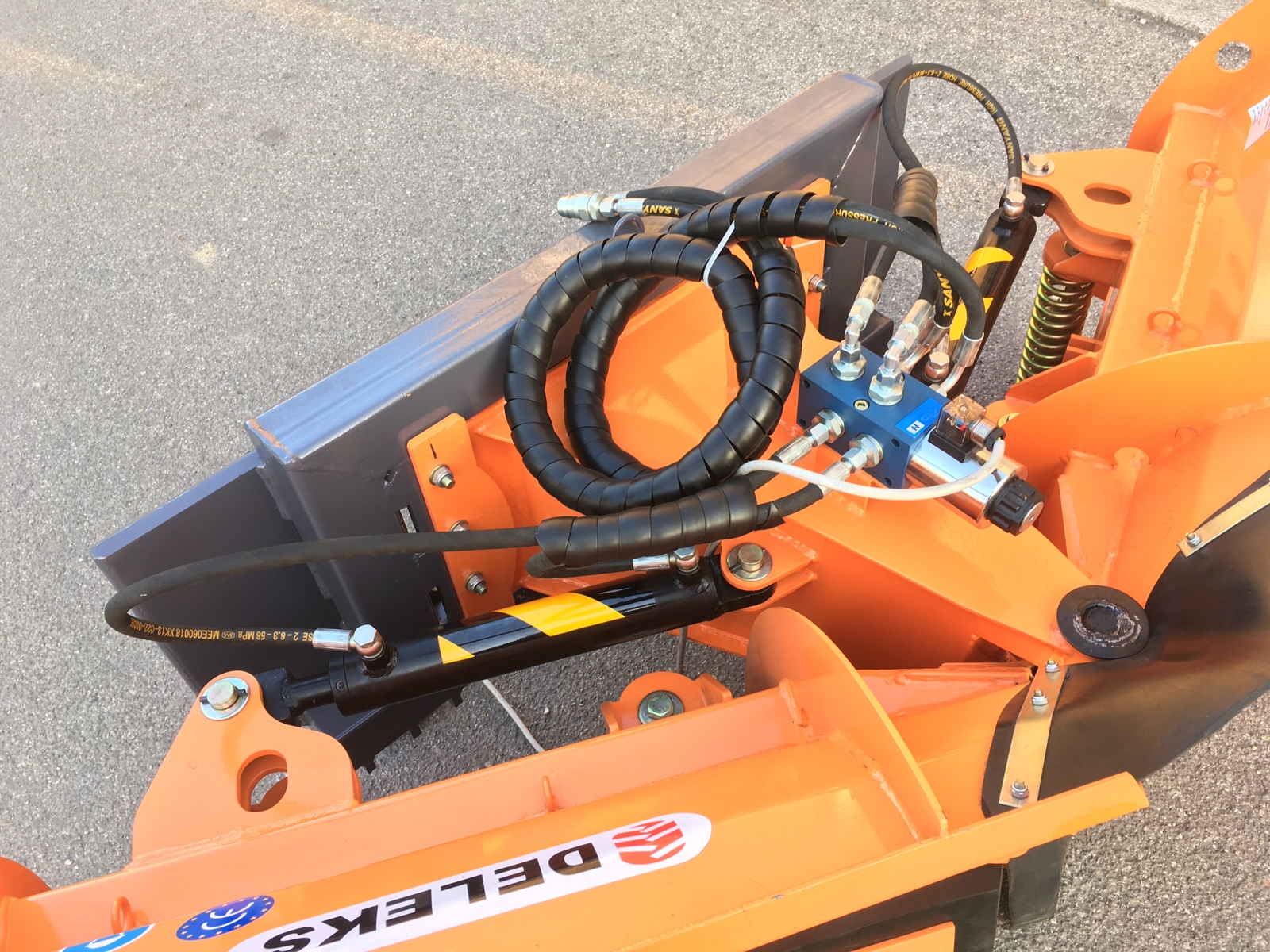

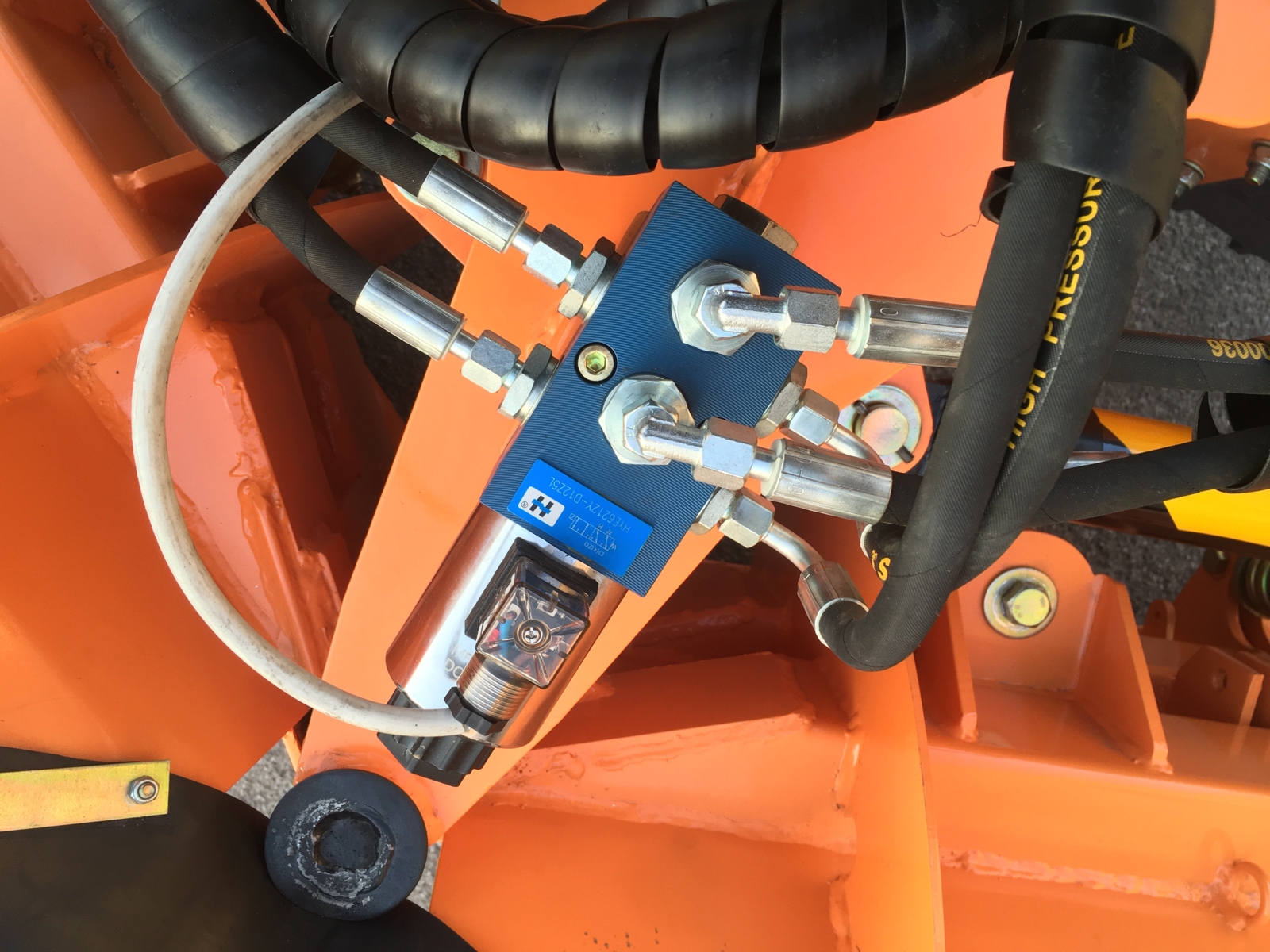

Angling of the plow is done hydraulically using two pistons, a 6-way solenoid valve and two hydraulic pipes (2.0m).

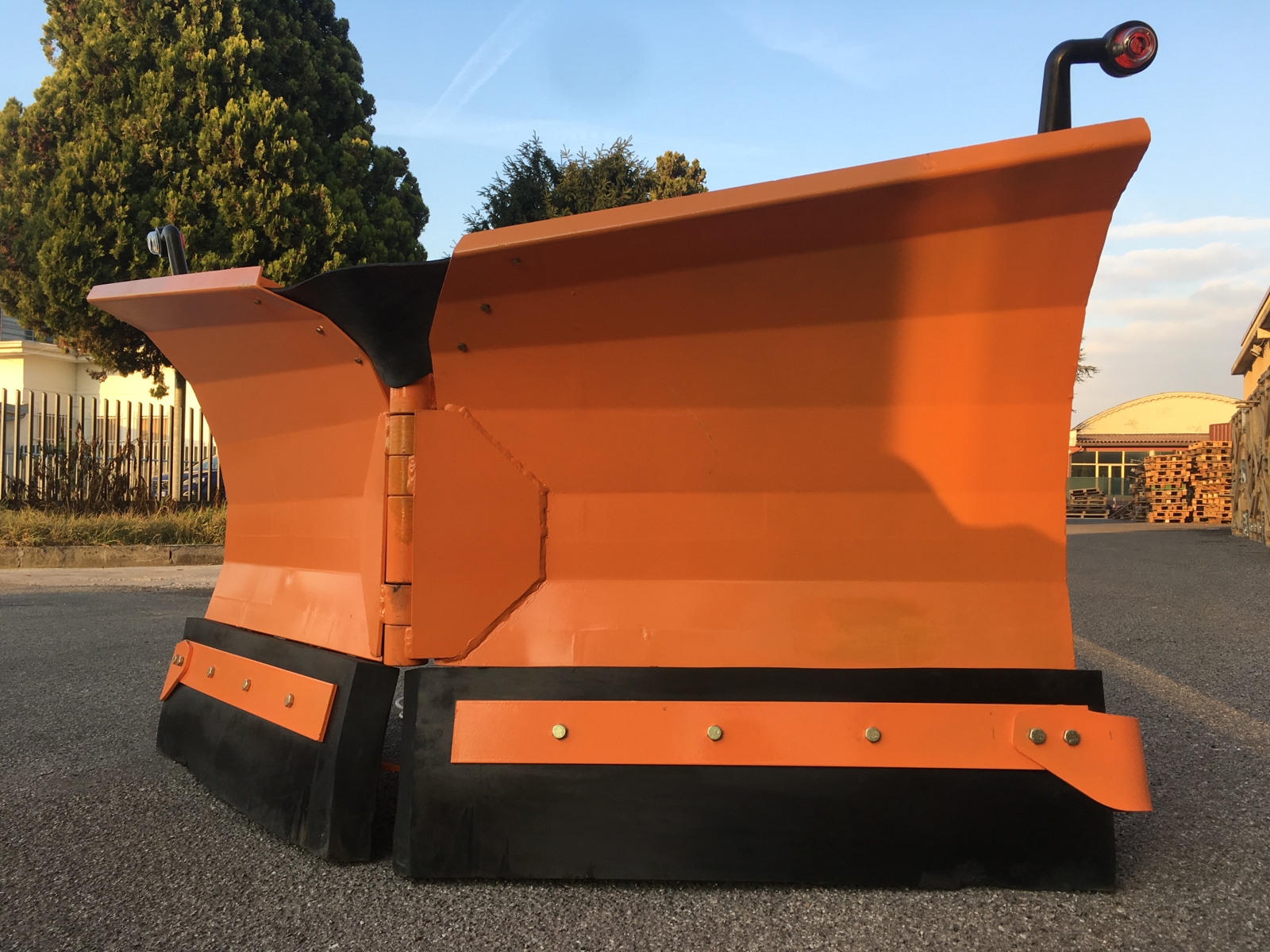

The plow has a replaceable rubber blade, spring swivel mount which makes the plow resistant to impact of obstacles. Supplied with marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.



Hydraulically controlled plowshares allow for four different working positions (open, closed, left and right).

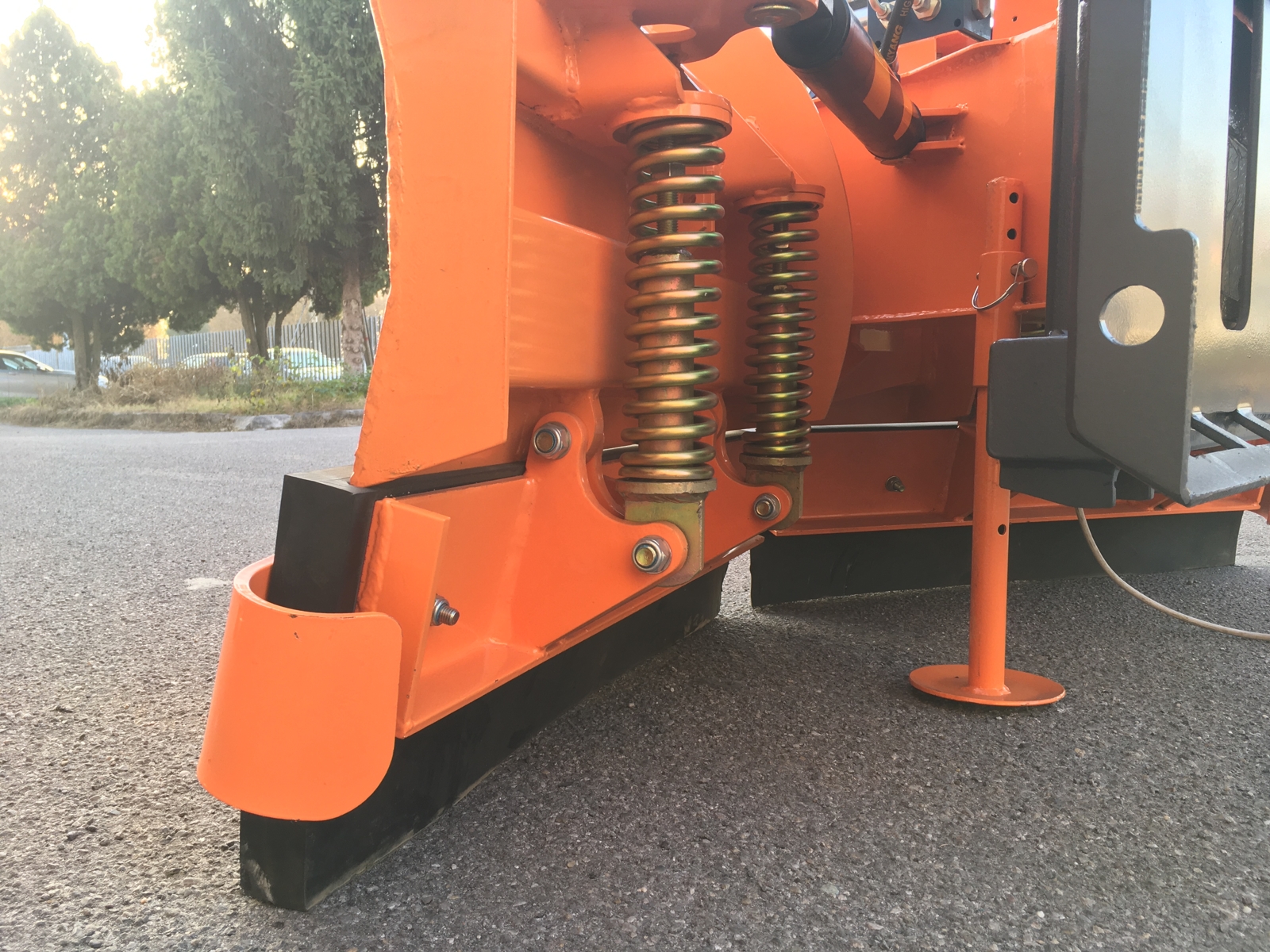

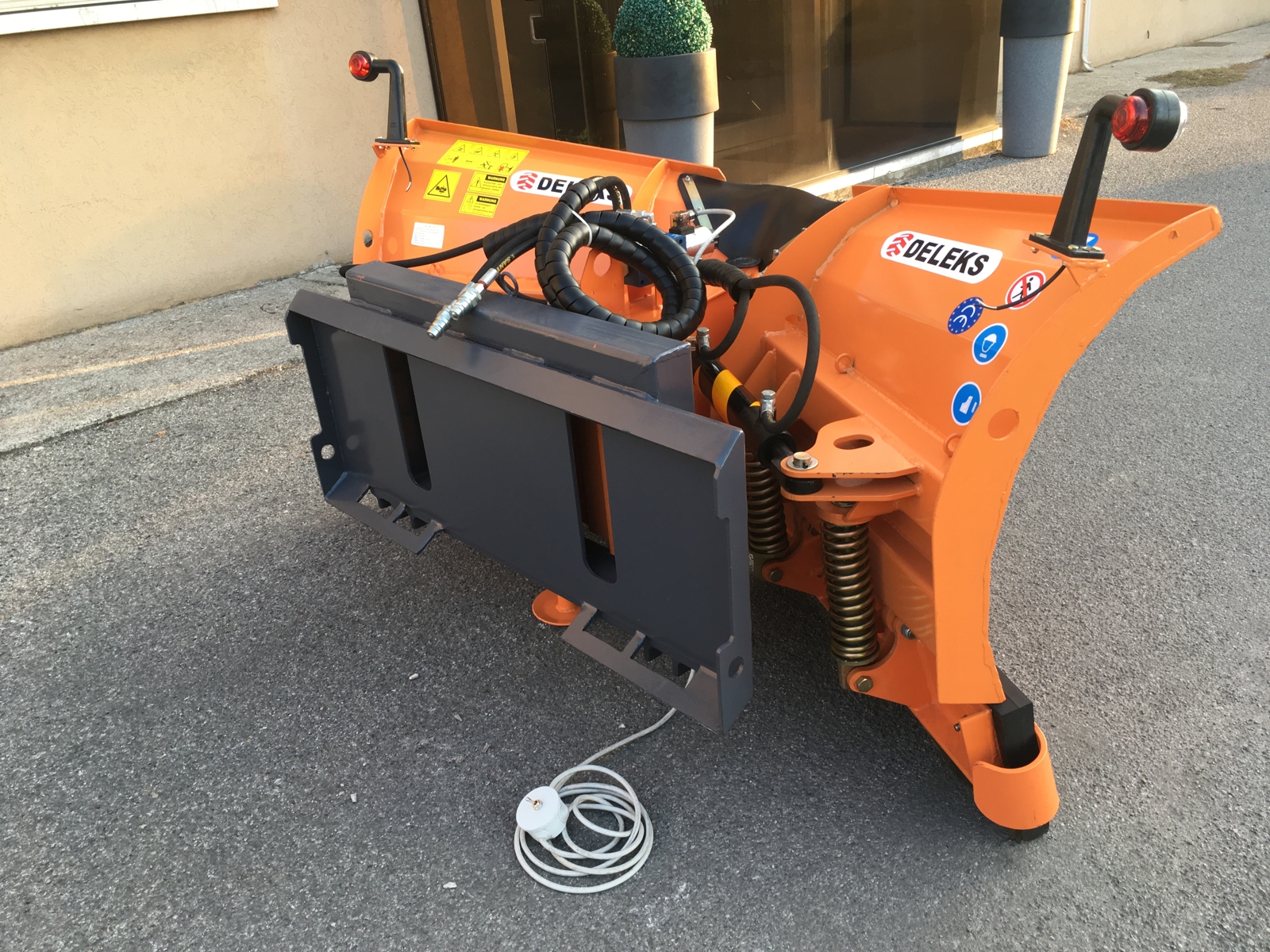

Anti-shock system with 4 shock absorbing springs to overcome obstacles safety.

2 independent plowing elements.

Lateral oscillation system which allows a perfect adherence to the road surface.

Extremely easy installation and usage.

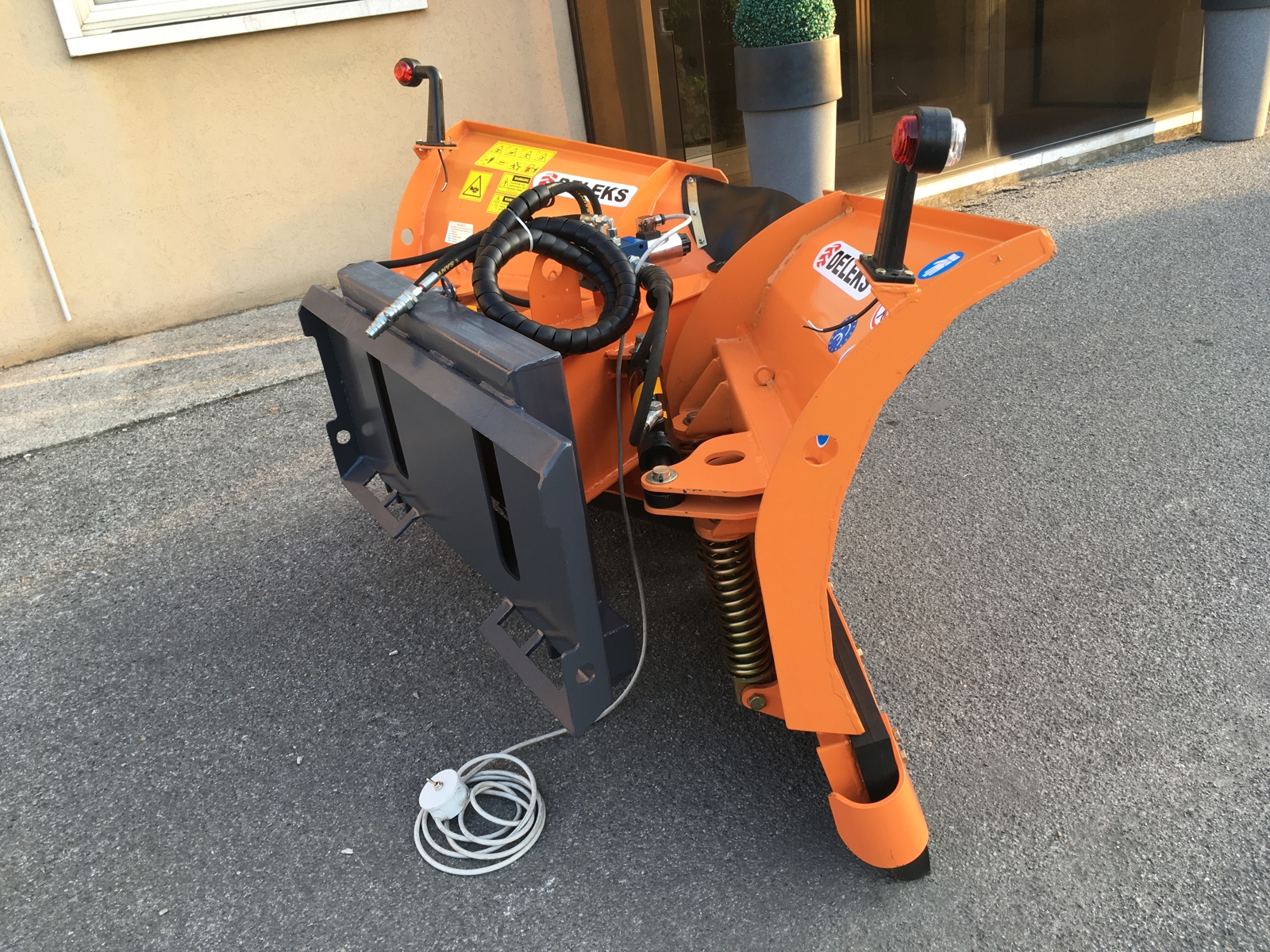

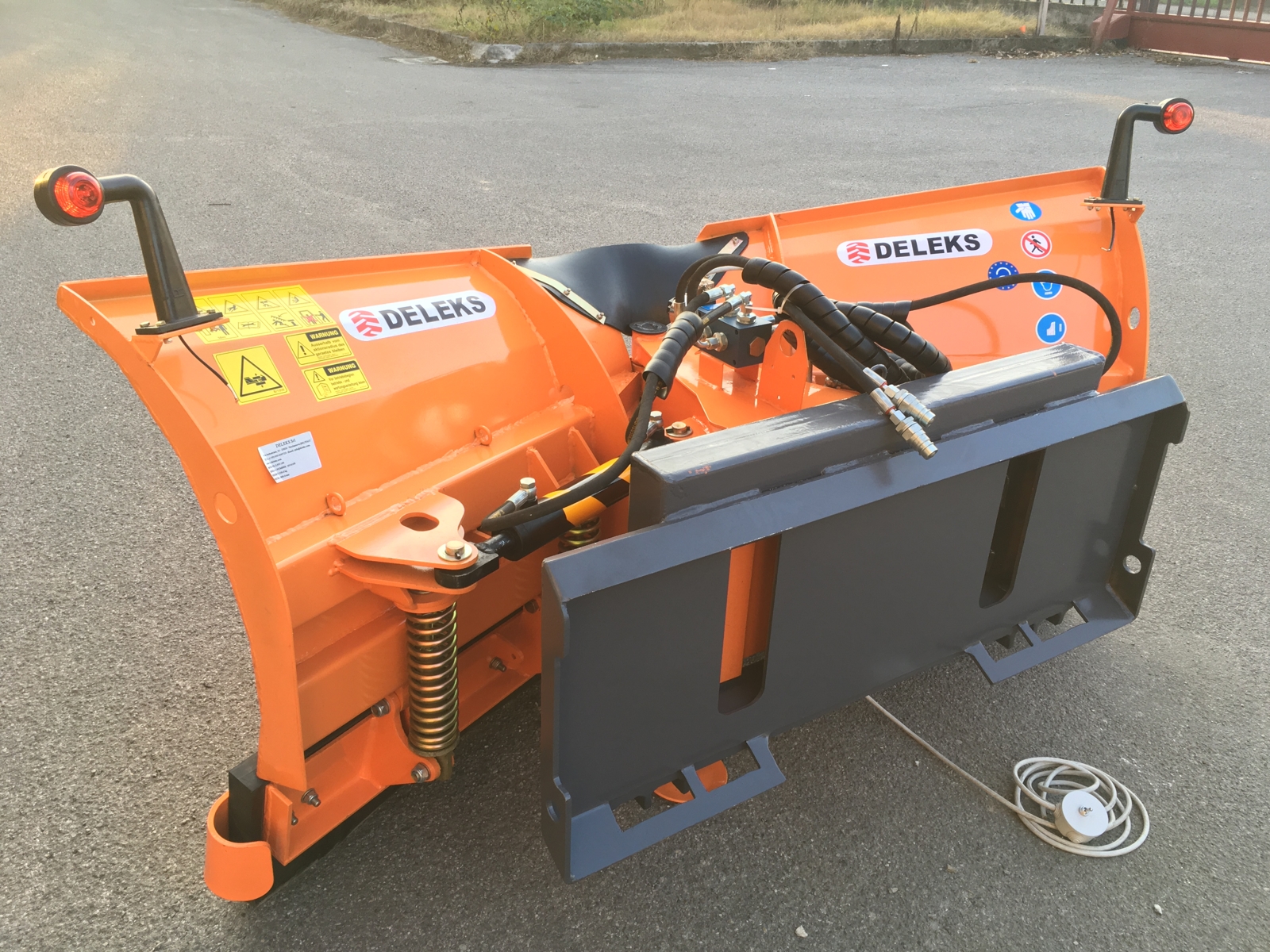

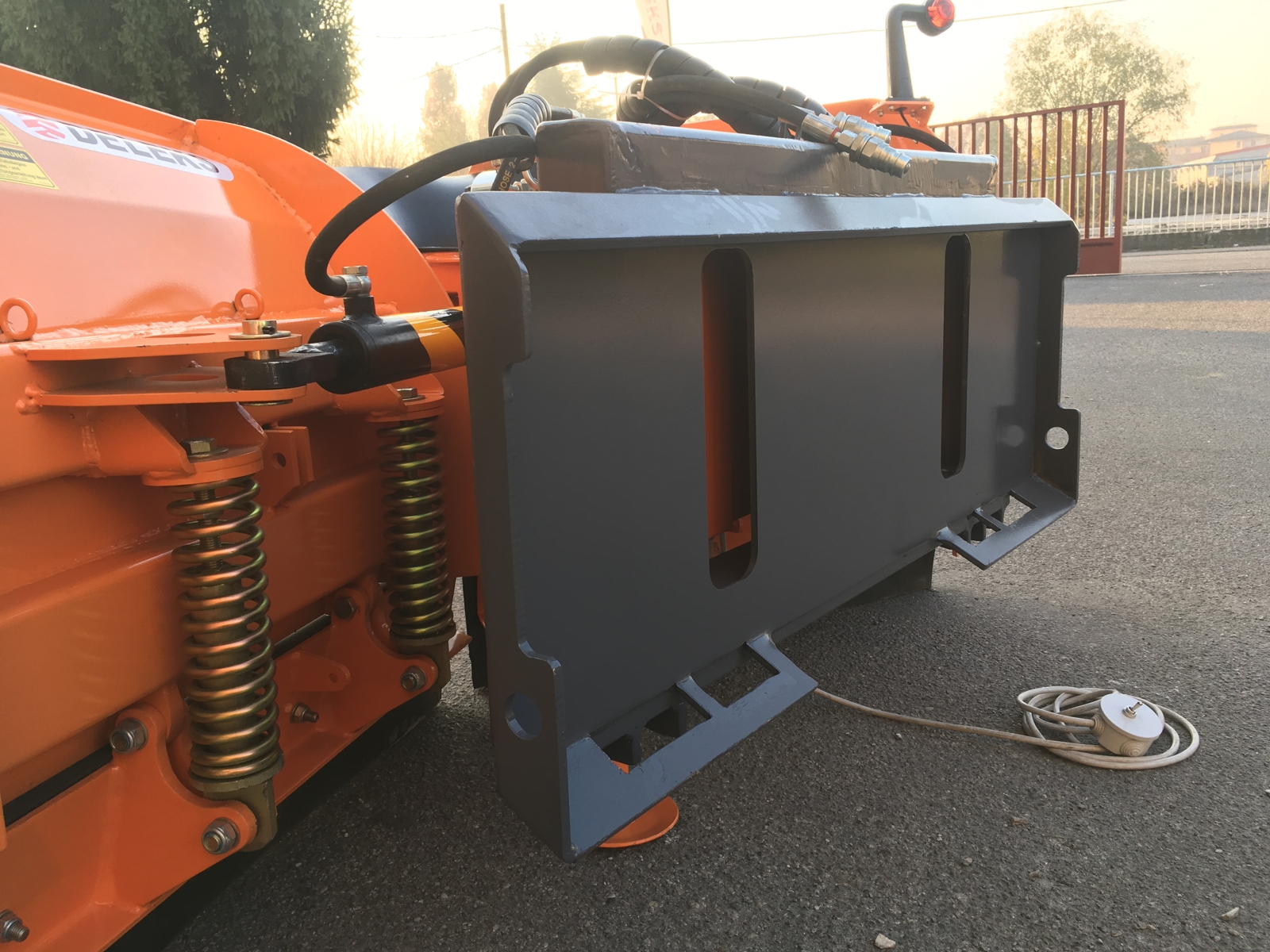

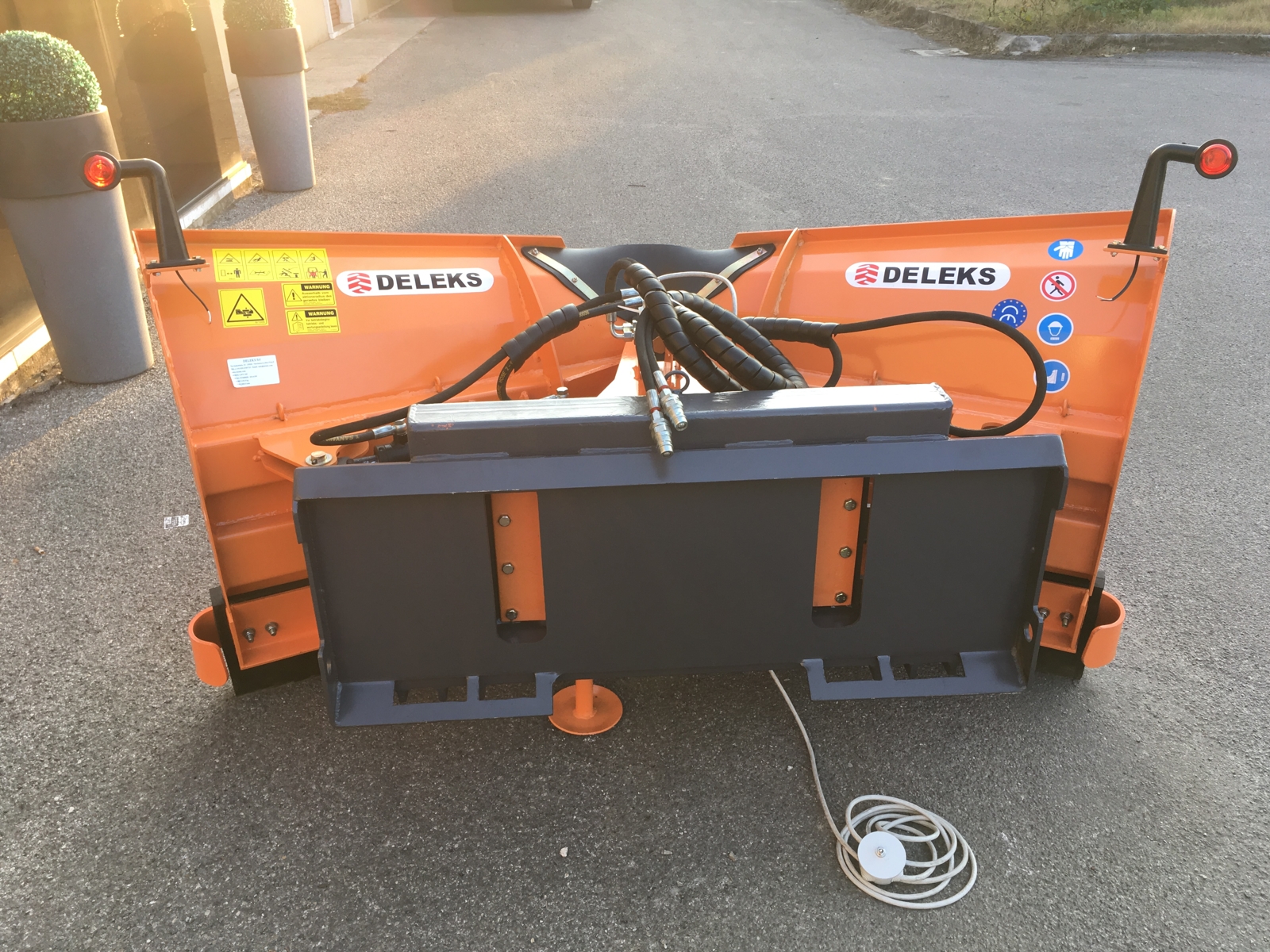

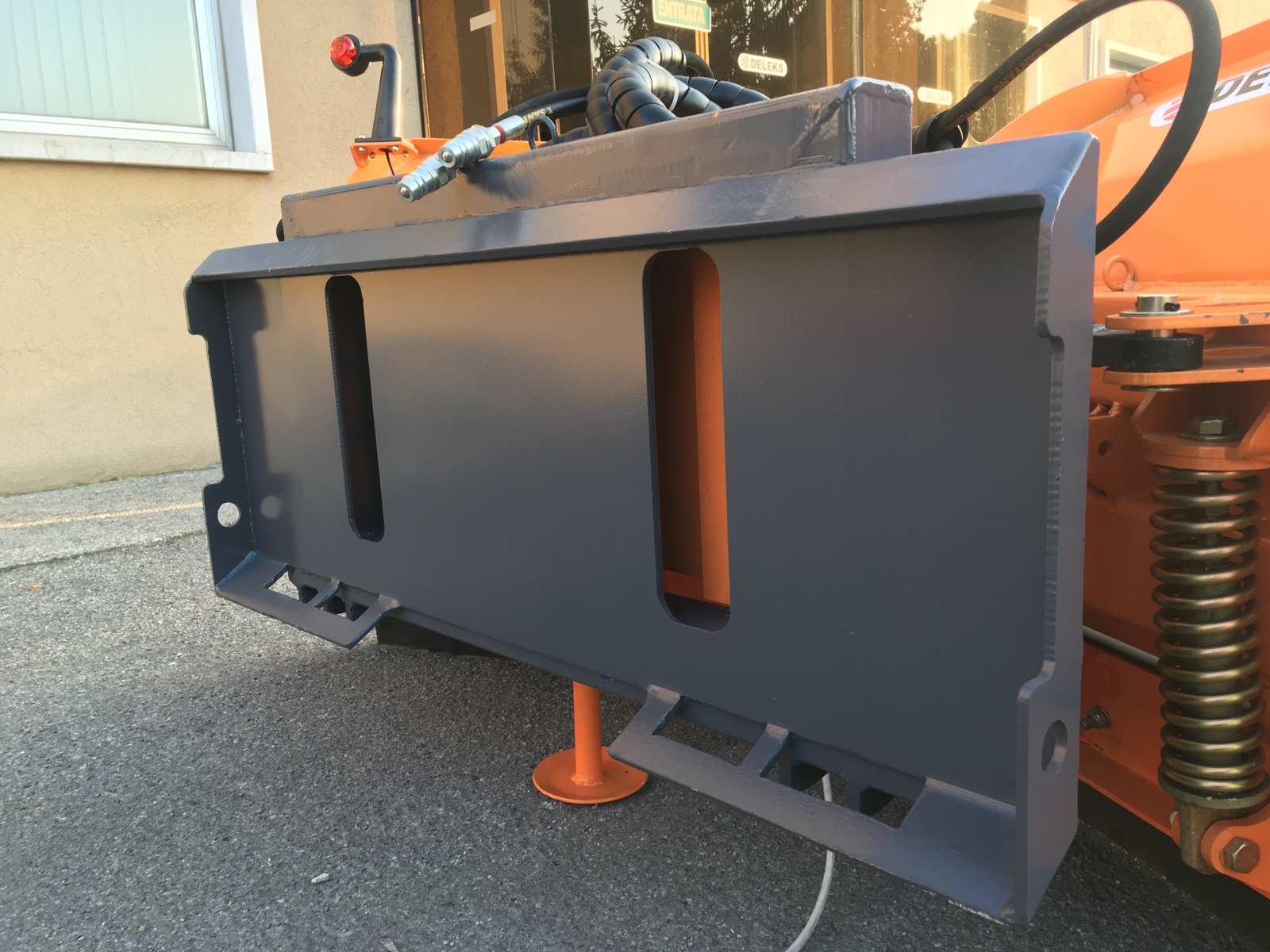

The Skid steer attachment is removable and replaceable with a 3-point hitch or EURO attachment.

Perfect adherence to the road surface and homologated for road use.



Characteristic Units metric Units US
Weight 425.0 kg 937.0 lb
Overall height 1020.0 mm 3.35 ft
Overall Length 870.0 mm 2.85 ft
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface Universal for Skid Steer Loaders Universal for Skid Steer Loaders
Angling (left/right) 30° 30°
Float +/- 6° +/- 6°
Blade Height 920.0 mm 3.00 ft
Side edge thickness 5.0 mm 0.20 in
Shock absorbers 6 6
Cutting Edge Rubber Rubber
Cutting Edge Height 265.0 mm 10.43 in
Cutting Edge Thickness 50.0 mm 1.97 in
Trip Edge Quantity 2 2
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Removable Skid Shoes x x

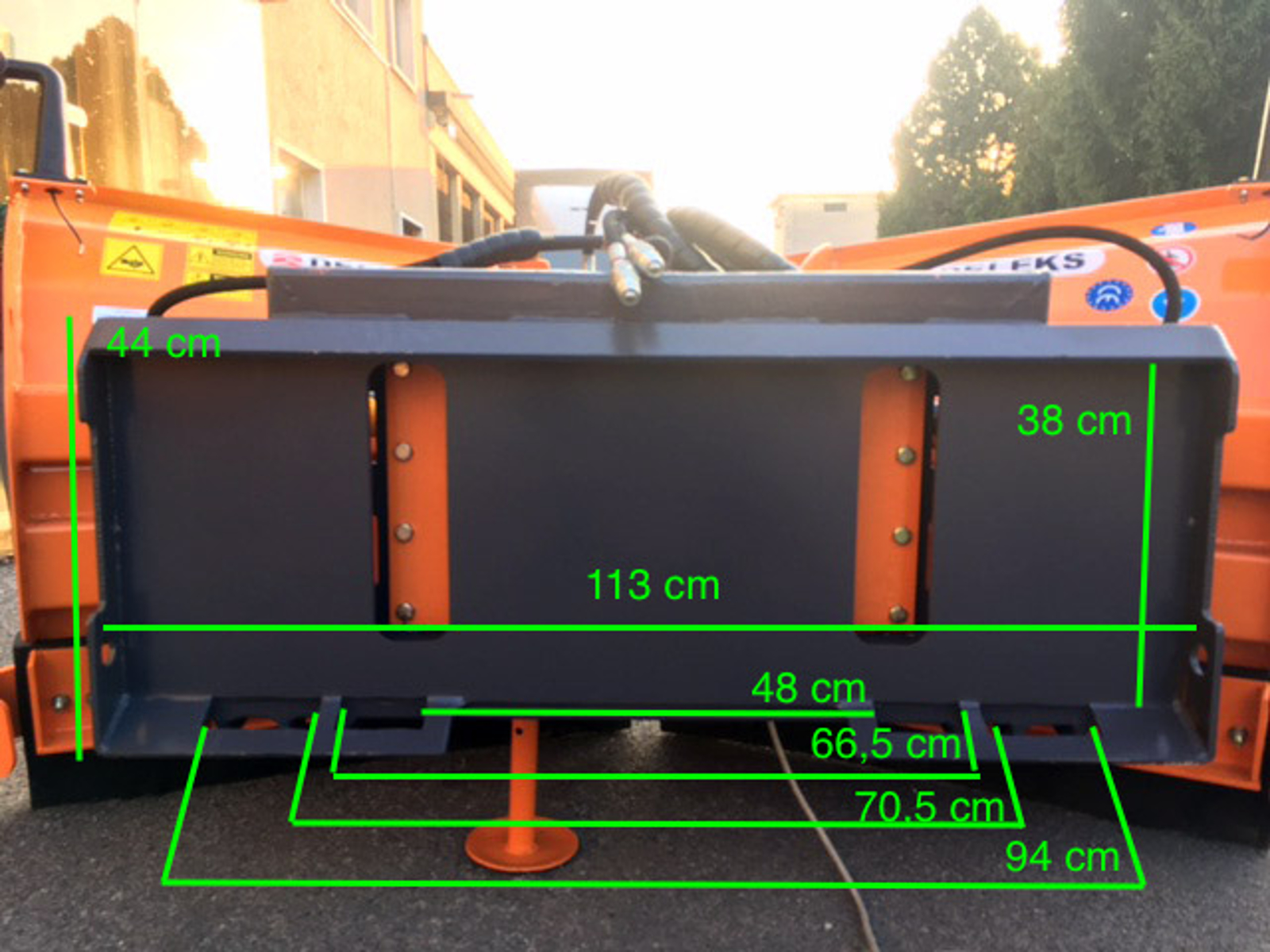

Universal attachment sizes See pictures See pictures
Working width (angled) 2400.0 mm 7.87 ft
Suitable on Skid Steer L. 3.0 t max Skid Steer L. 3.0 t max
Hydraulic Hoses 2 x 2000.0 mm / WP 400 BAR 2 x 6.56 ft / WP 400 bar
Overall width 2540.0 mm 8.87 ft
Main frame thickness 4.0 mm + reinforces 0.15 in + reinforces
Hydraulic cylinder/s ø 60.0/30.0 mm 2.36/1.18 in
Packing sizes 2550.0*1000.0*800.0 mm 8.37*3.28*2.62 ft


2 hydr pipes 4 00m fast connection set
2 Hydr. pipes 4,00m + Fast connection Set
170.00(143.43 £)VAT excl.

4,00m - Quick Release Coupling 1/2"

Fast connection set.

2 springs snowblade lnv
2 springs snowblade LNV
100.00(84.37 £)VAT excl.


couple marker lights ln
Couple marker lights LN
56.00(47.25 £)VAT excl.

LN 175/250

spare rubber blade lnv 250
Spare rubber blade LNV-250
333.00(280.95 £)VAT excl.
