Snow plow for cargo vans - DELEKS® - snowplough for vans e.g Ford, Toyota, Nissan.

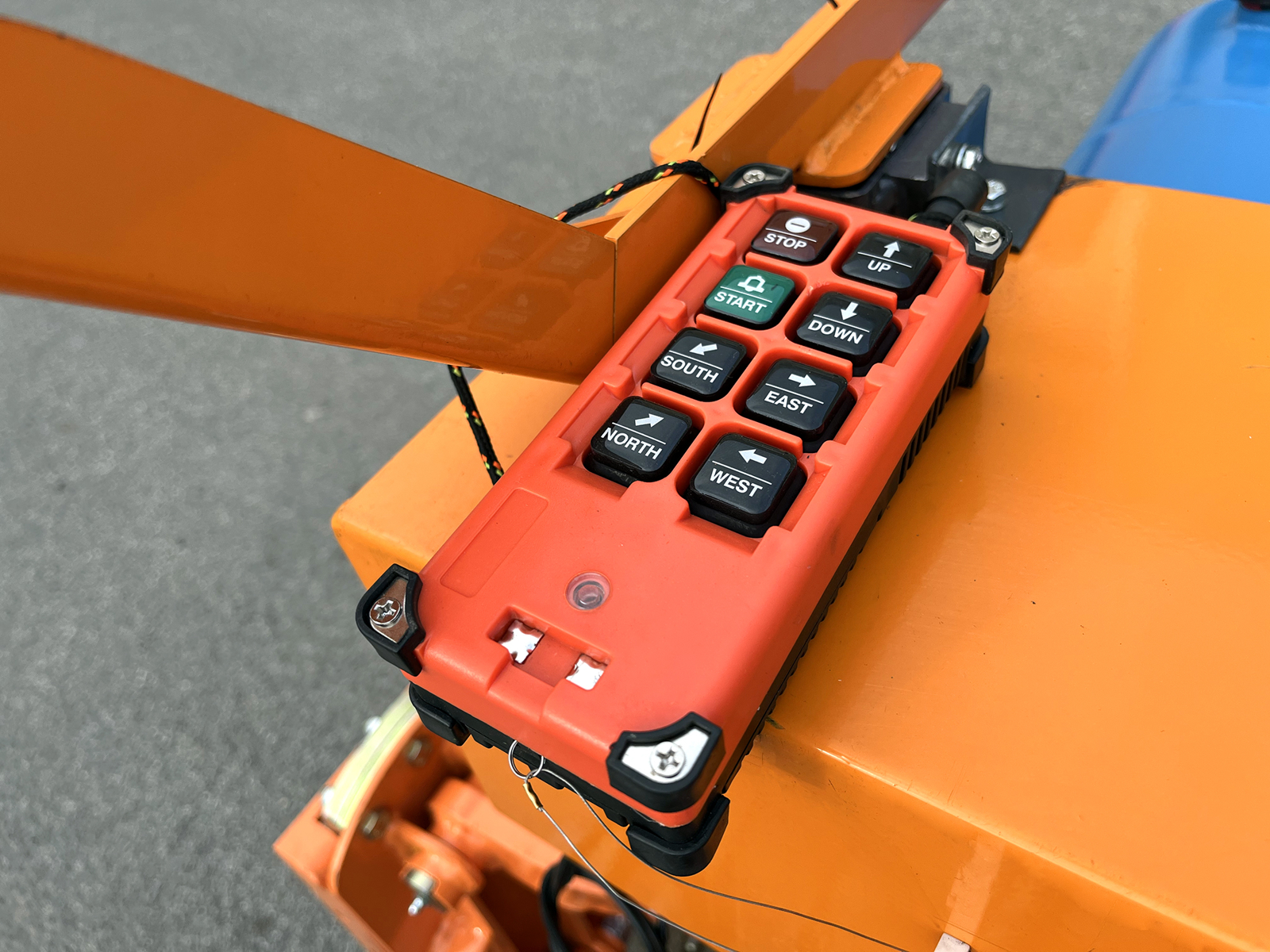

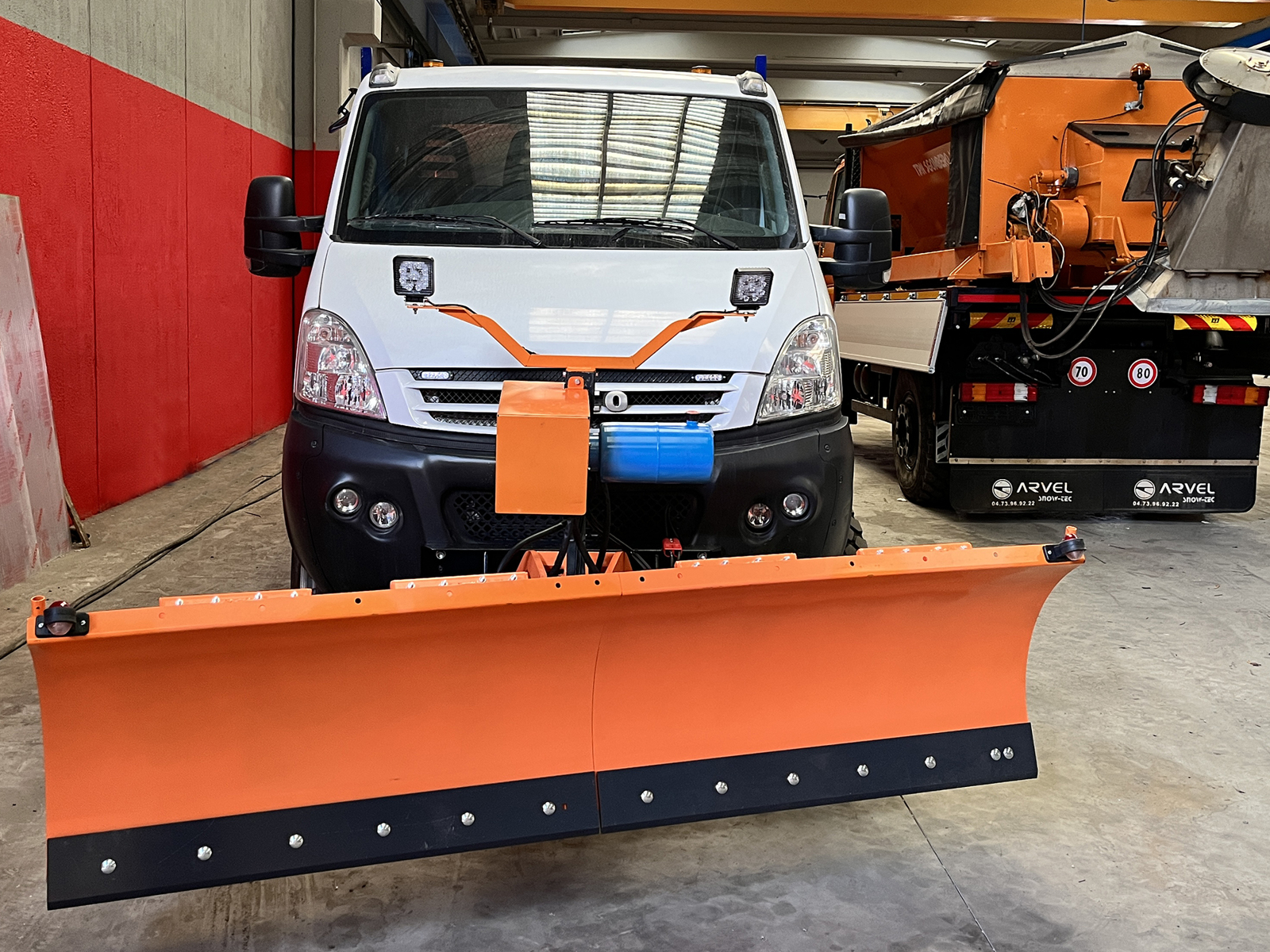

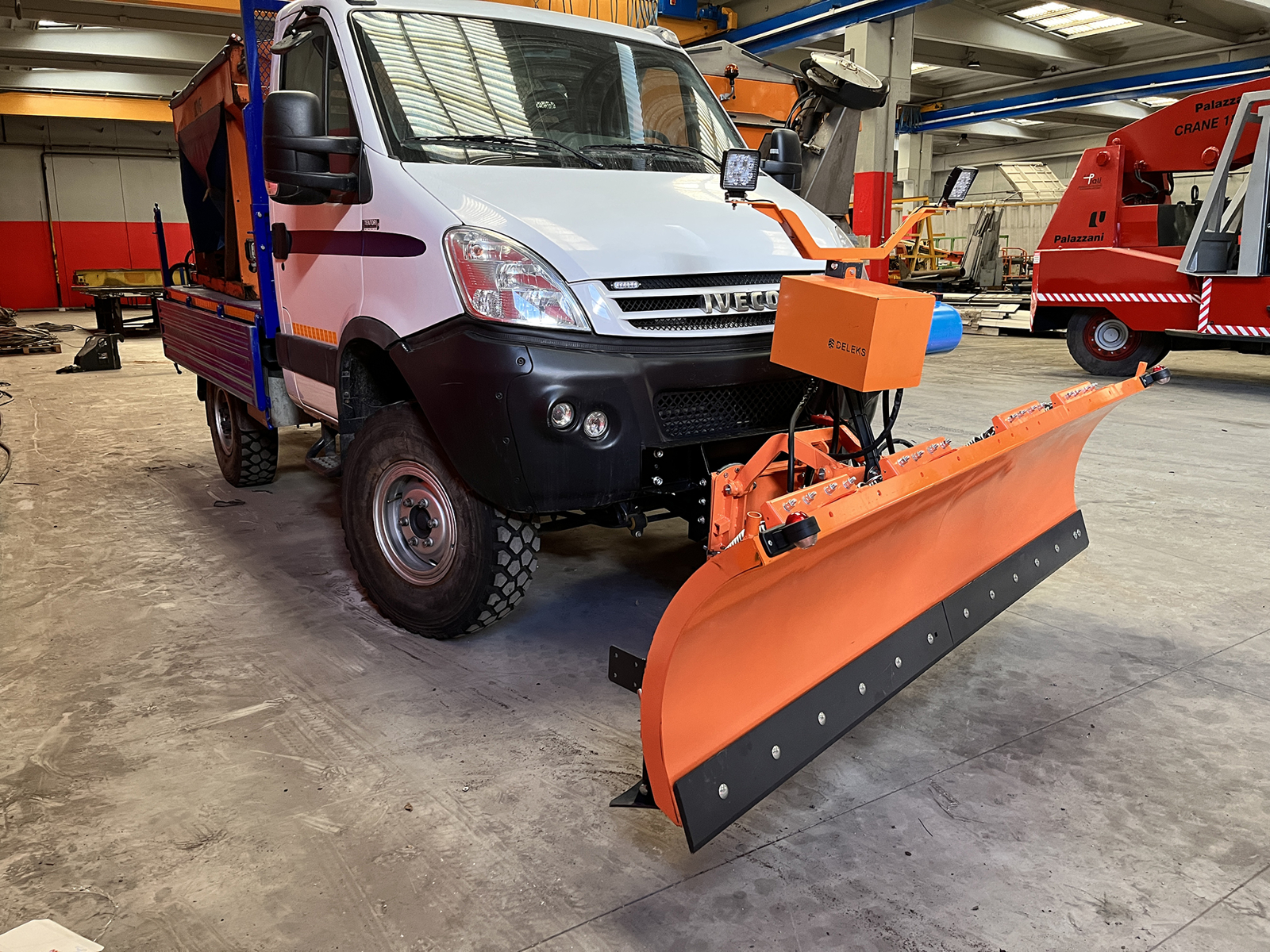

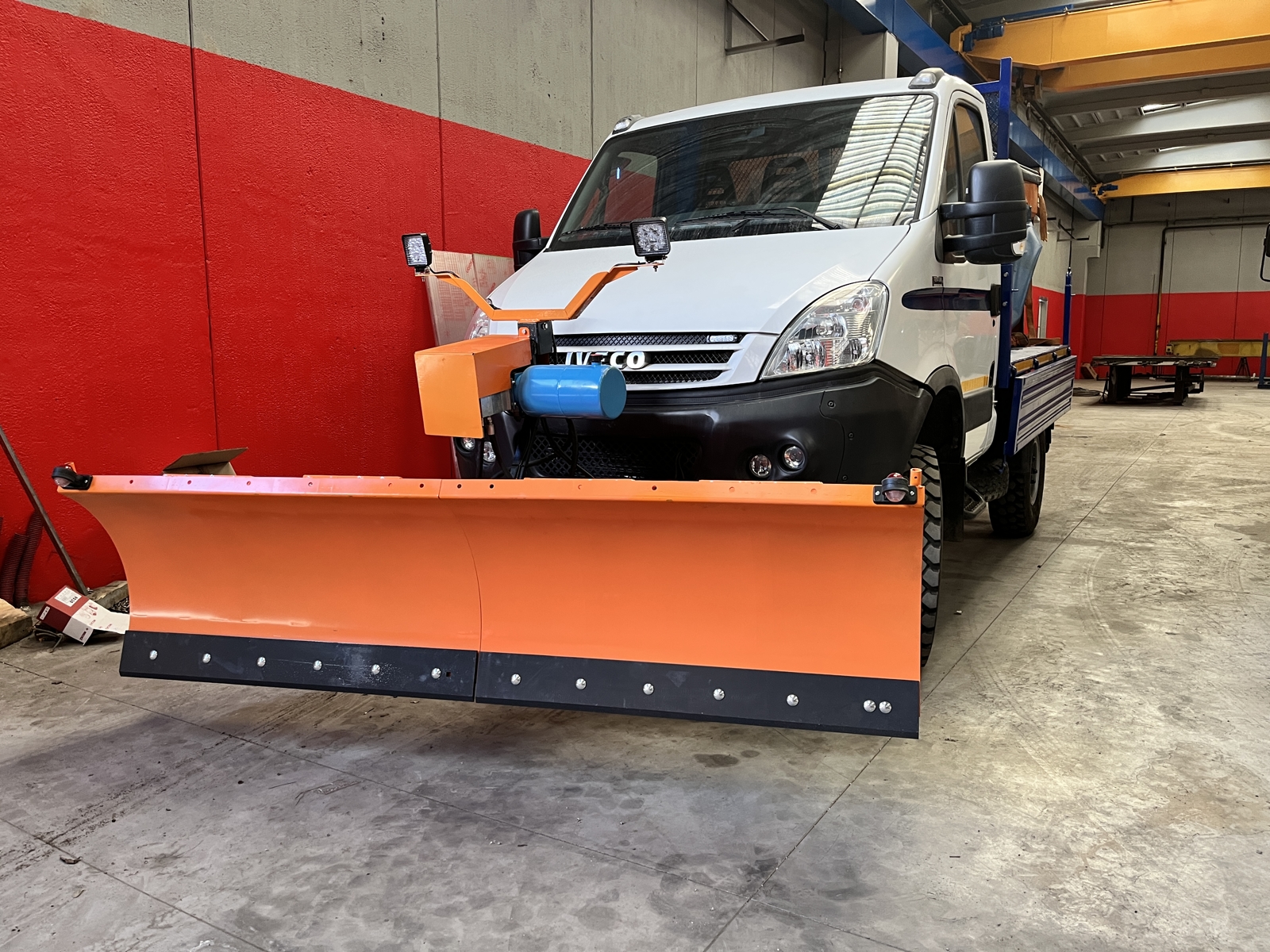

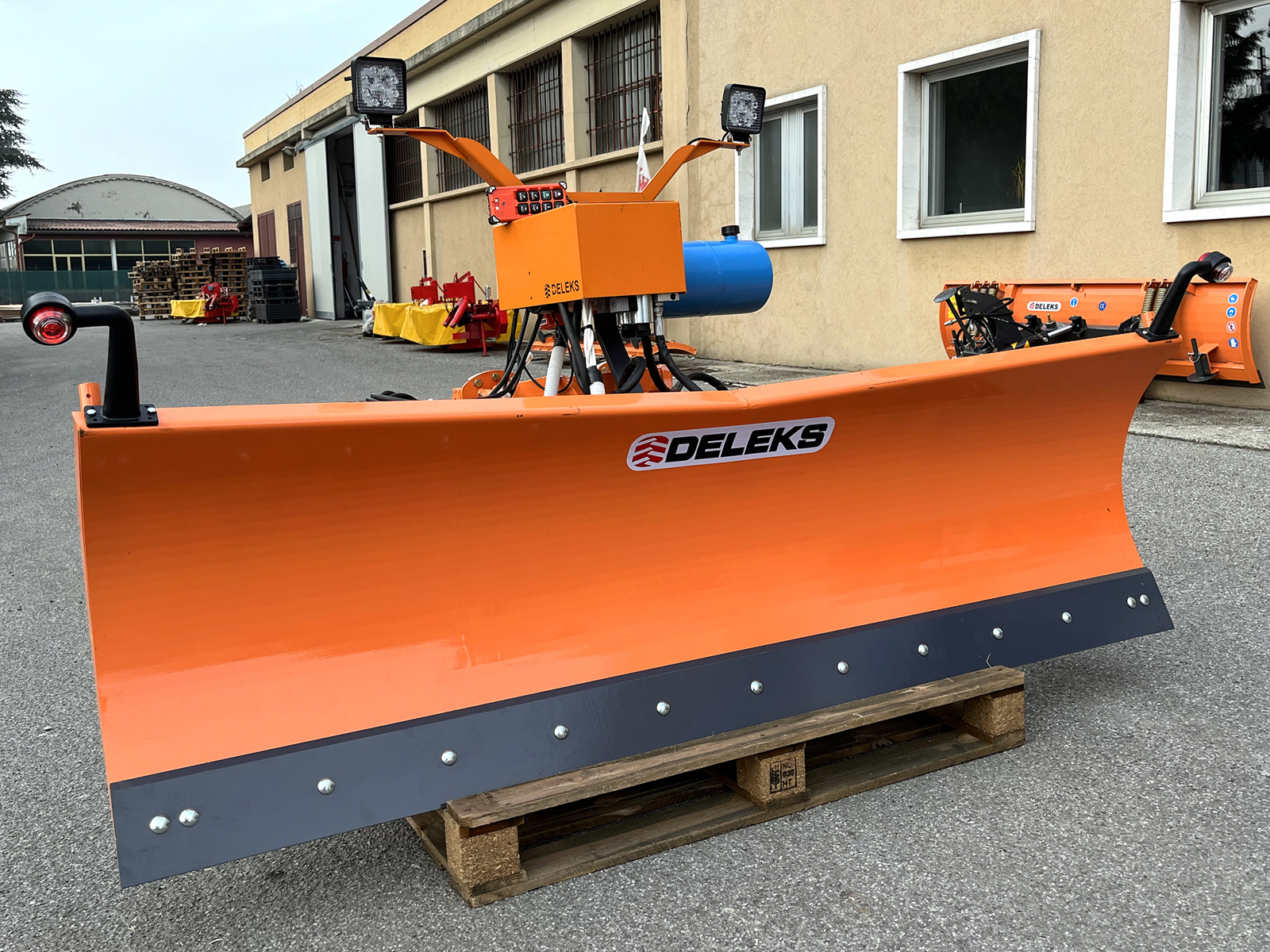

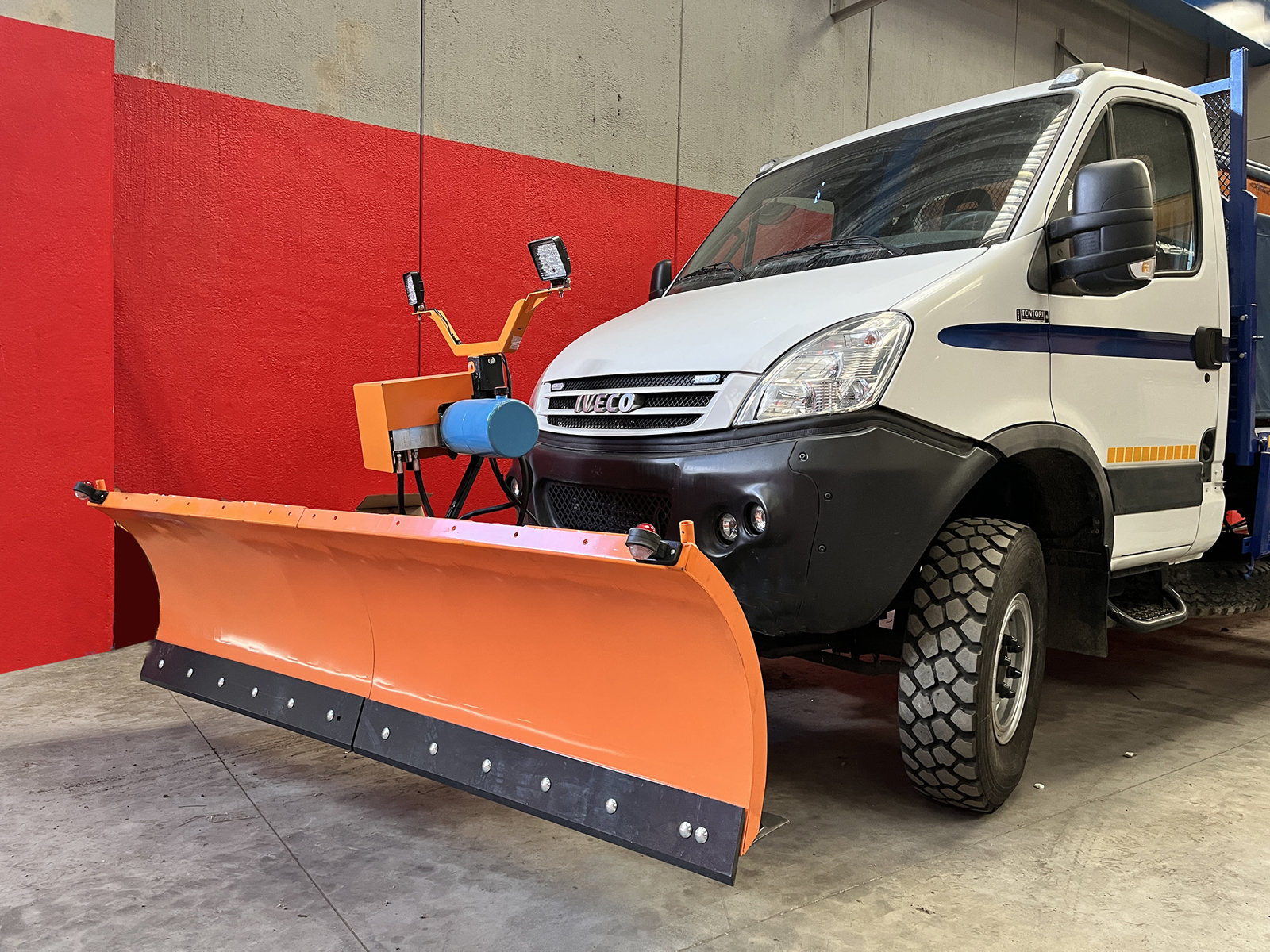

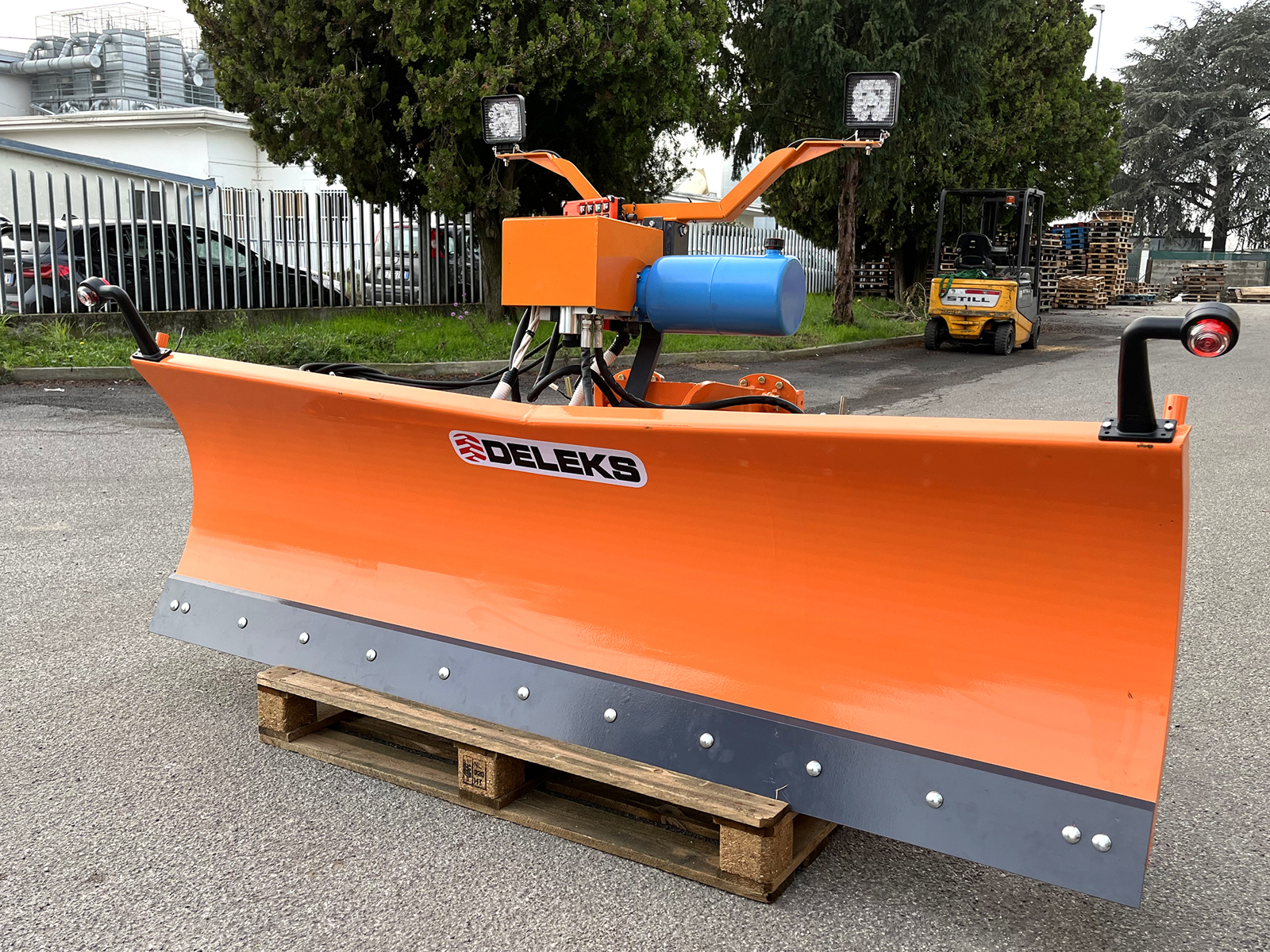

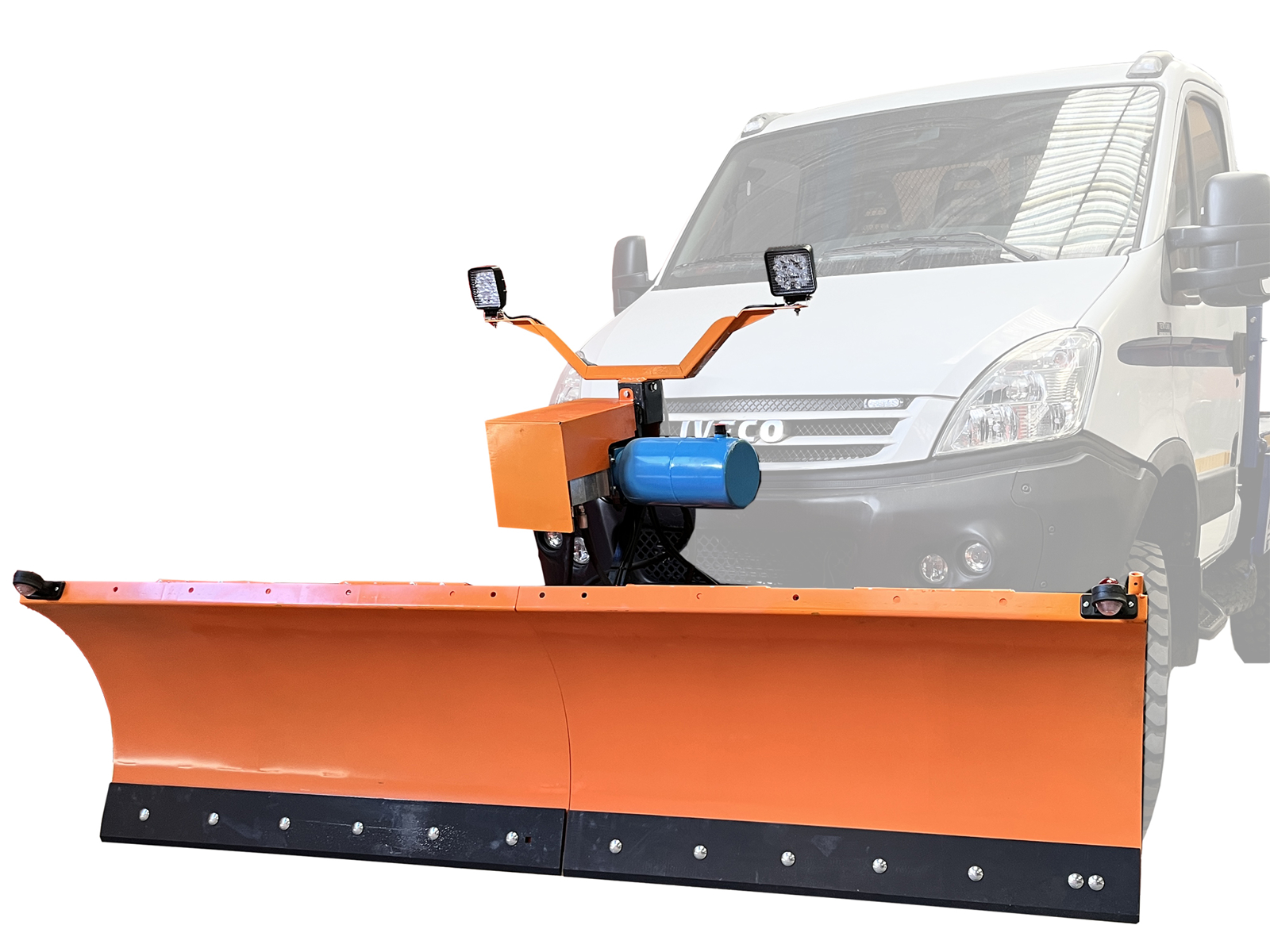

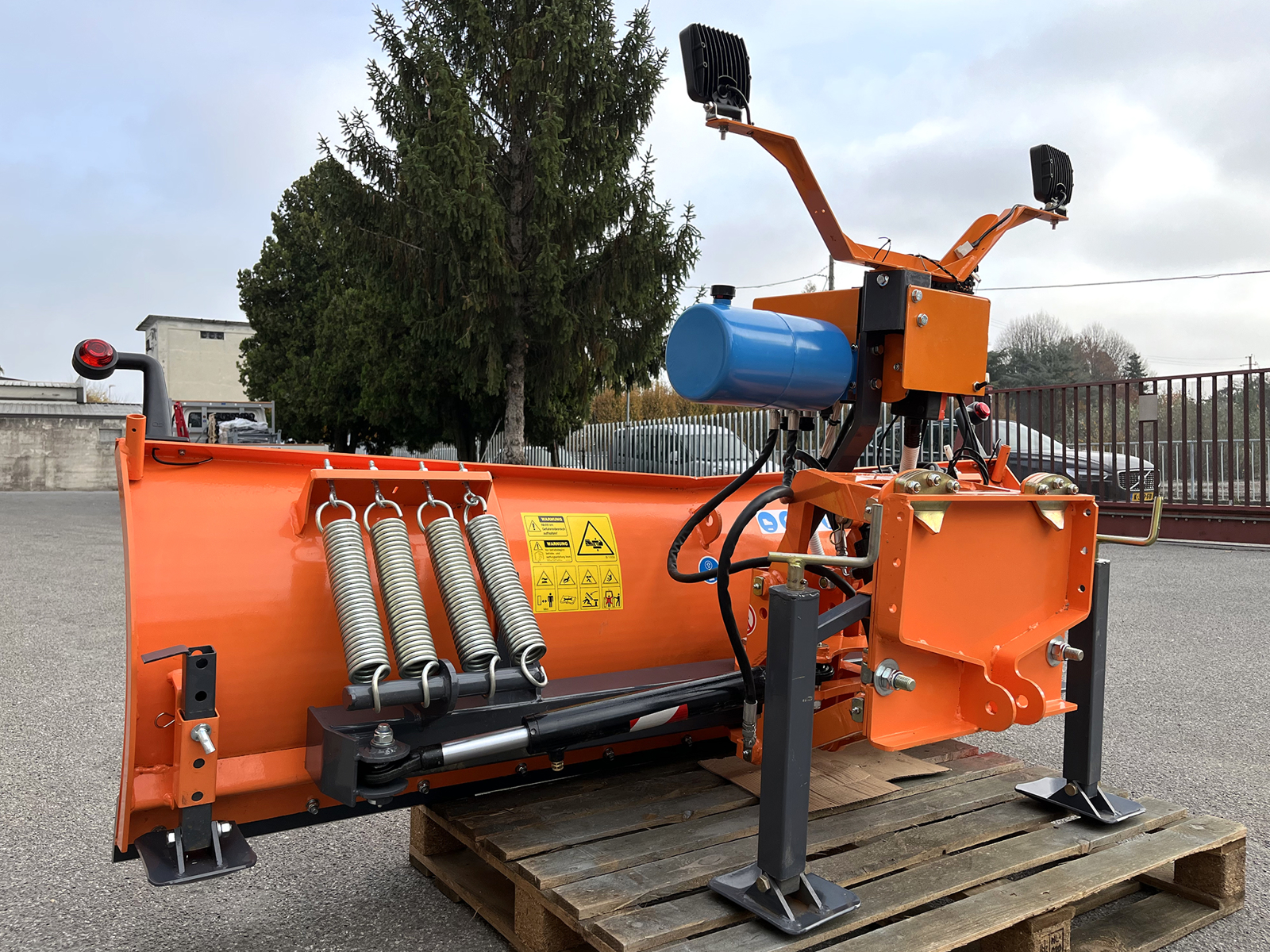

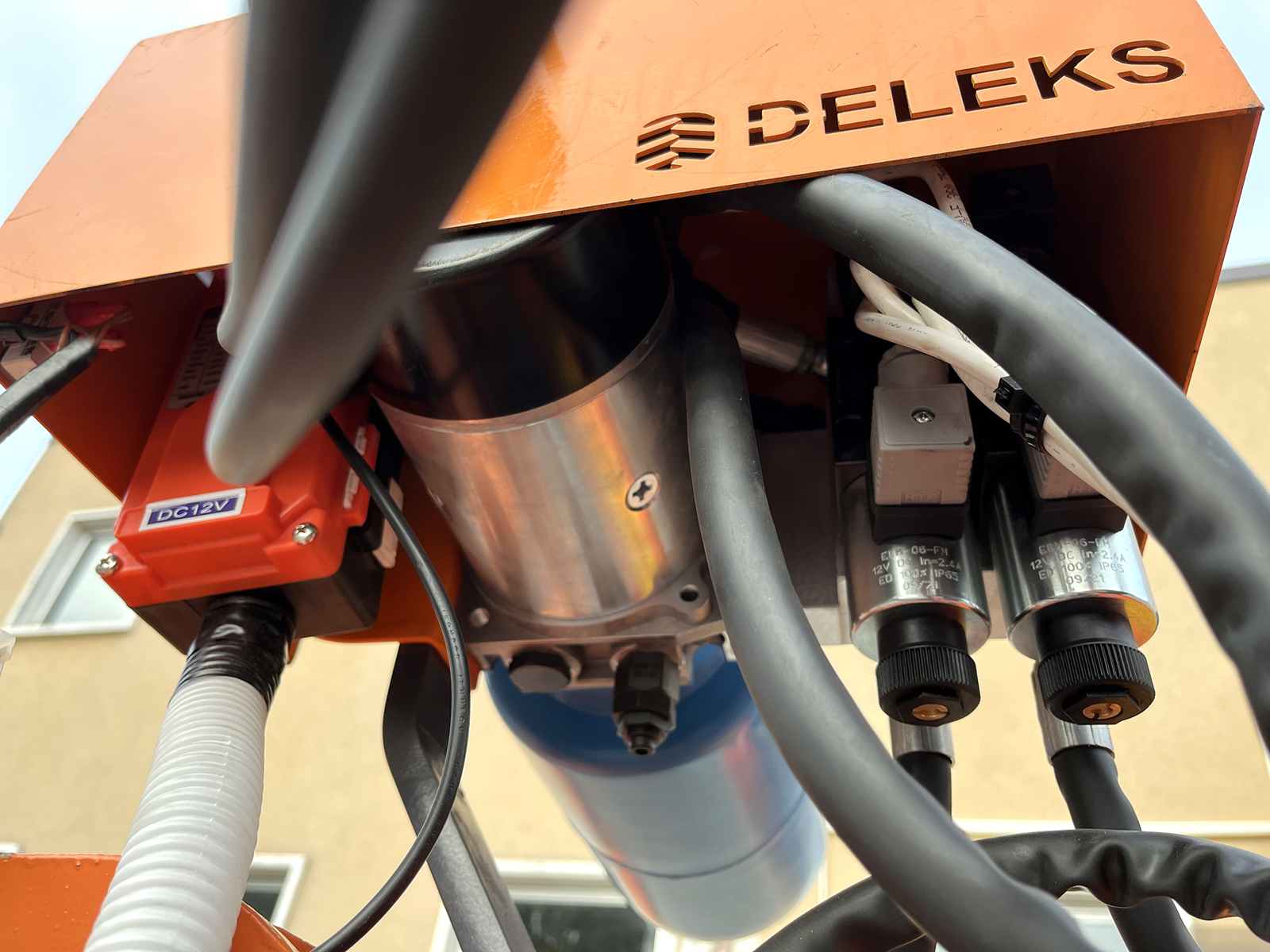

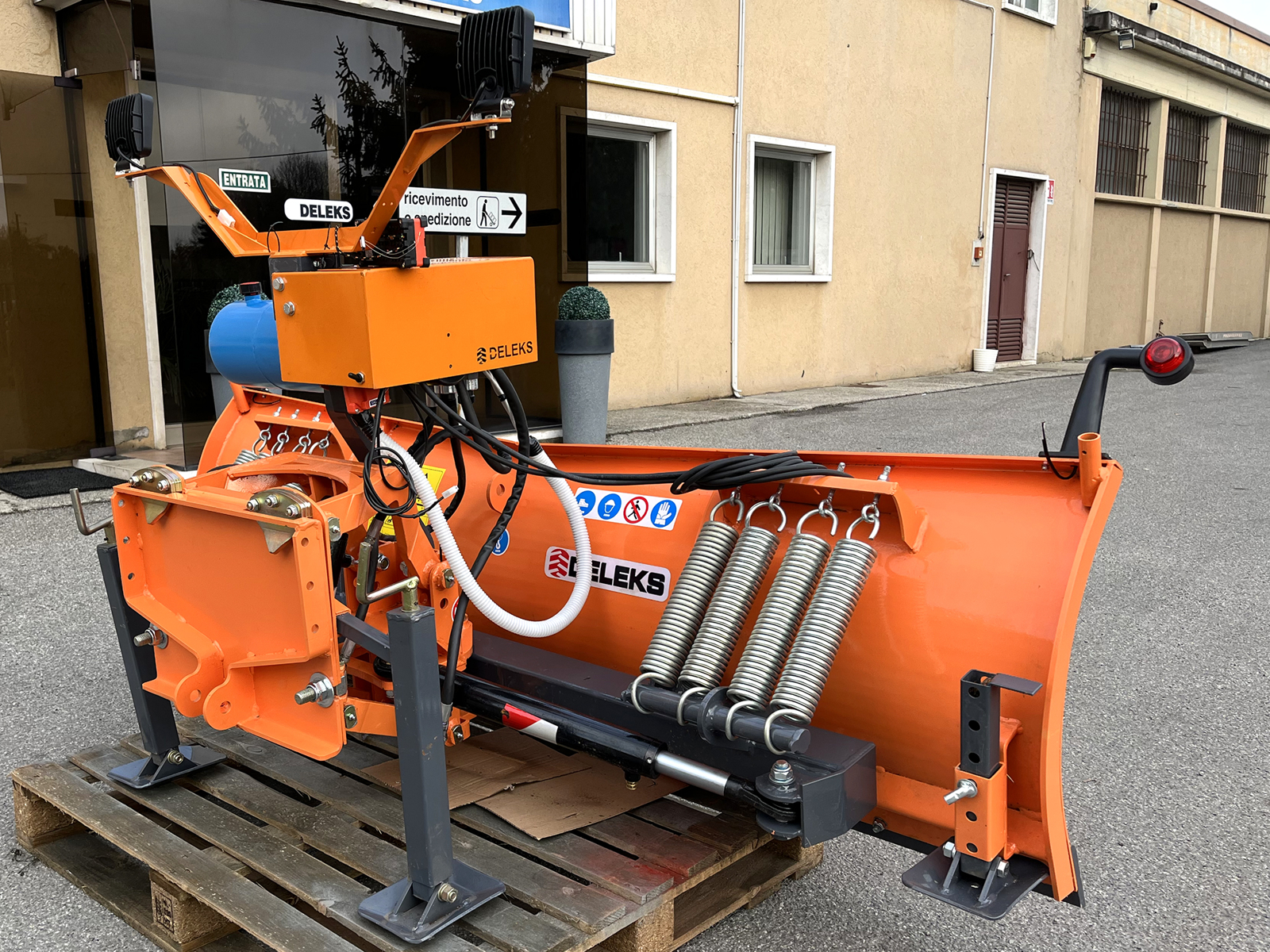

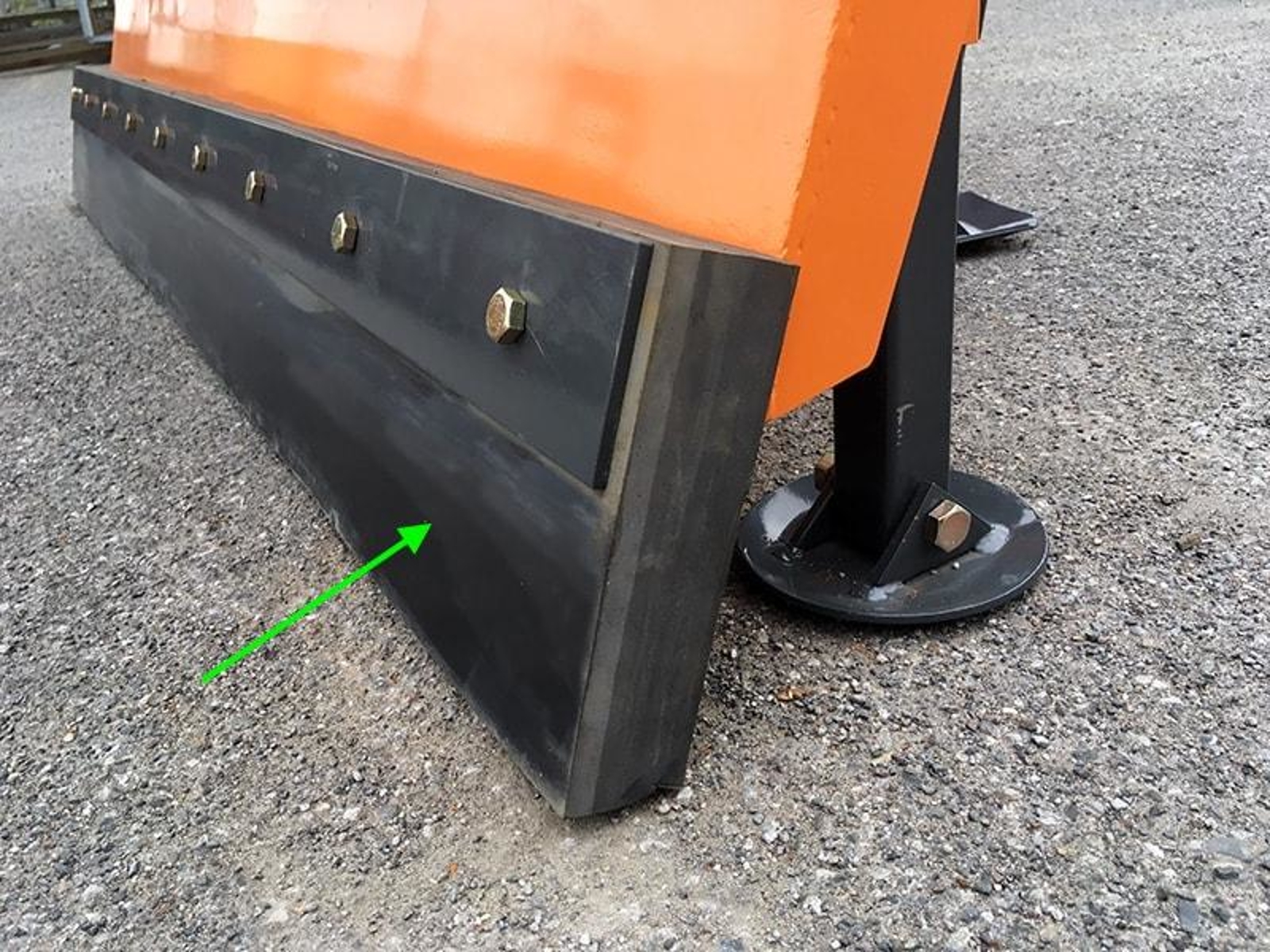

LN-220-J Frontal Snowplow for transit vans with universal fastening plate. Angling and lifting of the blade is done hydraulically. Help from a blacksmith to attach the plow to the vehicle would be advantageous. Snowplow is supplied with a 12 Volt hydraulic power pack for angling and raising / lowering, 3 hydraulic pipes from the piston to the ECU connection, and a remote control. Also supplied with side and marker lights. LN-220-J has a replaceable steel blade, however can be supplied with a much softer Rubber upon request. This Snowplow has been designed to be used with the most common cargo vans e.g Freightliner & Mercedes-Benz, Nissan, Ford, etc, or for most common 4x4 trucks e.g Canter, Renault, Land Rover. Homologated for road use, compliance with the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES

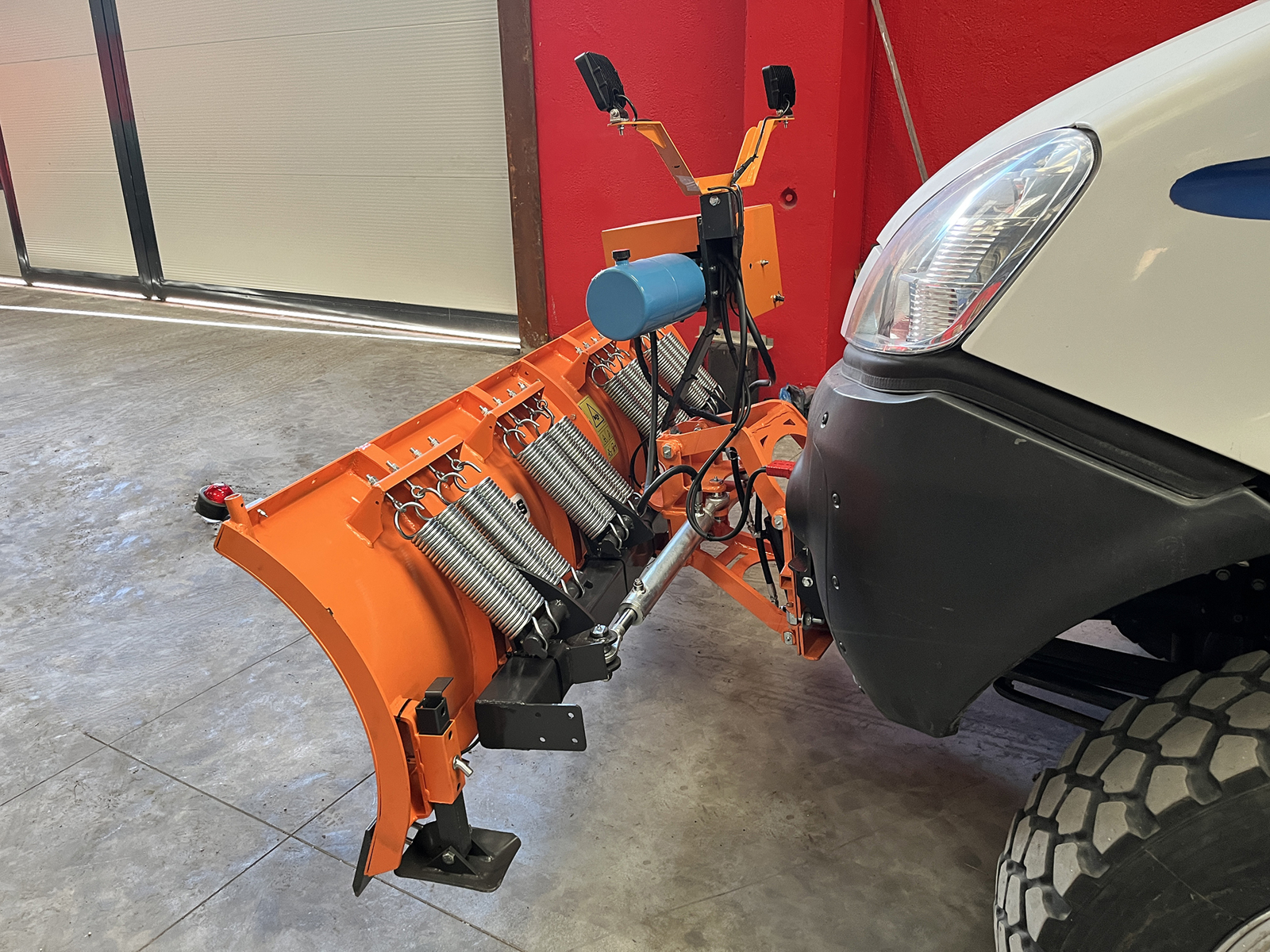

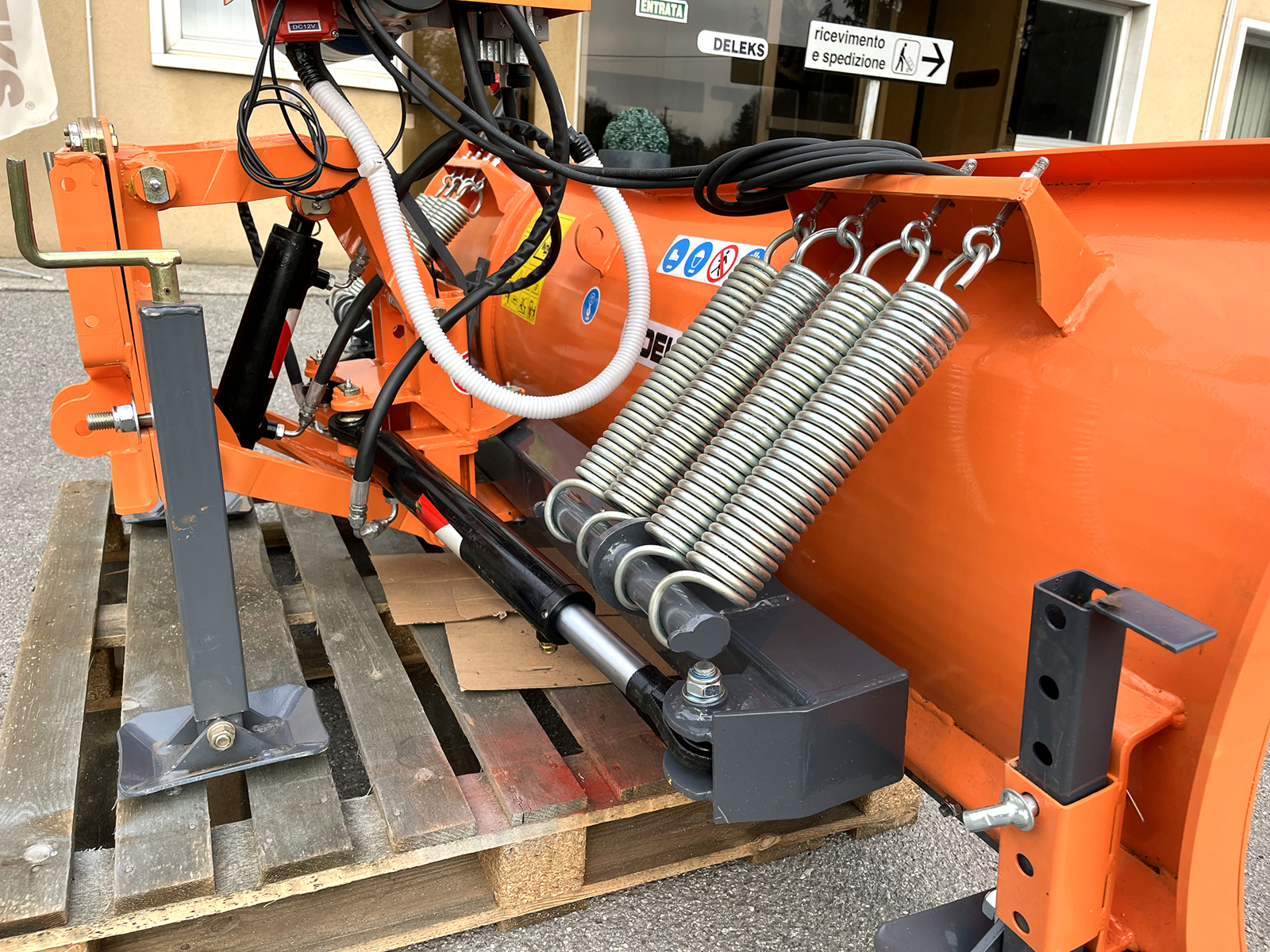

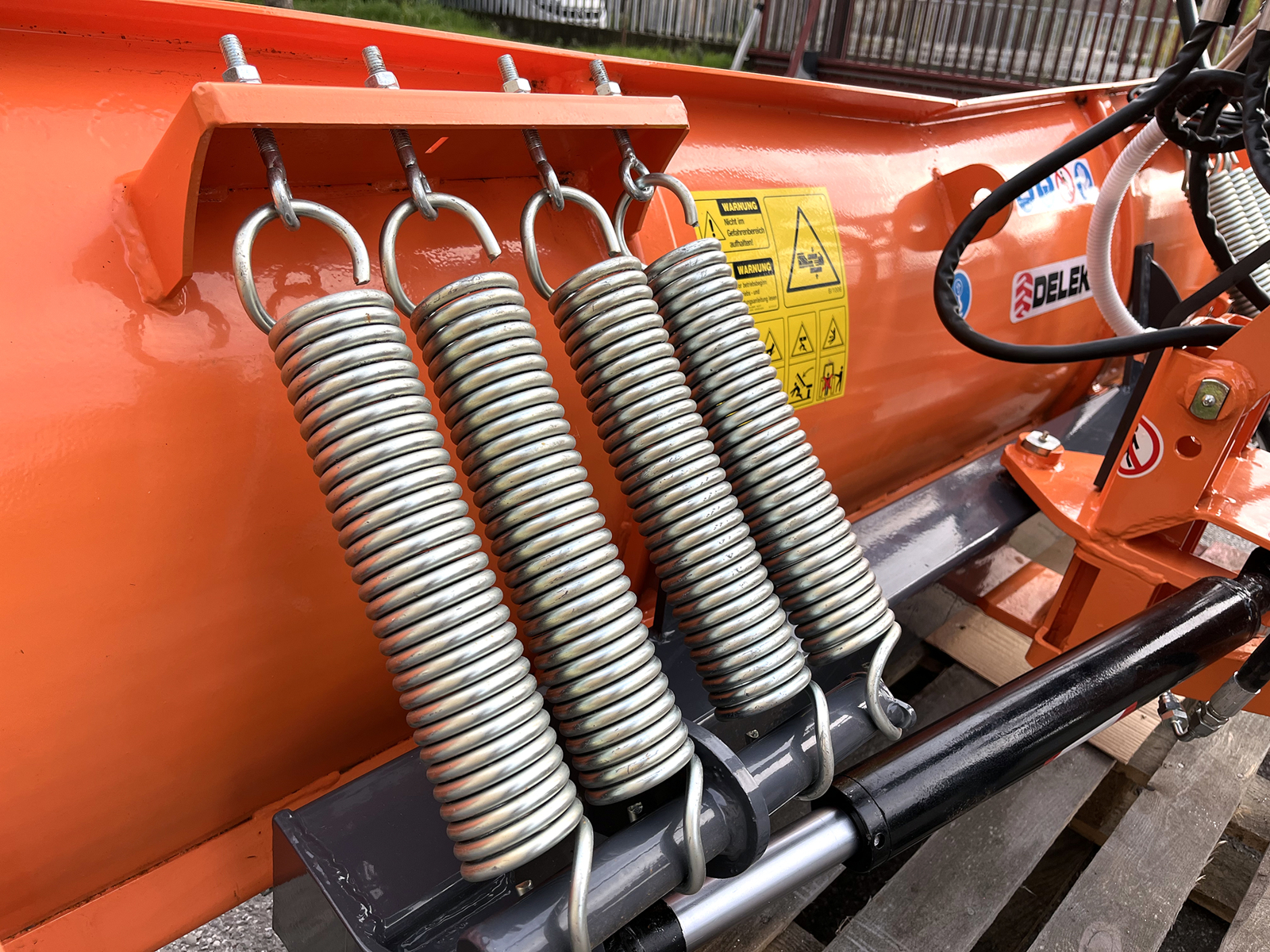

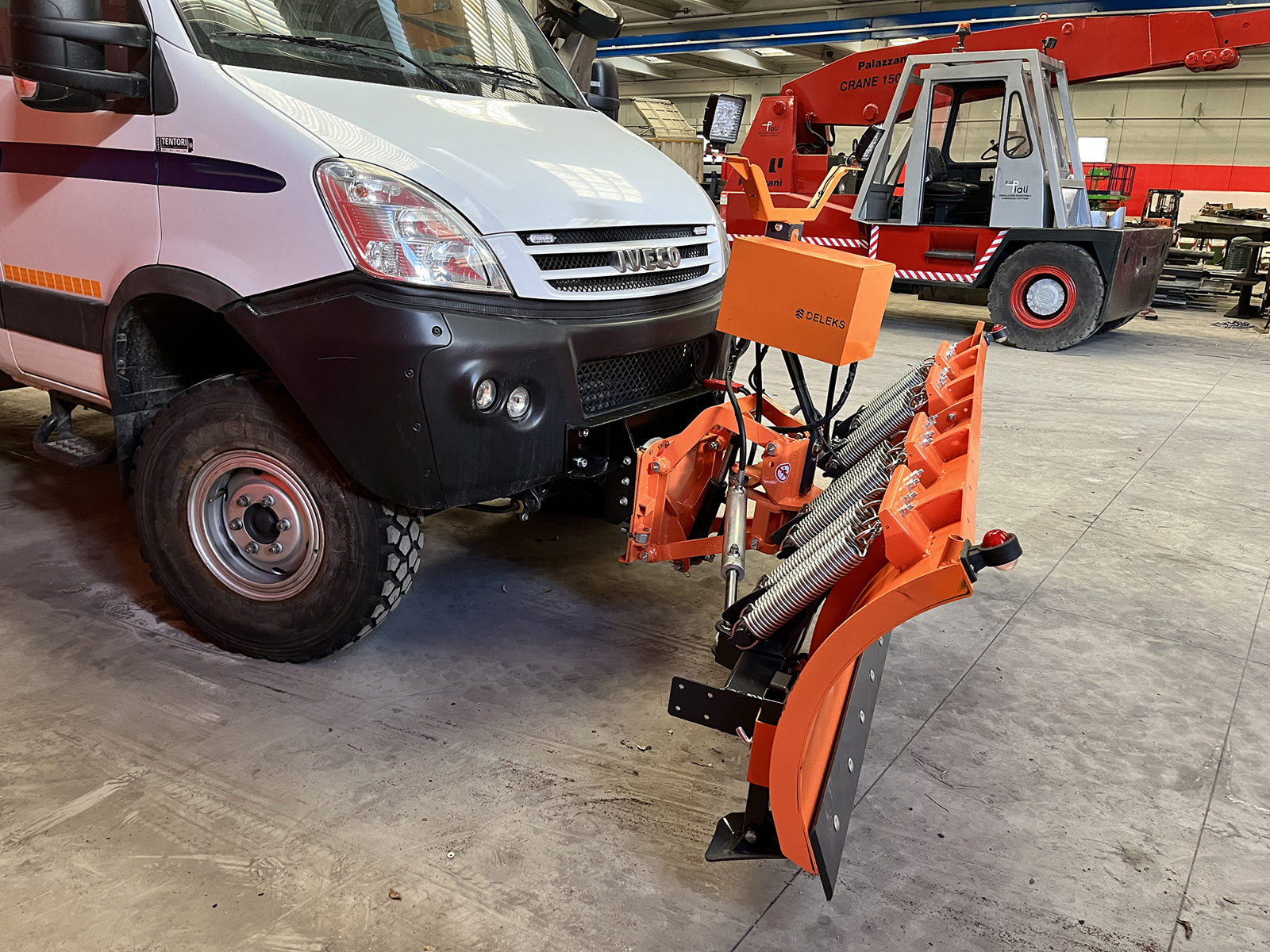

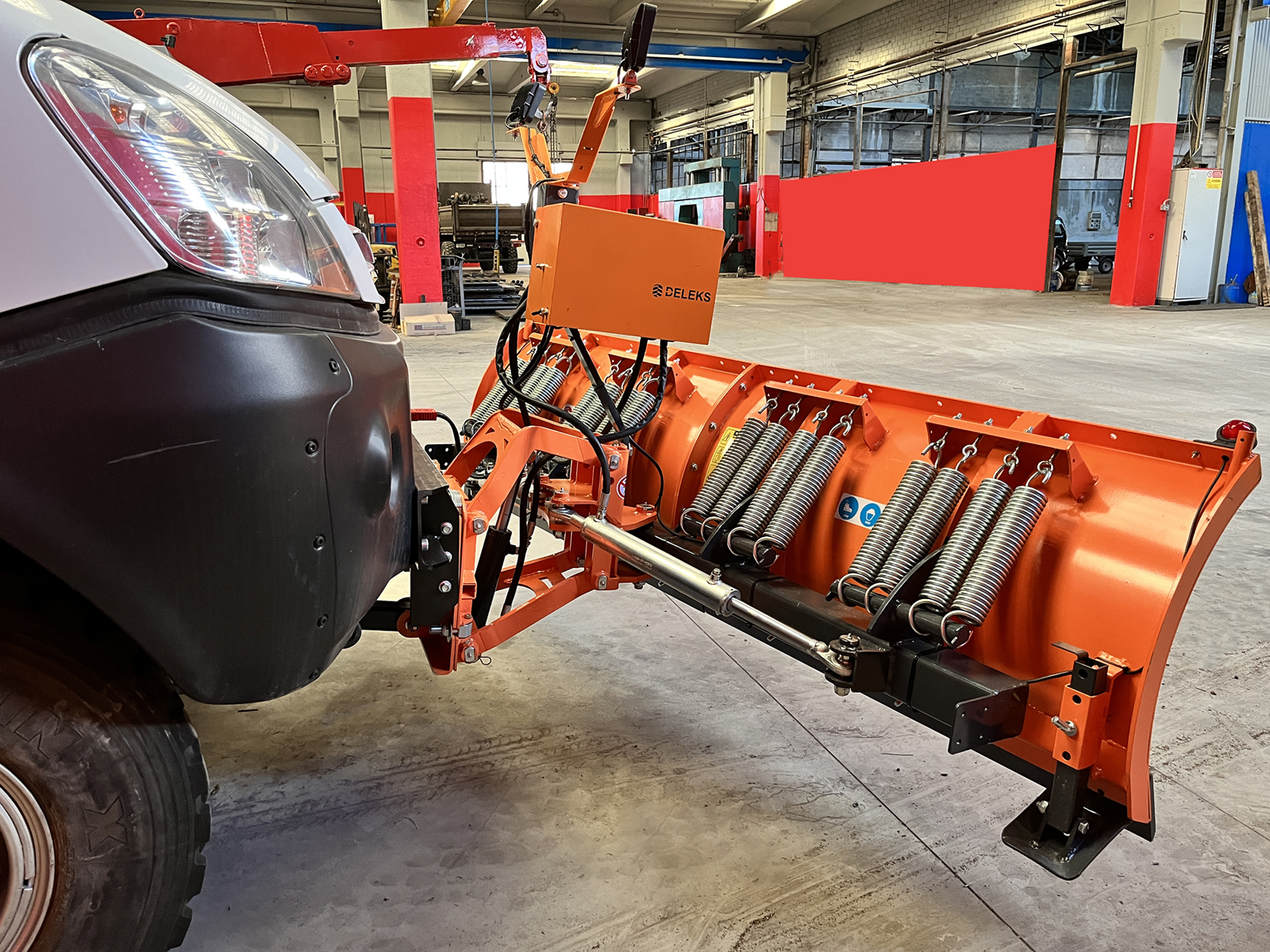

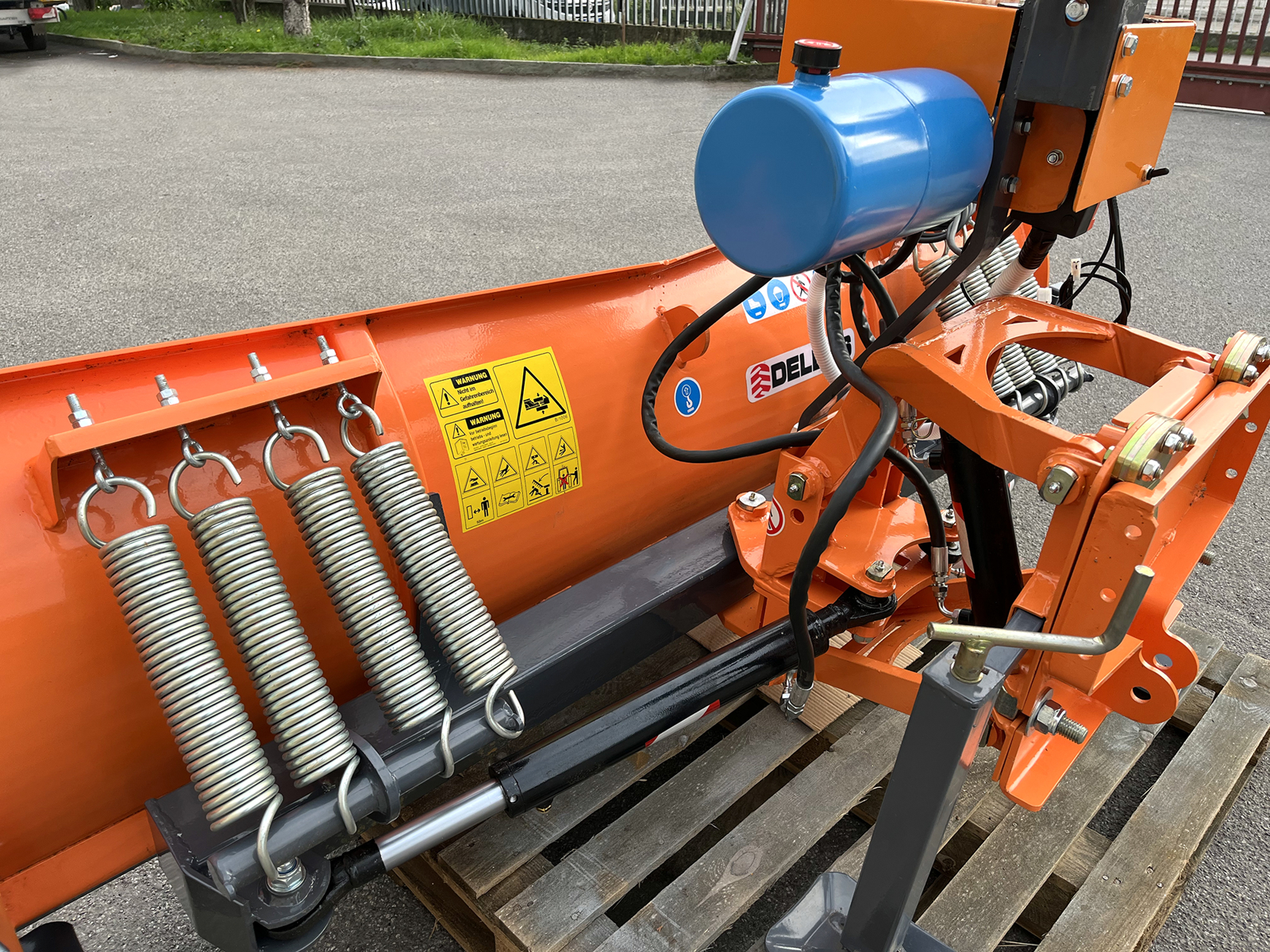

Shockproof system with 8 shock absorbing springs to operate in maximum safety.
3 Hydraulic pistons: left / right / up / down (Made in Italy).
The balancing system allows perfect adherence to the road surface.
Adjustable torque slides, make work easier by reducing the pressure on the cutting edge, especially on uneven surfaces such as gravel parking lots.

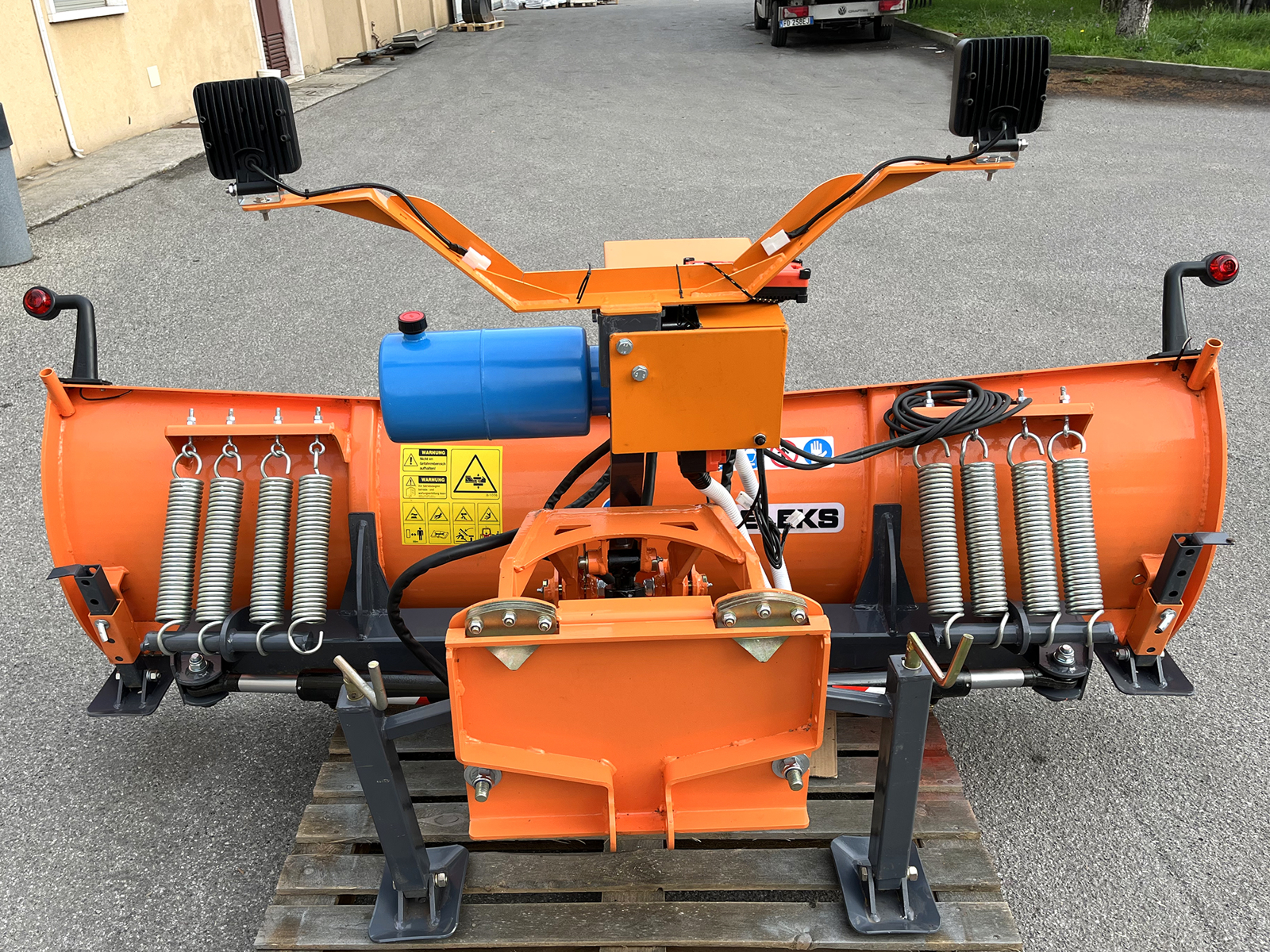

Support legs with crank, make it extremely easy assemble and disassemble at the end of the season.

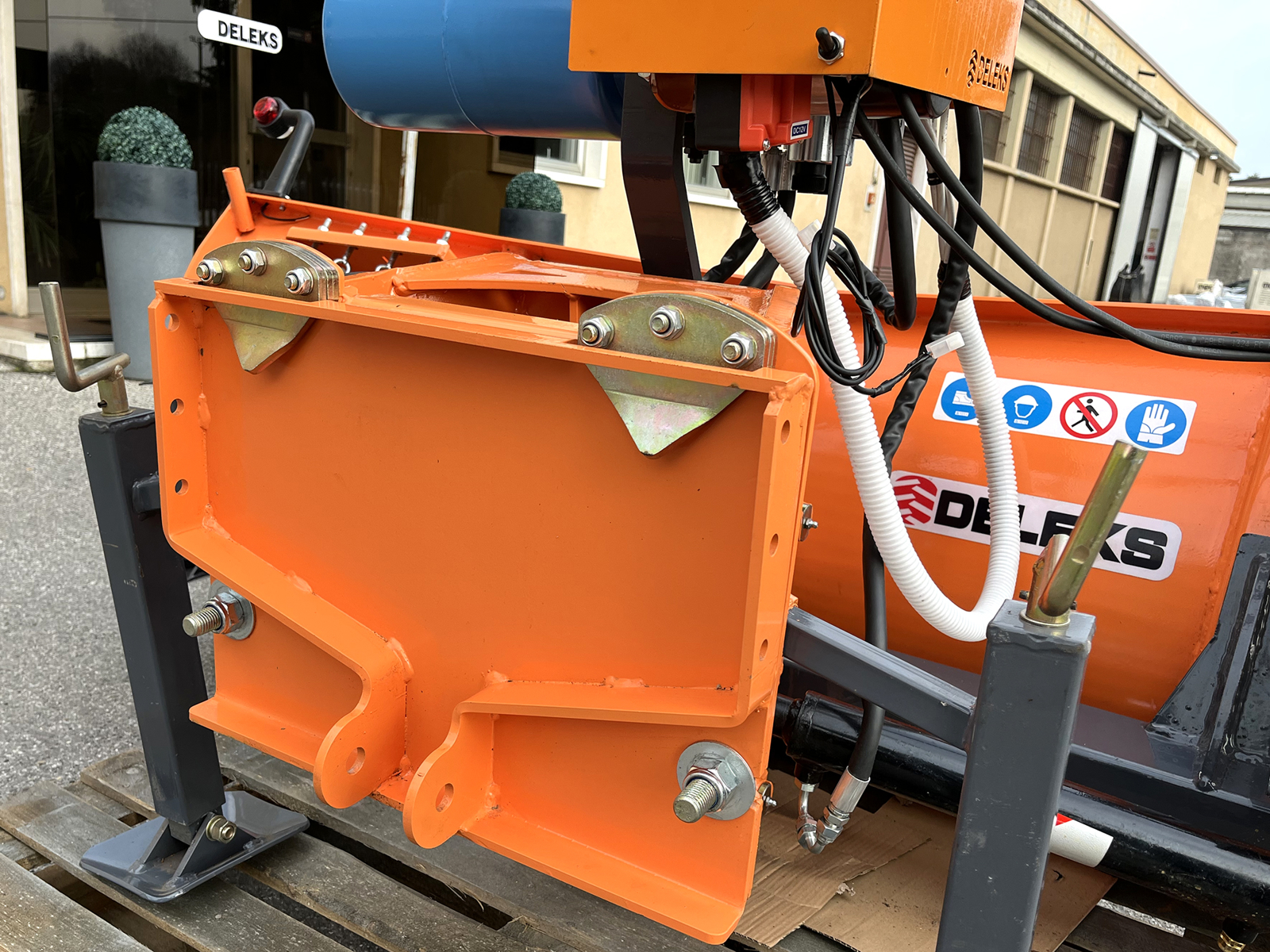

The plate fitting is removable and replaceable with a 3-point hitch, EURO or skid steer.
Homologated for road use.
Documentation supplied with this article:
Invoice or Receipt
|Characteristic||Units metric||Units US|
|Weight||325.0 kg||715.0 lb|
|Overall height||1100.0 mm||3.60 ft|
|Overall Length||830.0 mm||2.72 ft|
|Attachment sizes||500.0*360.0 mm||19.68*14.17 in|
|Float||+/- 4°||+/- 4°|
|Blade Height||700.0 mm||2.30 ft|
|Side edge thickness||8.0 mm||0.32 in|

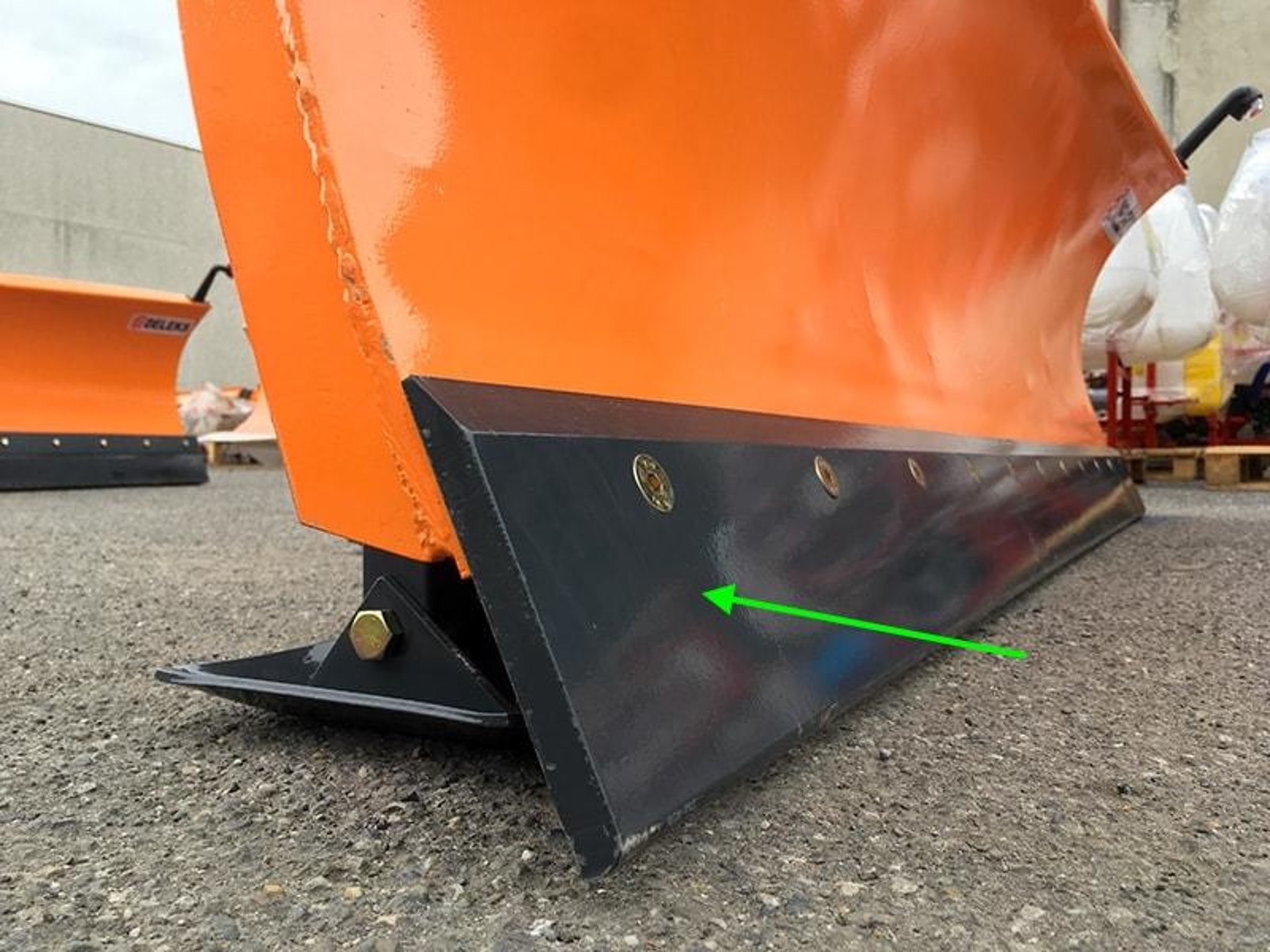

|Cutting Edge||Steel or rubber||Steel or rubber|
|Cutting Edge Height||150.0 mm||5.90 in|
|Cutting Edge Thickness||16.0 mm||0.63 in|
|Trip Edge Quantity||1||1|
|Distance betweens the bolts of the Trip Edge||200.0 mm||7.87 in|
|Removable Skid Shoes||√||√|
|Working width (angled)||1964.0 mm||6.44 ft|
|Suitable on||Vans, Trucks||Vans, Trucks|
|Interface||Universal Attachment||Universal Attachment|
|Overall width||2205.0 mm||7.23 ft|
|Main frame thickness||5.0 mm||0.2 in|
|Hydraulic cylinder/s ø||50.0/25.0 + 60.0/30.0mm||1.97/0.98 in + 2.36/1.18 in|
|Packing sizes||2205.0*800.0*900.0 mm||7.23*2.62*2.95 ft|
