Hydraulic Log Belt for tractor - mod. NTL


199 reviews

Code NTL
EAN 8053470230226
View all details.
1,800.00(1,532.16 £)VAT excl.
Free shipping

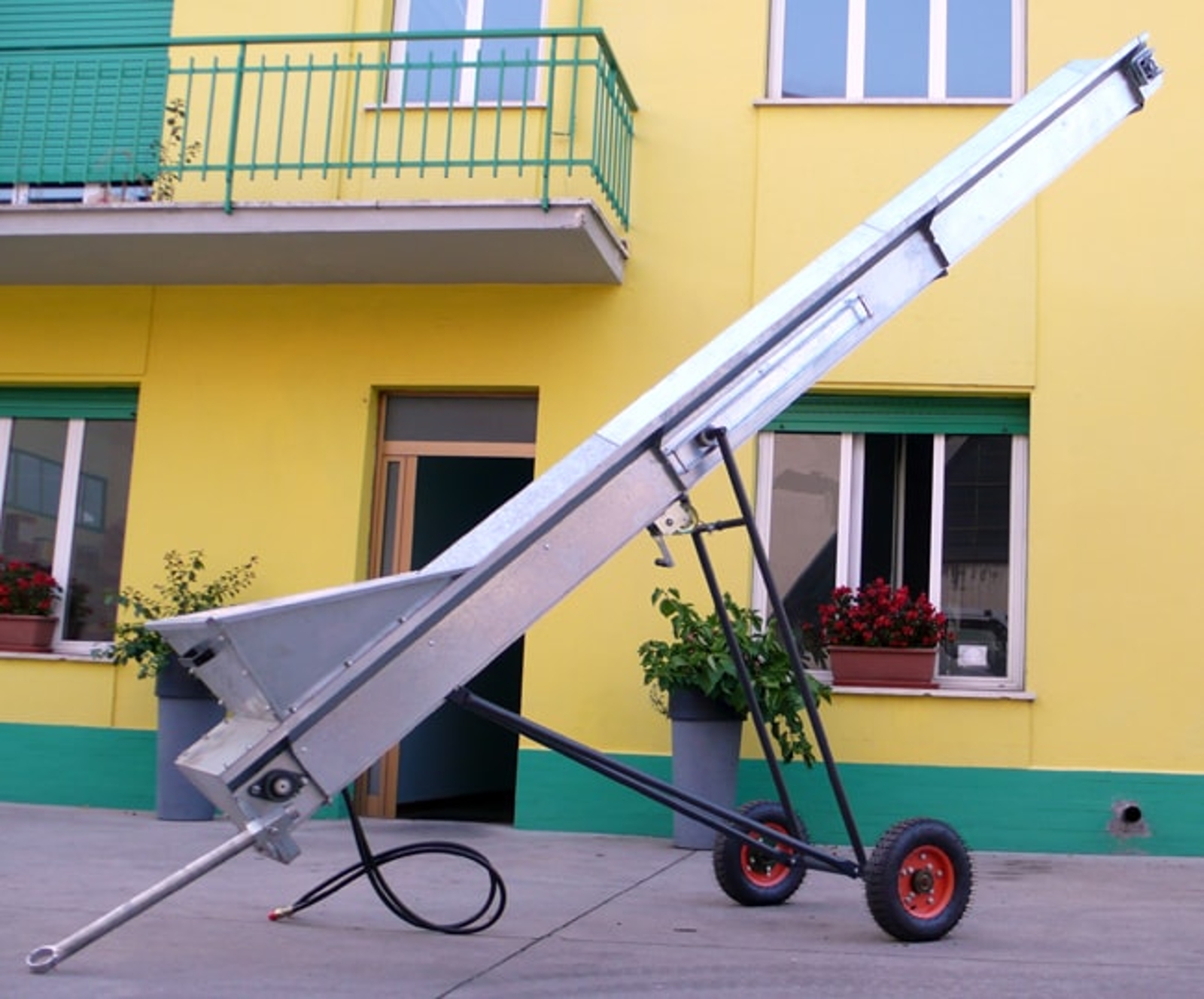

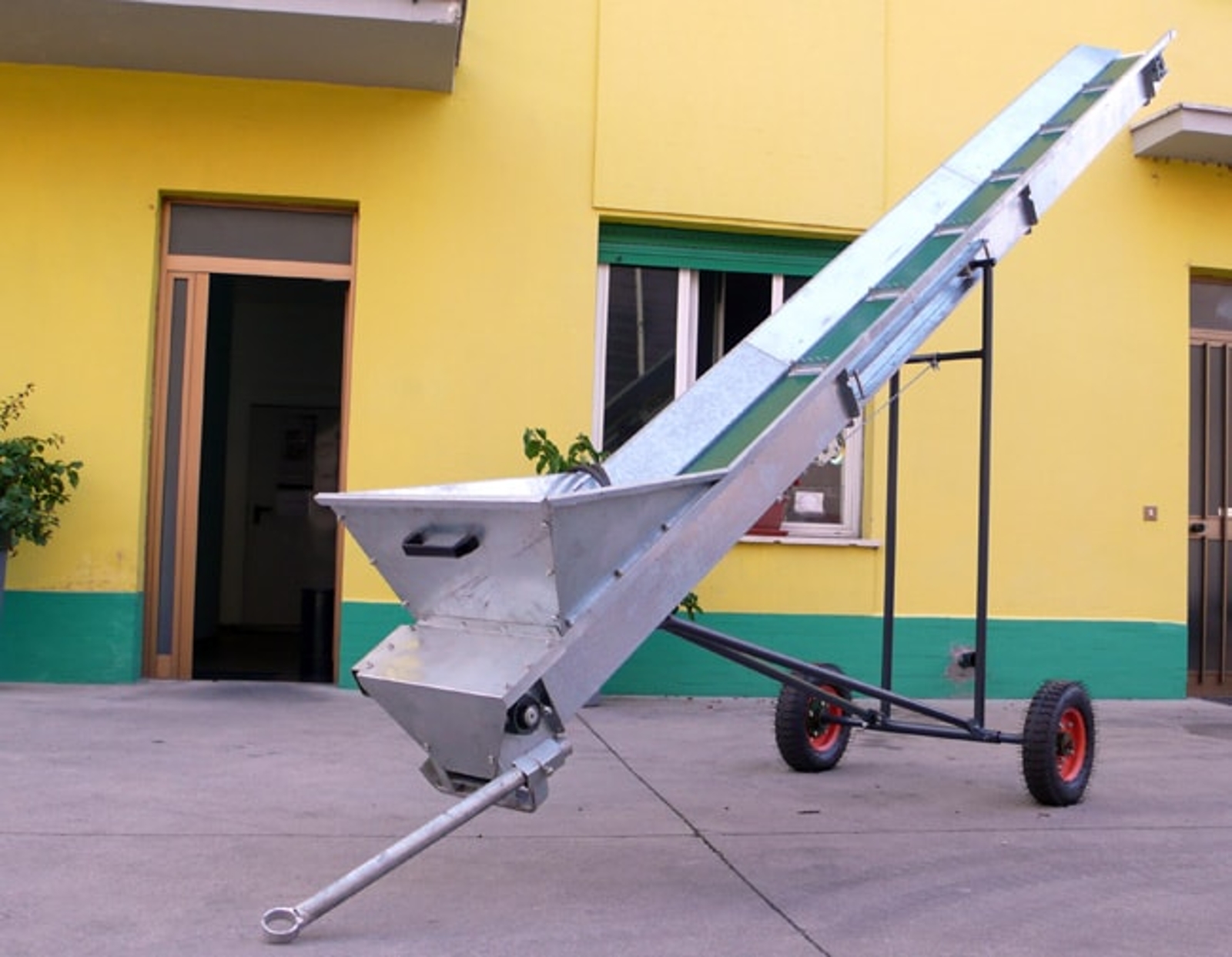

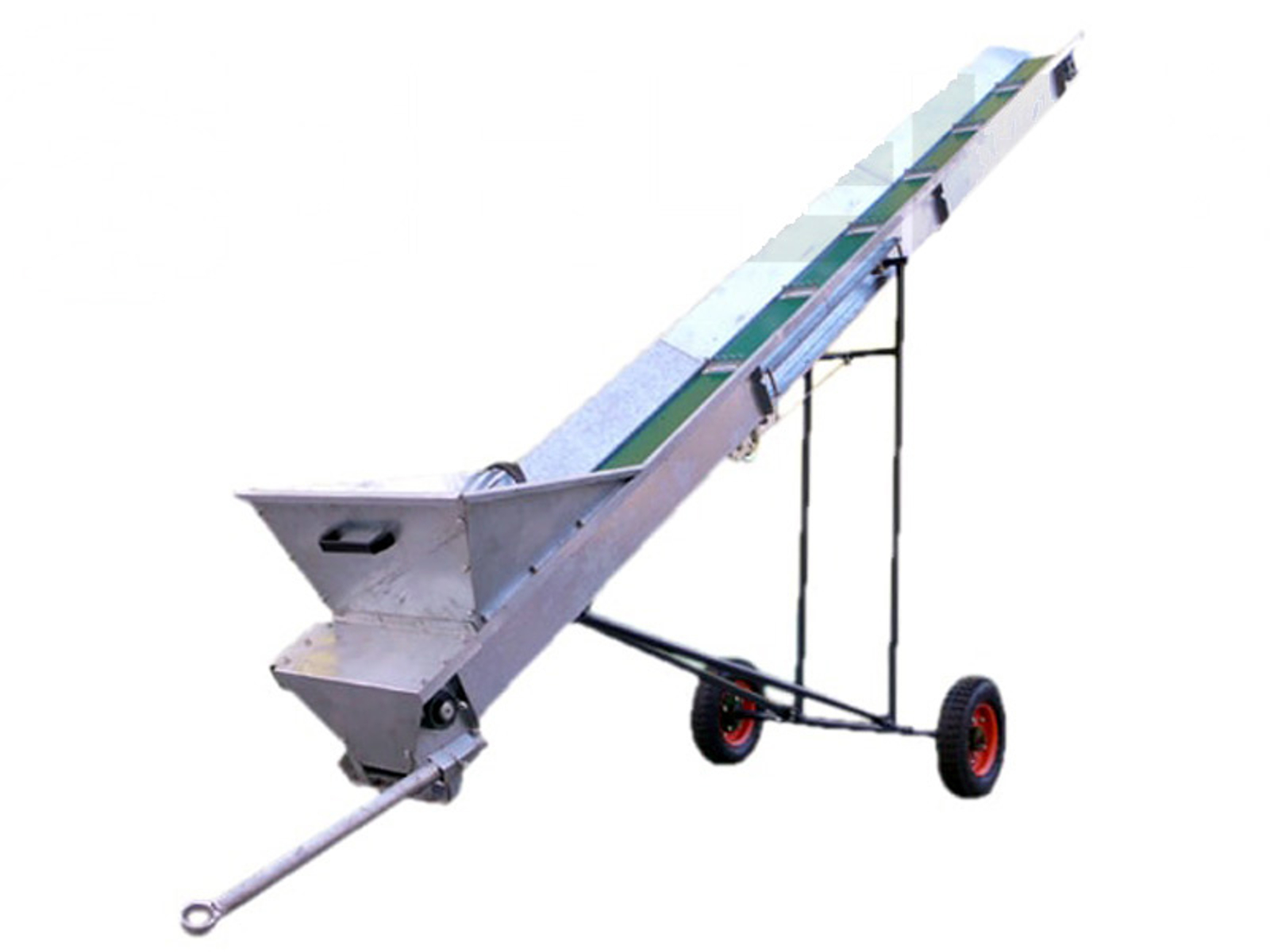

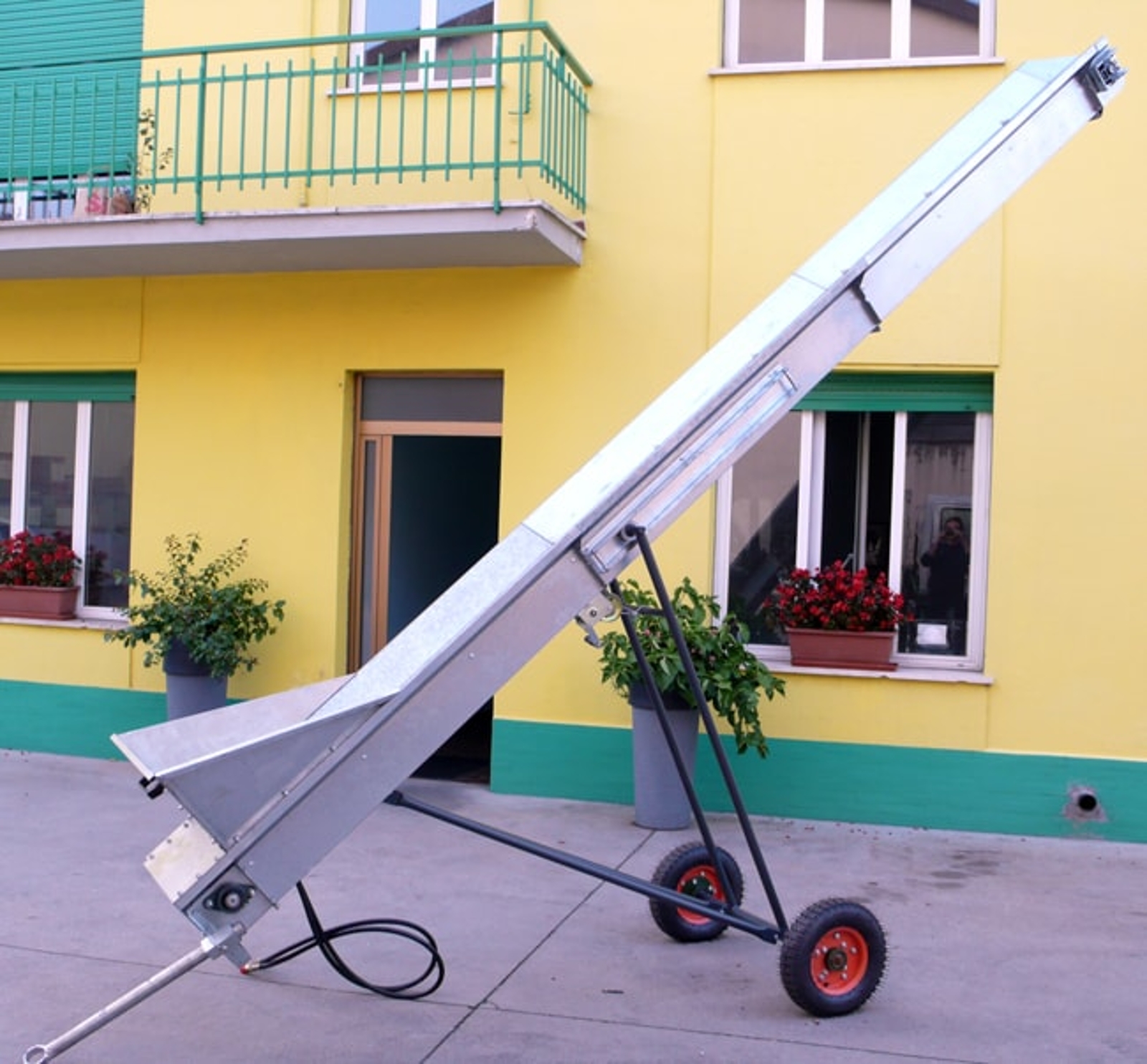

Hydraulic Log Belt Conveyor, 5,00m DELEKS®- Galvanized body to prevent rust.

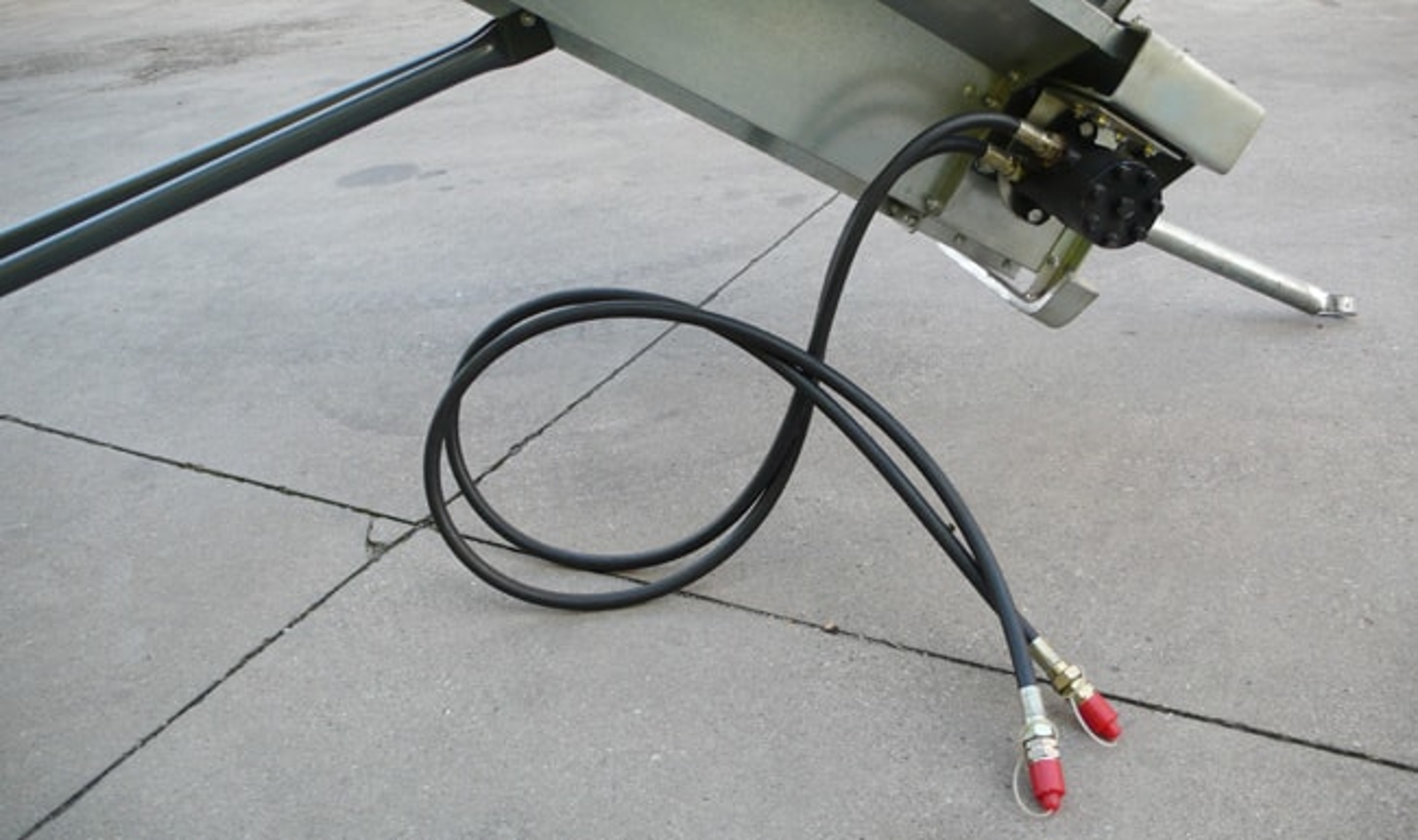

The NTL Log belt conveyor is extremely robust and durable. It has a 5 meter ramp and converyor belt to offer a versatile solution to moving and loading timber or any other type of suitable material. To use the article are indispensable 2 hydraulic outlets of the tractor. The product is inclusive of adjusting belt tension, torque wheels and handle for moving. EC Conformity, 2 Year Warranty.

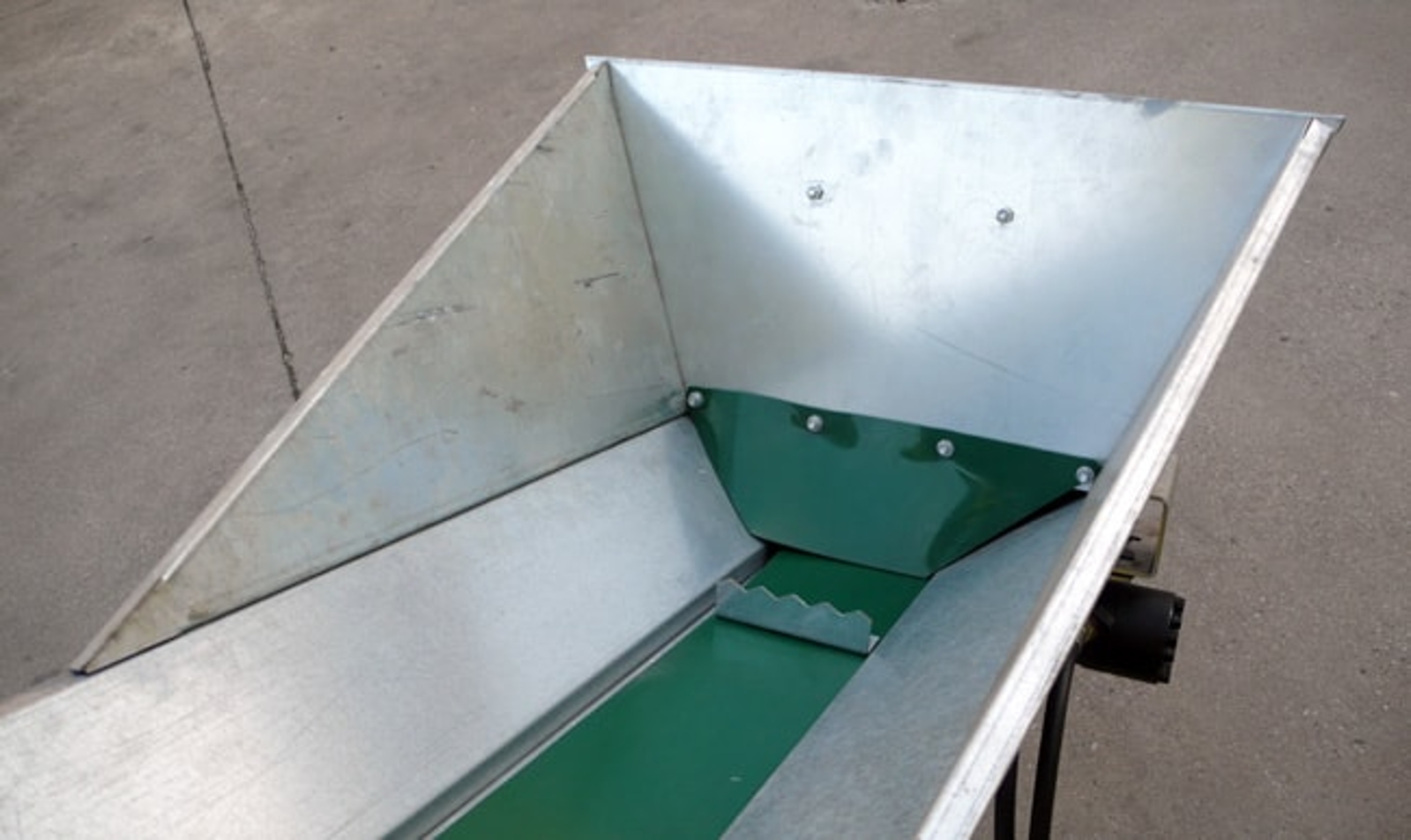

The conveyor belt has the capacity to carry decent sized firewood logs. Although the conveyor belt width is 150 mm, it's purpose-built structure guarantees the transport of wood with a diameter of 300 mm without loosing logs or straining the machine.

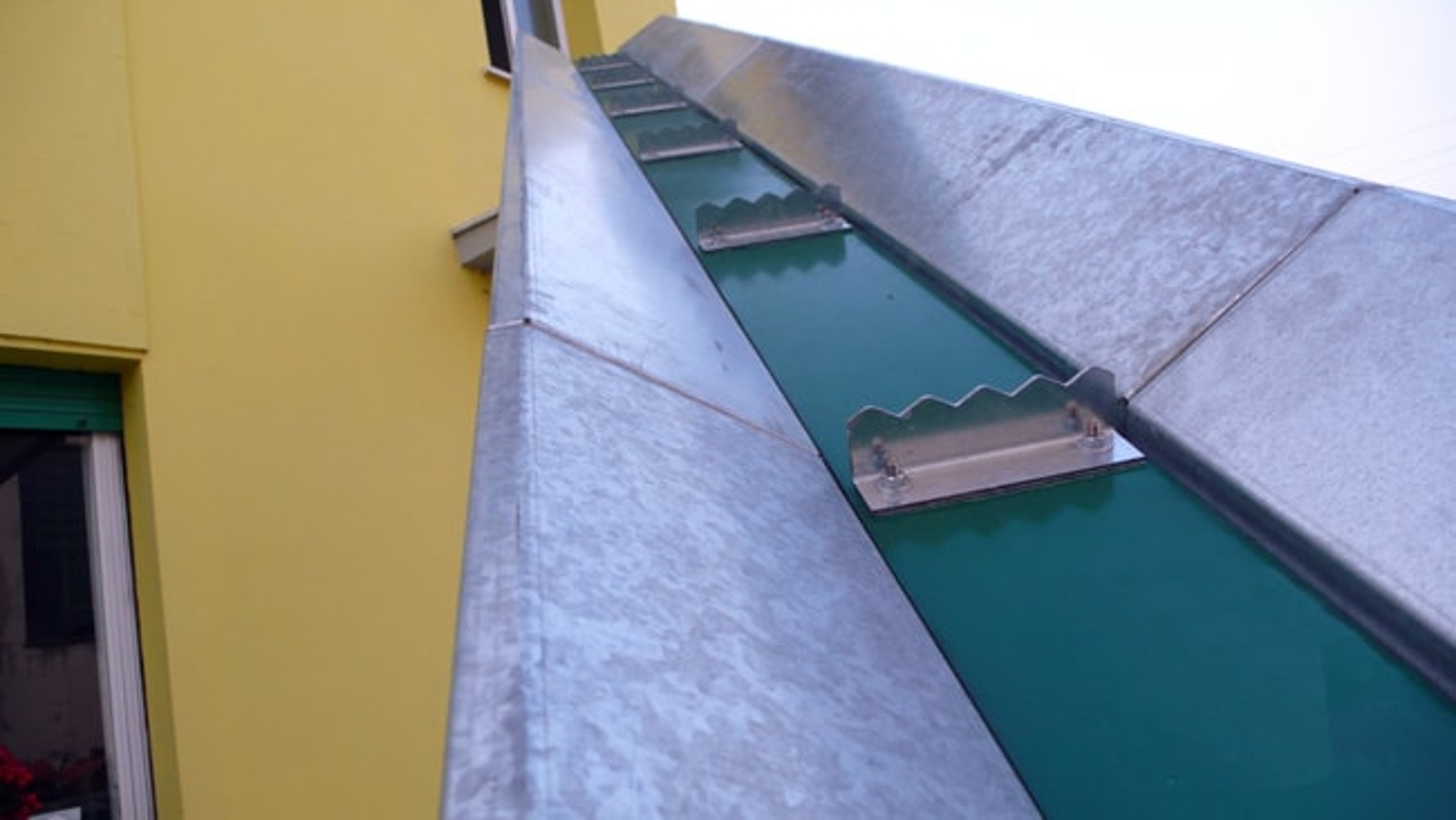

Wood remains in a longitudinal position within the side rails so the logs do not roll, avoiding any risk for the operator.

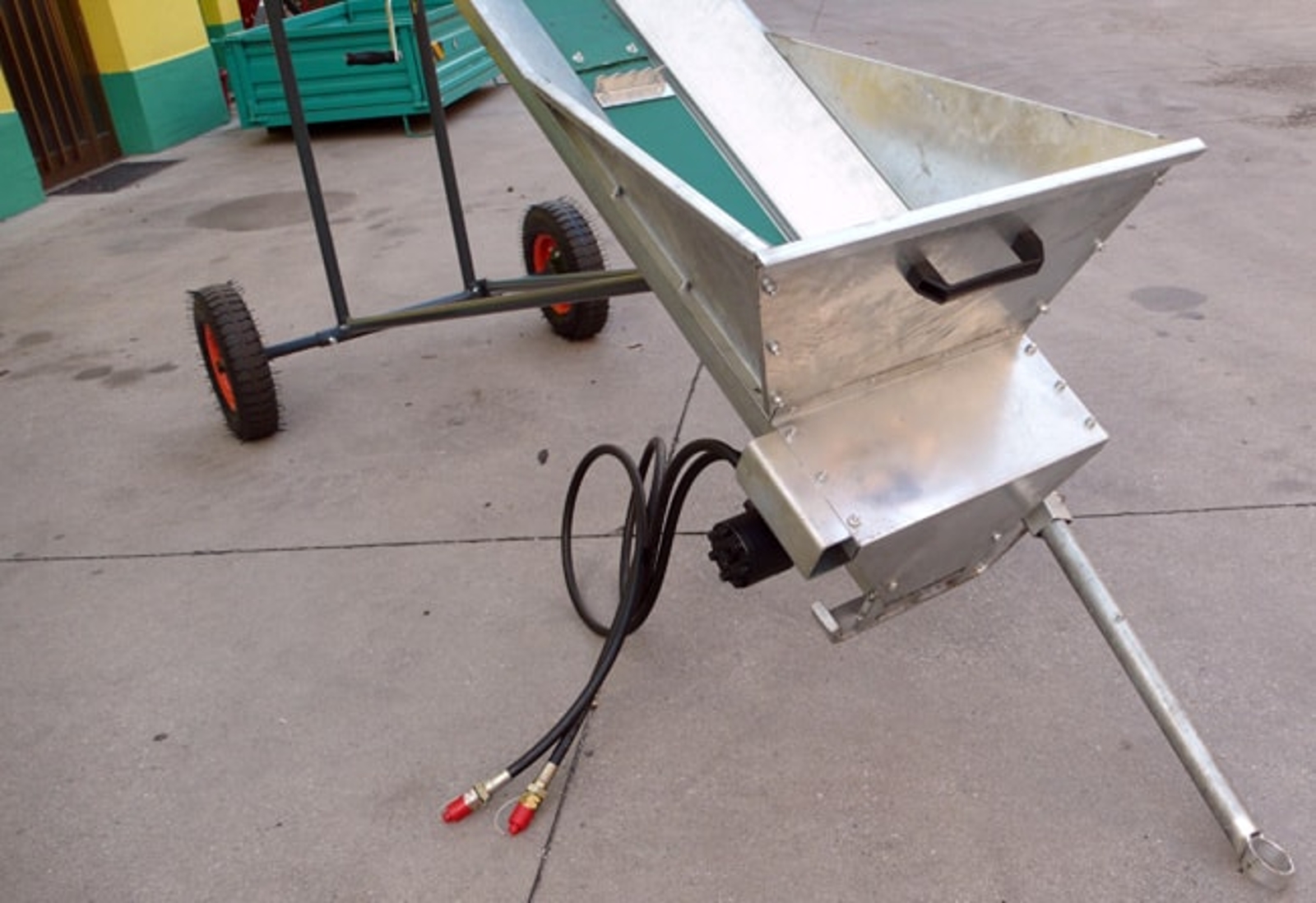

Easily movable due to it's lightweight design.

Galvanized body to prevent rust.

The ramp can be folded into three pieces while in transit.

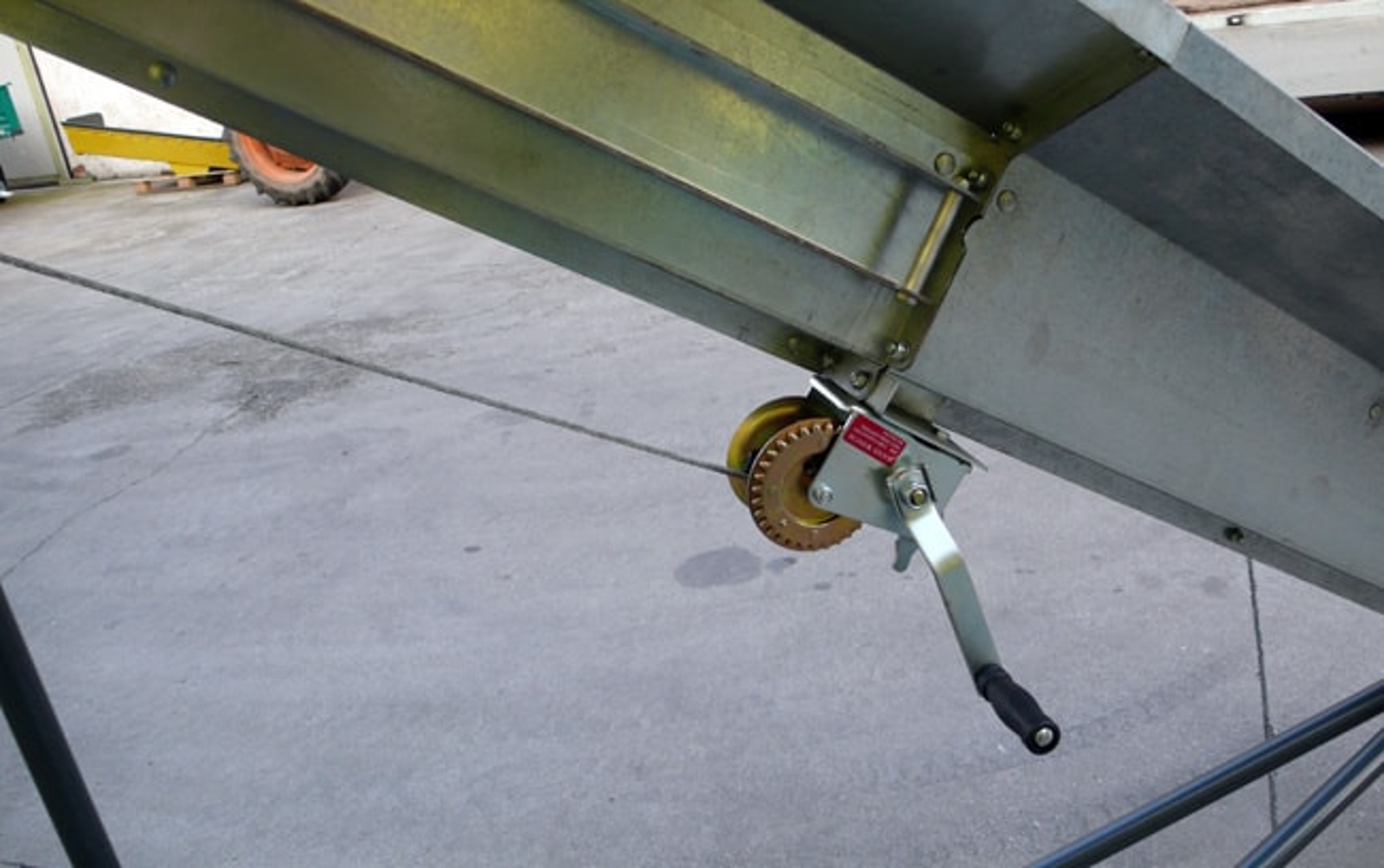

The gradient can be adjusted depending on the usage.



Characteristic Units metric Units US
Weight 150.0 kg 330.69 Ib
Hydraulic Pipes (2) 1500.0 mm / connections 1.2" AGRI, WP-400 bar 60.0 in / connections 1.2" AGRI, WP-400 bar
Min./Max. Relief Pressure 80-140 bar 80-140 bar
Min./Max. Flow 20 - 30 l/min 20 - 30 l/min
Lenght 5000.0 mm 16.40 ft
Height 3600.0 mm 11.80 ft
Ramp width 440.0 mm 1.44 ft
Conveyor Belt Width 150.0 mm 5.90 in
Max ø of the logs 300.0 mm 11.80 in

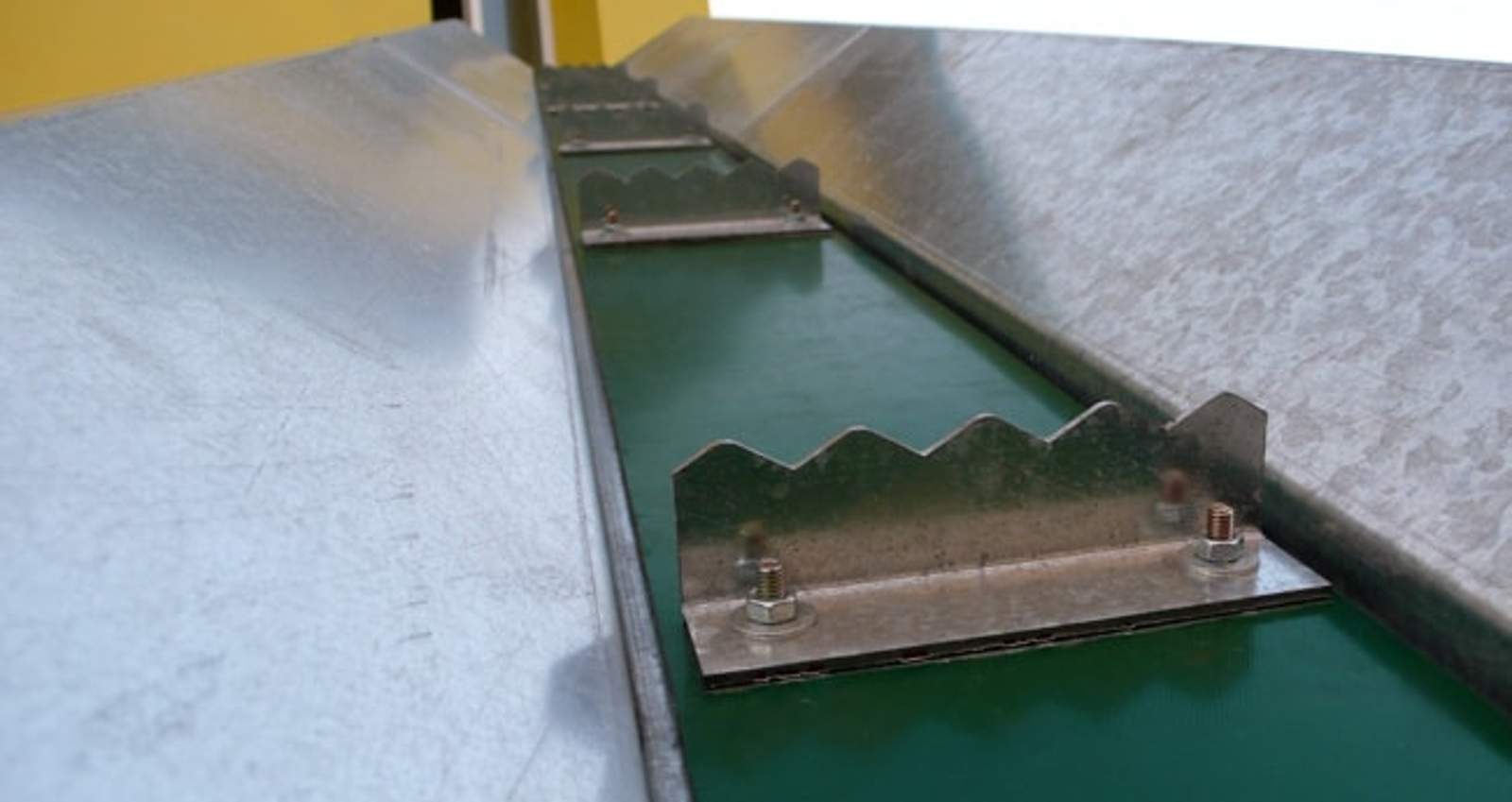

Distance between dividers 700.0 mm 27.56 in
Dividers' height 40.0 mm 1.58 in
Packing sizes 720.0*1800.0*700.0 mm 23.60*60.0*23.0 ft
