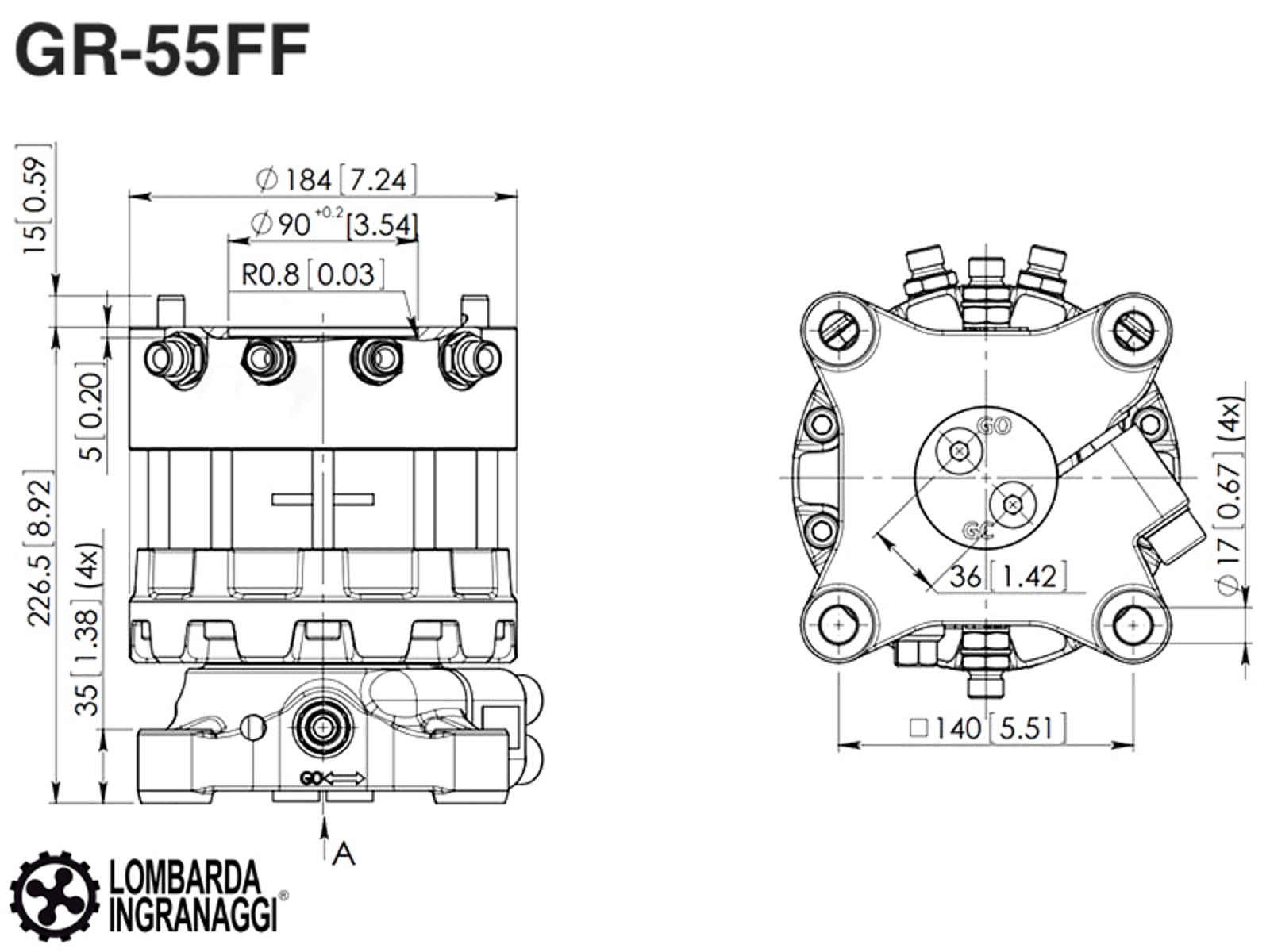

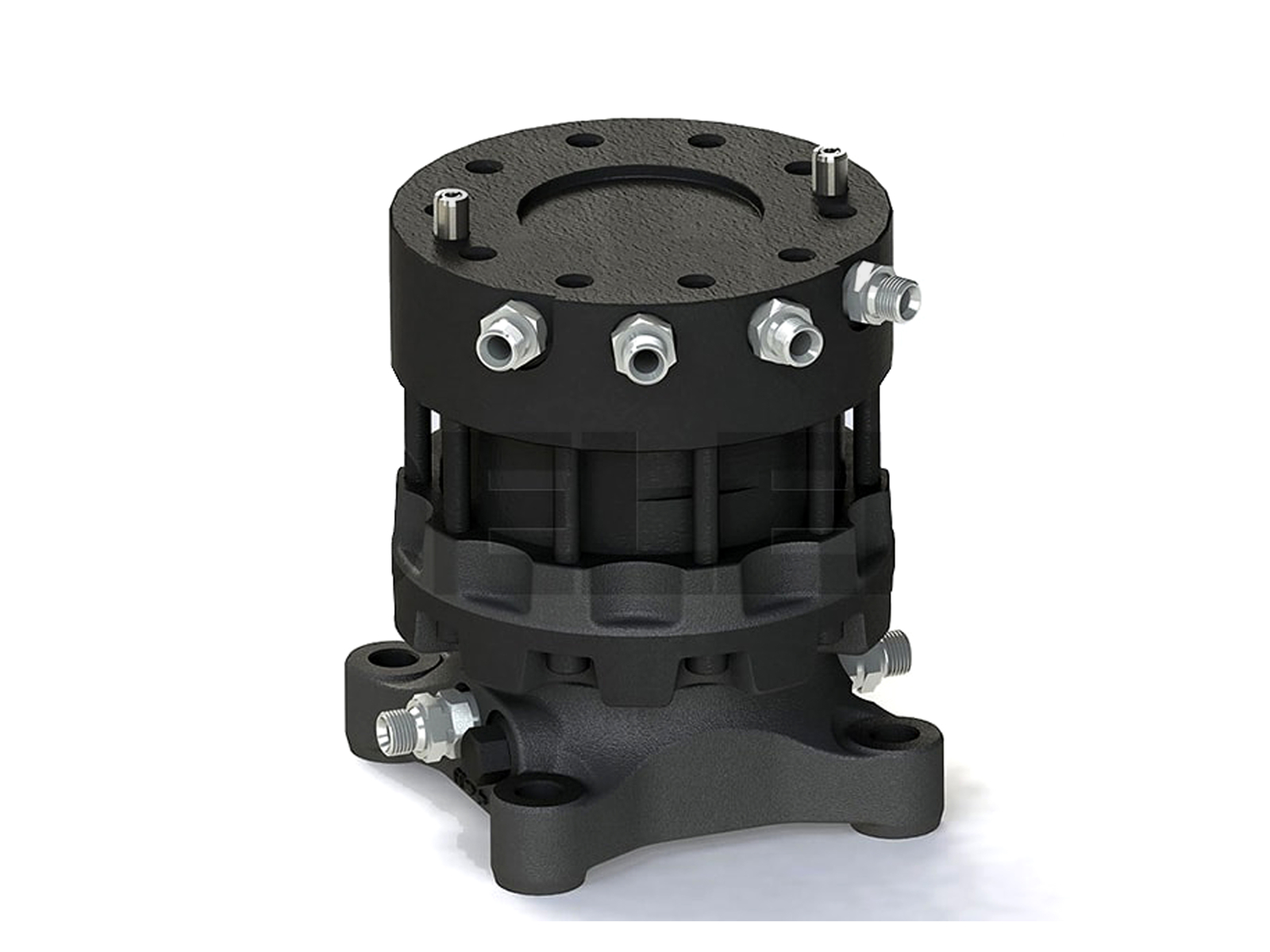

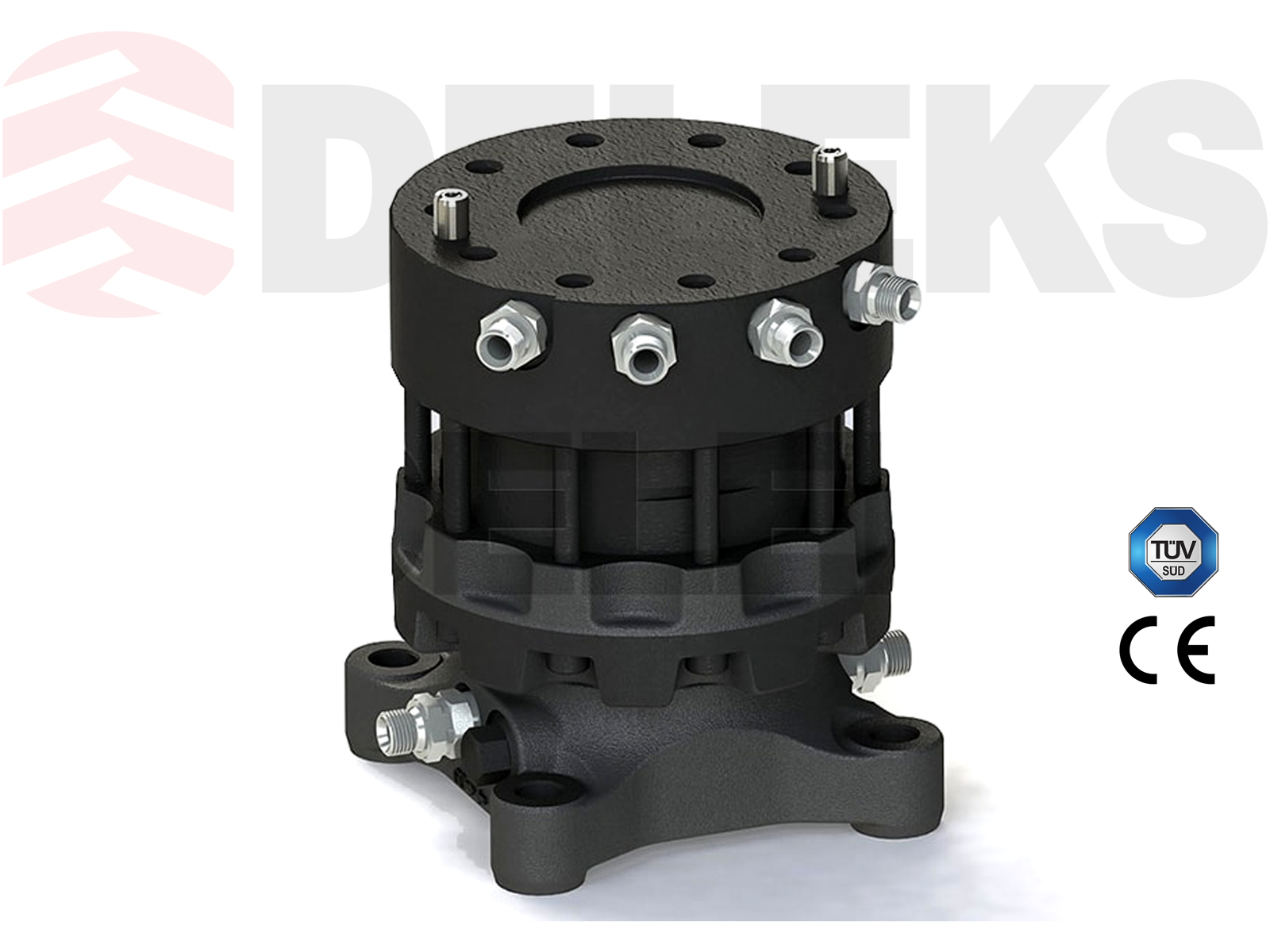

Lombarda Ingranaggi® GR-55FF Hydraulic Rotator 4.5 Ton.
Suitable for agricultural and forestry Vehicles.

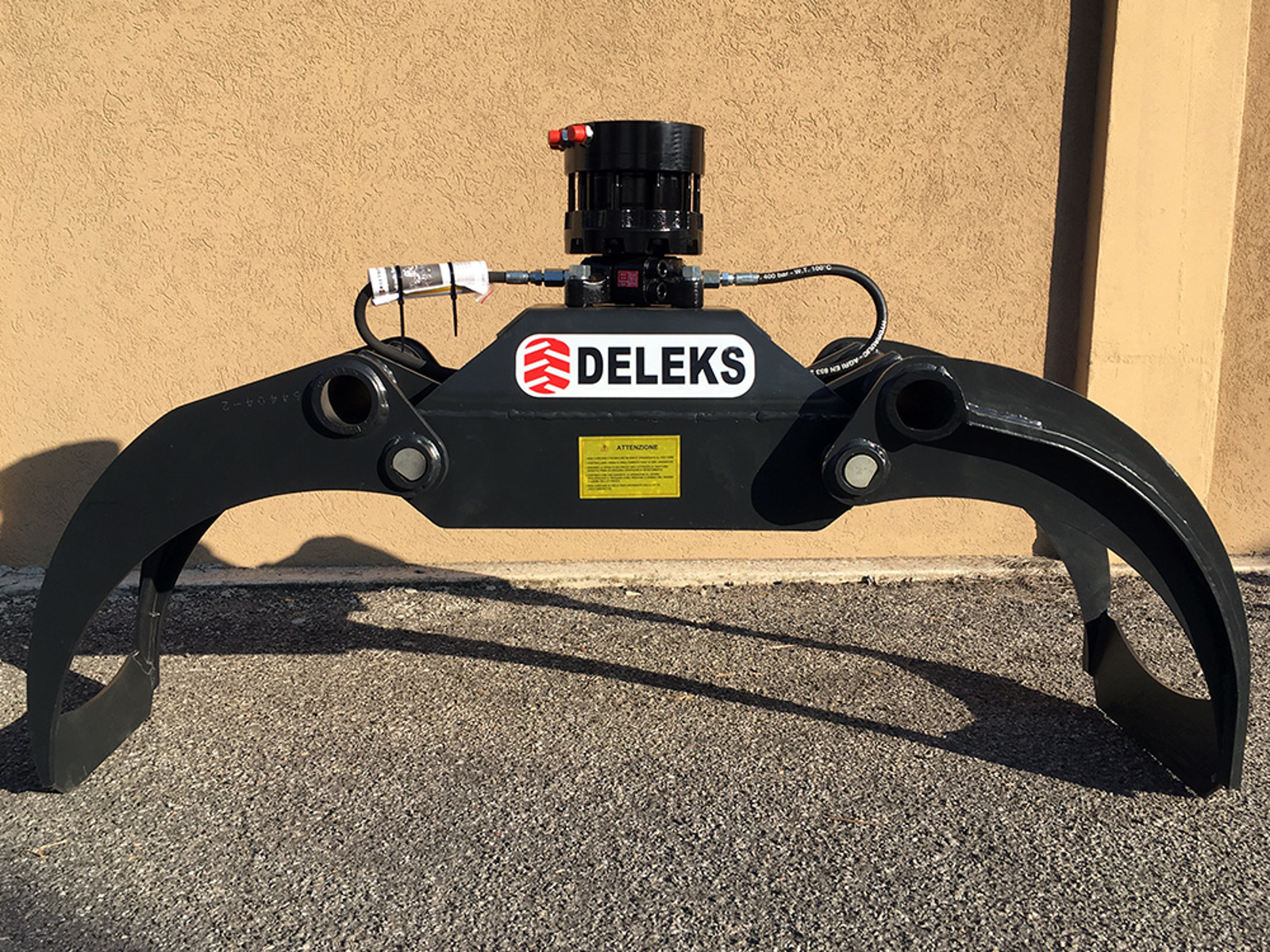

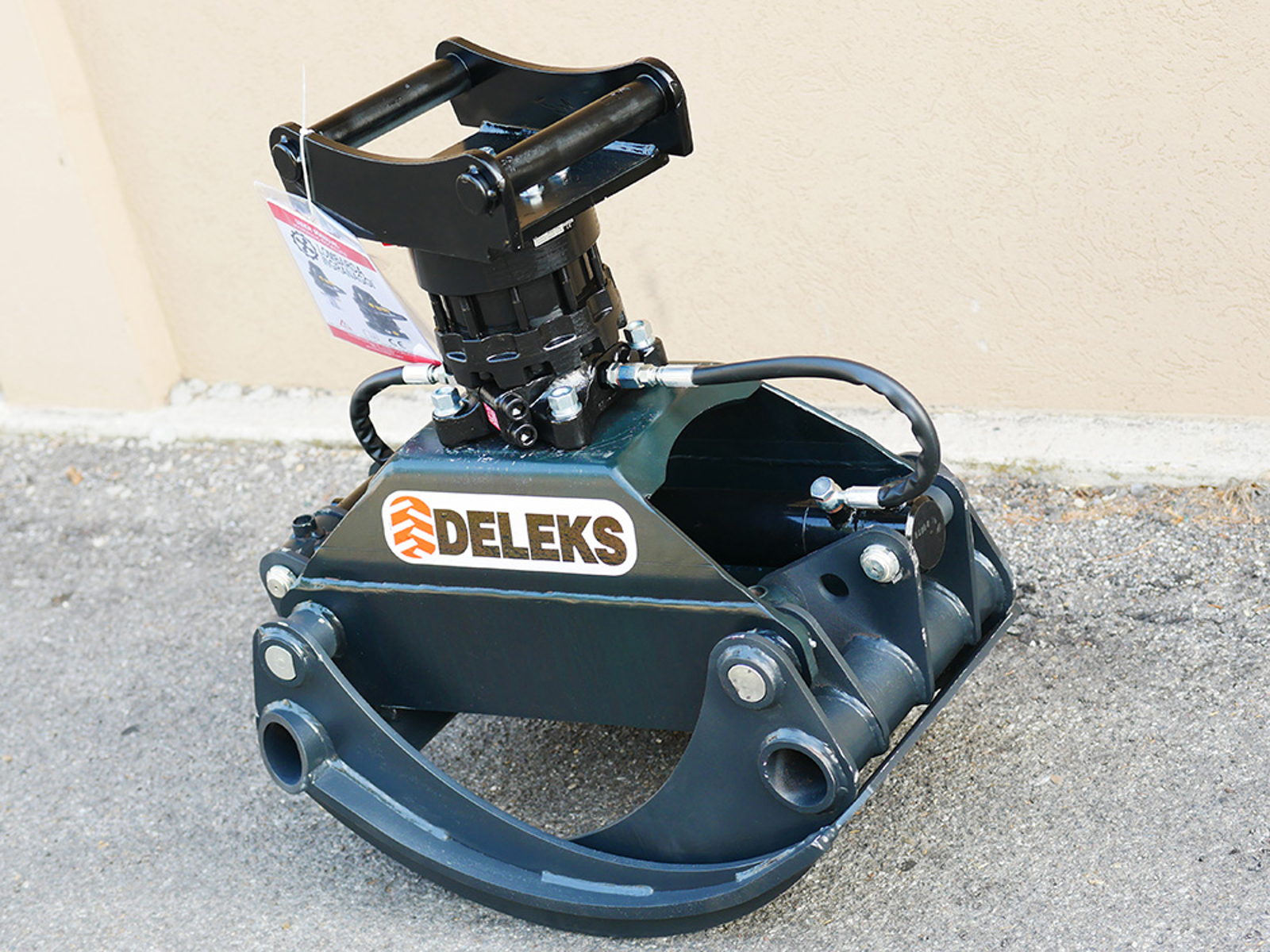

It allows to work vertically with the log-grapple.

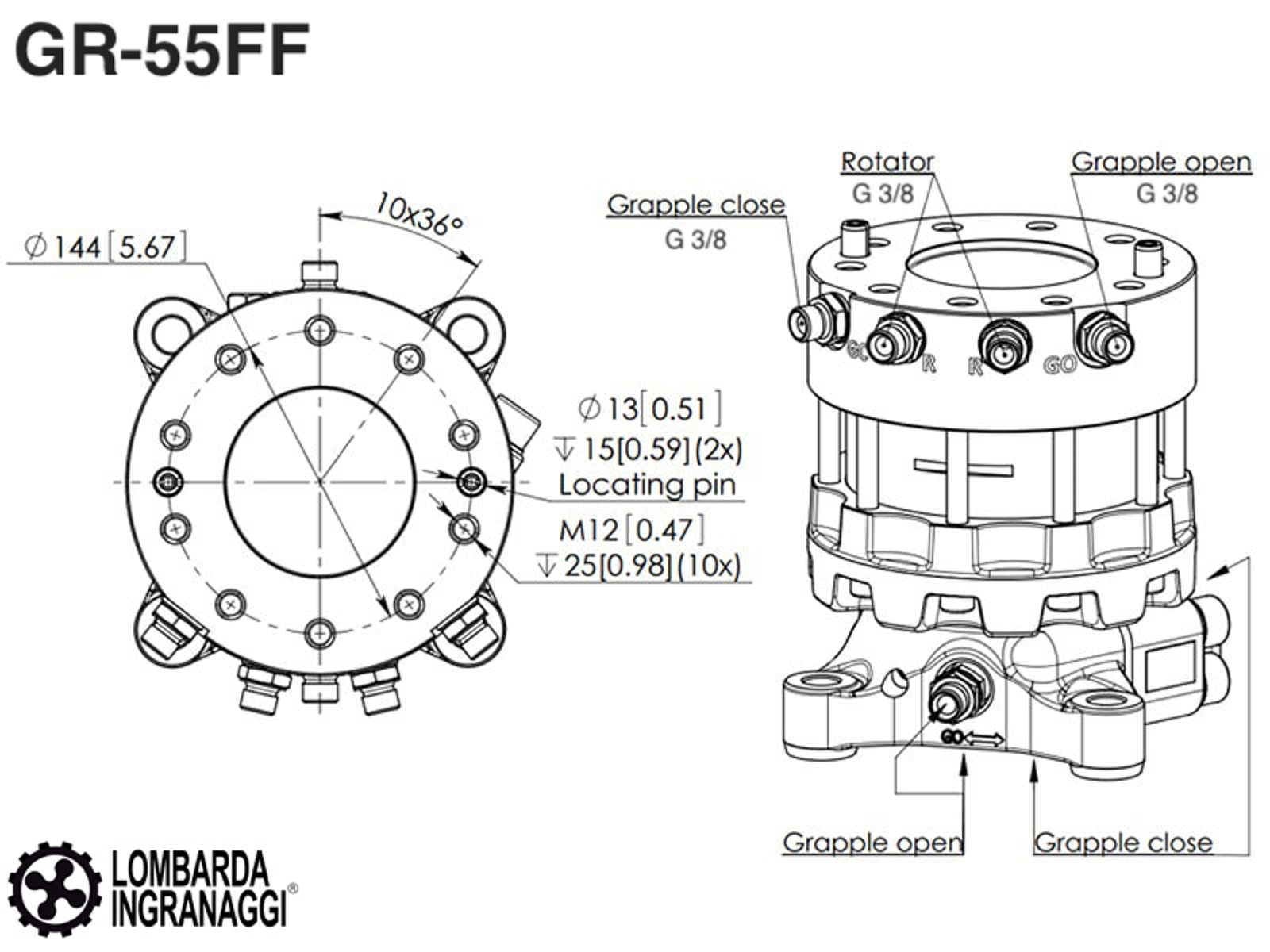

Upper connection - Flat, for quick attachments as S40
Lower connection - Fixed directly onto the grapple with bolts.
ROTATION: 360° Unlimited
LOAD CAPACITY (STATIC): 45 kN (10116 lbf)
LOAD CAPACITY (DYNAMIC): 25 kN (5621 lbf)
TORQUE @-MPA: 1300 Nm (959 lb ft)
REC. OILFLOW: 22 l/min
WEIGHT: 35 kg
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 35 kg | 77,1617 lb |
DETAILS
CLOSELombarda Ingranaggi® GR-55FF Hydraulic Rotator 4.5 Ton.
Suitable for agricultural and forestry Vehicles.
It allows to work vertically with the log-grapple.
Upper connection - Flat, for quick attachments as S40
Lower connection - Fixed directly onto the grapple with bolts.
ROTATION: 360° Unlimited
LOAD CAPACITY (STATIC): 45 kN (10116 lbf)
LOAD CAPACITY (DYNAMIC): 25 kN (5621 lbf)
TORQUE @-MPA: 1300 Nm (959 lb ft)
REC. OILFLOW: 22 l/min
WEIGHT: 35 kg
CHARACTERISTICS
CLOSE| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 35 kg | 77,1617 lb |
