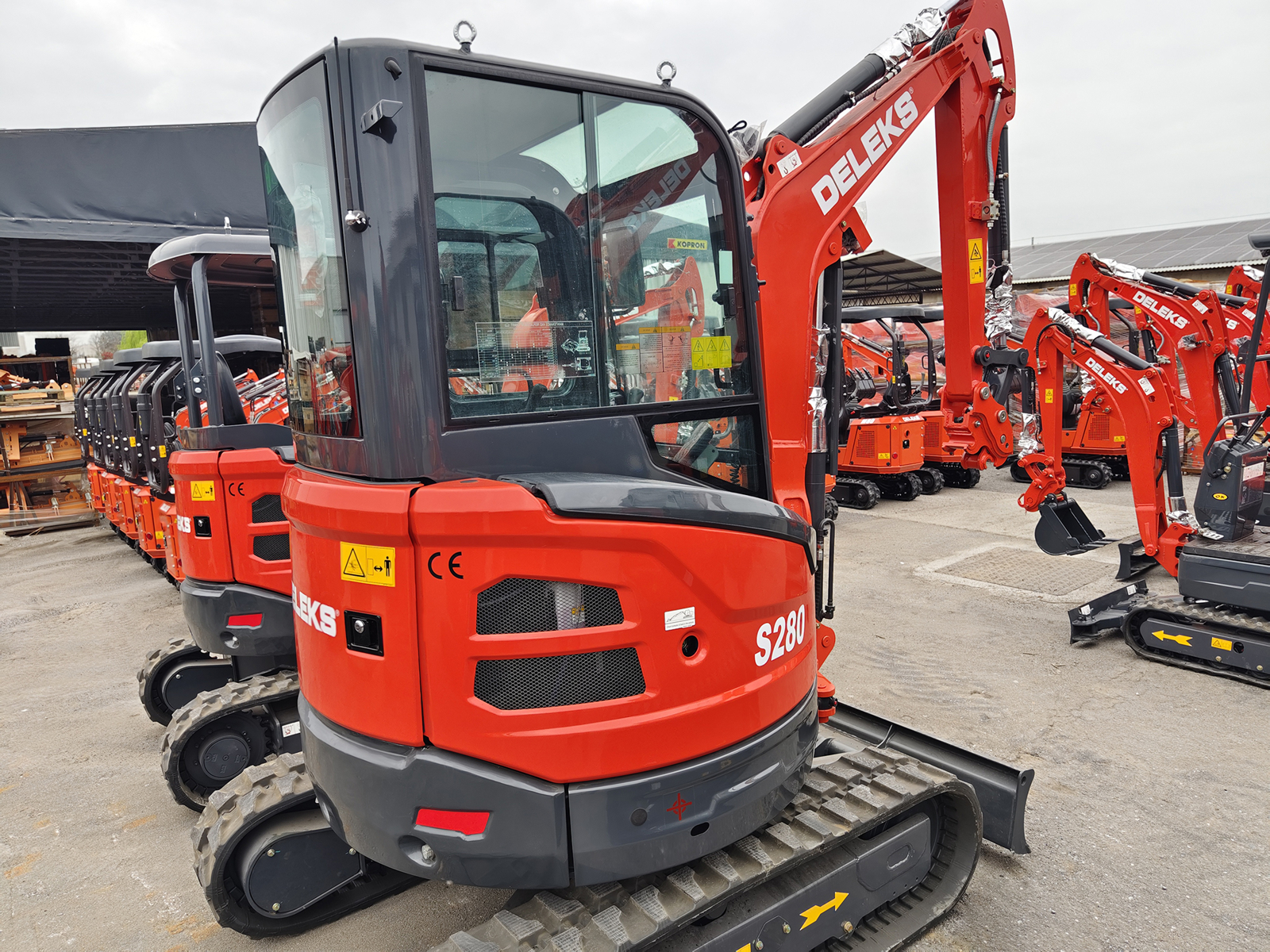

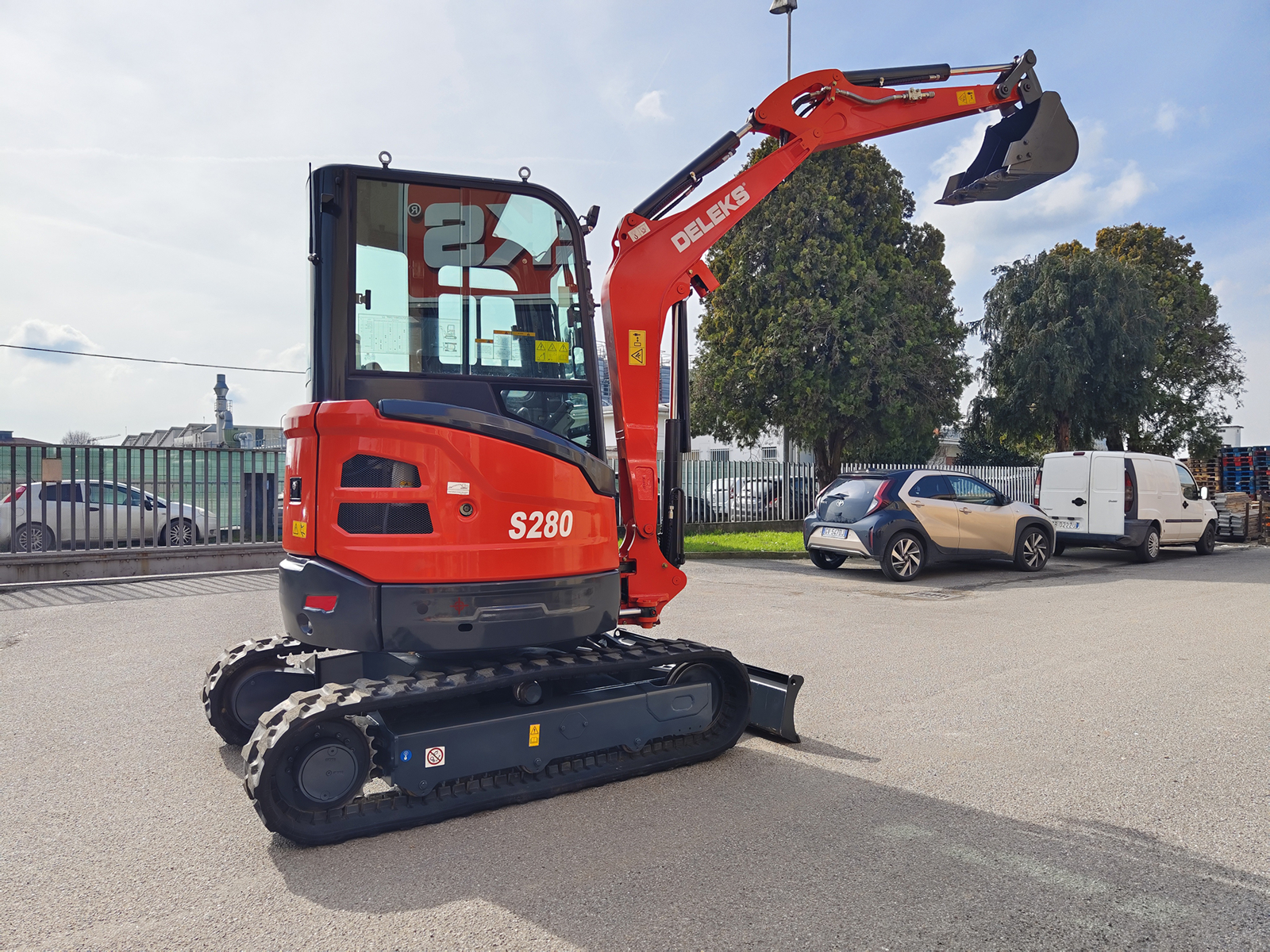

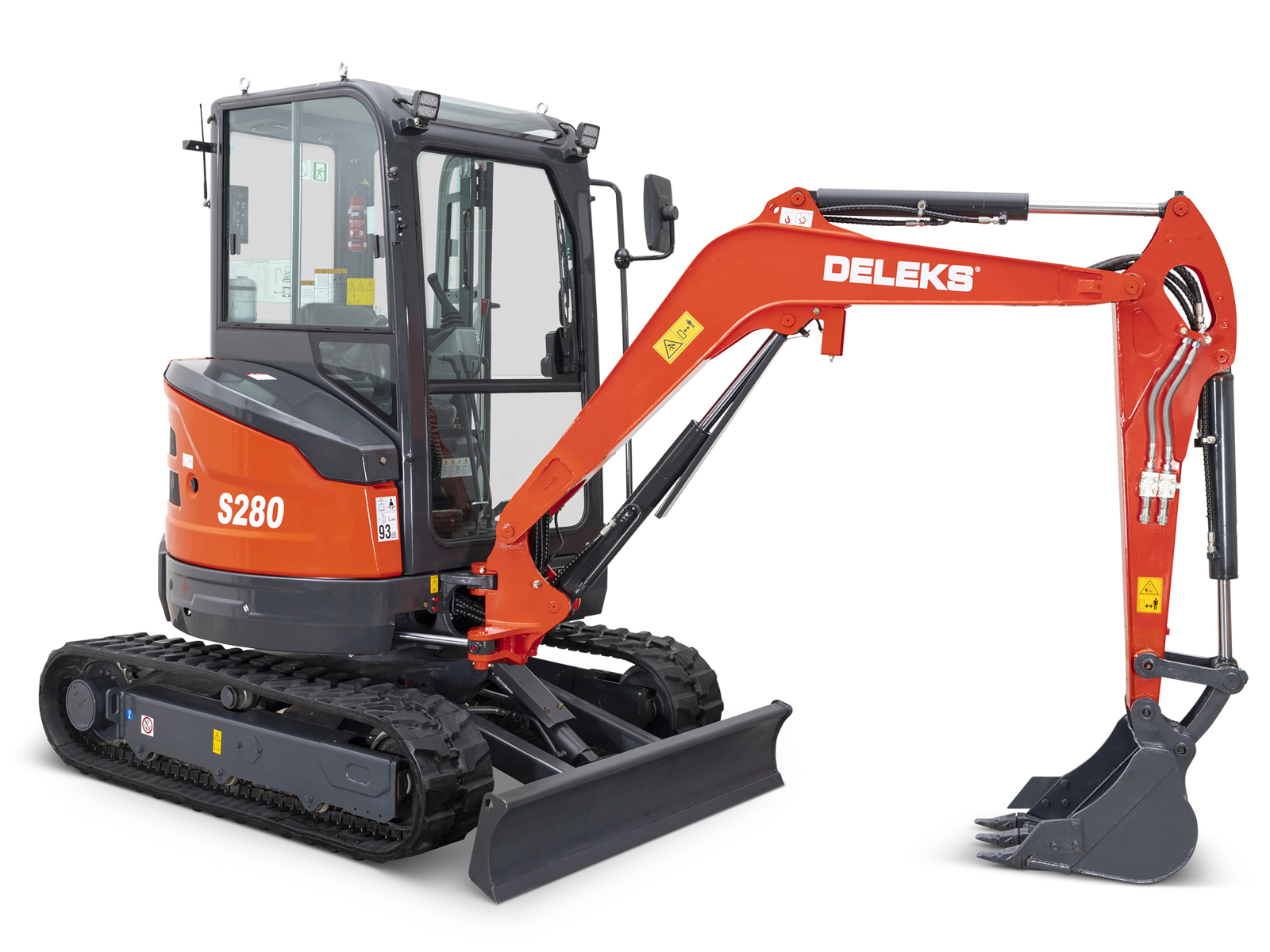

Compact Mini Excavator 2.8 Ton, Kubota 3-Cylinder Engine, Cabin, Zero Tail Swing

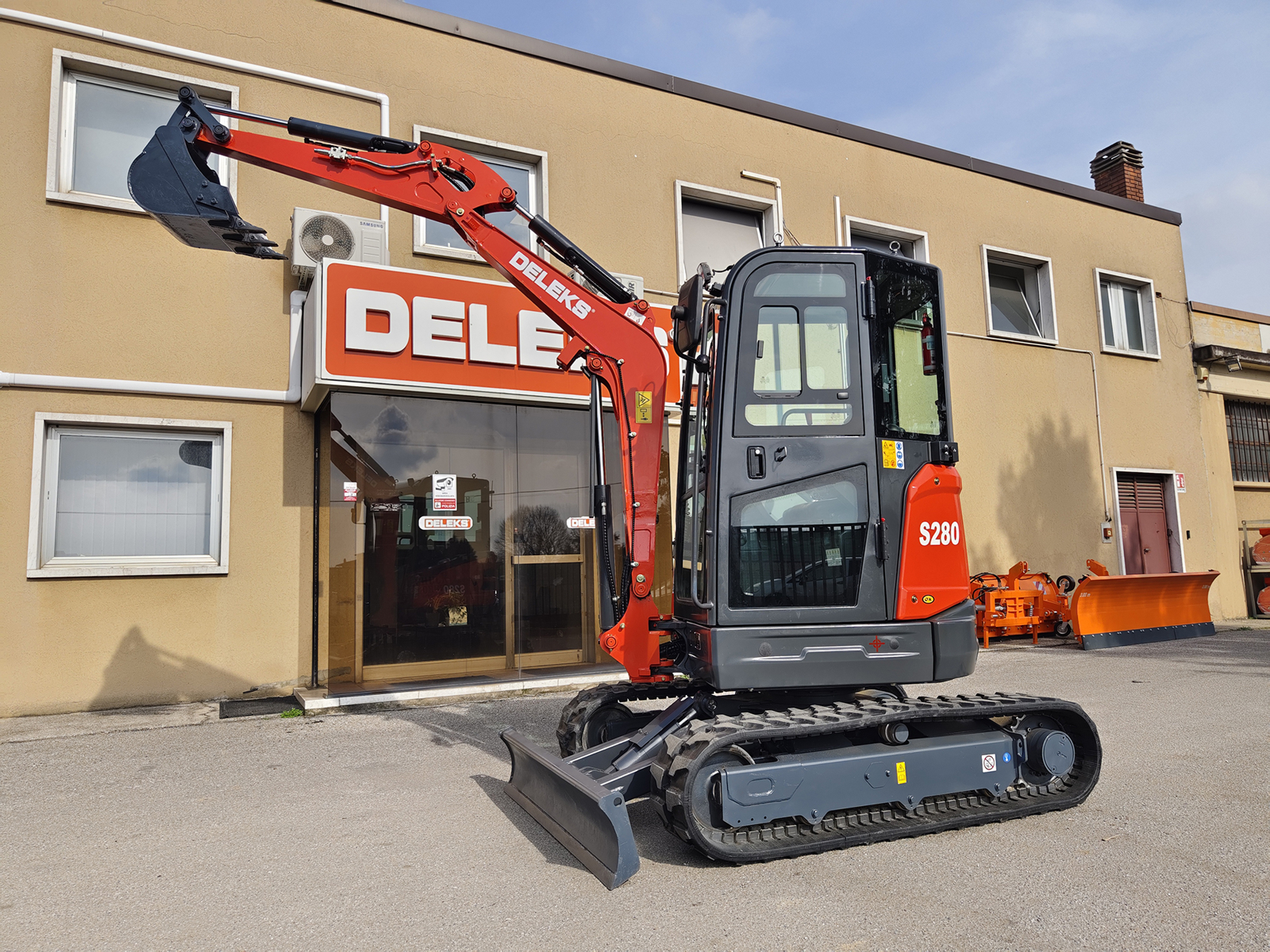

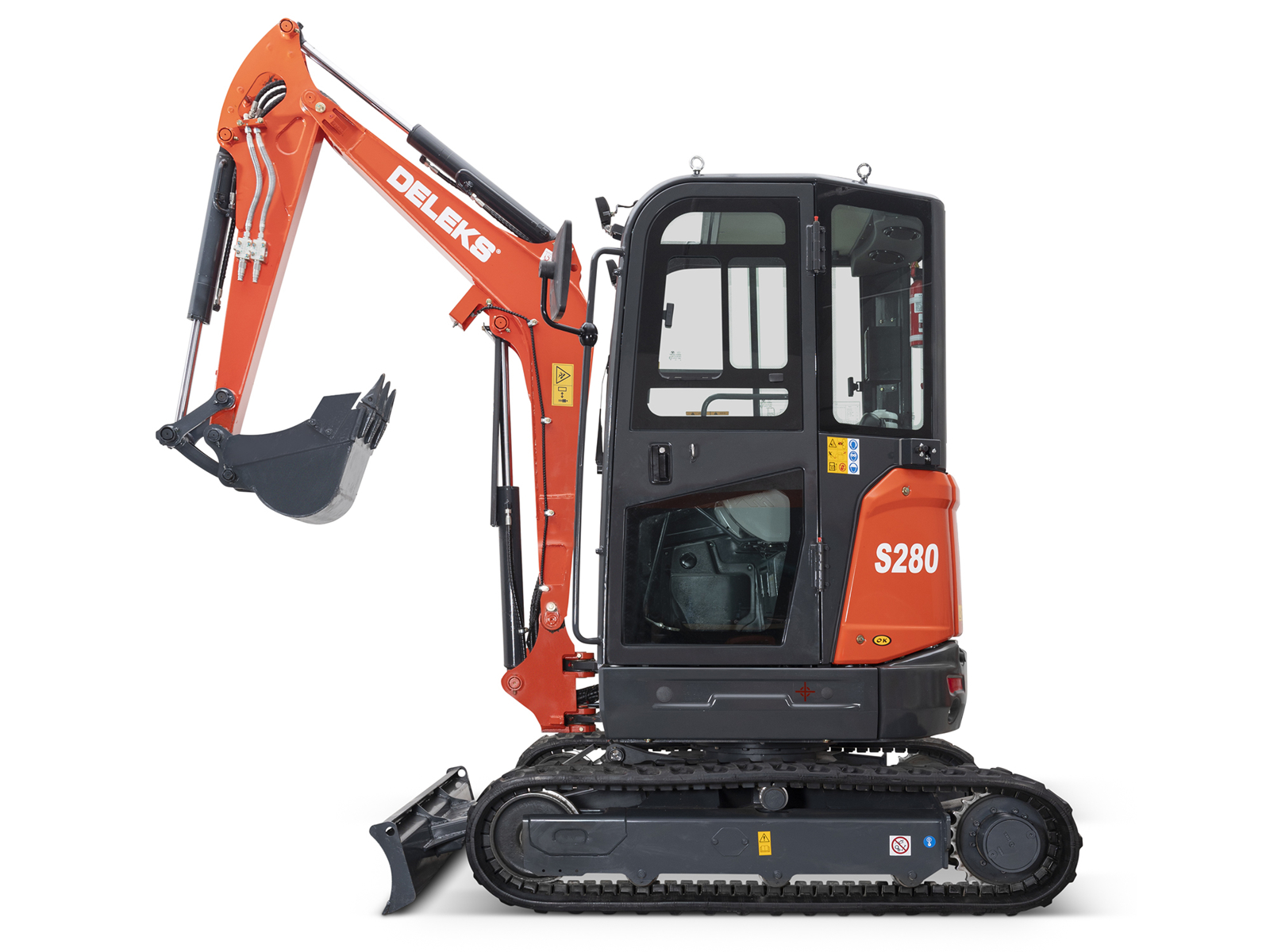

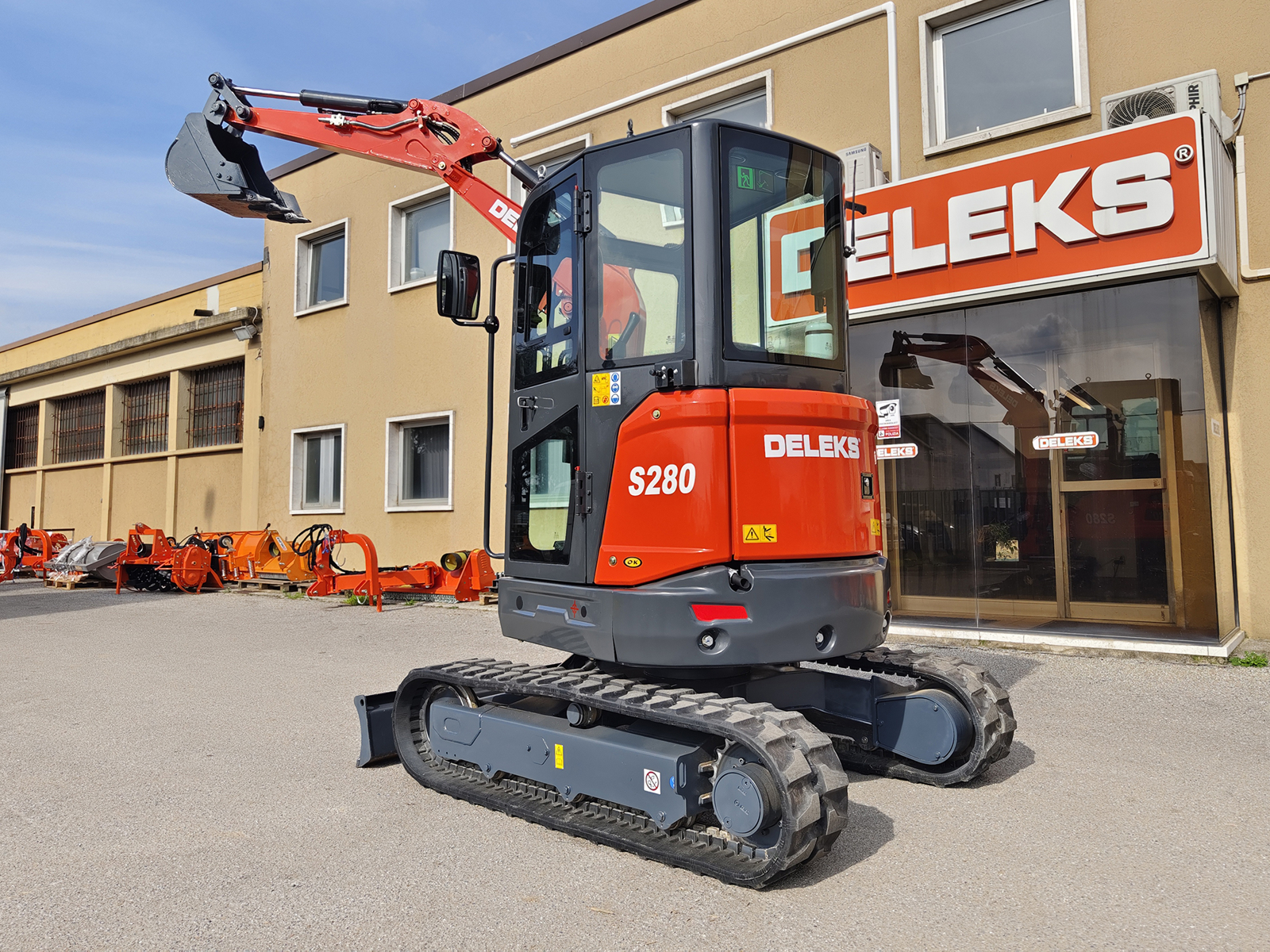

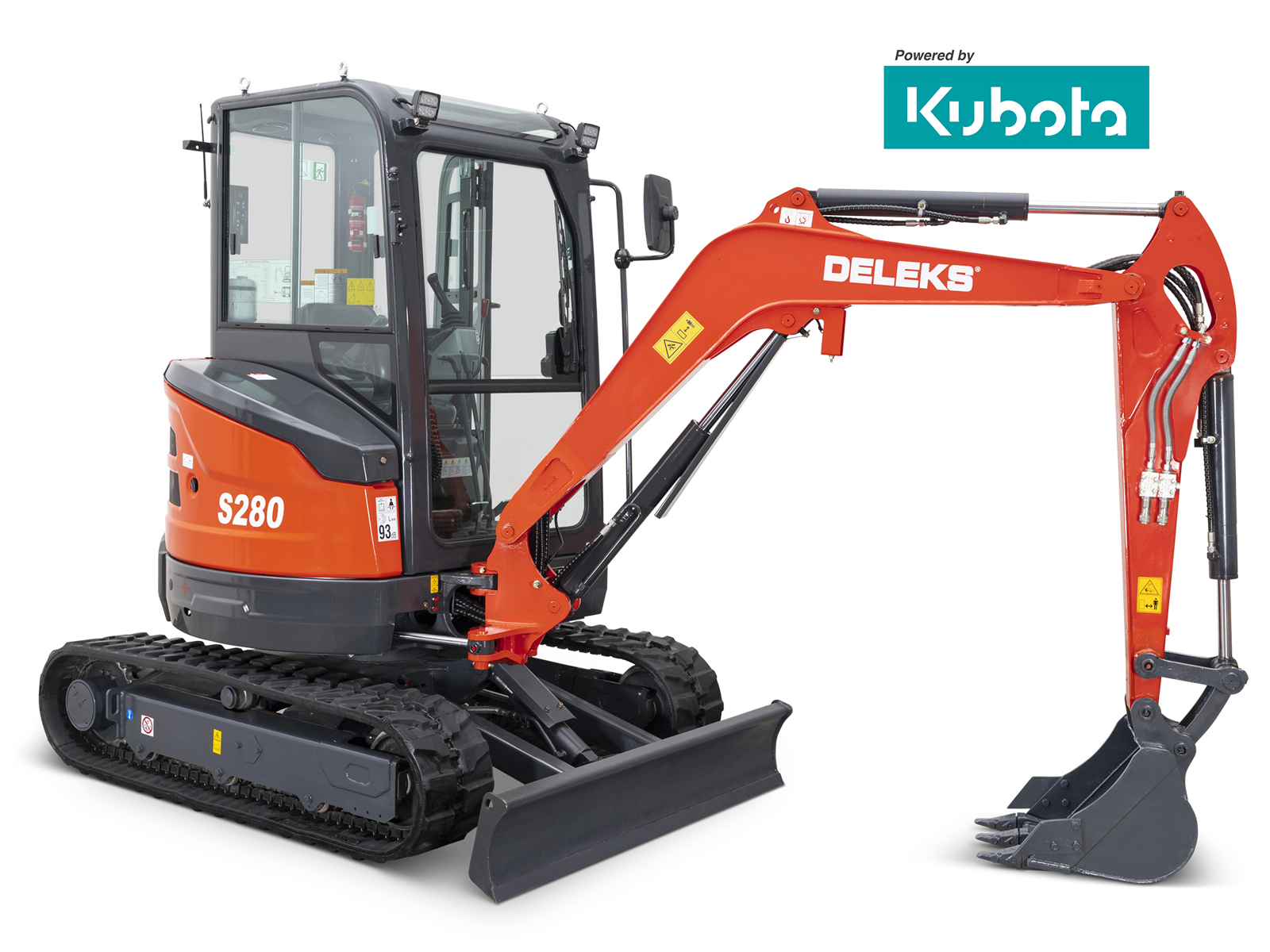

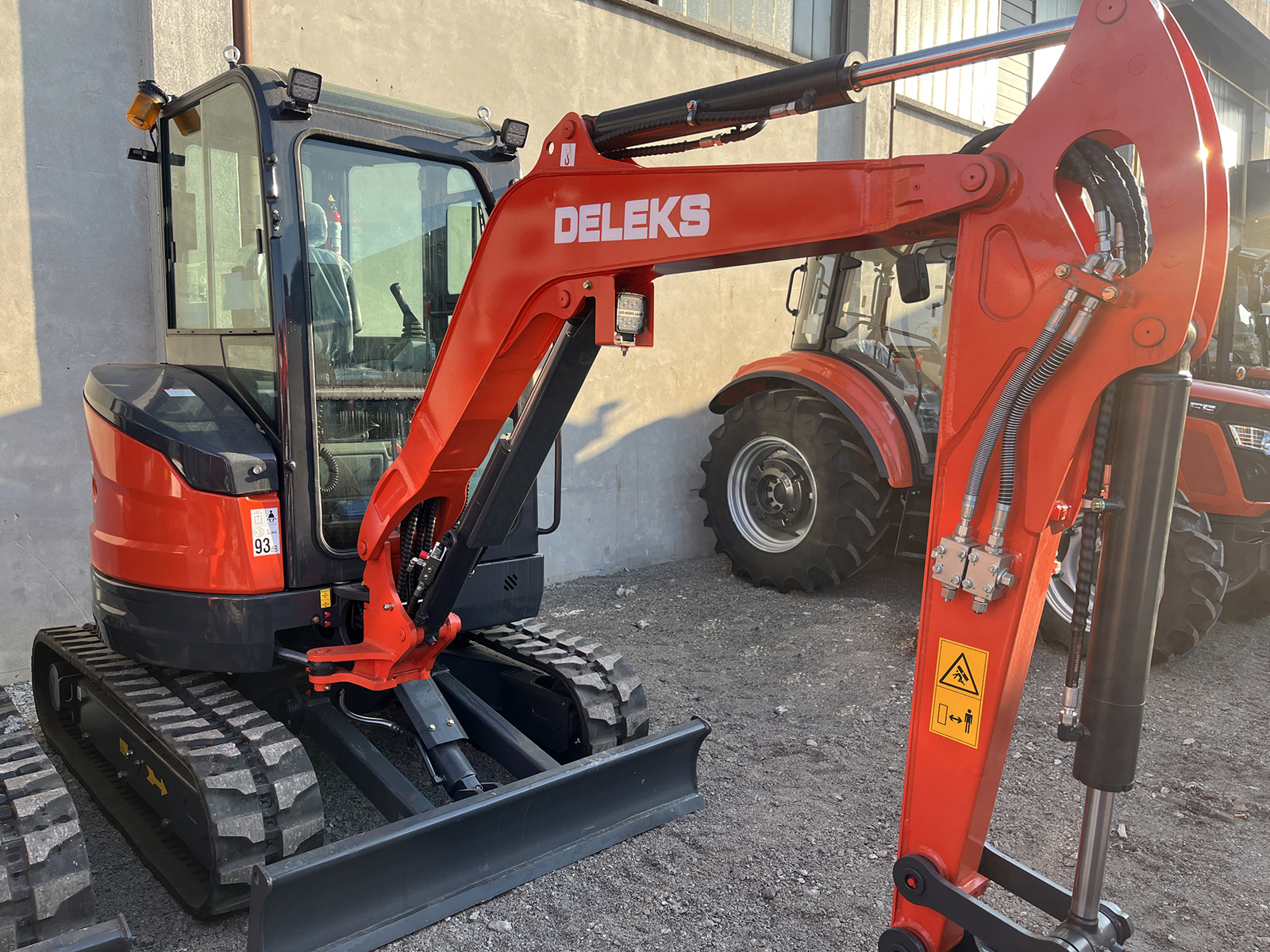

DELEKS® S280CK 2.8 t cab mini excavator, equipped with a Kubota D1105 Stage V 3-cylinder engine (1123 cc), heated cab, offset boom and dual travel speed up to 4 km/h.
Its variable-displacement axial piston hydraulic system delivering 87 L/min with Load Sensing control, combined with the zero tail swing design, ensures professional performance, stability and precision even in confined spaces.
Designed to deliver power, reliability and operator comfort, the S280CK is ideal for excavation work, construction, green maintenance and public works.

ENGINE KUBOTA STAGE V

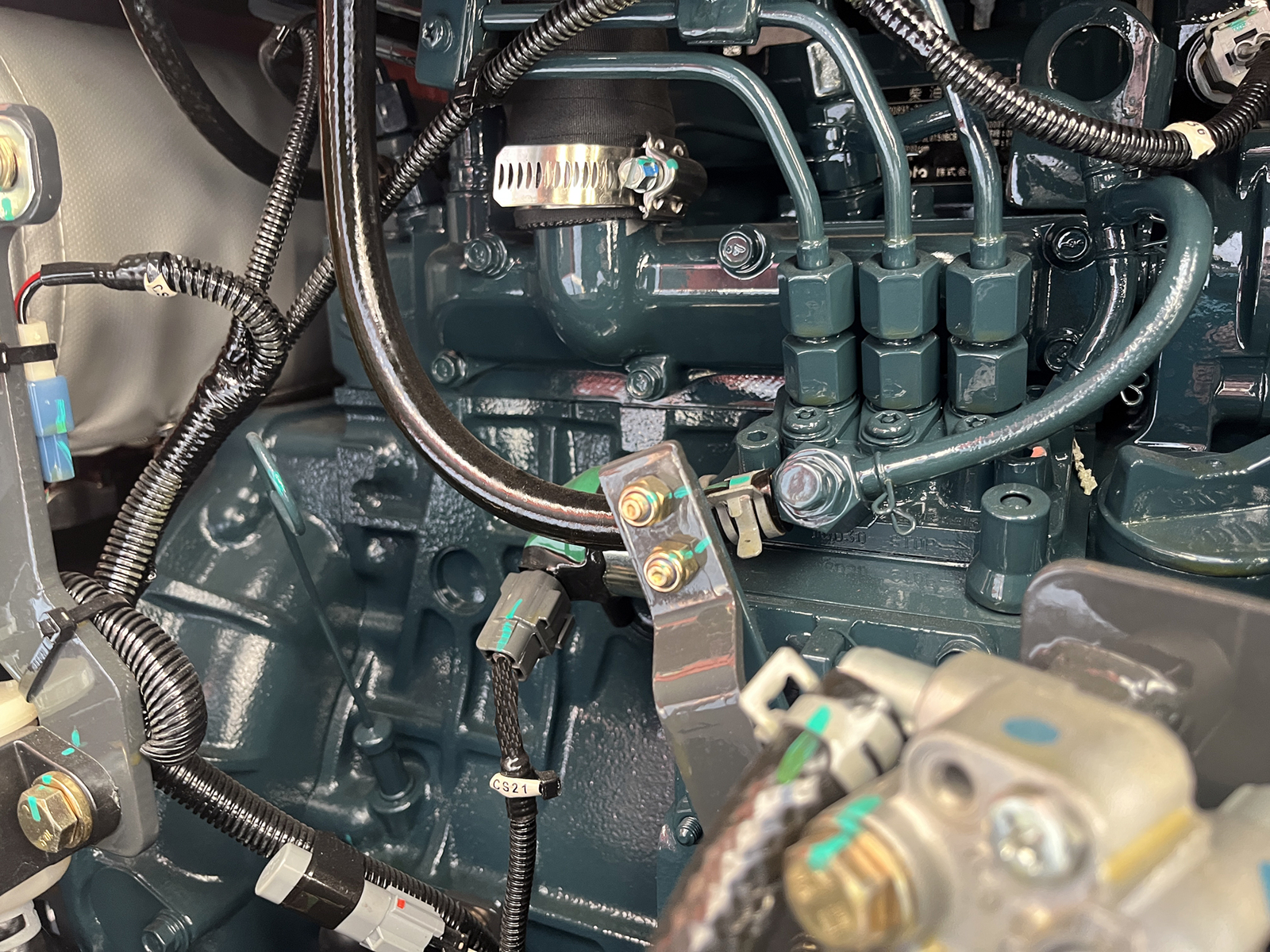

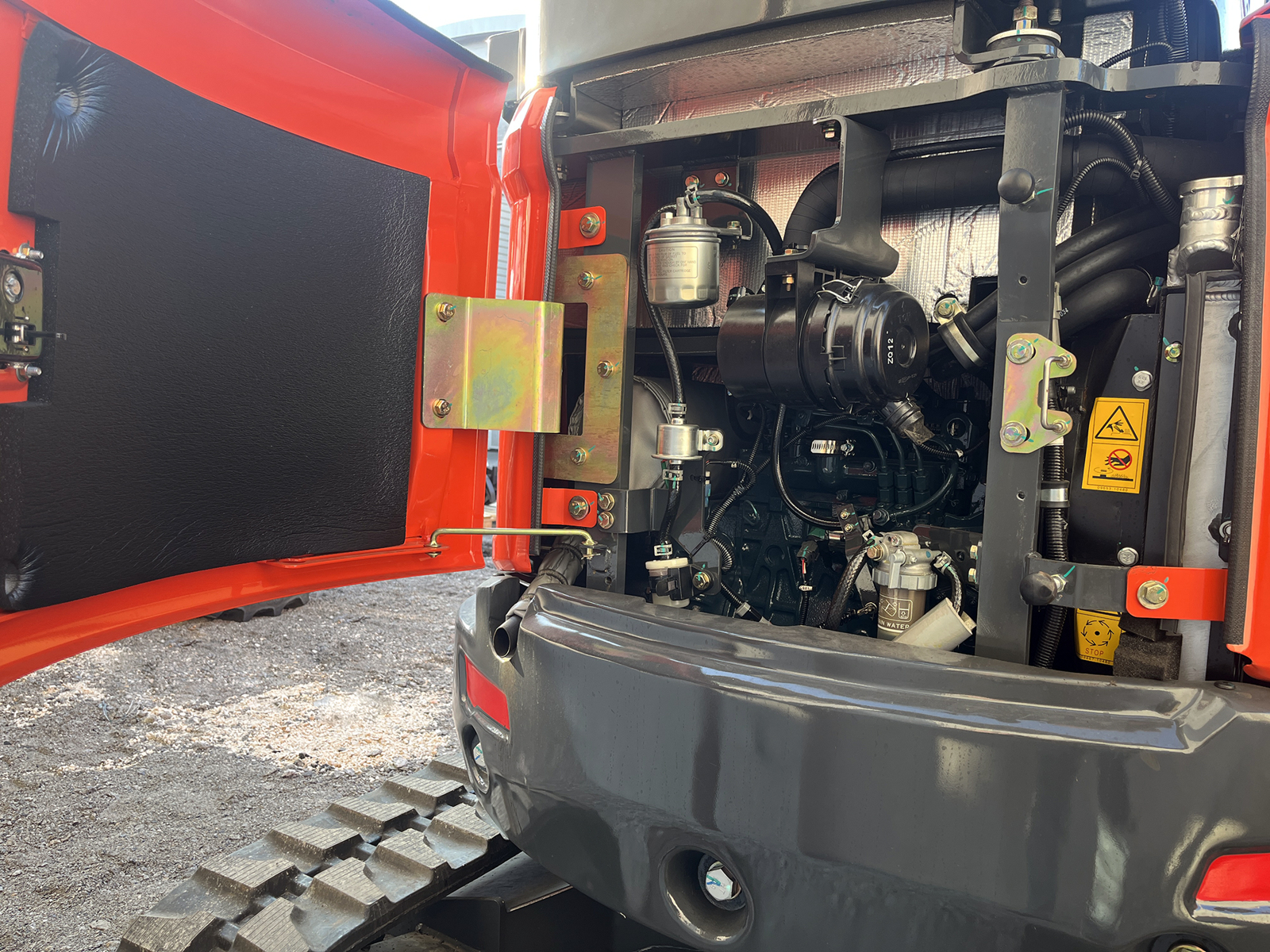

The DELEKS® S280CK is equipped with a Kubota D1105 Stage V 3-cylinder engine, 1123 cc, delivering 21.8 HP (16 kW) at 2400 rpm.
The engine ensures high torque, low fuel consumption and maximum reliability, fully compliant with Euro 5 / Stage V emission standards.

PERFORMANCE AND CONTROL

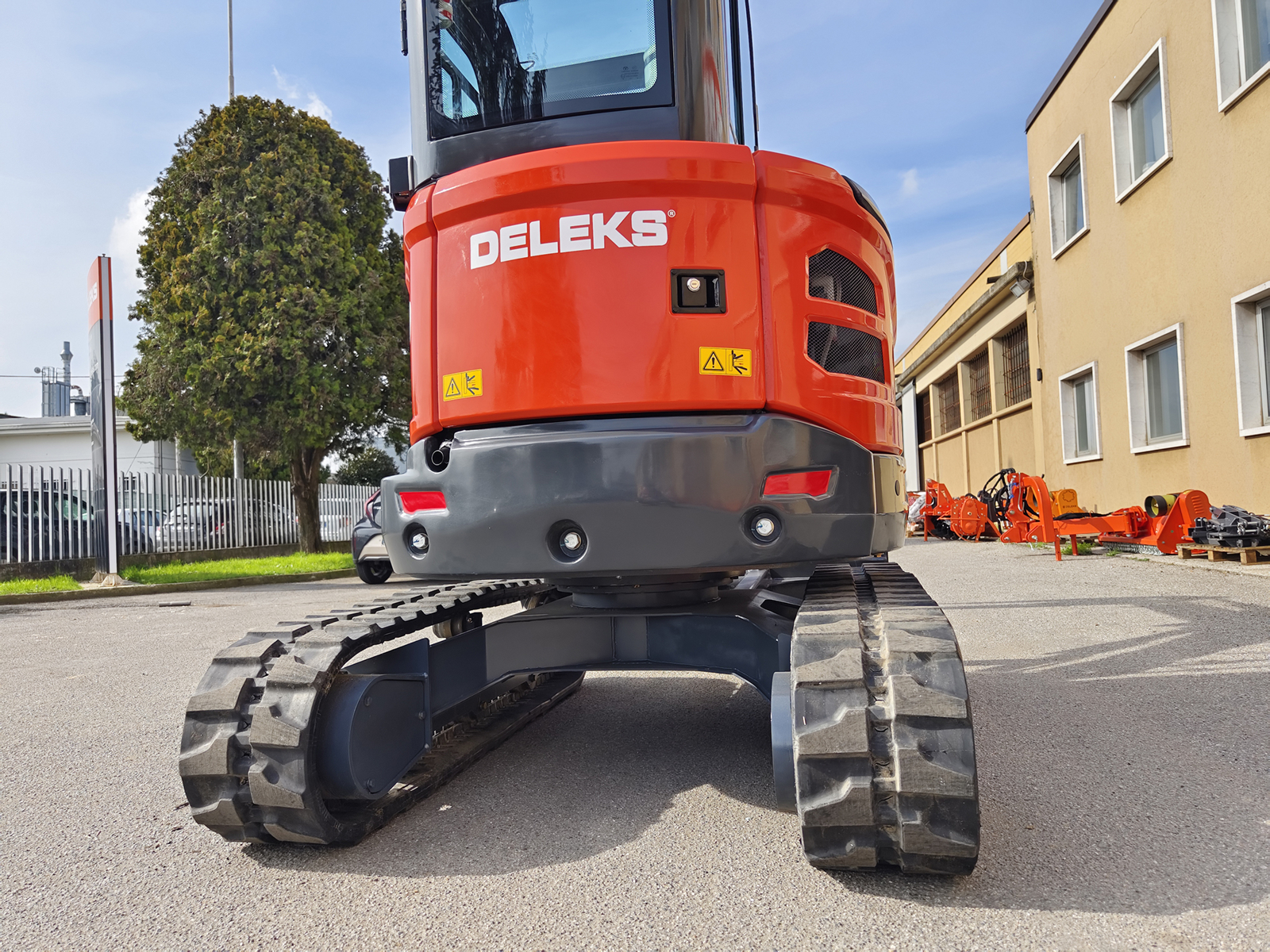

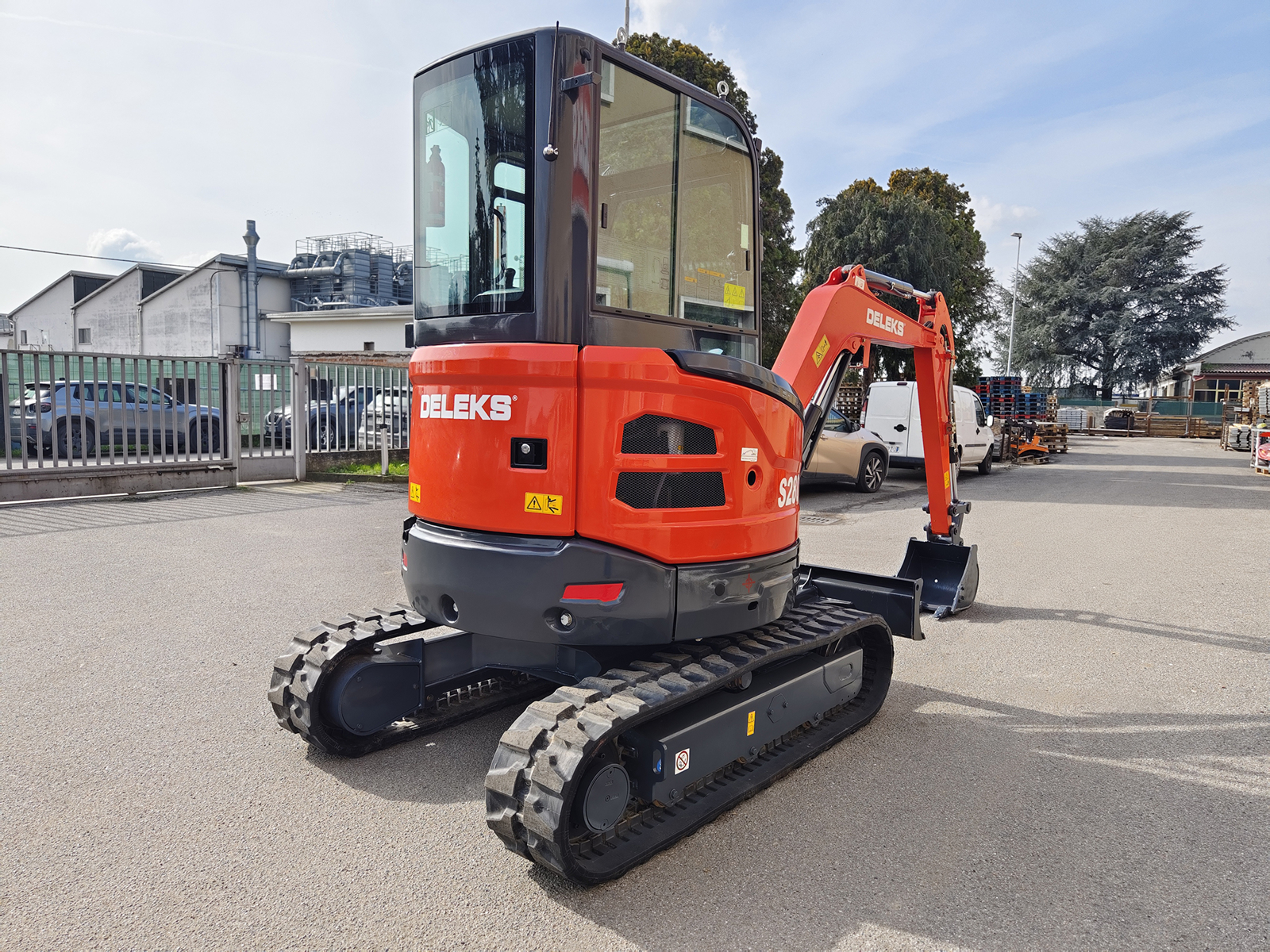

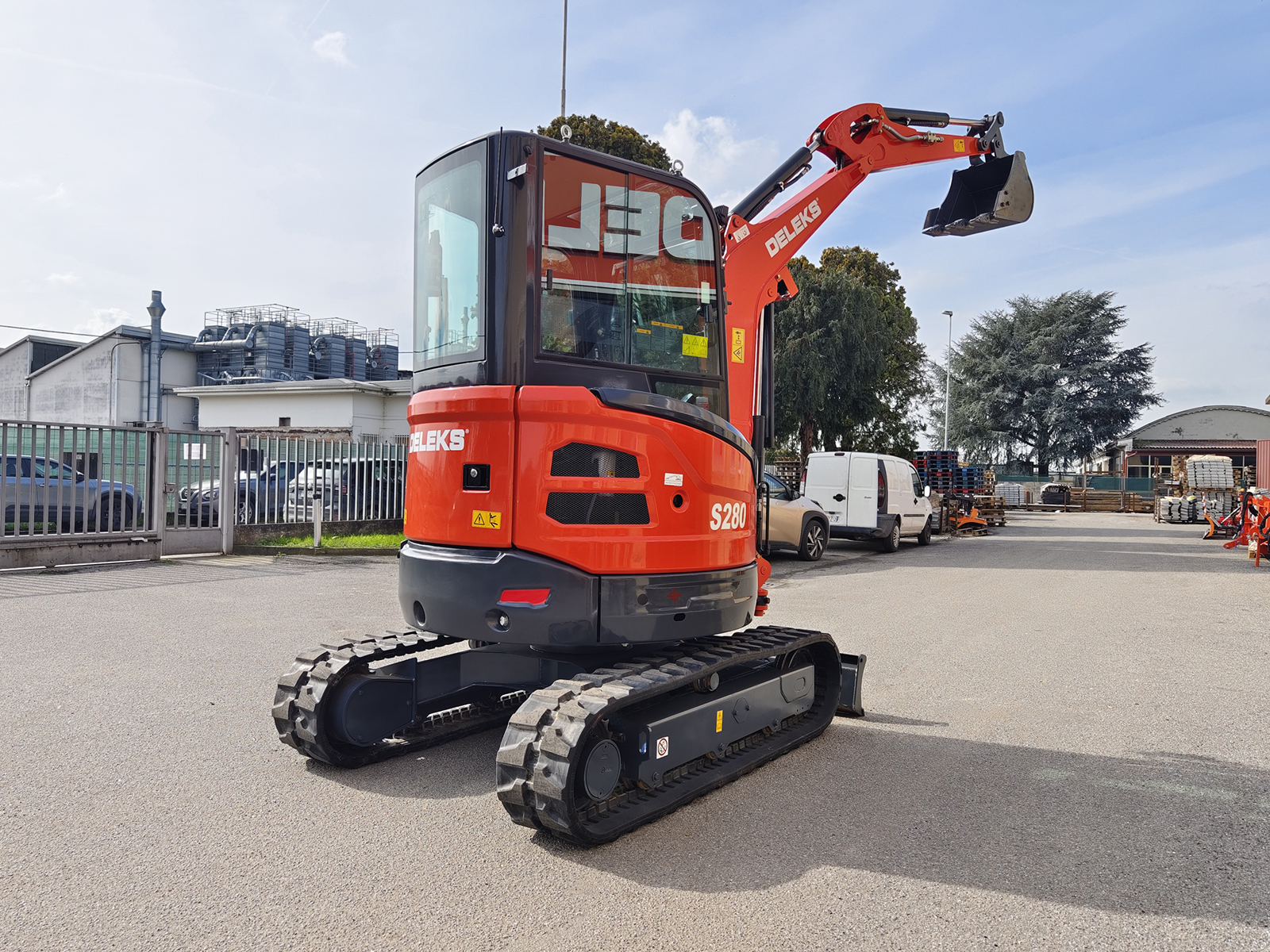

The zero tail swing design allows safe operation in confined areas, maintaining optimal weight distribution and excellent stability on all types of terrain.
The Load Sensing hydraulic system with variable-displacement axial piston pump provides a maximum flow rate of 87 L/min, ensuring smooth, progressive and perfectly synchronized movements.

Traction is provided by two axial piston hydraulic motors with 2×3 track rollers, allowing a travel speed of up to 4 km/h and a maximum tractive force of 29 kN.
The machine can overcome slopes of up to 30%, ensuring excellent maneuverability even on demanding terrain.
Speed selection is easily managed via the left pedal.

HYDRAULIC SYSTEM AND MOVEMENT

Fully hydraulic pilot controls ensure precision, sensitivity and constant control of all operating functions.

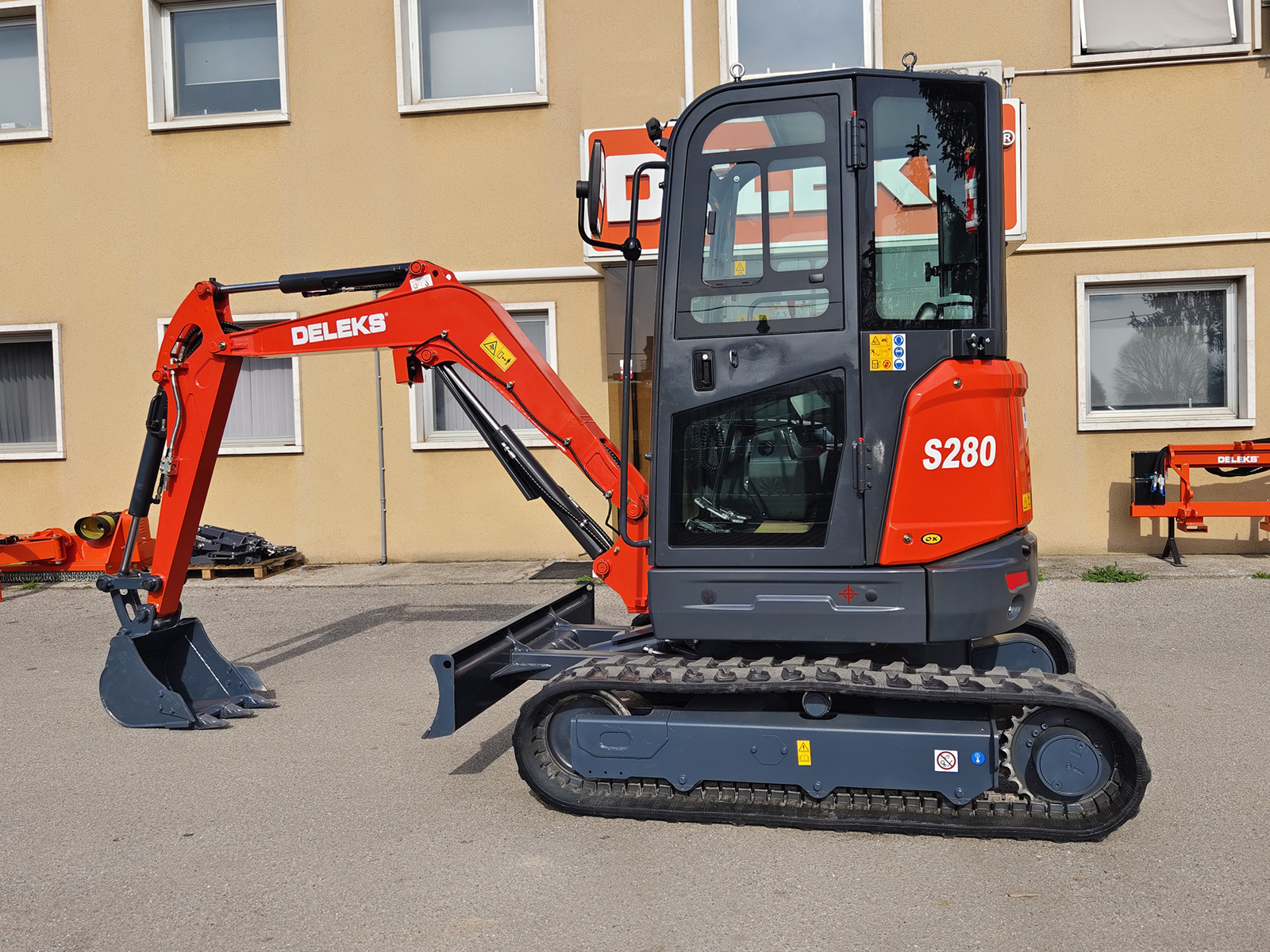

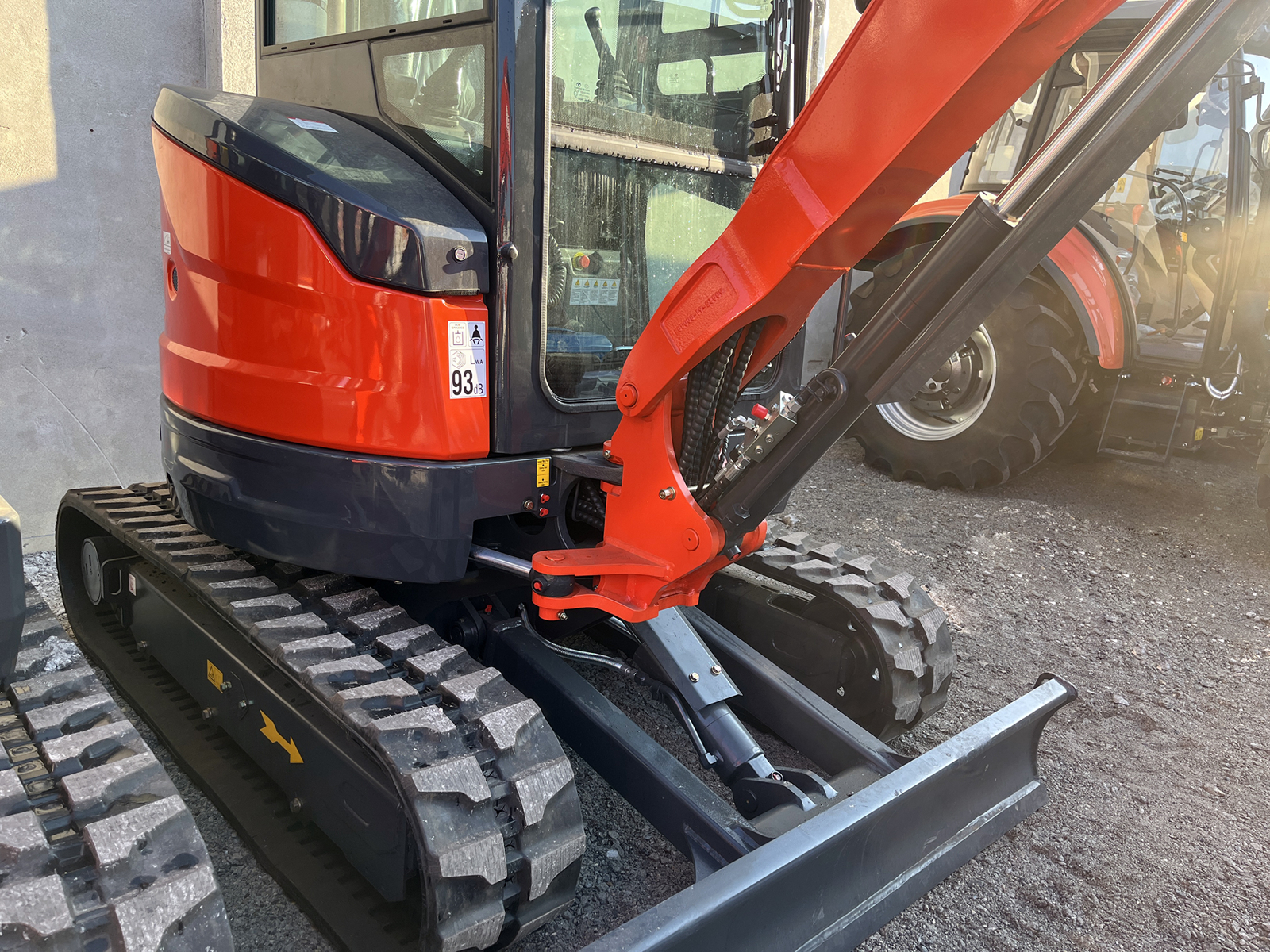

The offset boom allows precise digging operations close to walls, fences and lateral obstacles.
The turret rotation speed from 0 to 10 rpm ensures smooth and stable control in all working conditions.

SAFETY AND EQUIPMENT

The DELEKS® S280CK is equipped with advanced safety systems, including:

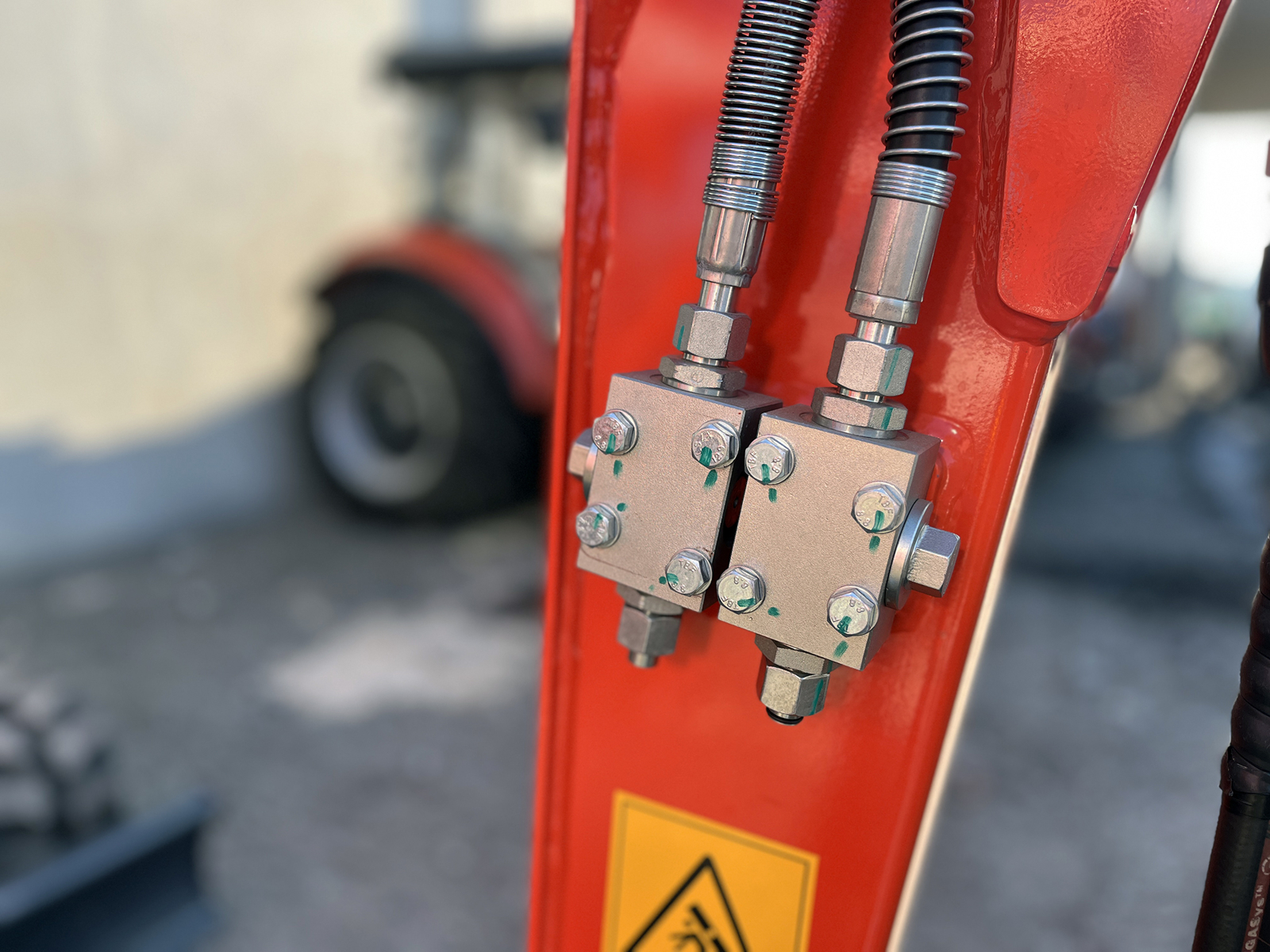

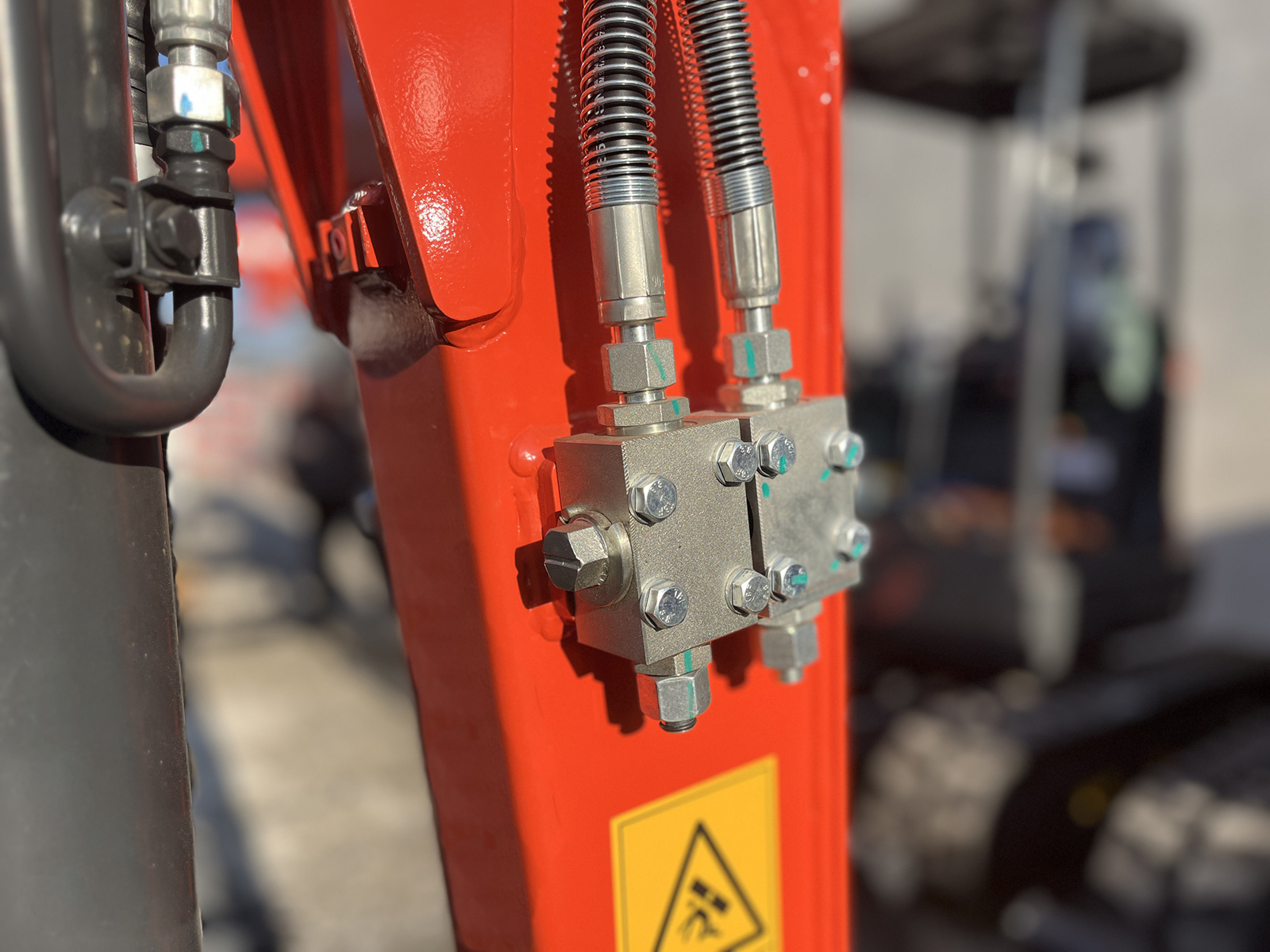

– boom cylinder safety valve compliant with ISO 8643

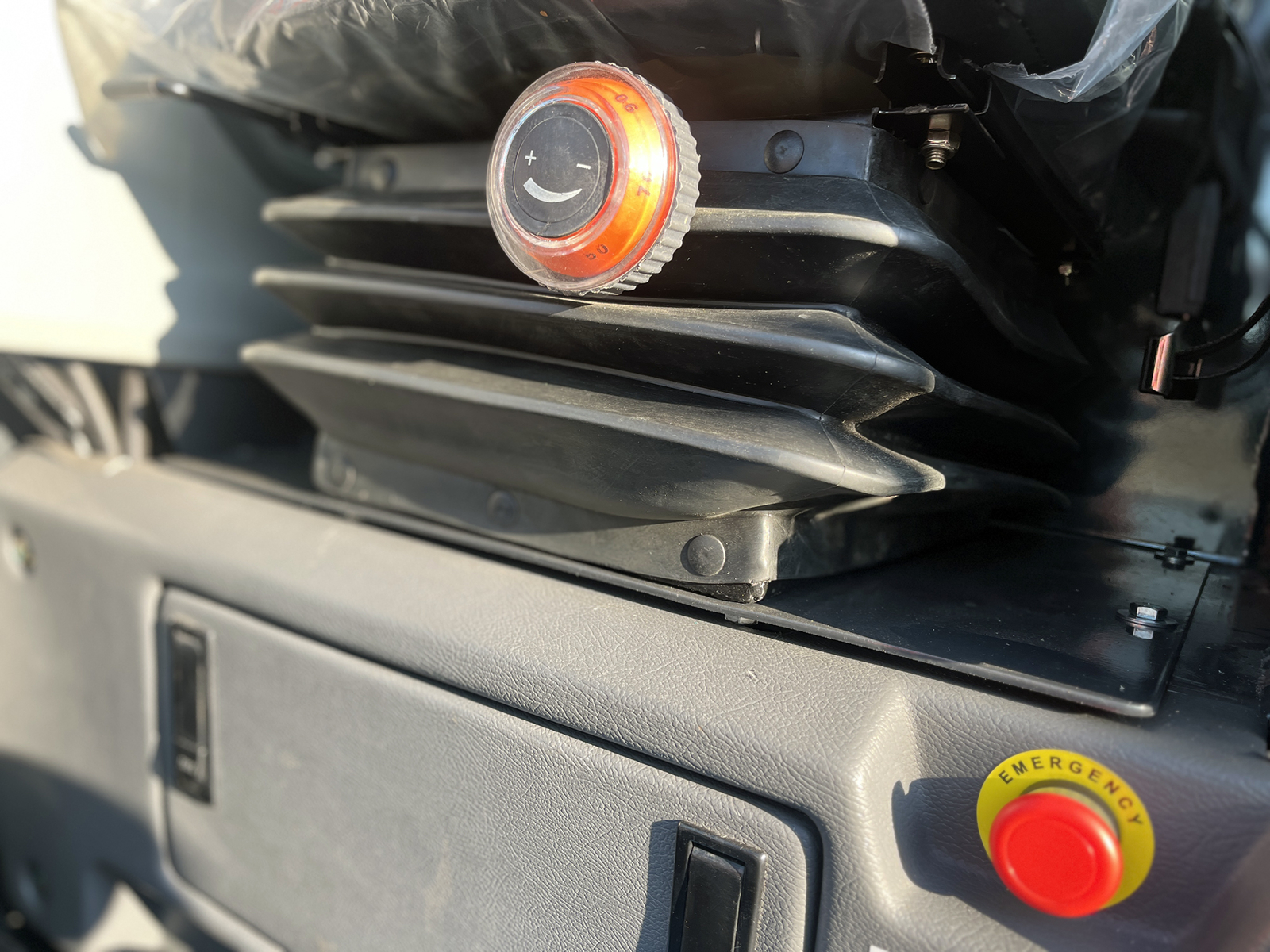

– emergency stop button positioned near the operator’s seat

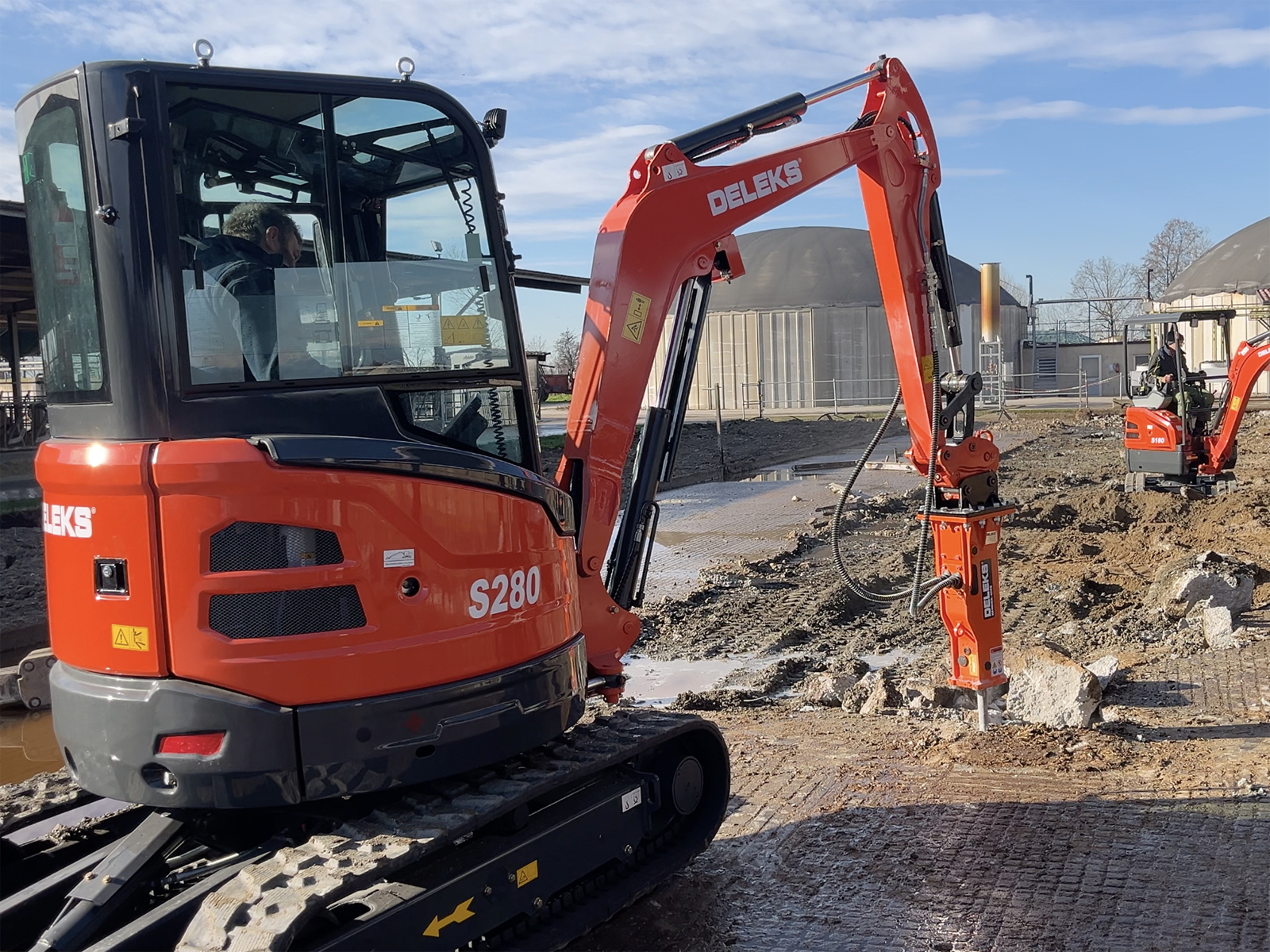

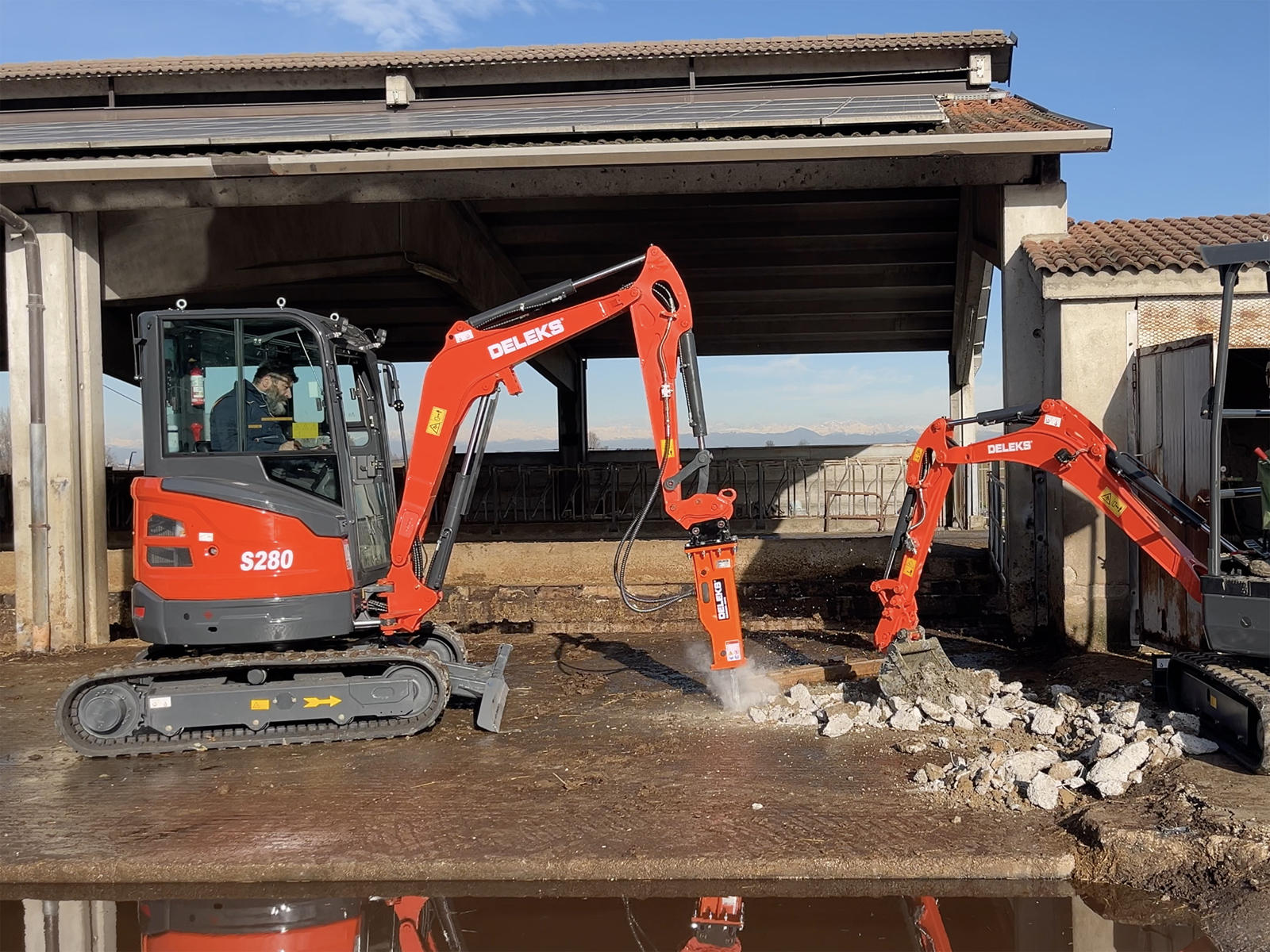

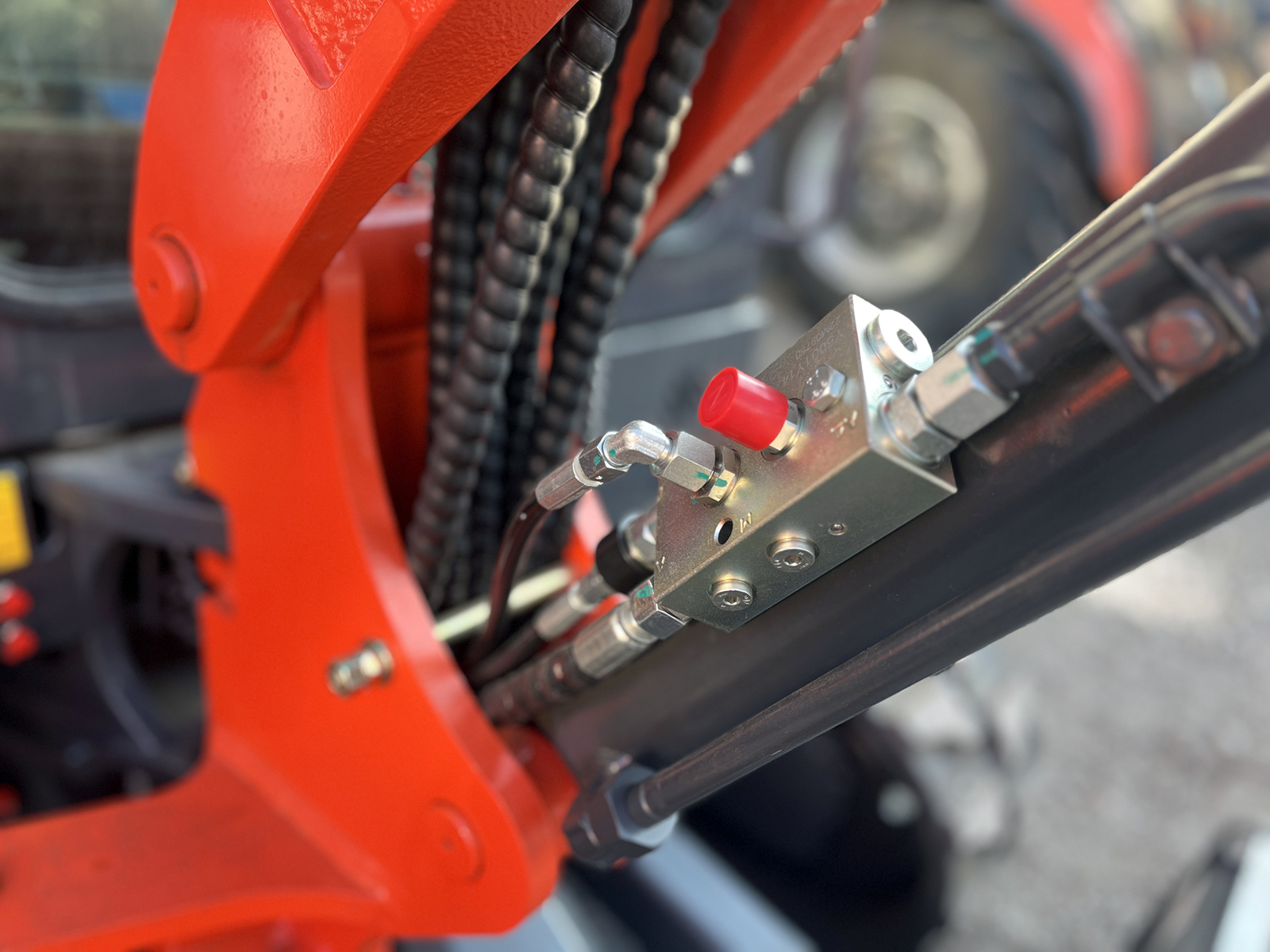

– two auxiliary hydraulic circuits AUX1 and AUX2 for the use of professional attachments such as breakers, grapples and augers

STABILITY AND GROUND PRESSURE

The 300 mm wide tracks ensure a ground pressure of only 26.3 kPa, making the S280CK suitable for delicate surfaces such as lawns, courtyards and urban areas.

CAB AND OPERATOR COMFORT

The heated cab provides a comfortable working environment throughout the year.
For summer use, the front windshield is tiltable, the right window is sliding, and the left door can be locked in the open position to enhance natural ventilation.

The cab complies with TOPS/FOPS Level 1 standards, ensuring protection in the event of rollover or falling objects.

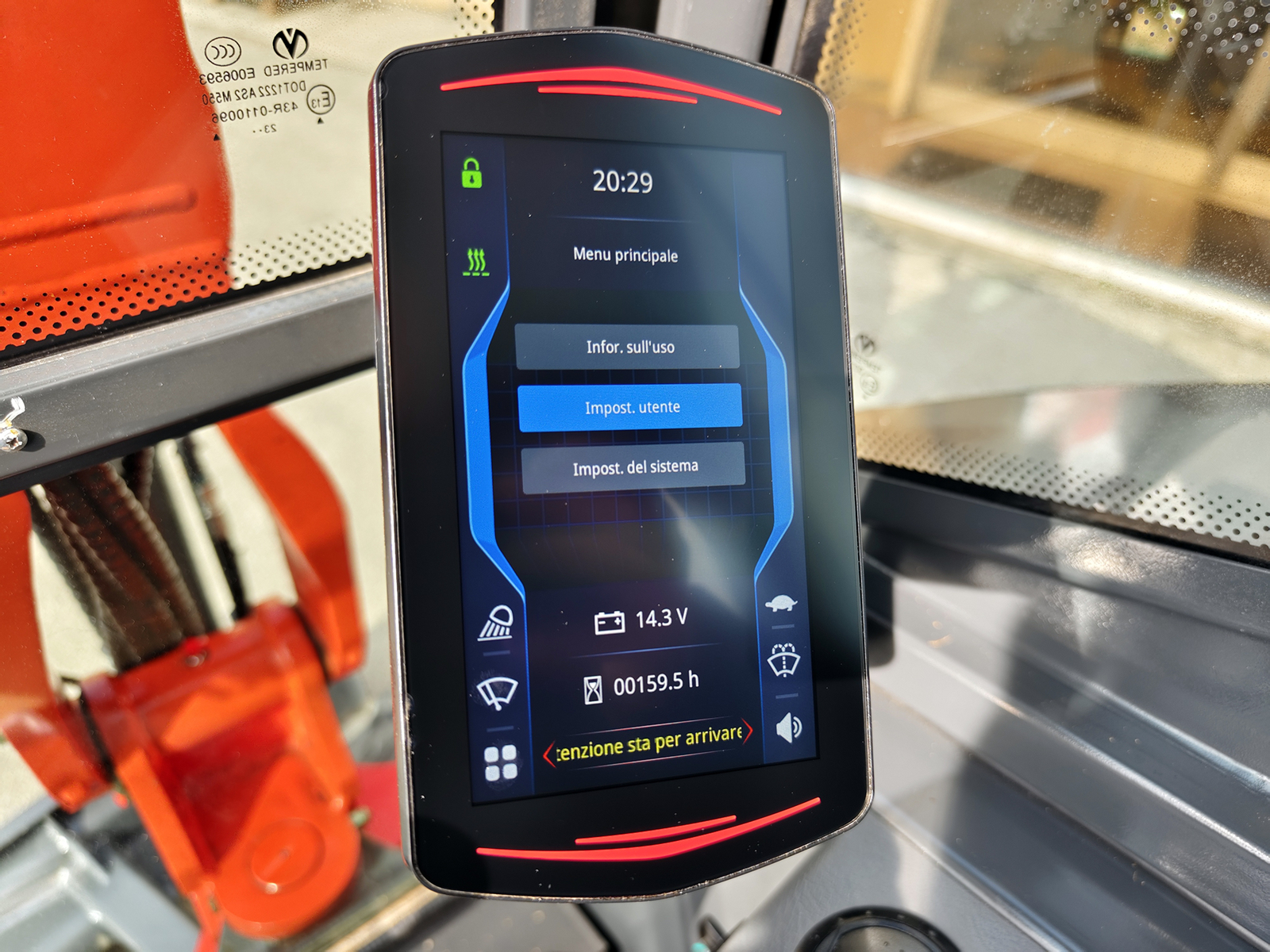

The Italian-language LCD display is clear and intuitive, allowing immediate monitoring of operating parameters.

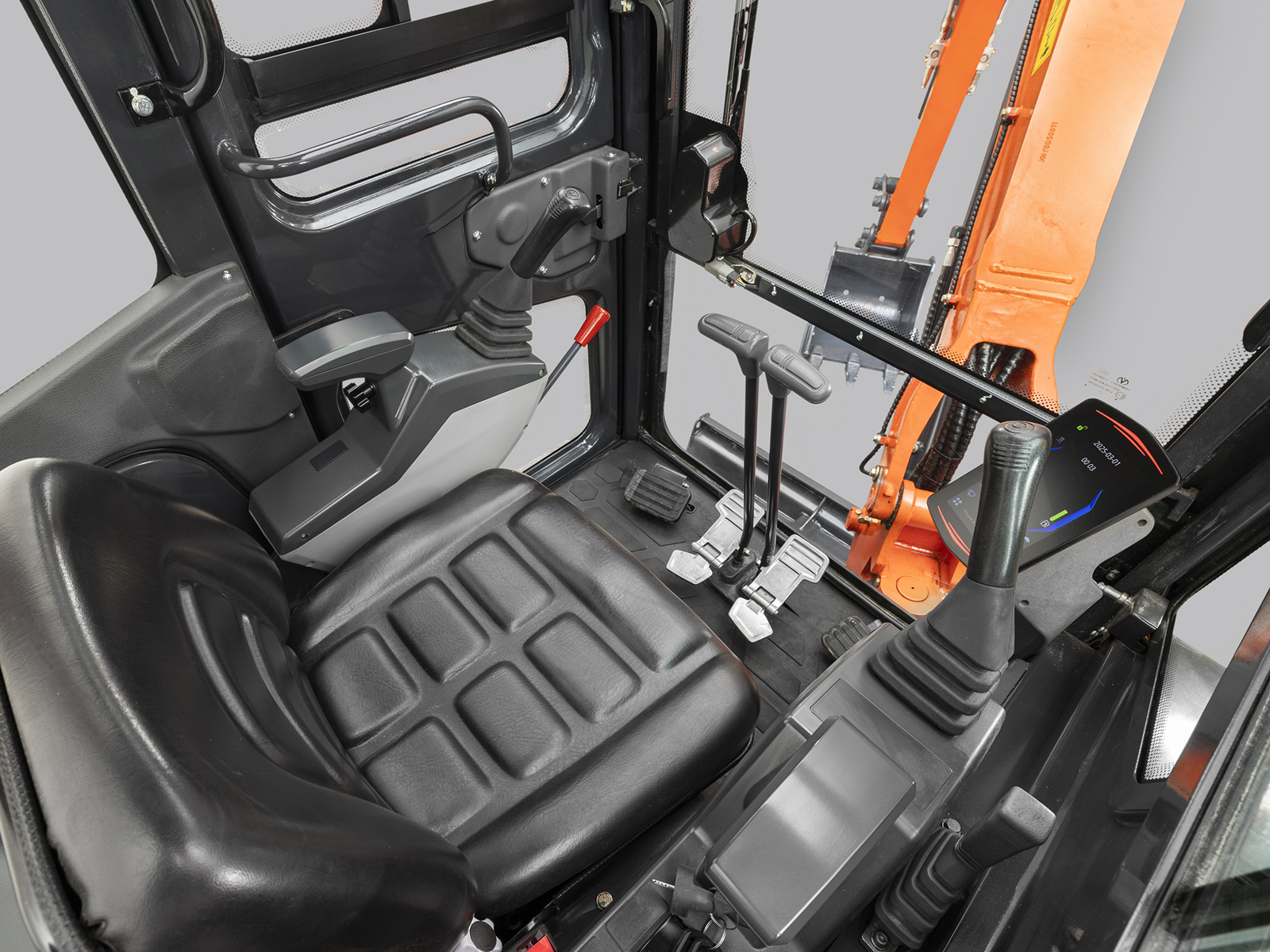

Hydraulic pilot controls reduce operator fatigue and improve working precision.

ACCESSORIES AND VERSATILITY

The S280CK can be equipped with a wide range of attachments for digging, lifting, loading and mulching, adapting to multiple professional applications.

SERVICE AND SPARE PARTS

Original DELEKS® spare parts ensure long-term reliability and consistent performance.
Technical support is managed directly by the DELEKS® service network, with workshop service or on-site assistance available.

DOCUMENTATION SUPPLIED

EC Declaration of Conformity
Operation and maintenance manual
Original invoice

For detailed specifications, please refer to the PDF catalogue at the bottom of the page.

• Delivery location must be accessible by a 24-ton truck

• The customer must have a forklift for pallet unloading
  Delivery time may exceed the standard schedule. Please contact our sales office before confirming your order.
