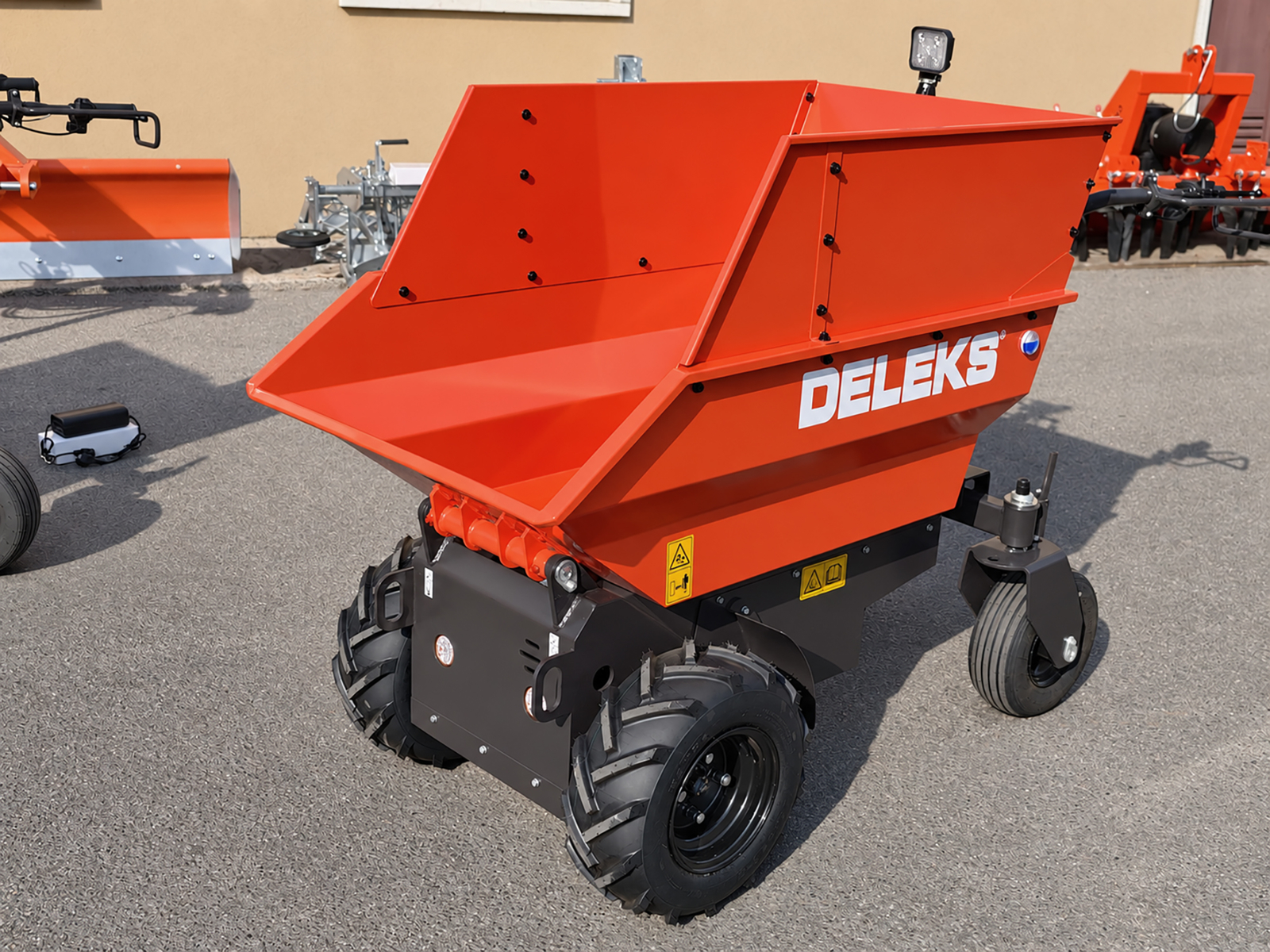

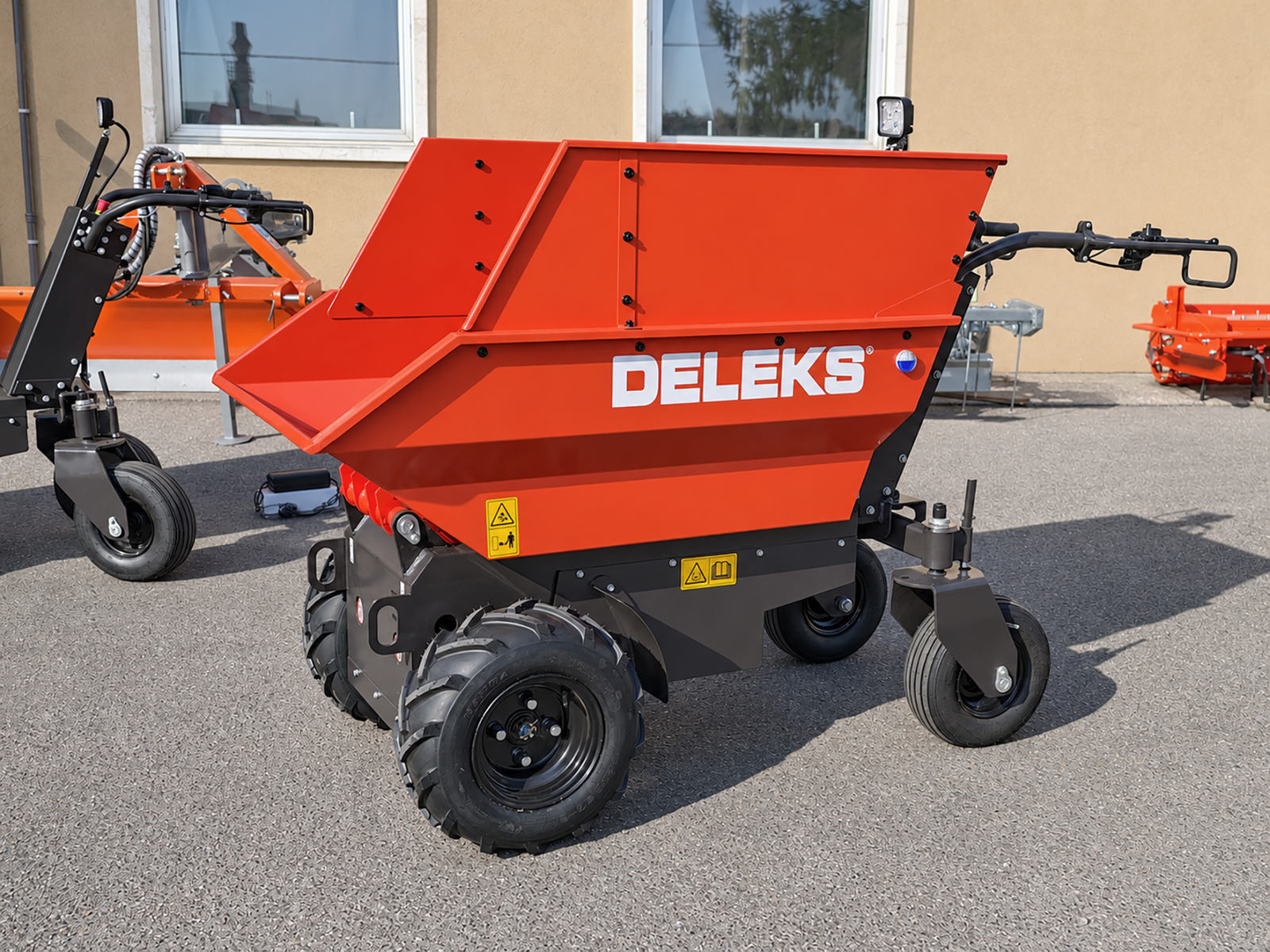

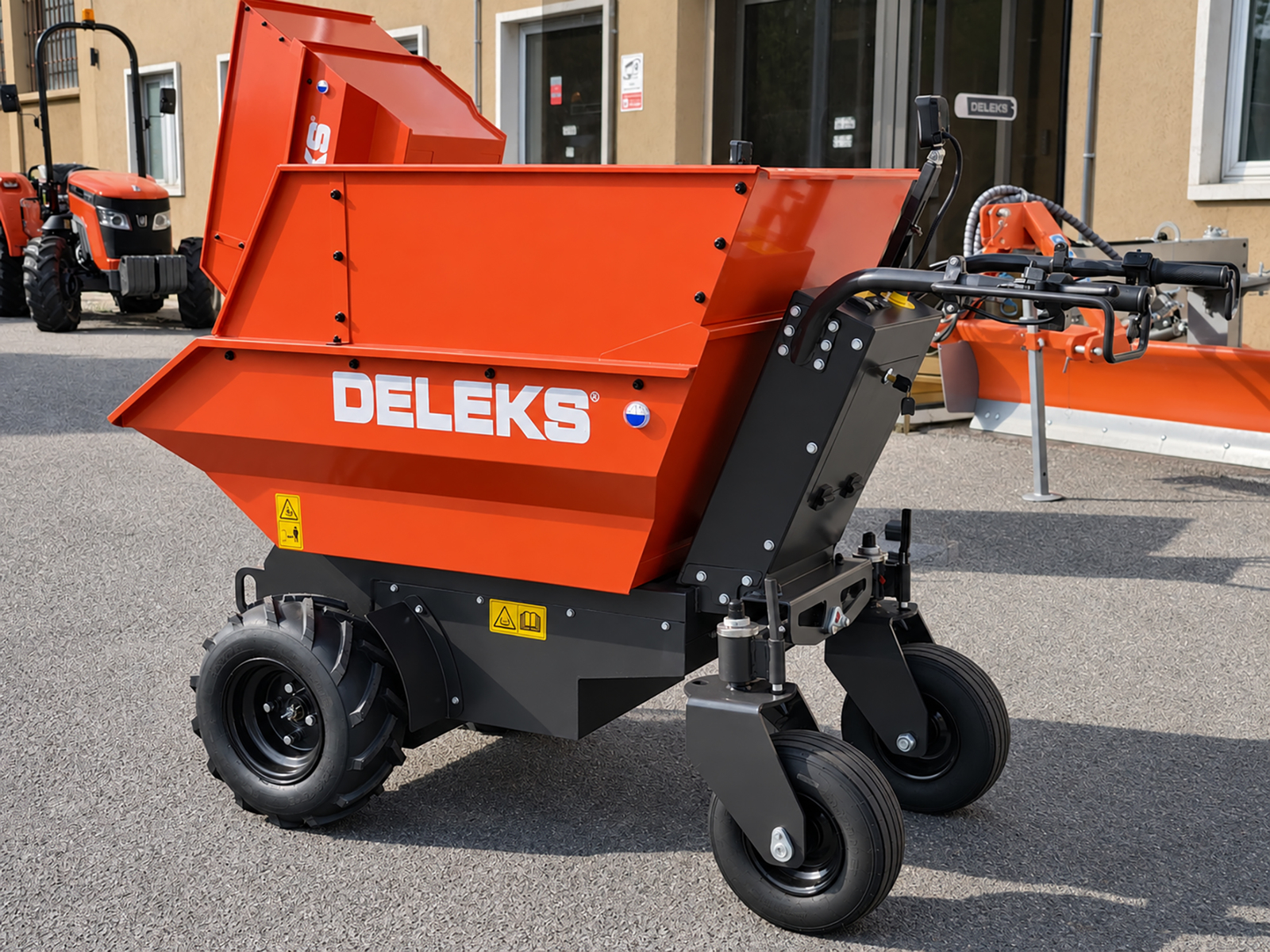

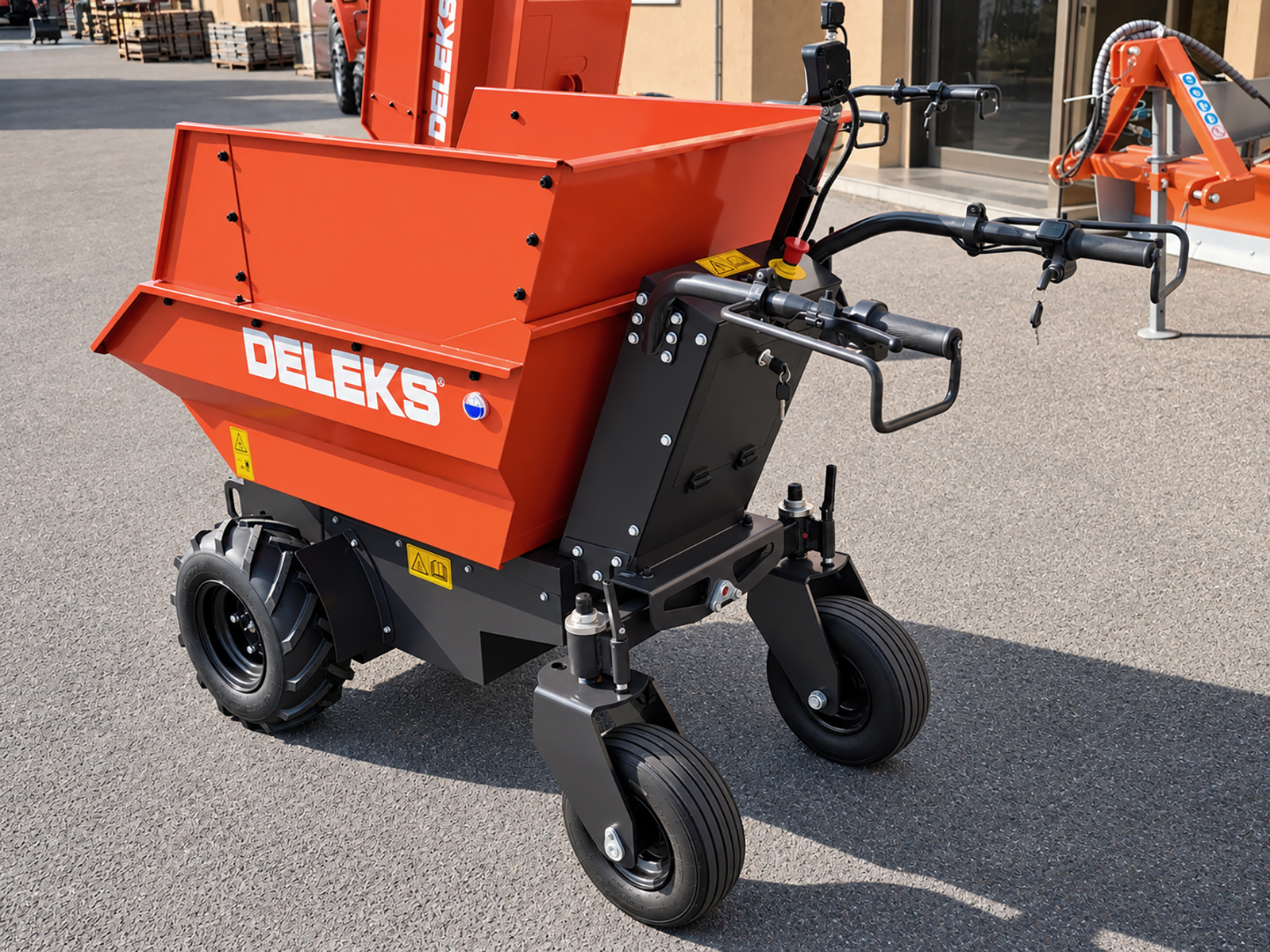

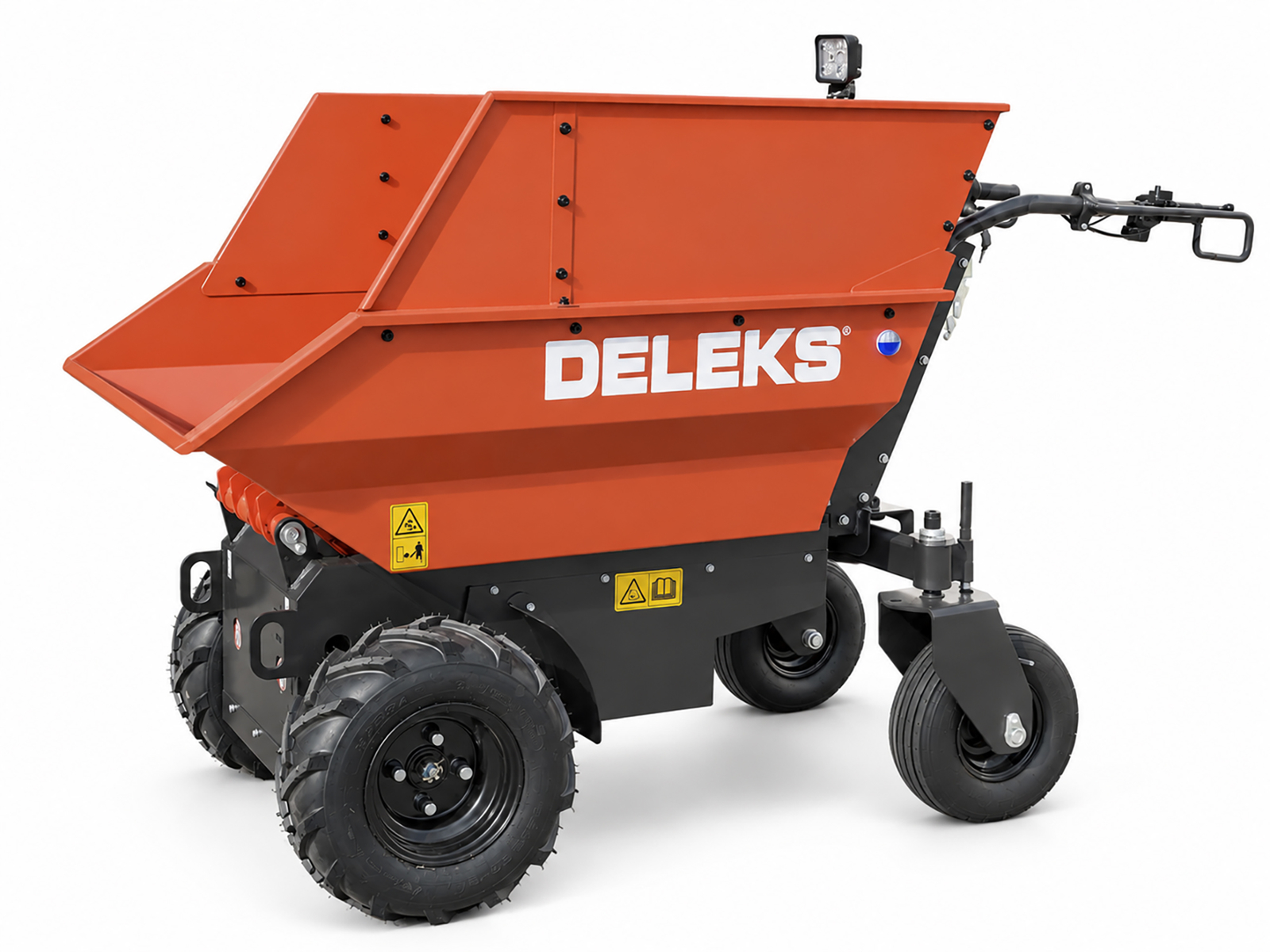

100% electric power barrow, lead-acid battery, with hydraulic tipping dumper body

Electric power barrow for professional use DELEKS® ME500E with 500 kg load capacity, removable 48V 32Ah lead-acid battery and autonomy of up to 10 hours. Dumper body with hydraulic tipping, electric drive and electromagnetic brake.

100% electric solution for transporting soil, sand, gravel, debris, wood and construction materials on building sites, farms, in green area maintenance, greenhouses and stables.

500 kg load capacity – Autonomy up to 10 hours – Removable lead-acid battery – Electromagnetic brake

30 cm high metal side extensions are included in the price to increase the load volume of the dumper body.

Applications

The DELEKS® ME500E electric power barrow is designed for professional material transport in a wide range of applications:

• Construction and renovation
• Green area maintenance
• Stables, horse facilities and greenhouses
• Farms and agricultural operations

Suitable for transporting soil, sand, gravel, debris, wood, shrubs and construction materials.

It can be used in combination with DELEKS® mini excavators to facilitate material handling and increase productivity on building sites.

Maximum uphill slope: 15°
Maximum side slope: 10°

Advantages of the electric system

• Zero exhaust emissions
• Reduced noise
• Reduced vibrations
• Instant start-up
• Reduced maintenance
• Low operating costs

Main features

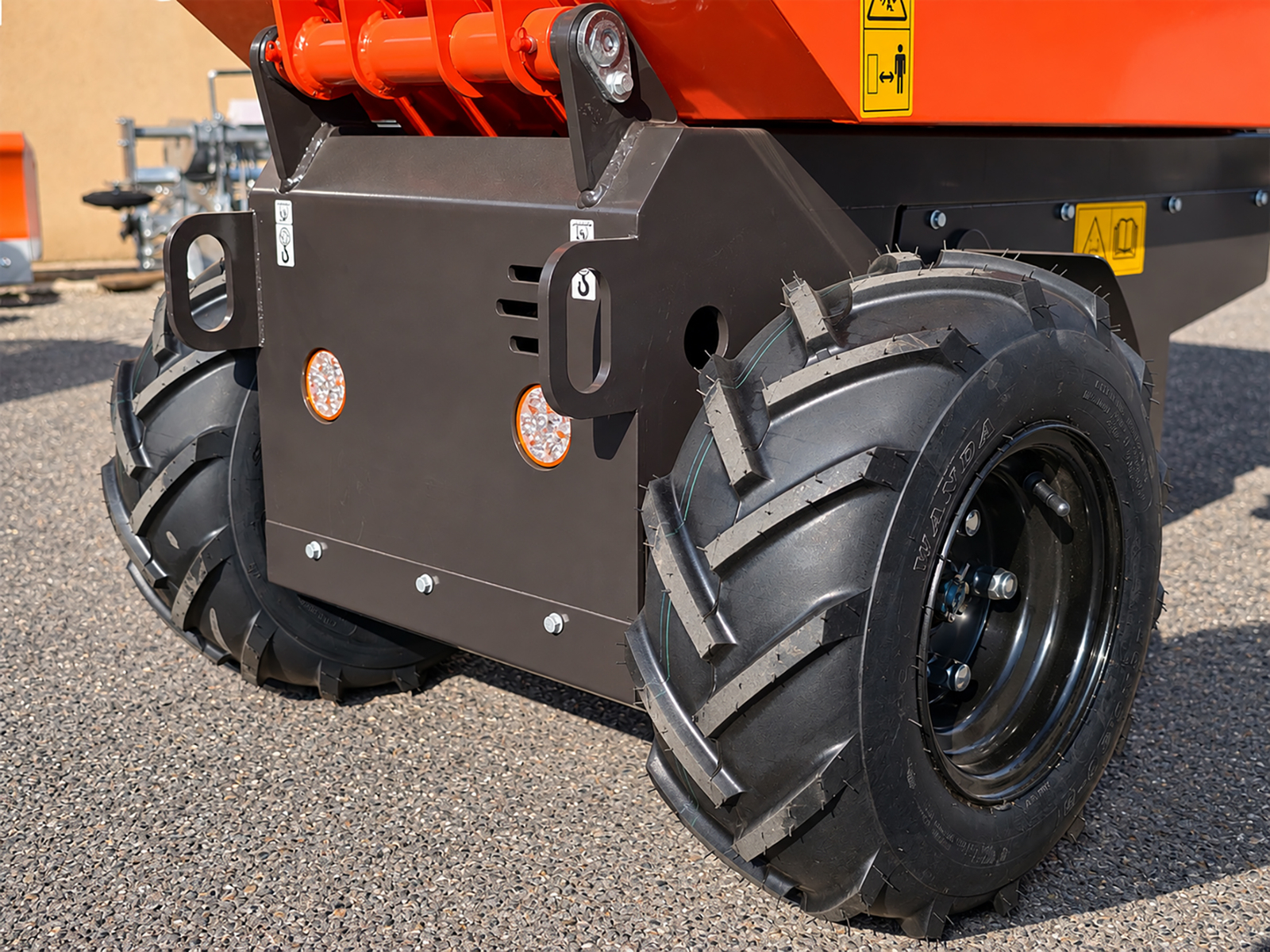

• 4 wide pneumatic wheels for increased stability
  • Front drive wheels

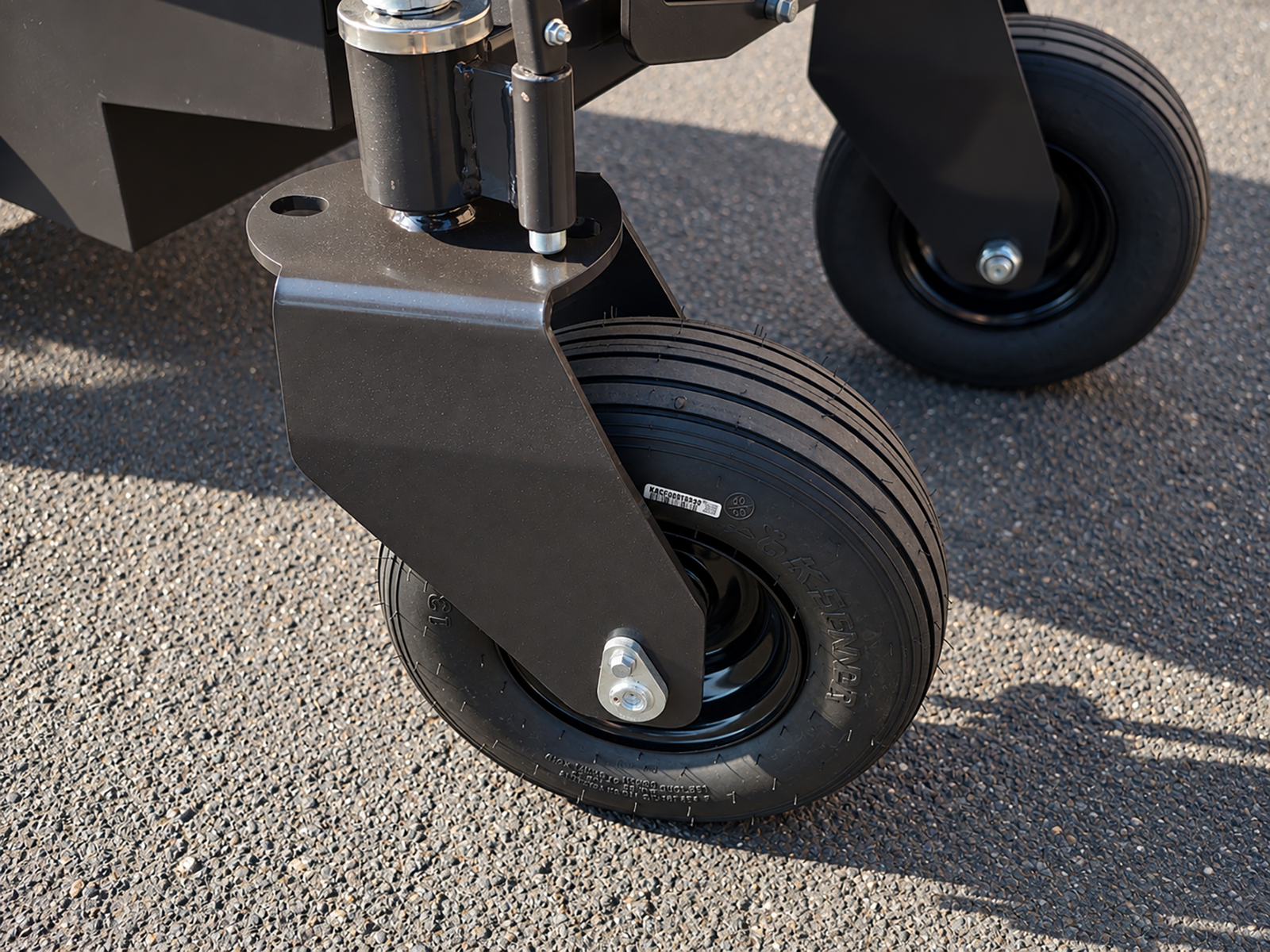

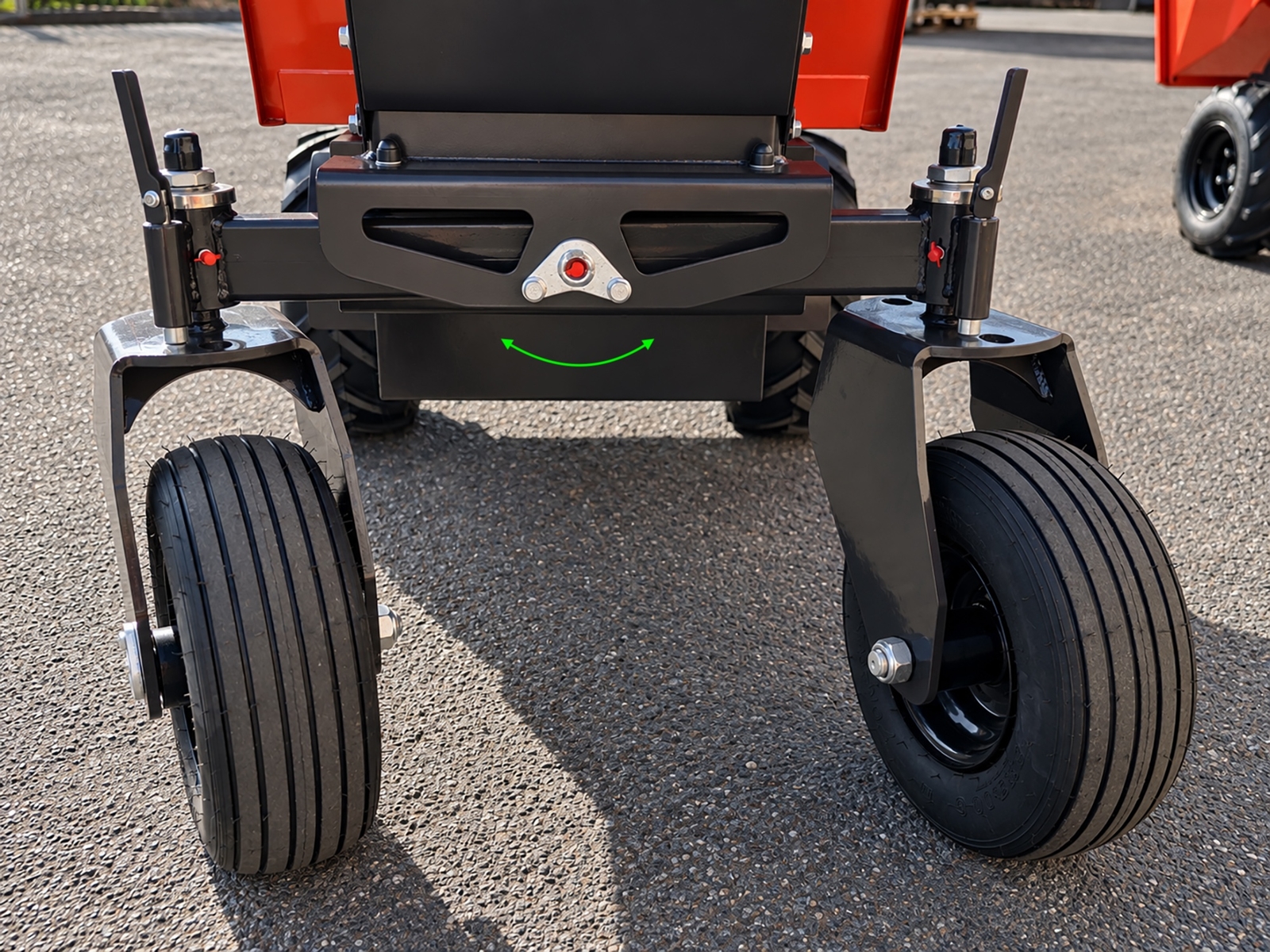

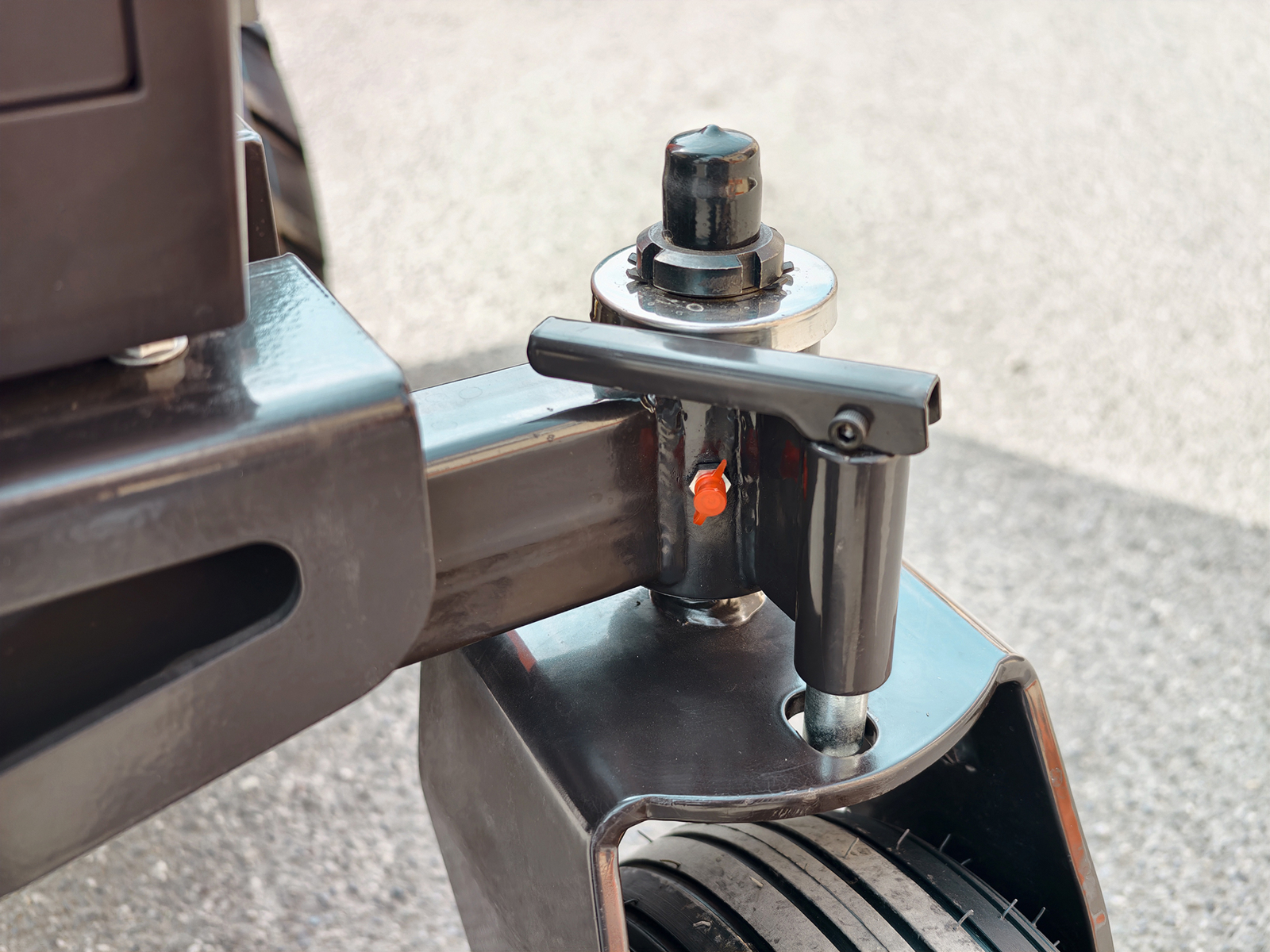

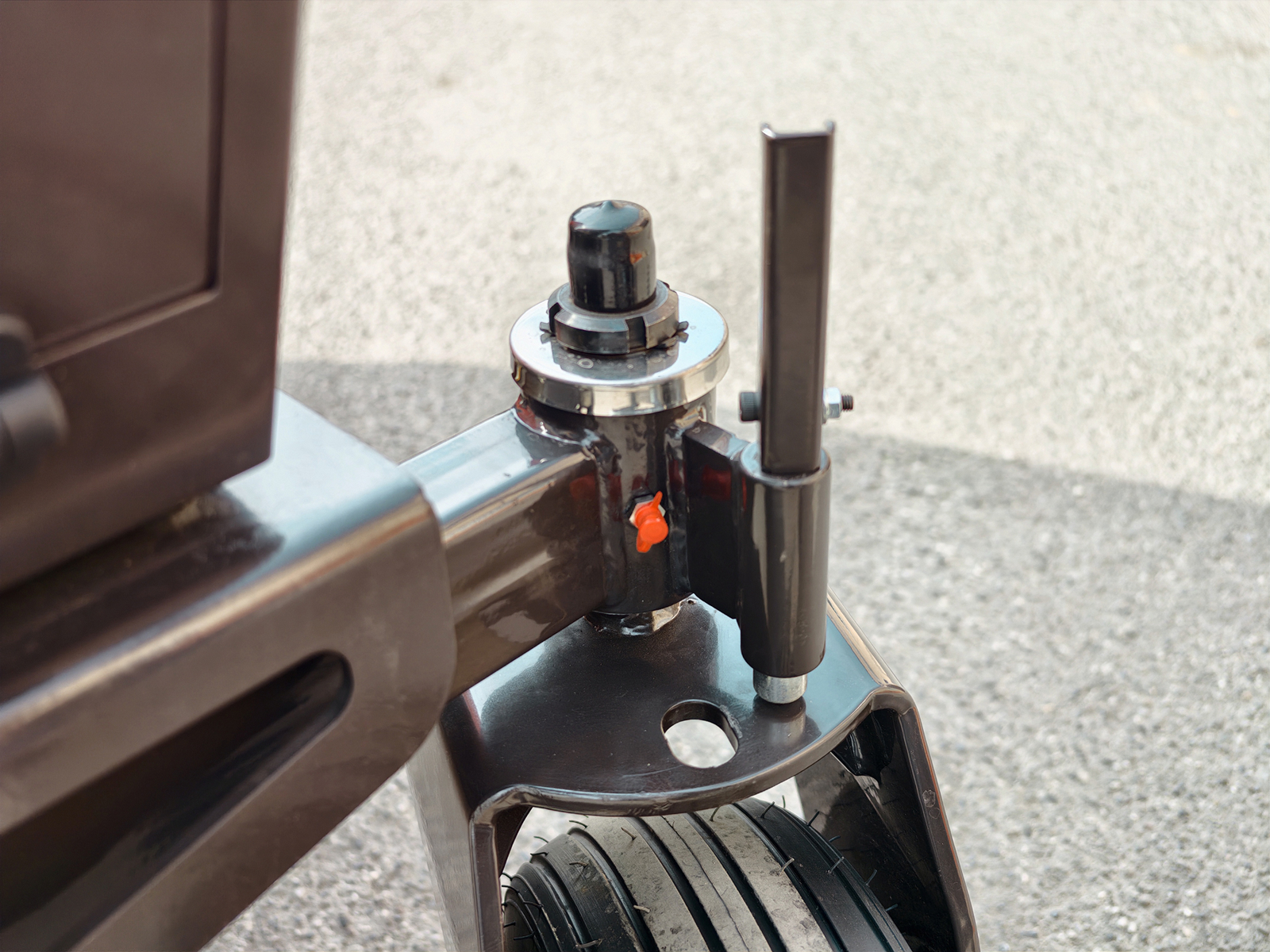

  • Rear swivel wheels with directional lock
  • High manoeuvrability even in confined spaces
  • Reduced impact on the ground

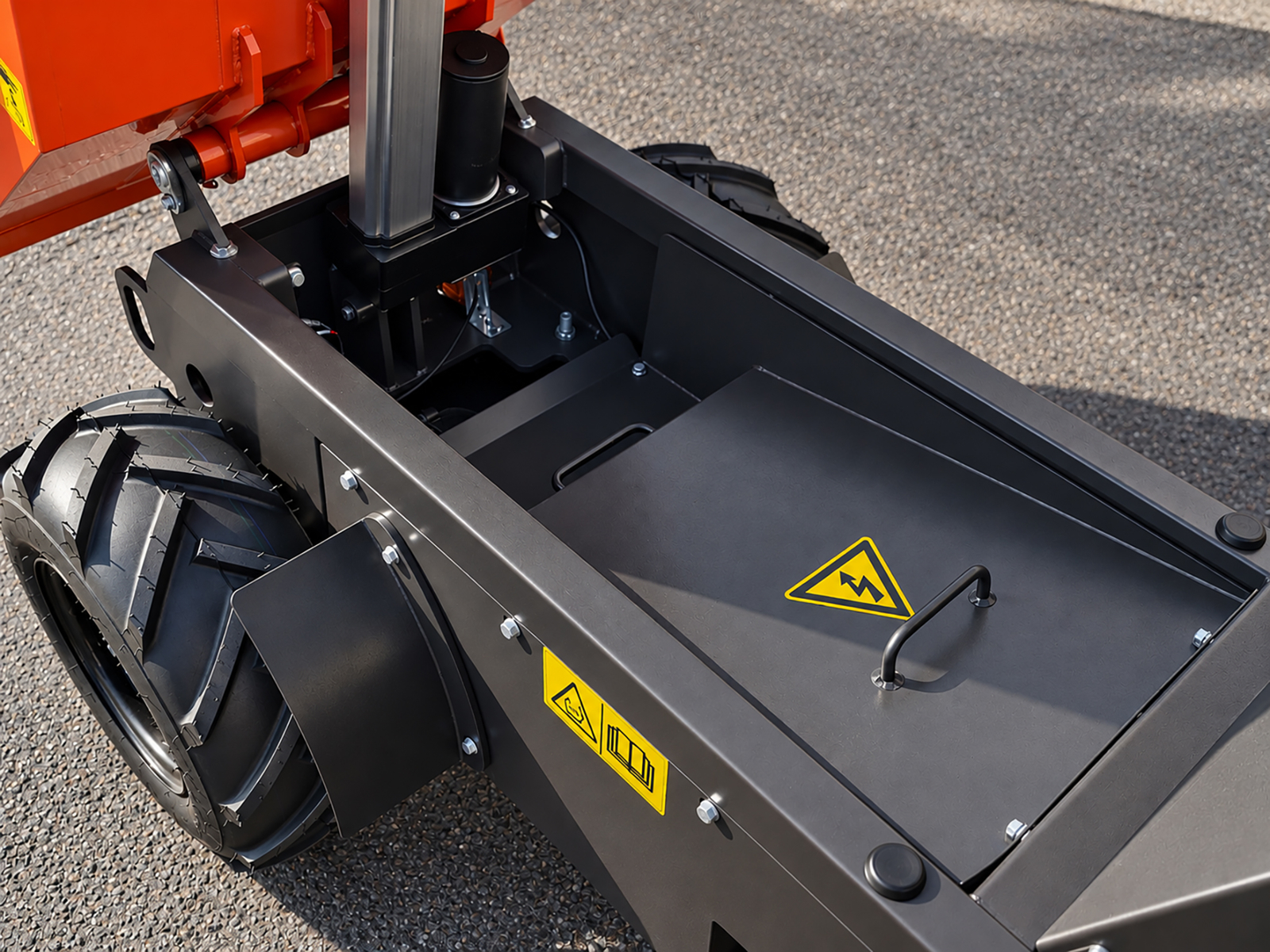

• Removable 48V 32Ah lead-acid battery

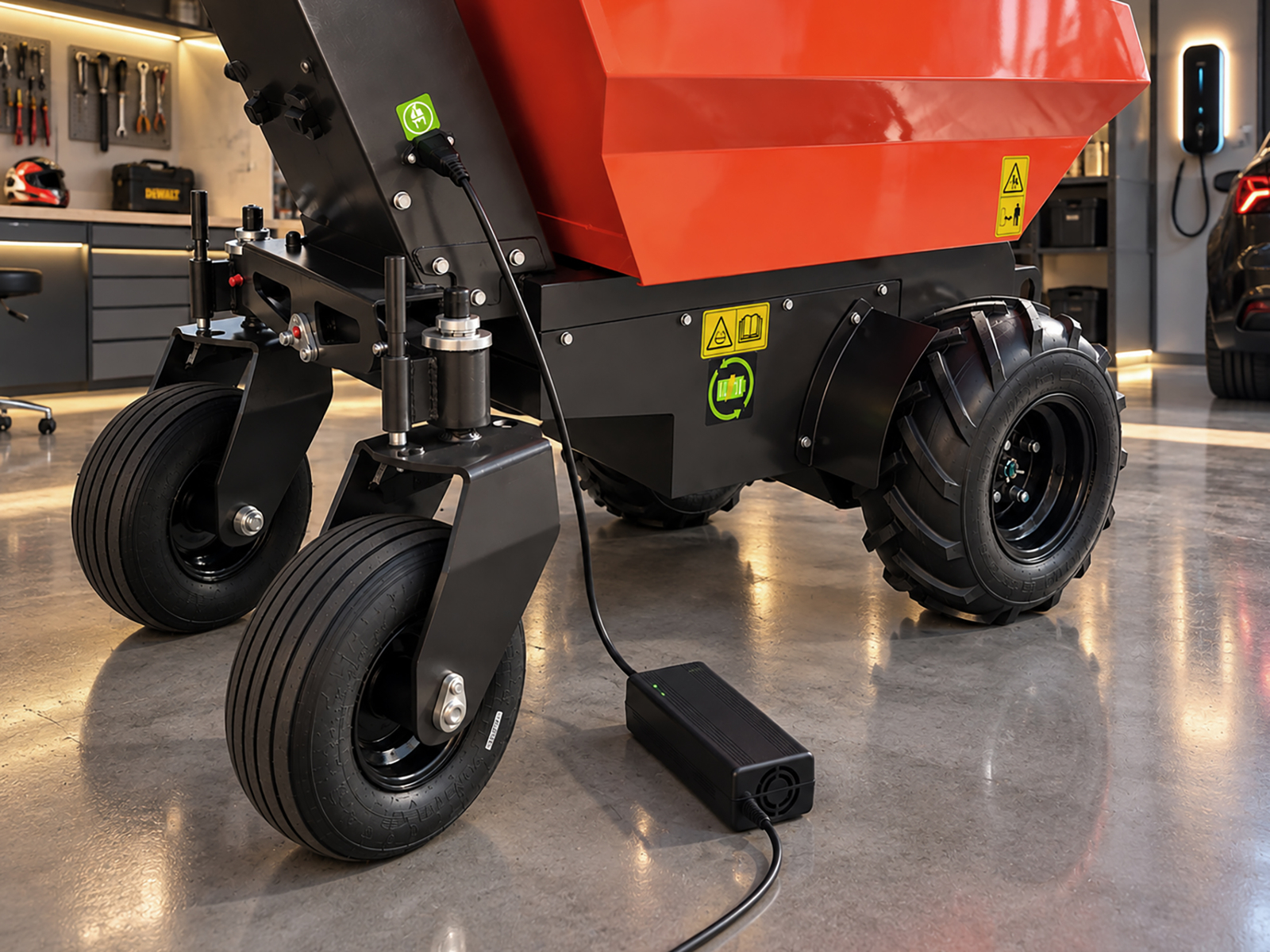

  • Charging from a standard 220V household power socket

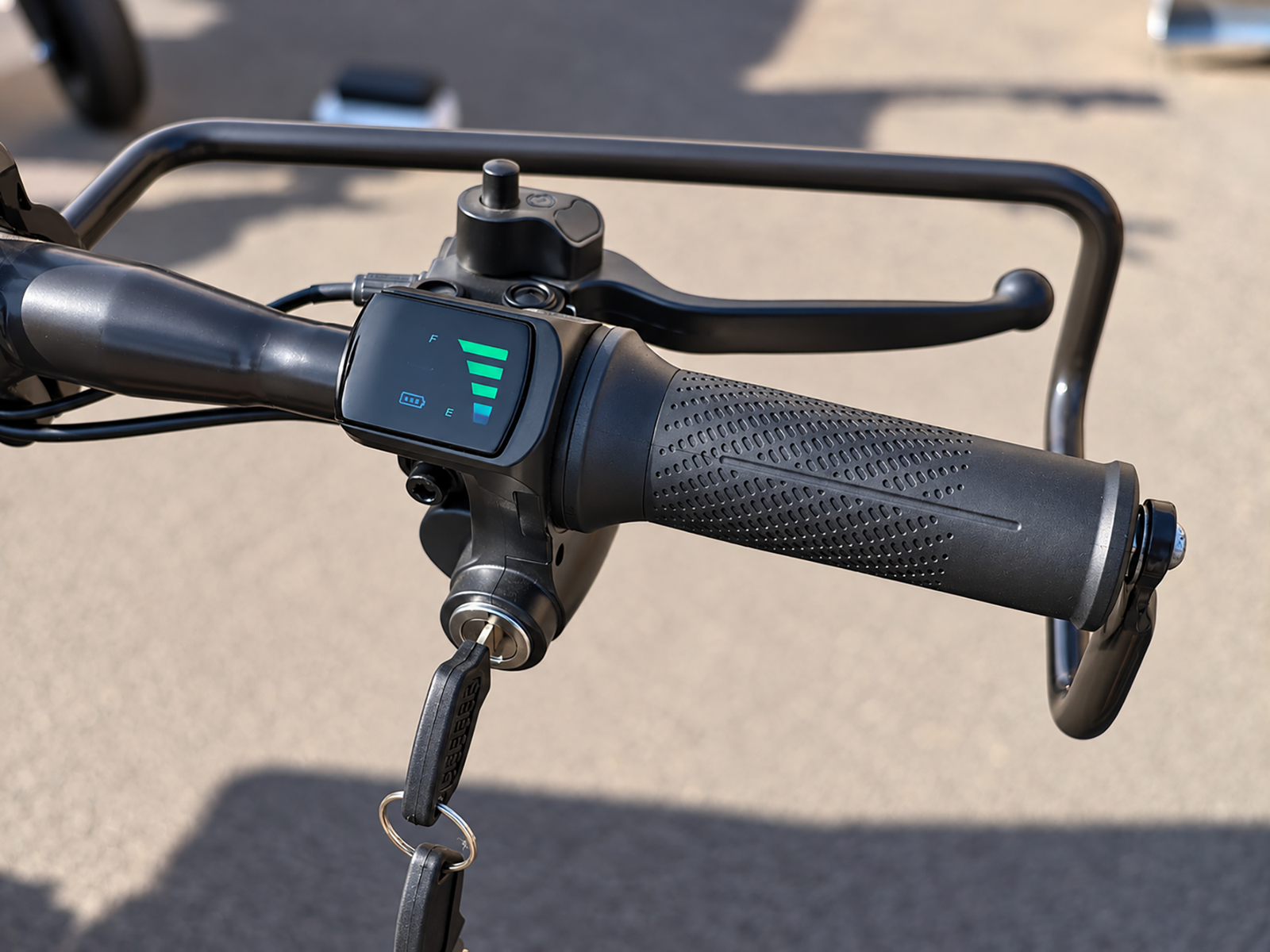

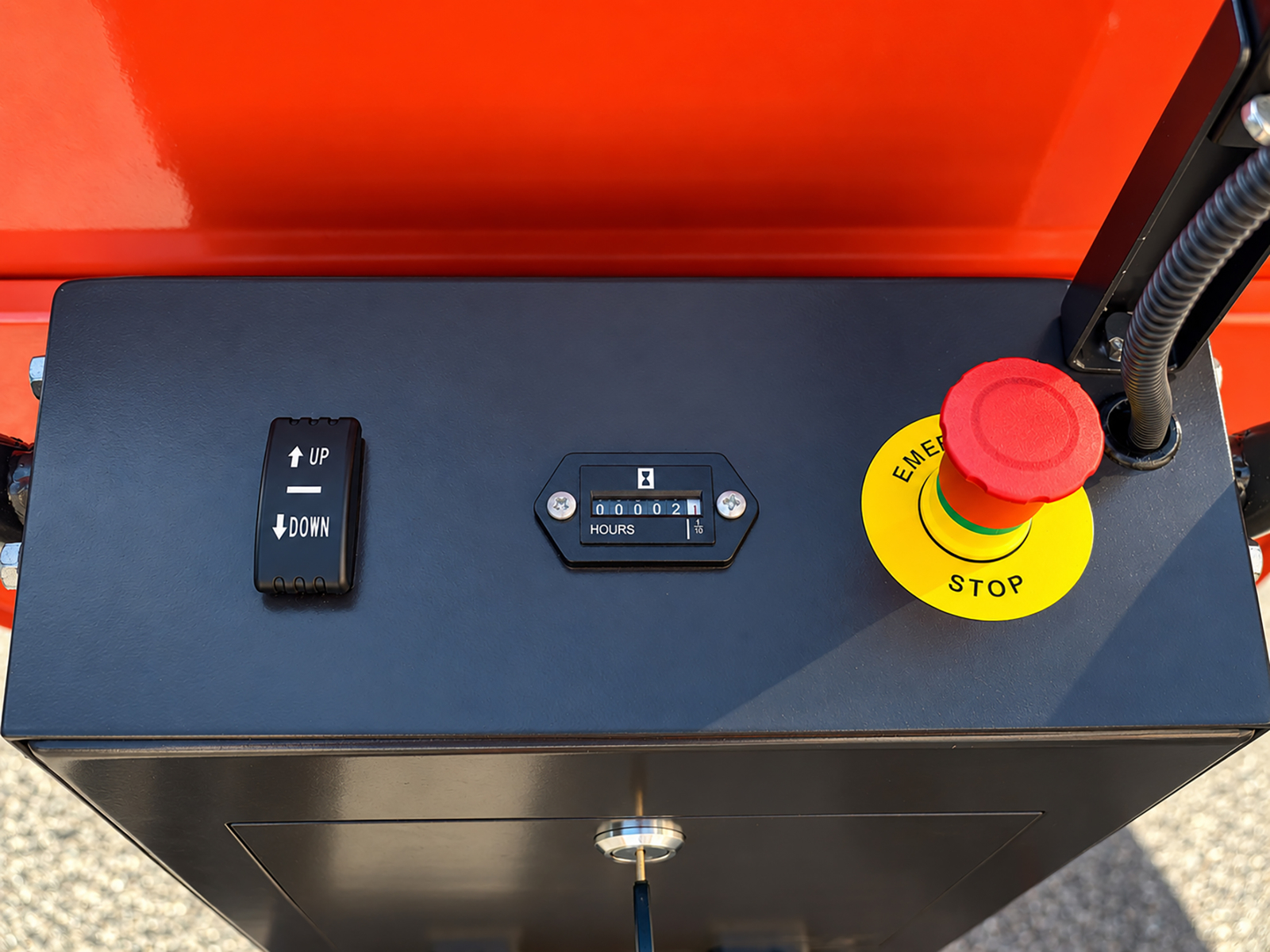

• Key start

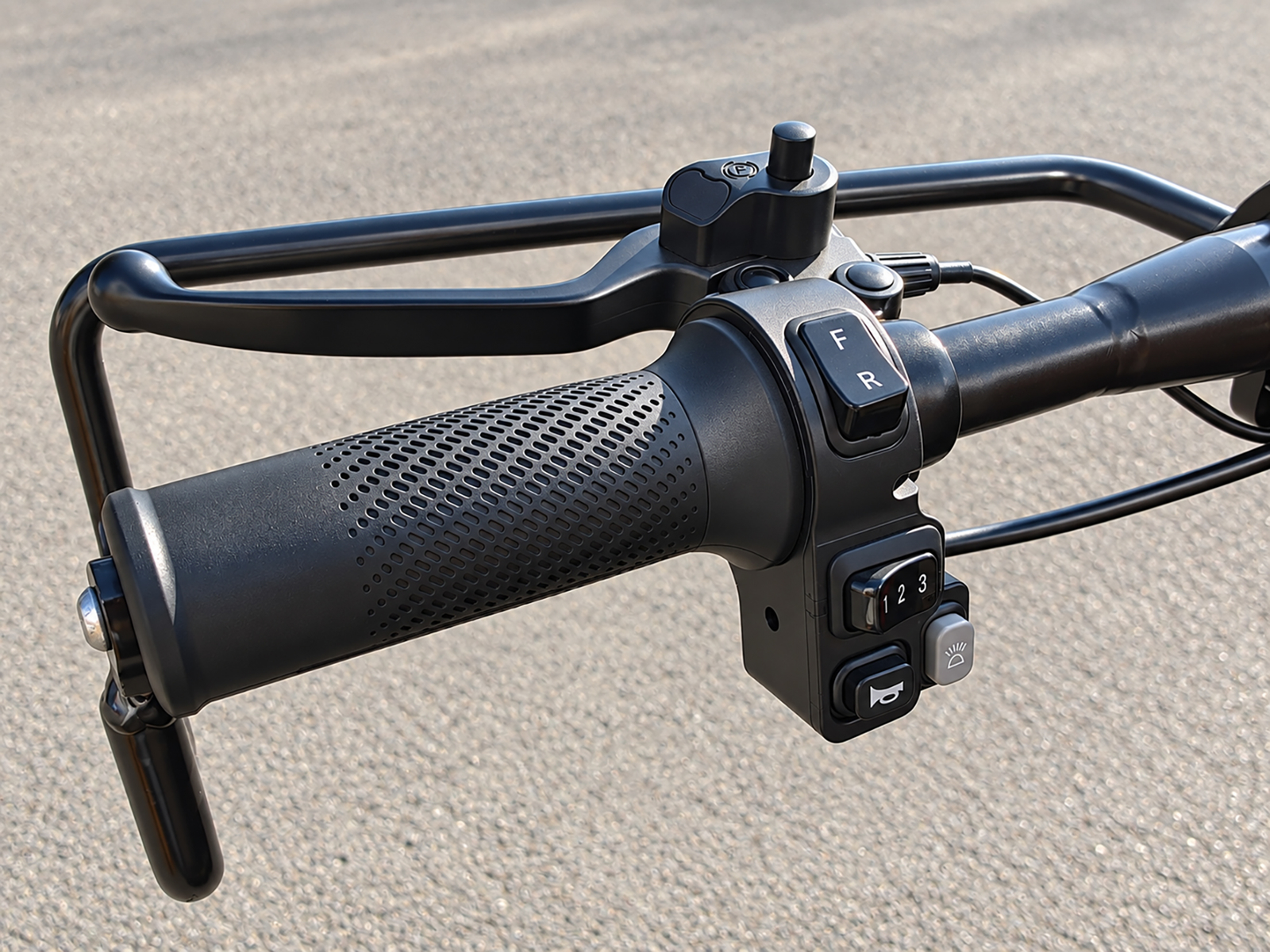

• Transmission:
  • 3 forward speeds
  • 1 reverse speed

Dimensions

See PDF document at the bottom of the page.

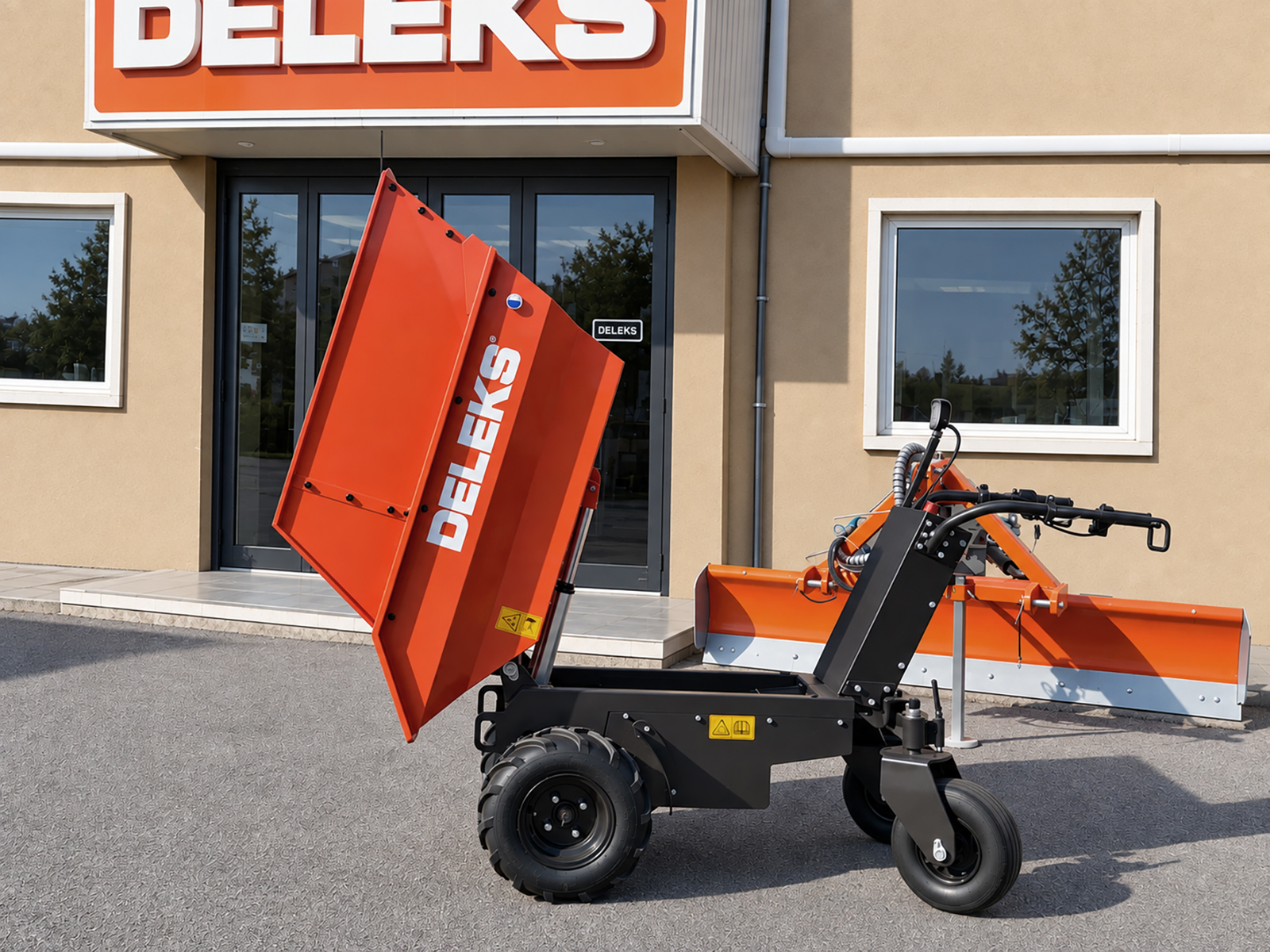

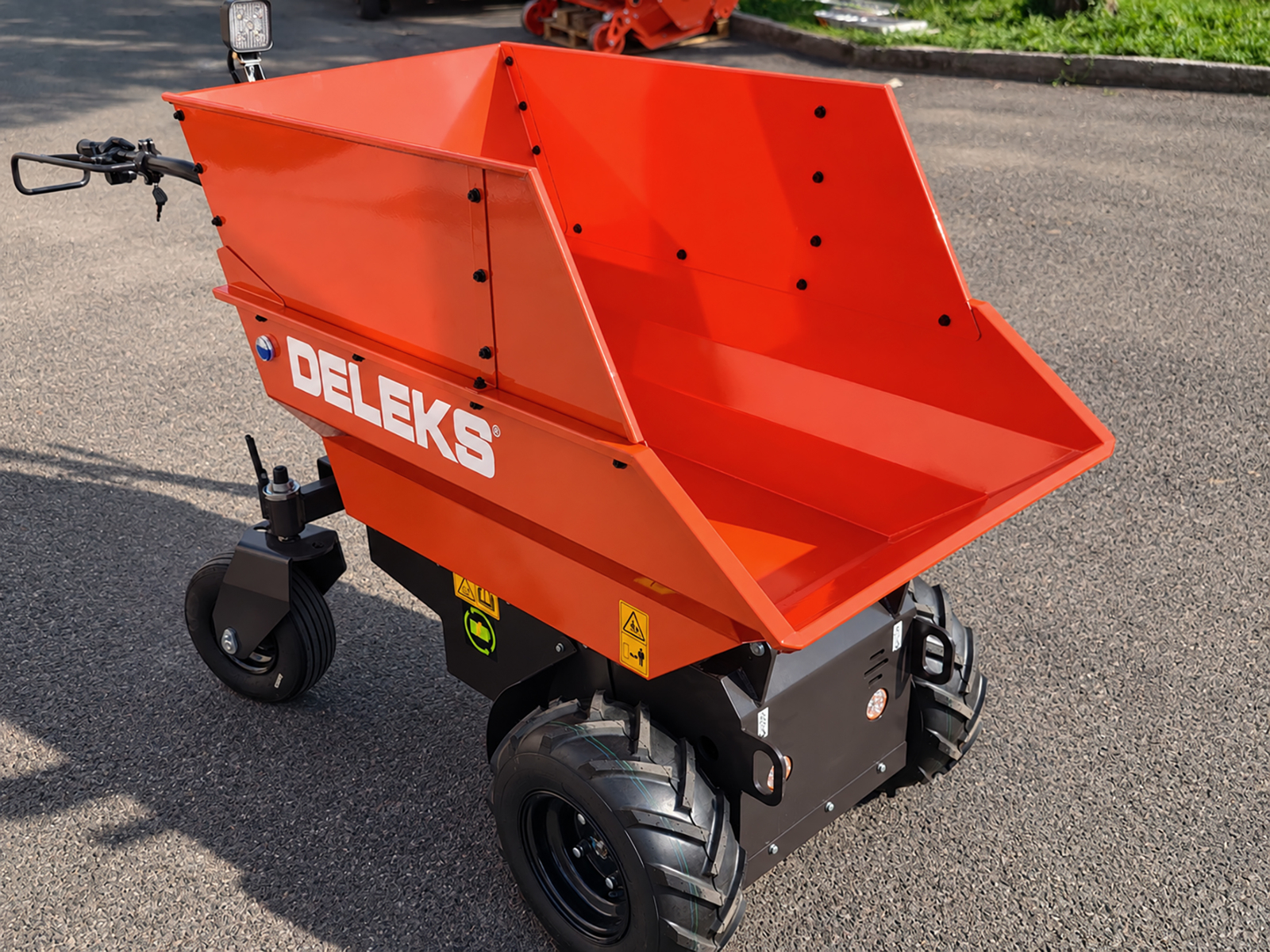

Hydraulic tipping dumper body

• High-strength steel construction
• 30 cm high metal side extensions
• Reinforced floor with ribs
• Suitable also for sandy or liquid materials

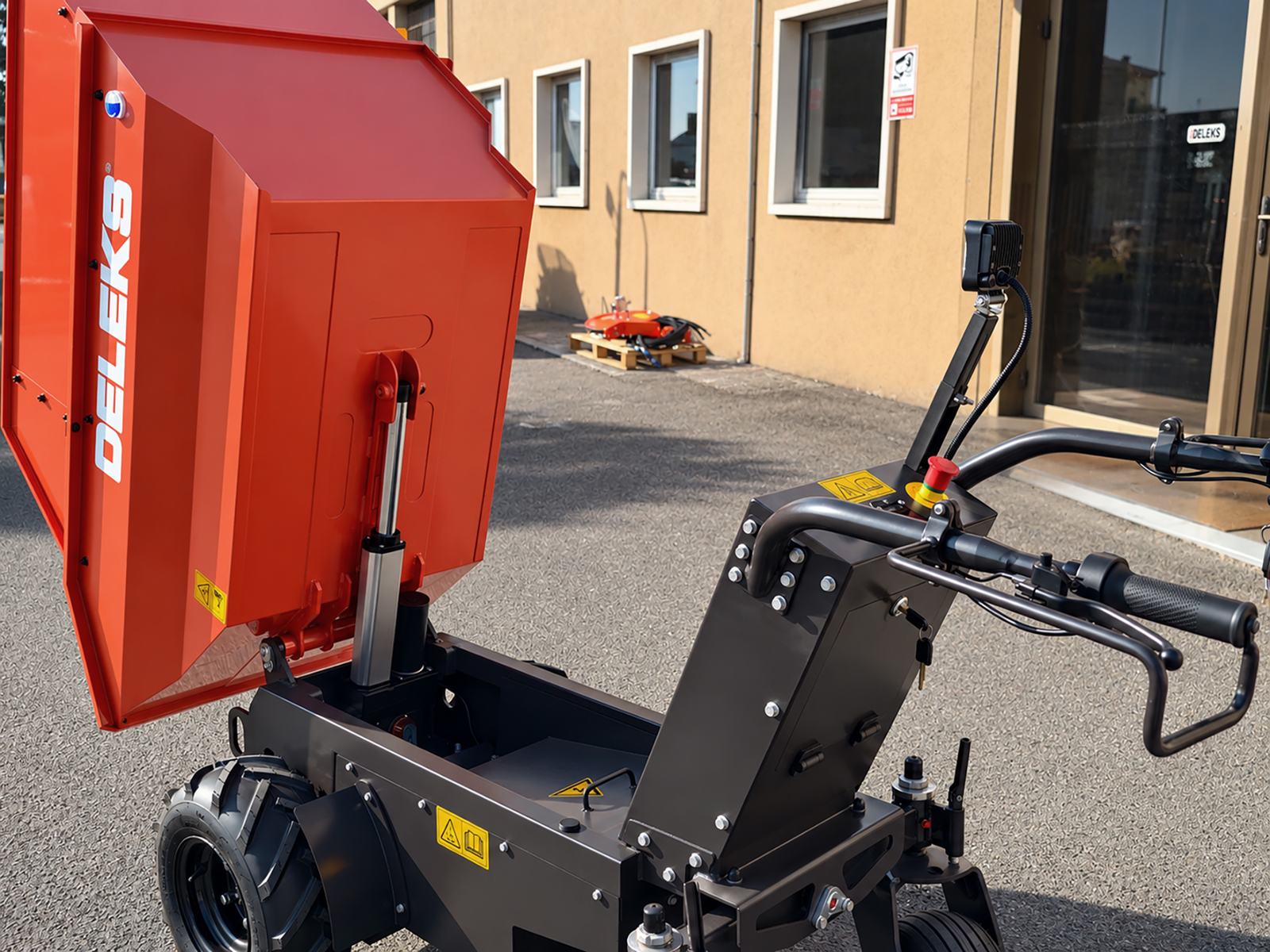

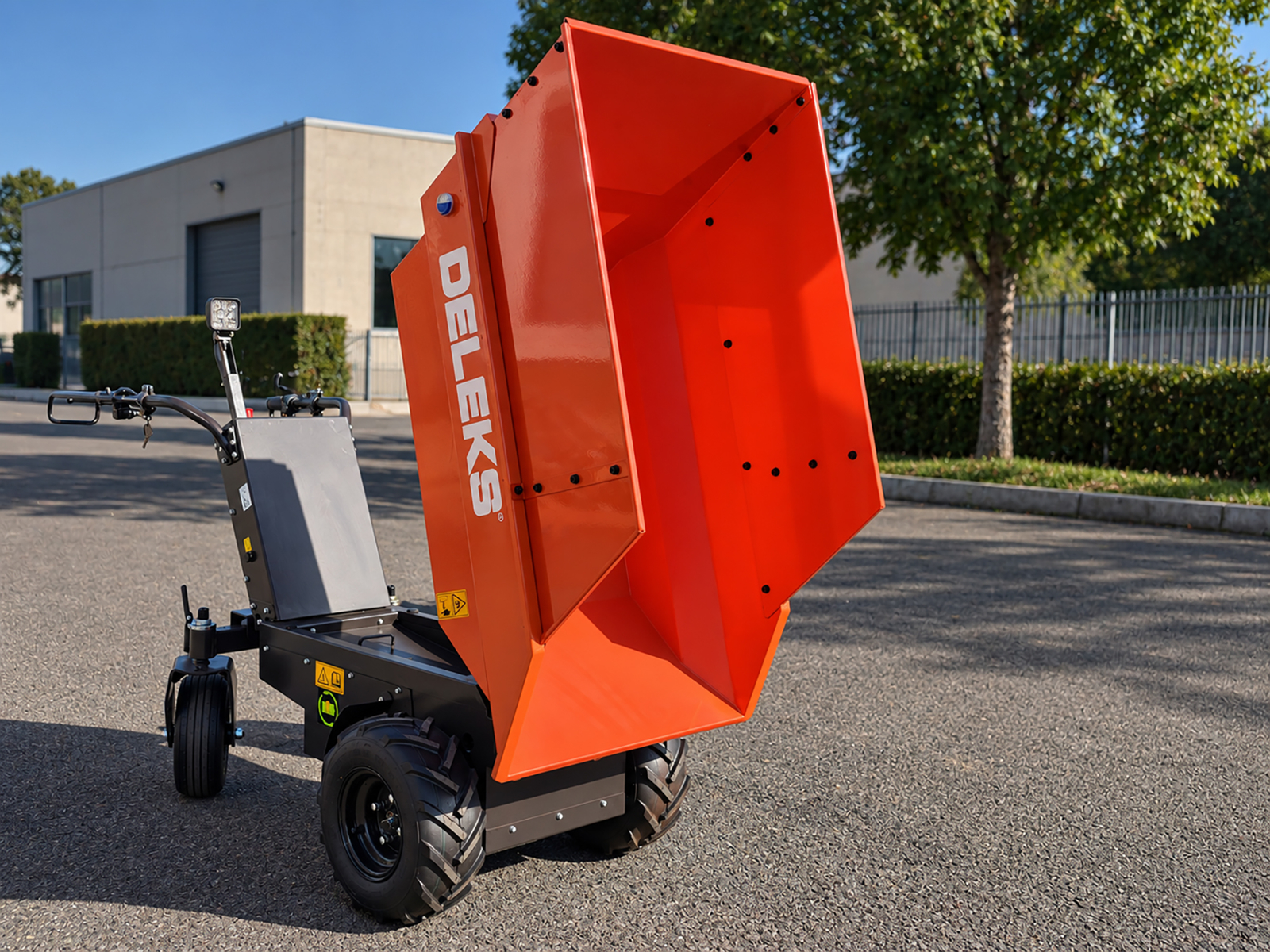

• Tipping by electrically operated hydraulic cylinder

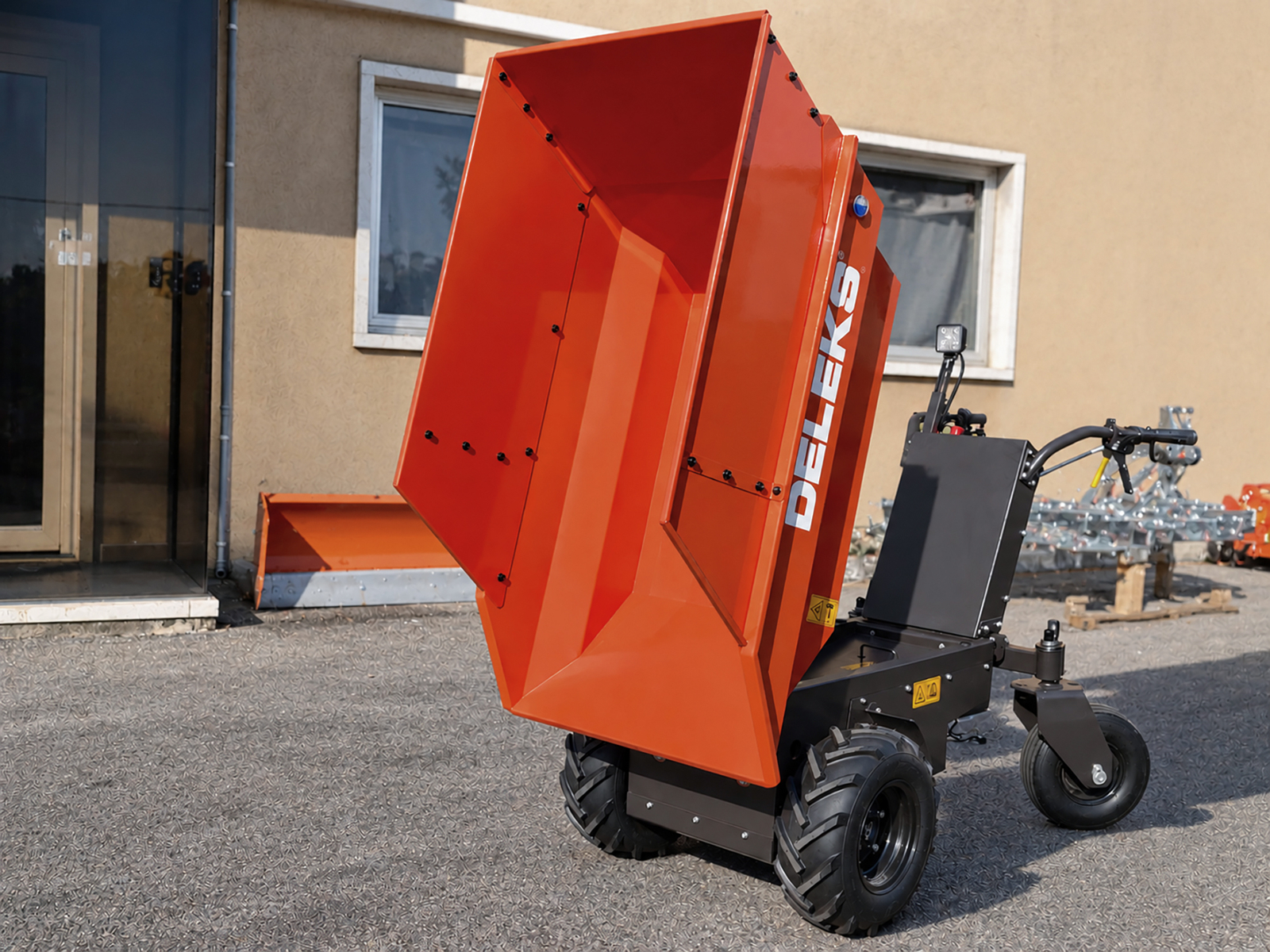

• Maximum tipping angle: 78°
• Partial or full tipping possible

Performance and technical data

• Load capacity: 500 kg
• Battery autonomy: 8–10 hours, depending on use
• Charging time: approx. 6 hours (100%)

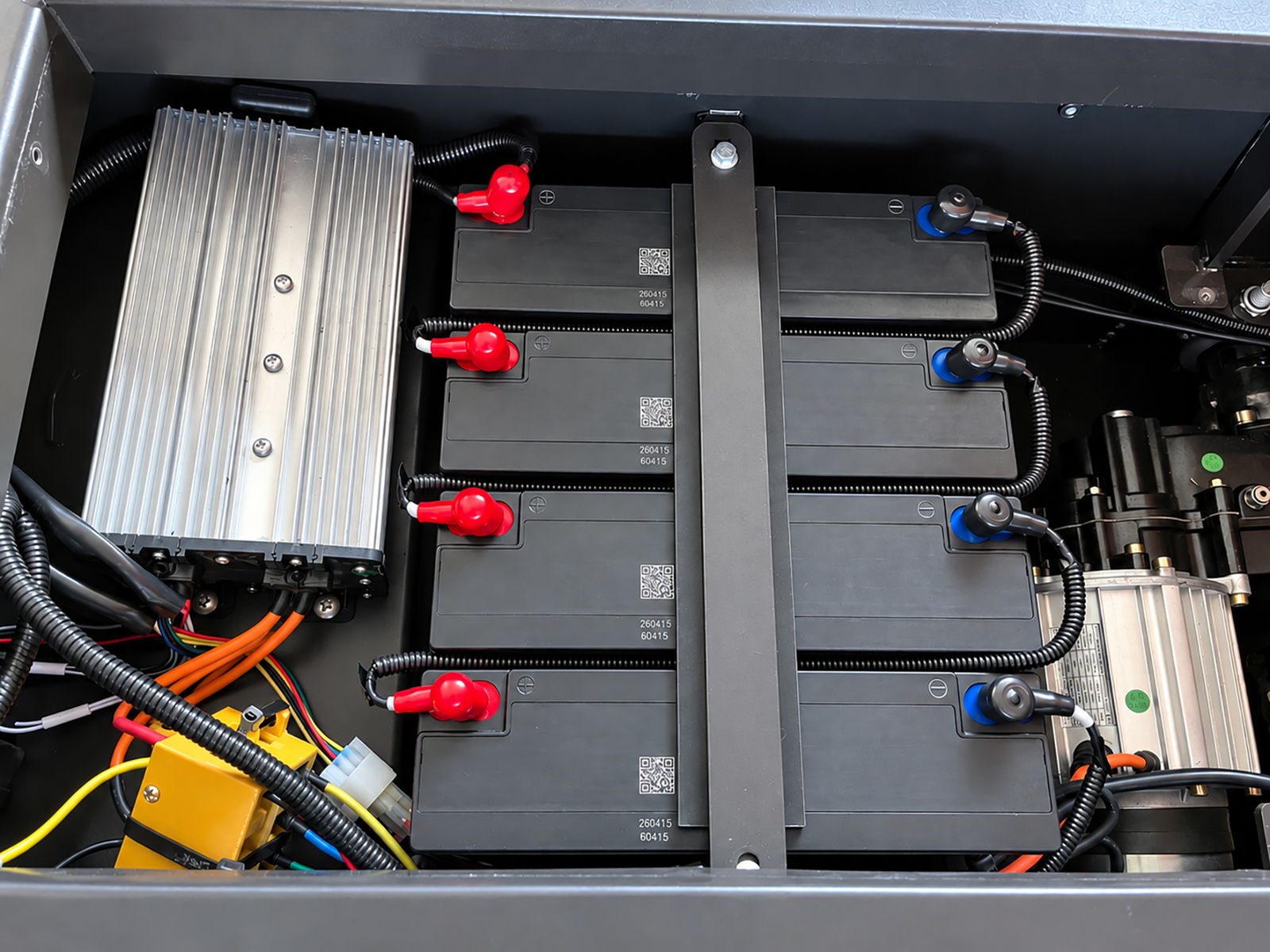

• Battery: lead-acid 48V – 32Ah, removable
• Electric motor: 0.8 kW
• Speed:
  • Forward: max. 5 km/h
  • Reverse: max. 1 km/h
• Electromagnetic brake
• Dumper body capacity: 0.22 m³
• Operating weight: 210 kg

Comfort and safety

• 2 x 30W LED headlights for working in low-light conditions
• Handlebar vibrations: 2 m/s²
• Sound level: 86 dB

Standard equipment

• Pair of ignition keys
• Battery charger

Battery warranty and Technical Assistance

1. 12-month commercial warranty on the battery against manufacturing defects. The warranty is valid provided that the machine and battery are used and maintained in accordance with the operating instructions. Normal capacity degradation, deep discharge, overcharging, improper storage and any use not in accordance with the operating instructions are excluded from the warranty.
2. The battery is replaceable.
3. Replacement batteries will remain available in the long term, for a minimum period of 10 years.
4. Complete assistance and technical support through DELEKS® branches and headquarters.

Documentation included

• EC Declaration of Conformity
• Invoice / sales receipt
• Operation and maintenance manual
