Snowplough with plate for tractor, LNS-210-A

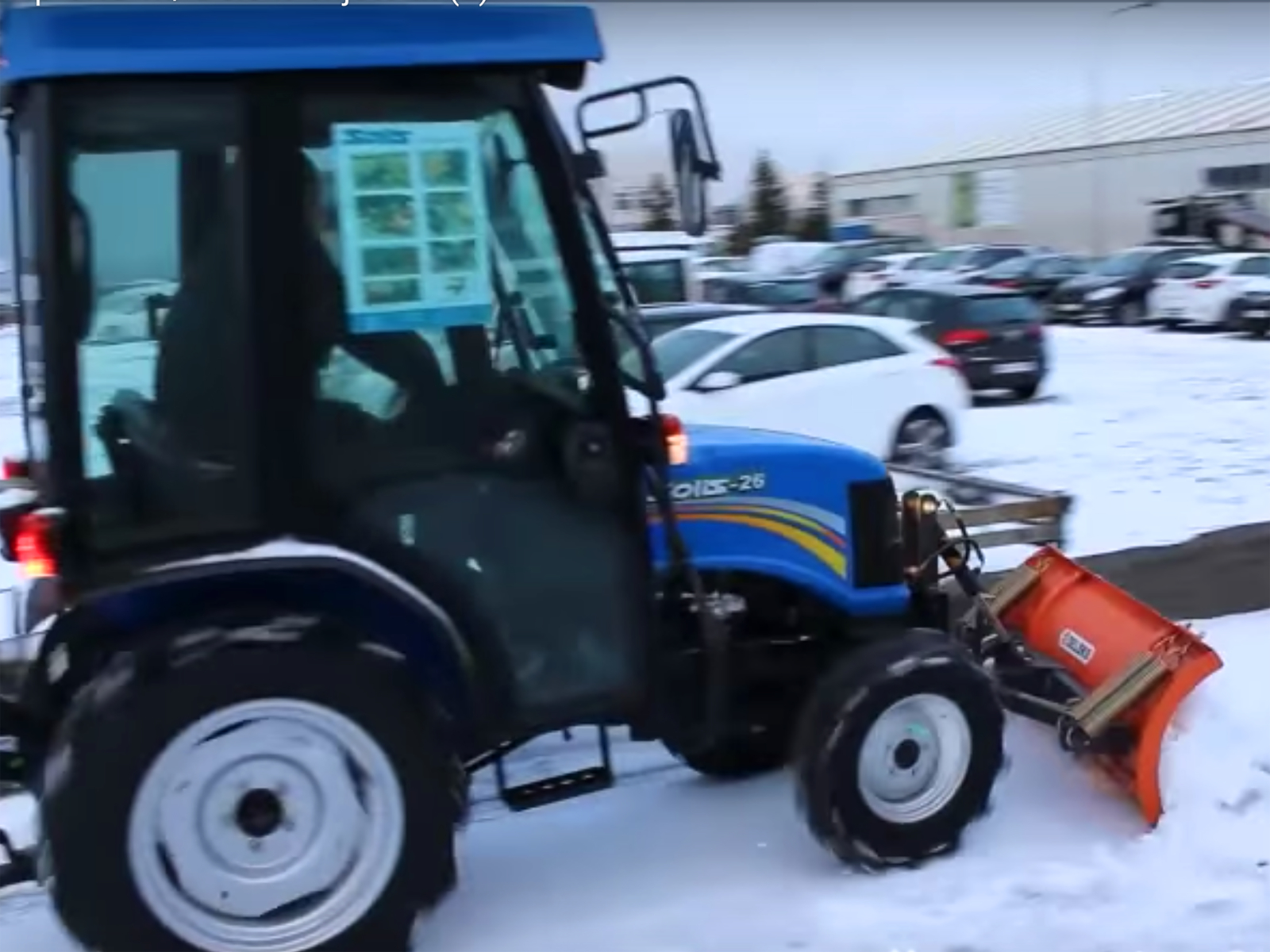

Field test
DETAILS
Light snow blade with plate for tractors Kubota, Yanmar.. - DELEKS® - 210cm - Homologated for road use.
OVERVIEW
DELEKS® Front snow blade with universal plate, for tractors from 30 to 50hp with guidance right / left hand (hydraulic optional) and hydraulic lifting of the blade with torque tube 4.0m. The plough is attached to the tractor with a quick attachment mounting plate.
The tractor must have 2 hydraulic outlets. Upon request we provide kits for tractors without hydraulic connectors. Compatible with all compact tractors, such as Japanese tractors Kubota BX-B, Iseki, Yanmar, Kioti, or as BCS compact tractors, John Deere 2-3, New Holland Boomer, Antonio Carraro, Same. Conforming to the EC Machinery Directive, Warranty 2 years.
BENEFITS AND FEATURES
Anti-shock system with 6 shock absorbers to operate in maximum safety.
Extremely easy to assemble and use.
Sharp replaceable steel edge. On request we customize with softer rubber edge.
parking leg.
The attachment plate is removable and replaceable with a 3 point hitch or mini skid steer loader linkage.
Homologated for road use.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 155.0 kg | 340.0 lb |
| Overall height | 830.0 mm | 2.72 ft |
| Tractor Power Range | 30 - 50 Hp | 30 - 50 Hp |
| Overall Length | 670.0 mm | 2.20 ft |
| Min./Max. Relief Pressure | 110 - 150 bar | 110 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min | 18 - 22 l/min |
| Interface | Universal Plate | Universal Plate |
| Universal plate sizes | 260.0*370.0 mm | 10.23*14.57 in |
| Angling (left/right) | 28° | 28° |
| Float | +/- 2° | +/- 2° |
| Blade Height | 525.0 mm | 1.72 ft |
| Side edge thickness | 8.0 mm | 0.32 in |
| Shock absorbers | 6 | 6 |
| Distance between plate and base | 270.0 mm | 10.63 in |
| Cutting Edge | Steel or Rubber | Steel or Rubber |
| Cutting Edge Height | 120.0 mm | 4.72 in |
| Cutting Edge Thickness | 14.0 mm | 0.55 in |
| Trip Edge Quantity | 1 | 1 |
| Distance betweens the bolts of the Trip Edge | 200.0 mm | 7.87 in |
| Lights | x | x |
| Removable Skid Shoes | x | x |
| Working width (angled) | 1890.0 mm | 6.20 ft |
| Hydraulic Hoses | 2 x 4000.0 mm / connections 1.2" AGRI, WP 400 bar | 2 x 13.12 ft / connections 1.2" AGRI, WP 400 bar |
| Overall width | 2116.0 mm | 6.95 ft |
| Main frame thickness | 4.0 mm | 0.16 in |
| Hydraulic cylinder/s ø | 50.0 / 25.0 mm | 1.97 / 0.98 in |
| Packing sizes | 2116.0*800.0*800.0 mm | 6.95*2.62*2.62 ft |
