Petrol chipper shredder - Briggs&Stratton 6.5 Hp engine

4.5

282 reviews

Available

Code DK500BS

EAN 8053470235788

View all details.

TOTAL

1,150.00€(967.96 £)VAT excl.

Free shipping

REQUEST MORE INFORMATION

IMAGES

VIDEO

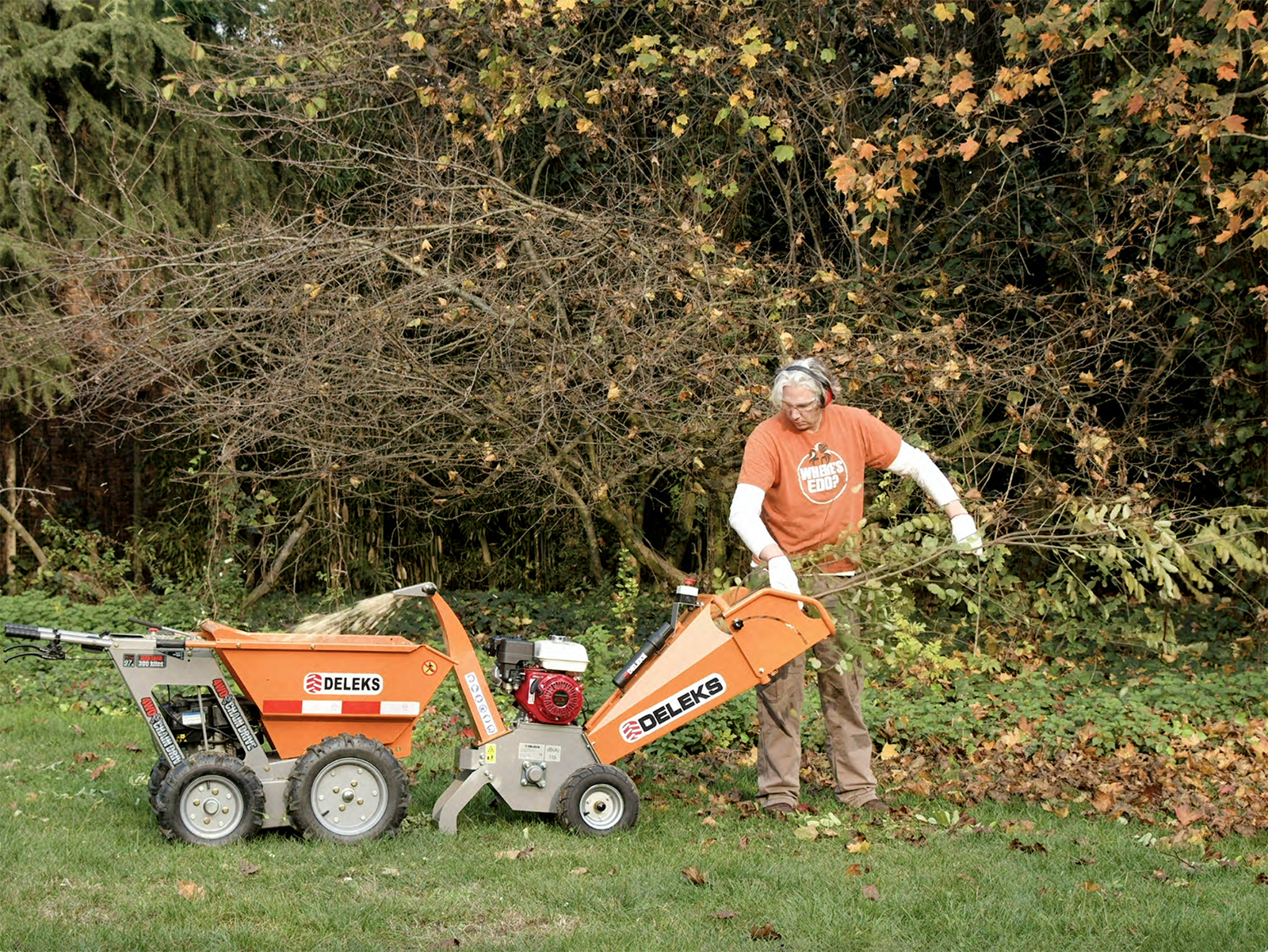

Field test

Review by Edd China (Wheeler Dealers)

Replacing and adjusting the knives

Field test by Edd China

DETAILS

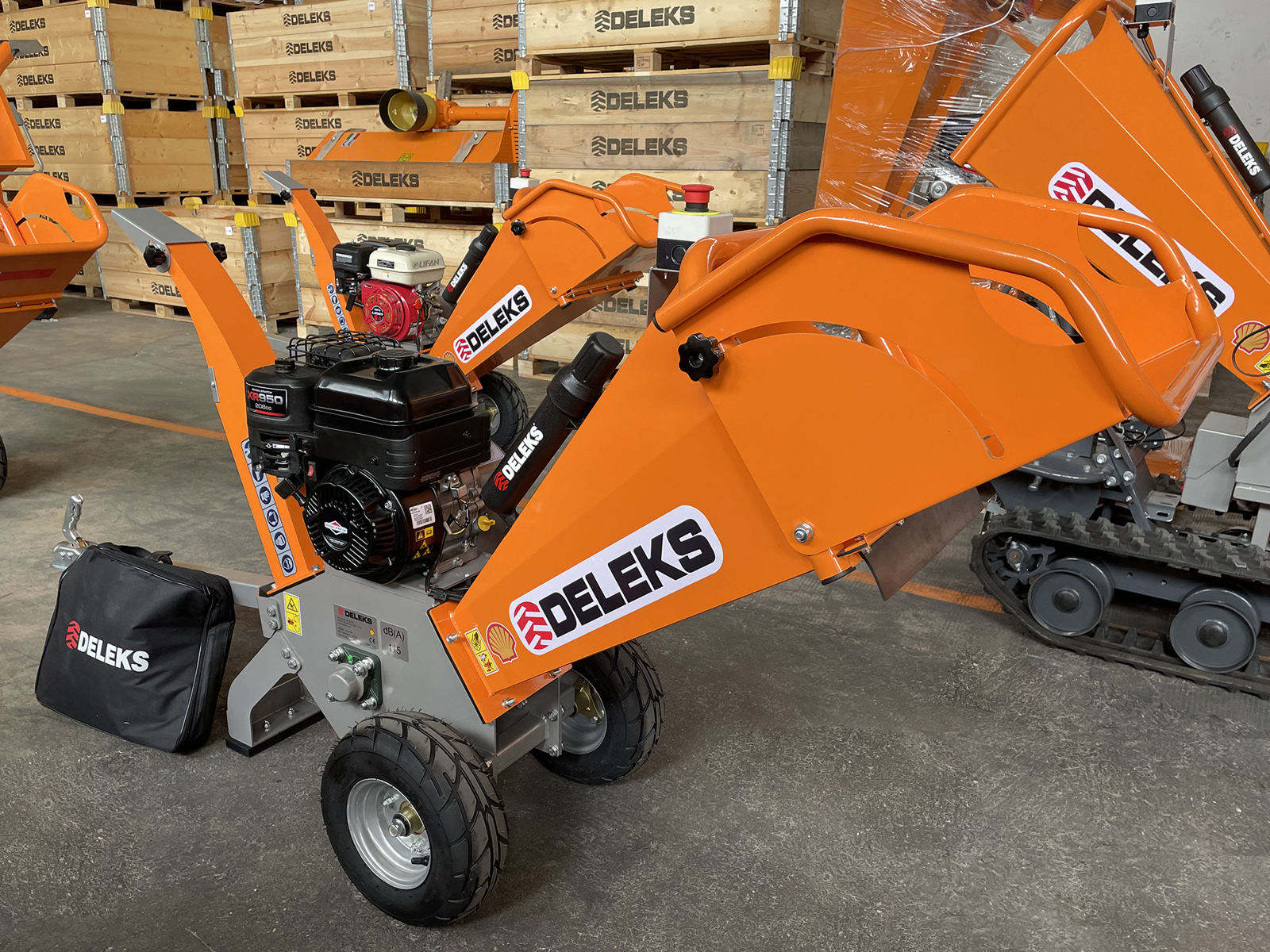

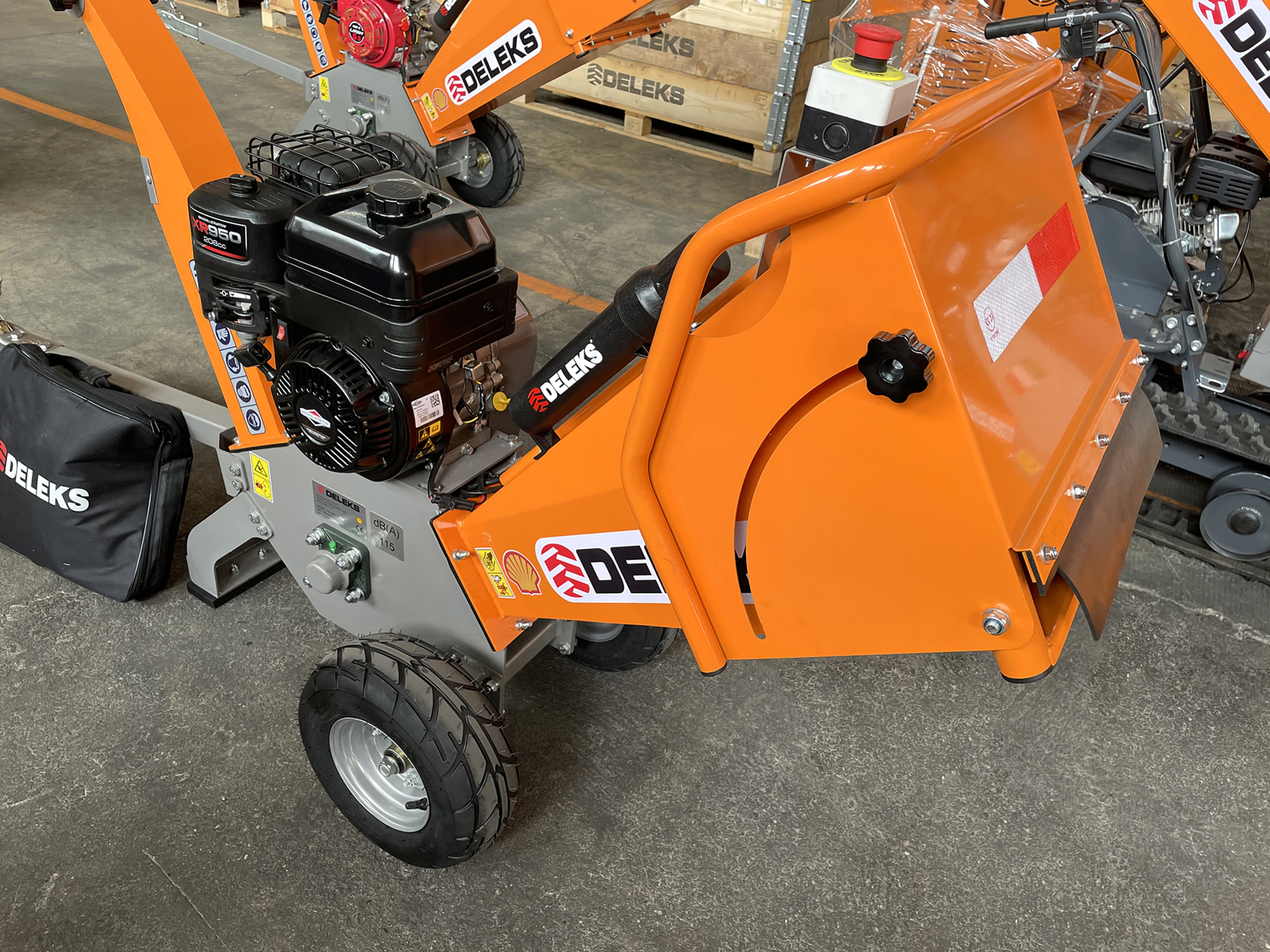

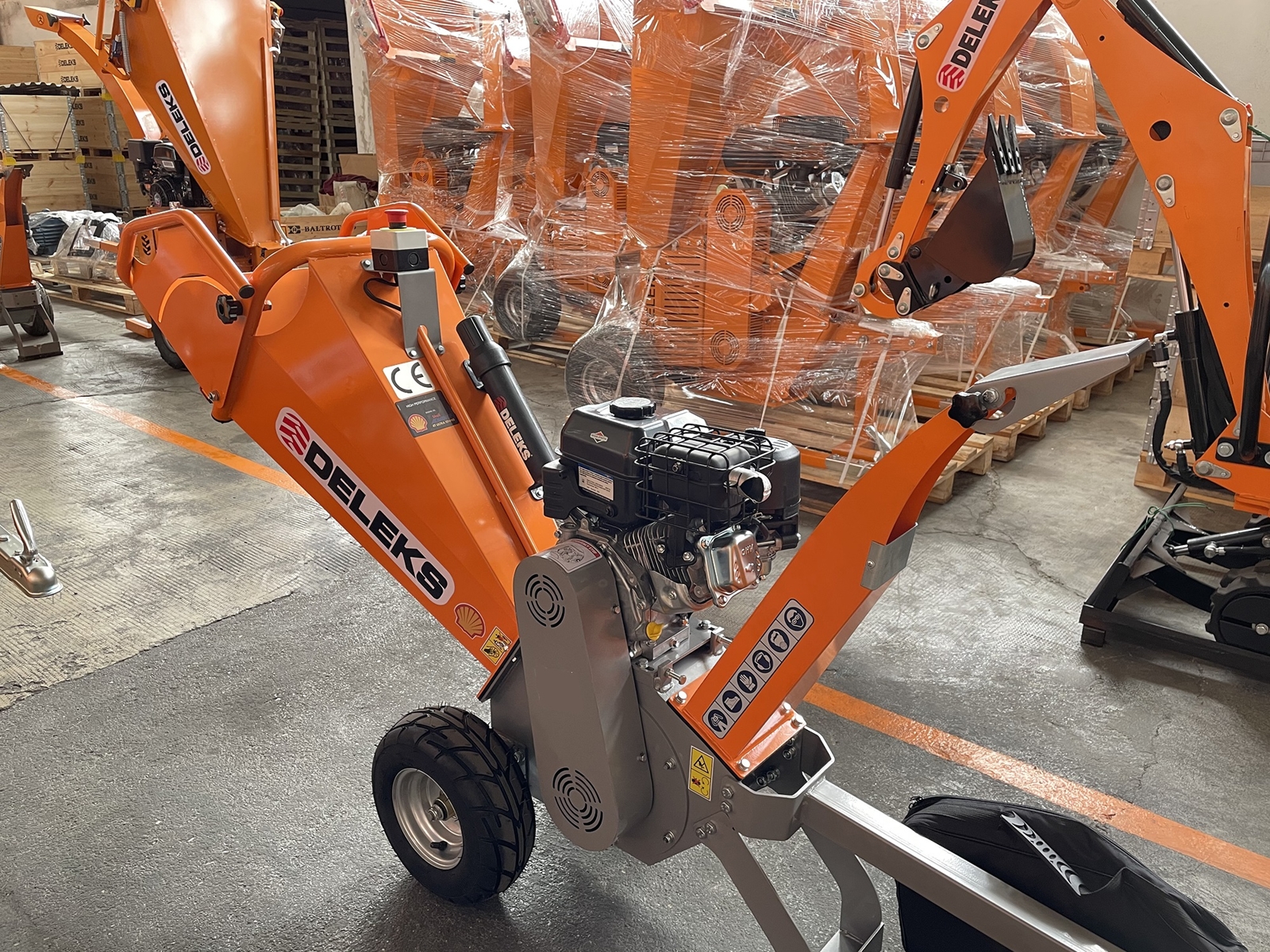

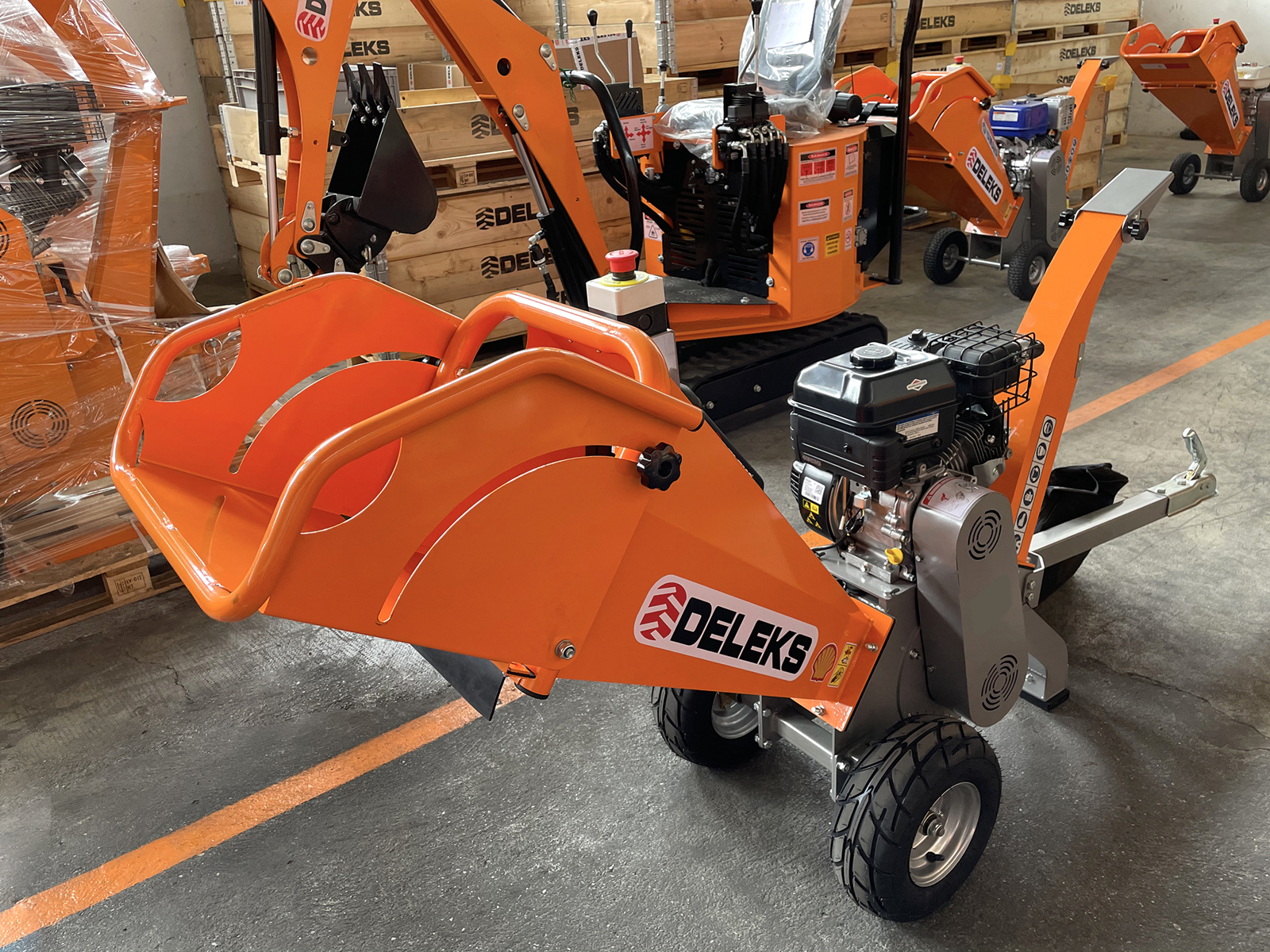

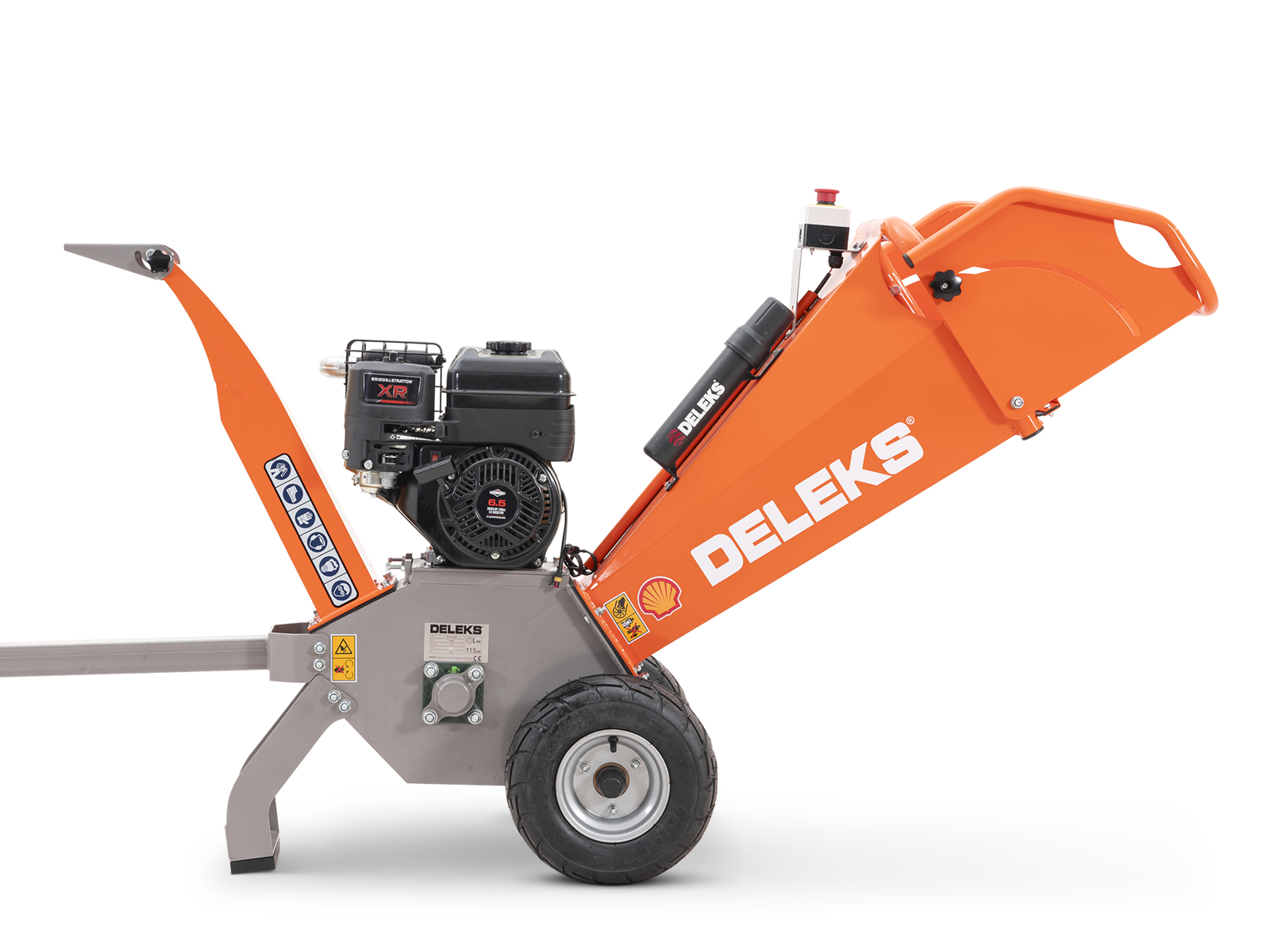

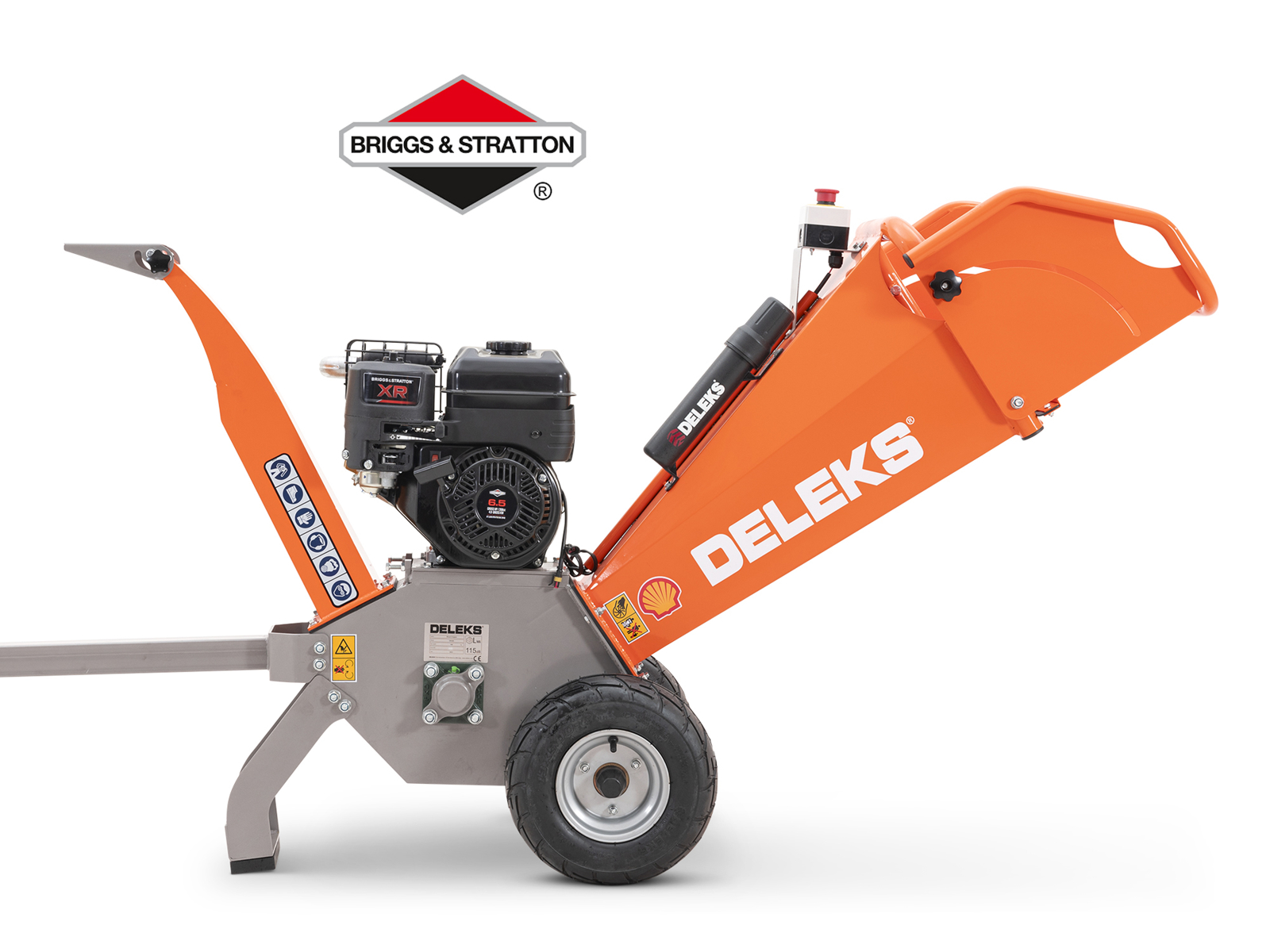

Professional Wood Chipper DELEKS DK-500-BS with Briggs&Stratton 6.5 Hp engine, 4 stroke gasoline engine.

OVERVIEW

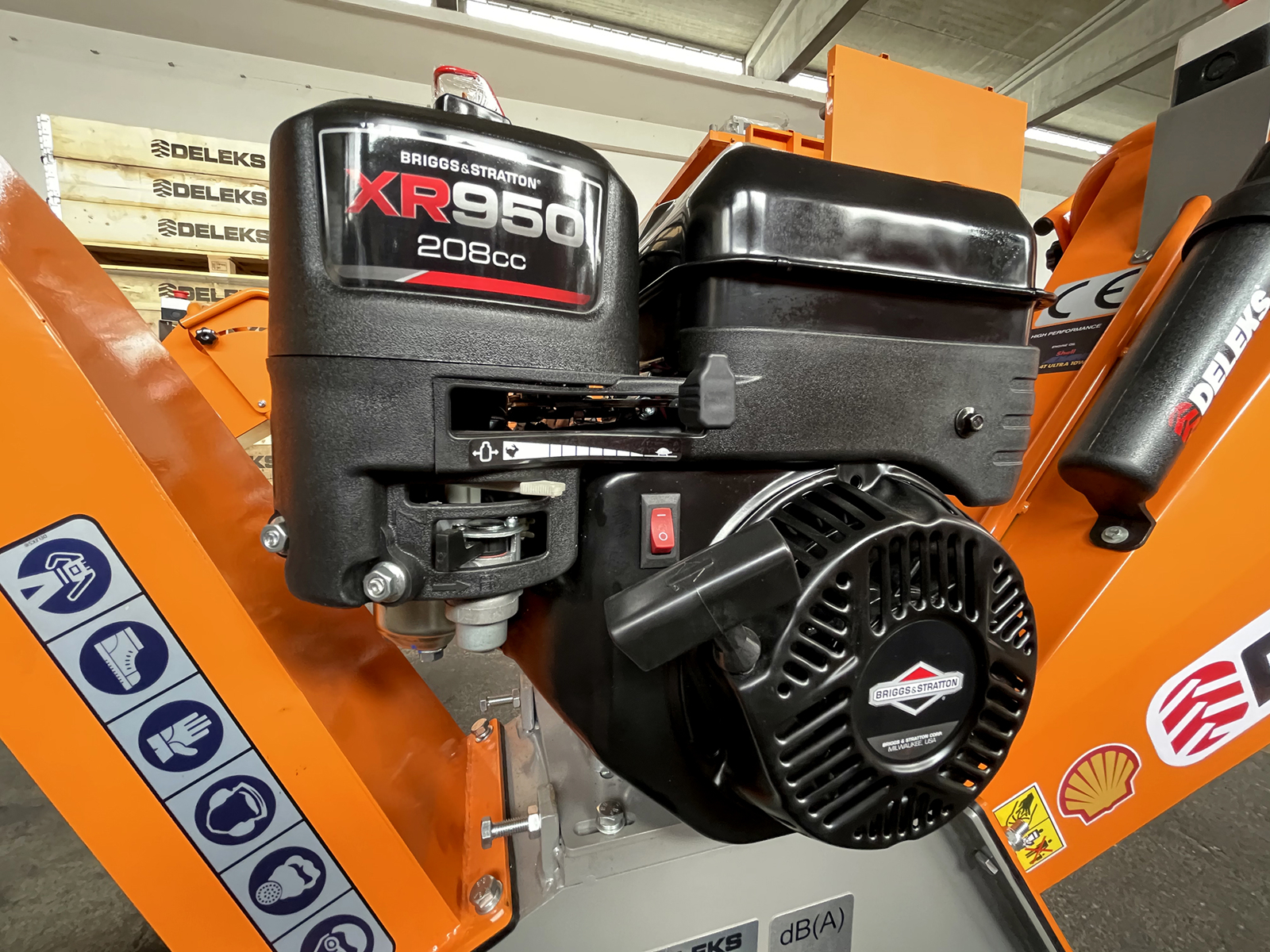

Chipping drum system shreds vegetation using 2 horizontal blades + 1 counter-fixed blade. Gasoline engine Briggs&Stratton XR950 - 208cc - 6.5 hp (3-Year warranty - Spare parts always available).

Suitable for the chipping of all types of dry and green wood, pruning residues, palm leaves, etc. Ideal for professional/contractor usage.

Maximum cutting diameter: 6-7cm

Chipper produces enough material to make pulp or pellets for industrial use.

Machine not suitable for shredding corn, straw, alfalfa, etc ..

CERTIFICATES - GUARANTEE - ASSISTANCE

TÜV SUD certification

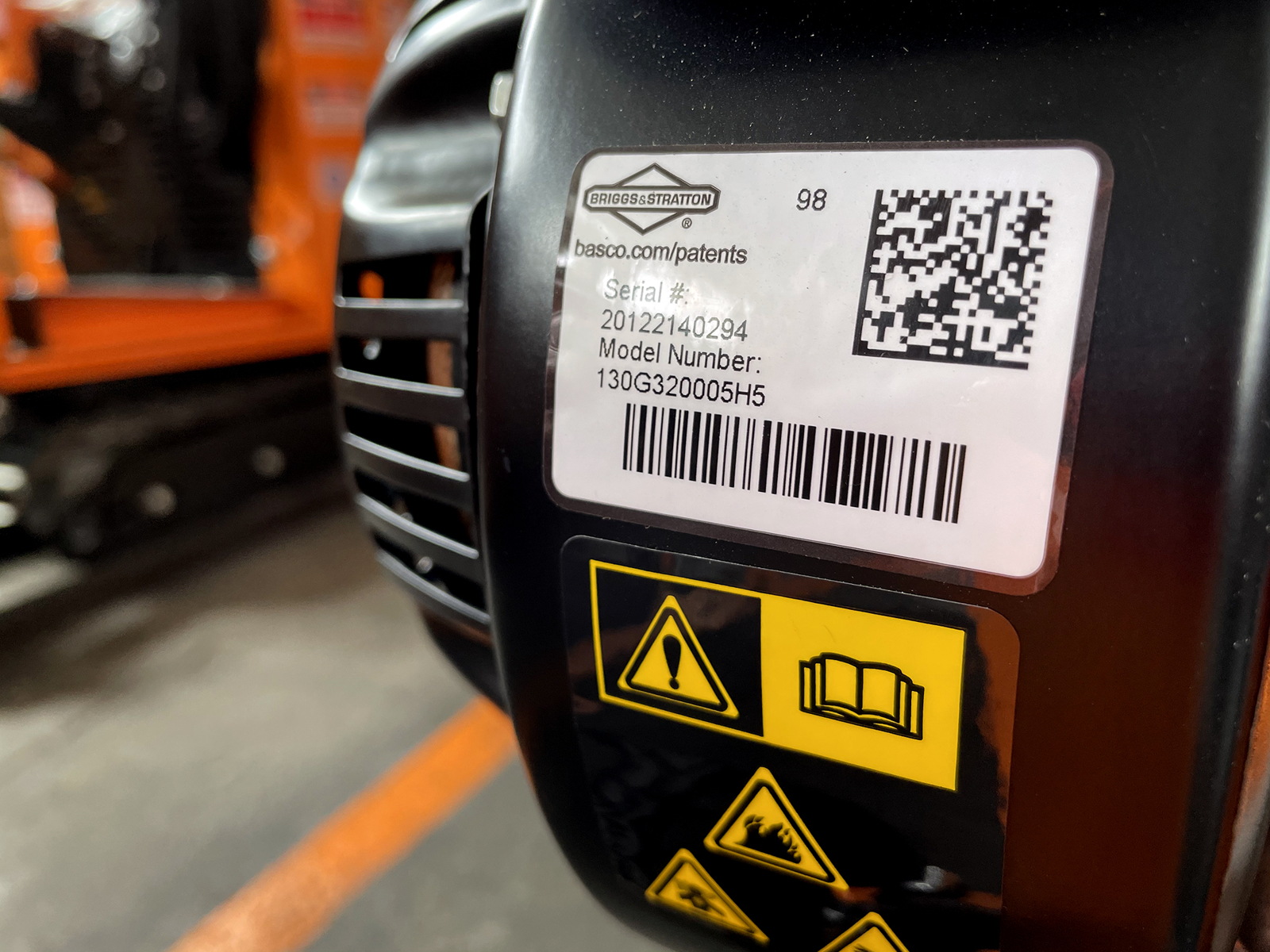

Briggs&Stratton petrol engine with 3-years European warranty

BENEFITS AND FEATURES

The Anti-shock clutch avoids direct motion between the motor and drum, thus facilitates the cold start and in case of jamming or introduction of foreign objects, prevents the crankshaft from damage.

Gasoline engine, air-cooled 4-stroke.

Starter rope;

Ergonomic design;

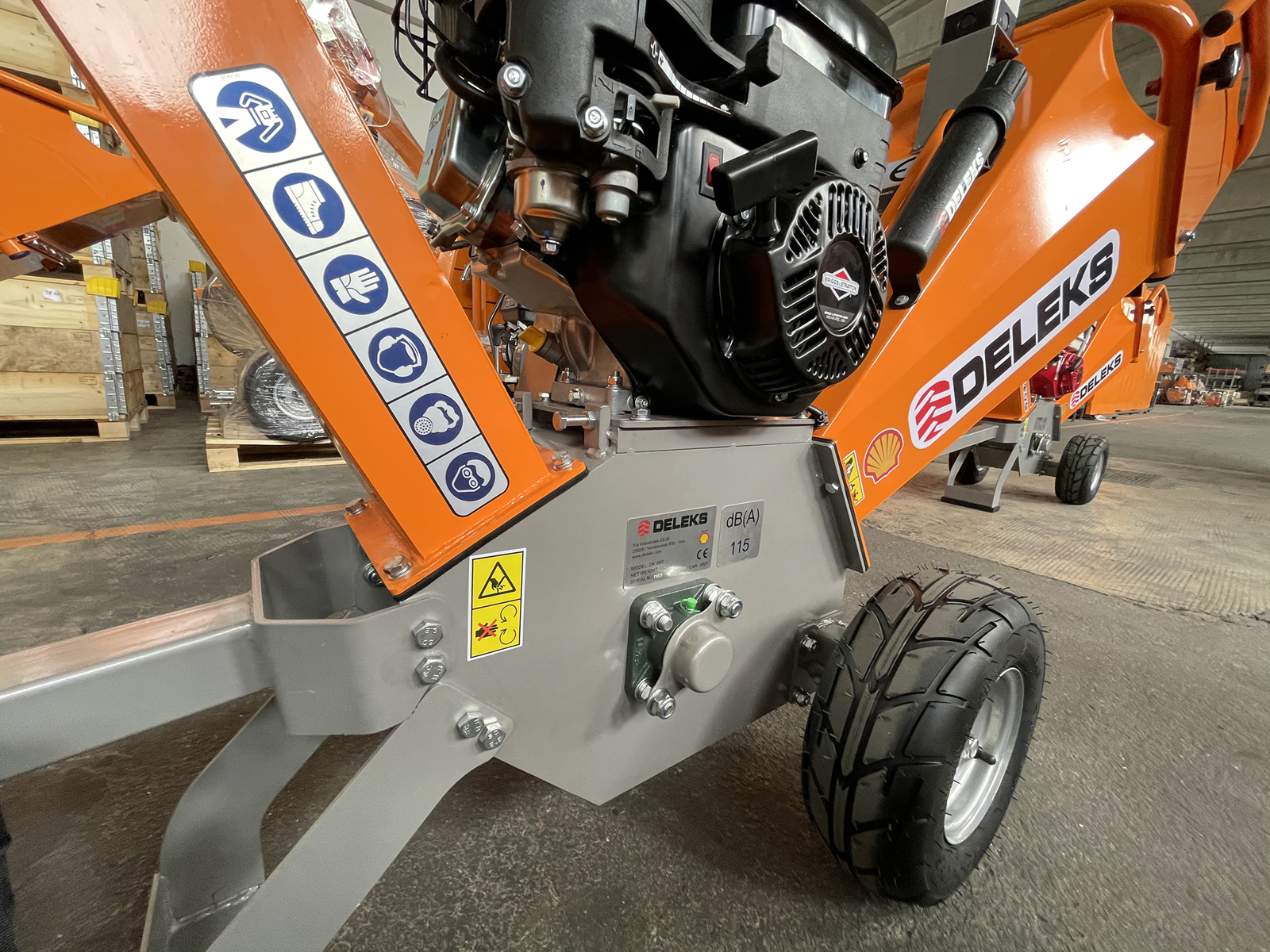

Excellent maneuverability thanks to its 2 wheels;

Solid structure and stable with a low center of gravity.

Headphones and goggles.

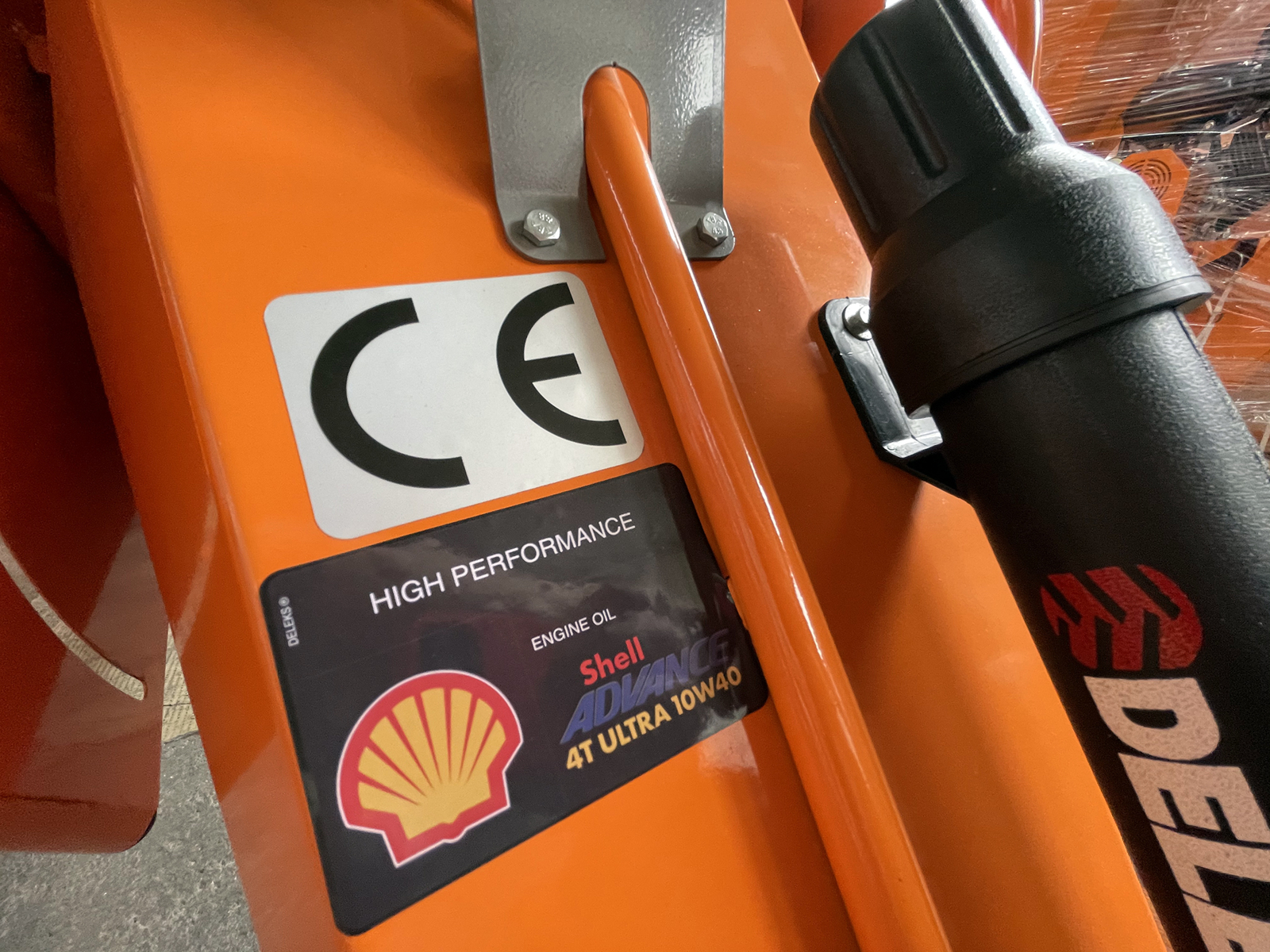

Conforms to the CE directive.   

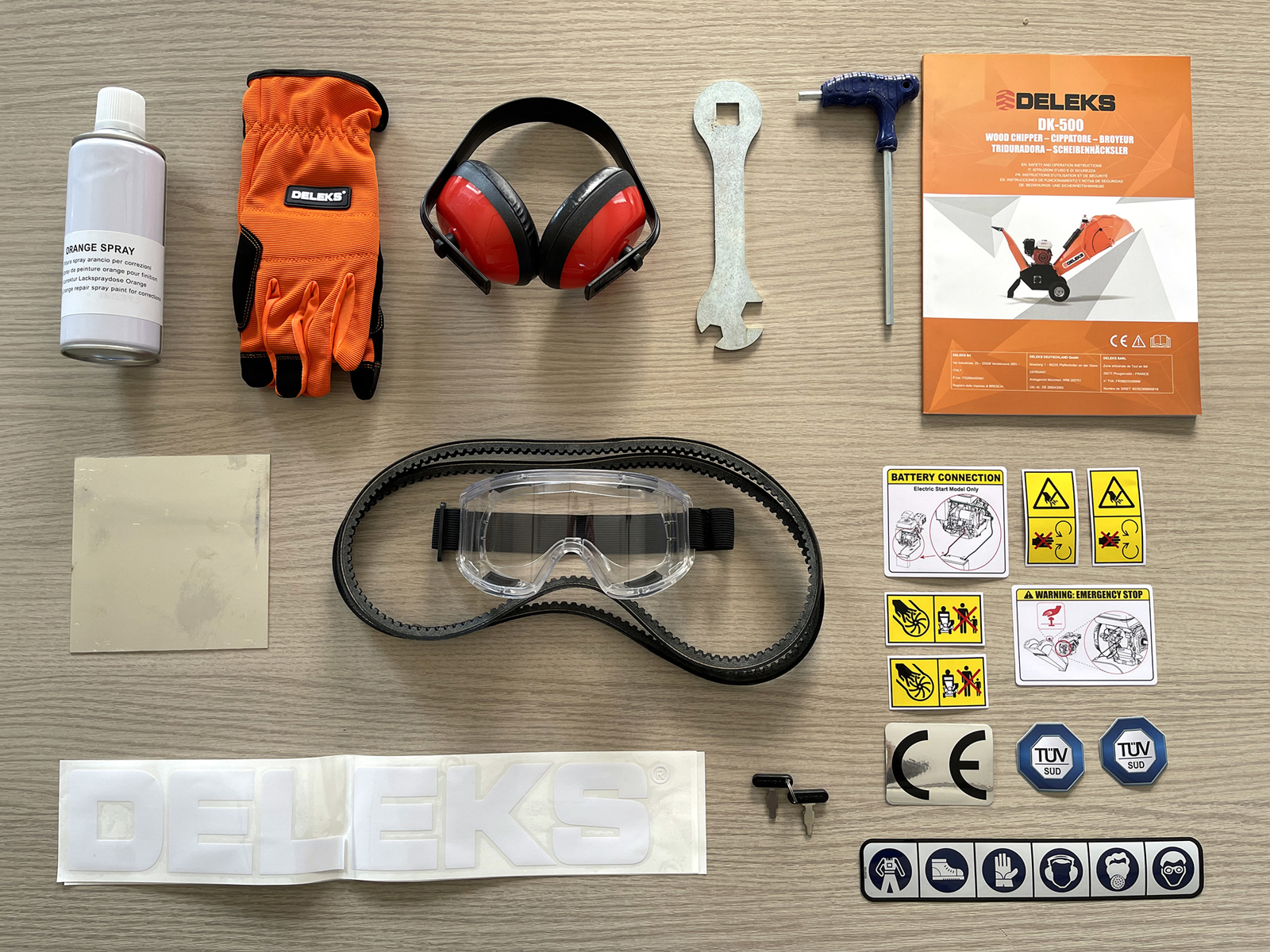

STANDARD EQUIPMENT

Pair of spare blades

Spare counter knife

Set of 2 replacement transmission belts

CE protection caps

CE protective glasses

Use and maintenance manual for the machine

Use and maintenance manual for the Briggs&Stratton XR950 engine

Orange Spray Paint

Complete set of replacement stickers

Set wrenches for maintenance

Documentation supplied with this article:

Invoice or Receipt
CE Conformity
Maintenance Manual

EC Certification and Risk Analysis (Valid throughout Europe) edited by TÜV SÜD.

CHARACTERISTICS

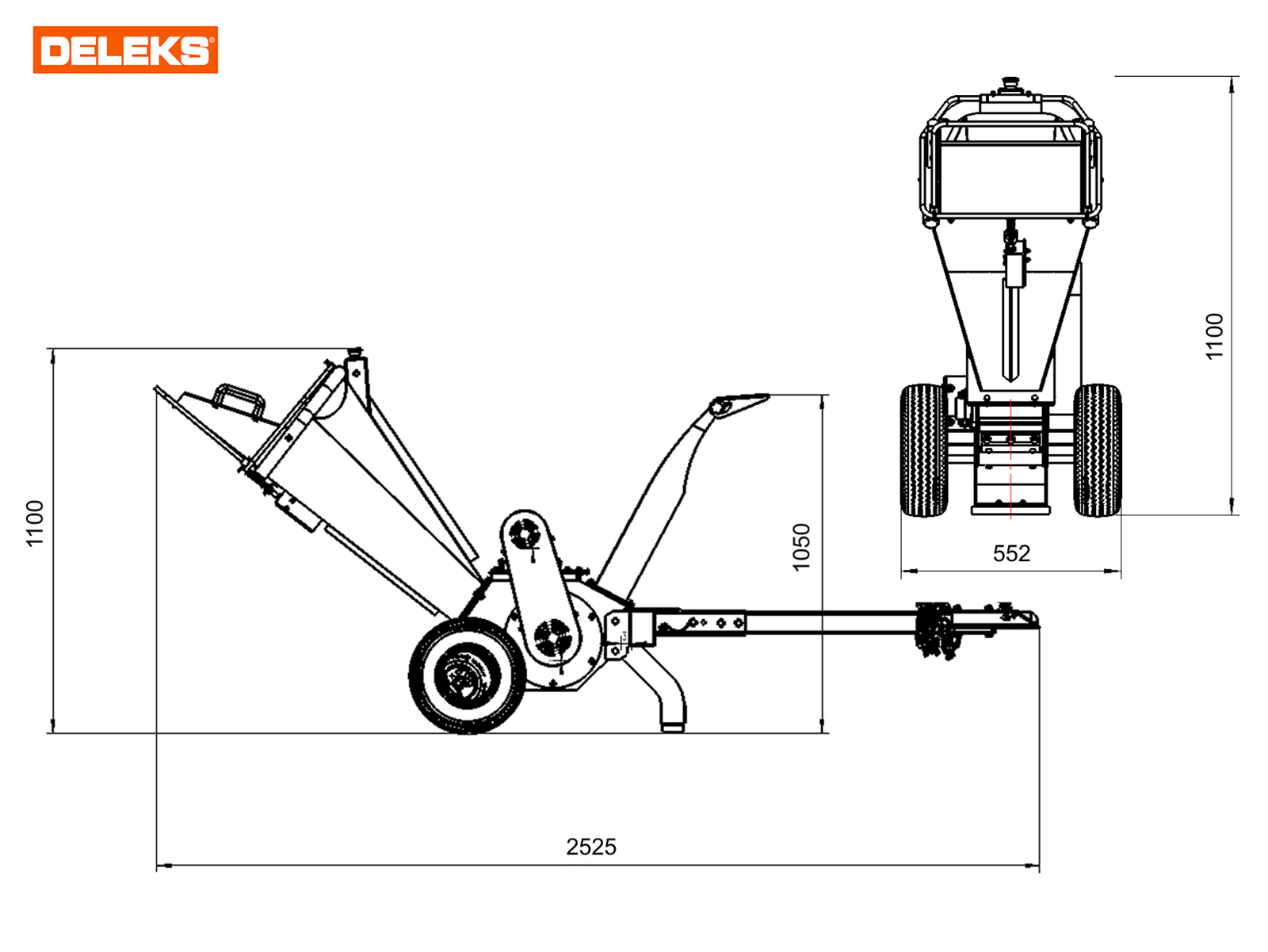

Characteristic	Units metric	Units US

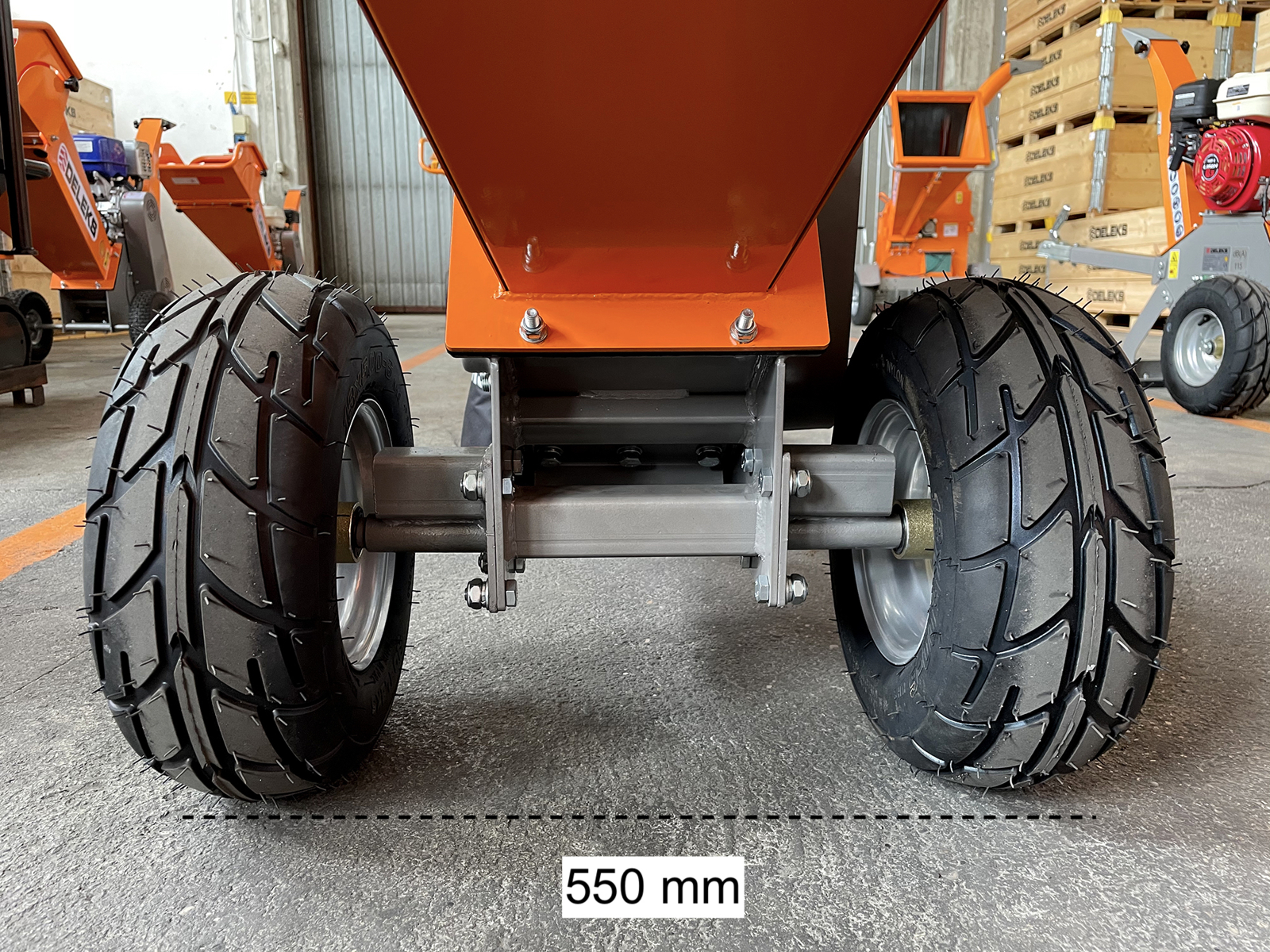

Overall width	550.0 mm	1.80 ft
Weight	100.0 kg	220.0 lb

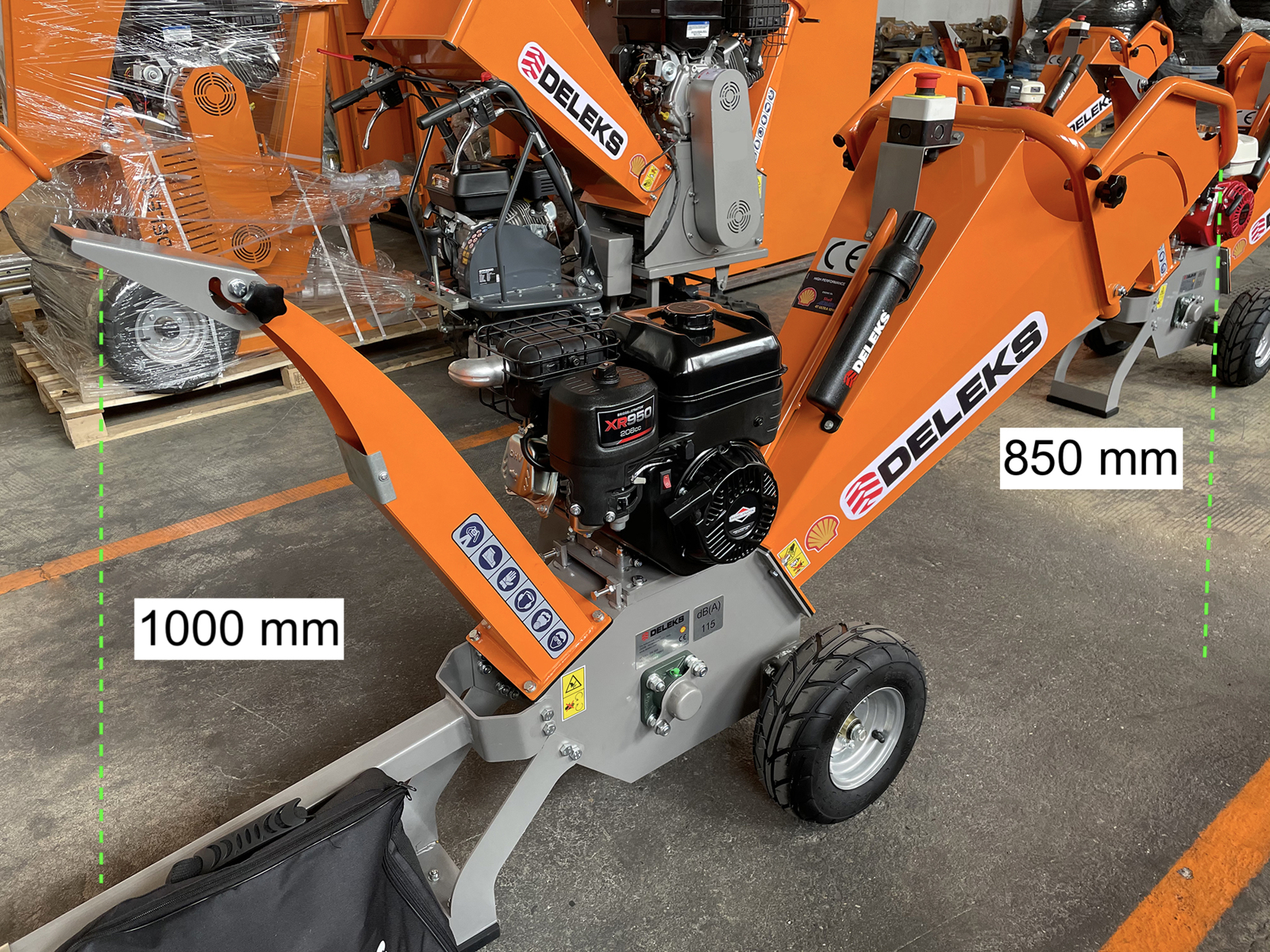

Overall height	1050.0 mm	3.45 ft
Overall length	1720.0 mm	5.65 ft
Blades: Weight	300.0 g	10.50 oz

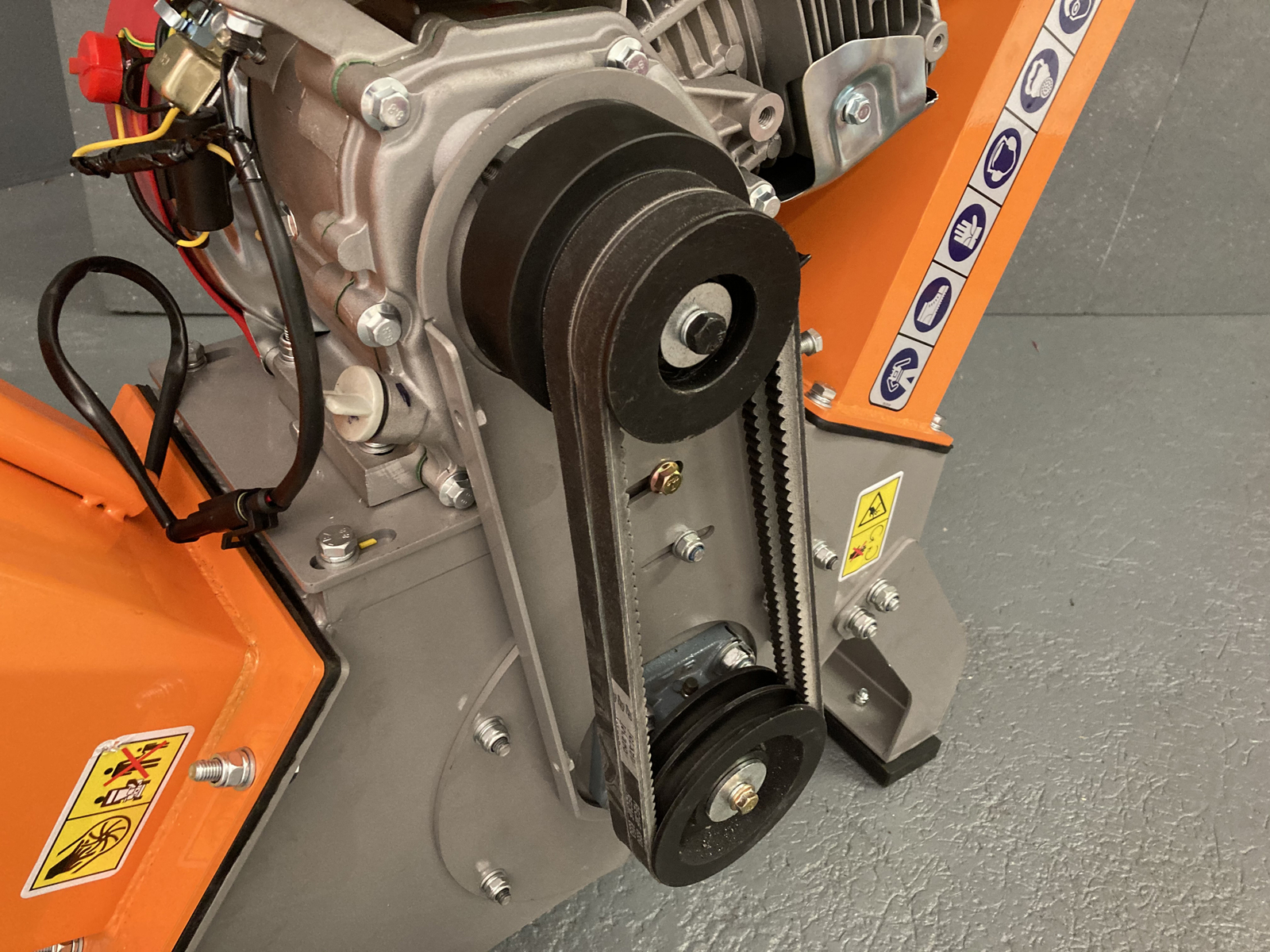

Transmission	V Belts	V Belts
Working Efficiency	3 m3/h	1.0 sq ft/h
Cutting System	Chipping drum with 2 blades + 1 fixed blade	Chipping drum with 2 blades + 1 fixed blade

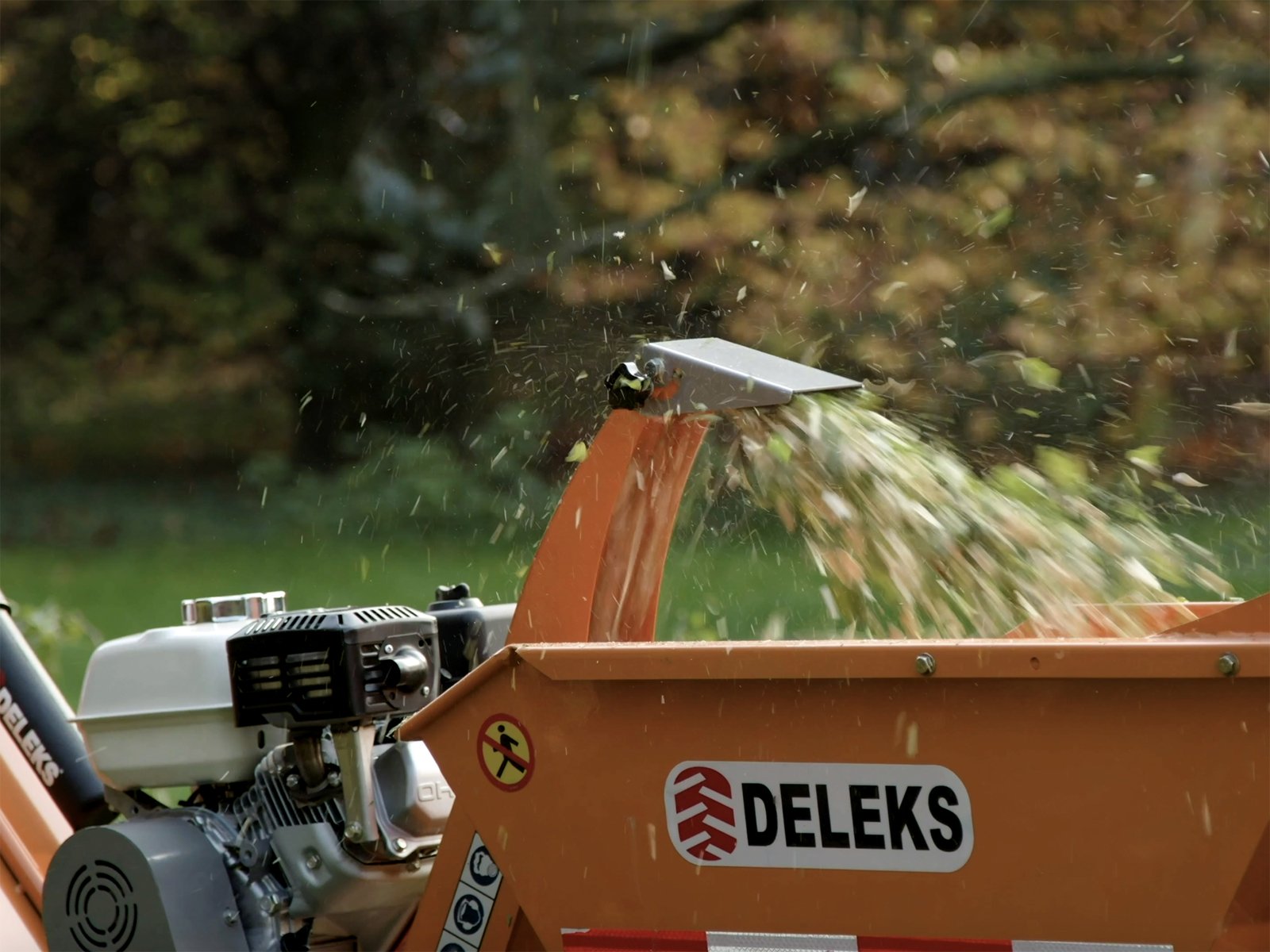

Chipped material size range	5.0 - 15.0 mm	0.20 - 0.60 in

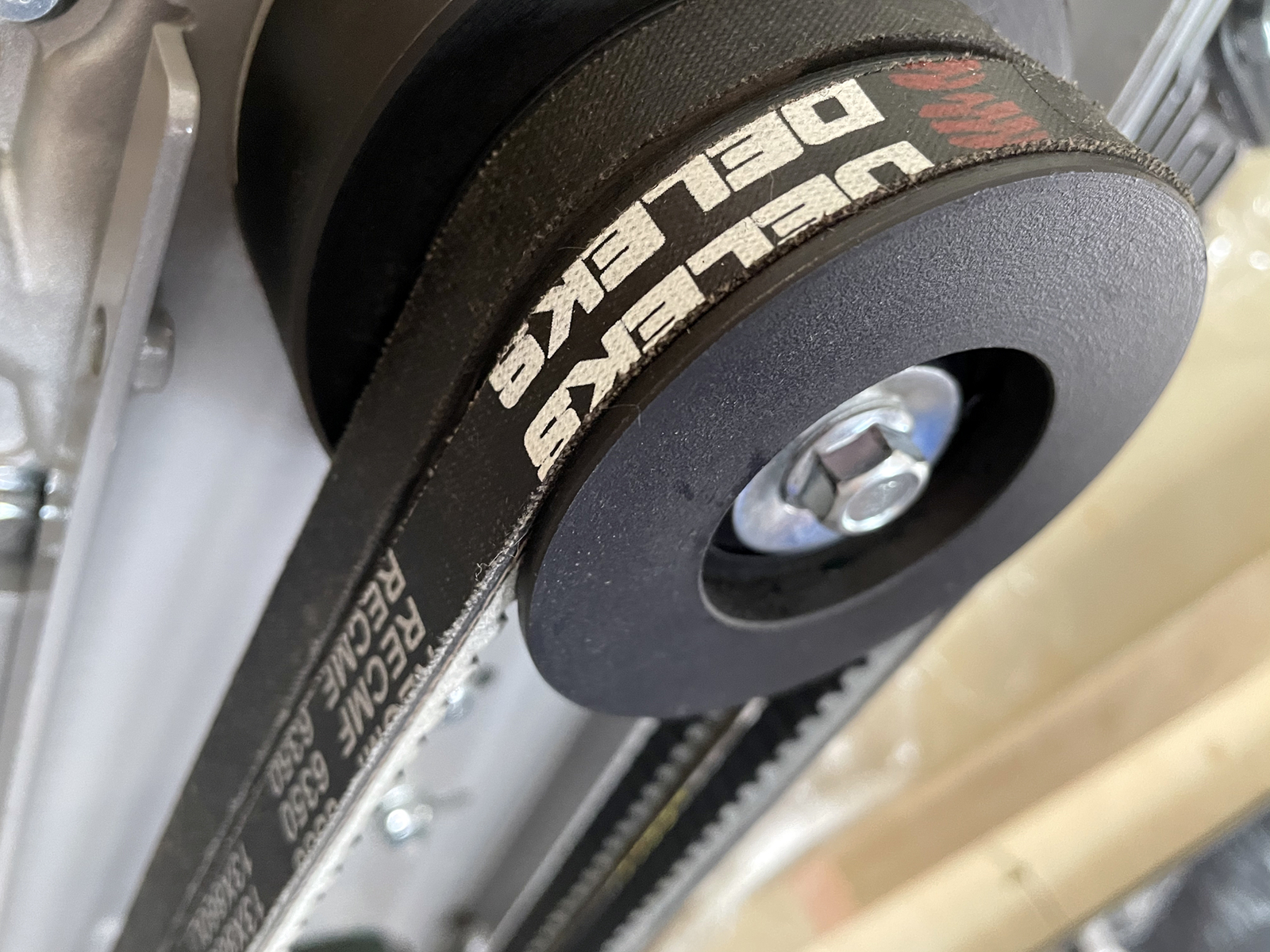

Transmission V-Belts quantity	2	2
Transmission V-Belts sizes	13x860	13x860

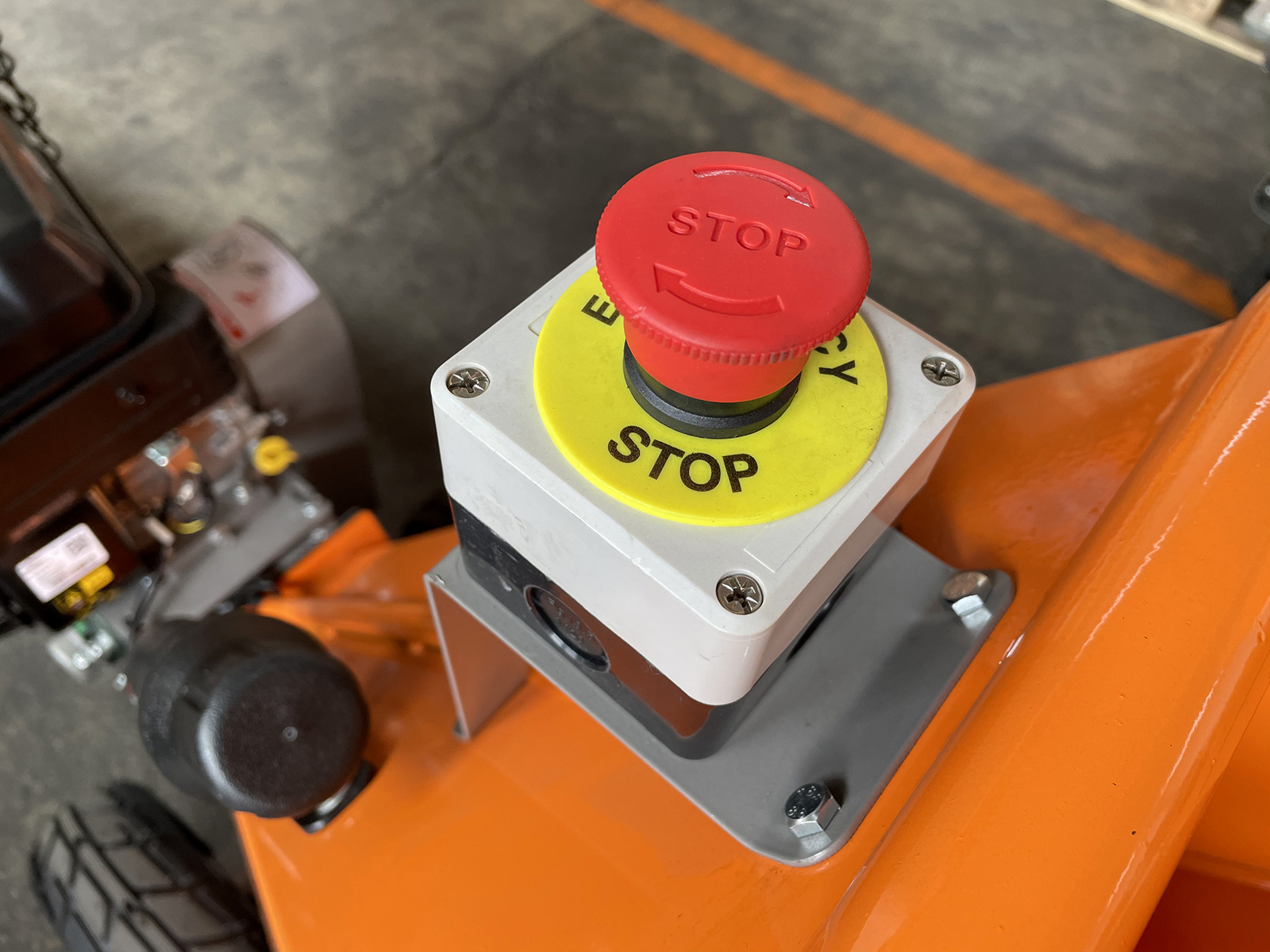

Safety System	Emergency button	Emergency button
Blades: Sizes	150.0*55.0 mm	5.90*2.16 in
Outlet Tube Sizes	85.0*100.0 mm	3.35*3.94 in
Maximum cutting diameter	60.0 mm	2.35 in
Engine	Briggs&Stratton XR950 - 208cc - 6.5 Hp.	Briggs&Stratton XR950 - 208cc - 6.5 Hp.
Starter	Pull cord	Pull cord

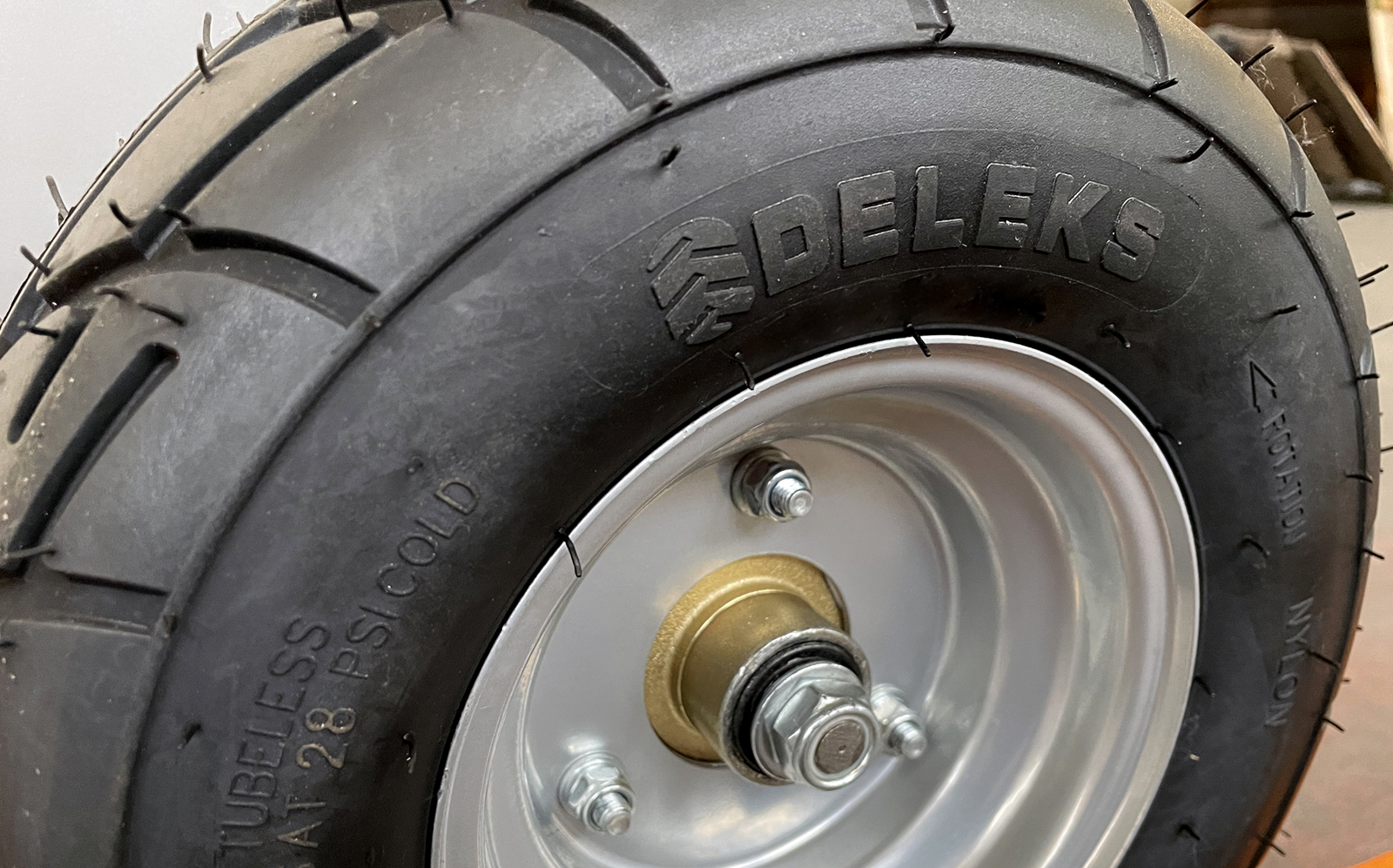

Wheels: sizes	13X500-6	13X500-6

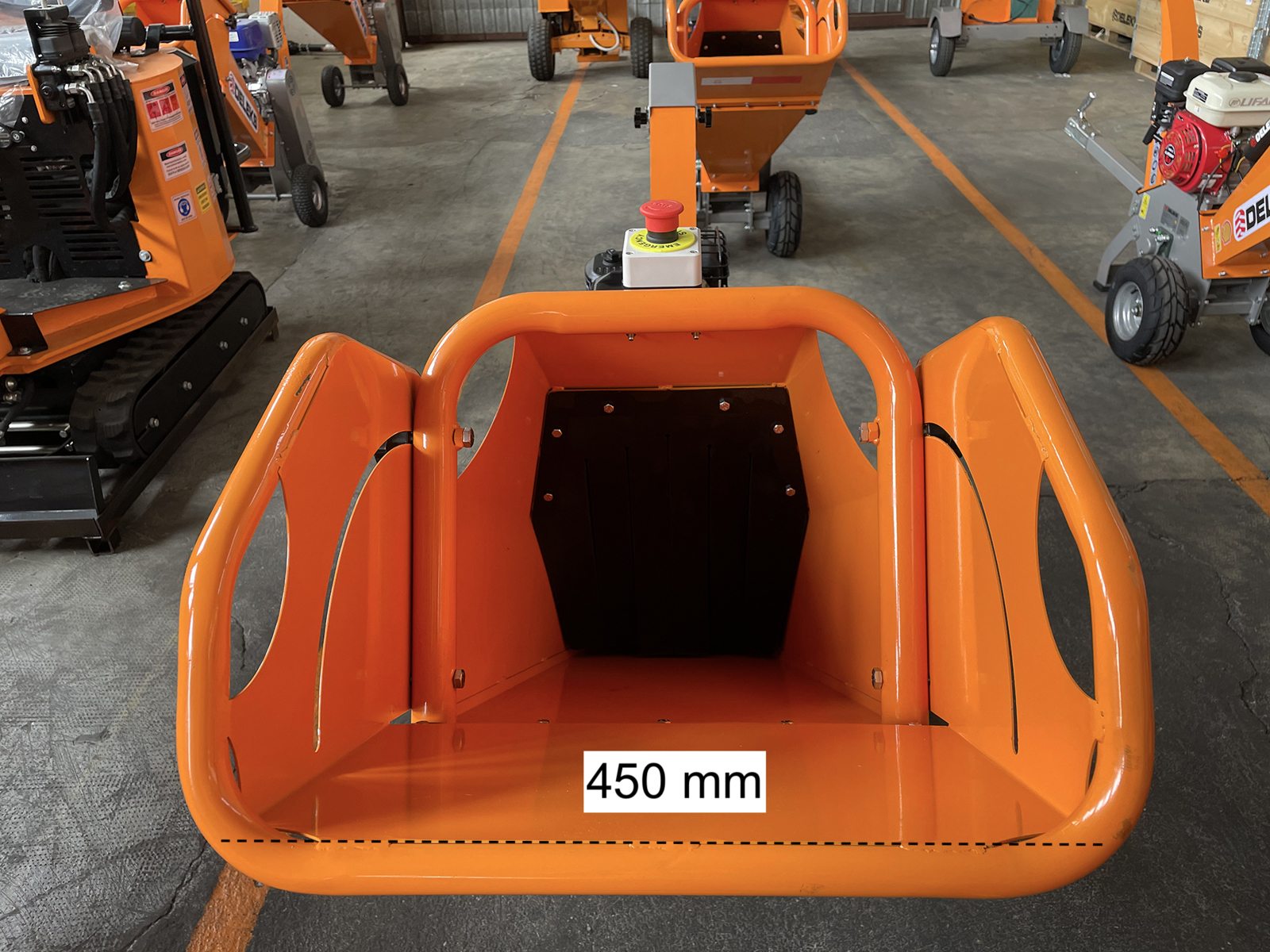

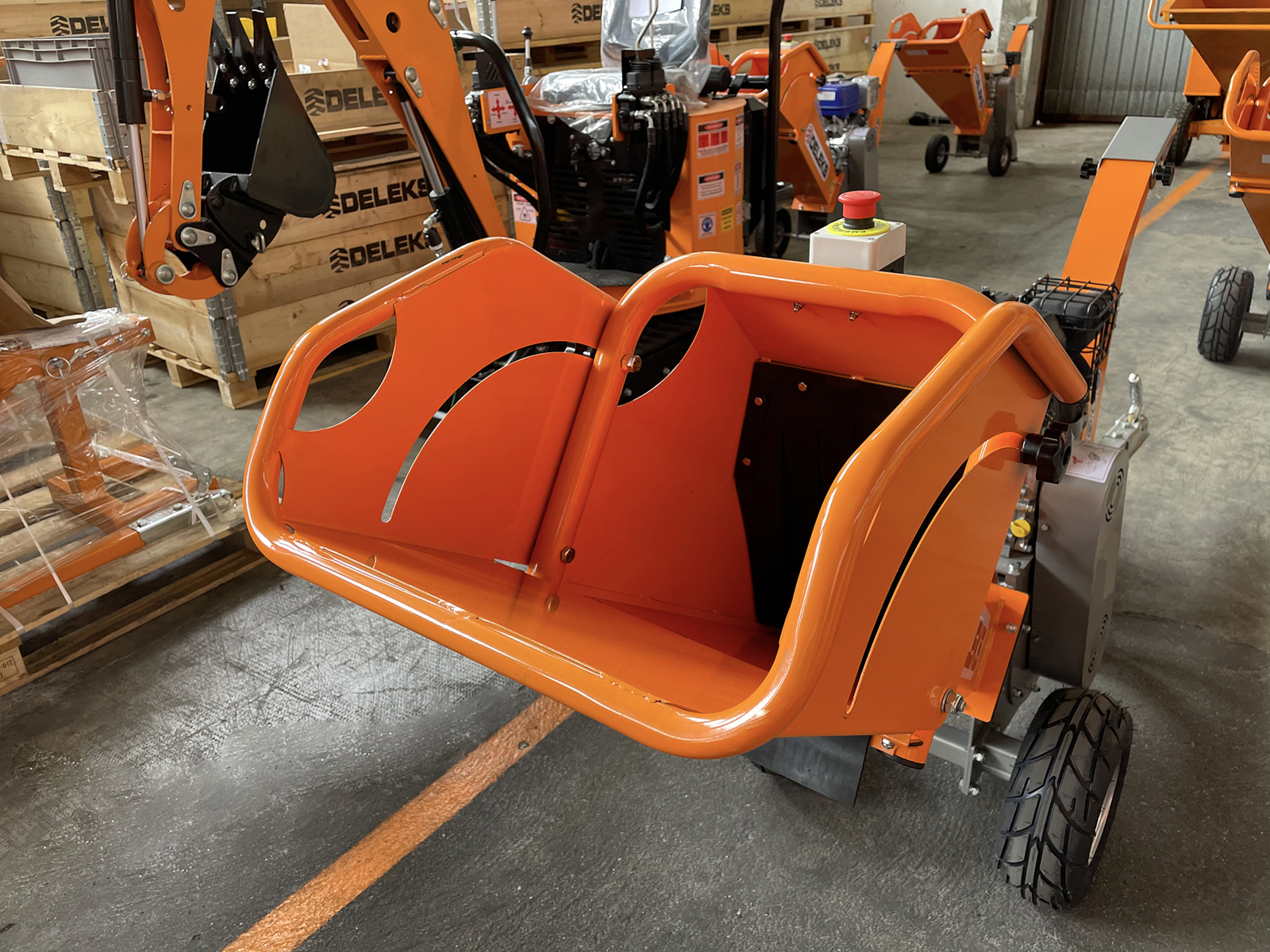

Cutting inlet sizes	150.0*120.0 mm	5.90*4.70 in
Towing bar	√	√
Outlet hight	1050.0 mm	5.08 ft
Fuel consumption	0.8 l/h	0.8 l/h
Packing sizes	880.0580.0870.0 mm	2.881.902.85 ft
