Excavator Mulcher Head - 100cm - hydraulic shredder

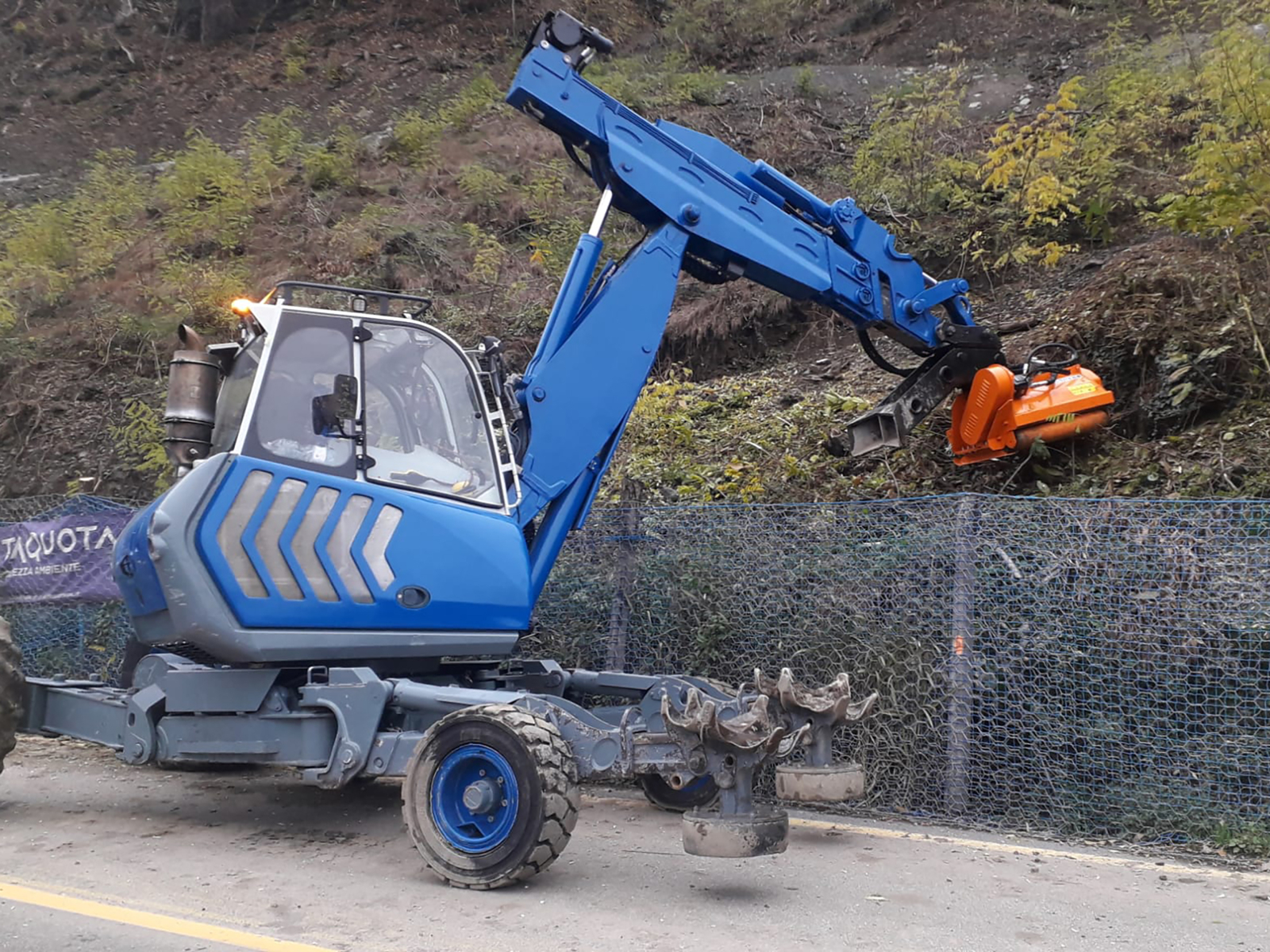

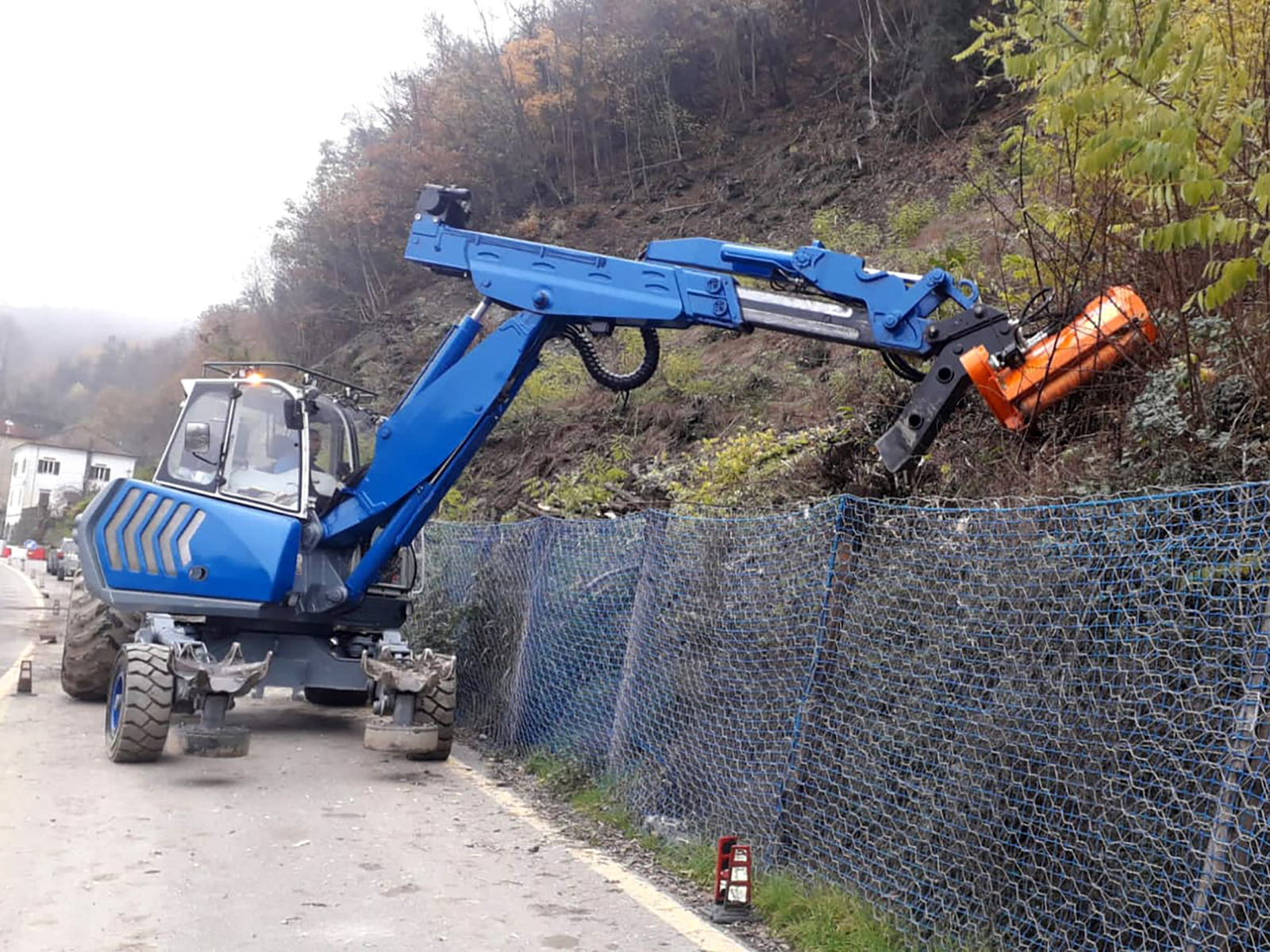

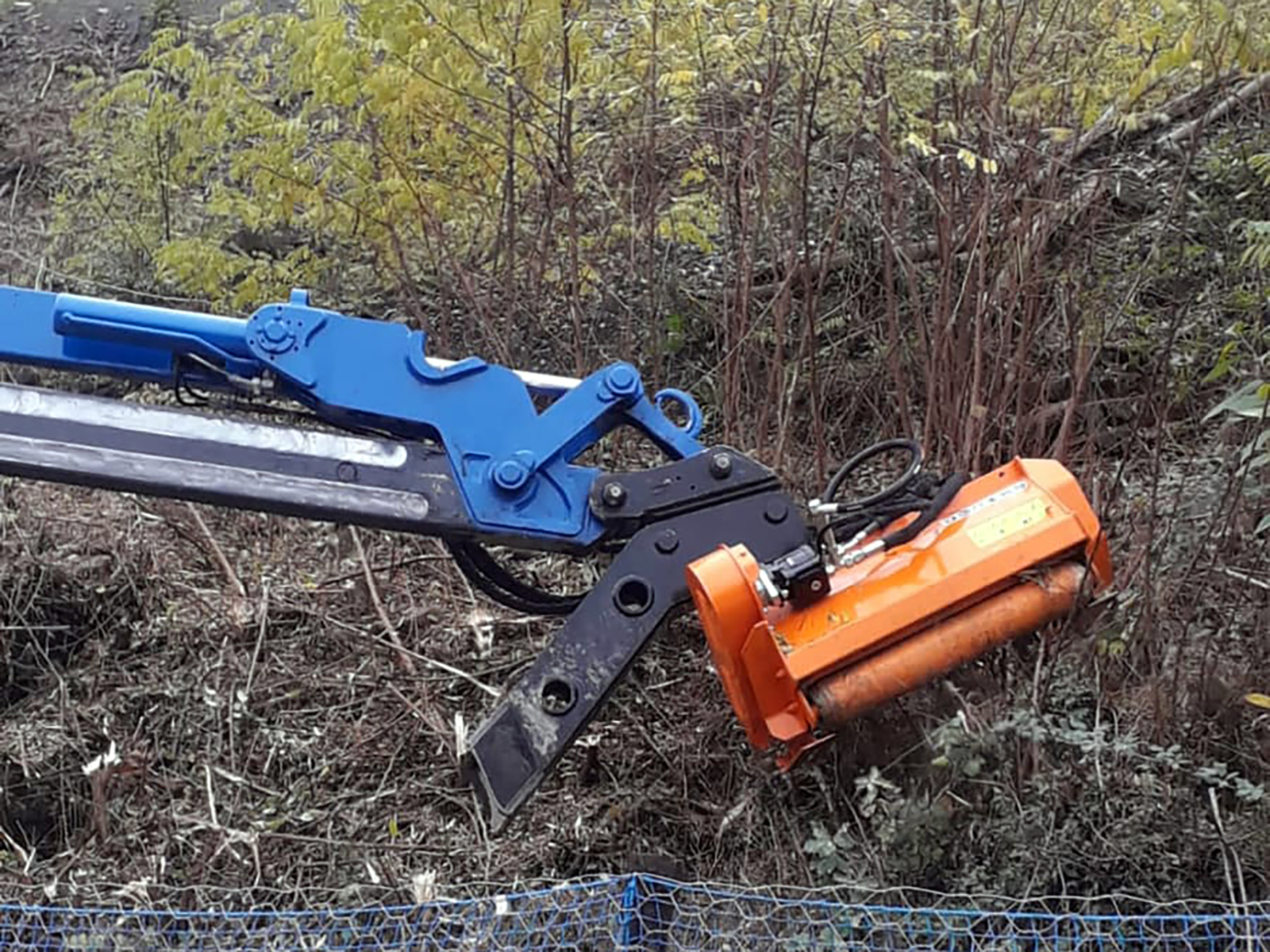

Field test
Field test
DETAILS

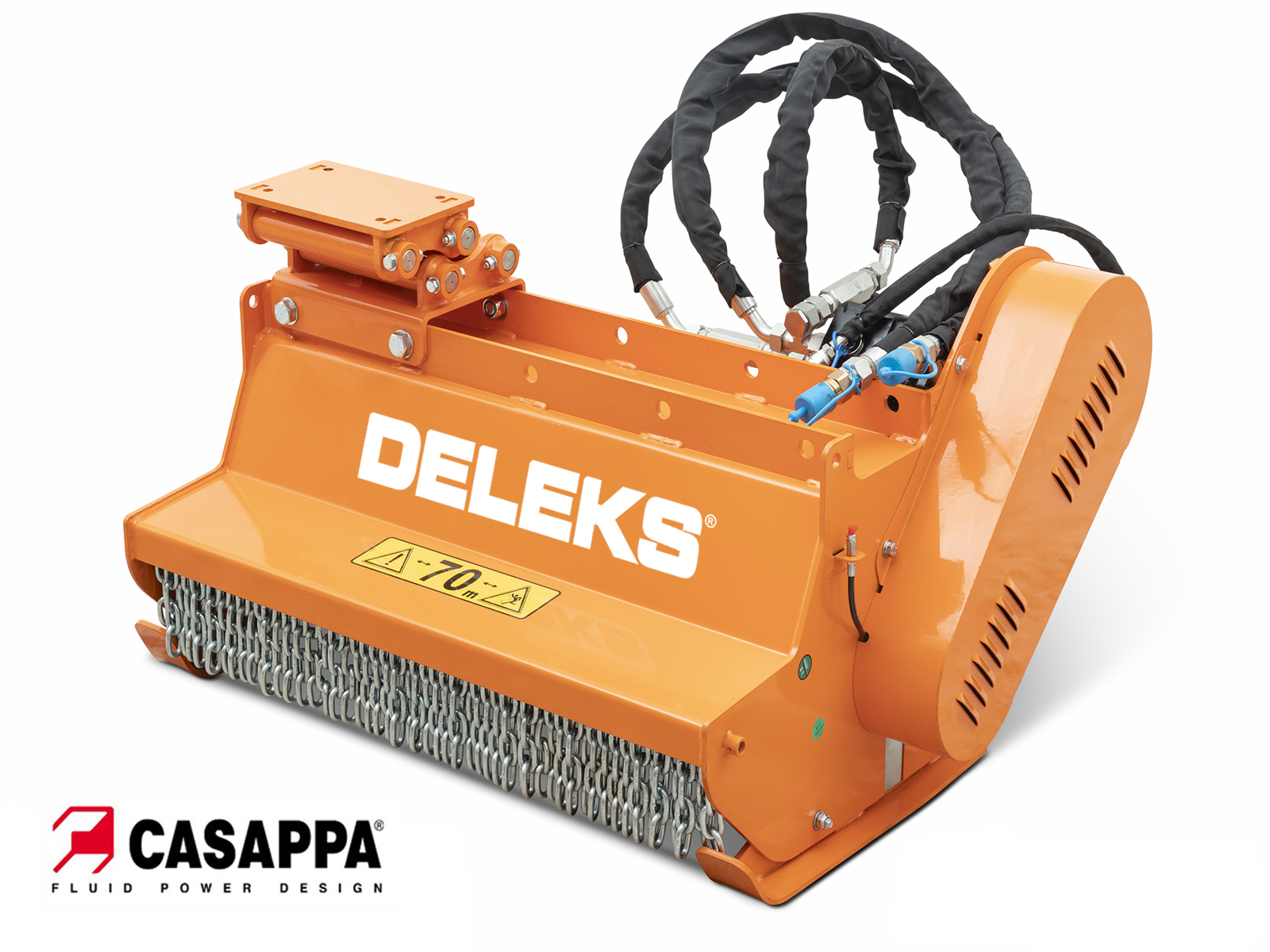

Digger Flail Shredder Head - DELEKS® - hydraulic brush cutter for excavator - 100cm / 290kg - Hydraulic motor Made in Italy, 2 years warranty.
OVERVIEW
Shredder for mini excavators of 3.0 - 7.0 tons.
Hydraulic mulcher, brush-cutter for brambles, bushes, ditches, banks, embankments, branches. Suitable for cutting grass, trees and shrubs up to 5cm.
Suitable for Excavator brands as Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, etc.

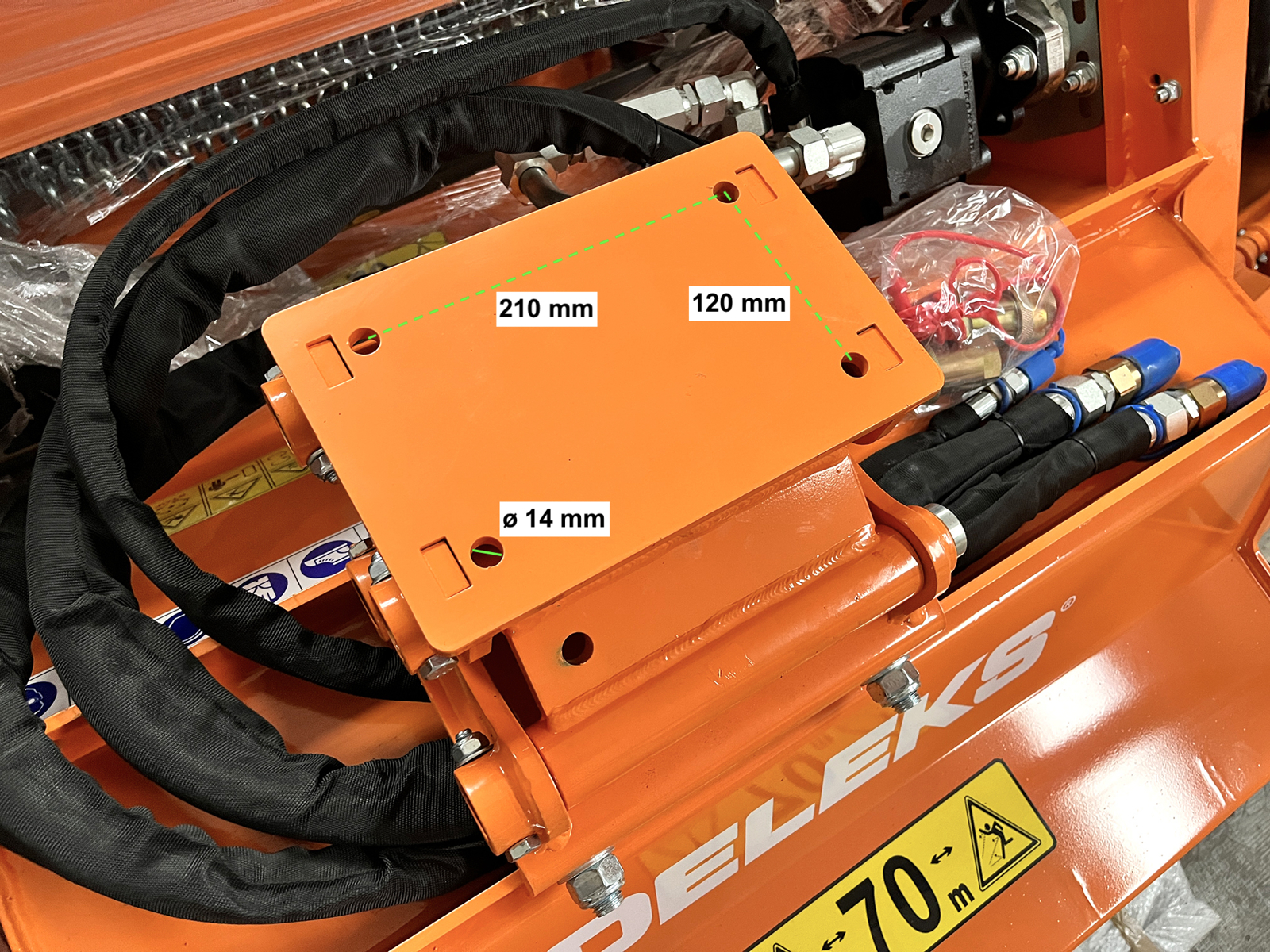

Saddle for pin attachment (see pictures).

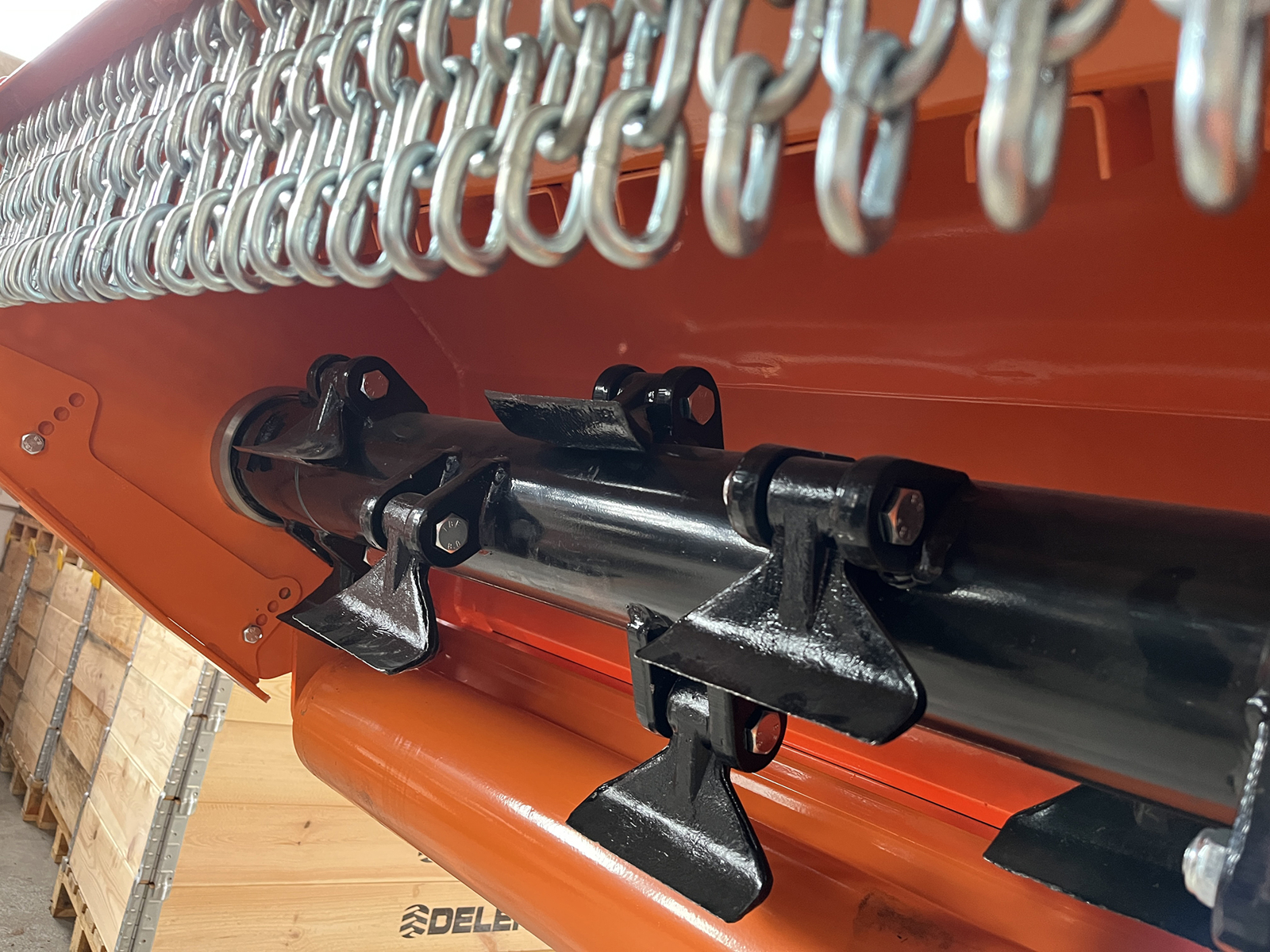

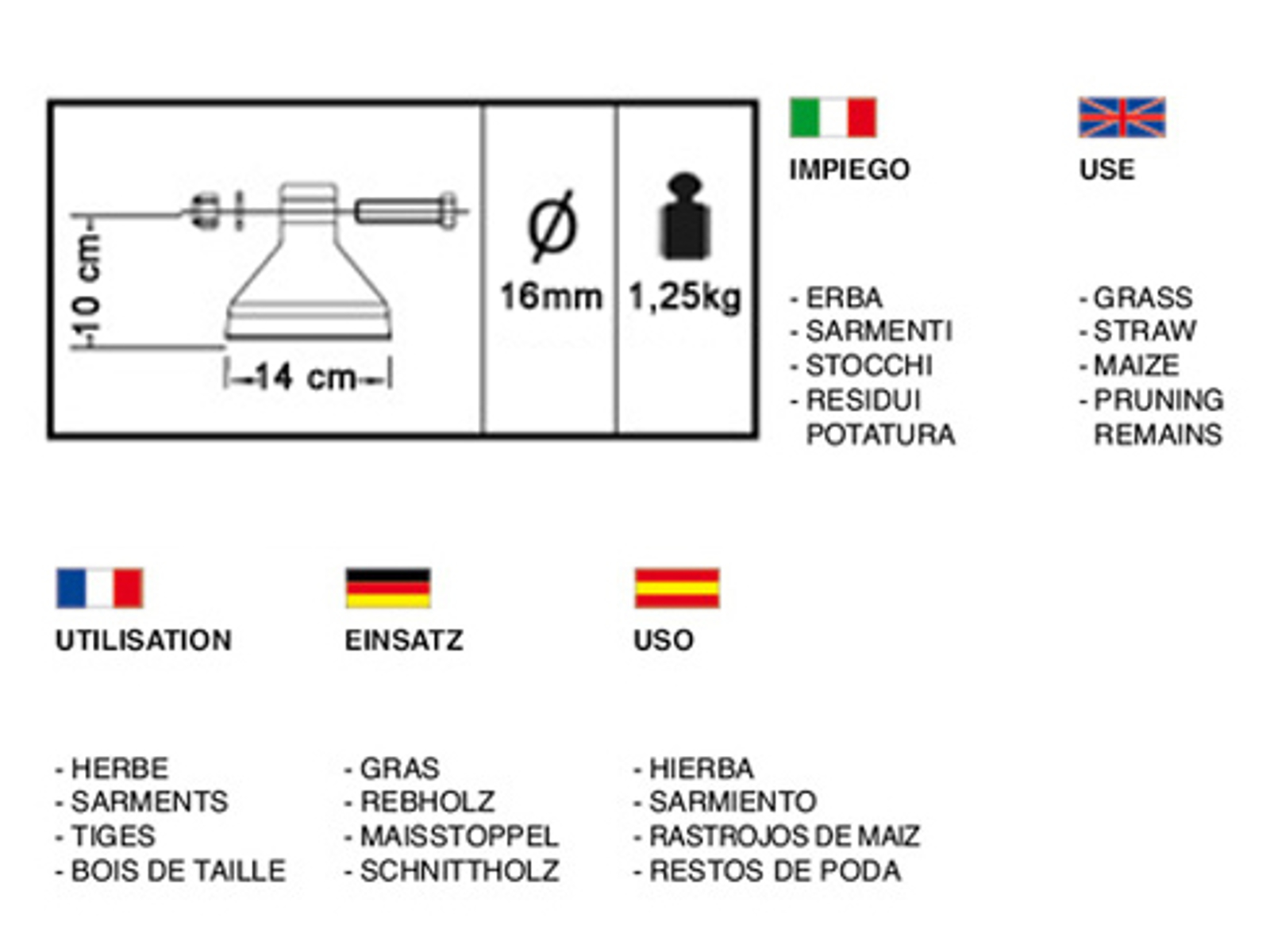

8 hammers

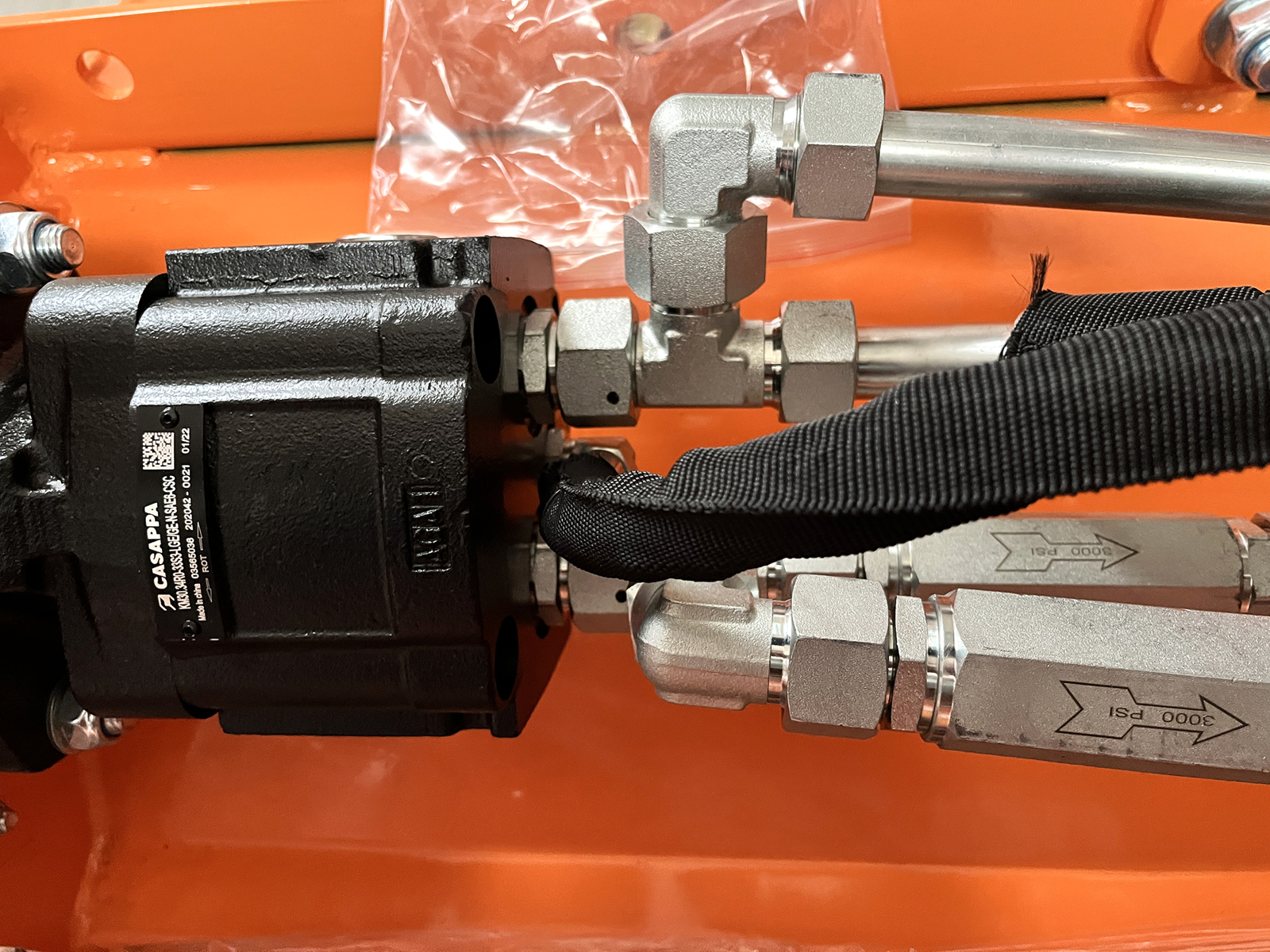

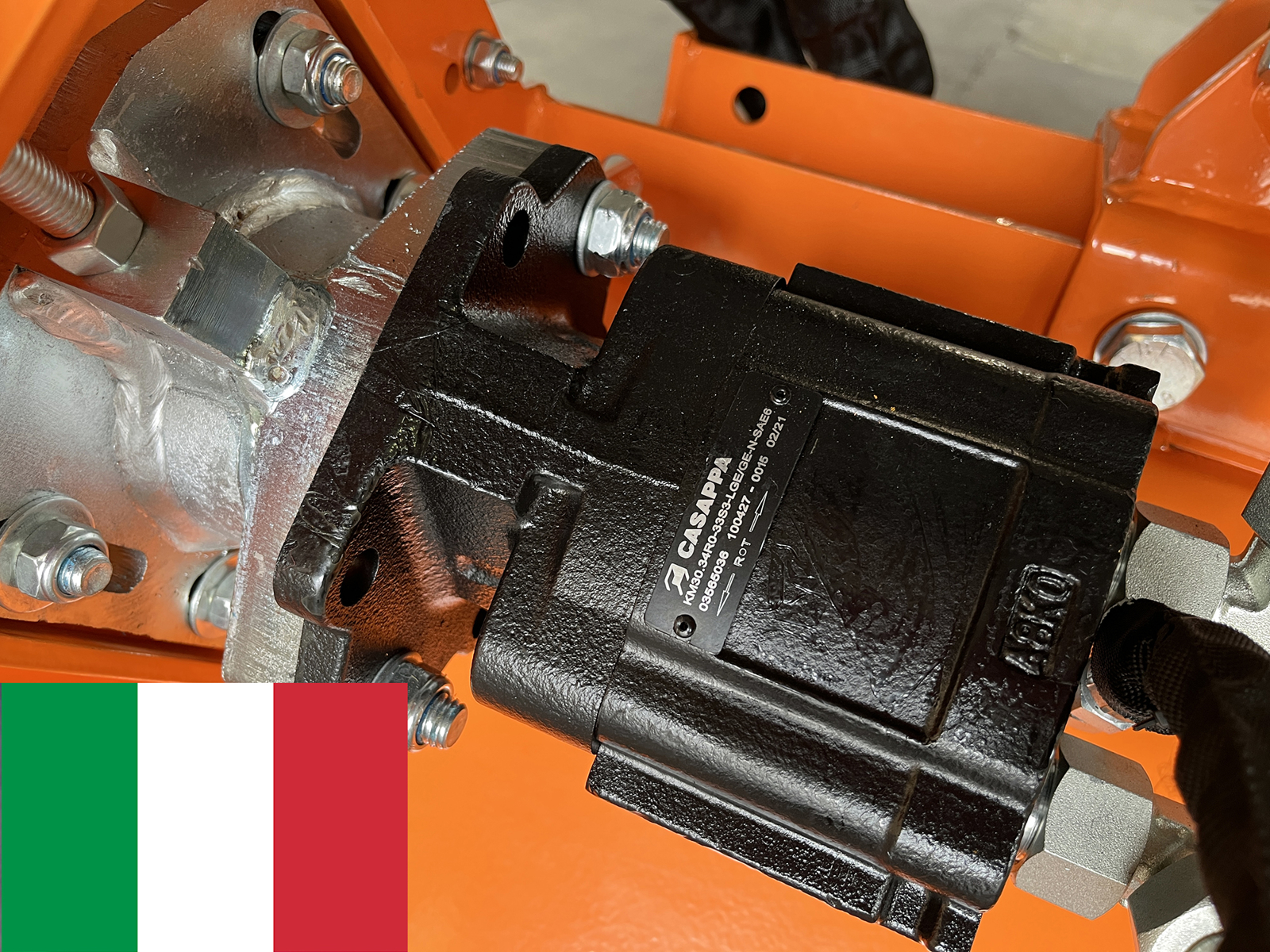

Hidraulic motor: Casappa (Made in Italy)
Roller and skids adjustable in height
Valve.

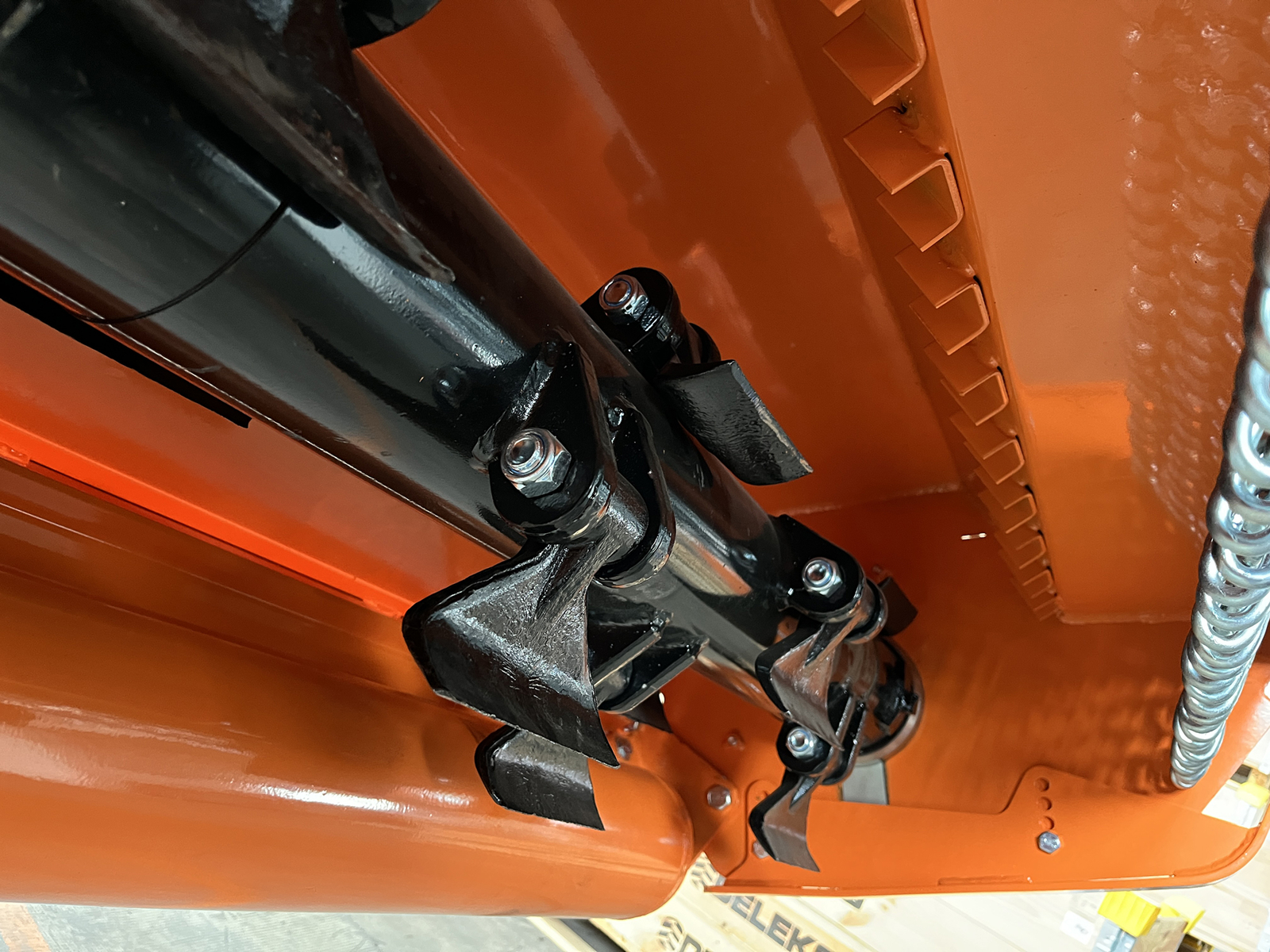

Monodirectional rotor
Requirements of the operating machine:
a) It is preferable to have a double pump:
1 for the cart
1 for services (pump at least 65/100 l/min)
b) The pump needs a third drainage pipe that goes directly into the tank.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1000.0 mm | 3.22 ft |
| Overall width | 1180.0 mm | 3.87 ft |
| Min / Max cutting height | 20.0 - 80.0 mm | 0.8 - 3.15 in |
| Weight | 290.0 kg | 640.0 lb |
| Hood height | 440.0 mm | 17.30 in |
| Number of Hammers | 8 | 8 |
| Maximum cutting diameter | 5.0 cm | 2.0 in |
| Main hood thickness | 4.0 mm | 0.16 in |
| Rotor: diameter | 127.0 mm | 5.00 in |
| Rotor: bearings type and size | 6308 | 6308 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 8.0 mm | 0.32 in |
| Rear roller: diameter | 152.0 mm | 6.00 in |
| Rear roller: sheet thickness | 6.0 mm | 0.24 in |
| Rear roller: bearings type and size | 1308 | 1308 |
| Min./Max. Relief Pressure | 70 - 140 bar | 70 - 140 bar |
| Min./Max. Flow | 65 - 100 l/min | 65 - 100 l/min |
| Hood length | 800.0 mm | 2.62 ft |
| Packing sizes | 1200.0*930.0*800.0 mm | 3.94*3.05*2.62 ft |
DETAILS
CLOSEDigger Flail Shredder Head - DELEKS® - hydraulic brush cutter for excavator - 100cm / 290kg - Hydraulic motor Made in Italy, 2 years warranty.
OVERVIEW
Shredder for mini excavators of 3.0 - 7.0 tons.
Hydraulic mulcher, brush-cutter for brambles, bushes, ditches, banks, embankments, branches. Suitable for cutting grass, trees and shrubs up to 5cm.
Suitable for Excavator brands as Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, etc.
Saddle for pin attachment (see pictures).
8 hammers
Hidraulic motor: Casappa (Made in Italy)
Roller and skids adjustable in height
Valve.
Monodirectional rotor
Requirements of the operating machine:
a) It is preferable to have a double pump:
1 for the cart
1 for services (pump at least 65/100 l/min)
b) The pump needs a third drainage pipe that goes directly into the tank.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).
CHARACTERISTICS
CLOSE| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1000.0 mm | 3.22 ft |
| Overall width | 1180.0 mm | 3.87 ft |
| Min / Max cutting height | 20.0 - 80.0 mm | 0.8 - 3.15 in |
| Weight | 290.0 kg | 640.0 lb |
| Hood height | 440.0 mm | 17.30 in |
| Number of Hammers | 8 | 8 |
| Maximum cutting diameter | 5.0 cm | 2.0 in |
| Main hood thickness | 4.0 mm | 0.16 in |
| Rotor: diameter | 127.0 mm | 5.00 in |
| Rotor: bearings type and size | 6308 | 6308 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 8.0 mm | 0.32 in |
| Rear roller: diameter | 152.0 mm | 6.00 in |
| Rear roller: sheet thickness | 6.0 mm | 0.24 in |
| Rear roller: bearings type and size | 1308 | 1308 |
| Min./Max. Relief Pressure | 70 - 140 bar | 70 - 140 bar |
| Min./Max. Flow | 65 - 100 l/min | 65 - 100 l/min |
| Hood length | 800.0 mm | 2.62 ft |
| Packing sizes | 1200.0*930.0*800.0 mm | 3.94*3.05*2.62 ft |
Technical charts
CLOSE| CASAPPA - Hydraulic motor specifications (pdf) | Download PDF |
