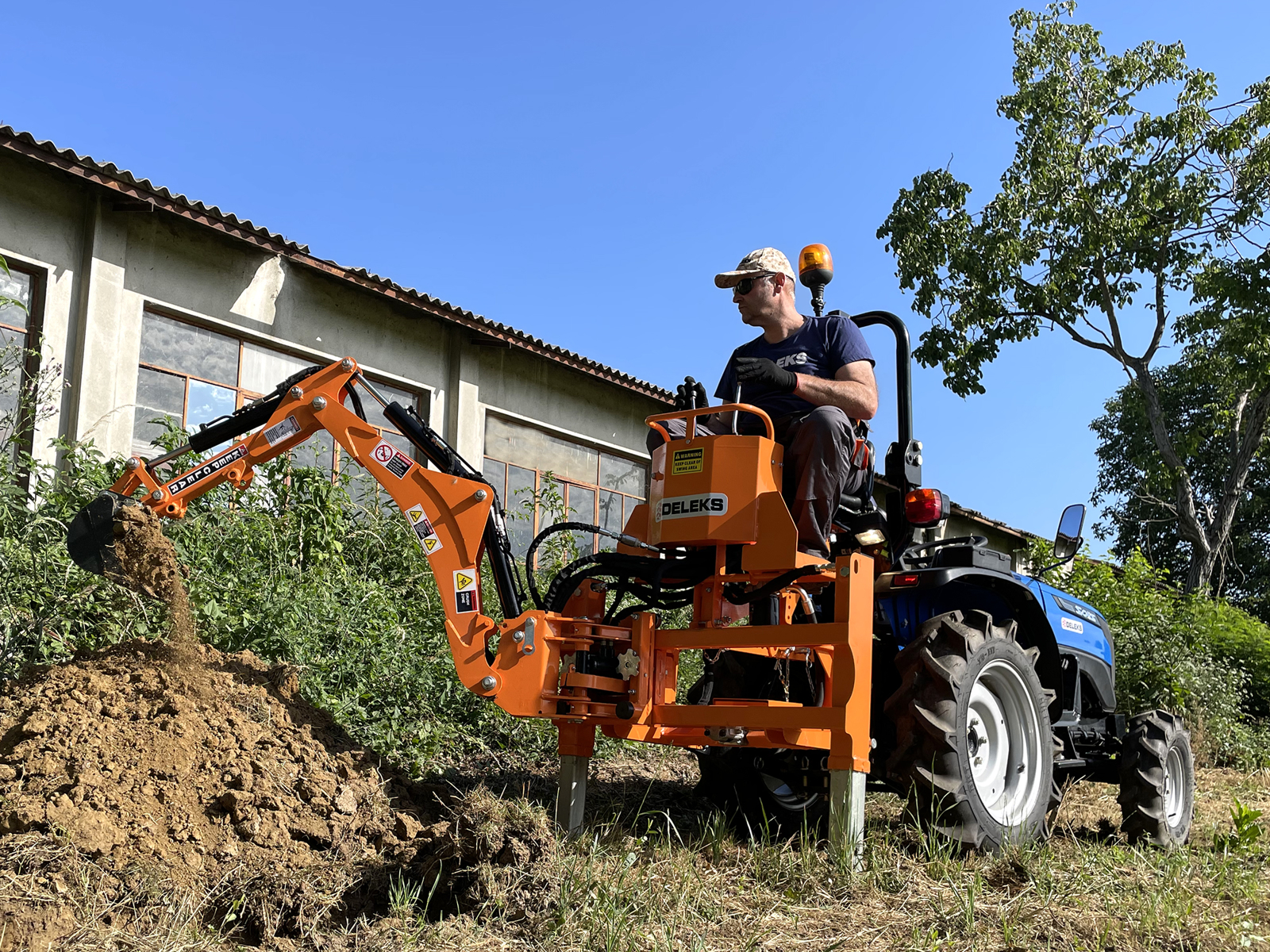

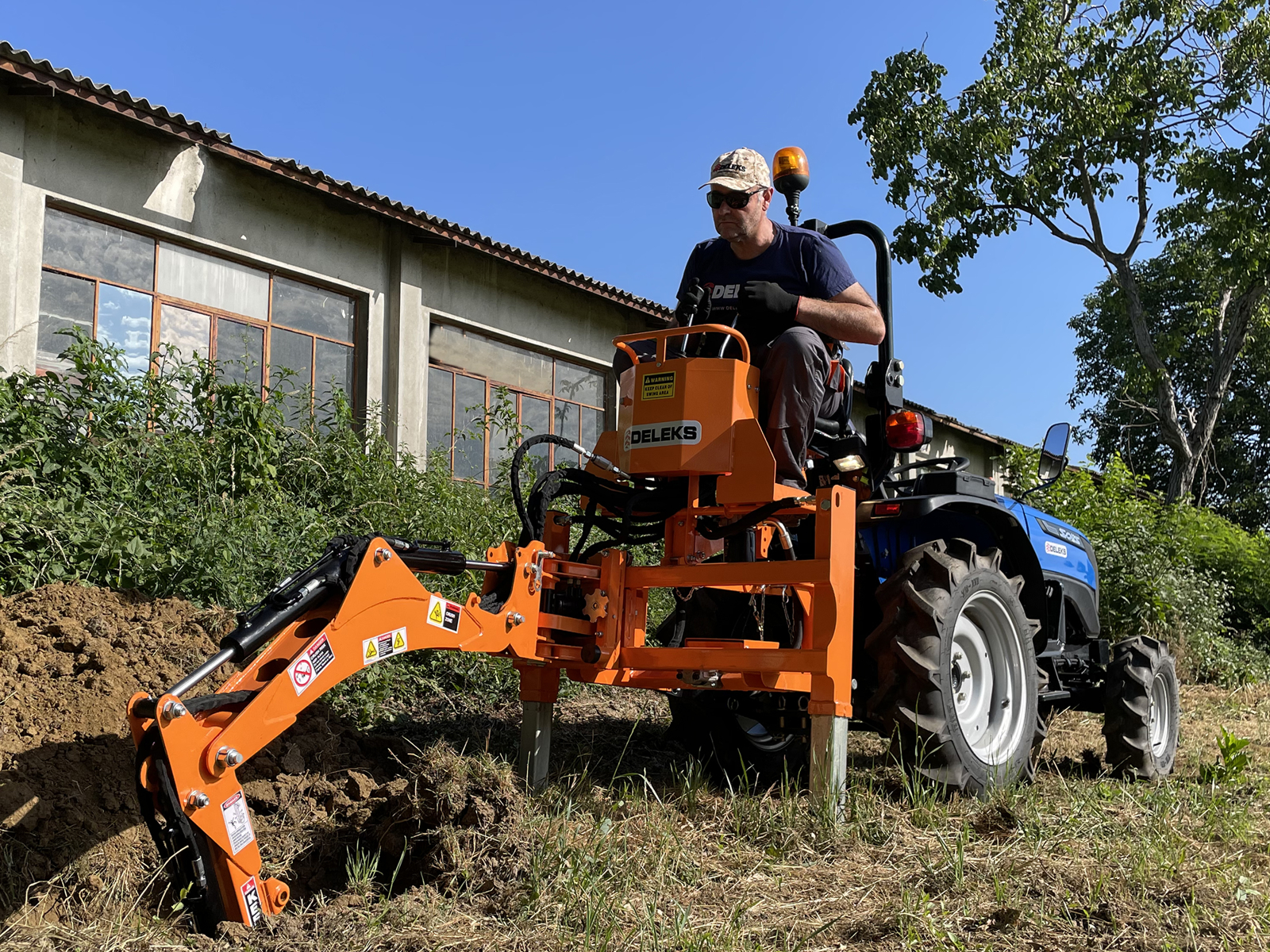

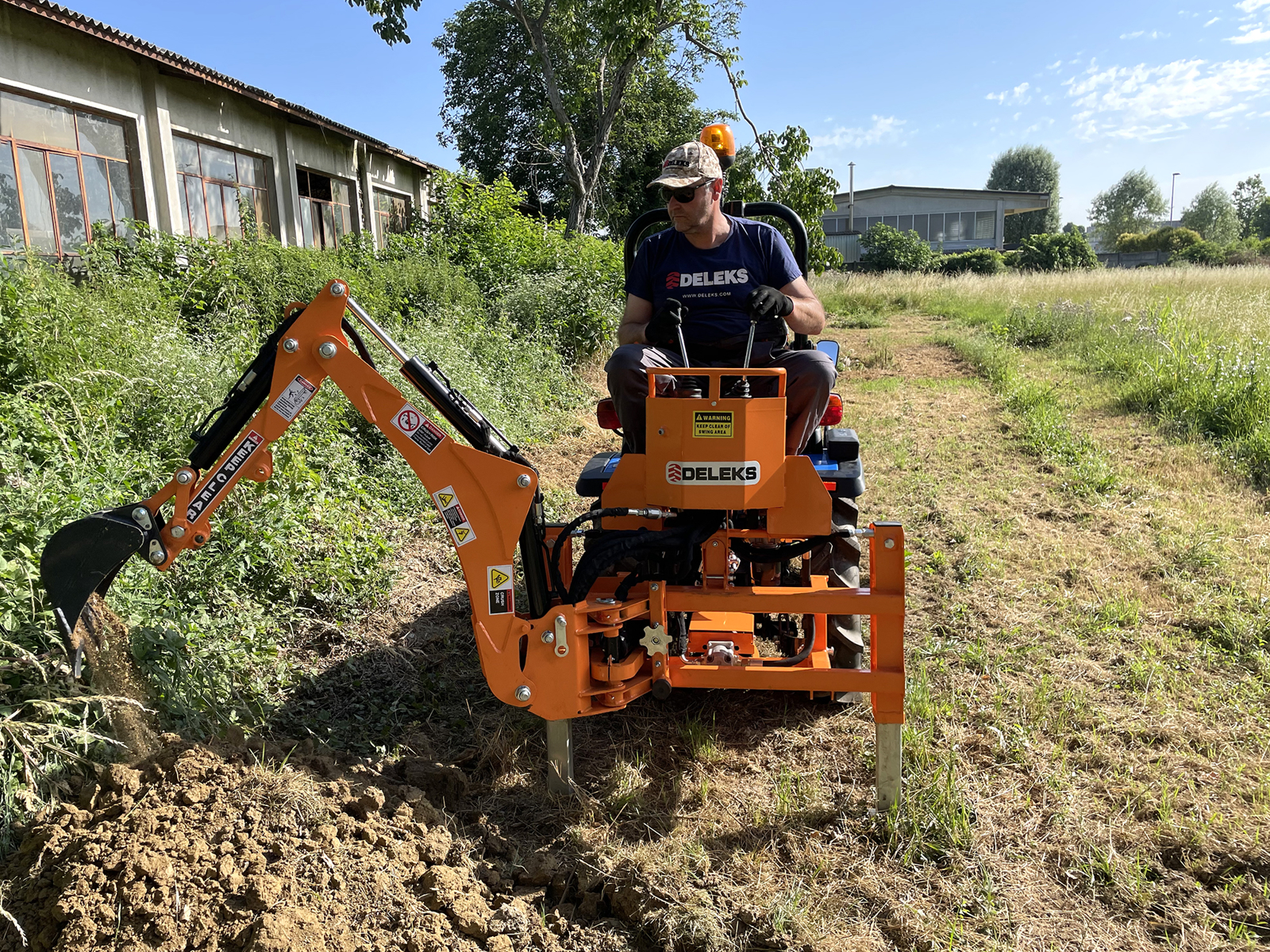

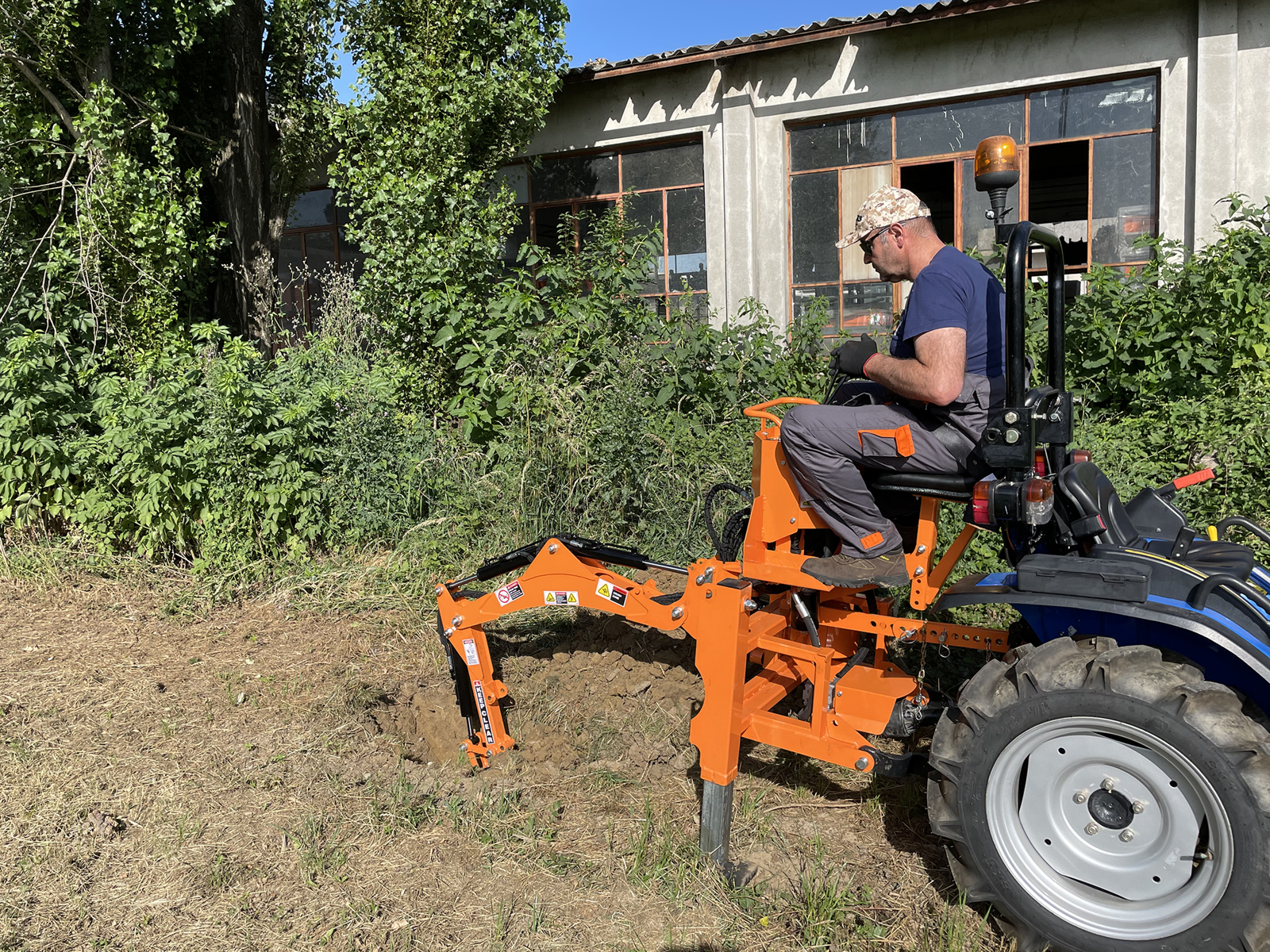

Field test
DETAILS

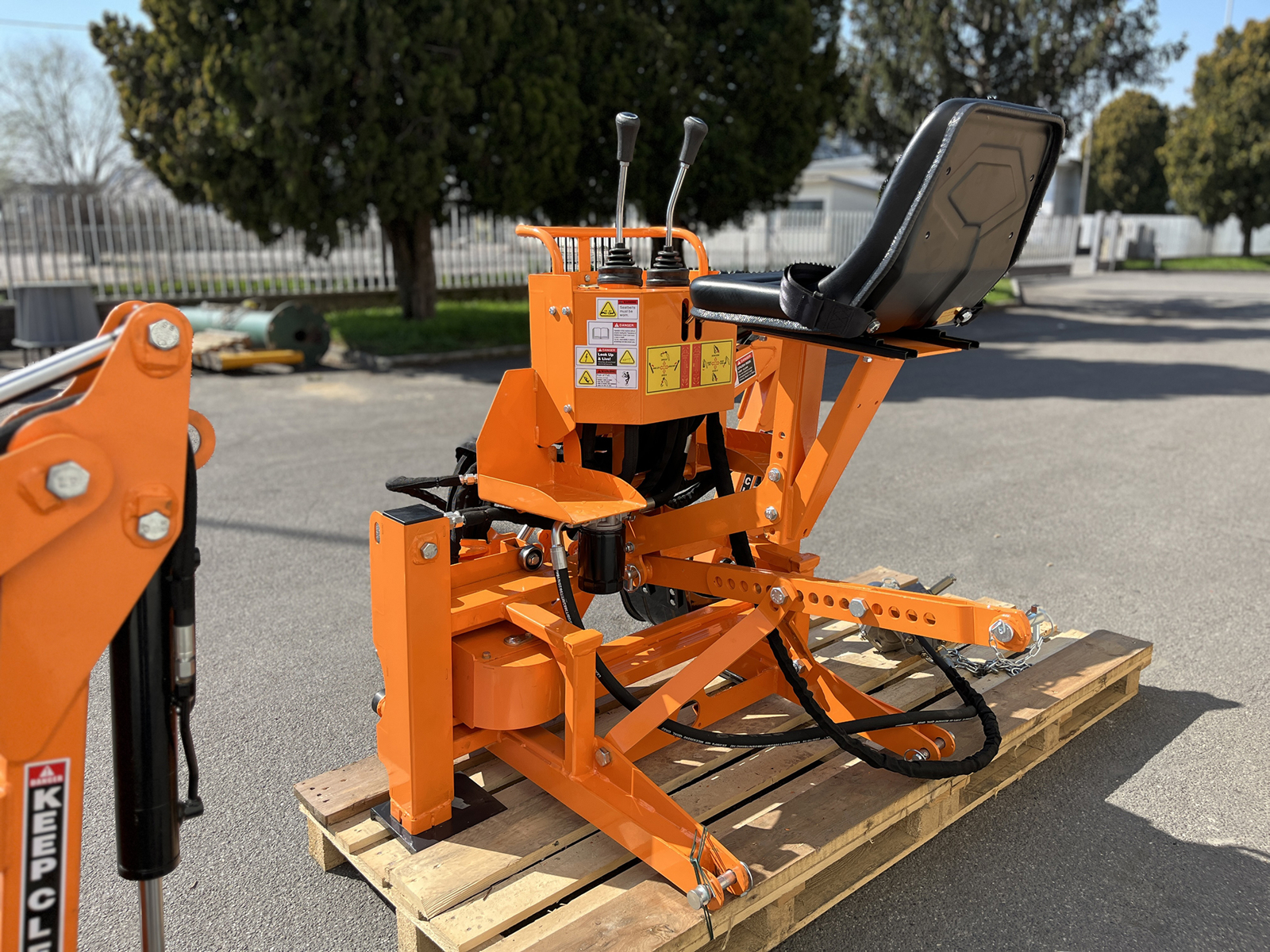

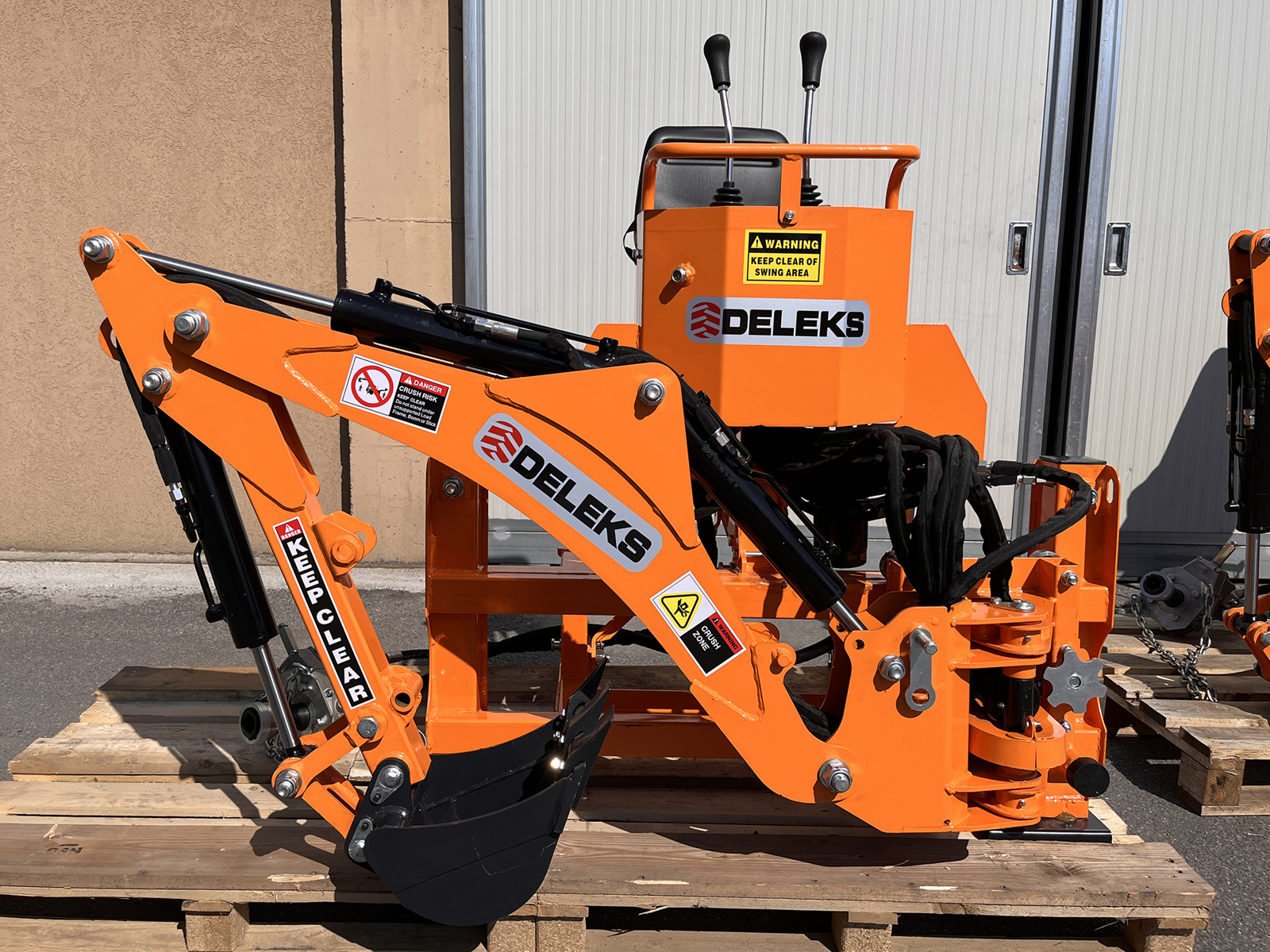

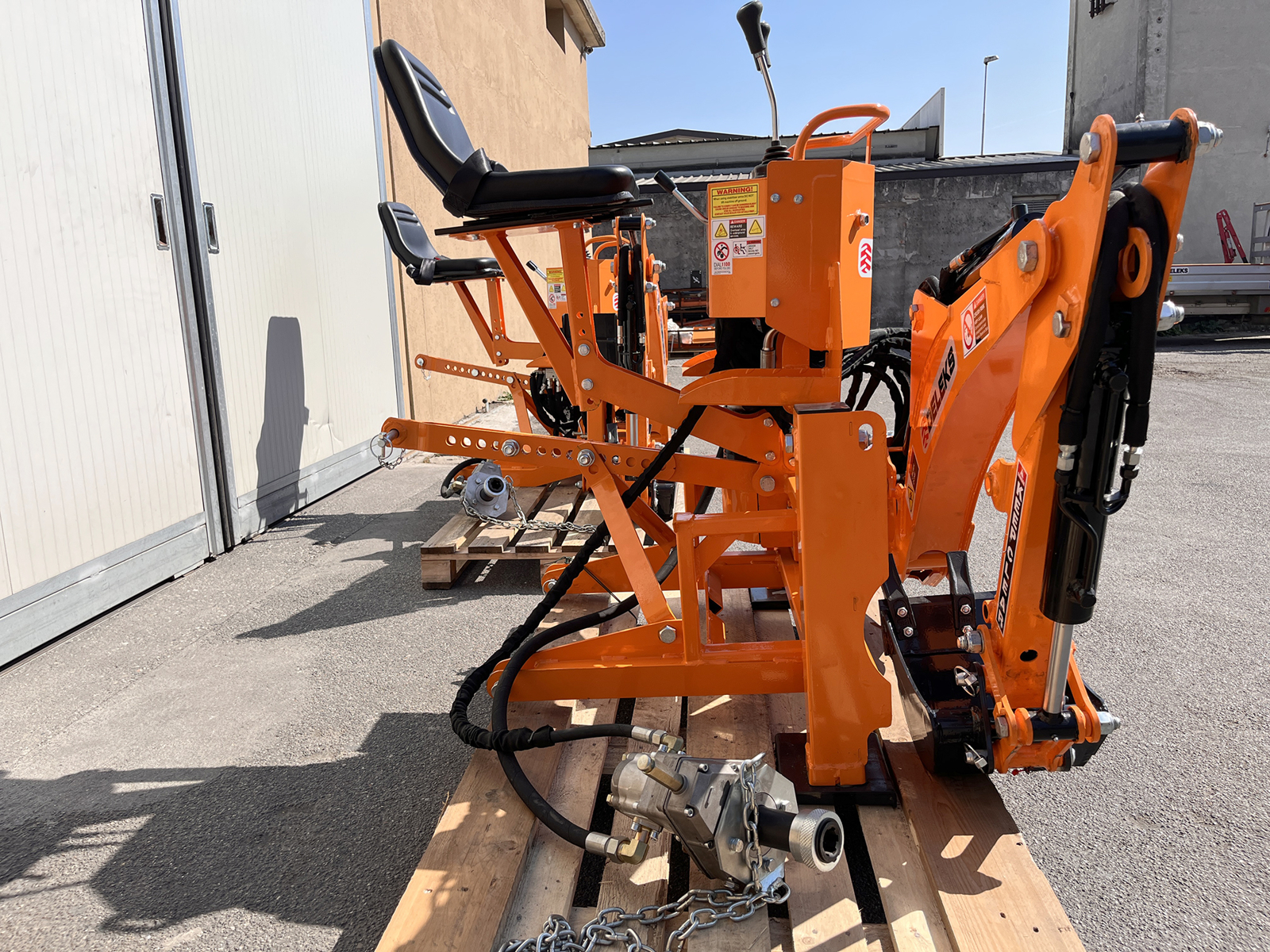

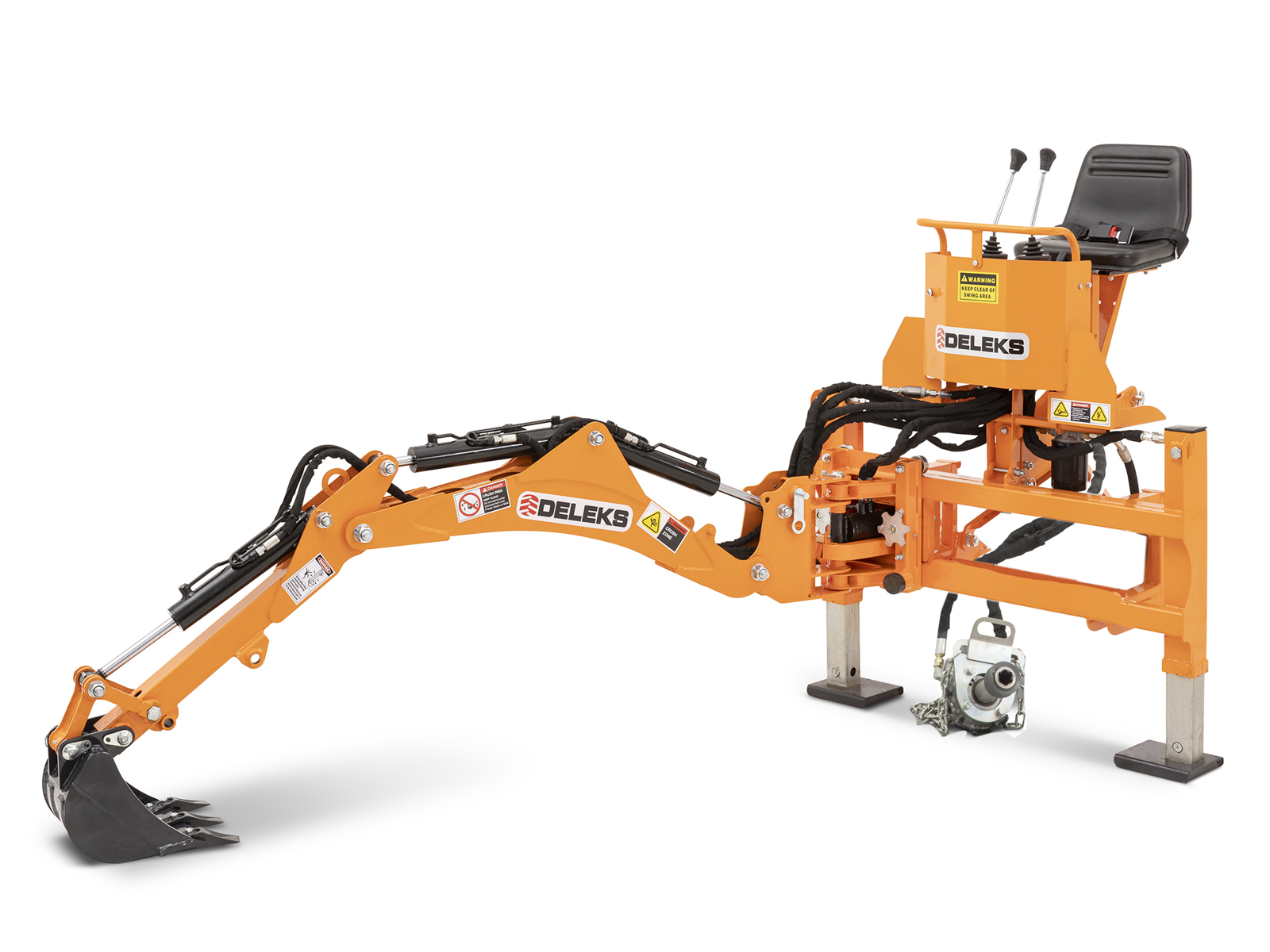

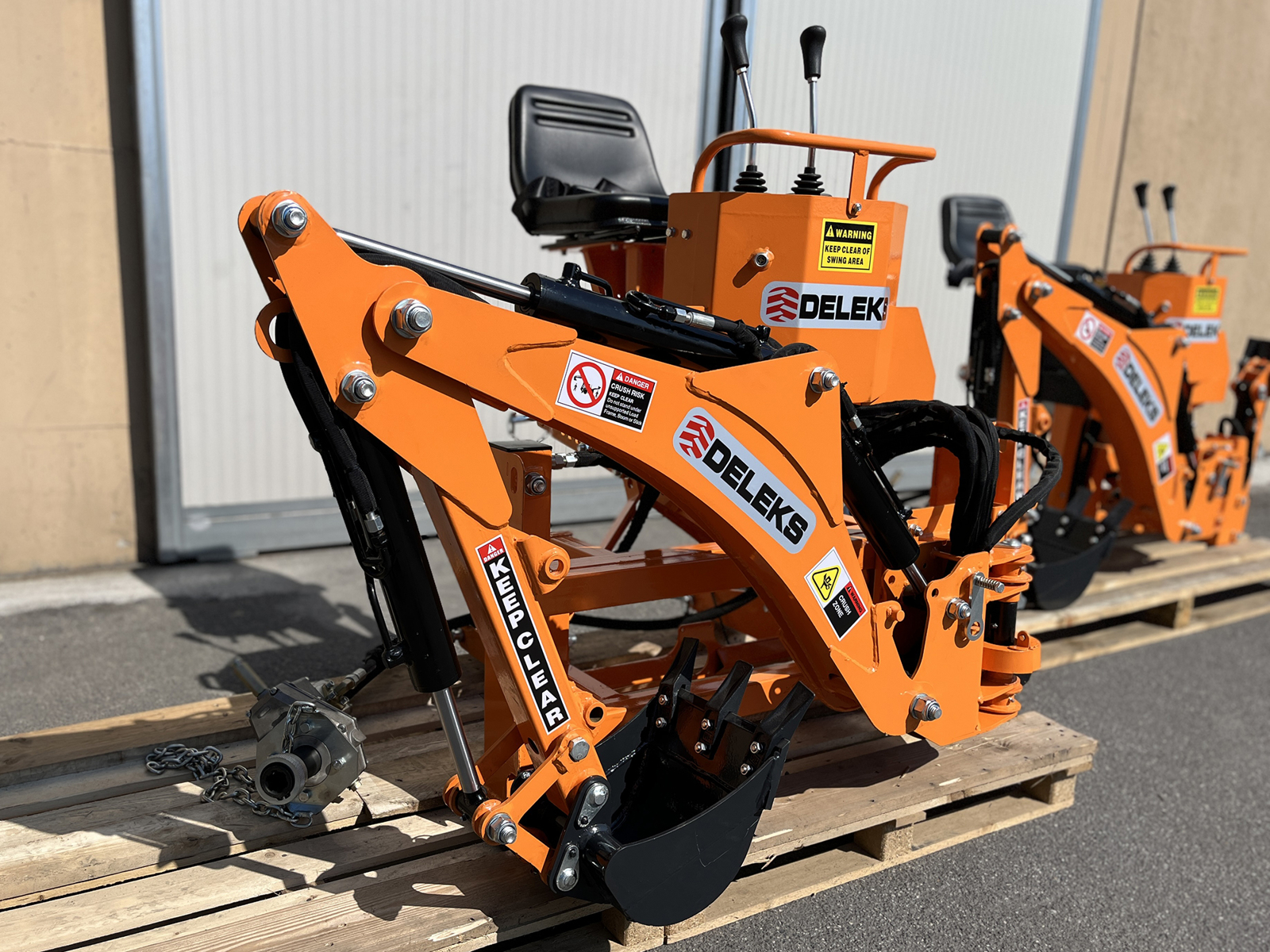

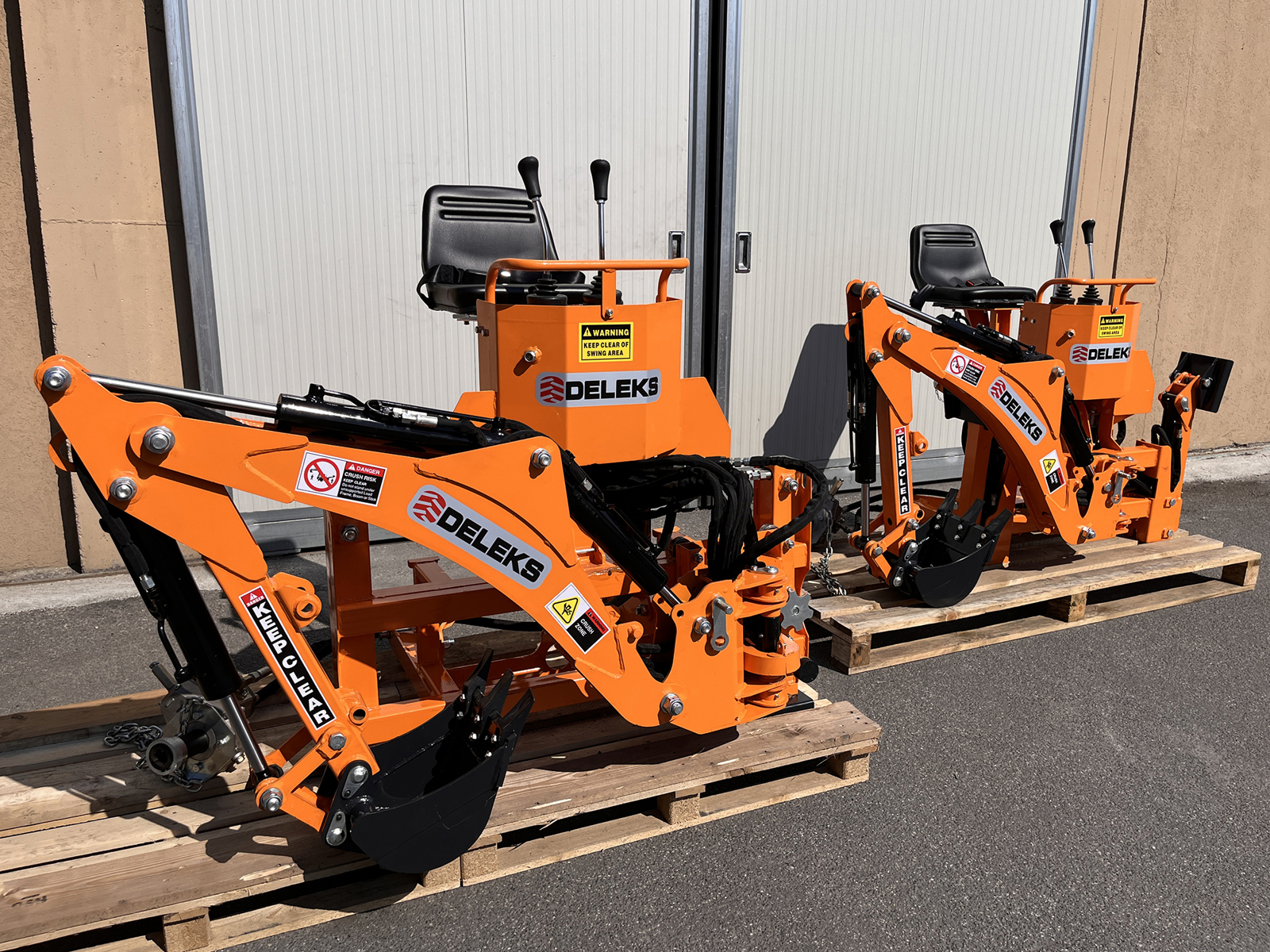

Mini backhoe for universal compact tractors - DELEKS® DRS-1000T - 358 kg - Side shift frame with manual locking - Oil system.
OVERVIEW
Dig ditches, dig soil, trench plumbing lines, haul piles of dirt or rocks.
Suitable for mounting on all types of tractors 18-45 hp with 3-point attachment cat. 1.
Arm digging force: 1100 kgf
Bucket digging force: 150kgf
BENEFITS AND FEATURES

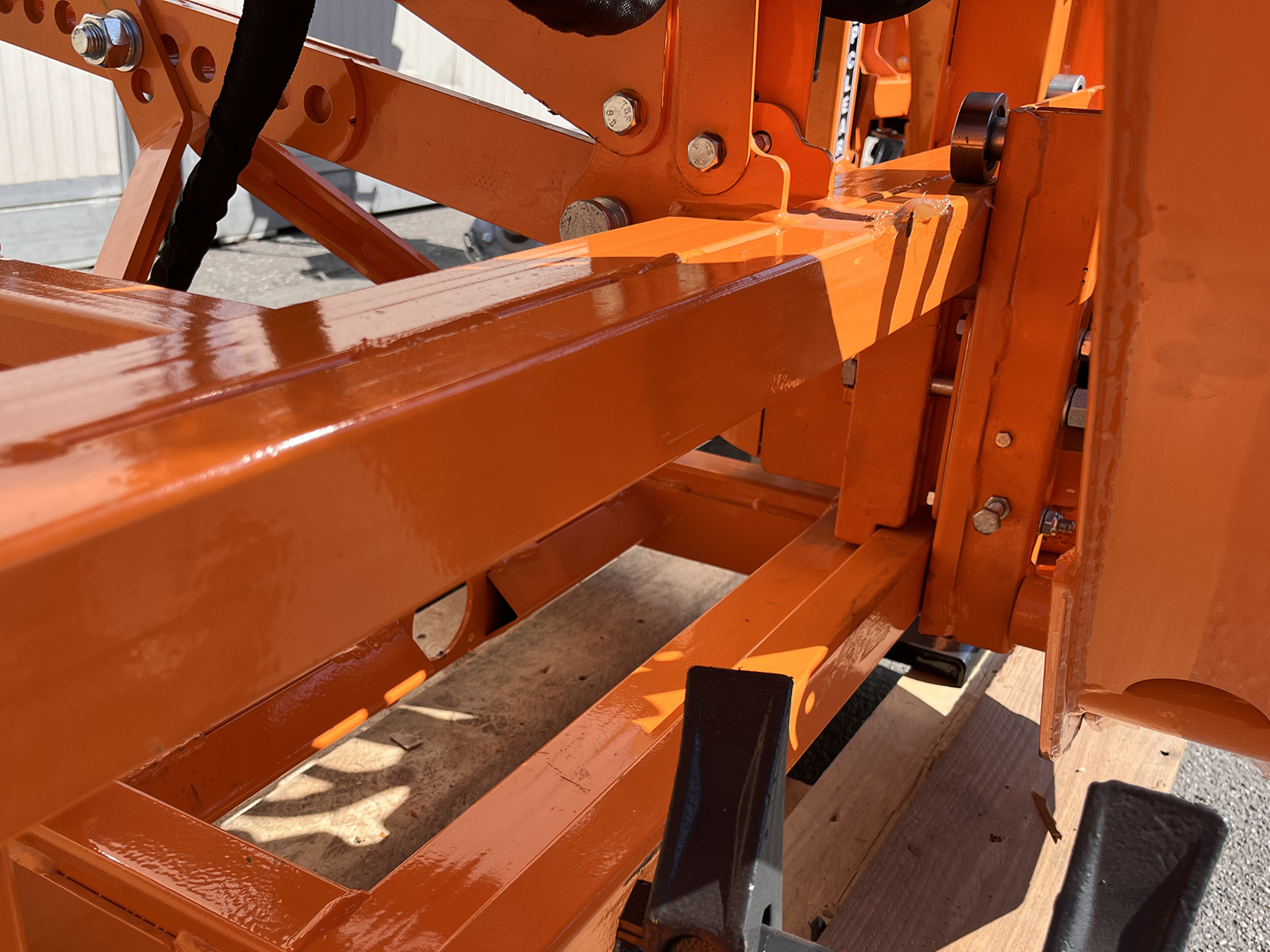

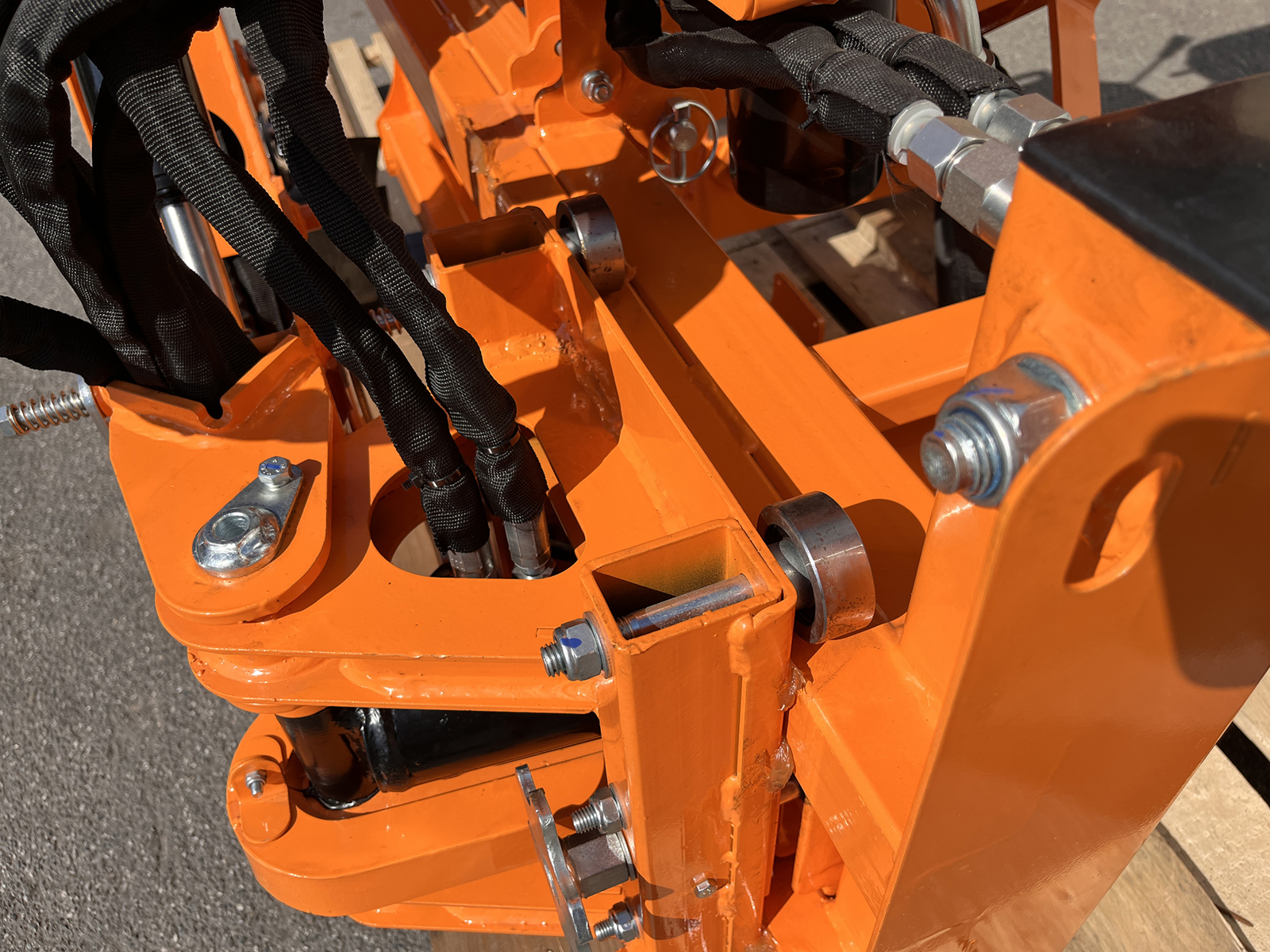

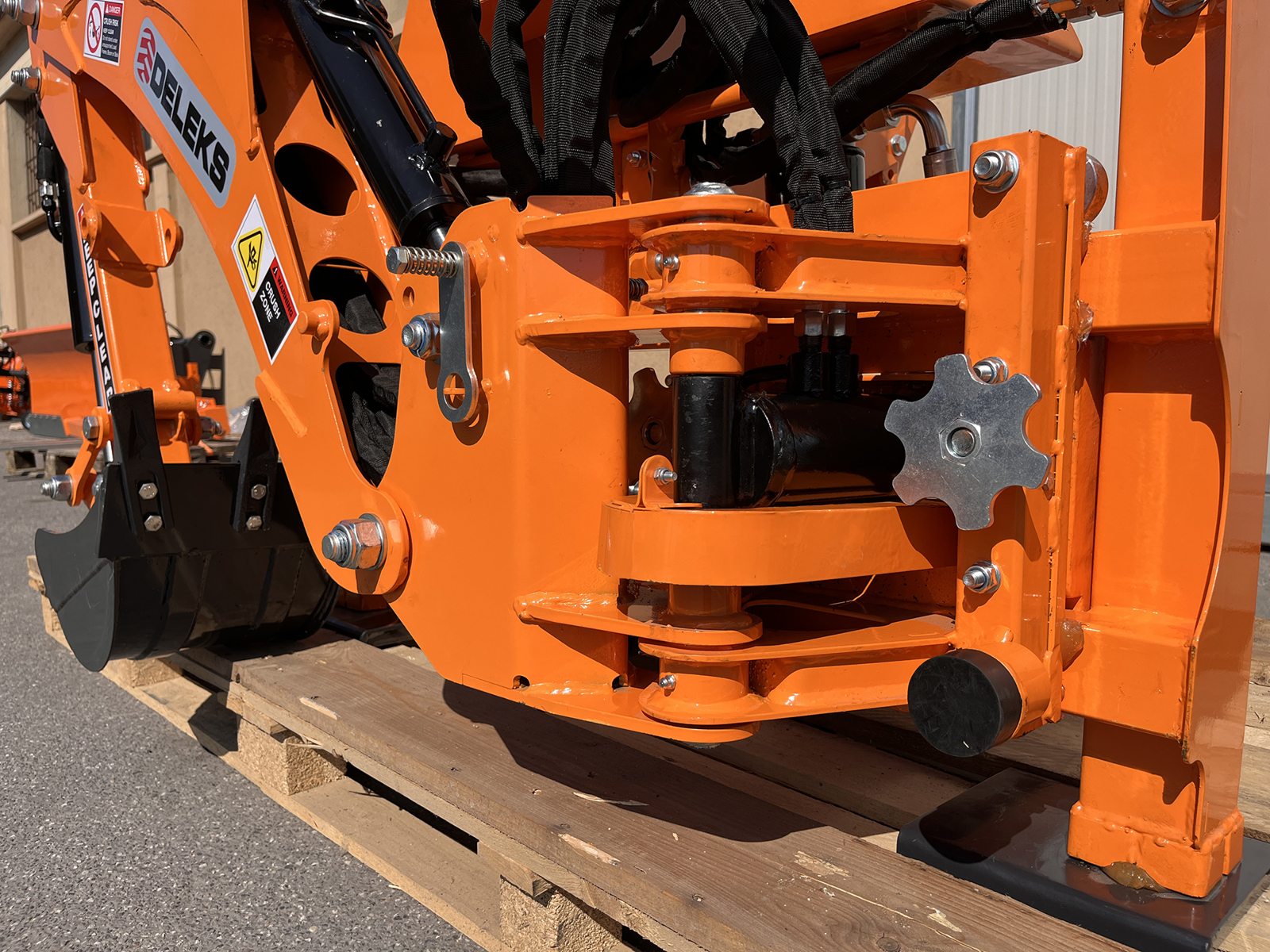

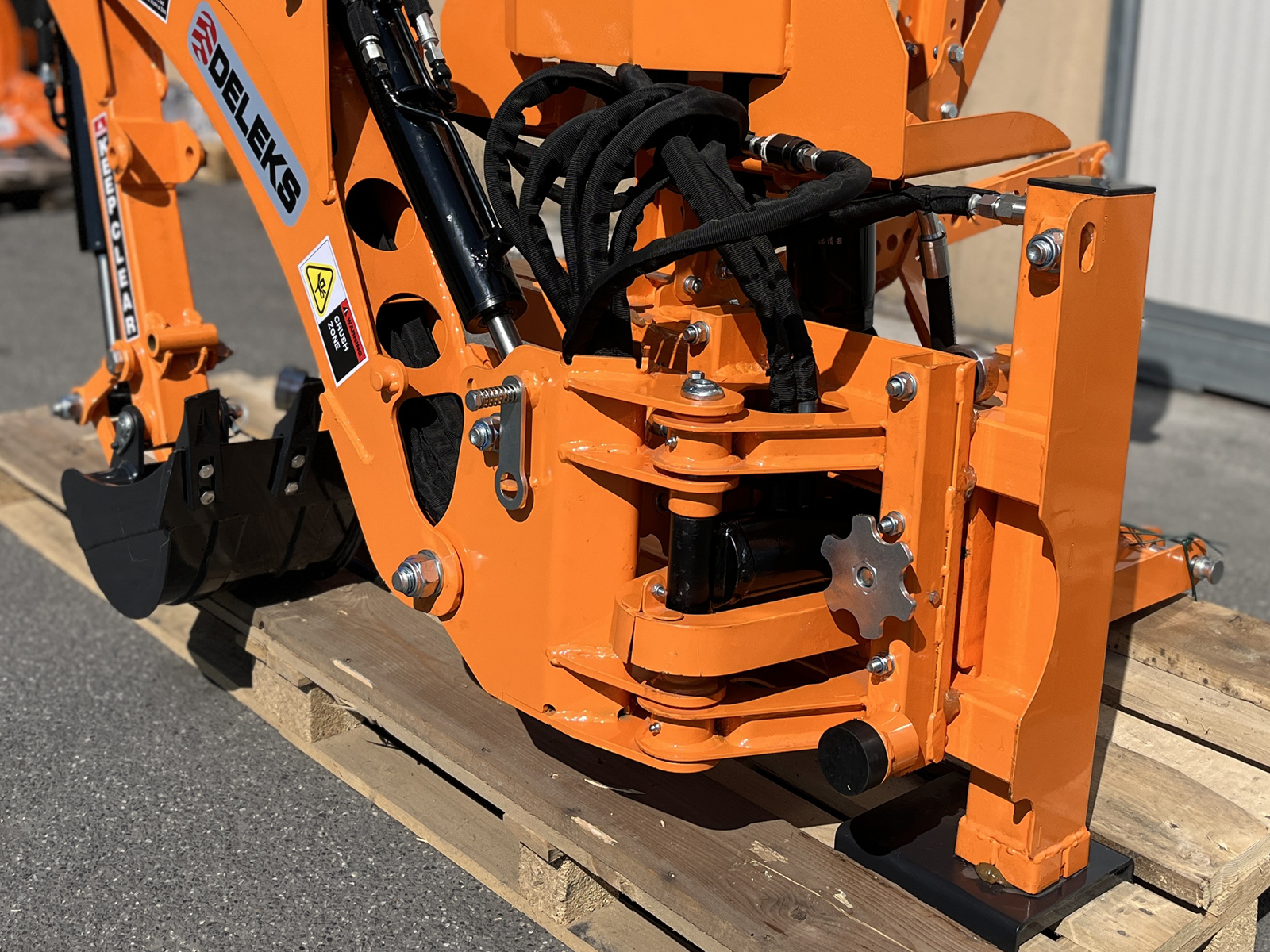

Side shift frame with manual locking.

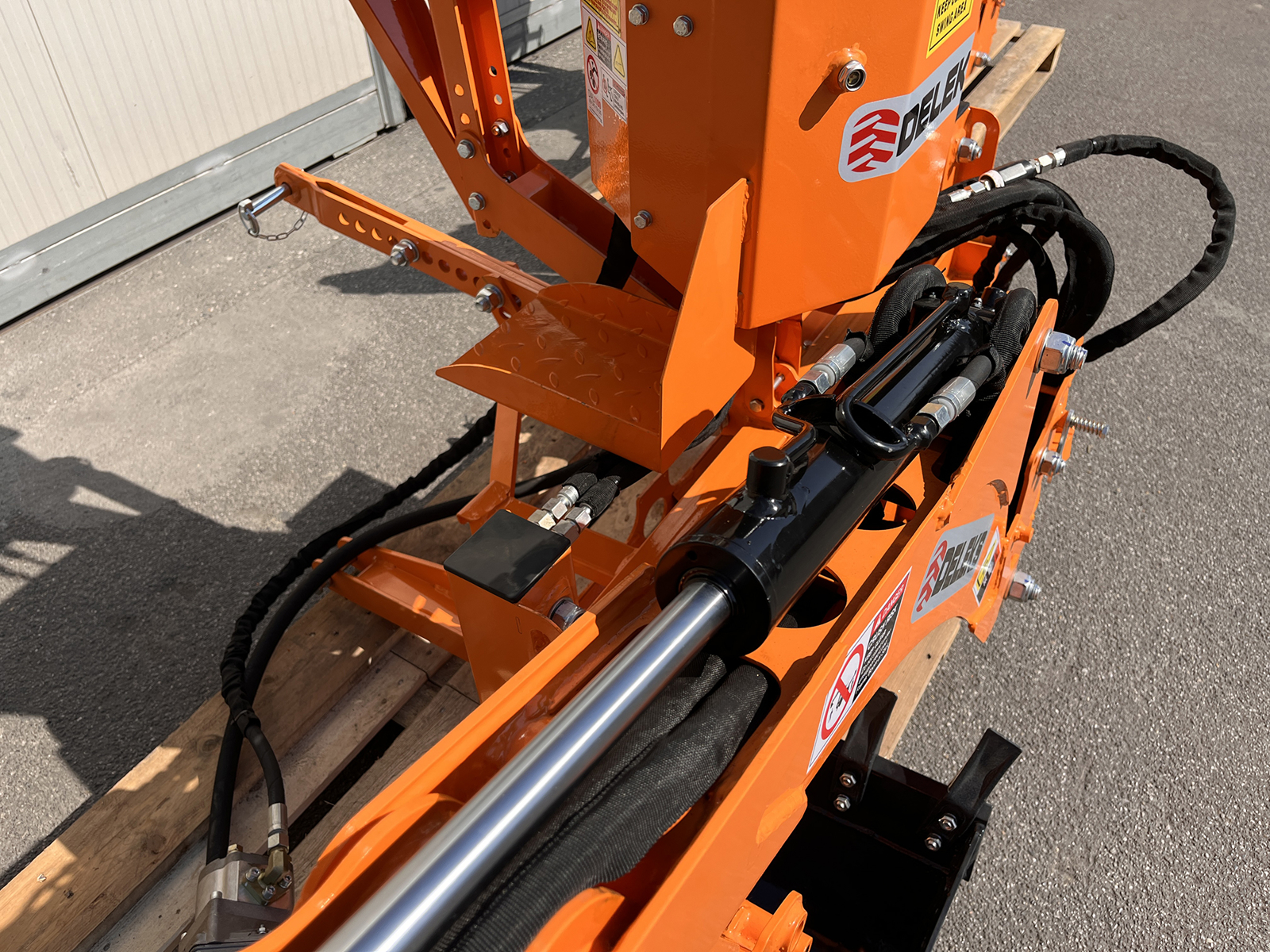

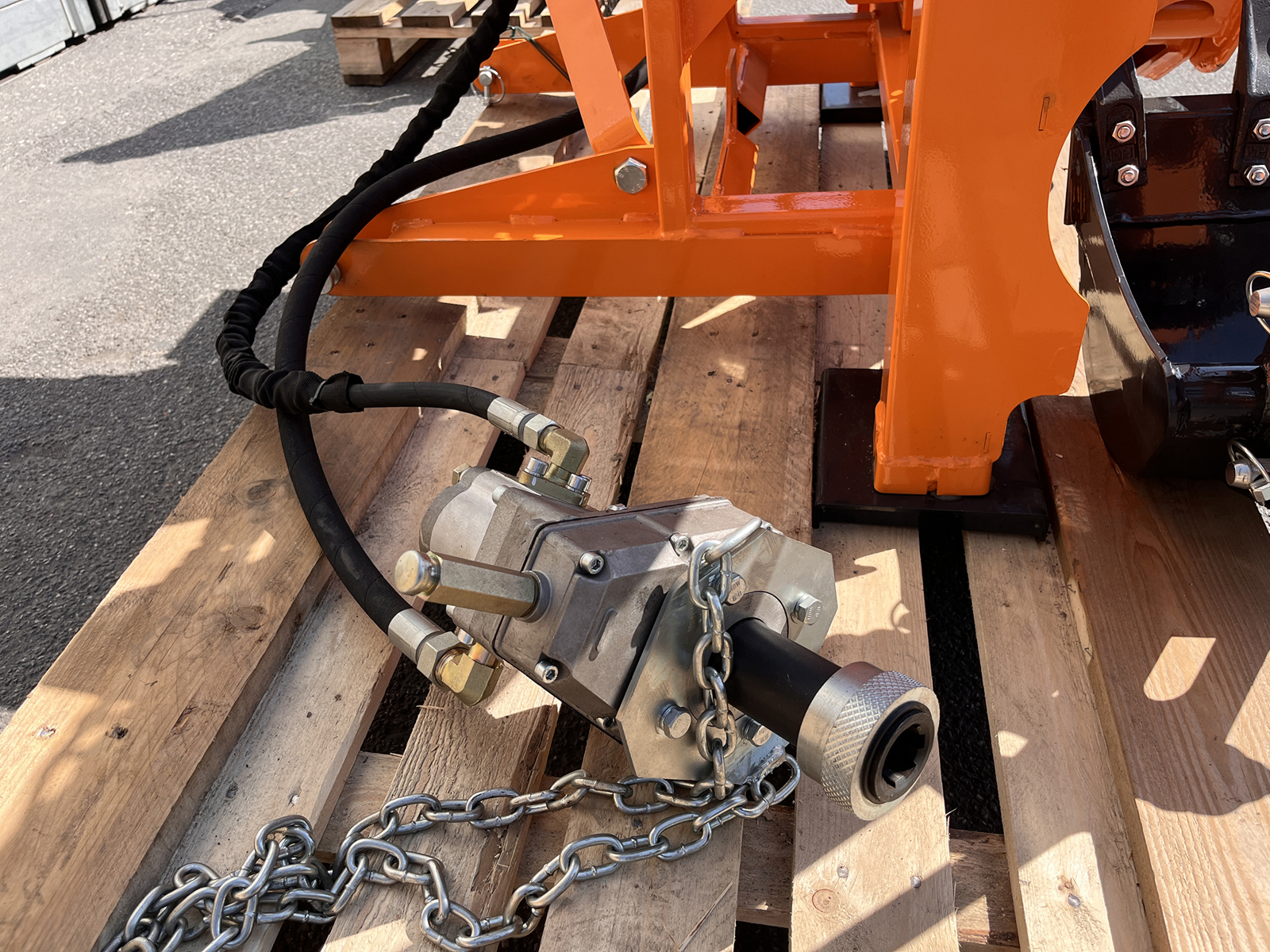

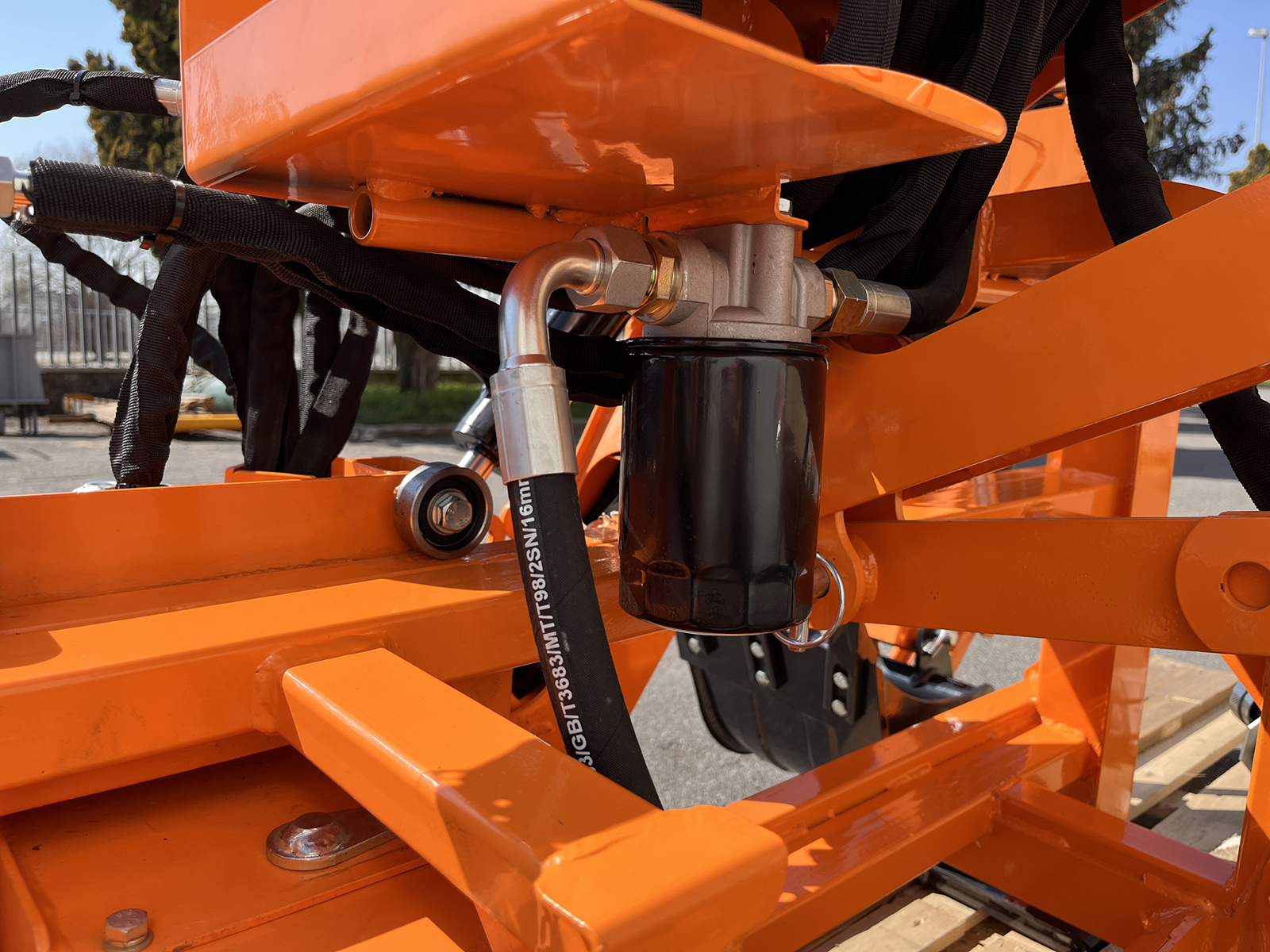

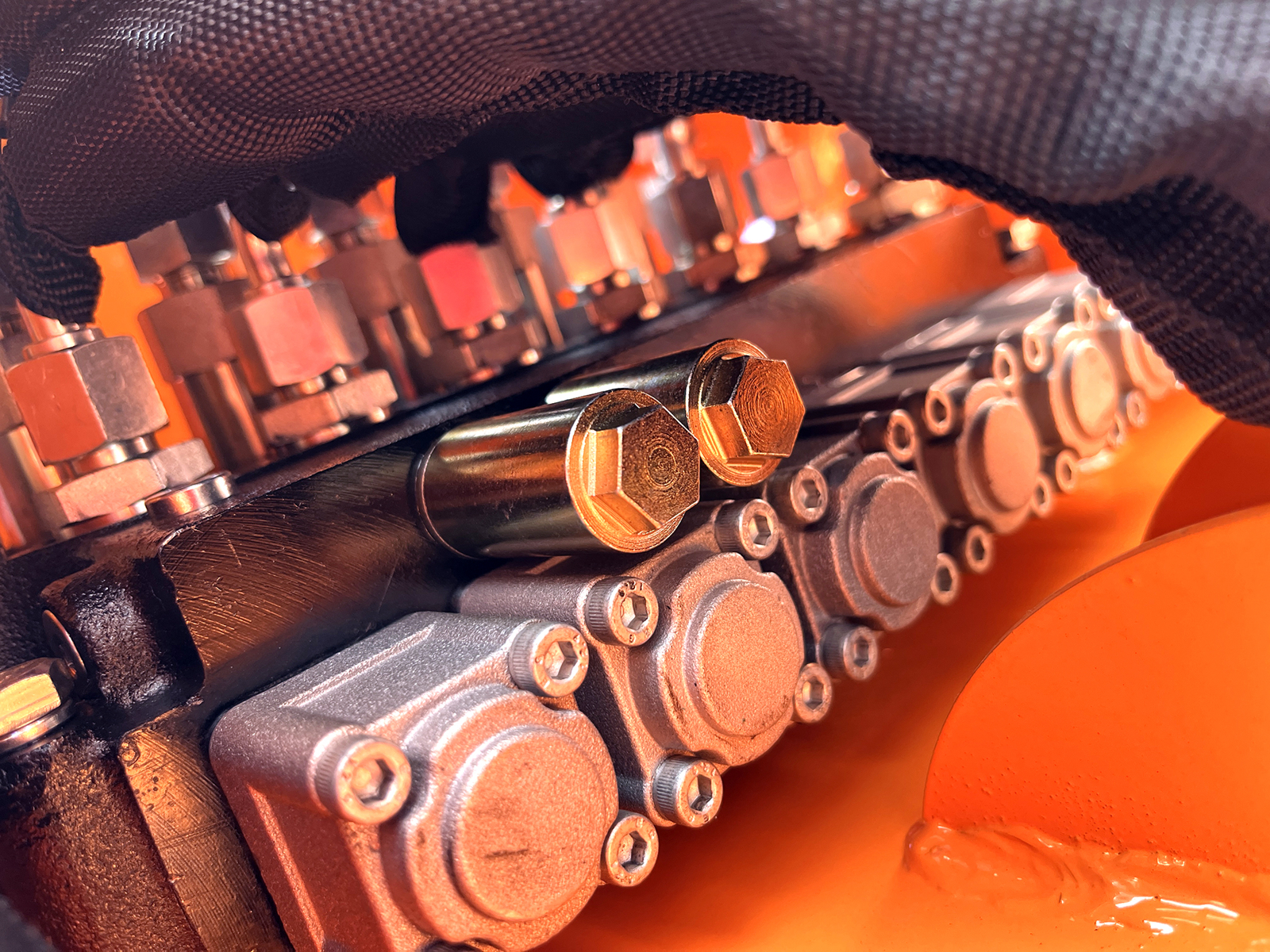

Oil system.
Practical deign, comfortable seat and foldable.
Blocking kit to prevent uncontrolled lifting of the tractor's 2 arms (UNI EN 16246 standard of January 2013 - International obligation).

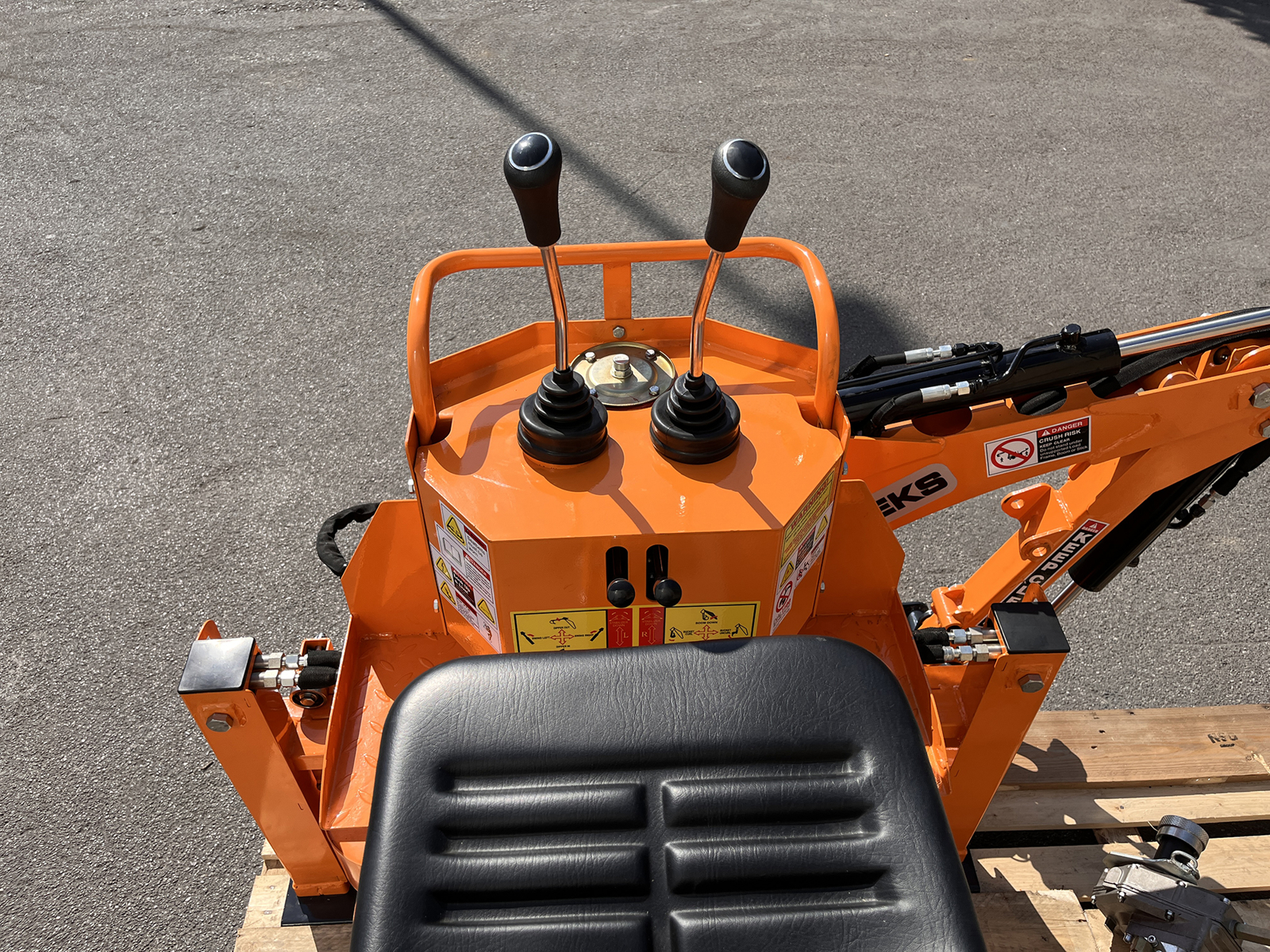

Ergonomic control position.
Stabilizing legs individually steerable.
Hook lock for safe transport.

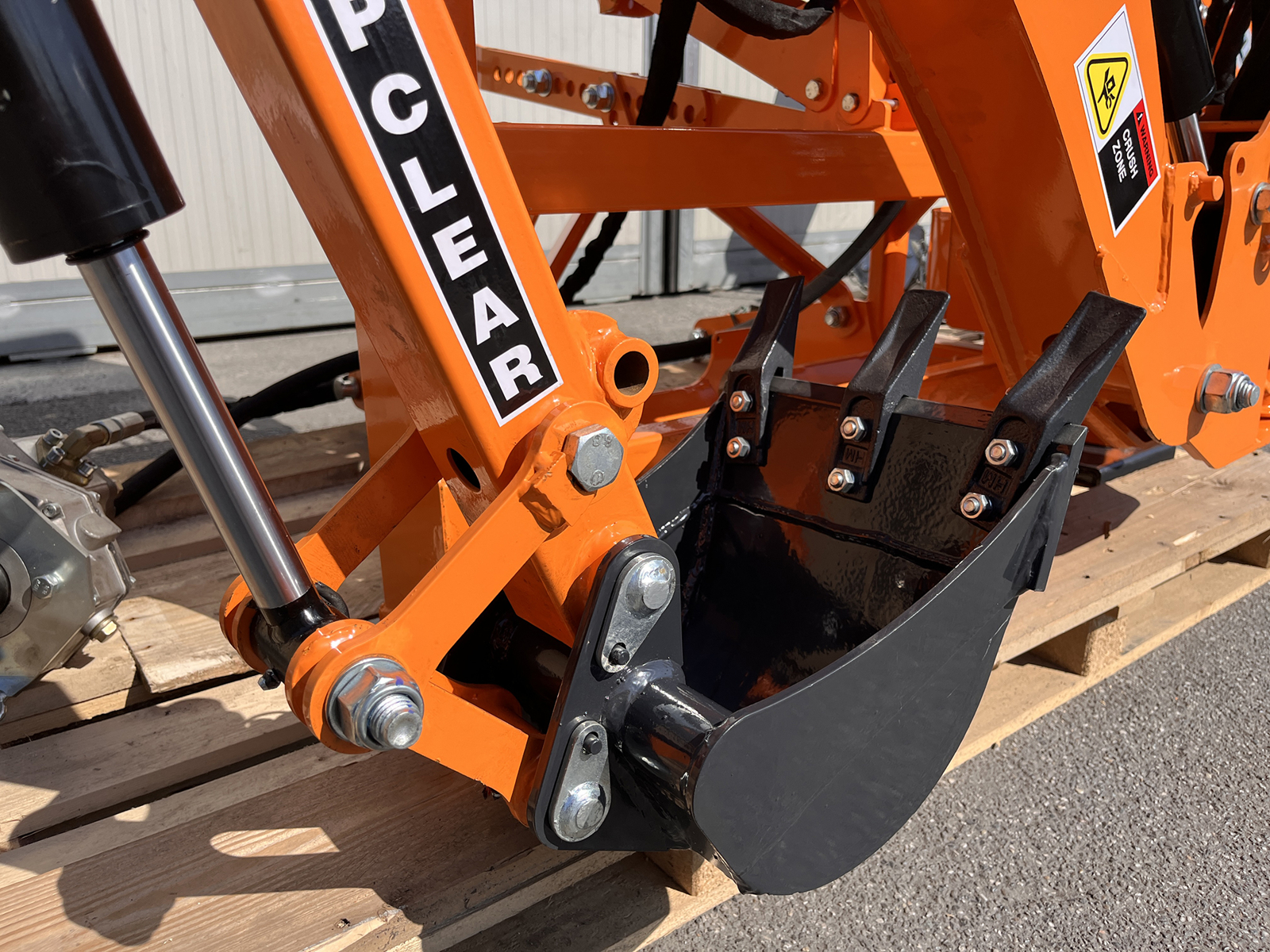

Bucket (11.5 in - 29cm).

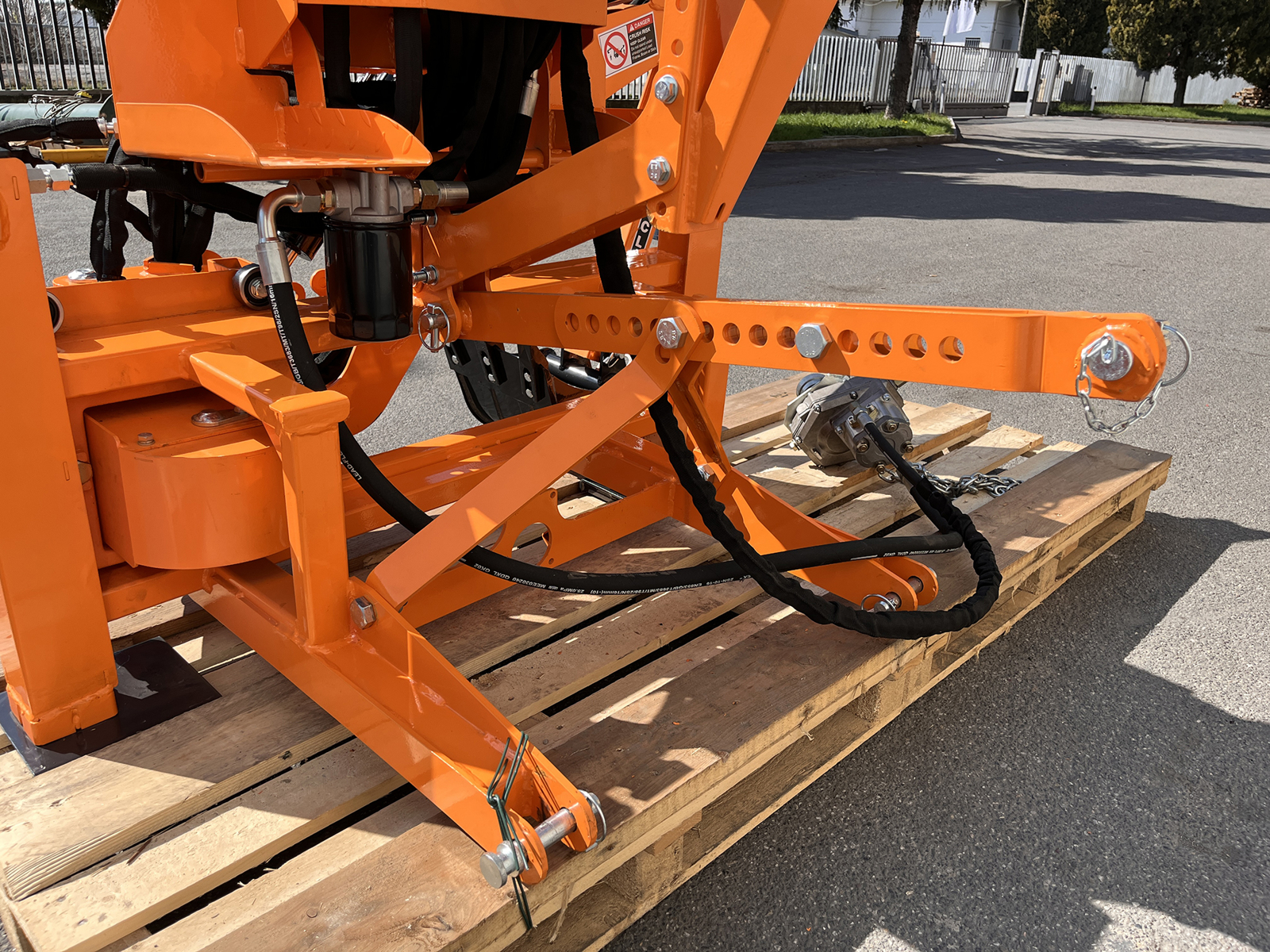

Simple to connect to the tractor even by a single person, pins and bushings on seams of high quality guarantee long durability.
Supplied with a two year warranty.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 358.0 kg | 780.0 lb |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) | Cat. 1 (ø 19.0-22.0mm) |

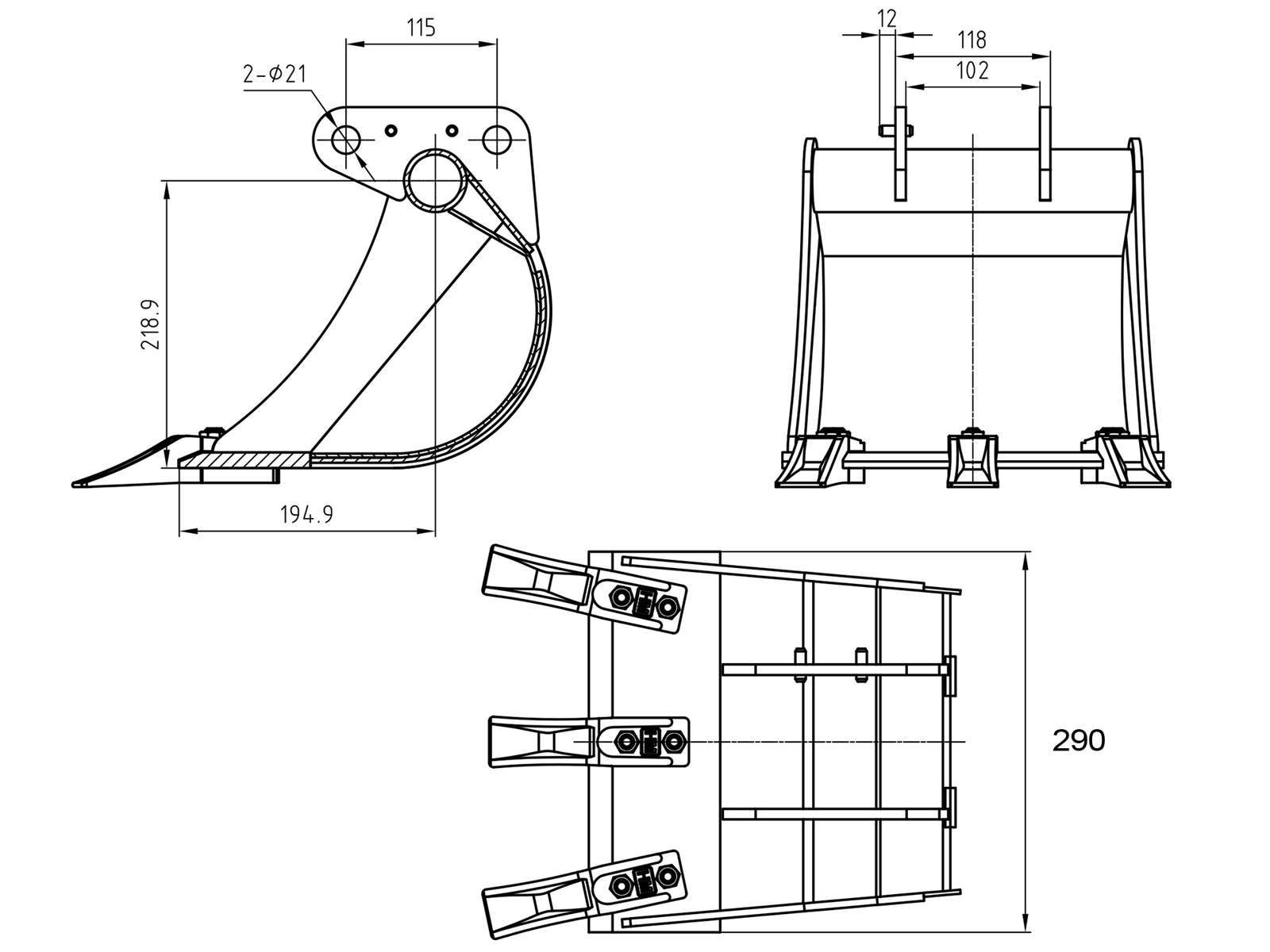

| Bucket Width | 290.0 mm | 11.5 in |
| Spacing between the 2 lower points | 590.0 - 680.0 mm | 23.0 - 27.0 in |

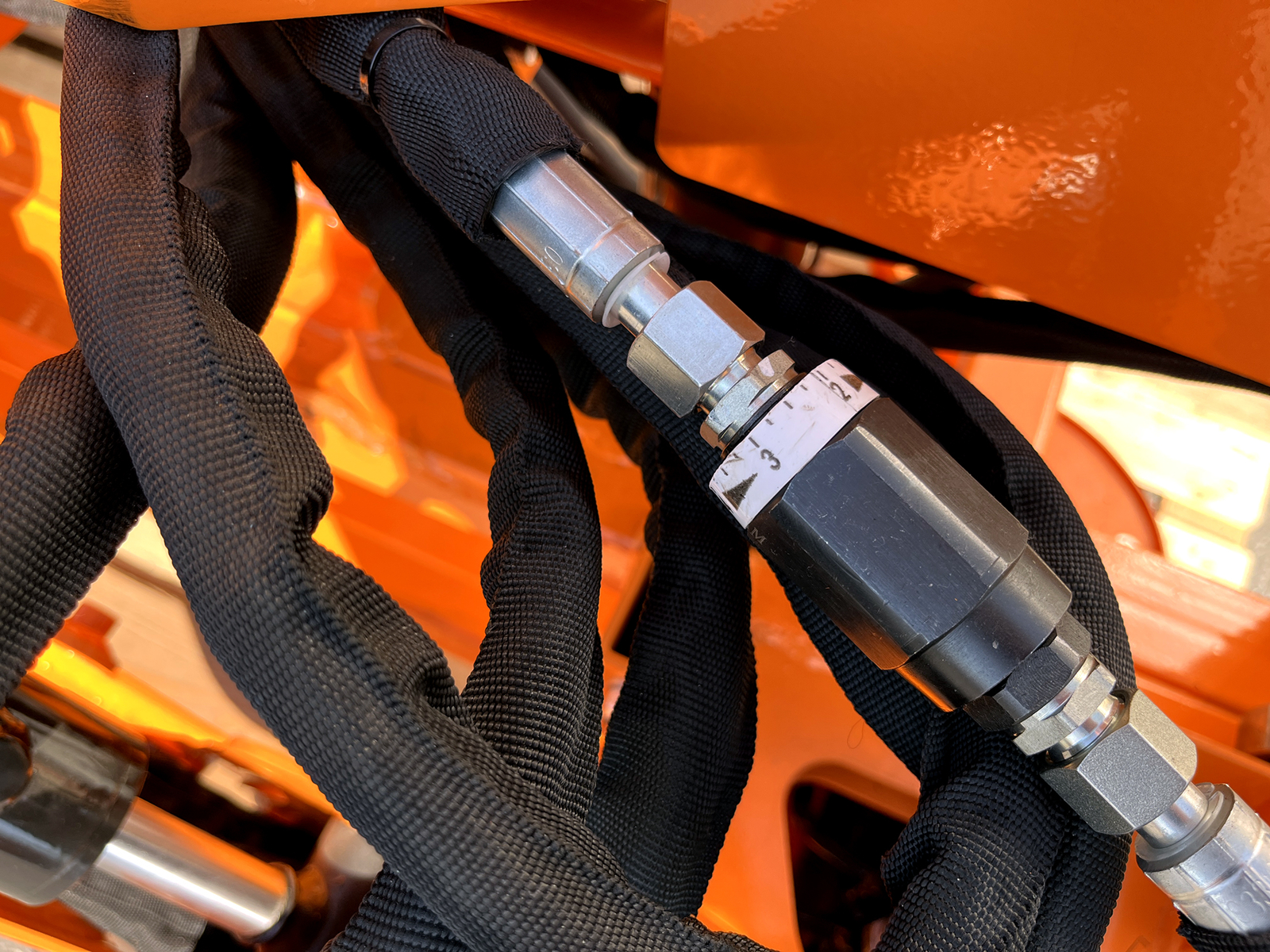

| Hydraulic Pipes (2) | WP-400 bar | WP-400 bar |
| Min./Max. Relief Pressure | 120 - 200 bar | 120 - 200 bar |
| Min./Max. Flow | 25 - 40 l/min | 25 - 40 l/min |
| Slewing Angle | 180° | 180° |
| HP min | 18 Hp | 18 Hp |
| Arms cylinders diameter | 63.0 - 25.0 mm | 2.5 - 1.0 in |
| Independent Stabilizers | 2 | 2 |

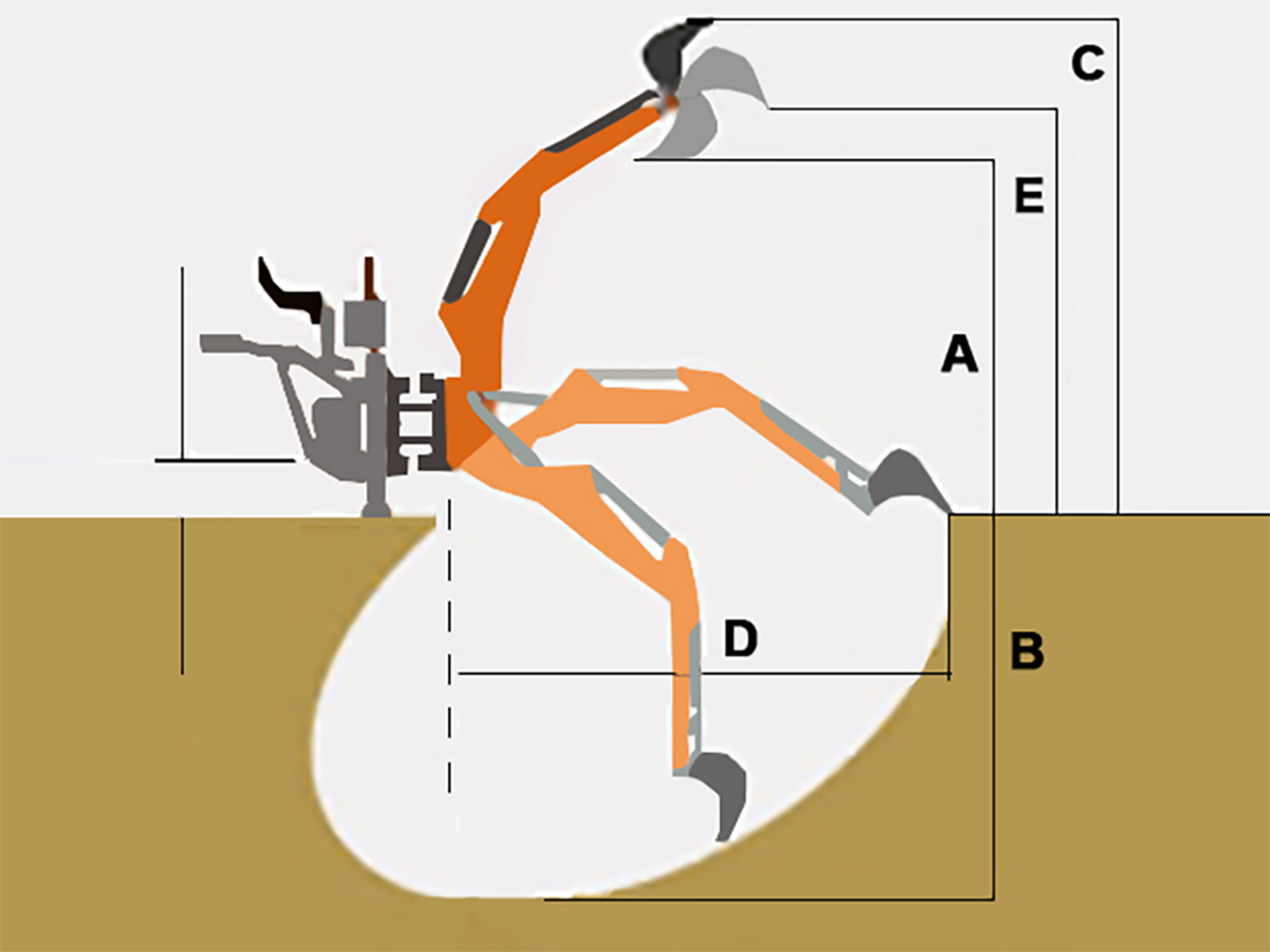

| Digg Depth (B) | 950.0 mm | 3.12 ft |
| Loading Height (A) | 1690.0 mm | 5.54 ft |
| Unload Height (E) | 1800.0 mm | 5.90 ft |
| Max Height (C) | 2280.0 mm | 7.48 ft |
| Digging Width (D) | 2440.0 mm | 8.00 ft |
| Leg Spread | 1150.0 mm | 3.77 ft |
| Packing sizes | 1900*860*1200 mm | 6.23*2.82*3.94 ft |
