Flail mower with hydraulic sideshift for traktors

4.5

192 reviews

Available
Code JAGUAR150PTO
EAN 8053470236518
View all details.
TOTAL
2,780.00(2,345.76 £)VAT excl.
Free shipping

VIDEO
Field test
Field test
Field test
Field test

DETAILS

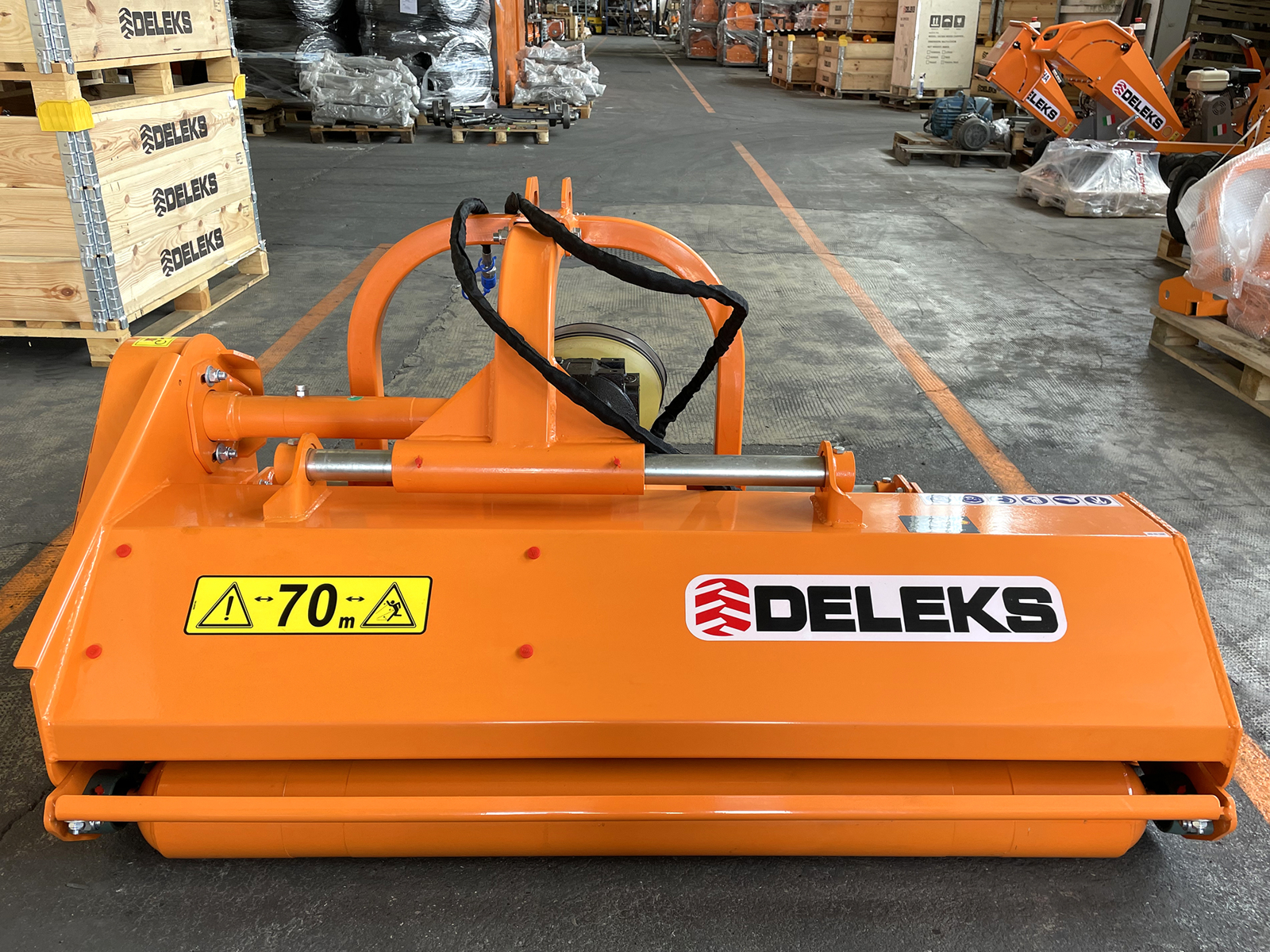

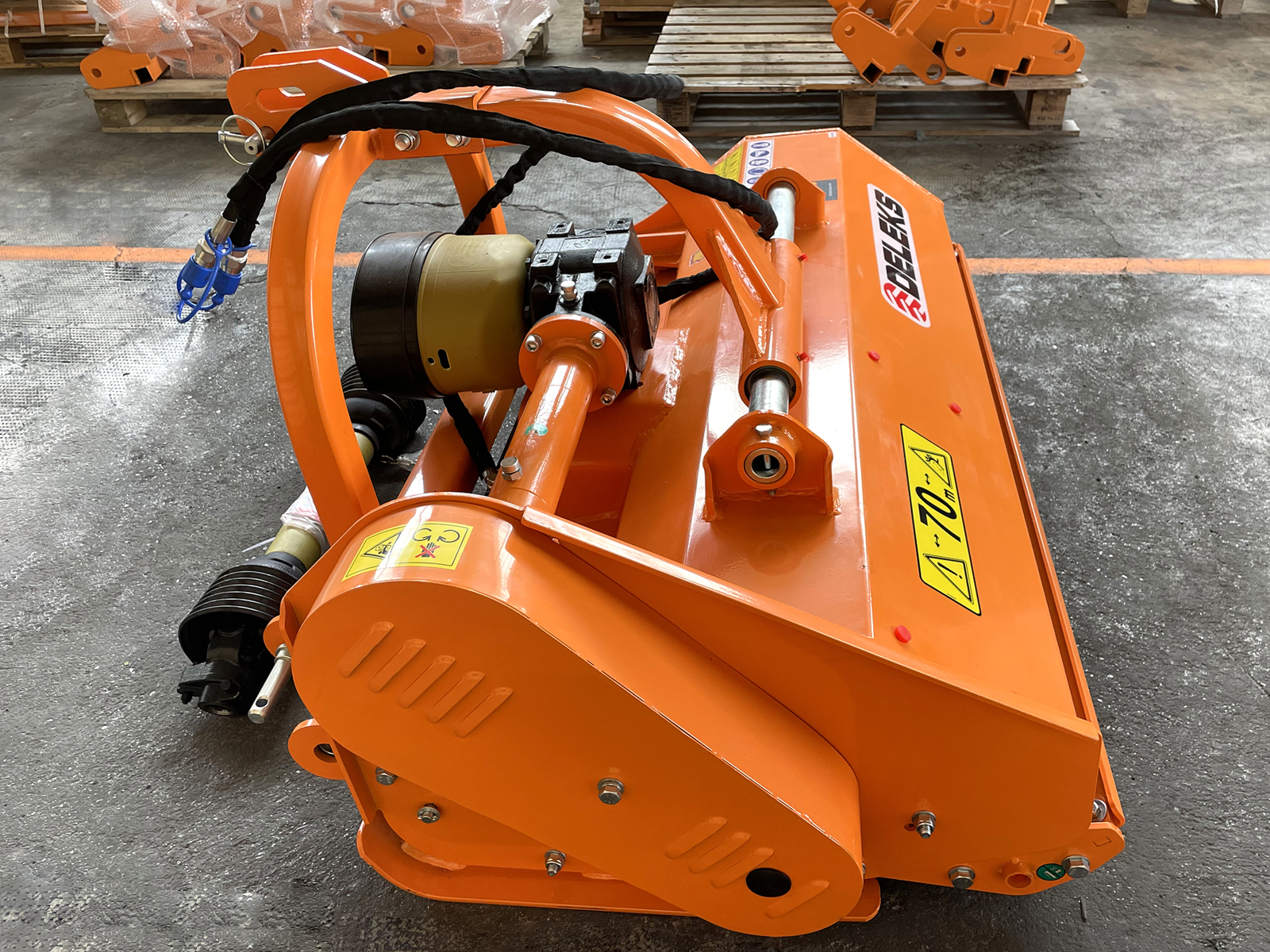

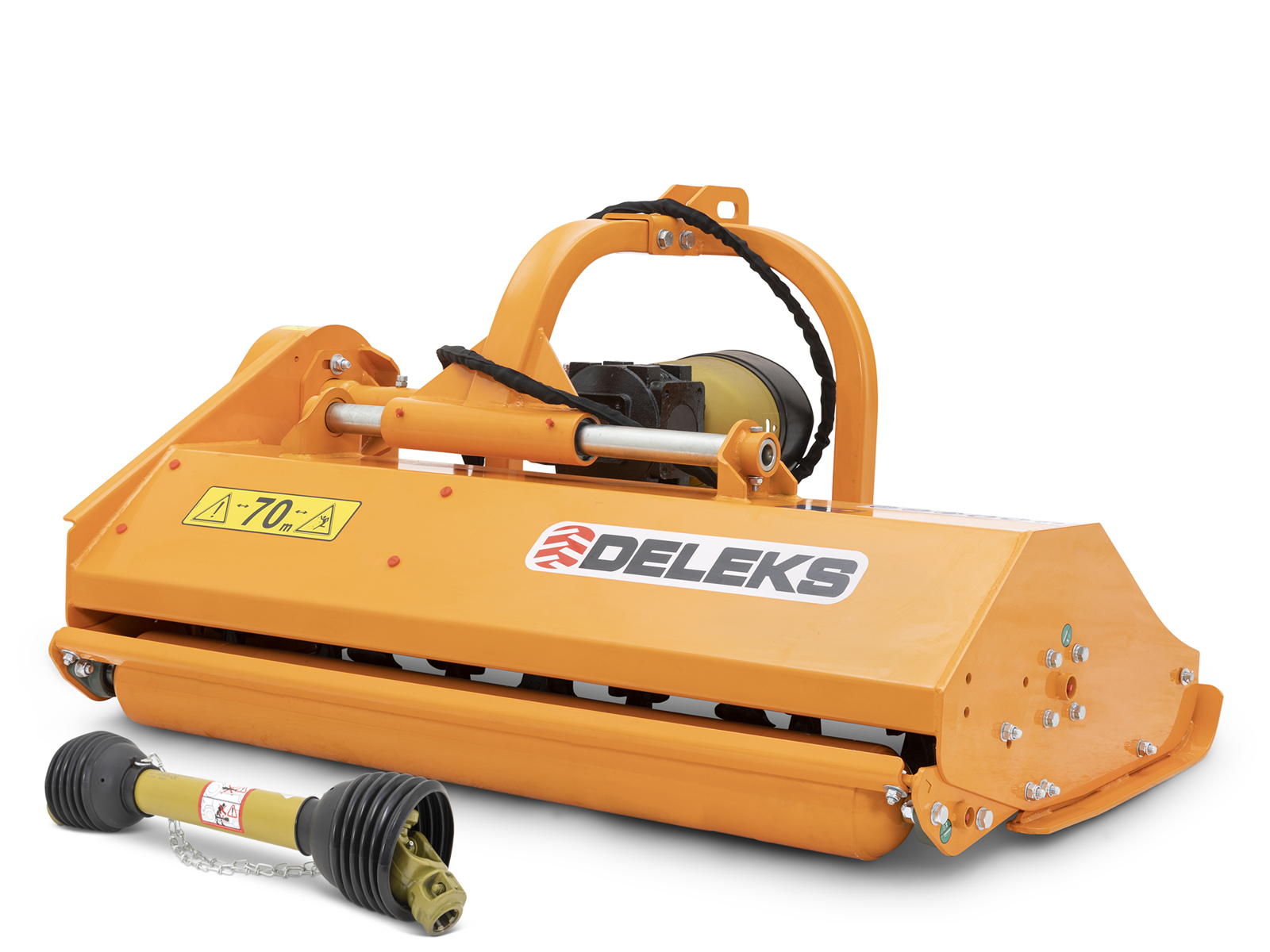

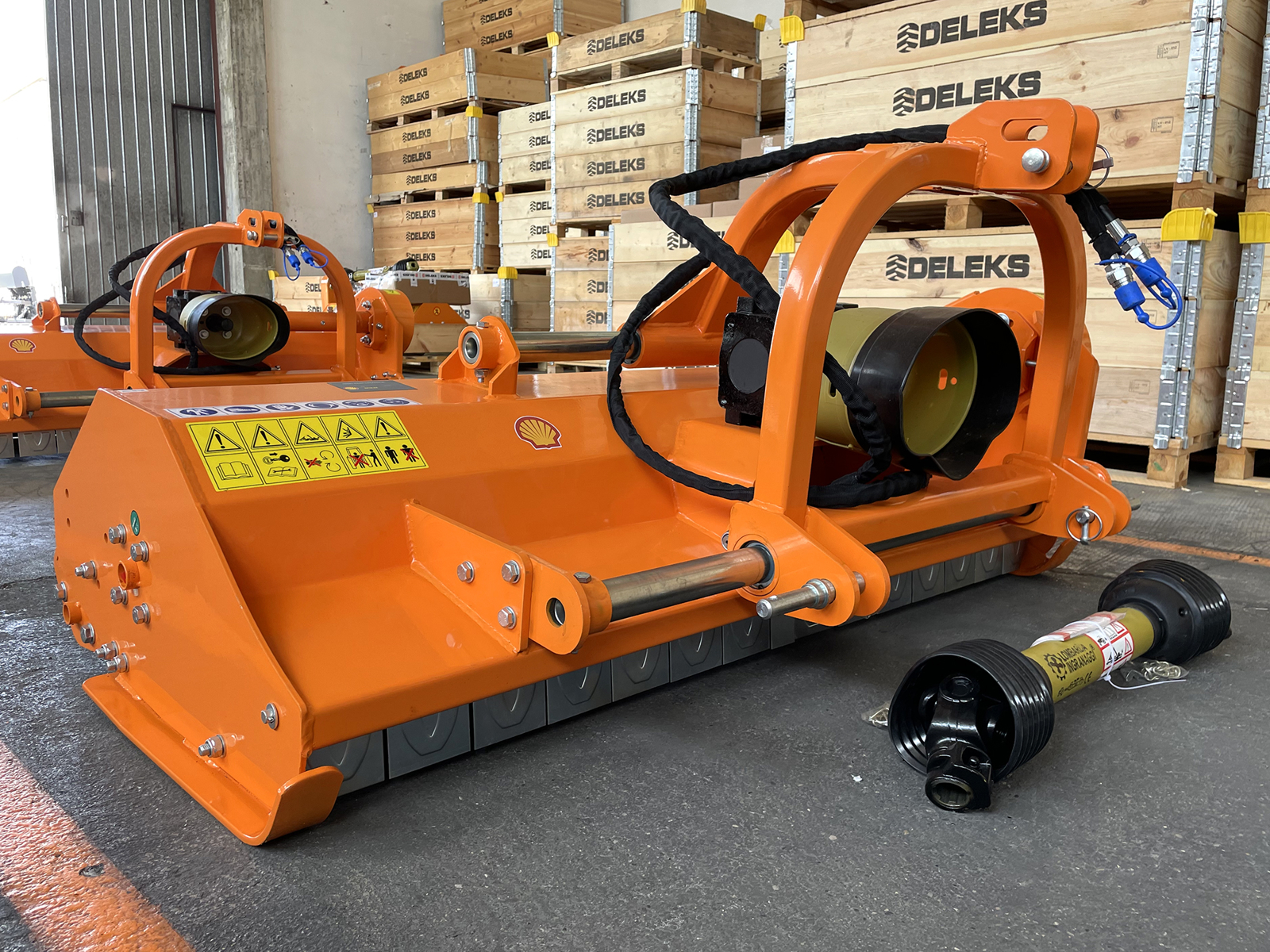

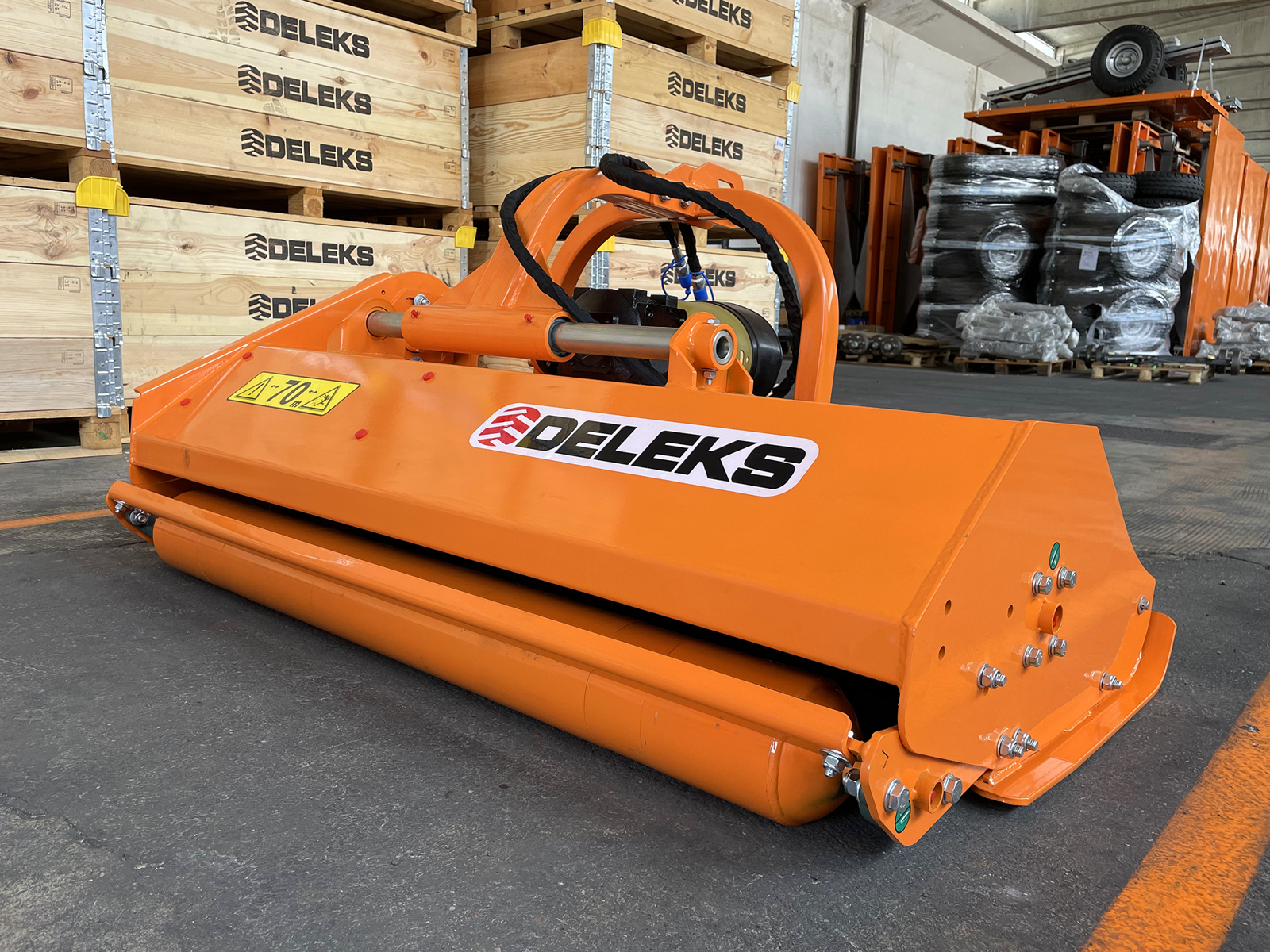

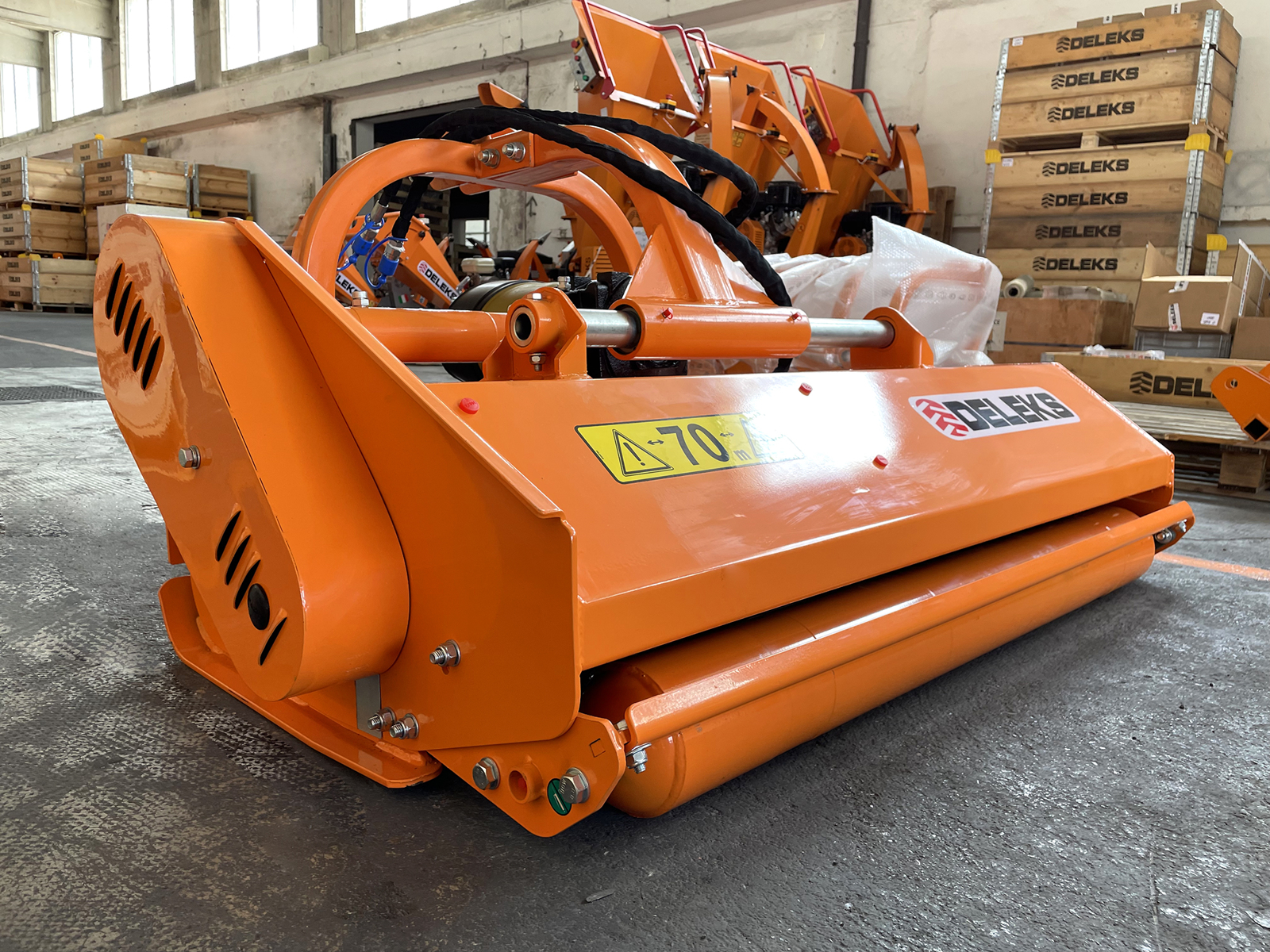

Flail mower for tractors, working width 147cm and 330kg - DELEKS® JAGUAR-150 Shredder with hydraulic side shift for orchard tractors, PTO shaft.







OVERVIEW

JAGUAR-150 Hydraulically movable flail mower, medium series.

Designed for working on grass, leaves, vine shoots and olive groves, maintenance of uncultivated areas.

Compatible with 30-60 hp tractors such as New Holland, John Deere, Landini Mistral, Antonio Carraro Tigrone, Kubota, Same Solaris, etc. Universal 3-point linkage Cat. 1-2.

Conforms to the CE machinery directive, 2 years warranty.





ADVANTAGES

Lombarda Ingranaggi gearbox with freewheel, 3 years warranty.

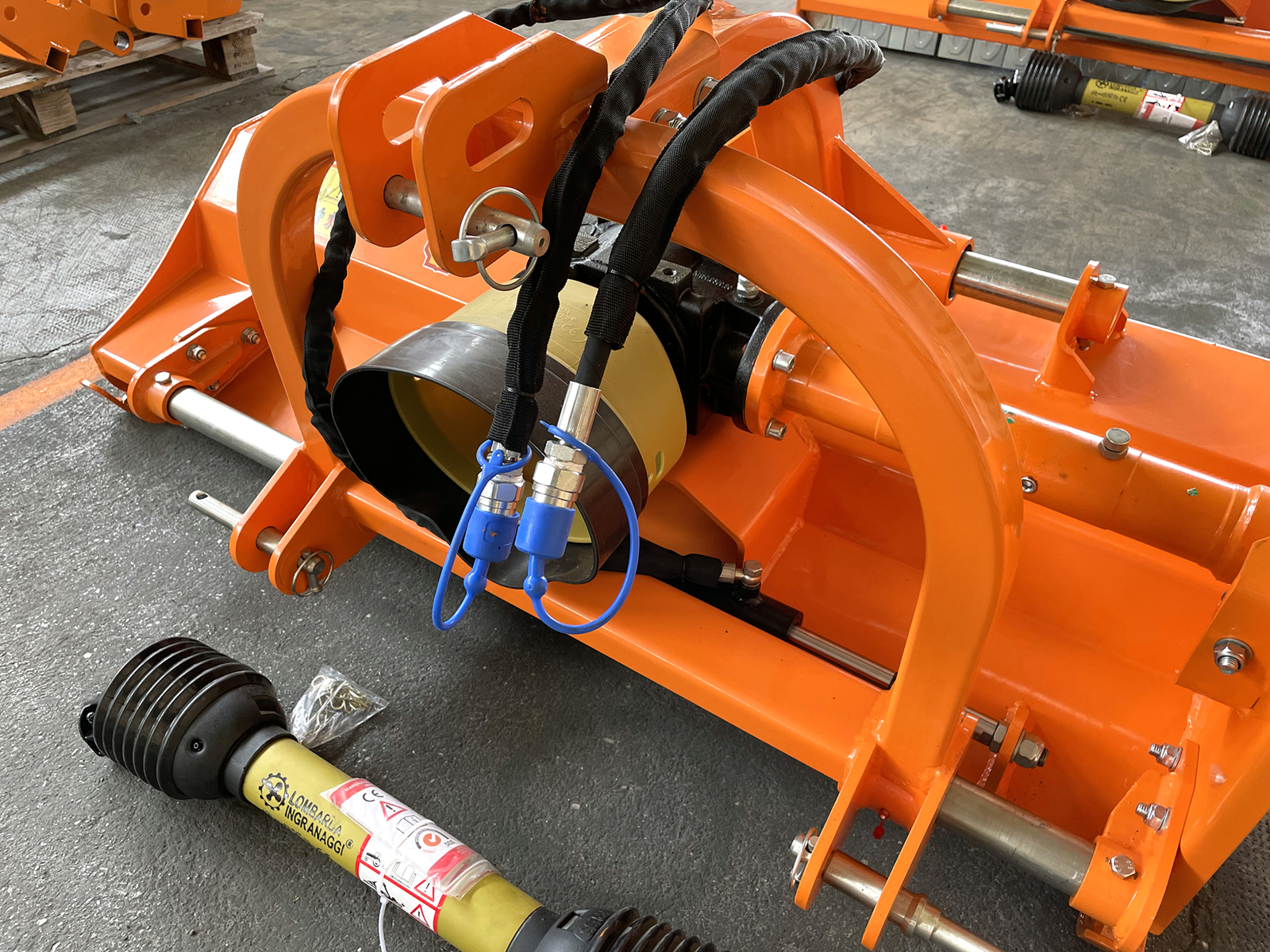

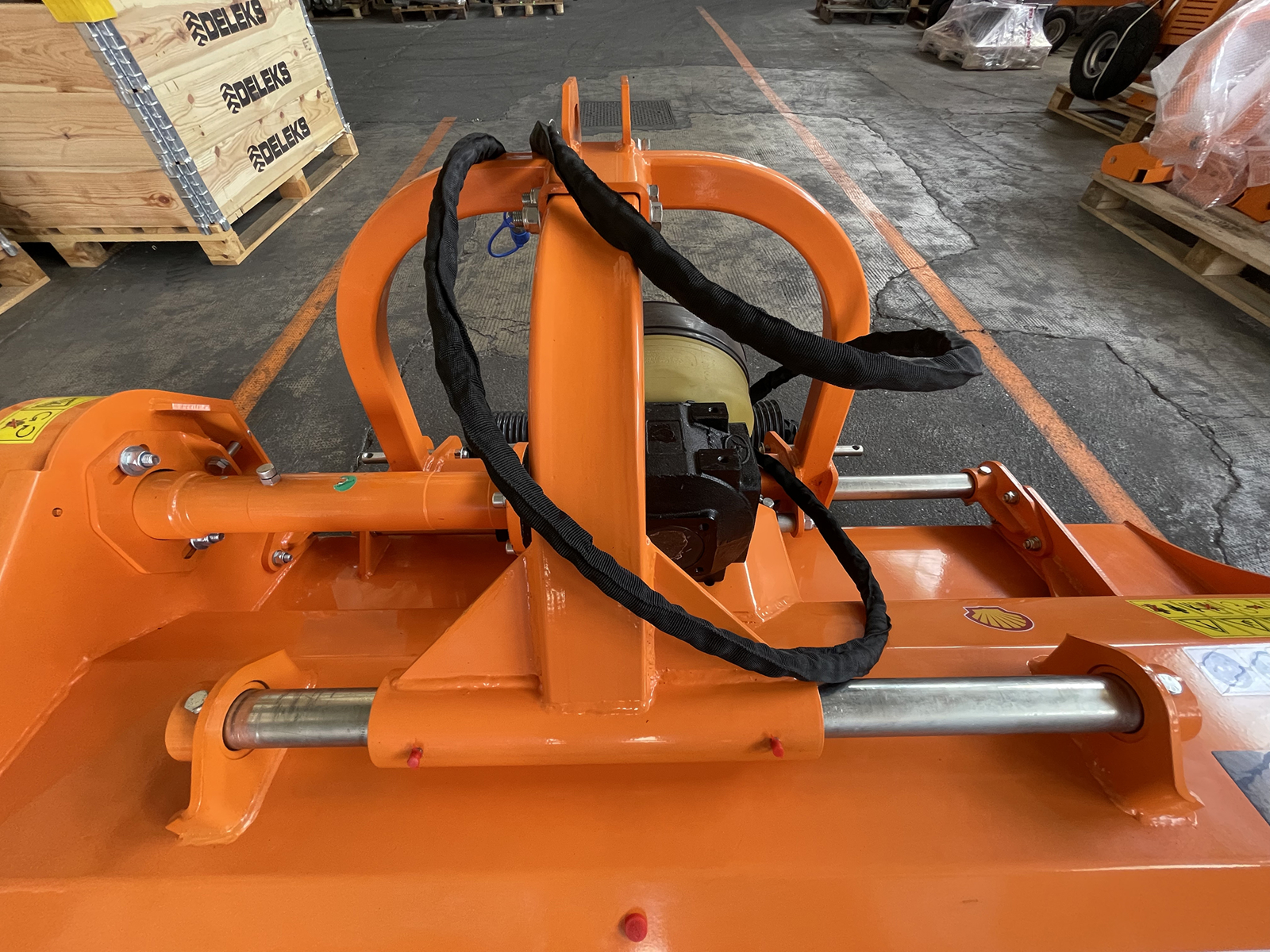

Reinforced hydraulic lateral movement that facilitates work outside the tractors boarder.

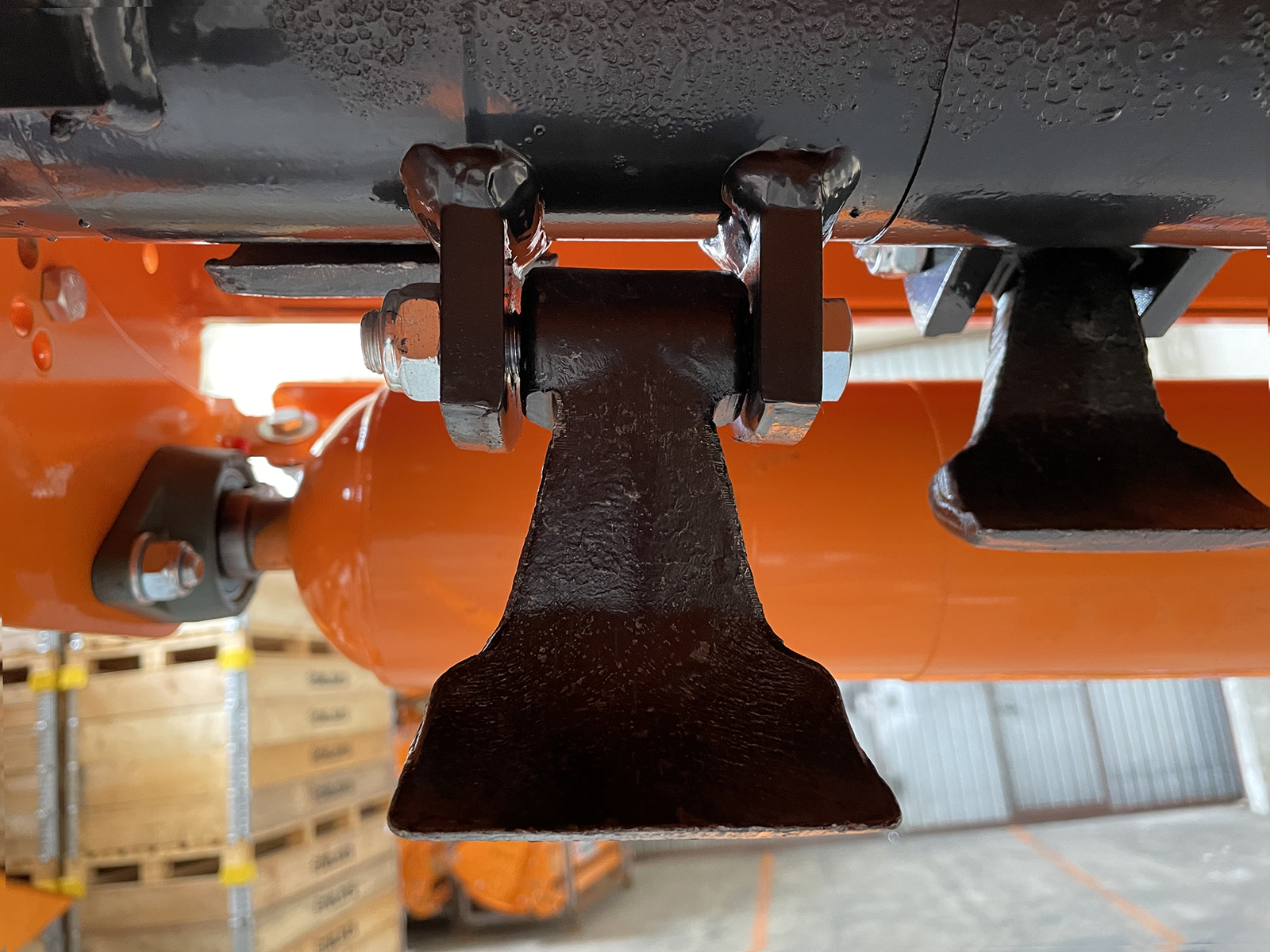

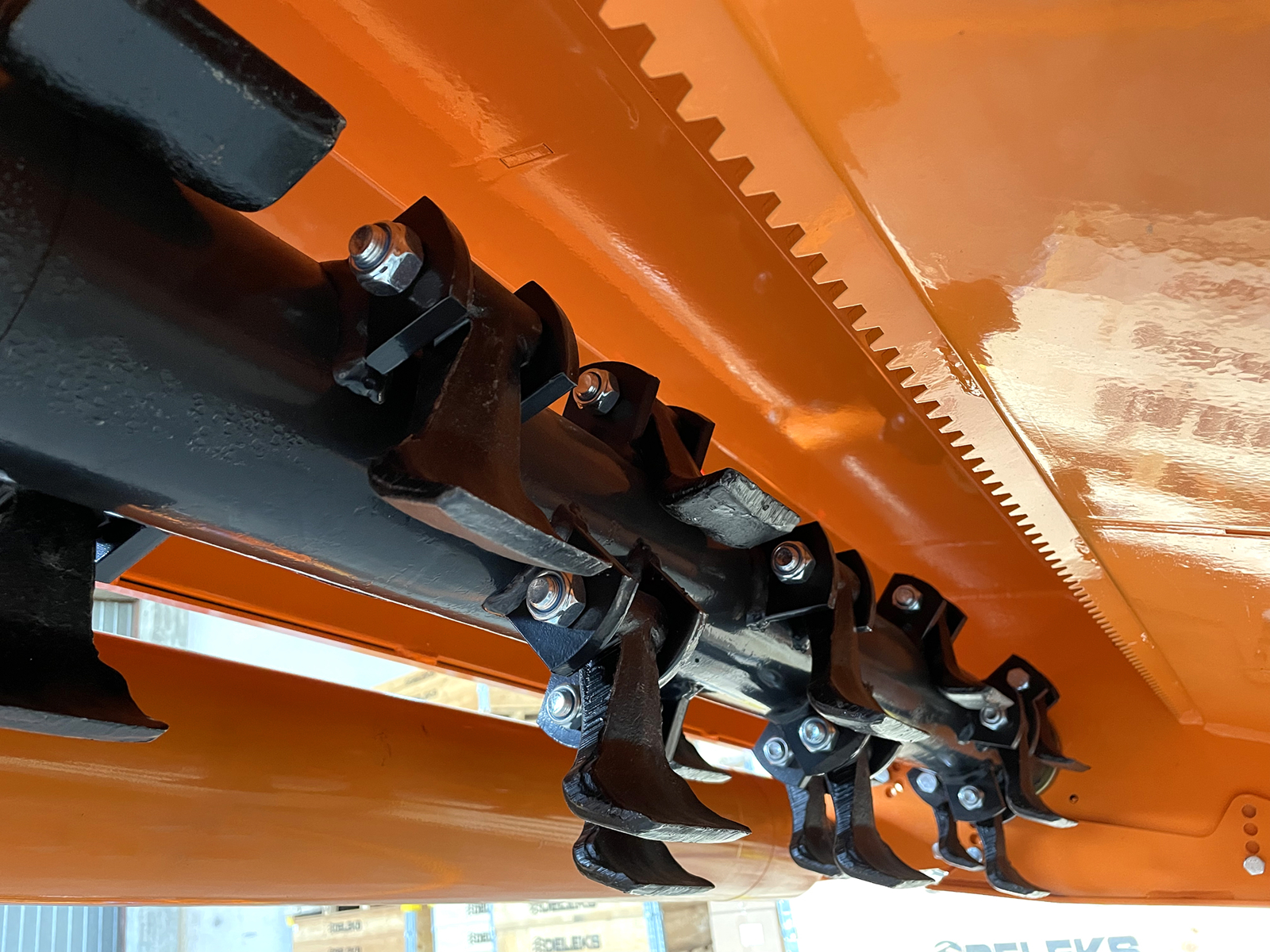

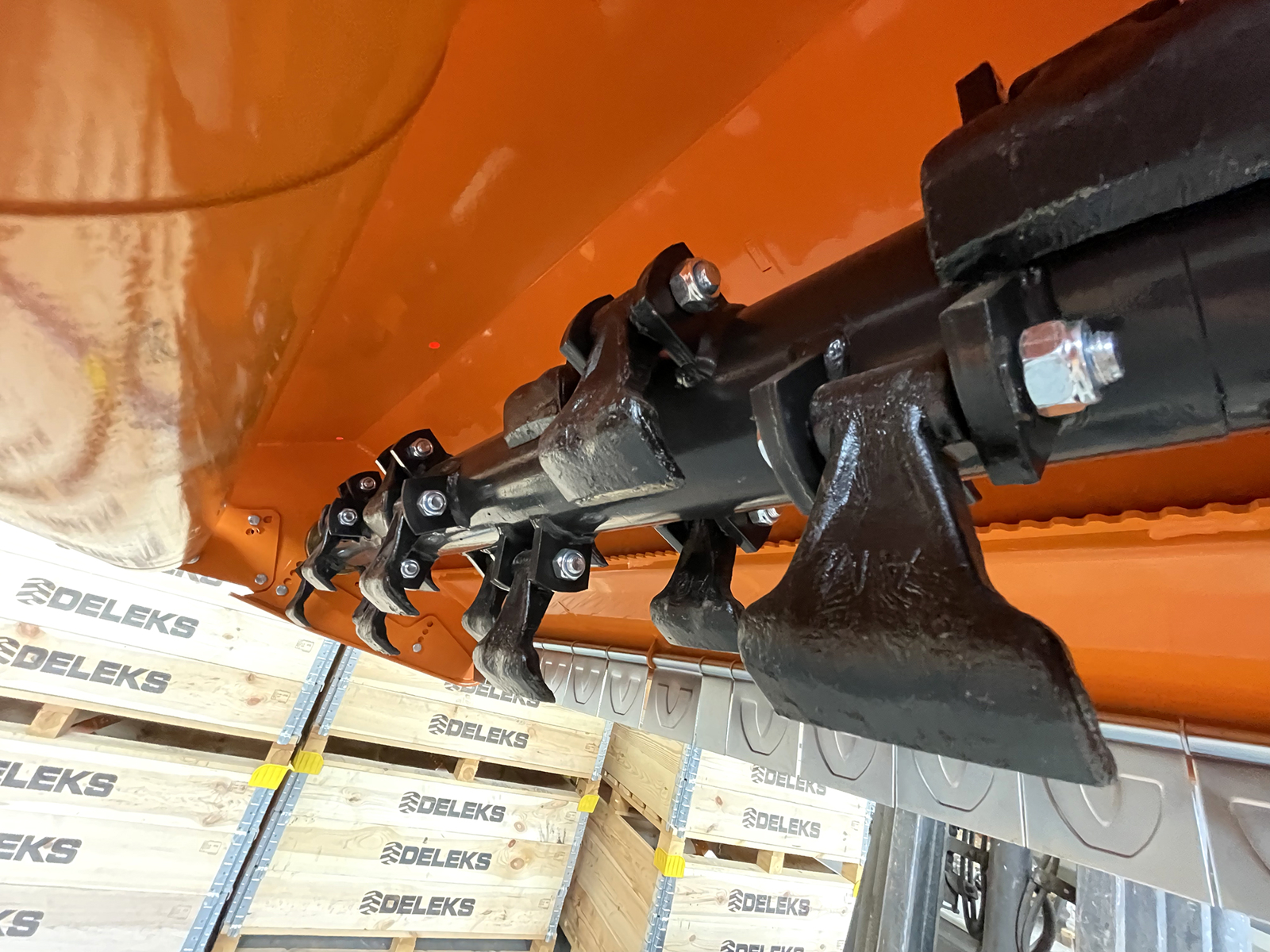

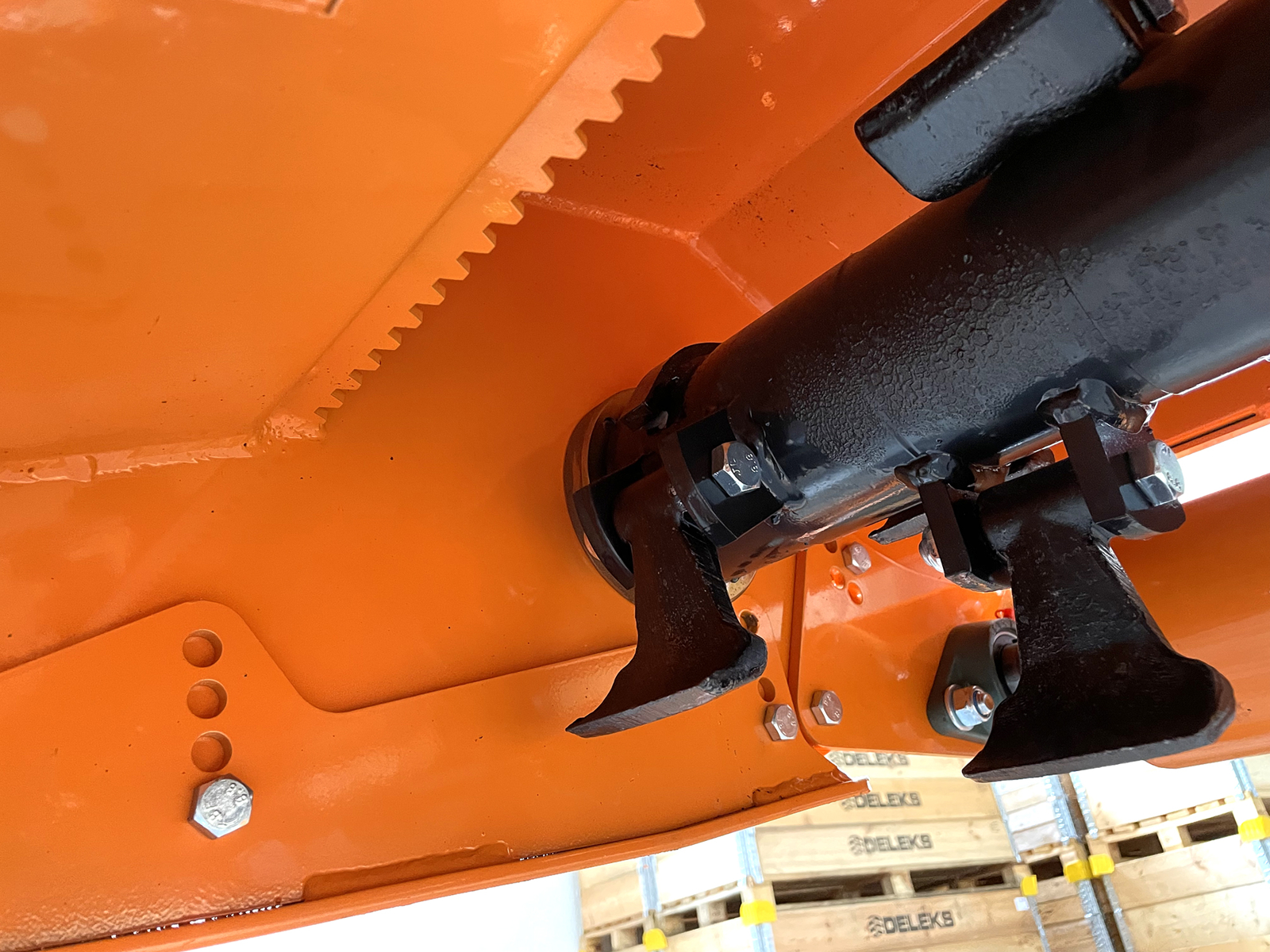

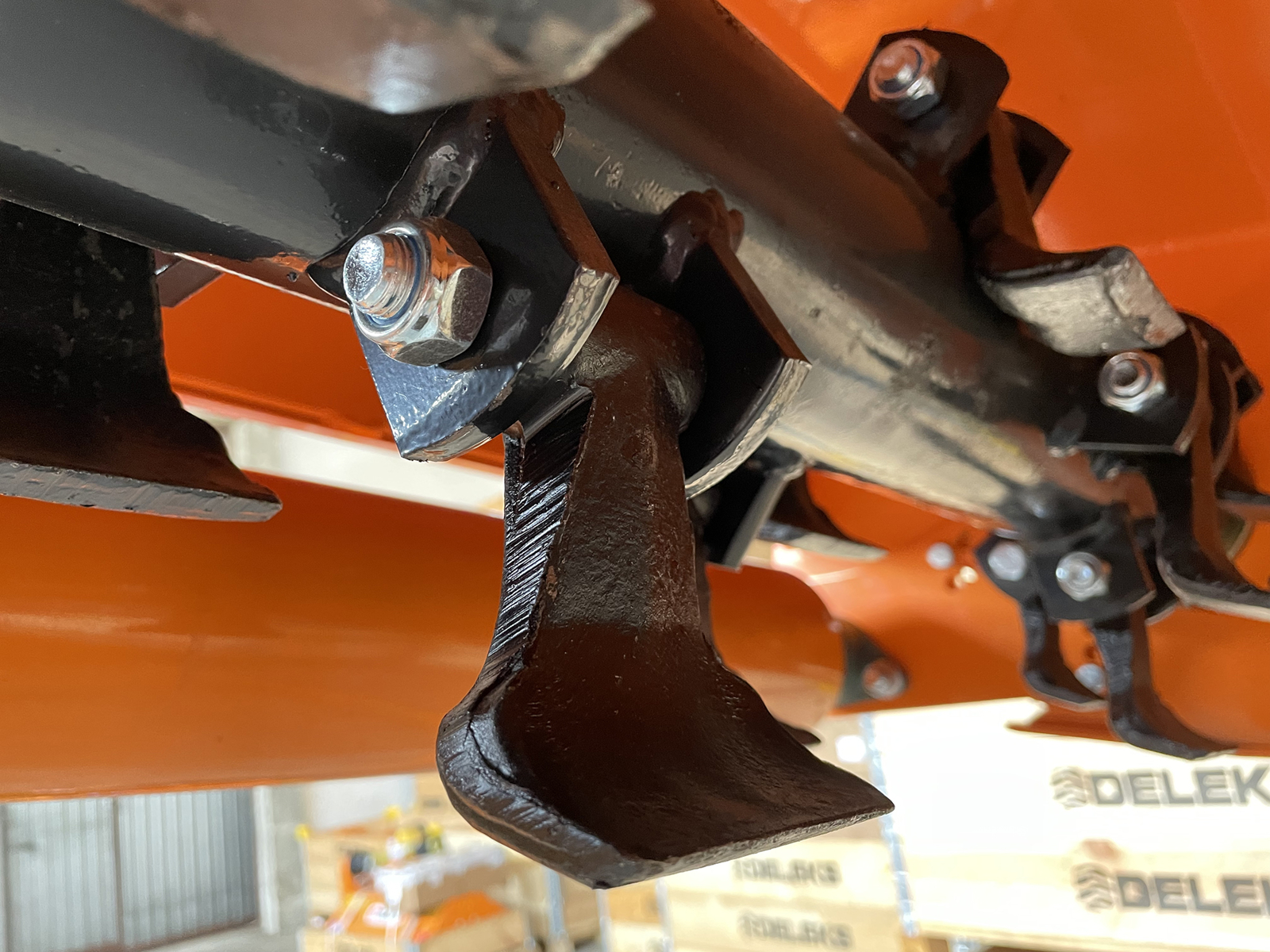

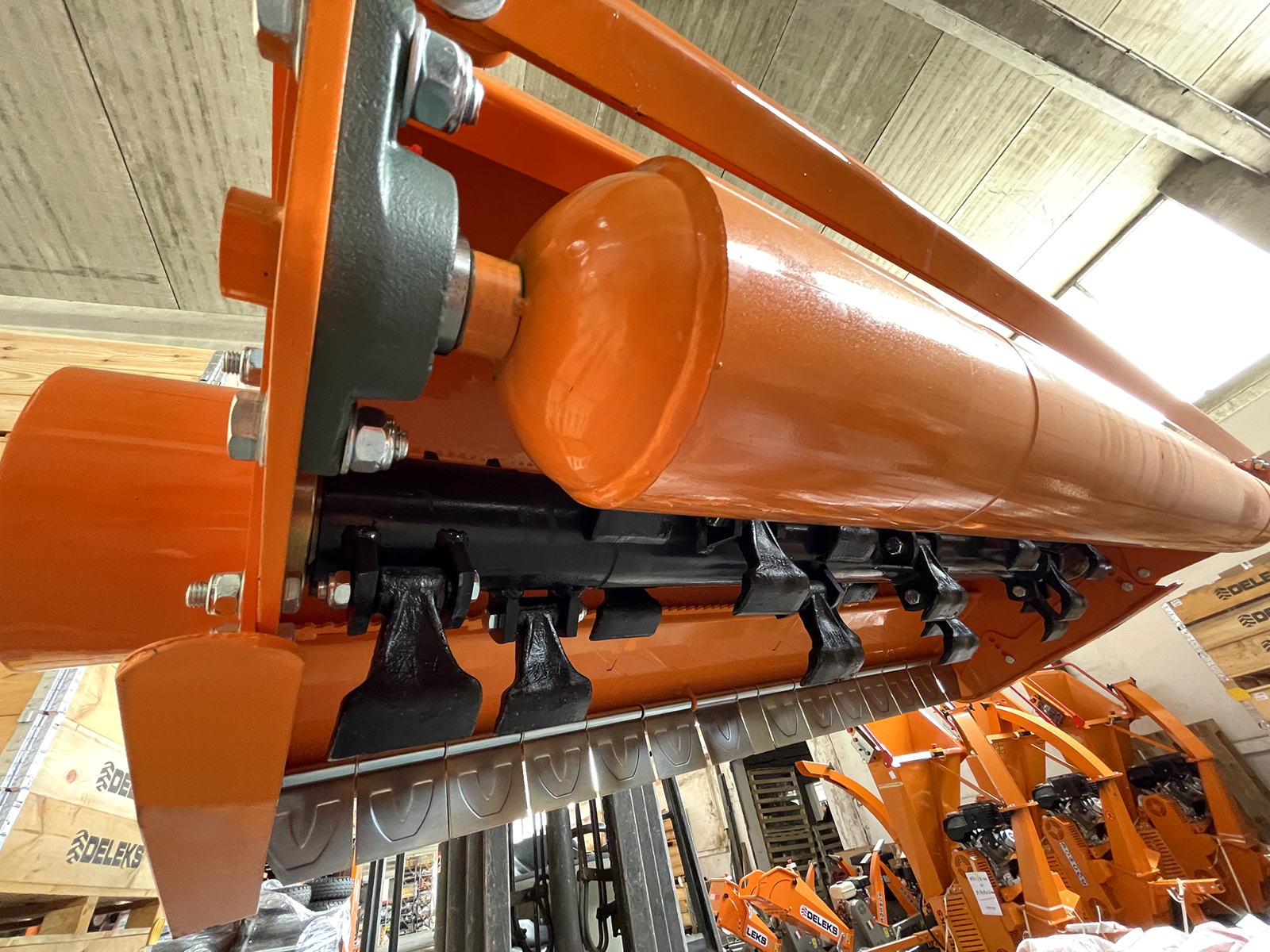

Thick hammers, designed to pulverize grass and pruning’s from vineyards and olive groves, brambles, etc. up to 4-5 cm in diameter.

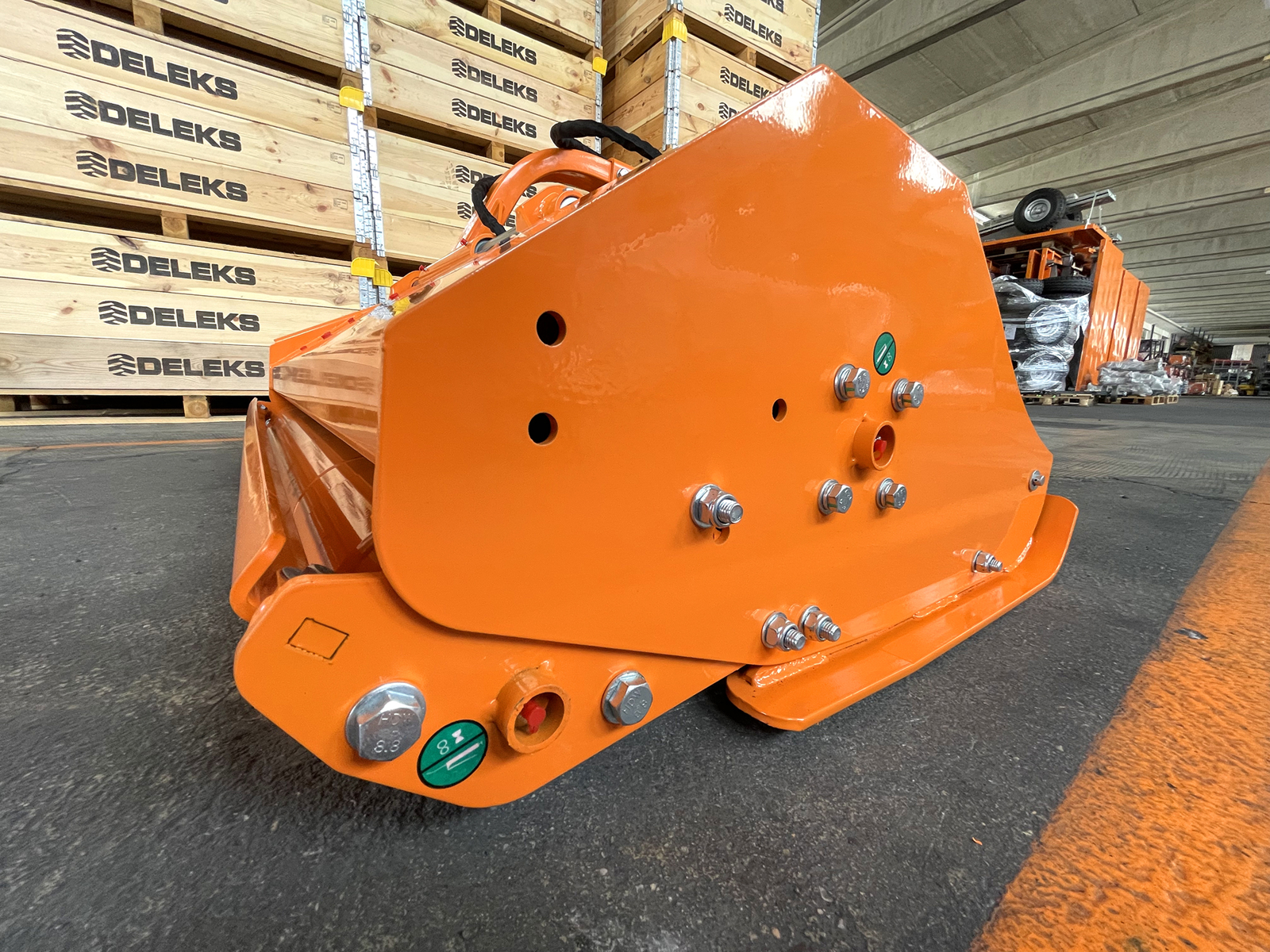

The rear roller and the side slides allow you to adjust the cutting height.

External adjustment of the belts and adjustable tensioner.

Electronic balanced rotor.

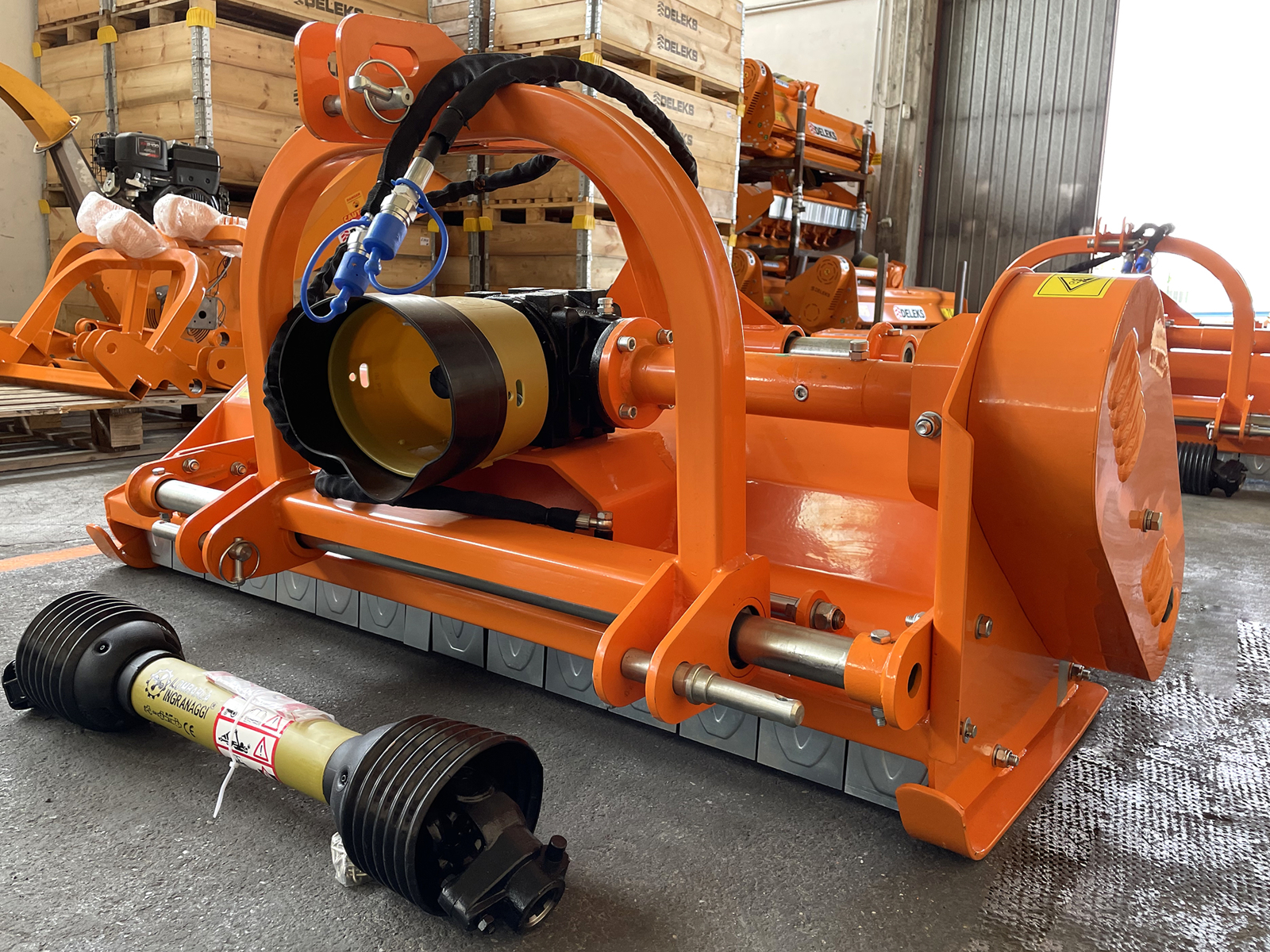

PTO shaft CE included.




Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual




CHARACTERISTICS

Characteristic Units metric Units US
Working width 1470.0 mm 4.82 ft
Overall width 1600.0 mm 5.25 ft
Min / Max cutting height 5.0 - 55.0 mm 0.2 - 2.16 in
Weight 330.0 kg 727.0 lb
Overall height 830.0 mm 2.72 ft
Tractor Power Range 30 - 60 Hp 30 - 60 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Hood height 370.0 mm 14.57 in

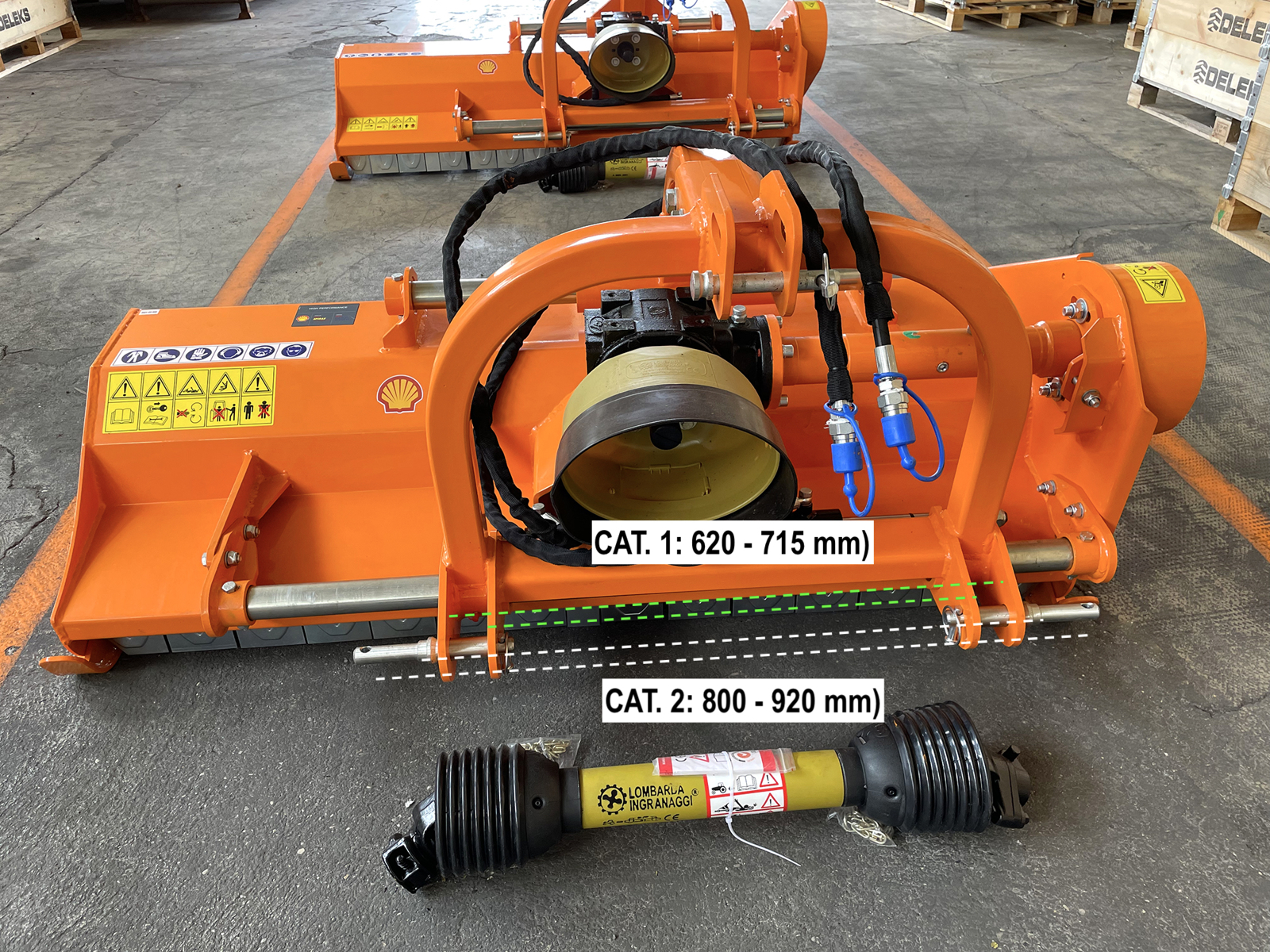

Spacing between the 2 lower points 620.0 - 920.0 mm 24.40 - 36.20 in
Number of Hammers 22 22
Maximum cutting diameter 40.0 - 50.0 mm 1.57 - 1.97 in
Overall length 1000.0 mm 3.28 ft
Distance between pto attachment and ground 400.0 mm 15.75 in
Main hood thickness 5.0 mm 0.2 in
Sides thickness 6.0 mm 0.23 in
Side plates thickness 6.0 mm 0.23 in
Transmission: Drive method V-Belts V-Belts
Transmission: Gearbox Lombarda Ingranaggi 540 r/min - 3 years warranty Lombarda Ingranaggi 540 r/min - 3 years warranty
Transmission: PTO 540 r/min 540 r/min
Transmission: Rotation of gearbox Right side Right side
Transmission: Free wheel
Transmission: RPM Rotor speed 2295 rpm 2295 rpm
Transmission: Oil in the gearbox Yes / Shell Spirax S2 A 80W-90 Yes / Shell Spirax S2 A 80W-90
Transmission: Top pulley ø 170.0 mm 6.70 in
Transmission: Lower pulley ø 120.0 mm 4.72 in
Transmission: V-Belts quantity 3 3
Transmission: V-Belts size 17x1092 17x1092

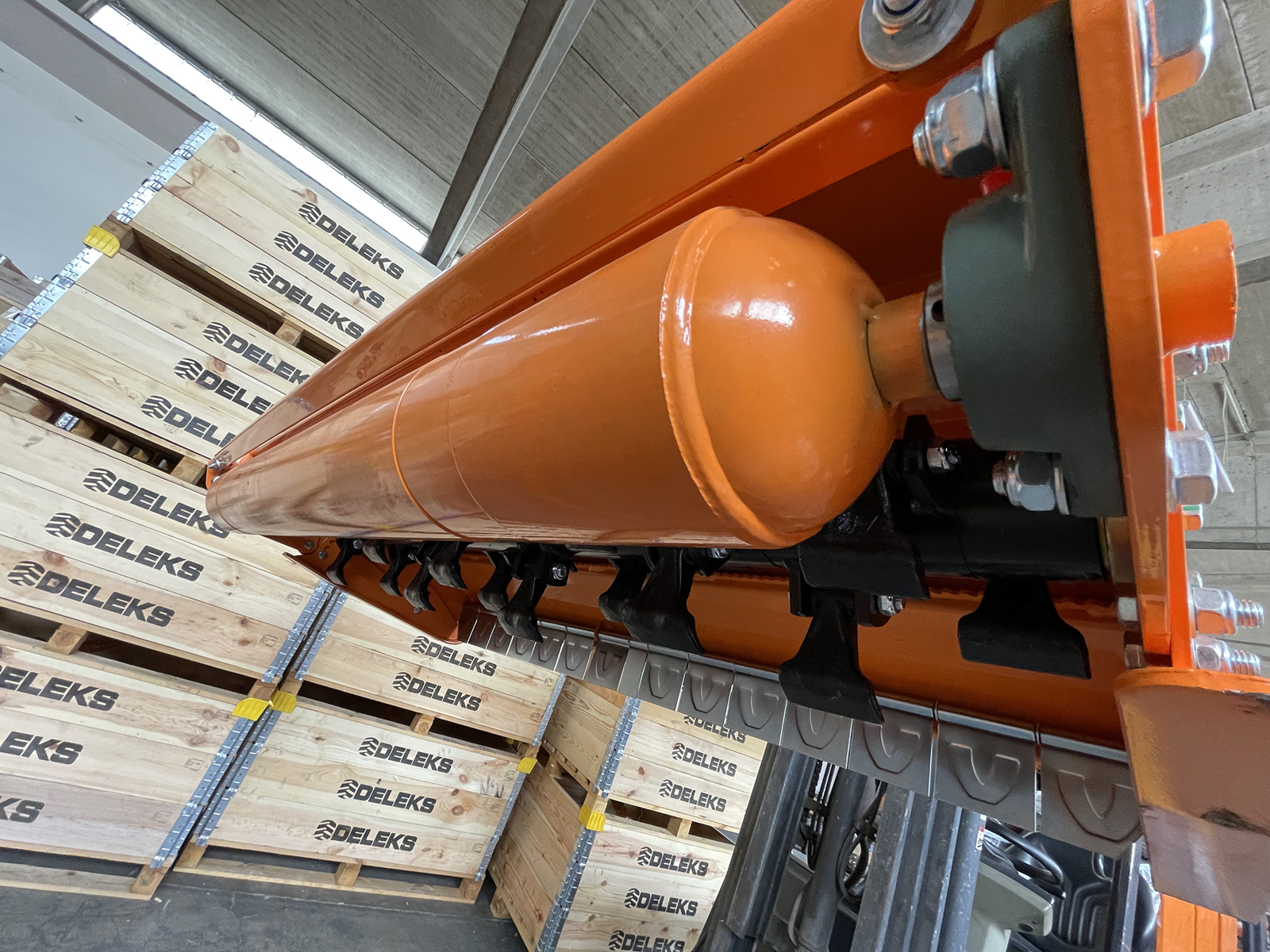

Rotor: diameter 108.0 mm 4.25 in
Rotor: bearings type and size UC207 UC207
Rotor: balancing Electronic Electronic
Rotor: sheet thickness 8.0 mm 0.31 in

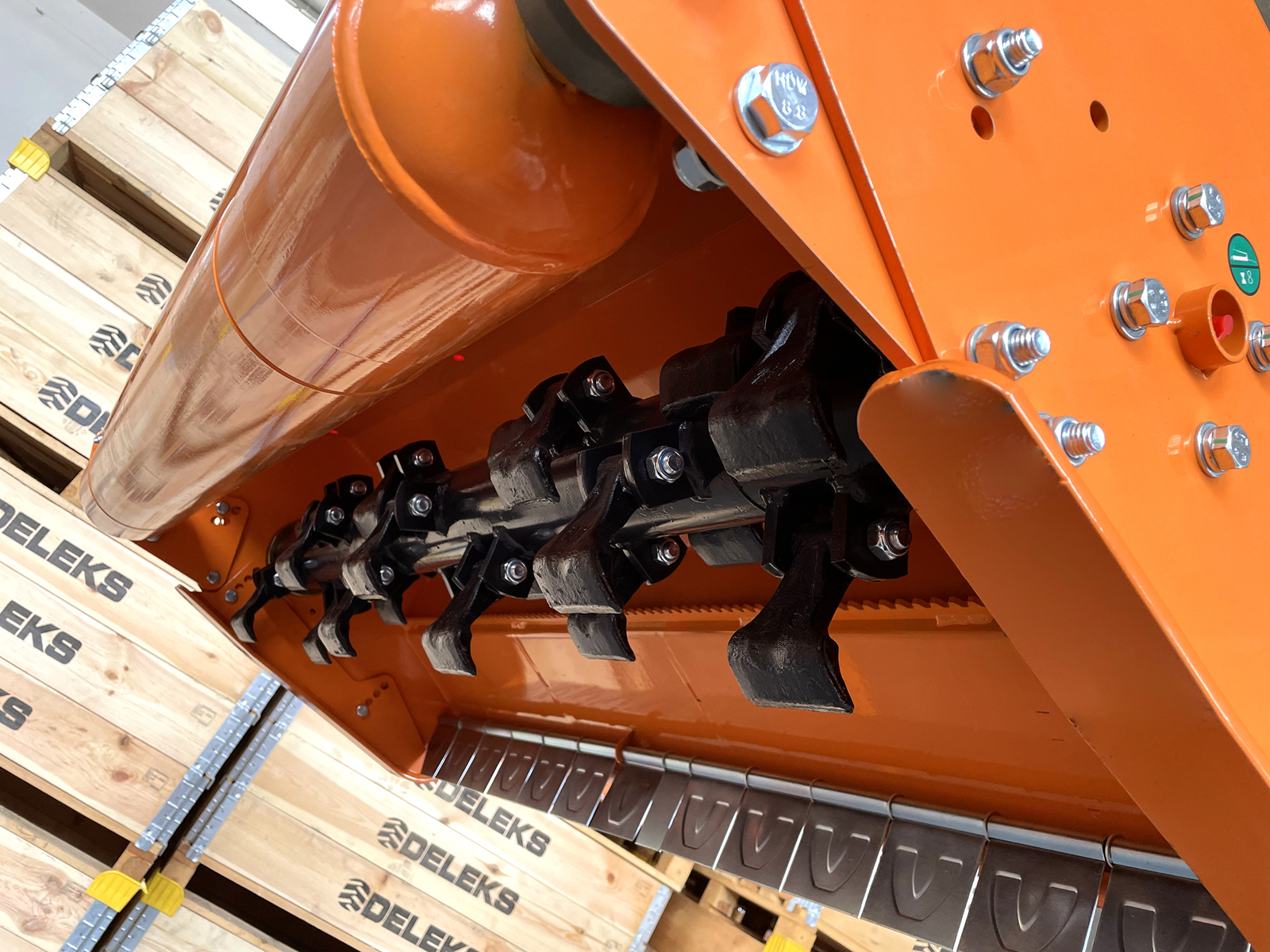

Hammers: Weight 820.0 g 29.0 oz
Hammer: øhole 16.0 mm 0.63 in
Hammer: base width 90.0 mm 3.54 in
Hammer: top width 40.0 mm 1.57 in
Hammer: Diagonal 100.0 mm 3.94 in

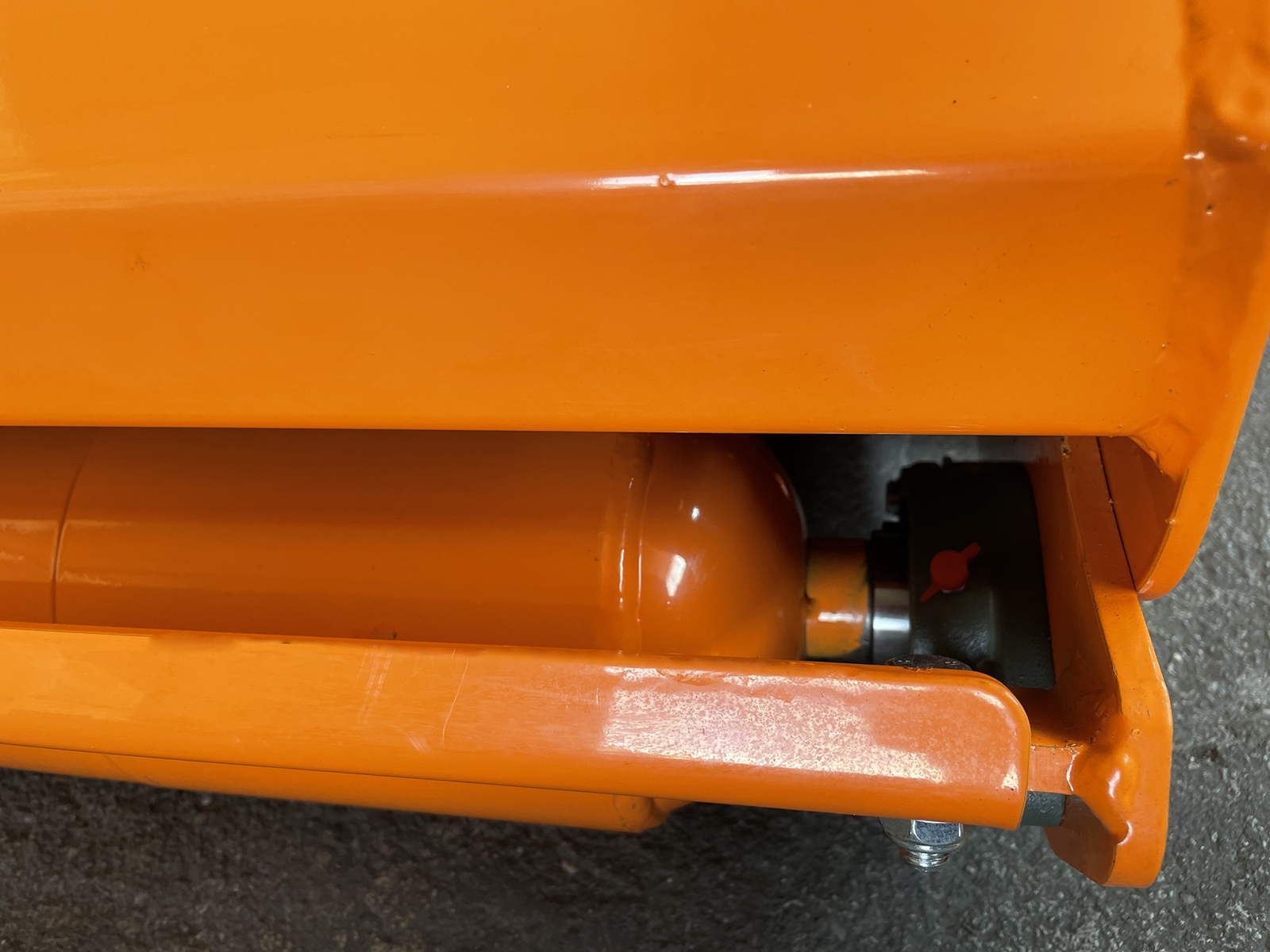

Rear roller: diameter 140.0 mm 5.50 in
Rear roller: sheet thickness 4.0 mm 0.16 in
Rear roller: bearings type and size UC205 UC205

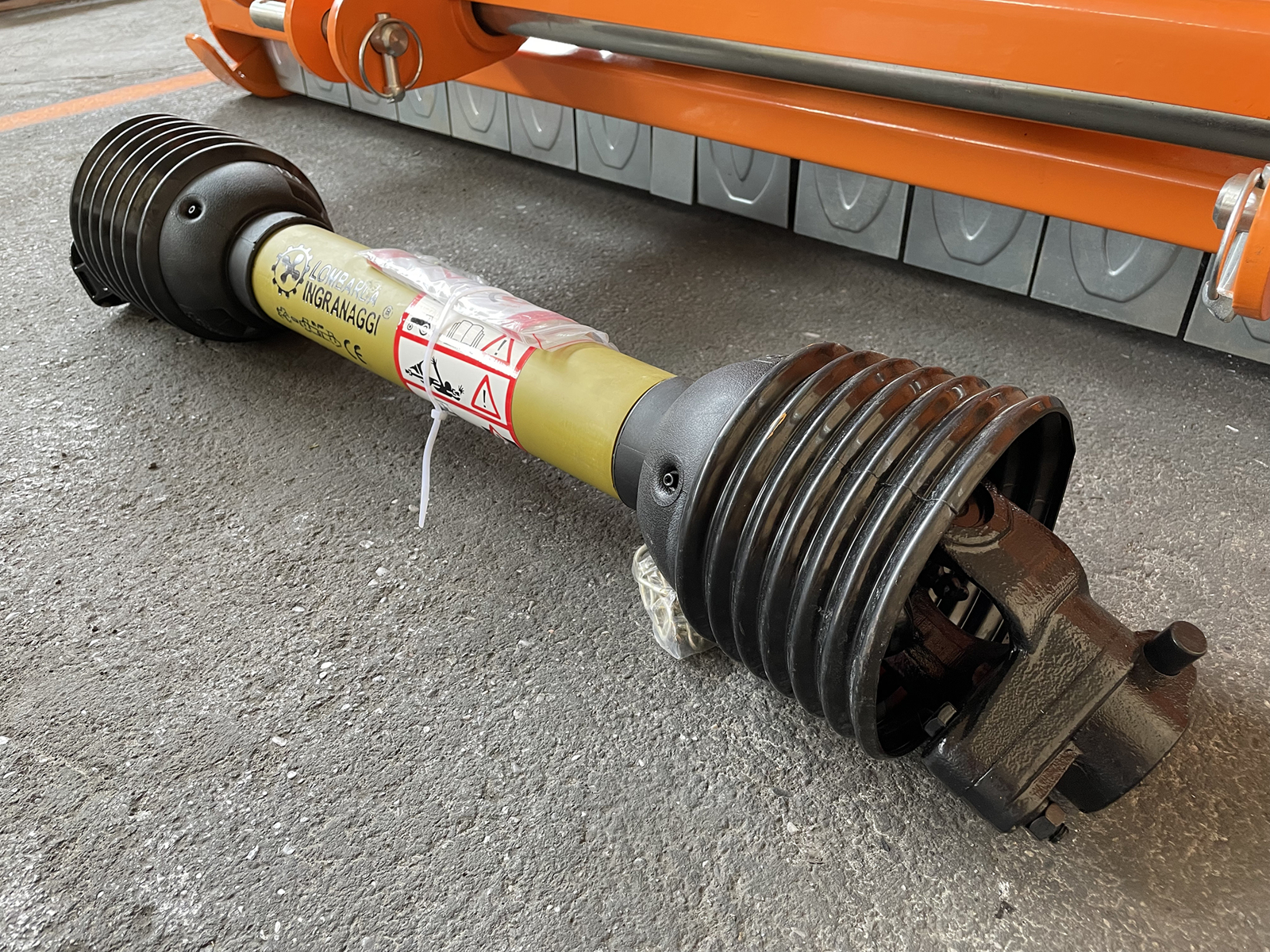

Pto shaft CE 4x800 mm CE 4x800 mm + shear bolt
Hood length 750.0 mm 29.52 in
Effective Displacement 280.0 mm (Hydraulic) 10.63 in (Hydraulic)
Packing sizes 1650.0*1000.0*700.0 mm 5.40*3.28*2.30 ft
