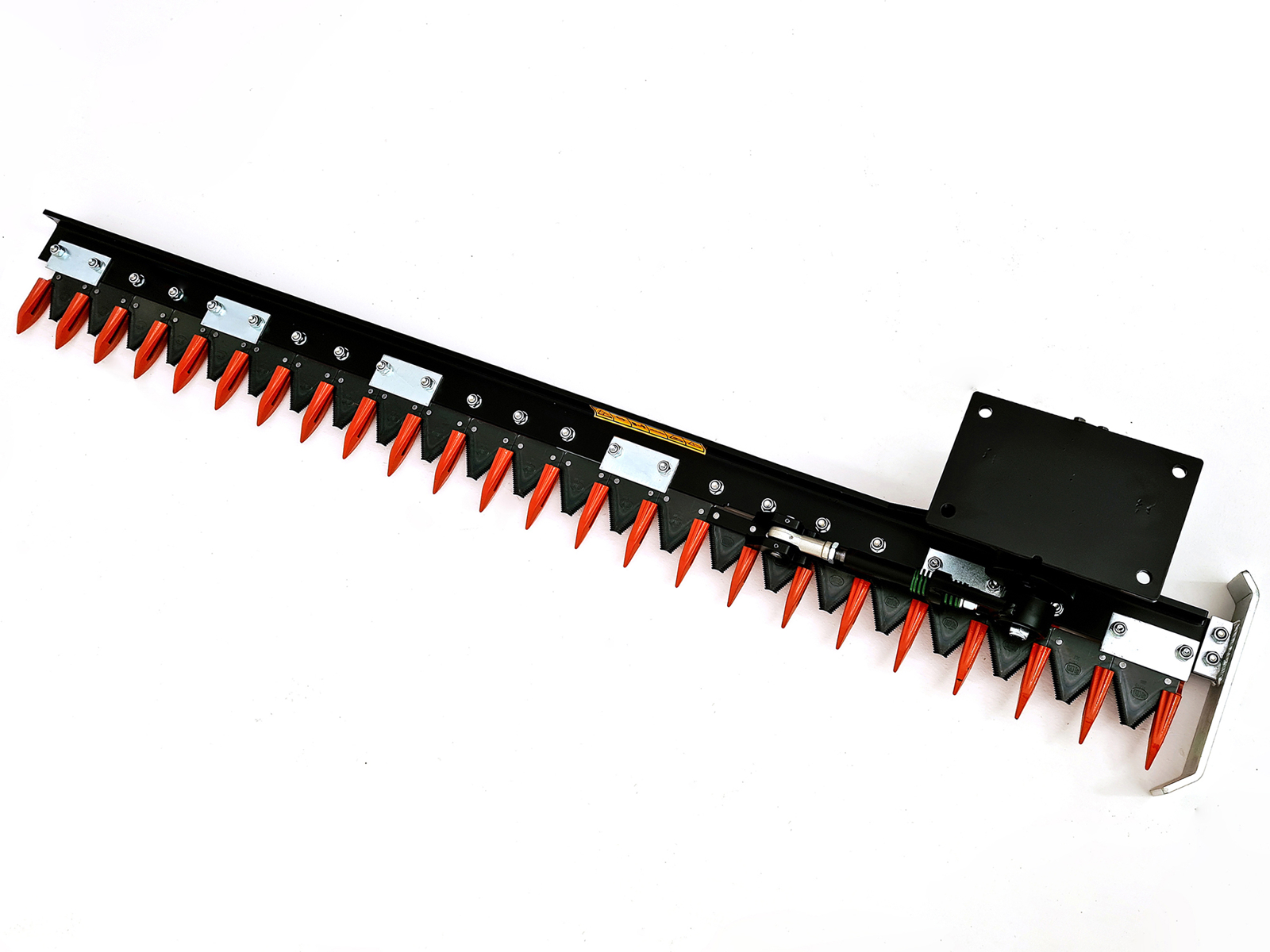

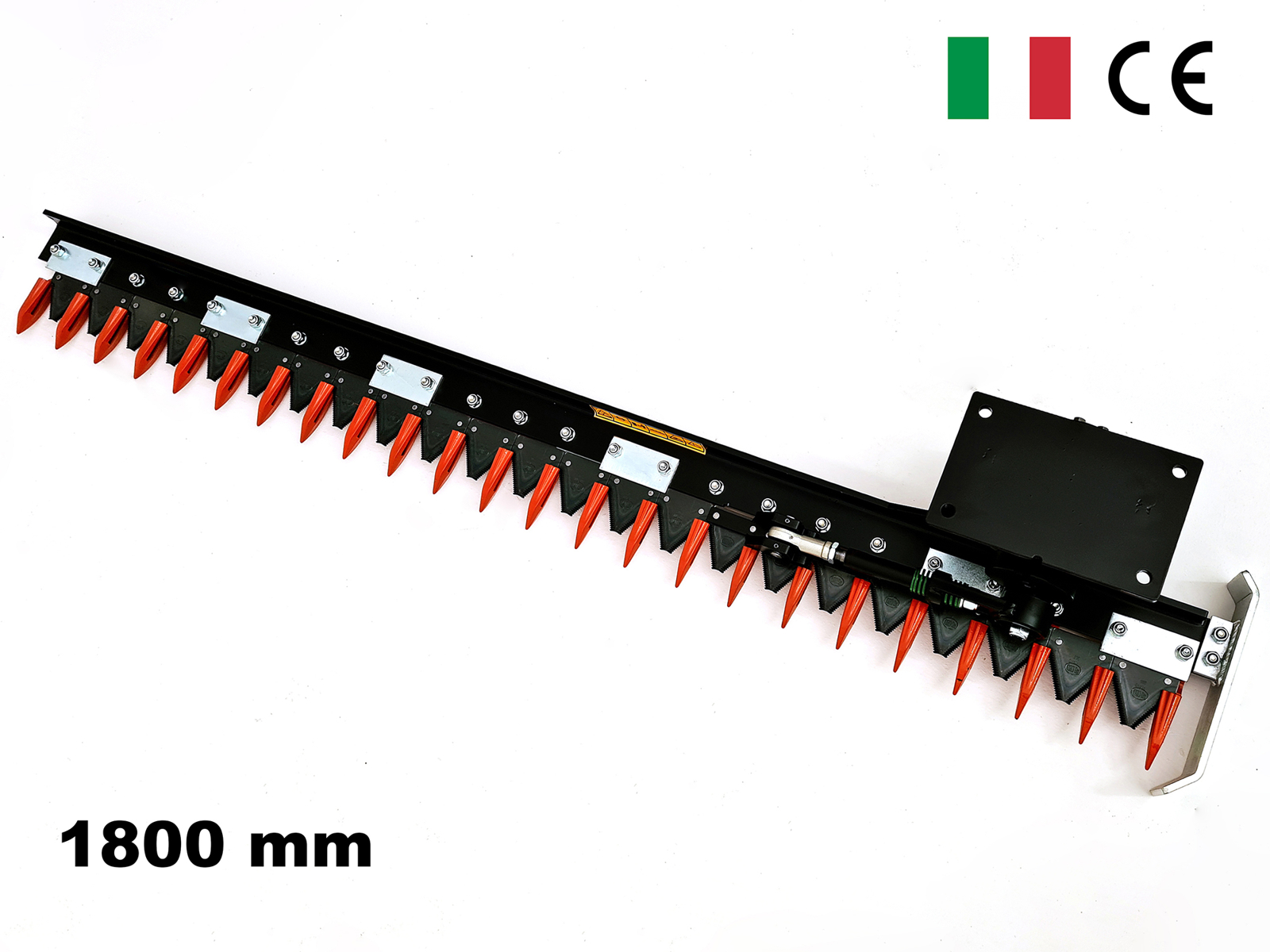

Hydraulic cutter bar, hedge trimmer - DELEKS® HR-180-S - Made in Italy
2 years warranty

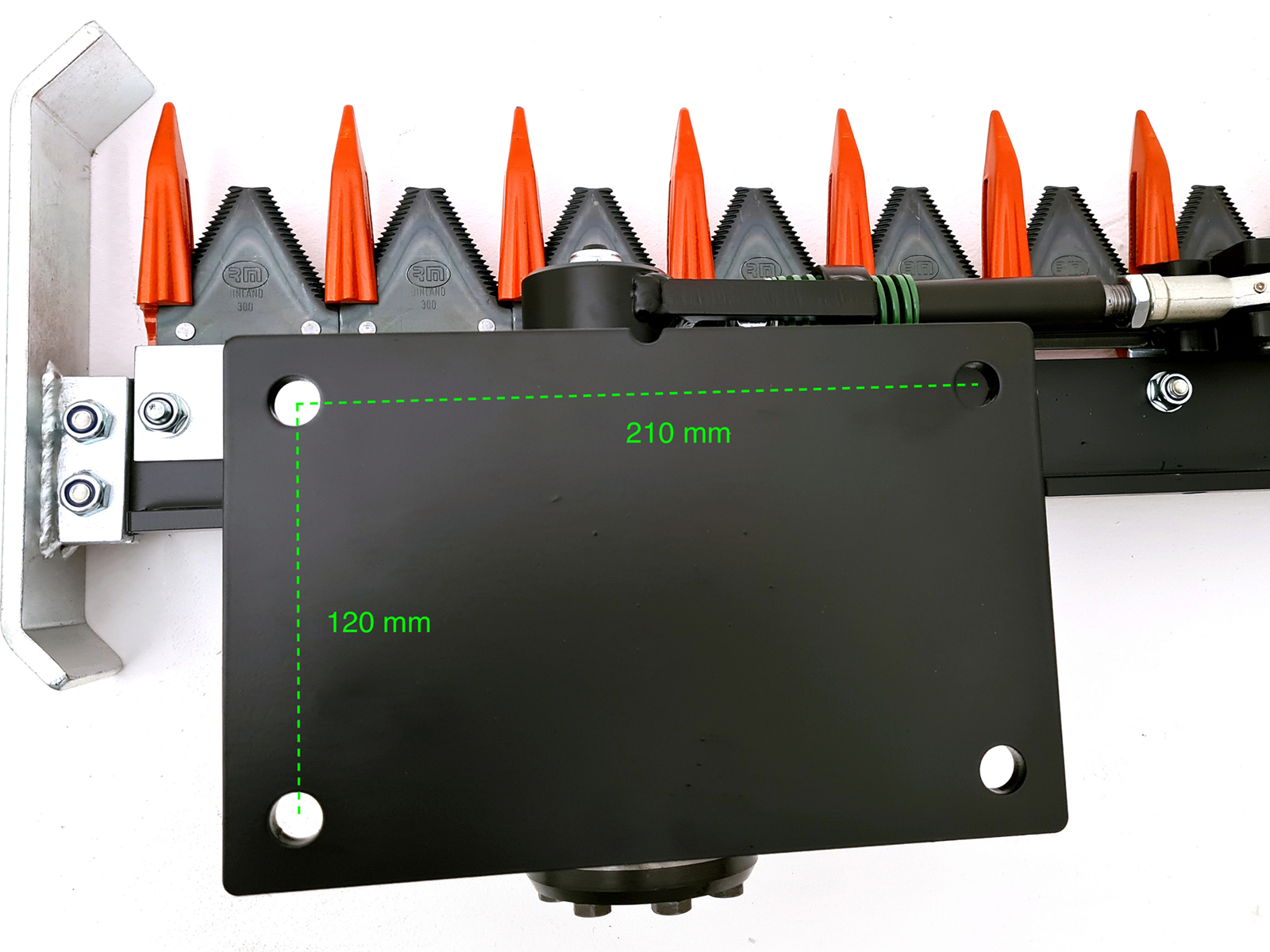

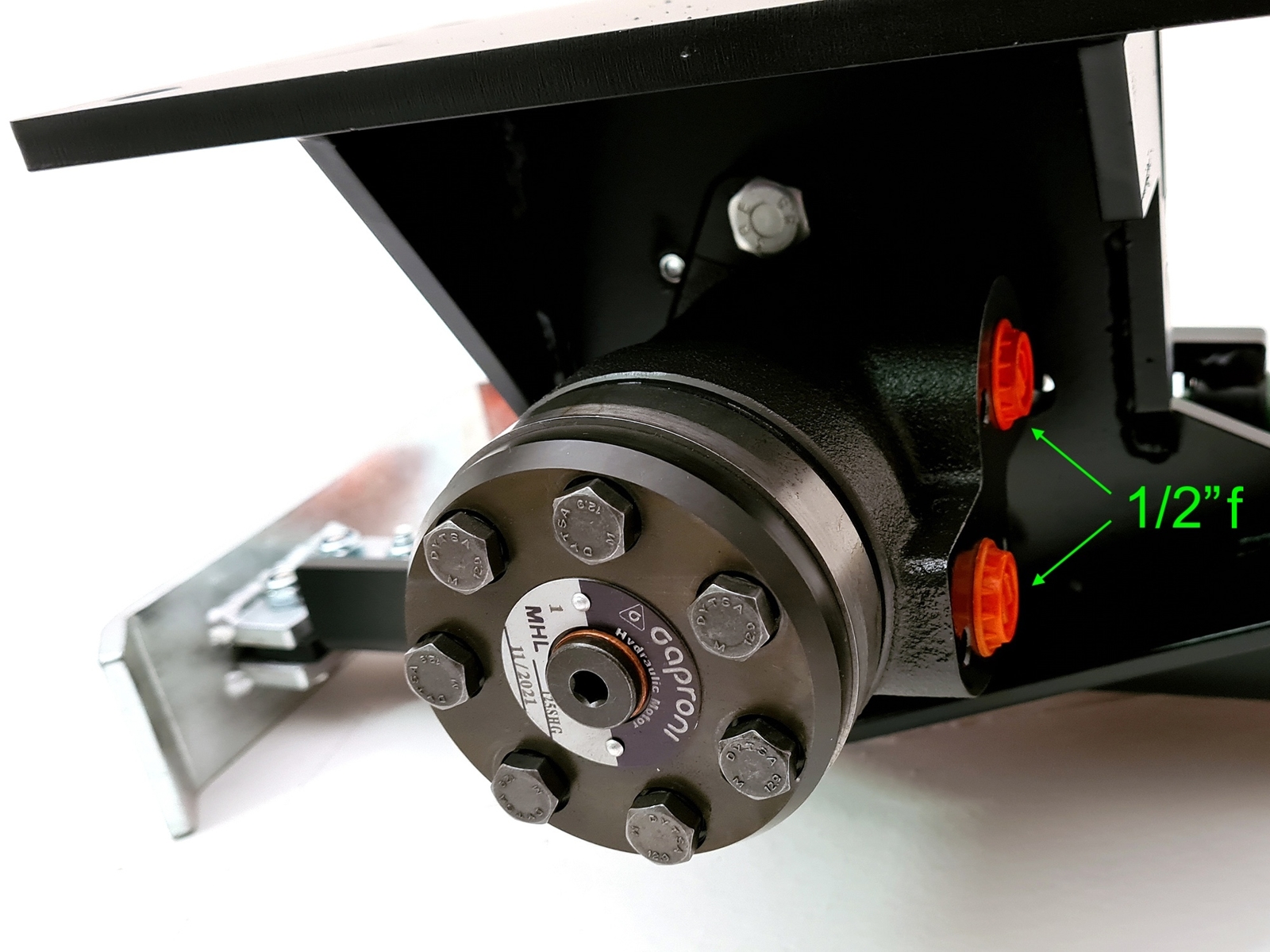

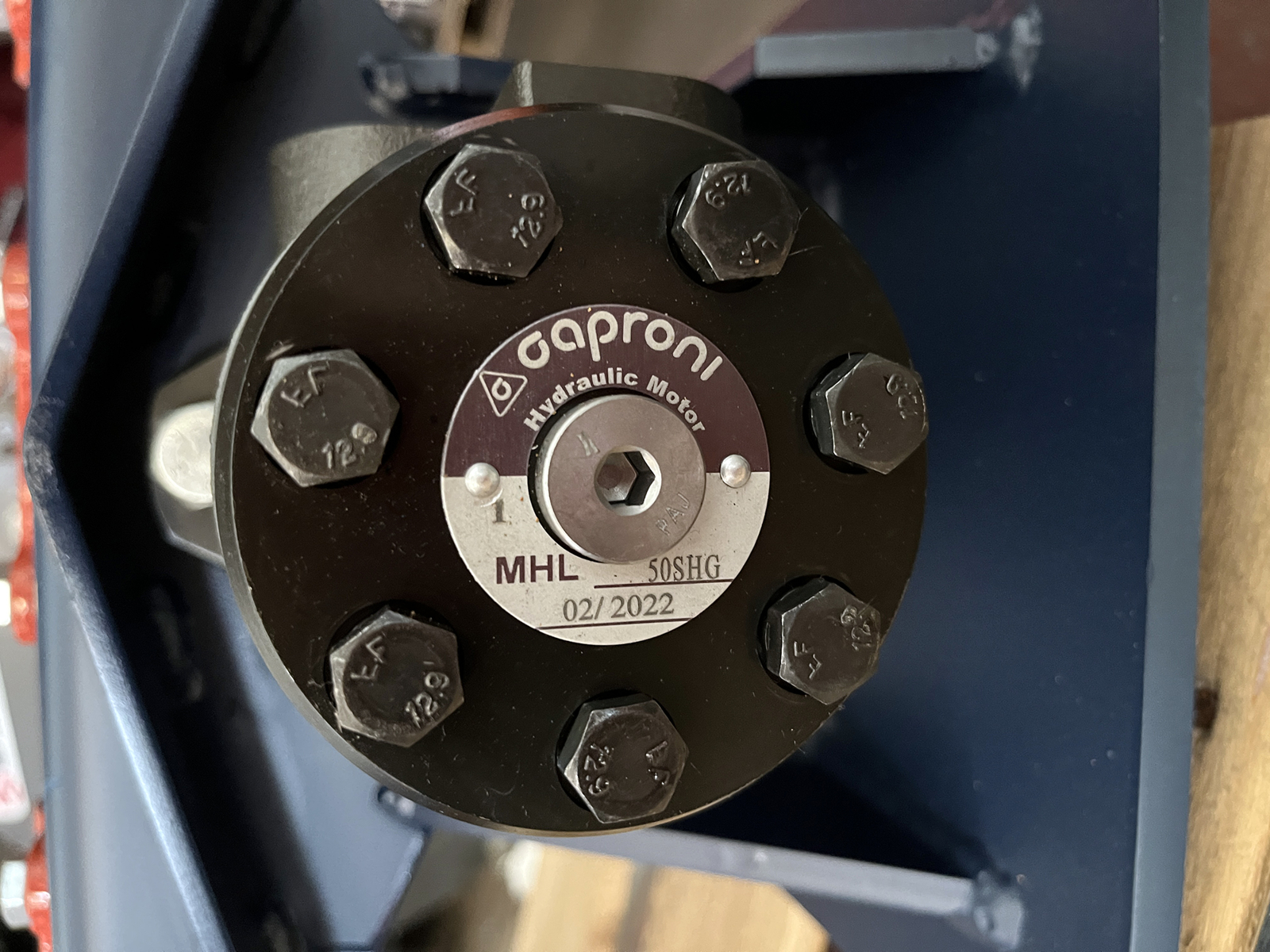

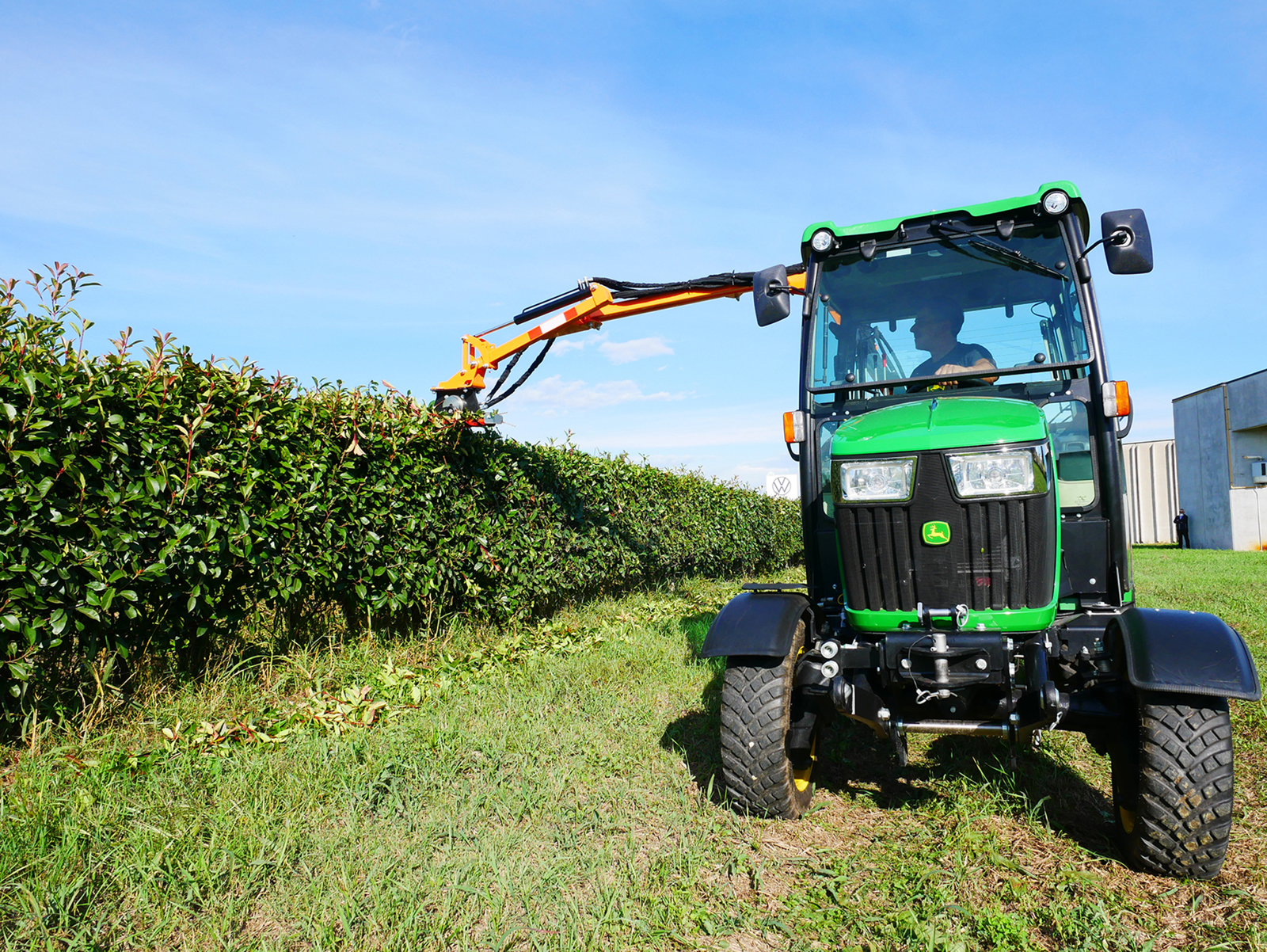

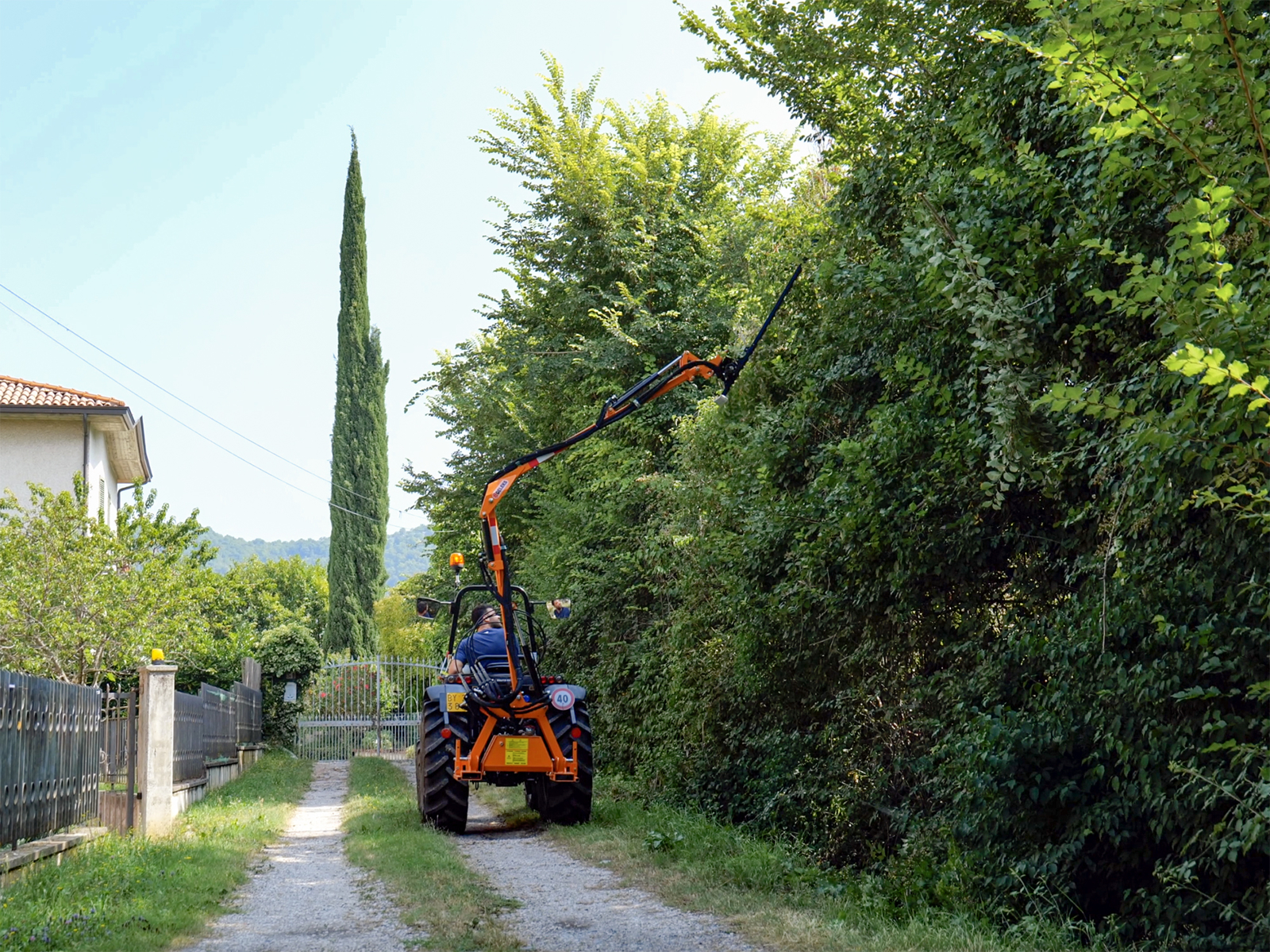

Hydraulic cutter bar DELEKS® HR is ideal for trimming hedges and branches up to about 1-2 cm in diameter. The set-up includes the hydraulic motor and the mounting plate with 4 mounting holes (measures shown in the images).

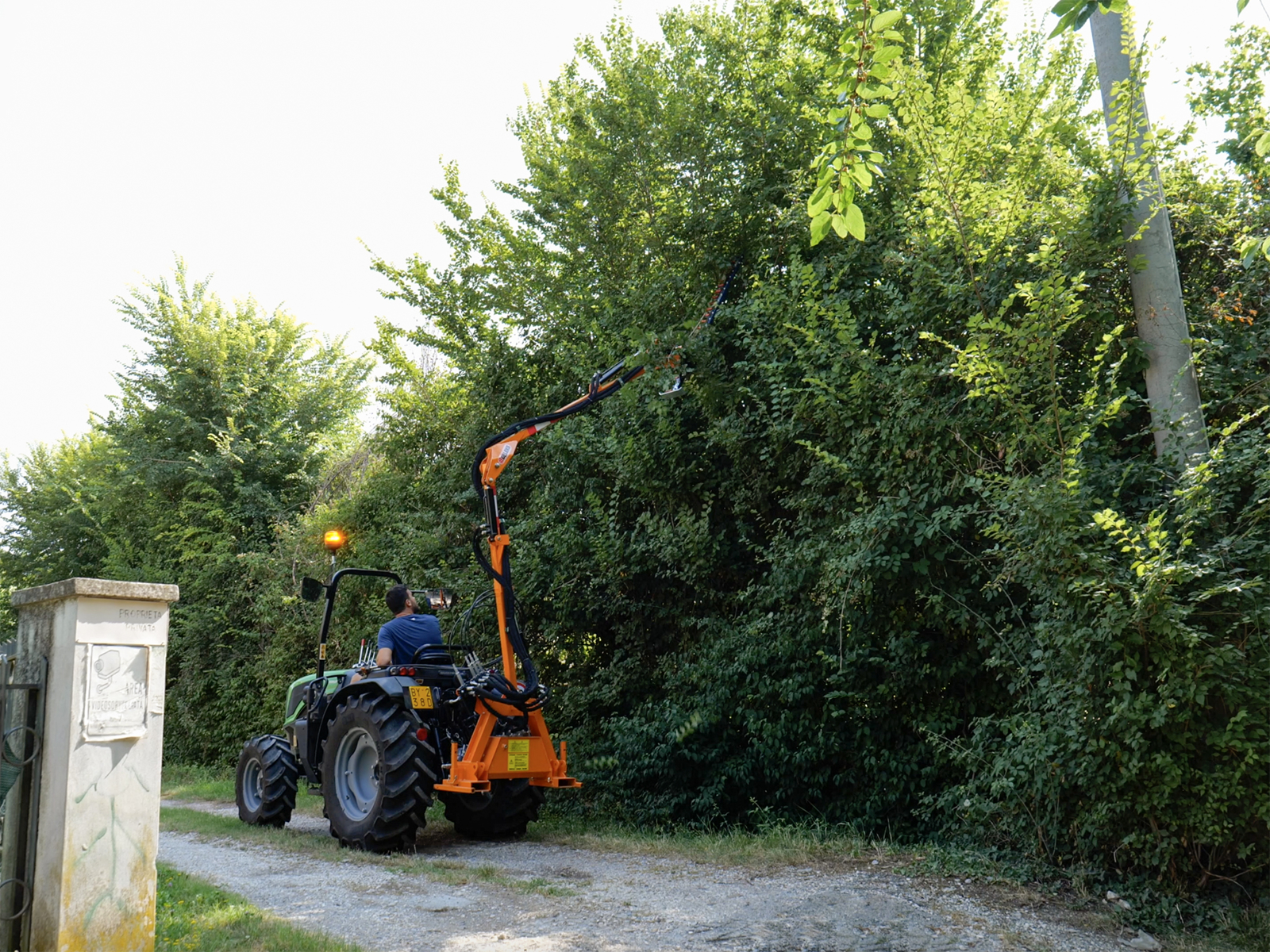

The cutter bar is controlled by the hydraulic system of the tractor / operating machine.
Requirements:
The hydraulic oil flow: min. 20-60 l/min.
The operating machine must be equipped with a circuit with a return oil duct (if a certain flow is exceeded, the oil is returned directly to the oil discharge line).
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1800.0 mm | 5.90 ft |
| Overall width | 1880.0 mm | 6.15 ft |
| Weight | 70.0 kg | 154.0 lb |
| Maximum cutting diameter | 10.0-20.0 mm | 0.40 - 0.80 in |
| Number of Blades | 23 | 23 |
| Min./Max. Relief Pressure | 140 - 180 bar | 140 - 180 bar |
| Min./Max. Flow | min. 20 l/min | min. 20 l/min |
| Packing sizes | 1880.0*600.0*300.0 mm | 6.15*1.97*1.65 ft |
