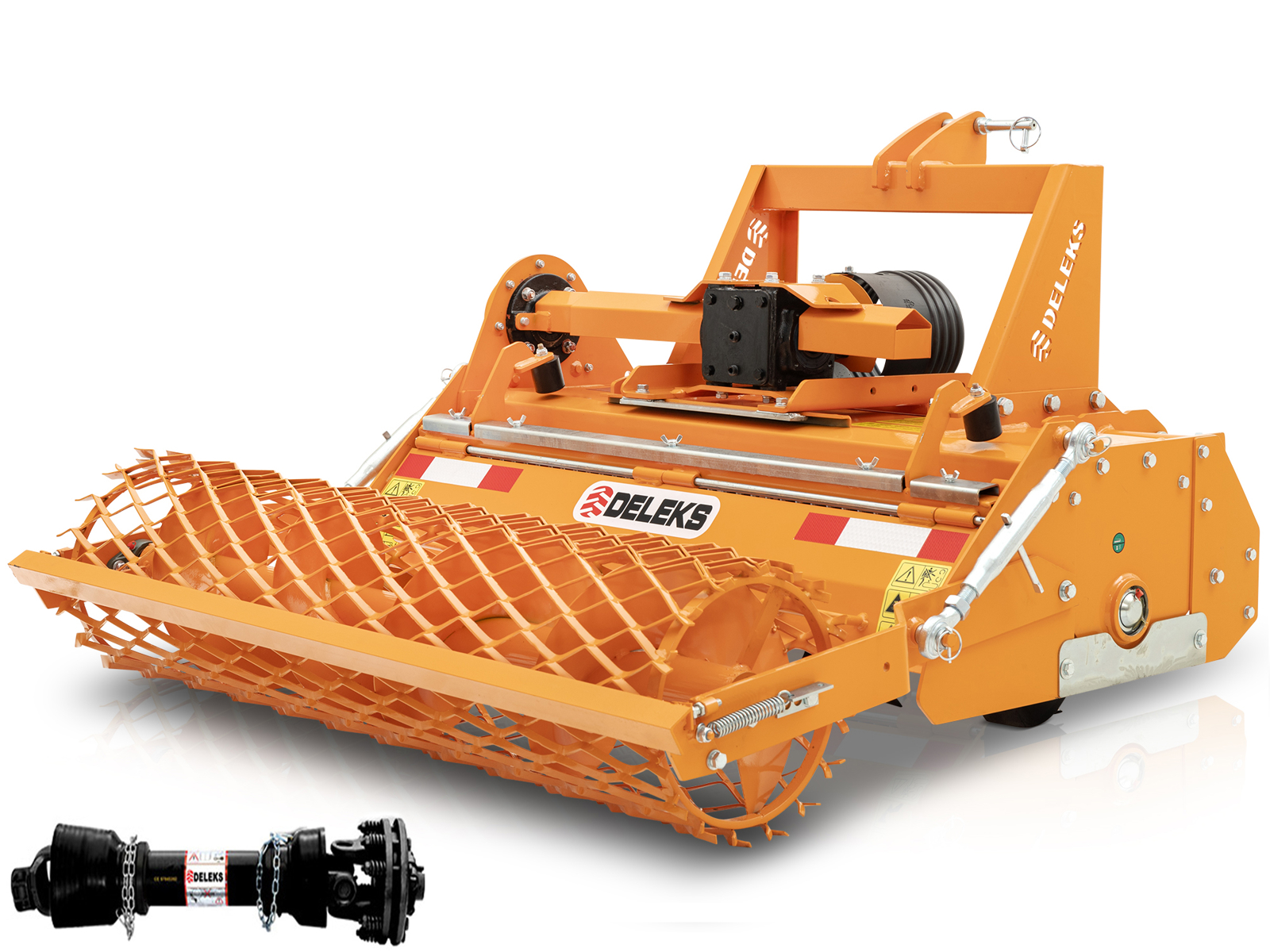

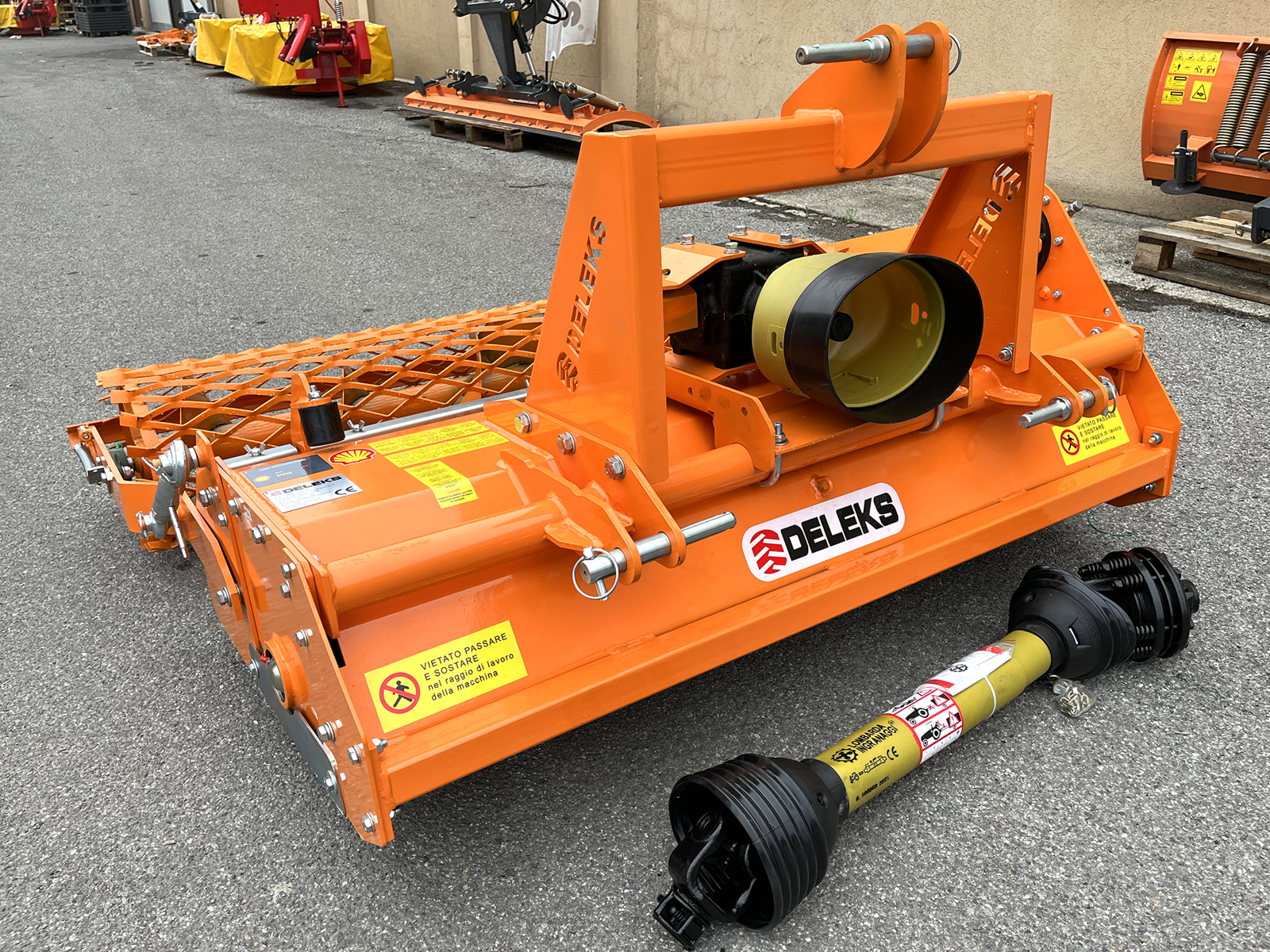

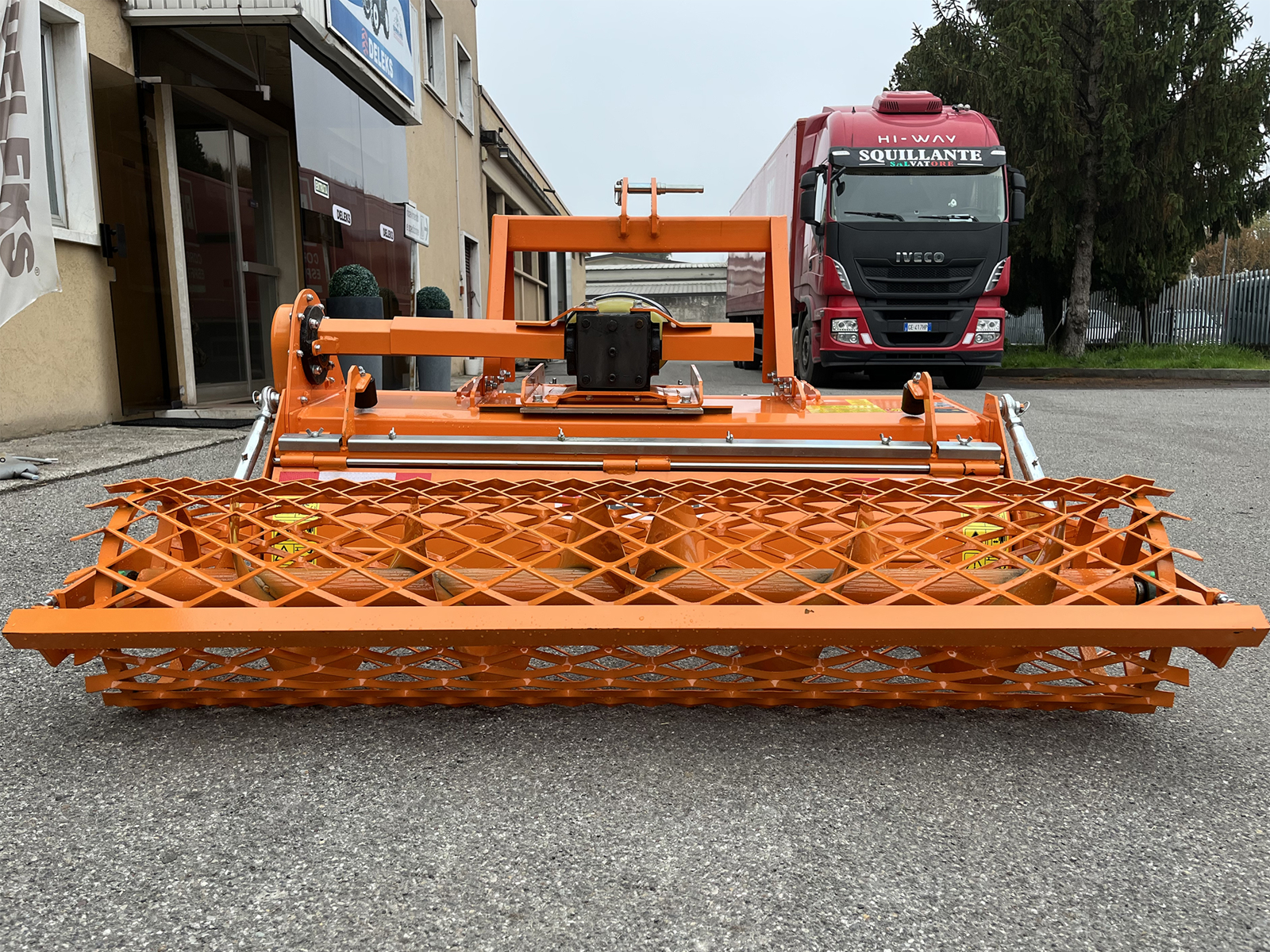

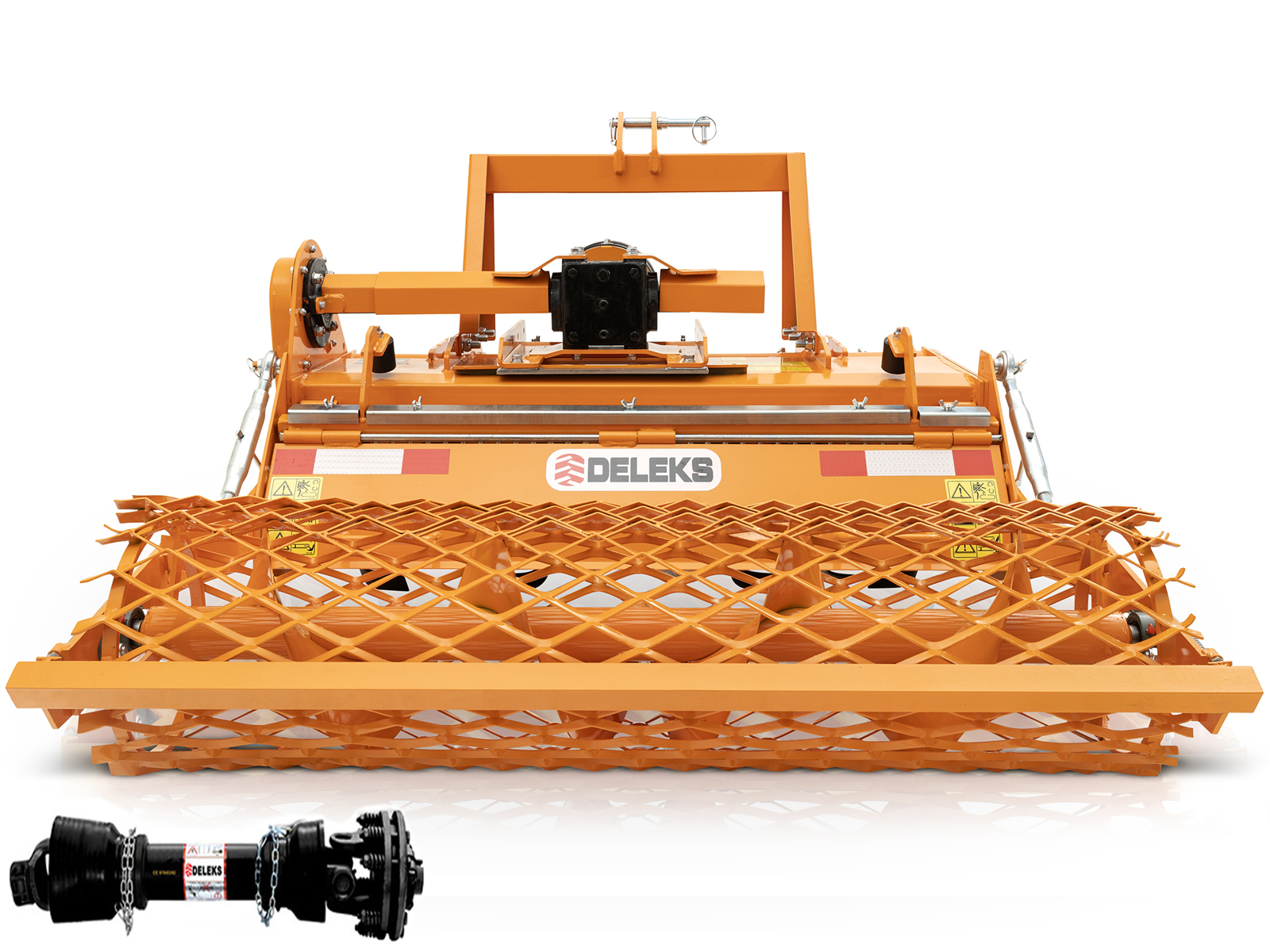

Adjustable Stone Burier DELEKS® - 135cm / 330kg - Rotovators with rear roller for tractors - Pto shaft CE included.

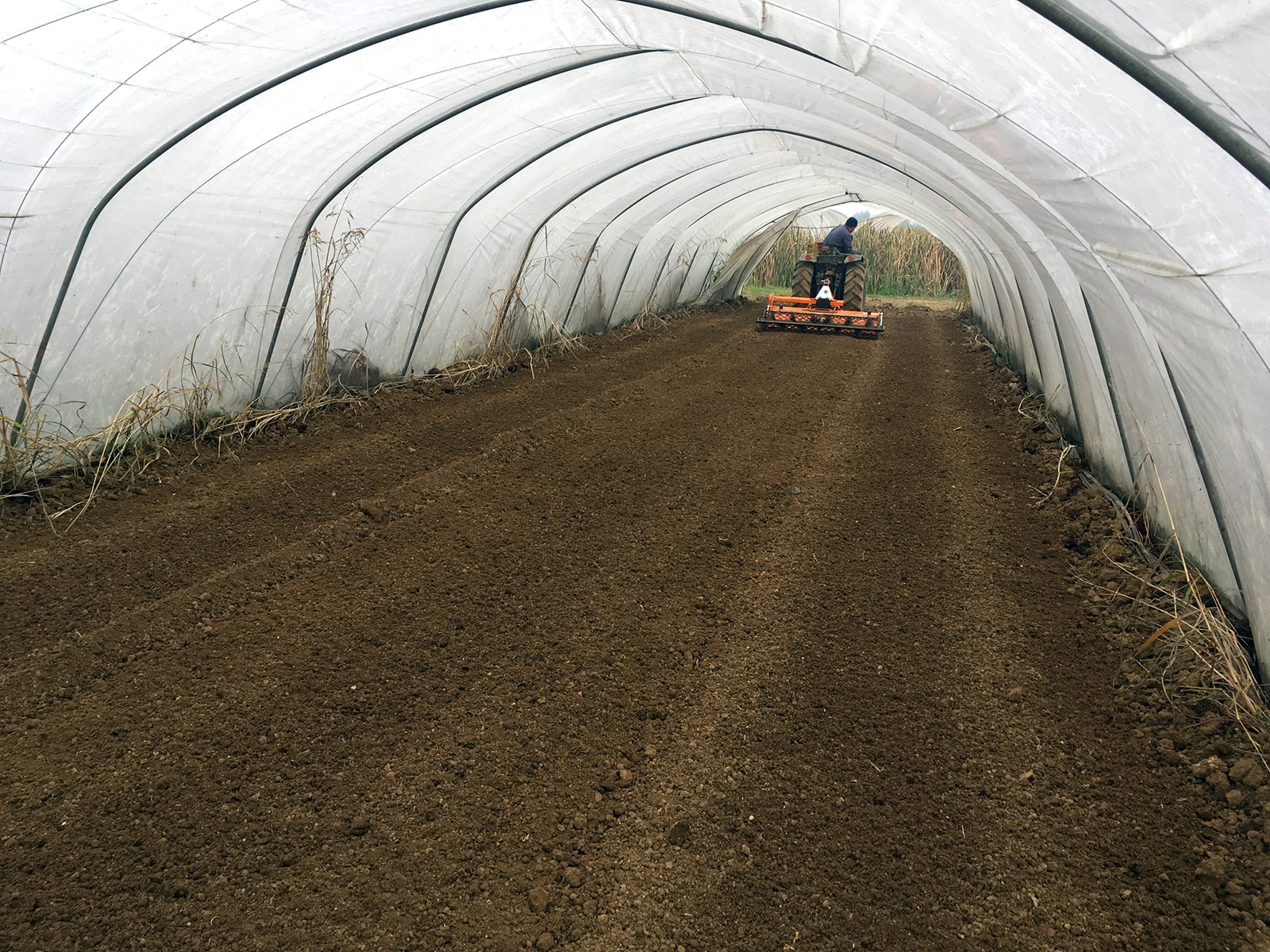

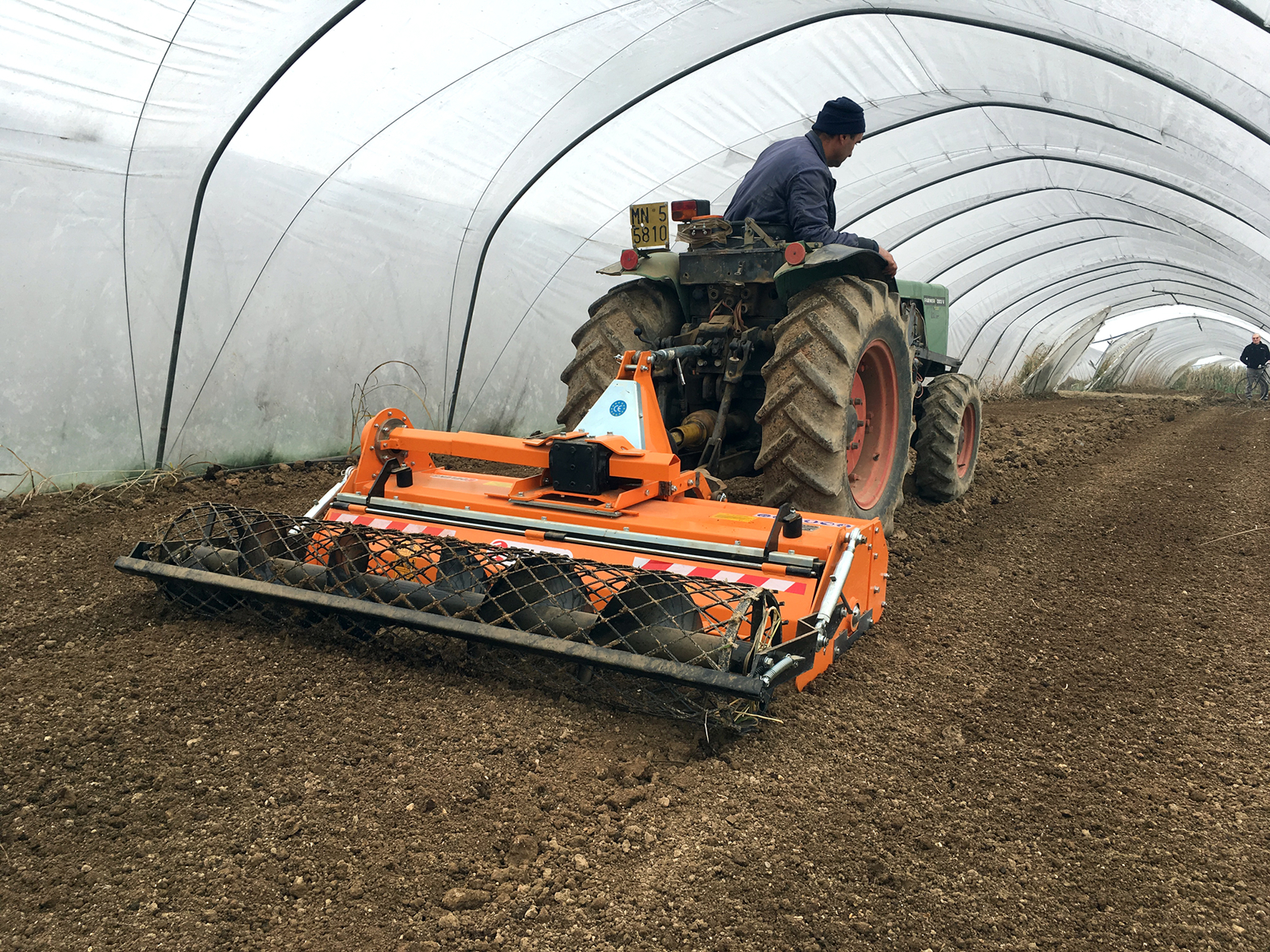

DFU-140 Stone burier for compact tractors 30-50hp e.g New Holland Boomer 30-40, John Deere 3-4 Series, Kubota L, Lamborghini, McCormick, Carraro, Goldoni, etc. The DFU-140 Stone-Burier is the perfect machine to prepare a smooth seed bed in any type of soil, including heavy soils and hard clay. It has been designed for greenhouse cultivation, preparing the soil for planting, flower beds and gardens. Single Speed Gearbox with 540 RPM PTO, Chain Side Drive. Delivered assembled (except 3 point linkage and rear roller) and greased, Gearbox filled with oil.
BENEFITS & FEATURES

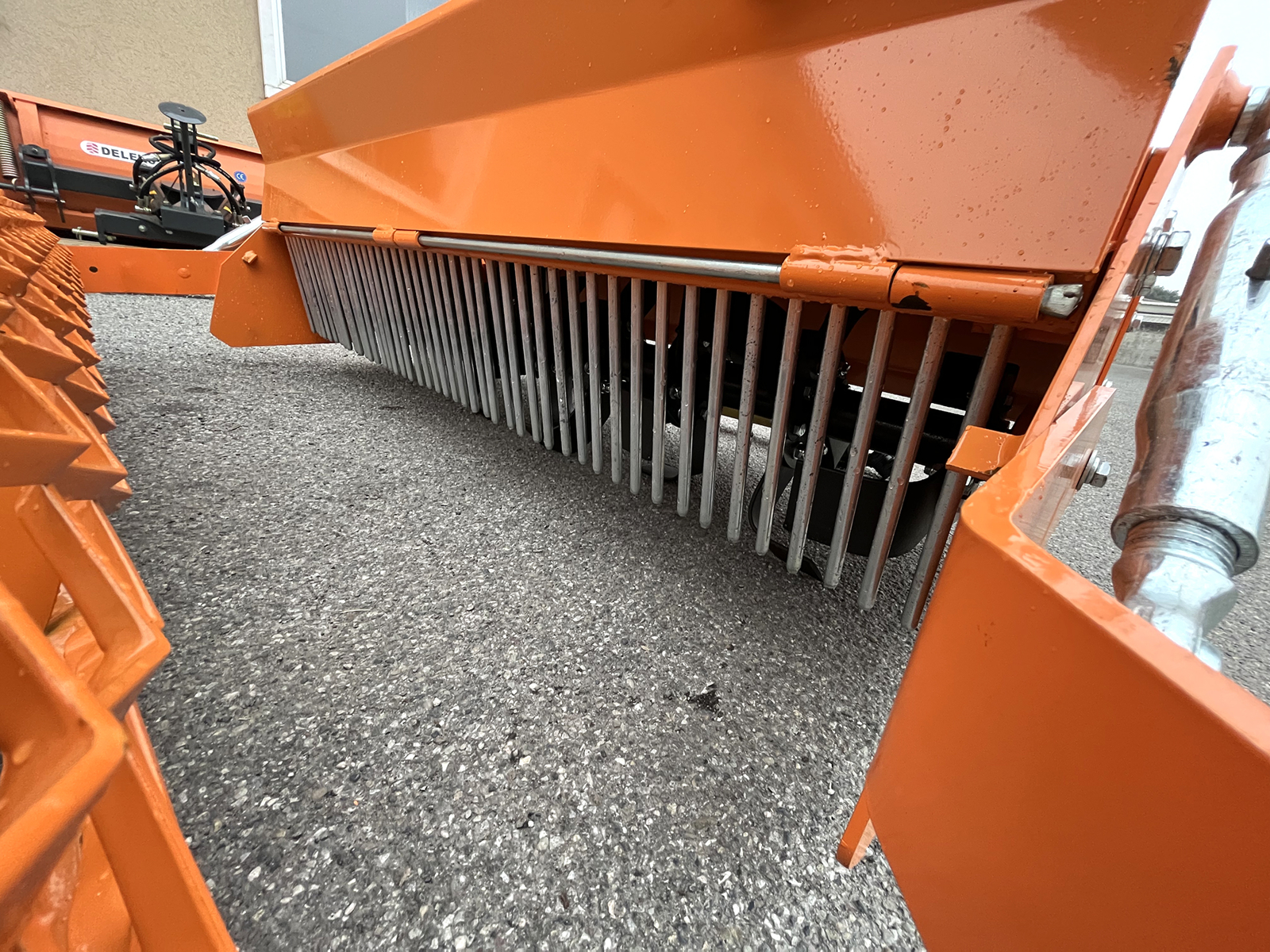

Stones are buried in one pass without having to return to the same row twice.

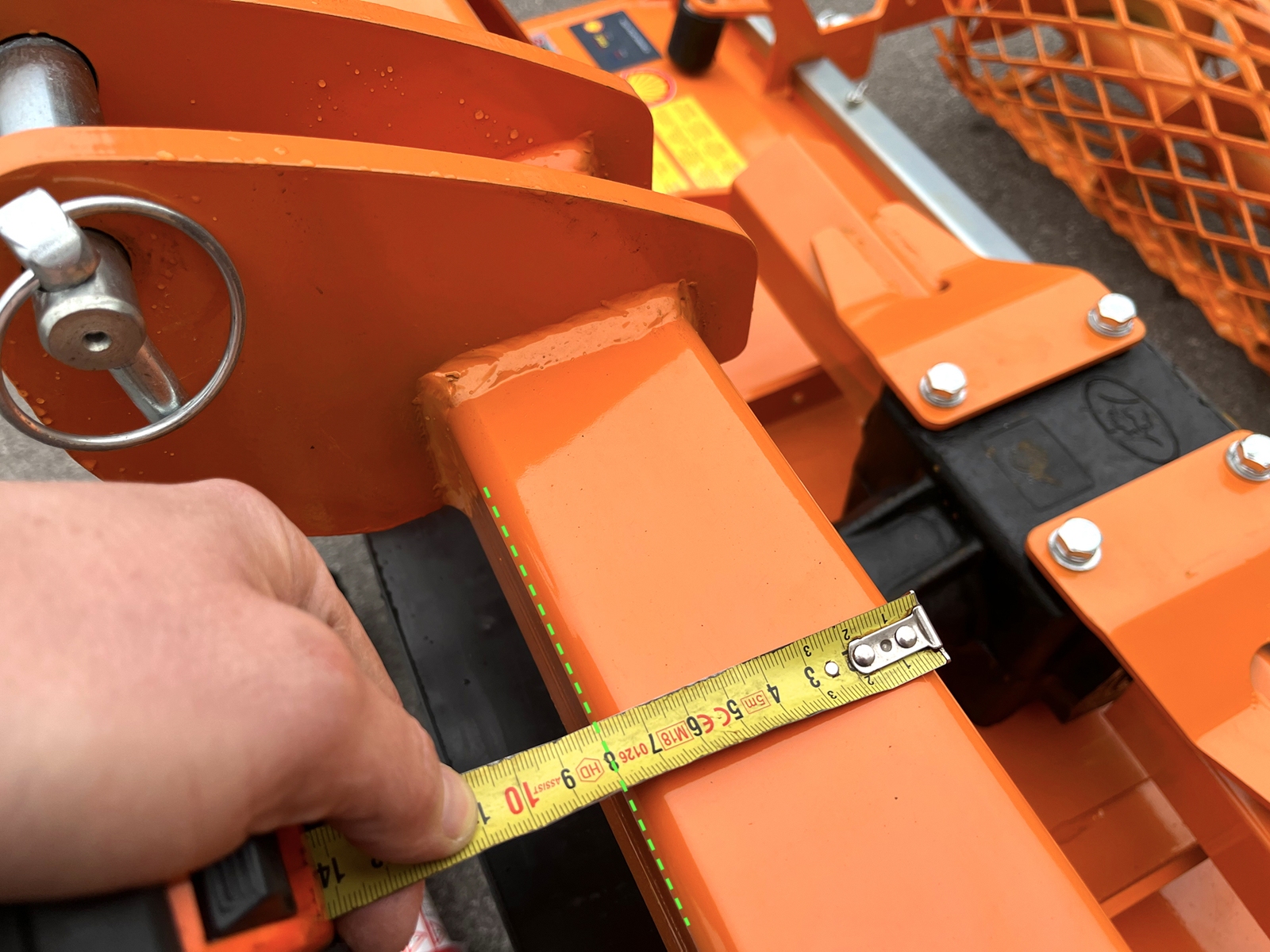

The three-point hitch (120mm) is moved manually by hand and does not require levers to operate.

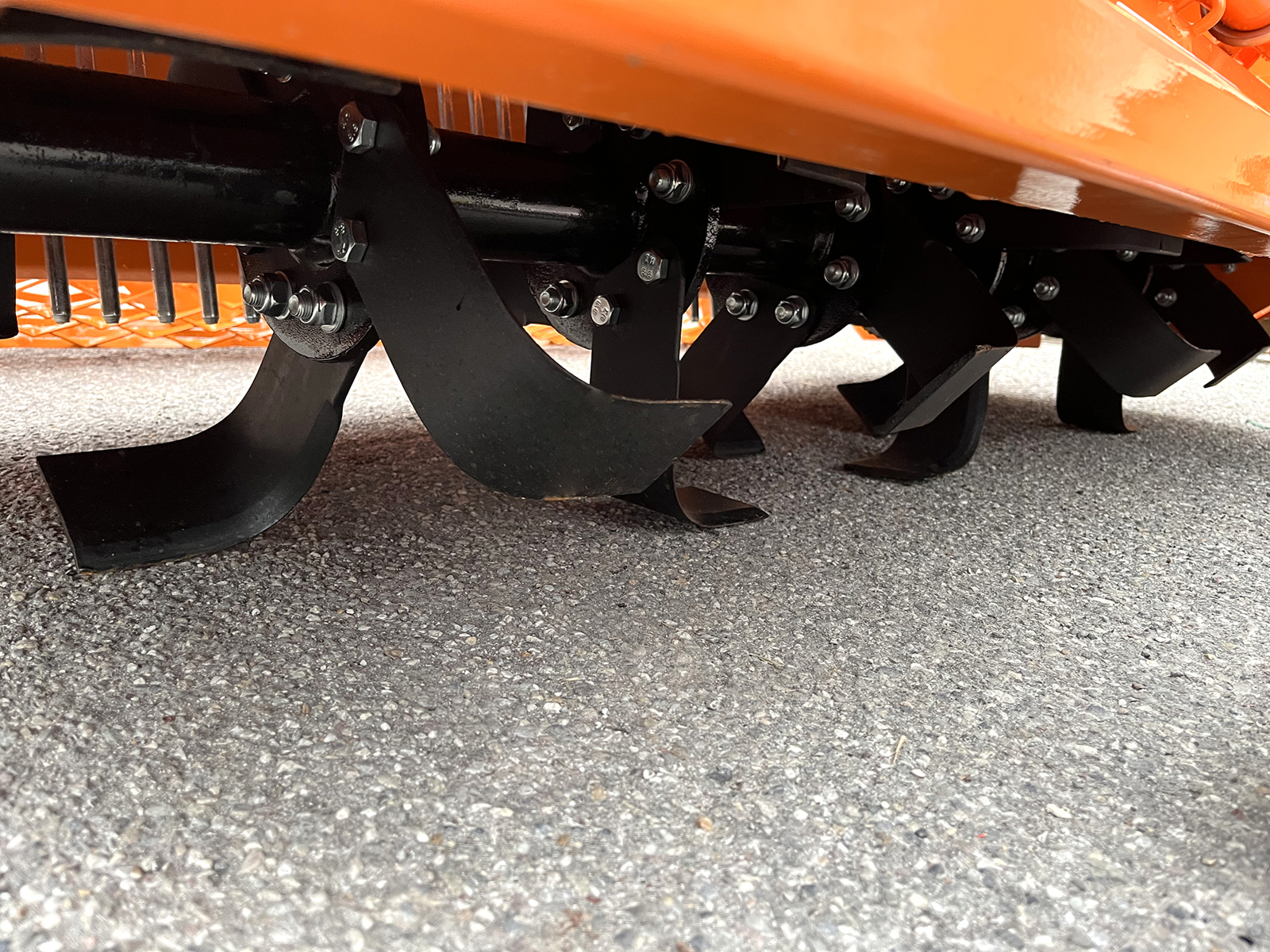

Blades are hardened for maximum strength, durability and wear life in the toughest soil conditions.

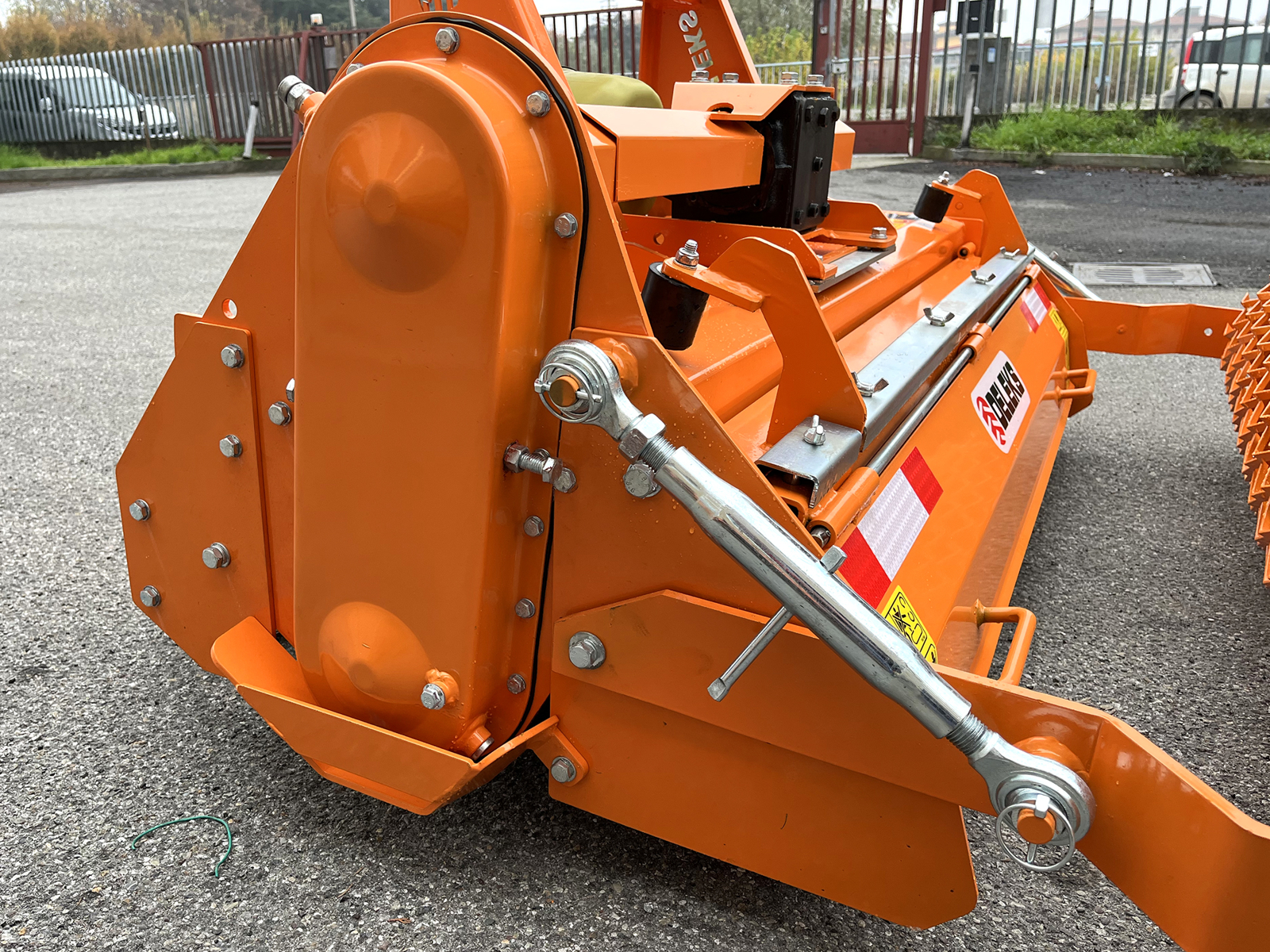

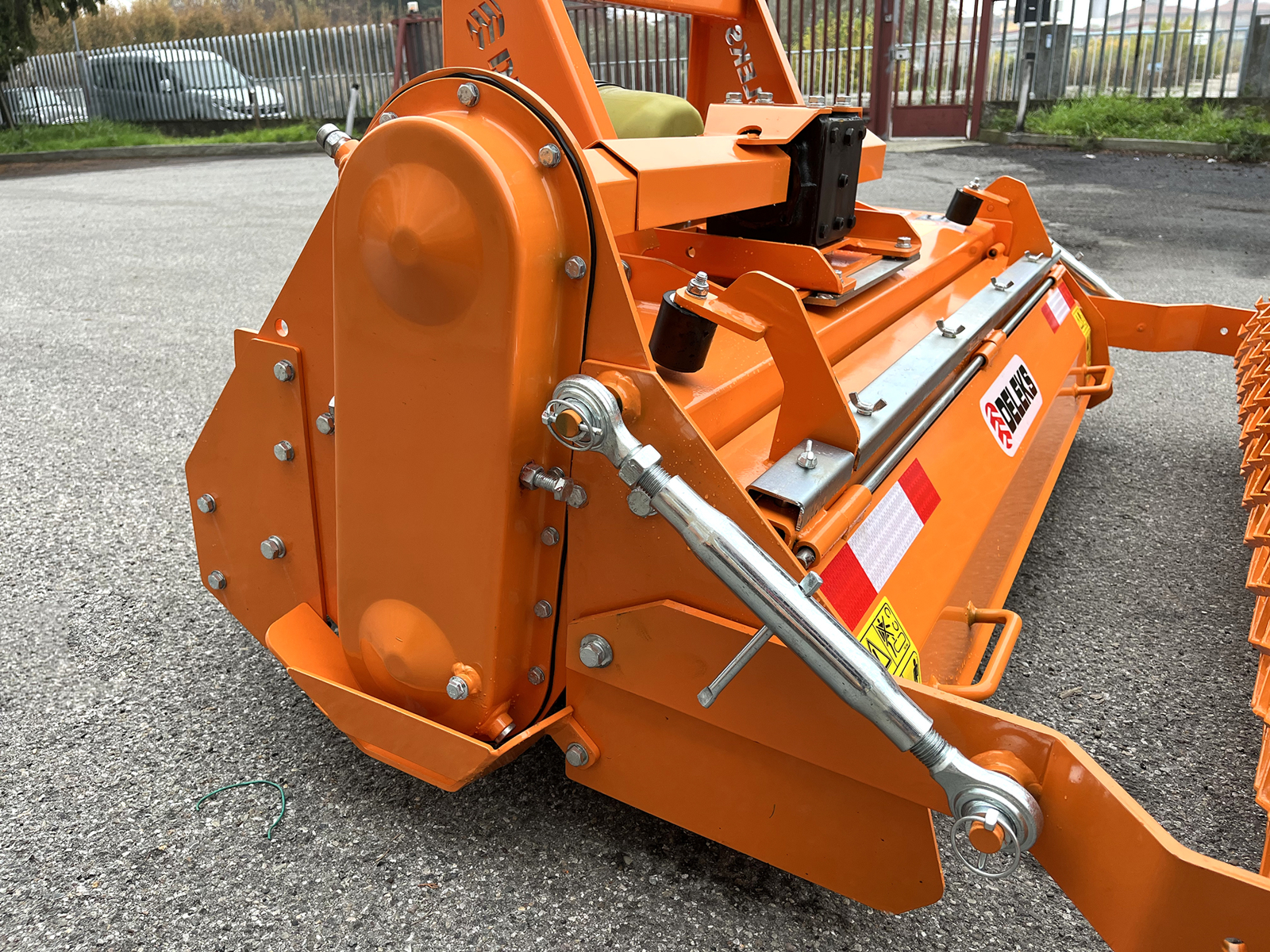

Automatic chain tensioner.

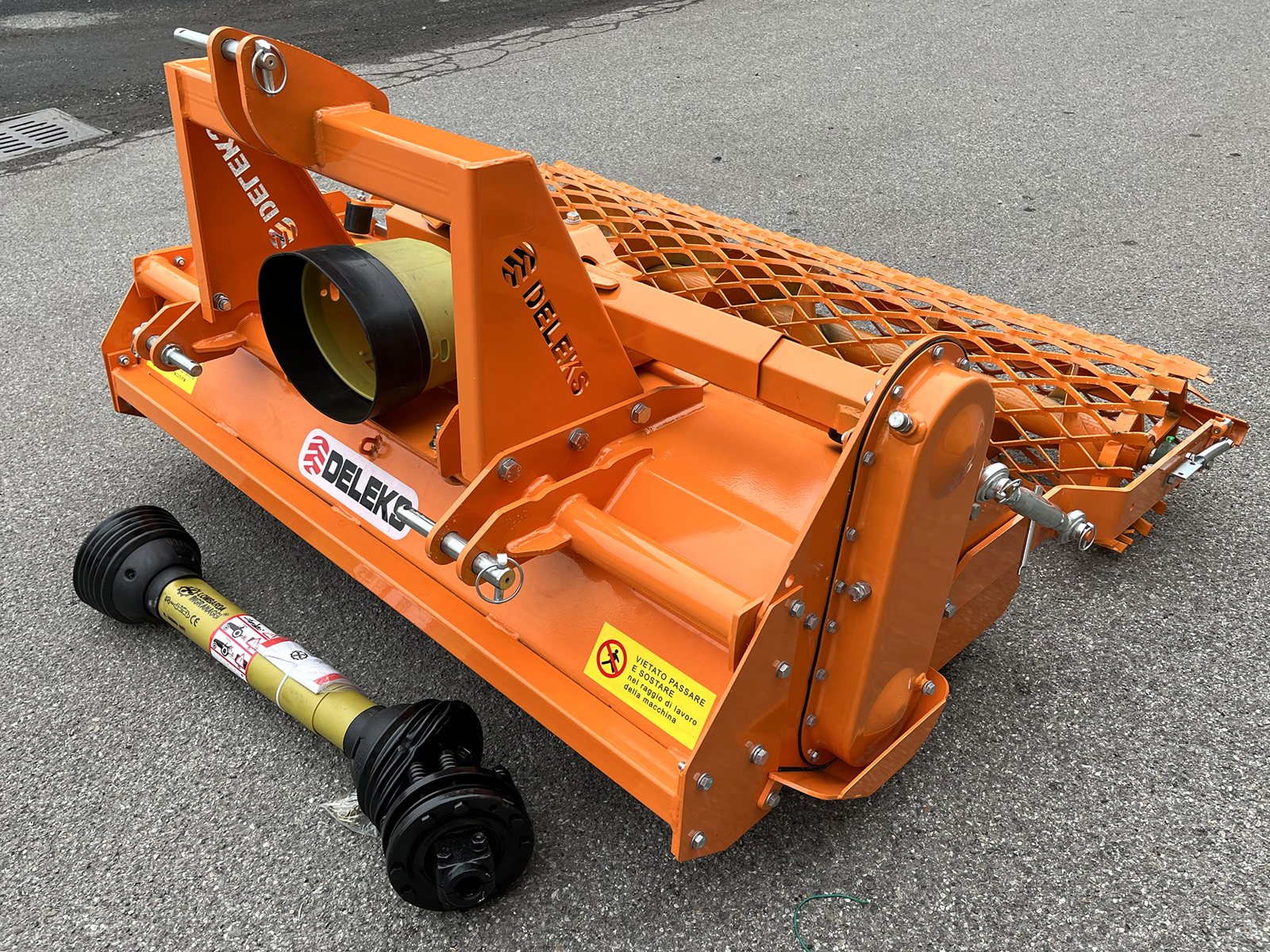

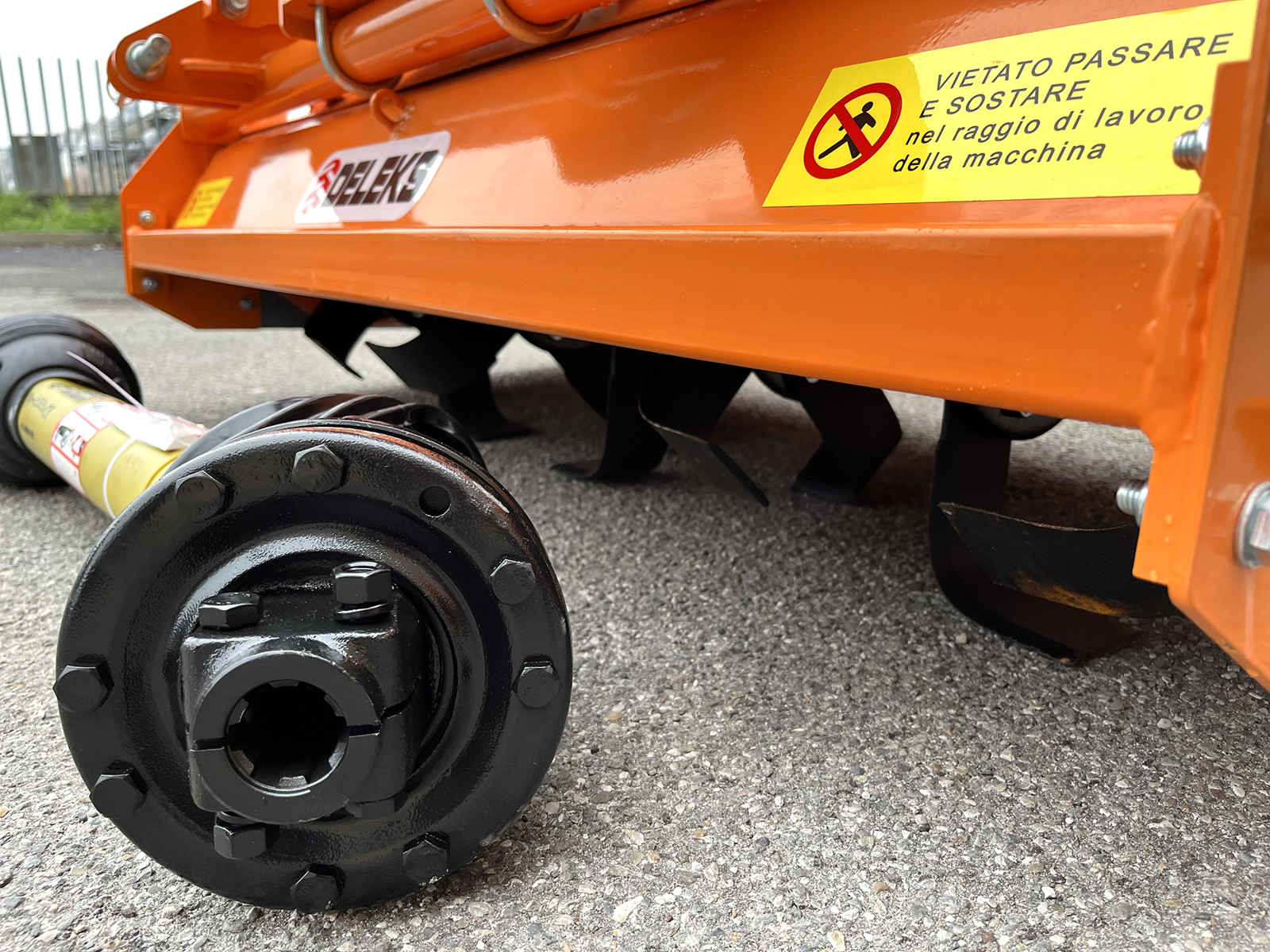

Pto shaft CE included.

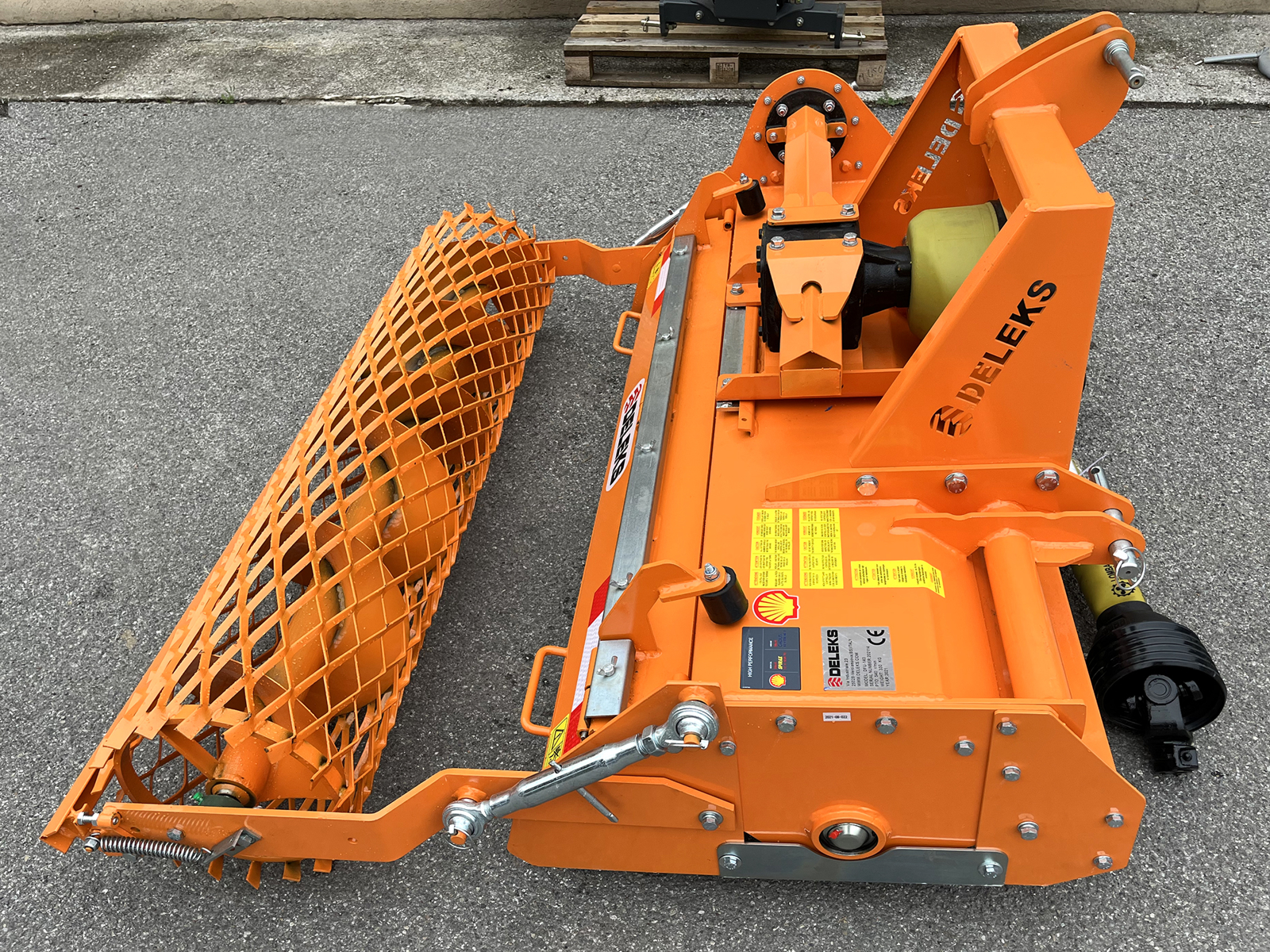

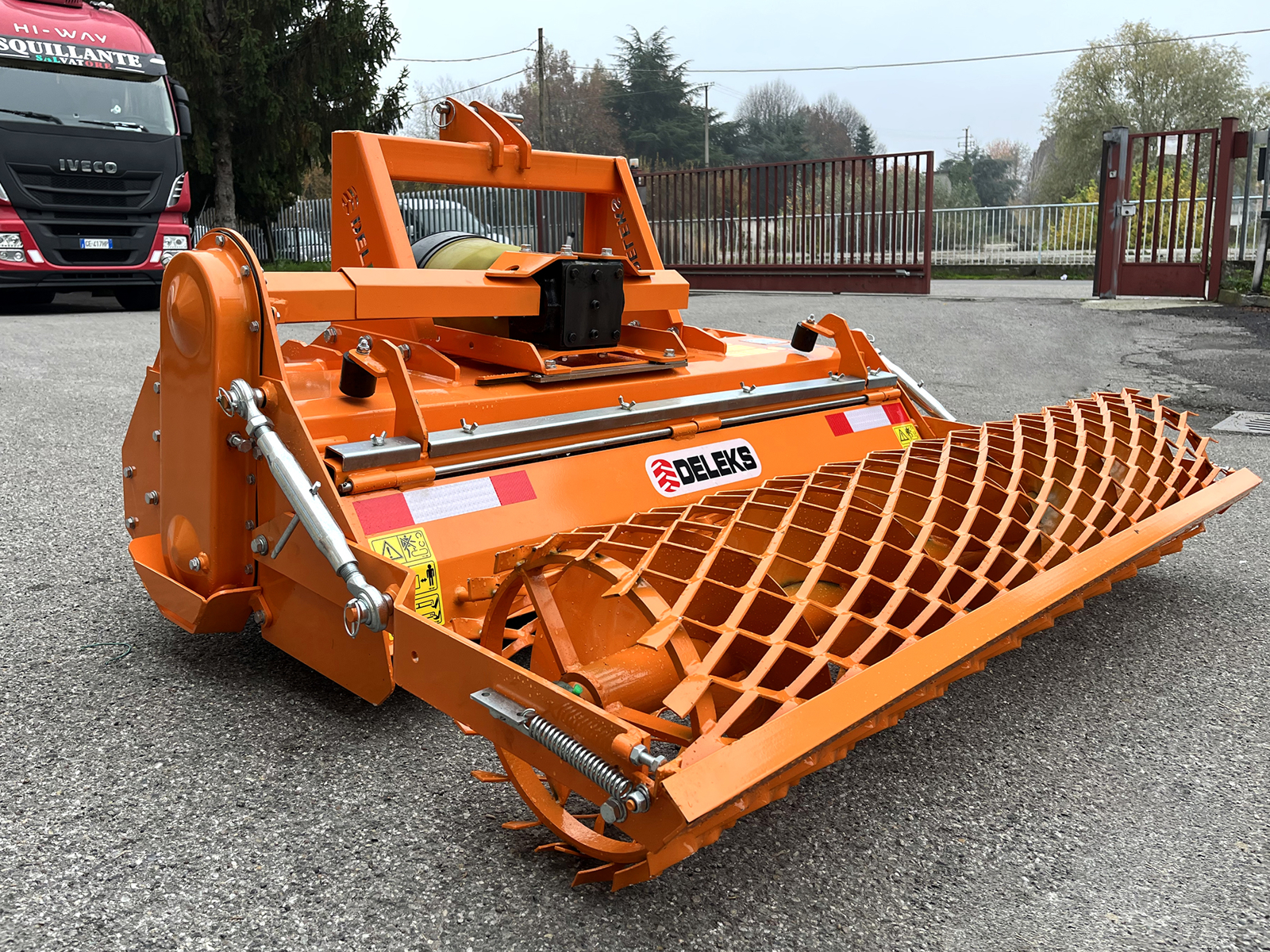

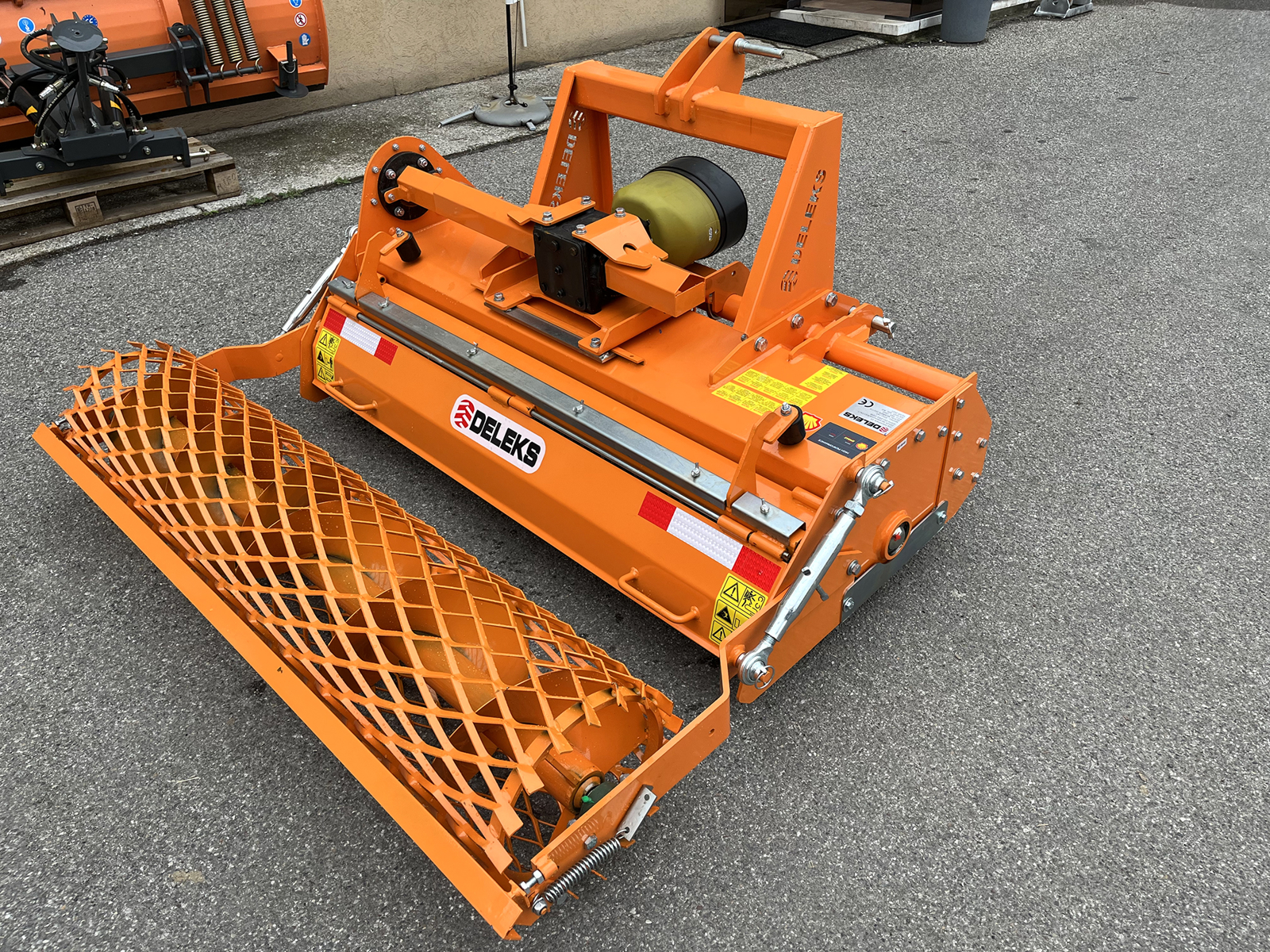

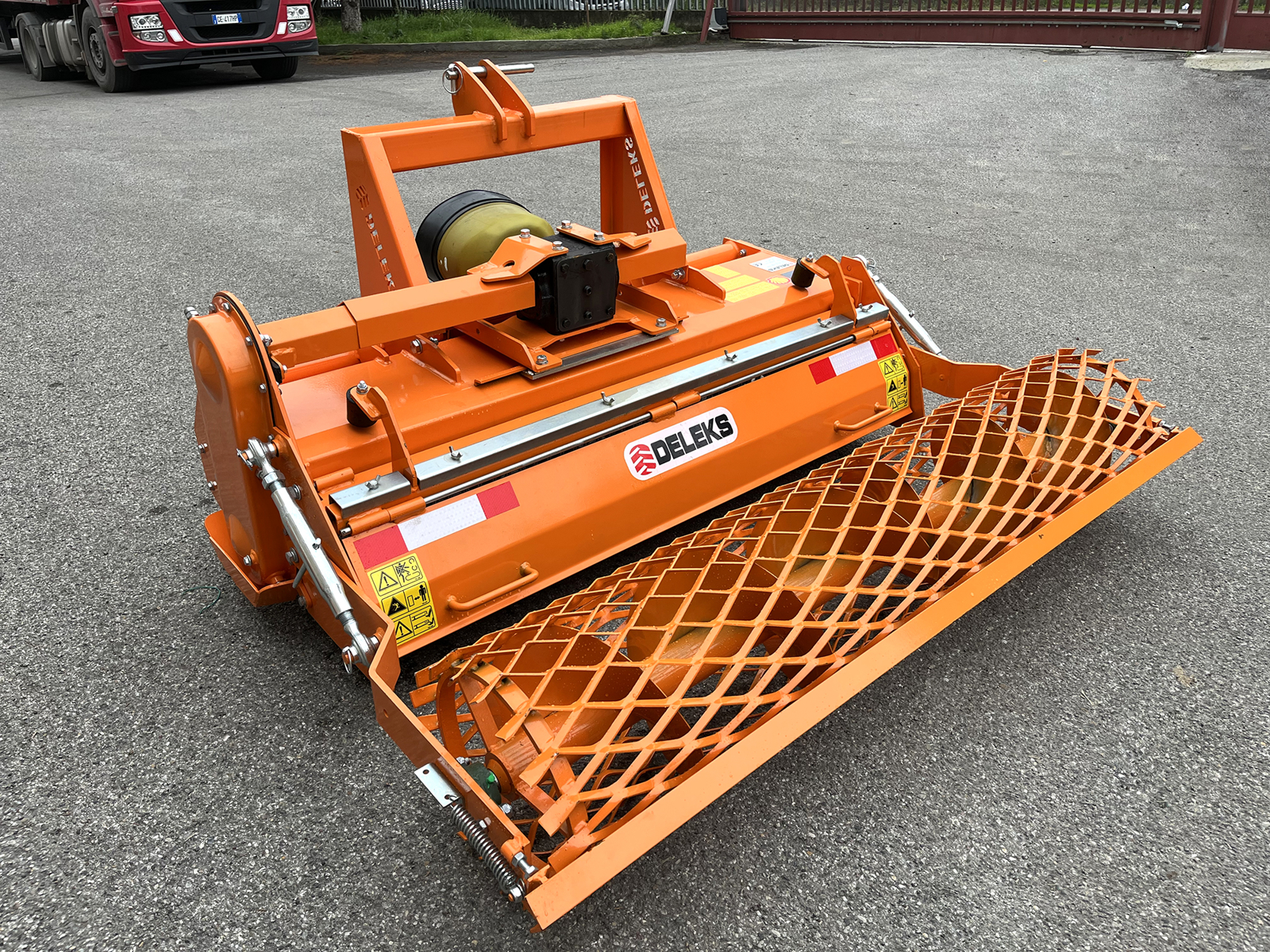

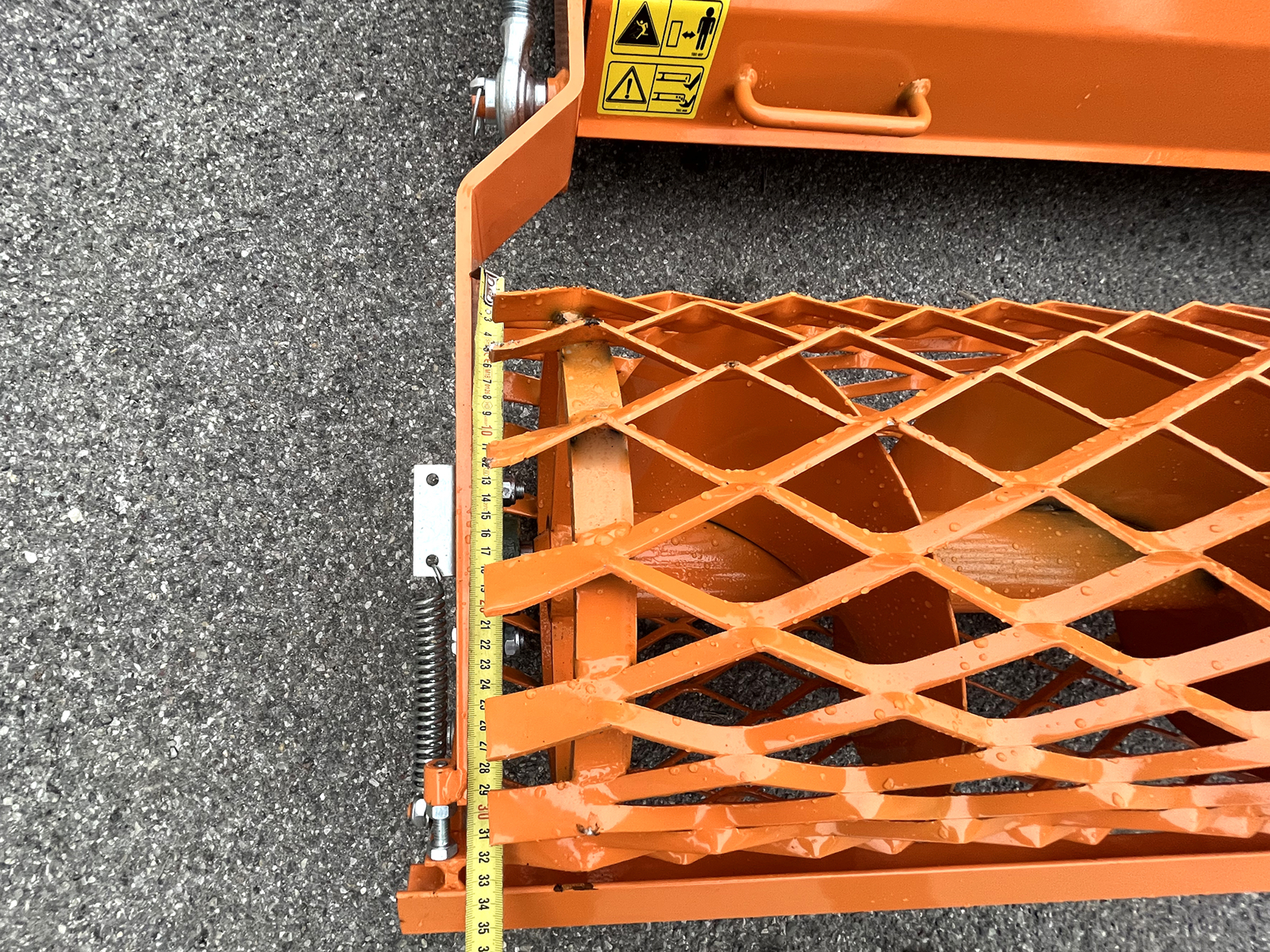

Adjustable rear roller.
CE Safety Guards.
|Characteristic||Units metric||Units US|
|Overall width||1580.0 mm||5.18 ft|
|Weight||330.0 kg||728.0 lb|

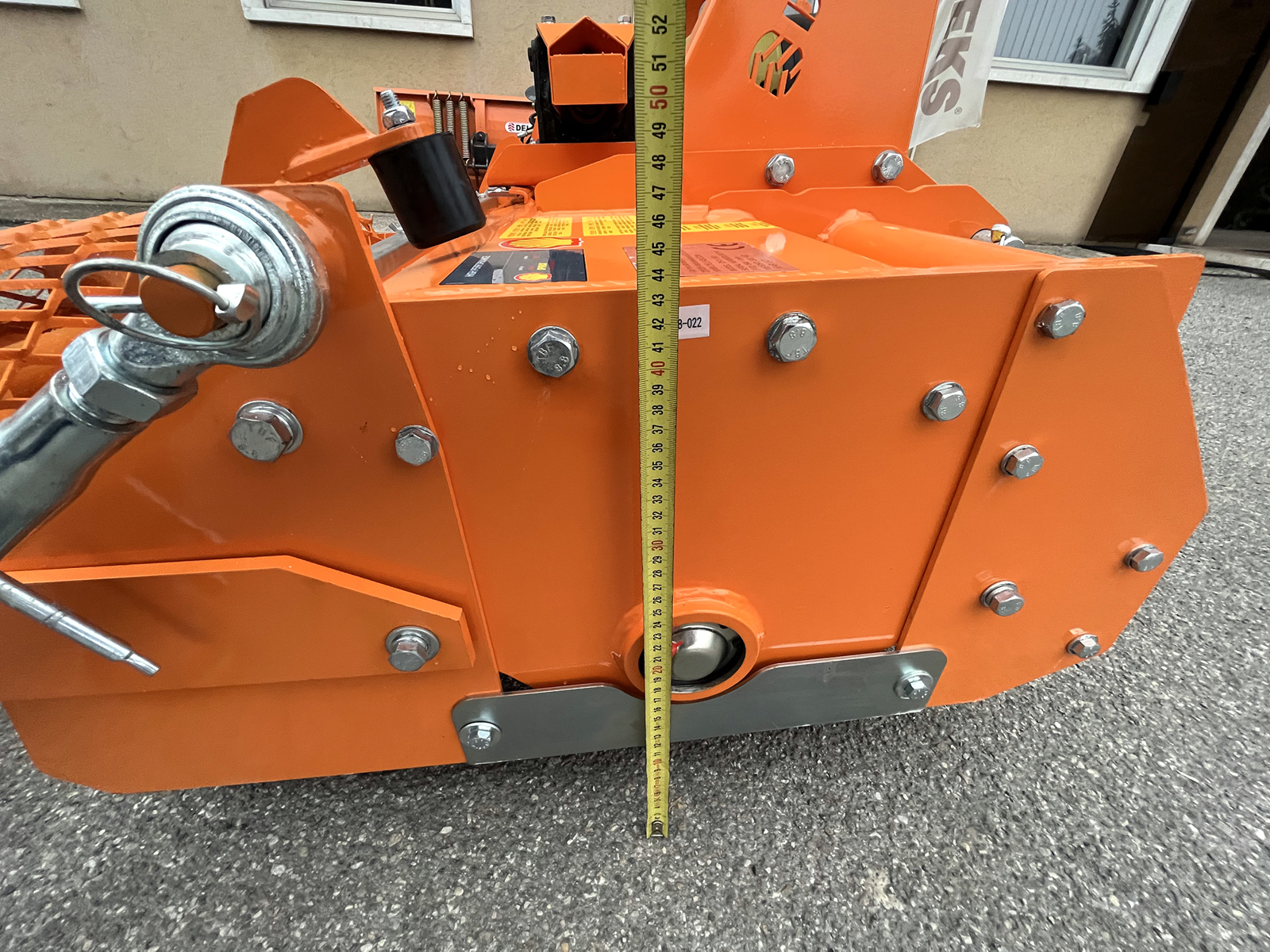

|Overall height||900.0 mm||2.95 ft|
|Tractor Power Range||30 - 50 Hp||30 - 50 Hp|
|3 point linkage||Cat. 1 (ø 19.0-22.0mm)||Cat. 1 (ø 19.0-22.0mm)|
|Position of the gearbox||Central||Central|
|Spacing between the 2 lower points||400.0 - 540.0 mm||15.75 - 21.26 in|
|Overall length||1230.0 mm||4.0 ft|
|Rotor: diameter||64.0 mm||2.52 in|
|Rotor: sheet thickness||10.0 mm||0.40 in|
|Effective Working width||1350.0 mm||4.43 ft|
|Working Depth Range||160.0-200.0 mm||6.30 - 7.87 in|
|Distance between pto attachment and base||470.0 mm||18.50 in|
|Pto shaft||CE 6x800 + clutch ø180mm||CE 6x800 + clutch ø180mm|
|Rotor: diameter with blades||415.0 mm||16.34 in|
|Rotor: bearings type and sizes||"GB276-6306(R) GB276-6209(L)"||"GB276-6306(R) GB276-6209(L)"|
|Number of Blades per flange||4||4|
|Blades: height/width||170.0 / 65.0 mm||6.70 / 2.56 in|
|Blades: curve length||255.0 mm||10.04 in|
|Blades: distance between holes||45.0 mm||1.77 in|
|Blades: diameter of the holes||13.0 mm||0.51 in|
|Blades: thickness||6.0 mm||0.24 in|

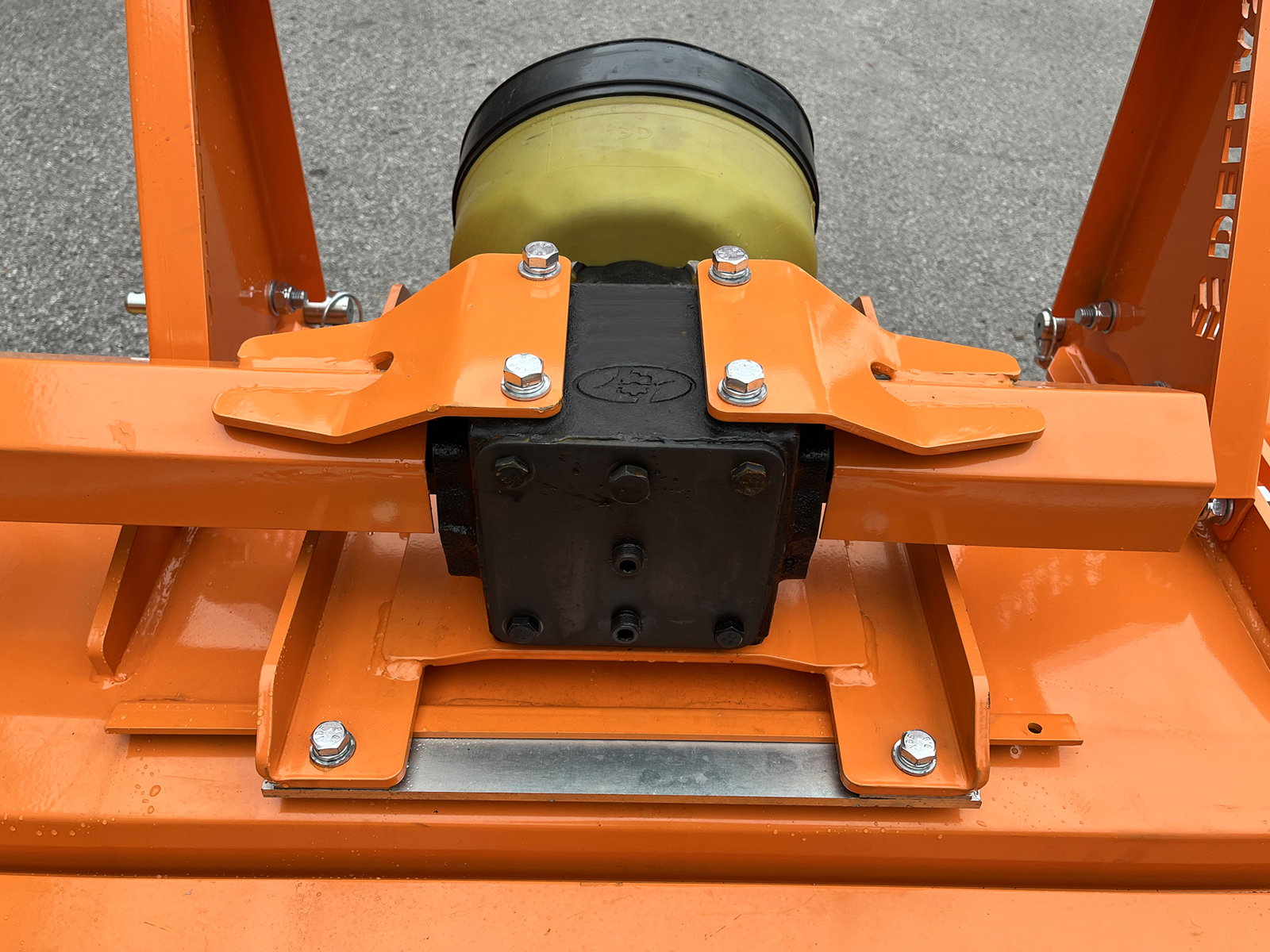

|Gearbox||Lombarda Ingranaggi 540 r/min (3 year warranty)||Lombarda Ingranaggi 540 r/min (3 year warranty)|

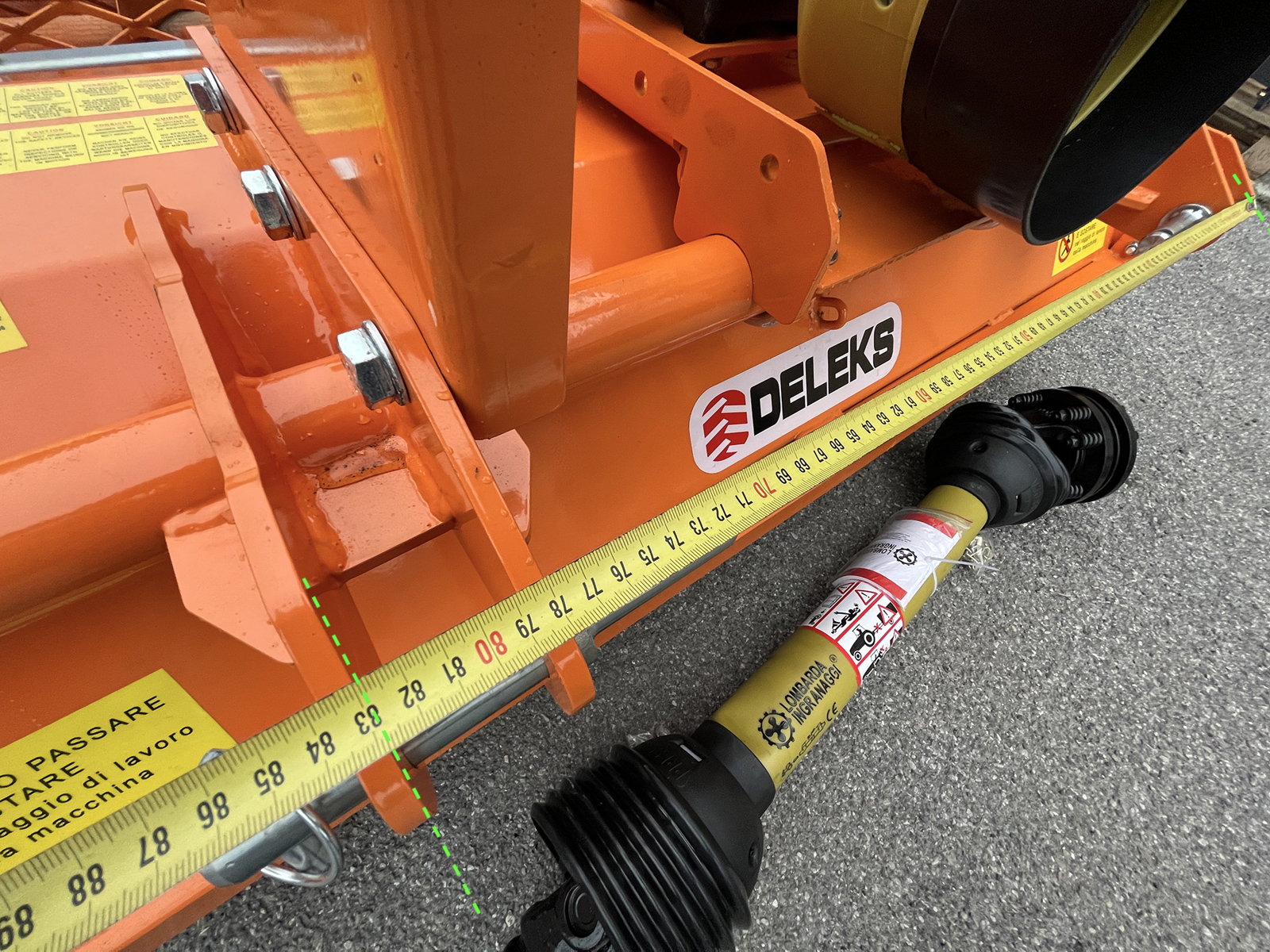

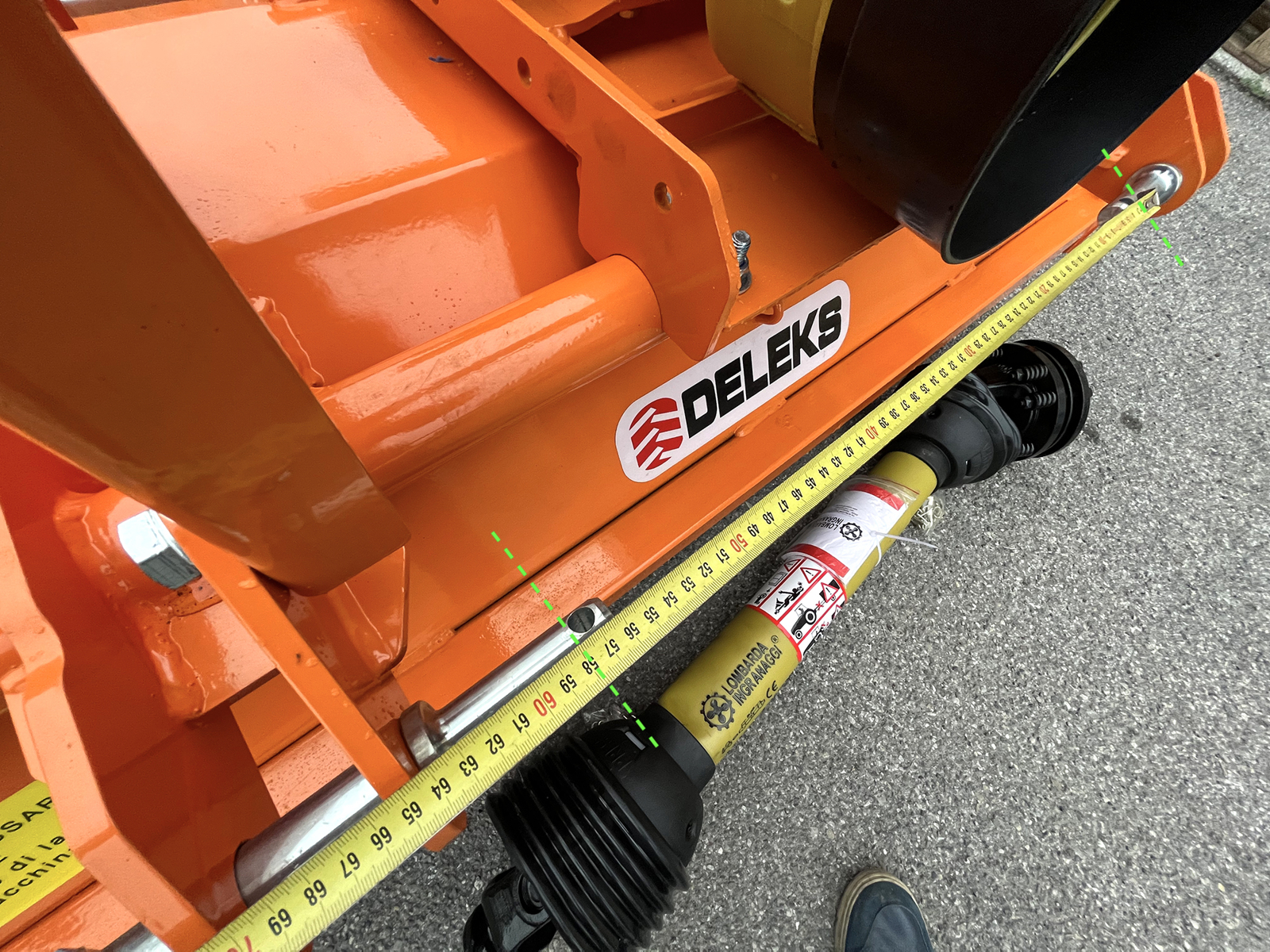

|Effective Displacement||120.0 mm manual||4.73 in|
|Rotation of gearbox||Right side||Right side|
|RPM Rotor speed||216 rpm||216 rpm|
|Oil in the gearbox||Yes / SAE 120 - ISO 72925||Yes / SAE 120 - ISO 72925|
|Blades: weight||770.0 g||27.20 oz|
|Packing sizes||1000.0*1650.0*900.0 mm||3.28*5.41*2.95 ft|
