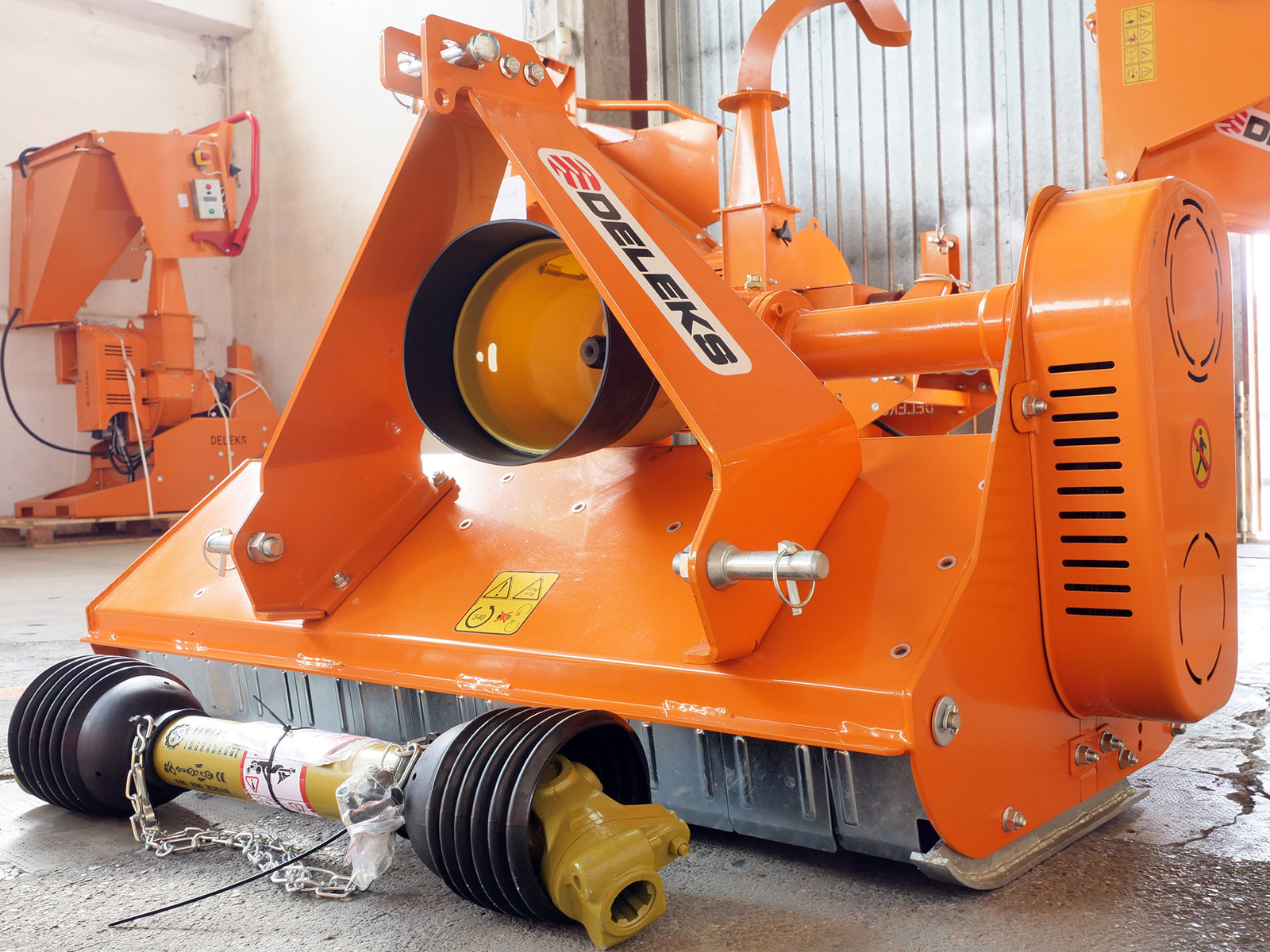

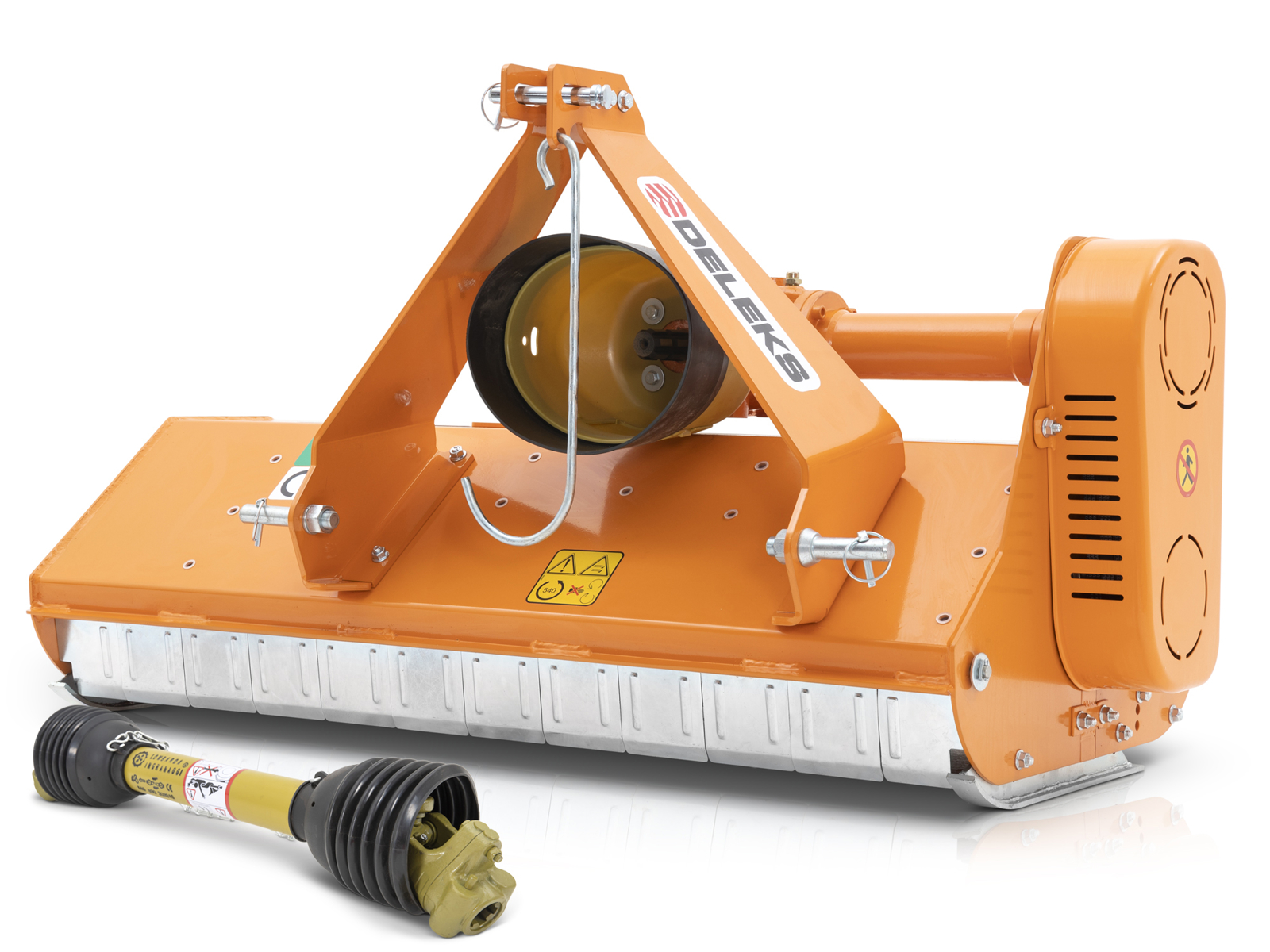

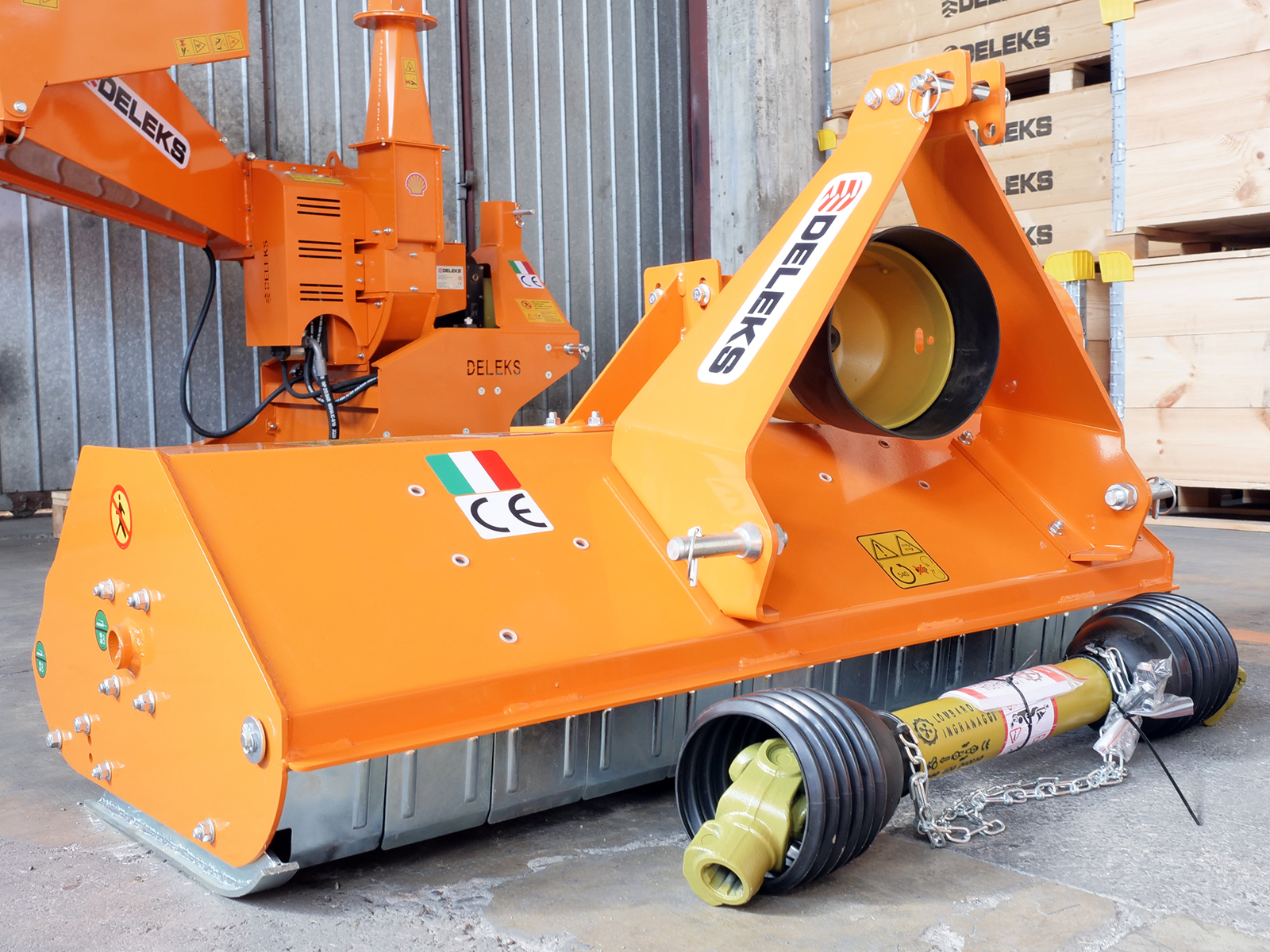

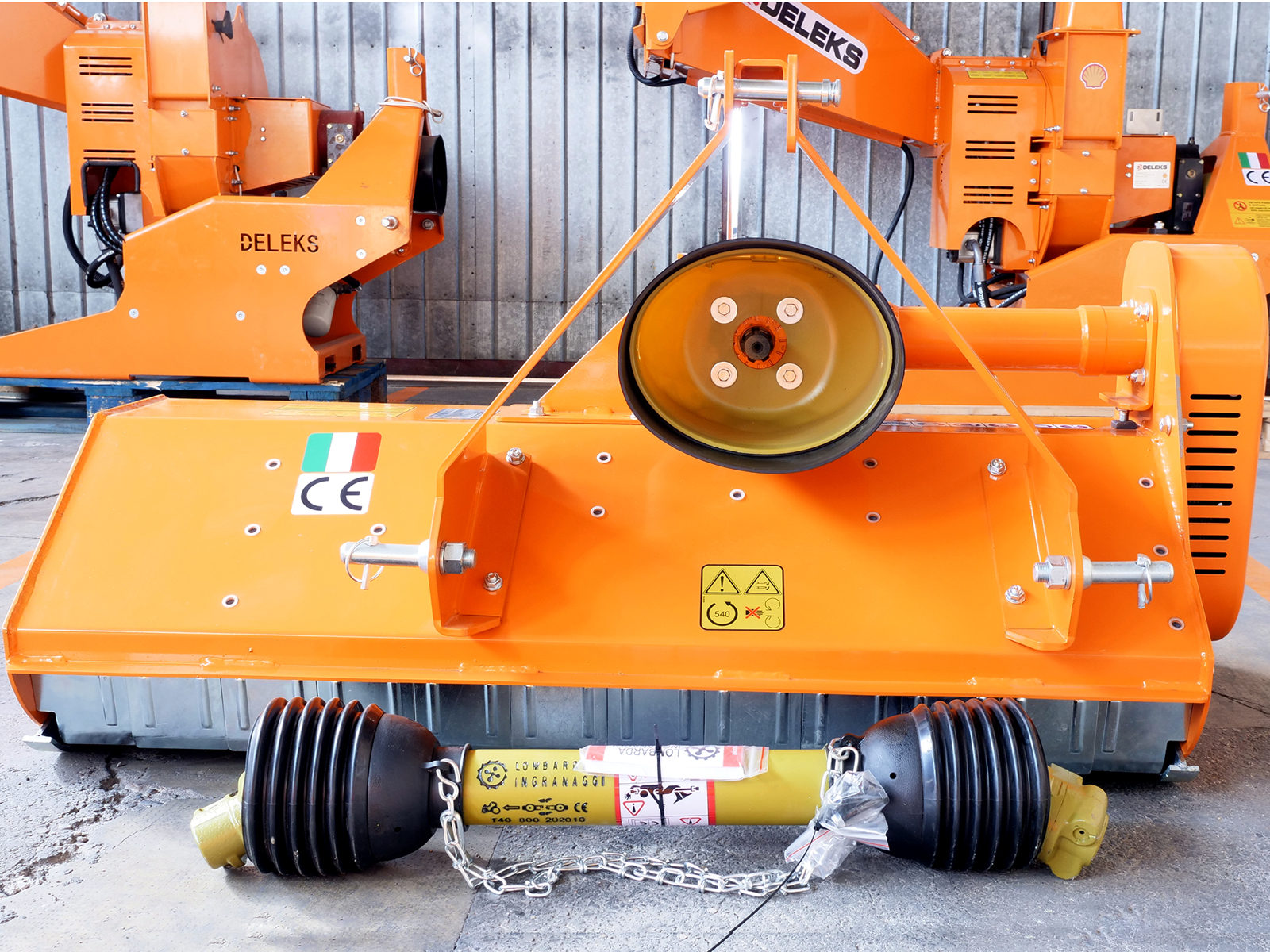

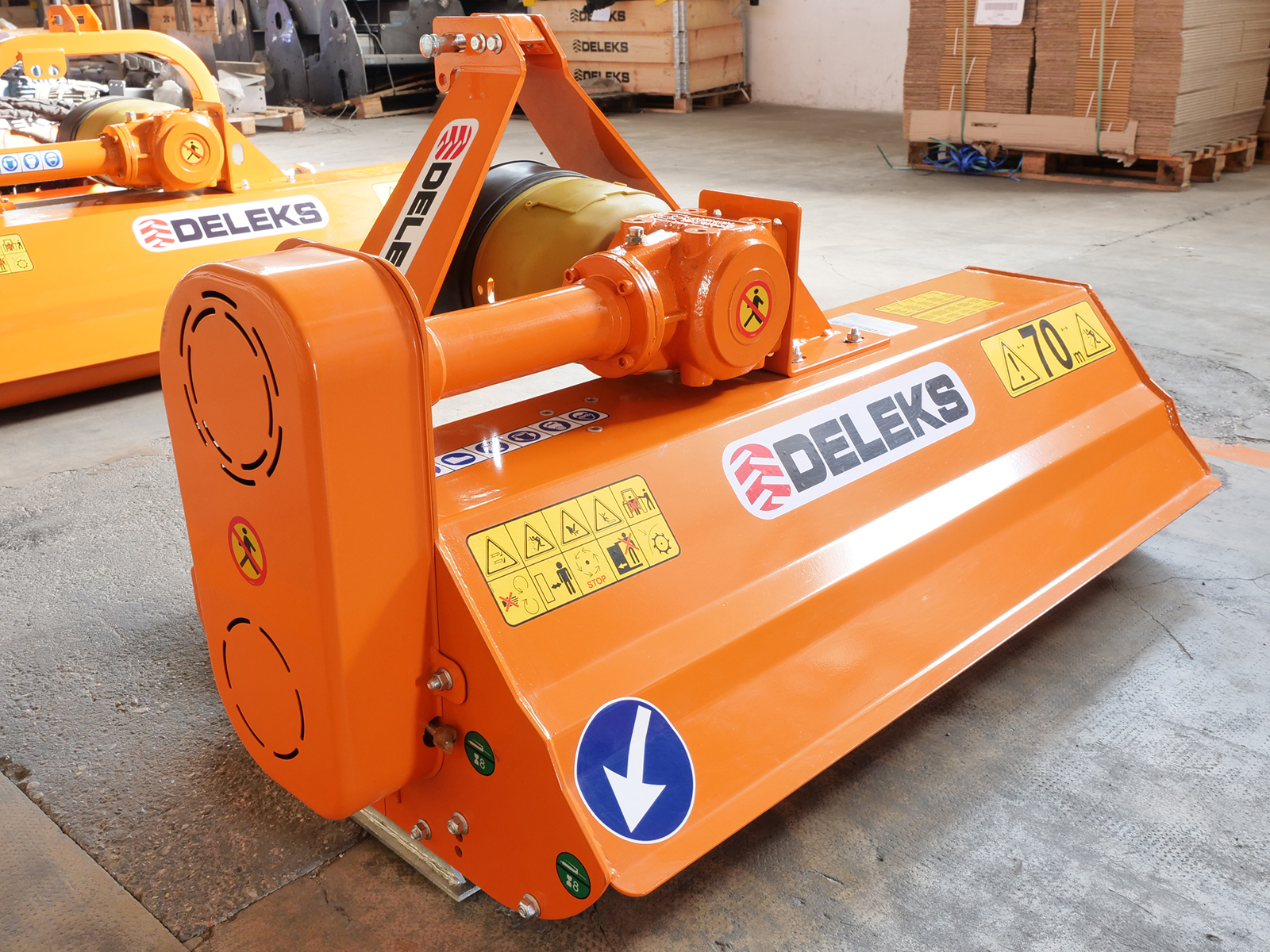

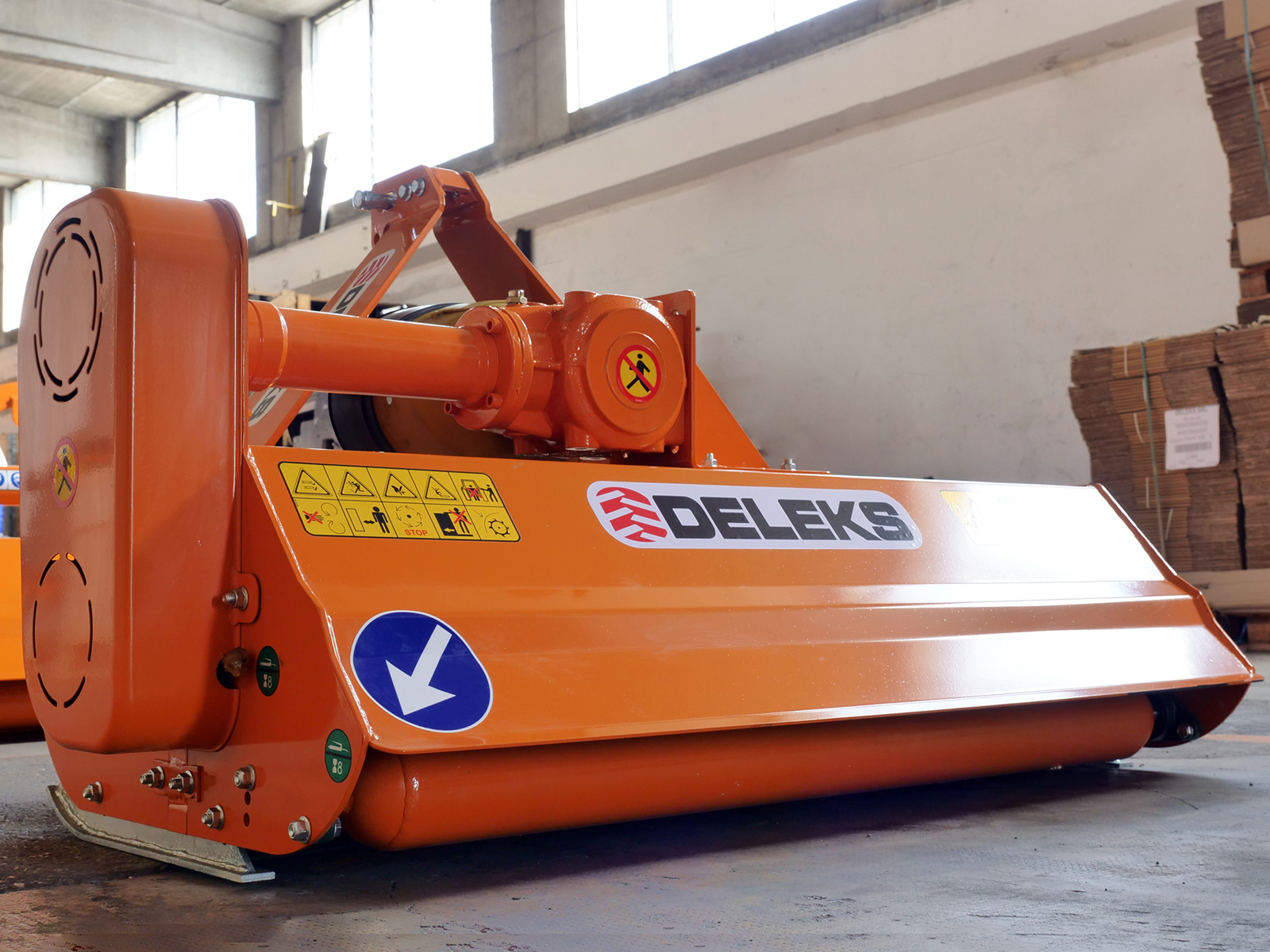

Mulcher for compact tractors - 120cm - shredder, mower with hammers - LINCE-120

4.5

192 reviews

Not available Notify me
Code LINCE120PTO
EAN 8053470230868
View all details.
TOTAL
1,683.00(1,419.95 £)VAT excl.
Free shipping

VIDEO
Field test
Field test

DETAILS

120cm working width, 160kg, Lombarda Ingranaggi Gearbox - DELEKS® LINCE-120 - Pto shaft CE included, 330g heat forged hammers to shred vegetation up to 2,0-3,0 cm thick.


OVERVIEW

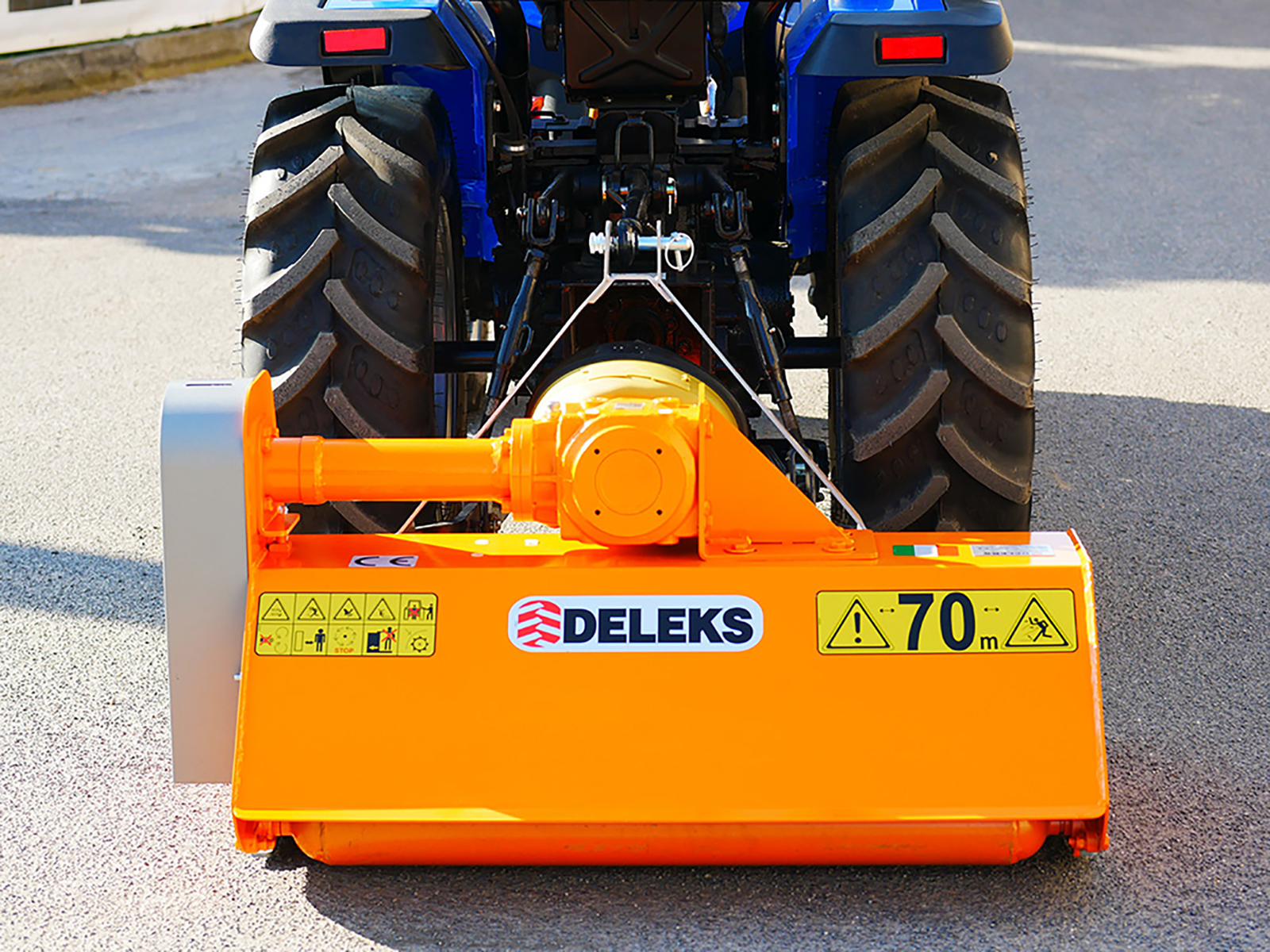

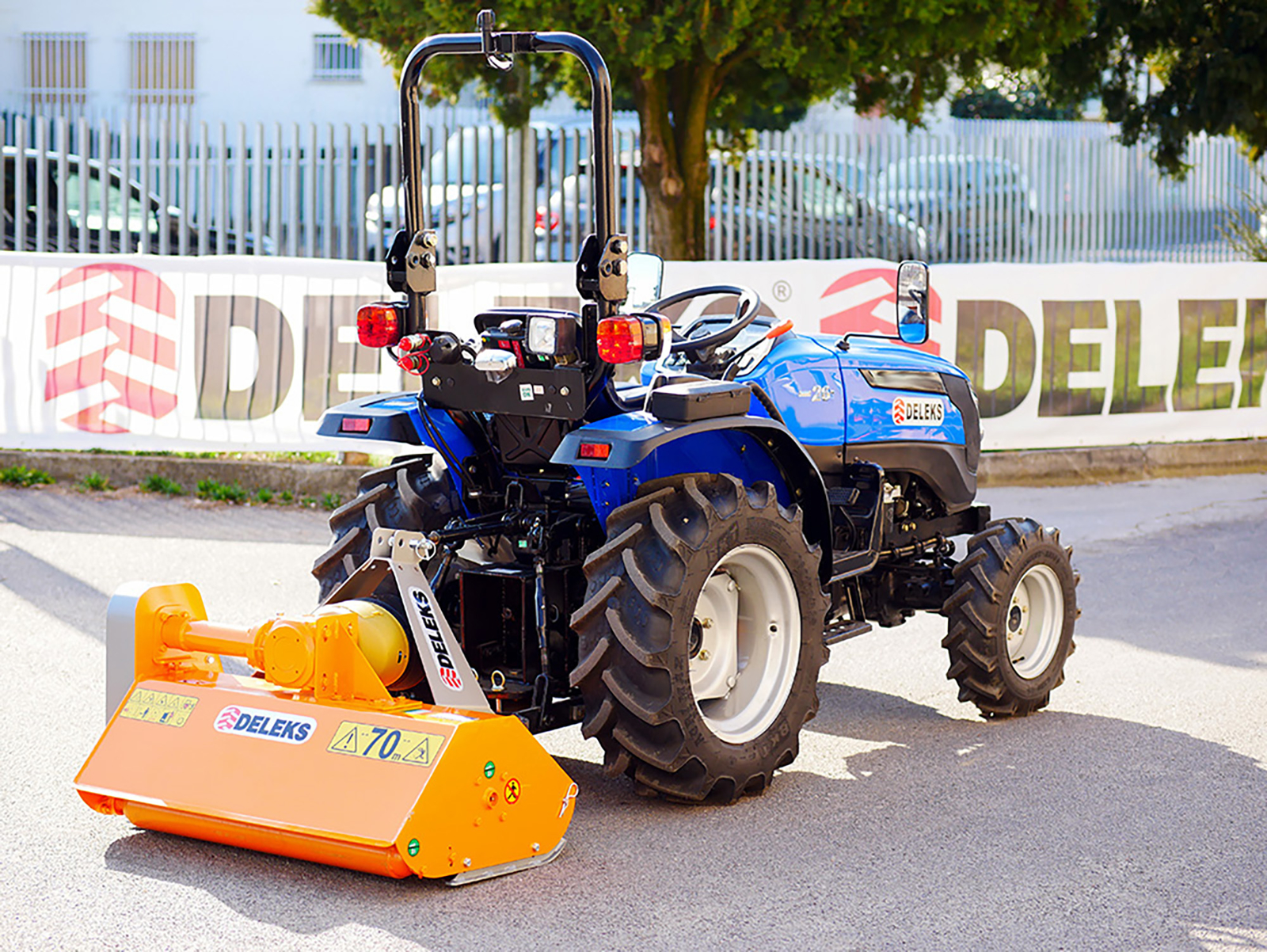

The LINCE-120 has been designed for low-powered tractors e.g Kubota, Iseki, Yanmar, John Deere 2, New Holland Boomer 25-30, Pasquali, Ferrari, Branson, etc. 16 - 40 Hp, for garden and farm use. Heat forged hammers for grass, thicker vegetation and small twigs. Cutting height can be easily changed via an adjustable roller and side skids. Fixed universal three point hitch Cat.1.


BENEFITS & FEATURES

Frame entirely made with Swedish SSAB steel.

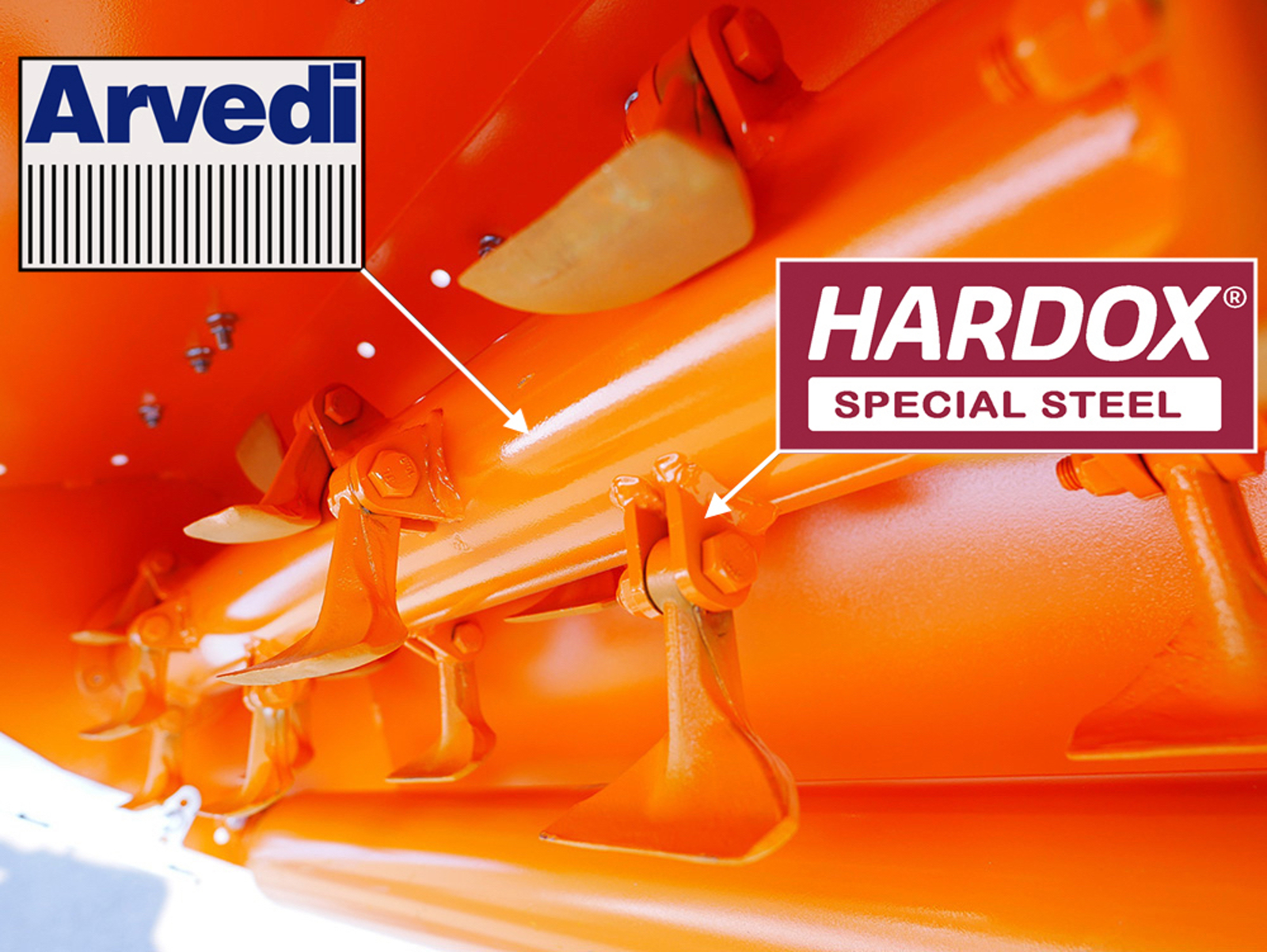

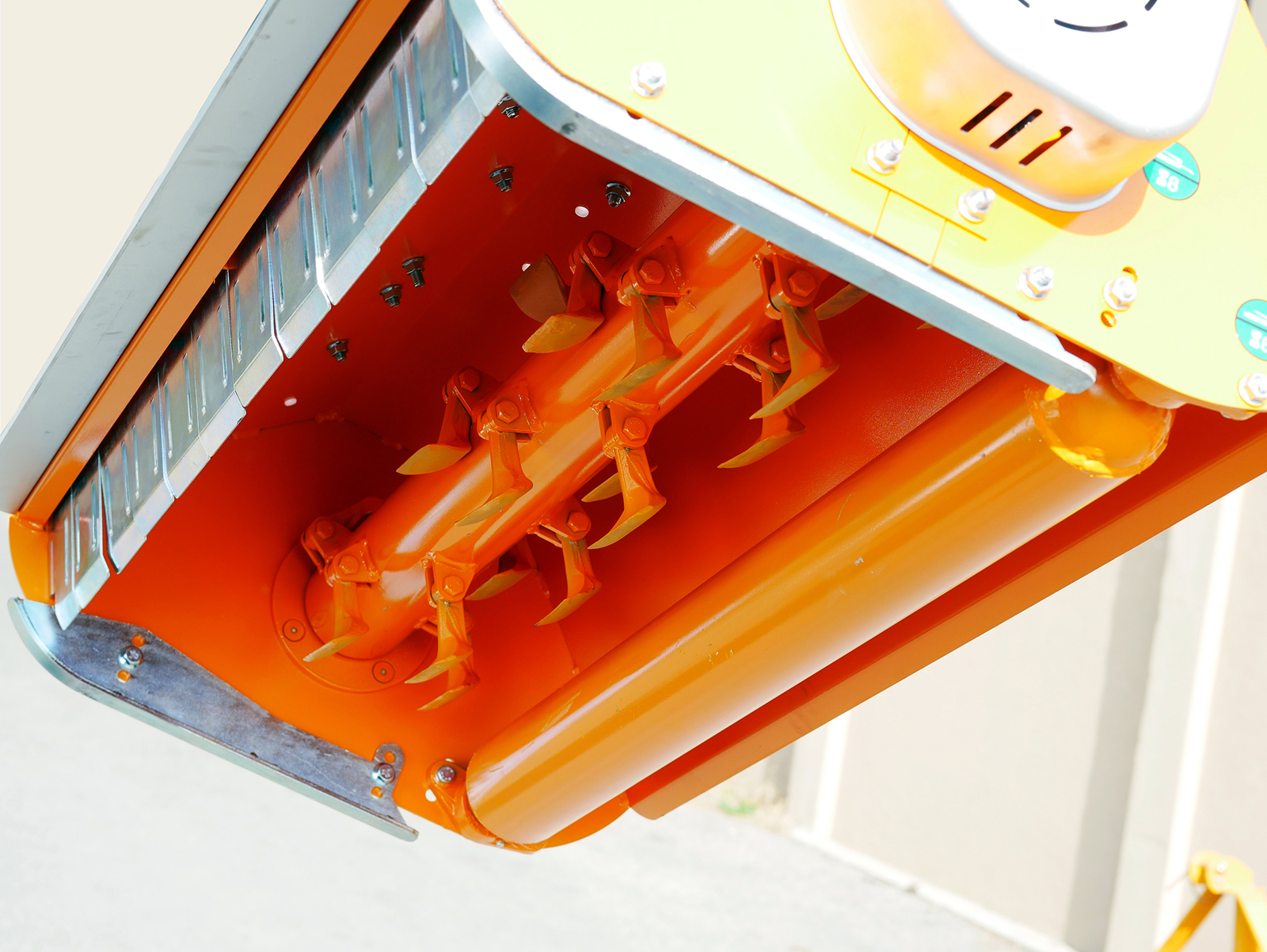

Rotor made with ARVEDI's tube, electronically balanced, 8mm thick S355 steel with hammers mounted on 6 rows instead of 4.

Hammers attachments HARDOX made.

SKF rotor bearings.

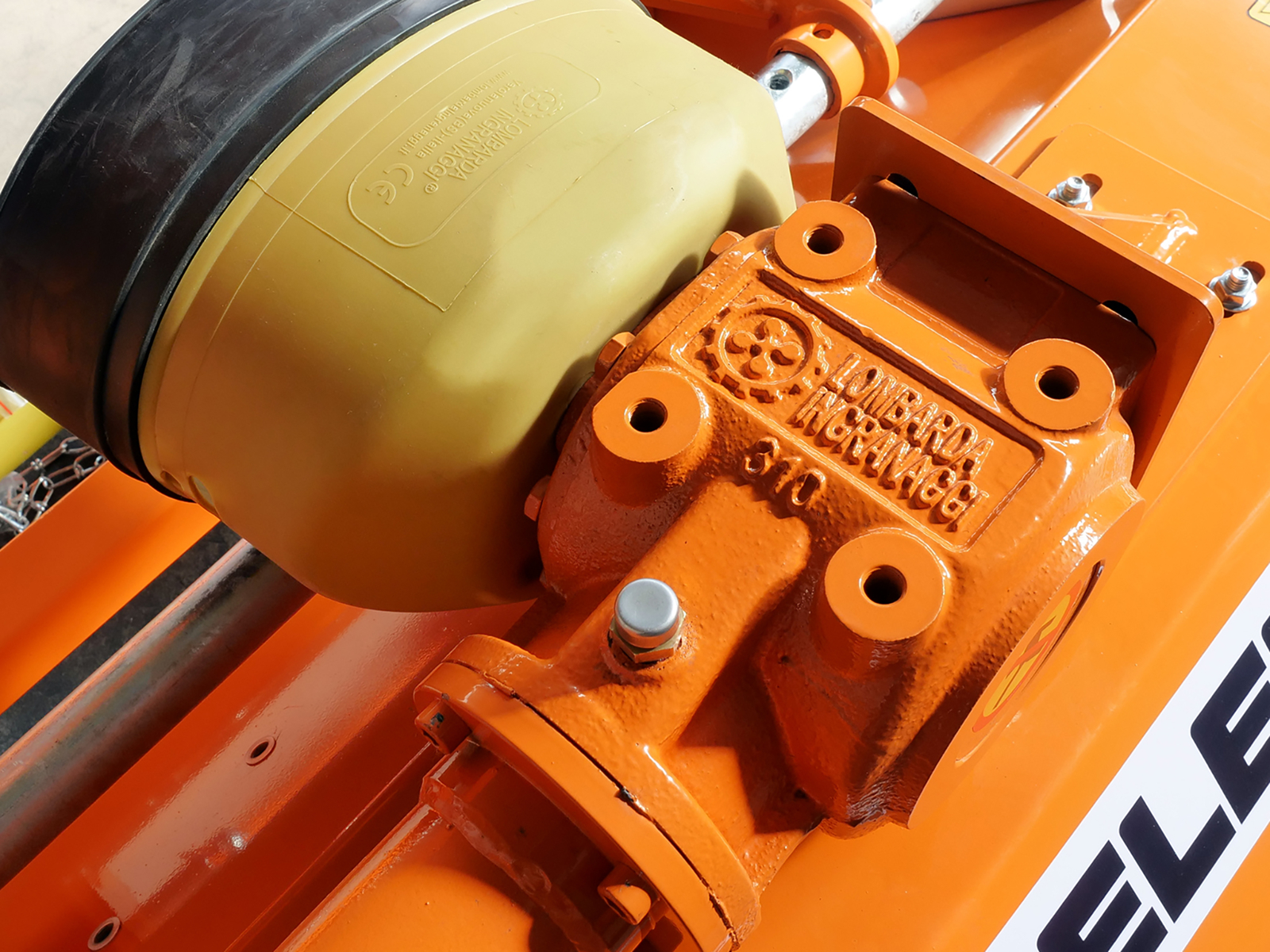

Gearbox P.T.O. 540 r.p.m. Lombarda Ingranaggi Srl with free-wheel (3 Years warranty).

The body is equipped with an internal curb which diverts the air flow towards the rotor for a mulching effect.

The internal positioning of the roller gives more efficiency and reduced execution times. The cutted grass passes over the roller without being crushed and is disposed of more quickly.

330g heat forged hammers to shred vegetation up to 2,0-3,0 cm thick.

3 High resistance toothed belts, and external belt tensioner.

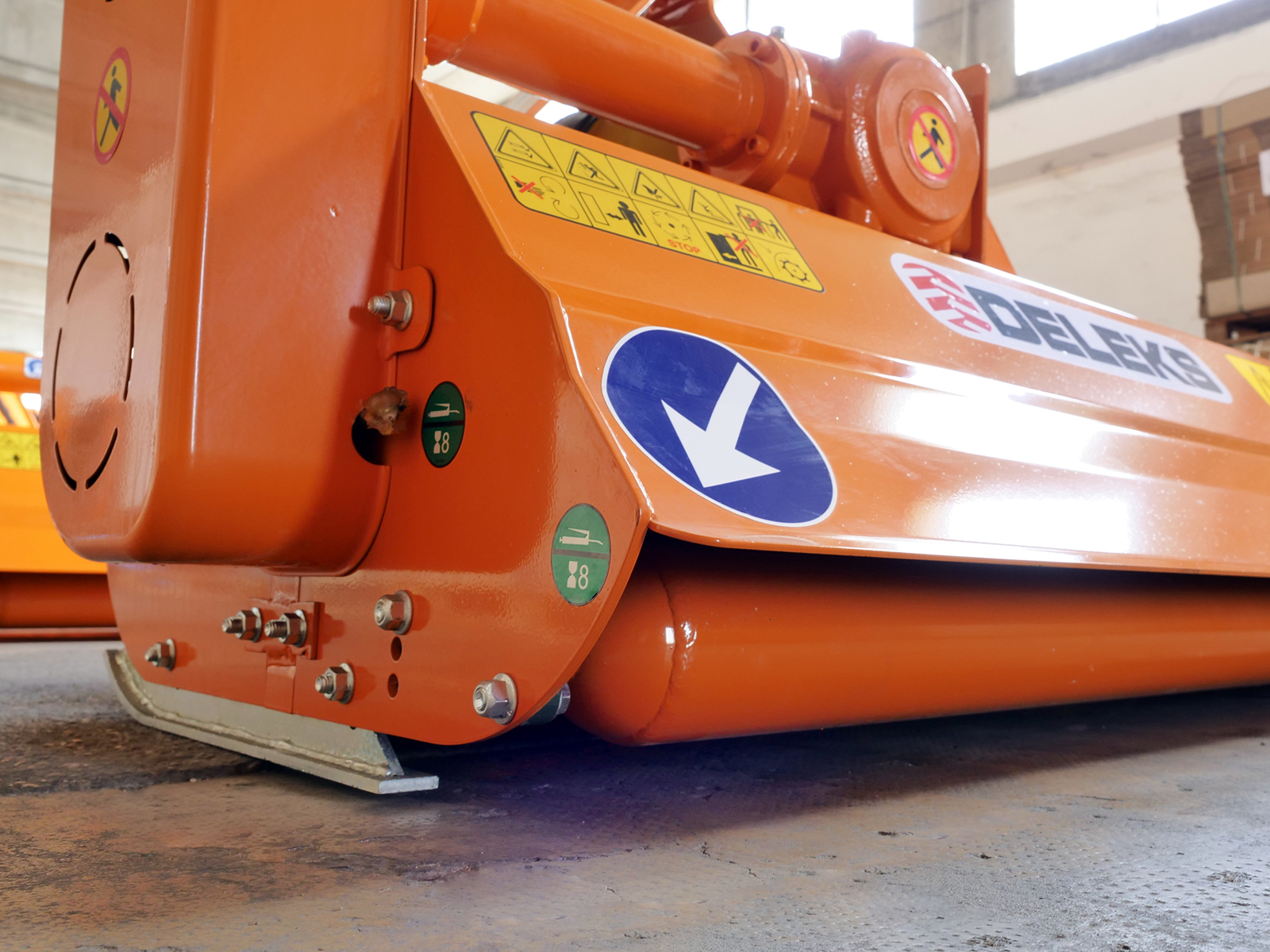

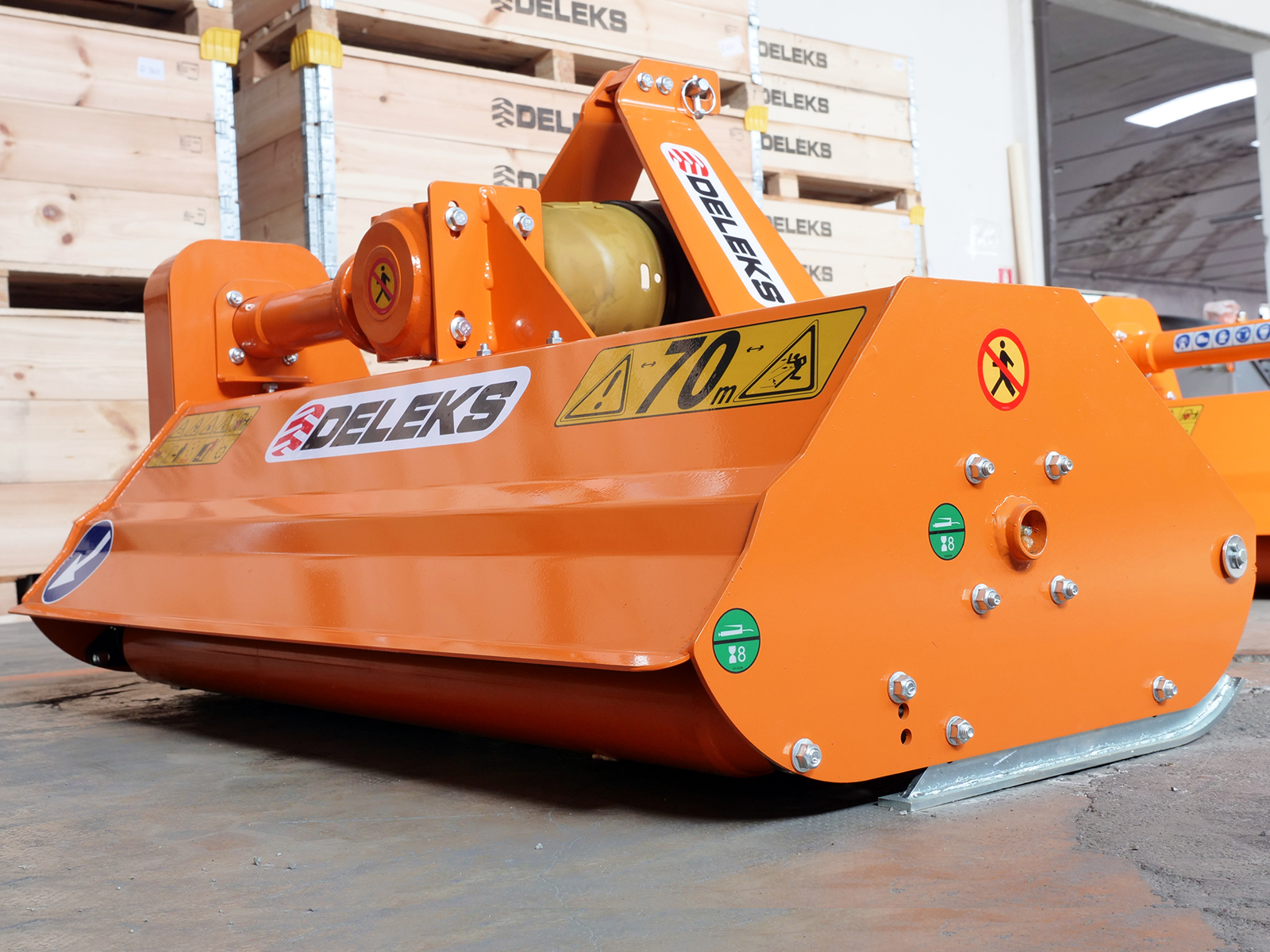

Adjustable roller unit and side skids.

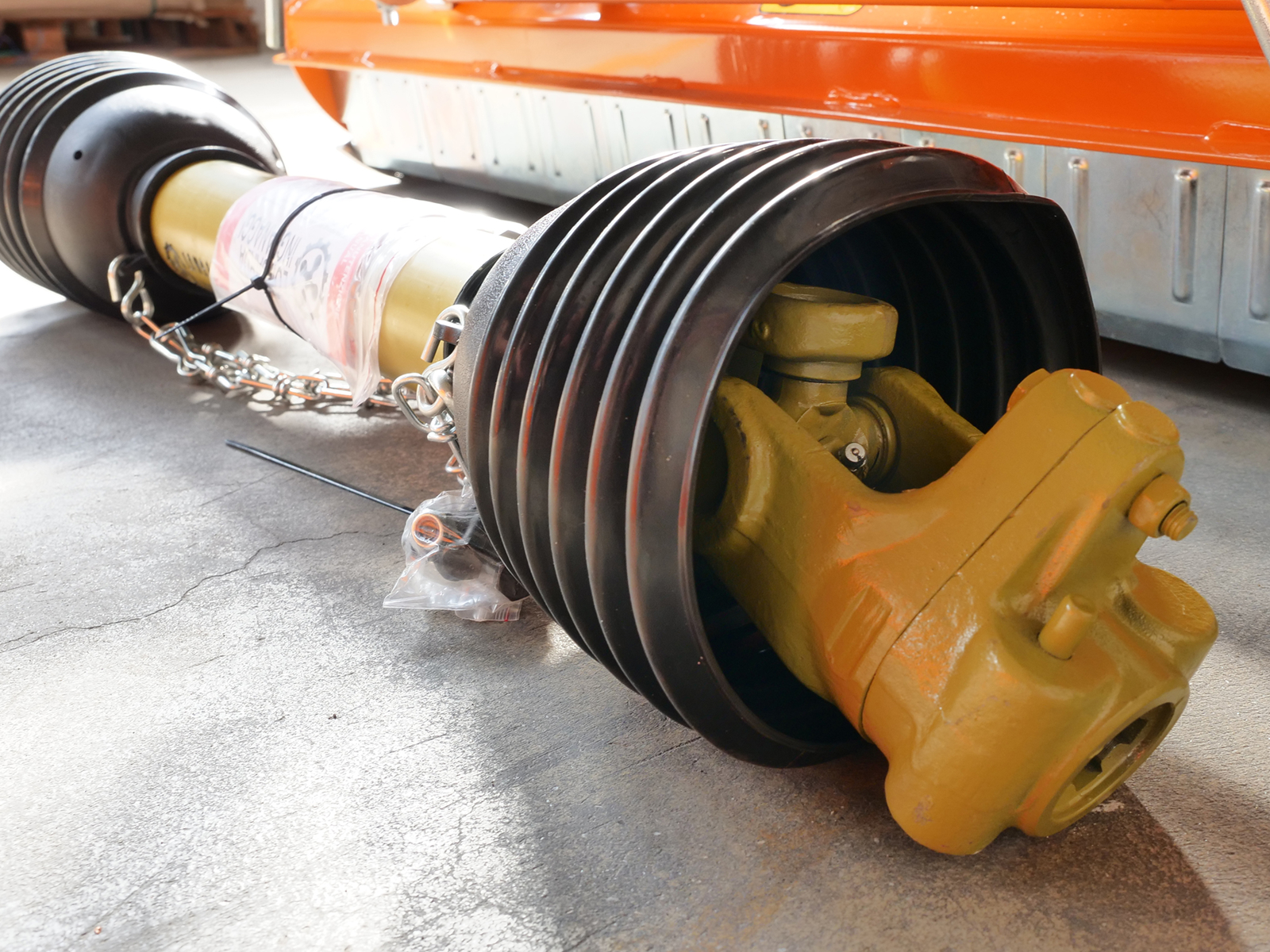

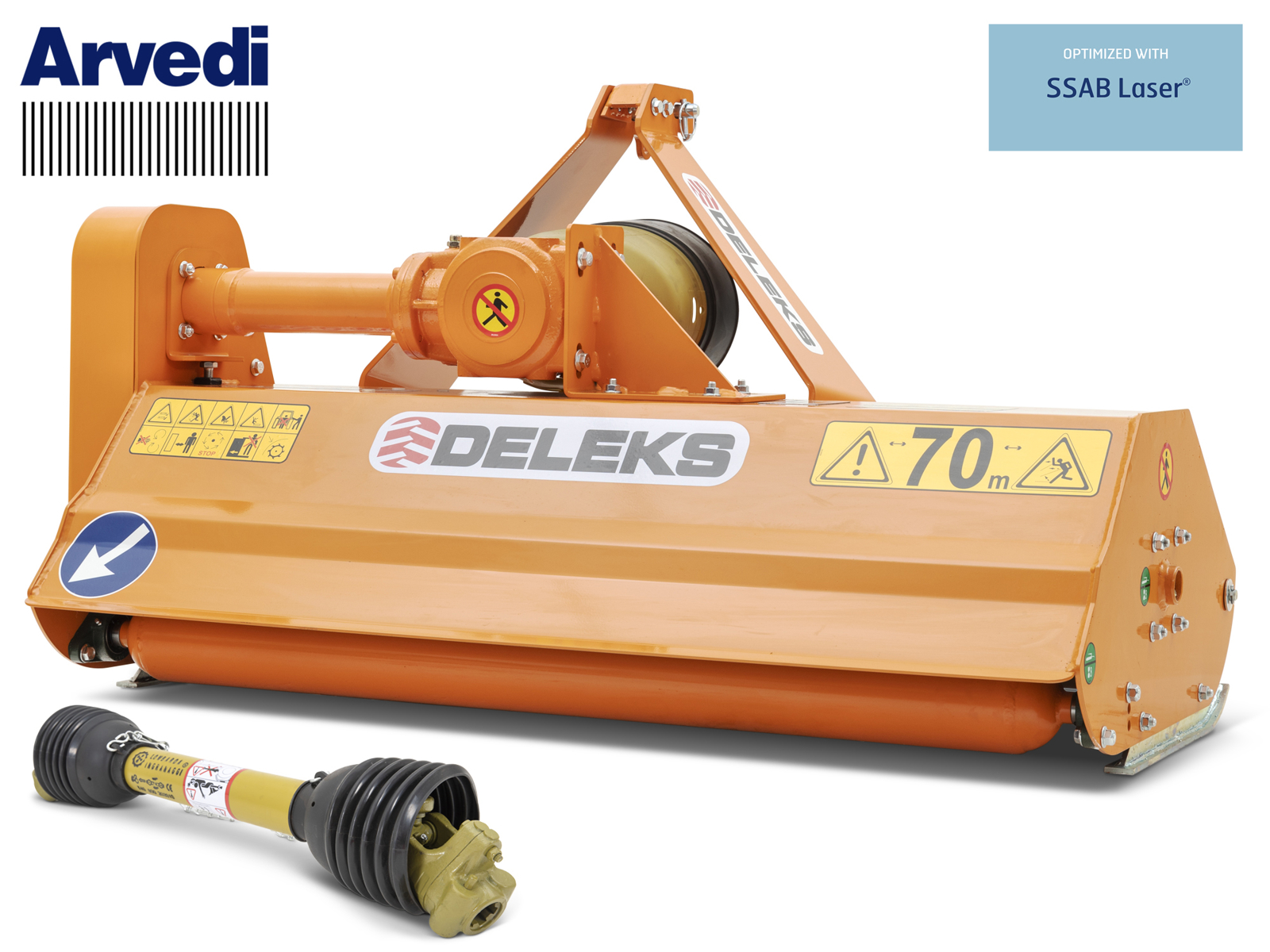

Pto shaft CE included.


Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual



CHARACTERISTICS

Characteristic Units metric Units US
Working width 1200.0 mm 3.94 ft
Overall width 1320.0 mm 4.33 ft
Min / Max cutting height 10.0 - 45.0 mm 0.4- 1.77 in
Weight 160.0 kg 352.0 lb
Overall height 750.0 mm 2.46 ft
Tractor Power Range 16 - 40 Hp 16 - 40 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)

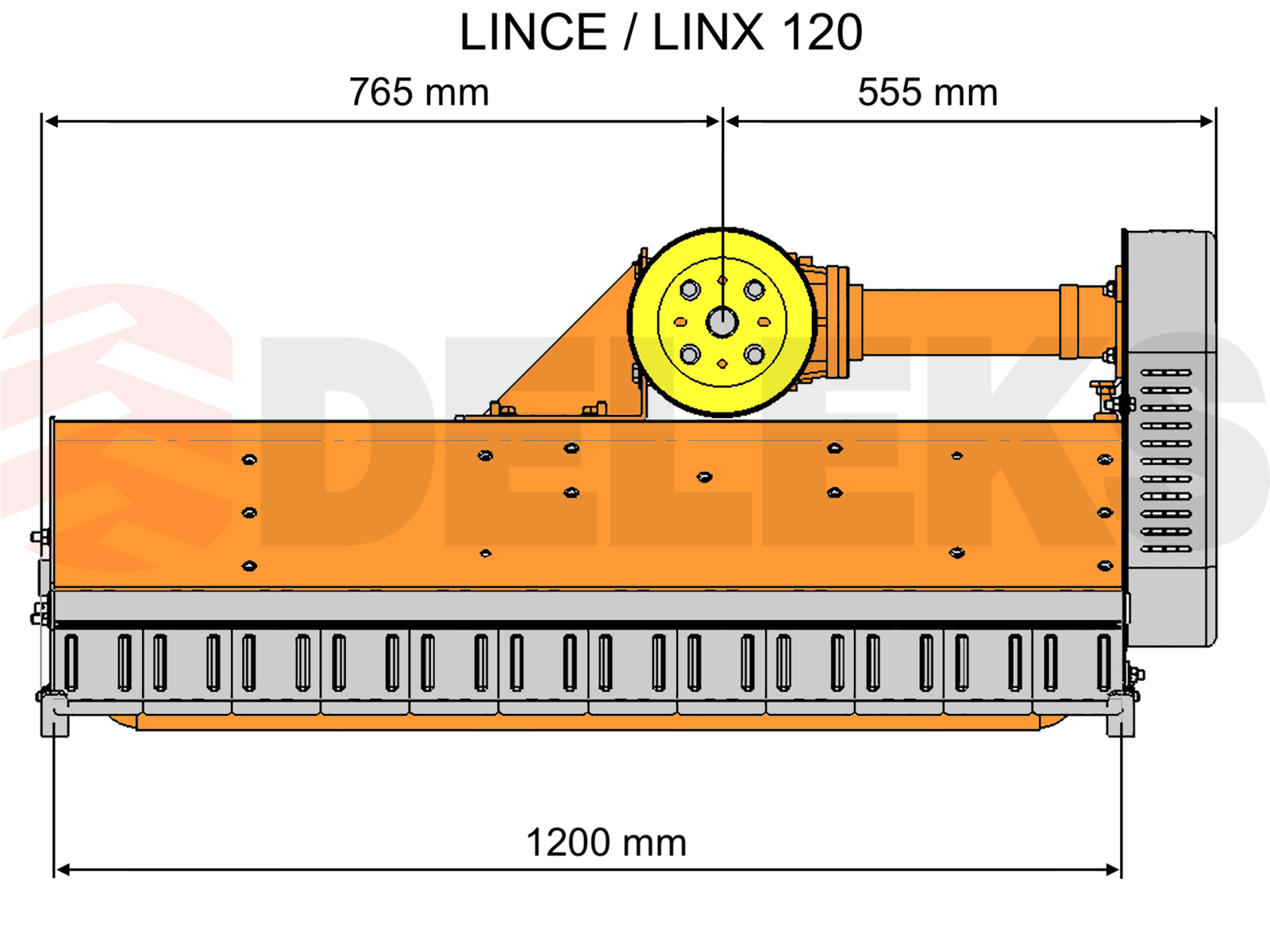

Position of the gearbox 555.0 mm from left side / 765.0 mm from right side 1.82 ft from left side / 2.50 ft from right side
Hood height 370.0 mm 14.5 in
Spacing between the 2 lower points 470.0 - 710.0 mm 18.50 - 28.00 in
Number of Hammers 20 20
Maximum cutting diameter 20.0 - 30.0 mm 0.78 - 1.18 in
Overall length 730.0 mm 2.40 ft
Distance between pto attachment and ground 472.0 mm 18.6 in
Main hood thickness 3.0 mm 0.12 in
Sides thickness 5.0 mm 0.20 in
Side plates thickness 6.0 mm 0.23 in
Transmission: Drive method V-Belts V-Belts
Transmission: Gearbox Lombarda Ingranaggi Srl (Italy) (3 year warranty) Lombarda Ingranaggi Srl (Italy) (3 year warranty)
Transmission: PTO 540 r/min 540 r/min
Transmission: Rotation of gearbox Right side Right side
Transmission: Free wheel
Transmission: RPM Rotor speed 3150.0 rpm 3150.0 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Transmission: Top pulley ø 206.0 mm 8.11 in
Transmission: Lower pulley ø 106.0 mm 4.17 in
Transmission: V-Belts quantity 3 3
Transmission: V-Belts size AX39 AX39
Rotor: diameter 102.0 mm 4.01 in
Rotor: bearings type and size SKF UCF-207 SKF UCF-207
Rotor: balancing Electronic Electronic
Rotor: sheet thickness 8.0 mm 0.31 in
Hammers: Weight 330.0 g 11.7 oz
Hammer: øhole 11.0 mm 0.43 in
Hammer: base width 80.0 mm 3.15 in
Hammer: top width 14.0 mm 0.55 in
Hammer: Diagonal 75.0 mm 2.95 in
Rear roller: diameter 102.0 mm 4.01 in
Rear roller: sheet thickness 5.0 mm 0.20 in
Rear roller: bearings type and size FL205 FL205
Pto shaft CE 4x800 mm CE 4x2.60 ft
Hood length 665.0 mm 26.2 in
Effective Displacement - -
Packing sizes 1350.0*850.0*700.0 mm 4.43*2.80*2.30 ft

Certifications

SSAB Acciaio Svedese Laser 355C: Specifiche e Certificazione Download PDF
ARVEDI / TUBINDUSTRIA: Certificazione Download PDF

Technical charts

Shell Spirax S2 A 80W-90: Specifiche Download PDF
Shell Gadus S2 V220AC 2: Specifiche Download PDF
