Log grapple mini excavators, forest crane or manure loading DK-18
DETAILS

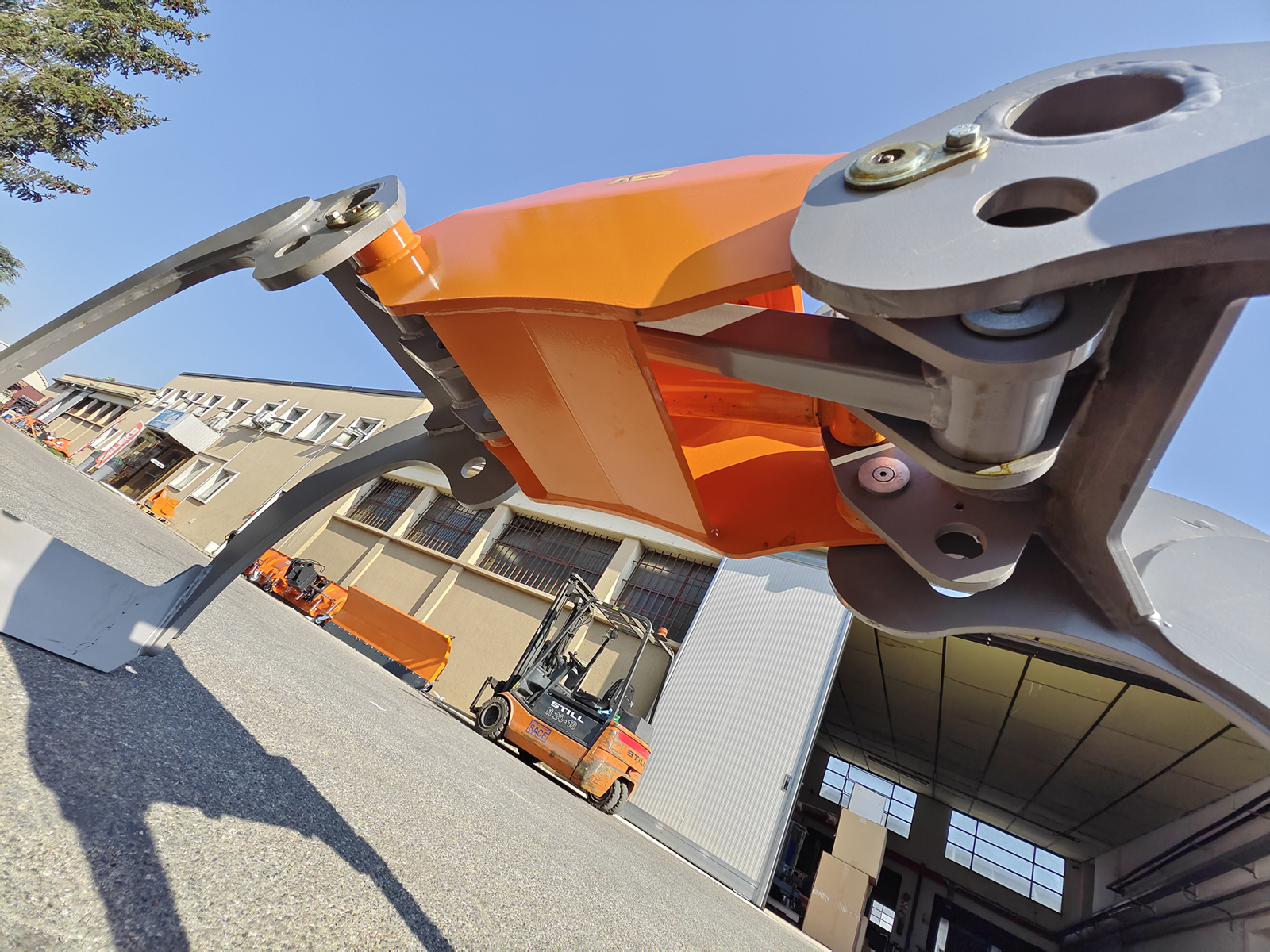

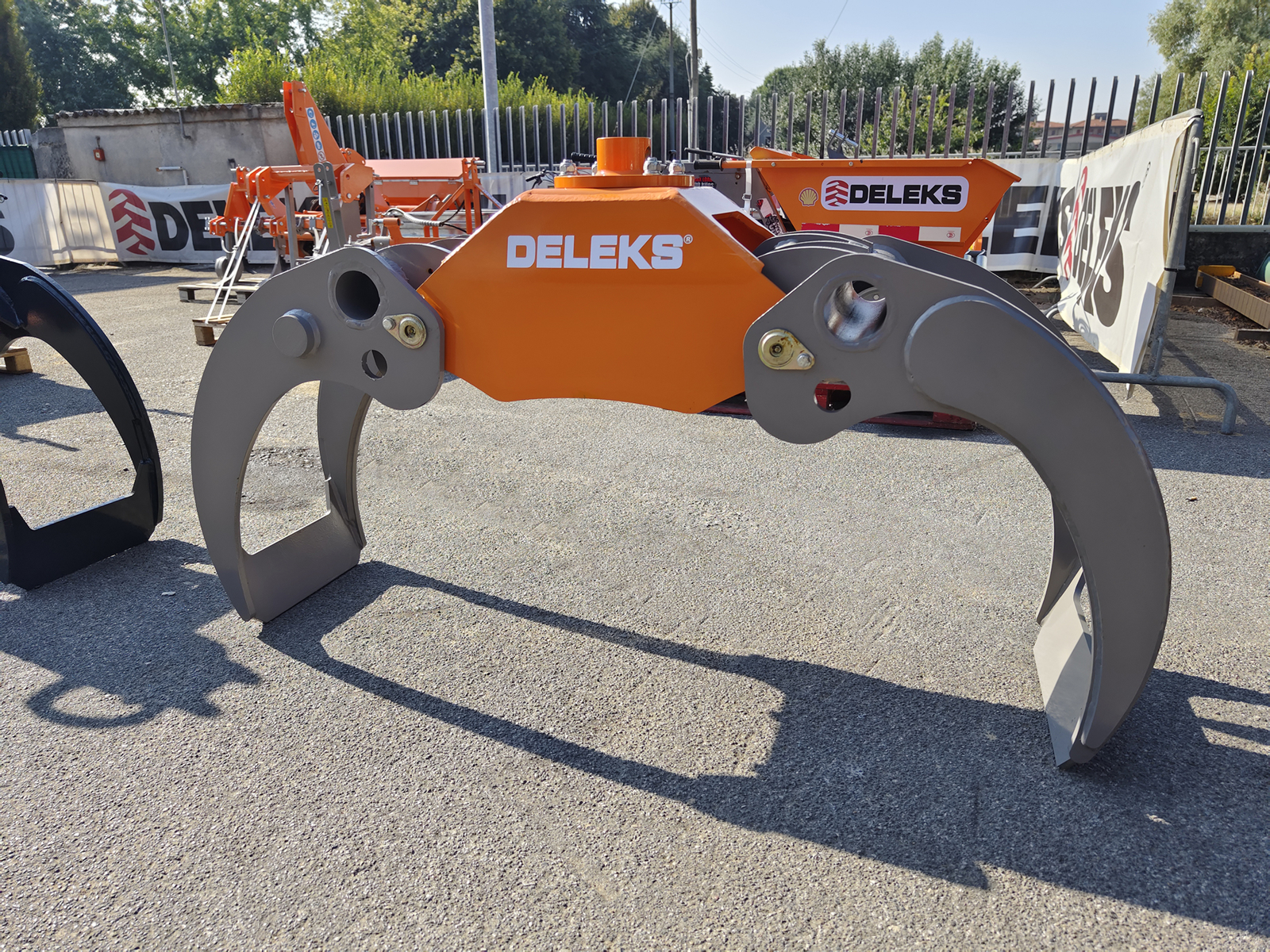

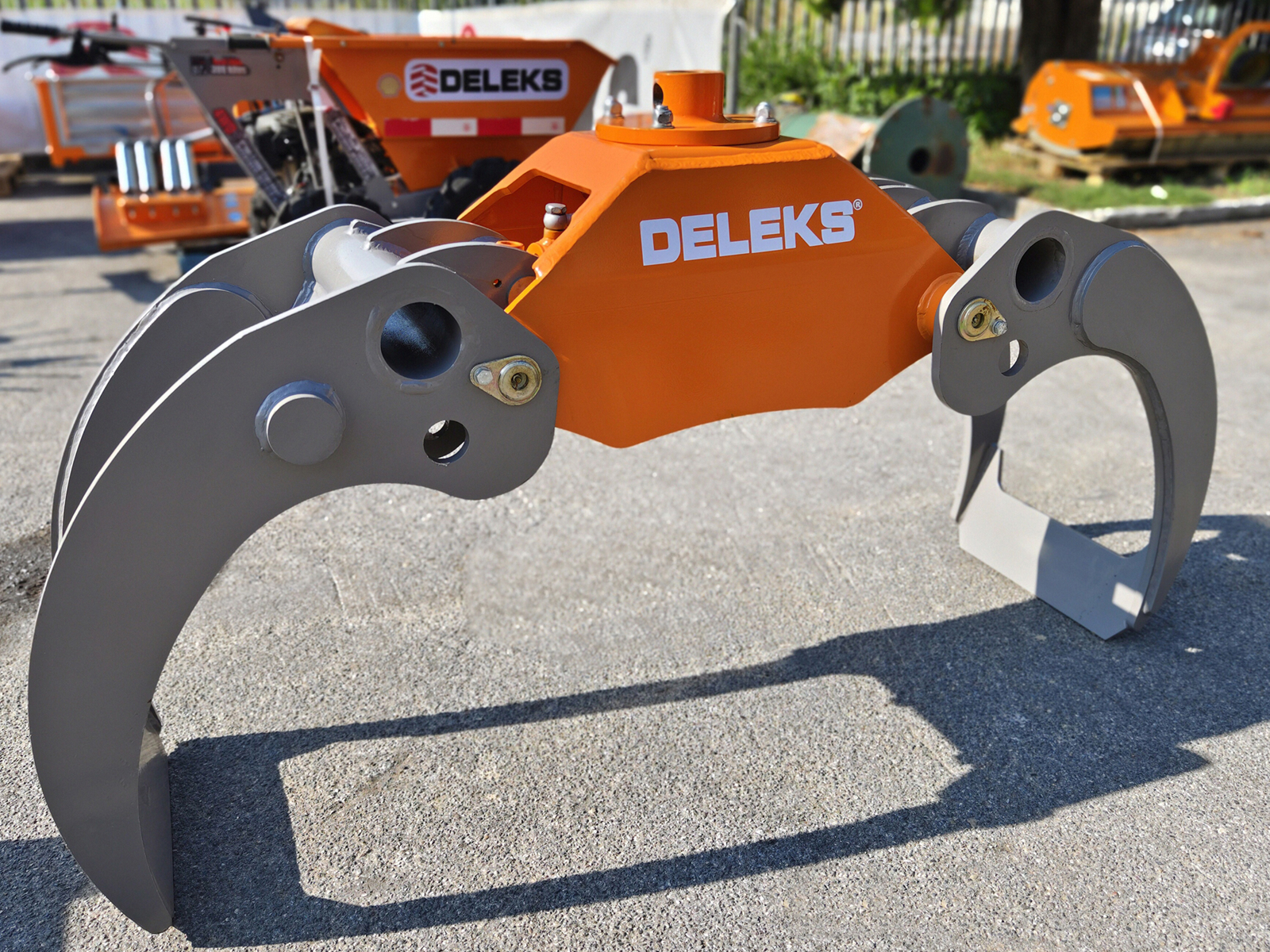

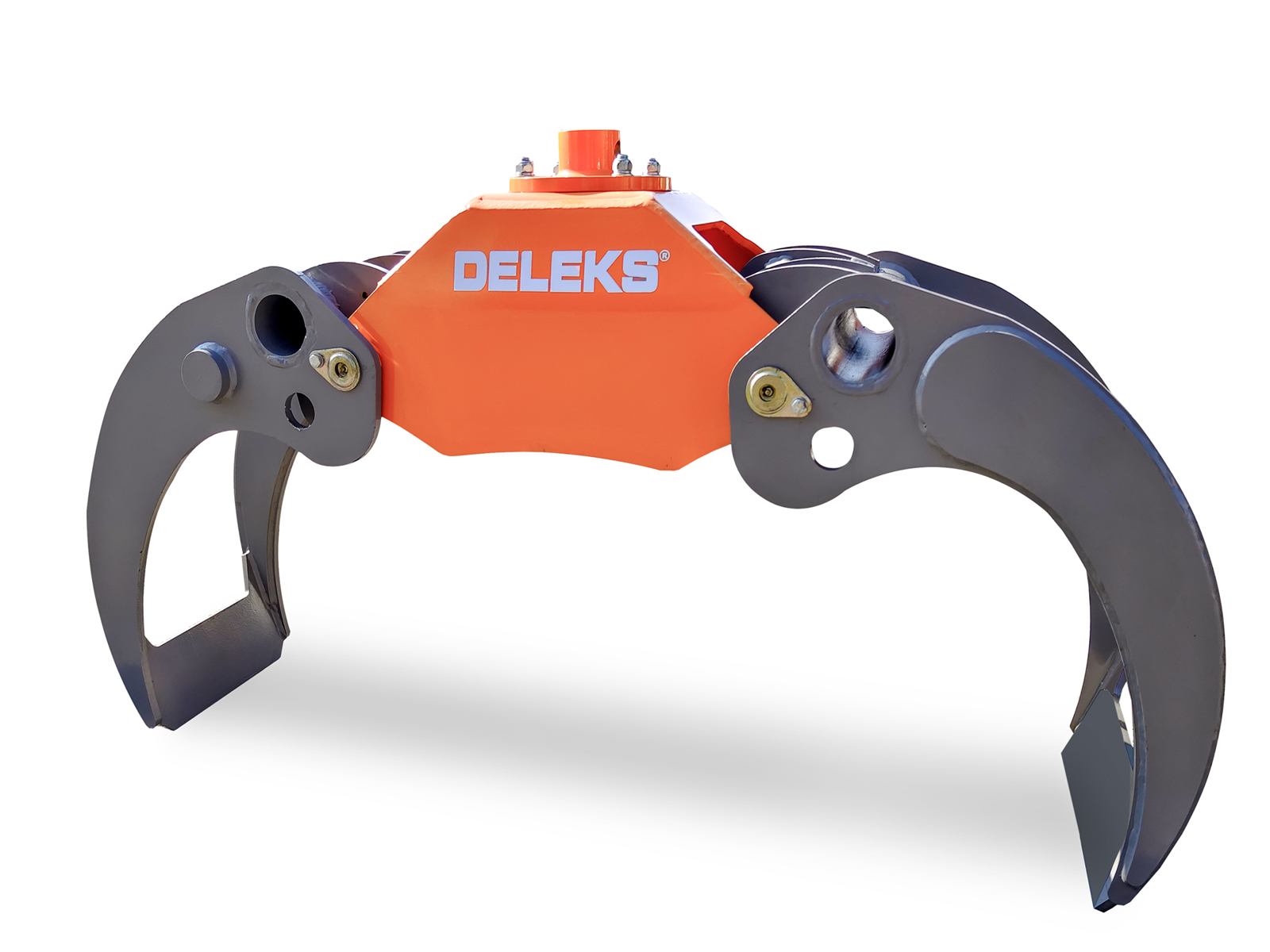

Log Grapple for Mini Diggers and Forest Cranes 5 – 10 Ton DELEKS® DK-18
OVERVIEW
Lightweight and durable log grapple is perfect for carrying logs, timber and even heavy rocks and boulders making it an essential tool when carrying out forestry work, clearing debris or repairing stone walls.
Maximum load 2500.0 kg.
Gripping force: 13.1KN
Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi. EC Conformity, 2 Year Warranty.
BENEFITS & FEATURES

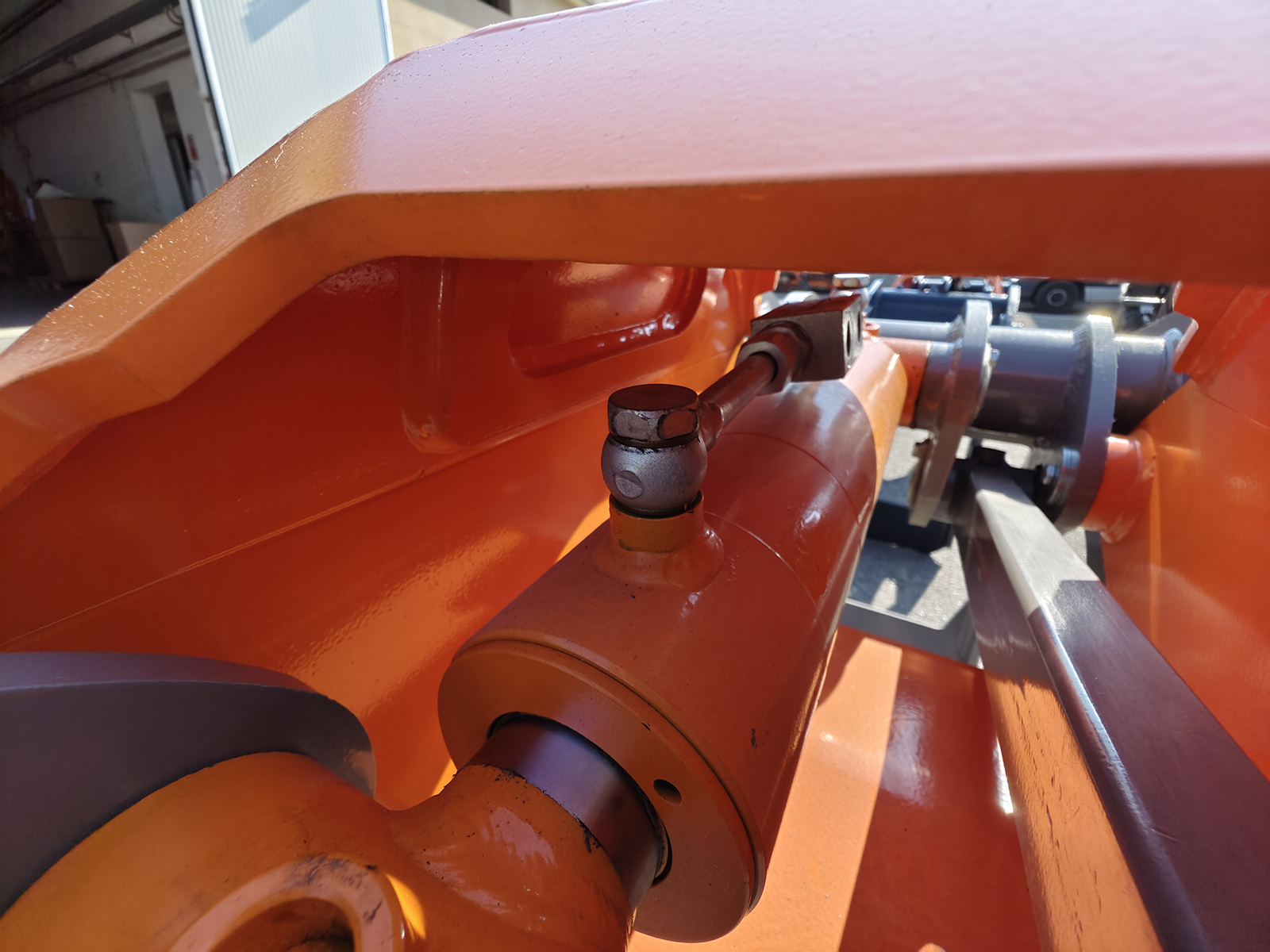

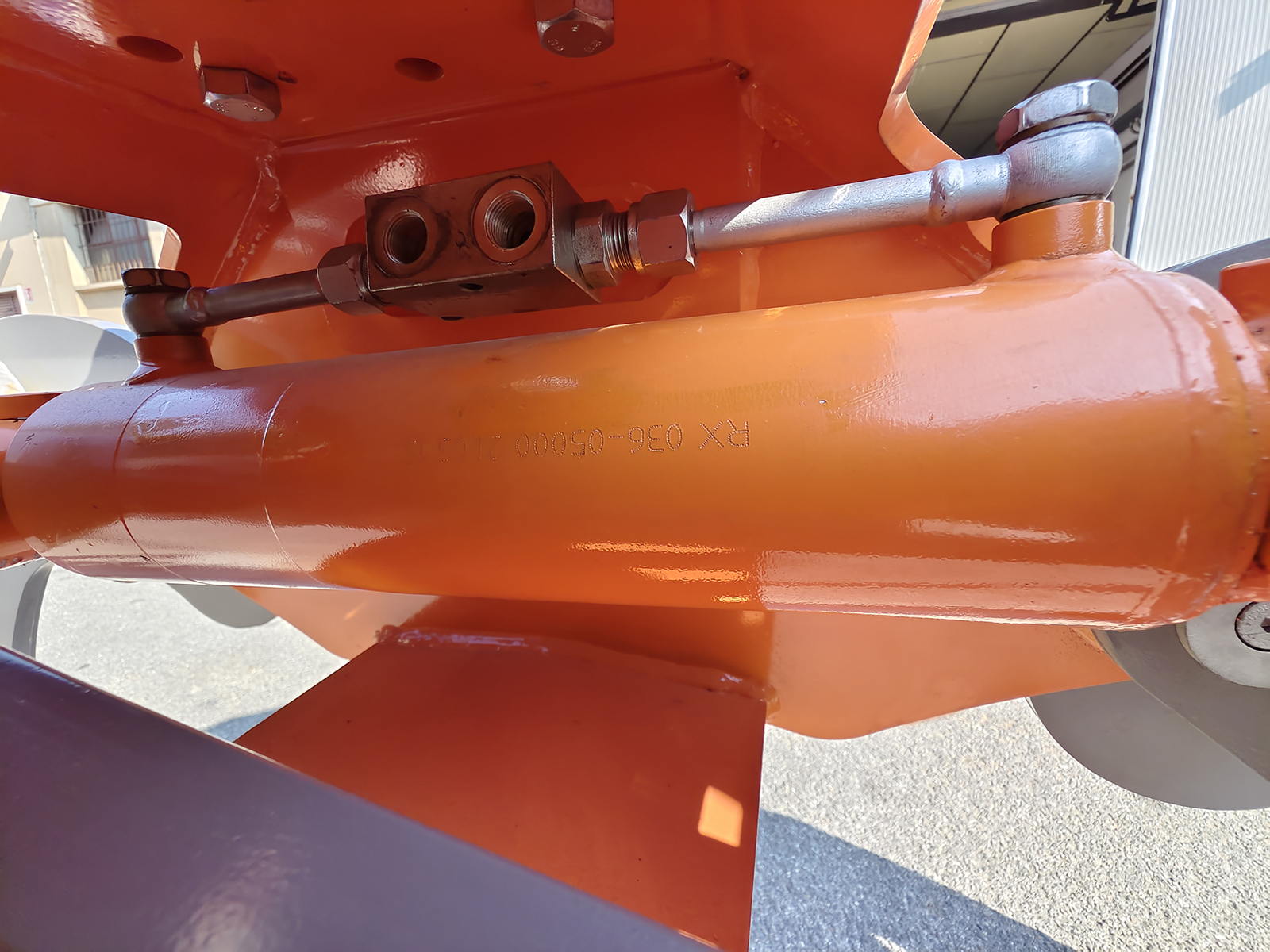

Shut-off valve on the hydraulic cylinder.
Solid steel bolts with bronze bushings.
Thanks to the DK18's unique design it grips timber, boulders or debris tightly.
High quality steel: code S355 (Claws: S700) .
High tensile strength, reinforced grapple tines.
Available with optional hydraulic kit and rotator.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 242.0 kg | 533.0 lb |
| Load capacity | 2500.0 kg | 5500.0 lb |
| Main hood thickness | 12.0 mm | 0.5 in |
| Min./Max. Relief Pressure | 150 - 220 bar | 150 - 220 bar |
| Min./Max. Flow | 25 - 50 l/min | 25 - 50 l/min |

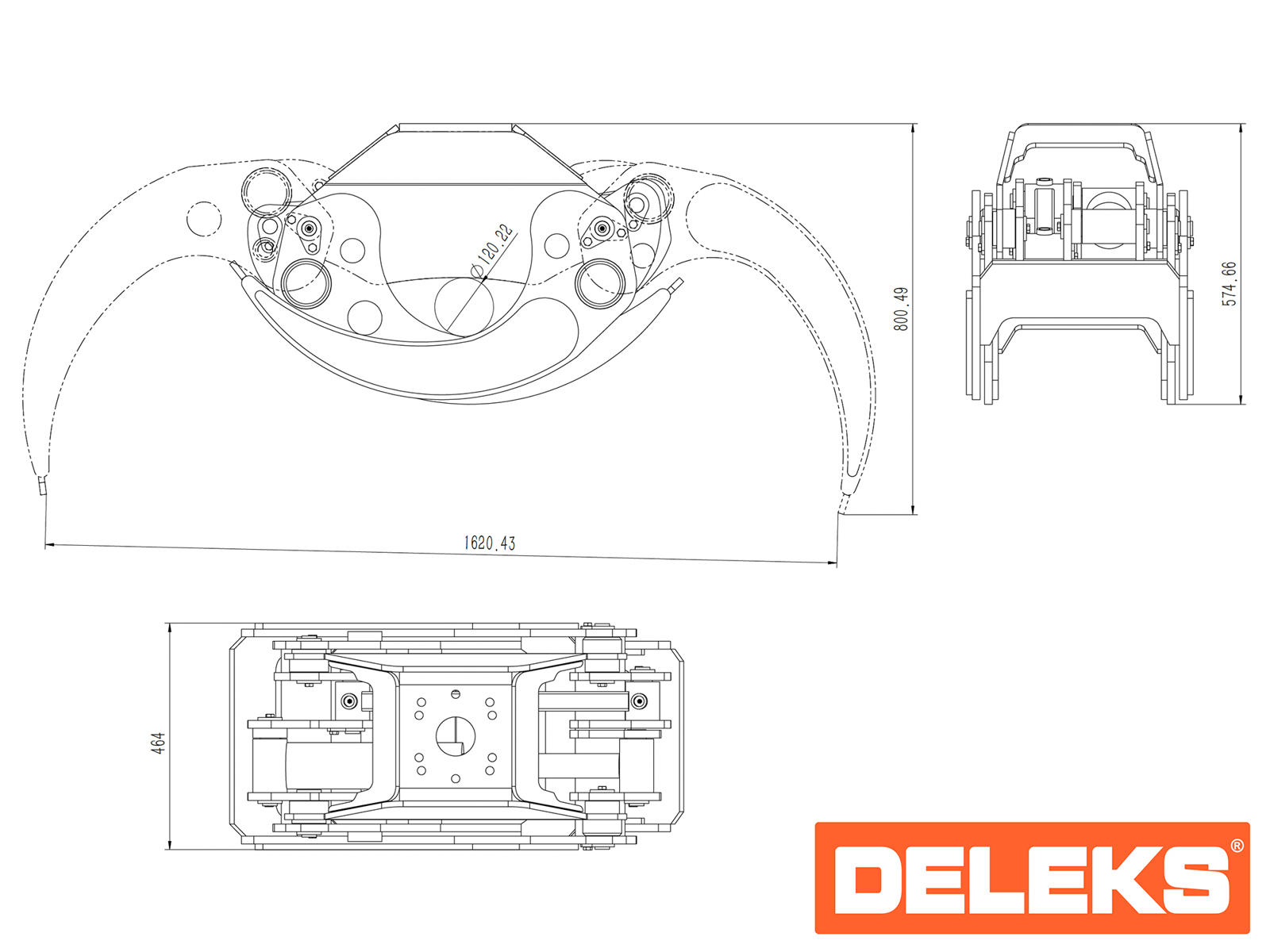

| Other sizes | See pictures | See pictures |
| Hydraulic Hoses | 400 bar pressure | 400 bar pressure |
| Max Opening | 1620.0 mm | 5.30 ft |
| Minimum diameter of the log | 40.0 mm | 1.57 in |
| Hydraulic cilinder diameter | 90.0 - 50.0 mm | 3.55 - 1.97 in |
| Max Pressure | 200 Bar | 200 Bar |
| Compact Excavators Range | 5 - 10 ton | 5 - 10 ton |
| Packing sizes | 1200.0*800.0*500.0 mm | 3.94*2.62*1.64 ft |
