Petrol chipper shredder - Briggs&Stratton 6.5 Hp engine
DETAILS

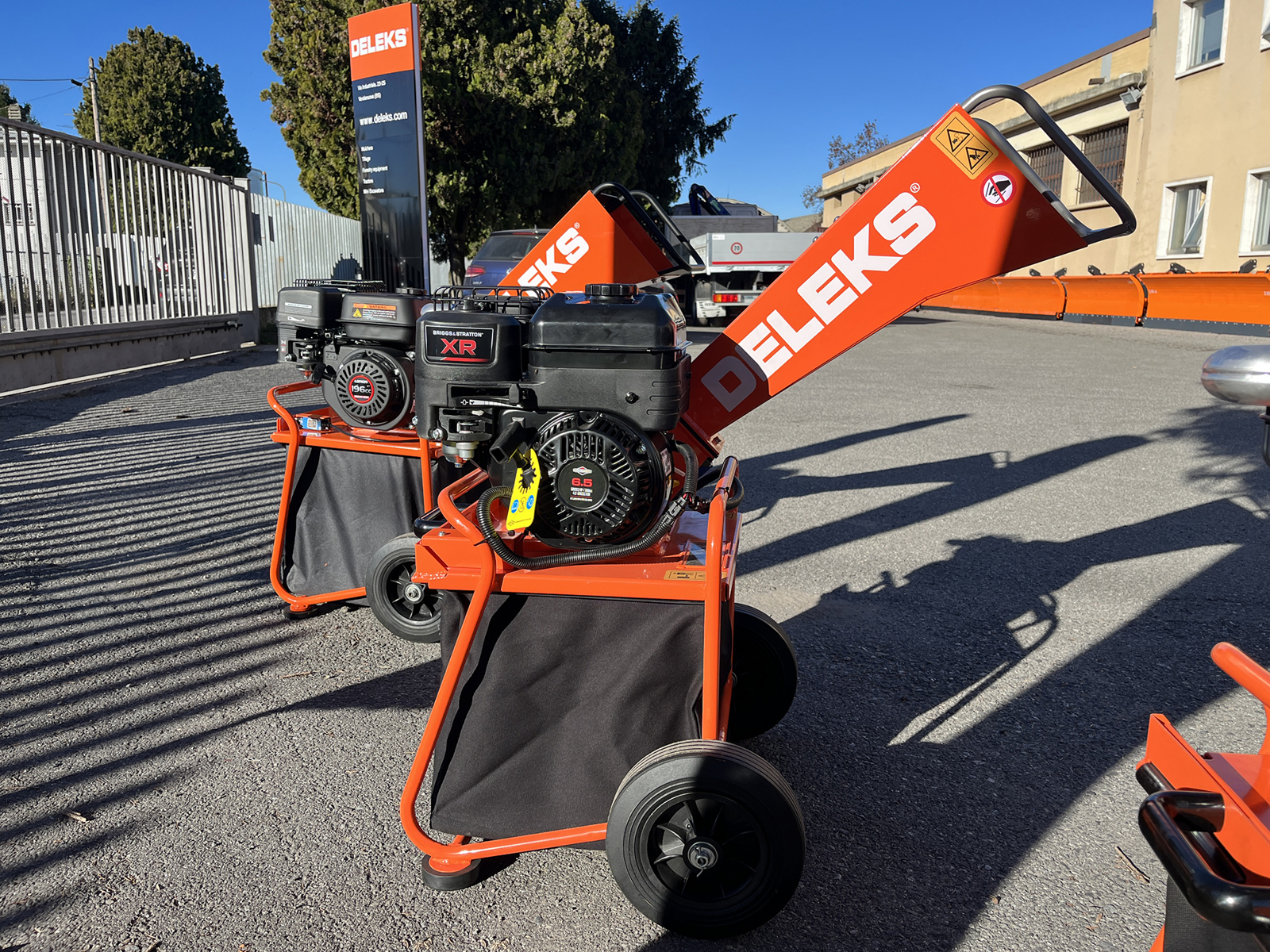

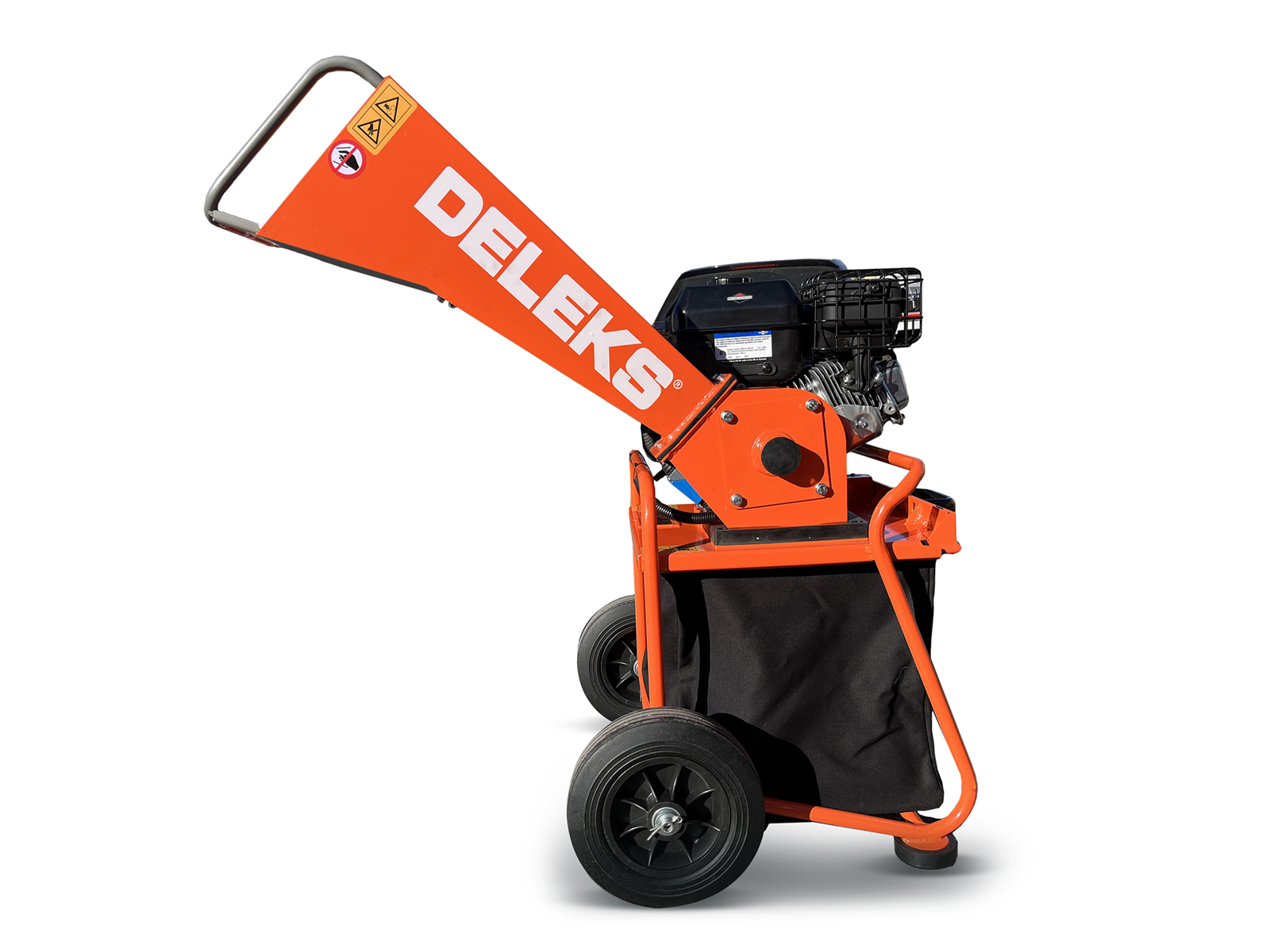

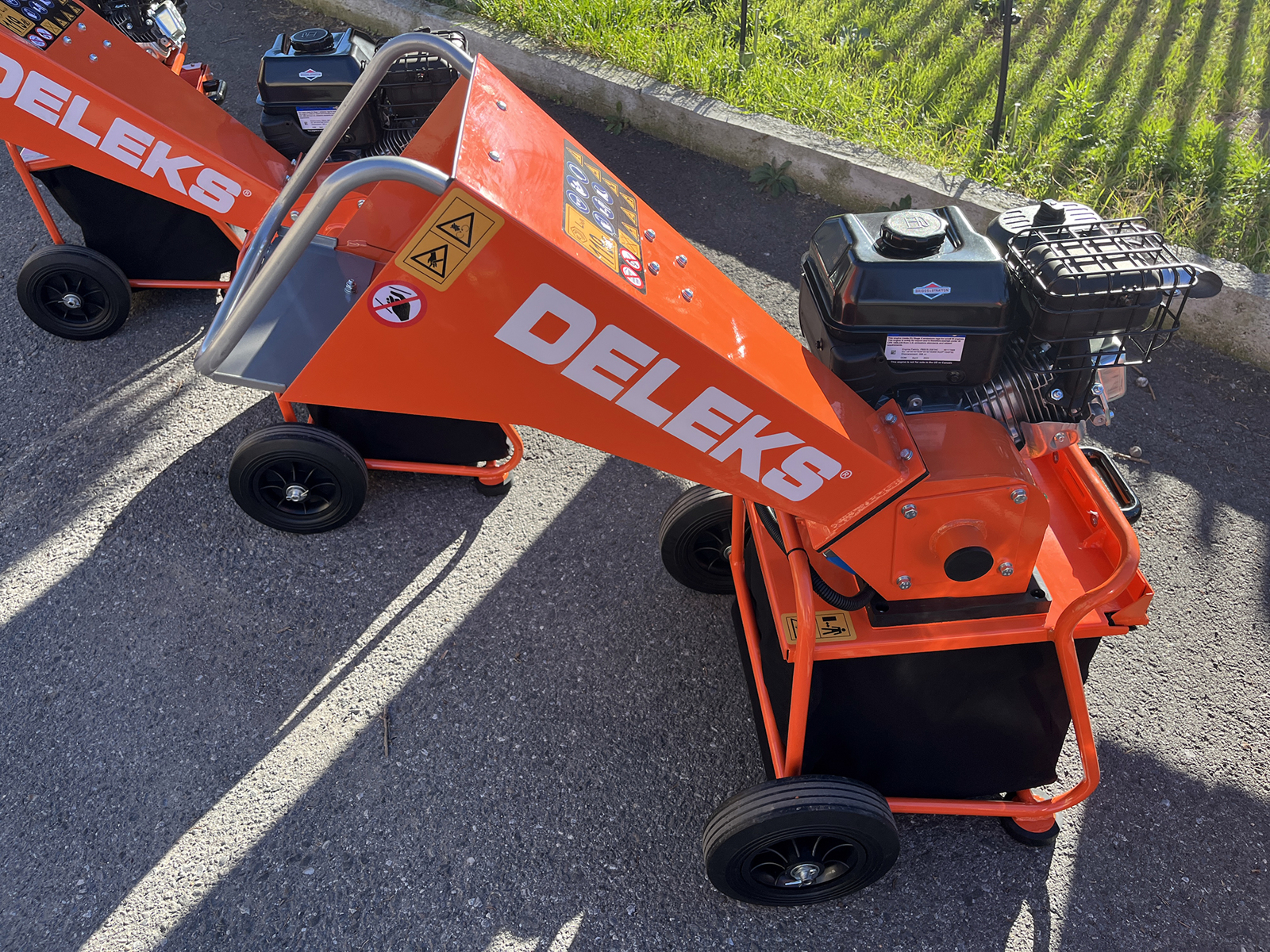

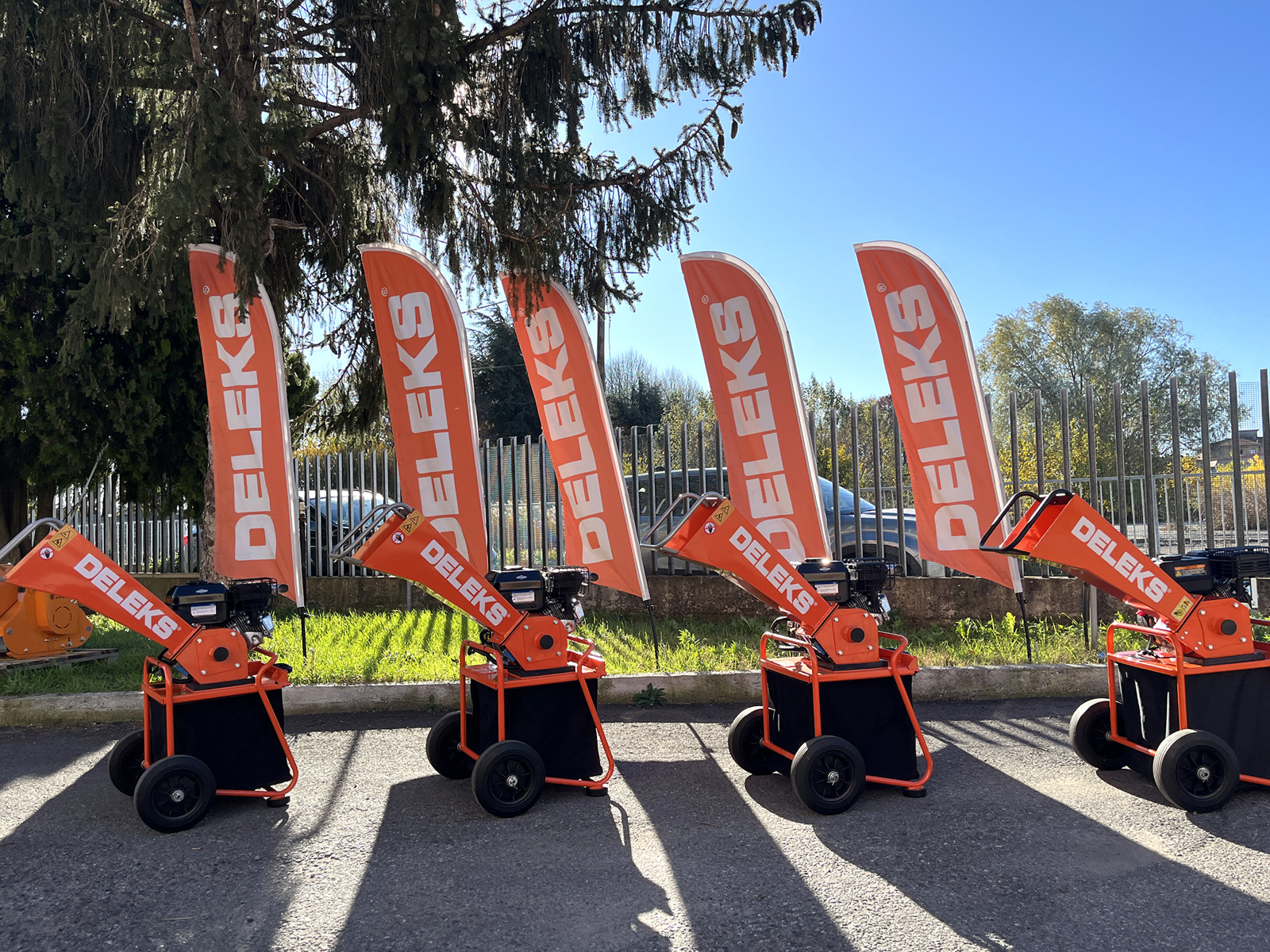

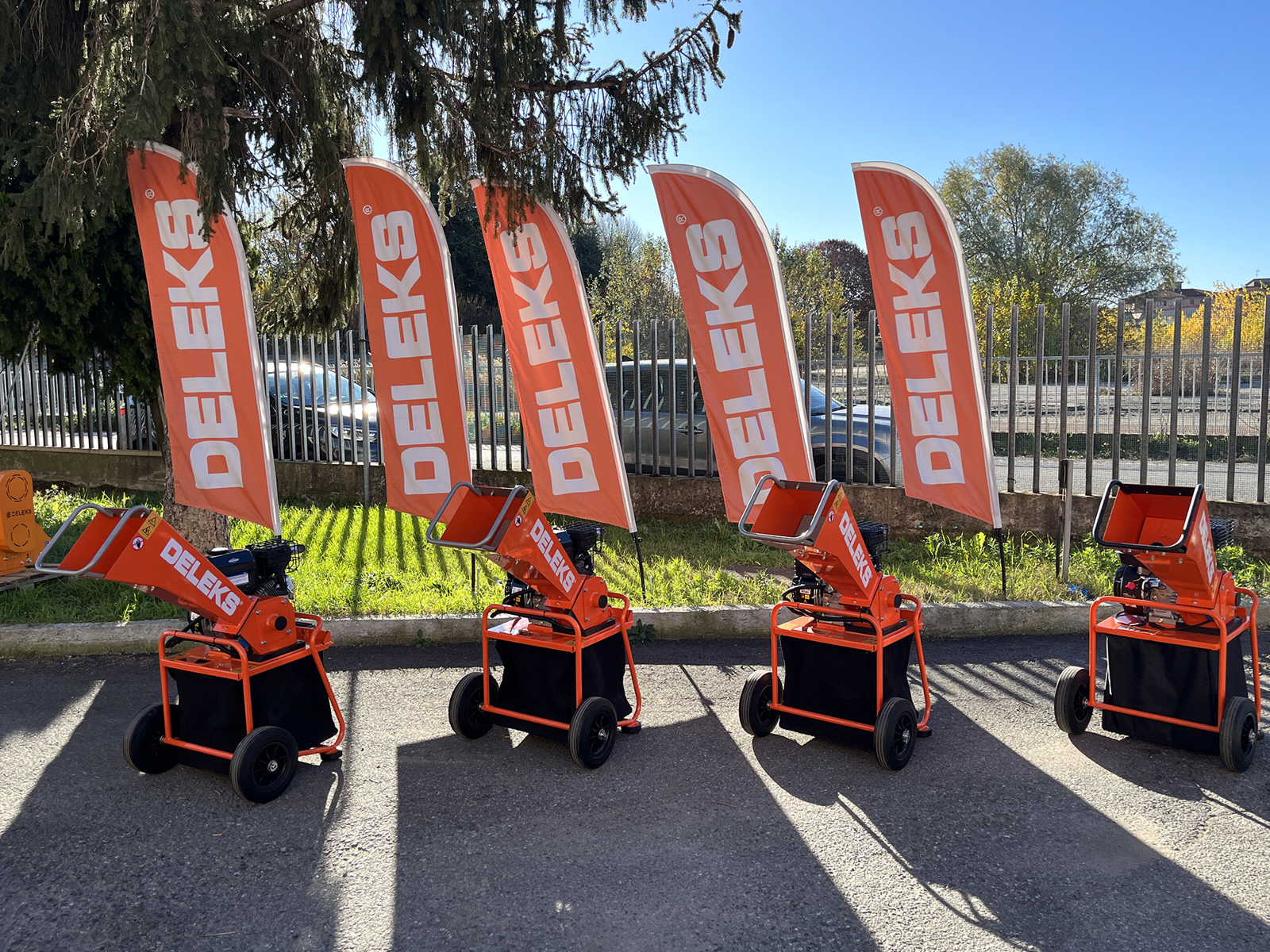

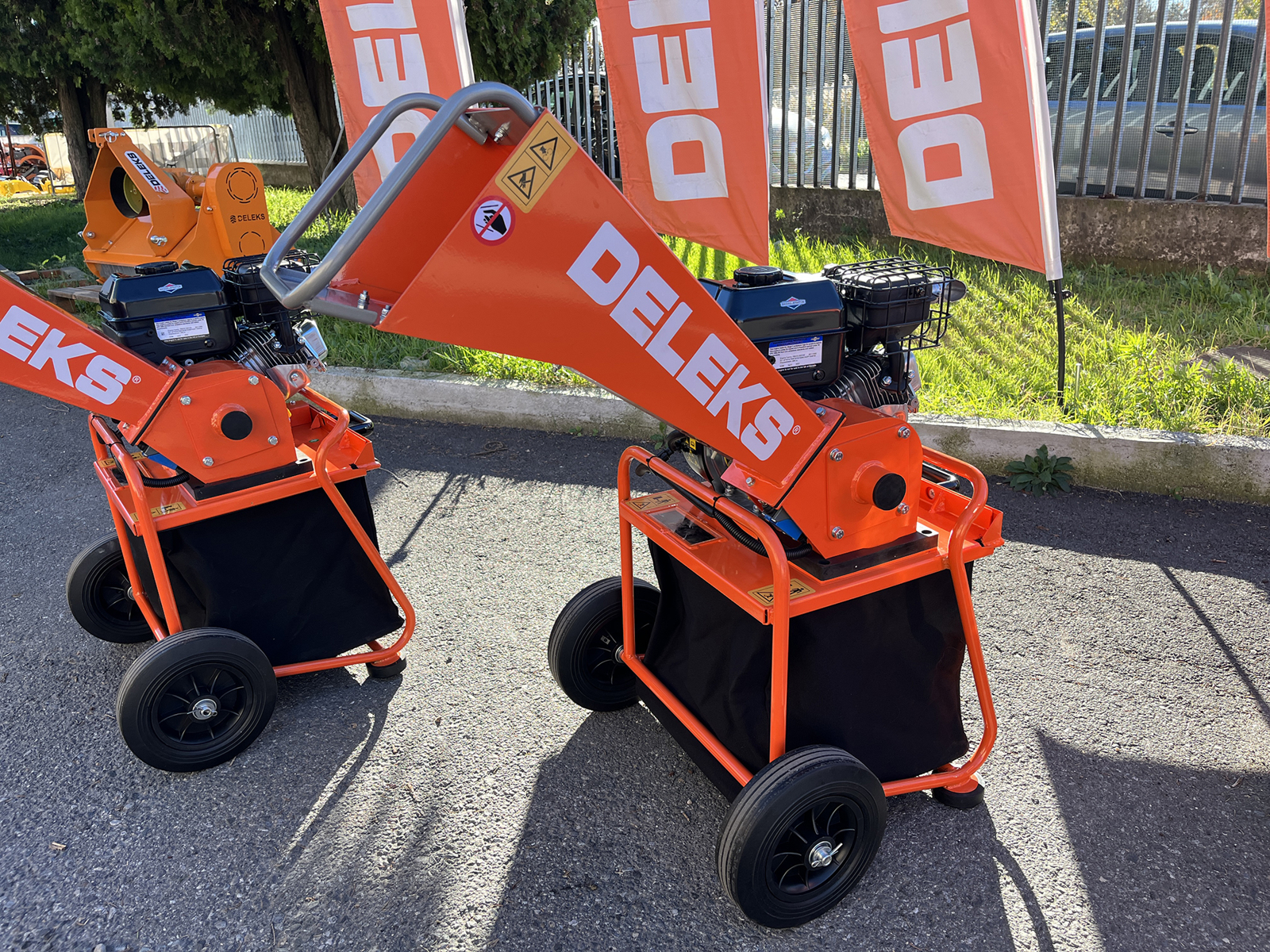

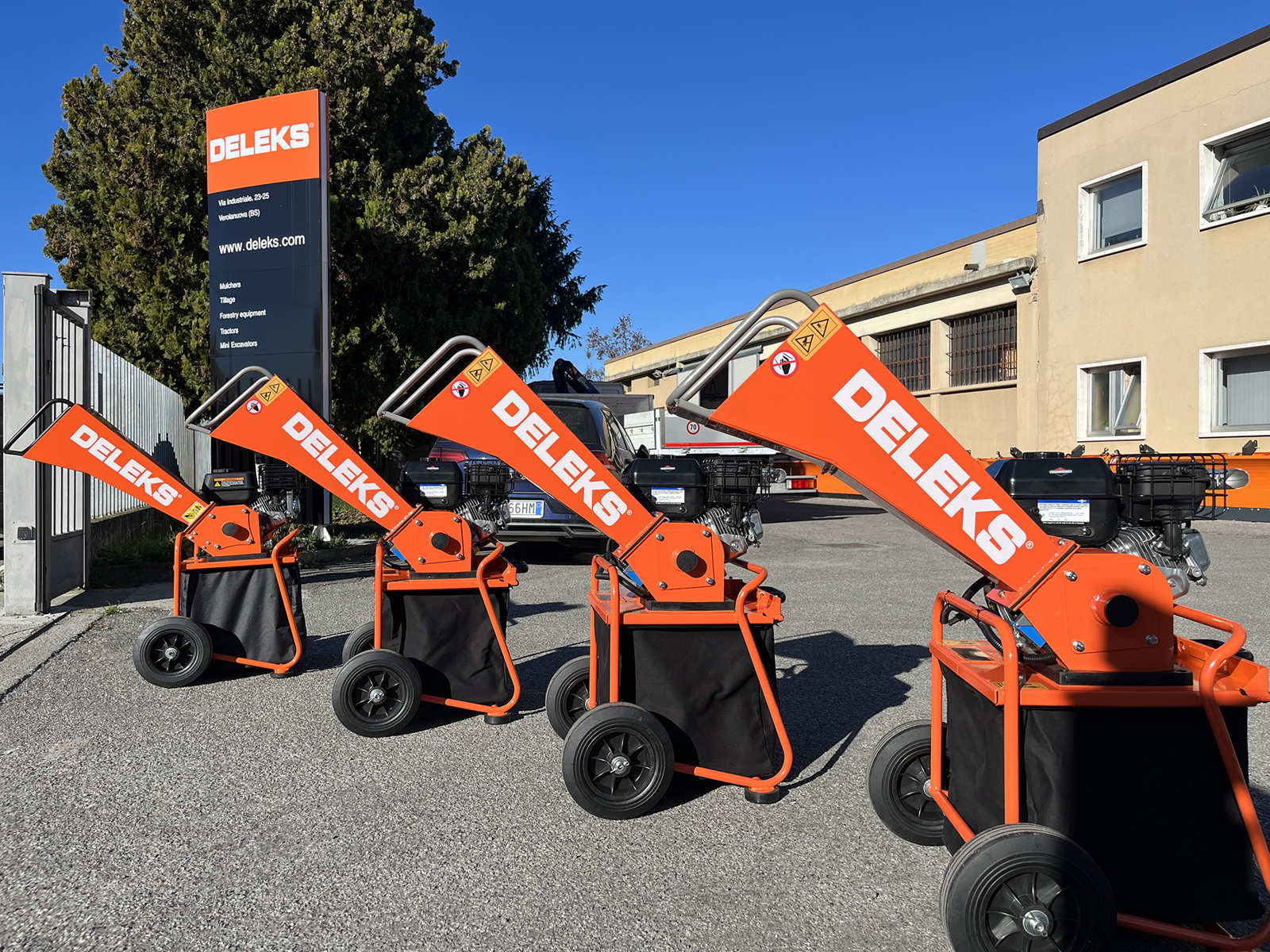

Compact wood chipper DELEKS® DK-300 BS powered by a Briggs & Stratton XR950 petrol engine delivering 6.5 HP, designed for chipping branches and pruning waste in domestic and semi-professional applications.
Equipped with reversible cutting blades made of special steel, already mounted on the cutting drum.
PRODUCT DESCRIPTION
The DELEKS® DK-300 BS is the most compact model in the DK range, developed to offer reliability, ease of use and effective chipping performance even in limited working spaces.

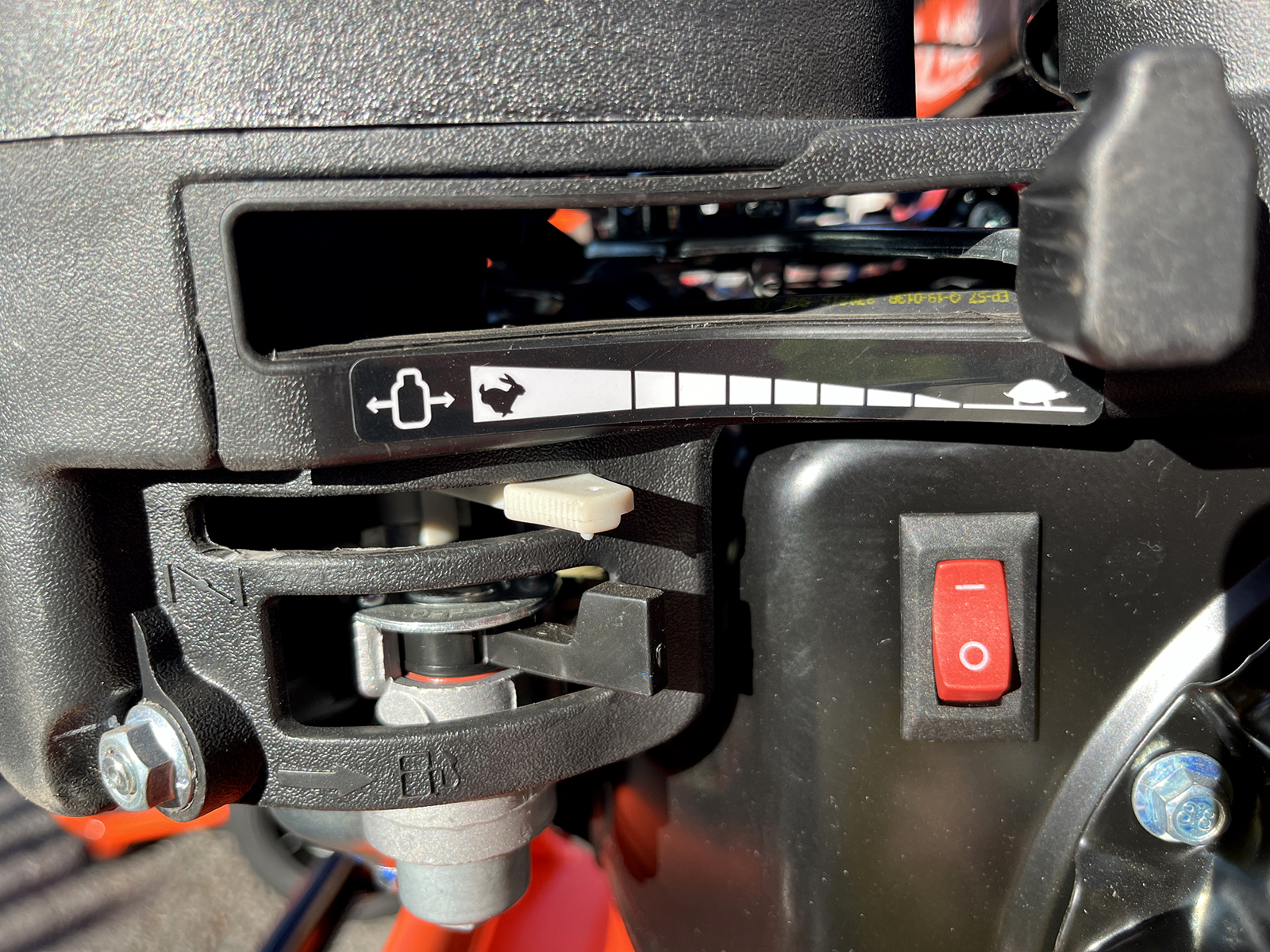

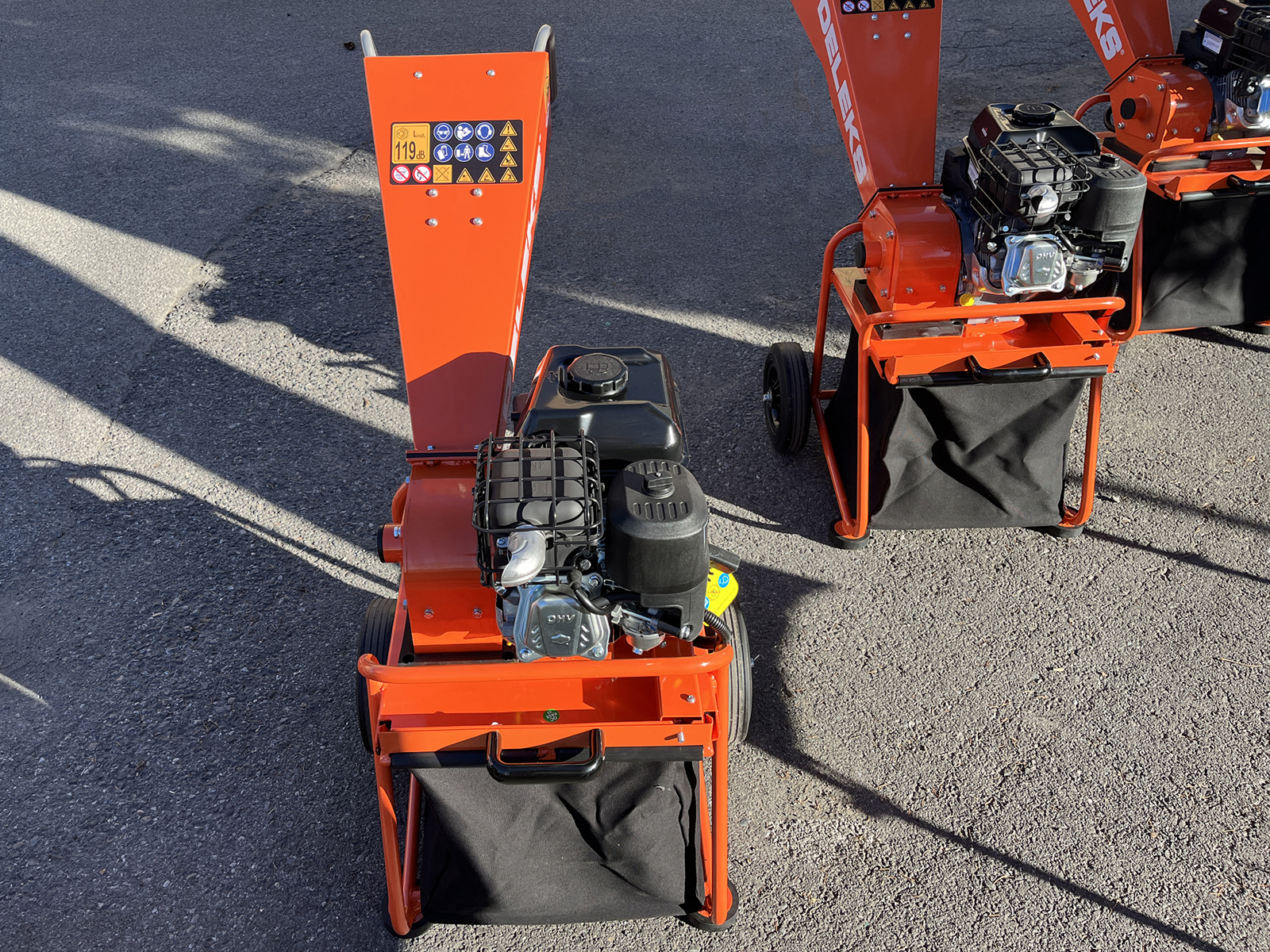

It is powered by a Briggs & Stratton XR950 petrol engine, 4-stroke, 208 cc, 6.5 HP, designed to ensure smooth starting, stable operation and long-term reliability, even during continuous use.

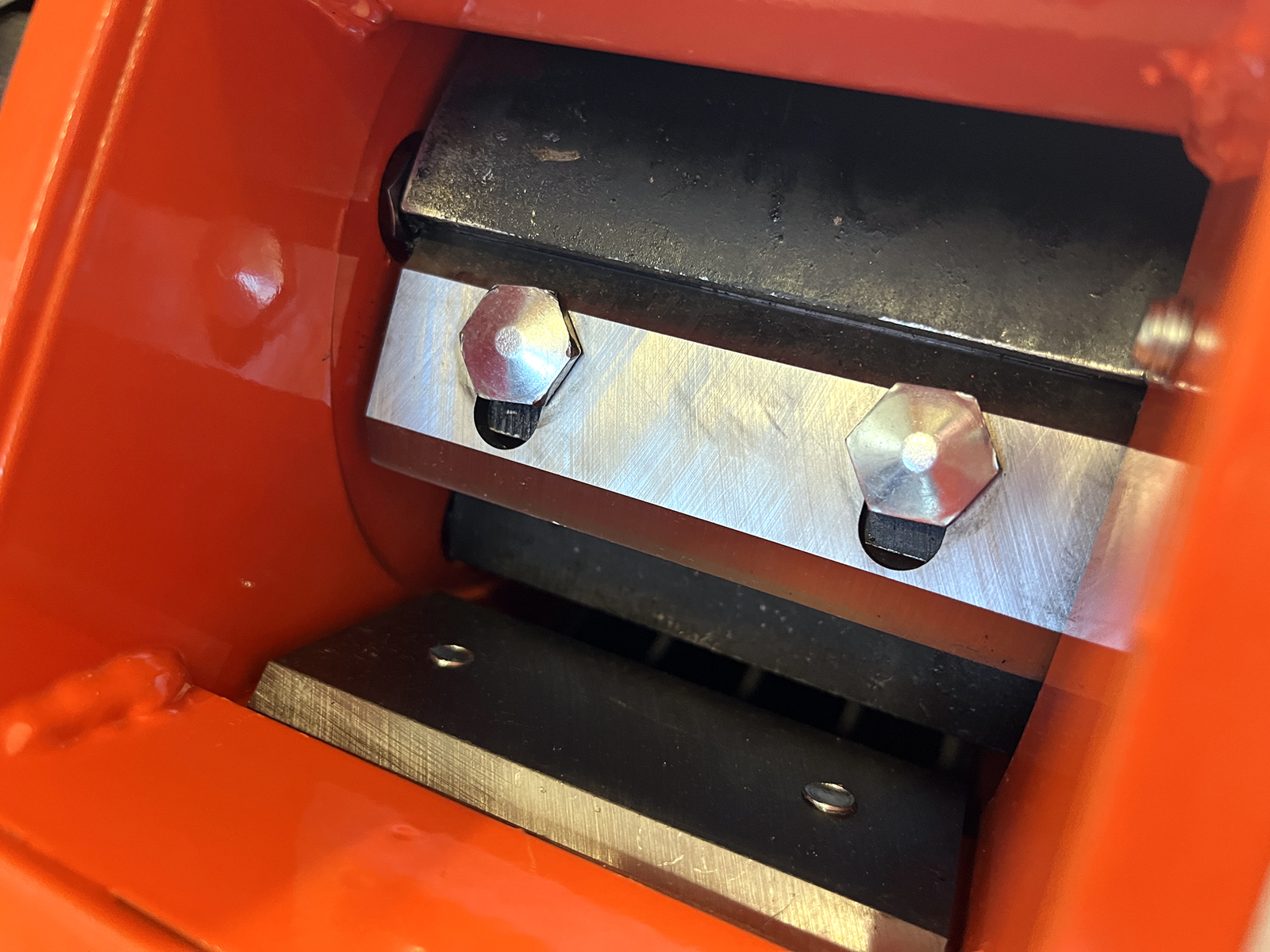

The drum chipping system uses two horizontal reversible blades made of special steel combined with a fixed counter blade, ensuring efficient cutting and good uniformity of the chipped material.
APPLICATION
Suitable for chipping dry wood, green wood, branches, pruning residues and palm leaves.
Maximum chipping diameter: 5 cm.

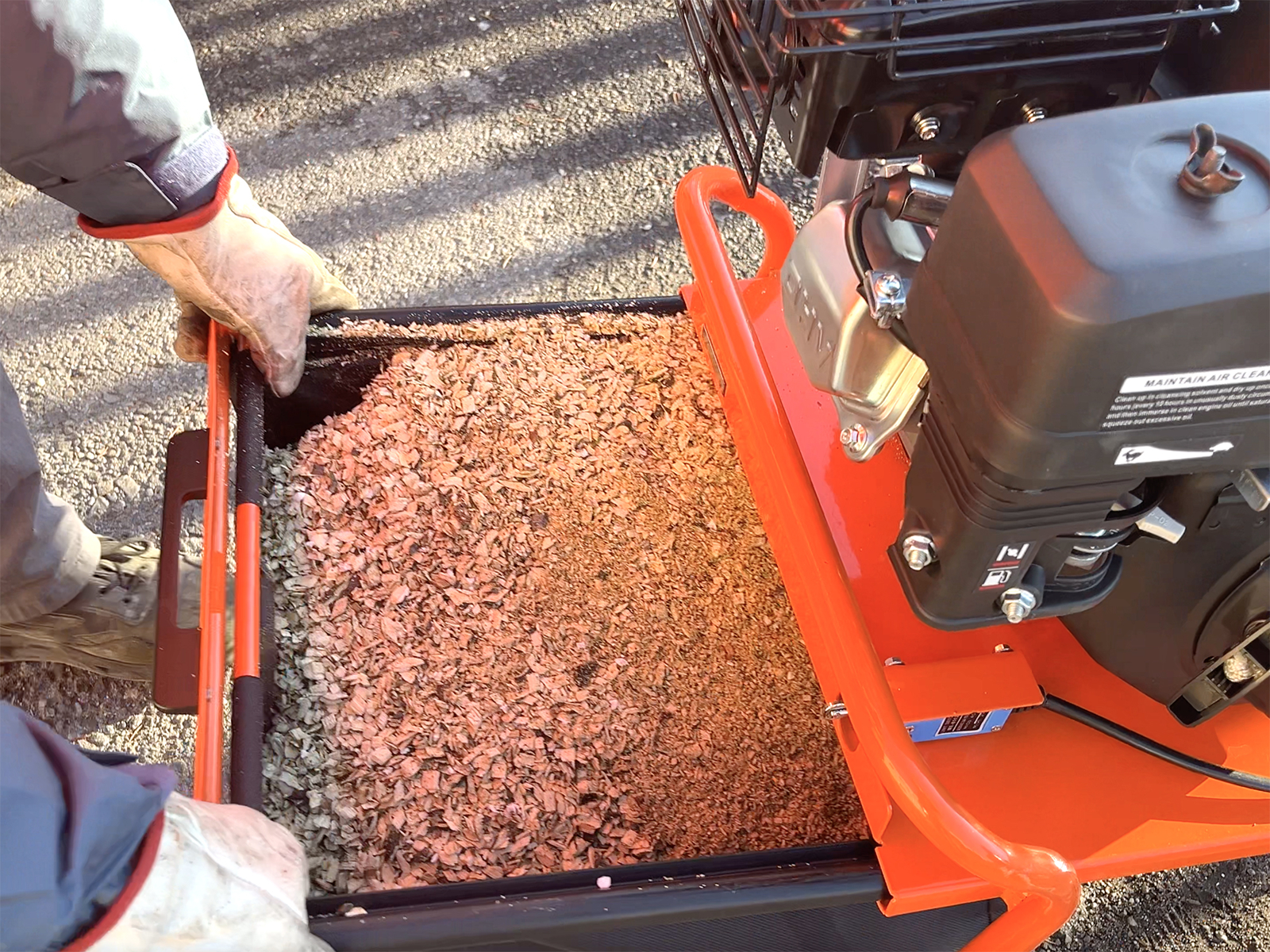

The resulting wood chips are relatively uniform, approximately 0.5 cm, depending on the type and moisture content of the material processed.
The machine is not suitable for shredding maize, straw, alfalfa or similar herbaceous materials.
TECHNICAL FEATURES AND ADVANTAGES
-
Drum chipping system with reversible special steel blades
-
Reliable Briggs & Stratton XR950 engine
-

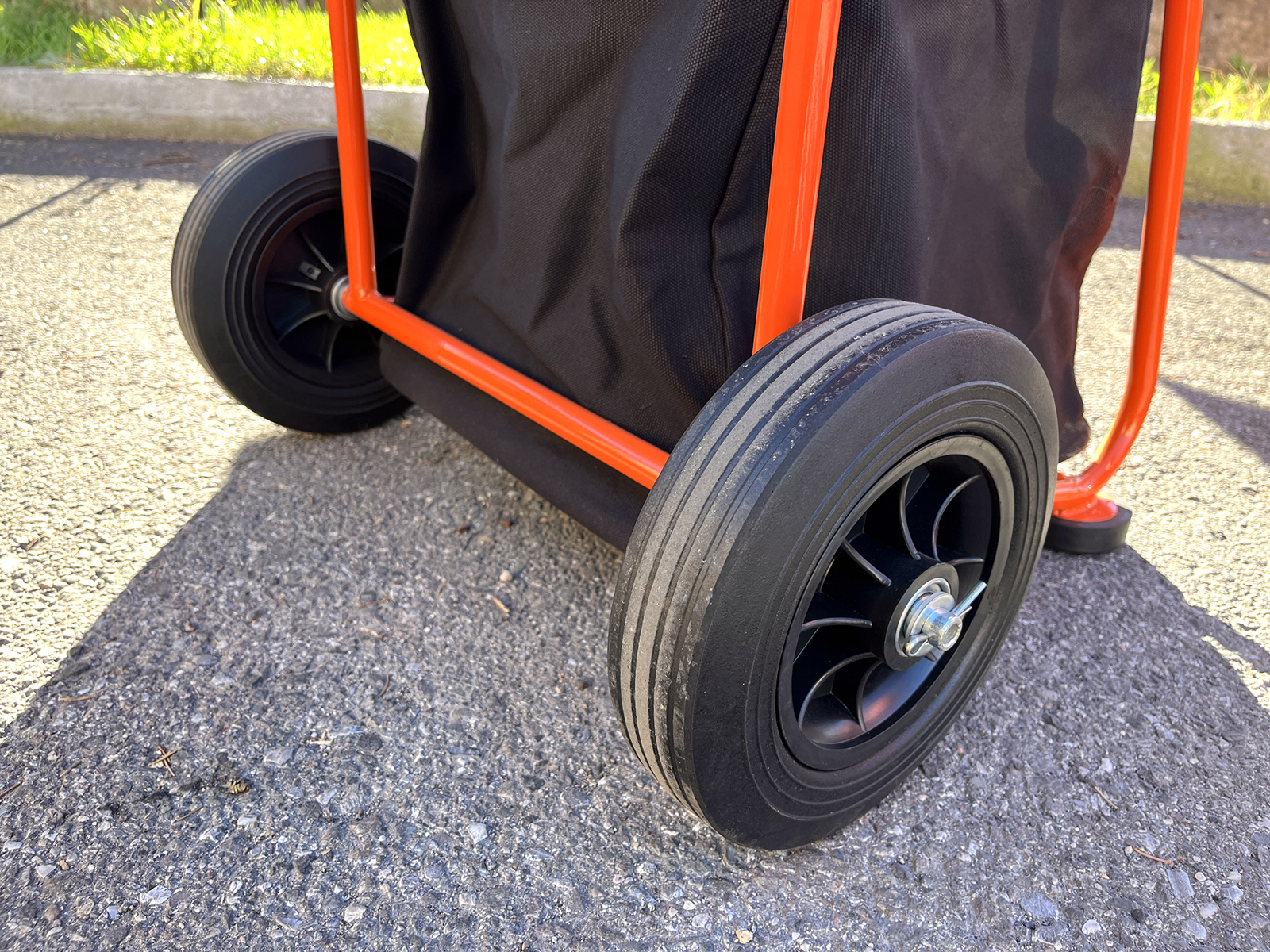

Compact and stable structure, easy to position and move
-
Simple operation and maintenance
-
Designed for domestic and semi-professional use
CERTIFICATIONS – WARRANTY – SERVICE
-

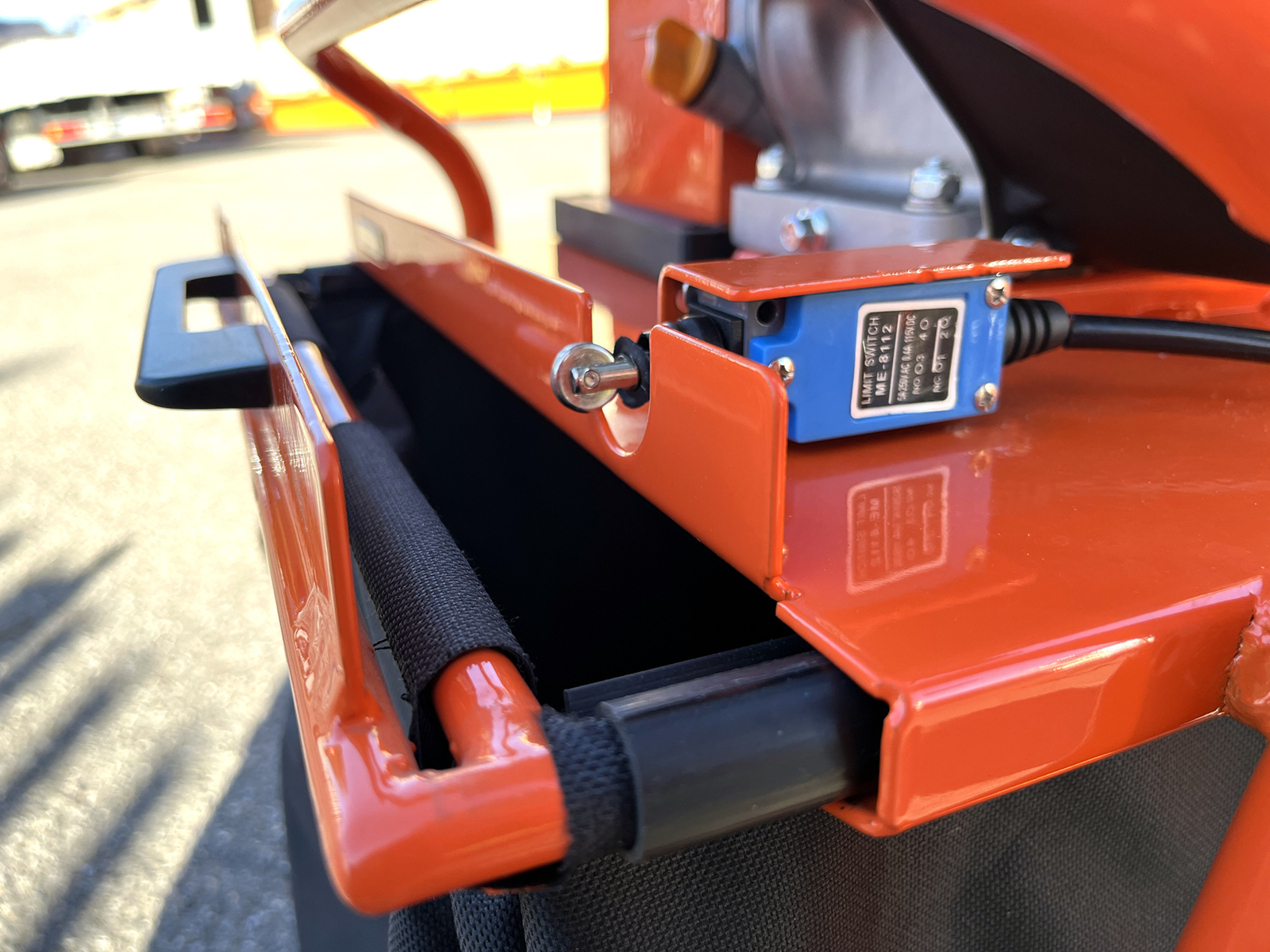

Machine compliant with CE regulations and equipped with safety protections
-
CE certification and risk analysis
-
2-year warranty on the machine
-
Technical support and spare parts availability guaranteed

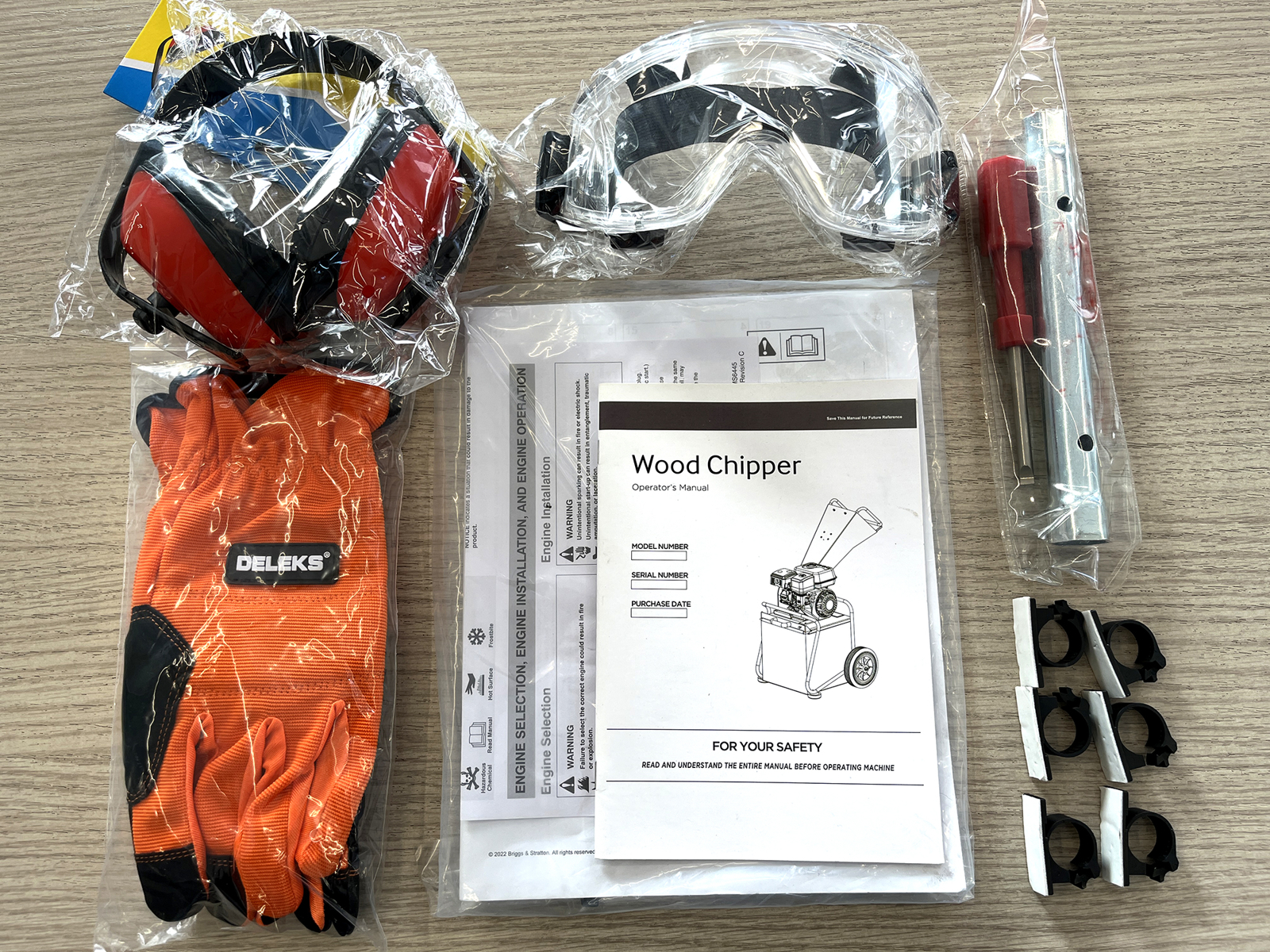

STANDARD EQUIPMENT
-
CE-approved hearing protection
-
CE-approved safety goggles
-
DELEKS® work gloves
-
Machine operation and maintenance manual
-
Briggs & Stratton engine operation and maintenance manual
-
Engine oil level checked
DOCUMENTATION SUPPLIED
-
EC Declaration of Conformity
-
Operation and maintenance manual
-
Invoice or fiscal receipt
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 52.0 kg | 115.0 lb |
| Blades: Weight | 300.0 g | 10.50 oz |
| Transmission | Direct without belts | Direct without belts |
| Working Efficiency | 2m3/h | 1.0 sq ft/h |
| Cutting System | Chipping drum with 2 blades + 1 fixed blade | Chipping drum with 2 blades + 1 fixed blade |
| Chipped material size range | 5.0 - 15.0 mm | 0.20 - 0.60 in |

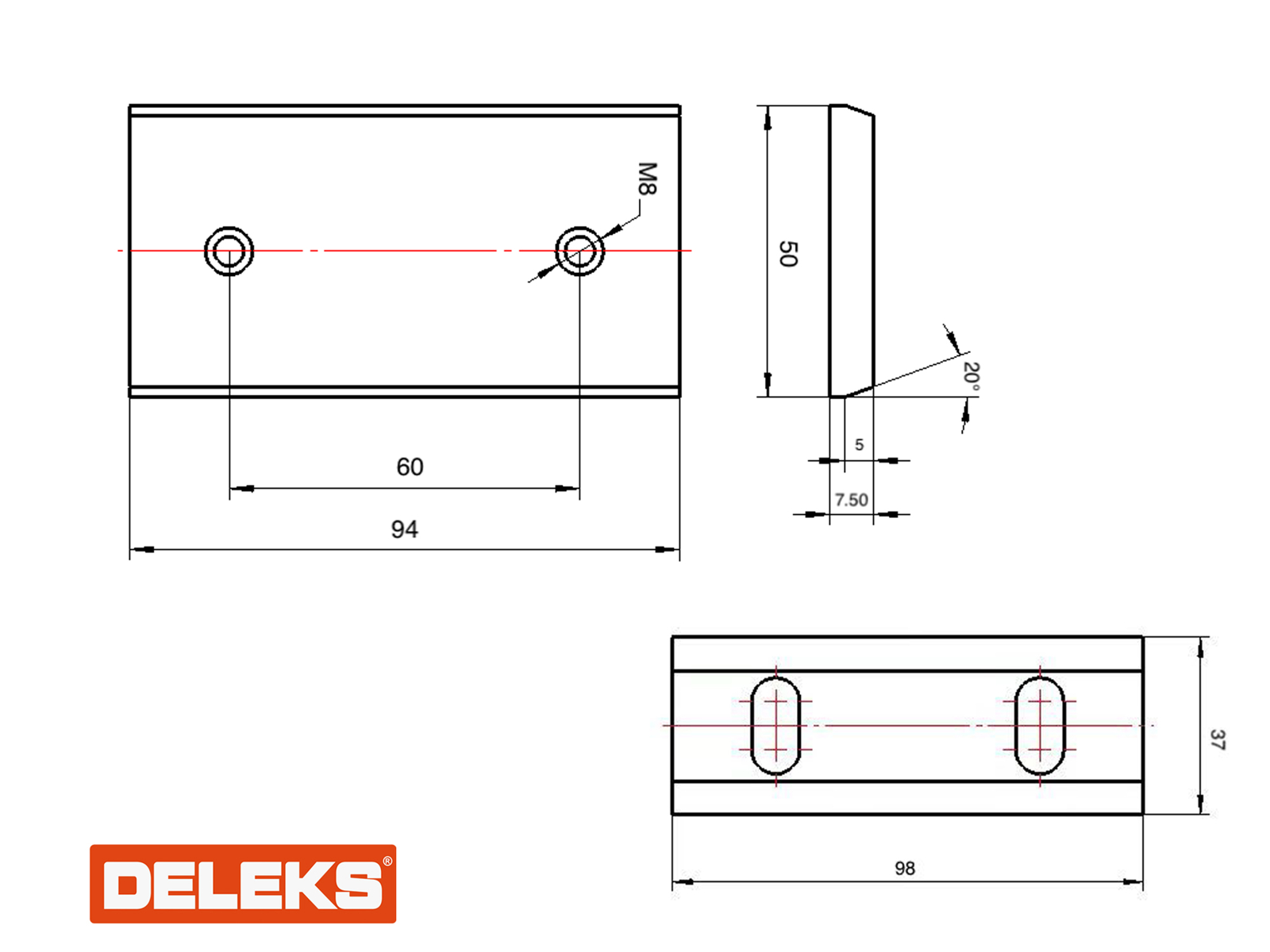

| Blades: Sizes | 100.0*35.0 mm | 3.94*1.38 in |

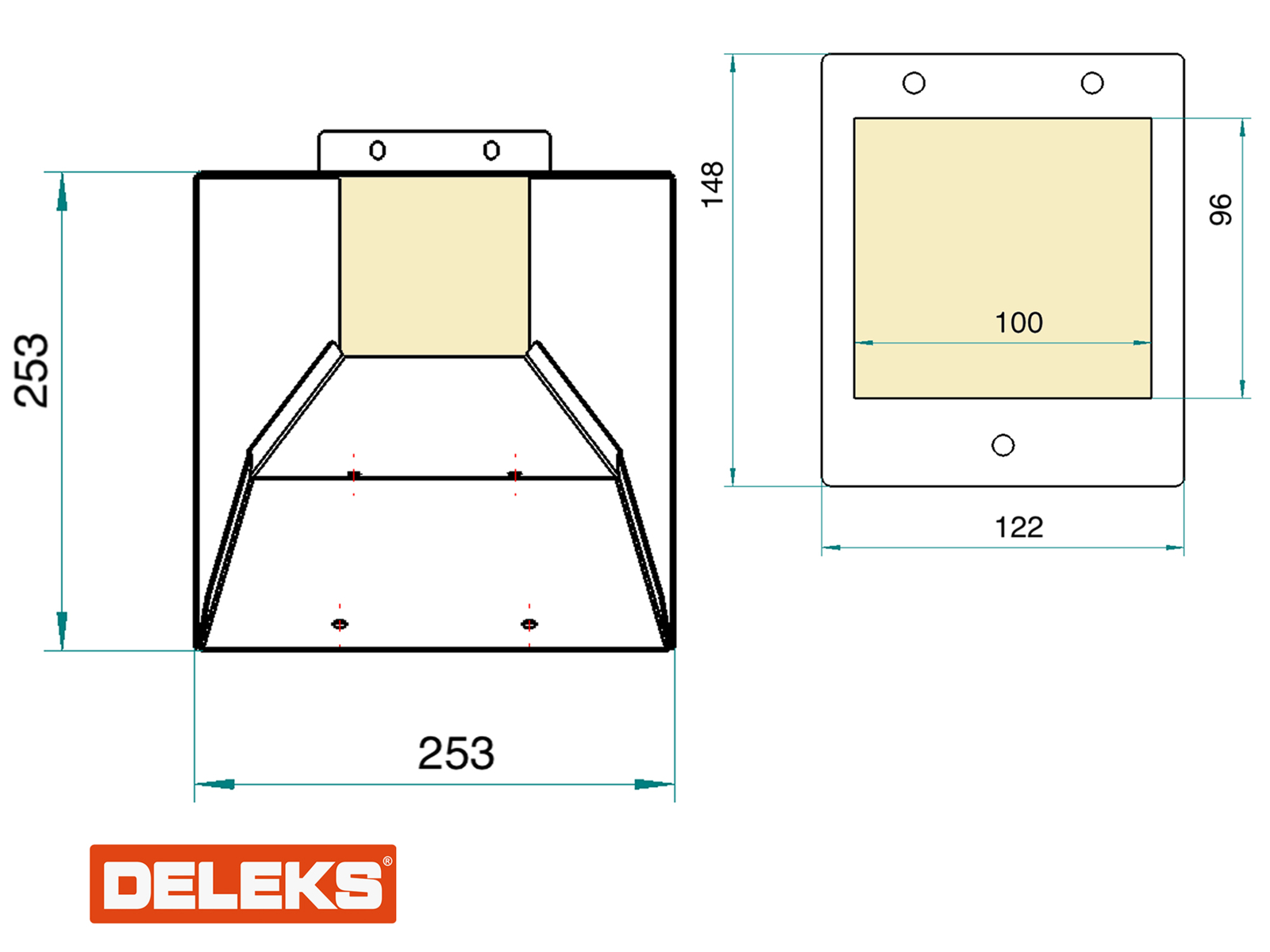

| Maximum cutting diameter | 50.0 mm | 1.96 in |
| Engine | Briggs&Stratton XR950 - 208cc - 6.5 Hp. | Briggs&Stratton XR950 - 208cc - 6.5 Hp. |
| Starter | Pull cord | Pull cord |
| Fuel consumption | 0.8 l/h | 0.8 l/h |
| Packing sizes | 640.0*530.0*600.0 mm | 2.10*1.74*1.97 ft |
