Heavy rotavator tiller for tractors - working width 180cm - for soil preparation
4.6
1538 reviews
DETAILS

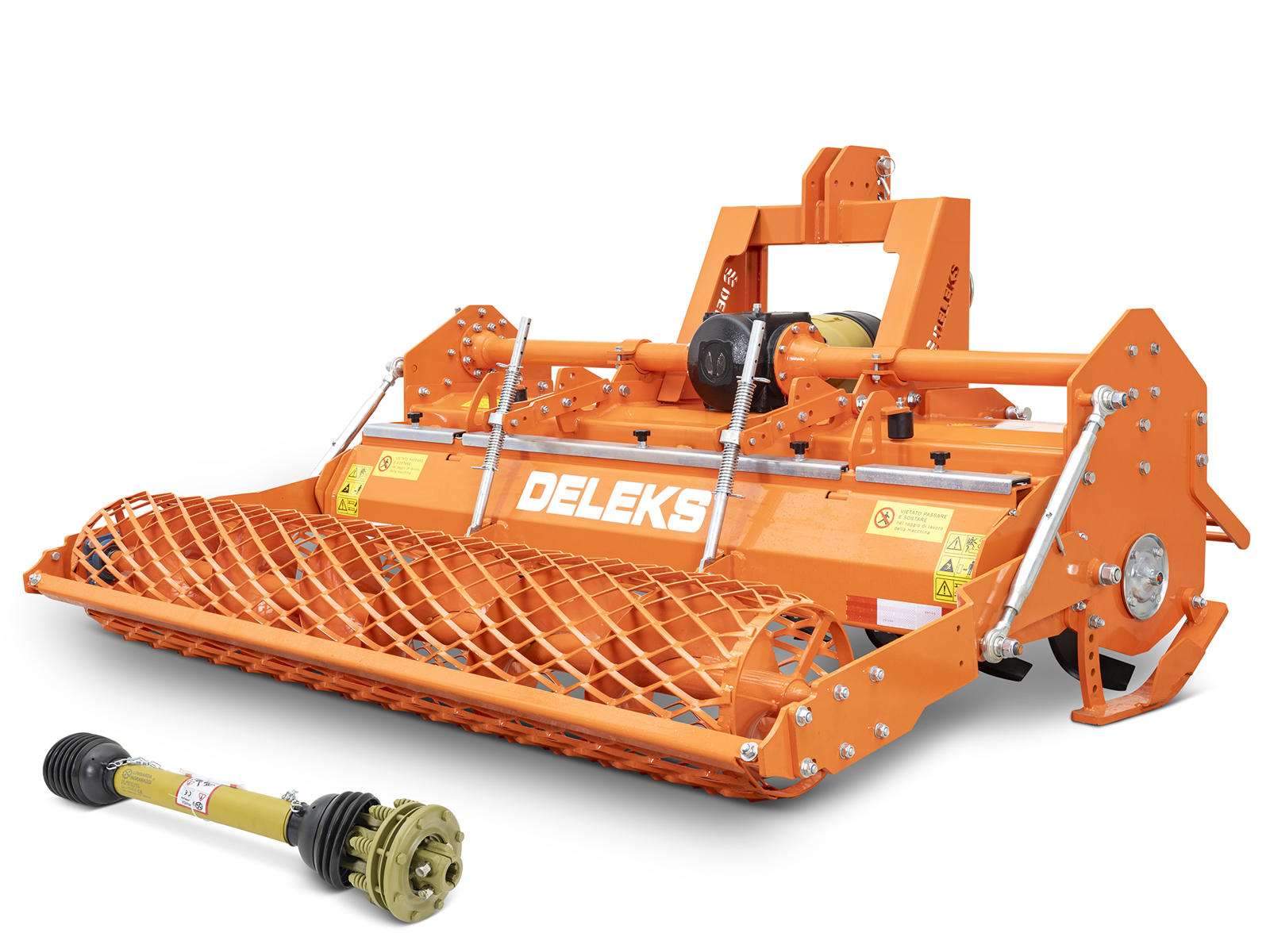

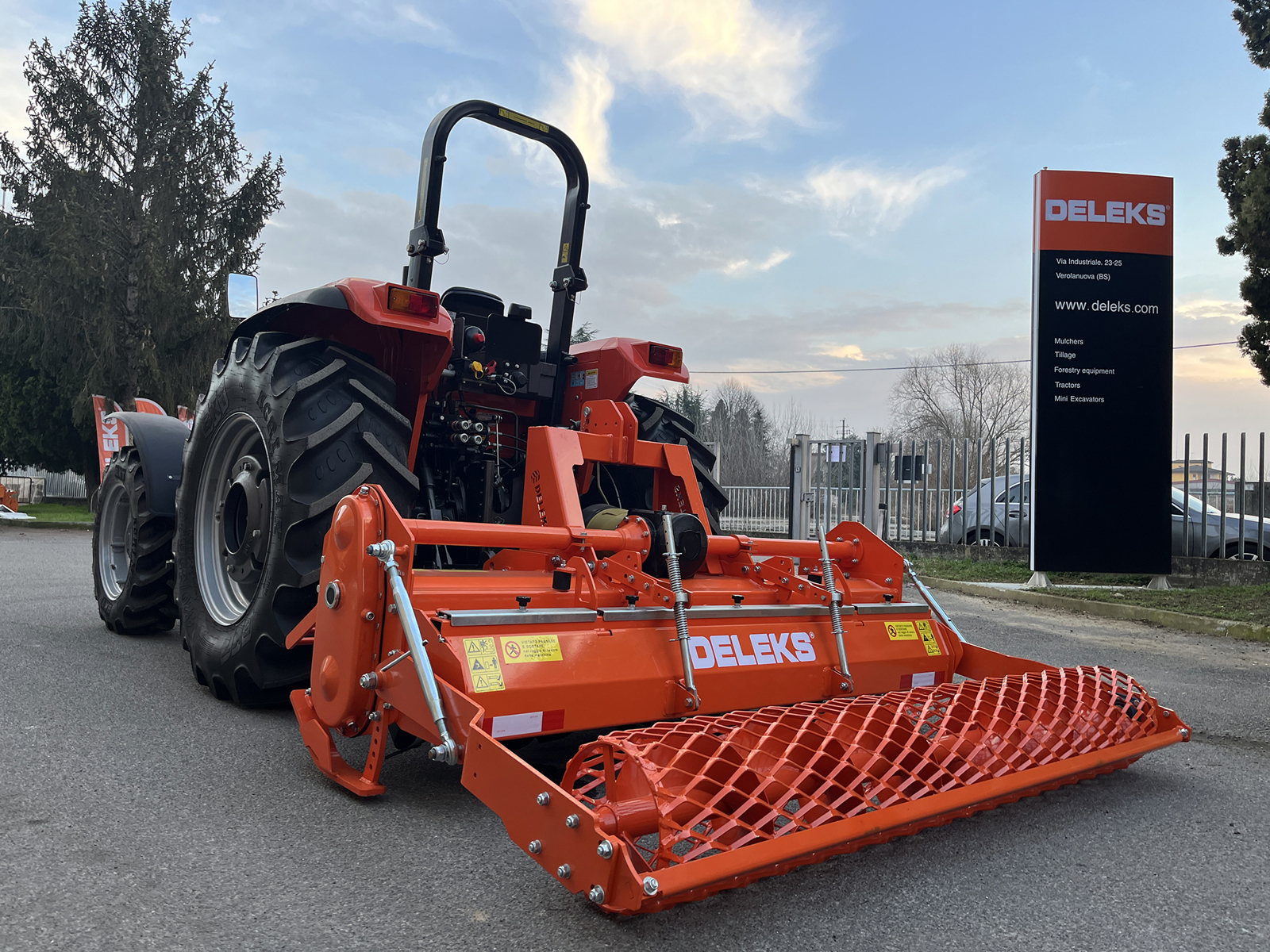

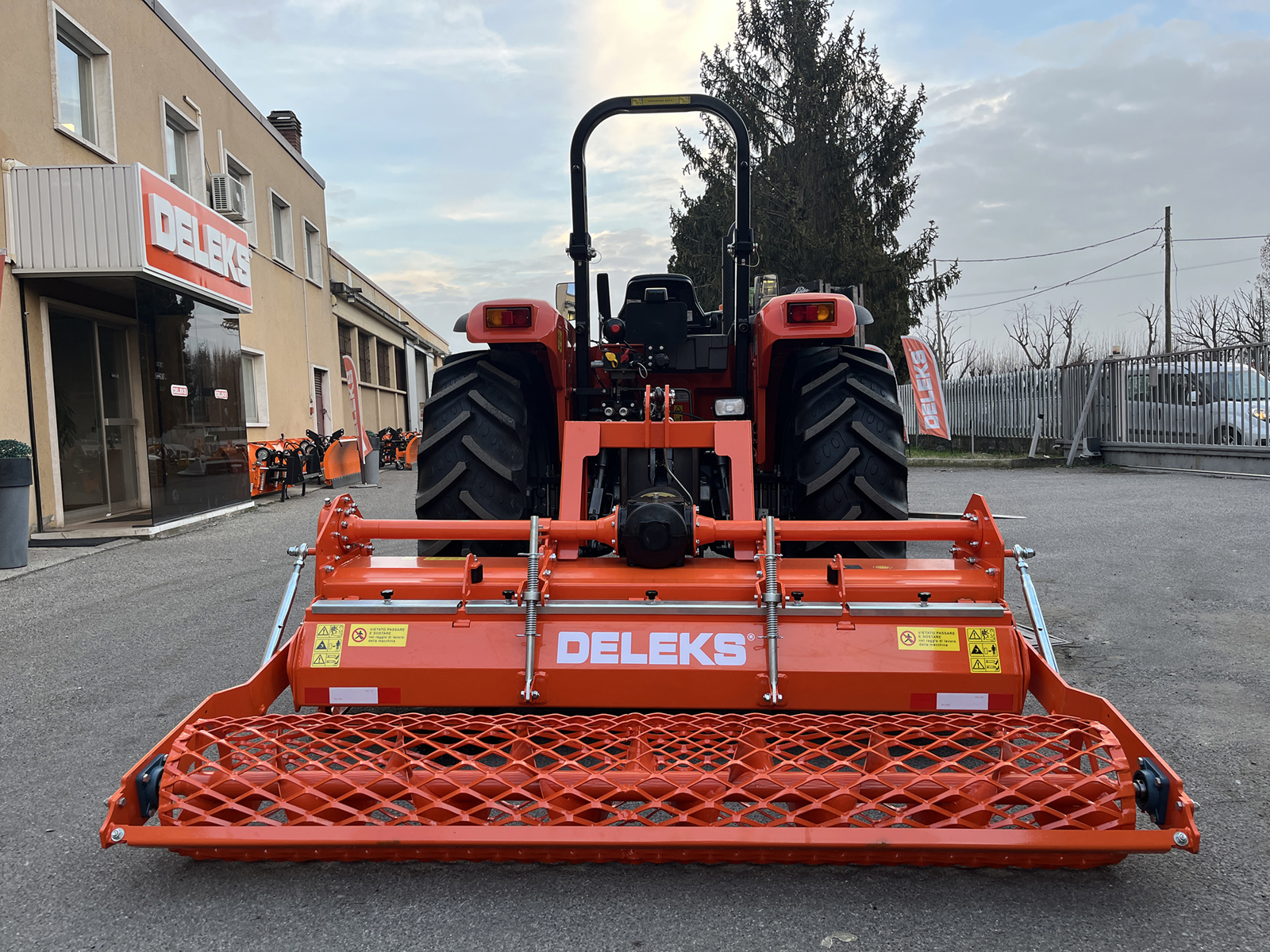

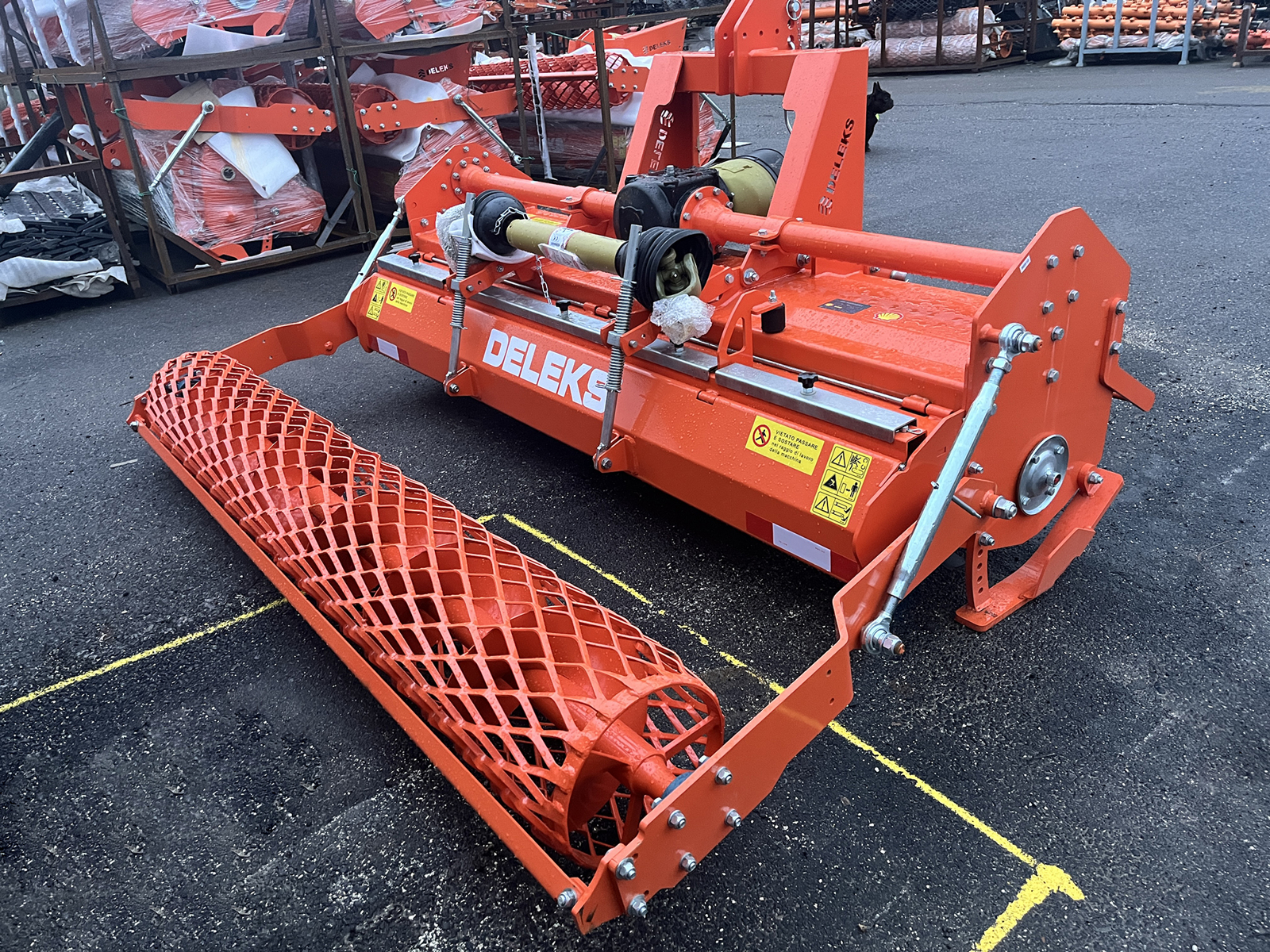

Rotary Tiller DELEKS® for 70-100 Hp Tractors, Rotovator 180cm / 630 kg - Side Gears Drive - Pto shaft CE included.
OVERVIEW
The DFTR Rotary Tiller has been designed for soil preparation, in fields, nursery, orchards, allotments, and for gardening. Rotating blades break up the soil, on rough uncultivated ground. Can be also be used for weeding or working surface material into the soil.

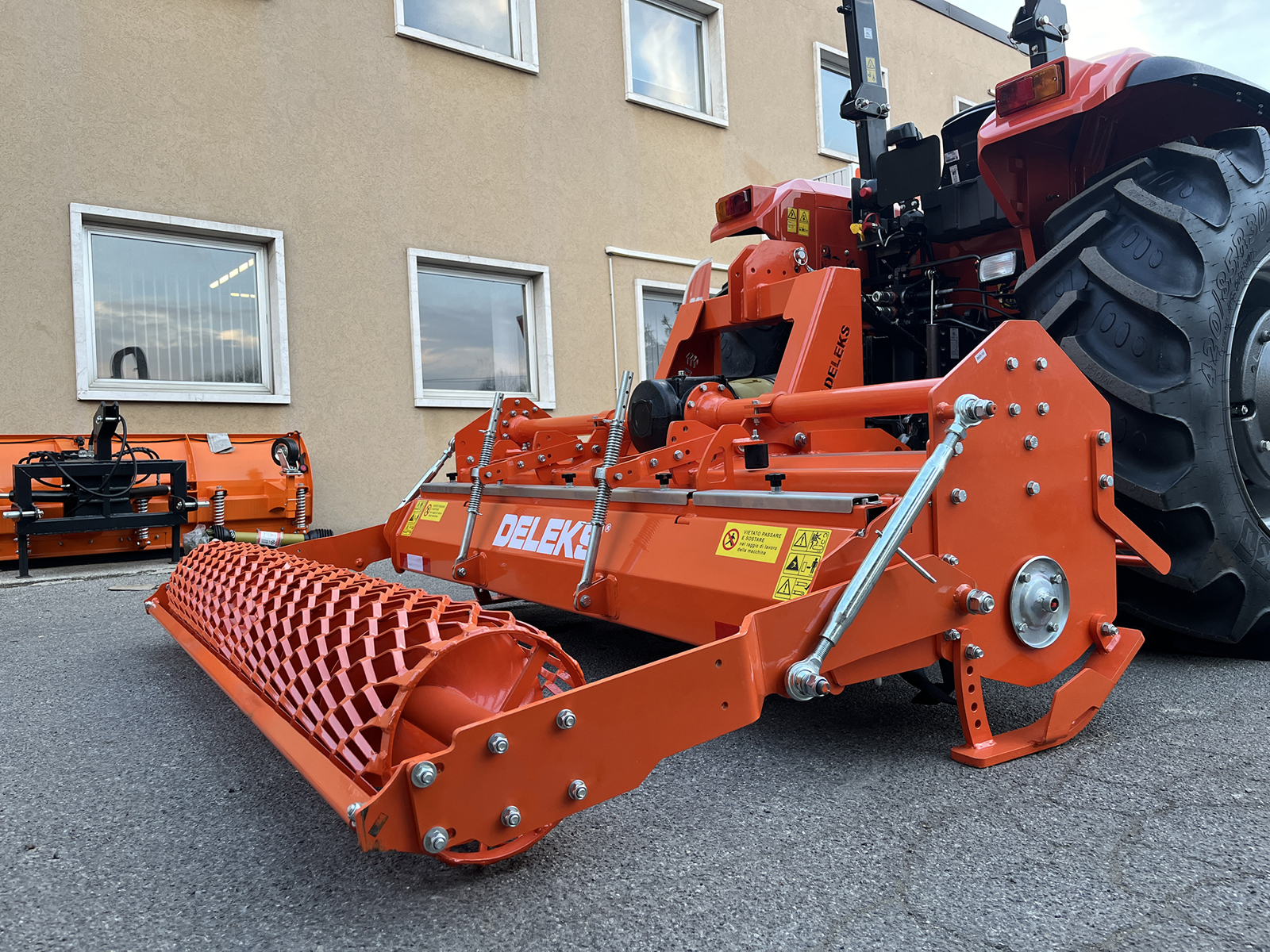

Designed to fit most compact 70-100HP tractors e.g Kubota L, Fiat, McCormick, Ford, New Holland, John Deere, Massey Fergusson. Cat.2 universal three-point hitch, single-speed cast-iron gearbox. Delivered assembled (except 3 point linkage) and greased, Gearbox filled with oil.
BENEFITS & FEATURES

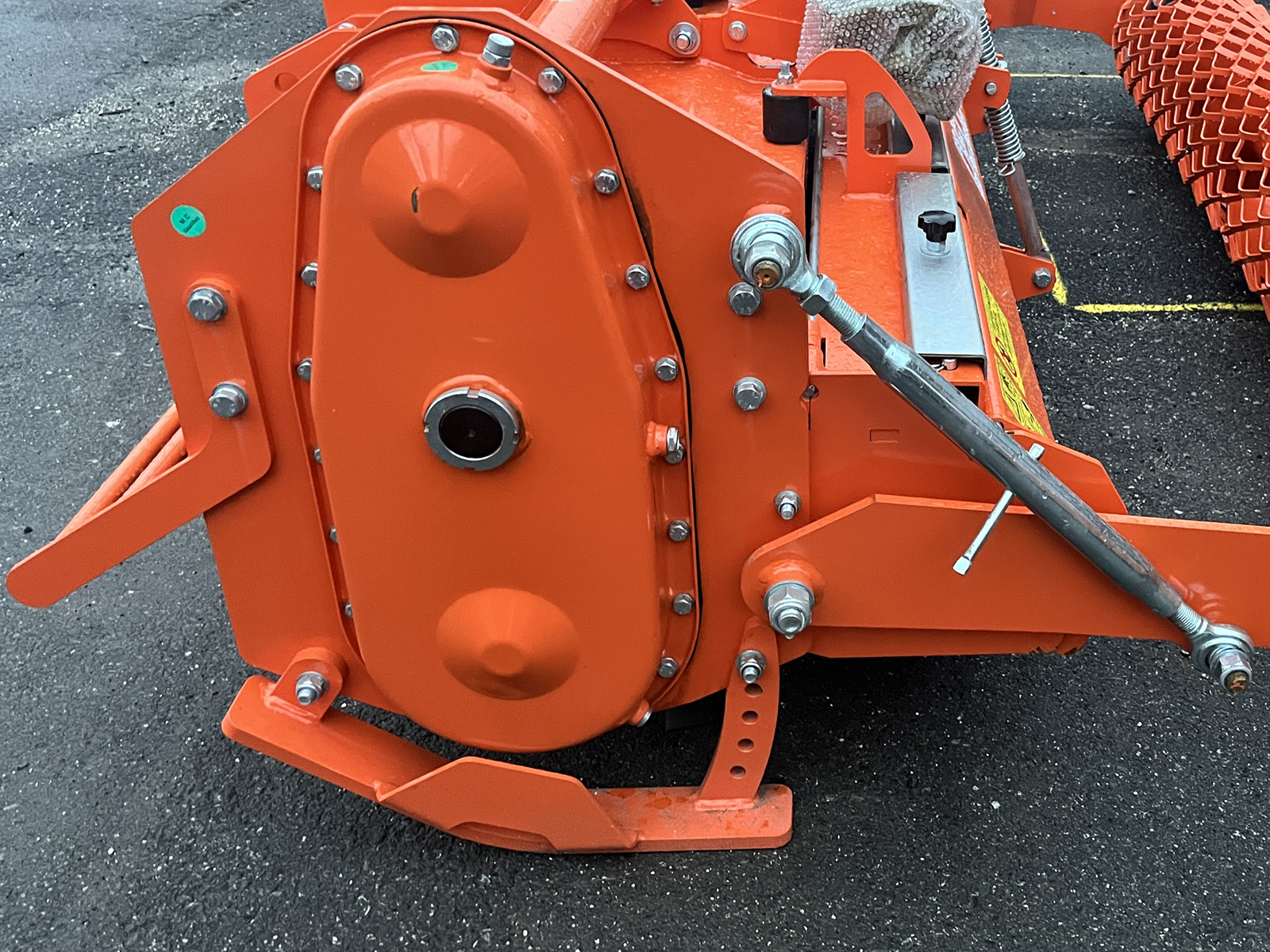

Side Gears Drive.
Pto shaft CE with clutch included.

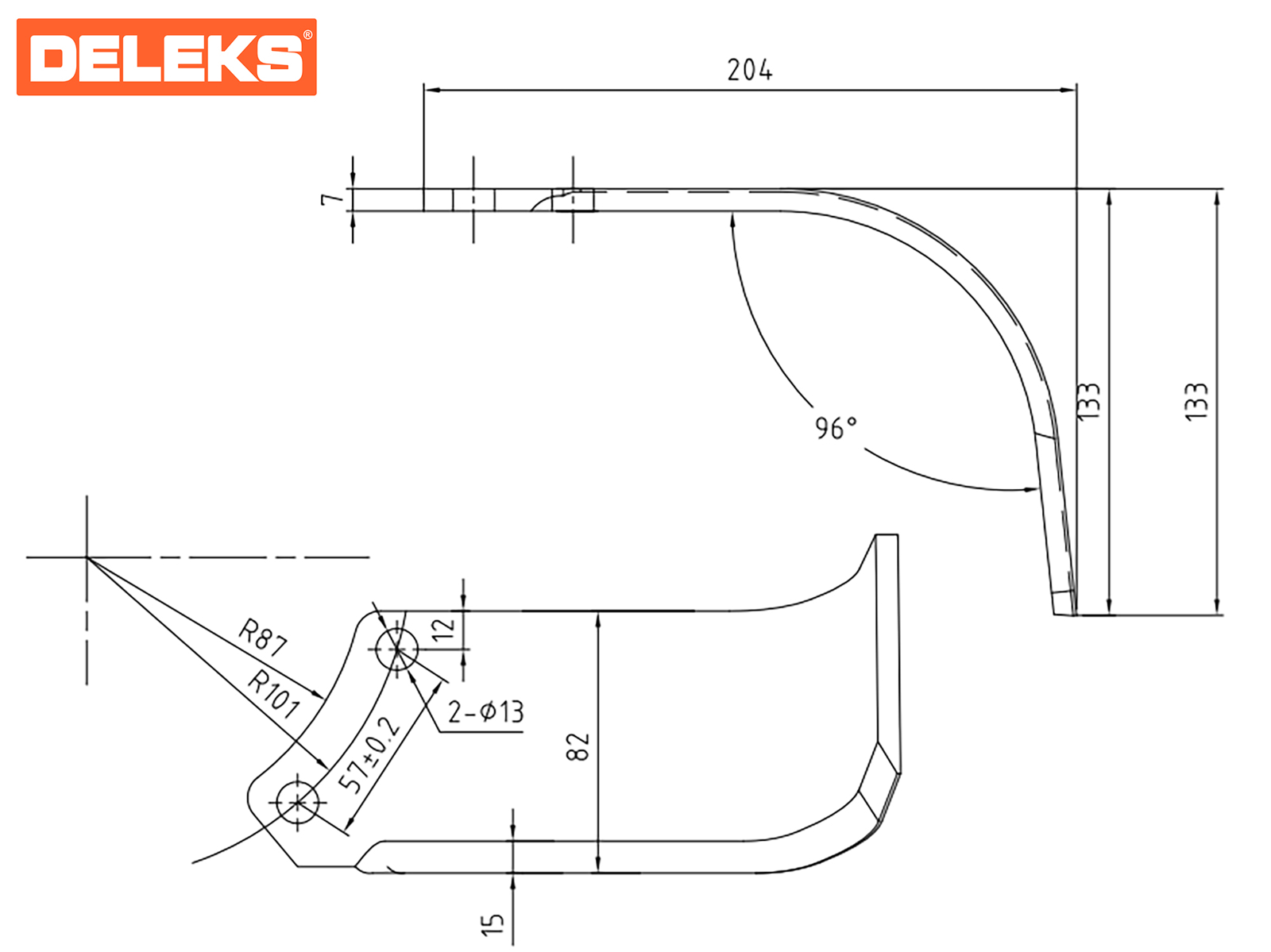

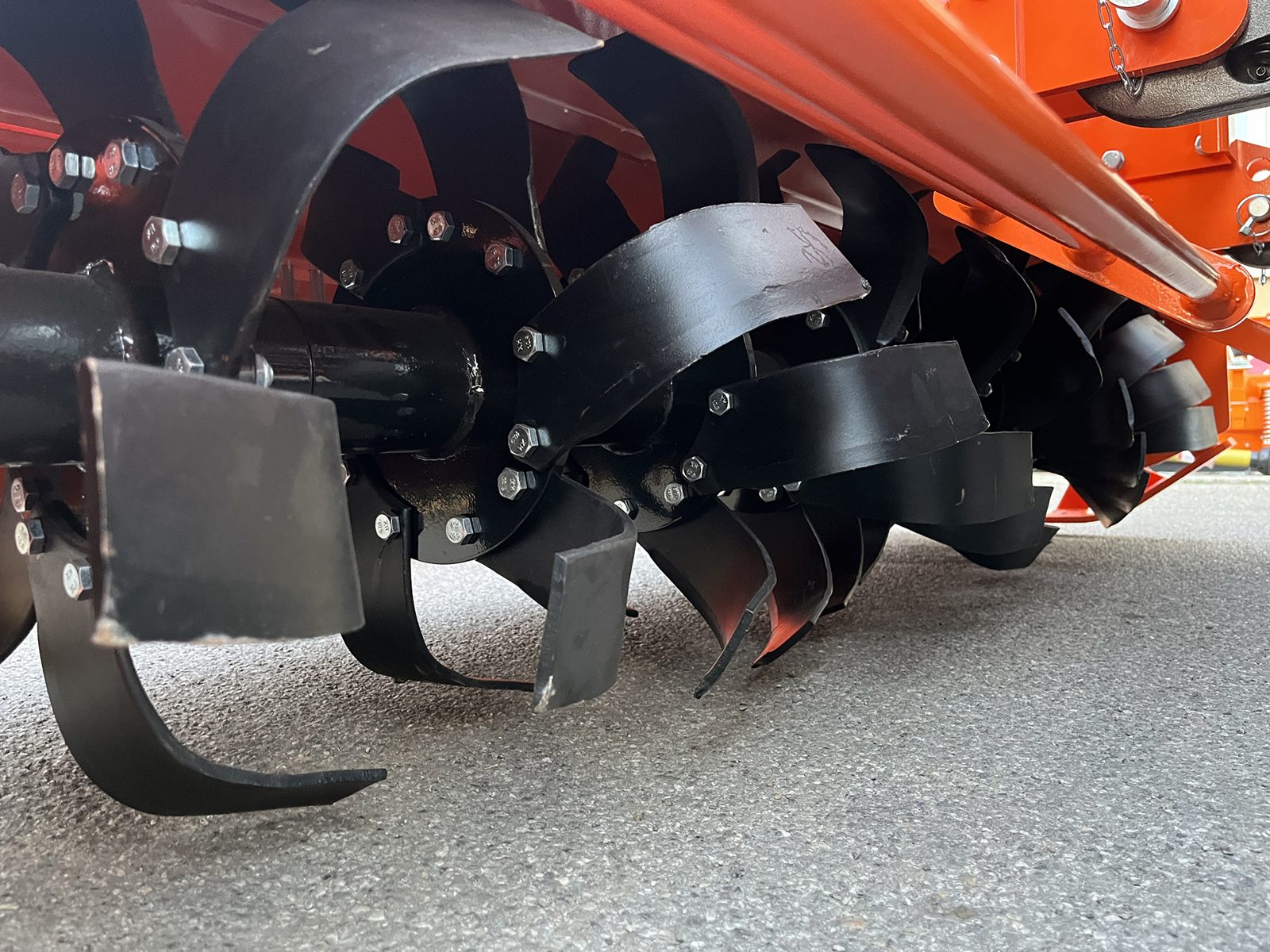

Six spiral blades per flange.

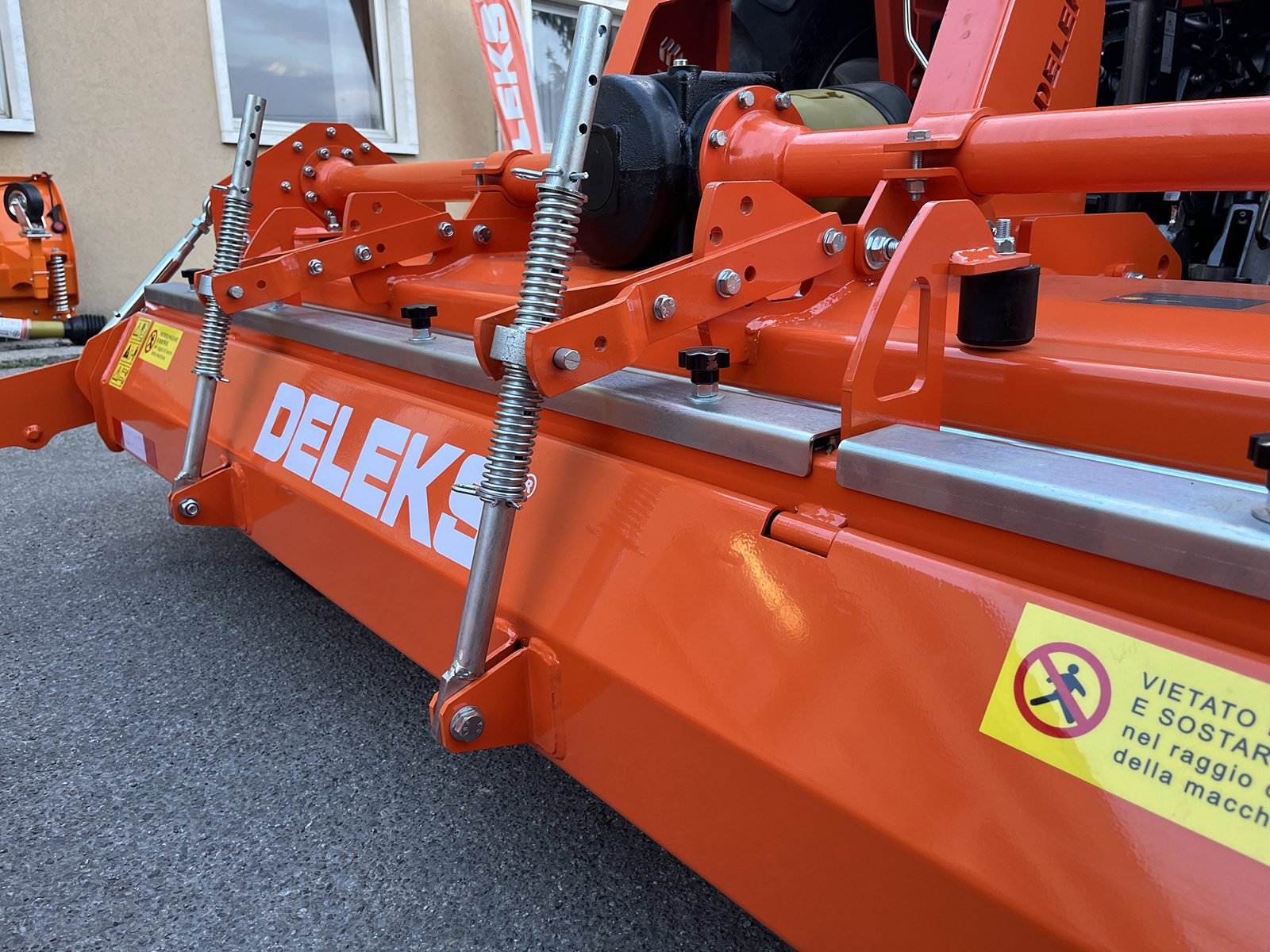

Adjustable side skids to obtain the desired working depth.

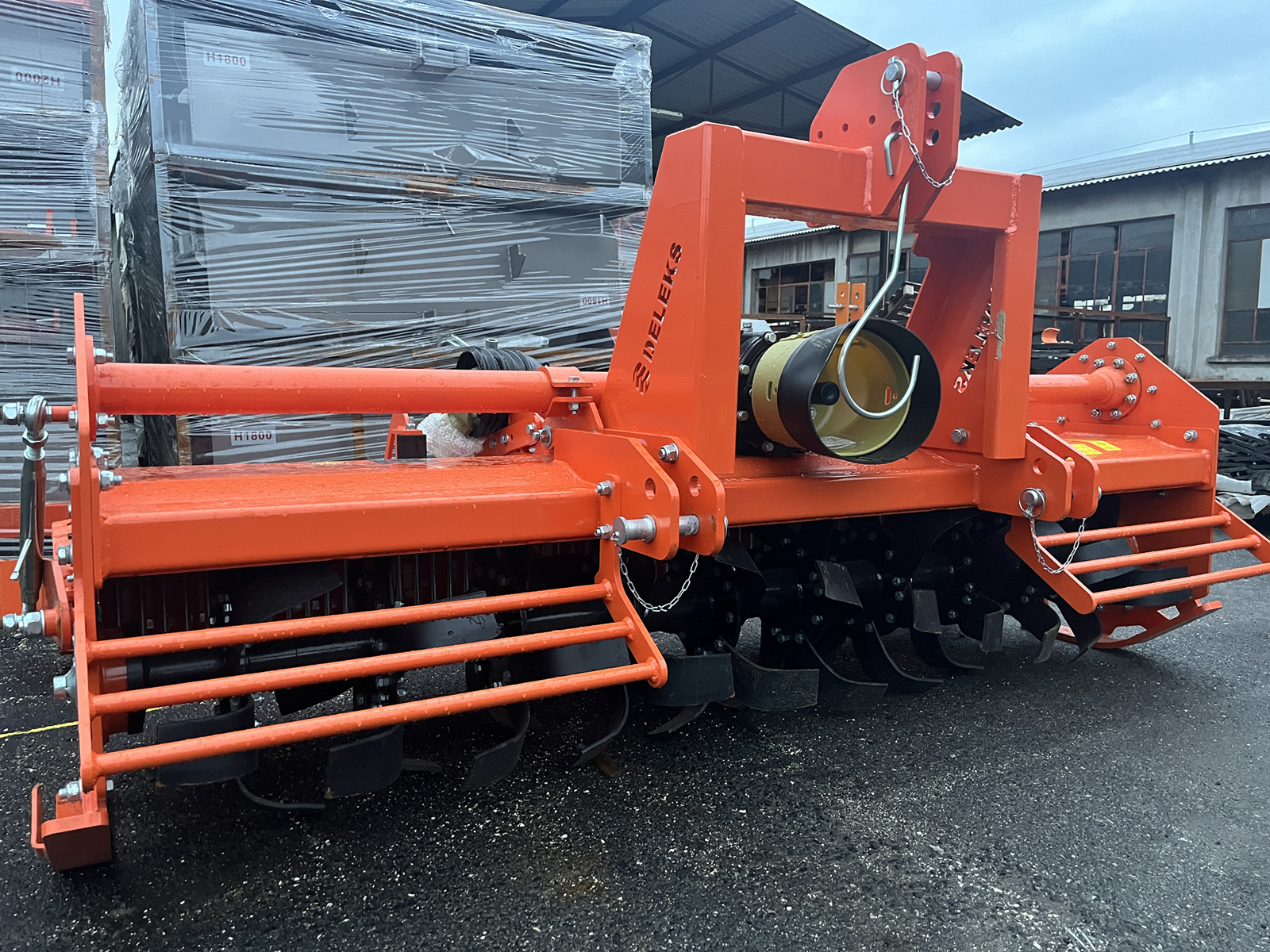

Adjustable rear shield.

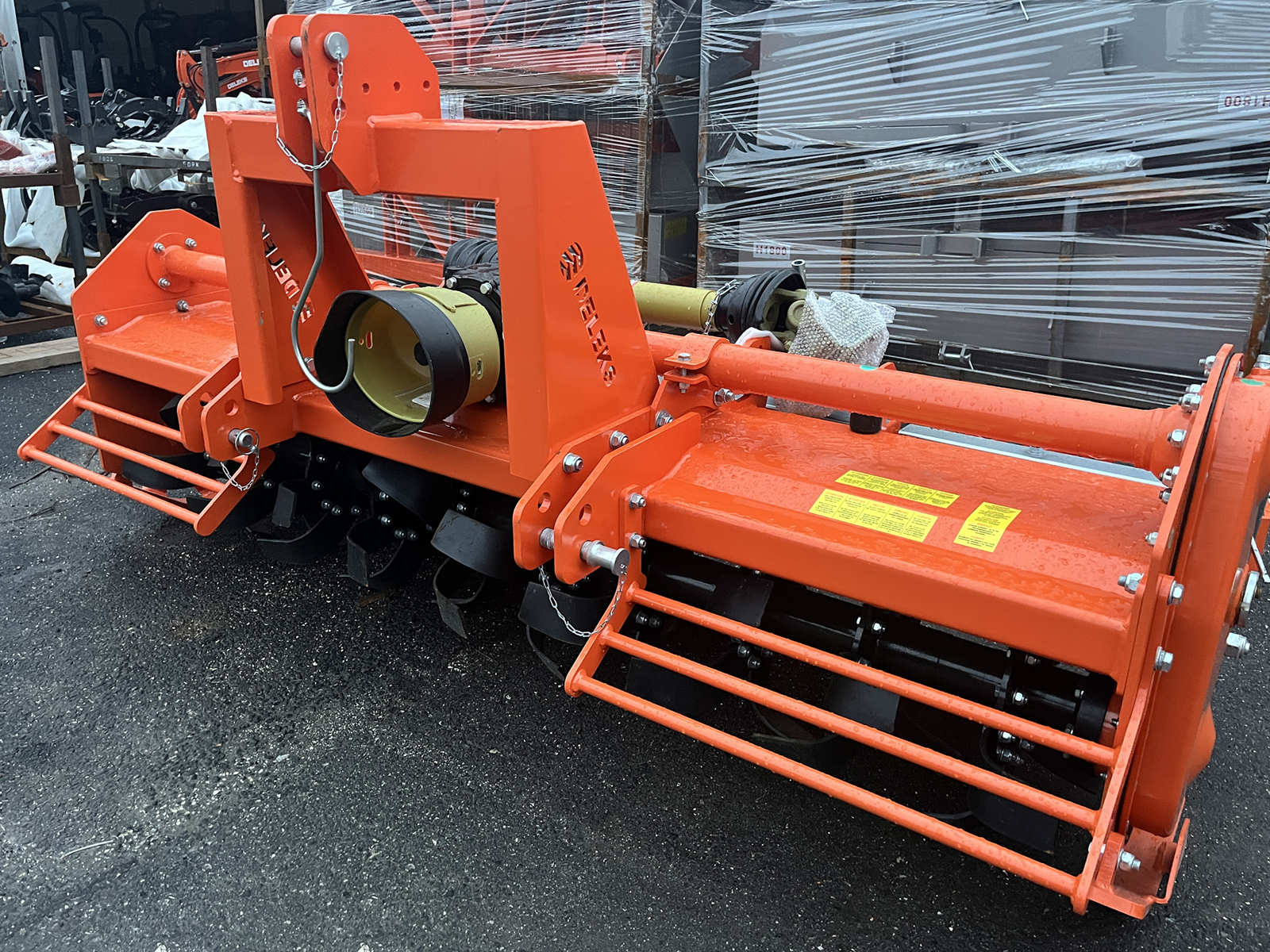

CE Safety Guards.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1795.0 mm | 5.90 ft |
| Overall width | 2000.0 mm | 6.56 ft |
| Weight | 630.0 kg | 1390.0 lb |
| Overall height | 1200.0 mm | 3.94 ft |
| Tractor Power Range | 70 - 100 Hp | 70 - 100 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) | Cat. 2 (ø 25.0-28.0mm) |
| Spacing between the 2 lower points | 745.0 - 870.0 mm | 29.35 - 34.25 in |
| Overall length | 1800.00 mm | 5.90 ft |
| Distance between pto attachment and ground | 650.0 mm | 25.60 in |
| Transmission: Drive method | Gears | Gears |

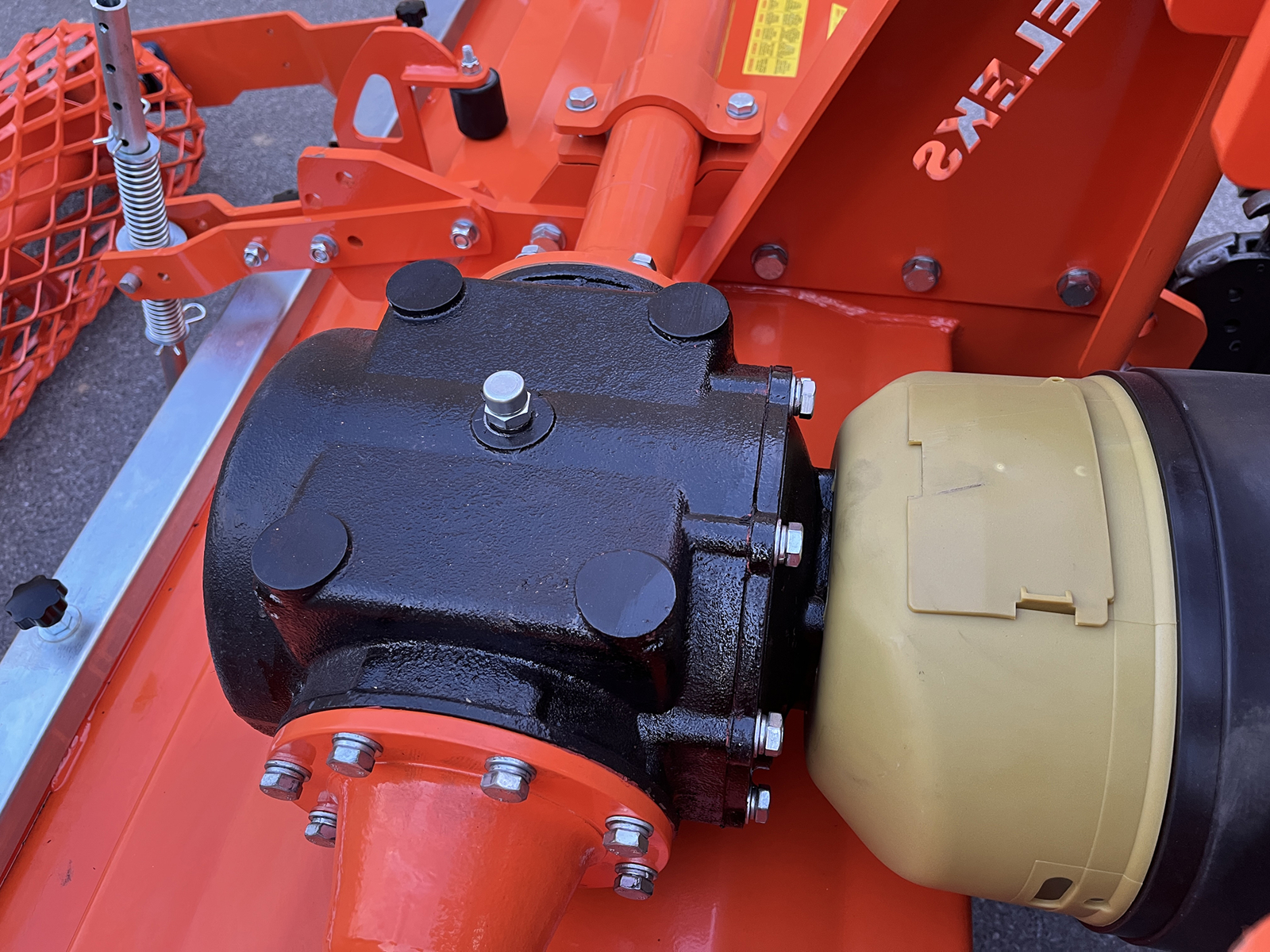

| Transmission: Gearbox | Lombarda Ingranaggi 540 r/min (3 year warranty) | Lombarda Ingranaggi 540 r/min (3 year warranty) |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: RPM Rotor speed | 210 rpm | 210 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Rotor: diameter | 90.0 mm | 3.54 in |
| Rotor: bearings type and size | 6309(L) / 6310(R) | 6309(L) / 6310(R) |
| Rotor: sheet thickness | 12.0 mm | 0.47 in |
| Working Depth Range | 200.0 mm | 7.87 in |
| Pto shaft | 6x1000 + Clutch ø200mm | 6x1000 + Clutch ø200mm |
| Rotor: diameter with blades | 500.0 mm | 19.70 in |
| Rotor: flanges | 7 | 7 |
| Number of Blades per flange | 6 | 6 |
| Blades: quantity | 21 + 21 | 21 + 21 |
| Blades: weight | 1.0 kg | 35.27 oz |
| Packing sizes | 2100*1150*1150 mm | 6.90*3.77*3.77 ft |
