Light rotavator tiller for tractors - working width 135cm - for soil preparation
4.6
1538 reviews

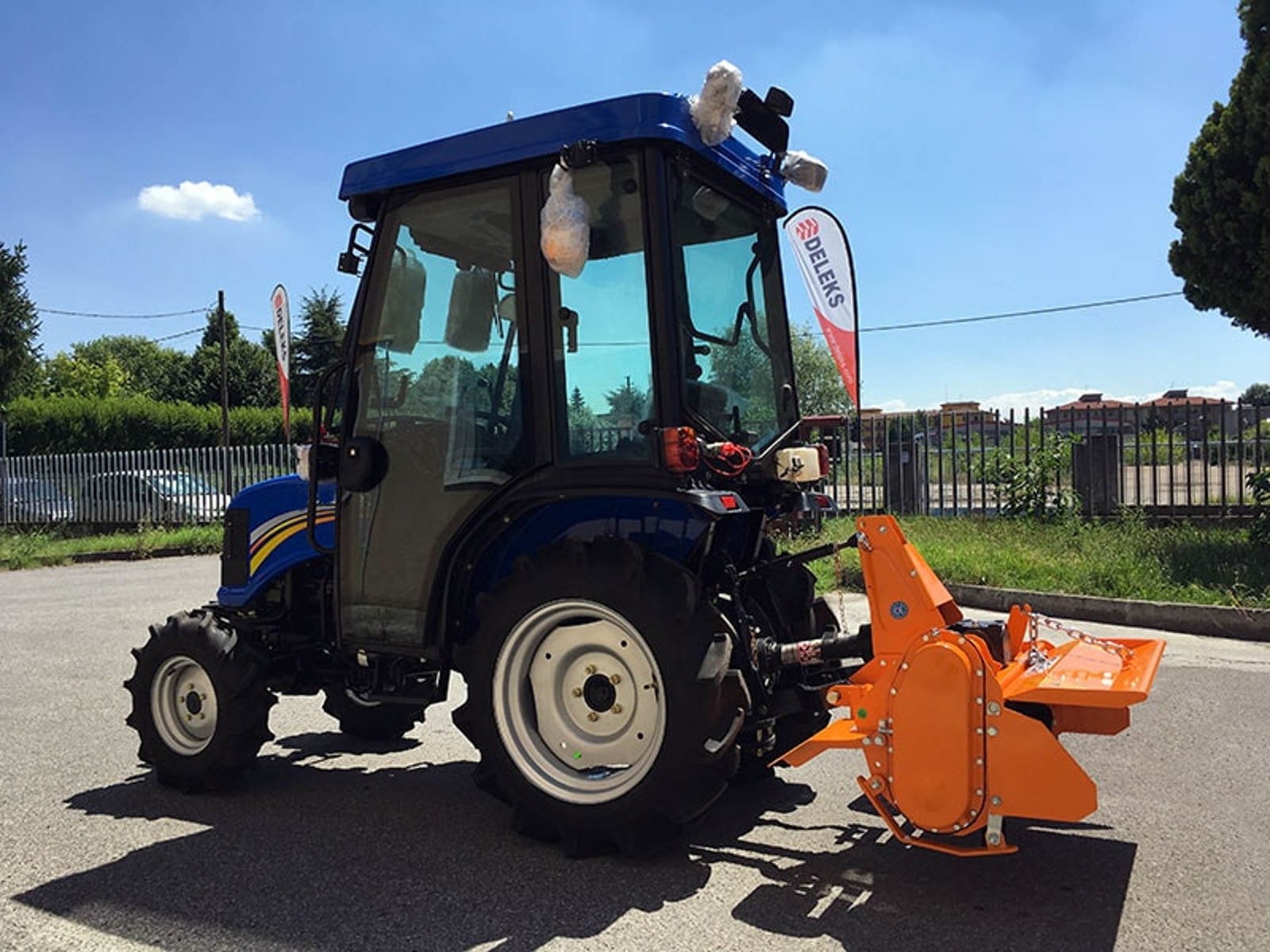

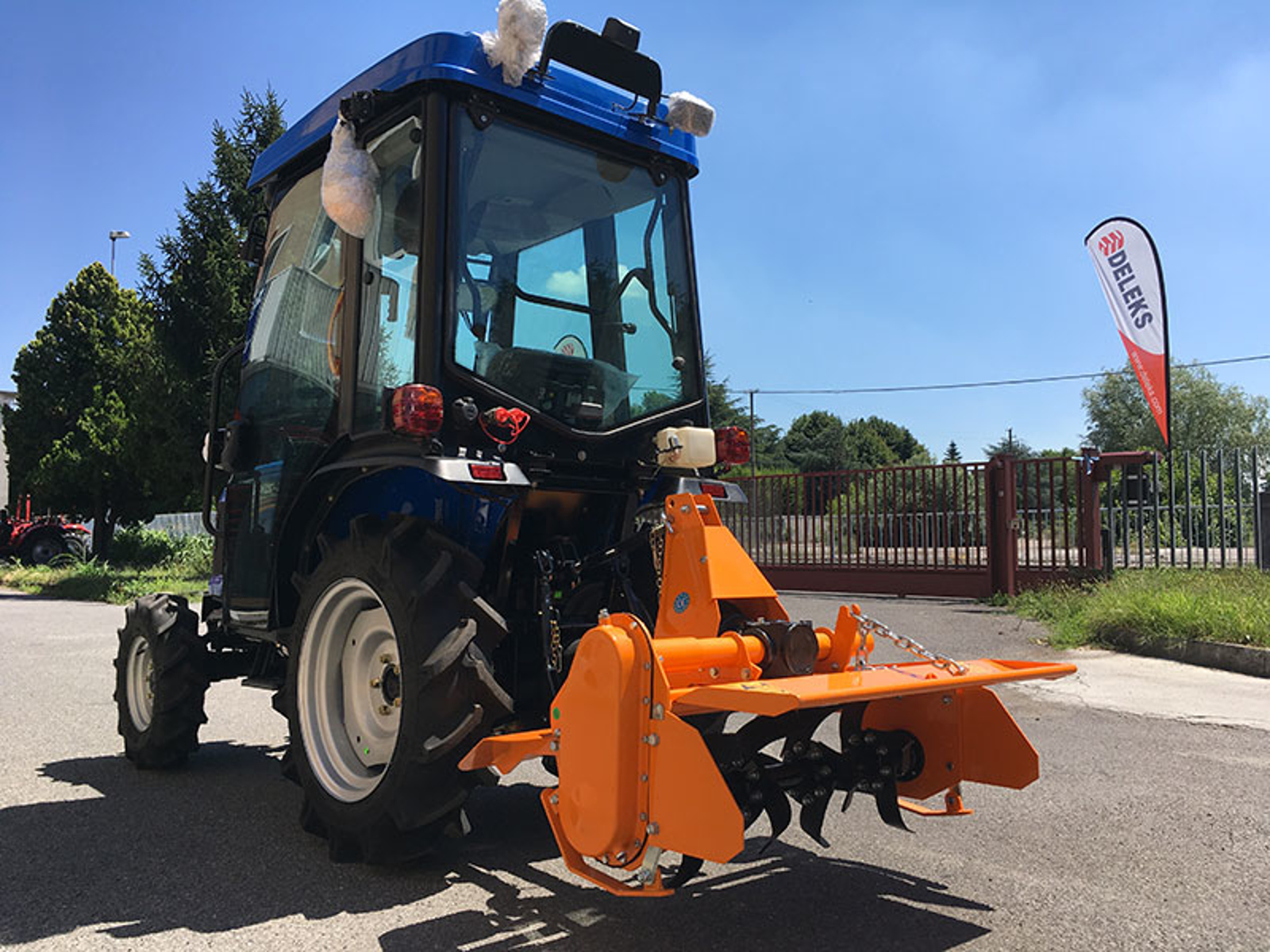

Field test
Field test
DETAILS

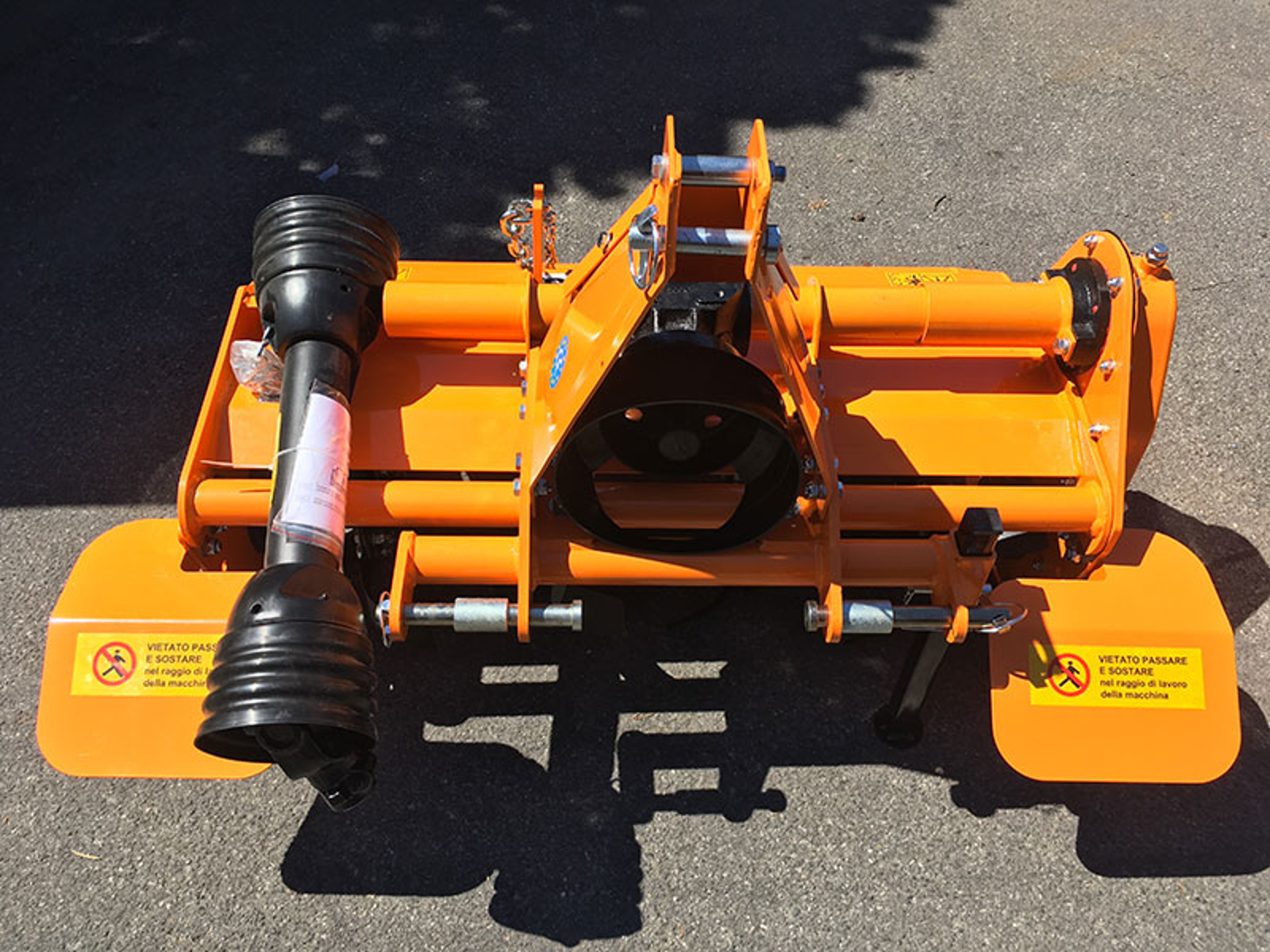

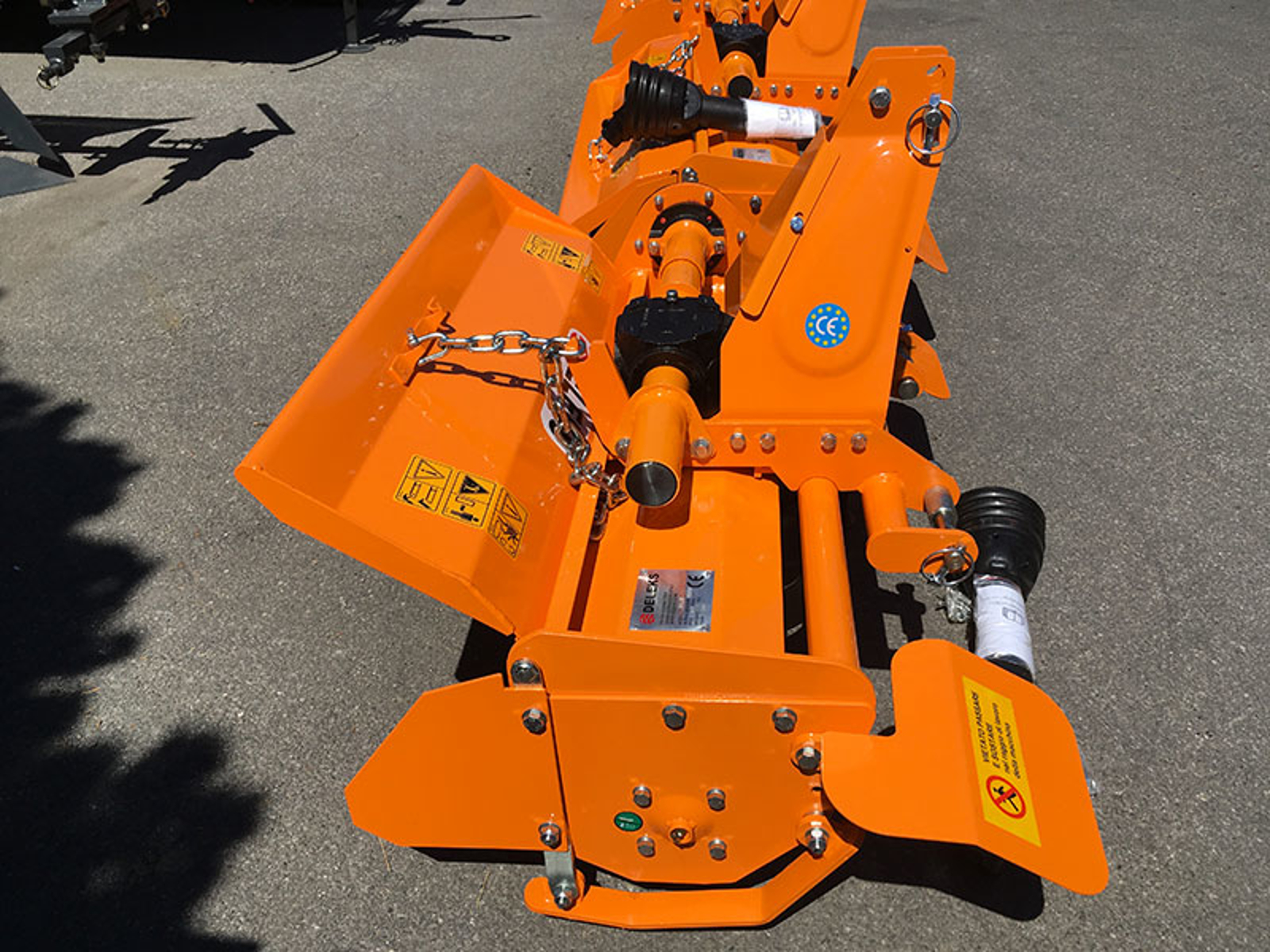

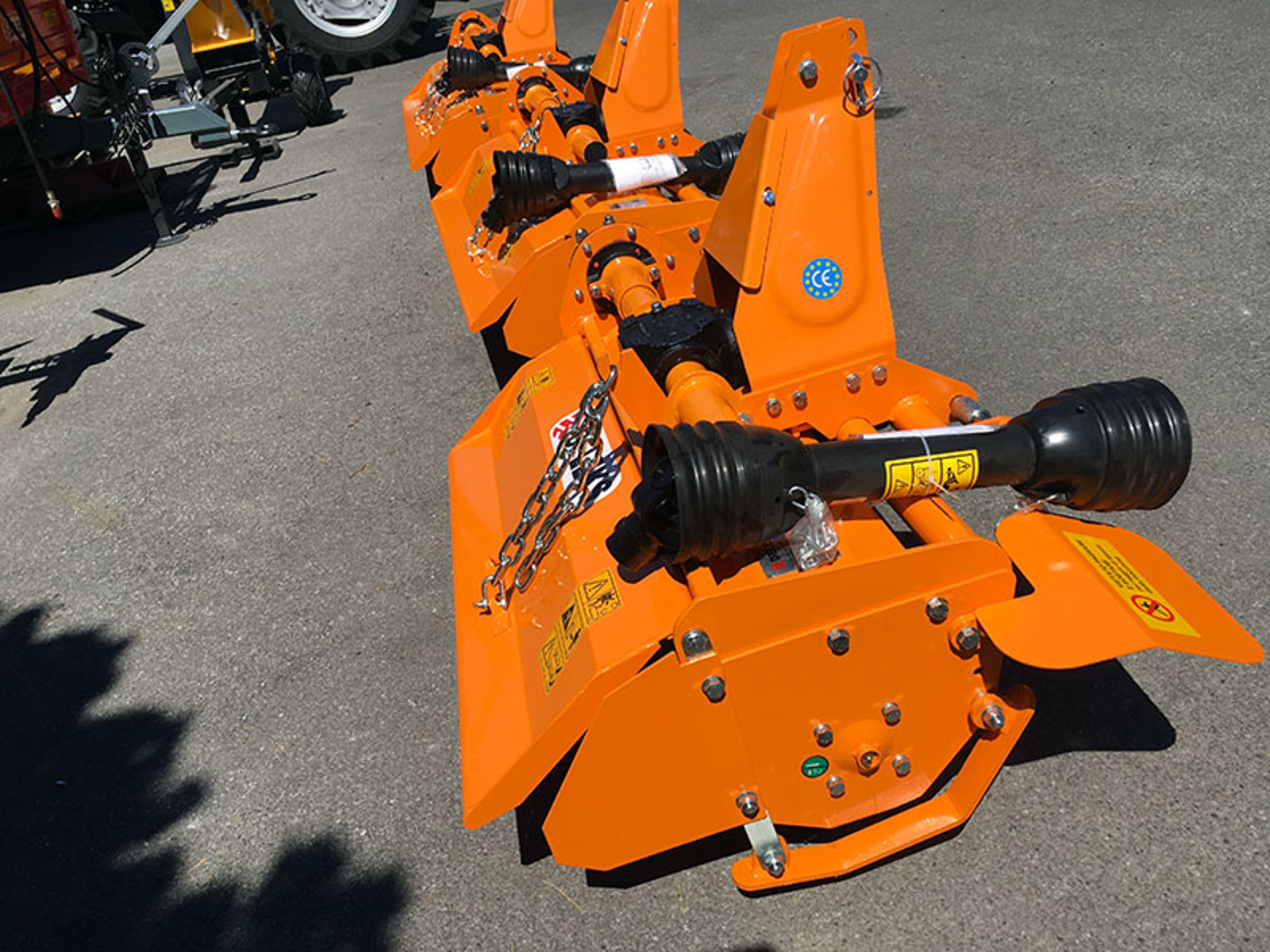

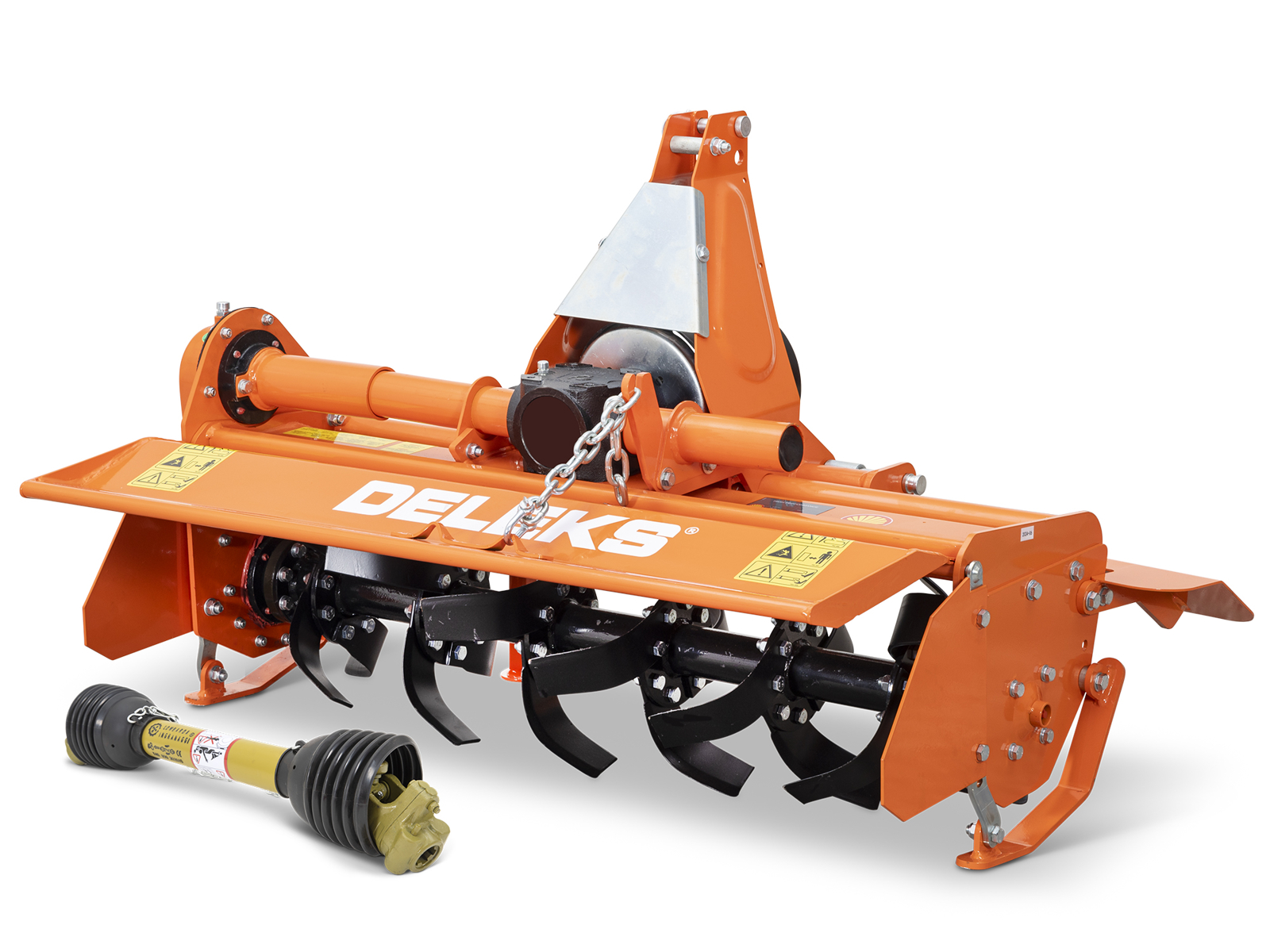

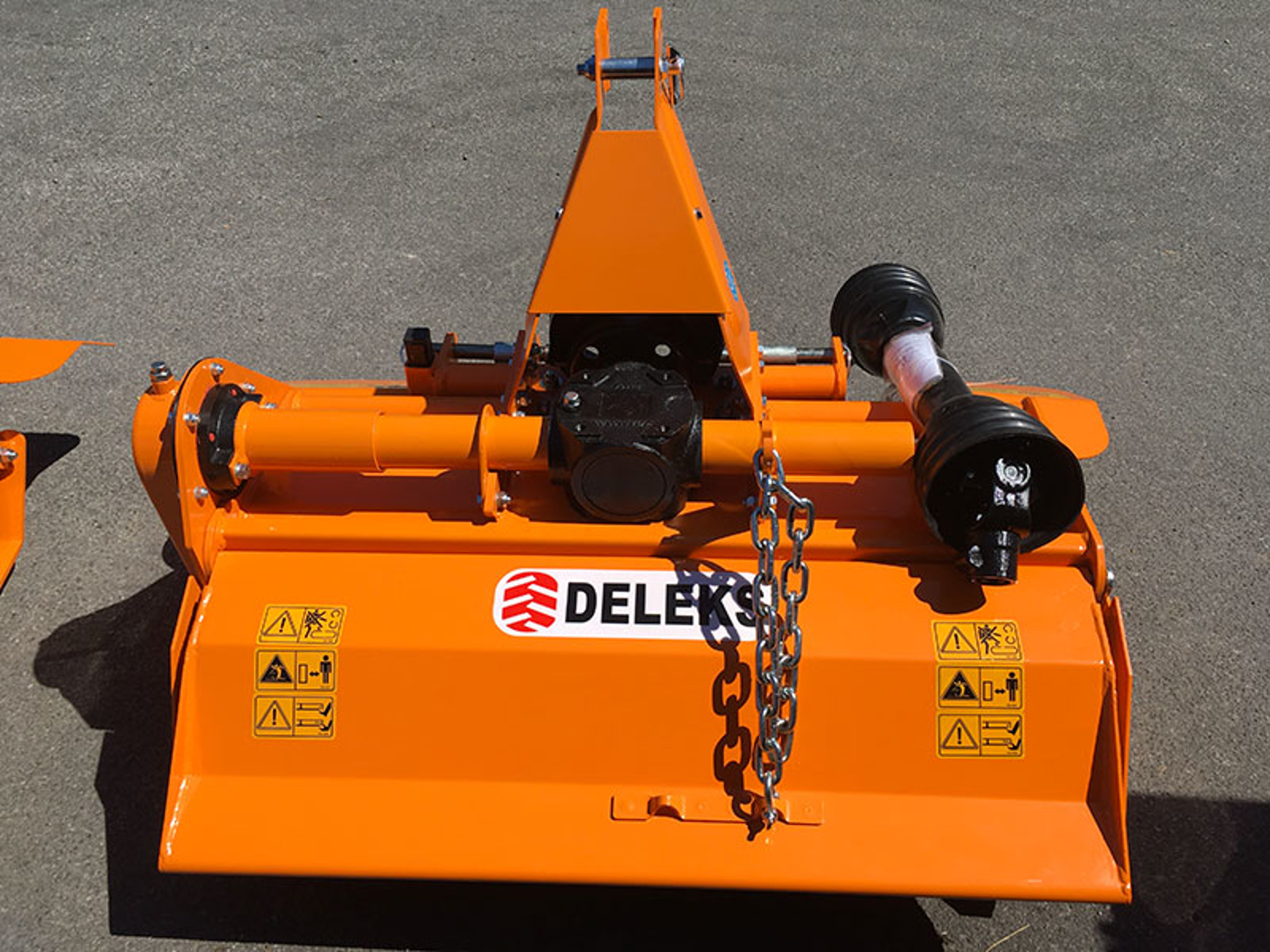

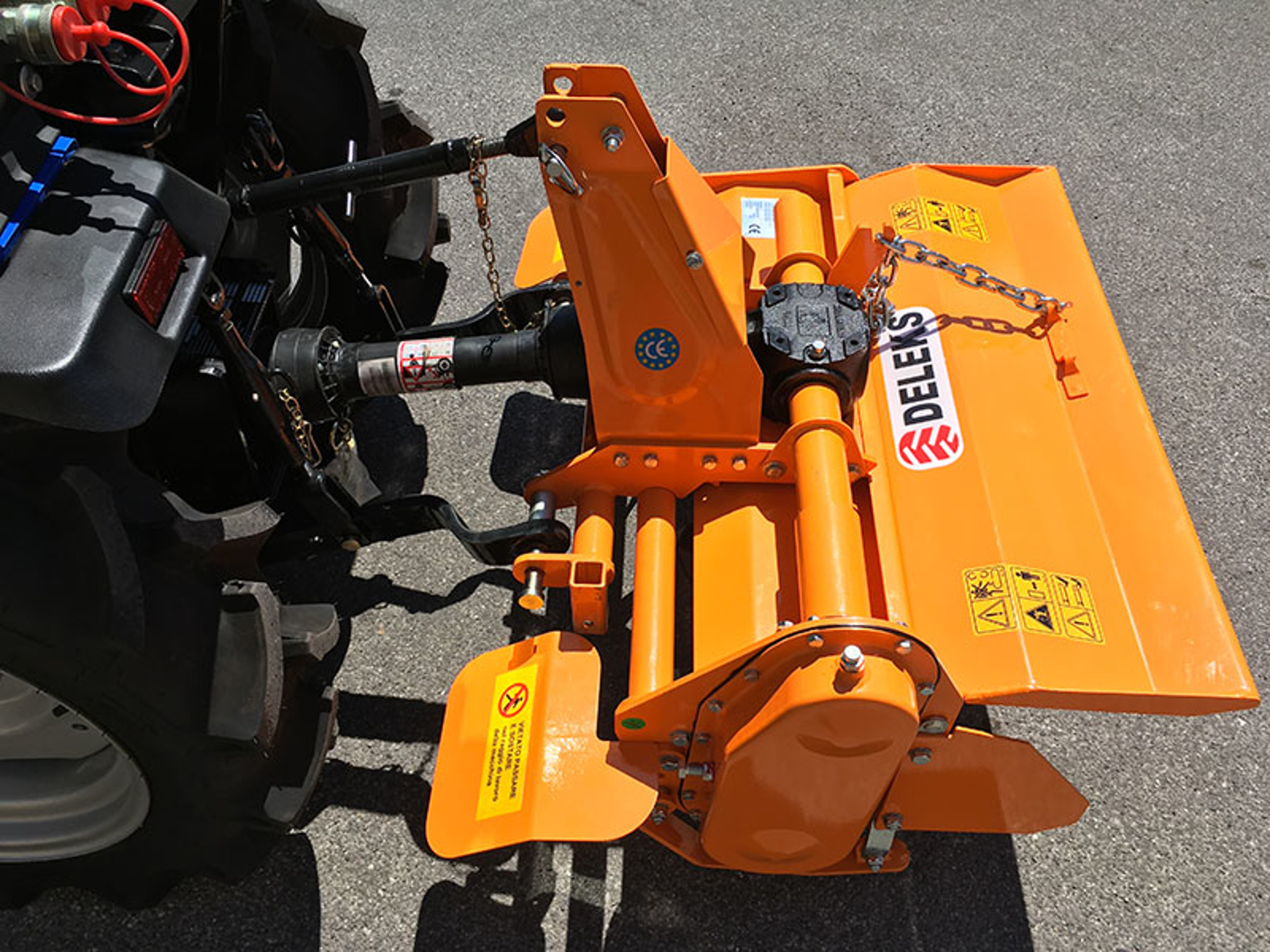

Light rotavator tiller with sideshift DELEKS® for tractors like Kubota, Iseki, New Holland, John Deere - PTO shaft included.
OVERVIEW

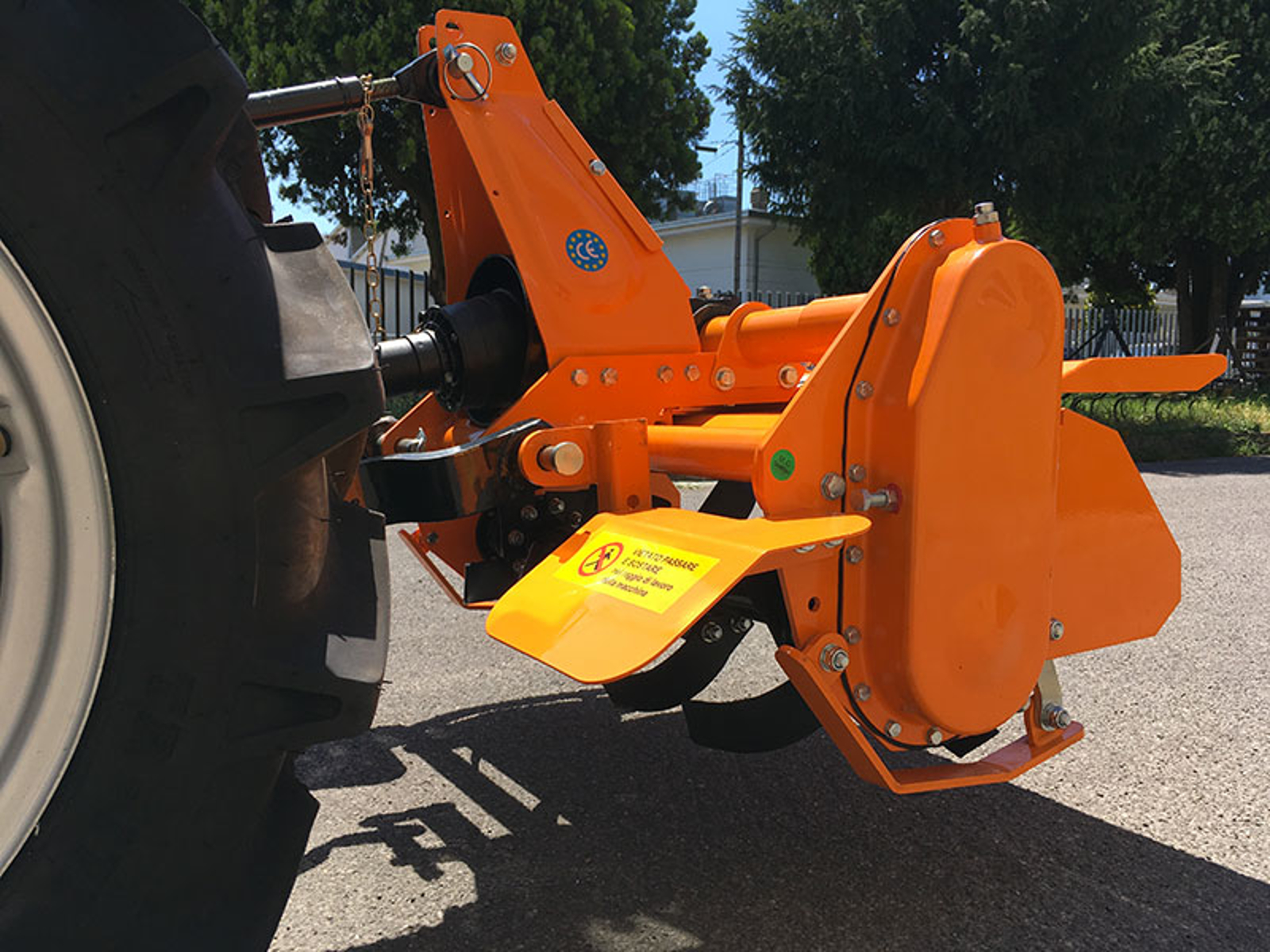

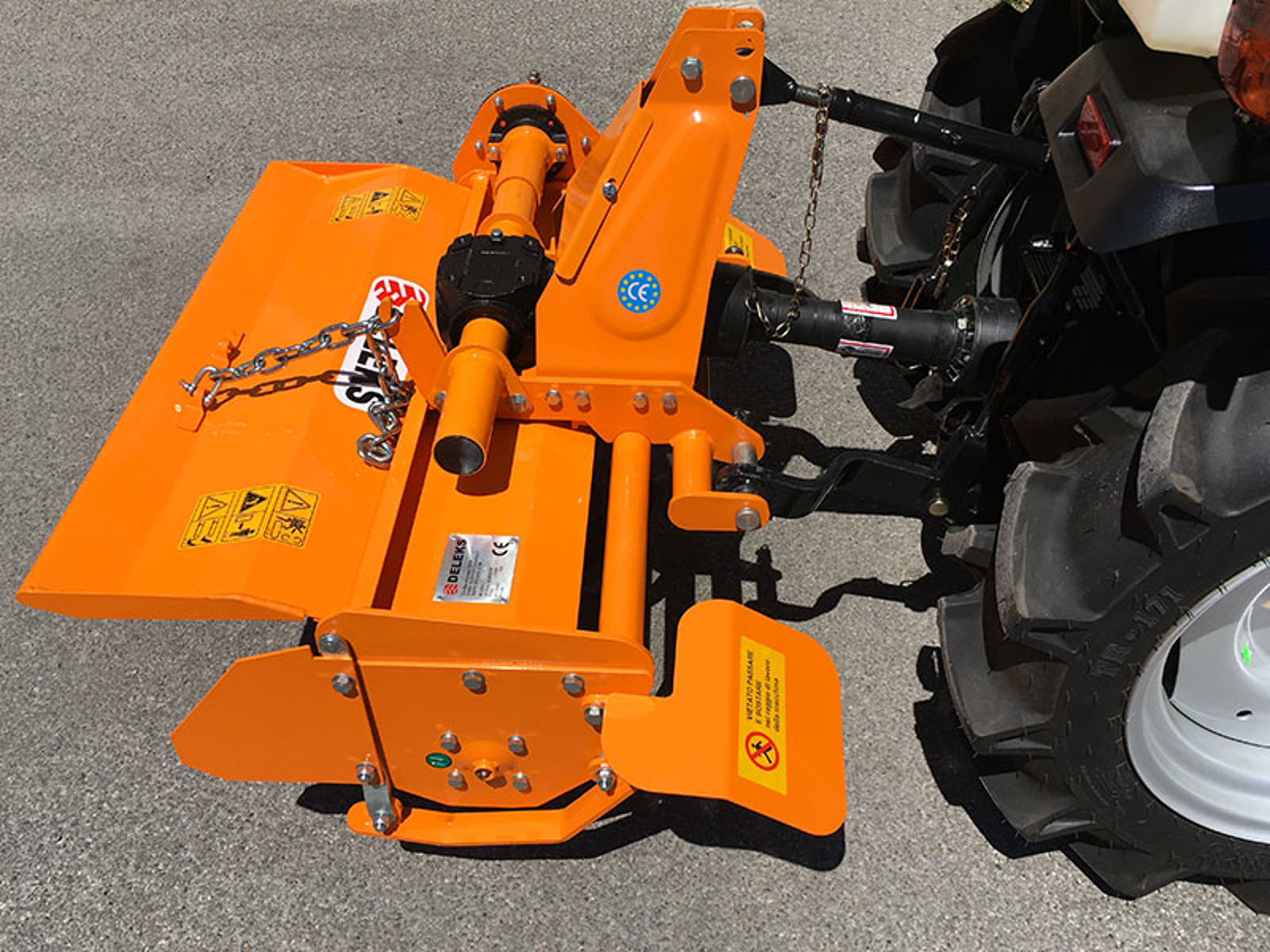

Light rotary tiller for tractors 18-35hp e.g Kubota, Iseki, Yanmar, Mahindra, Solis, Mitsubishi, Ferrari, Pasquali, New Holland Boomer 25-30, John Deere 2 Serie, etc. The tiller is attached to the tractor by the universal three point linkage. Not suitable for lifting quick couplings.
Designed for soil preparation/cultivation in nursery, orchards, and for gardens. Our rotavators can be used to pulverize and stir soil before planting (to prepare seed beds) or after your crop has begun growing (to kill off unwanted weeds). Single Speed Gearbox with 540 RPM PTO, Chain Side Drive. Delivered assembled (except 3 point linkage) and greased, Gearbox filled with oil.
BENEFITS & FEATURES
Light weight compact design for low powered tractors.

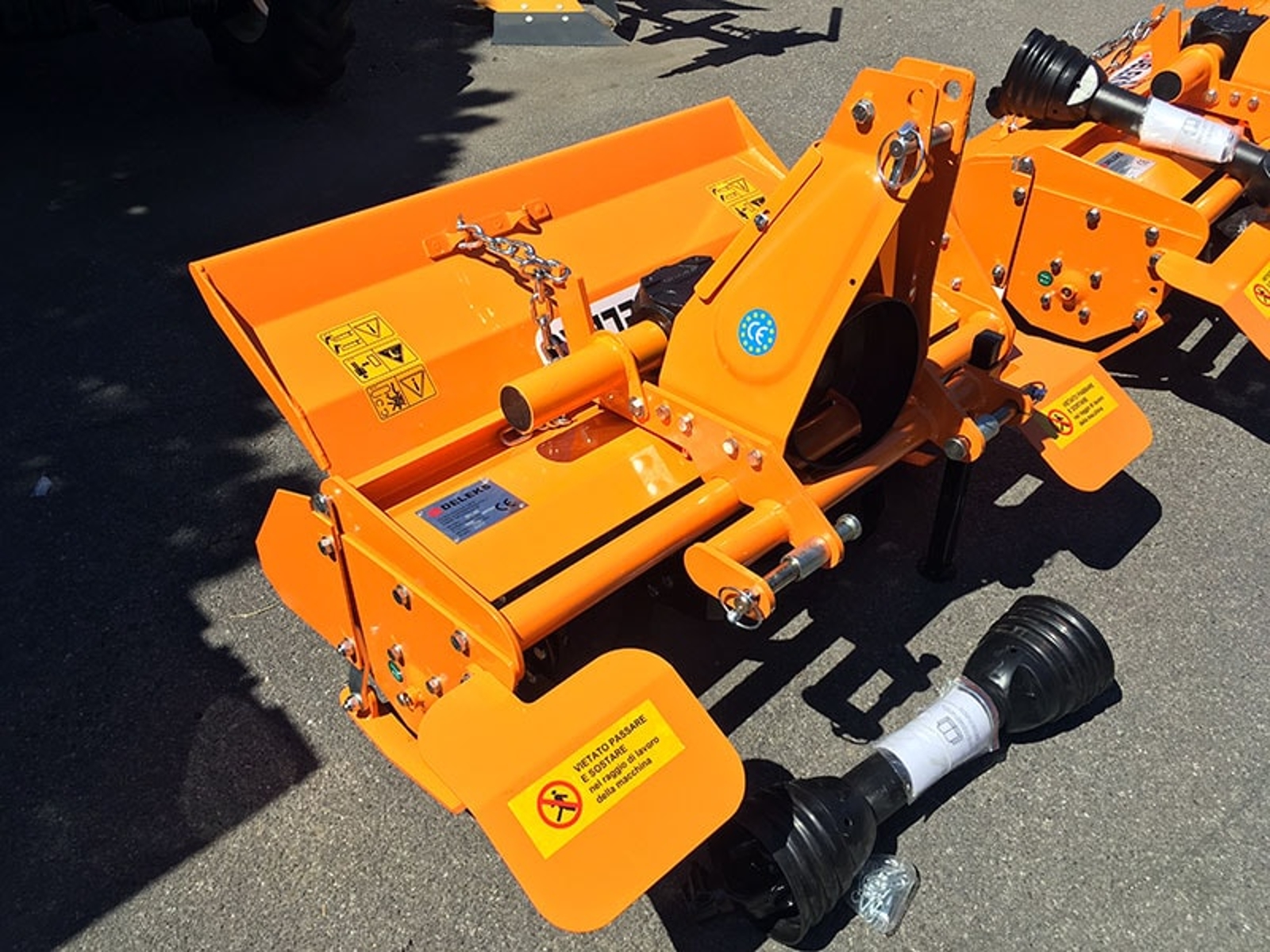

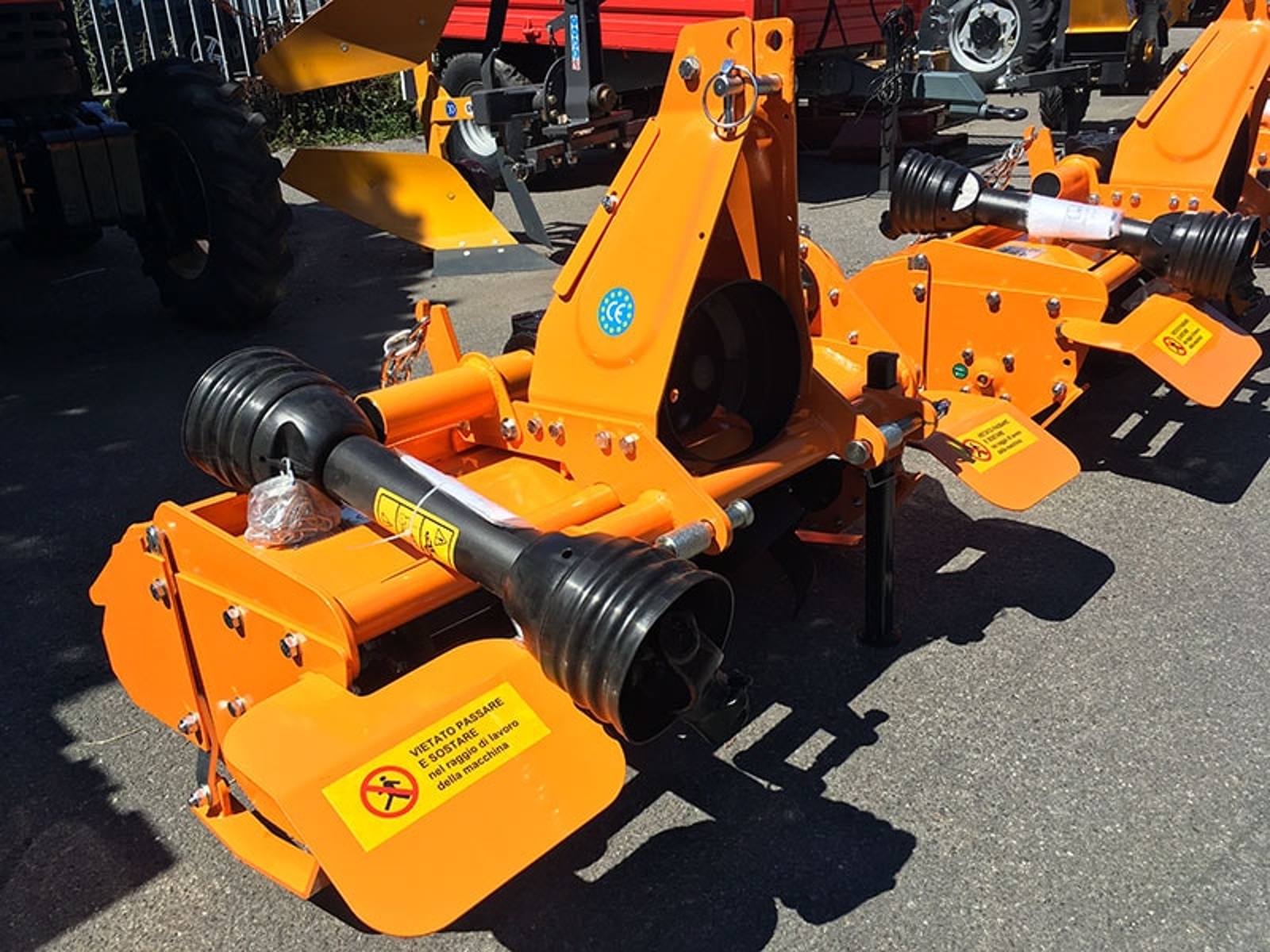

Pto shaft CE included.
The sideshift by the three-point hitch (120.0 mm) is moved manually by hand and does not require levers to operate.

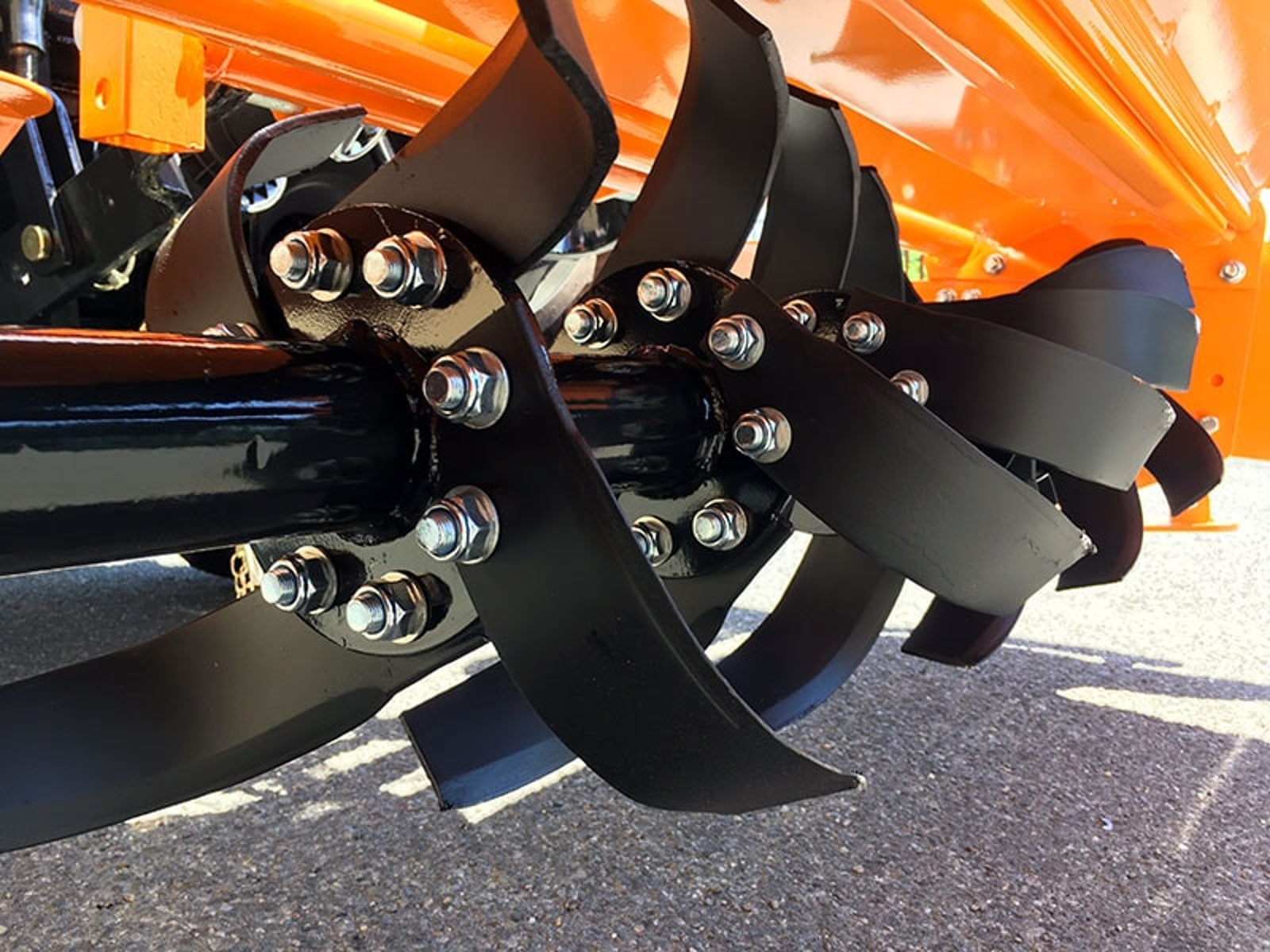

Blades are hardened for maximum strength, durability and wear life in the toughest soil conditions.

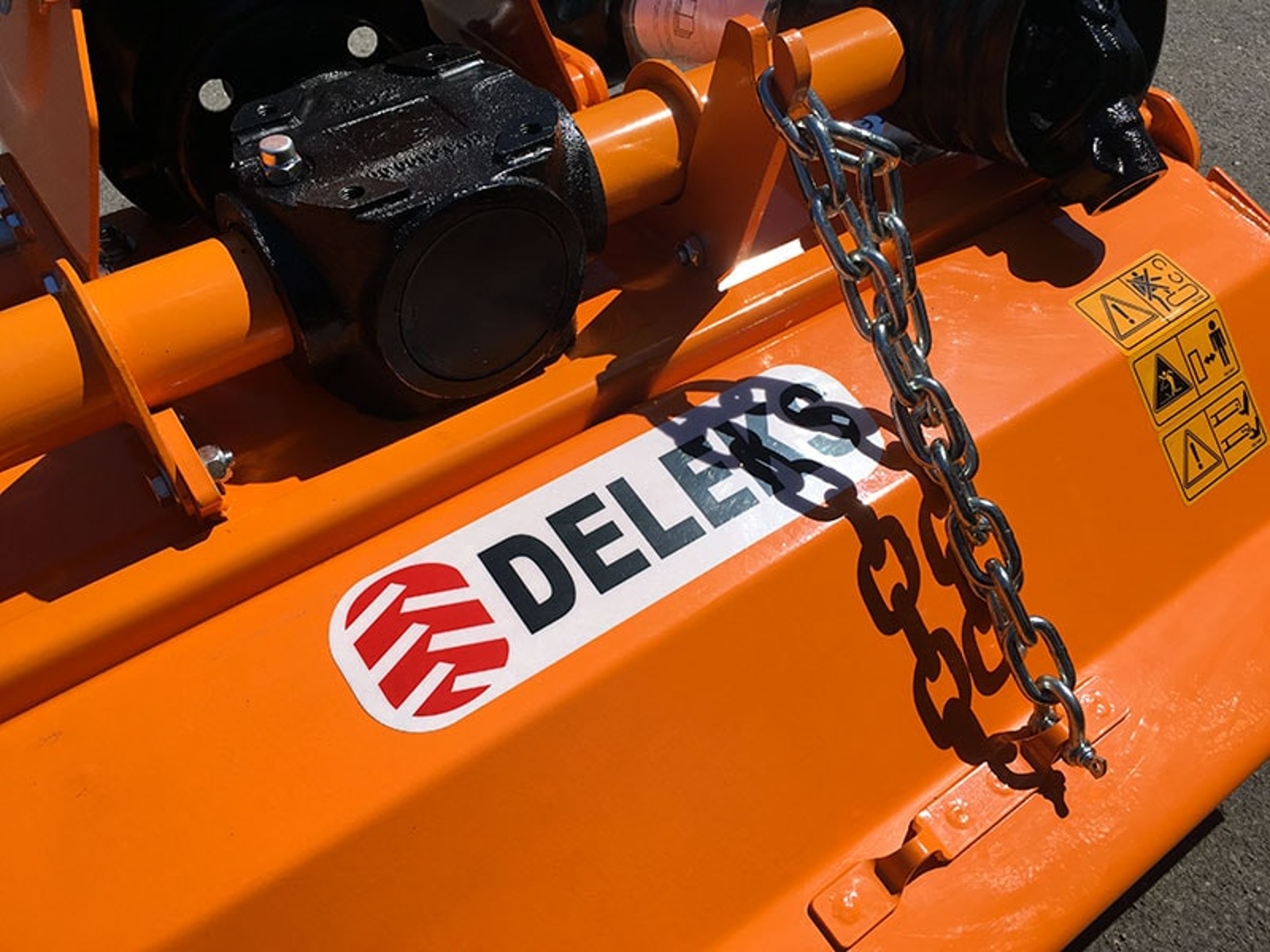

Automatic chain tensioner.
Adjustable skids to obtain the desired working depth.

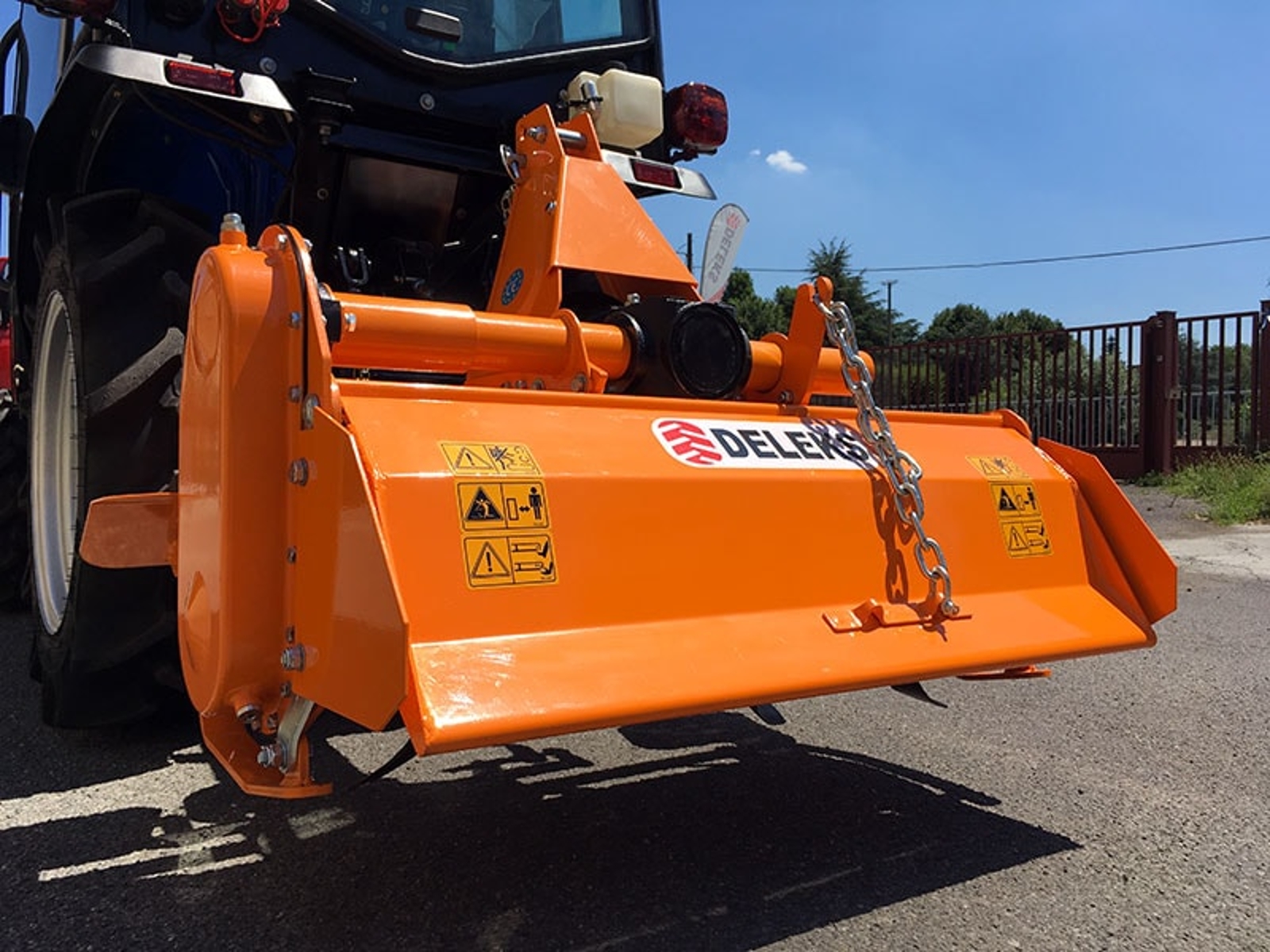

Adjustable rear shield ensures best ground leveling.
CE Safety Guards.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1350.0 mm | 4.43 ft |
| Overall width | 1480.0 mm | 4.85 ft |
| Weight | 171.0 kg | 377.0 lb |
| Overall height | 800.0 mm | 2.63 ft |
| Tractor Power Range | 18 - 35 Hp | 18 - 35 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) | Cat. 1 (ø 19.0-22.0mm) |
| Position of the gearbox | 560.0 mm from left side / 790.0 mm from right side | 22.0 in from left side / 31.10 in from right side |
| Spacing between the 2 lower points | 305.0 - 520.0 mm | 12.0 - 20.47 in |
| Overall length | 680.0 mm | 2.23 ft |
| Distance between pto attachment and ground | 490.0 mm | 19.30 in |
| Transmission: Drive method | Chain | Chain |

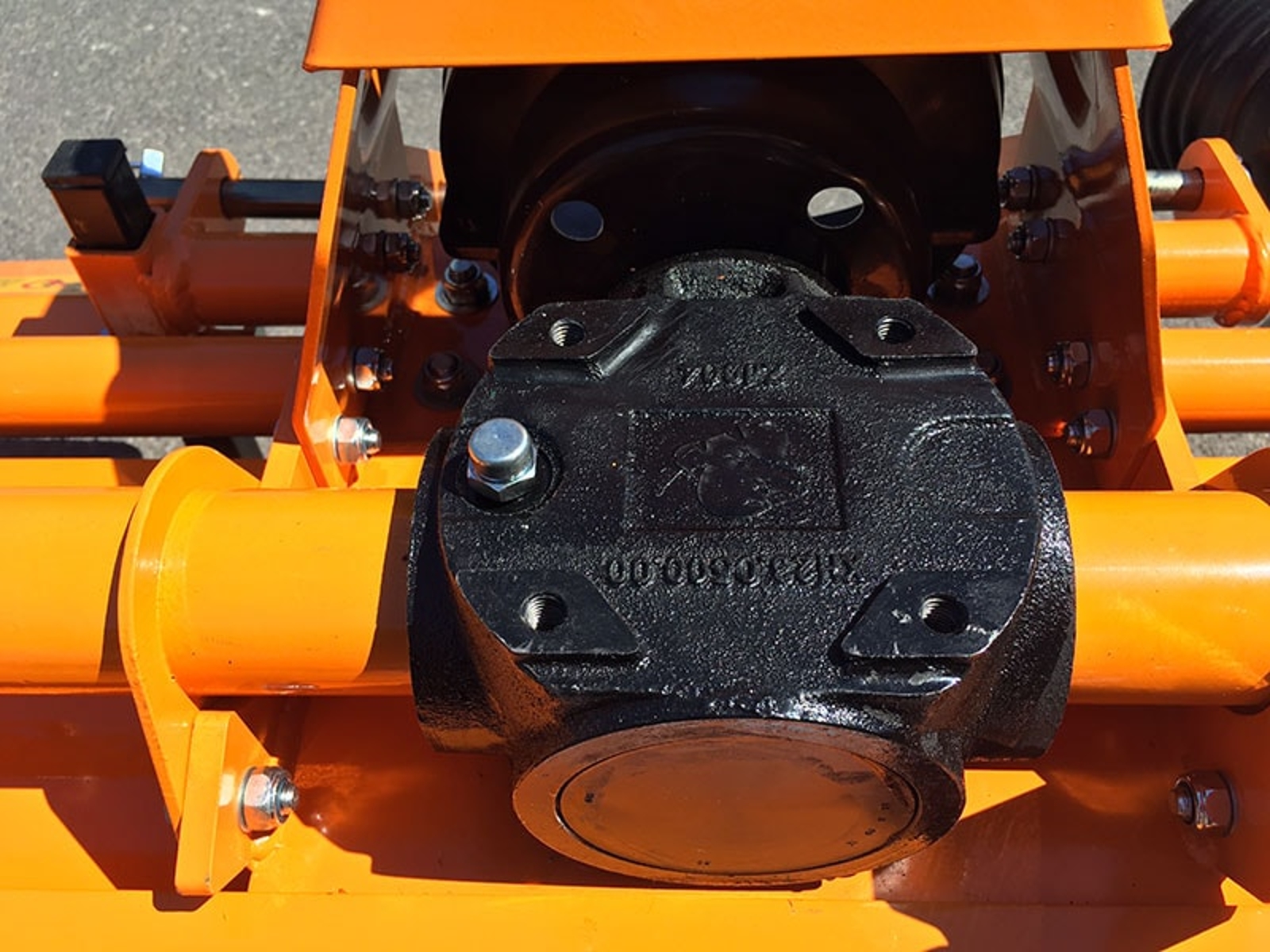

| Transmission: Gearbox | Lombarda Ingranaggi 540 r/min (3 year warranty) | Lombarda Ingranaggi 540 r/min (3 year warranty) |
| Transmission: Rotation of gearbox | Right side (left side on request) | Right side (left side on request) |
| Transmission: RPM Rotor speed | 280 rpm | 280 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Rotor: diameter | 64.0 mm | 2.52 in |
| Rotor: bearings type and size | "GB276-6207(R) GB276-6207(L)" | "GB276-6207(R) GB276-6207(L)" |
| Rotor: sheet thickness | 6.0 mm | 0.24 in |
| Working Depth Range | 120.0 - 160.0 mm | 4.73 - 6.30 in |
| Pto shaft | CE 4x800 mm | CE 4x800 mm |
| Rotor: diameter with blades | 370.0 mm | 14.57 in |
| Rotor: flanges | 7 | 7 |
| Number of Blades per flange | 4 | 4 |
| Blades: quantity | 28 | 28 |
| Blades: height/width | 180.0 / 67.0 mm | 7.08 / 2.64 in |
| Blades: curve length | 230.0 mm | 9.05 in |
| Blades: distance between holes | 45.0 mm | 1.77 in |
| Blades: diameter of the holes | 13.0 mm | 0.51 in |
| Blades: thickness | 6.0 mm | 0.24 in |
| Effective Displacement | 200.0 mm | 7.87 in |
| Blades: weight | 570.0 g | 20.10 oz |
| Packing sizes | 800.0*1490.0*650.0 mm | 2.62*4.88*2.13 ft |
