DETAILS

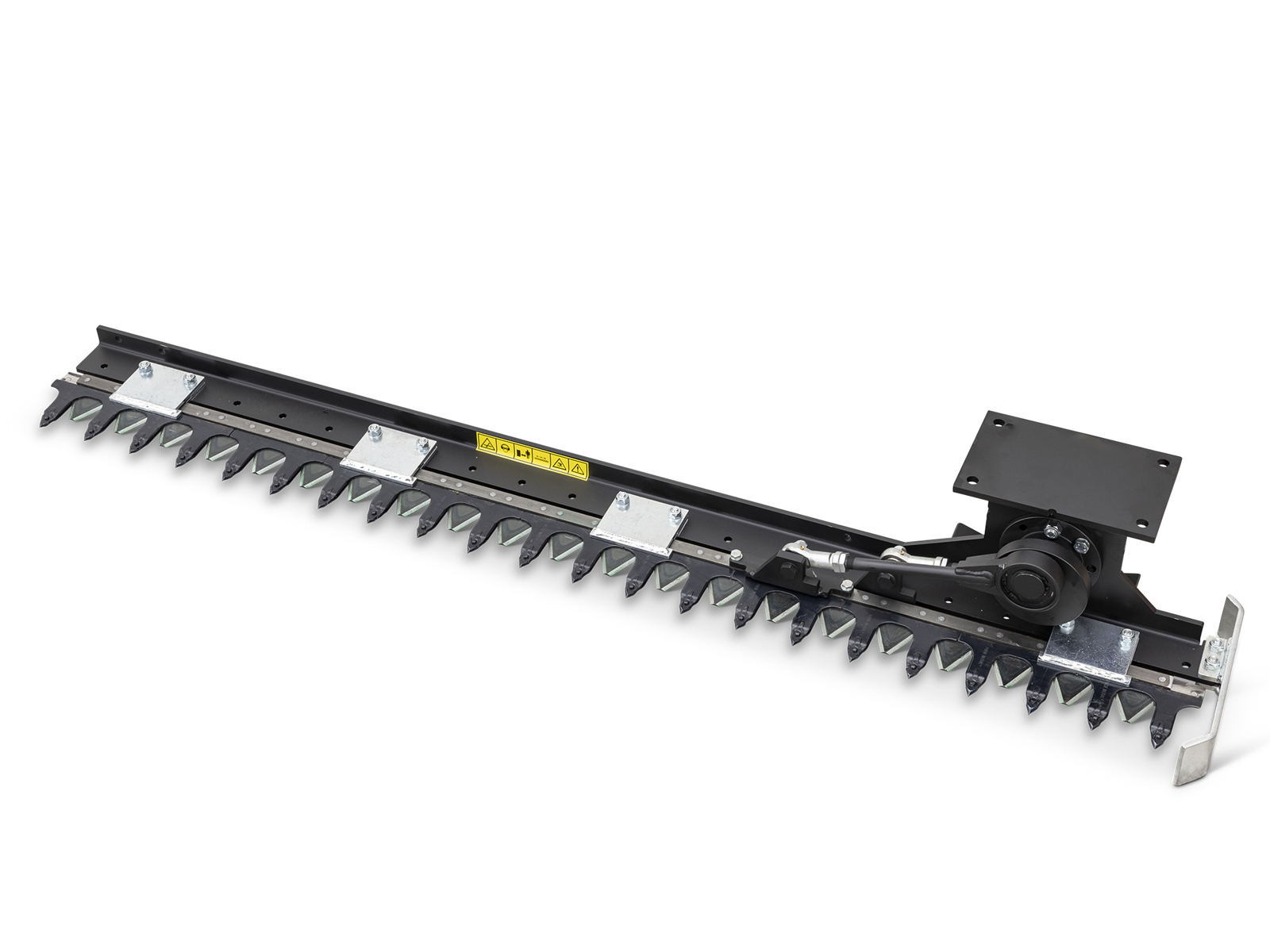

Hydraulic double cutter bar, hedge trimmer - DELEKS® HRD-160 - Made in Italy
2 years warranty

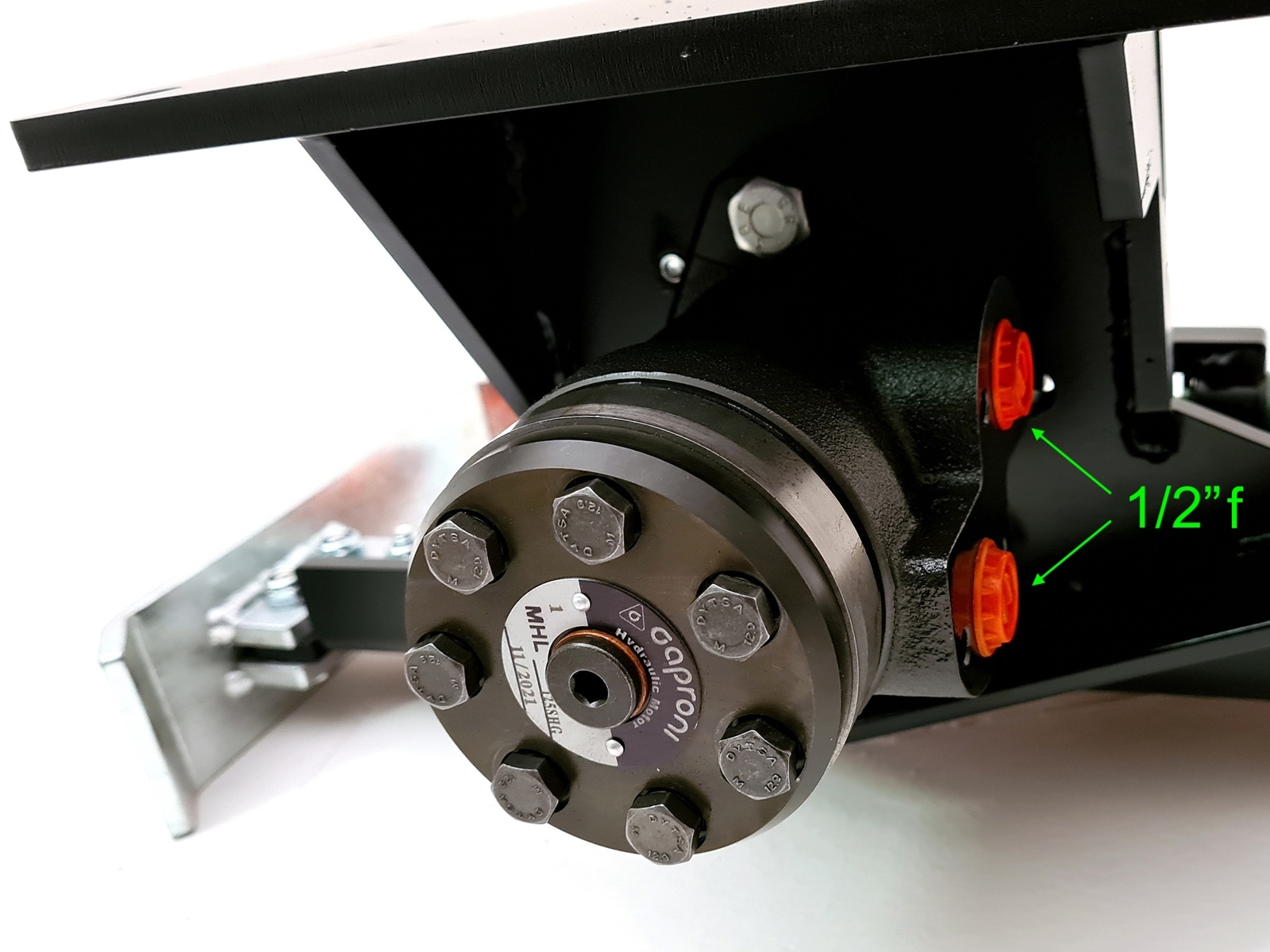

Hydraulic cutter bar DELEKS® HRD is ideal for grass, and precise work on hedges and trees with fine branches (max 1cm in diameter). The set-up includes the hydraulic motor and the mounting plate with 4 mounting holes (measures shown in the images).
The cutter bar is controlled by the hydraulic system of the tractor / operating machine.
Requirements:
The hydraulic oil flow: 20-60 l/min.
The operating machine must be equipped with a circuit with a return oil duct (if a certain flow is exceeded, the oil is returned directly to the oil discharge line).
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1600.0 mm | 5.25 ft |
| Overall width | 1680.0 mm | 5.50 ft |
| Weight | 62.0 kg | 136.0 lb |
| Maximum cutting diameter | 10.0 mm | 0.40 in |
| Number of Blades | 21 | 21 |
| Min./Max. Relief Pressure | 140 - 180 bar | 140 - 180 bar |
| Min./Max. Flow | min. 20 l/min | min. 20 l/min |
| Packing sizes | 1680.0*600.0*300.0 mm | 5.50*1.97*1.65 ft |
