Snowblade with plate for tractor, LN-220-A

4.5

192 reviews

Available
Code LN220A
EAN 8053470231315
View all details.
TOTAL
2,919.00(2,463.05 £)VAT excl.
Free shipping

VIDEO
Field test
Field test

DETAILS

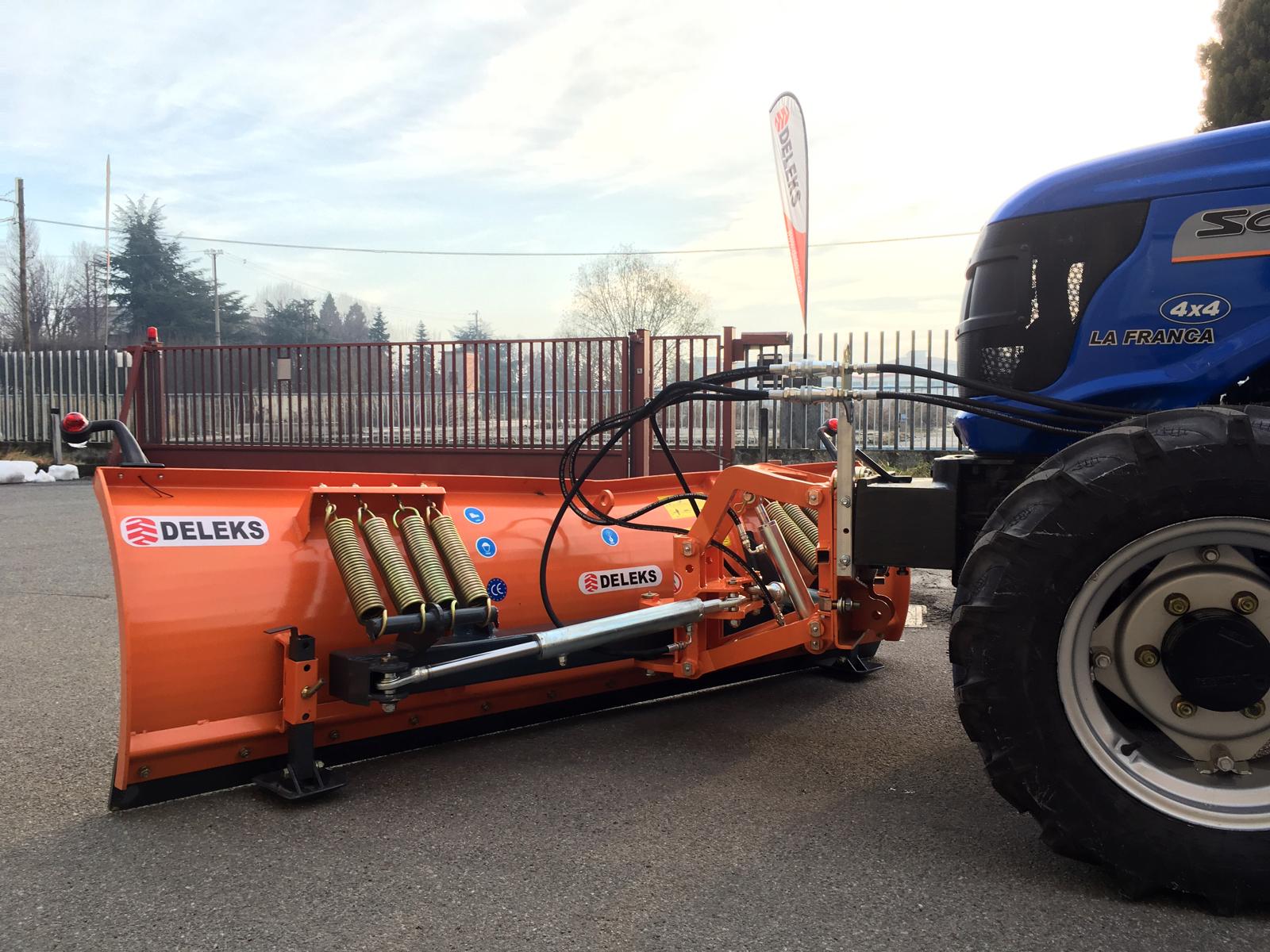

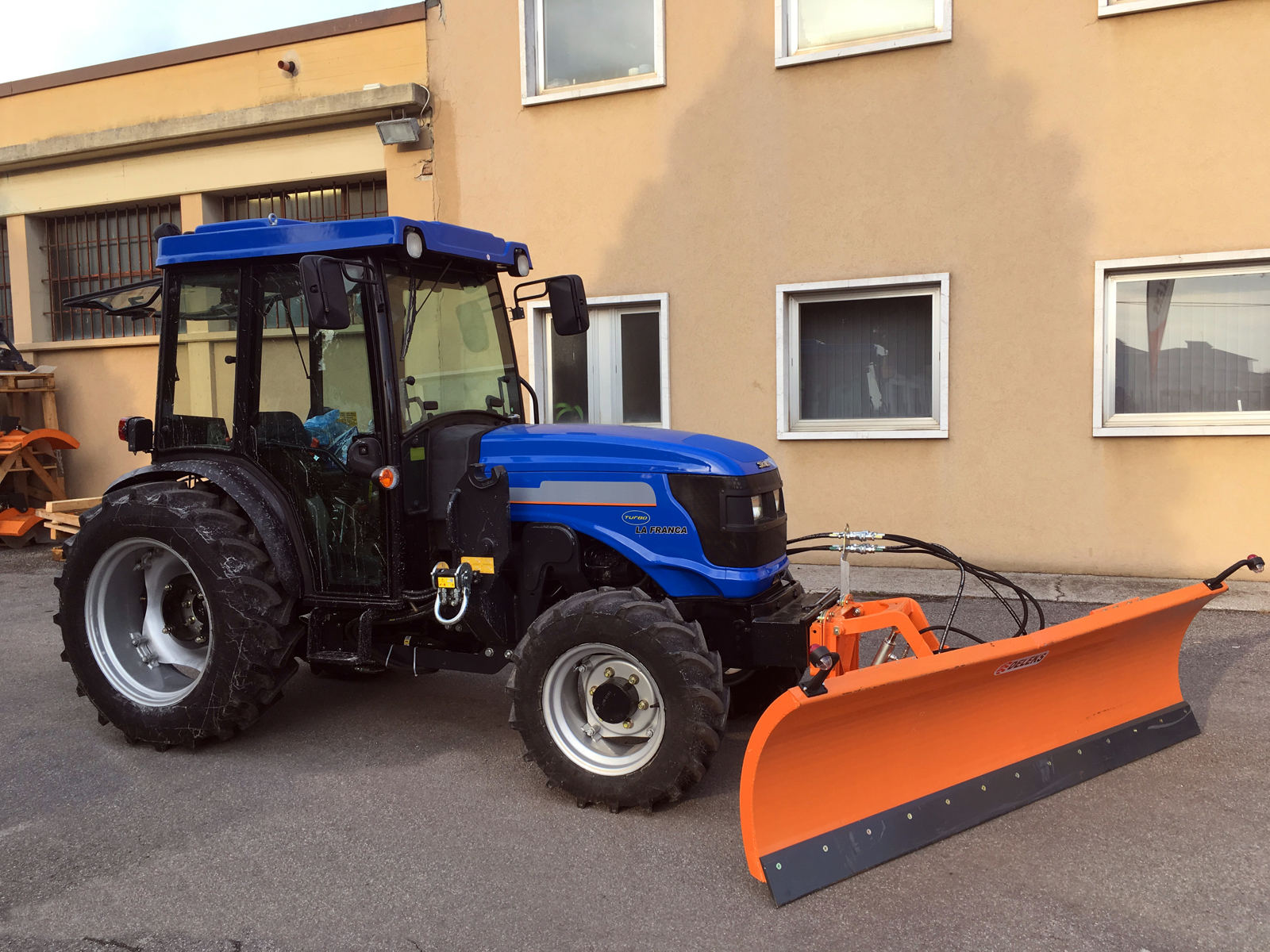

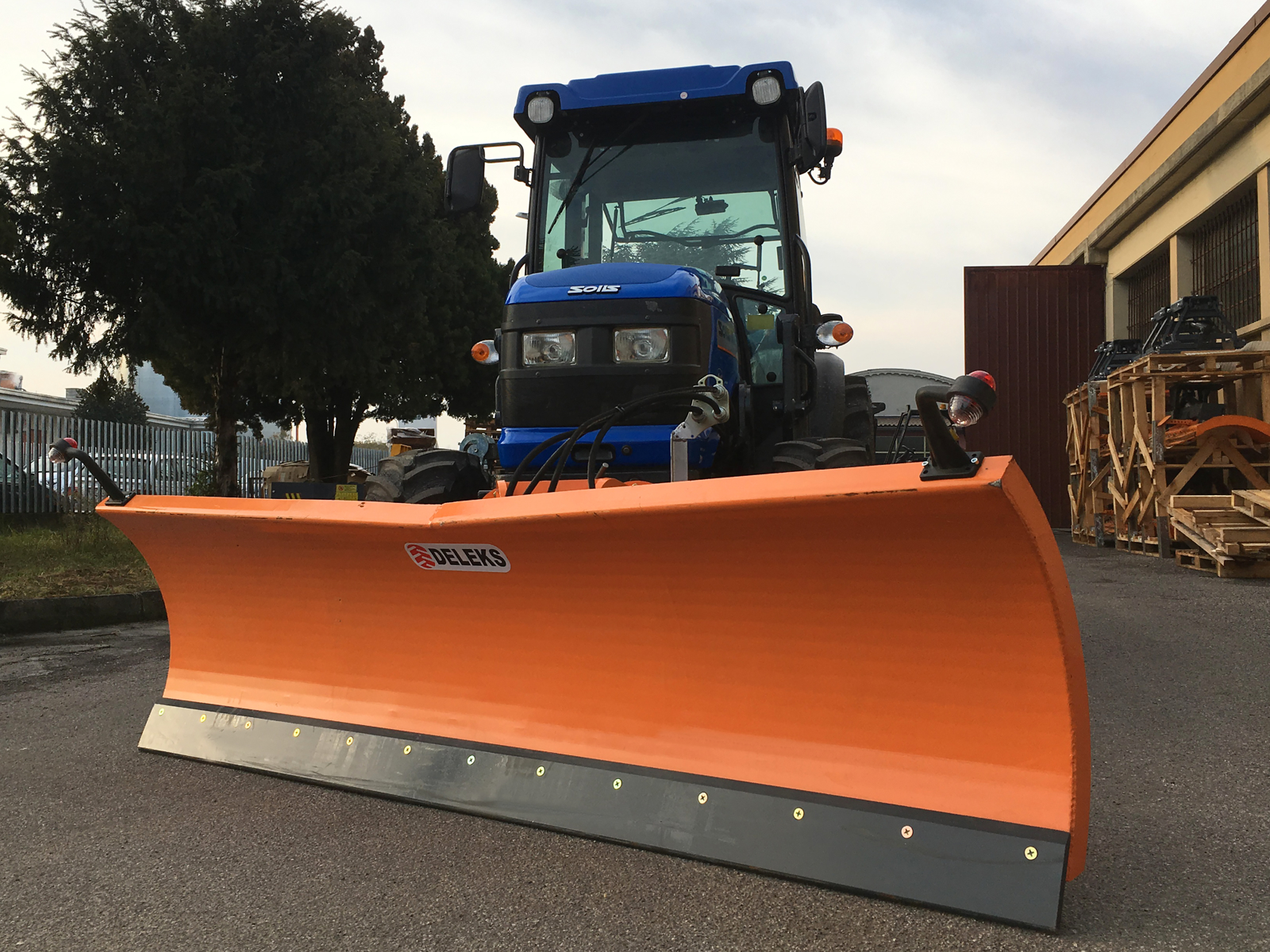

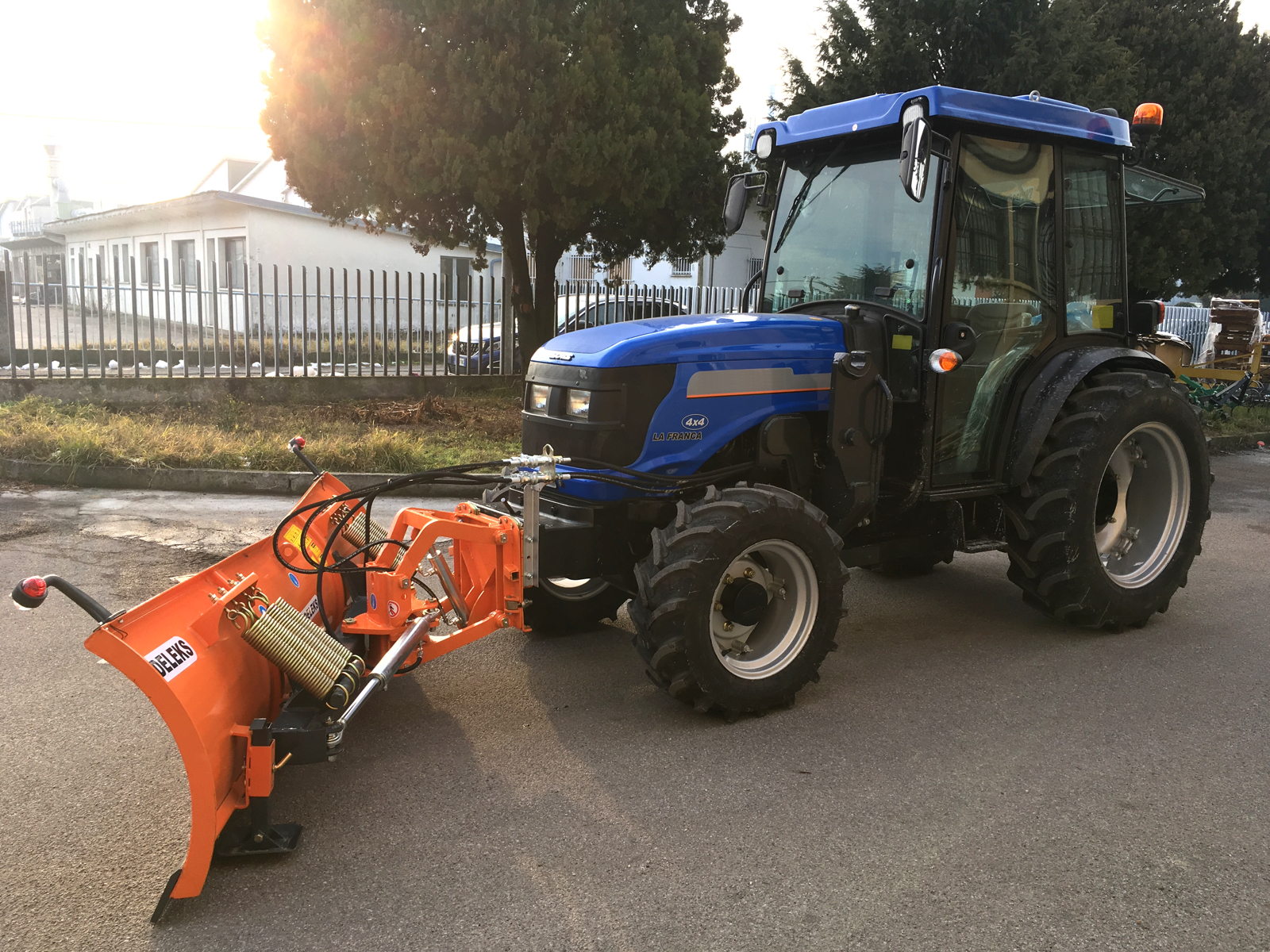

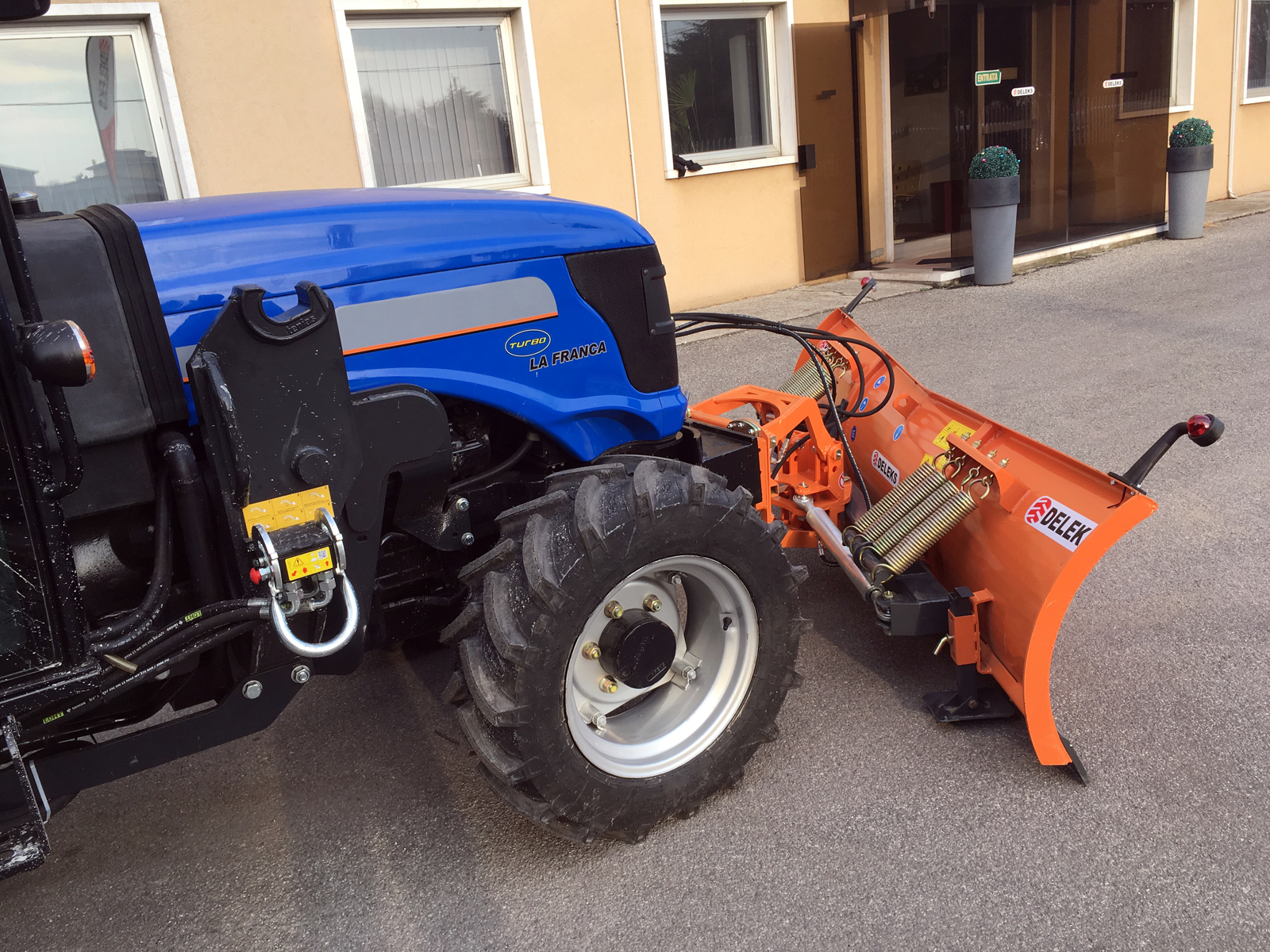

Frontal snow plow DELEKS® 220cm, with mounting plate for tractors John Deere, New Holland.. Homologated for road use.



DESCRIPTION

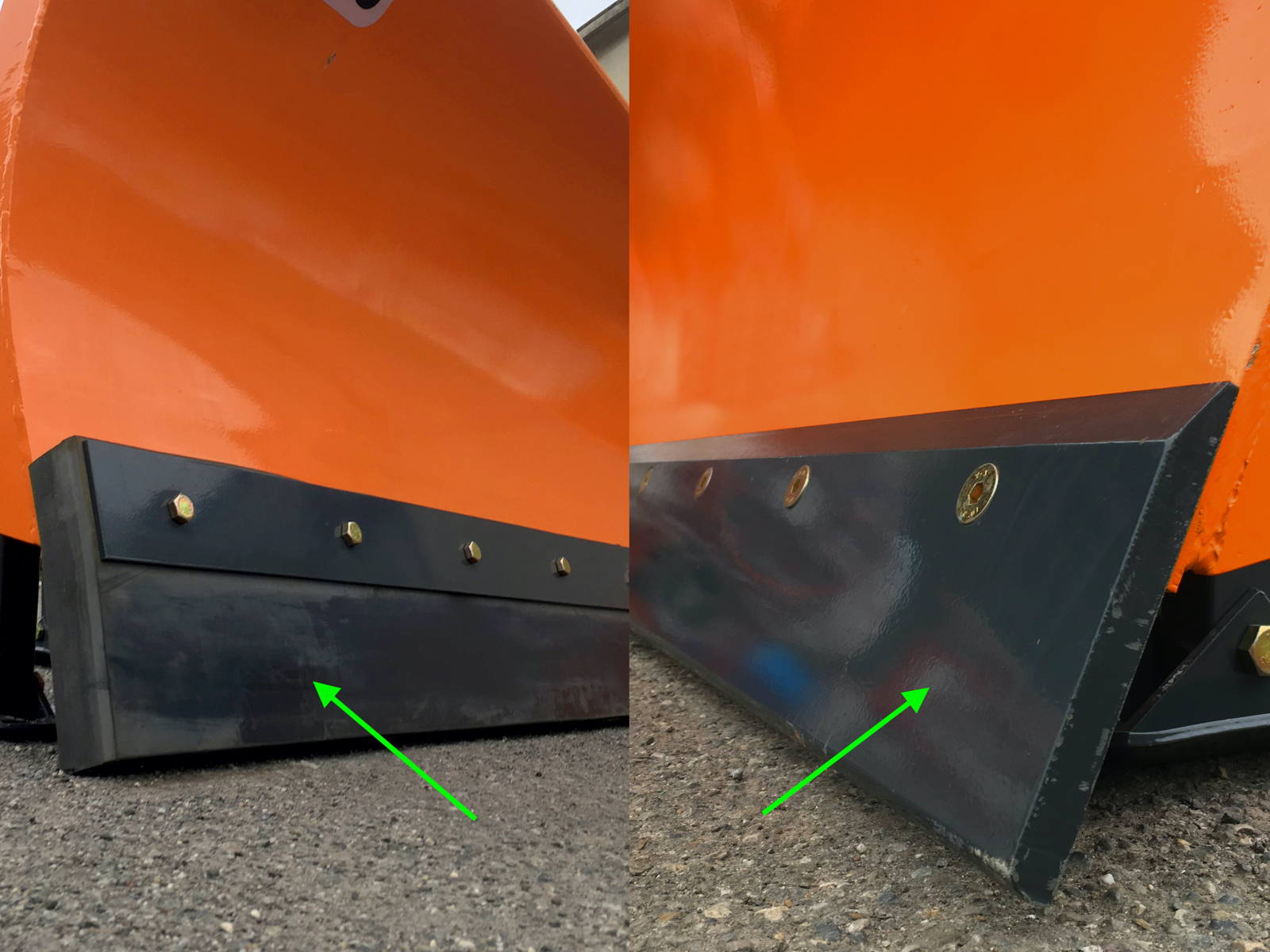

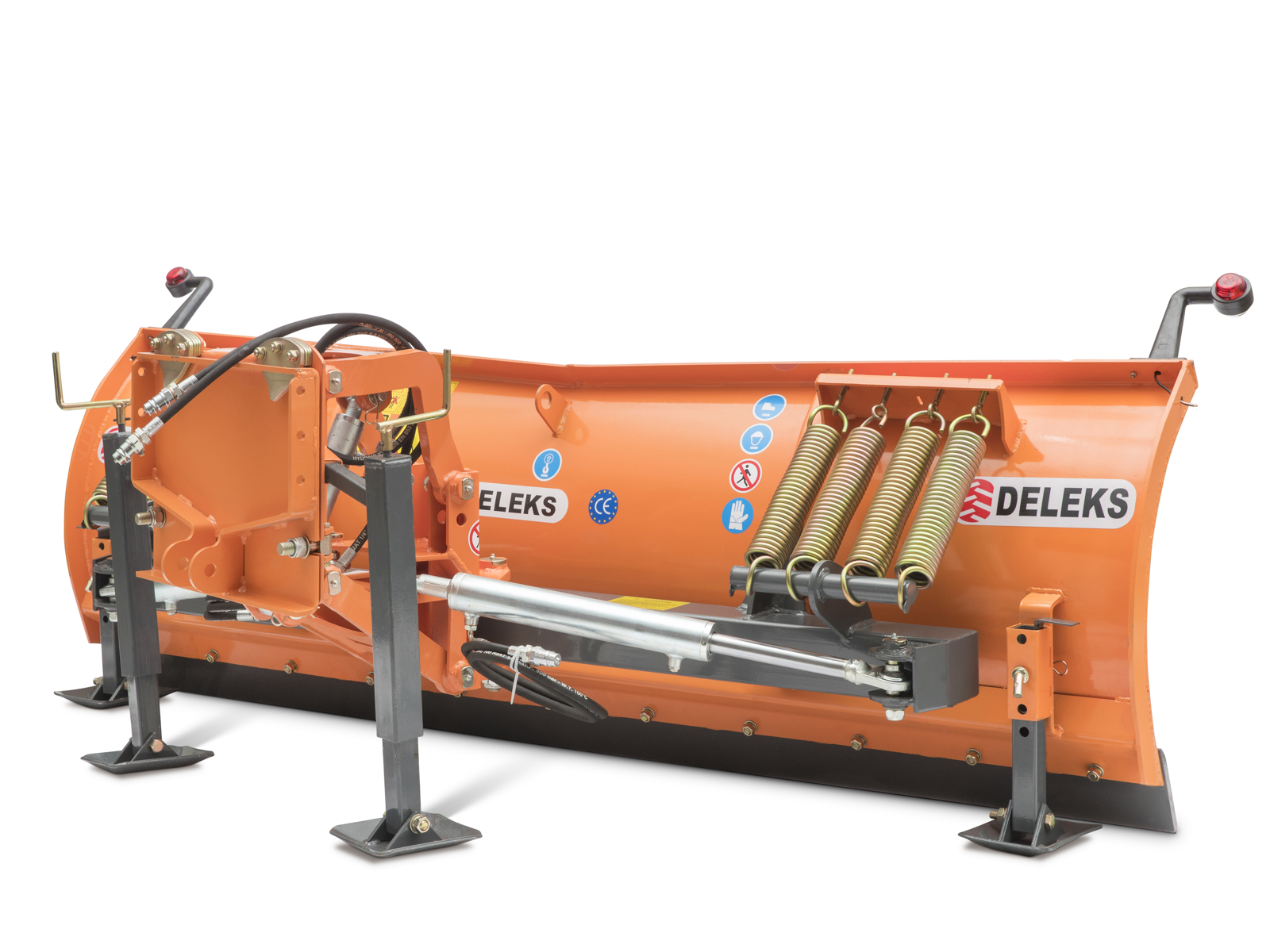

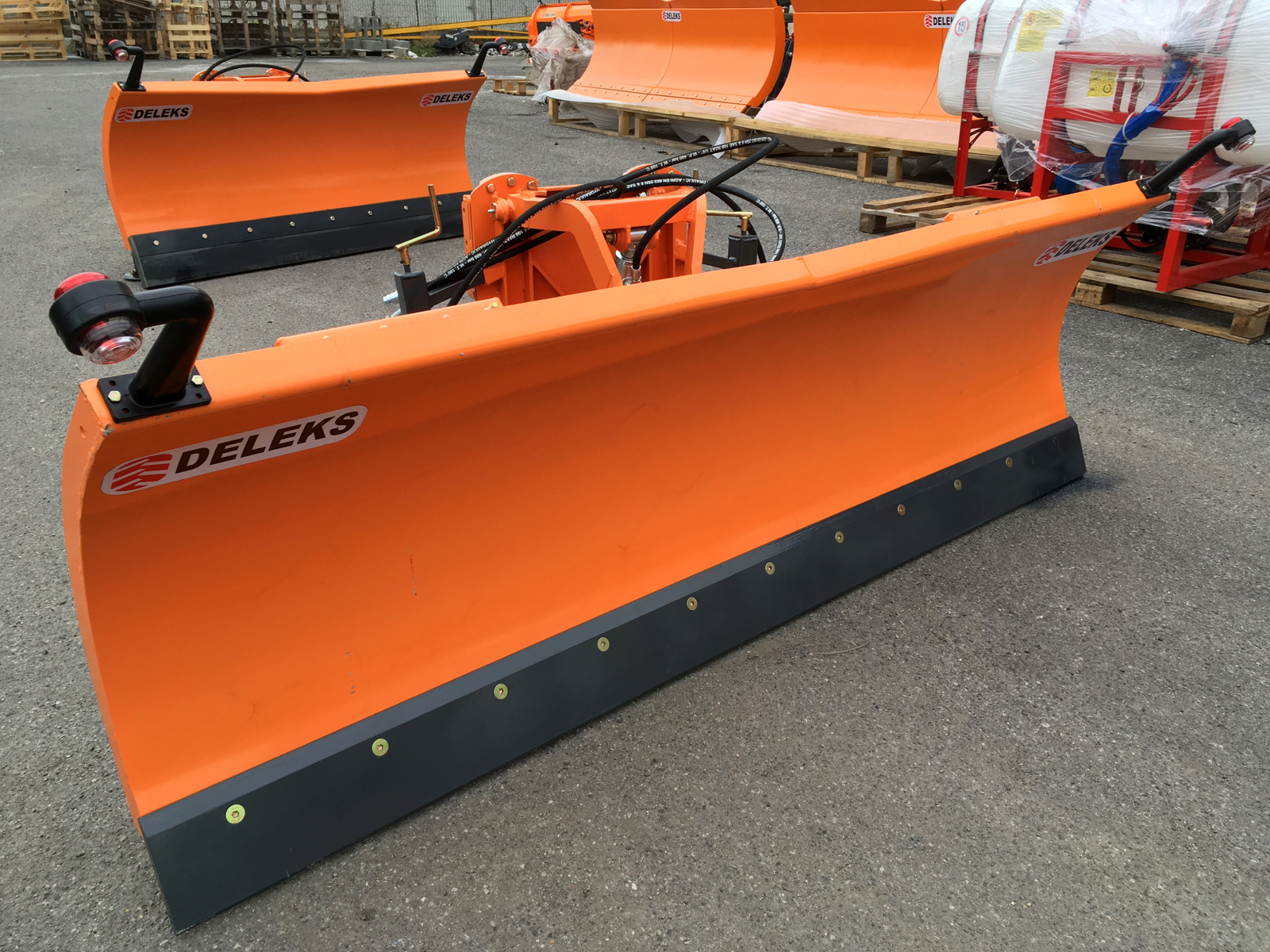

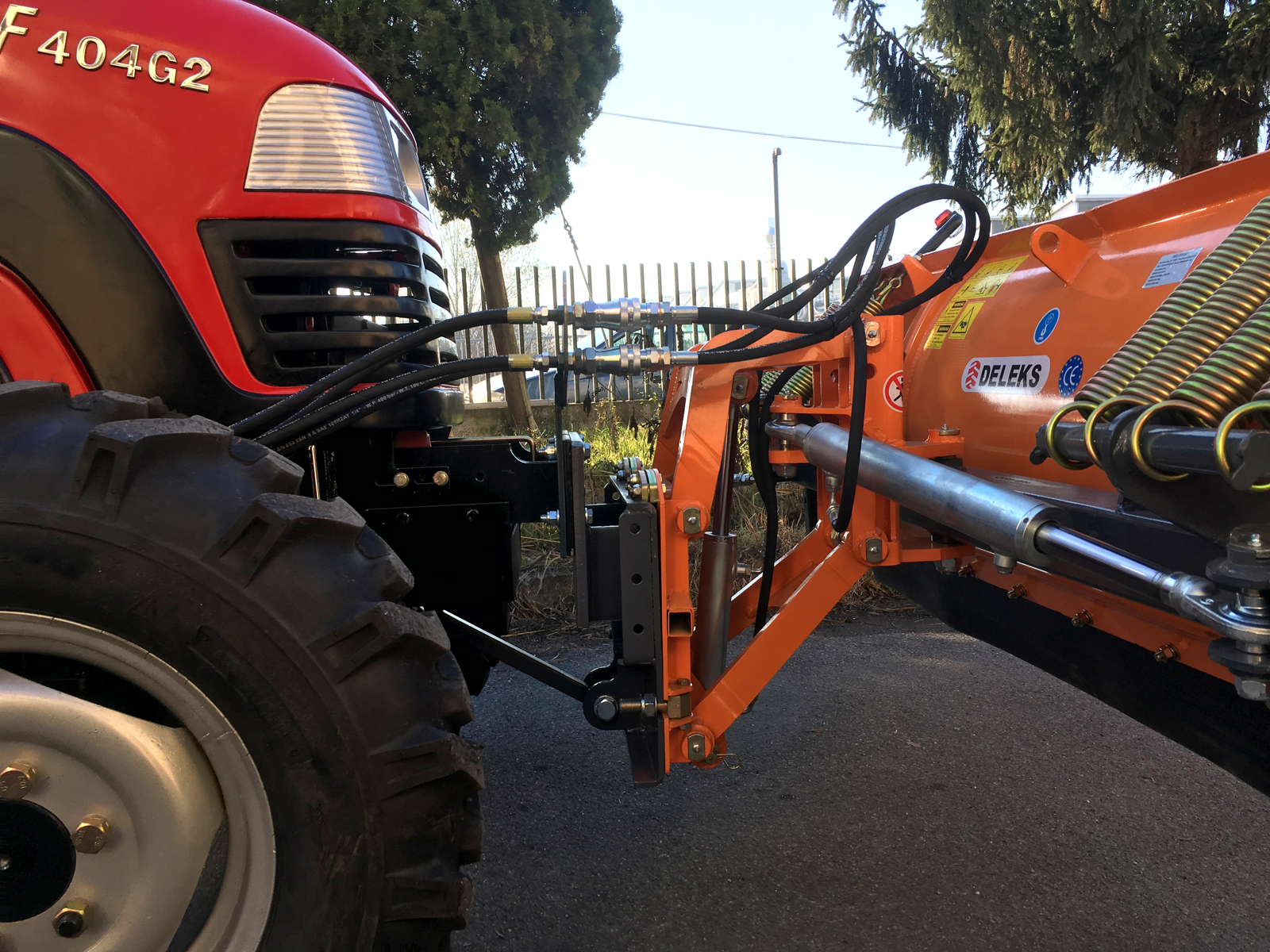

LN-220-A Frontal use Snow Plow with universal plate, with hydraulic lifting and angling. It attaches to the tractor via a quick coupling robust plate. 4 hydraulic pipes of 1.5m for front connection. On request we supply four hydraulic pipes to add an additional 4,0m of length. Our quick attachment system means pipes can be connected to the four hydraulic outlets of the tractor in seconds. The blade itself is sharp, replaceable steel edge (on request also available with Rubber edge), Couple of marker lights.

Compatible with all compact tractors from 50 to 80hp (no open field), e.g. John Deere, Ford, New Holland, Massey Ferguson, McCormick, Carraro or 4x4's e.g. Nissan, Seat, Renualt, and vans such as Caron, Bonetti, Bremach etc. Conforms to the EC Machinery Directive. 2 Year Warranty.



BENEFITS AND FEATURES

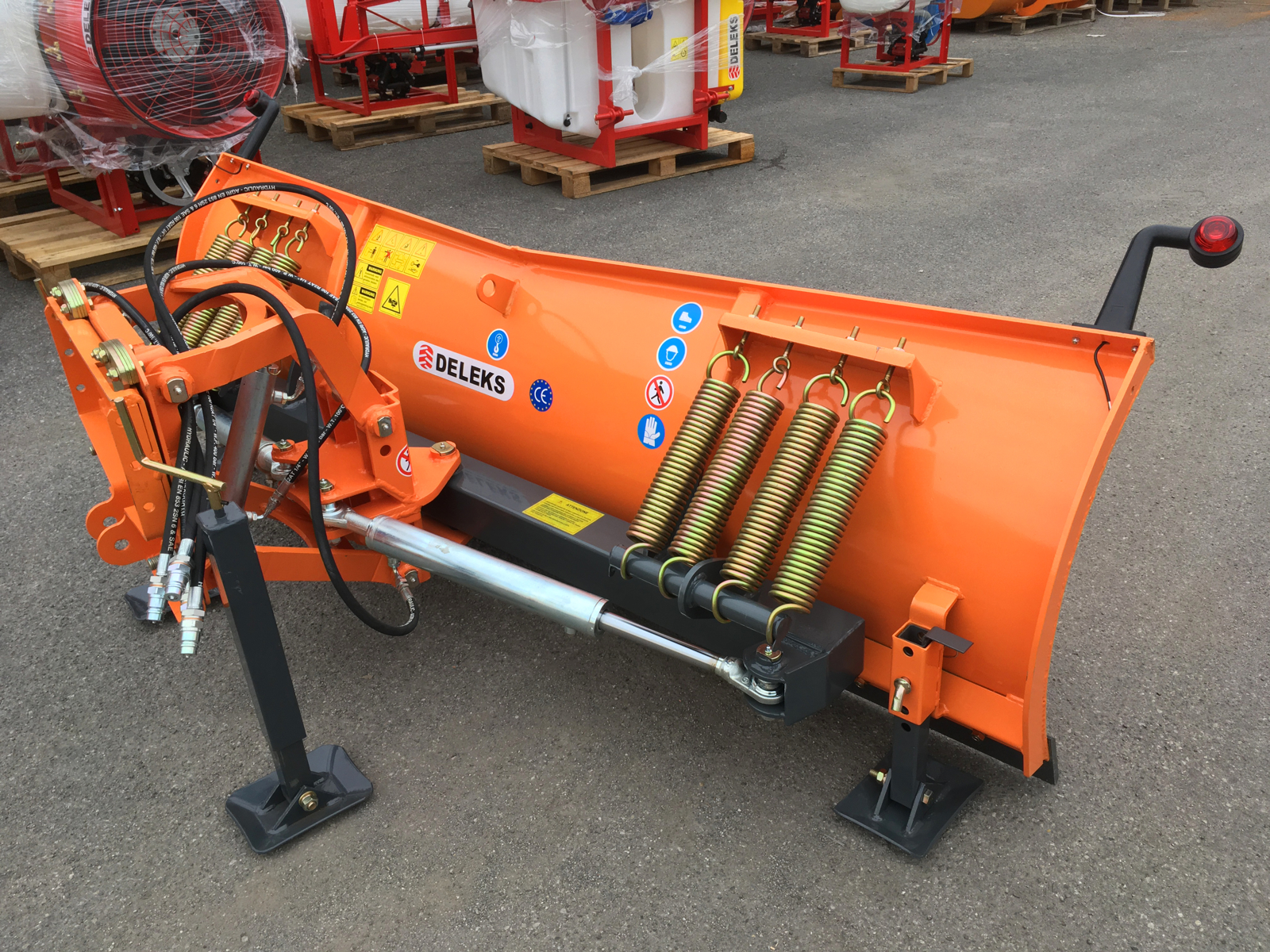

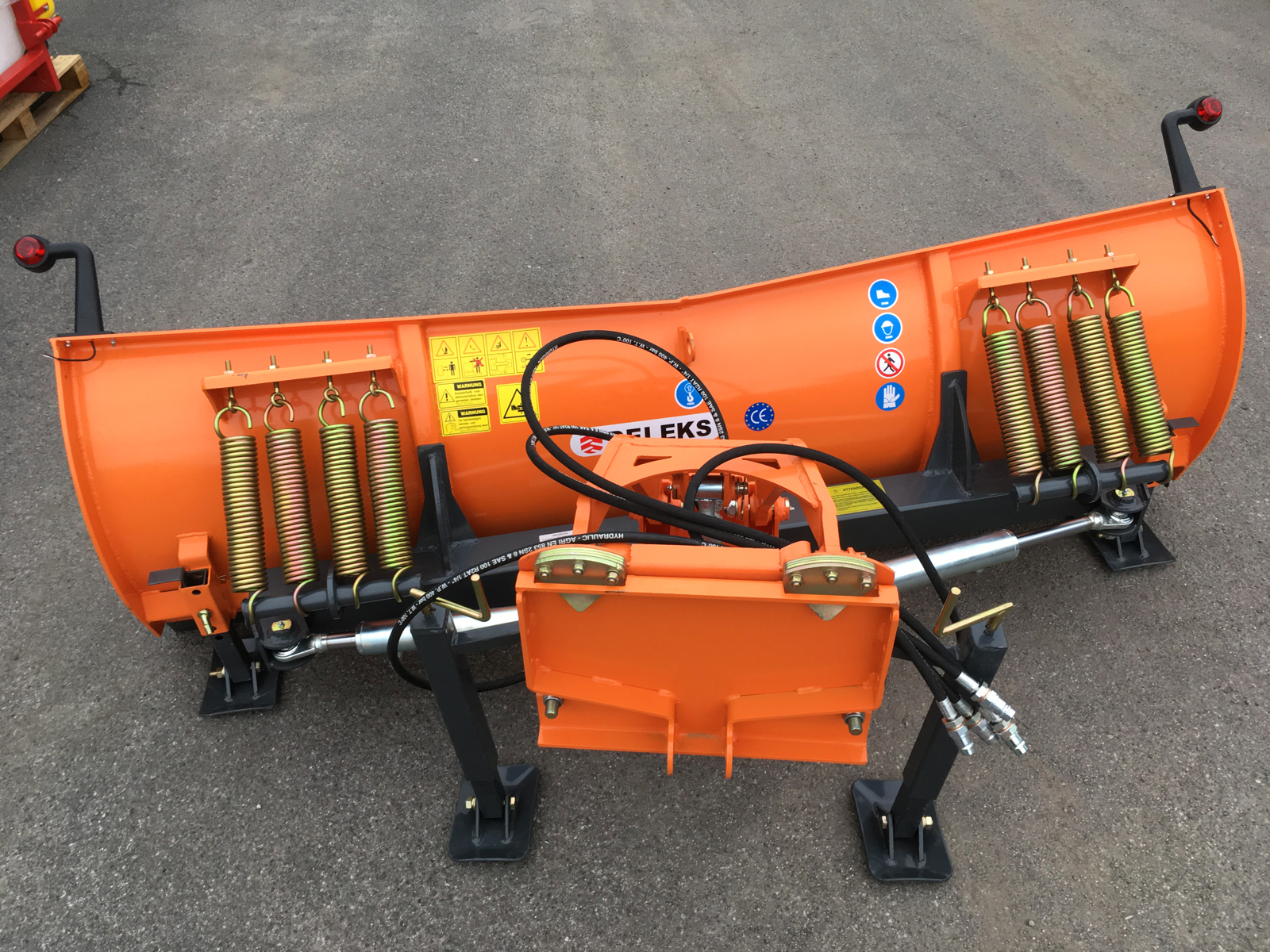

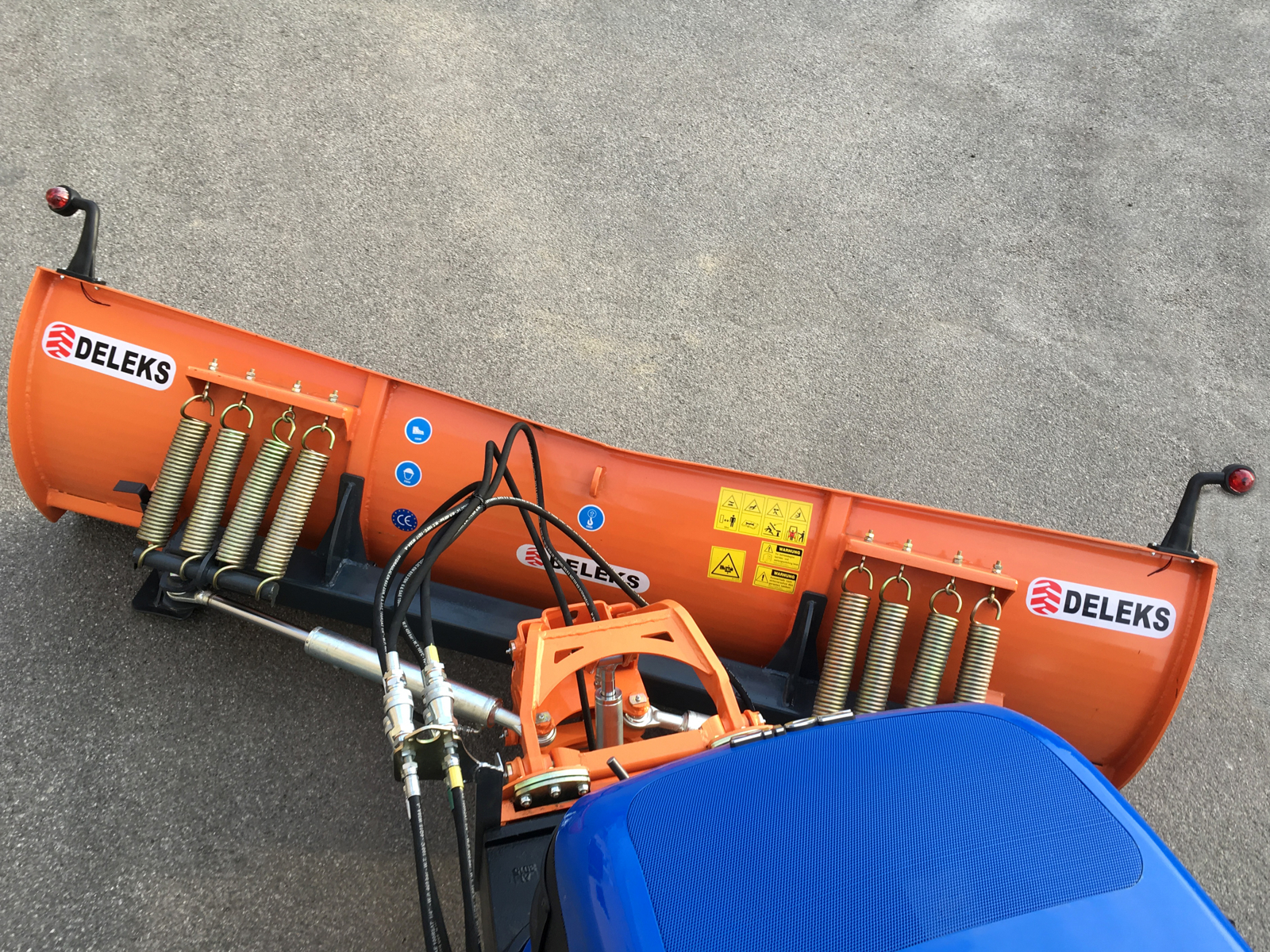

Shockproof system with 8 shock absorbing springs to operate in maximum safety.

3 Hydraulic cylinders: left / right / up / down, Made in Italy.

Side skid shoes reduce the abrasive action on the cutting edge of the blade thereby prolonging the life of the blade.

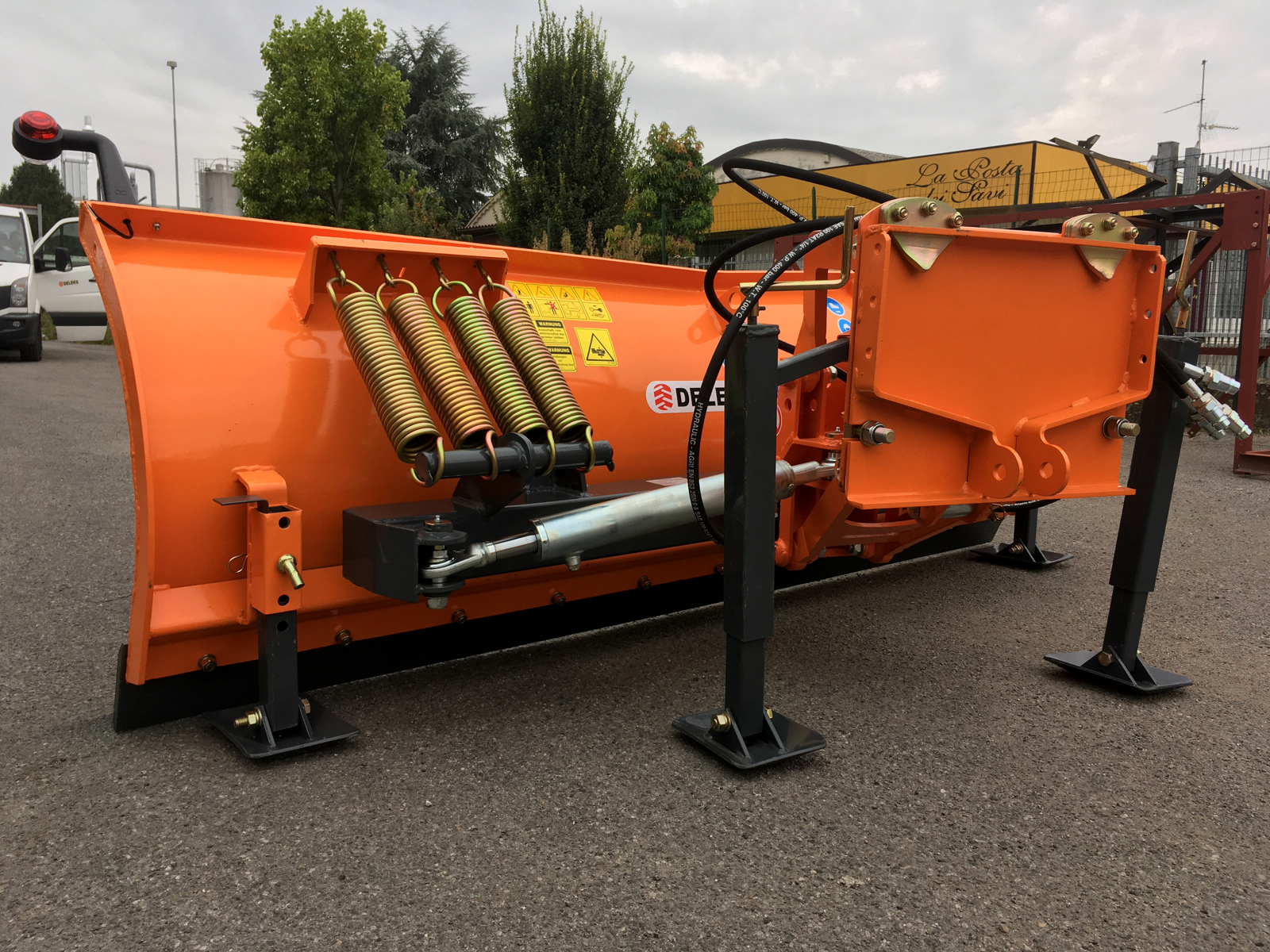

Support legs with crank, make it extremely easy to assemble and disassemble at the end of the season.

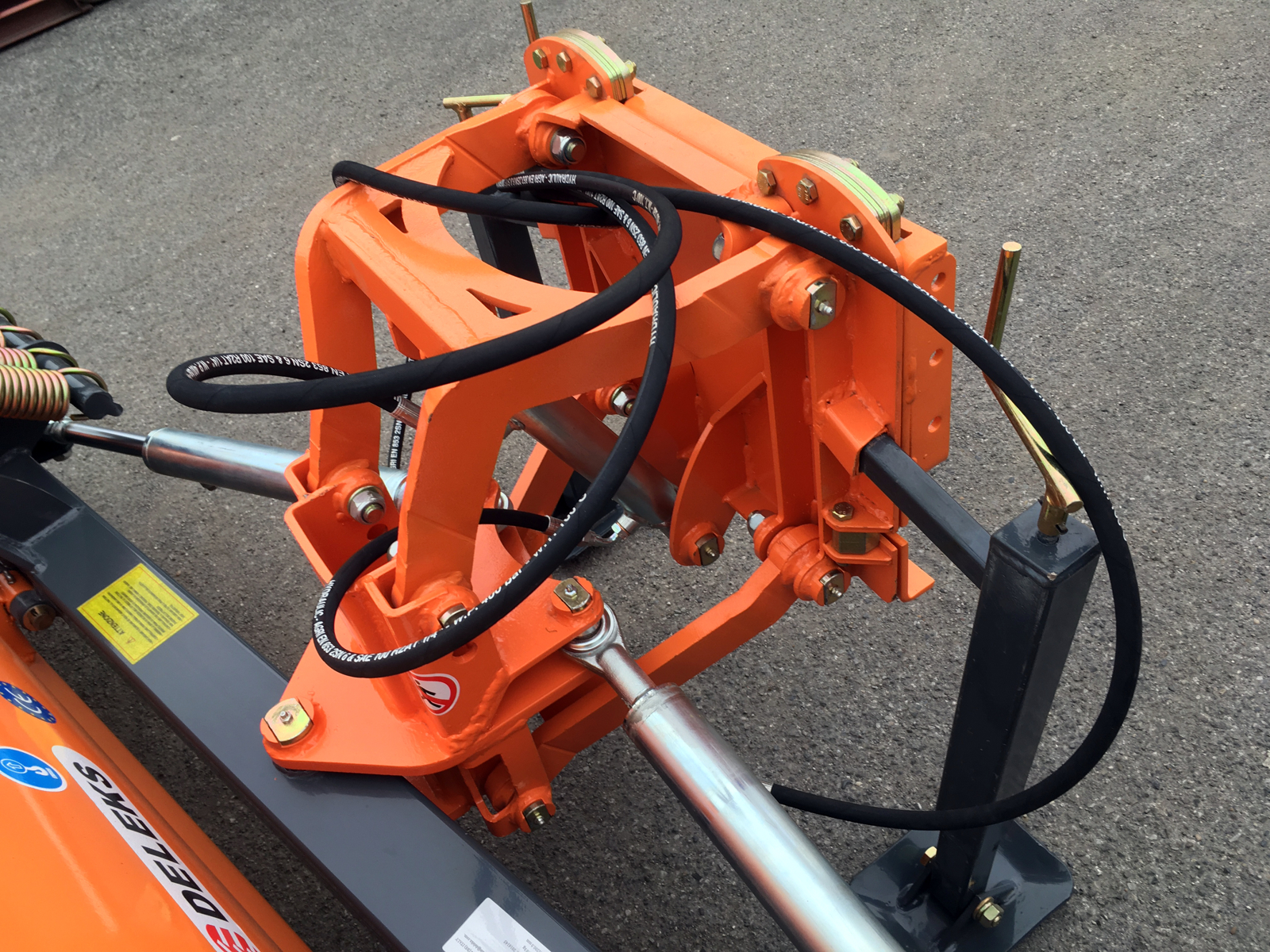

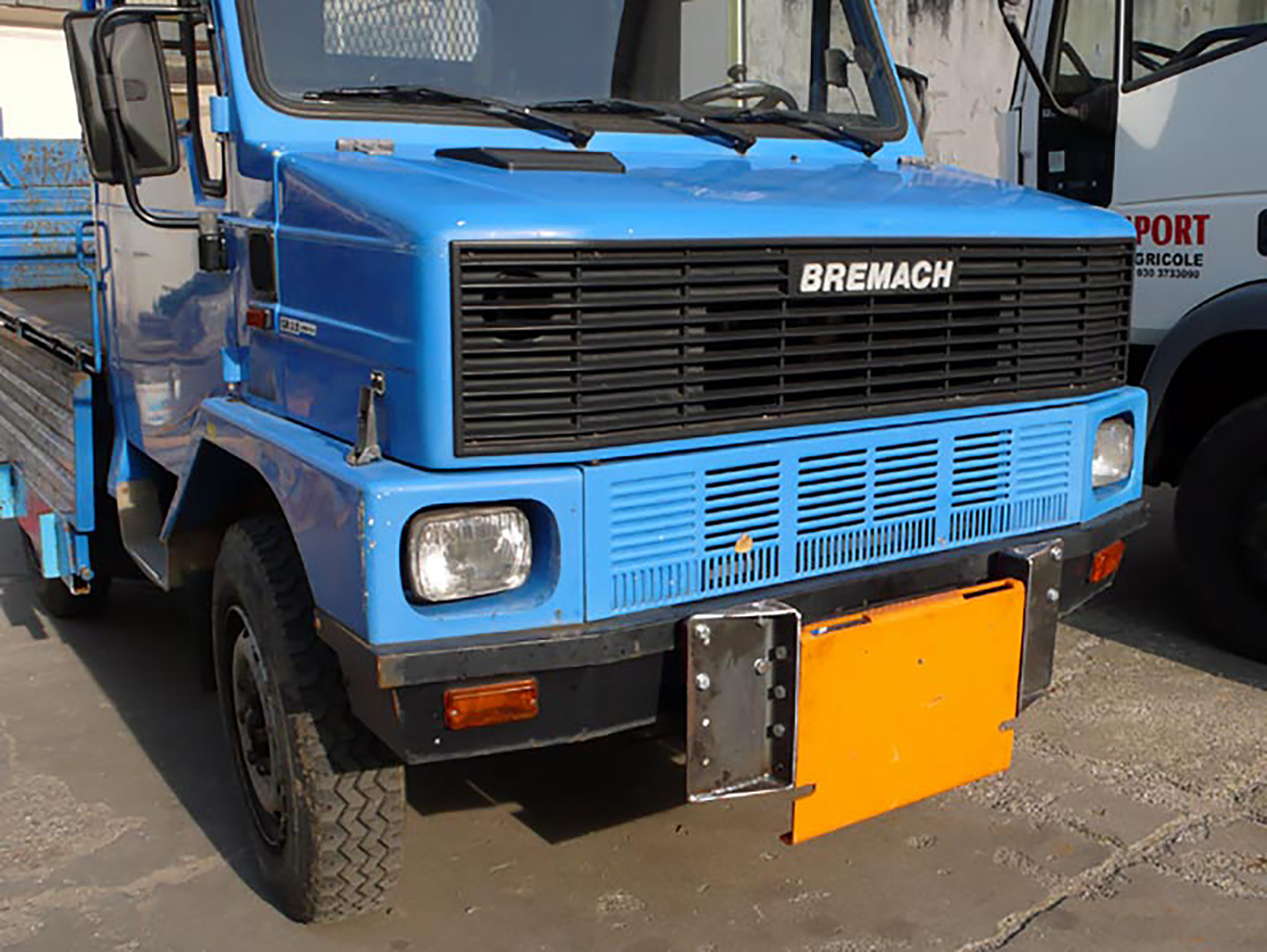

The plate fitting is removable and replaceable with a 3-point hitch, EURO or Skid steer loaders.

Homologated for road use.

The LN-A doubles as a grader blade and can be used for dirt work, road maintenance, ditching, landscaping, snow removal, cleaning livestock pens, gravel, sand year round.

Not limited to plowing snow.



CHARACTERISTICS

Characteristic Units metric Units US
Weight 306.0 kg 675.0 lb
Overall height 700.0 mm 2.30 ft
Tractor Power Range 50 - 80 Hp 50 - 80 Hp
Overall Length 830.0 mm 2.72 ft
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface Universal Plate Universal Plate

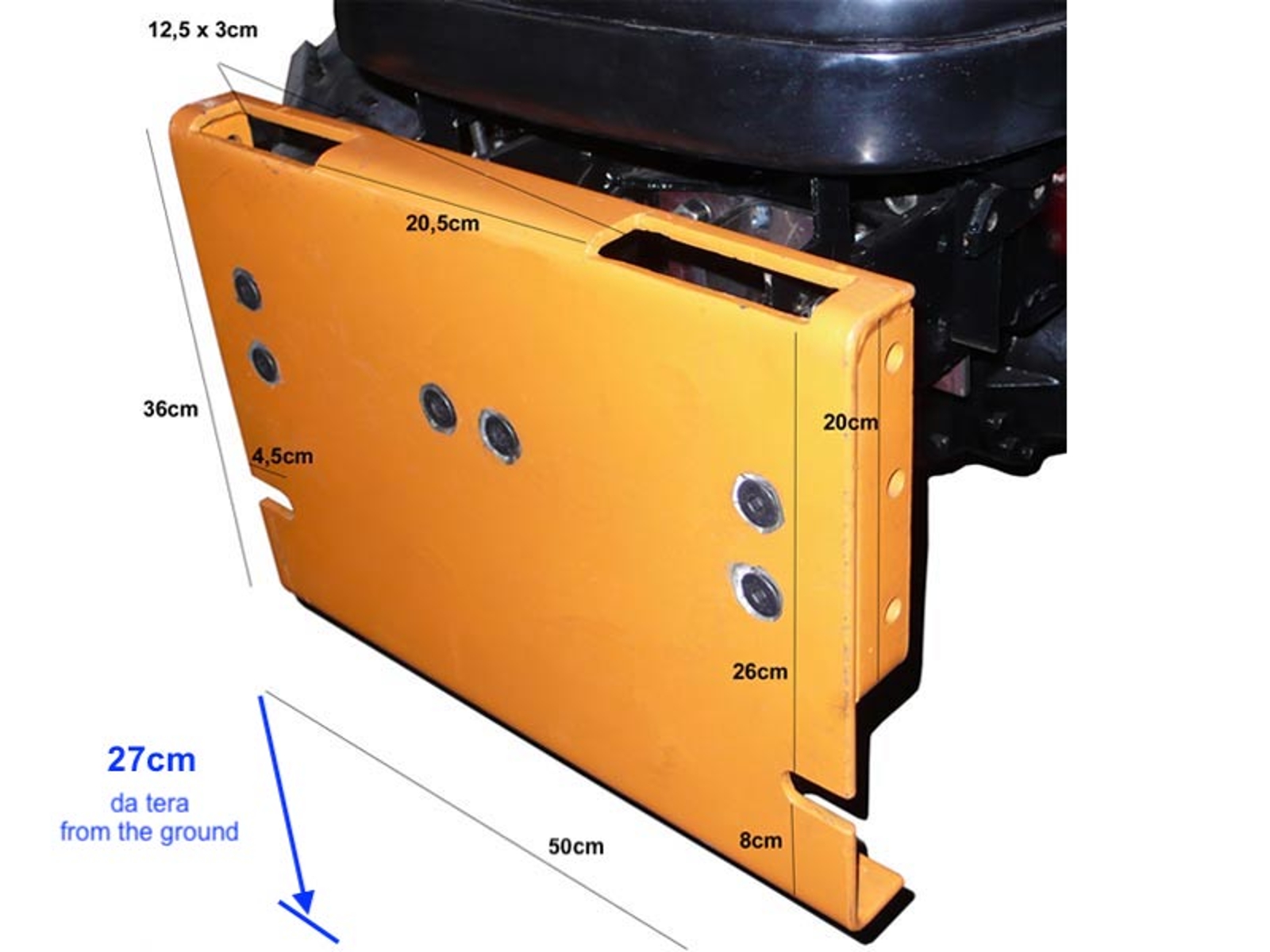

Universal plate sizes 500.0*360.0 mm 19.68*14.17 in
Angling (left/right) 27° 27°
Float +/- 4° +/- 4°
Blade Height 700.0 mm 2.30 ft
Side edge thickness 8.0 mm 0.32 in
Shock absorbers 8 8

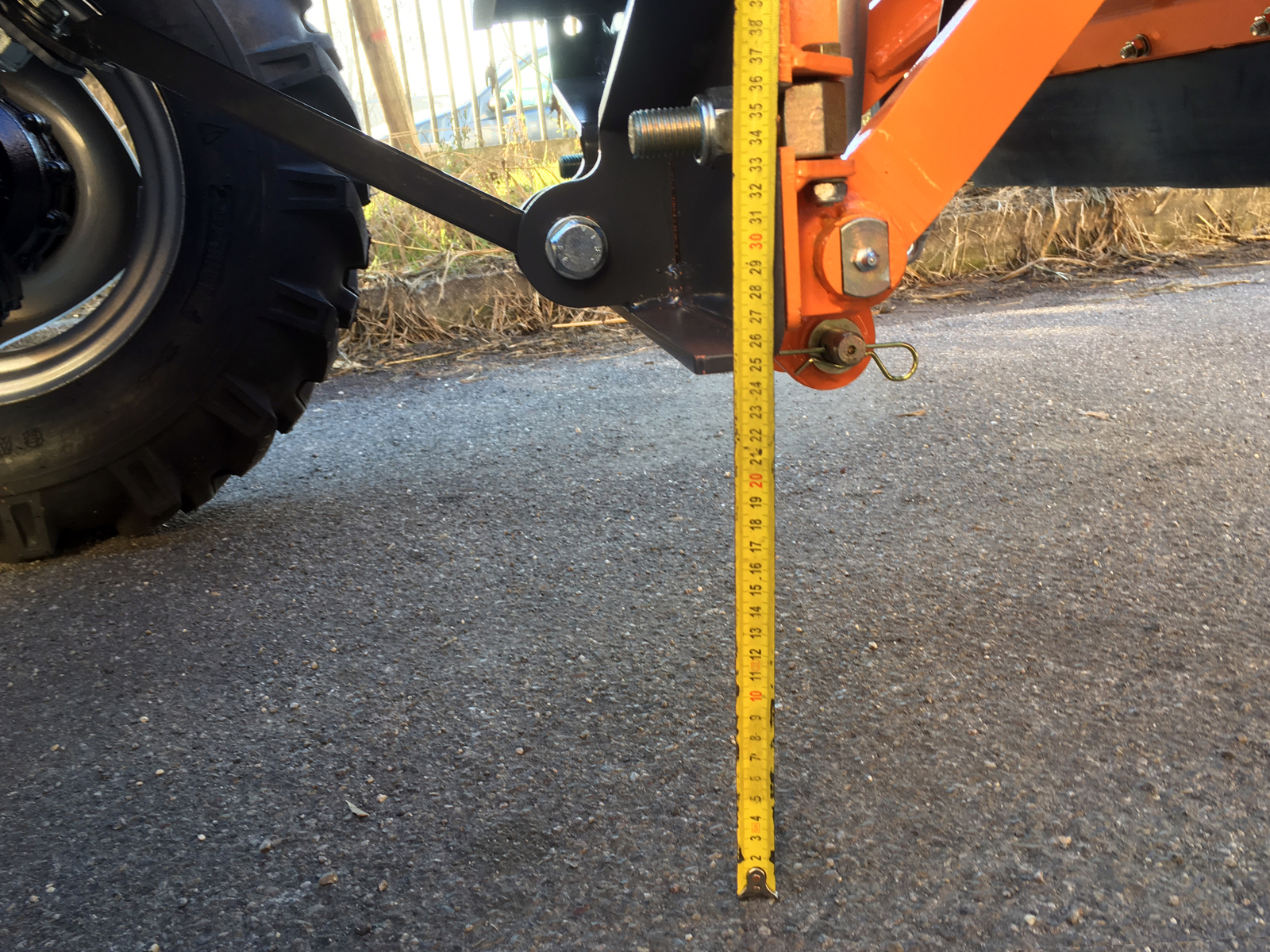

Distance between plate and base 270.0 mm 10.63 in
Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 150.0 mm 5.90 in
Cutting Edge Thickness 16.0 mm 0.63 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights
Removable Skid Shoes
Working width (angled) 1964.0 mm 6.44 ft
Hydraulic Hoses 4 x 1500.0 mm / connections 1.2" AGRI, WP 400 bar 4 x 4.92 ft / connections 1.2" AGRI, WP 400 bar
Overall width 2205.0 mm 7.23 ft
Main frame thickness 5.0 mm 0.2 in
Hydraulic cylinder/s ø 50.0/25.0 + 60.0/30.0mm 1.97/0.98 in + 2.36/1.18 in
Packing sizes 2205.0*800.0*900.0 mm 7.23*2.62*2.95 ft

Optional

2 springs snowblade ln lns lnk
2 springs snowblade LN-LNS-LNK
100.00(84.38 £)VAT excl.
Available

LN-LNS-LNK

4 hydr pipes 4 00m fast connection set
4 Hydr. pipes 4,00m + Fast connection Set
212.00(178.89 £)VAT excl.
Available

4,00m - Quick Release Coupling 1/2"

Fast connection set.

couple marker lights ln
Couple marker lights LN
56.00(47.25 £)VAT excl.
Available

LN 175/250

plate for ln
Plate for LN
220.00(185.64 £)VAT excl.
Available

LN

spare rubber blade 220 cm
Spare rubber blade 220 cm
264.00(222.76 £)VAT excl.
Available

LN-220

spare skid shoe ln 200 250
Spare skid shoe LN-200-250
80.00(67.50 £)VAT excl.
Not available Notify me

LN-200/250

spare steel blade 220 cm
Spare steel blade 220 cm
264.00(222.76 £)VAT excl.
Available

LN-220
