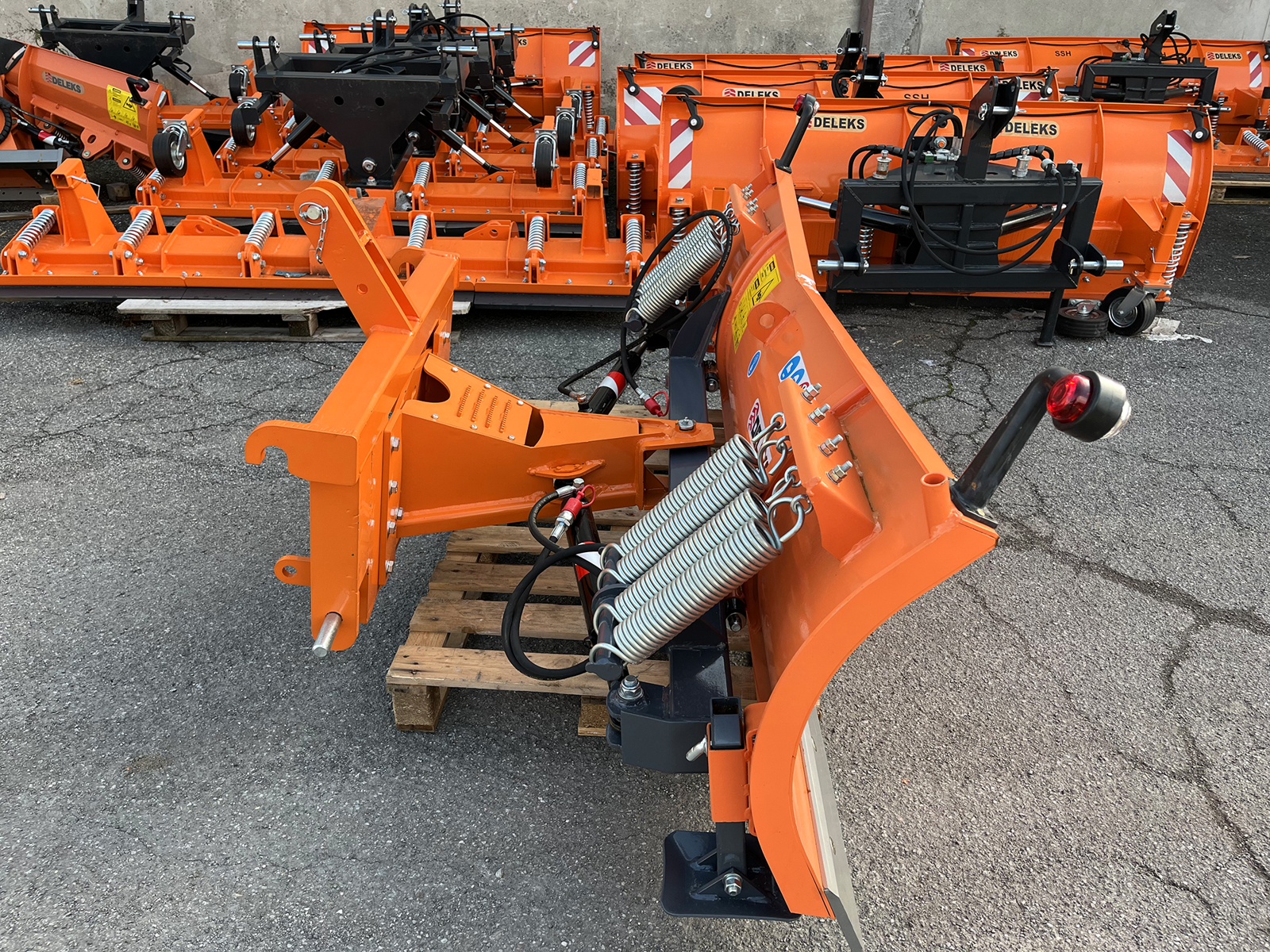

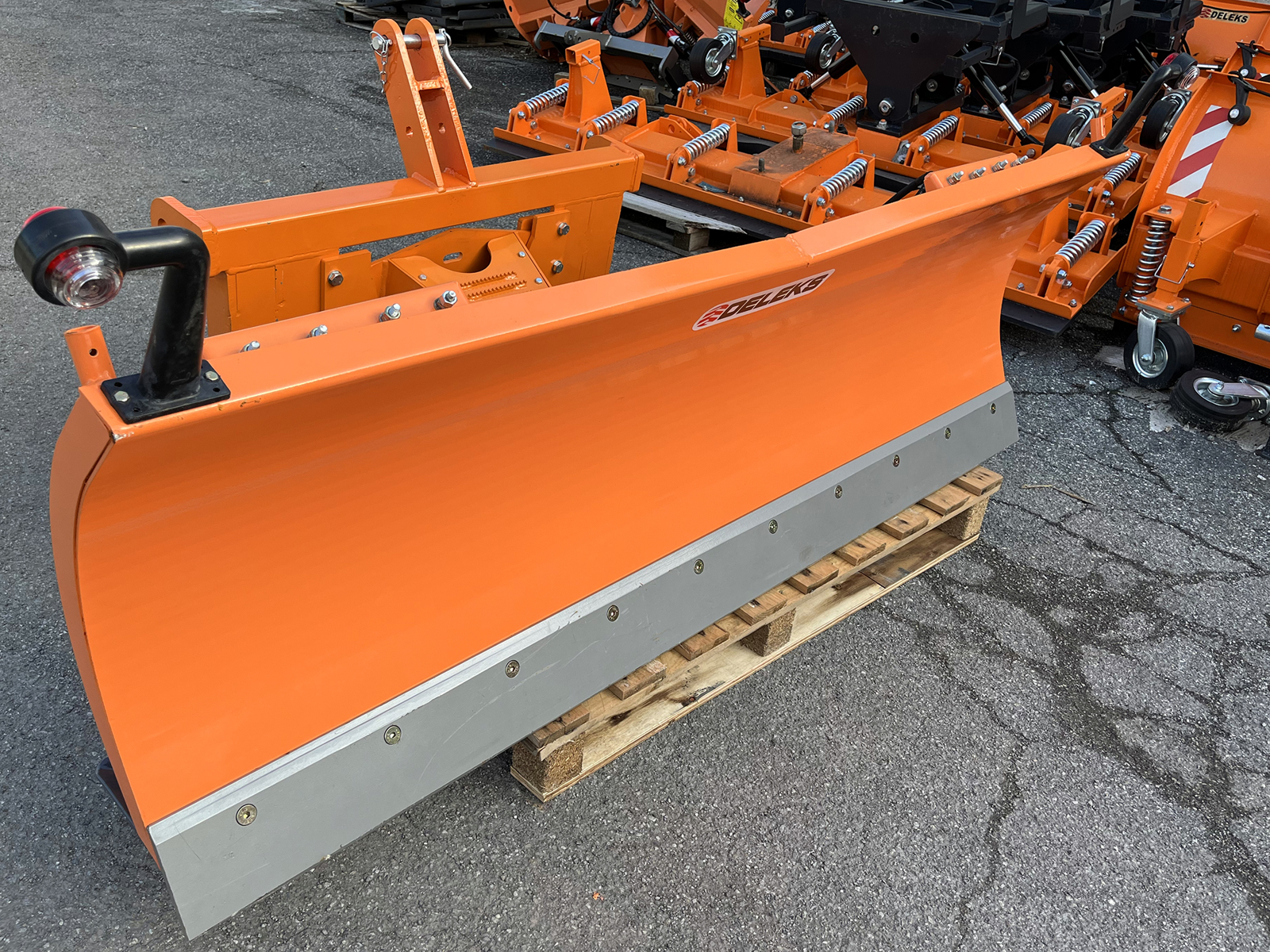

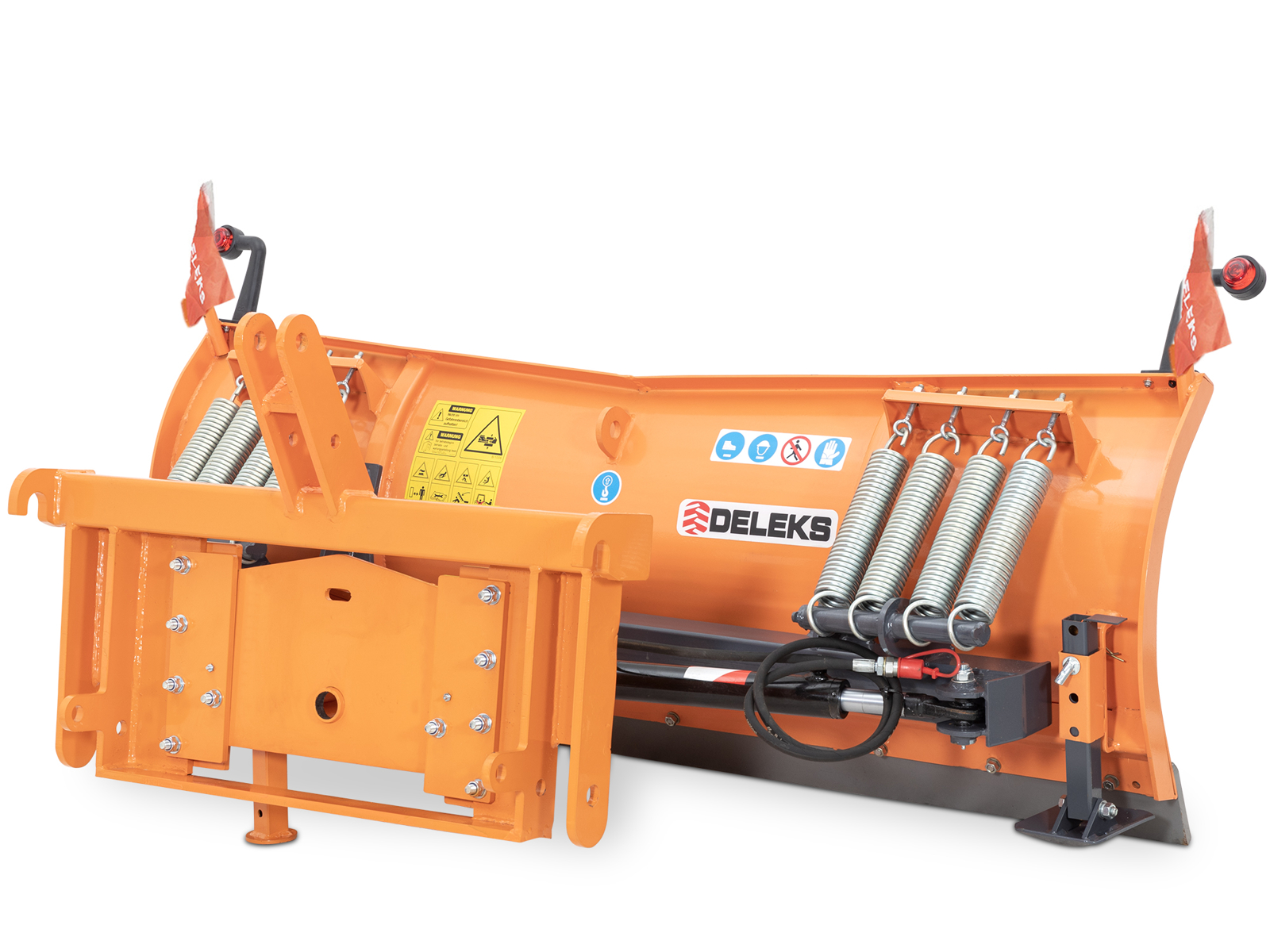

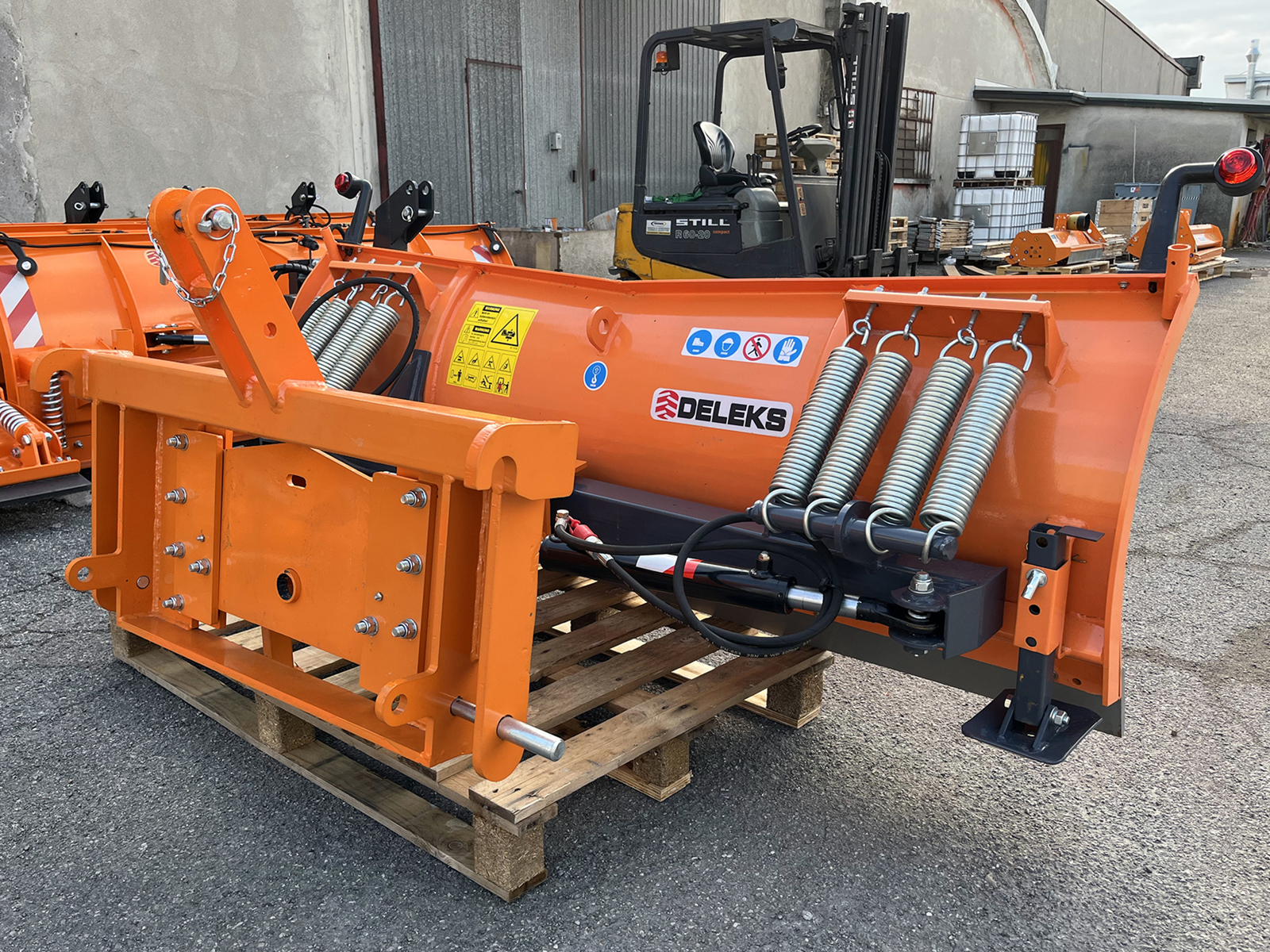

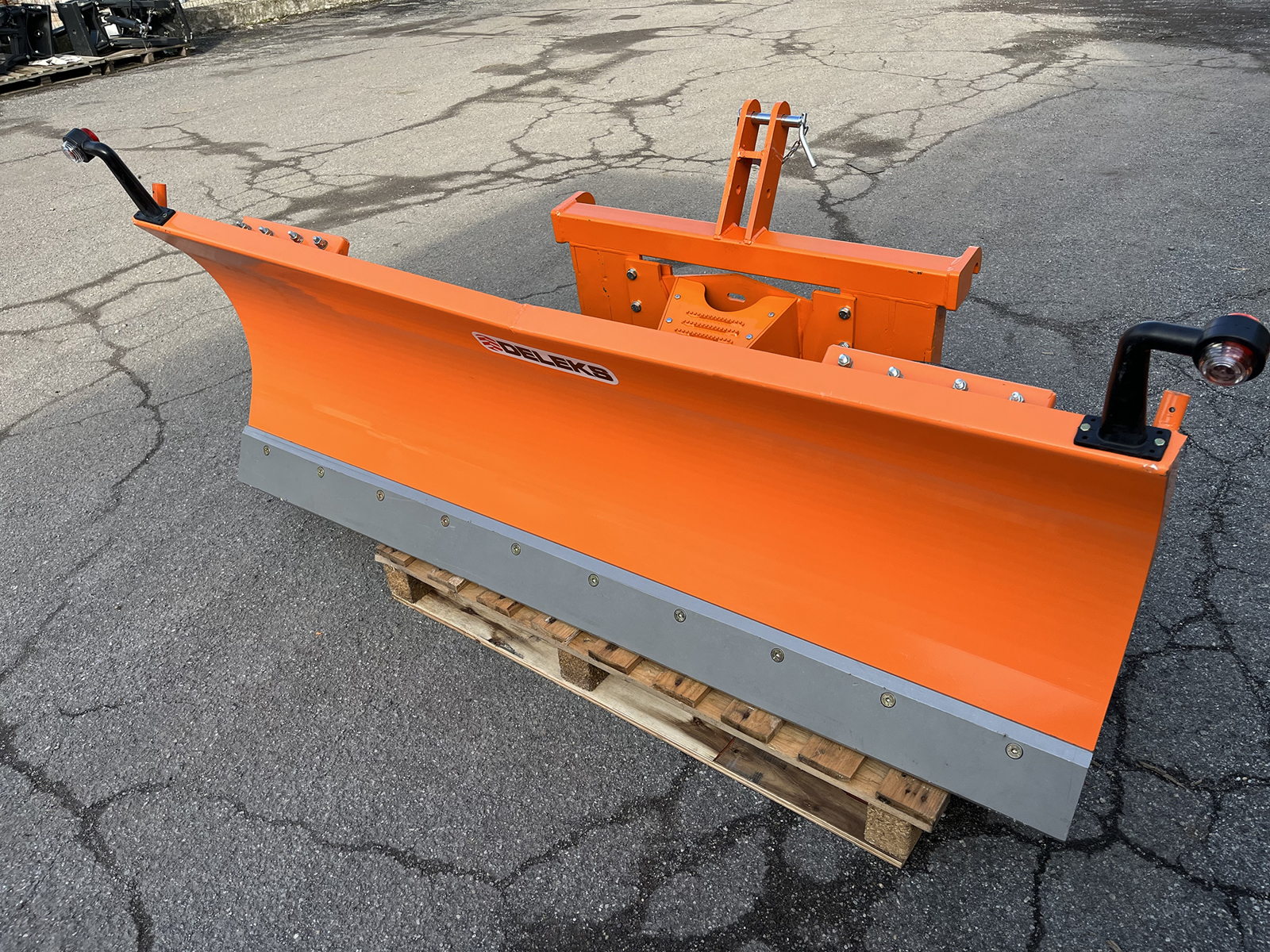

Three point linkage snowplow, 200cm - DELEKS® - for frontal use or reversible tractors - Homologated for road use.
LN-200-C Snowplow has been designed with a Cat. 1-2, 3-point hitch for tractors from 40 to 80hp e.g. Lamborghini, Ford, Massey Ferguson, John Deere or reversible tractors like Antonio Carraro, Pasquali, Valpadana etc. Angling of the plow is done hydraulically by pipes from 1.5 m (on request we supply 2 hydraulic pipes for an additional 4,0m, with Easy-on coupling system). Supplied with skid shoes and marker lights. Conforms to the EC Machinery Directive. 2 years warranty.
BENEFITS AND FEATURES

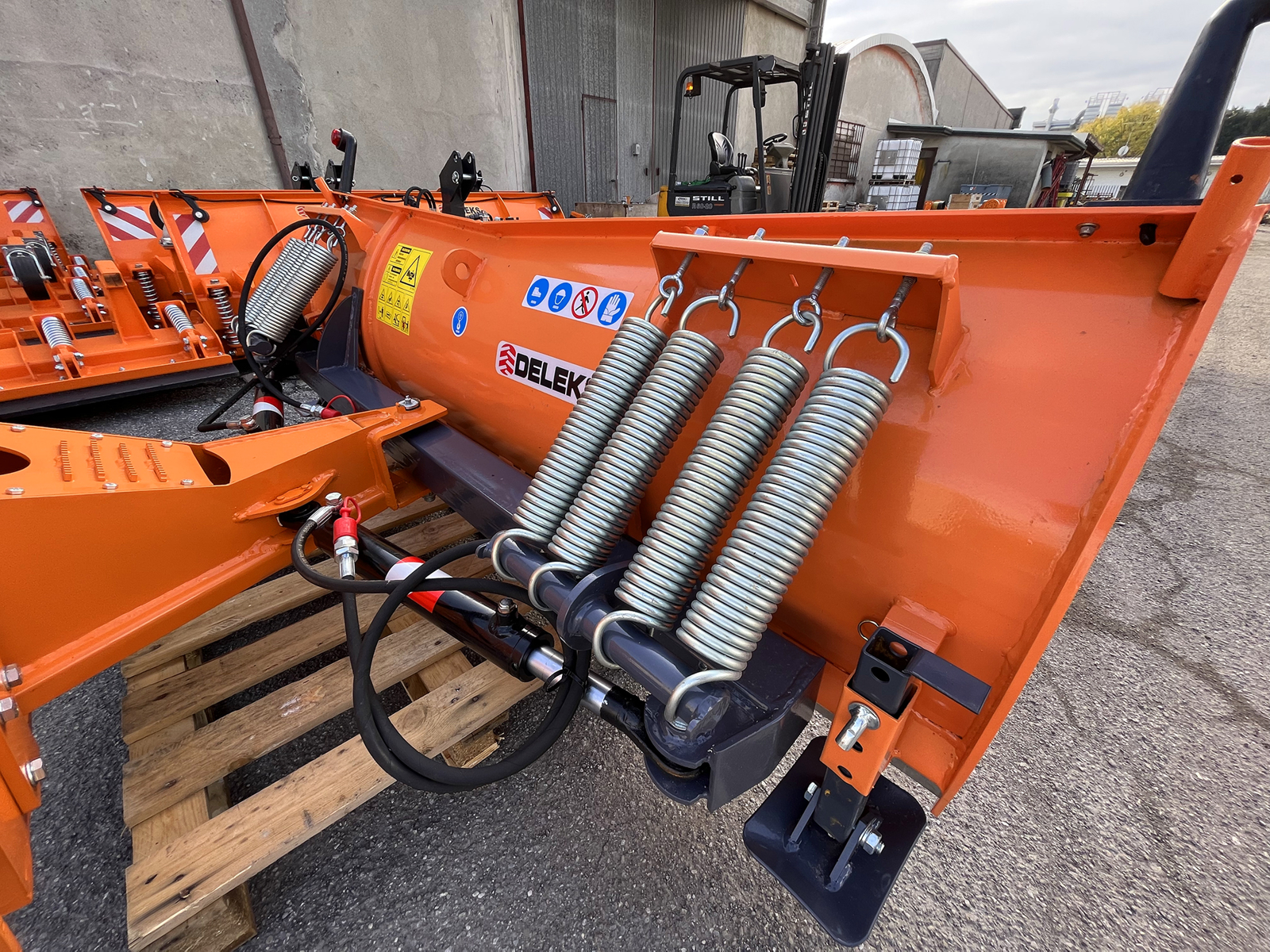

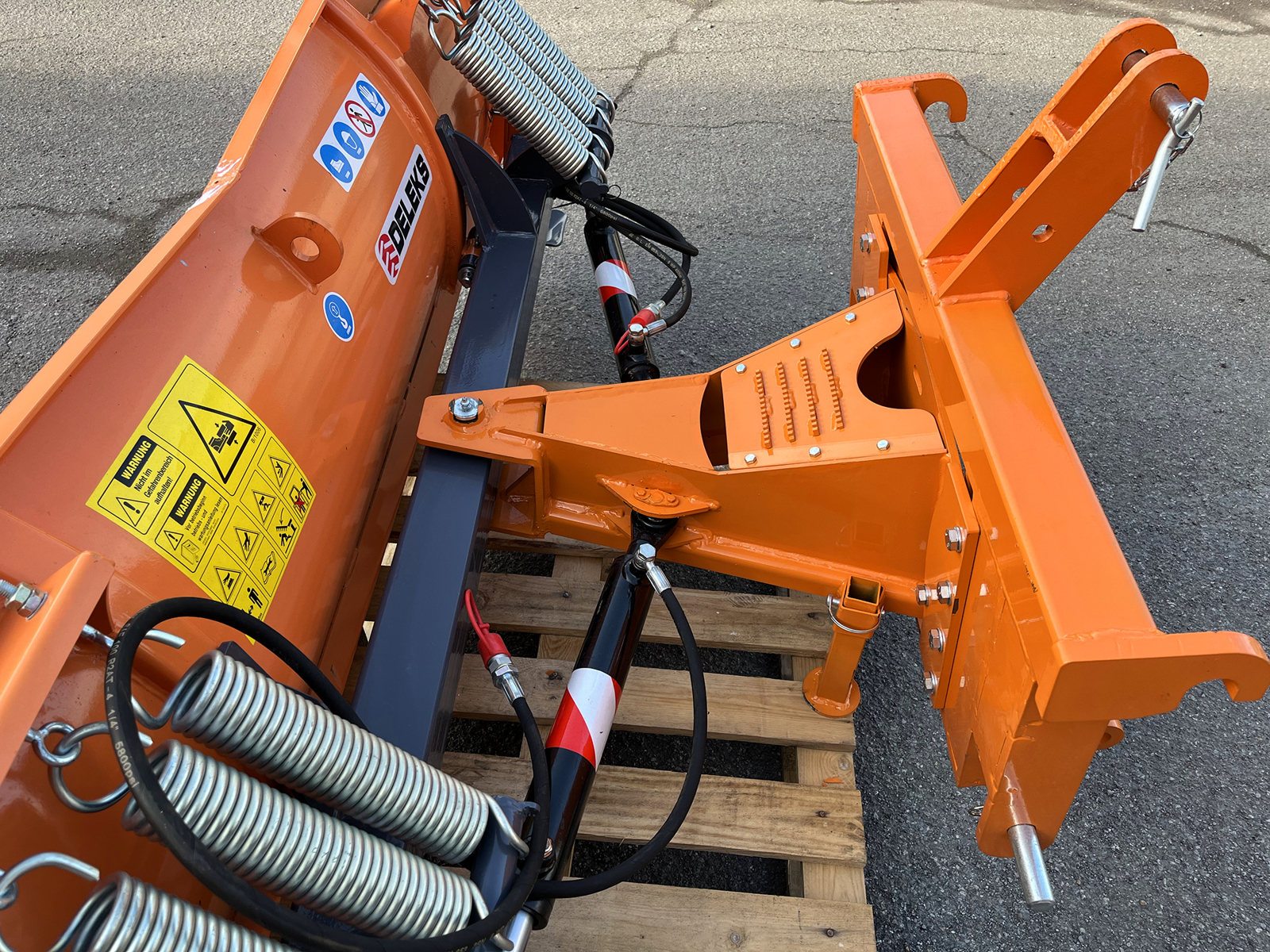

Shockproof system with 8 shock absorbing springs to operate in maximum safety.

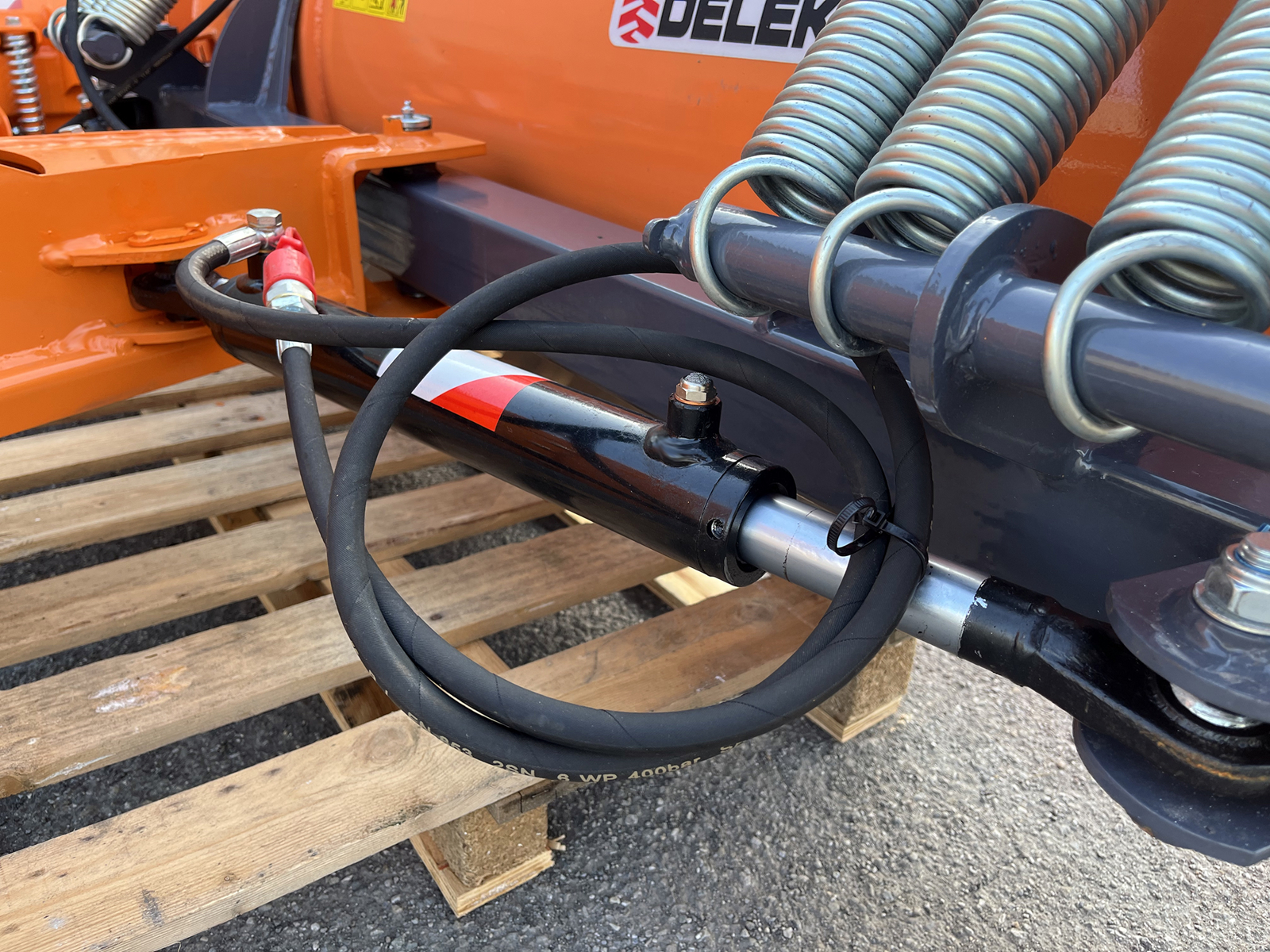

Hydraulic system consists of two pistons Made in Italy for the left/right orientation.
Perfect adherence to the road surface and homologated for road use.
Extreme easy to assemble and operate.

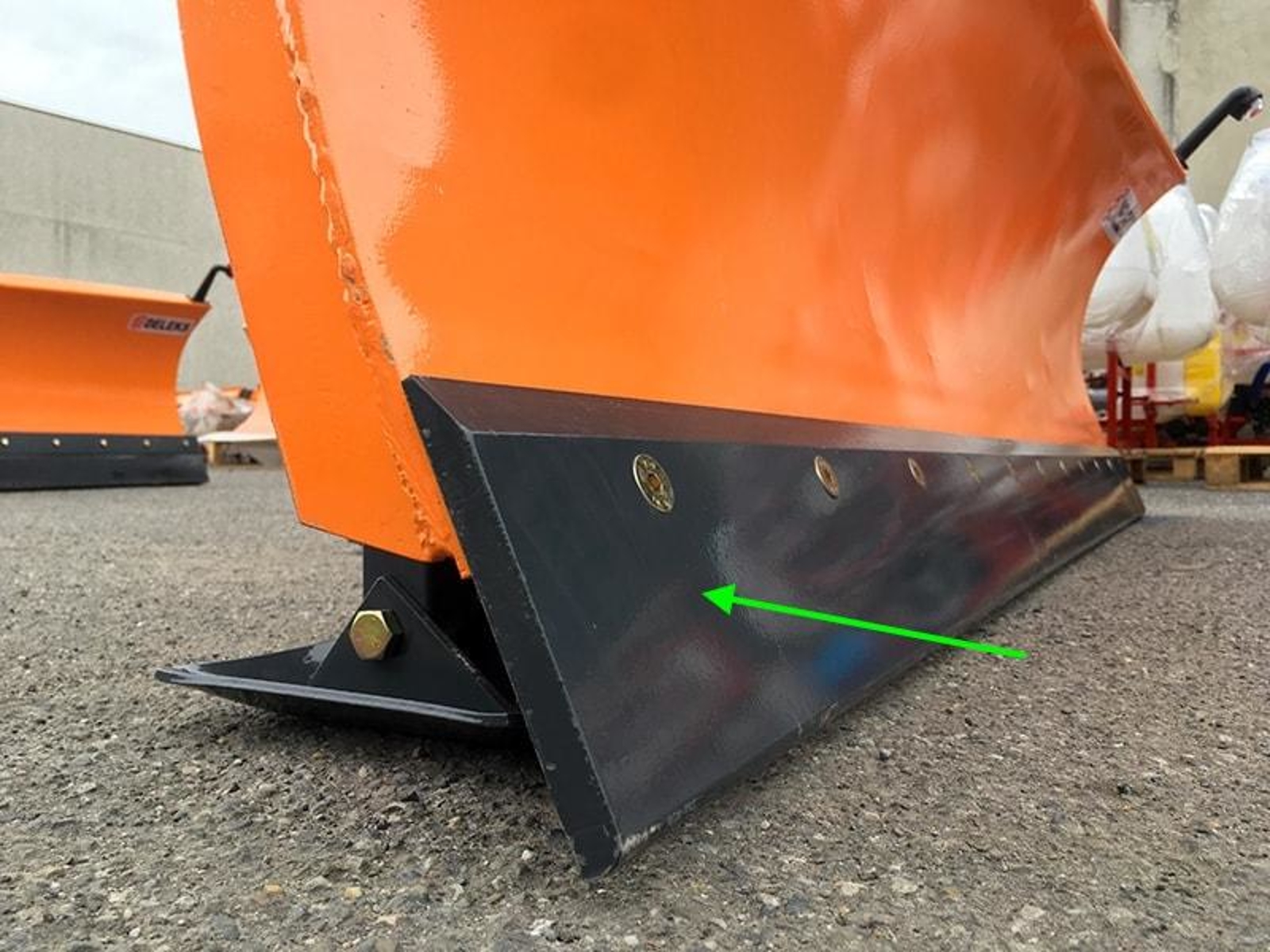

Adjustable torque slides, make work easier, reducing the pressure on the cutting edge, especially on rough surfaces such as gravel parking lots.

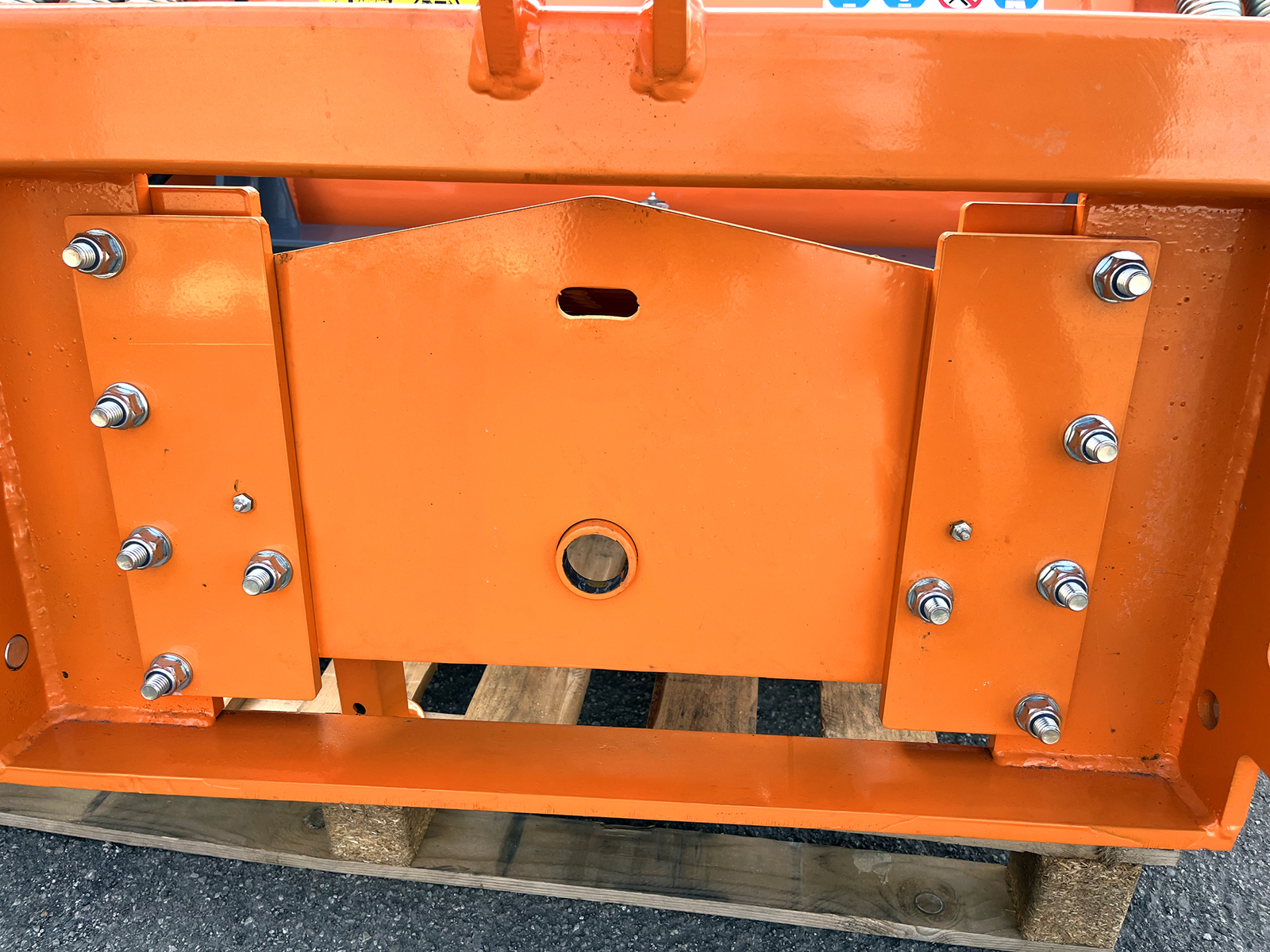

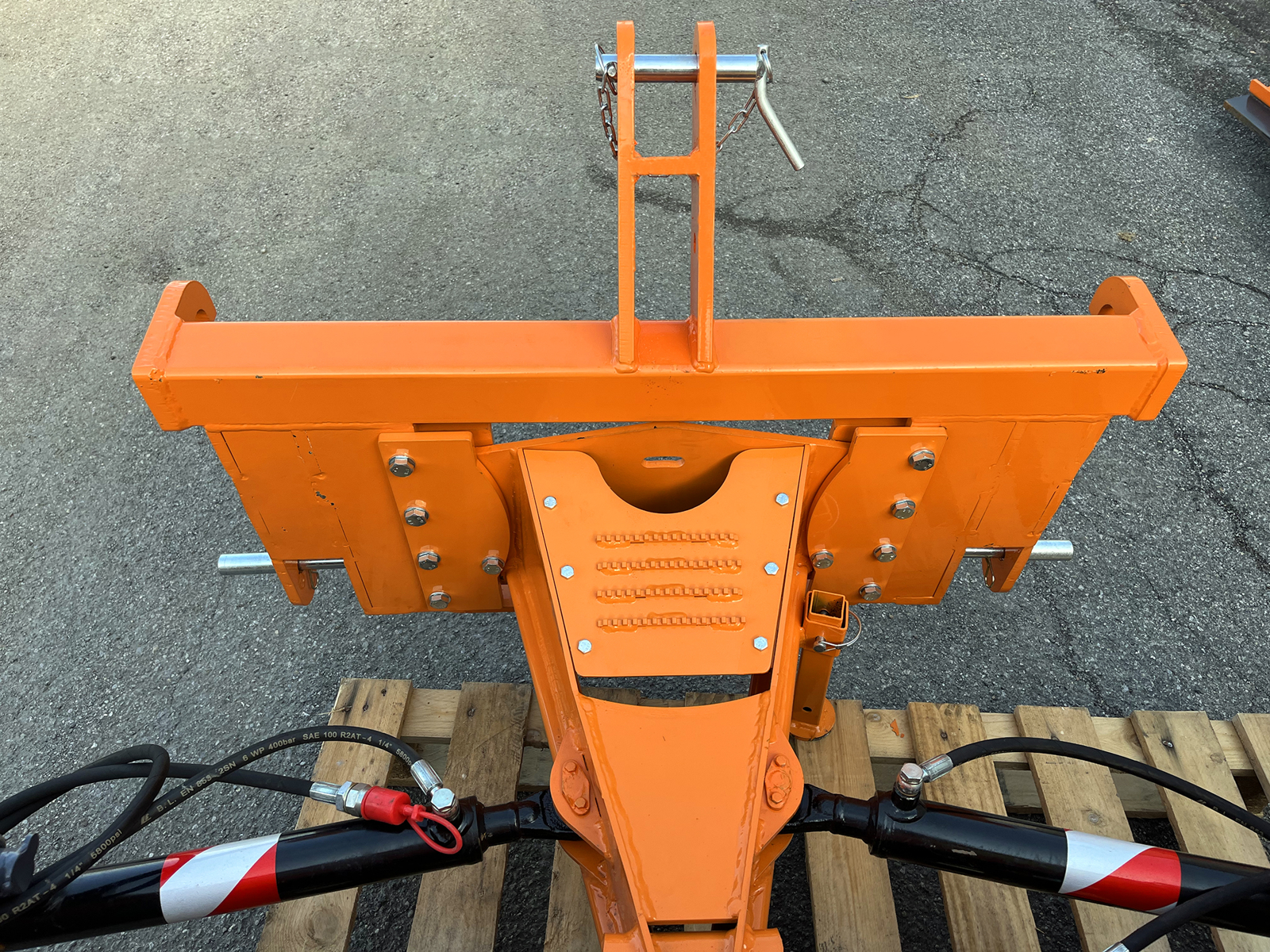

The 3-point hitch is removable and replaceable with fitting plate, EURO linkage, or Skid steer loaders.
Documentation supplied with this article:
Invoice or Receipt
|Characteristic||Units metric||Units US|
|Weight||285.0 kg||628.0 lb|
|Overall height||700.0 mm||2.30 ft|
|Tractor Power Range||40 - 80 Hp||40 - 80 Hp|
|Overall Length||950.0 mm||3.11 ft|

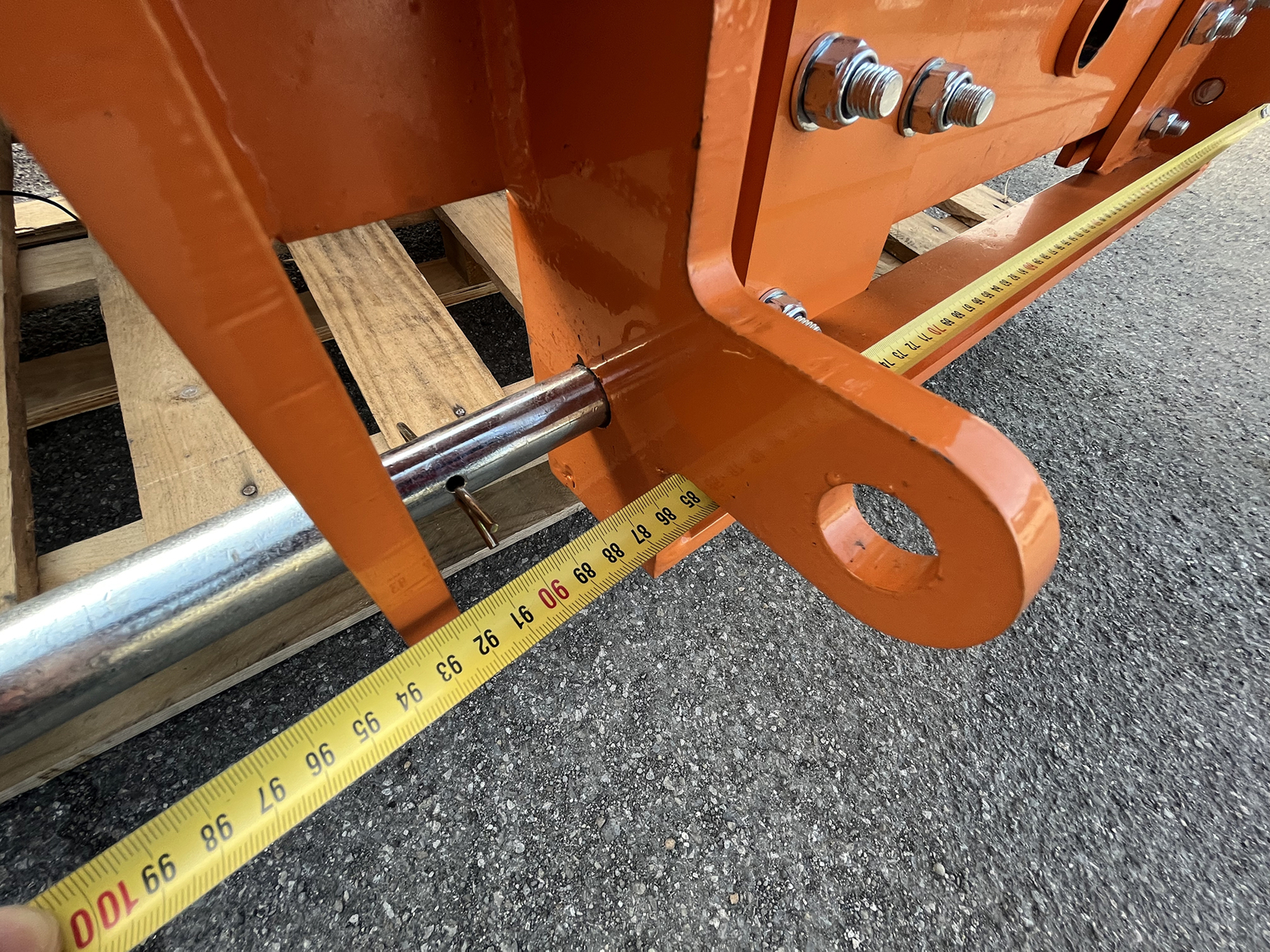

|Spacing between the 2 lower points||660.0 - 900.0 mm||26.0 - 35.43 in|
|Distance between the 2 lower points and ground||250.0 mm||9.84 in|
|Min./Max. Relief Pressure||110 - 150 bar||110 - 150 bar|
|Min./Max. Flow||18 - 22 l/min||18 - 22 l/min|

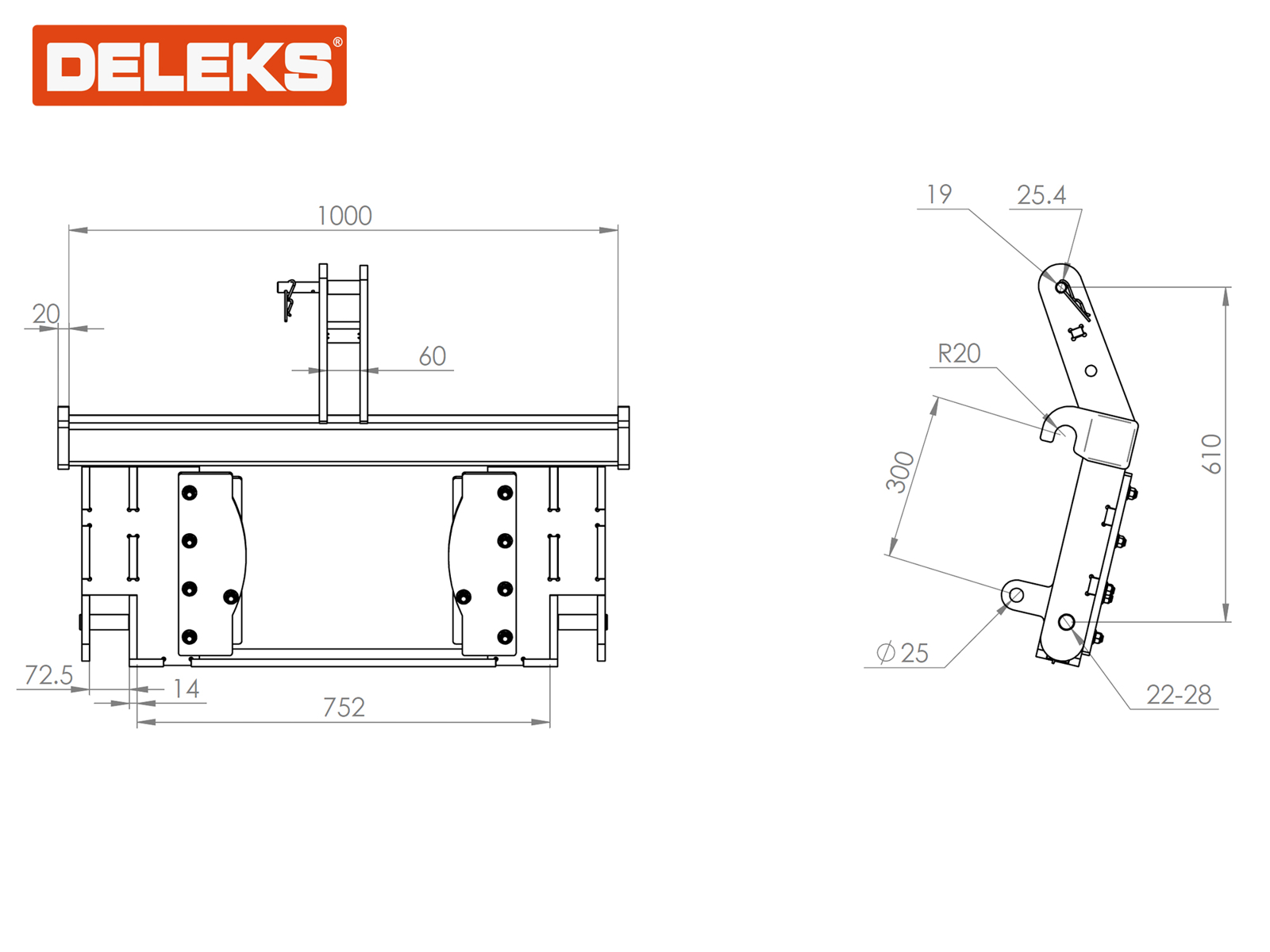

|Interface||3 point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm)||3 point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm)|
|Float||+/- 6°||+/- 6°|
|Blade Height||700.0 mm||2.30 ft|
|Side edge thickness||8.0 mm||0.32 in|

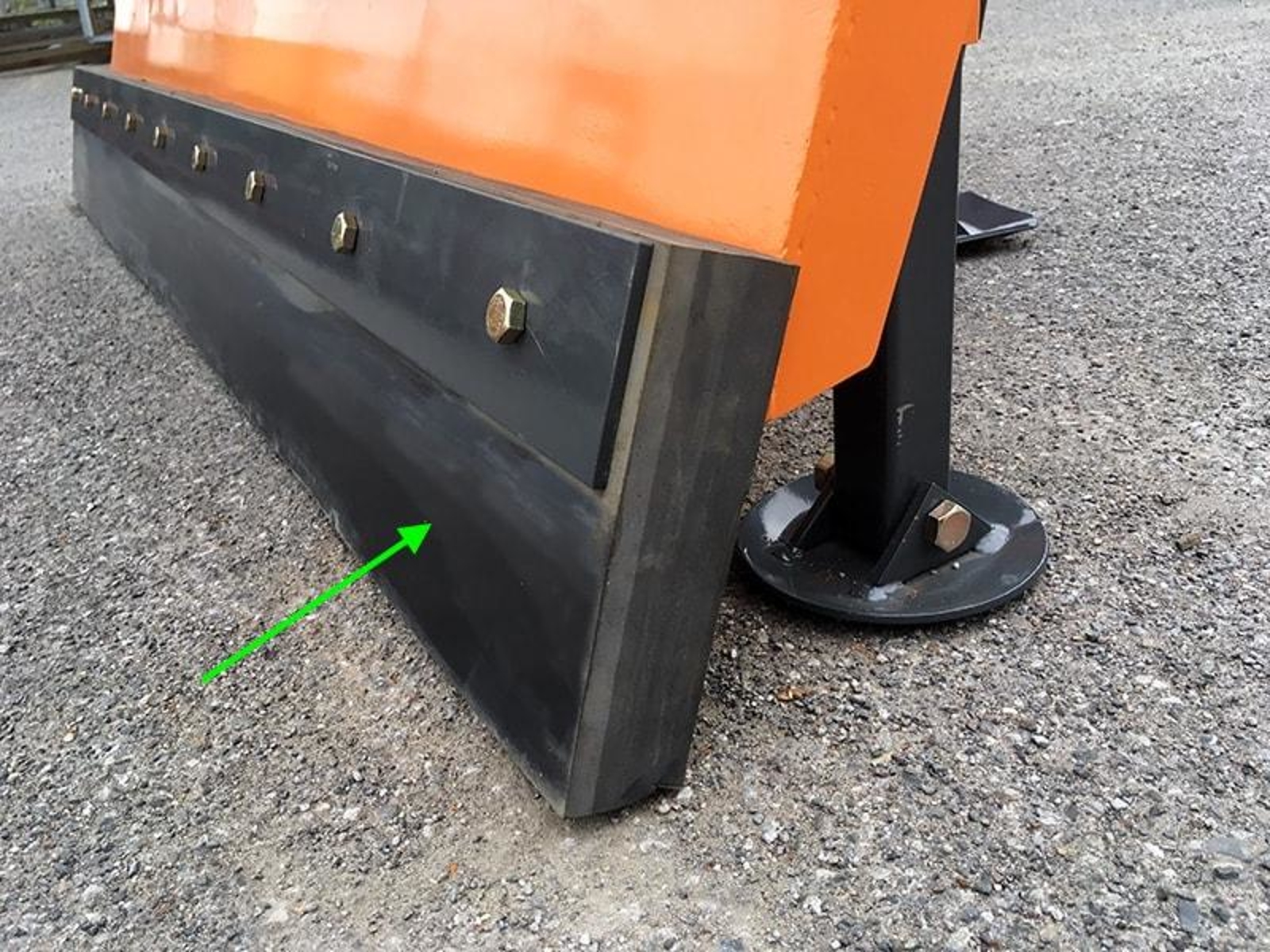

|Cutting Edge||Steel or Rubber||Steel or Rubber|
|Cutting Edge Height||150.0 mm||5.90 in|
|Cutting Edge Thickness||16.0 mm||0.63 in|
|Trip Edge Quantity||1||1|
|Distance betweens the bolts of the Trip Edge||200.0 mm||7.87 in|
|Removable Skid Shoes||√||√|
|Working width (angled)||1793.0 mm||5.88 ft|
|Hydraulic Hoses||2 x 1500.0 mm / connections 1.2" AGRI, WP 400 bar||2 x 4.92 ft/ connections 1.2", WP 400 bar|
|Overall width||2013.0 mm||6.60 ft|
|Main frame thickness||5.0 mm||0.2 in|
|Hydraulic cylinder/s ø||60.0/30.0 mm||2.36/1.18 in|
|Packing sizes||2013.0*800.0*830.0 mm||6.60*2.62*2.95 ft|
