Snowplough for telehandlers Manitou, SSH-04-3.0-MANITOU

Trustpilot
4.5

192 reviews

Not available Notify me
Code SSH0430MA
EAN 8053470231773
View all details.
TOTAL
4,600.00€(3,881.48 £)VAT excl.
Free shipping
REQUEST MORE INFORMATION
> SNOWPLOUGHS > SNOW PLOWS FOR TELEHANDLERS OR WHEEL LOADERS > Snowplough for telehandlers Manitou, SSH-04-3.0-MANITOU

DETAILS

Snowplow, Snowblade DELEKS® for telehandlers MANITOU - 300cm / 510kg.



OVERVIEW

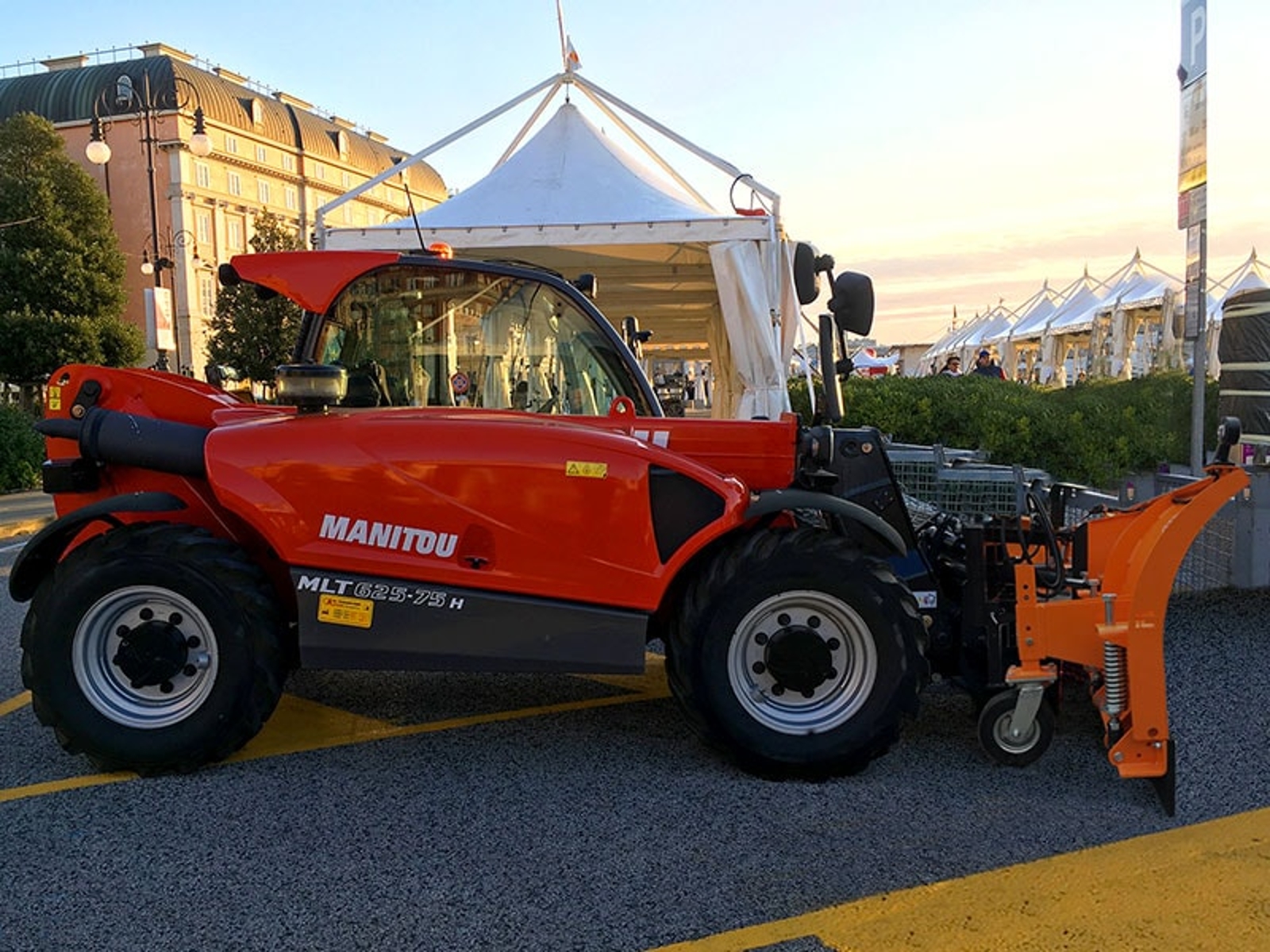

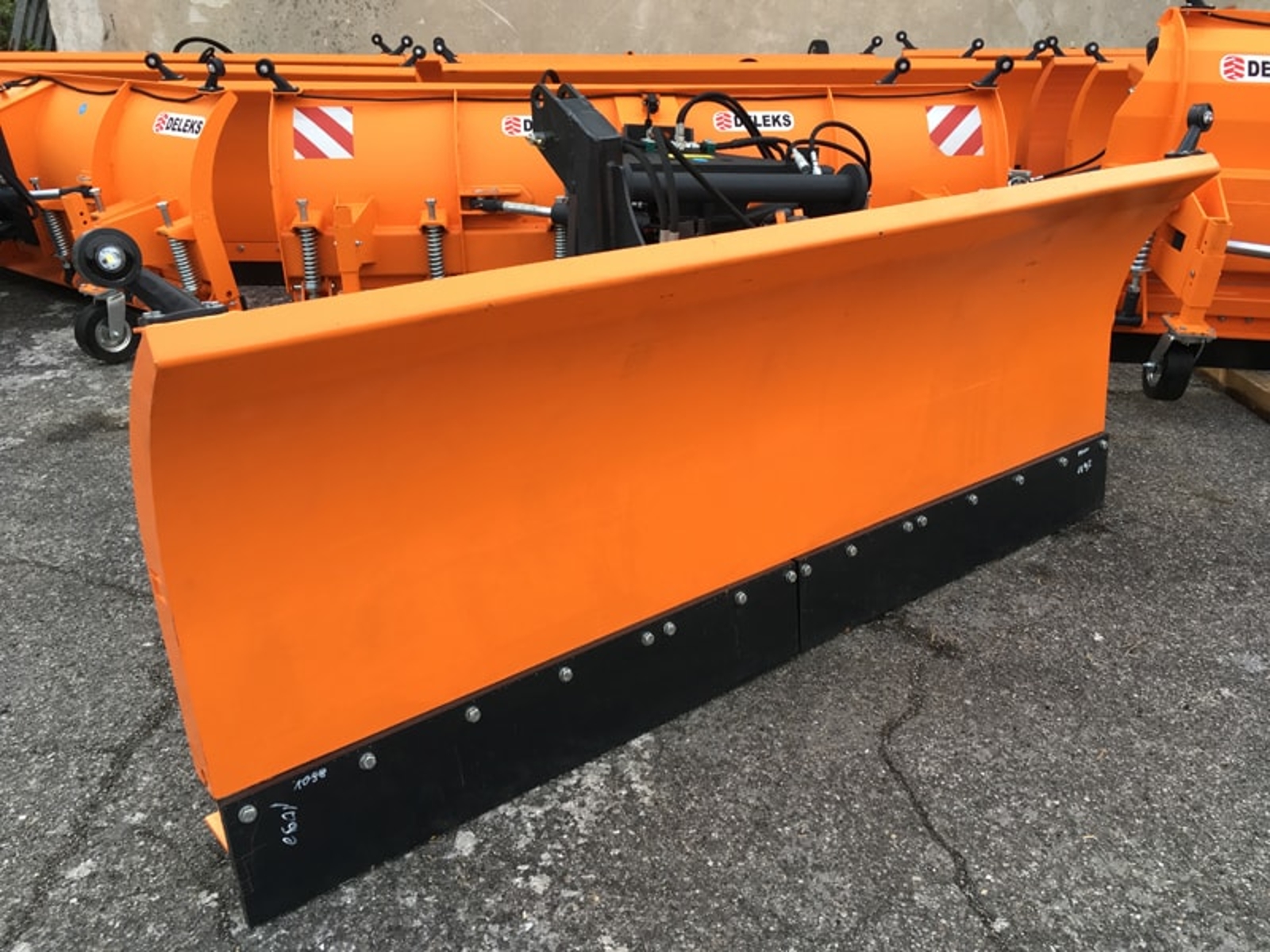

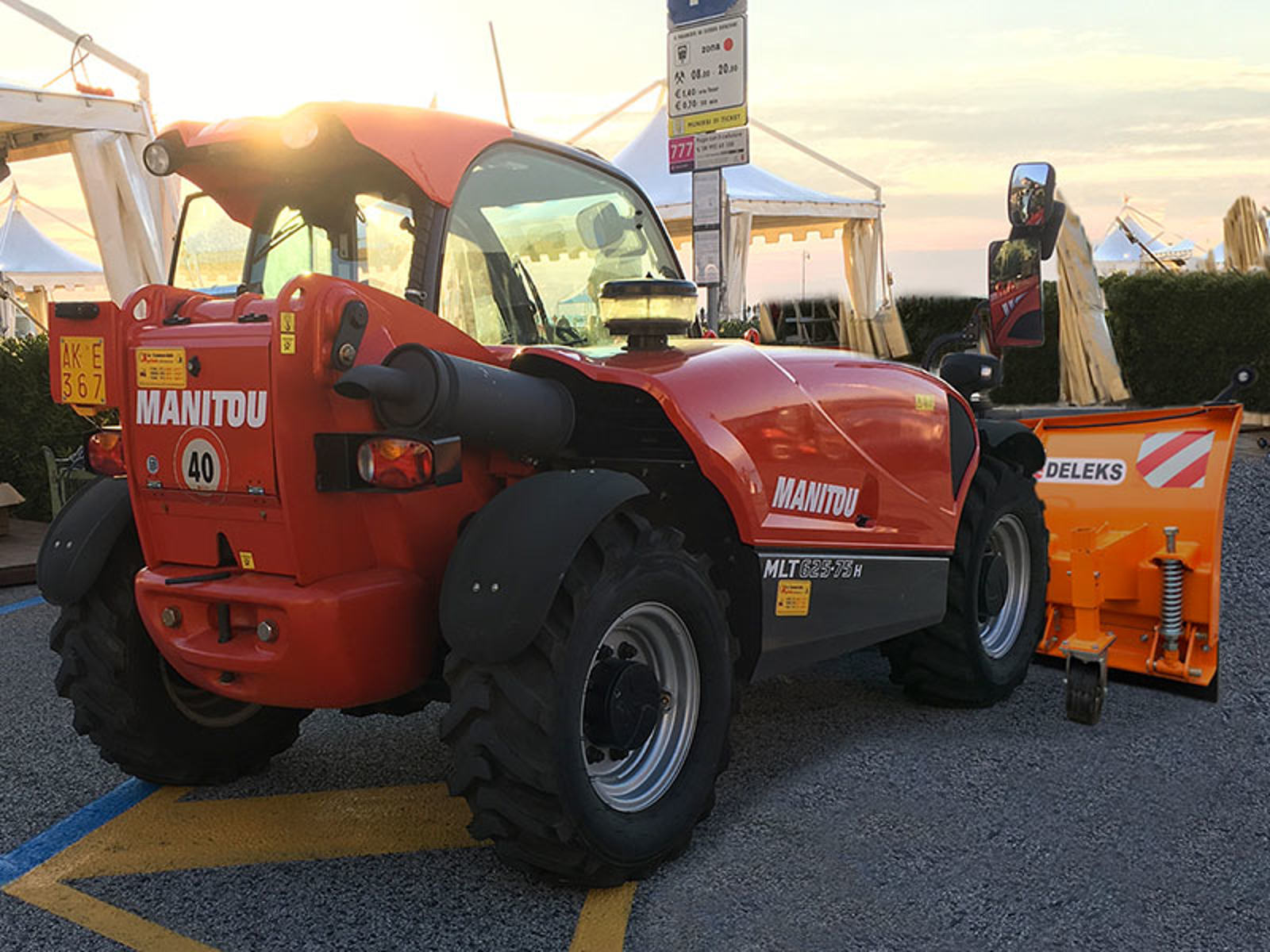

SSH-04 3.0-MANITOU Heavy-duty snowplow has been designed for Telehandler MANITOU.

Angling of the plow is done hydraulically using two hydraulic cylinders and two hydraulic pipes 1.6m in length. Conforms to the EC Machinery Directive. 2 years Warranty.



BENEFITS AND FEATURES

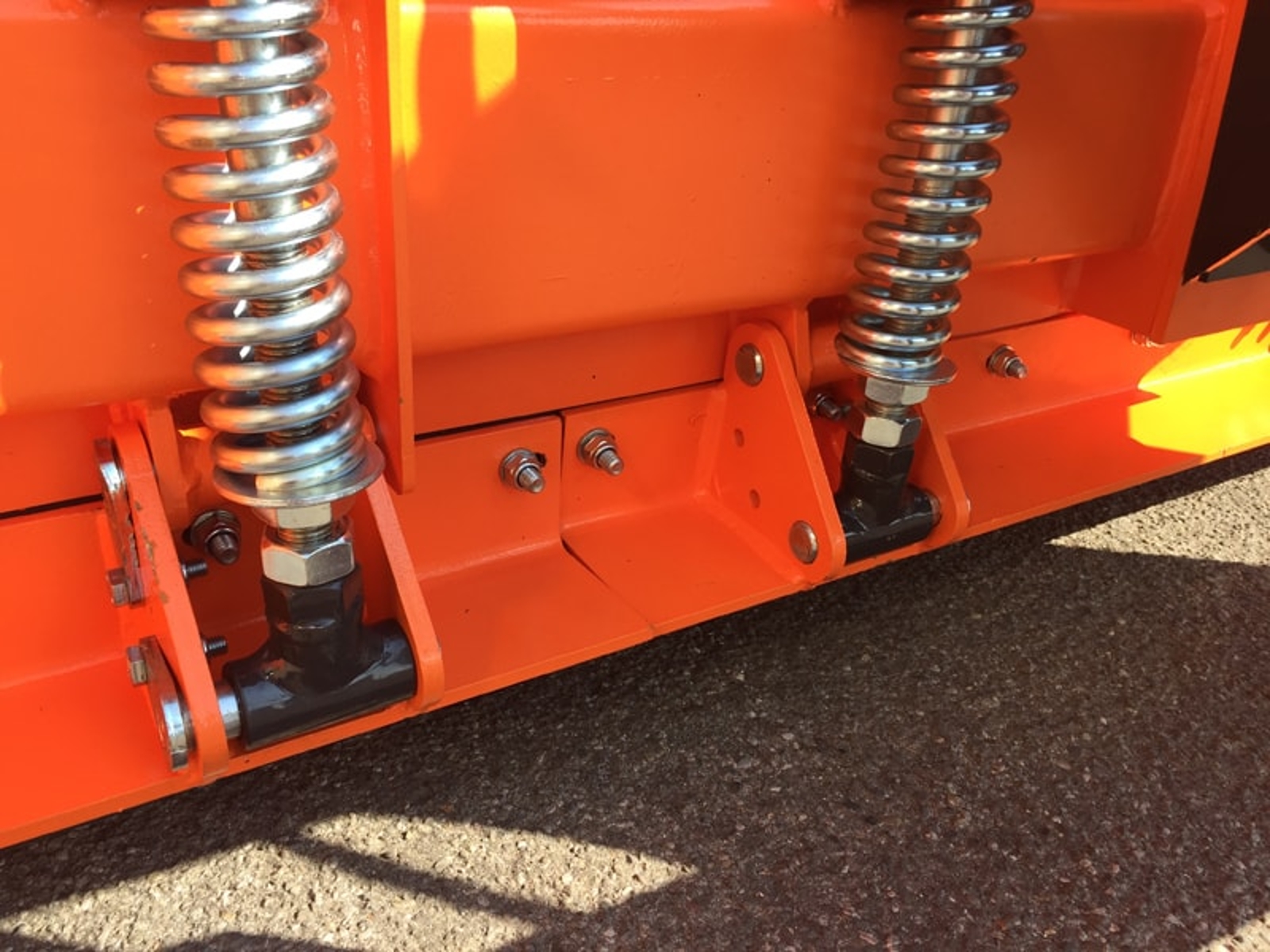

Shockproof system with 6 shock absorbing springs to operate in maximum safety.

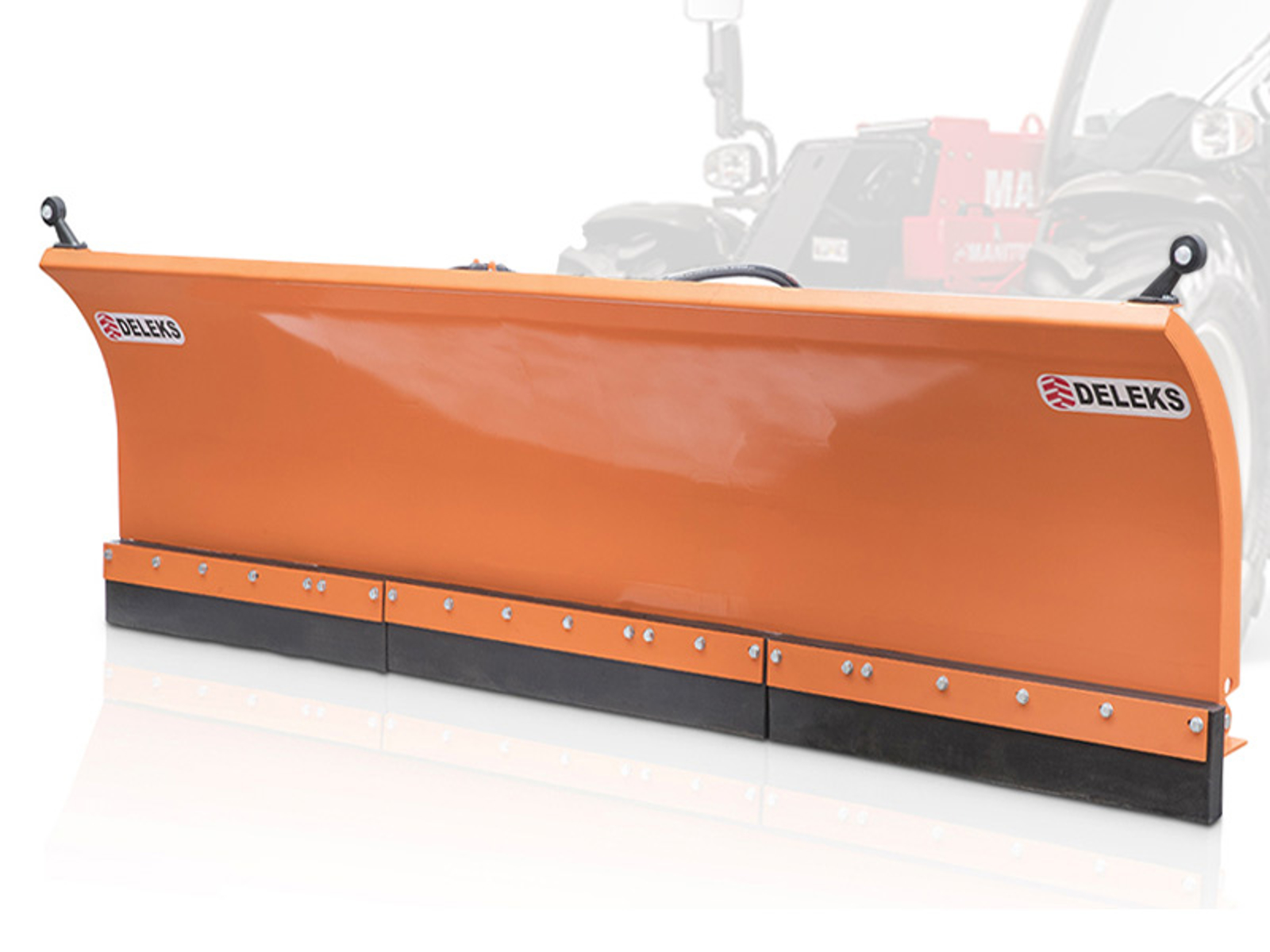

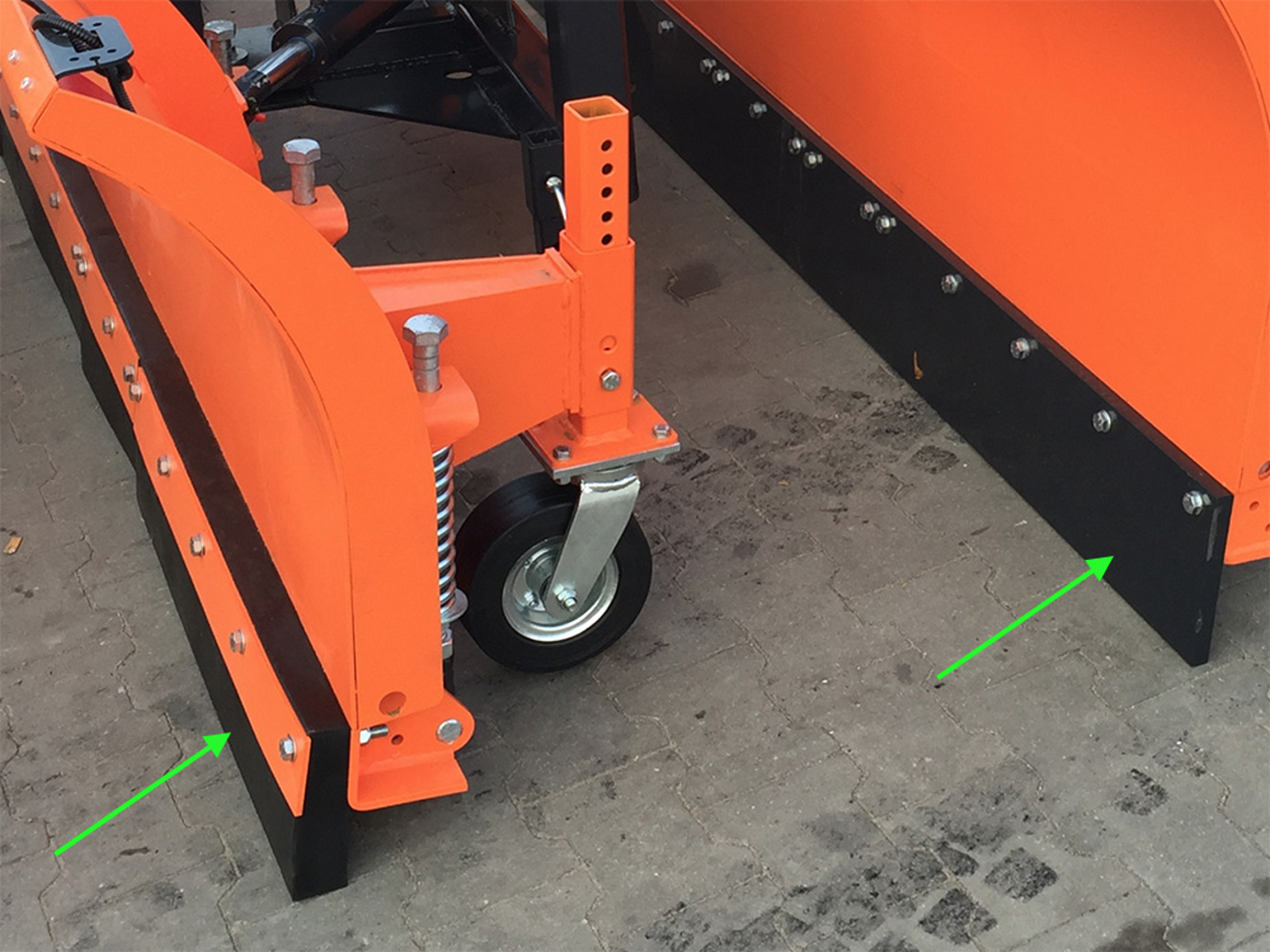

3 independent steel or rubber scraping elements.

Extreme ease of assembly and use.

Side wheels allow the blade height to be adjusted to maintain a constant plowing depth.

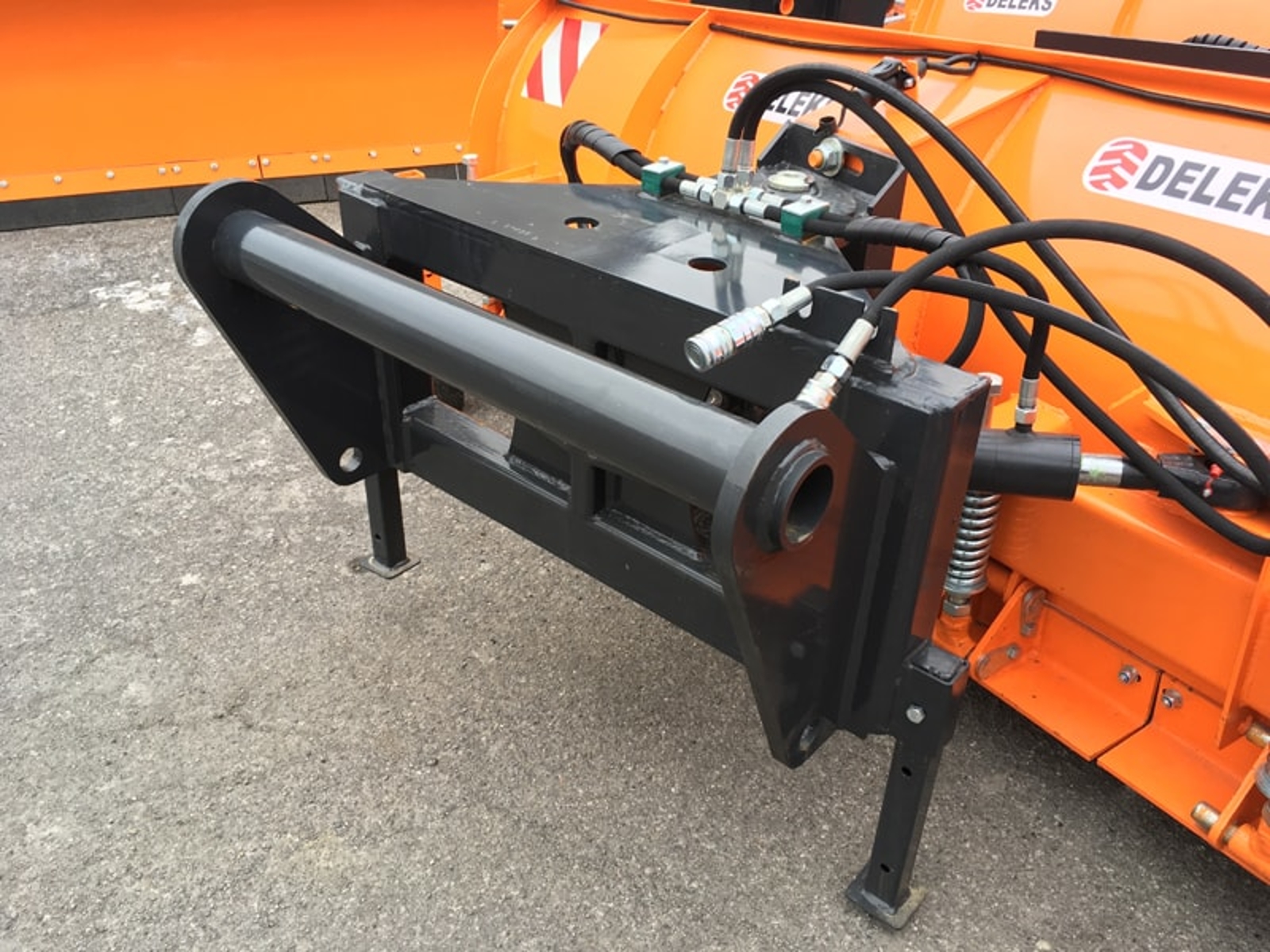

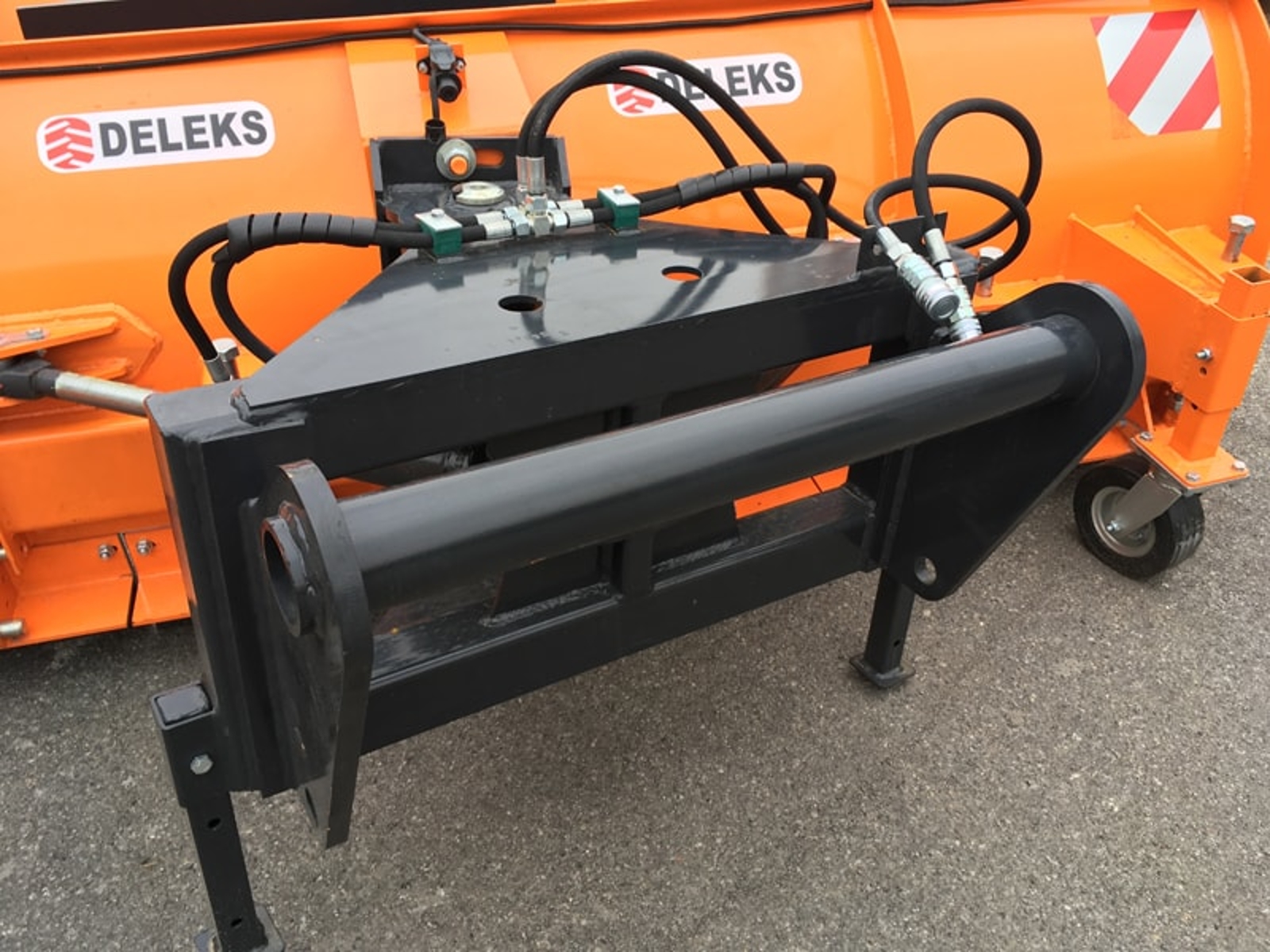

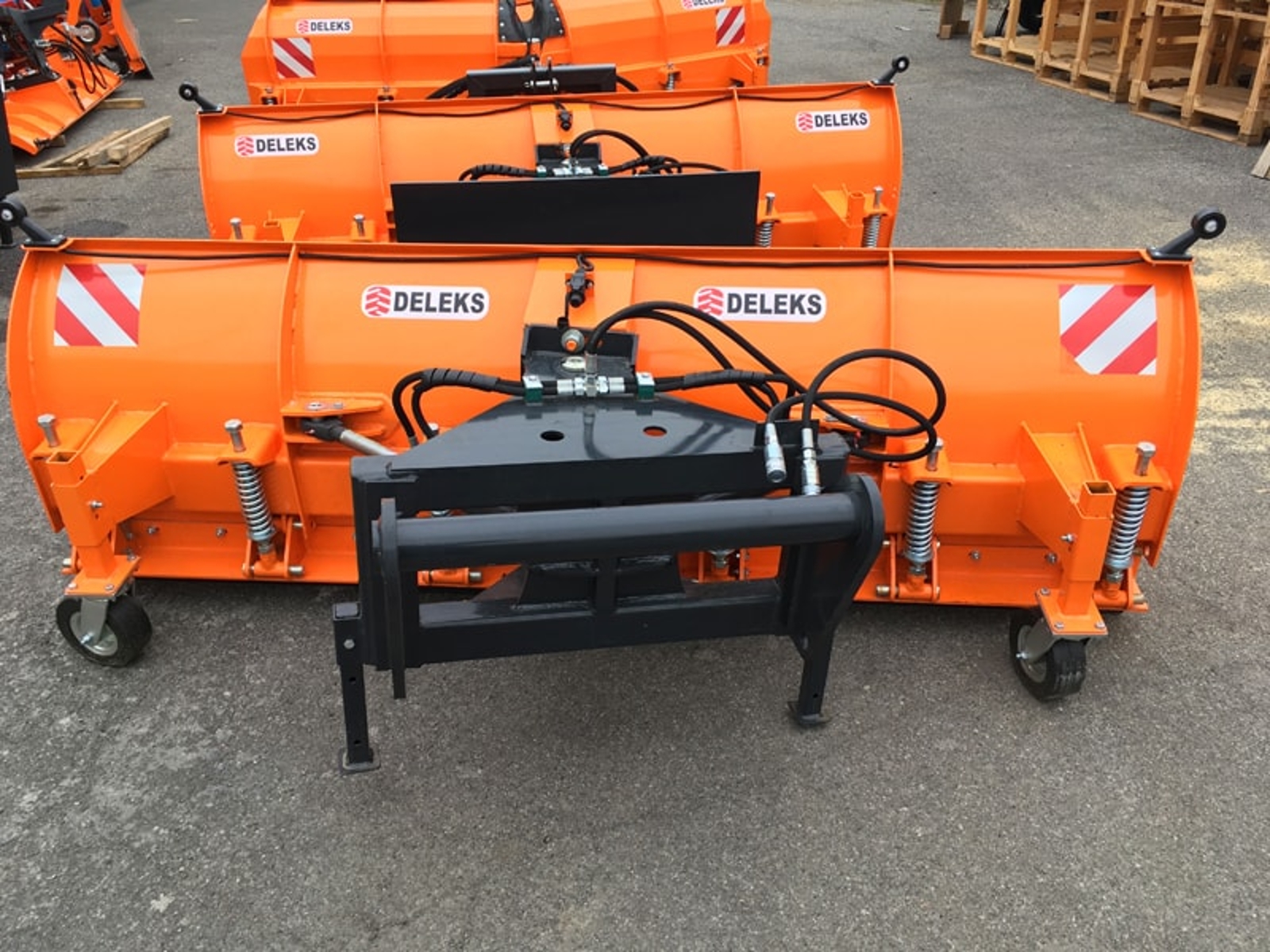

The MANITOU linkage is removable and replaceable with 3-point hitch, or other Telescopic loaders linkage e.g. MERLO, JCB, or Flat plate for after-sale customization.

Perfect adherence to the road surface and homologated for road use.



CHARACTERISTICS

Characteristic Units metric Units US
Weight 500.0 kg 1125.0 lb
Overall height 880.0 mm 2.90 ft
Overall Length 900.0 mm 2.95 ft

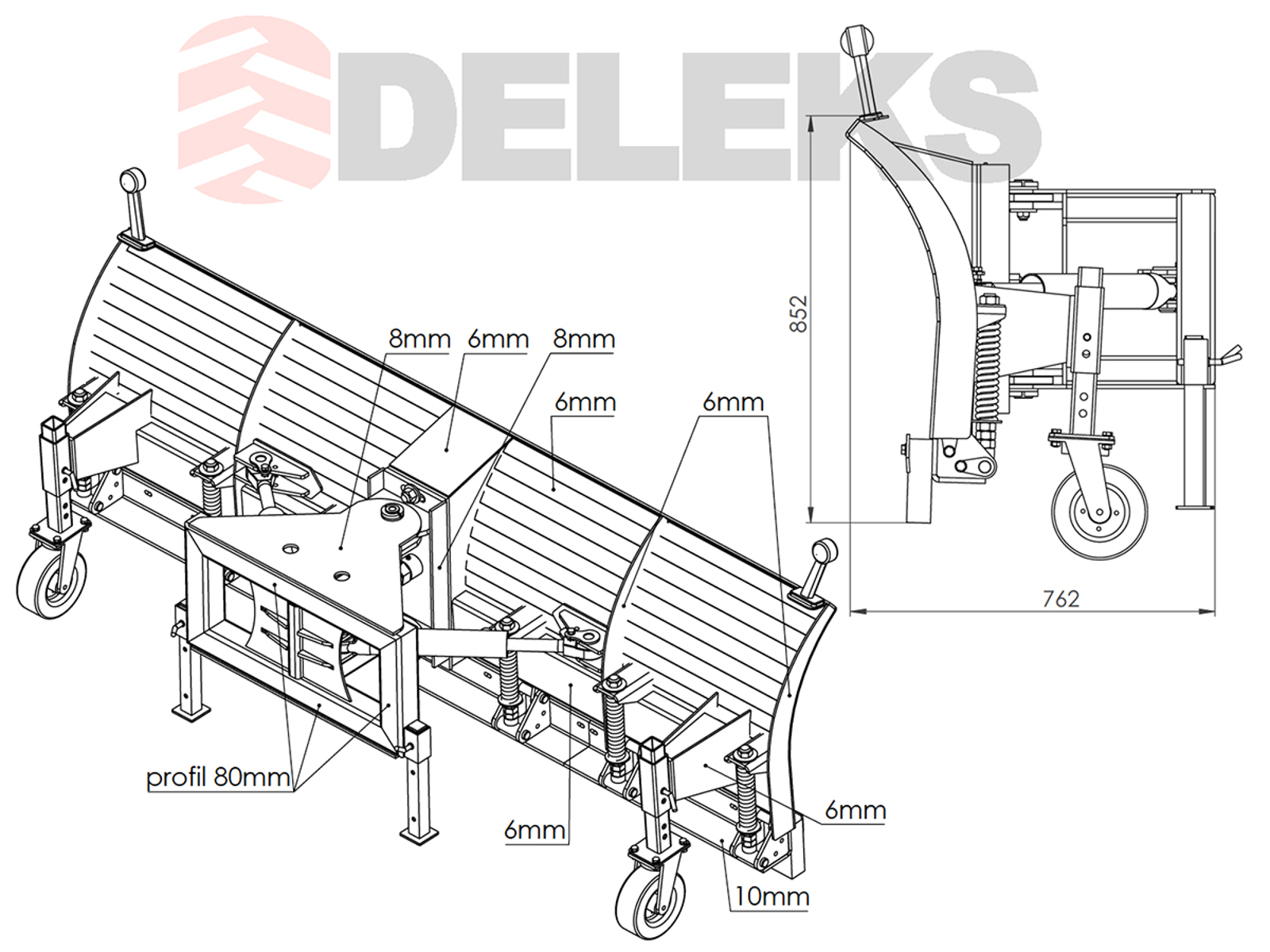

Attachment sizes See pictures See pictures
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface MANITOU MANITOU
Angling (left/right) 25° 25°
Float +/- 4° +/- 4°
Blade Height 880.0 mm 2.90 ft
Side edge thickness 7.0 mm 0.28 in
Shock absorbers 6 6
Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 200.0mm / 180.0mm 7.87 in / 7.08 in
Cutting Edge Thickness 20.0mm / 55.0mm 0.79 in / 2.16 in
Trip Edge Quantity 3 3
Distance betweens the bolts of the Trip Edge 175.0 mm 6.90 in

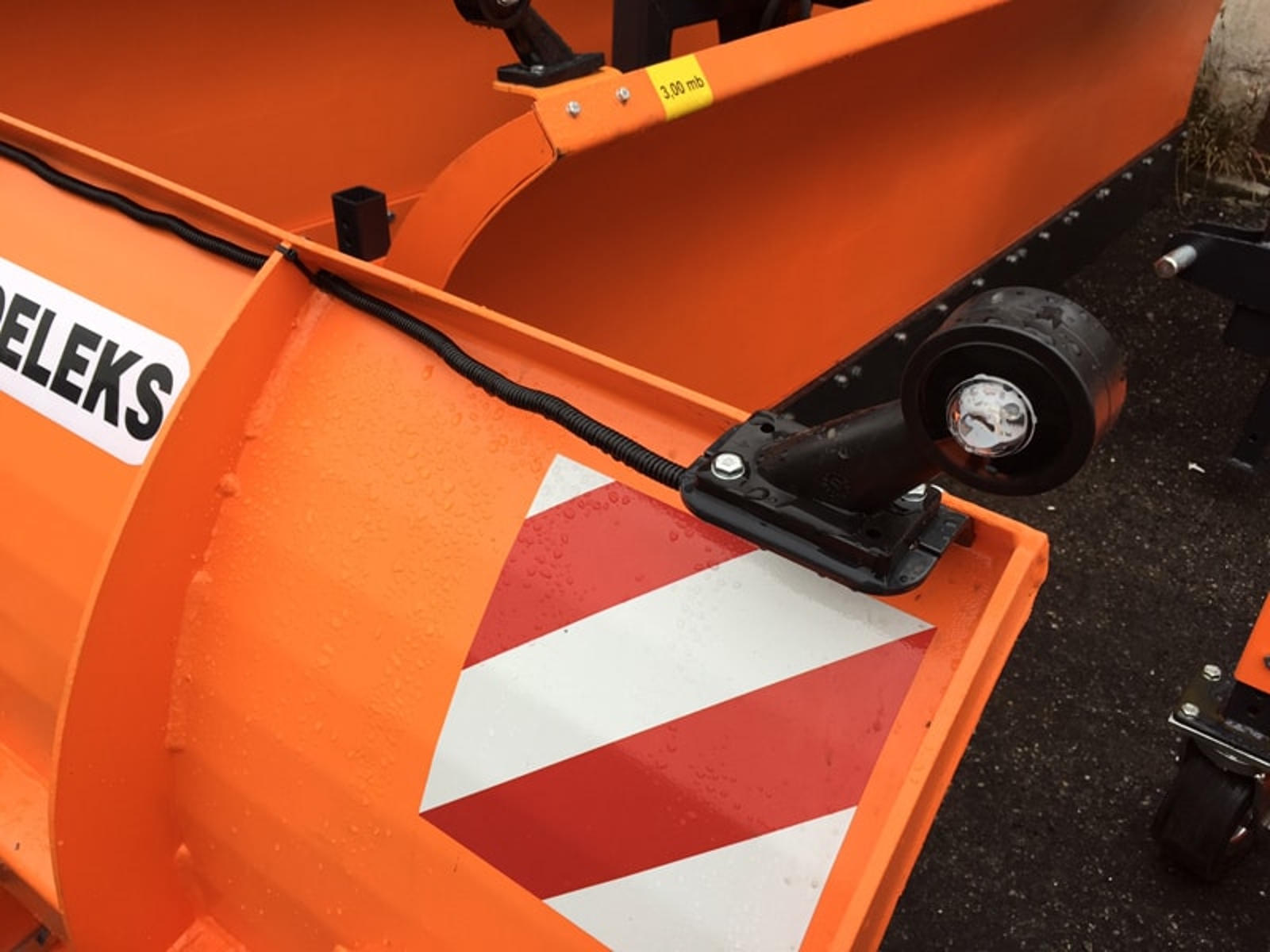

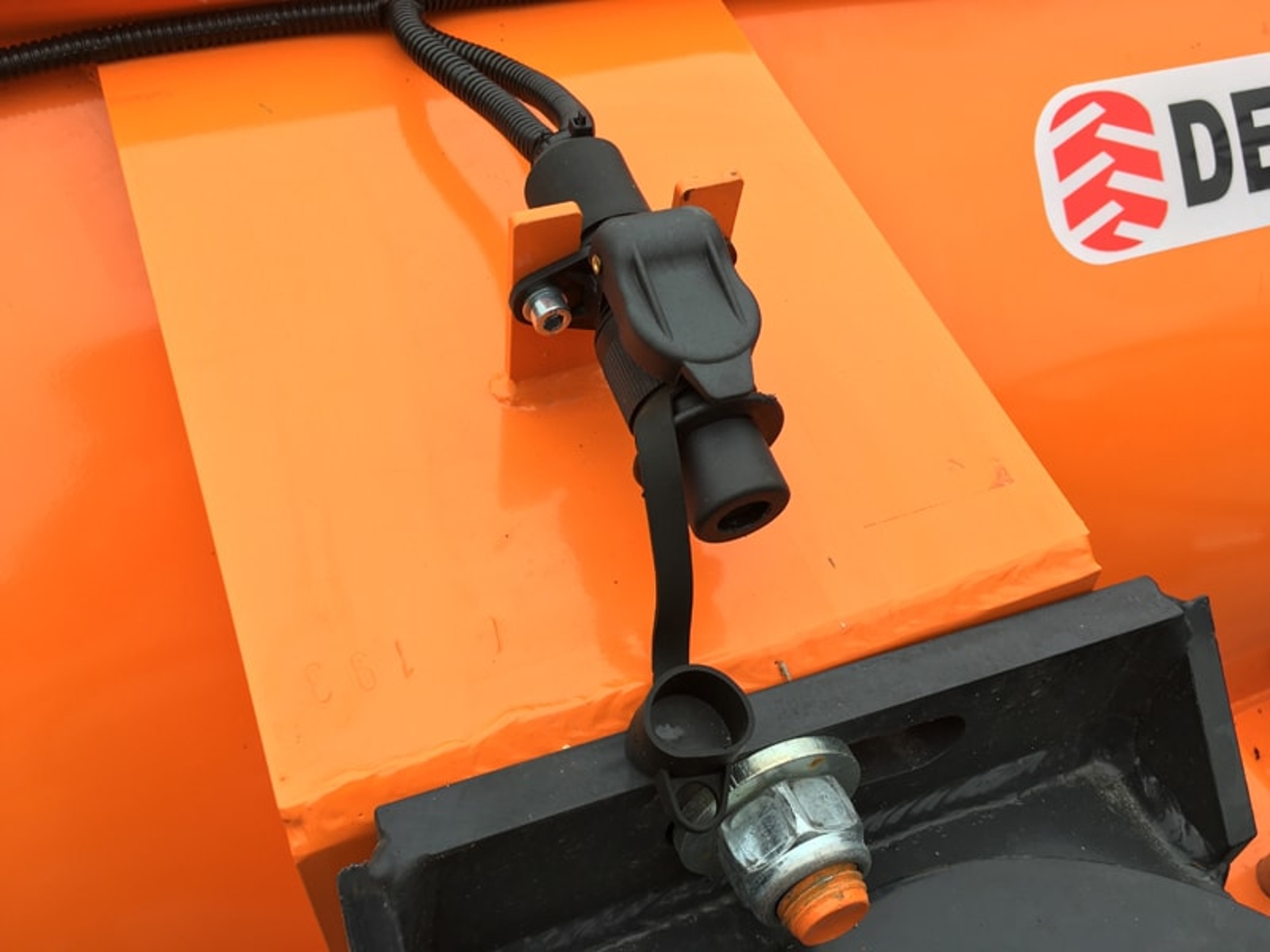

Lights √ √
Removable Skid Shoes Wheels Wheels
Working width (angled) 2600.0 mm 8.53 ft
Suitable on MANITOU MANITOU

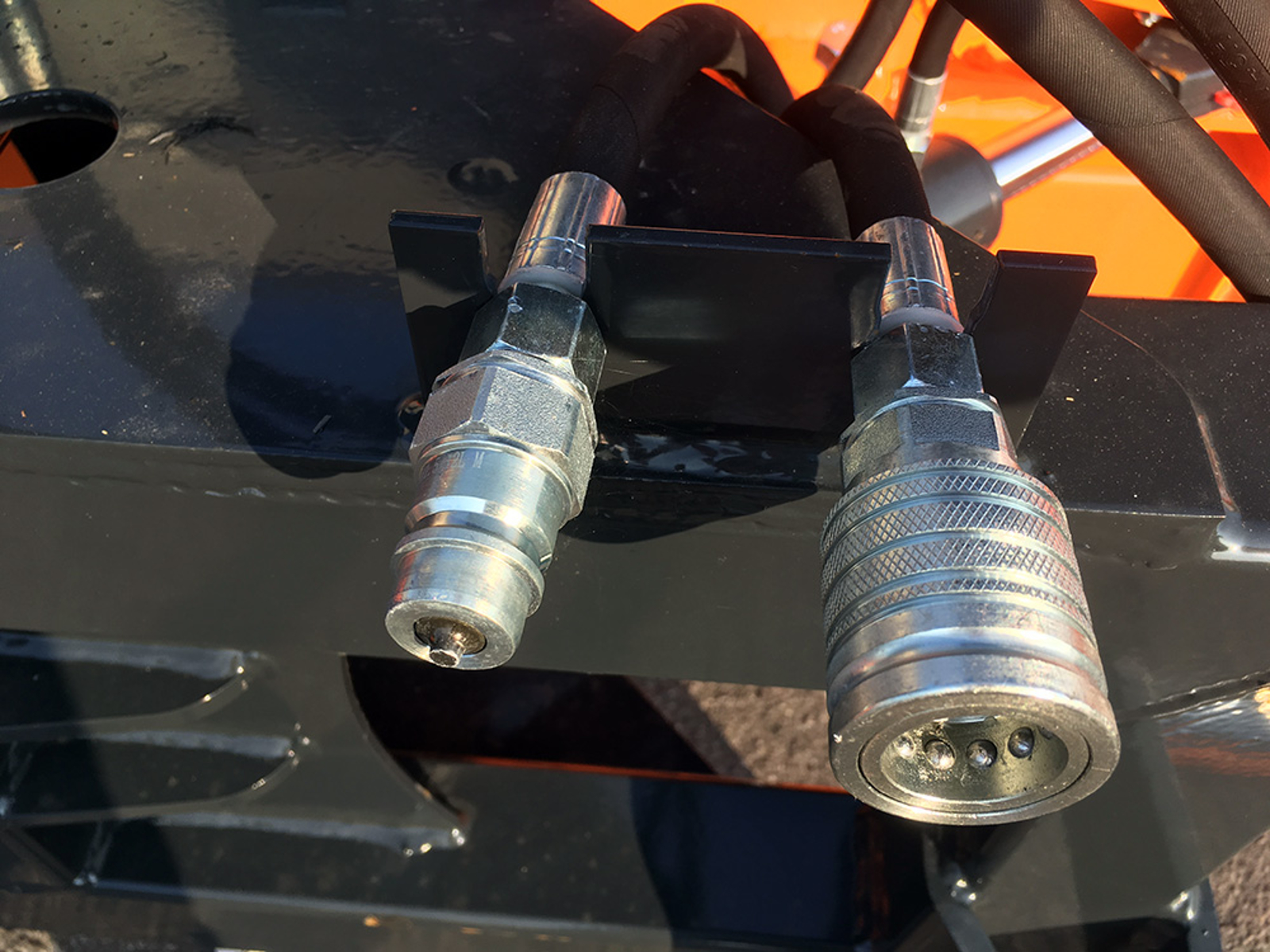

Hydraulic Hoses 2 x 1600.0 mm / connections 1.2" AGRI, WP 400 bar 2 x 5.25 ft / connections 1.2" AGRI, WP 400 bar
Overall width 3000.0 mm 9.84 ft
Main frame thickness 4.0 mm 0.15 in
Hydraulic cylinder/s ø 73.0/36.0 mm 2.87/1.41 in
Packing sizes 3000*1000*1000 mm 9.84*3.28*3.28 ft

Optional

2 springs snowblade ssh 04 lnv 315
2 springs snowblade SSH-04/LNV-315
195.00€(164.54 £)VAT excl.
Available

SSH-04/LNV-315

couple marker lights ssh lnv 315
Couple marker lights SSH/LNV-315
115.00€(97.04 £)VAT excl.
Available

SSH/LNV-315

spare rubber blade ssh 04 3 0
Spare rubber blade SSH-04-3.0
396.00€(334.14 £)VAT excl.
Available

SSH-04-3.0

spare steel blade ssh 04 3 0
Spare steel blade SSH-04 3.0
476.00€(401.65 £)VAT excl.
Available

SSH-04 3.0 HARDOX

spare wheel ssh lnv 315
Spare wheel SSH/LNV-315
153.00€(129.10 £)VAT excl.
Available

SSH/LNV-315

spare wheel support ssh lnv 315
Spare wheel support SSH/LNV-315
59.00€(49.78 £)VAT excl.
Available

SSH/LNV-315
