Snowplough for tractor front-end loaders, LNV-300-E
DETAILS
Snowplow 300cm for tractor front-end loaders - DELEKS® - Snow blade with EURO attachment - 2 independent plowing elements.
OVERVIEW

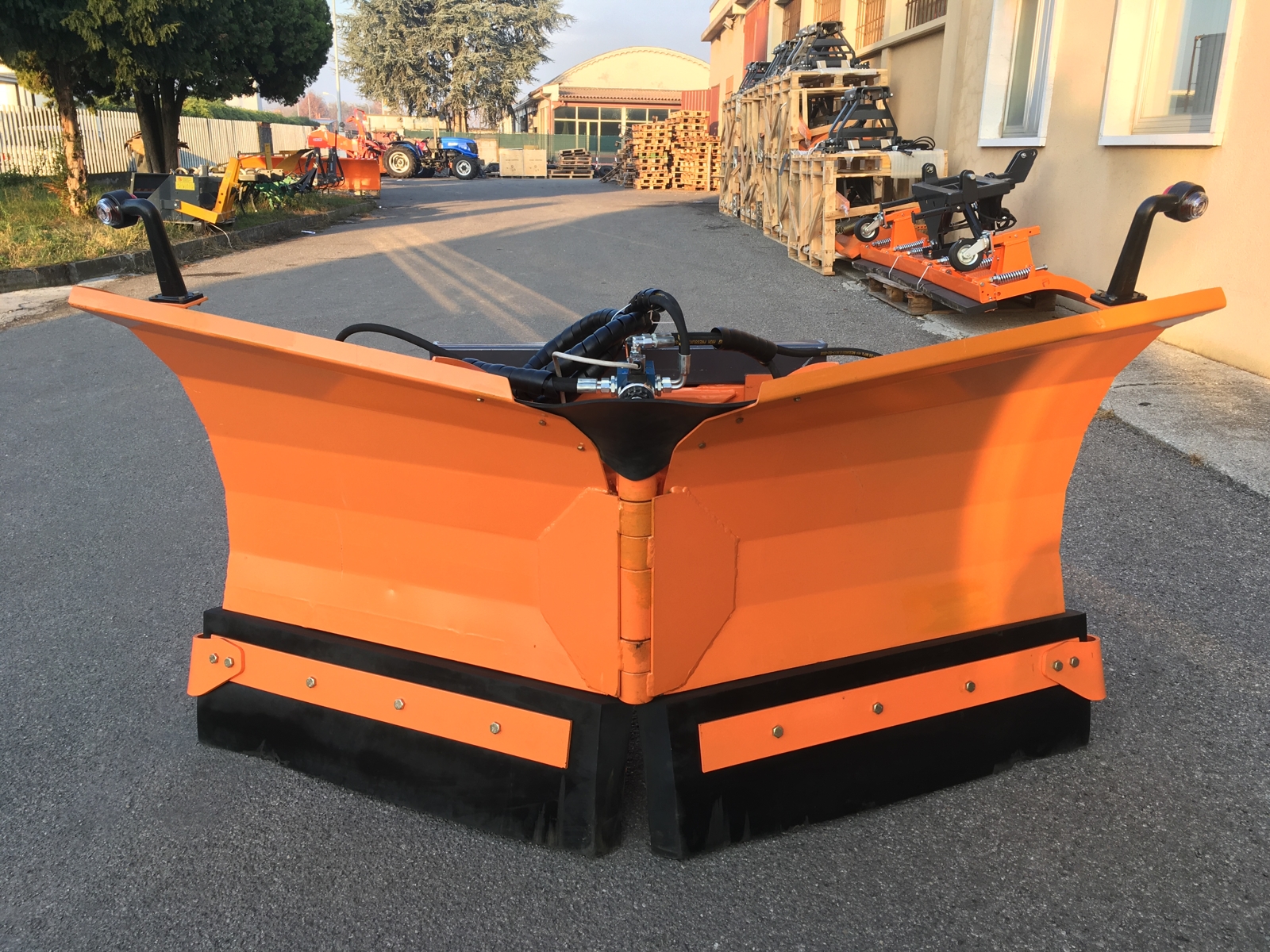

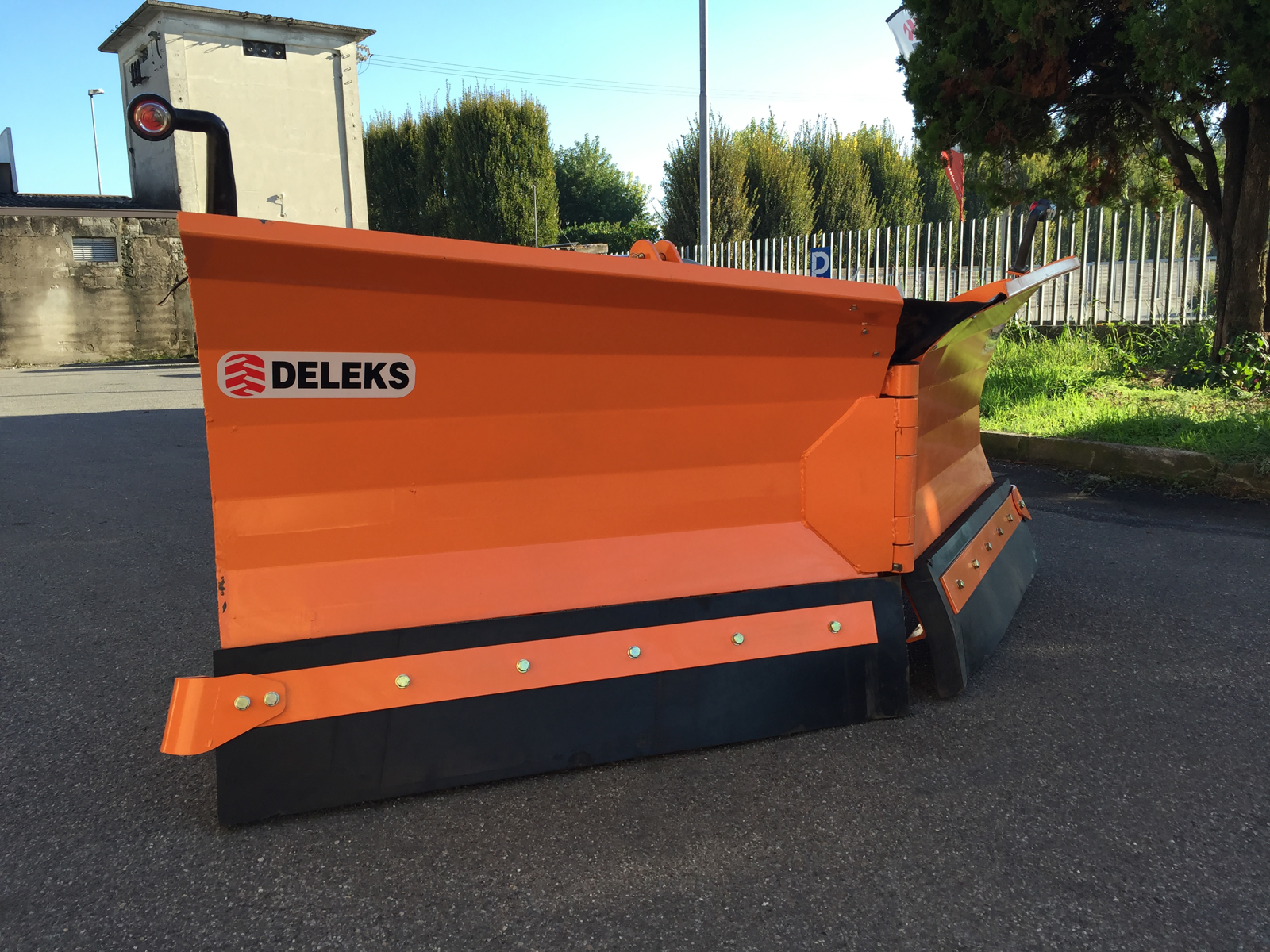

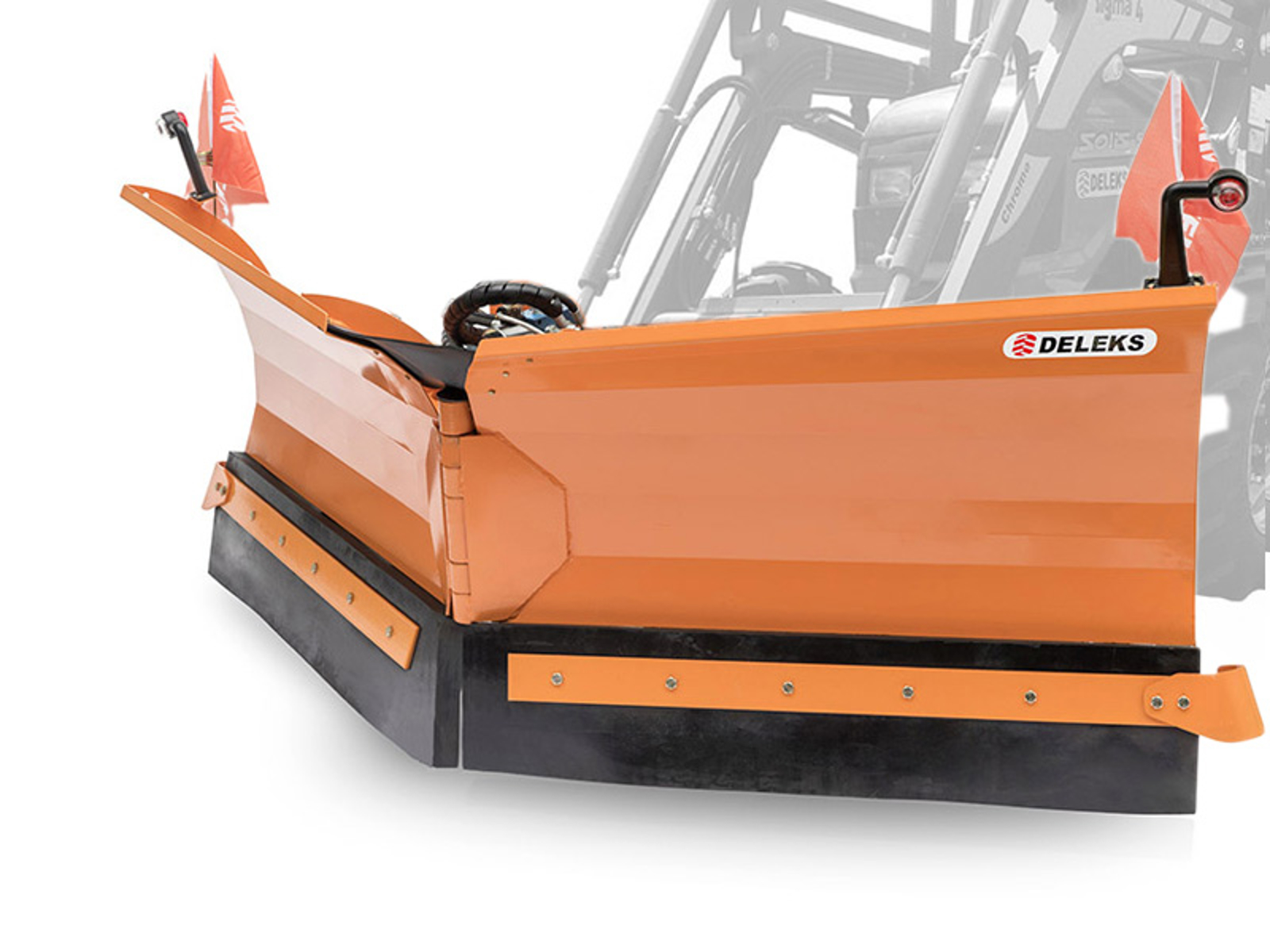

The LNV-300-E ‘V’ Snowplow has been designed for tractors front-end loaders, from 60 to 90hp tractors. Universal EURO attachment.

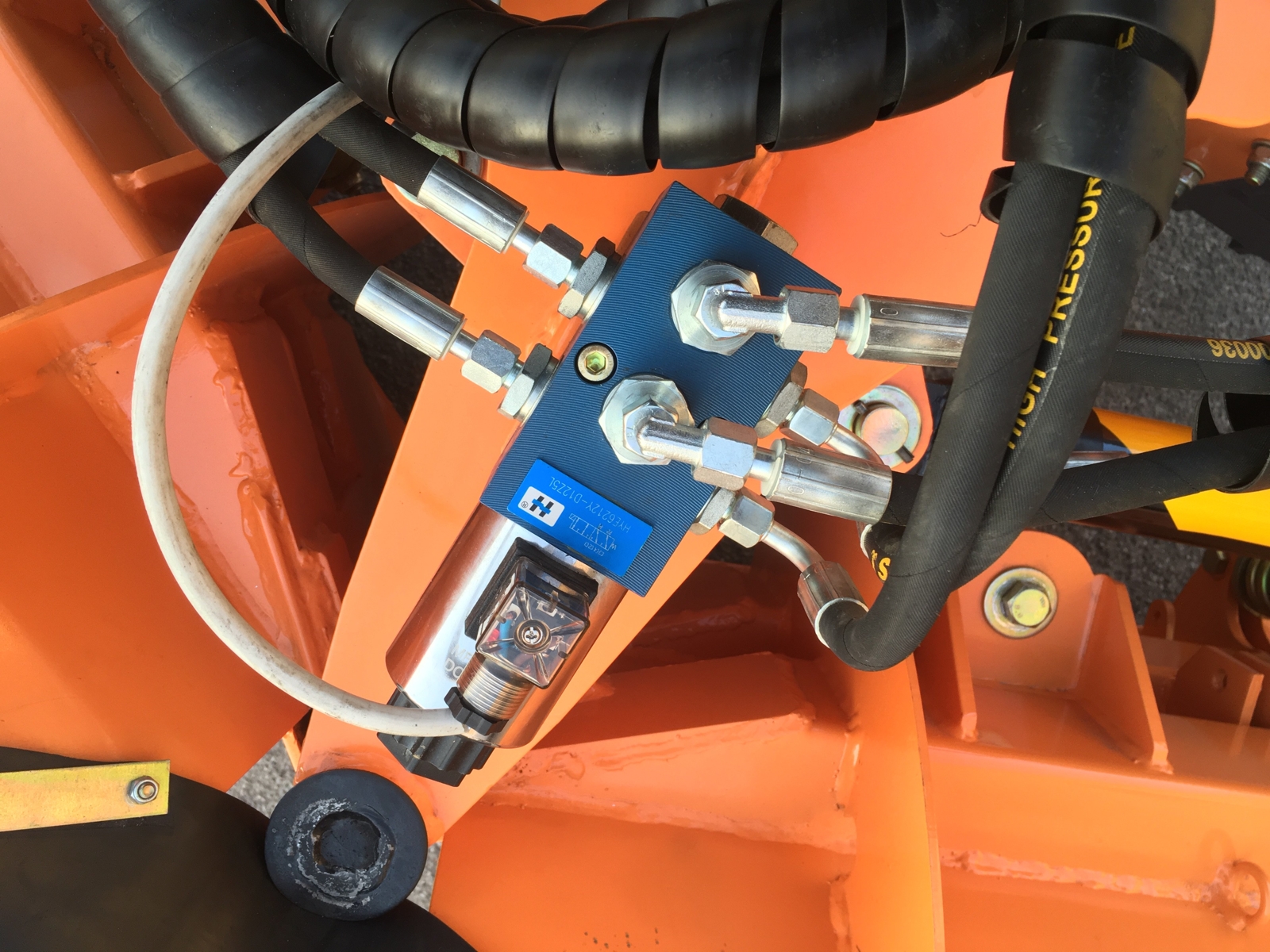

Angling of the plow is done hydraulically using two pistons, a 6-way solenoid valve and two hydraulic pipes (2.0m).
The plow has a replaceable rubber blade, spring swivel mount which makes the plow resistant to impact of obstacles. Supplied with marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES
Hydraulically controlled plowshares allow for four different working positions (open, closed, left and right).
Anti-shock system with 4 shock absorbing springs to overcome obstacles safety.
2 independent plowing elements.
Lateral oscillation system which allows a perfect adherence to the road surface.
Extremely easy installation and usage.
The EURO attachment is removable and replaceable with a 3-point hitch, or Skid steer attachment.
Perfect adherence to the road surface and homologated for road use.
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 425.0 kg | 937.00 lb |
| Overall height | 1020.0 mm | 3.35 ft |
| Tractor Power Range | 60 - 90 Hp | 60 - 90 Hp |
| Overall Length | 870.0 mm | 2.85 ft |
| Min./Max. Relief Pressure | 110 - 150 bar | 110 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min | 18 - 22 l/min |
| Interface | EURO | EURO |
| Angling (left/right) | 30° | 30° |
| Float | +/- 6° | +/- 6° |
| Blade Height | 920.0 mm | 3.00 ft |
| Side edge thickness | 5.0 mm | 0.20 in |
| Shock absorbers | 6 | 6 |
| Cutting Edge | Rubber | Rubber |
| Cutting Edge Height | 265.0 mm | 10.43 in |
| Cutting Edge Thickness | 50.0 mm | 1.97 in |
| Trip Edge Quantity | 2 | 2 |
| Distance betweens the bolts of the Trip Edge | 200.0 mm | 7.87 in |
| Lights | √ | √ |
| Removable Skid Shoes | x | x |
| Universal attachment sizes | See pictures | See pictures |
| Working width (angled) | 2850.0 mm | 9.35 ft |
| Hydraulic Hoses | 2 x 2000.0 mm / connections 1.2" AGRI, WP 400 bar | 2 x 6.56 ft / connections 1.2" AGRI, WP 400 bar |
| Overall width | 3020.0 mm | 9.90 ft |
| Main frame thickness | 4.0 mm + reinforces | 0.15 in + reinforces |
| Hydraulic cylinder/s ø | 60.0/30.0 mm | 2.36/1.18 in |
| Packing sizes | 3050.0*1000.0*800.0 mm | 10.00*3.28*2.62 ft |
