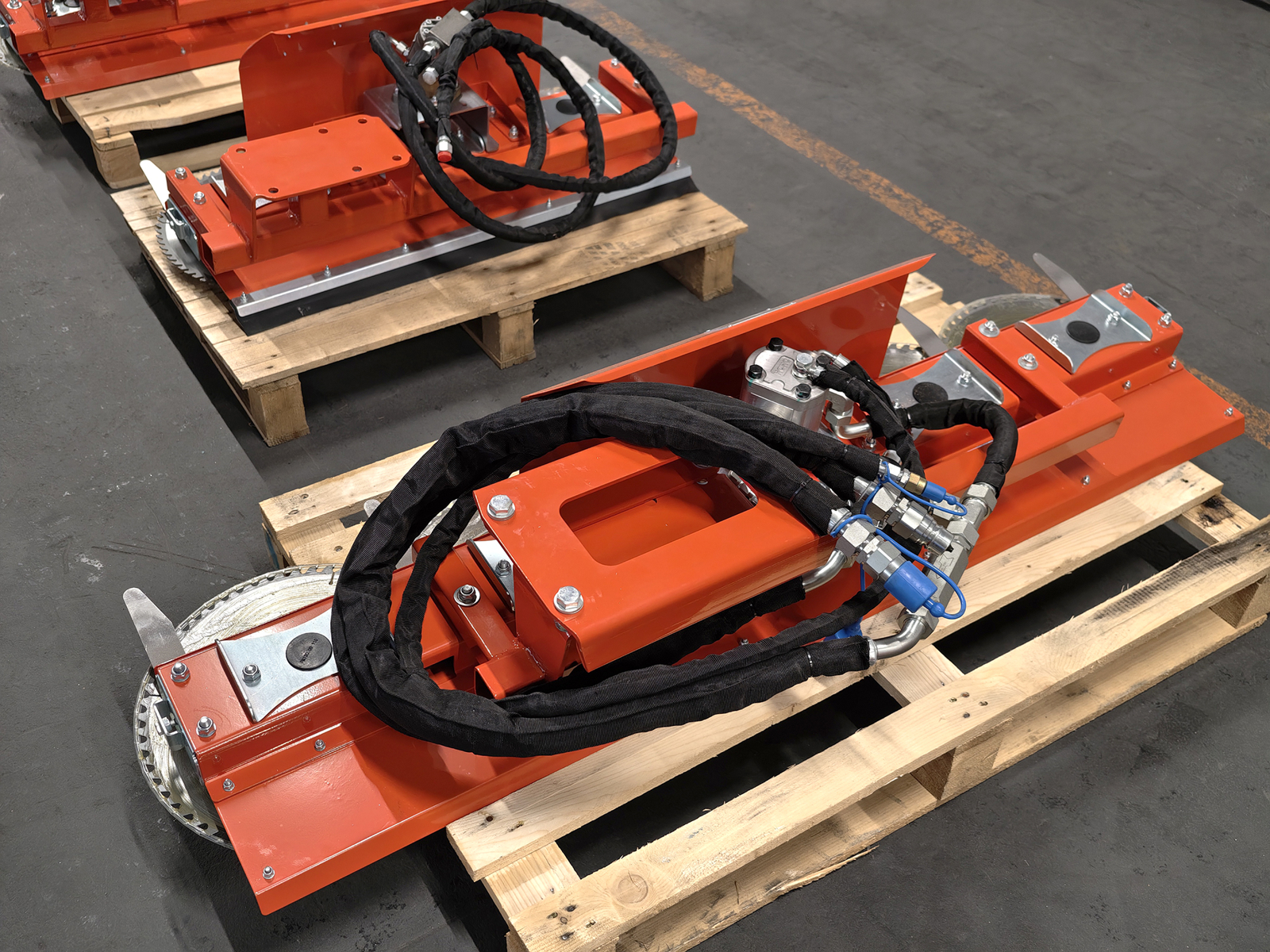

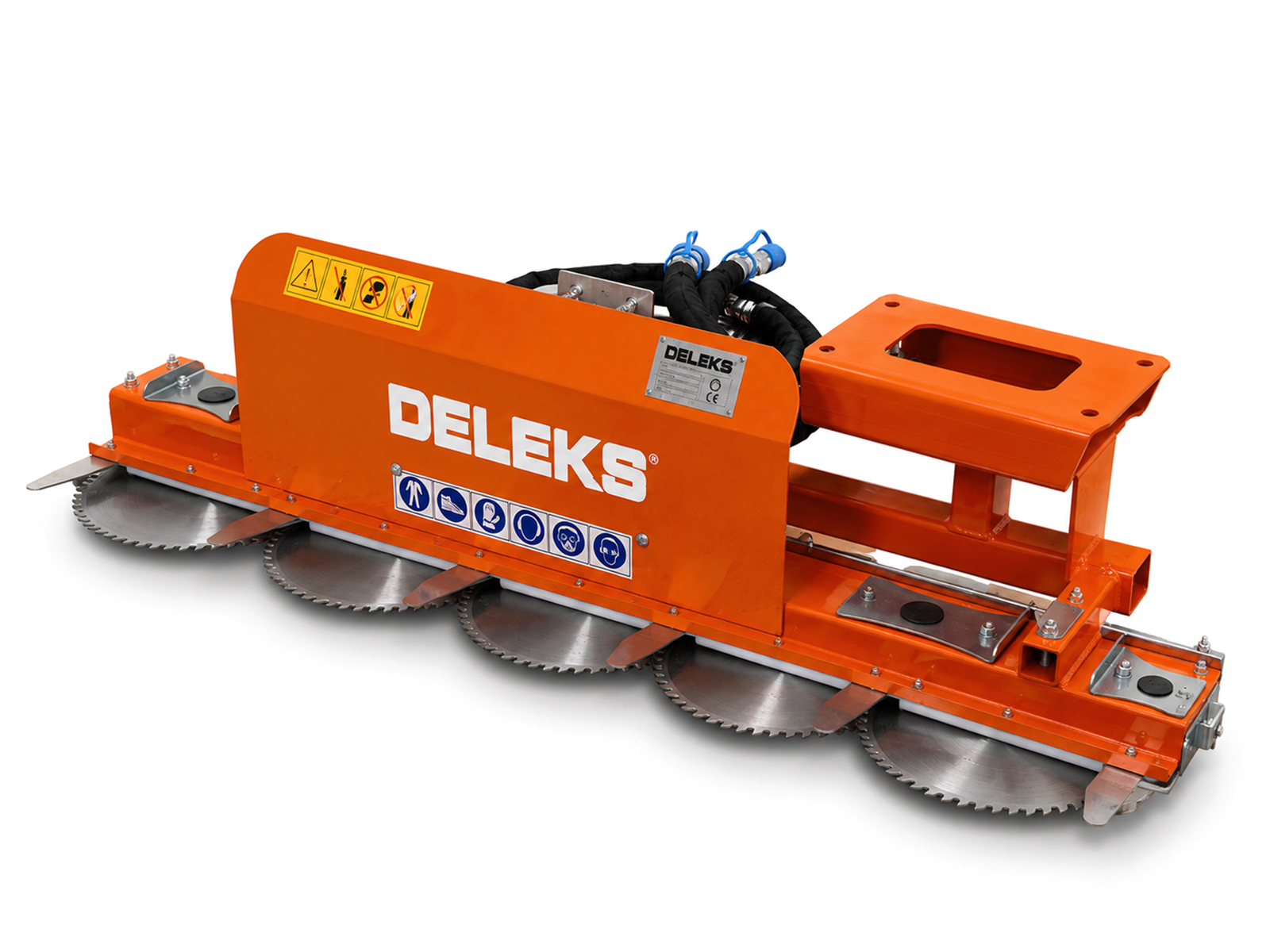

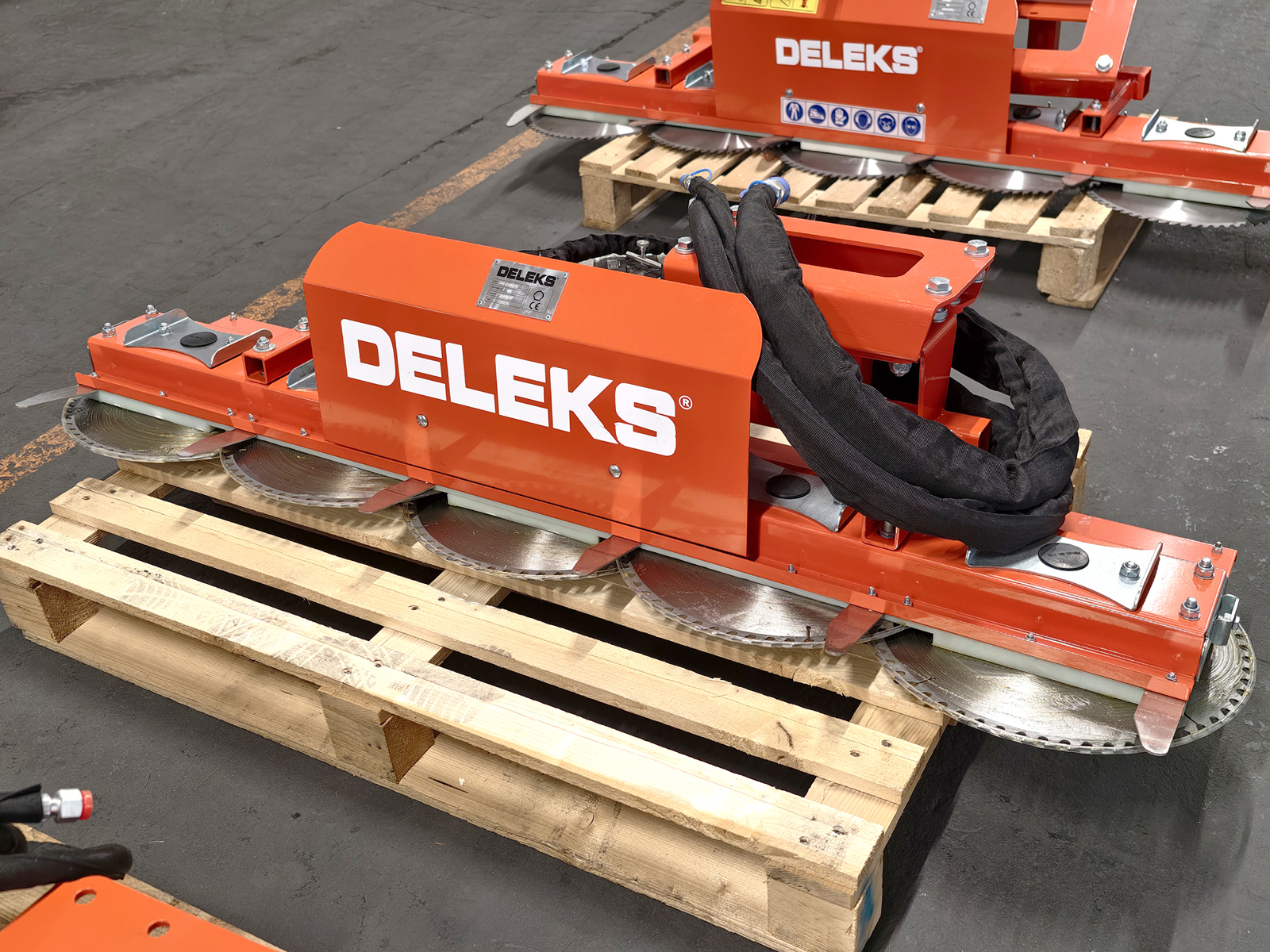

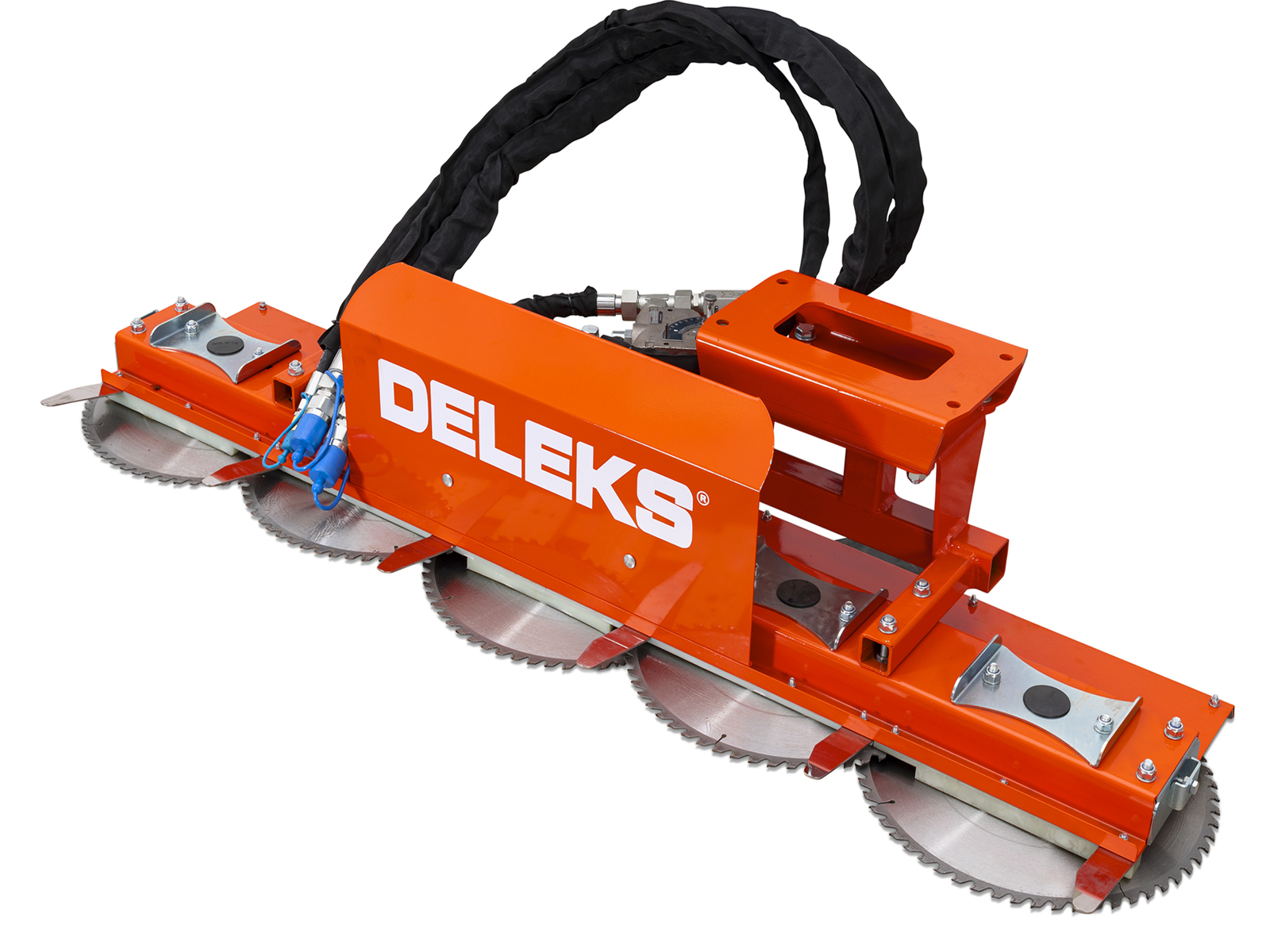

5-Disc Circular Saw Blade Attachment for Excavators and Hedge Cutters

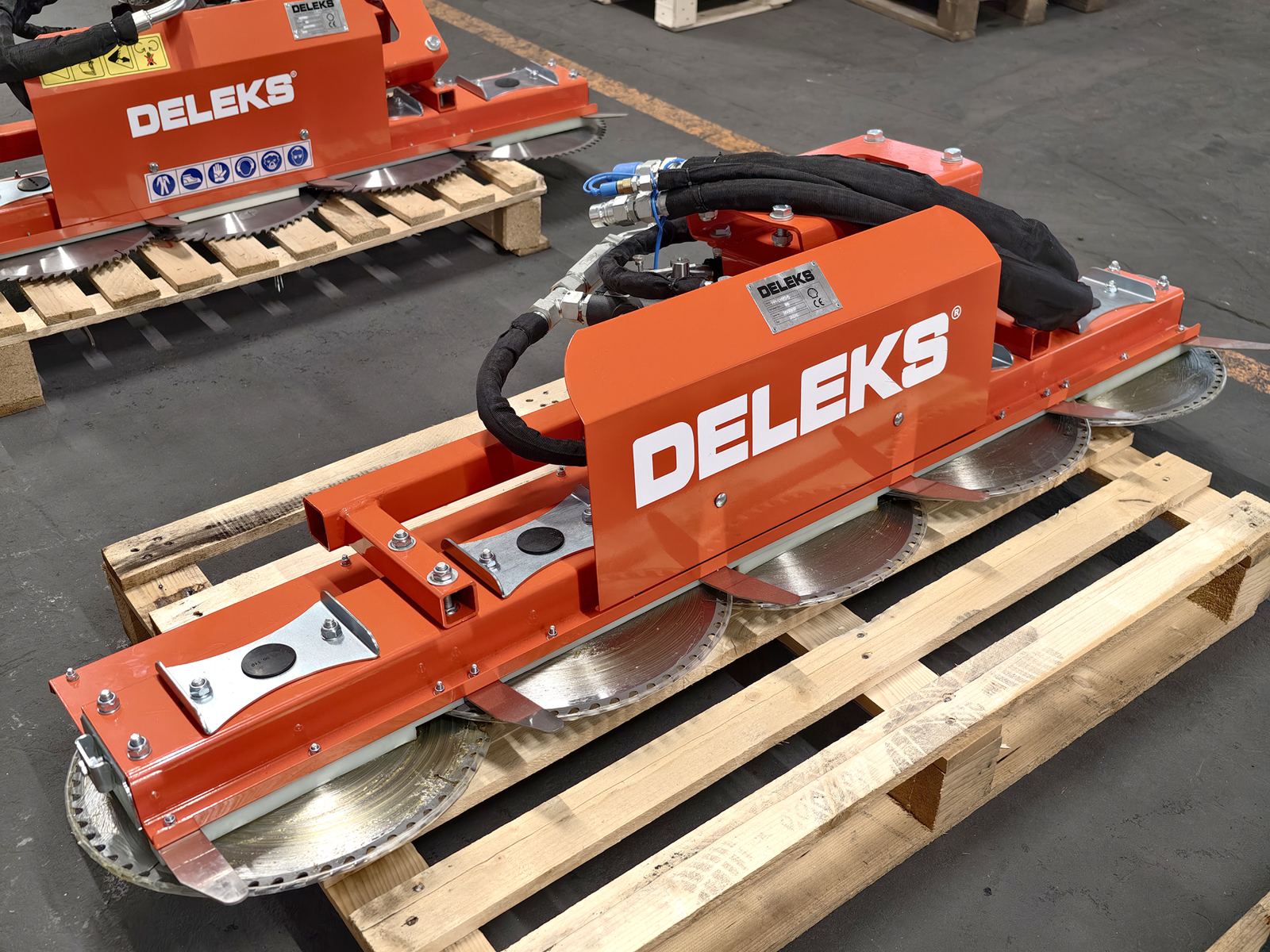

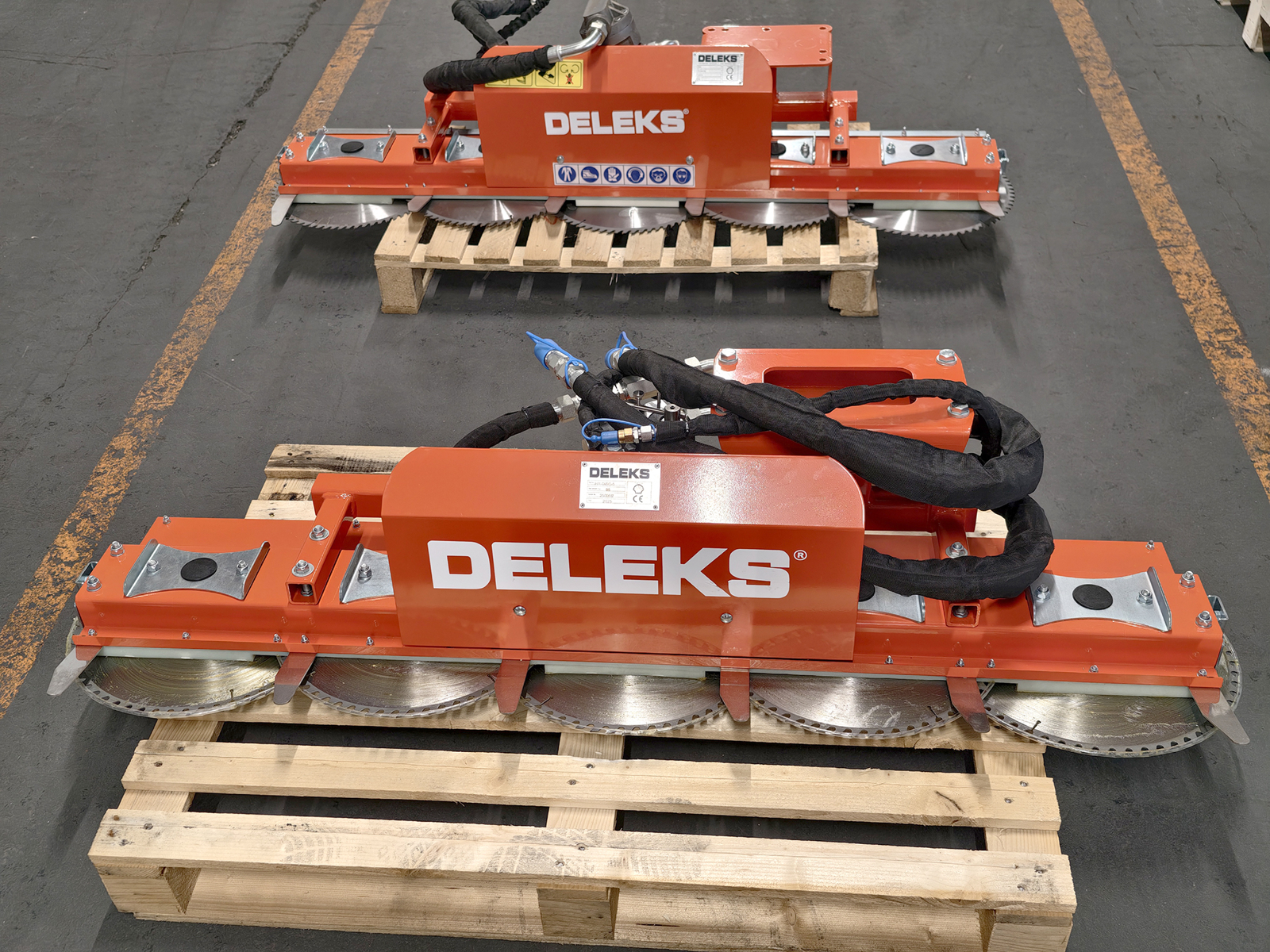

Professional hydraulic 5-disc cutting bar with 1.6-meter cutting width, designed for intensive pruning of hedges, branches, vegetation and professional green maintenance on excavators, hydraulic brush cutters and professional hedge cutters.

The reinforced structure and high-strength steel discs ensure excellent cutting performance, long service life and reduced maintenance even in heavy-duty applications.

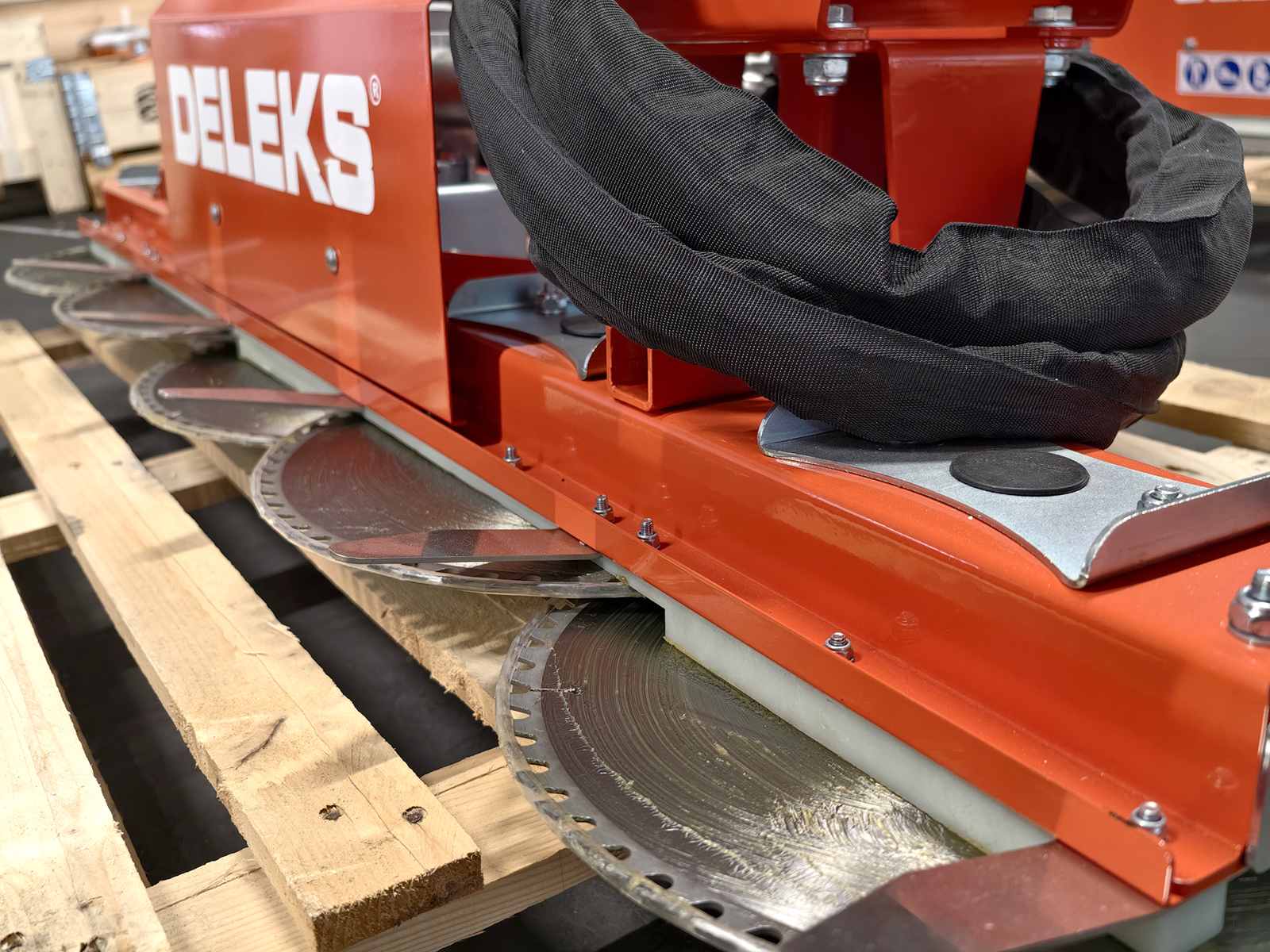

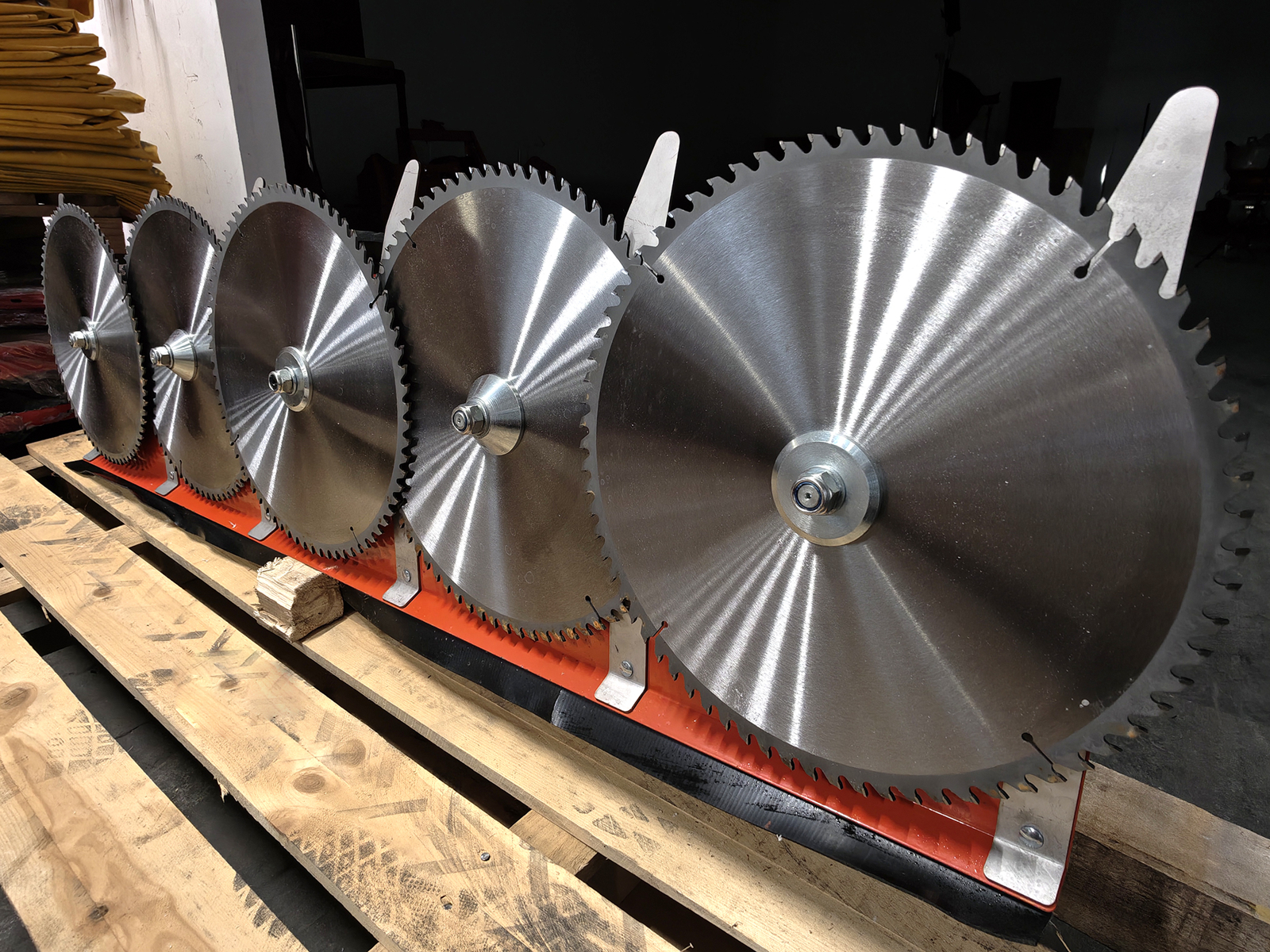

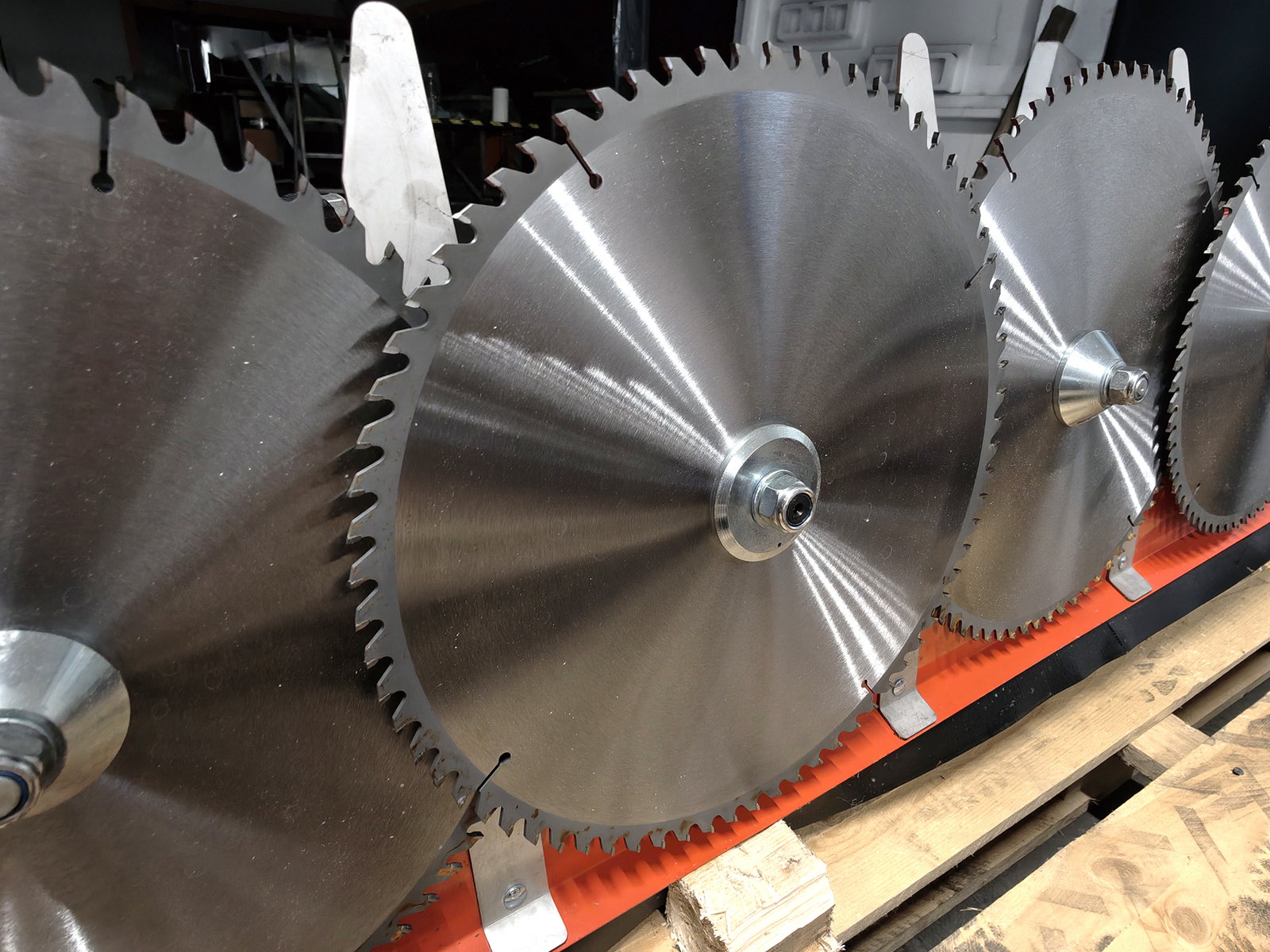

The 5 discs Ø 400 mm are equipped with 60 teeth each featuring tungsten carbide tips (TCT), ideal for fast, clean and precise cutting on woody vegetation and branches up to approximately 90 mm in diameter.

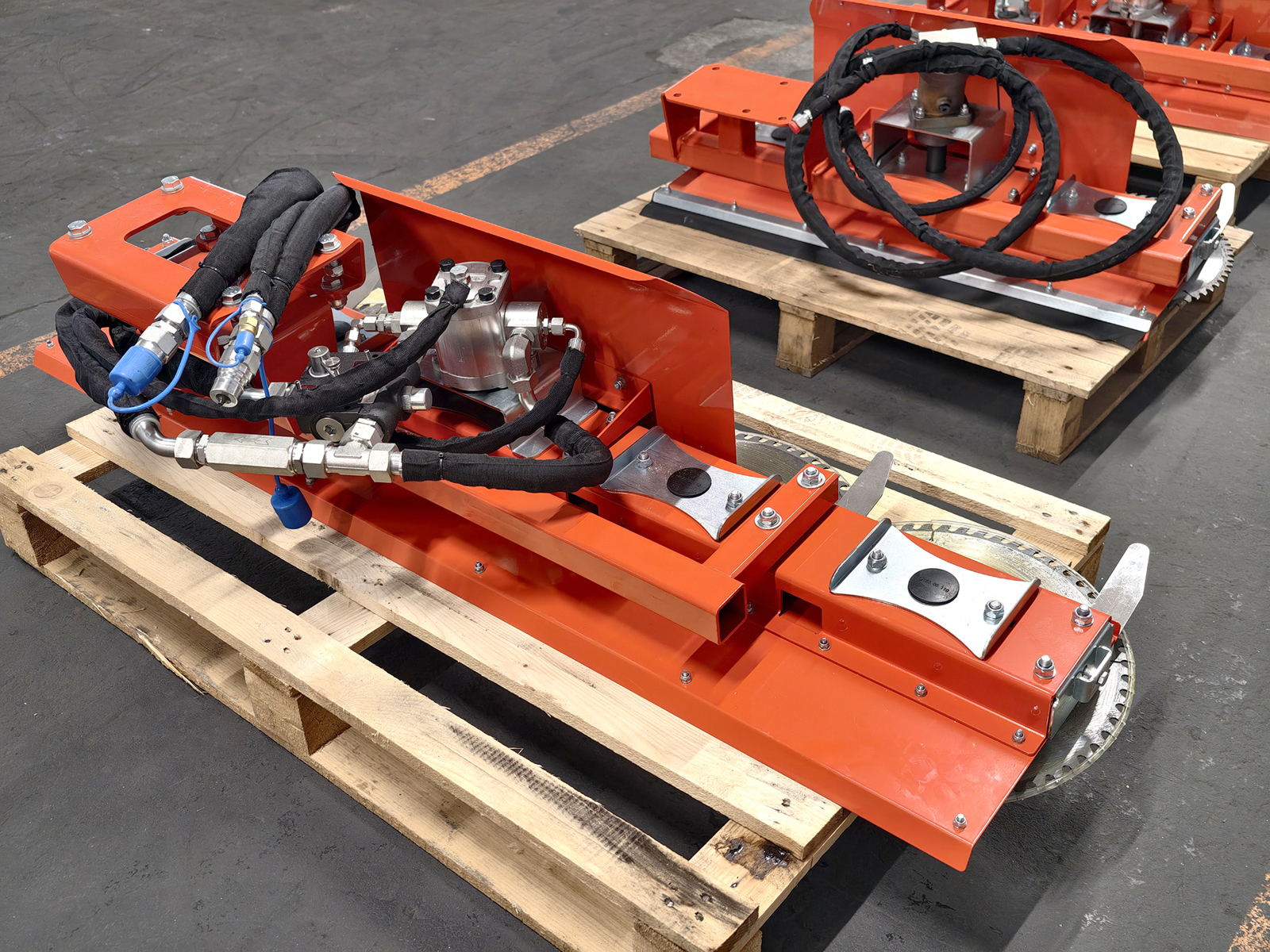

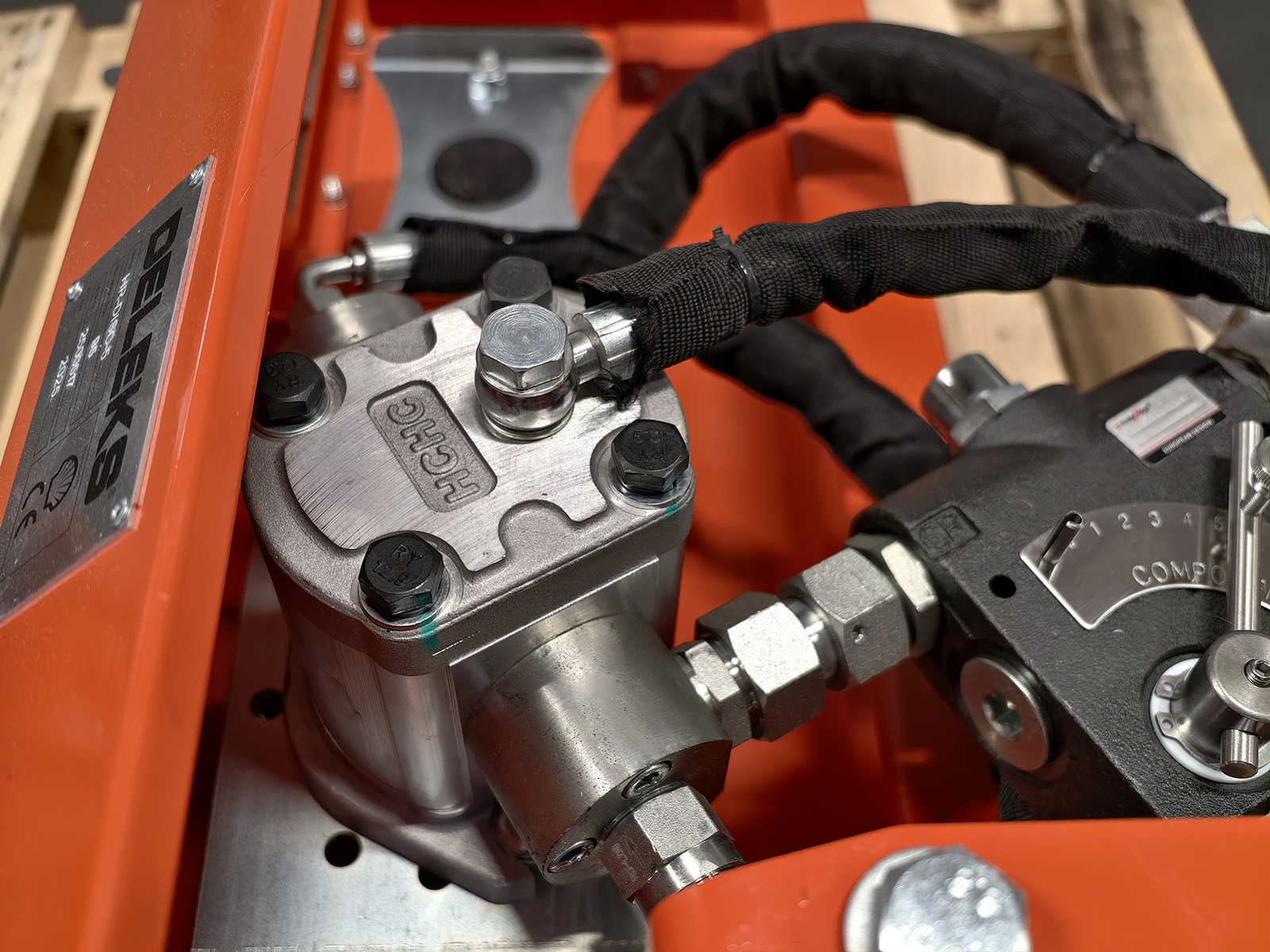

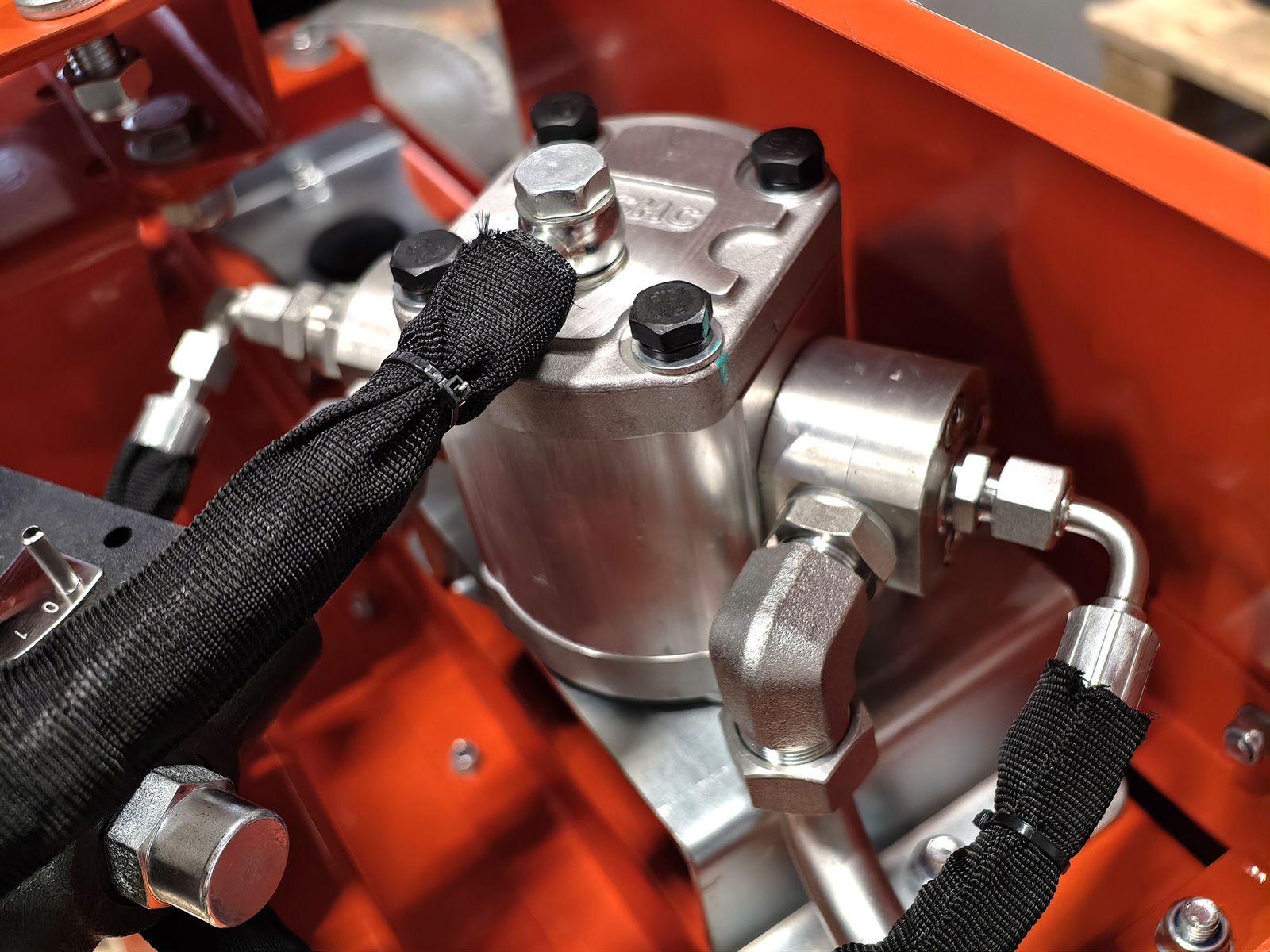

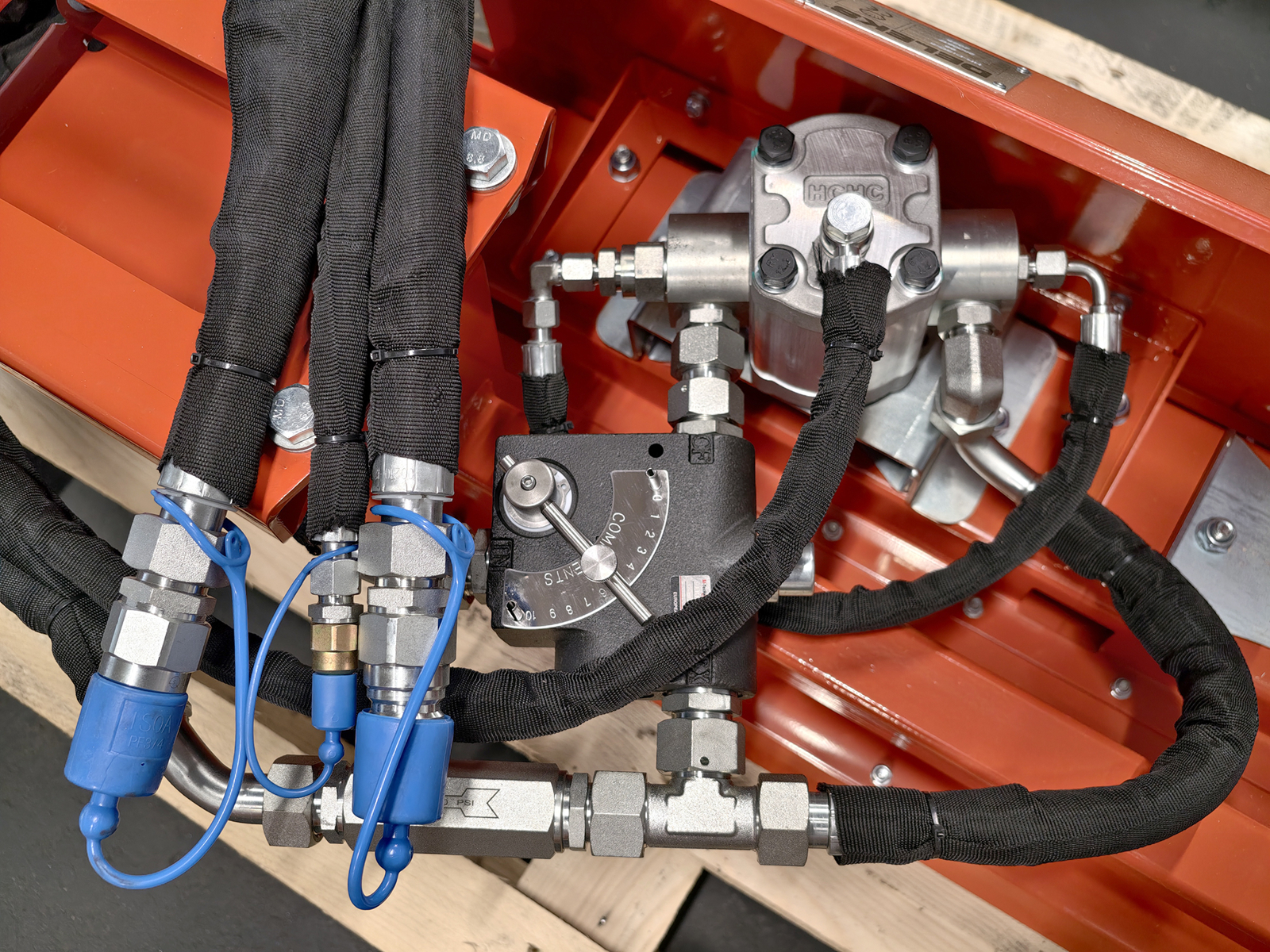

Power transmission is provided by a bidirectional orbital hydraulic motor with case drain and a displacement of 23 cc/rev, designed to ensure high rotation speed, smooth operation and constant torque during work.

The belt transmission system helps reduce vibrations and mechanical stress, improving reliability and durability even in intensive professional use.

Technical features:

• Professional hydraulic 5-disc cutting bar
• Cutting width: 1600 mm
• Ø 400 mm cutting discs

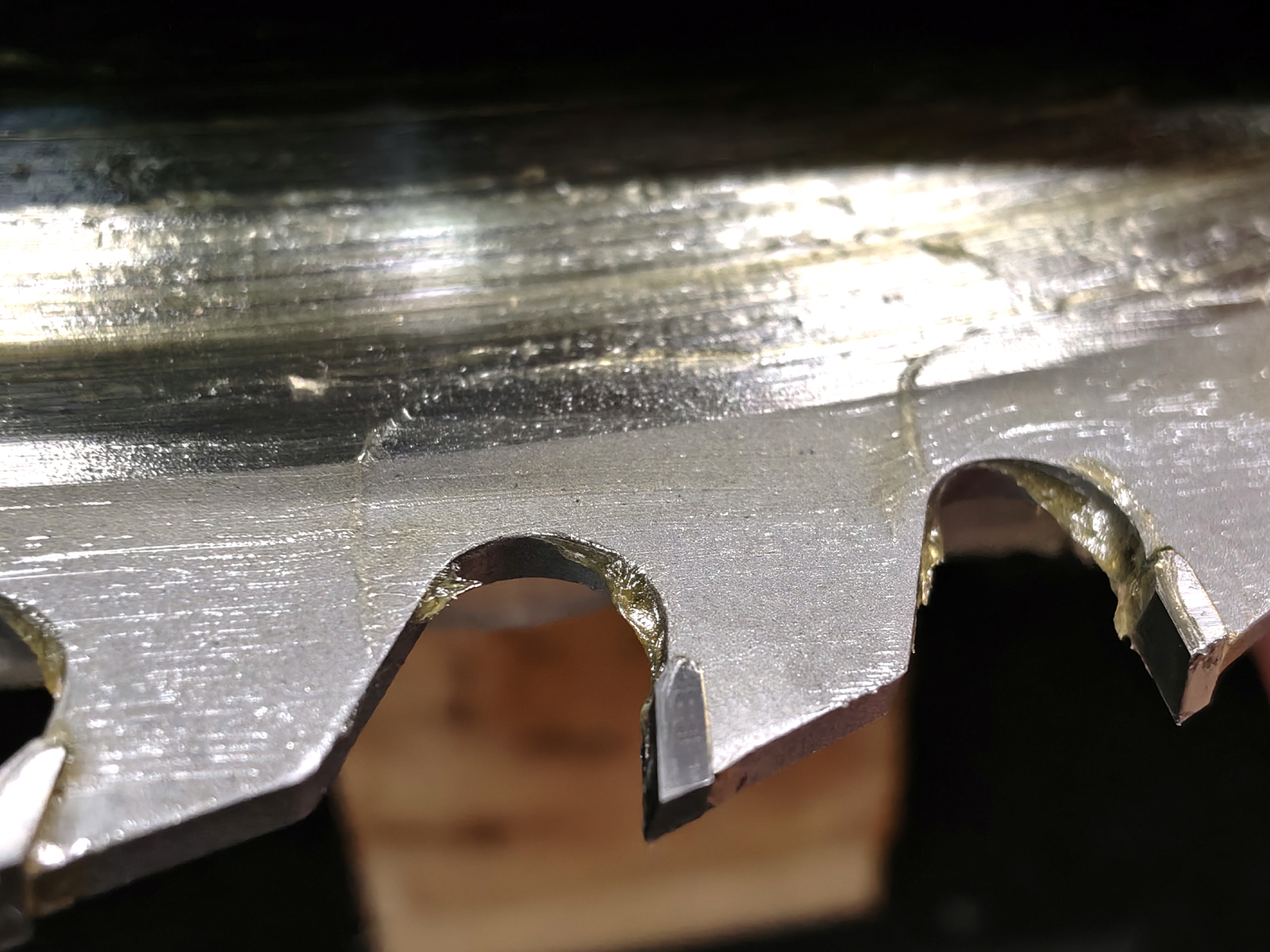

• 60 teeth per disc with tungsten carbide tips (TCT)
• High-strength carbon steel discs
• Hardened alloy cutting heads
• Centre bore Ø 30 mm
• Disc thickness: 2.5 mm
• Tooth thickness: 3.2 mm
• Bidirectional orbital hydraulic motor with case drain
• Motor displacement: 22 cc/rev
• Oil flow requirement: 23 L/min
• Operating pressure: 80–120 bar
• Rotation speed: 500–2800 rpm
• Belt transmission

Advantages:

• Wide 160 cm cutting width
• Fast and precise cutting
• High wear resistance
• Ideal for professional vegetation maintenance
• Reduced vibrations and smooth operation
• High productivity on long hedges and roadside vegetation
• Suitable for intensive use on dense and woody vegetation

Technical notes:

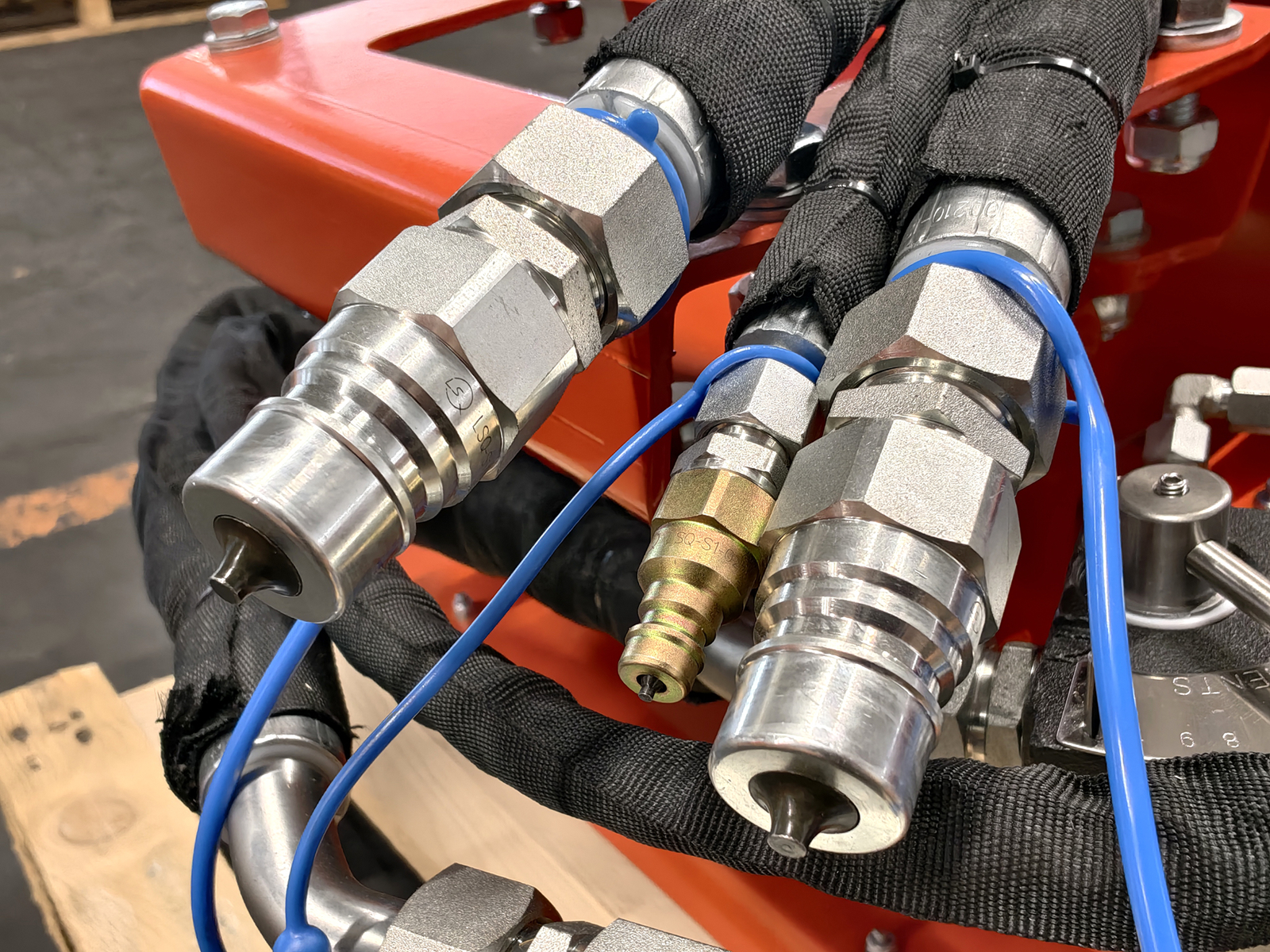

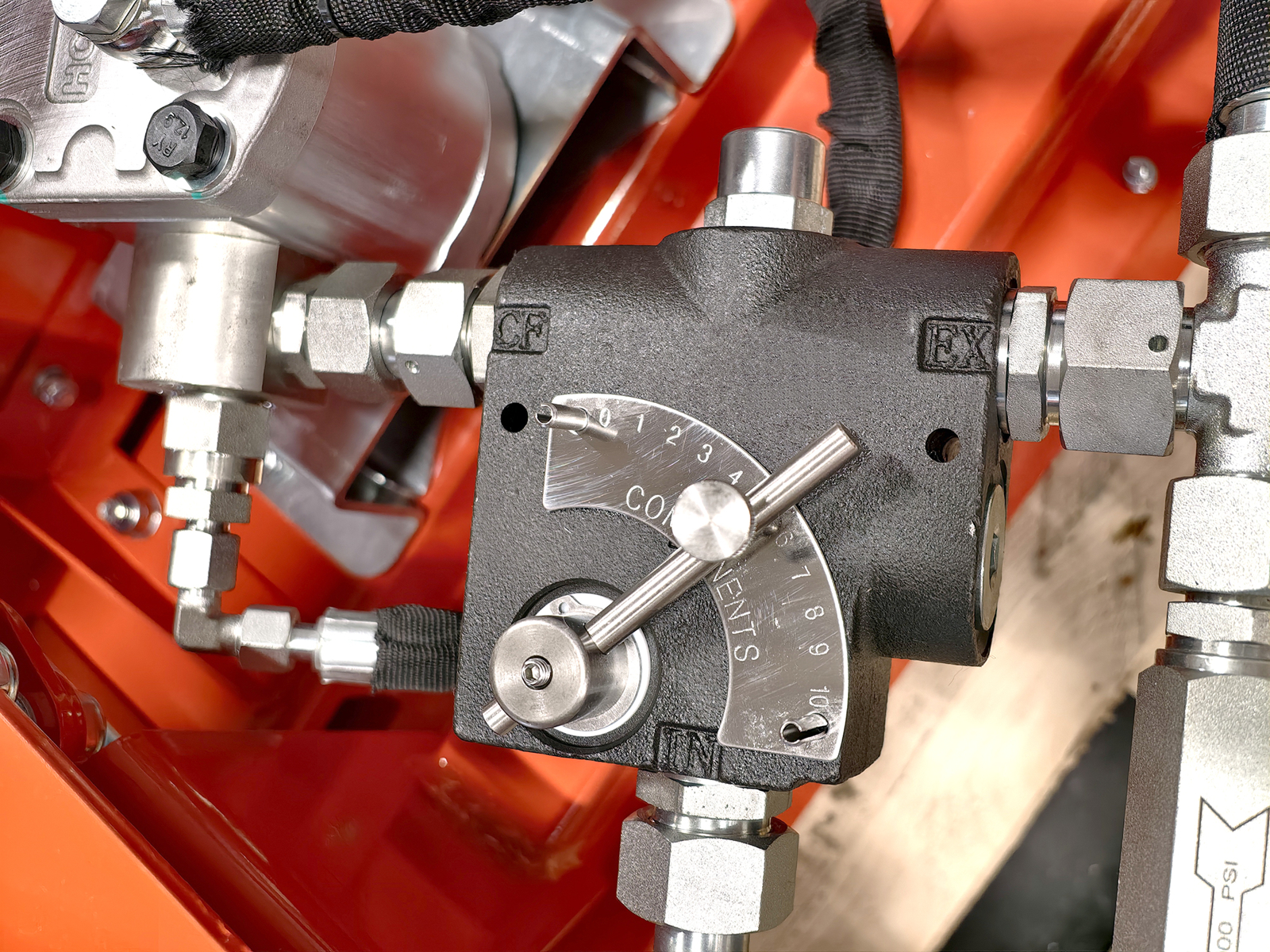

The carrier machine must be equipped with a hydraulic system featuring a free oil return line. In the event of excessive flow, the oil must be able to return directly to the tank return line, preventing overpressure and ensuring proper operation of the hydraulic motor.

It is also essential to verify that the hydraulic flow and pressure of the carrier machine are compatible with the cutting bar specifications.

Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual
