Light snow plow for Forklift, LNS-190-F
DETAILS
Light snow plow 190cm - DELEKS®- with universal attachment for forklifts.
OVERVIEW
DELEKS® lightweight, agile snowplow for forklifts. Compatible with all common brands e.g Bobcat, JCB, Caterpillar, etc. Conforms to the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES
Anti-shock system with 4 shock absorbing springs to operate in maximum safety.
Extreme ease of assembly and use.
Sharp replaceable steel blade. On request we customize the plow with a softer Rubber blade.
The fitting plate is removable and replaceable meaning it can be used on tractors or other attachments.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 136.0 kg | 300.0 lb |
| Overall height | 525.0 mm | 1.72 ft |
| Overall Length | 760.0 mm | 2.50 ft |
| Min./Max. Relief Pressure | 110 - 150 bar | 110 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min | 18 - 22 l/min |
| Interface | Universal for Forklifts | Universal for Forklifts |
| Angling (left/right) | 28° | 28° |
| Float | +/- 2° | +/- 2° |
| Blade Height | 525.0 mm | 1.72 ft |
| Side edge thickness | 8.0 mm | 0.31 in |
| Shock absorbers | 4 | 4 |
| Cutting Edge | Steel or Rubber | Steel or Rubber |
| Cutting Edge Height | 120.0 mm | 4.72 in |
| Cutting Edge Thickness | 14.0 mm | 0.55 in |
| Trip Edge Quantity | 1 | 1 |
| Distance betweens the bolts of the Trip Edge | 200.0 mm | 7.87 in |
| Lights | x | x |
| Removable Skid Shoes | x | x |

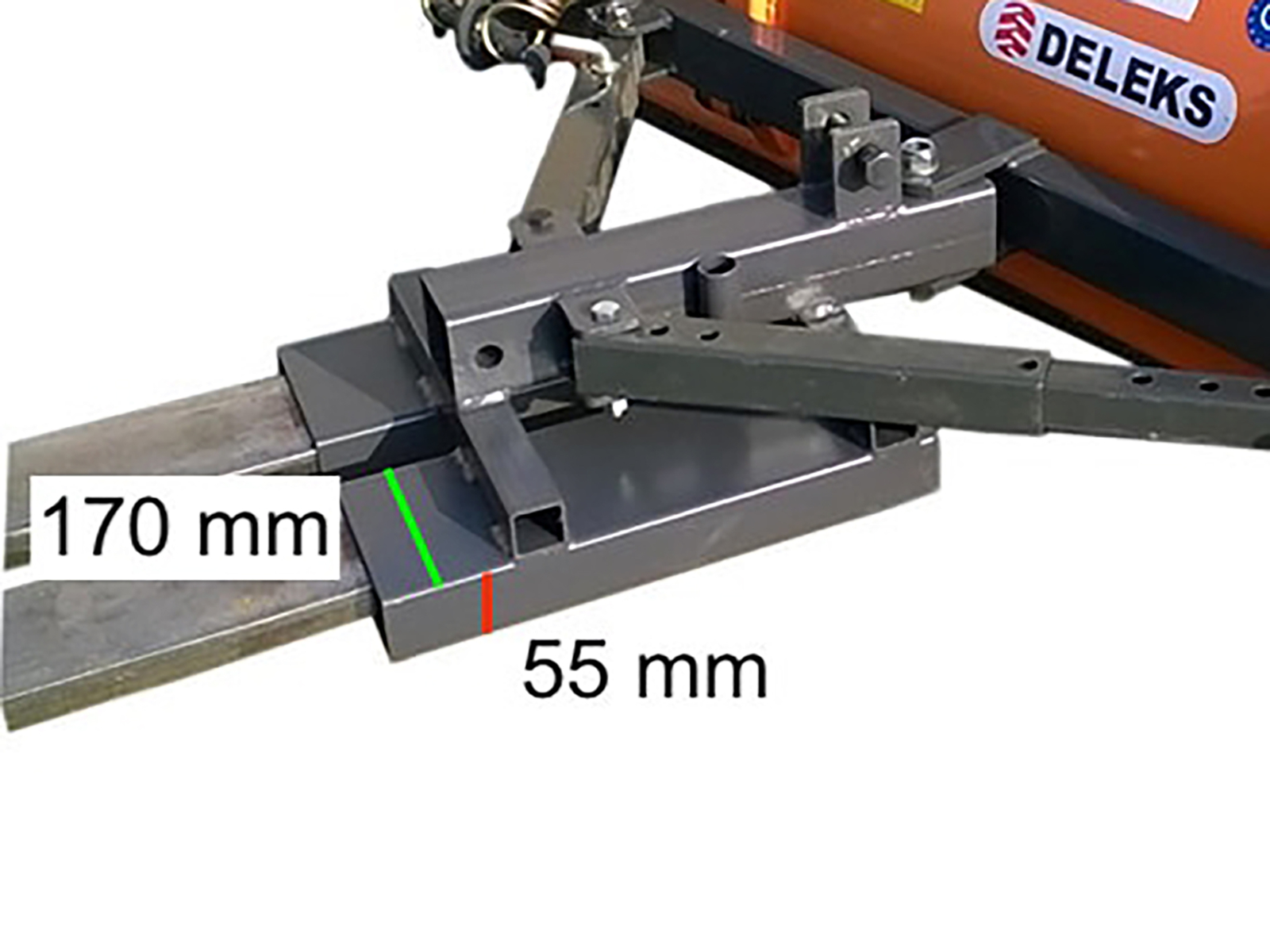

| Universal attachment sizes | See pictures | See pictures |
| Working width (angled) | 1520.0 mm | 3.75 ft |
| Hydraulic Hoses | (optional) 2 x 3000.0 mm / WP-400 bar | (Optional) 2 x 9.84 ft / connections 1.2", WP 400 bar |
| Overall width | 1916.0 mm | 6.28 ft |
| Main frame thickness | 4.0 mm | 0.15 in |
| Hydraulic cylinder/s ø | (Optional) 50.0 / 25.0 mm | (optional) 1.96 / 1.0 in |
| Packing sizes | 1916.0*800.0*800.0 mm | 6.28*2.62*2.62 ft |
