Hydraulic Earth Drill for mini excavator - with reducer
DETAILS

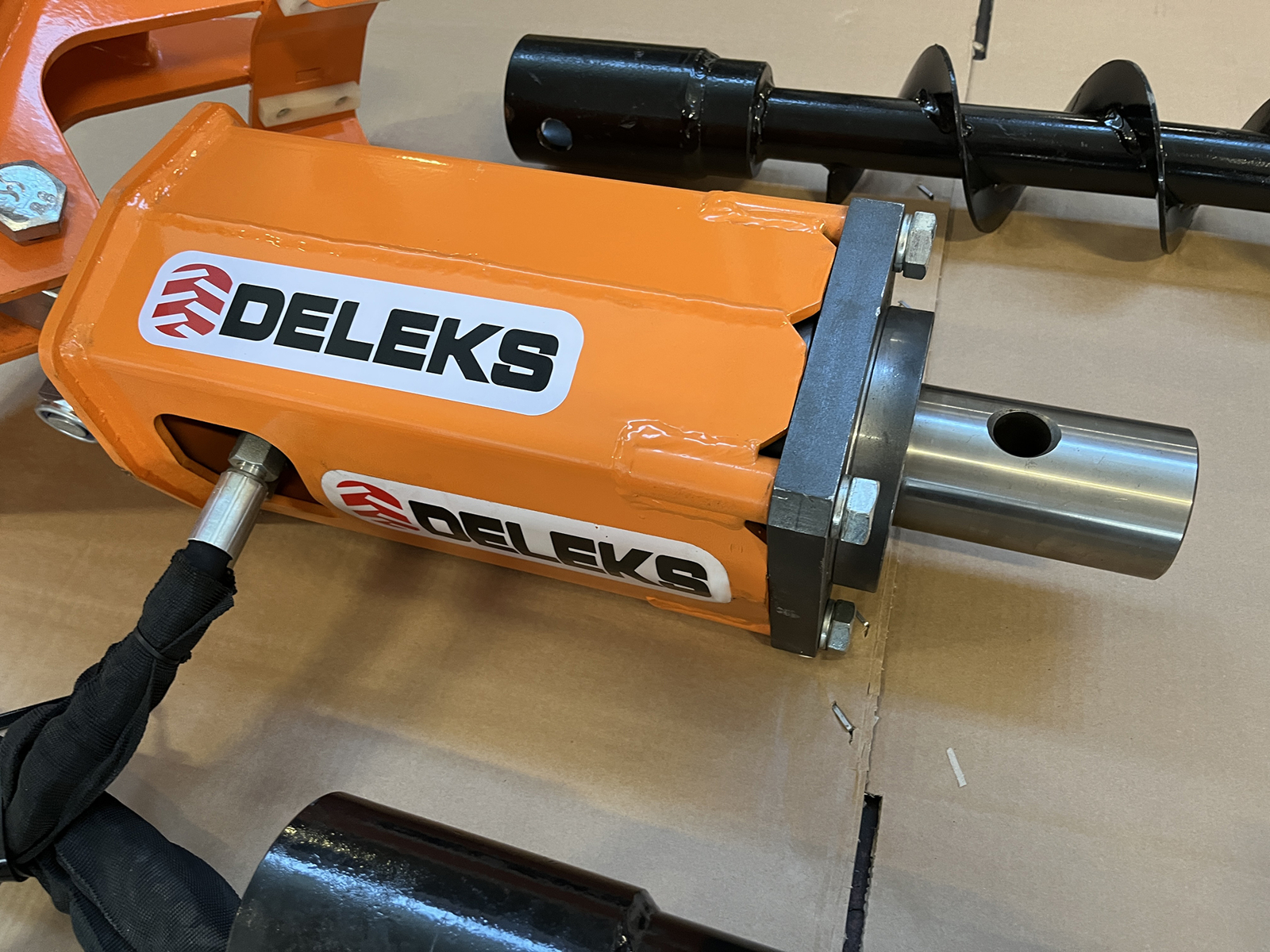

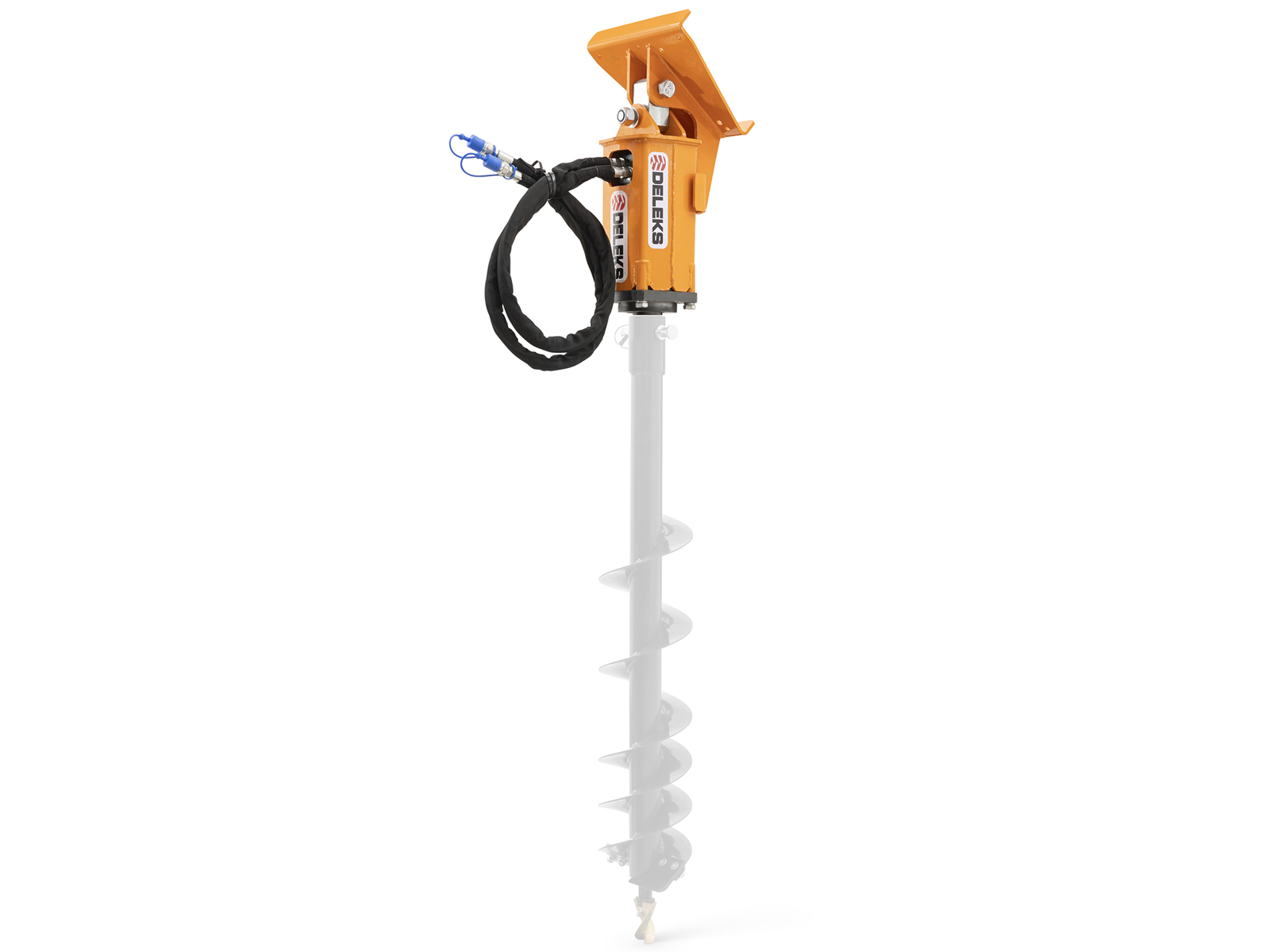

The DELEKS® ZHD auger drive is suitable on small excavators, wheel loaders, farm loaders or tractors with front loaders.
MAIN APPLICATIONS
Gardening and landscaping
Digging plant hole
Installing posts and masts
Fence construction
Road signs
Building industry
Forestry, etc…
The earth drill can be connected up quickly to various carrier devices. This makes it suitable for a wide range of applications in the fields of gardening and landscaping, forestry, public works and the construction industry.

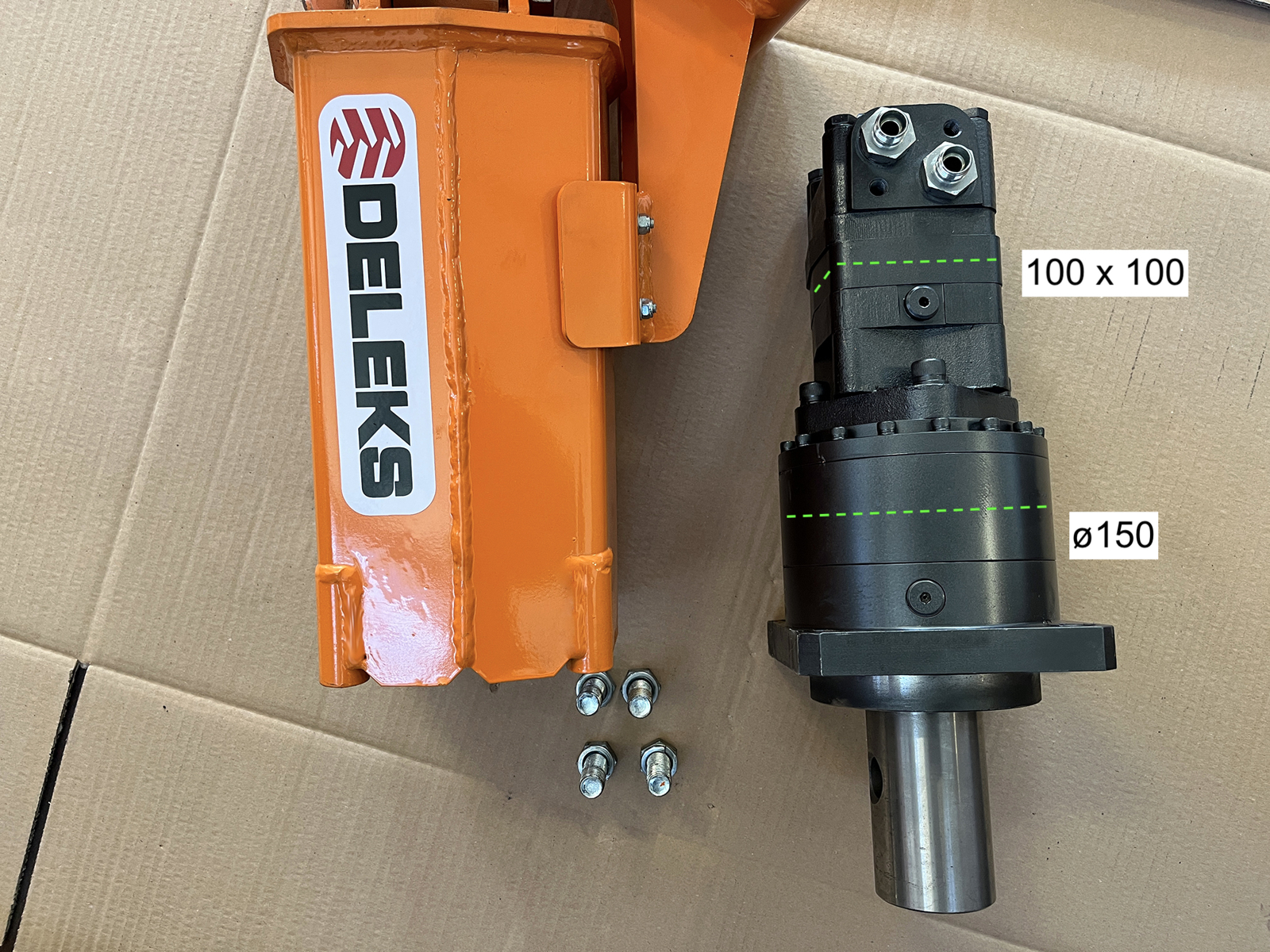

Reducer: power transmission mechanism which, using a gear speed converter, reduces the number of revolutions of the motor to the required number of revolutions and obtains a higher torque.

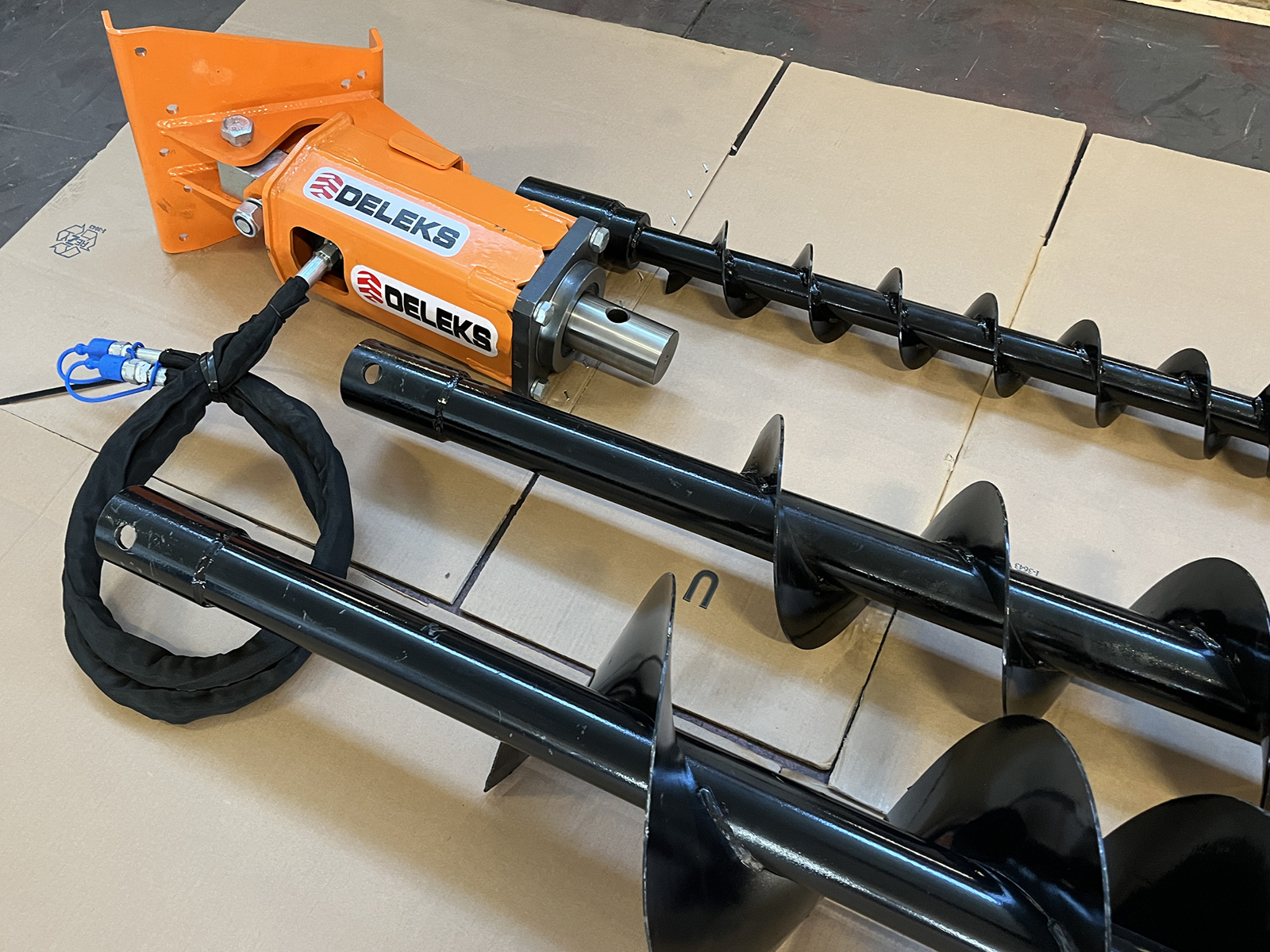

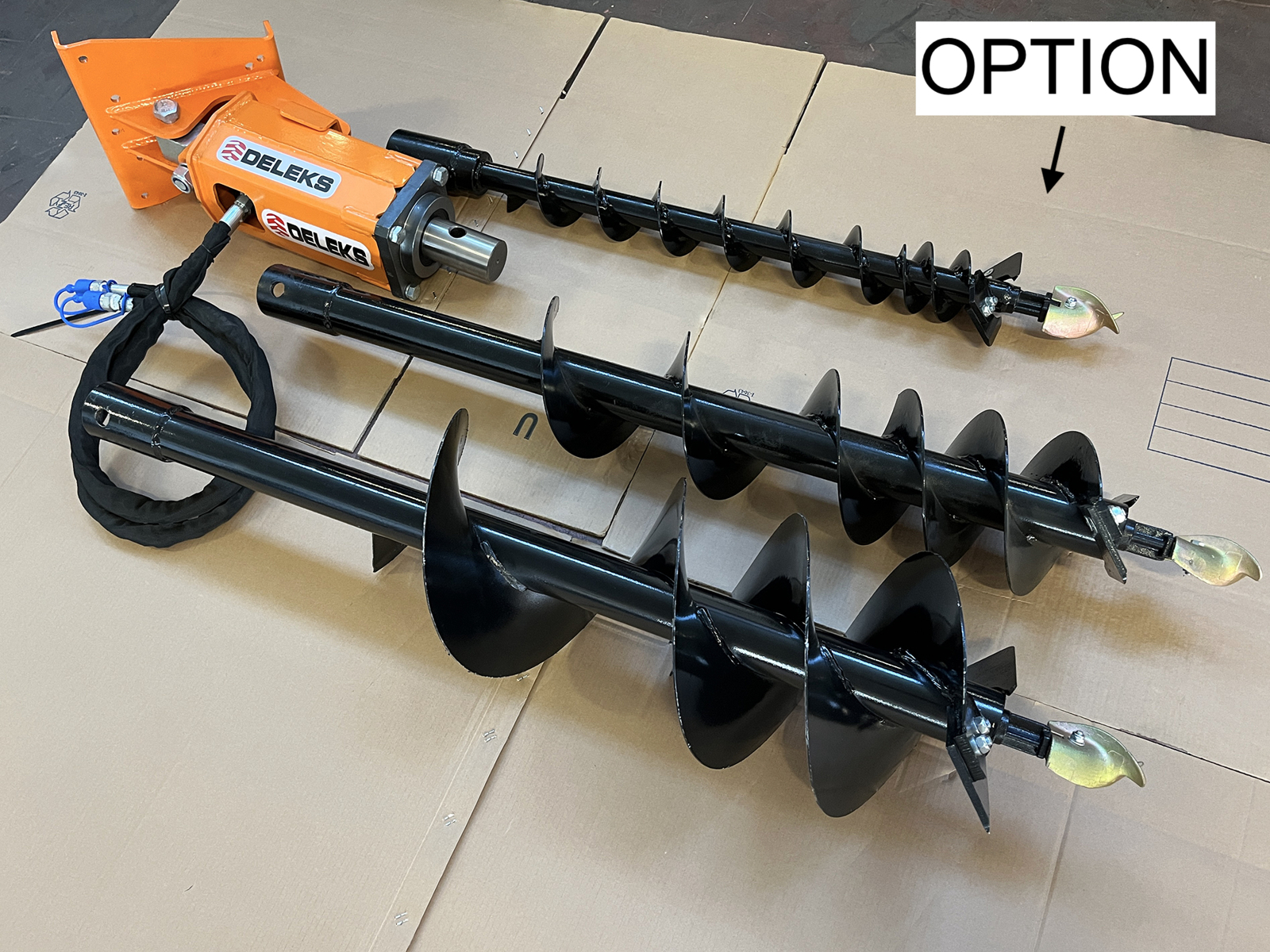

Optional augers:
Ø 100 mm
Ø 200 mm
Ø 300 mm
TECHNICAL SPECIFICATIONS
Drill drive: hydraulic via mini excavator, wheel loader, tractor etc.

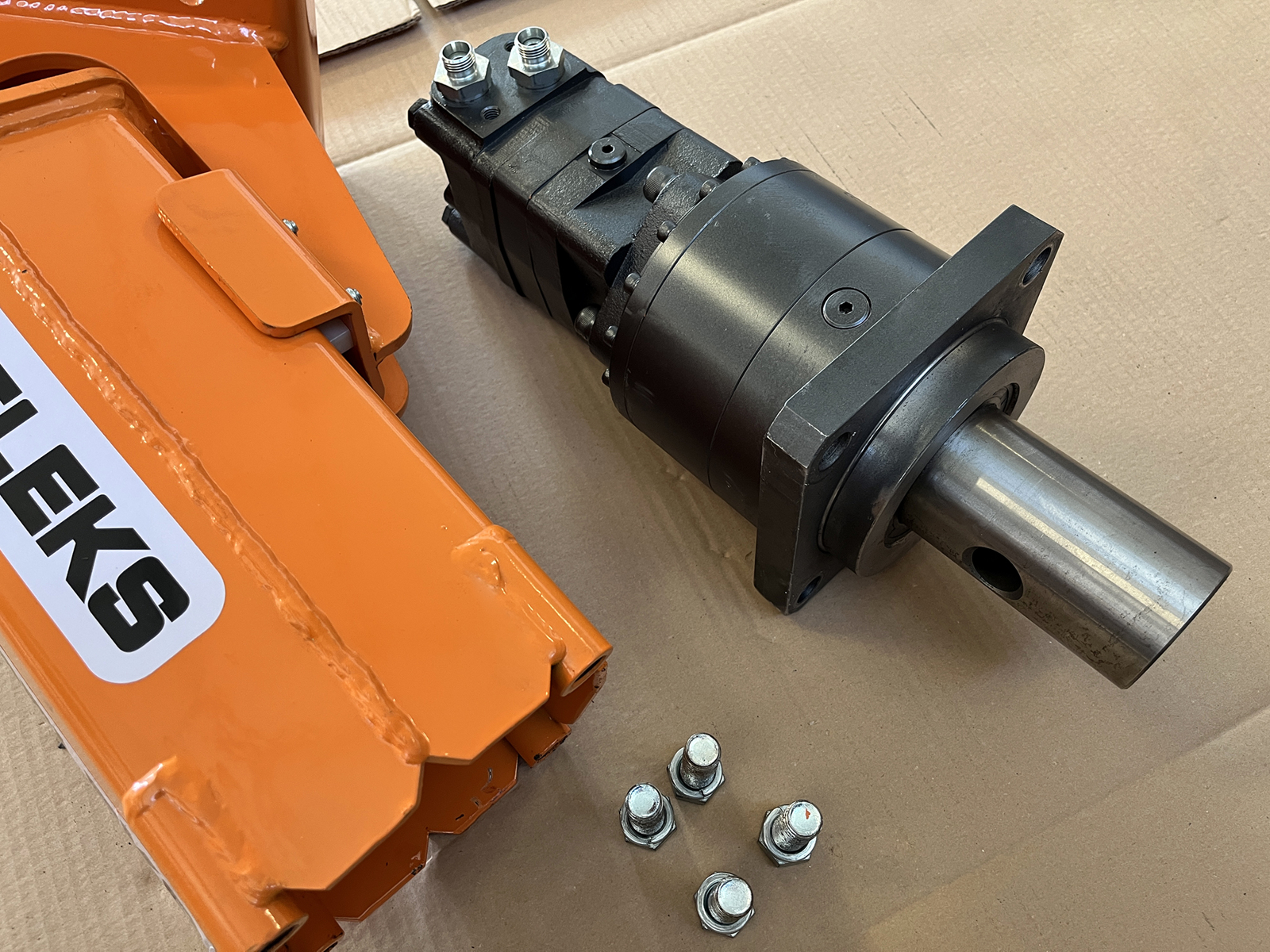

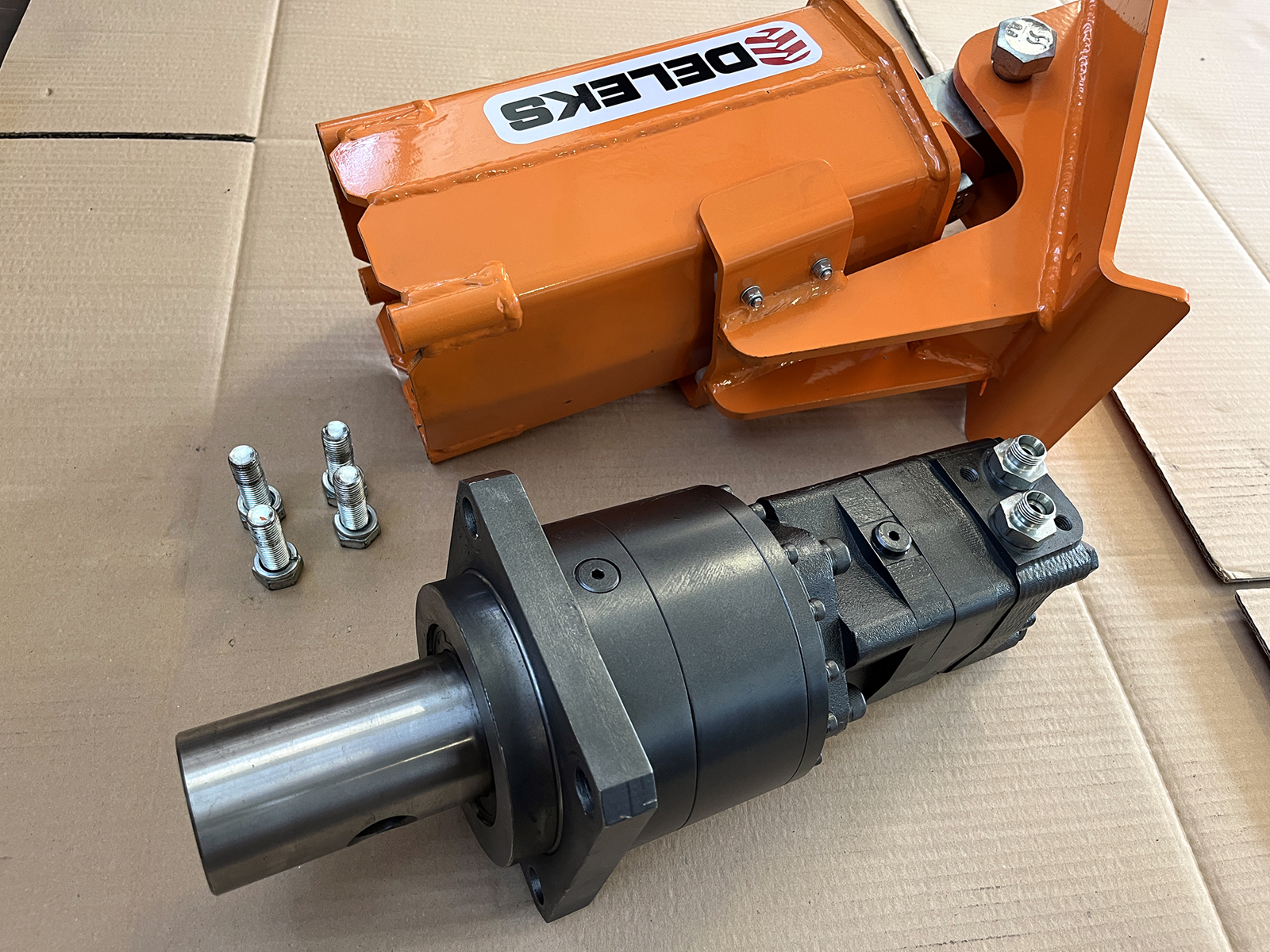

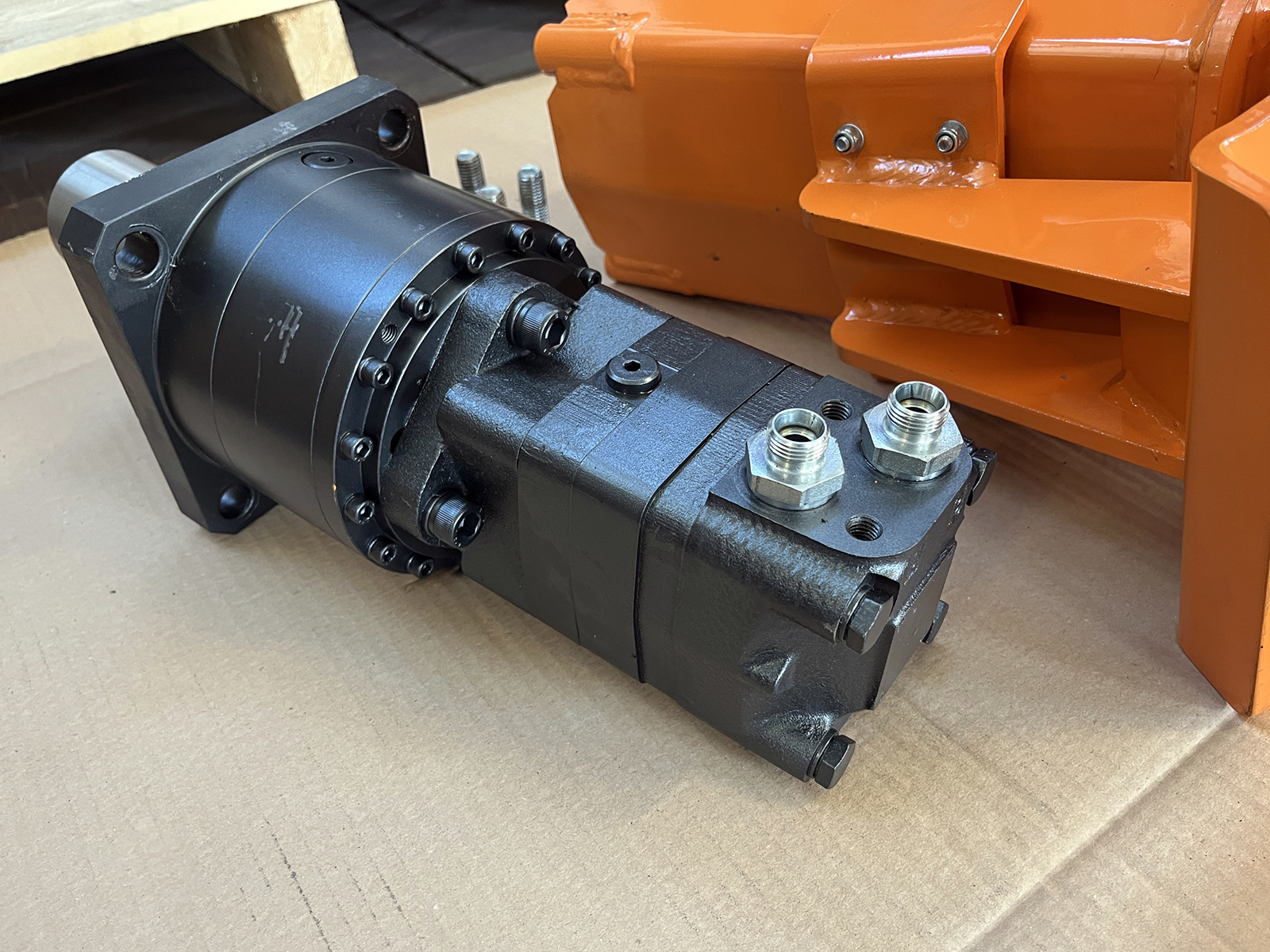

Orbit hydraulic motor: 160cc

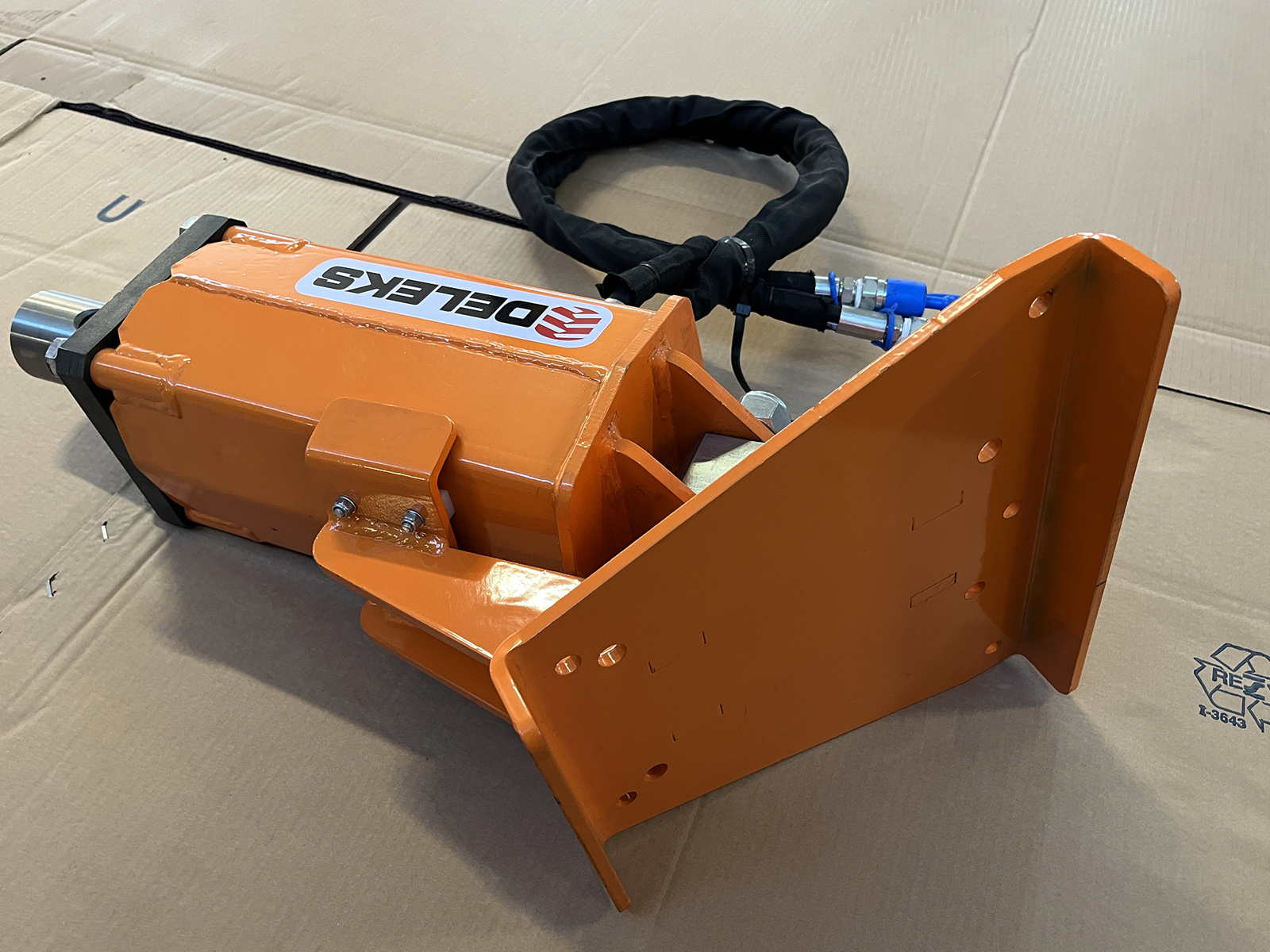

Incl. 2 hydraulic pipes with fast connections
Drilling depth: approx. 1.20 m
Rotation speed: 5-300 rpm
Torque: 450 Nm
Output: max. of 12 kW
Operating pressure: 200 bar
Oil flow rate: approx. 20-60 l/min
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 60 kg | 132.0 lb |

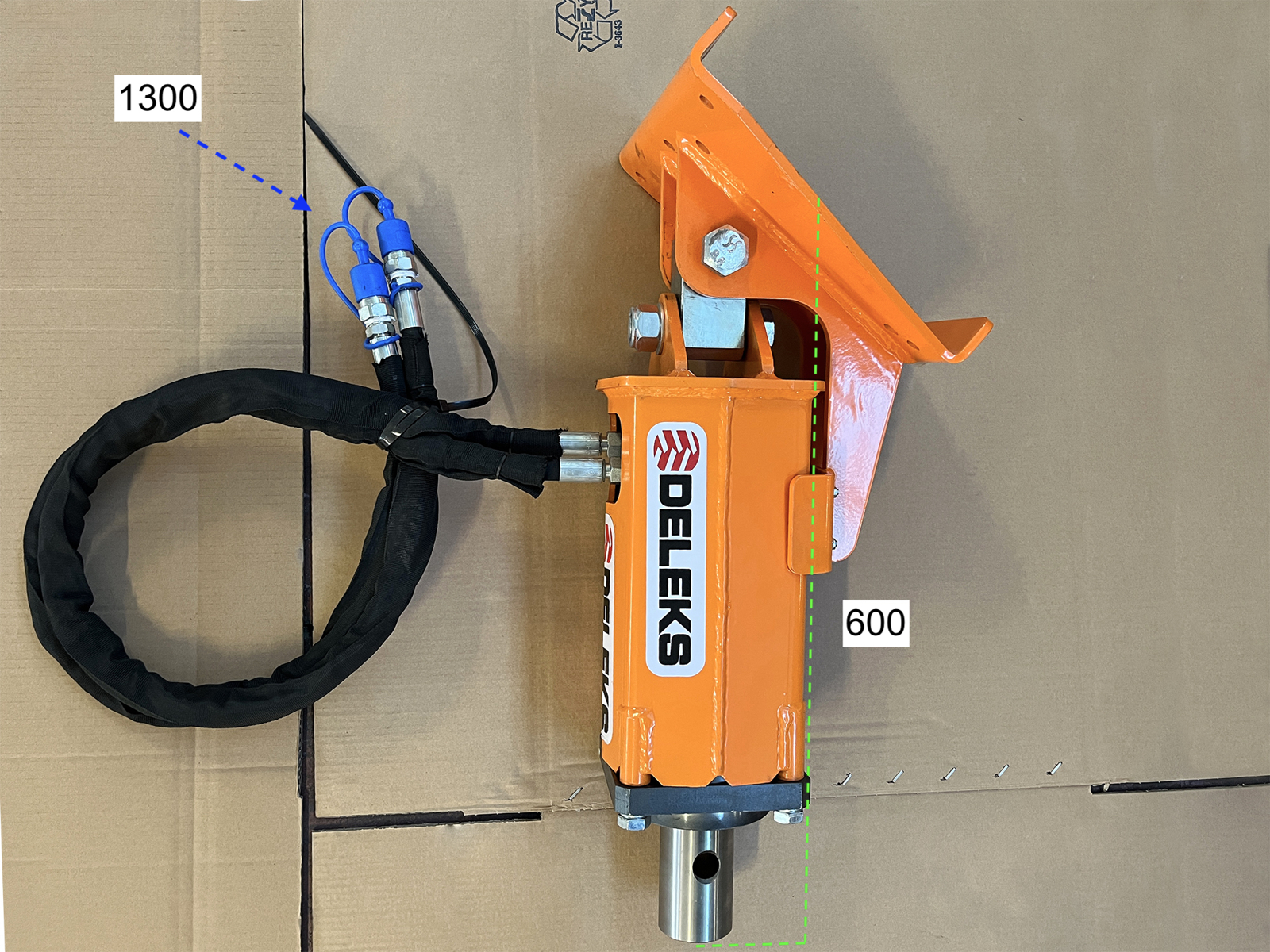

| Hydraulic Pipes (2) | 1300.0 mm | 51.0 in |
| Min./Max. Flow | 20-60 l / min | 20-60 l / min |
| Compact Excavators Range | 1.5 - 2.5 t | 1.5 - 2.5 t |
| Digg Depth | 1200.0 mm | 3.95 ft |
