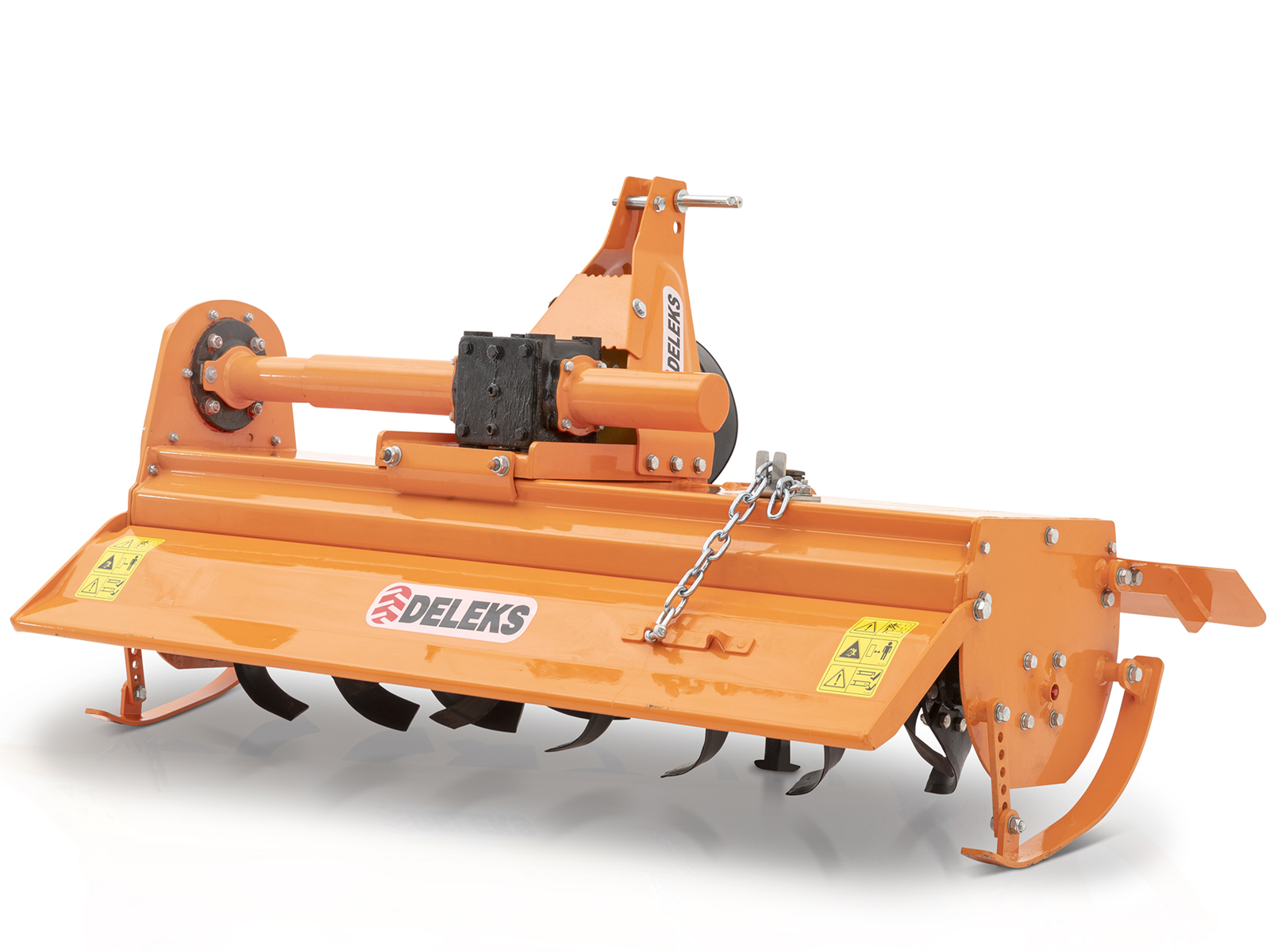

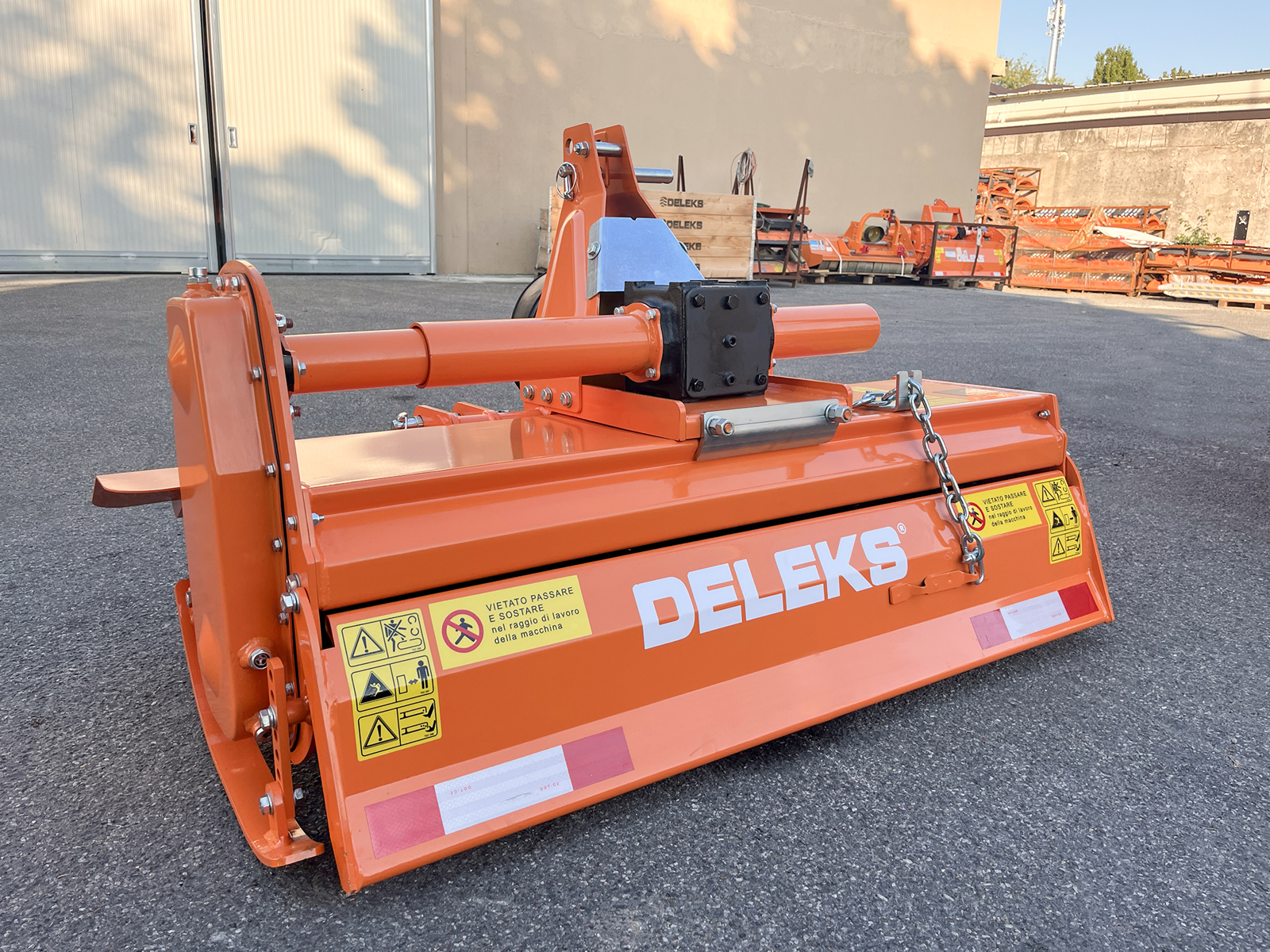

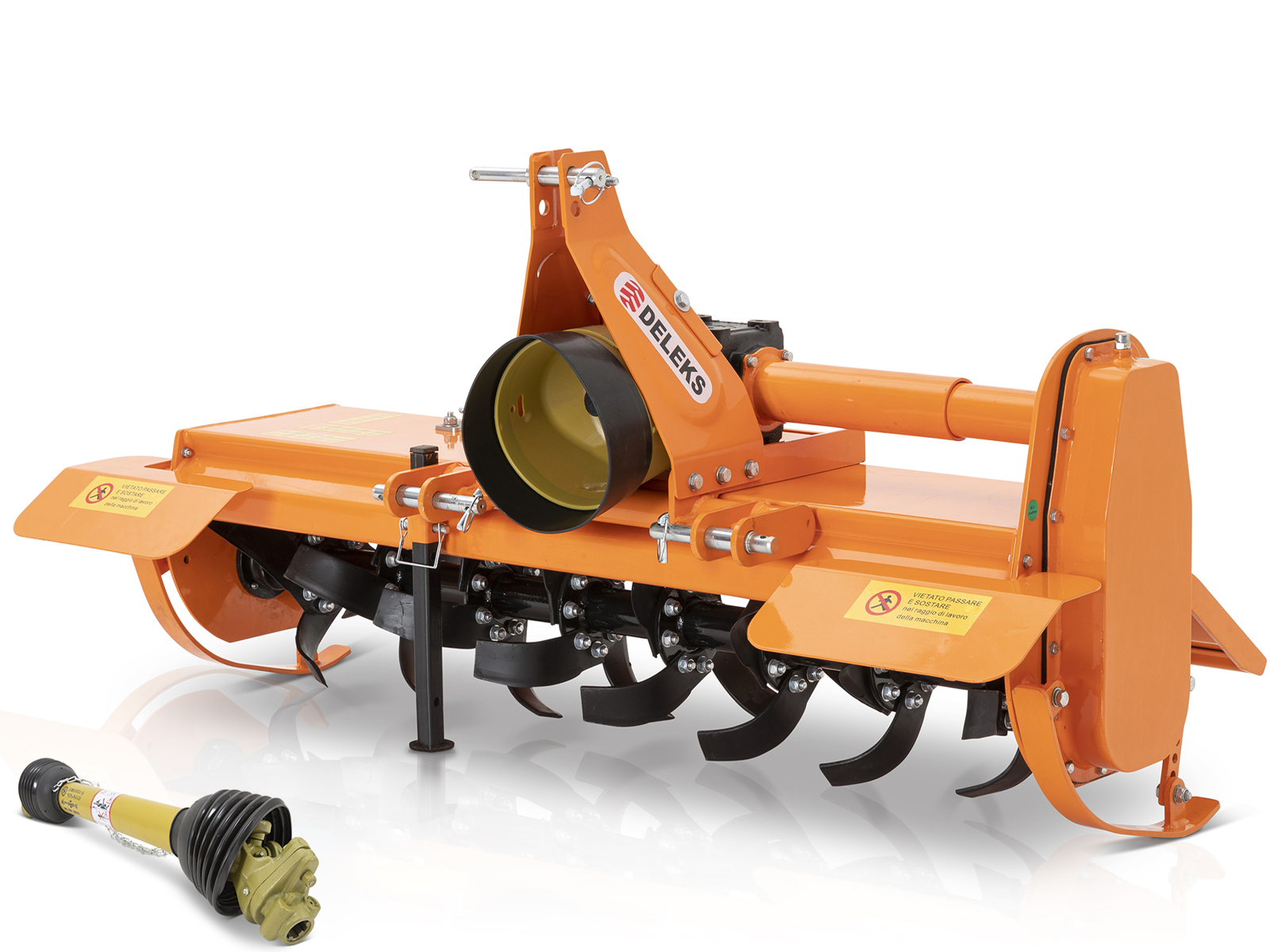

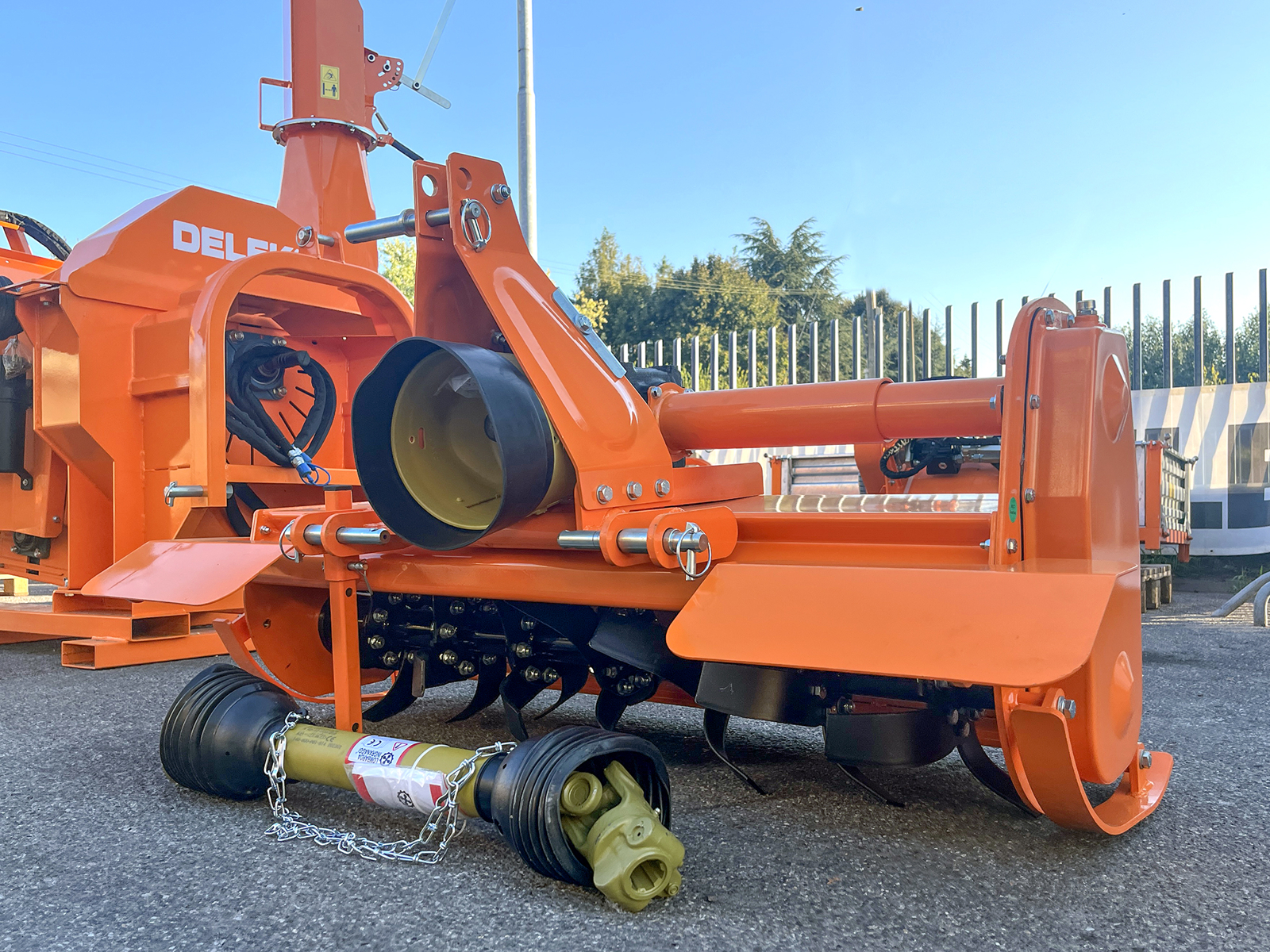

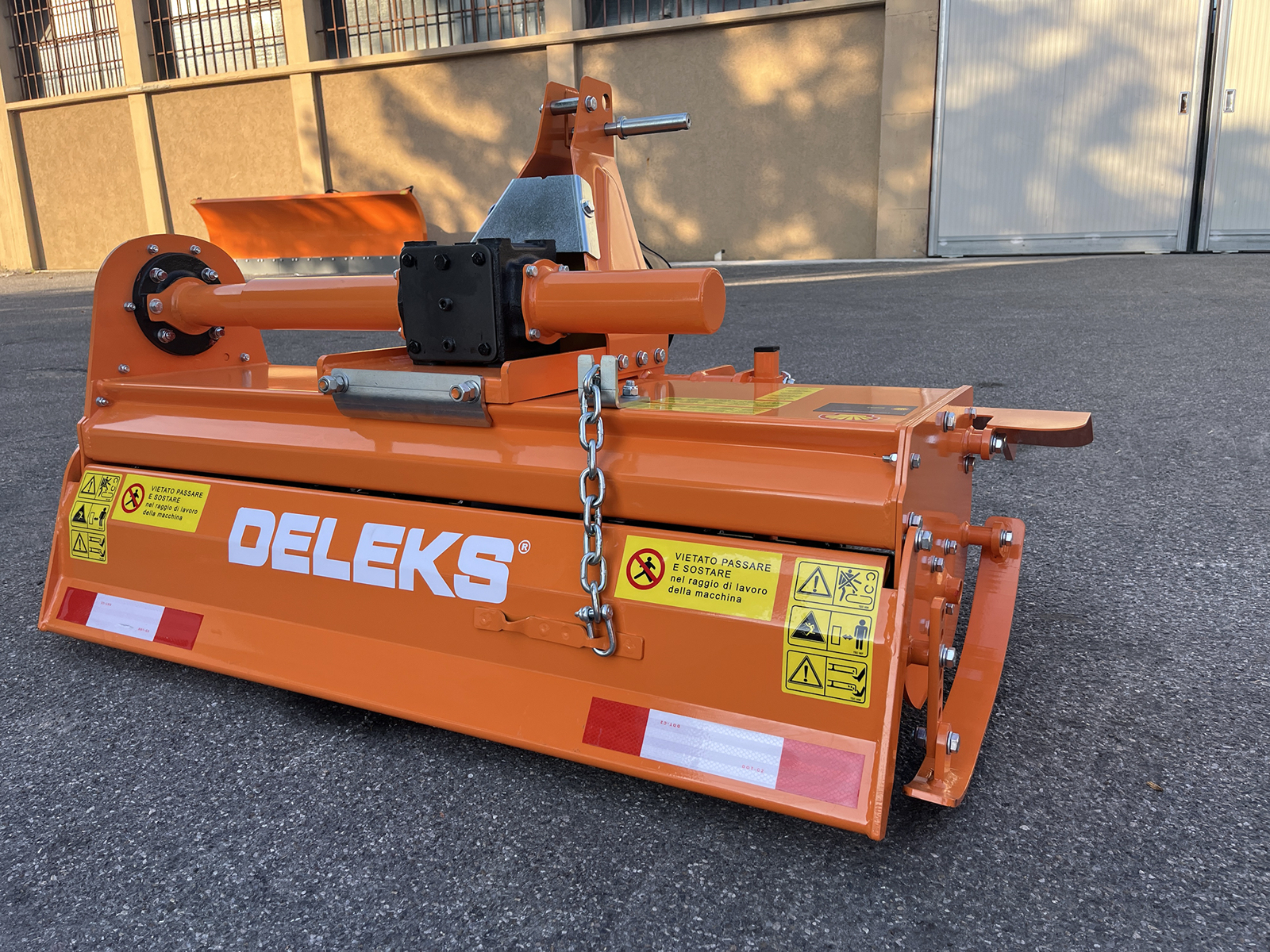

Medium heavy Rotavator tiller for tractor - working width 150cm - manuall sideshift - mod. DFM-150
DETAILS
Rotavator tiller 150cm, medium heavy with sideshift DELEKS® for tractors 20-45Hp like Kubot, Iseki, Branson - Pto shaft CE included.
OVERVIEW
Medium sized rotary tiller for tractors 20-45hp e.g Holland Boomer 30-35, John Deere 2-3 Series, Kubota, Iseki, Yanmar, Mahindra, Solis, Mitsubishi, Ferrari, Pasquali, Goldoni, Branson, etc. The tiller is attached to the tractor using universal three point linkage.

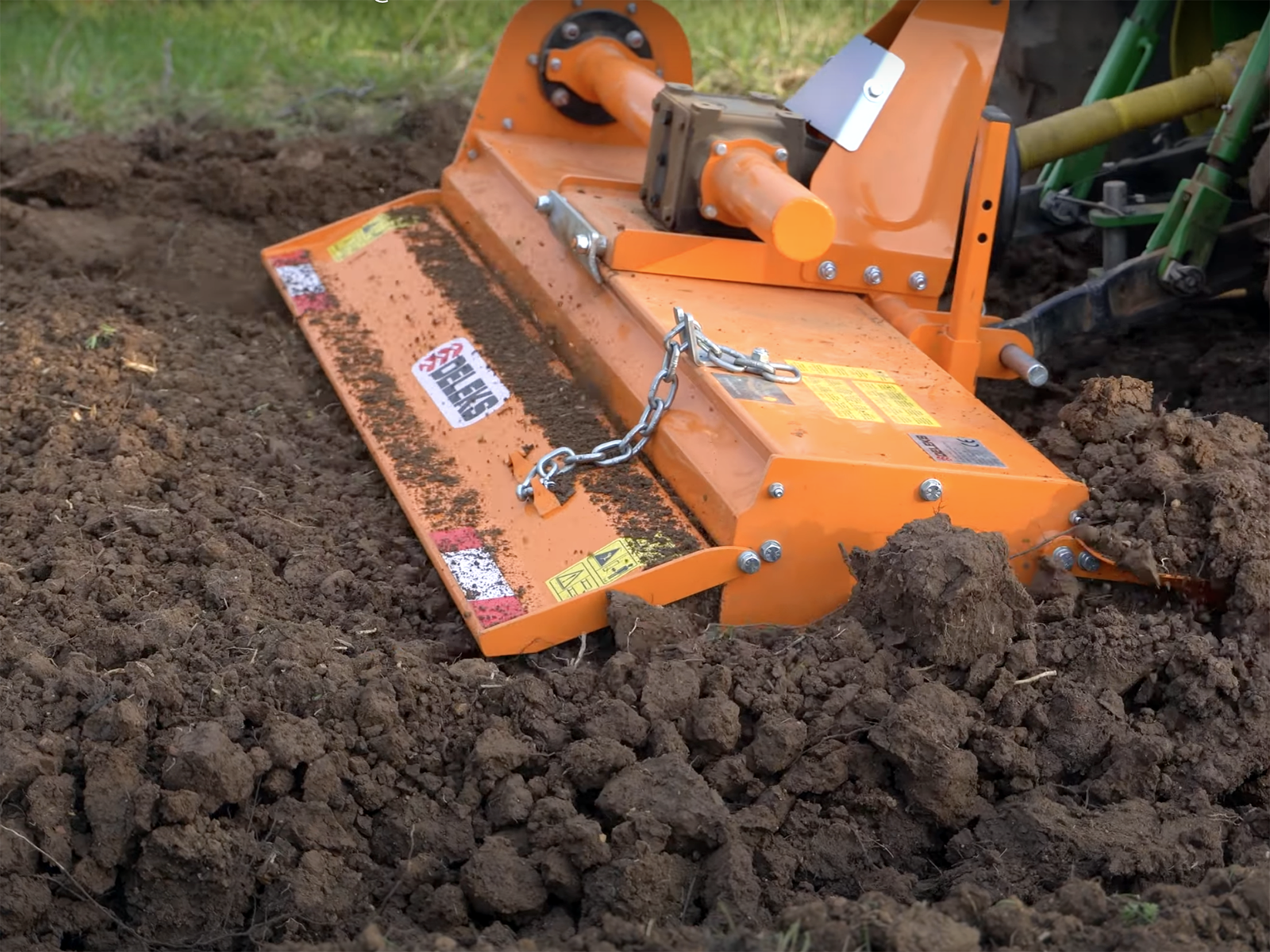

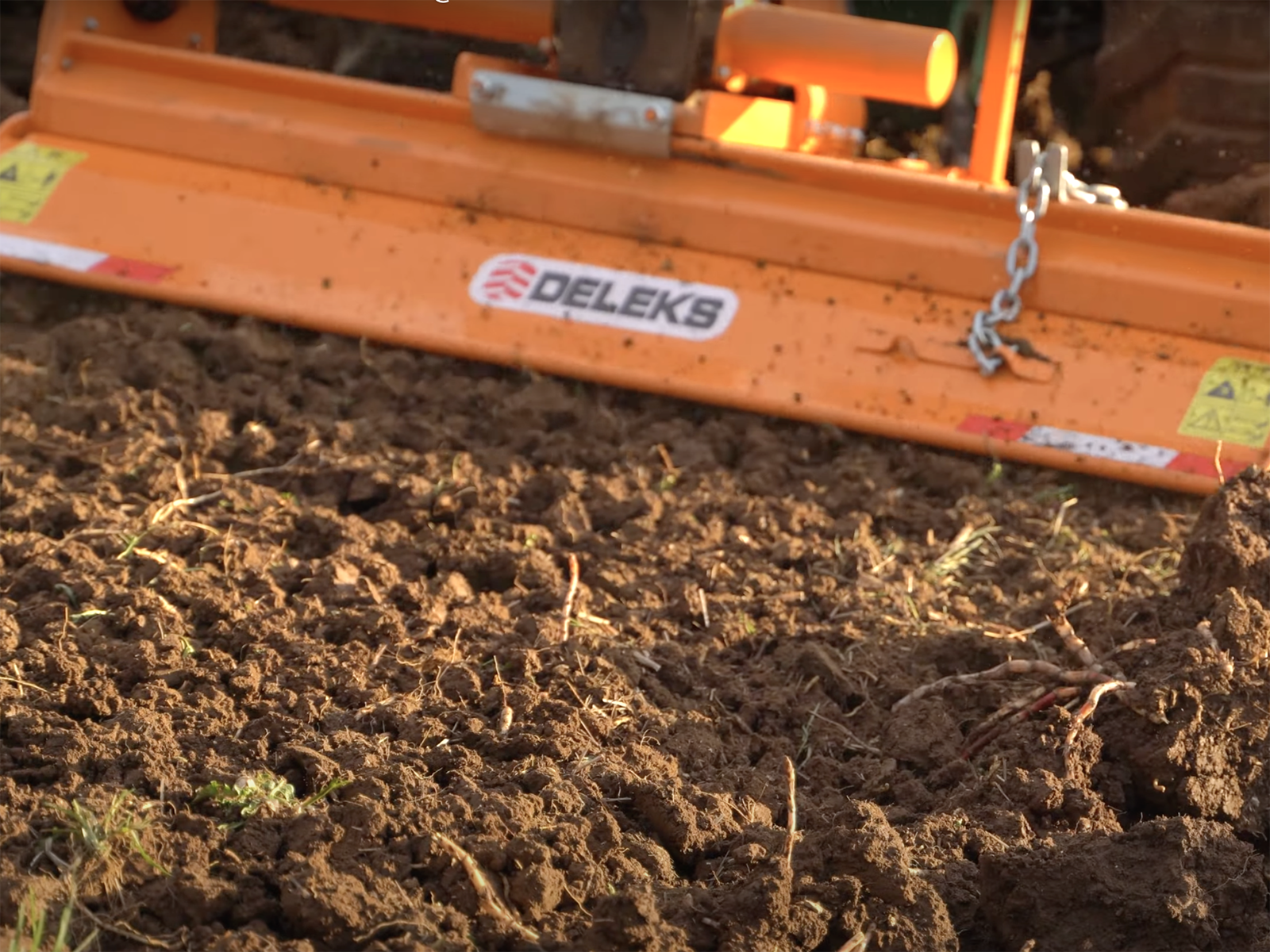

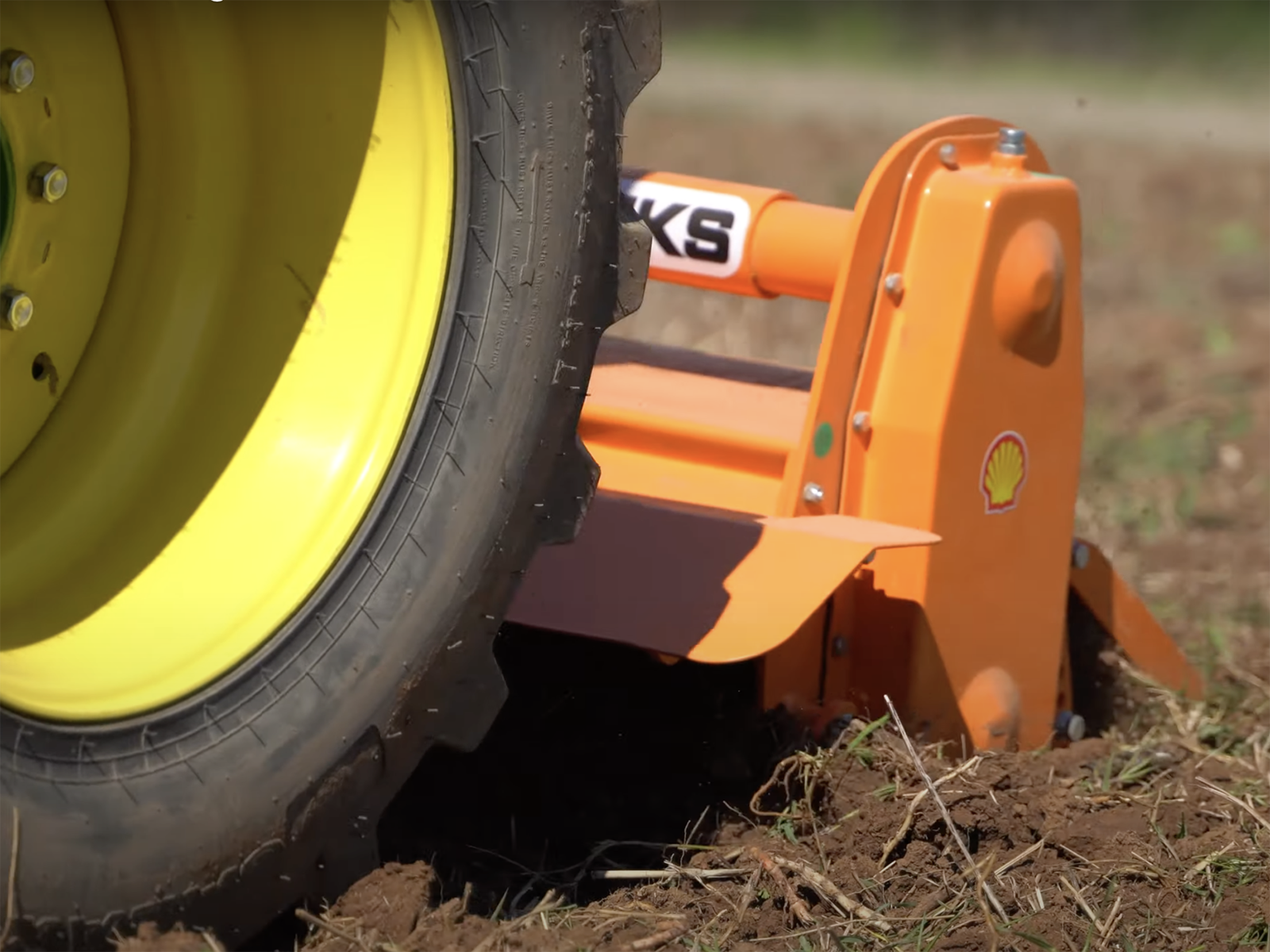

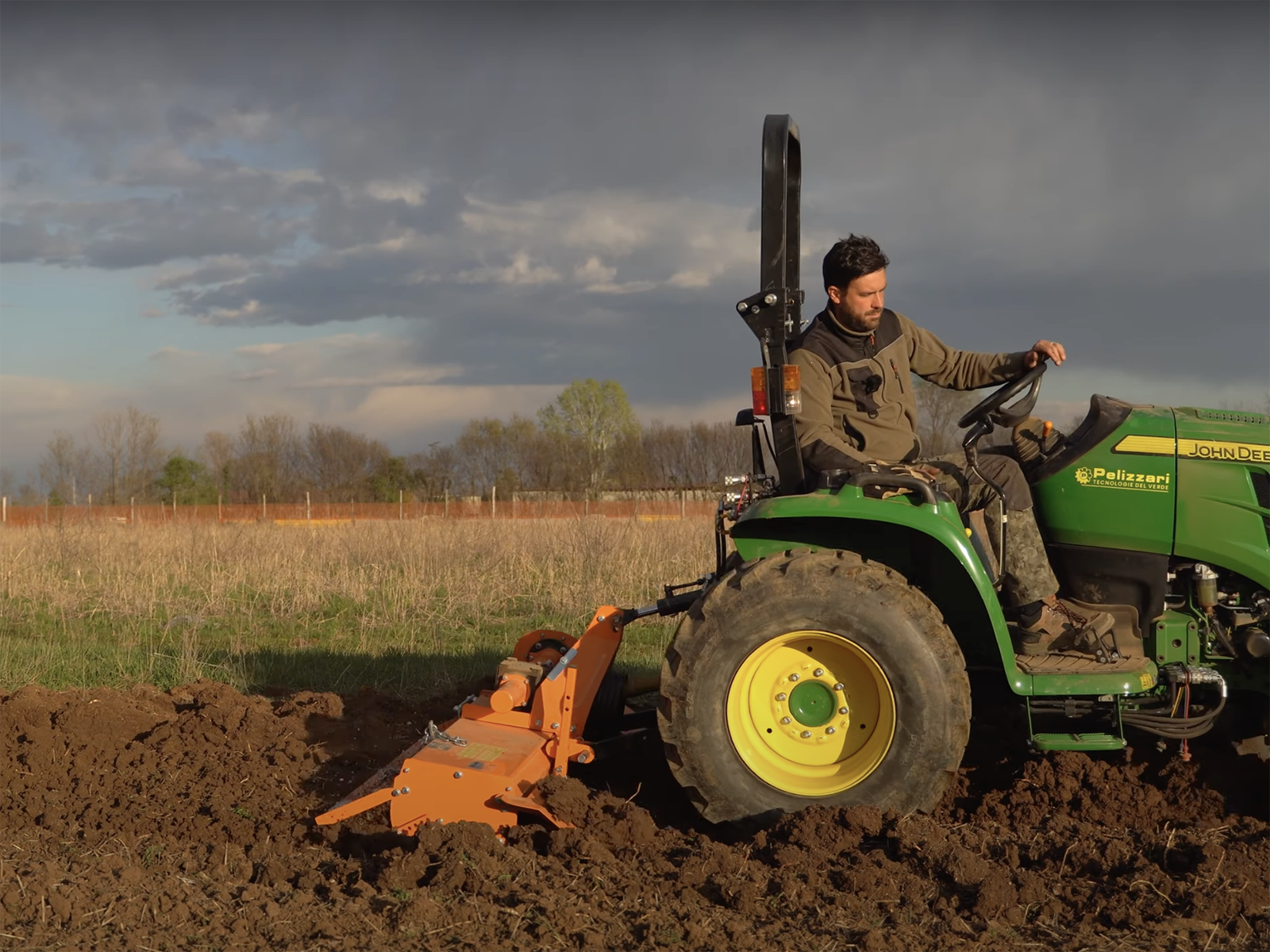

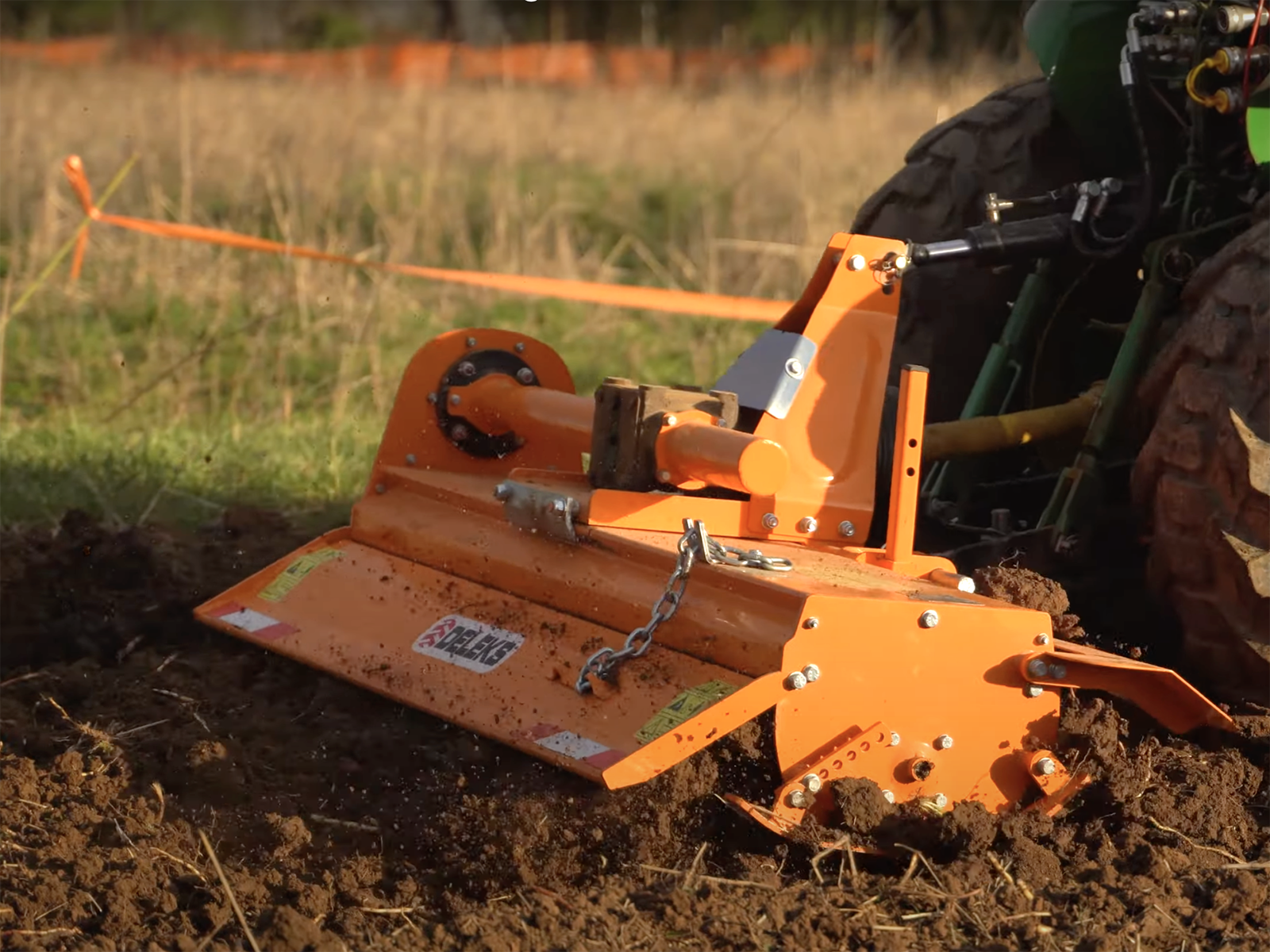

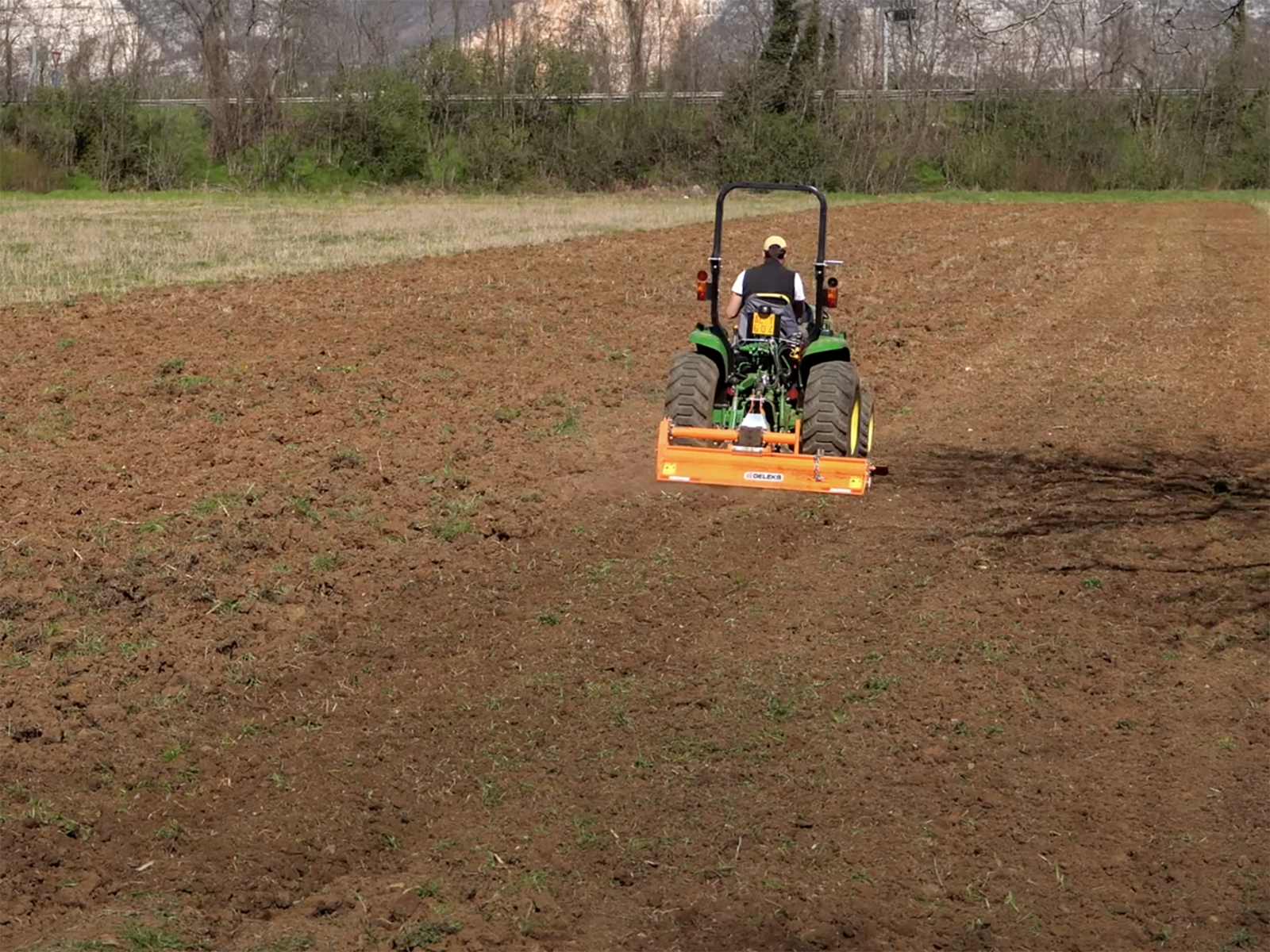

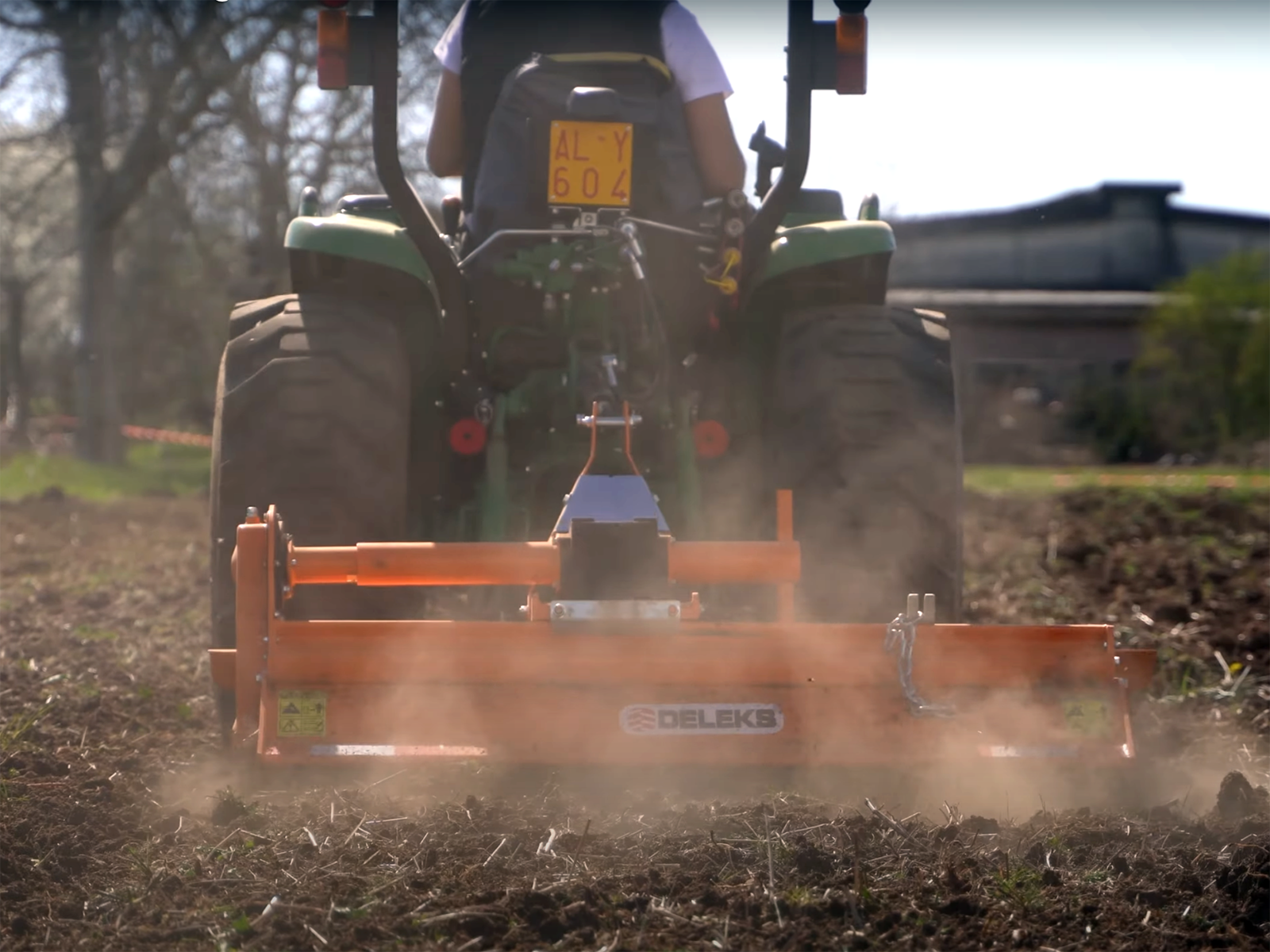

Designed for soil preparation/cultivation in nursery, orchards, and for gardens. Our rotavators can be used to pulverize and stir soil before planting (to prepare seed beds) or after your crop has begun growing (to kill off unwanted weeds). Single Speed Gearbox with 540 RPM PTO, Chain Side Drive. Delivered assembled (except 3 point linkage) and greased, Gearbox filled with oil.
BENEFITS & FEATURES
The sideshift by the three-point hitch (120mm) is moved manually by hand and does not require levers to operate.

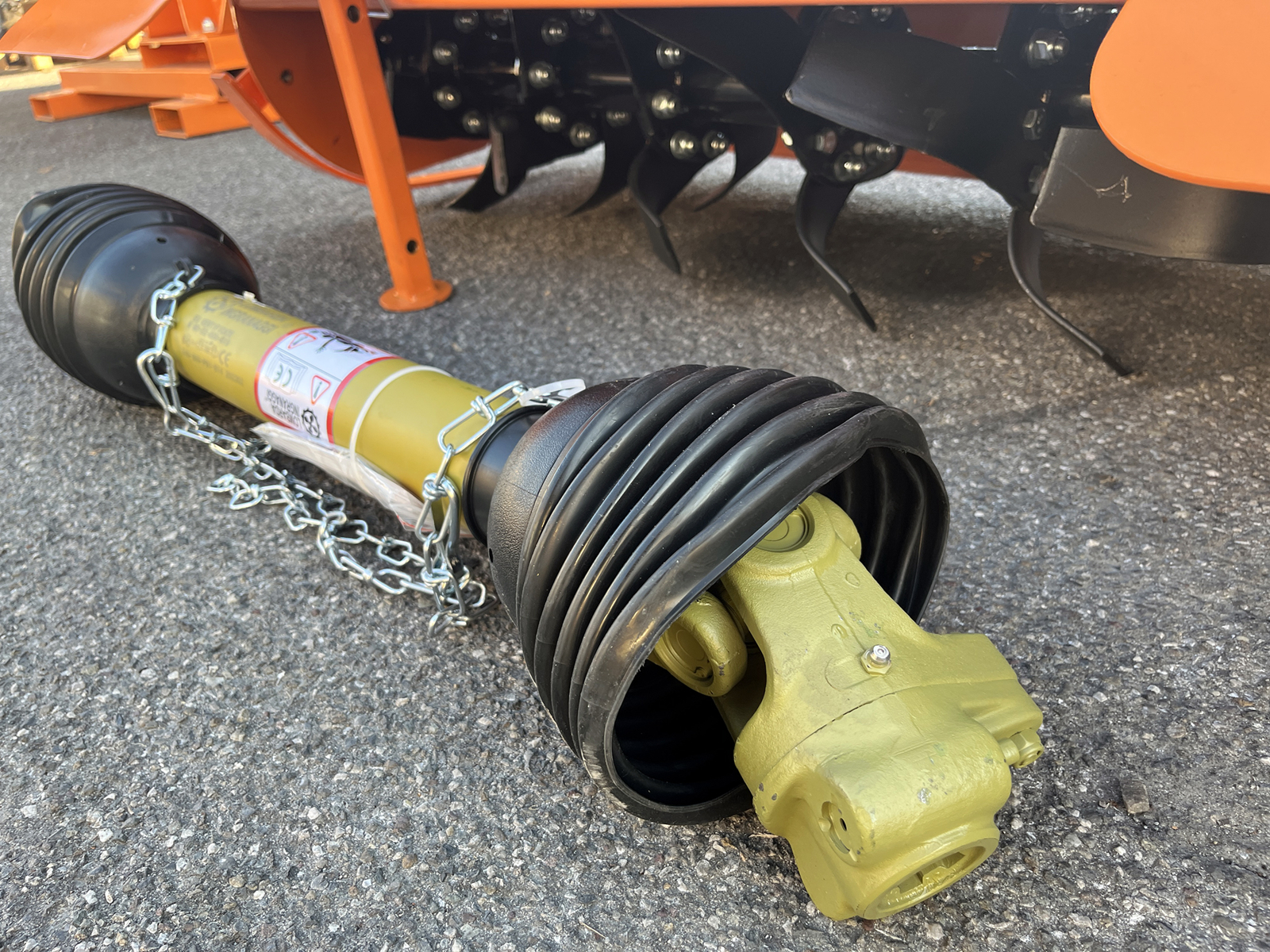

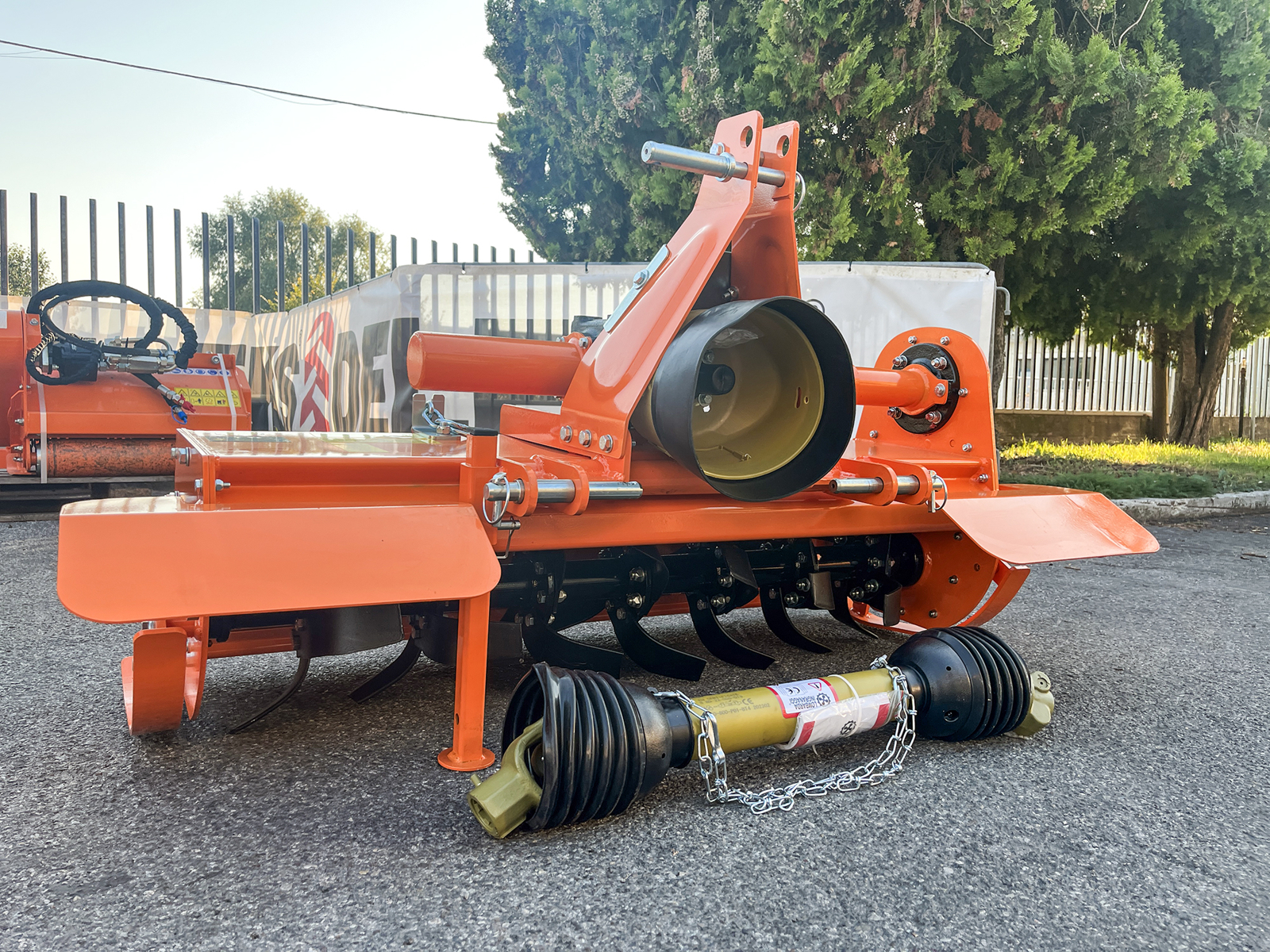

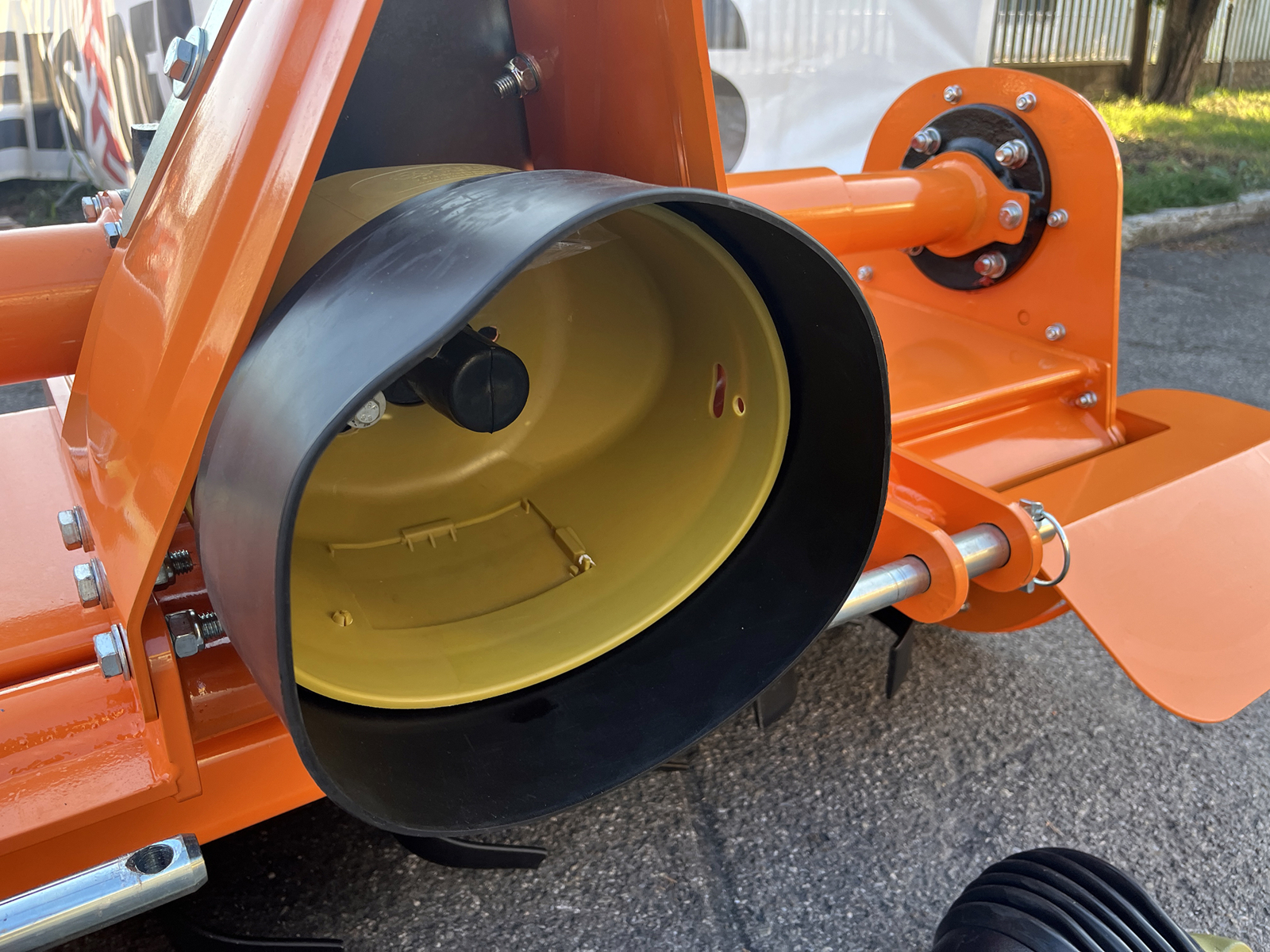

Pto shaft CE included.

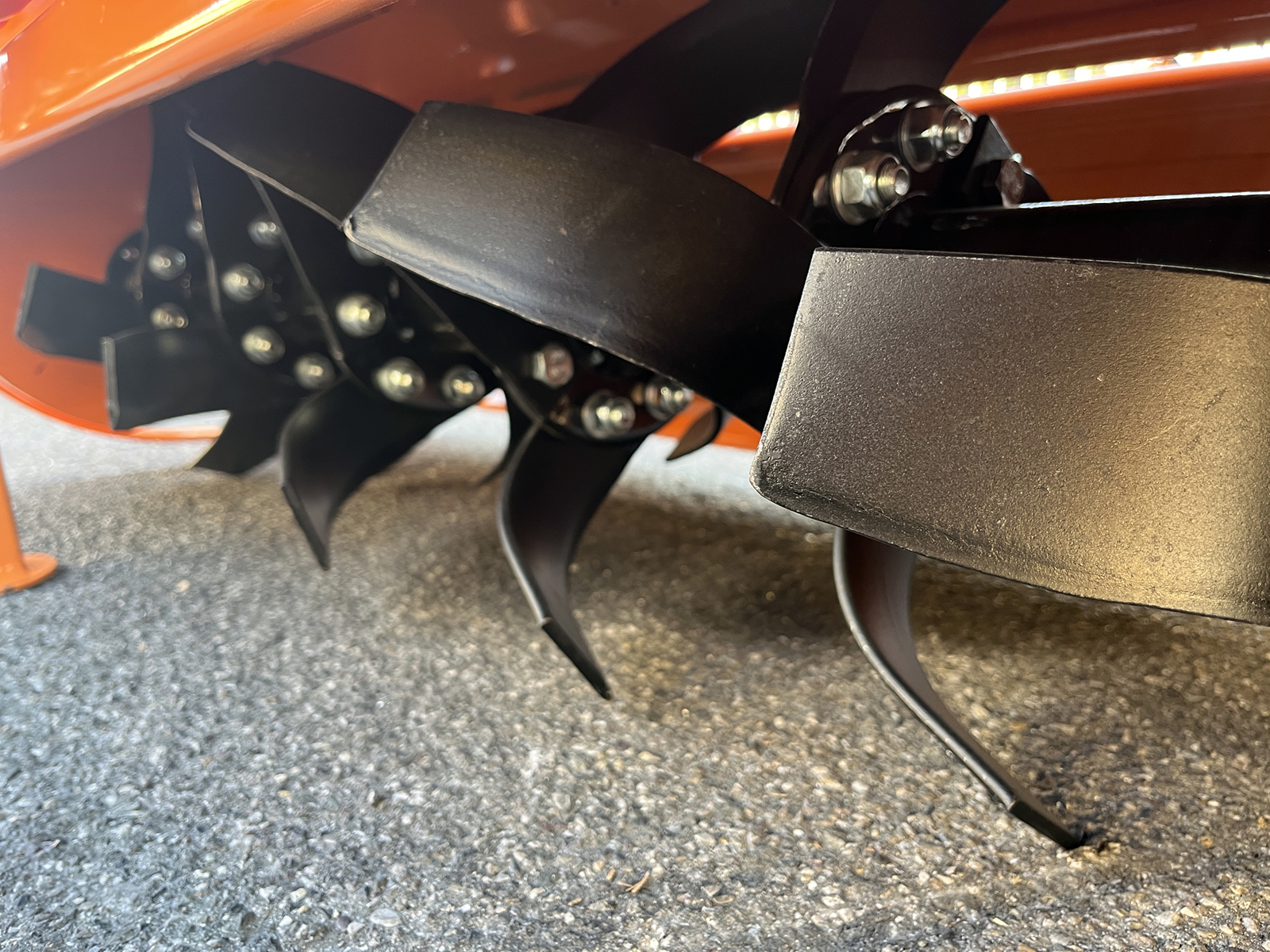

Blades are hardened for maximum strength, durability and wear life in the toughest soil conditions.

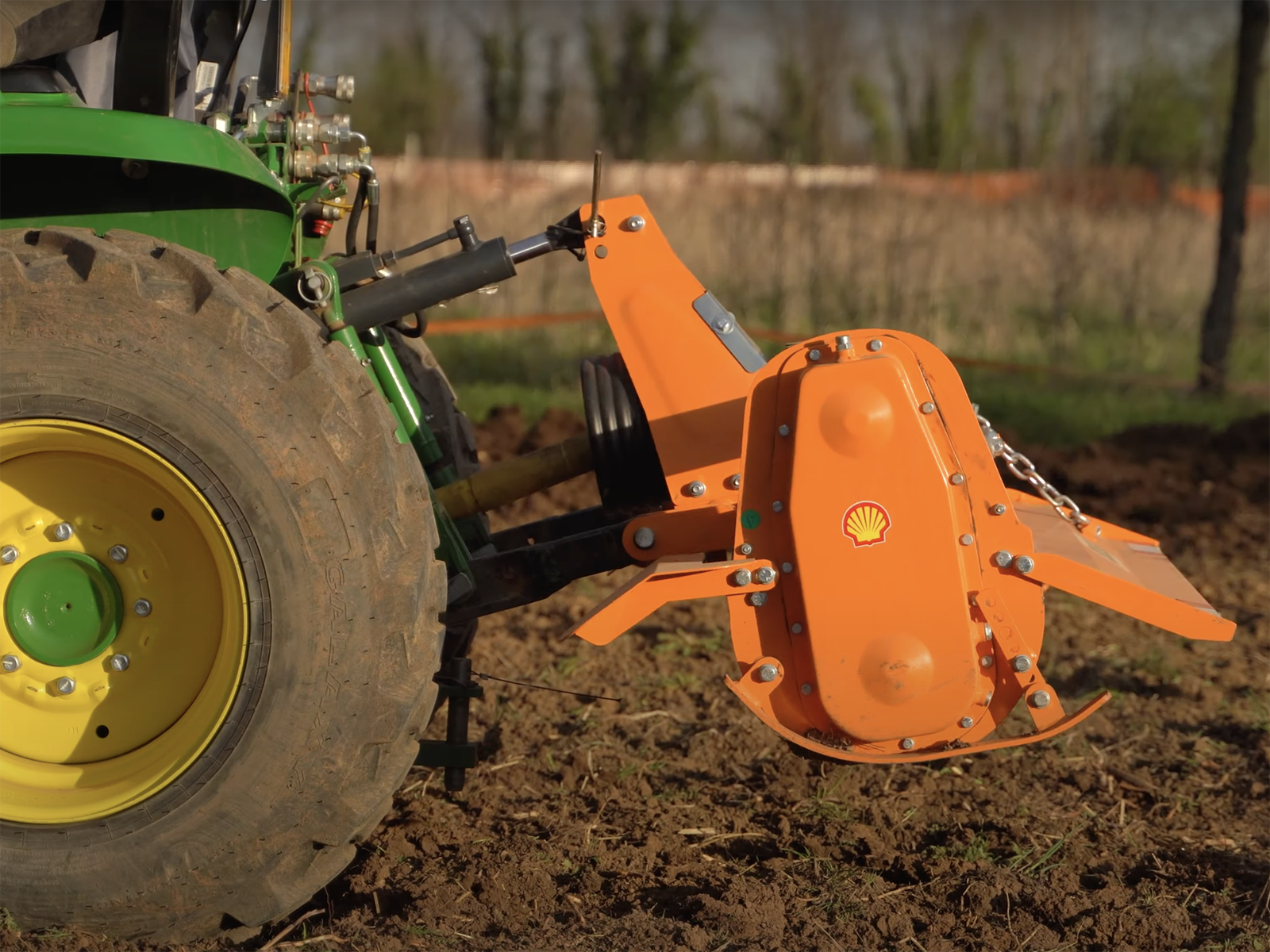

Automatic chain tensioner.

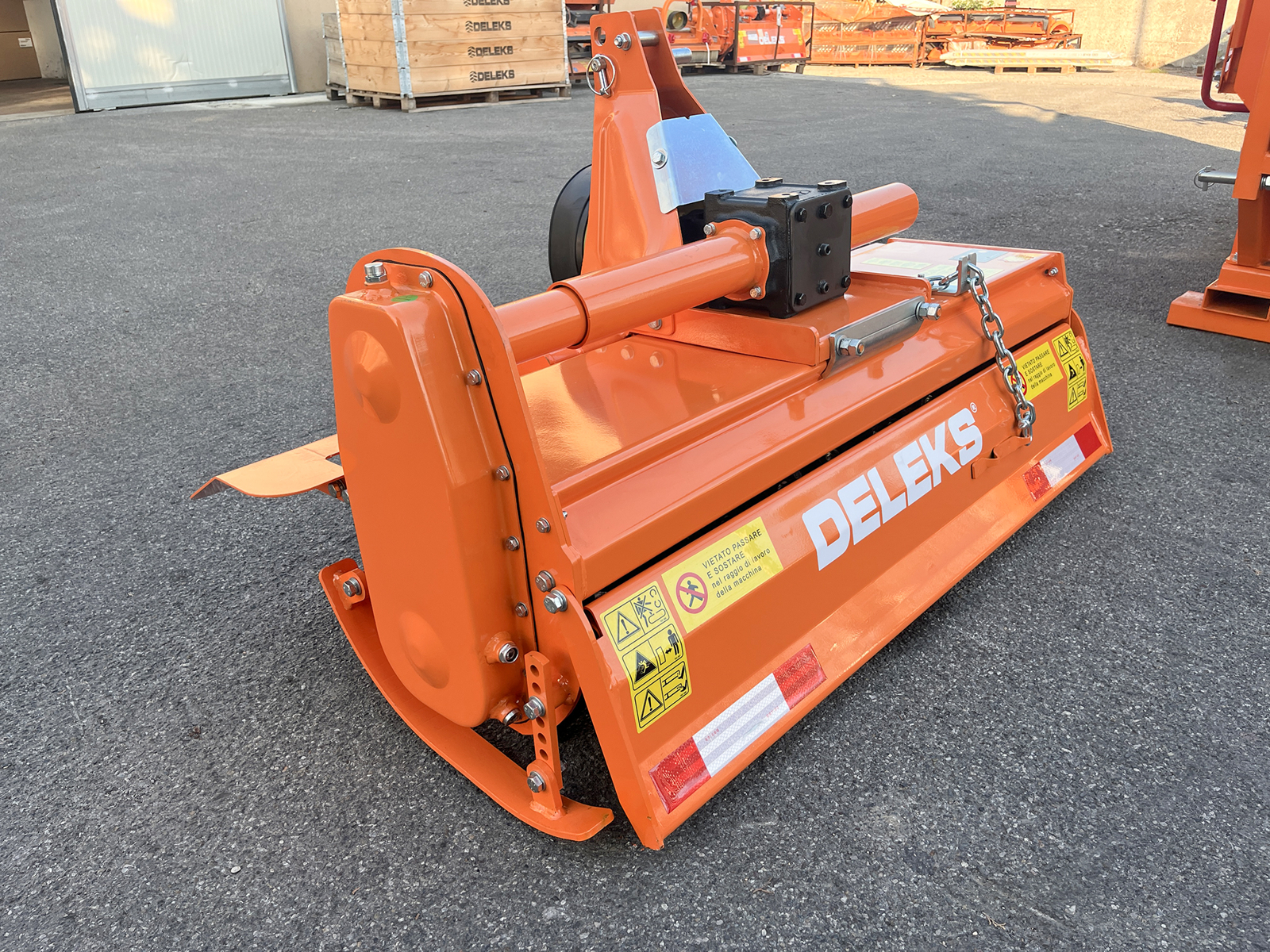

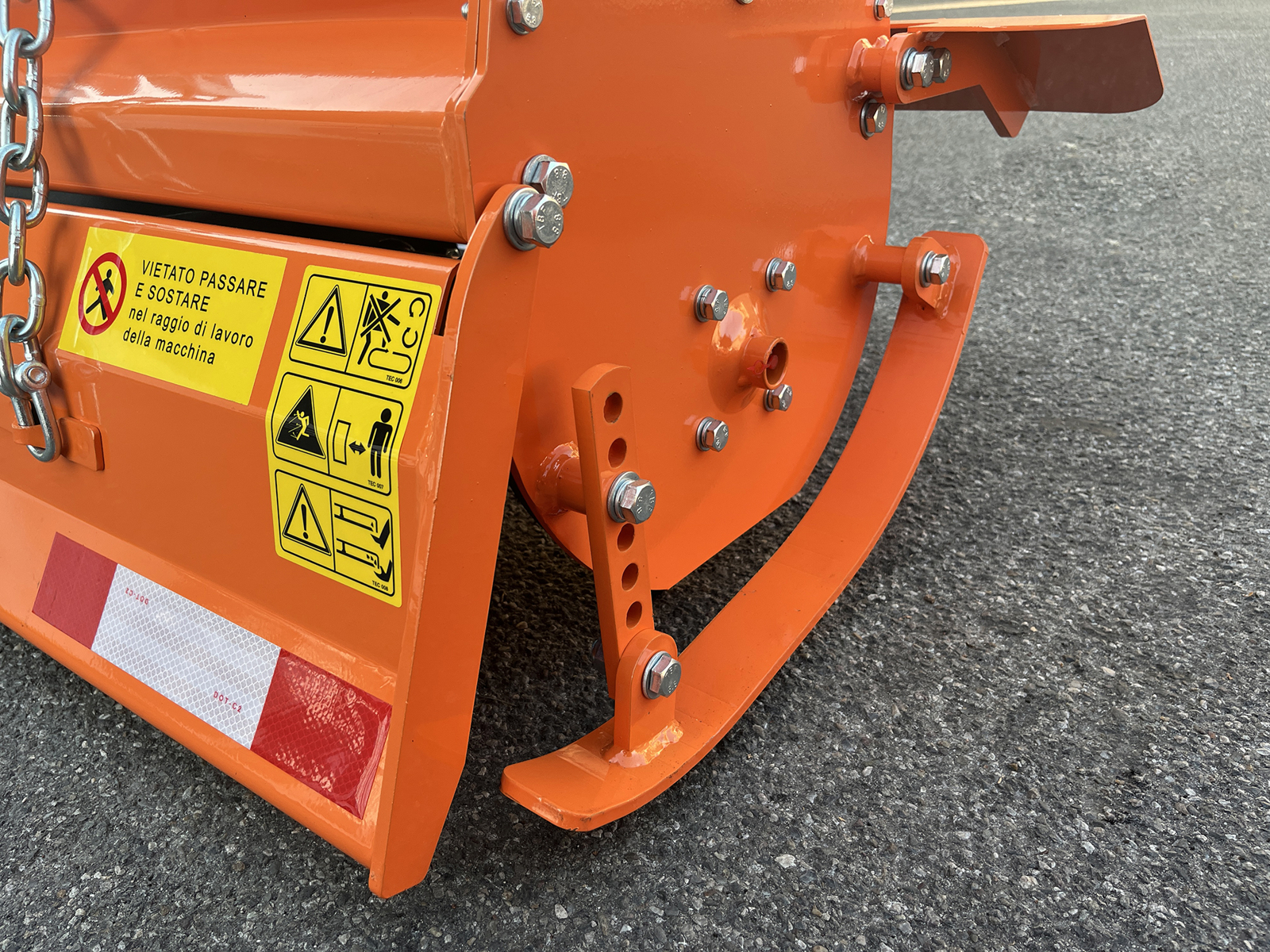

Adjustable skids to obtain the desired working depth.
Adjustable rear shield ensures best ground leveling.

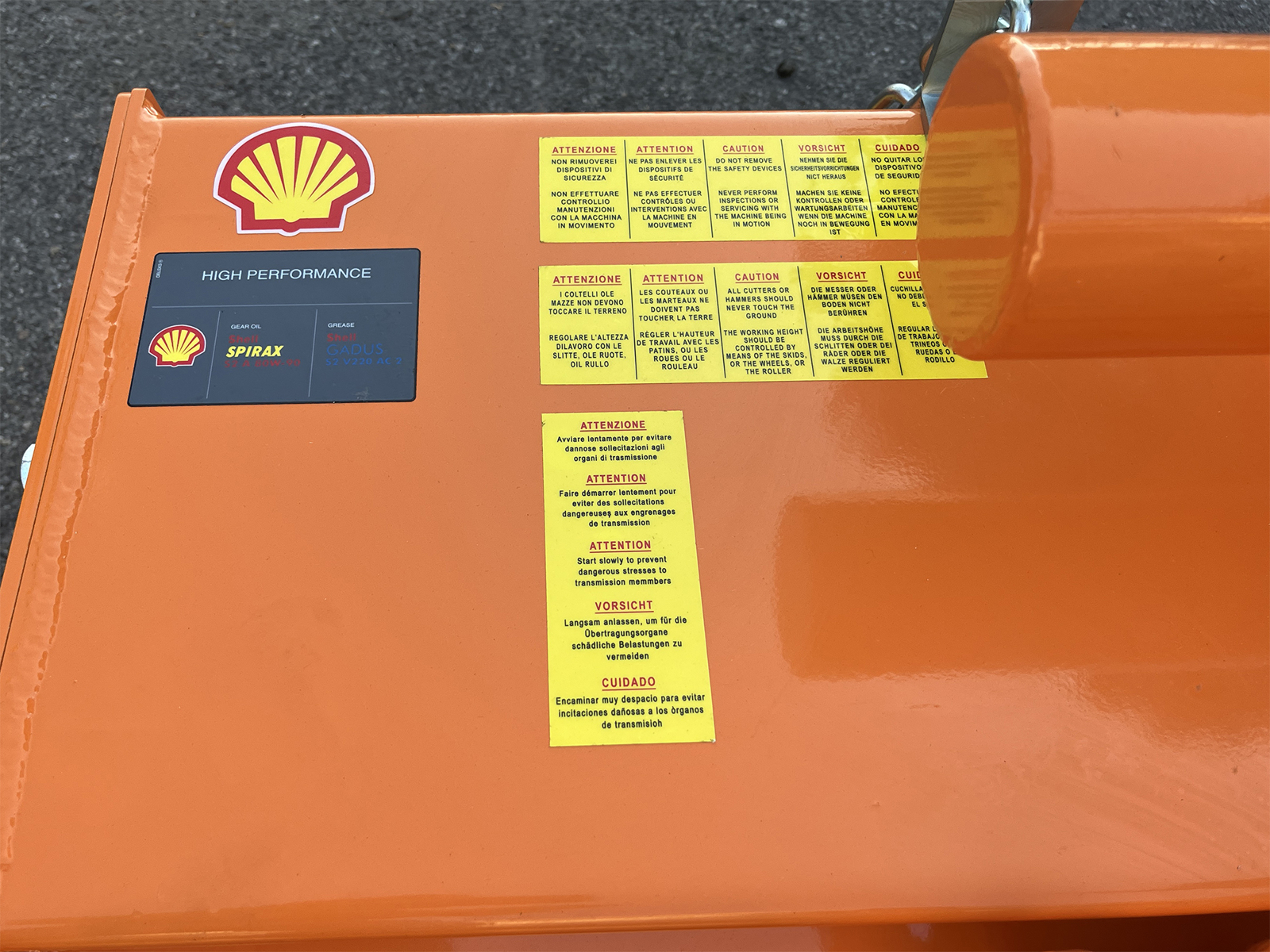

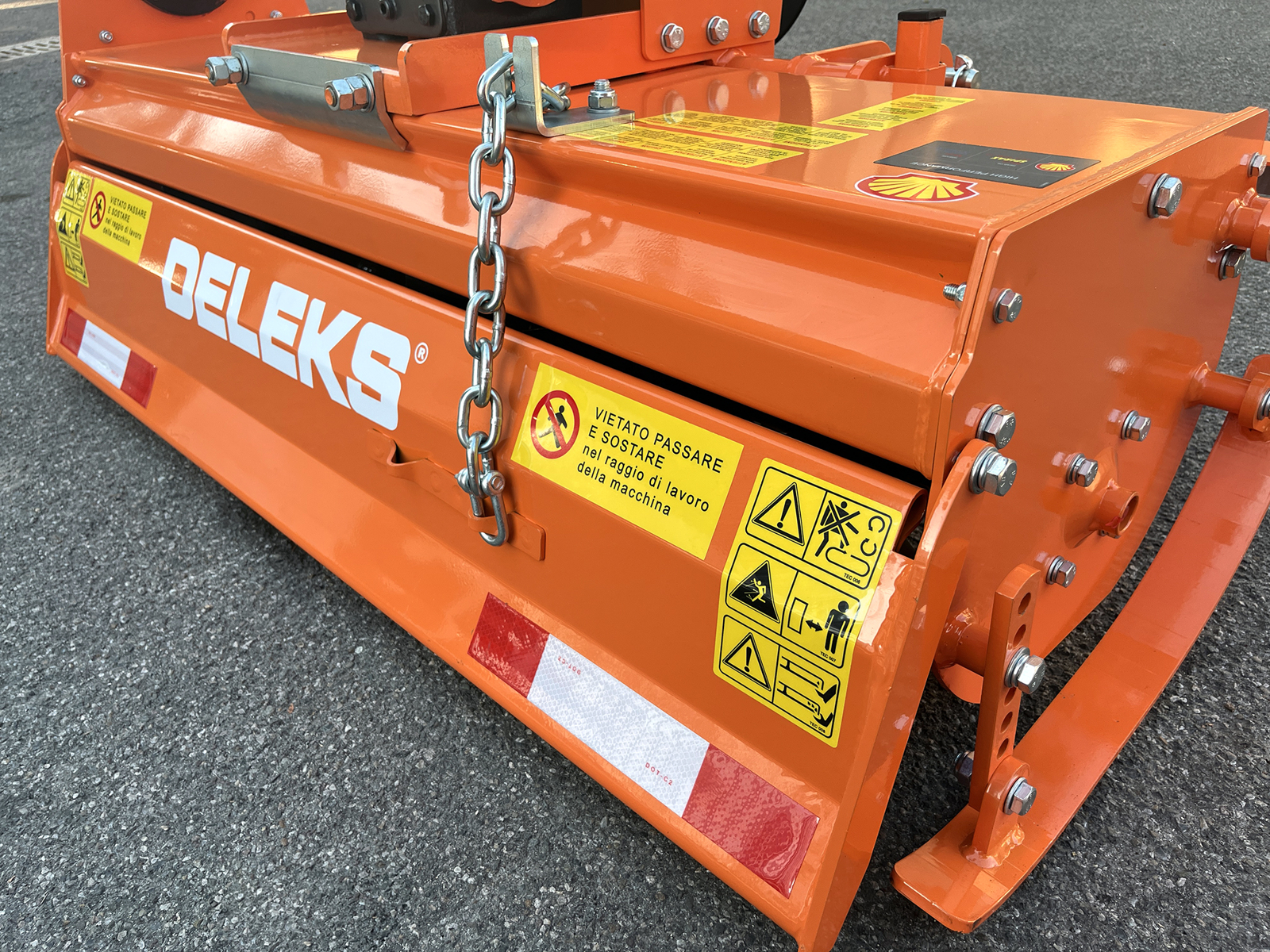

CE SafetyGuards.
CHARACTERISTICS
Characteristic | Units metric | Units US |
---|---|---|
Overall width | 1680.0 mm | 5.51 ft |
Weight | 232.0 kg | 512.0 lb |
Overall height | 820.0 mm | 2.70 ft |
Tractor Power Range | 20 - 45 Hp | 20 - 45 Hp |
3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Position of the gearbox | 630.0 mm from left side / 770.0 mm from right side | 24.80 in from left side / 30.31 in from right side |

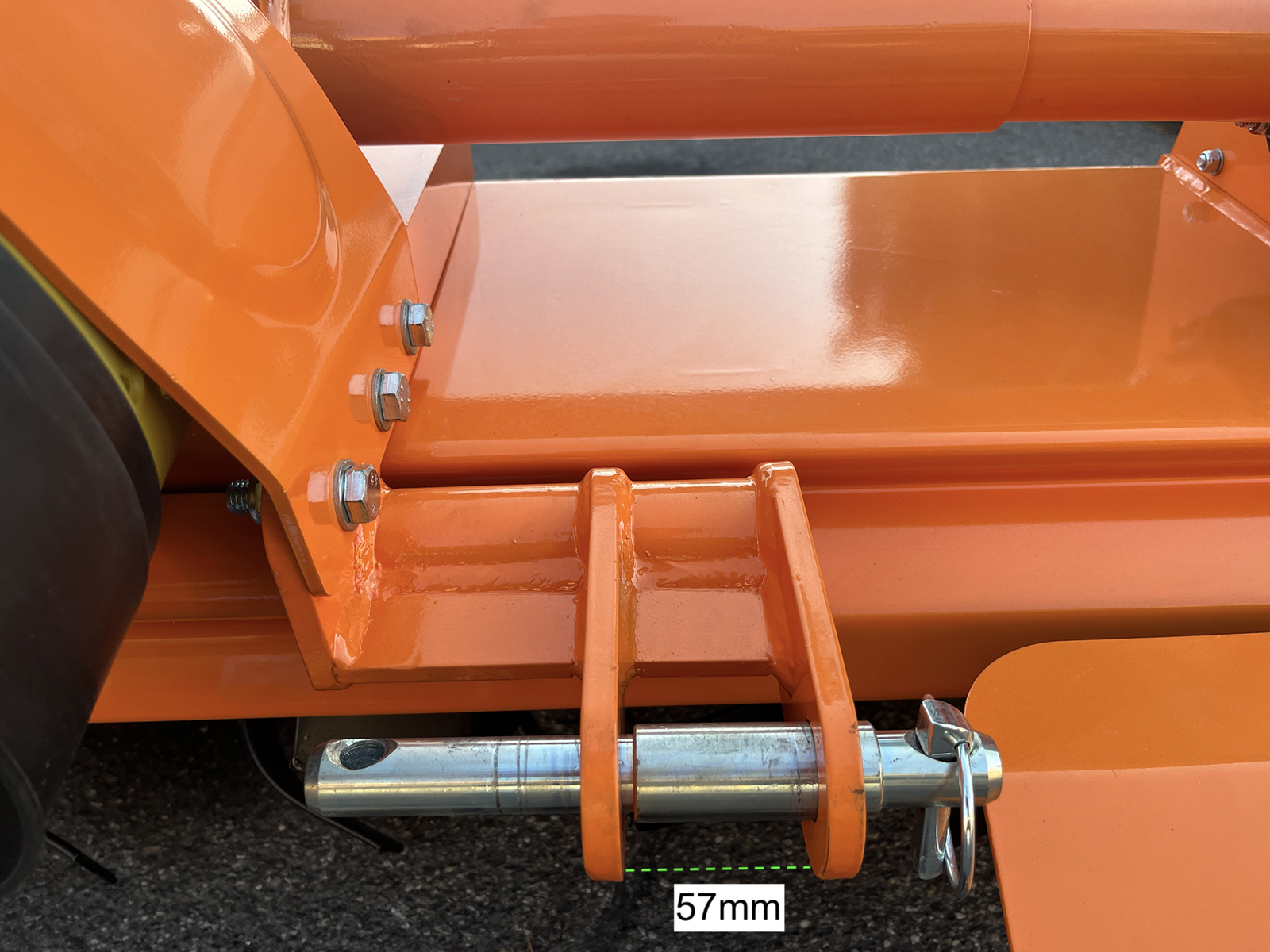

Spacing between the 2 lower points | 310.0 - 630.0 mm | 12.2 - 24.8 in |
Overall length | 620.0 mm | 2.03 ft |
Rotor: diameter | 64.0 mm | 2.52 in |
Rotor: sheet thickness | 6.0 mm | 0.24 in |
Transmission | Chain | Chain |
Effective Working width | 1500.0 mm | 4.92 ft |
Working Depth Range | 120.0 - 160.0 mm | 1680.0 mm |
Distance between pto attachment and base | 490.0 mm | 19.30 in |
Pto shaft | CE 4x800 mm + shear bolt | CE 4x2.60 ft + shear bolt |
Rotor: diameter with blades | 370.0 mm | 14.57 in |
Rotor: bearings type and sizes | "GB276-6207(R) GB276-6209(L" | "GB276-6207(R) GB276-6209(L" |
Rotor: flanges | 8 | 8 |
Number of Blades per flange | 4 | 4 |
Blades: quantity | 32 | 32 |
Blades: height/width | 180.0 / 67.0 mm | 7.08 / 2.64 in |
Blades: curve length | 230.0 mm | 9.05 in |
Blades: distance between holes | 45.0 mm | 1.77 in |
Blades: diameter of the holes | 13.0 mm | 0.51 in |
Blades: thickness | 6.0 mm | 0.24 in |

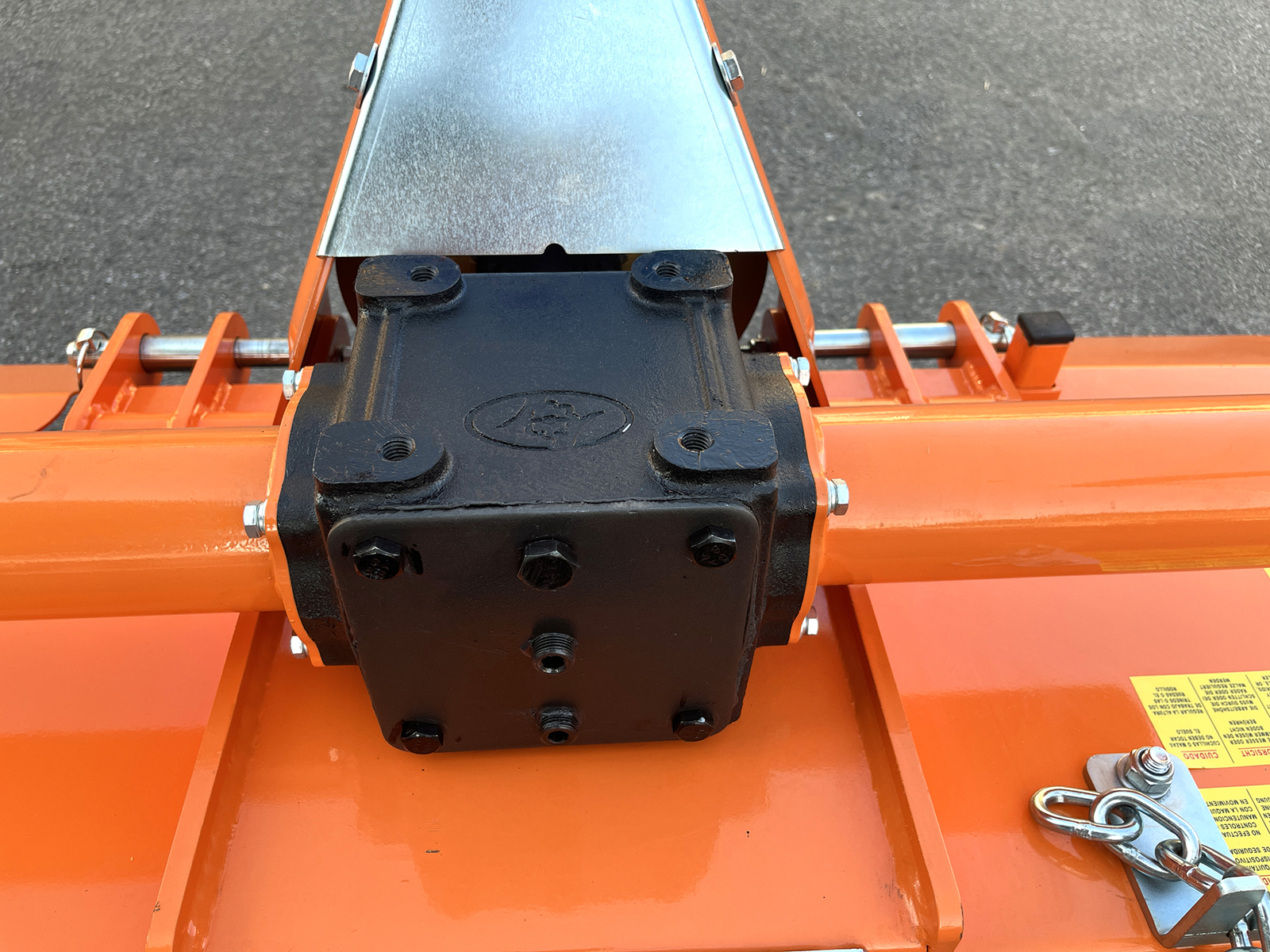

Gearbox | Lombarda Ingranaggi 540 r/min (3 year warranty) | Lombarda Ingranaggi 540 r/min (3 year warranty) |
Effective Displacement | 120.0 mm manual | 4.73 in |
Rotation of gearbox | Right side (left side on request) | Right side (left side on request) |
RPM Rotor speed | 230 rpm | 230 rpm |
Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
Blades: weight | 570.0 g | 20.10 oz |
Packing sizes | 800.0*1770.0*750.0 mm | 2.62*5.80*2.46 ft |
