Hydrostatic Crawler Mini Dumper, High dump, Briggs&Stratton engine, E-start

DELEKS® M8000-BS professional tracked mini dumper with self-loading system, high dump, hydrostatic transmission, operator platform and Briggs & Stratton engine with electric start.

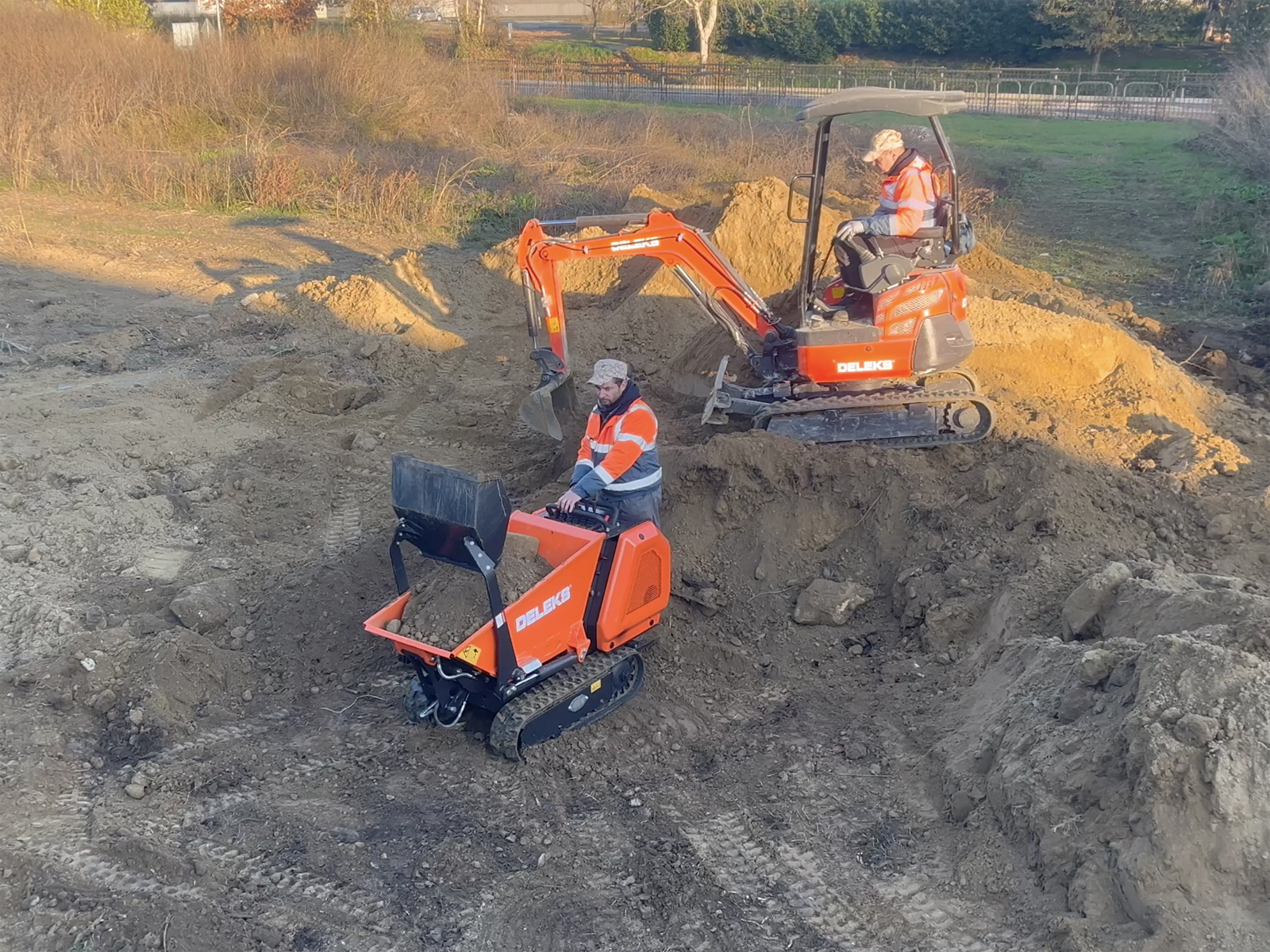

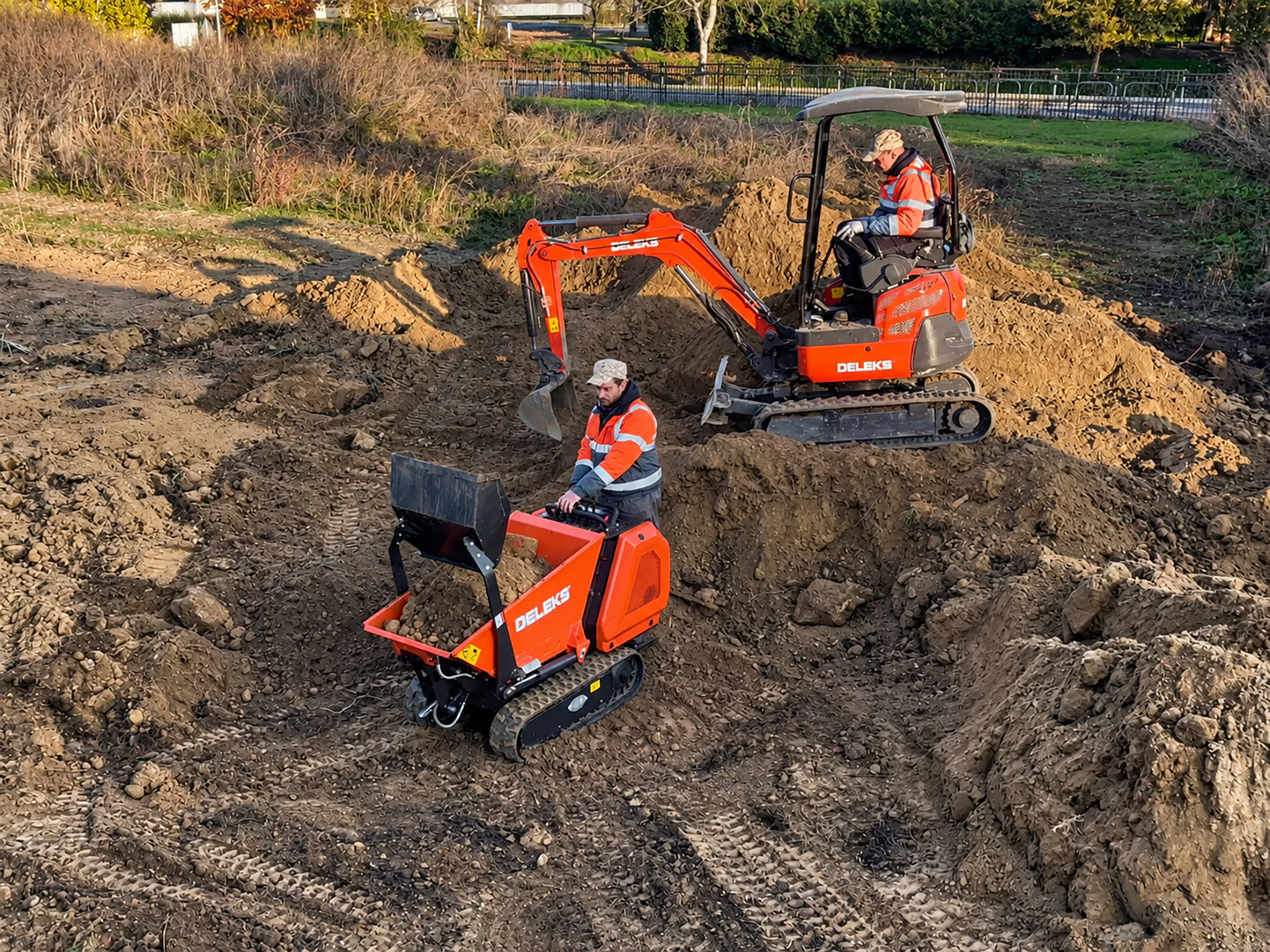

High-end tracked dumper designed for intensive material handling in construction, agriculture and professional worksites, including direct unloading into trucks.

PRODUCT DESCRIPTION

The DELEKS® M8000-BS is the flagship model of the professional hydrostatic series, appreciated for its high load capacity, robust construction and technical solutions focused on safety and machine control in all operating conditions.

It is equipped with hydrostatic transmission, providing smooth and continuous speed control, improving manoeuvrability, stability and operator comfort even during intensive use.

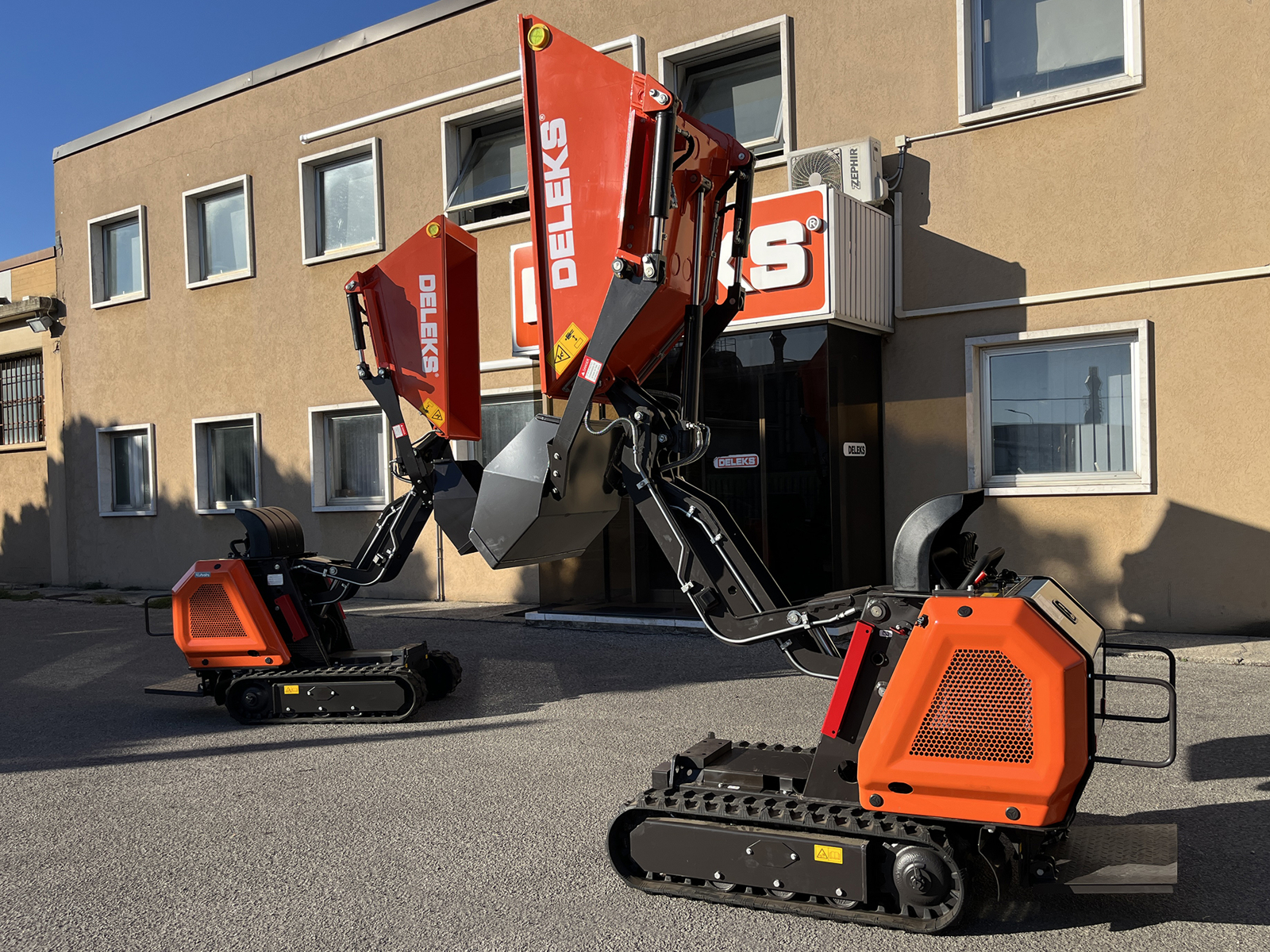

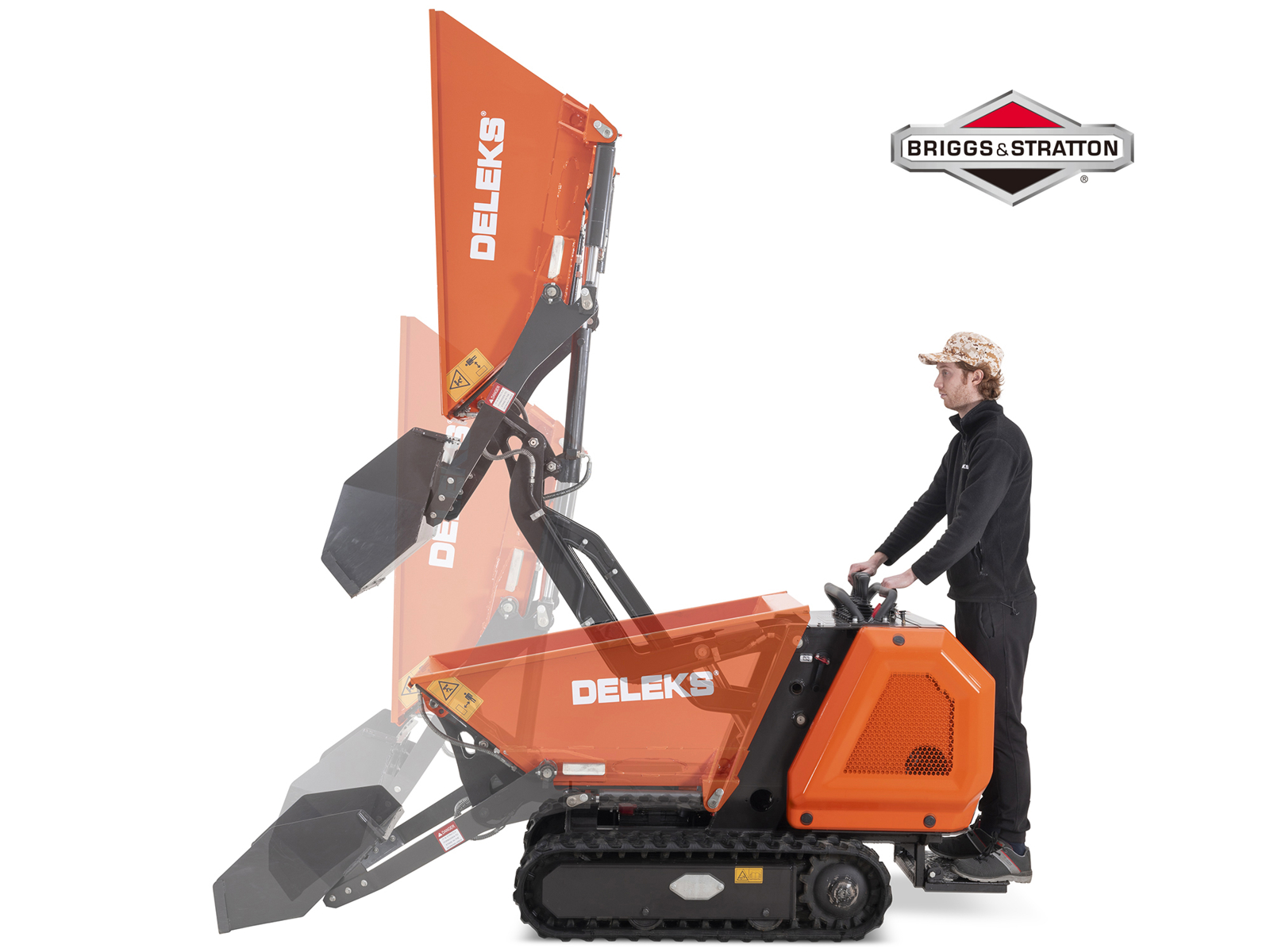

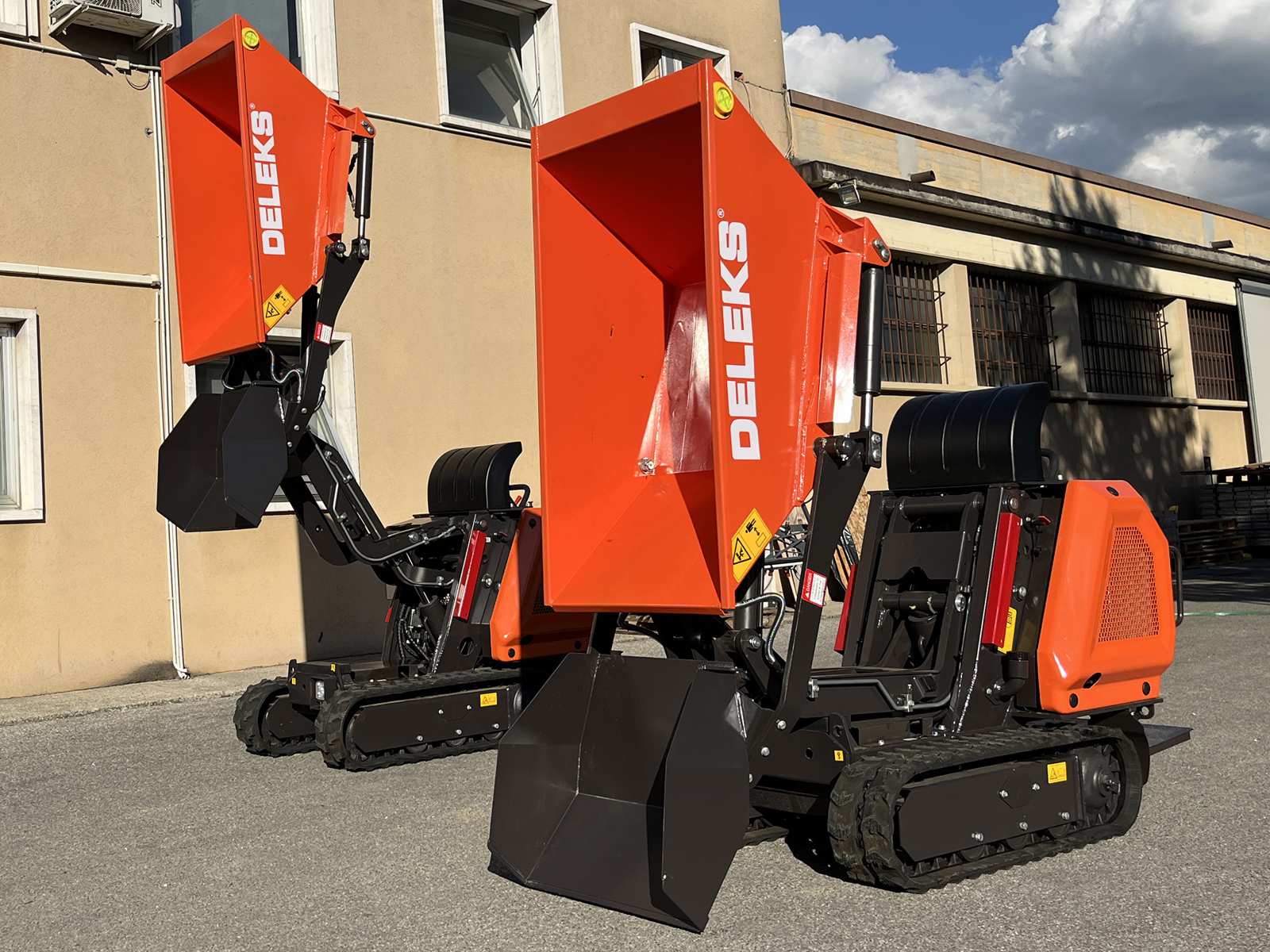

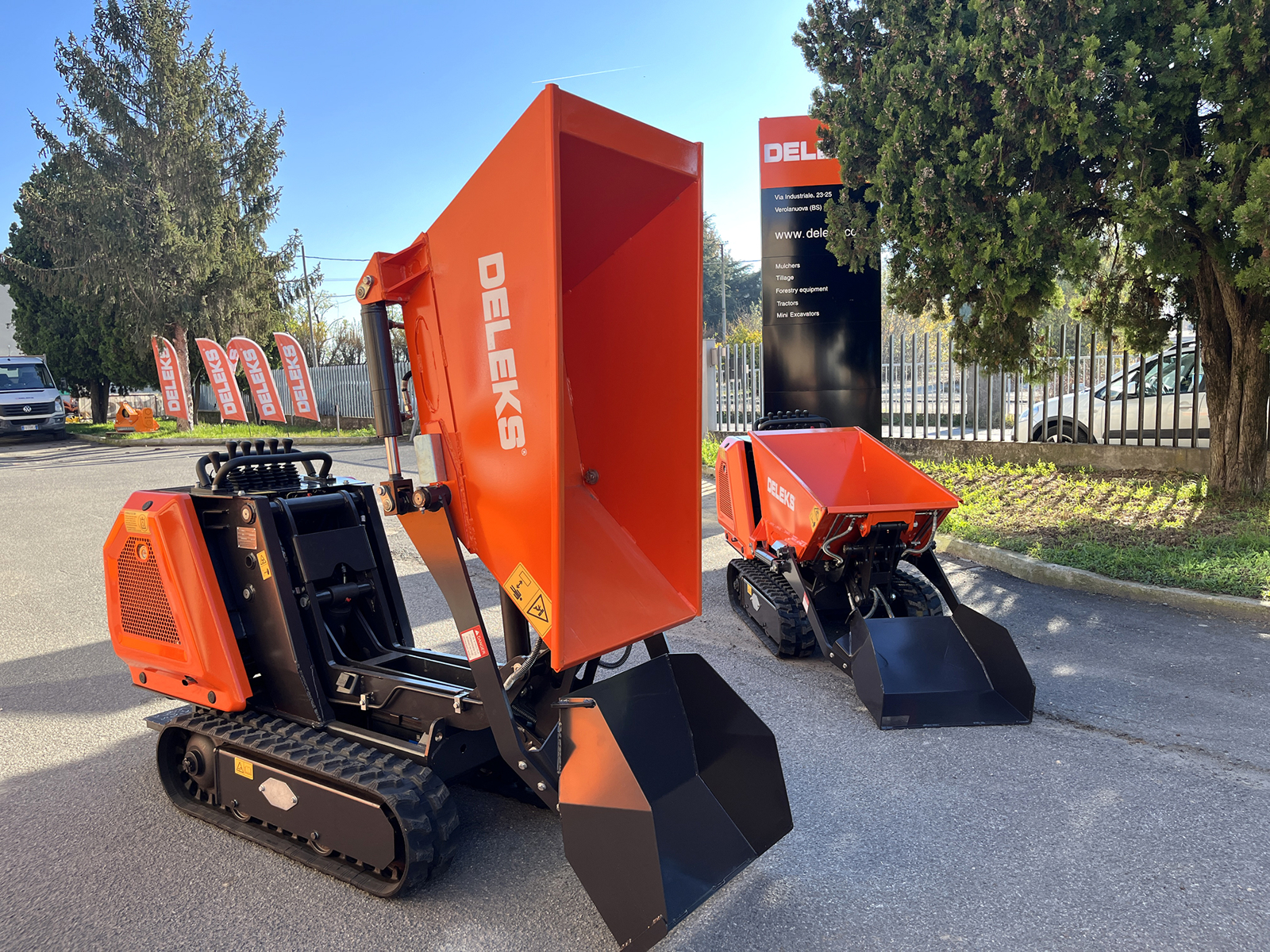

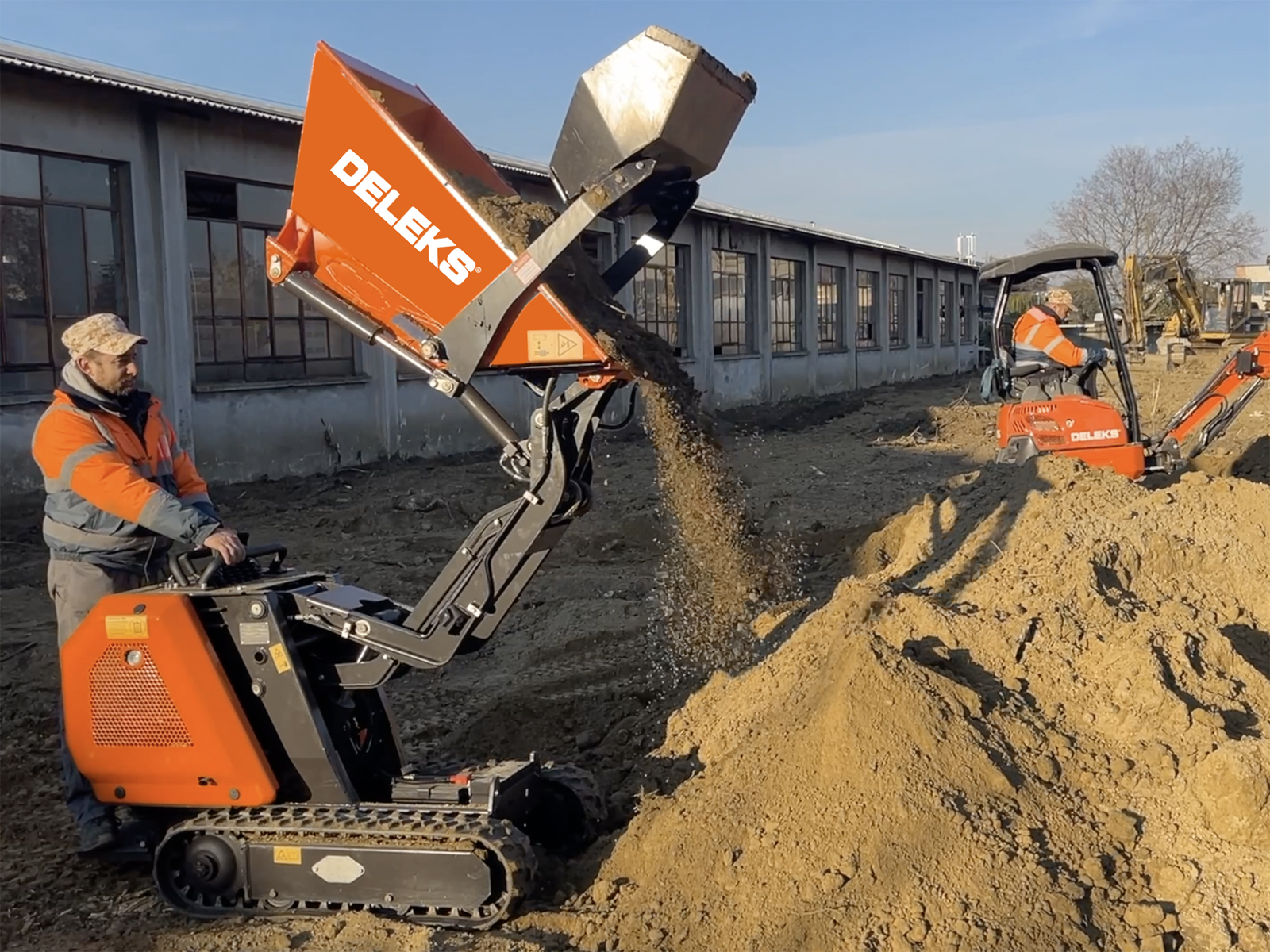

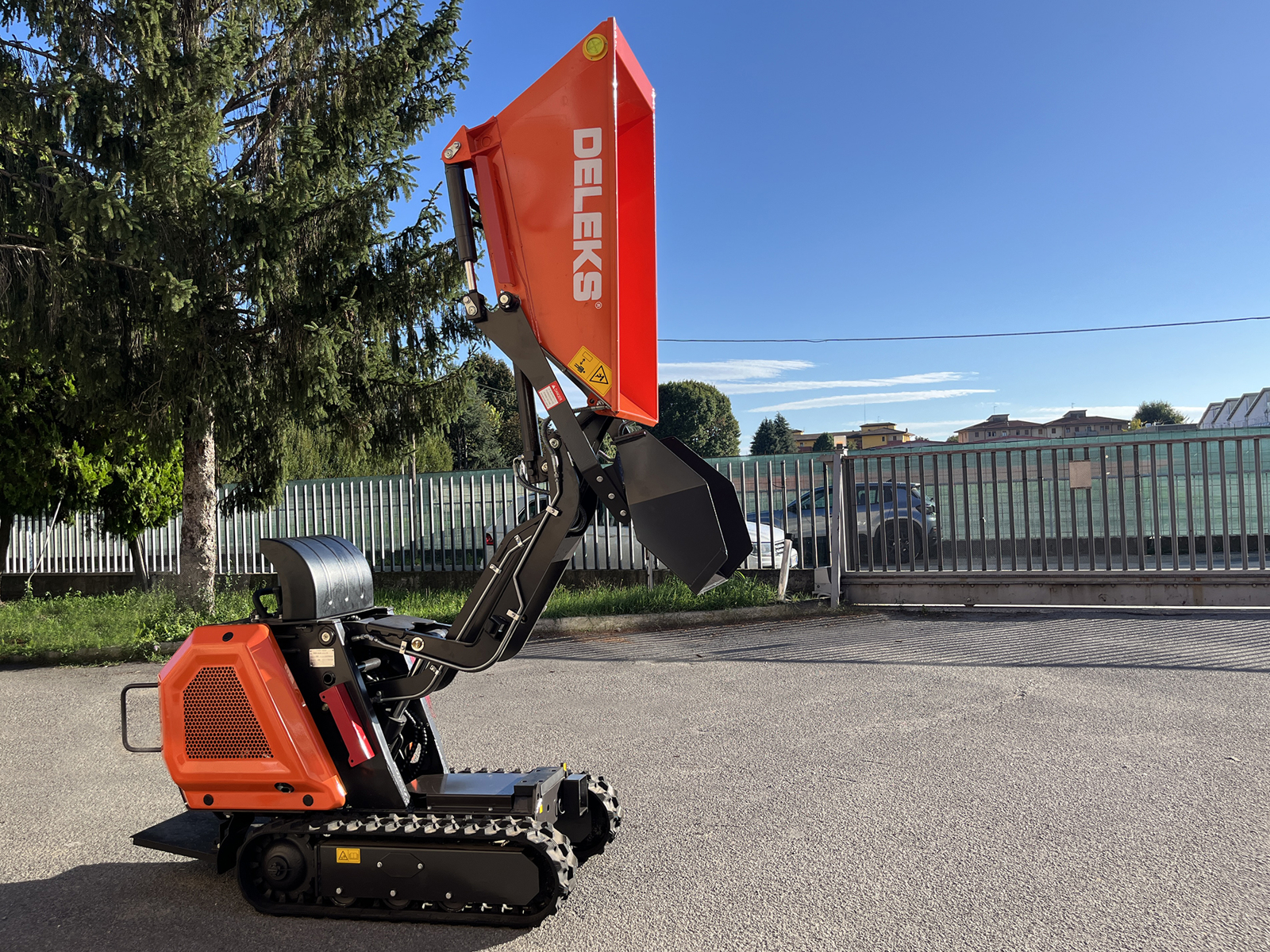

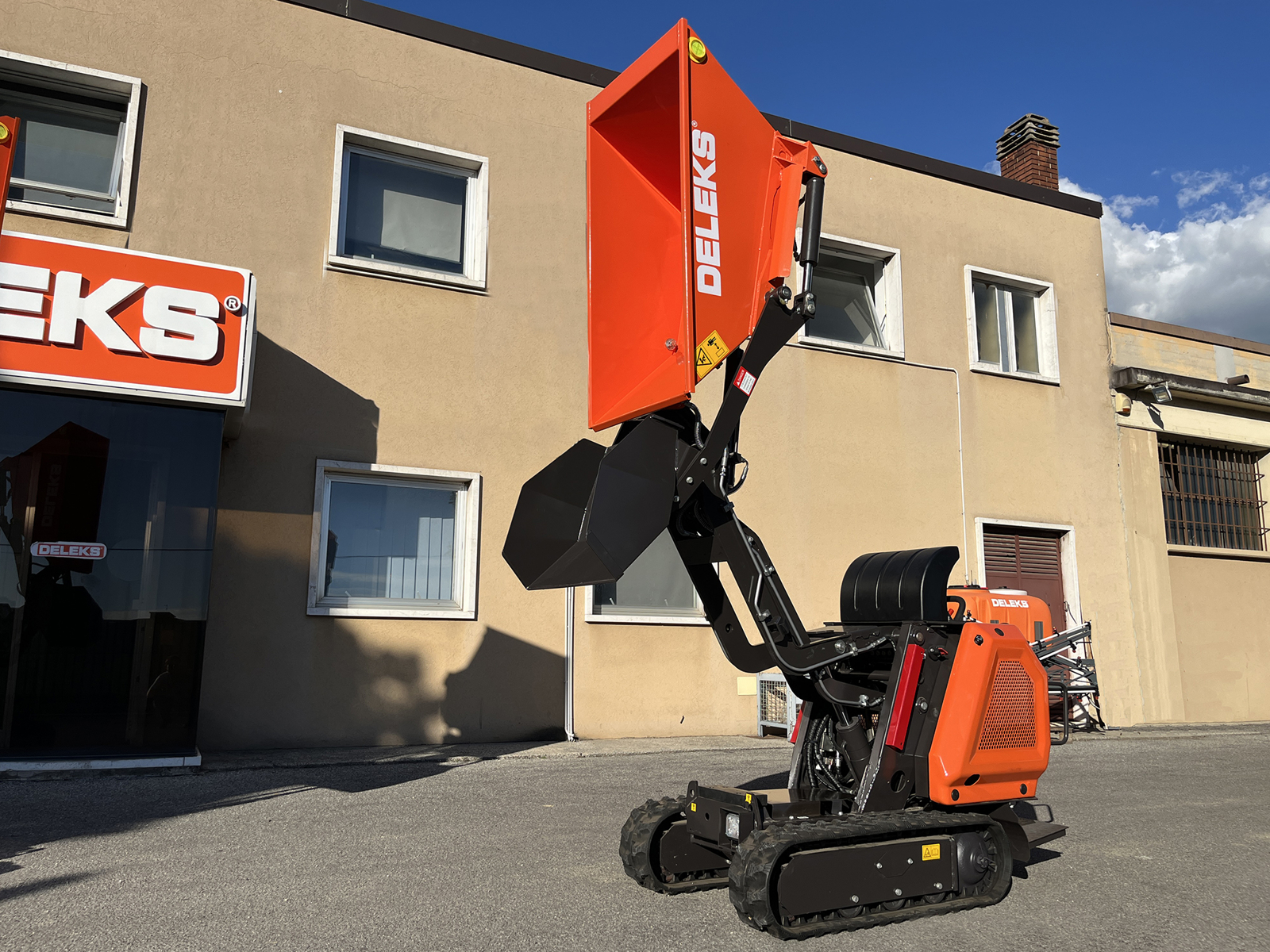

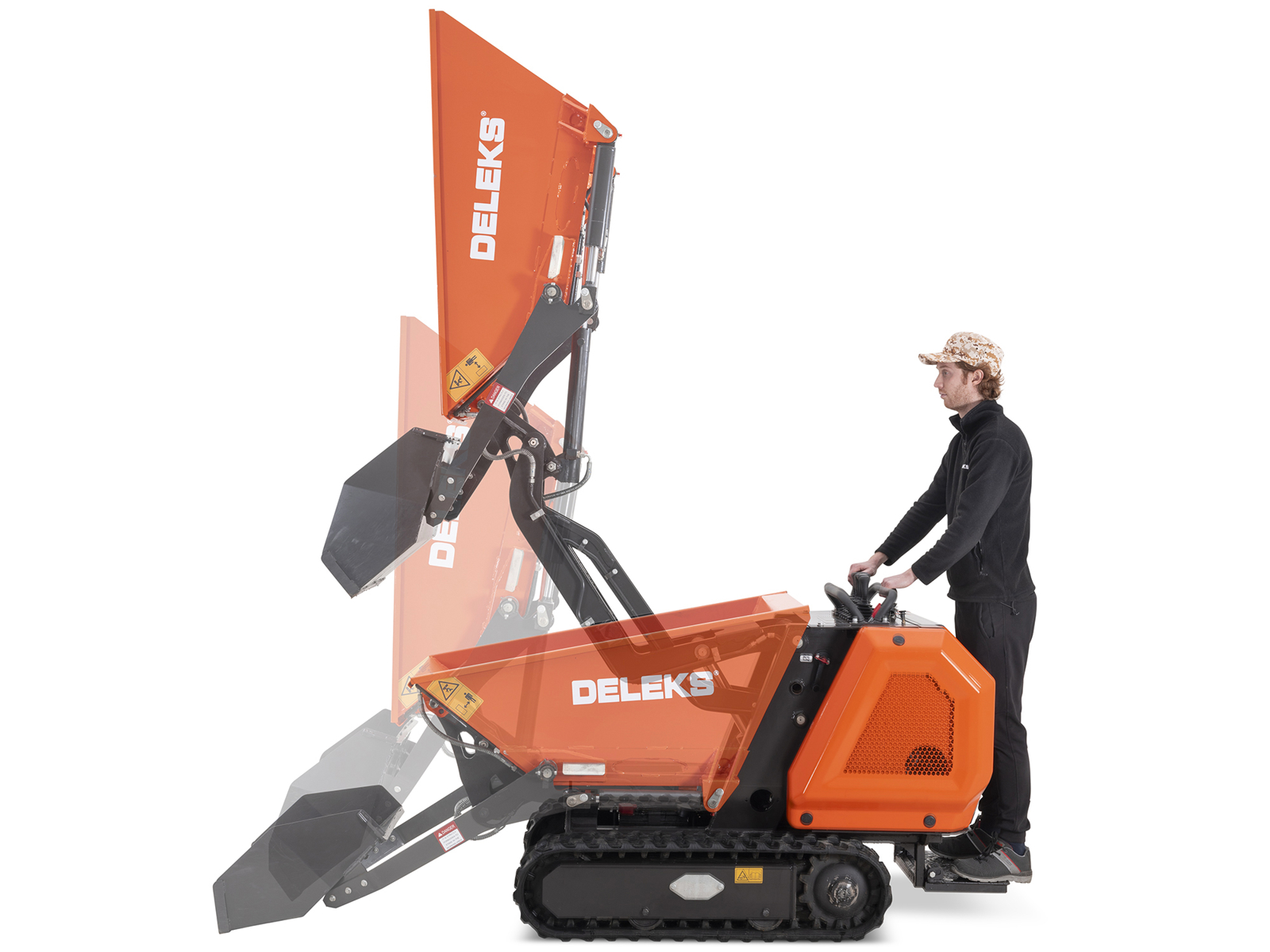

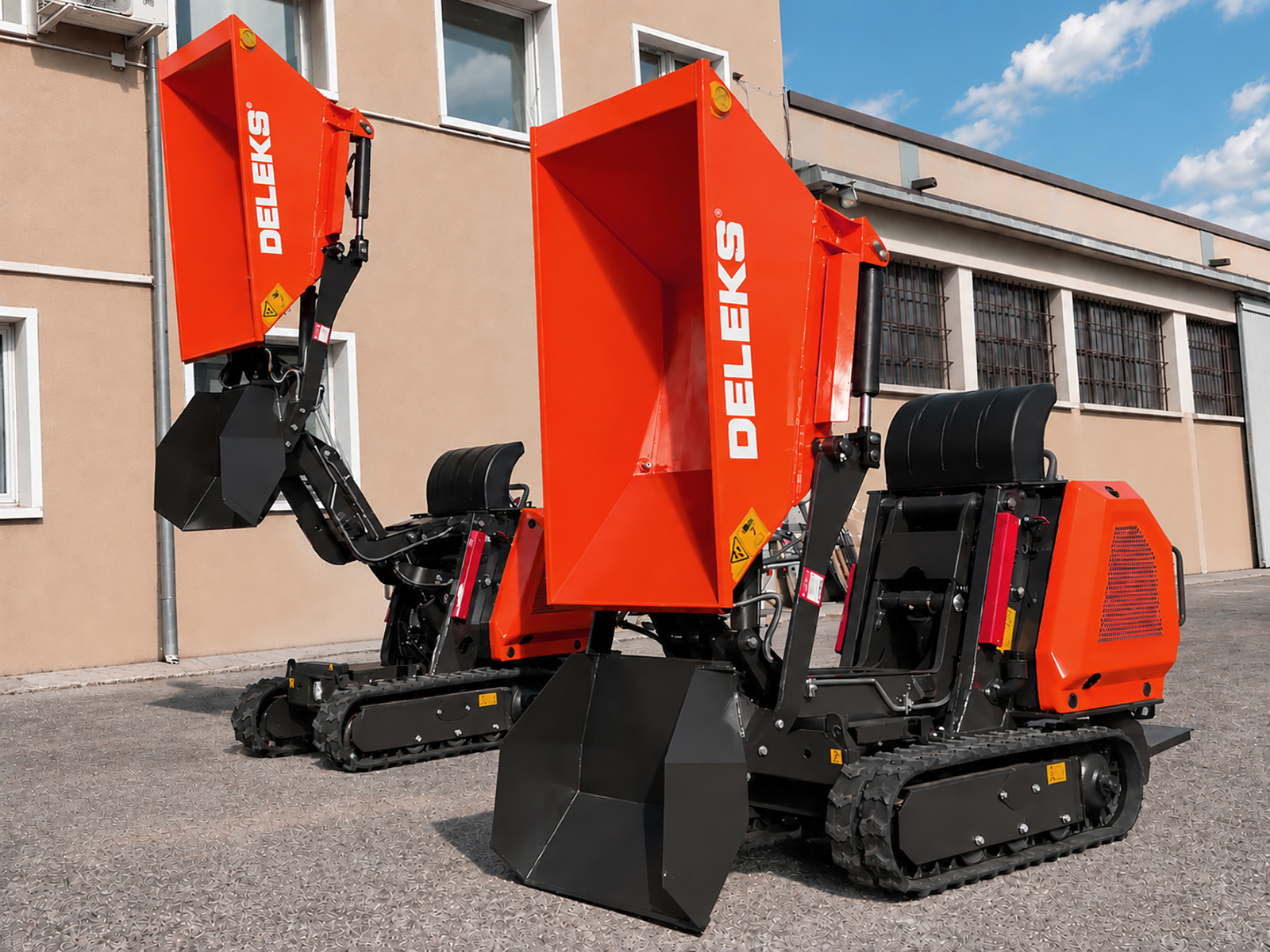

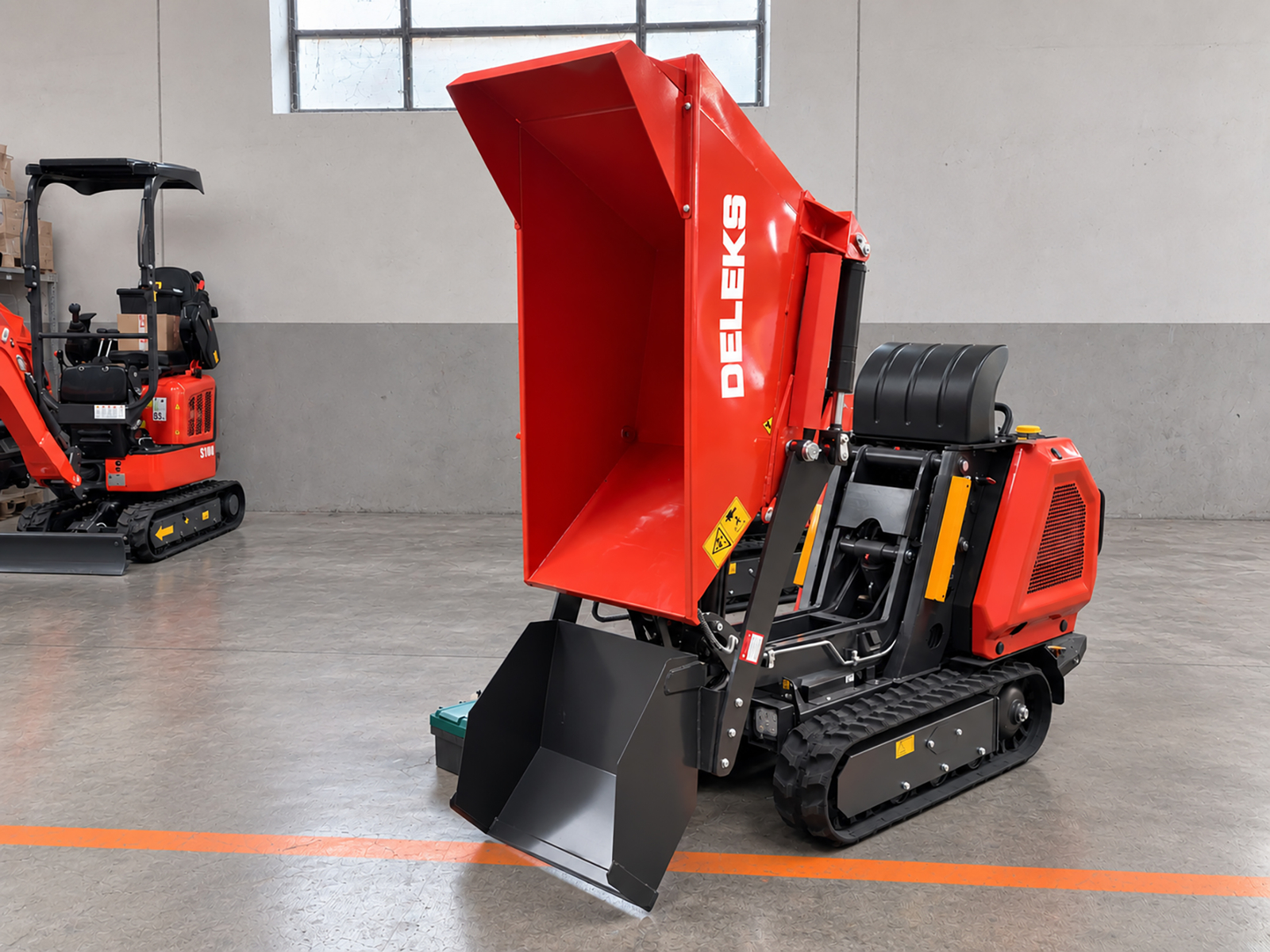

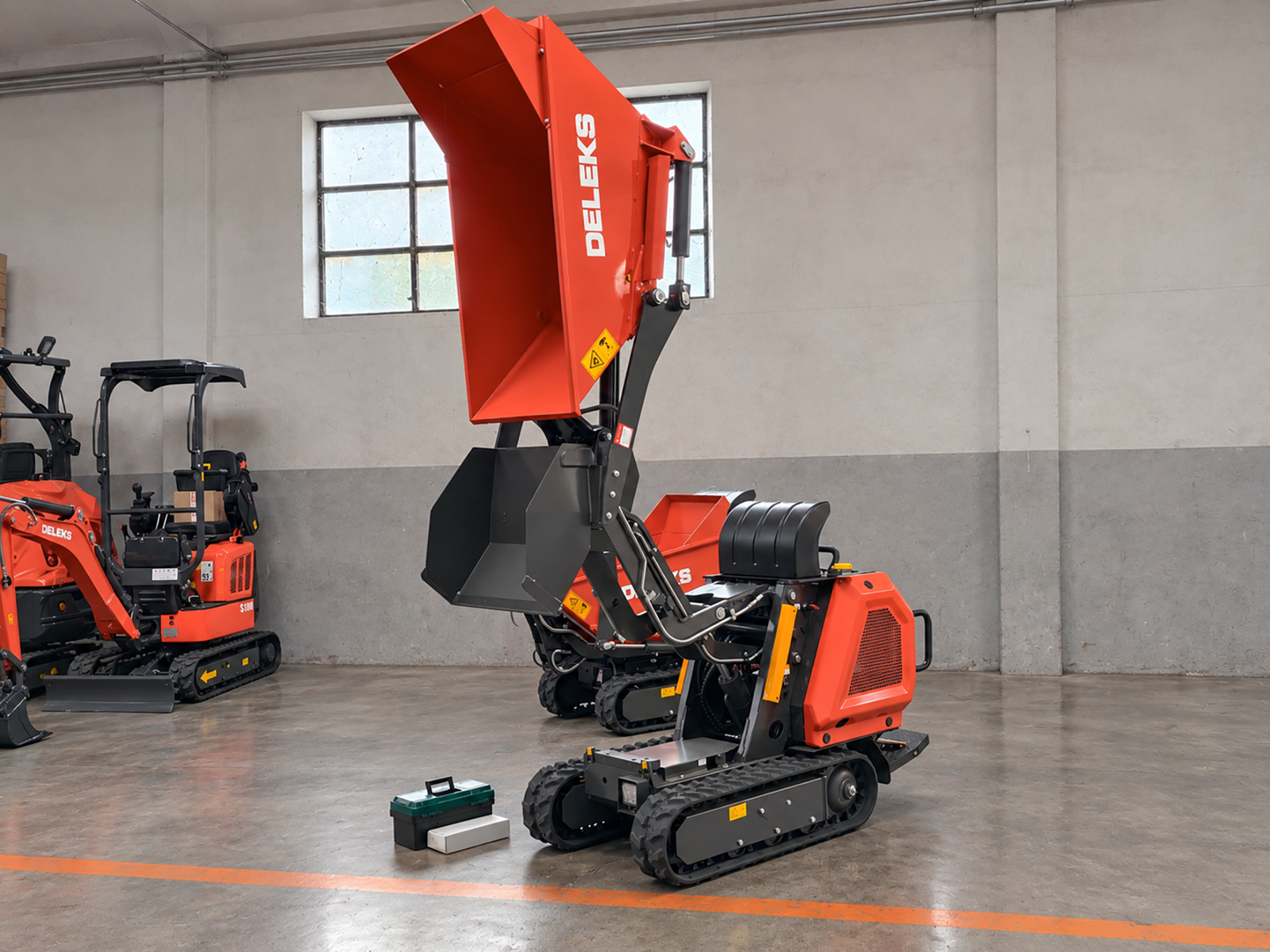

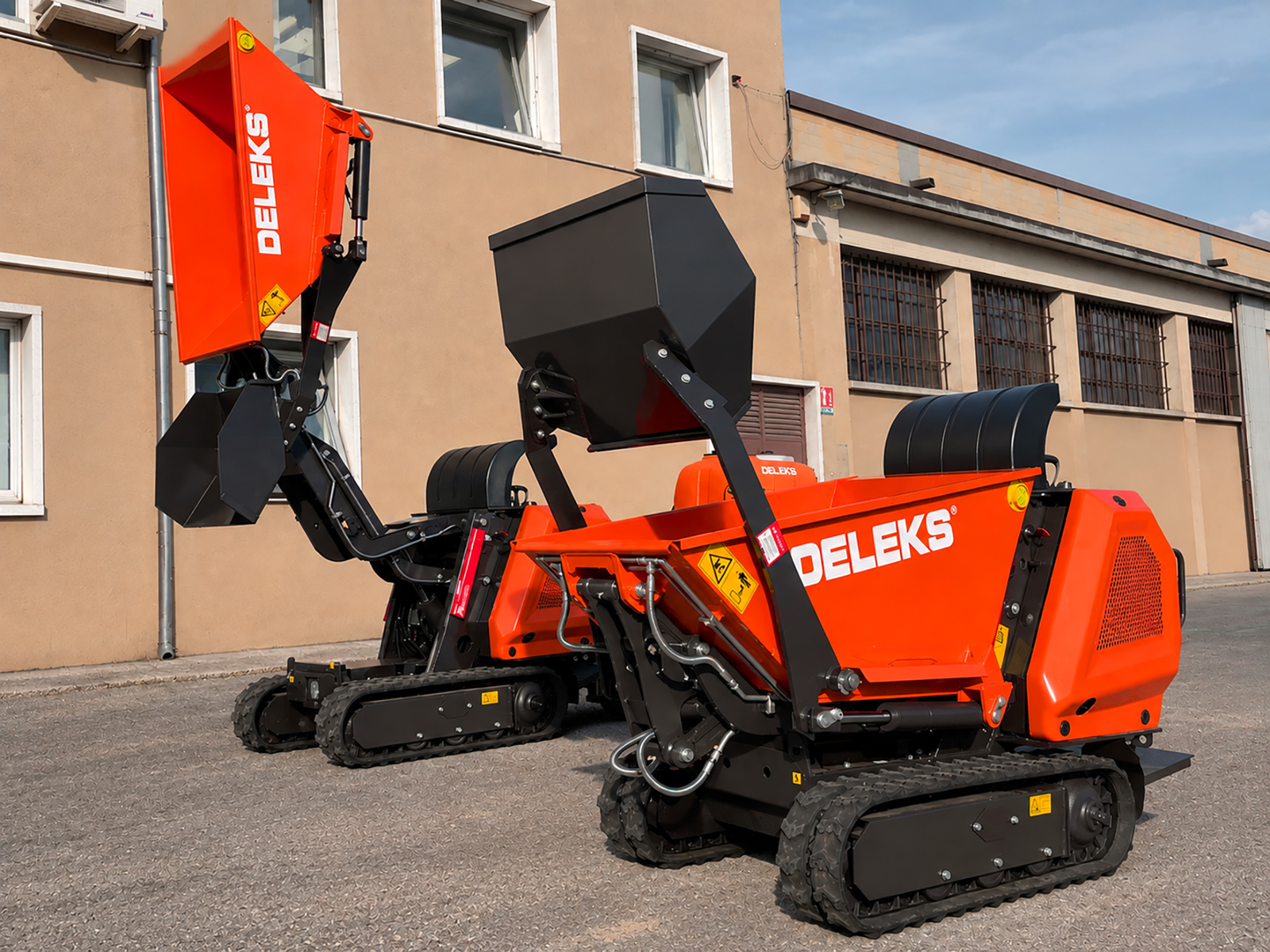

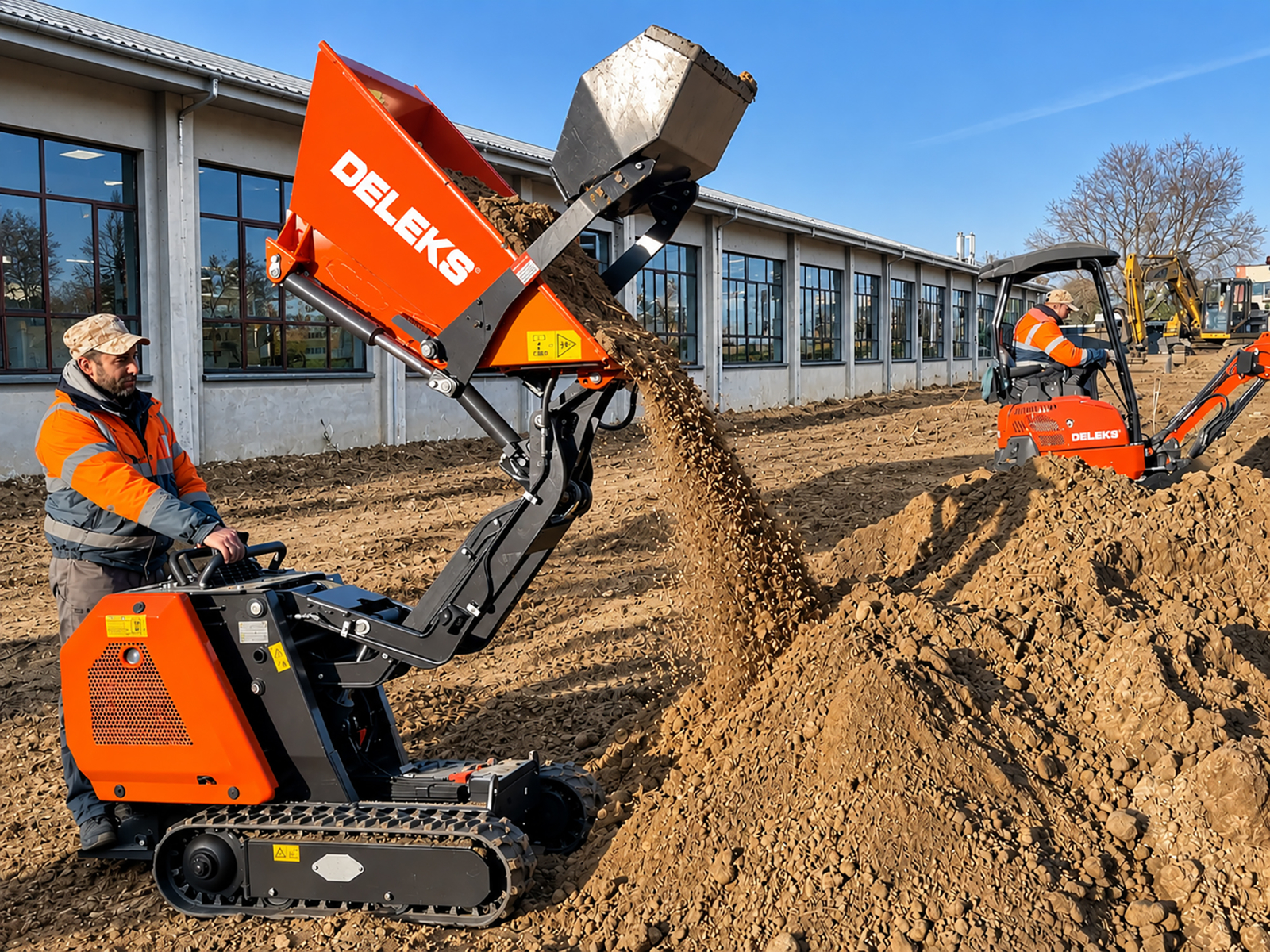

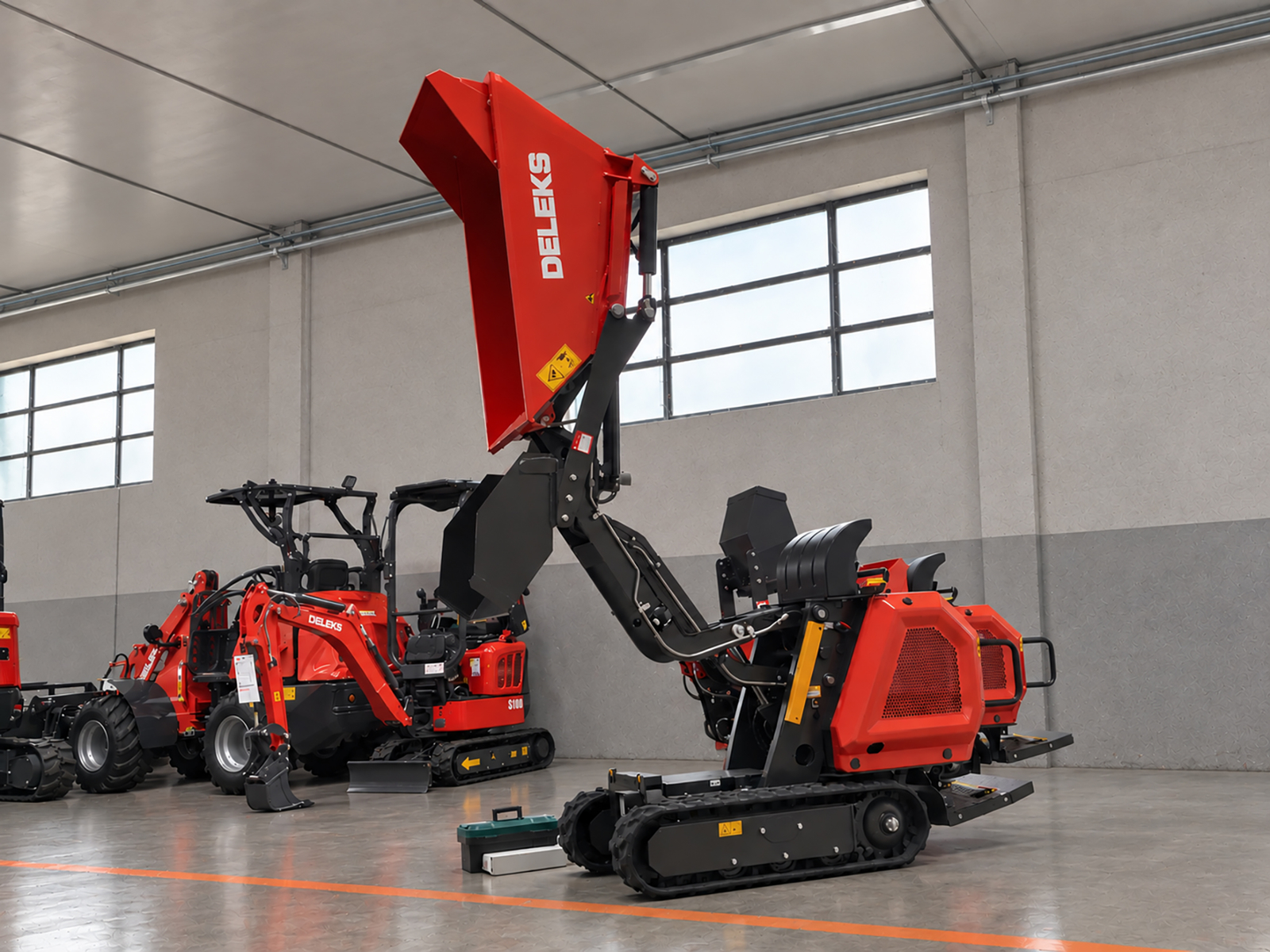

The high-dump dumper skip allows direct unloading into truck beds or elevated containers, significantly reducing working time and manual handling.

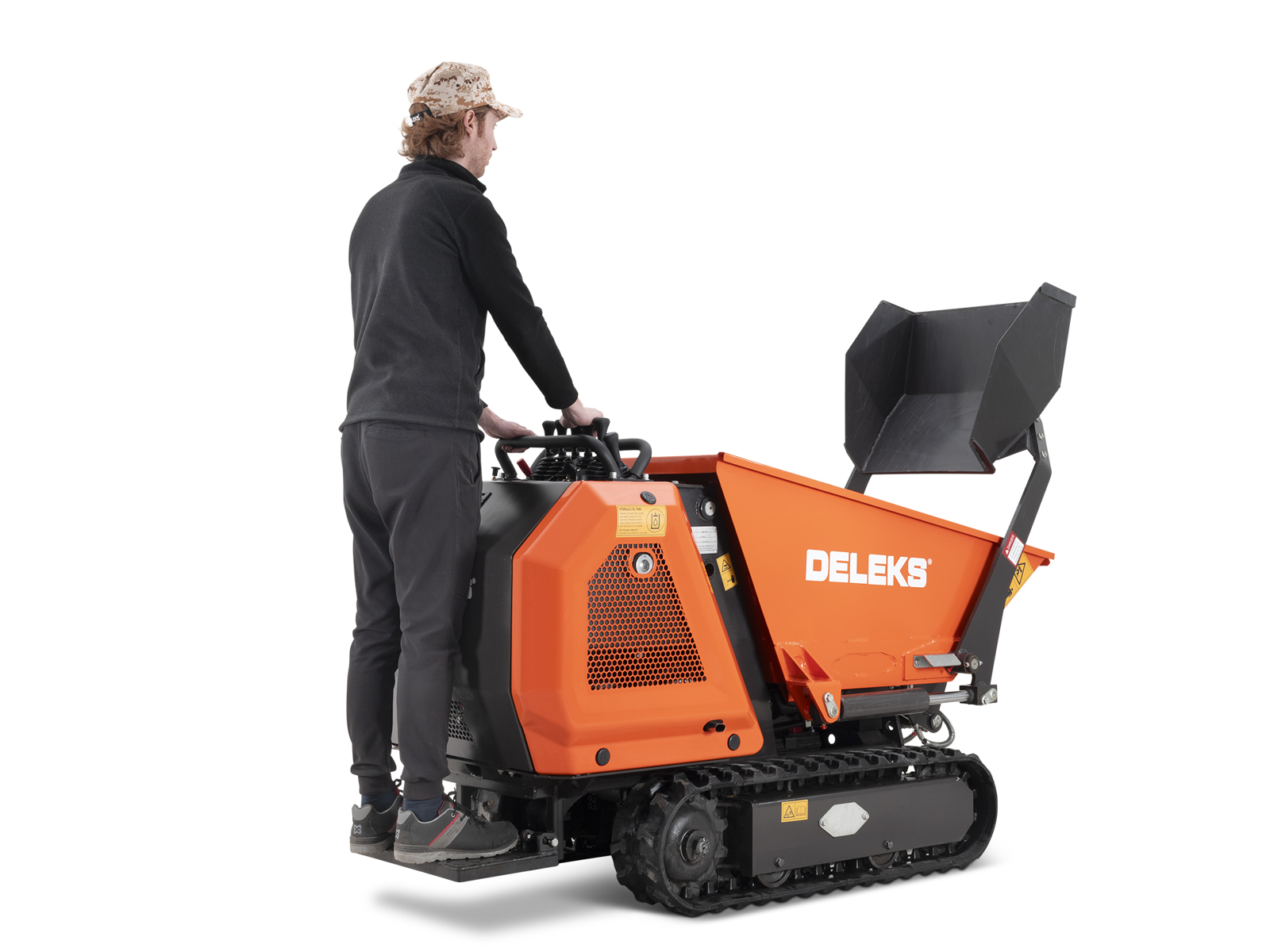

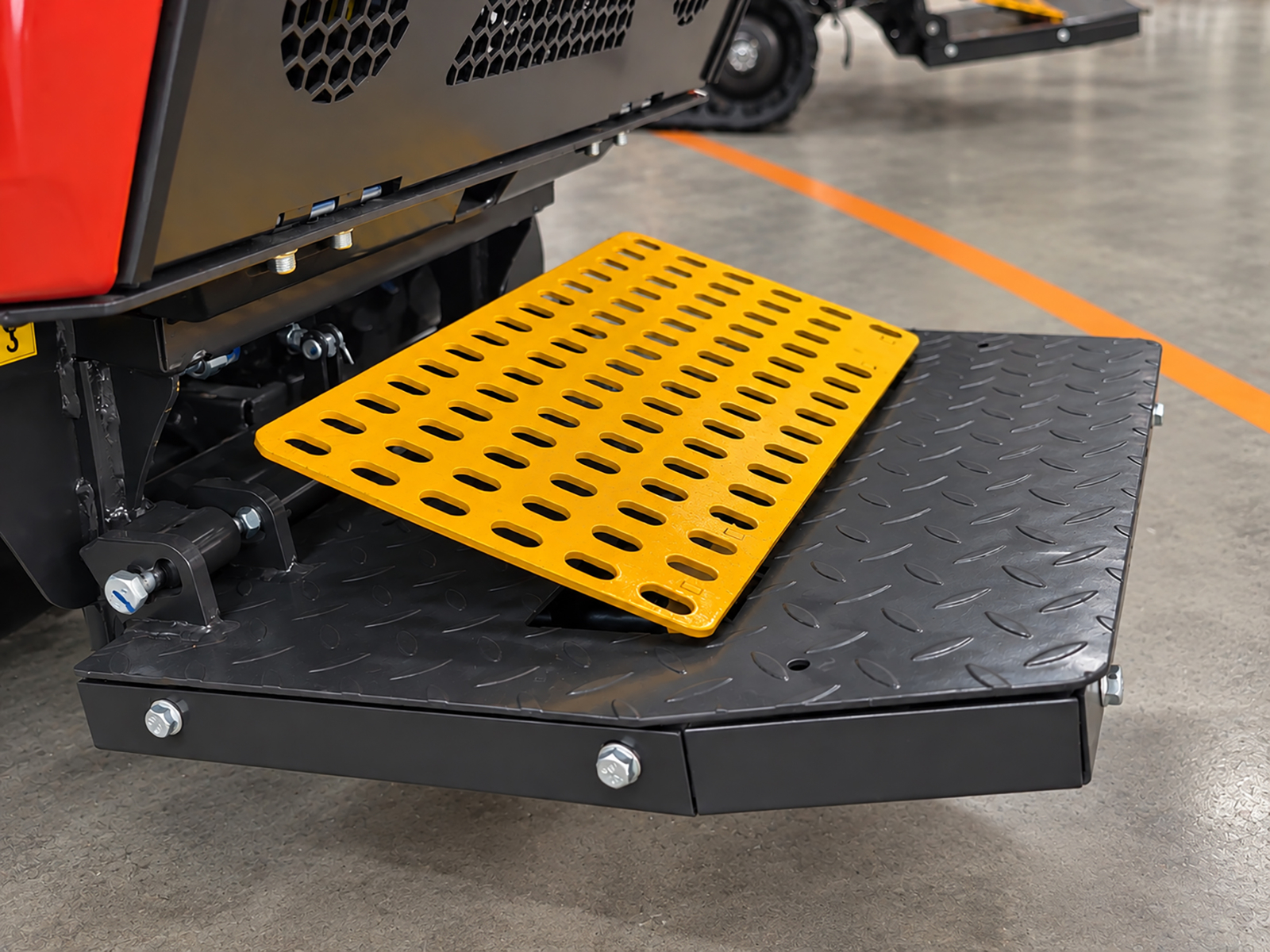

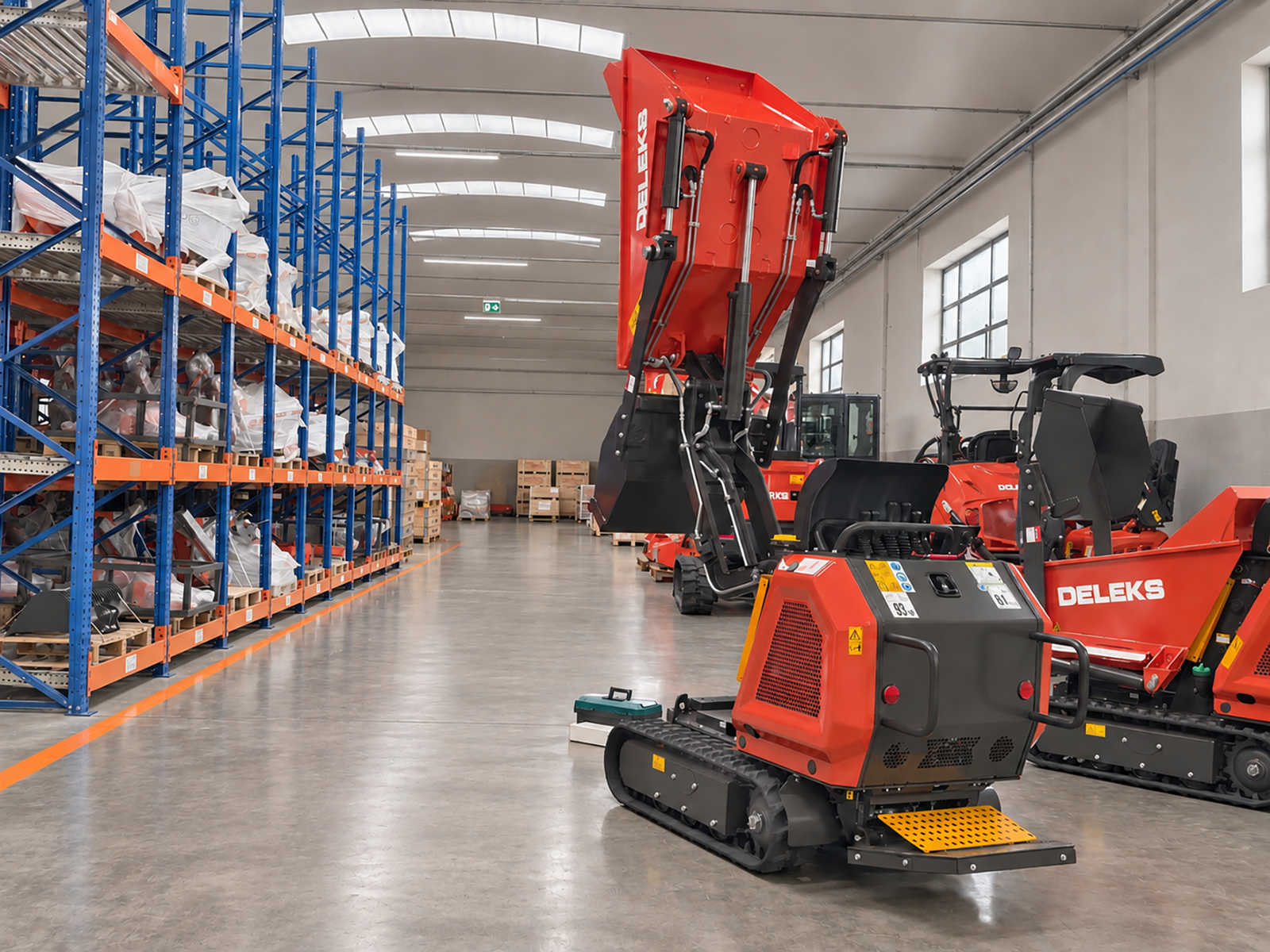

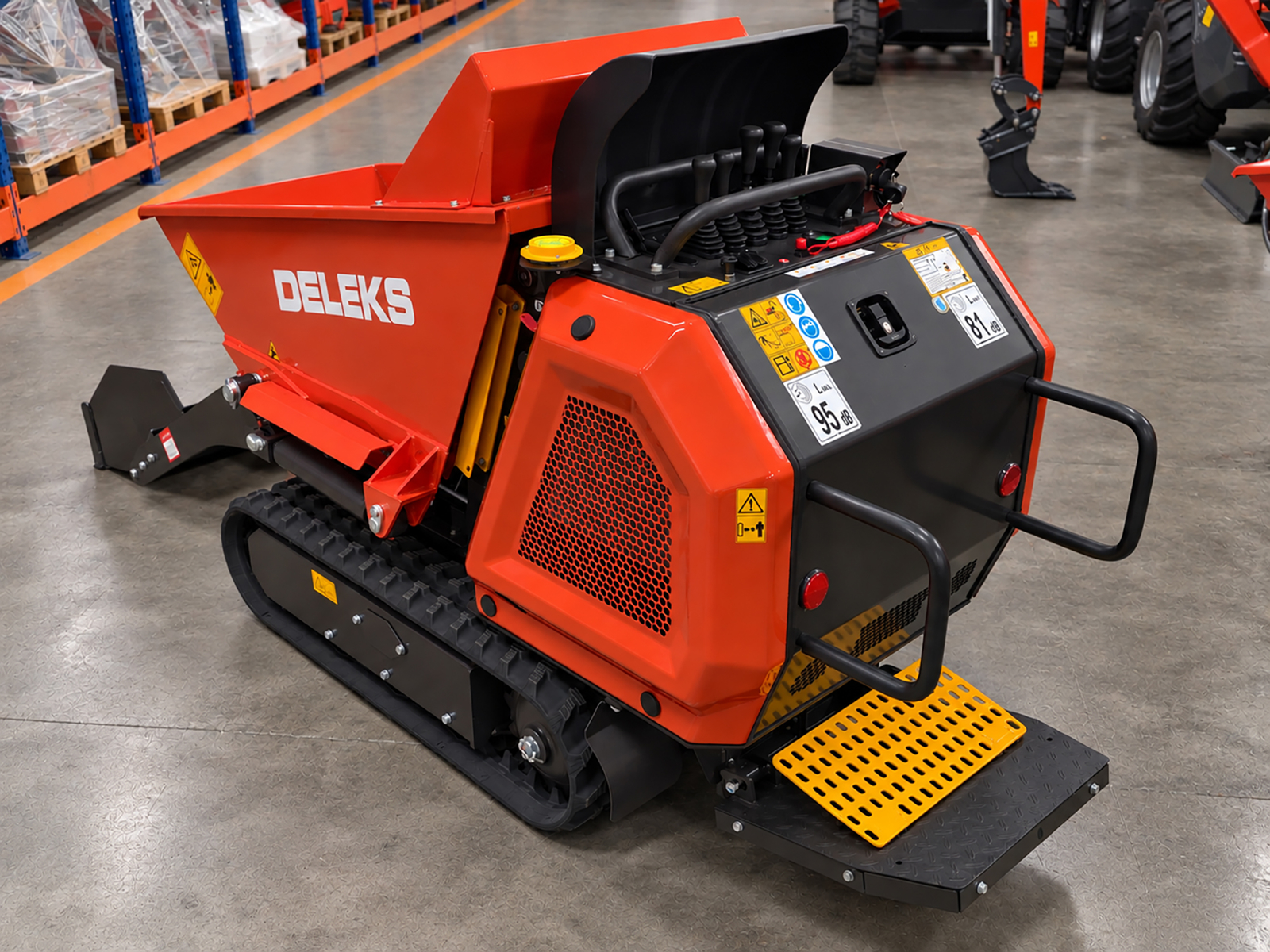

The integrated operator platform enables safe and comfortable on-board operation, making the M8000-BS ideal for continuous professional use.

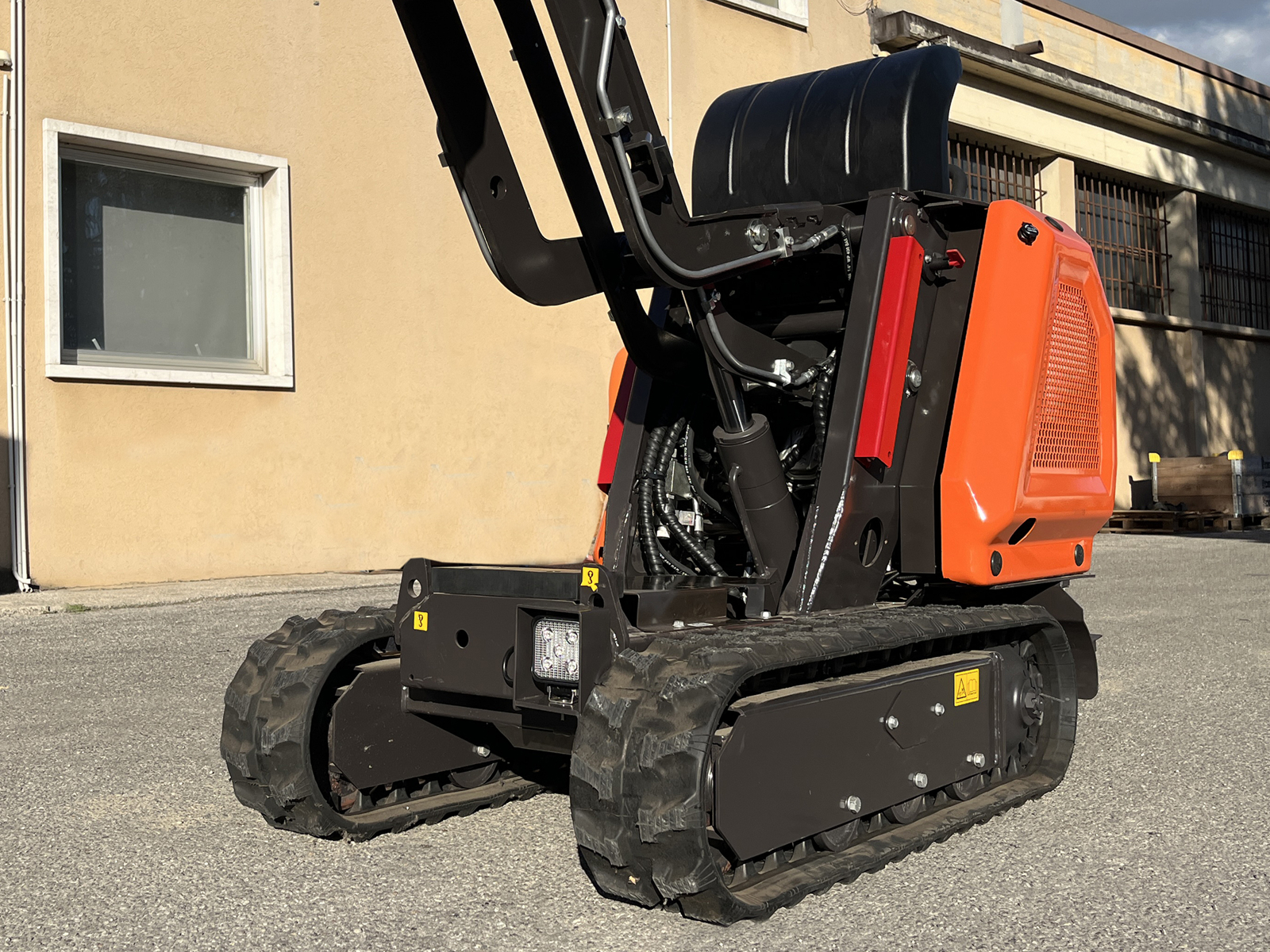

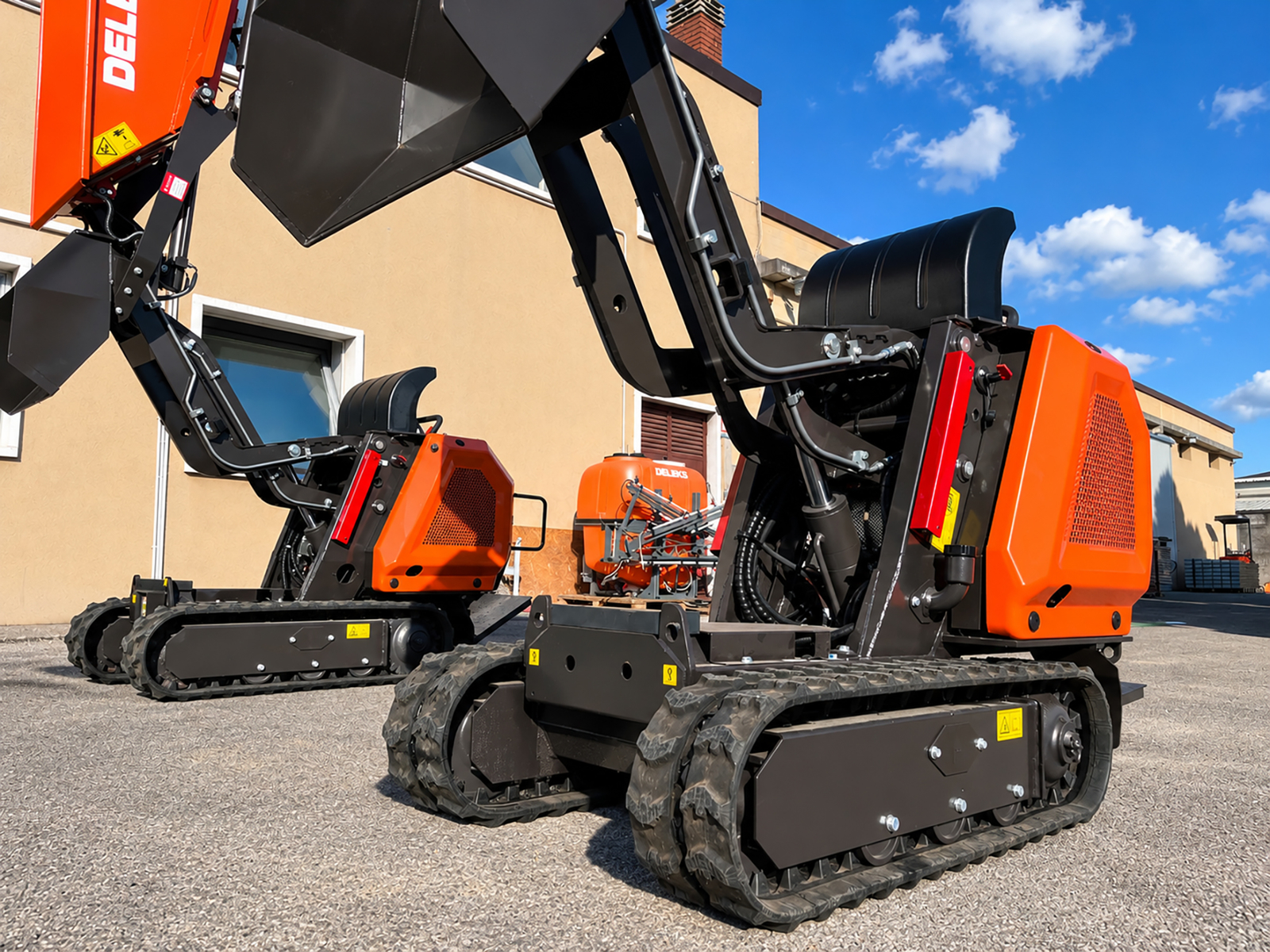

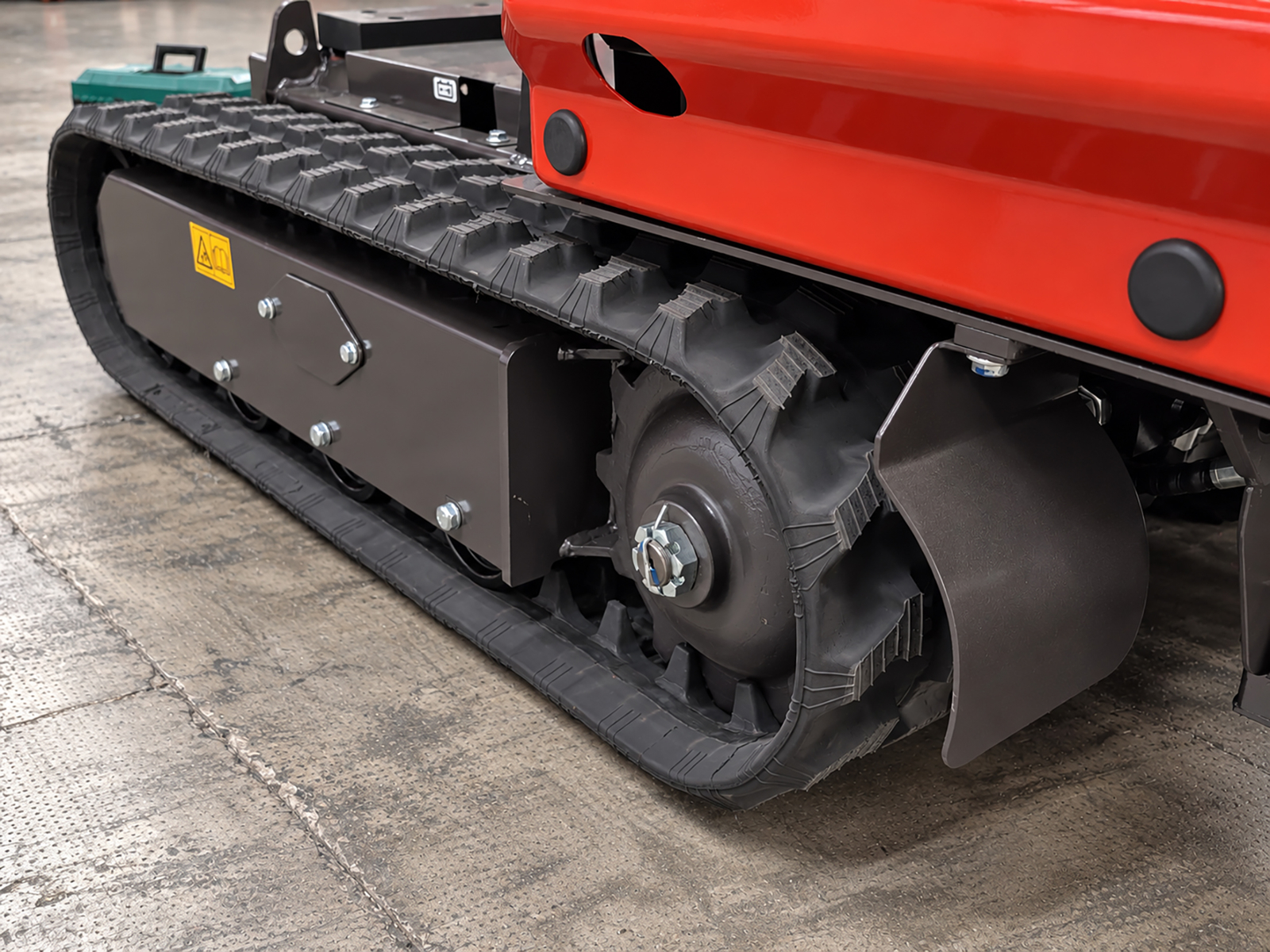

The tracked undercarriage ensures excellent traction, stability and low ground pressure, allowing safe operation on uneven, muddy, sandy or sloping terrain.

DOUBLE IN-LINE COUNTERBALANCE VALVE

The DELEKS® M8000-BS is equipped with a double in-line counterbalance valve (Counterbalance Valve Double In Line) integrated into the hydrostatic drive circuit.

This system provides piloted and controlled track operation, allowing the operator to precisely modulate machine movement uphill or downhill, forward or reverse, preventing uncontrolled motion.

The counterbalance valve maintains constant hydraulic pressure, preventing sudden acceleration caused by load weight or ground slope, significantly improving control, stability and operational safety during critical working phases.

This system is particularly effective during:

• operation on steep slopes

• work with heavy loads

• controlled downhill movement

• precision manoeuvres in confined spaces

APPLICATION

Suitable for:

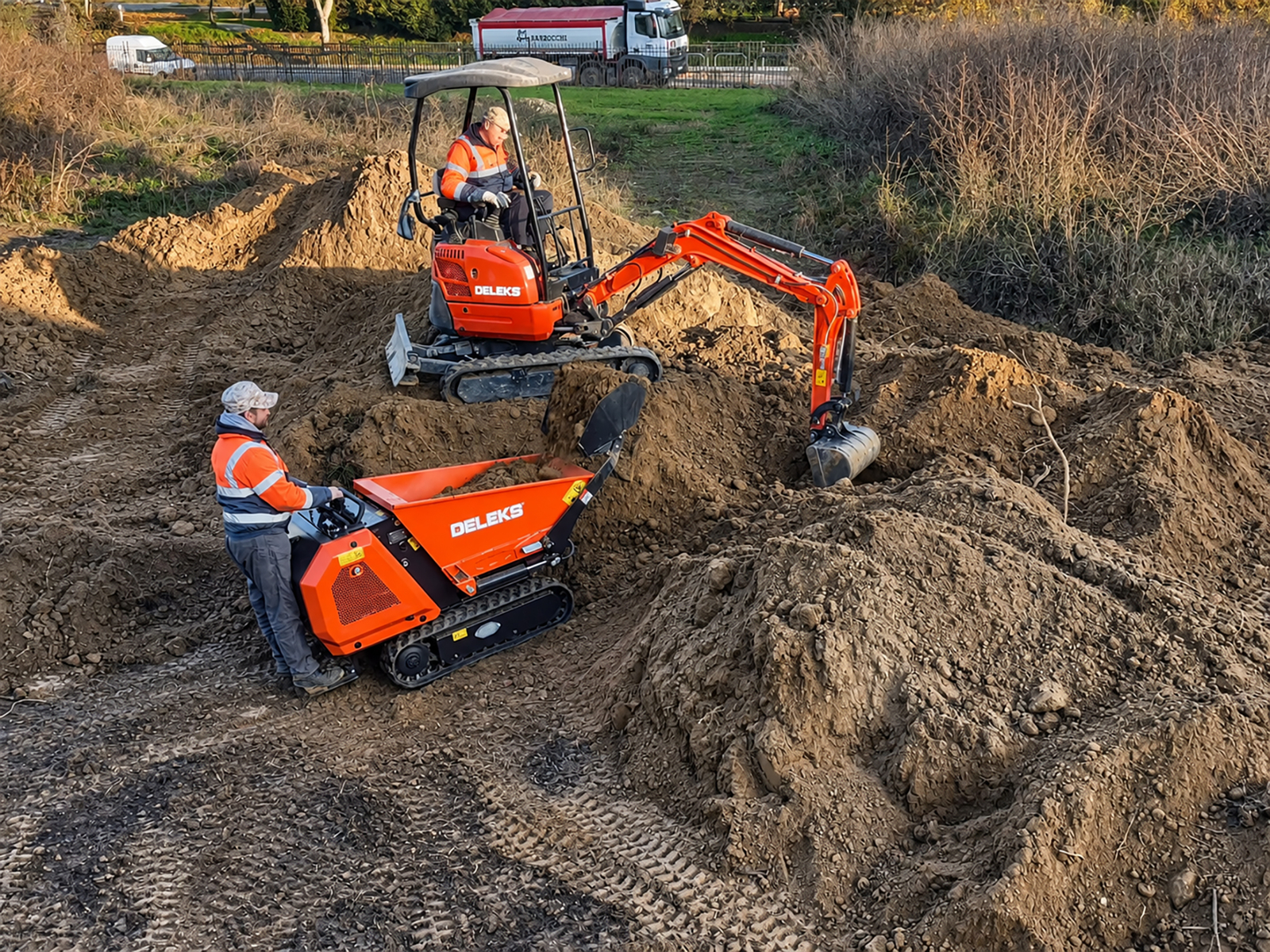

• loading and handling soil and sand

• transport of construction materials and aggregates

• handling of waste and debris

• use on construction sites, farms and industrial areas

• operations requiring direct unloading into trucks

TECHNICAL SPECIFICATIONS

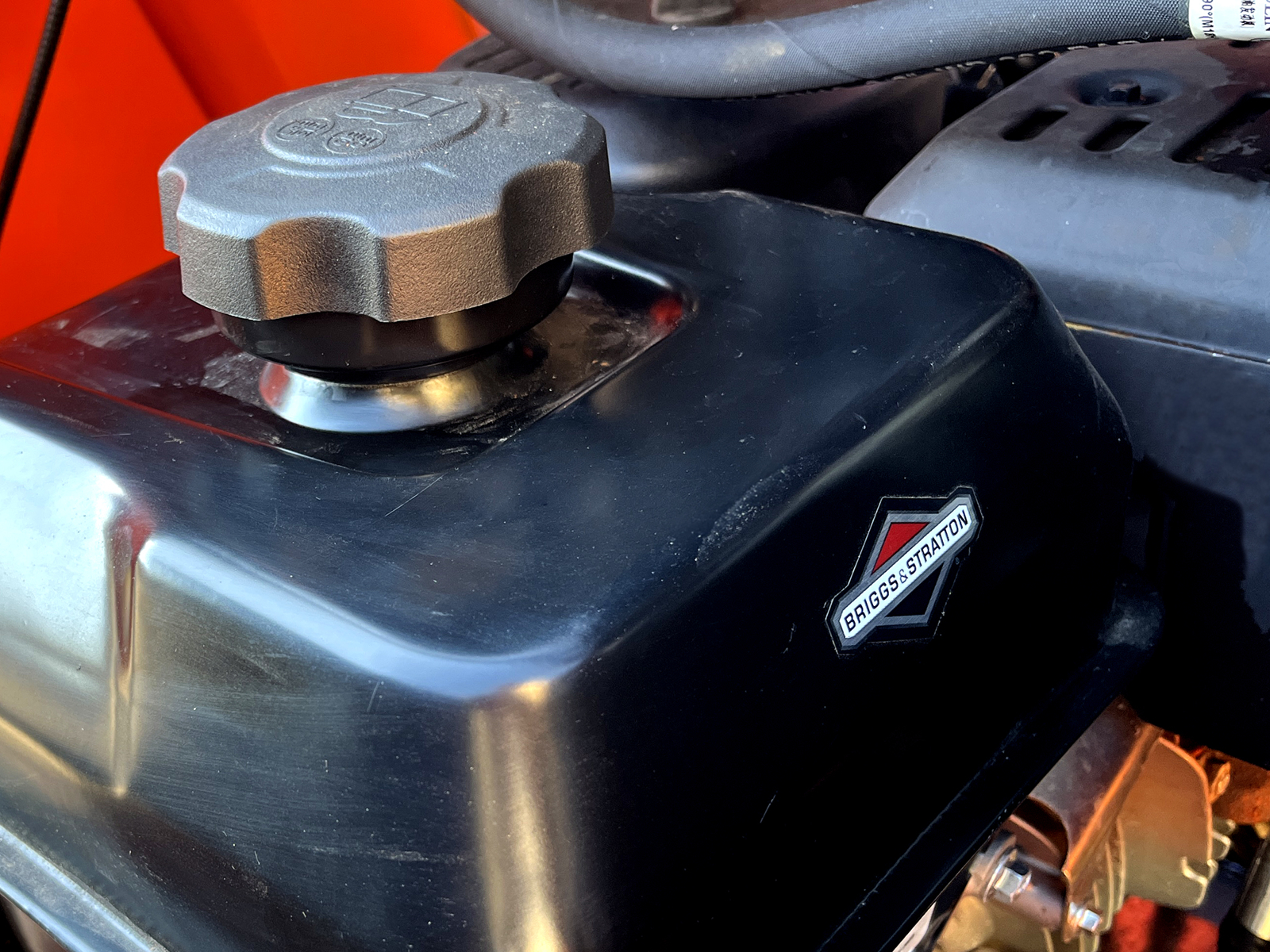

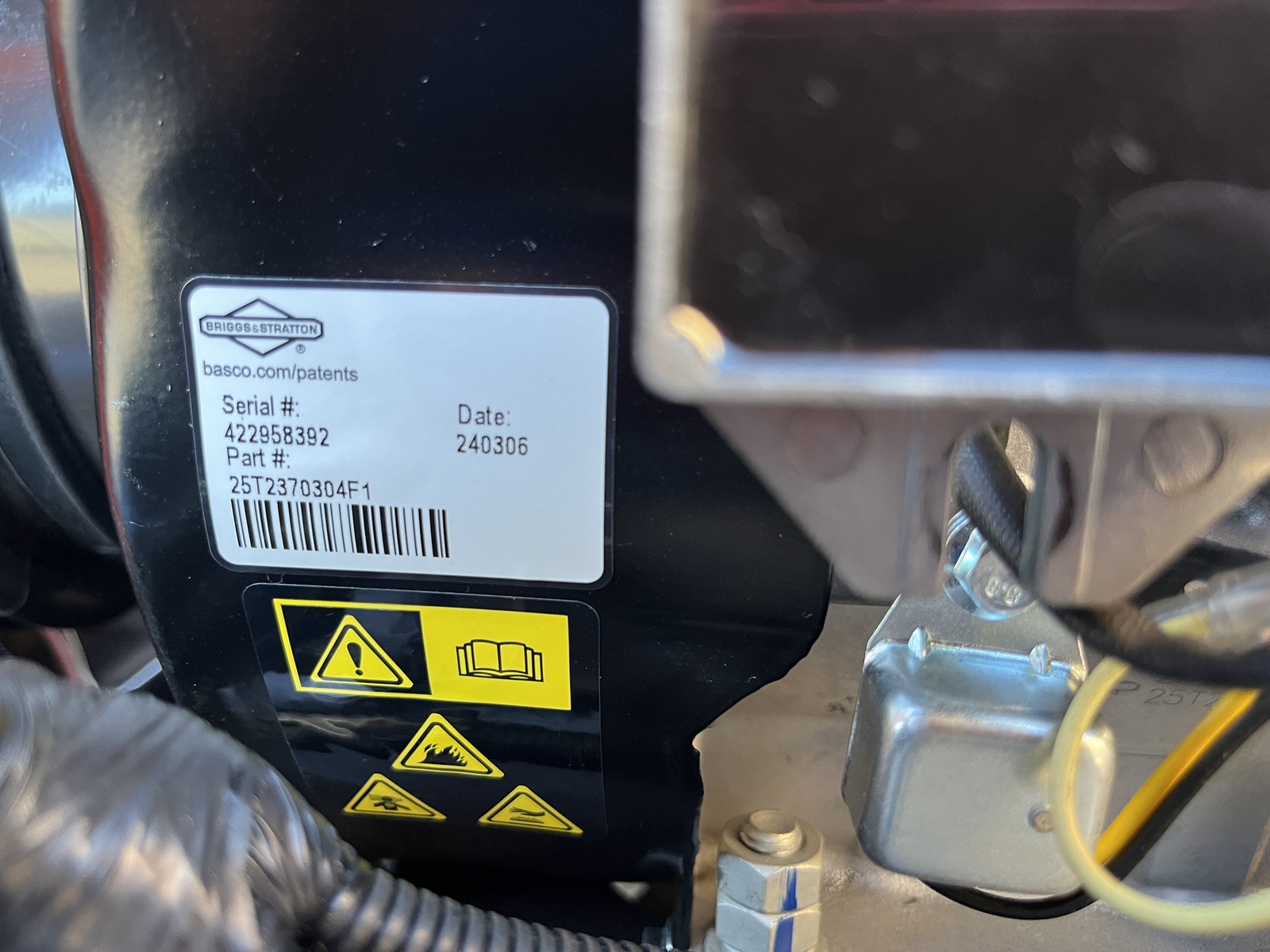

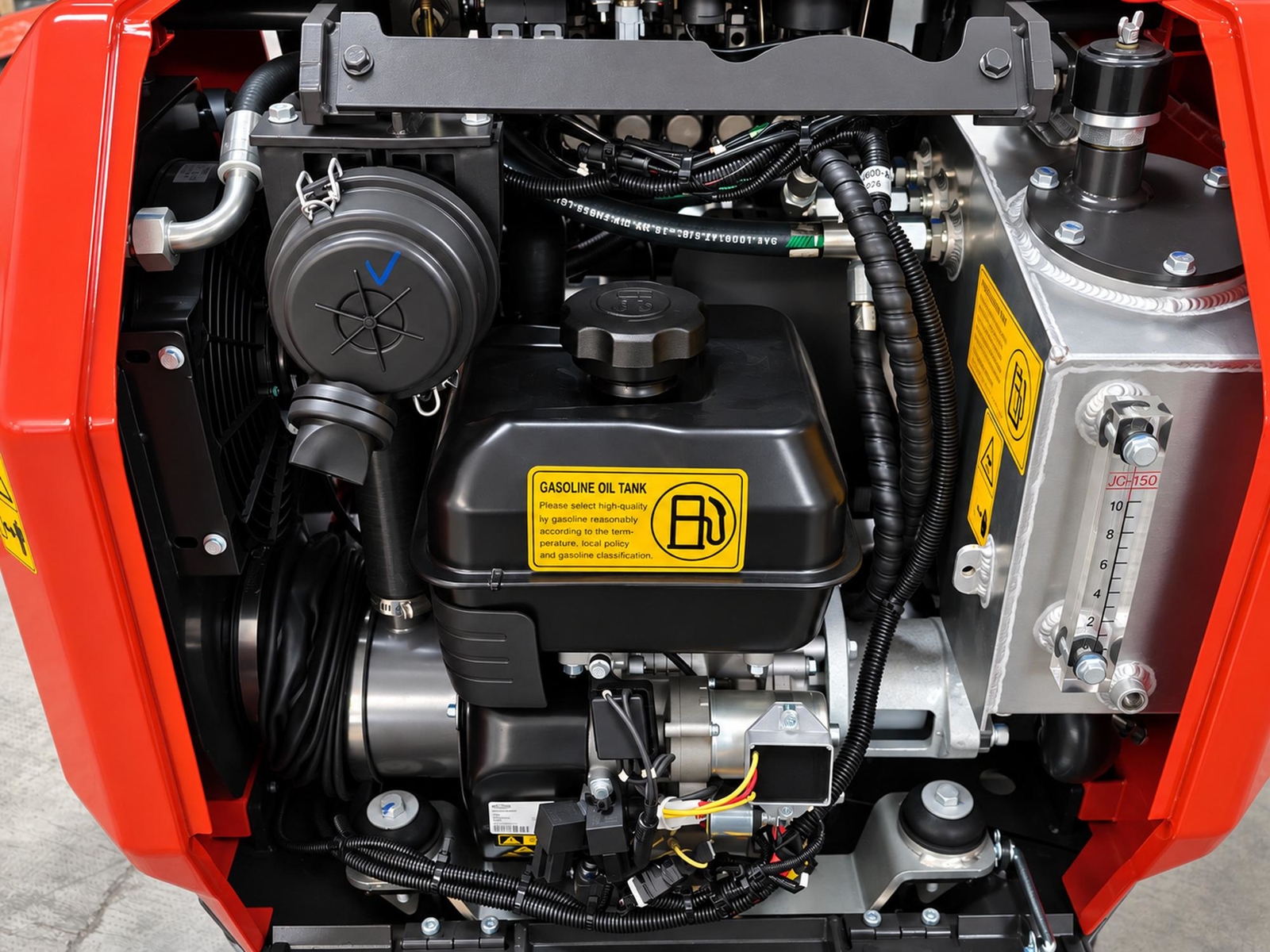

• Briggs & Stratton XR2100 petrol engine

• Maximum power: 13.5 HP / 10 kW at 3600 rpm

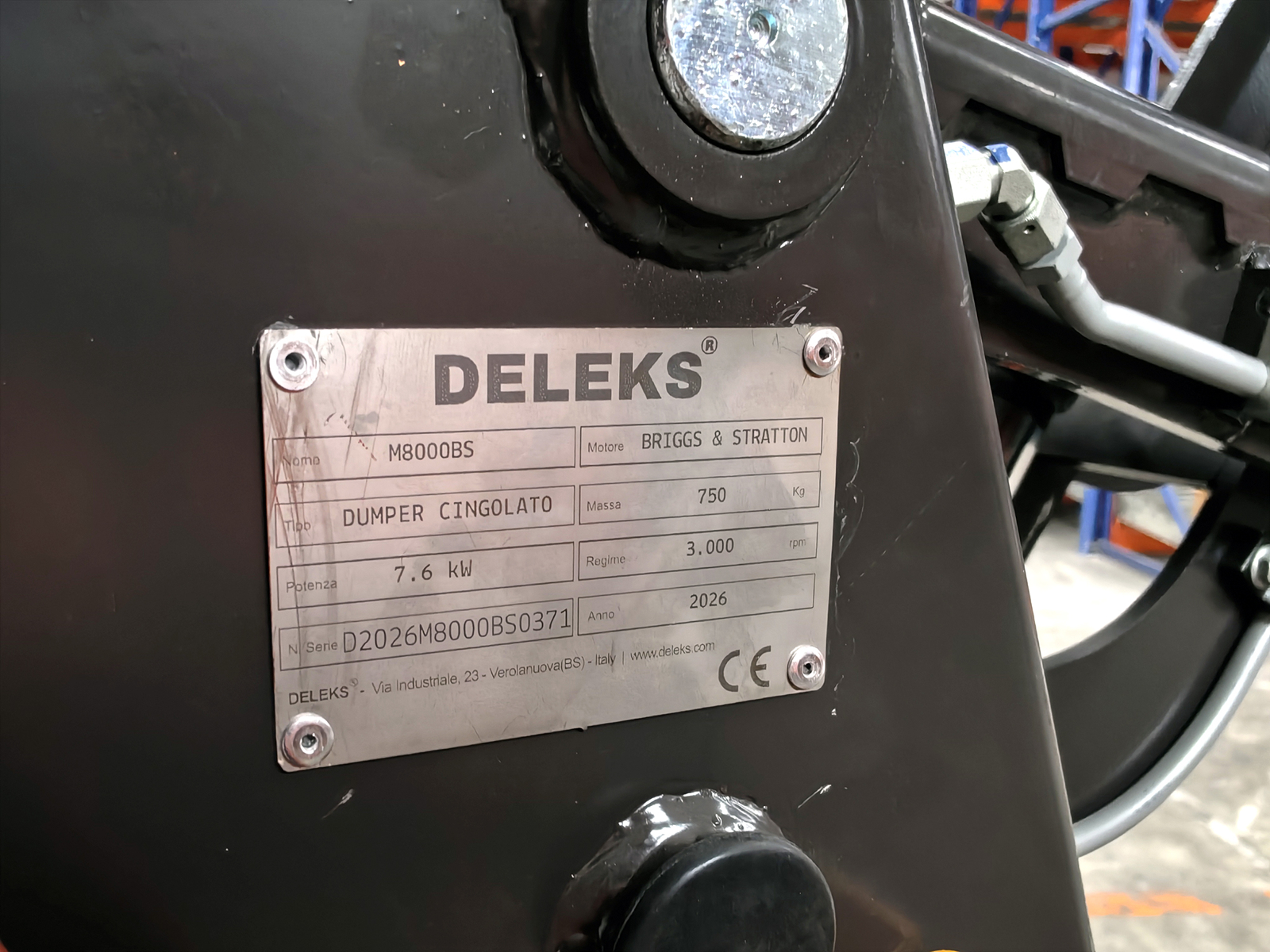

• Applied power: 7.6 kW at 3000 rpm

• Displacement: 420 cc

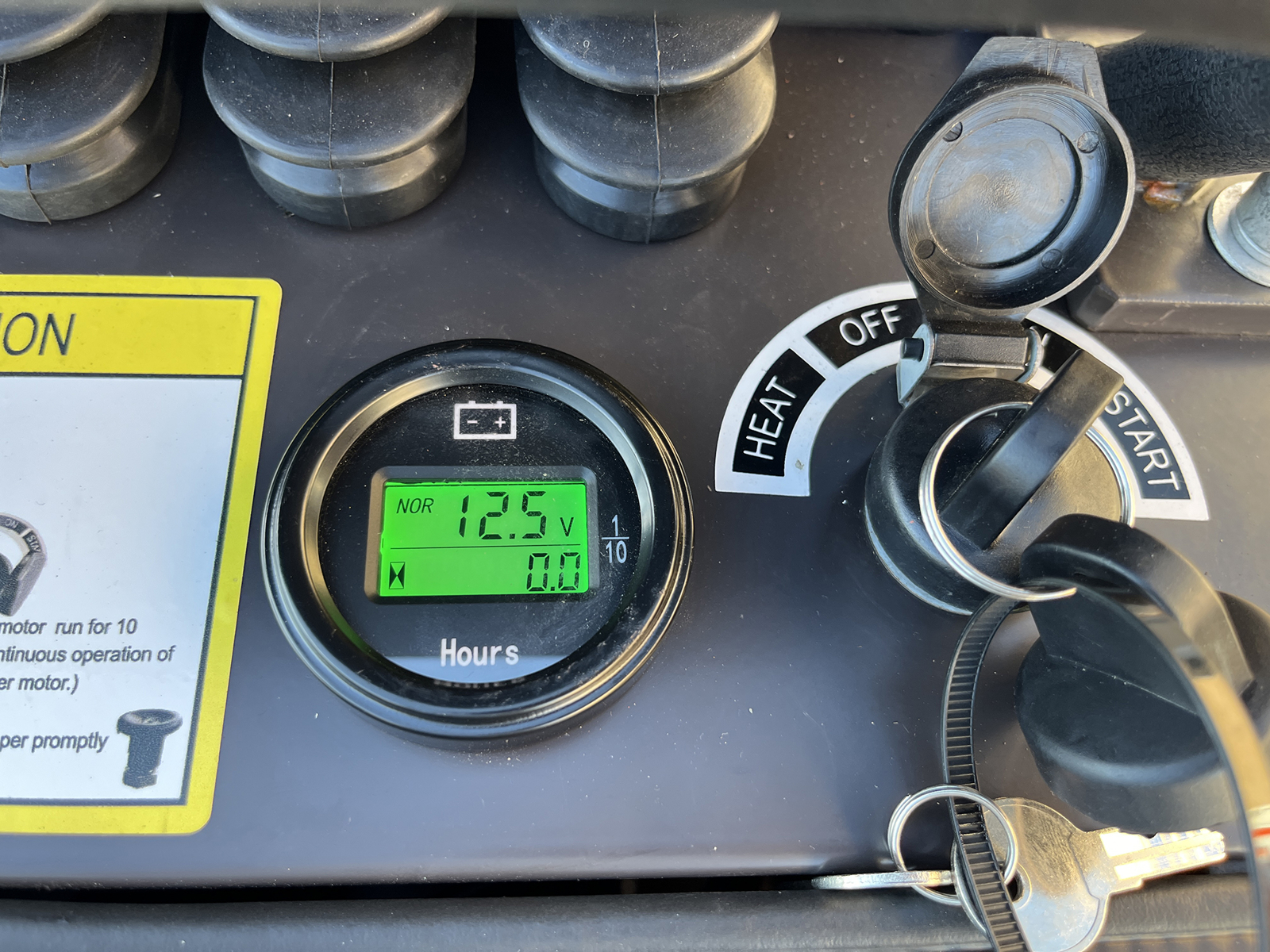

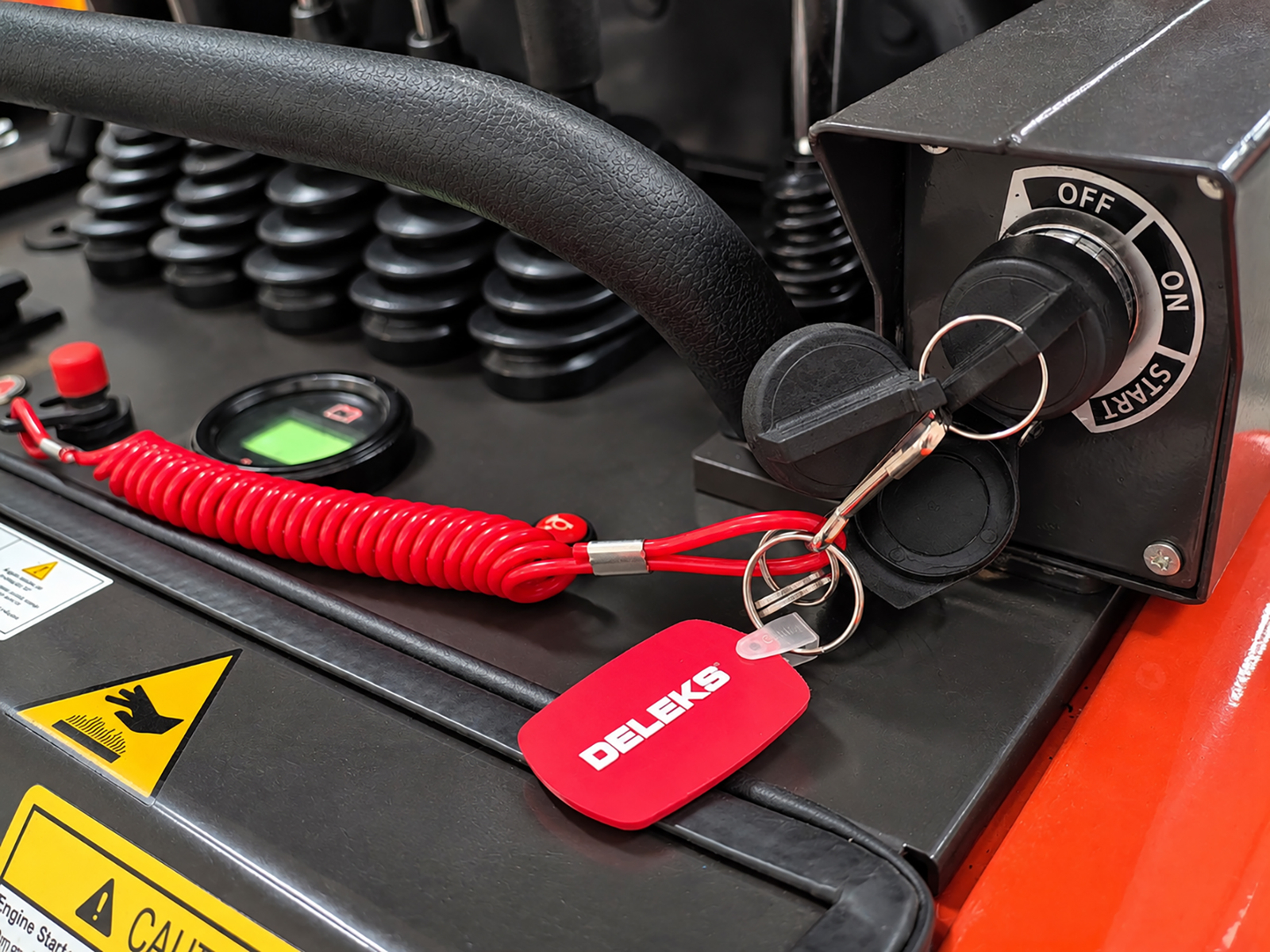

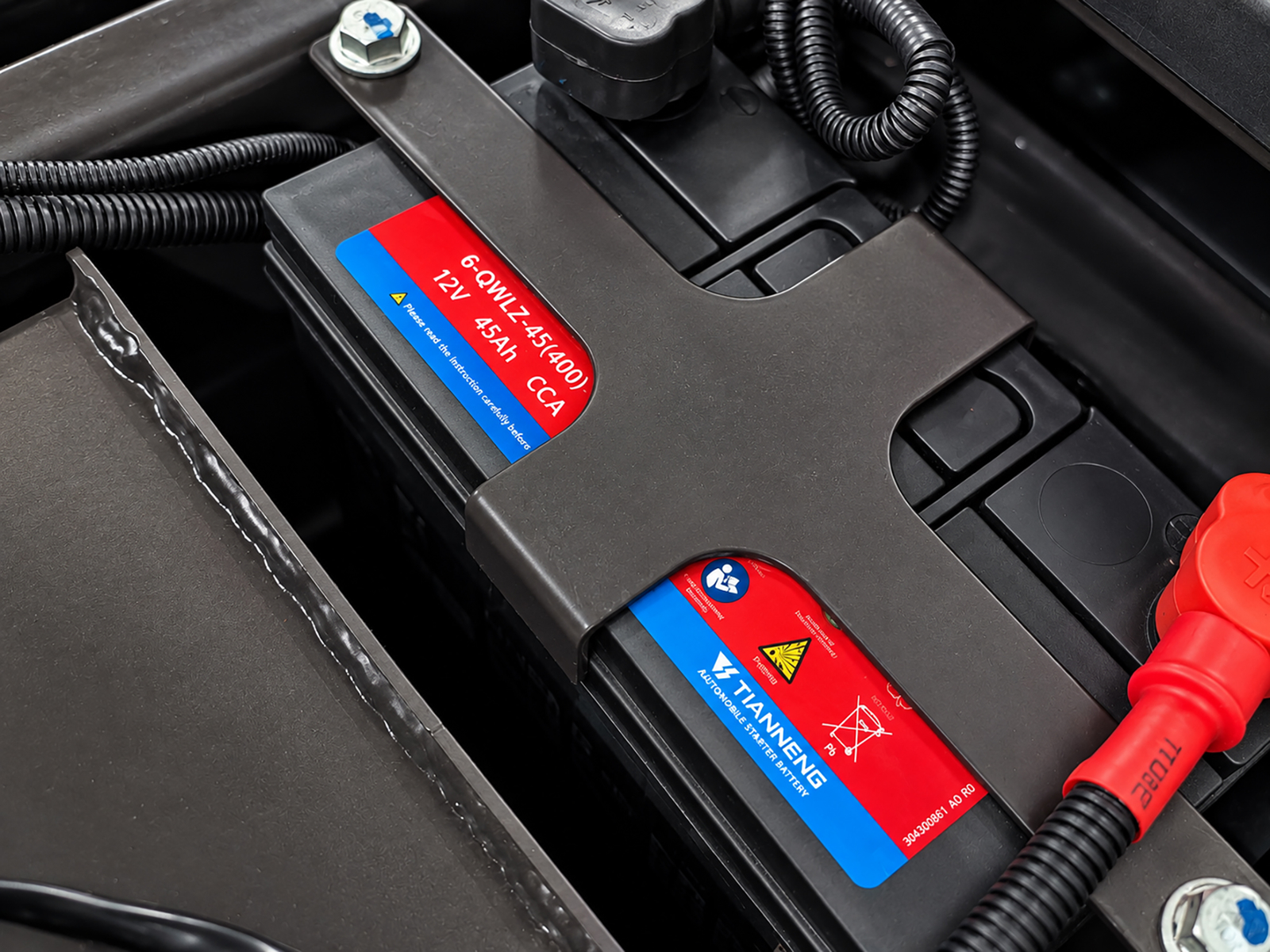

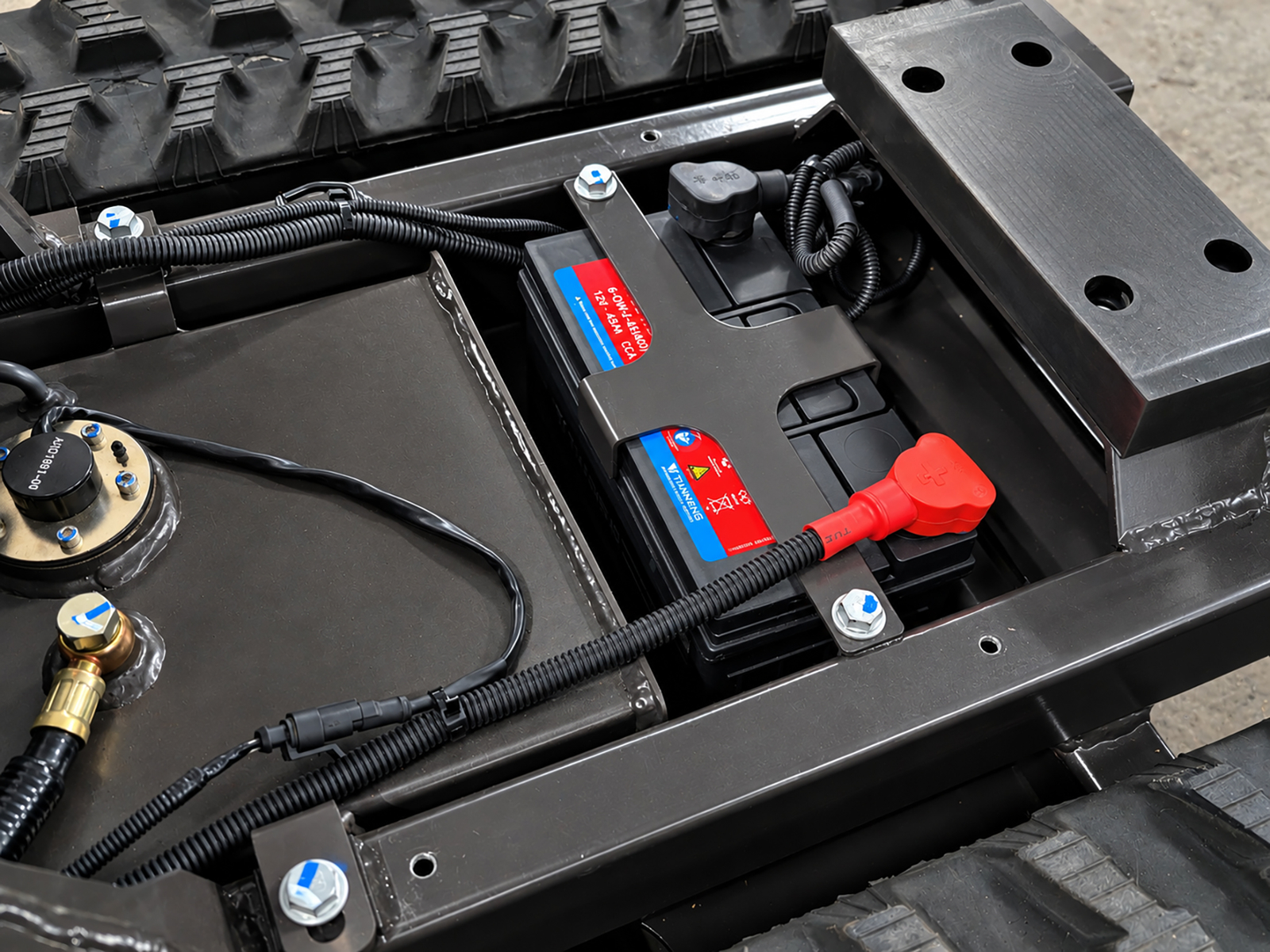

• Electric start with key

• Hydrostatic transmission

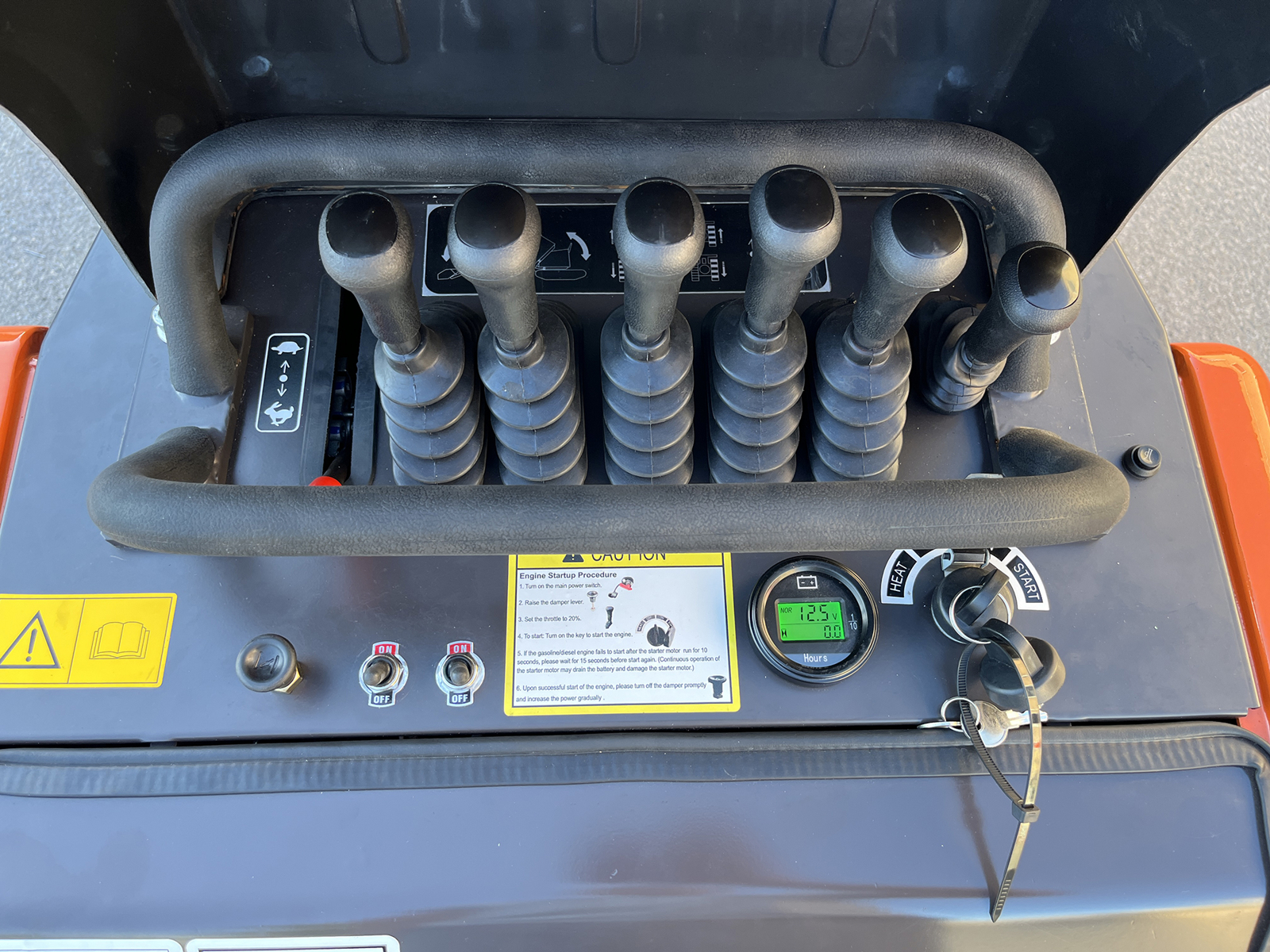

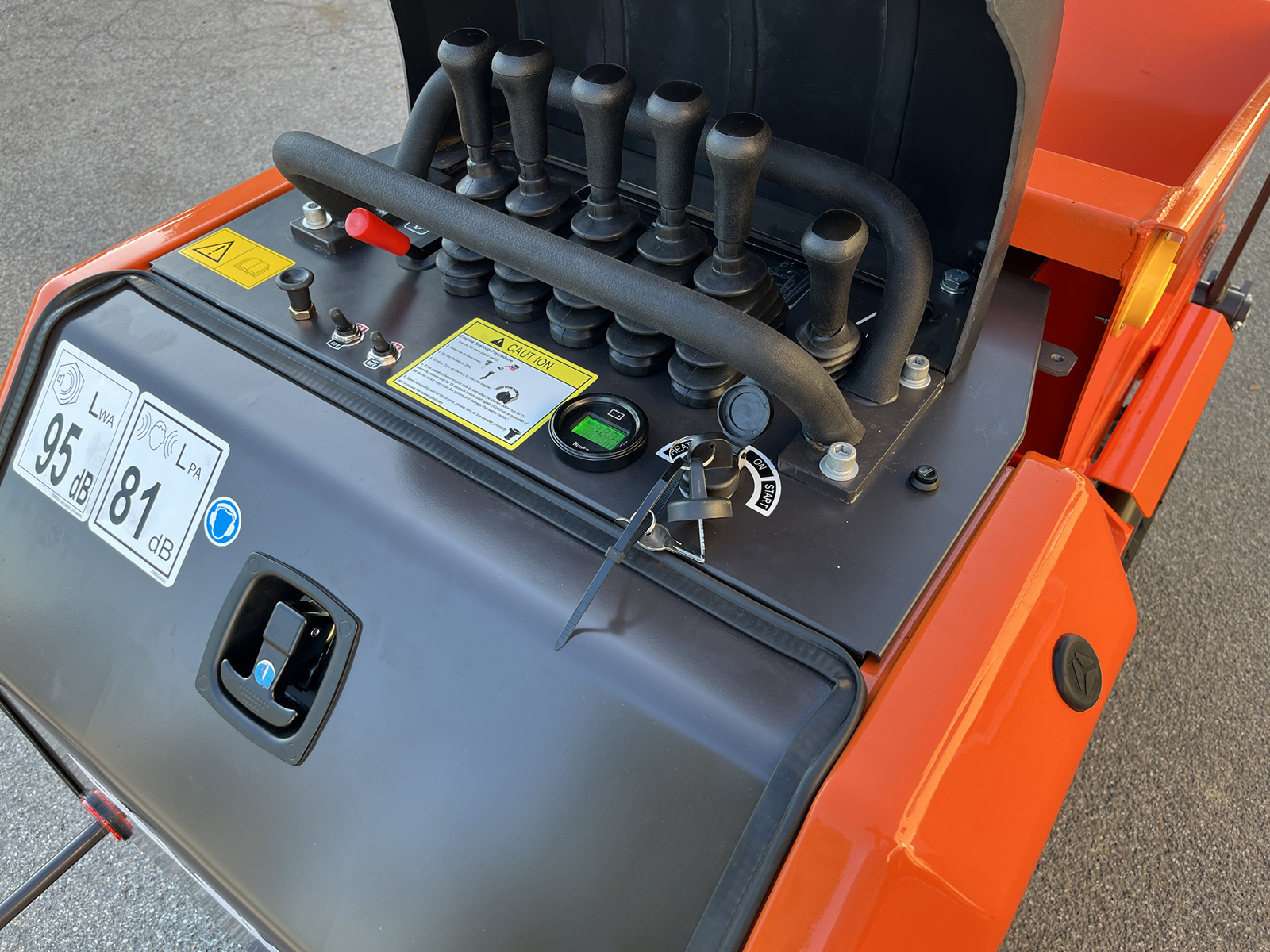

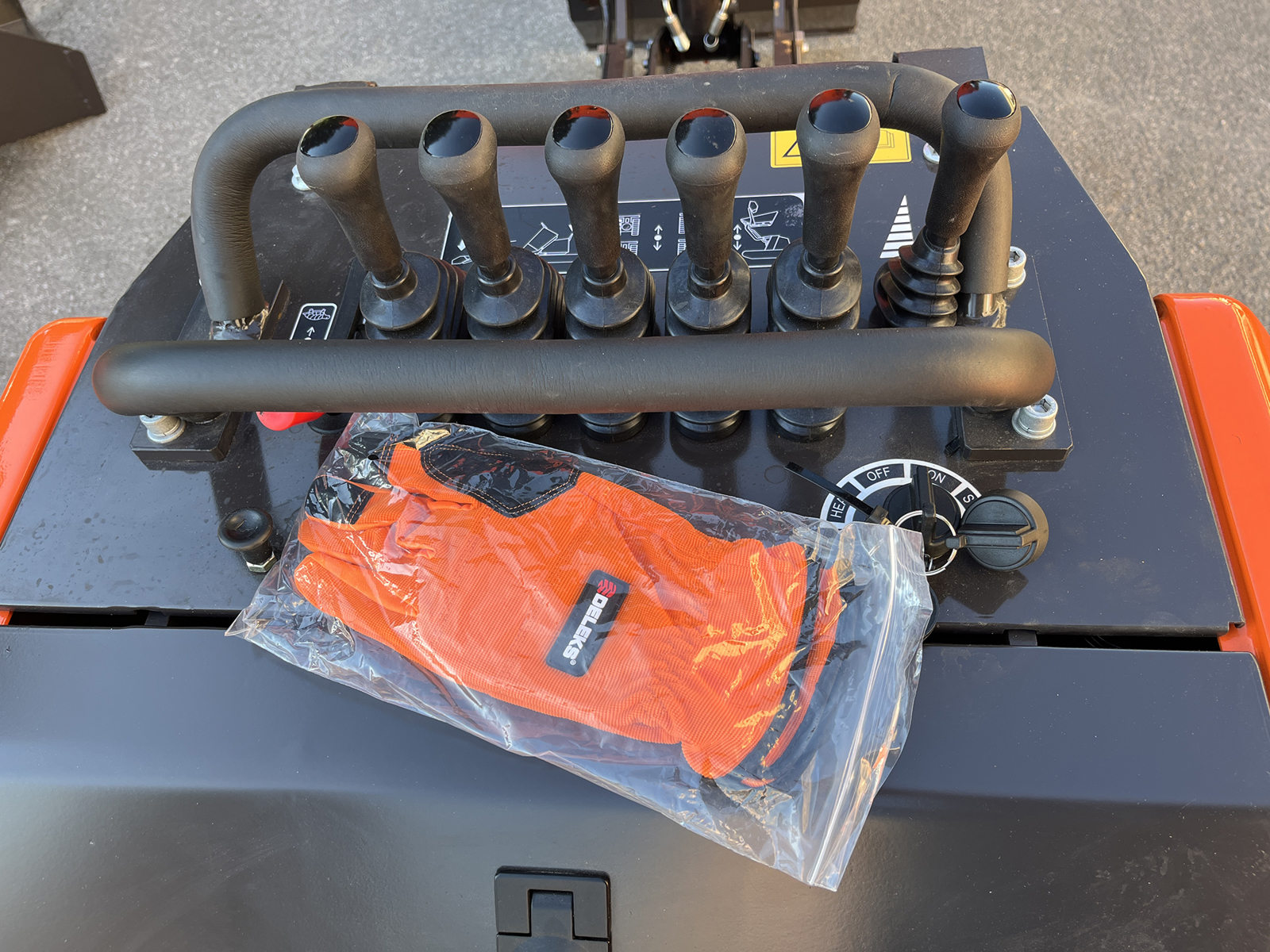

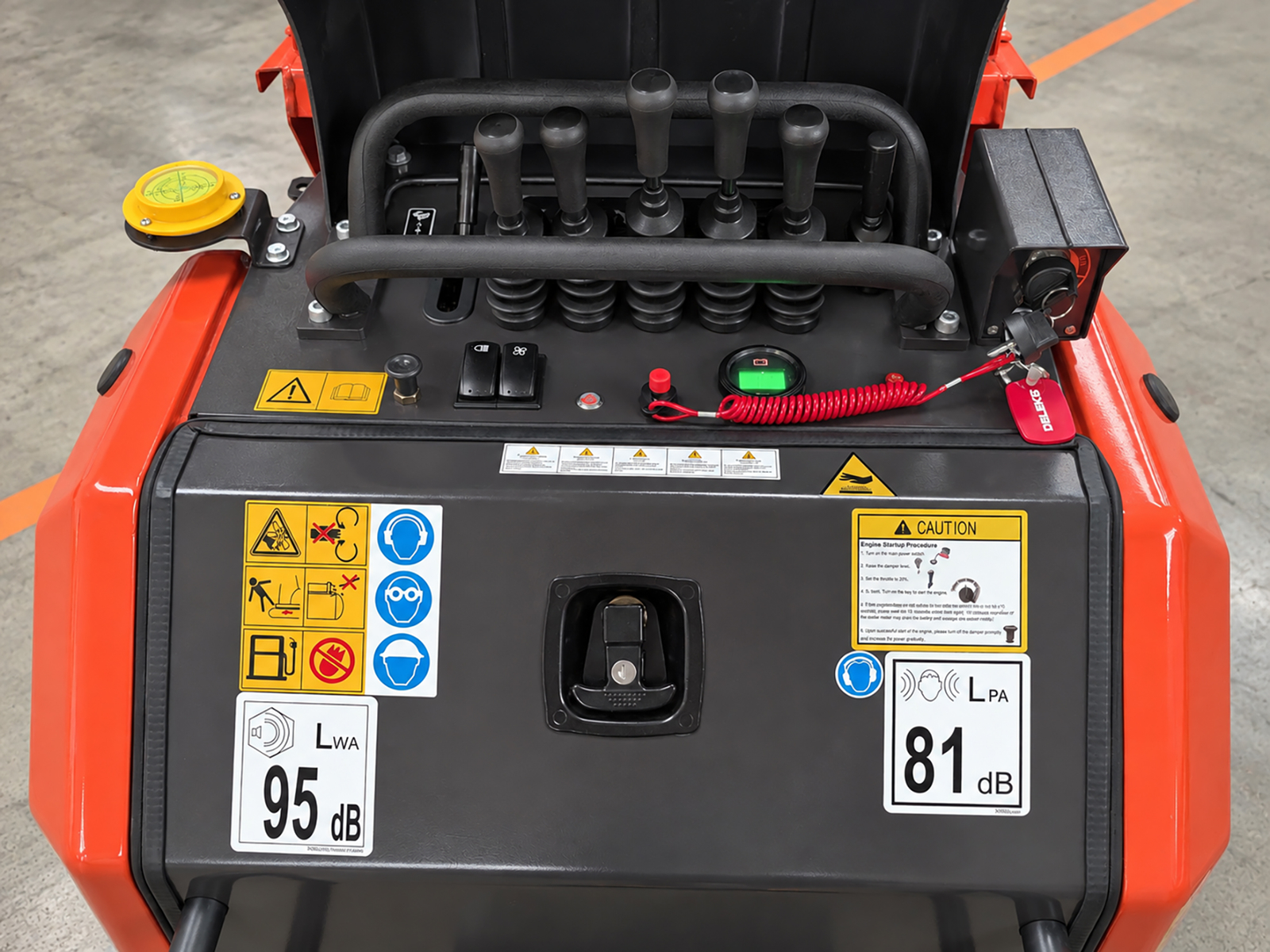

• Lever-operated driving controls

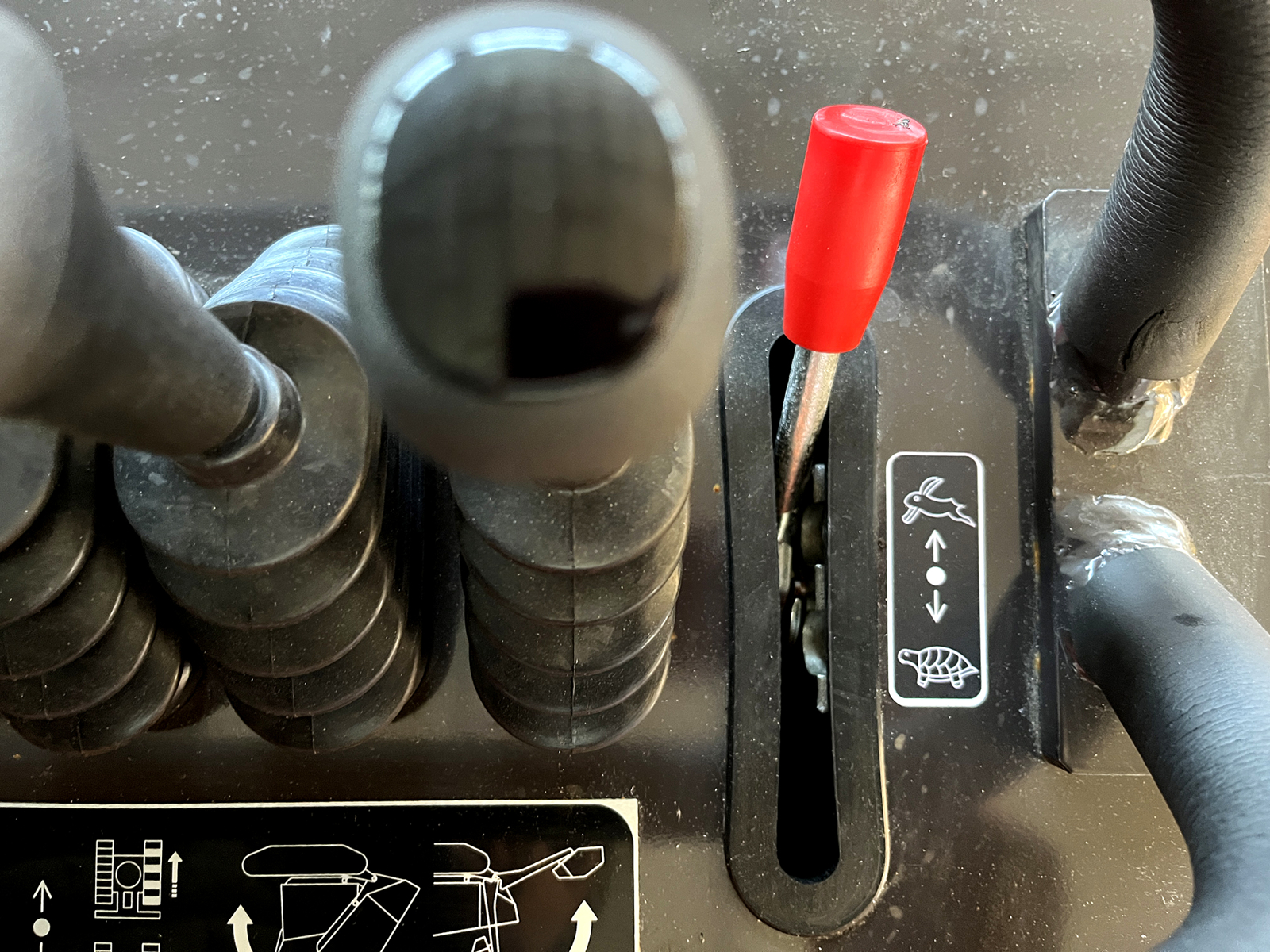

• Two forward speeds: 2 – 4 km/h

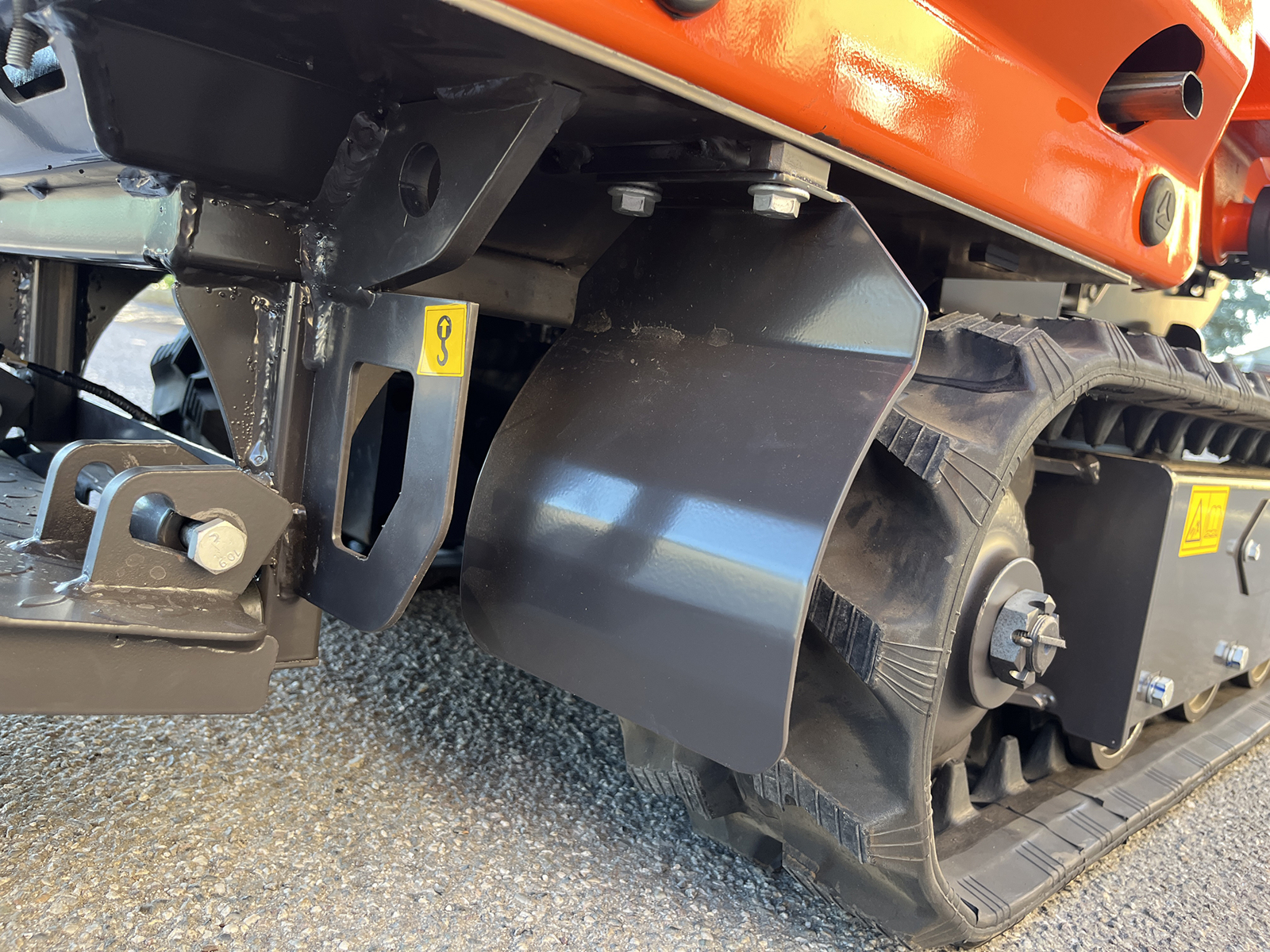

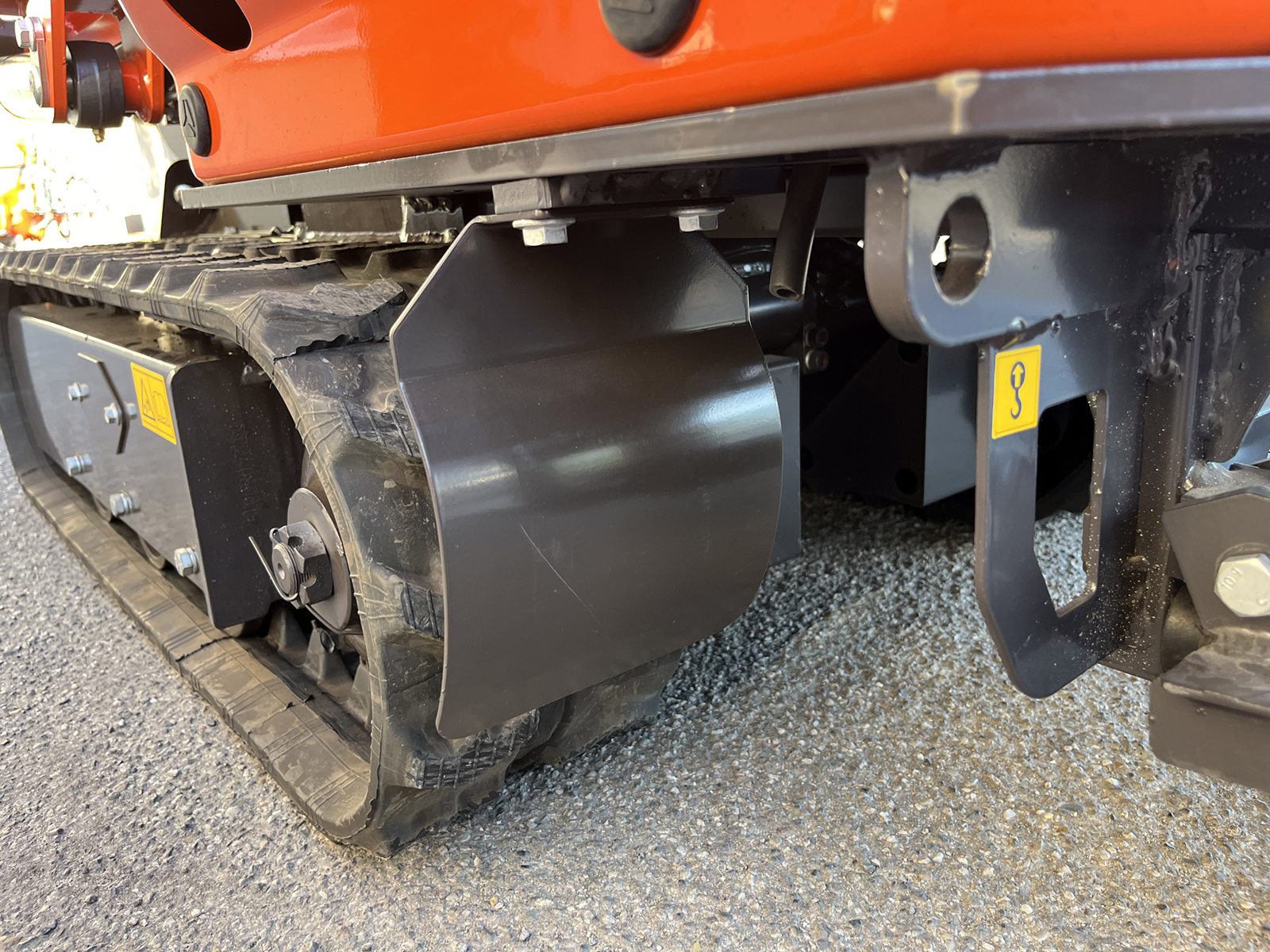

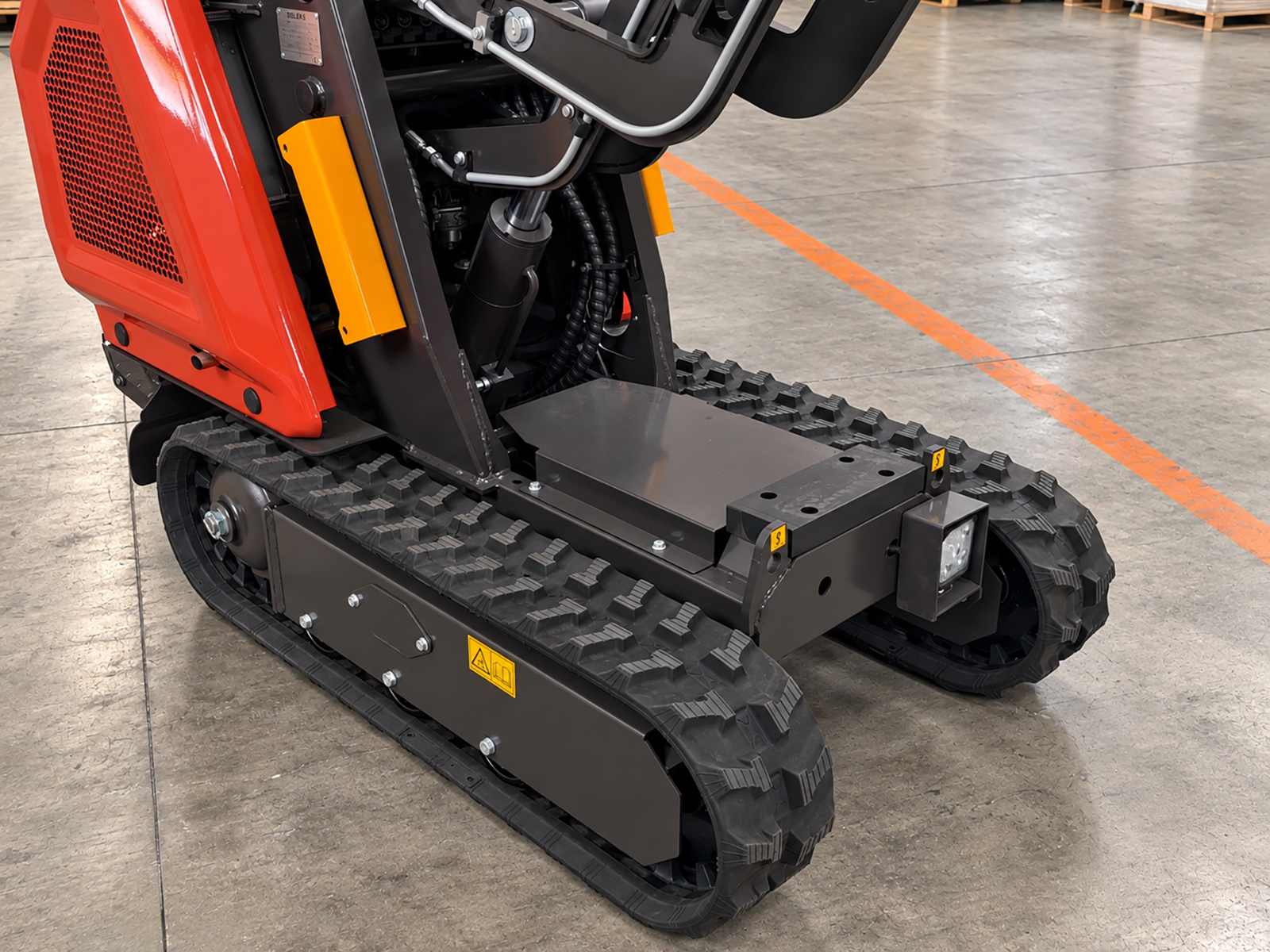

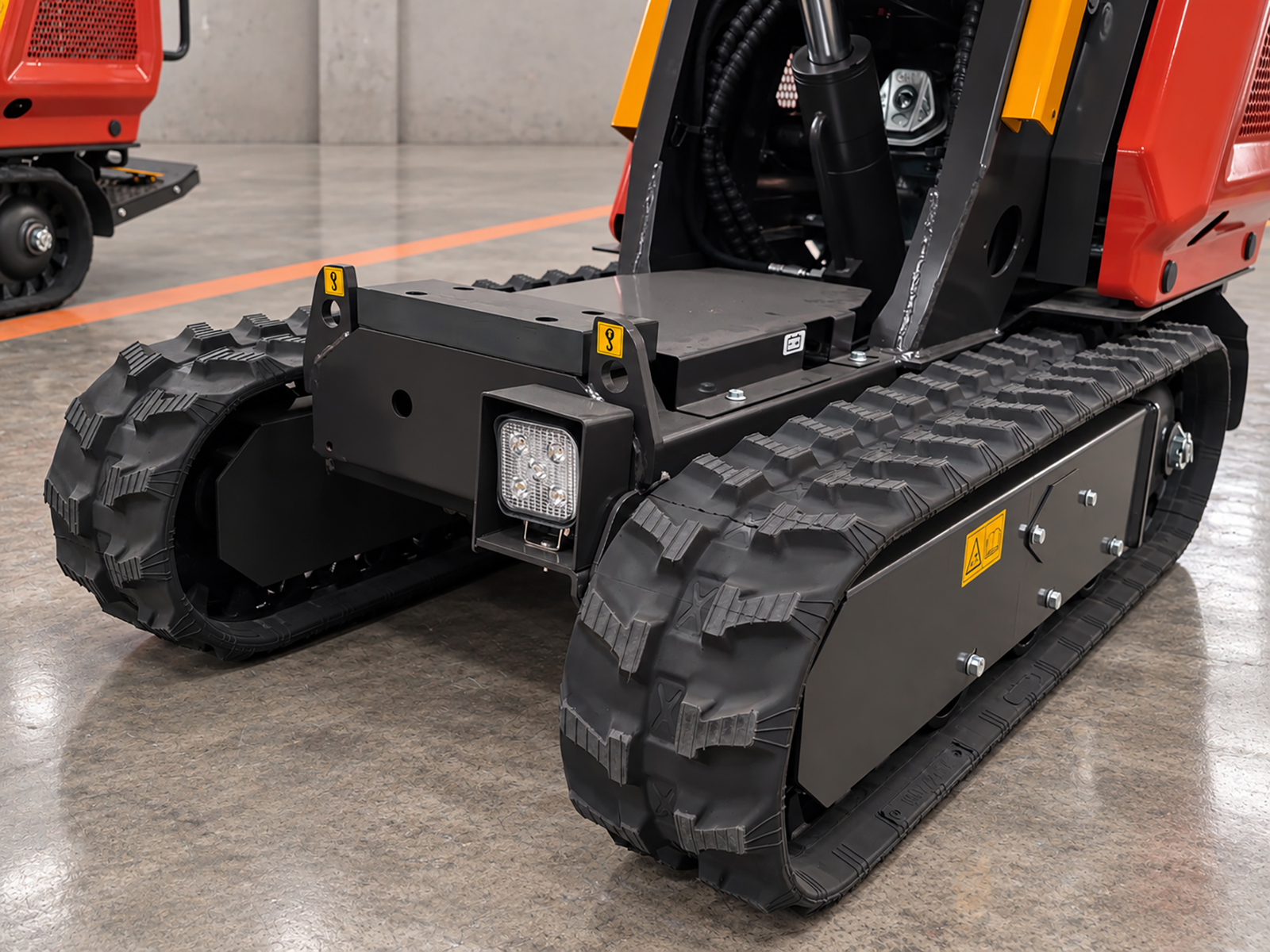

• Professional tracked drive

• Track width: 180 mm

• Track length: 1200 mm

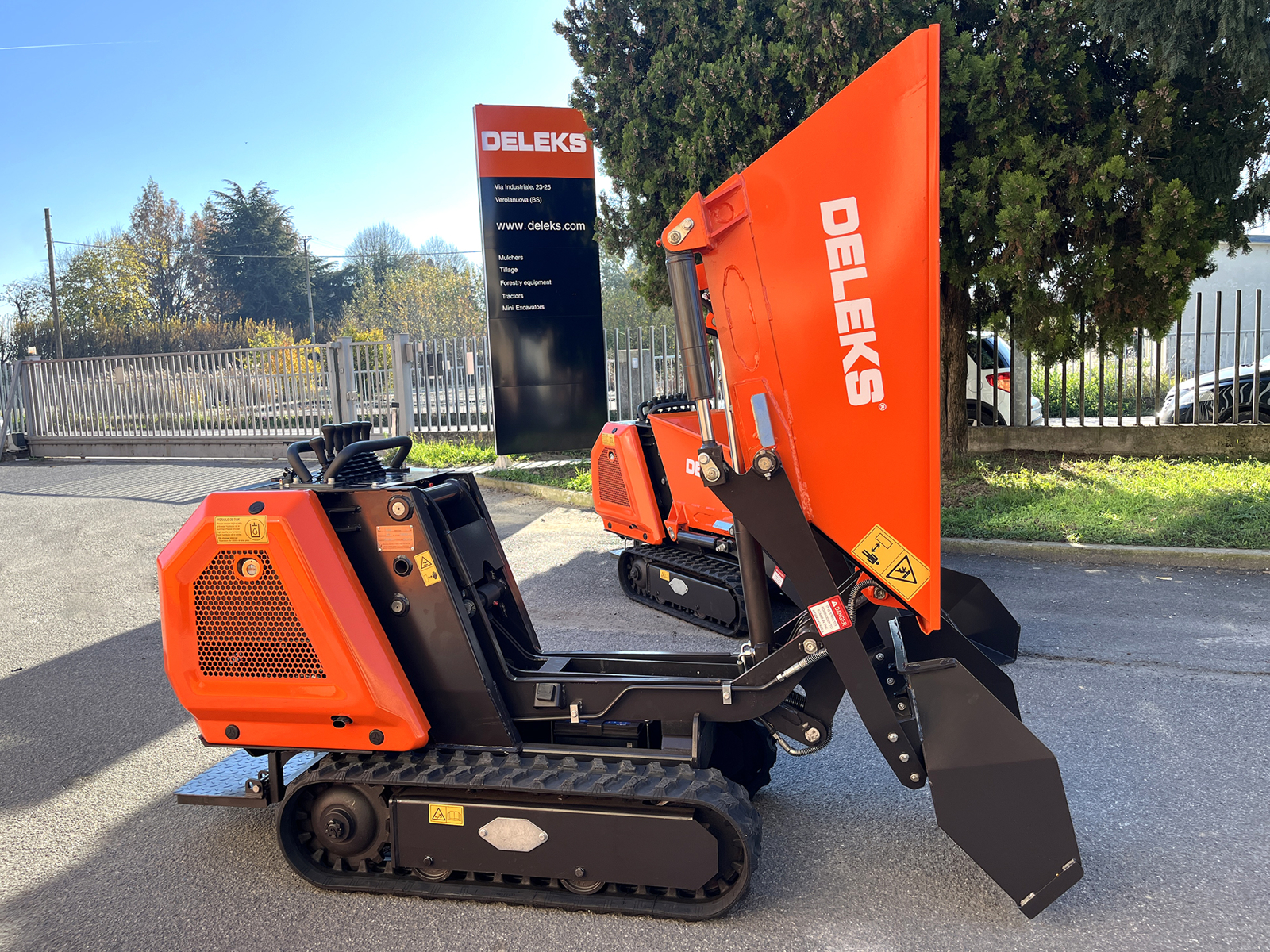

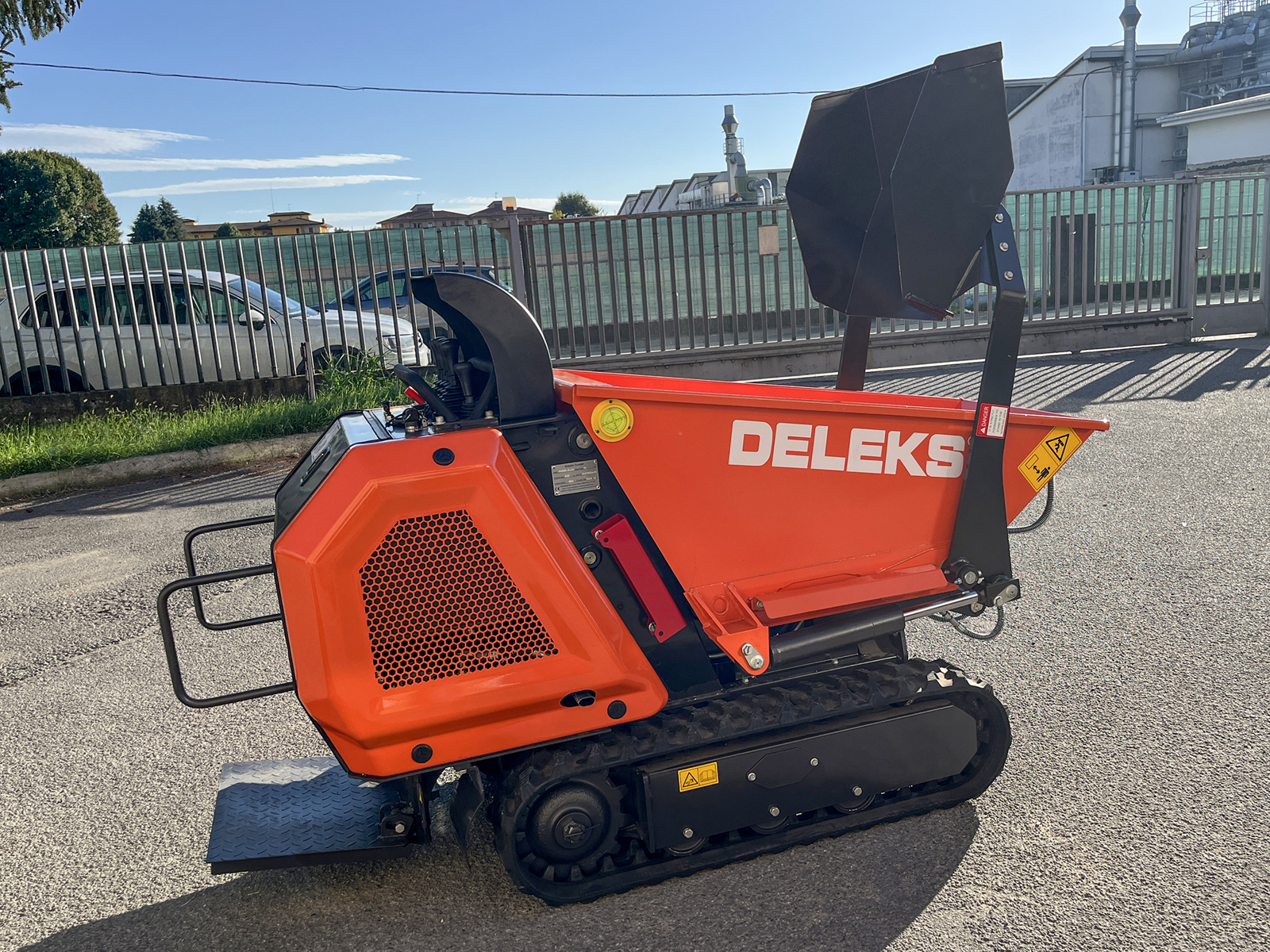

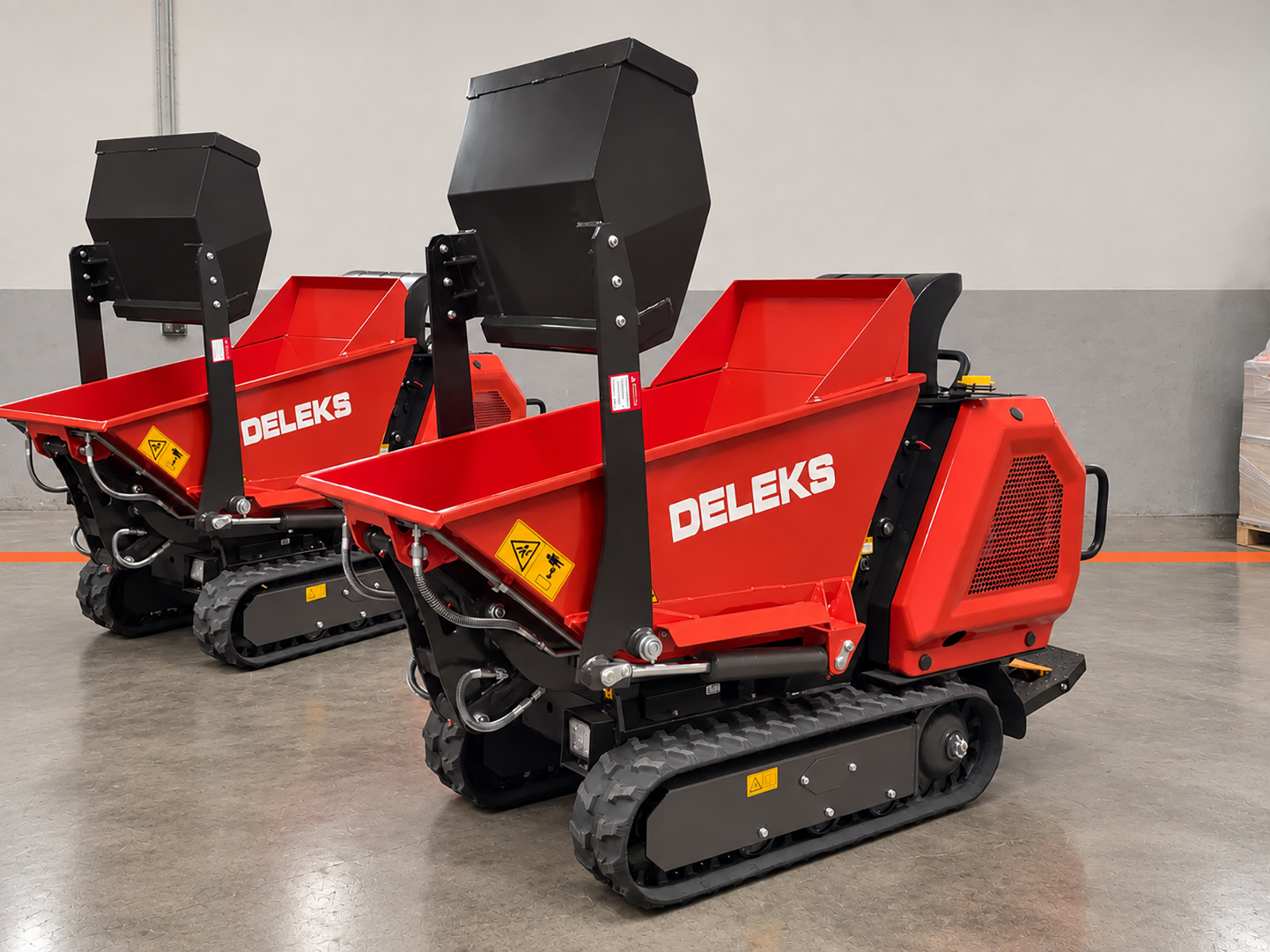

• Reinforced high-dump dumper skip

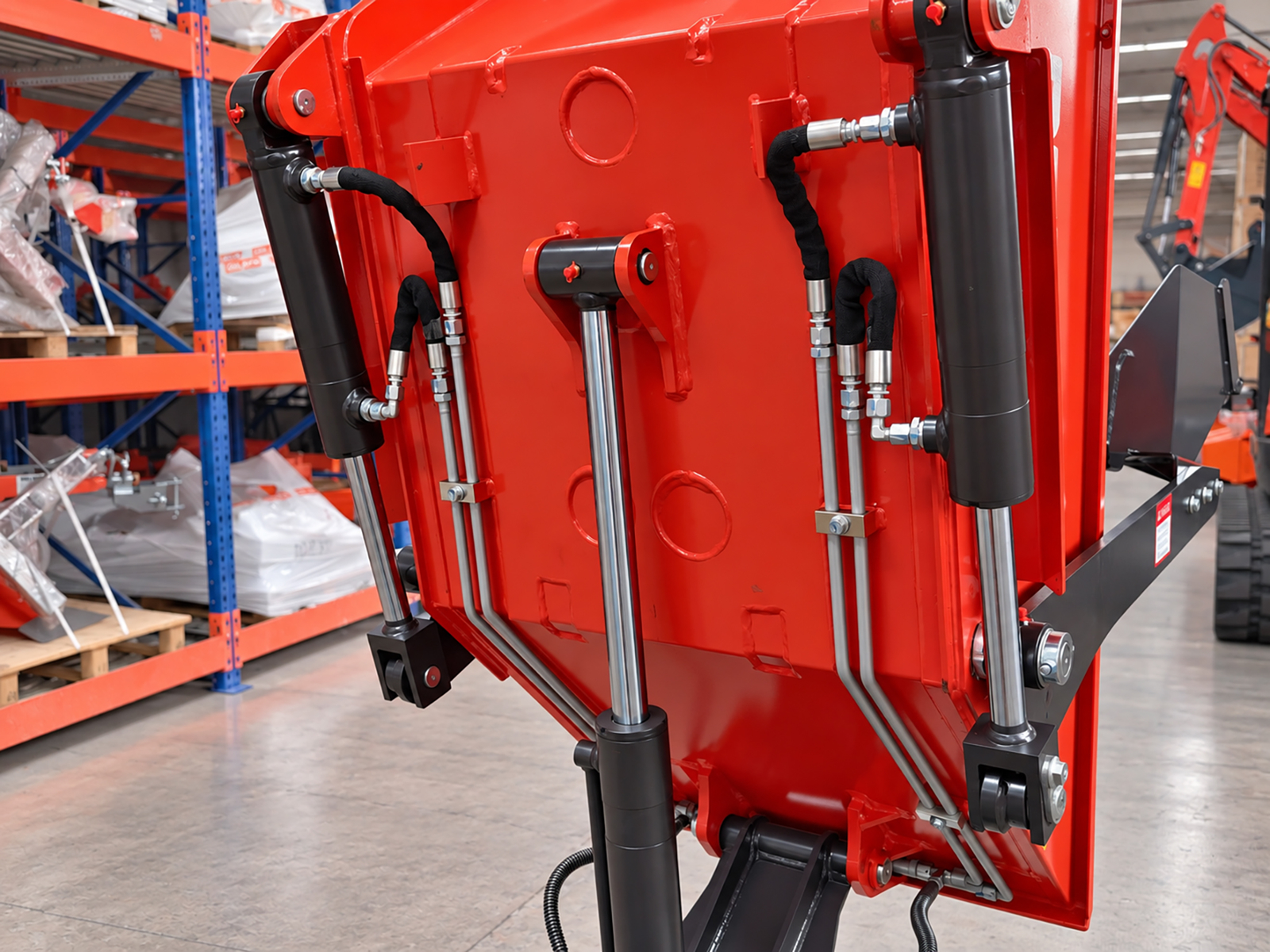

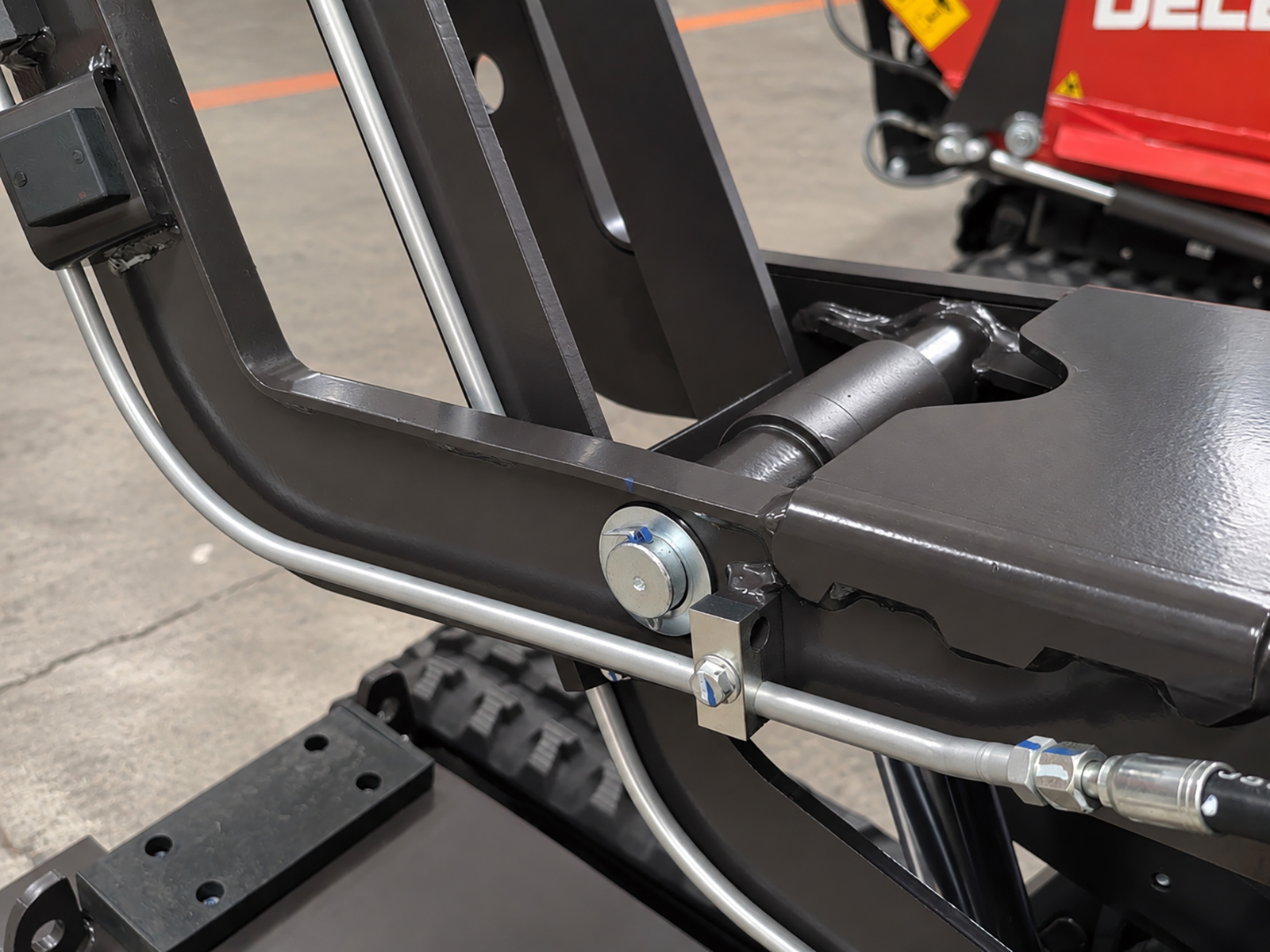

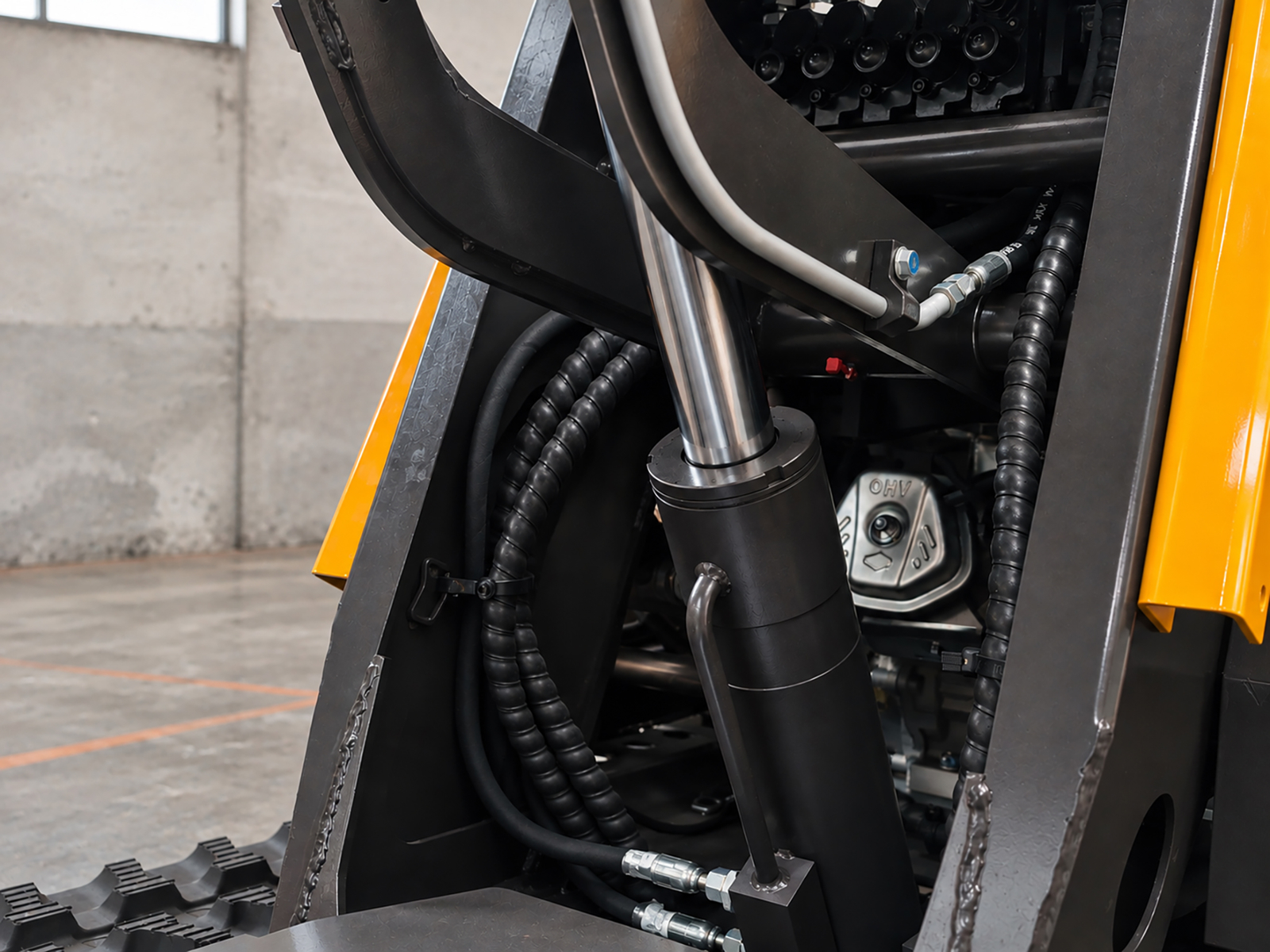

• Hydraulic tipping system

• Maximum load capacity: 800 kg

• Fuel type: petrol

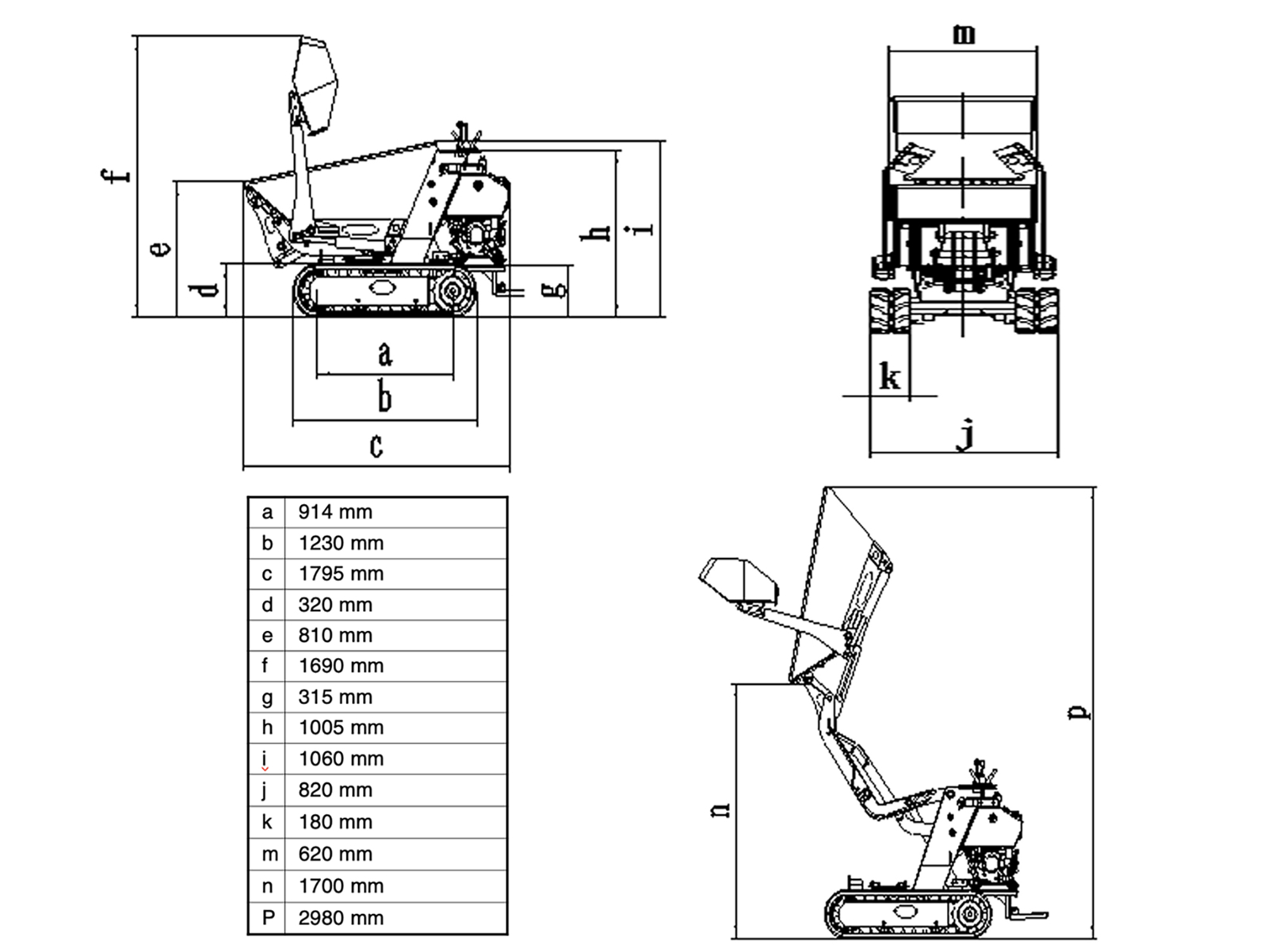

• Machine dimensions: see product images

OPERATIONAL ADVANTAGES

• High dump for direct unloading into truck beds

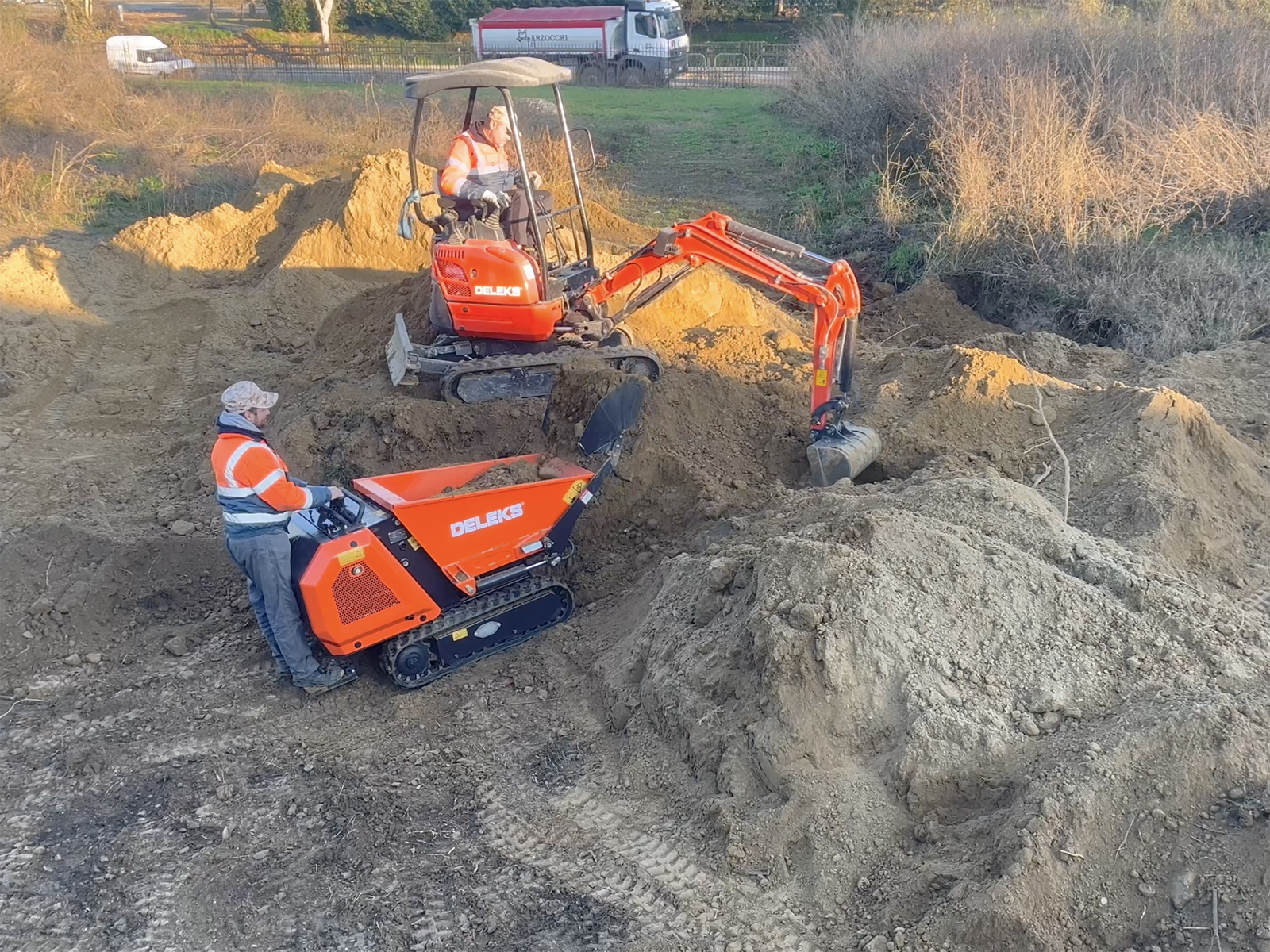

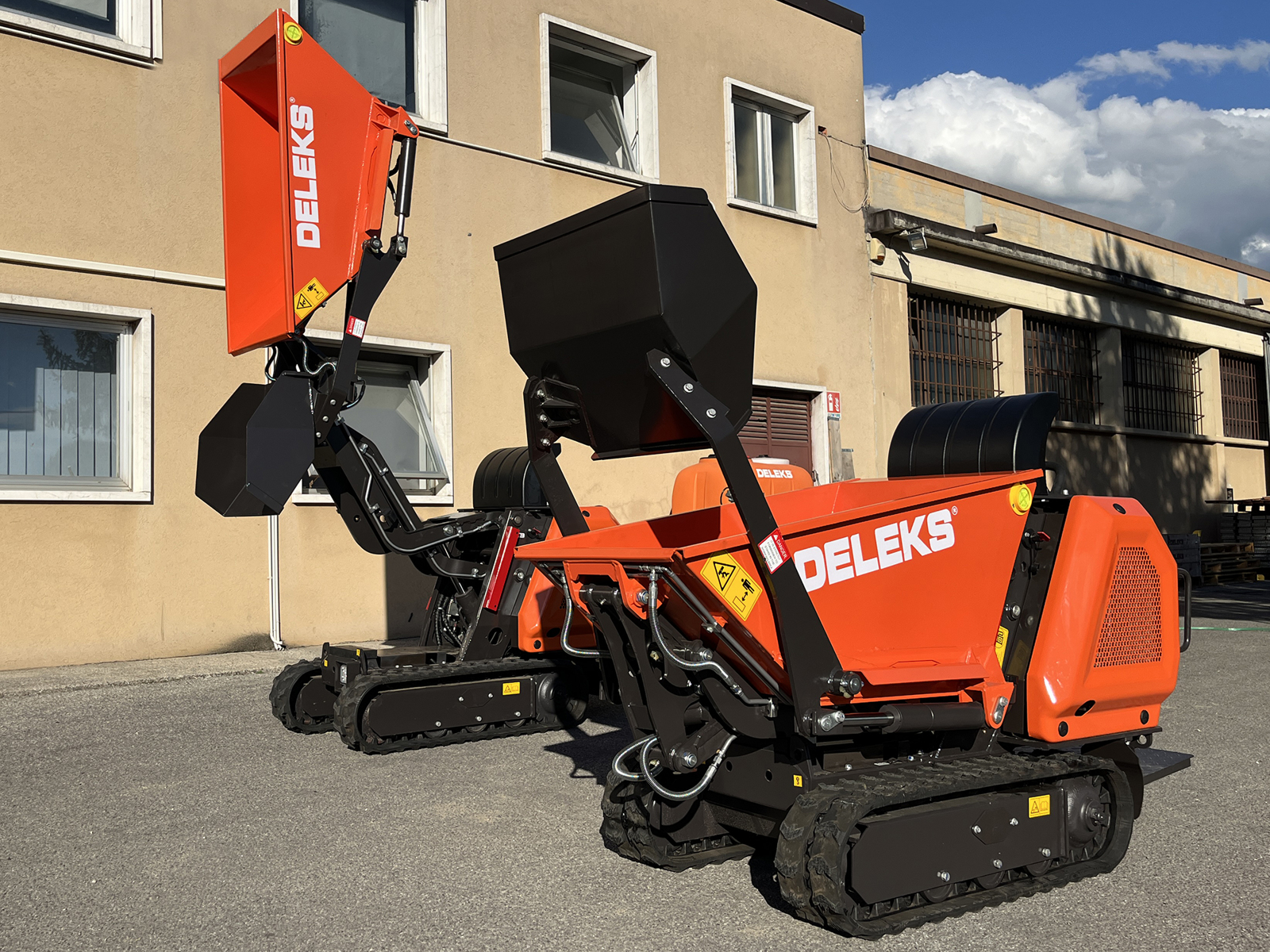

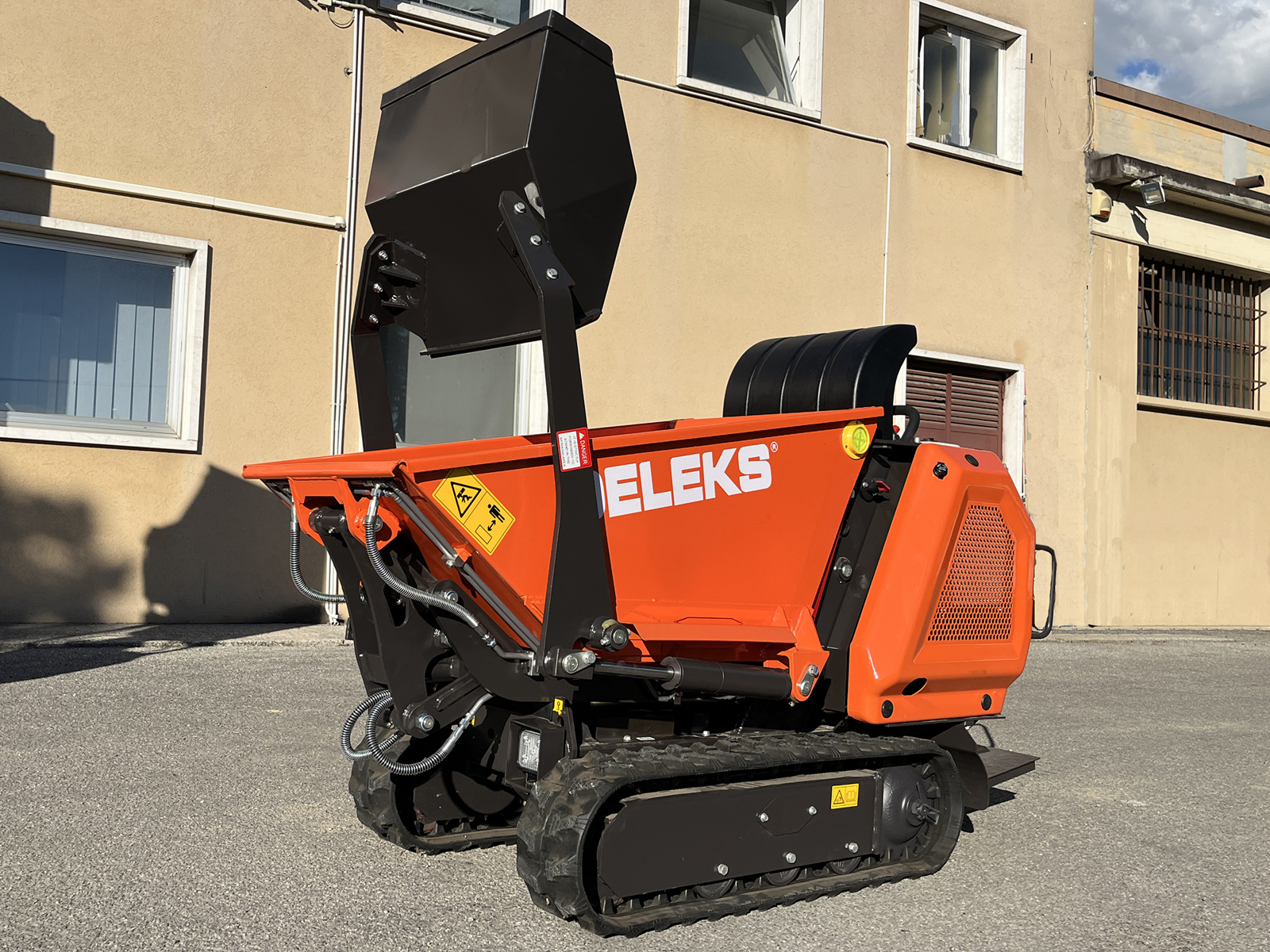

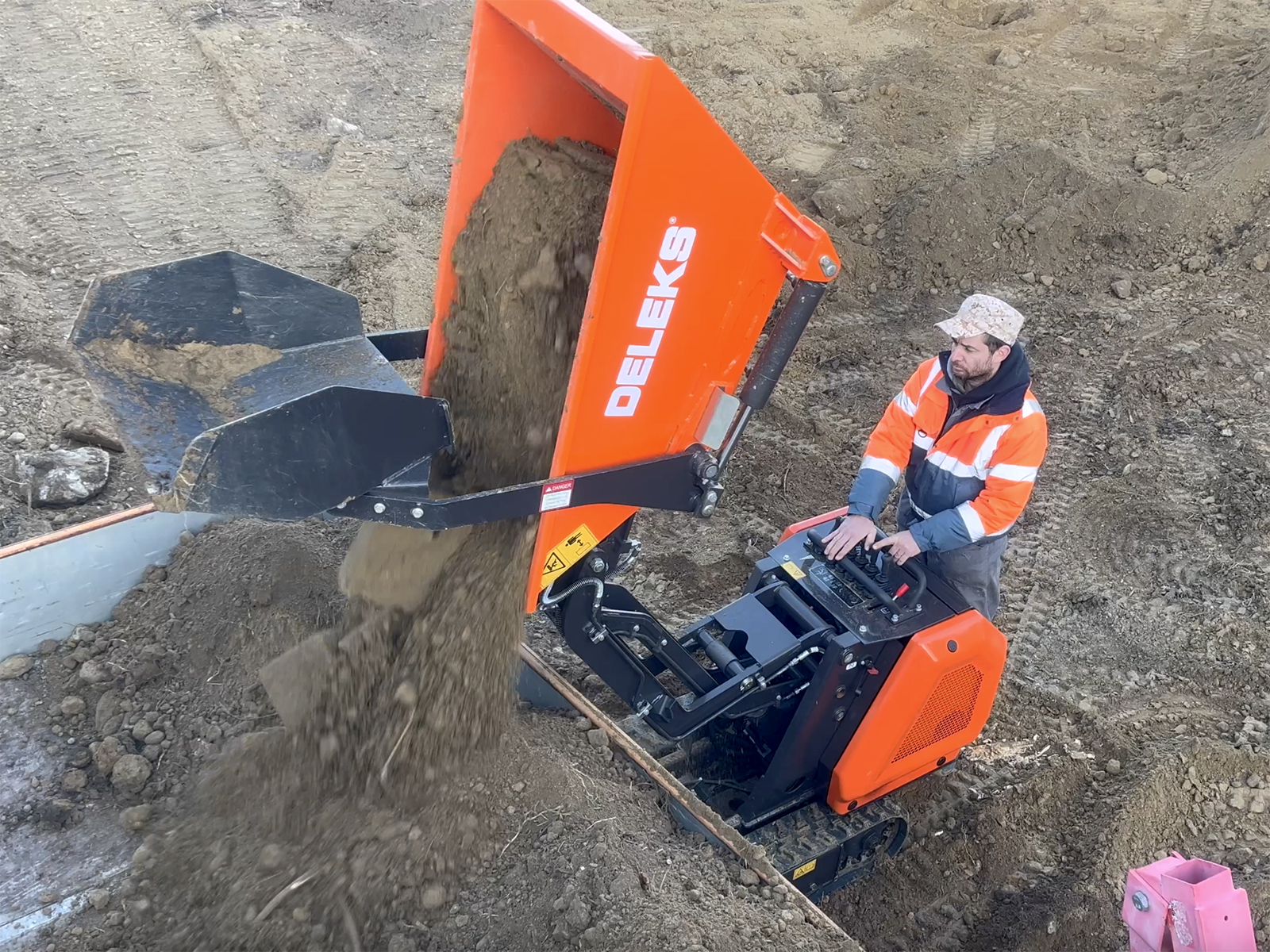

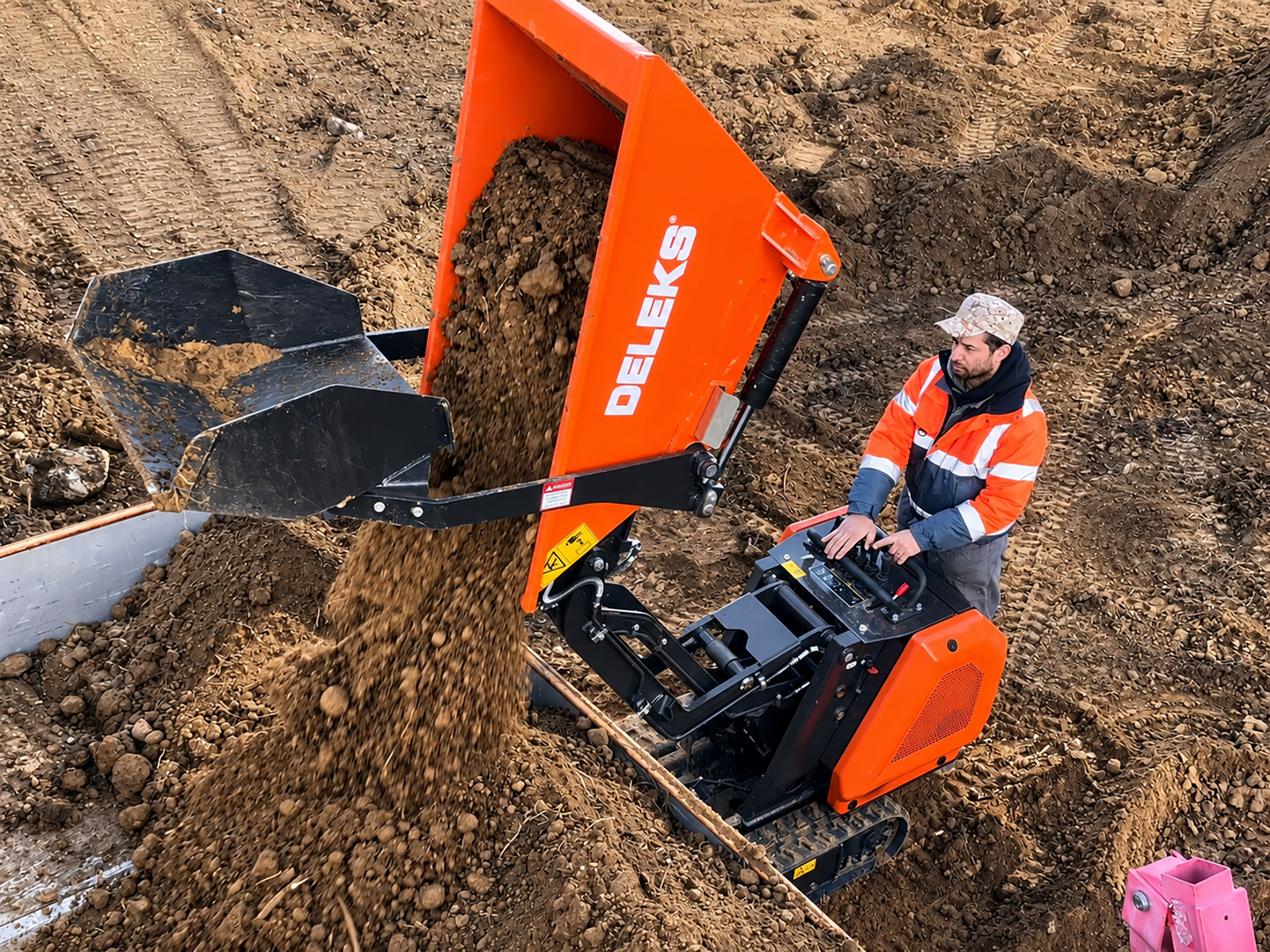

• Self-loading function reducing working time and effort

• Hydrostatic transmission for maximum control

• Counterbalance valve ensuring controlled traction

• Operator platform for continuous professional use

• Reinforced skip for heavy-duty applications

• High stability and traction on difficult terrain

• Reliable electric start

CERTIFICATIONS – WARRANTY – SERVICE

• Machine compliant with CE directives

• 2-year warranty

• Equipped with safety devices

• Technical support and spare parts available

SUPPLIED DOCUMENTATION

• EC Declaration of Conformity

• Operation and maintenance manual

• Invoice or fiscal receipt
