Hydrostatic Crawler Mini Dumper, side discharge, Briggs&Stratton engine, E-start

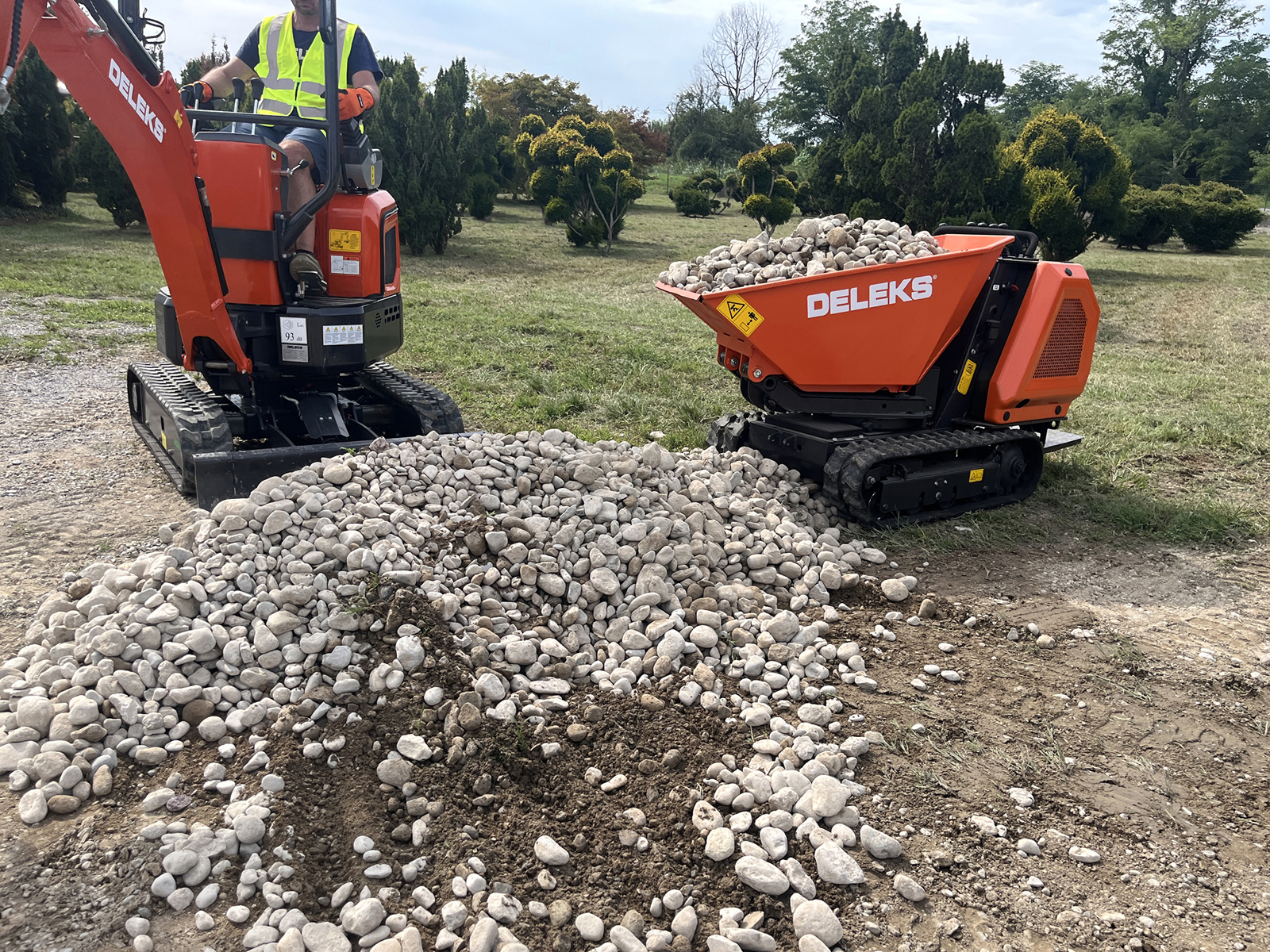

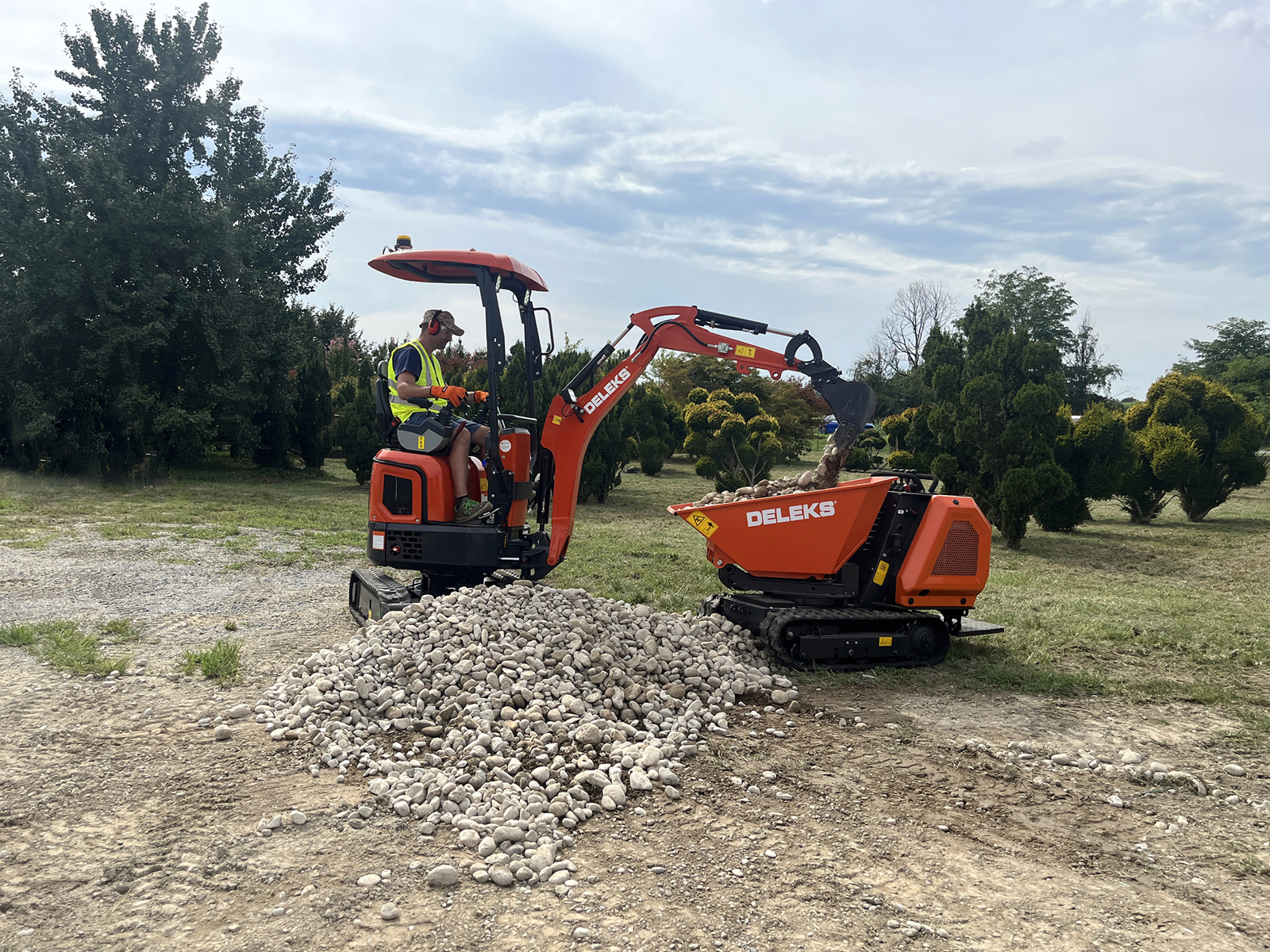

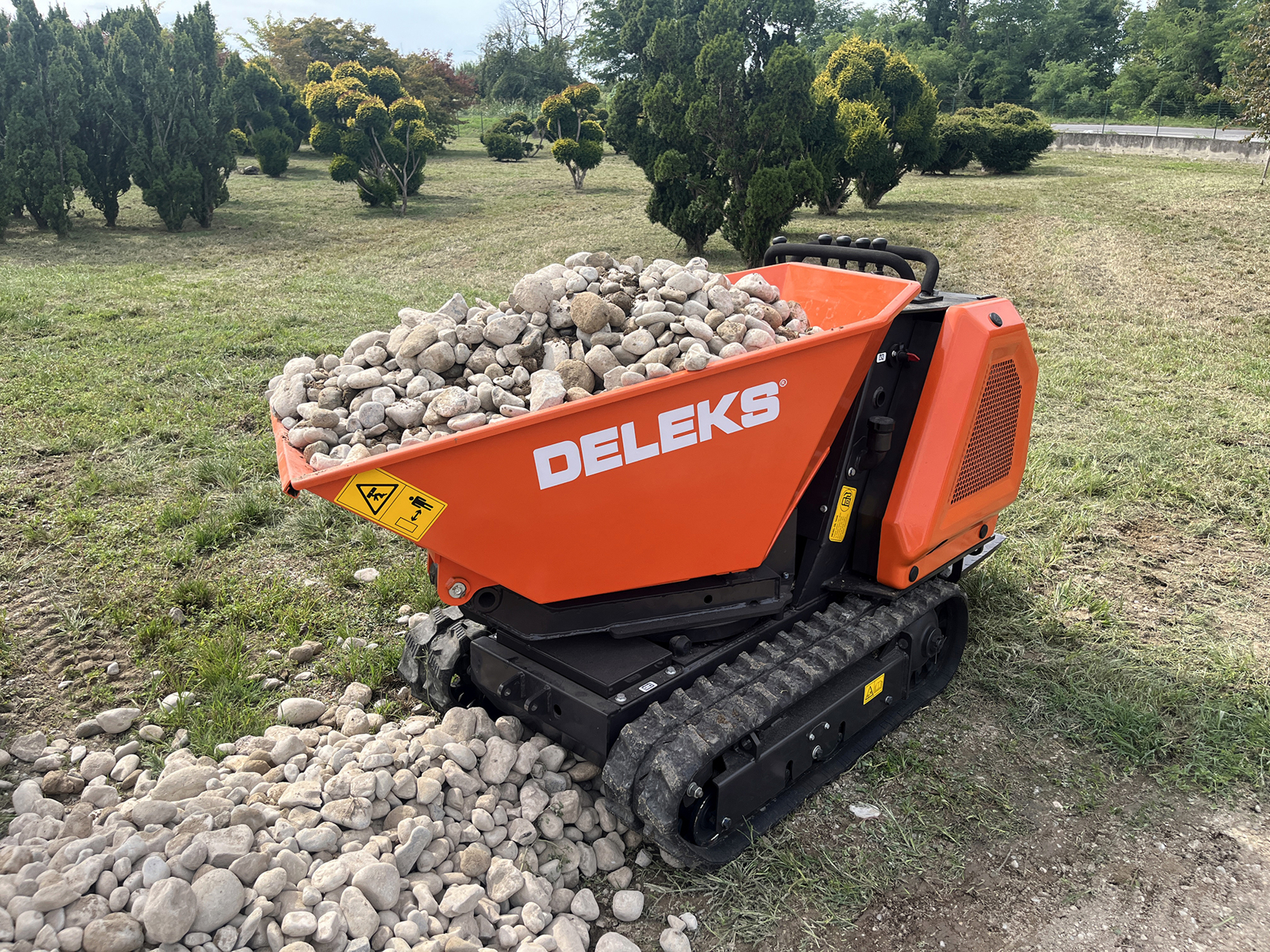

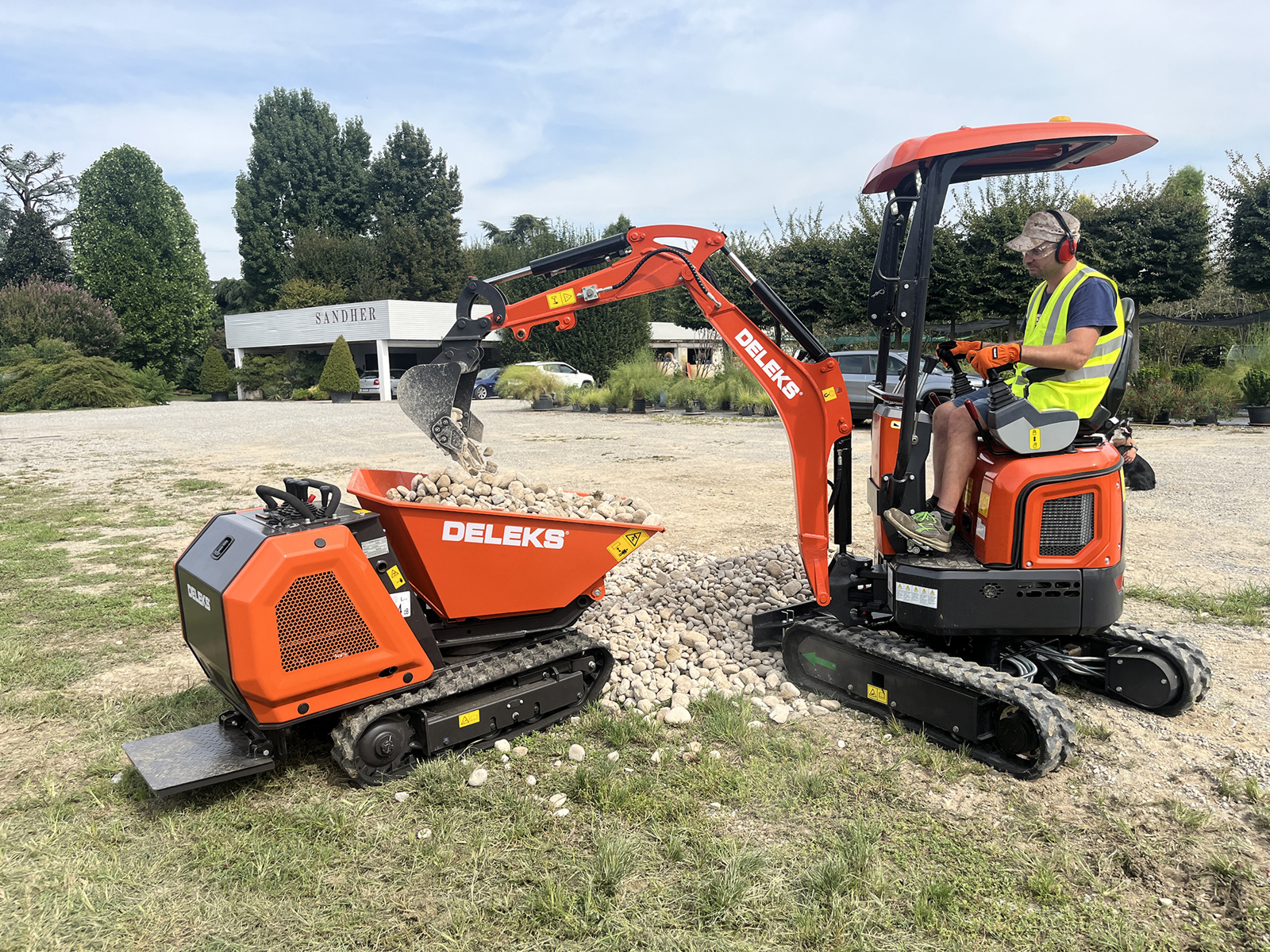

Field test
DETAILS

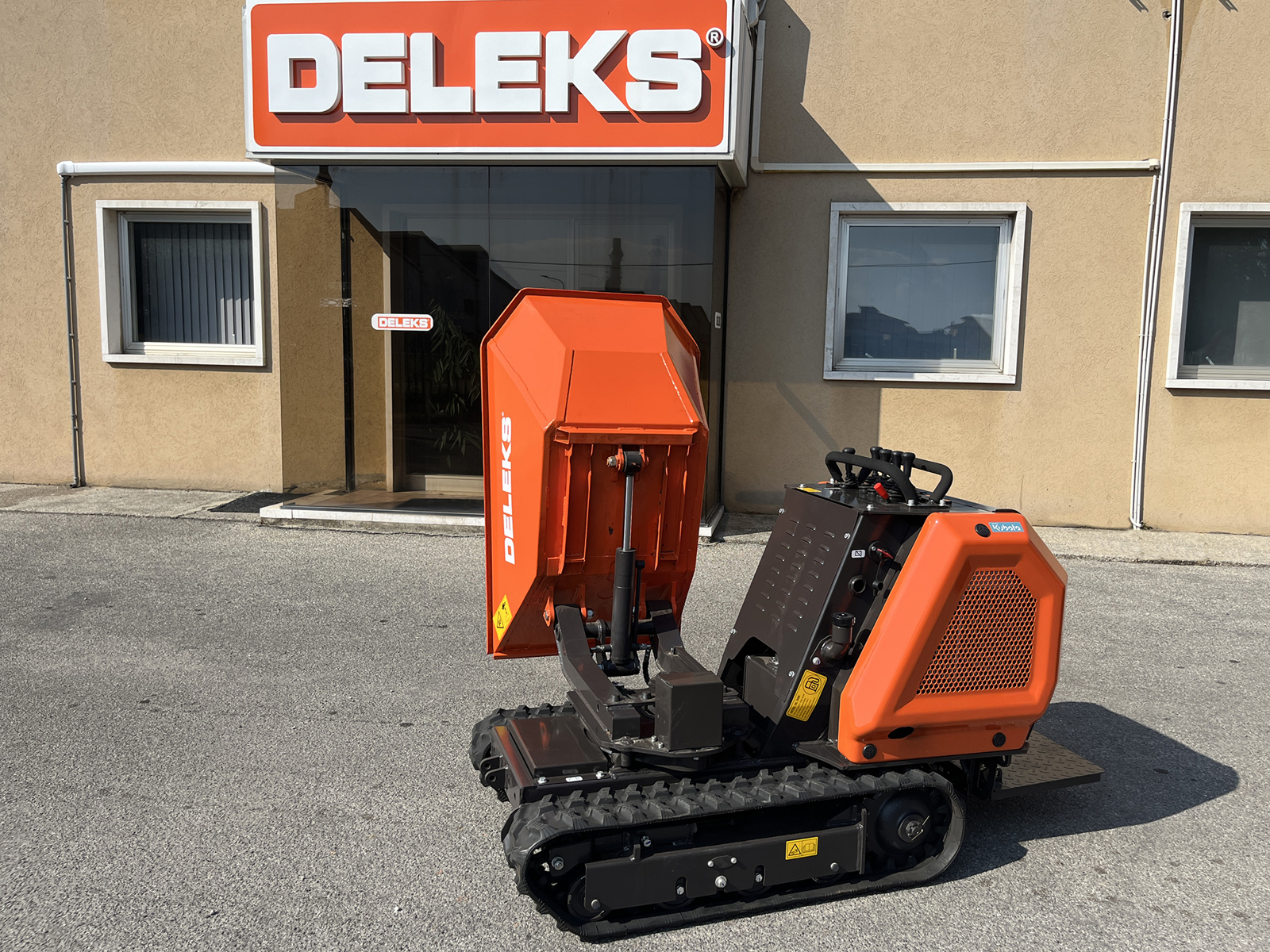

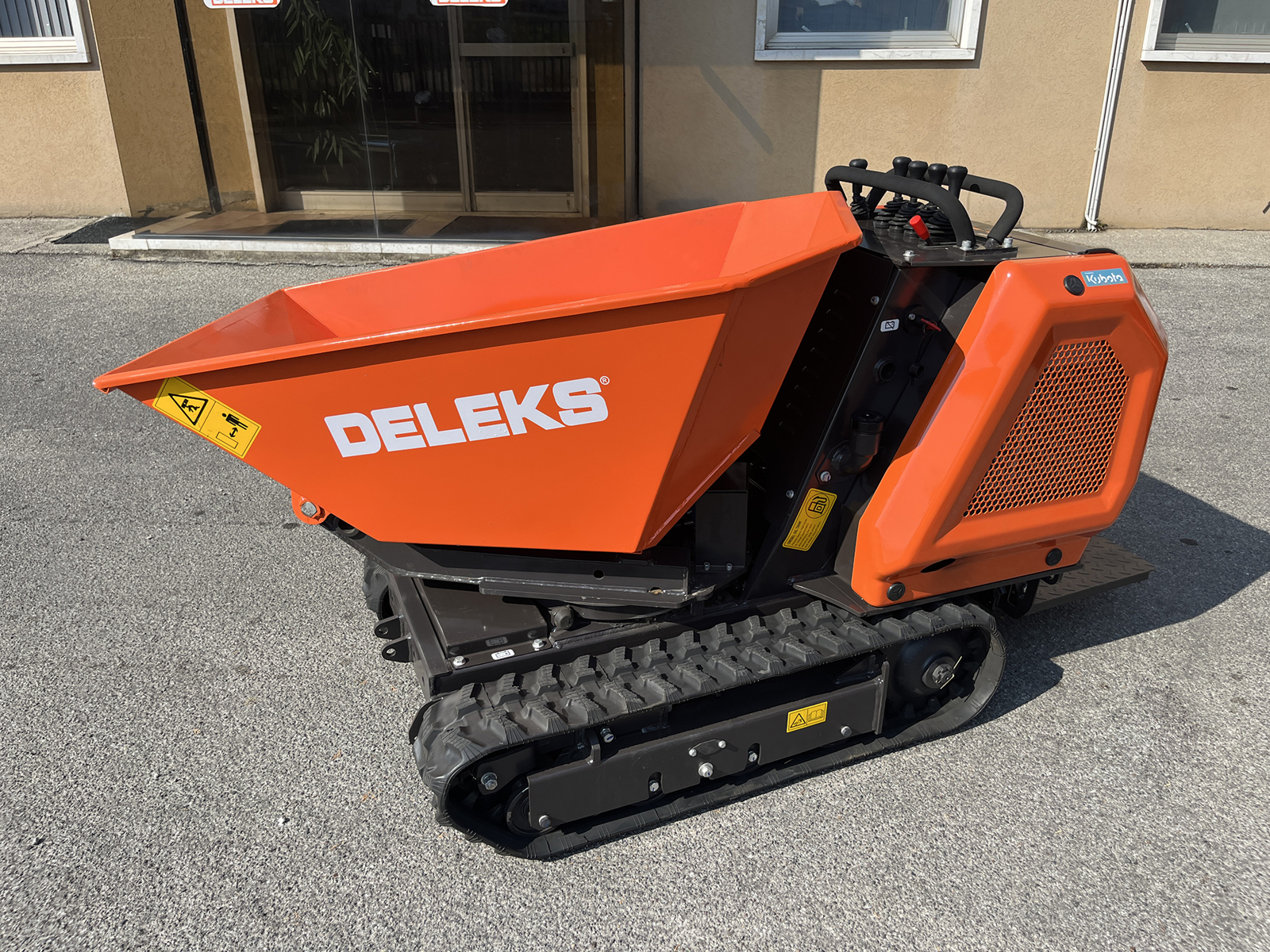

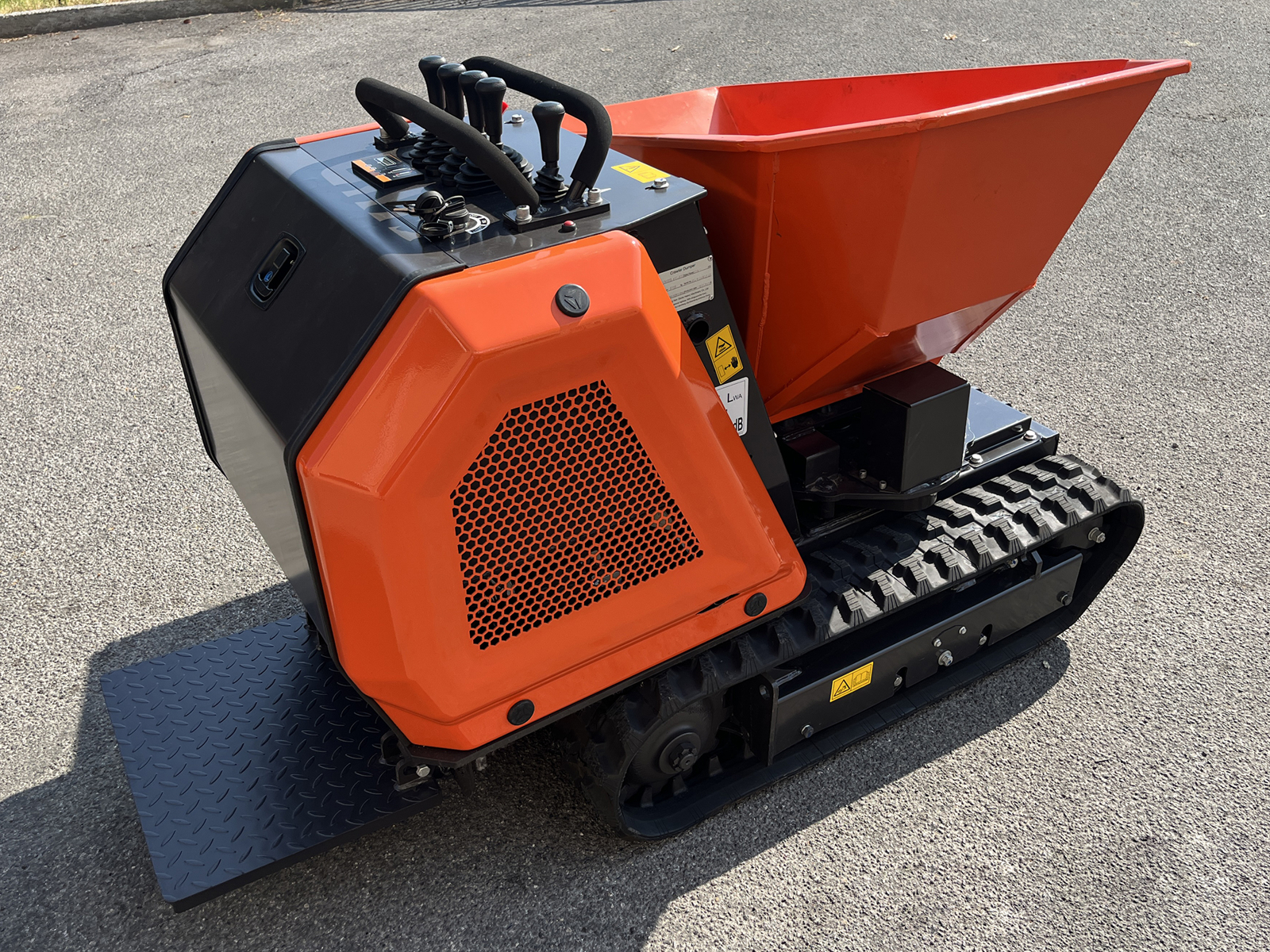

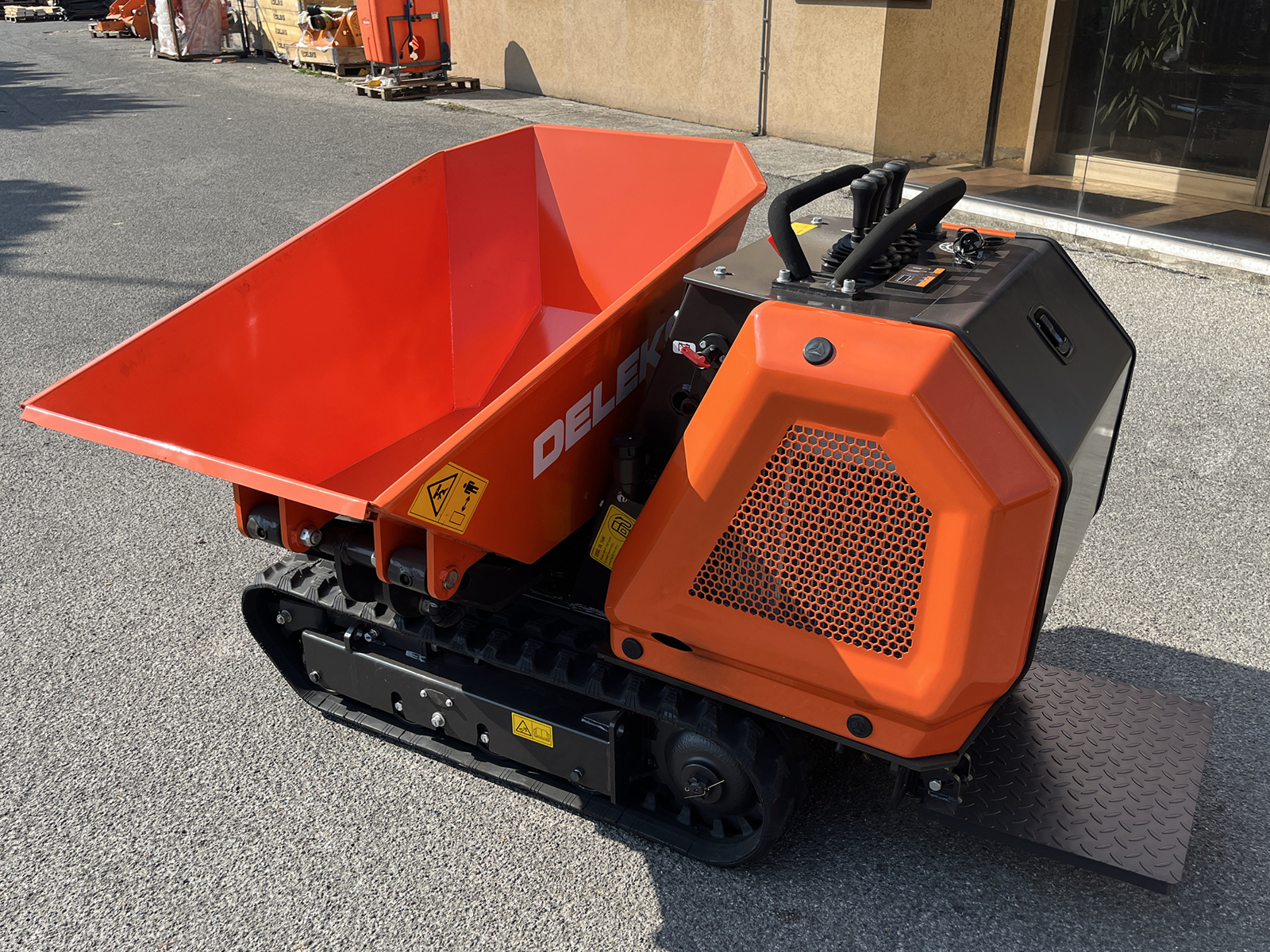

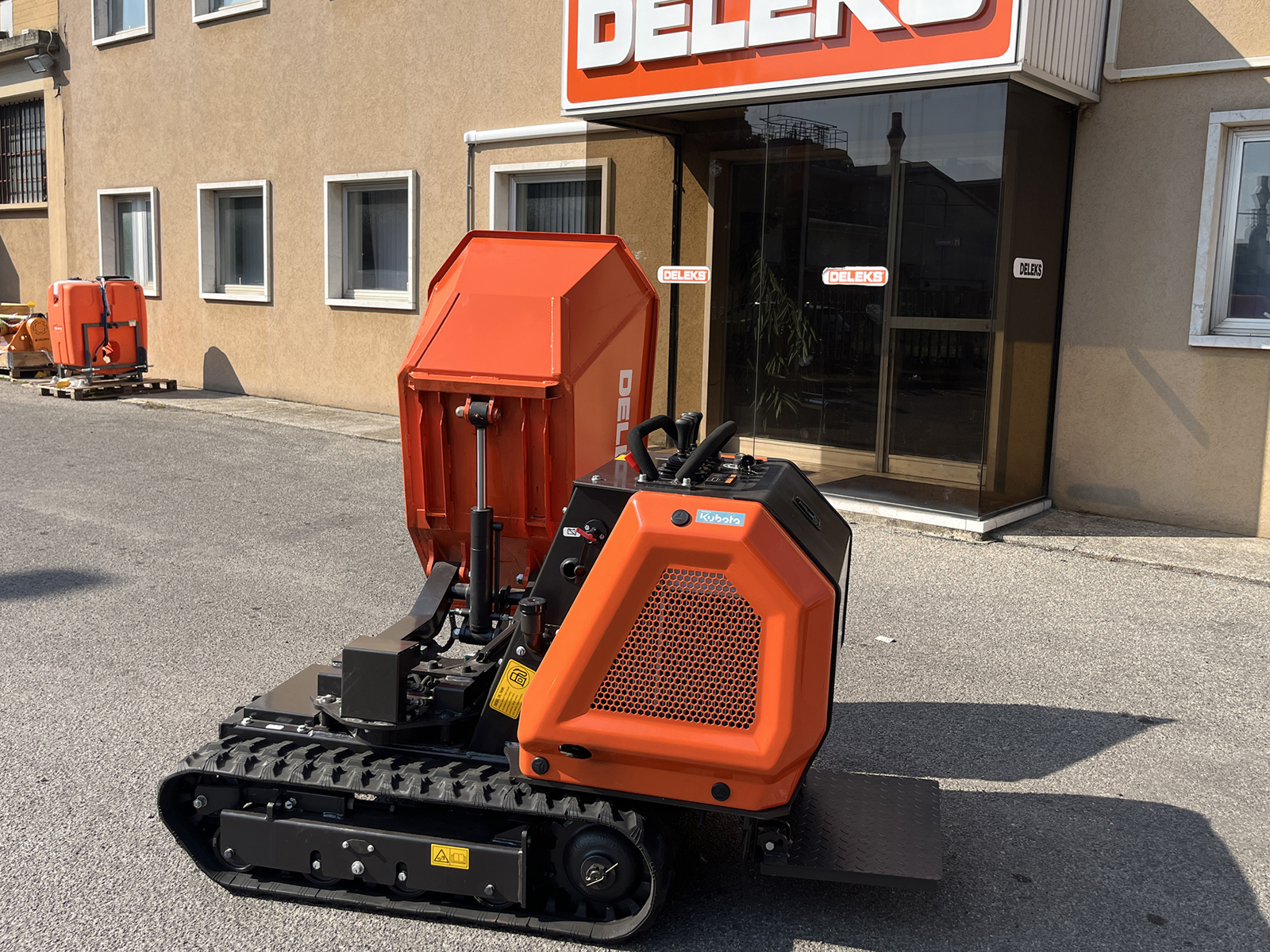

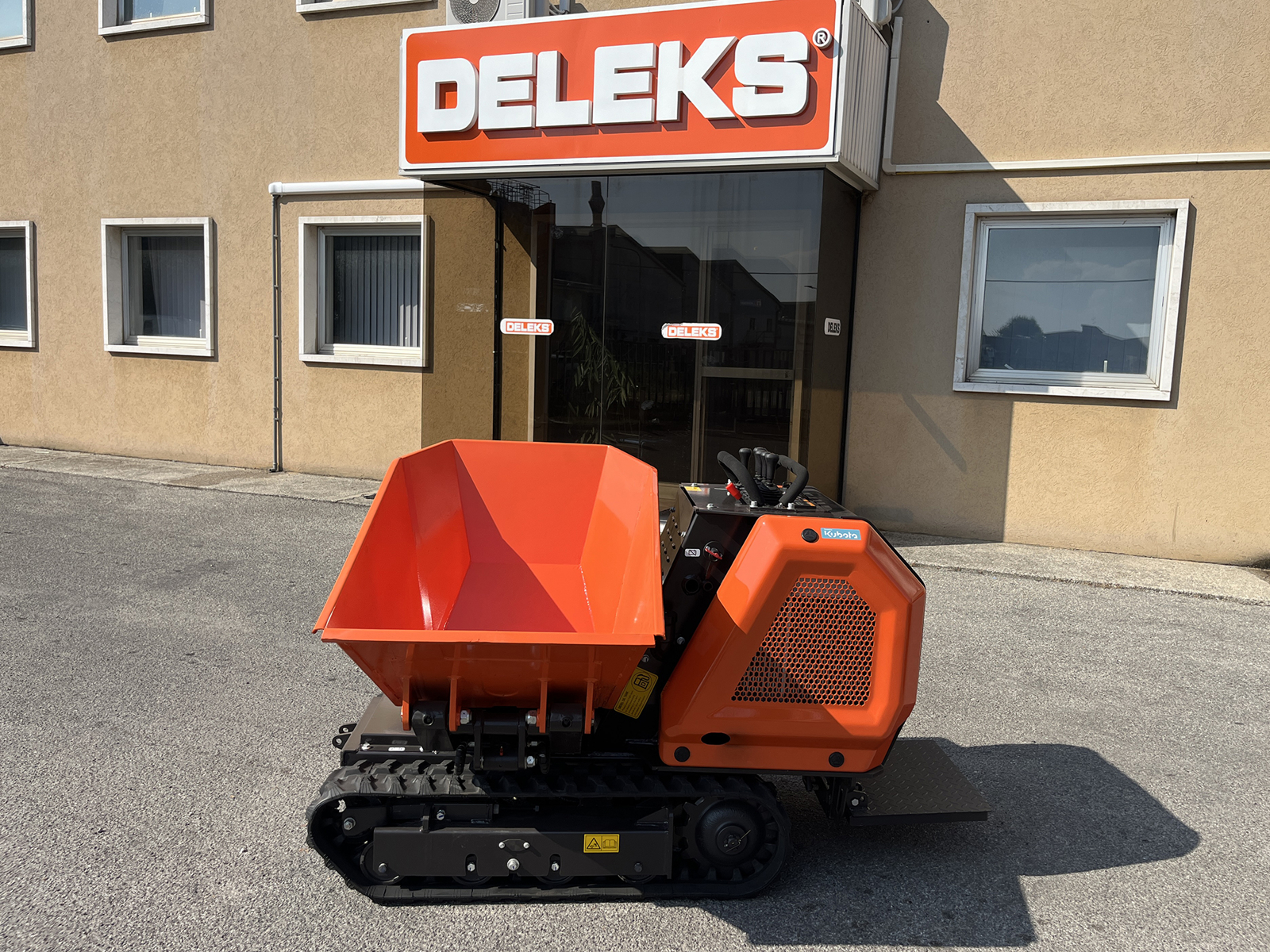

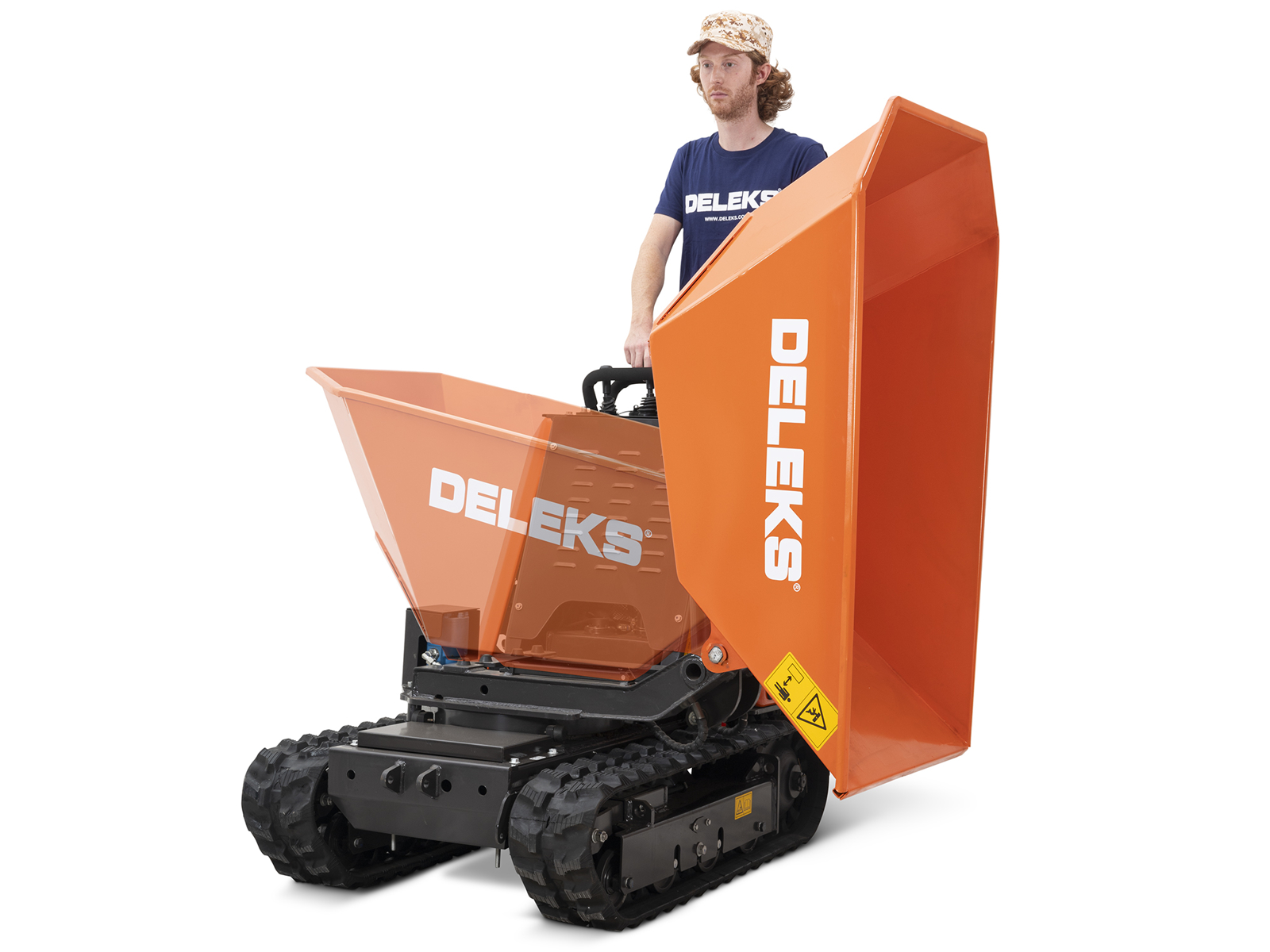

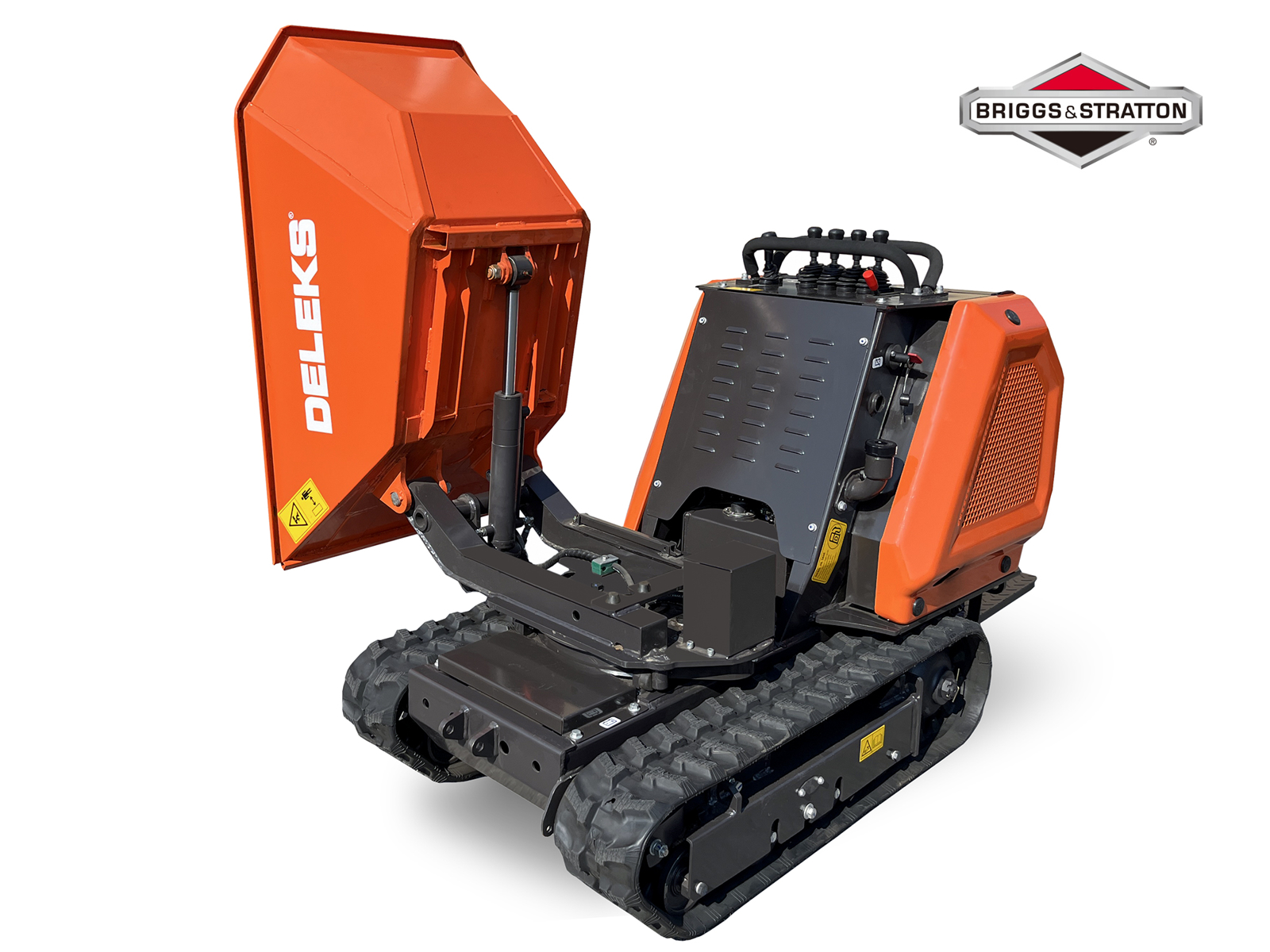

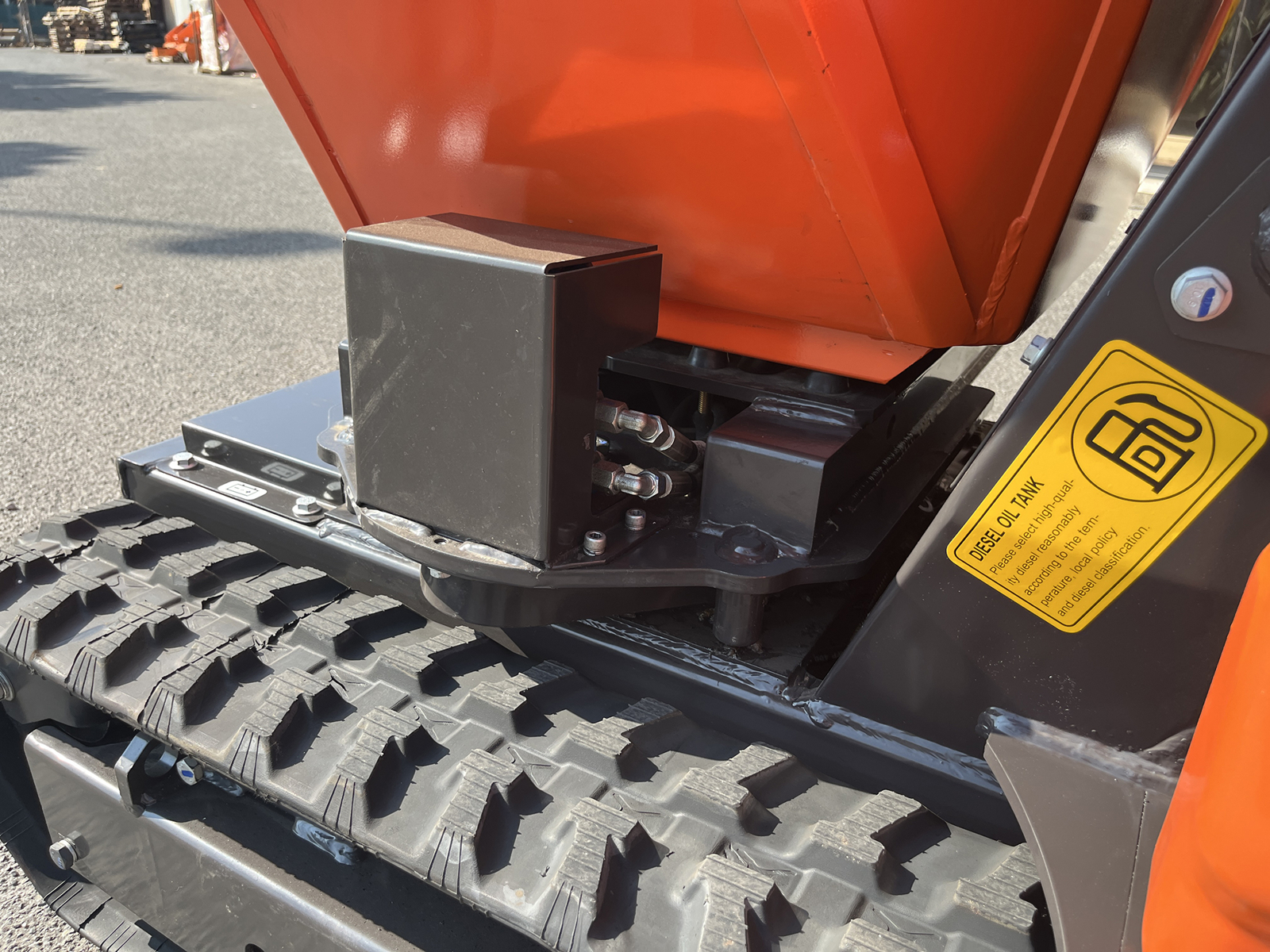

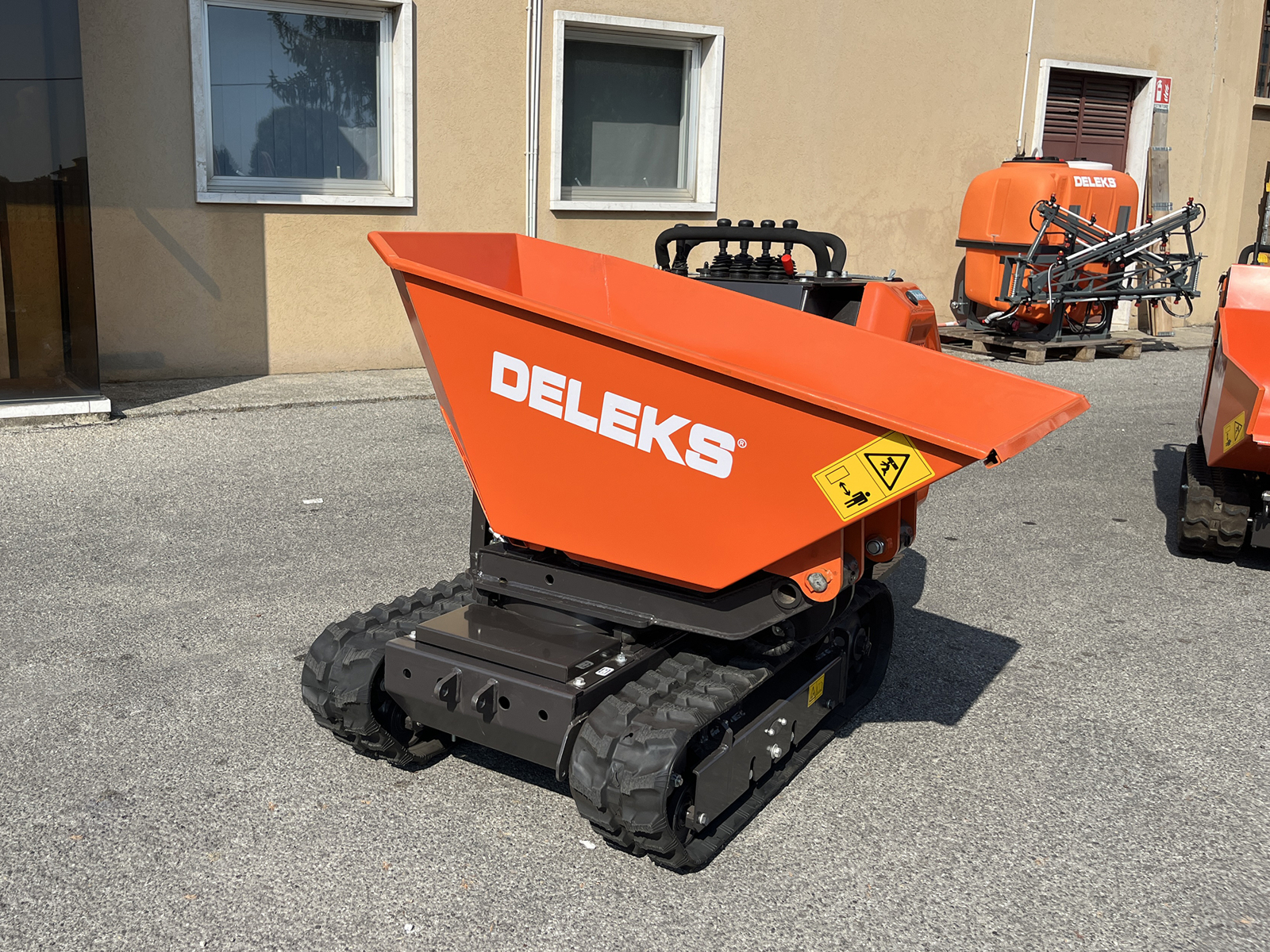

DELEKS® M8000R-BS Self-loading tracked minidumper, bucket with three-side unloading over 180° with hydraulic lift and rotation, locking valve on rotation, hydrostatic transmission, operator platform, Briggs&Stratton engine, electric start.
APPLICATION
M8000R-BS tracked minidumper suitable for loading and moving earth, sand, building material, waste, etc.

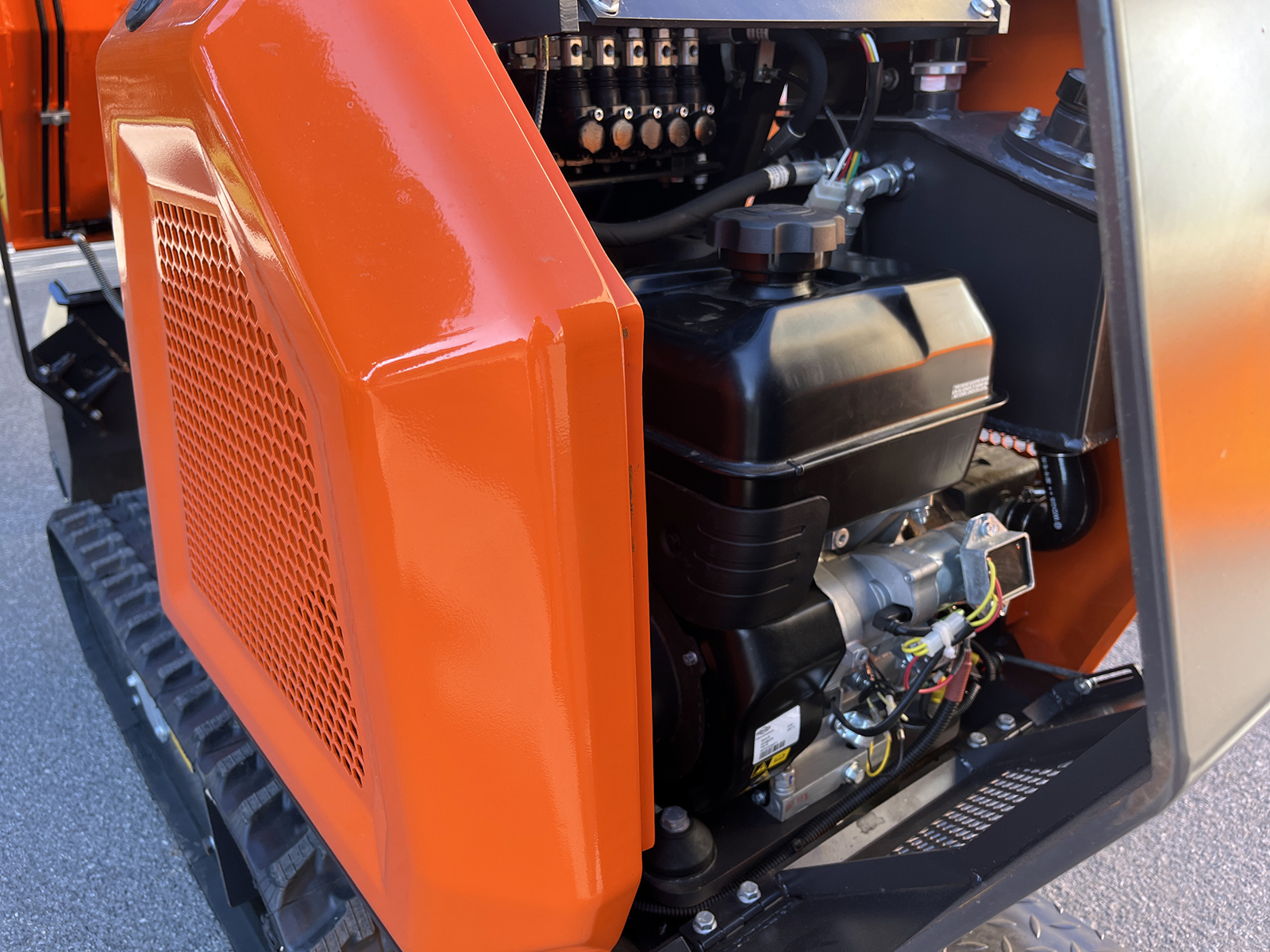

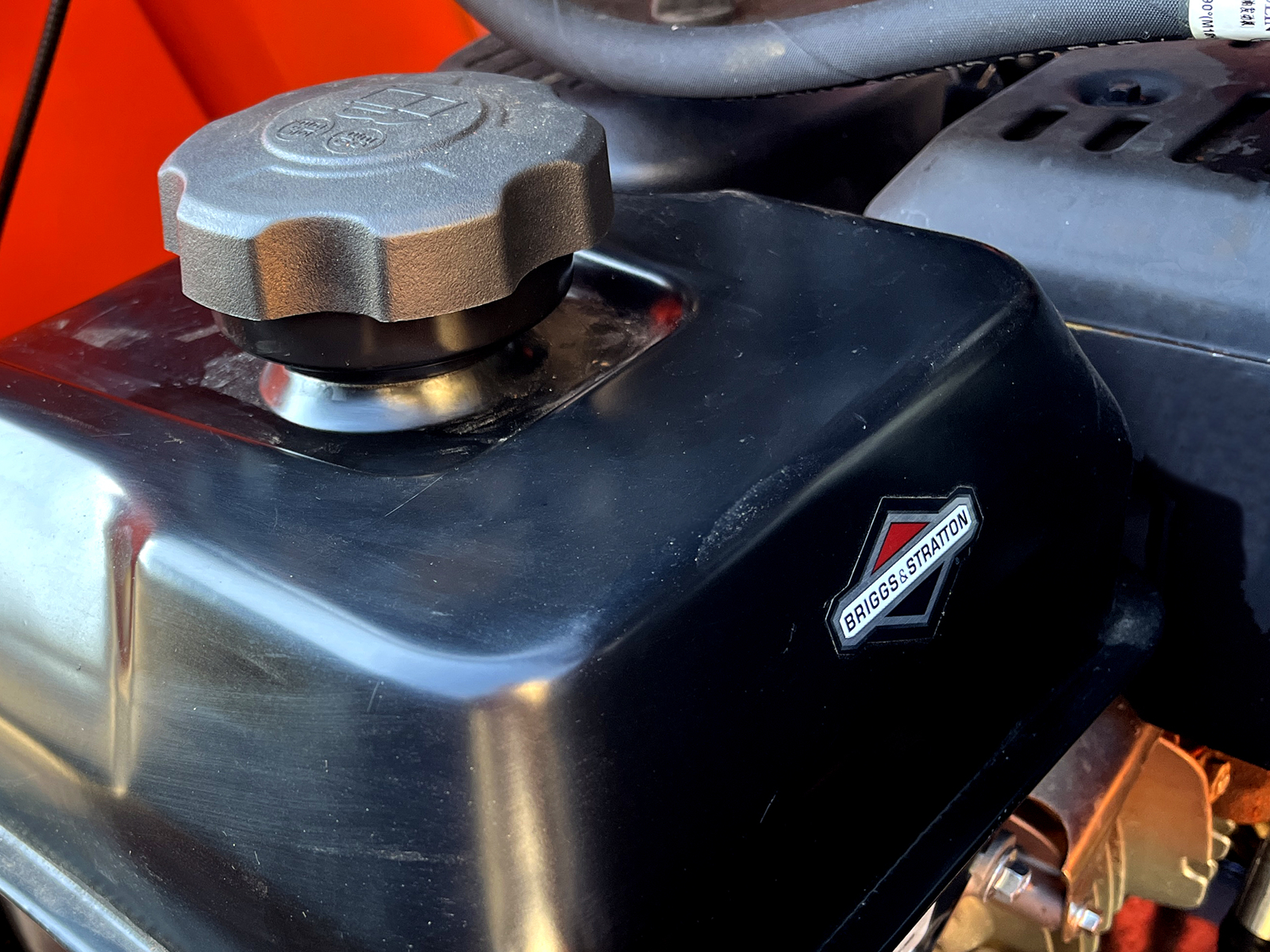

Briggs&Stratton XR2100 engine, 13.5hp/10Kw a 3600 r/min (7.5kw at 3000 r/min), 420cc
Fuel: petrol
Body: dumper type with side discharge
Capacity: 800 kg
Tipping: hydraulic

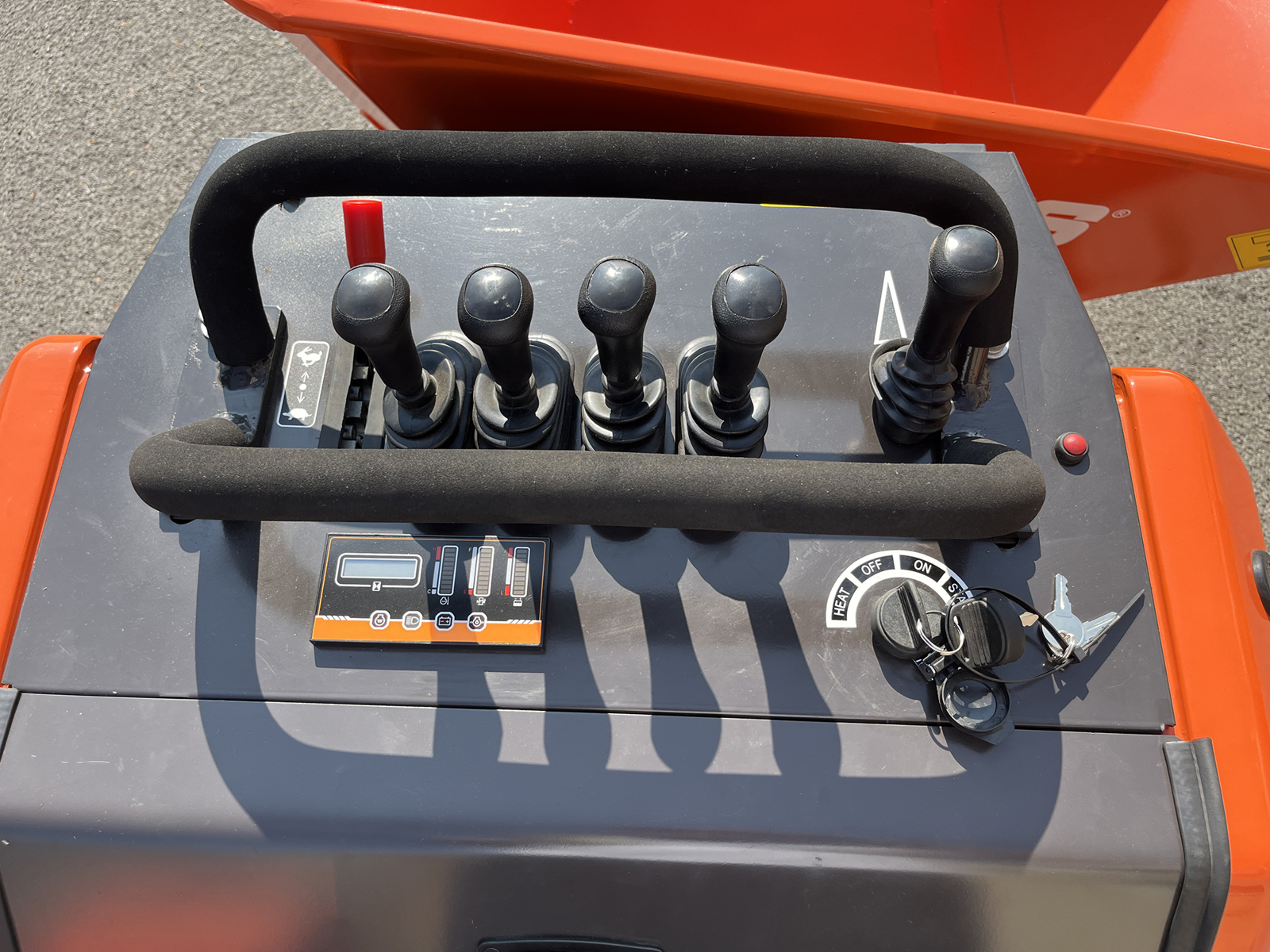

Driving system with lever controls

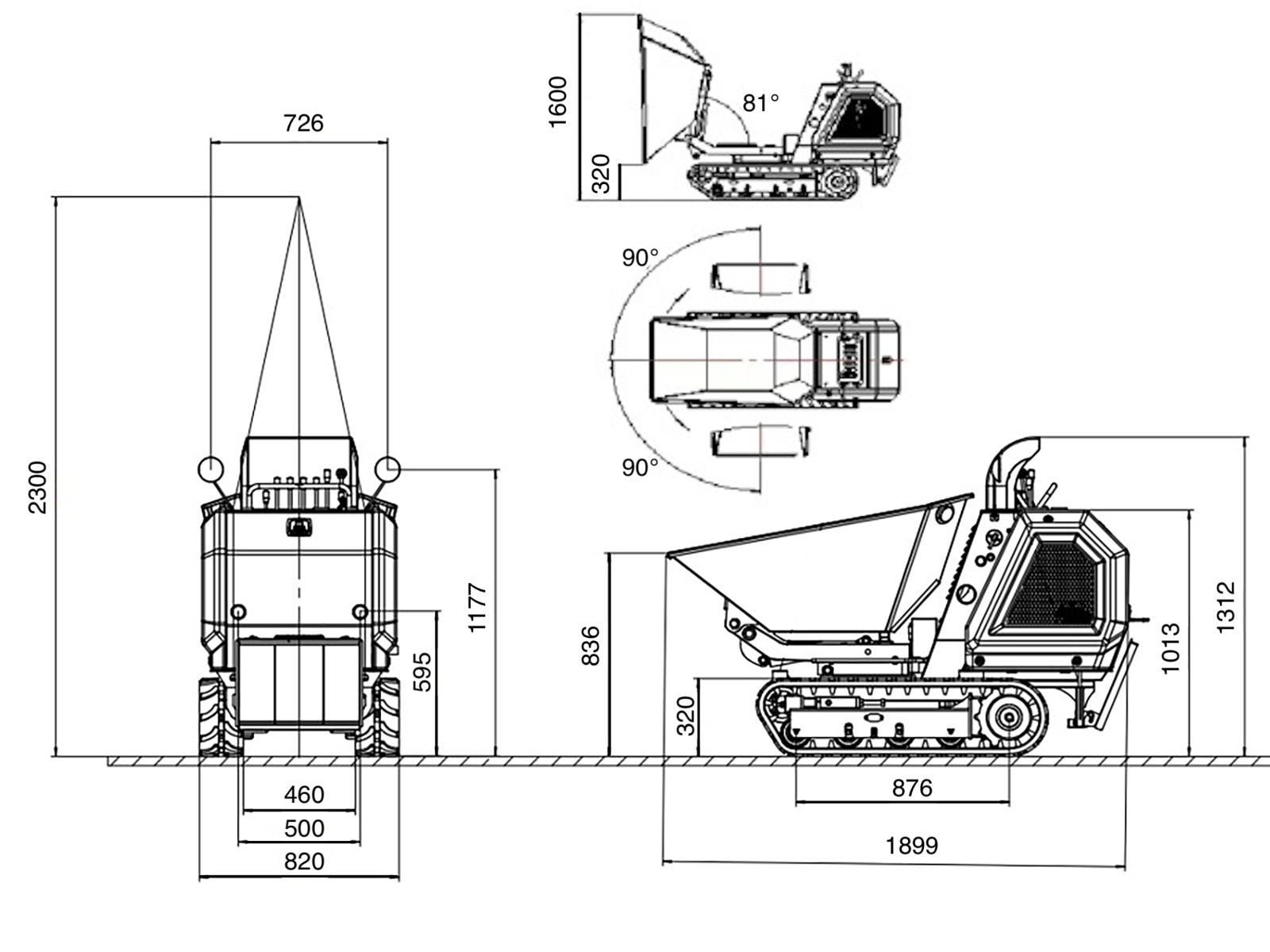

Measurements: see images
Track width/length: 180mm x 1200mm
ADVANTAGES

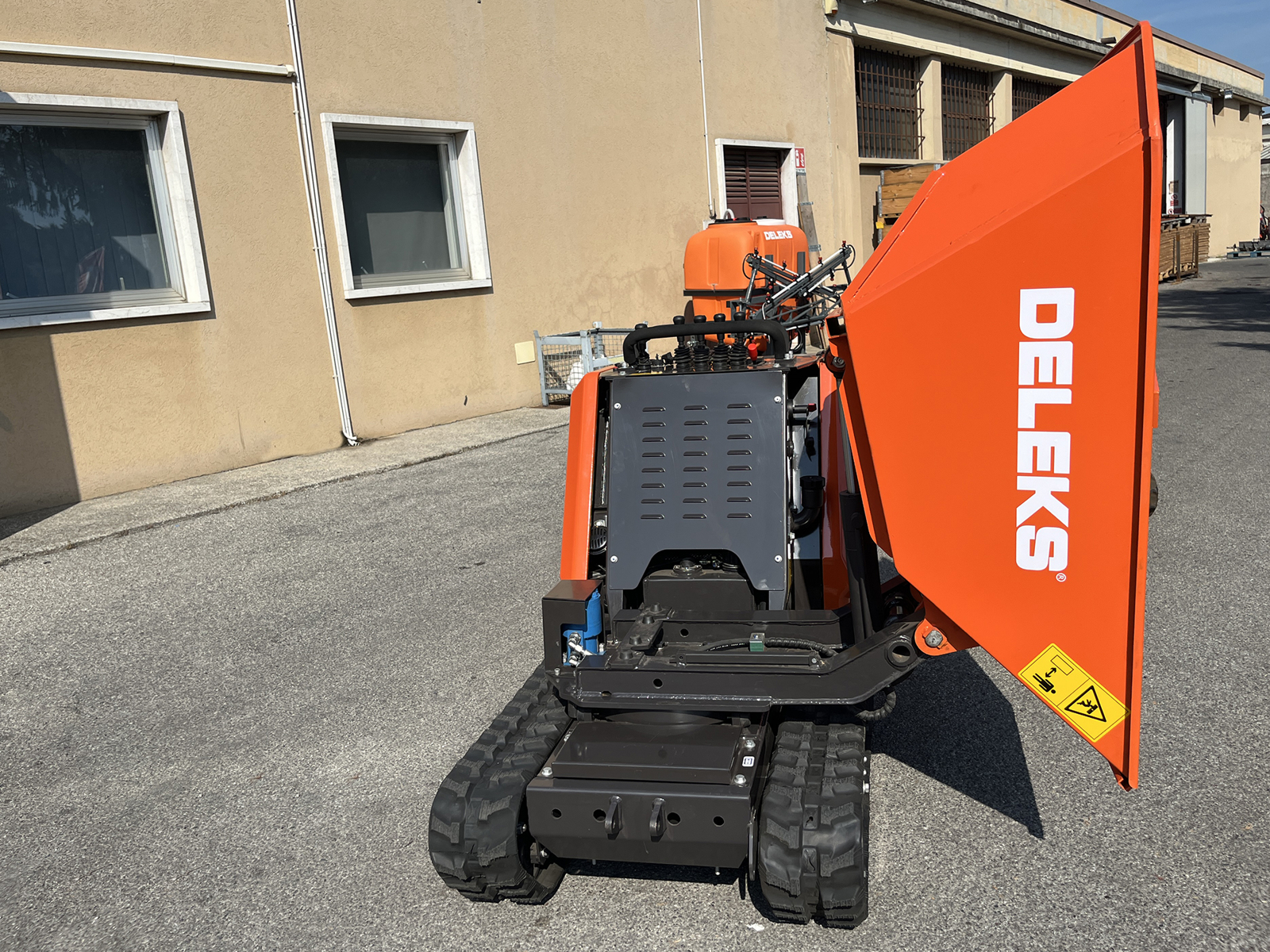

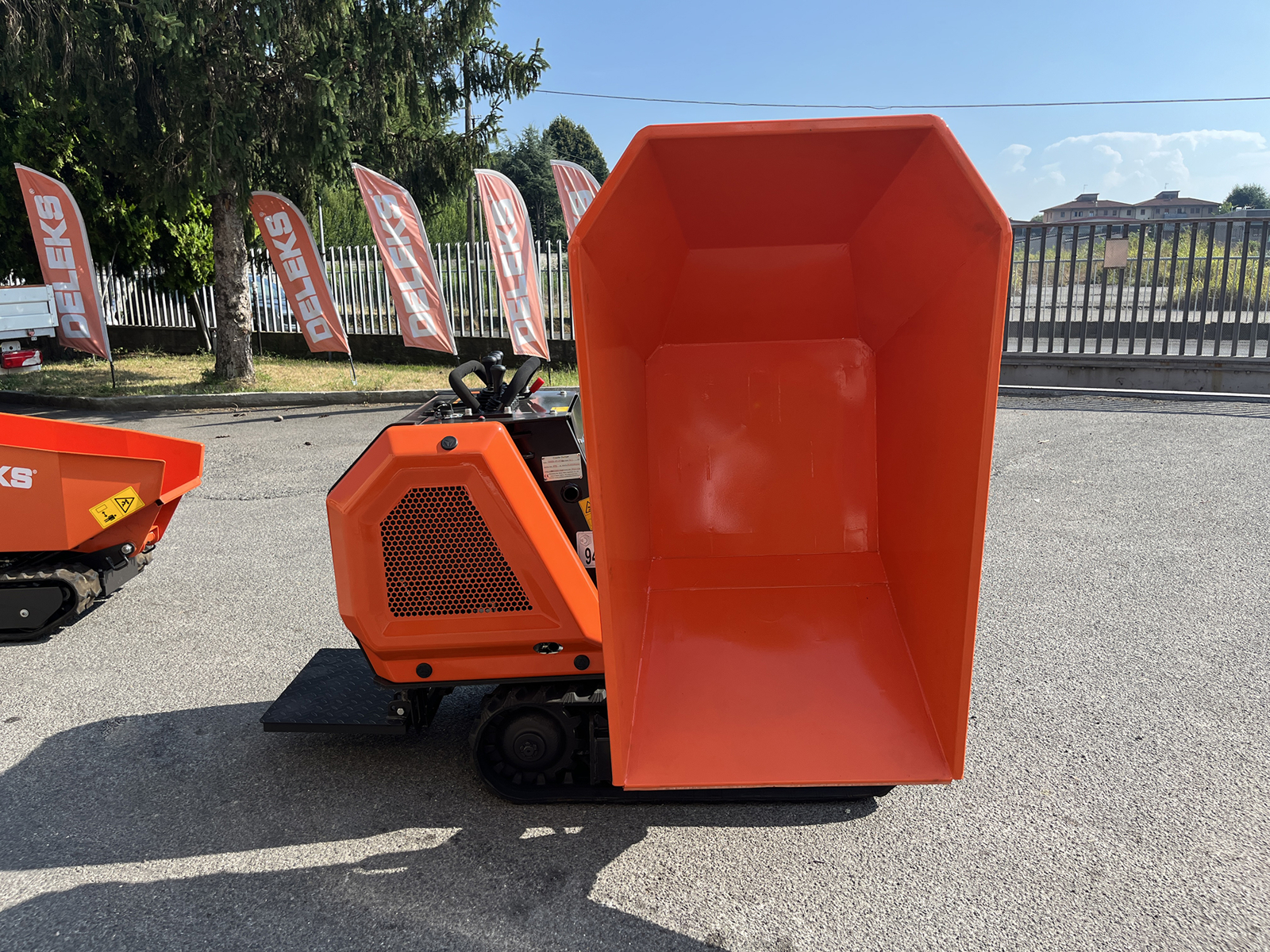

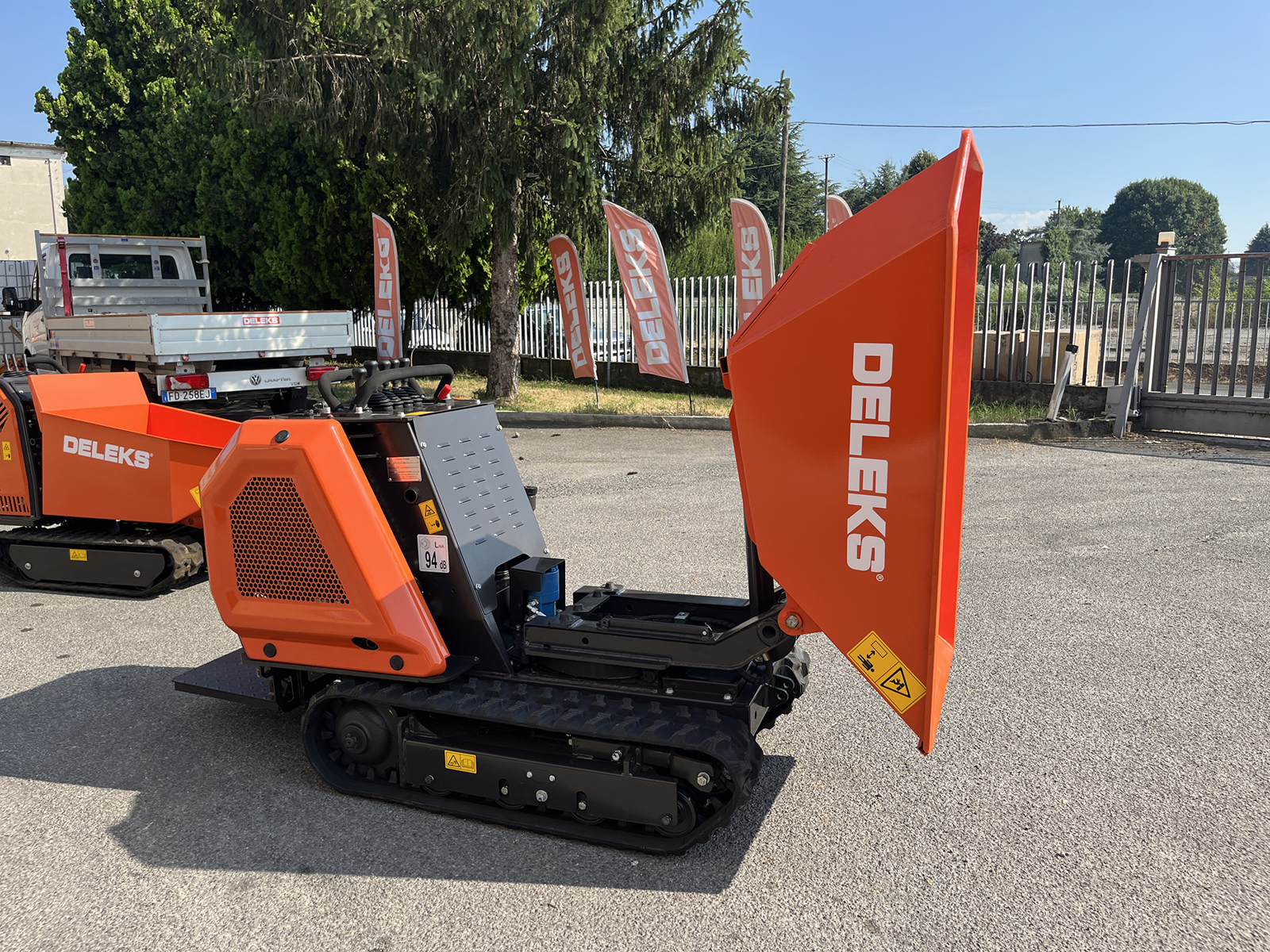

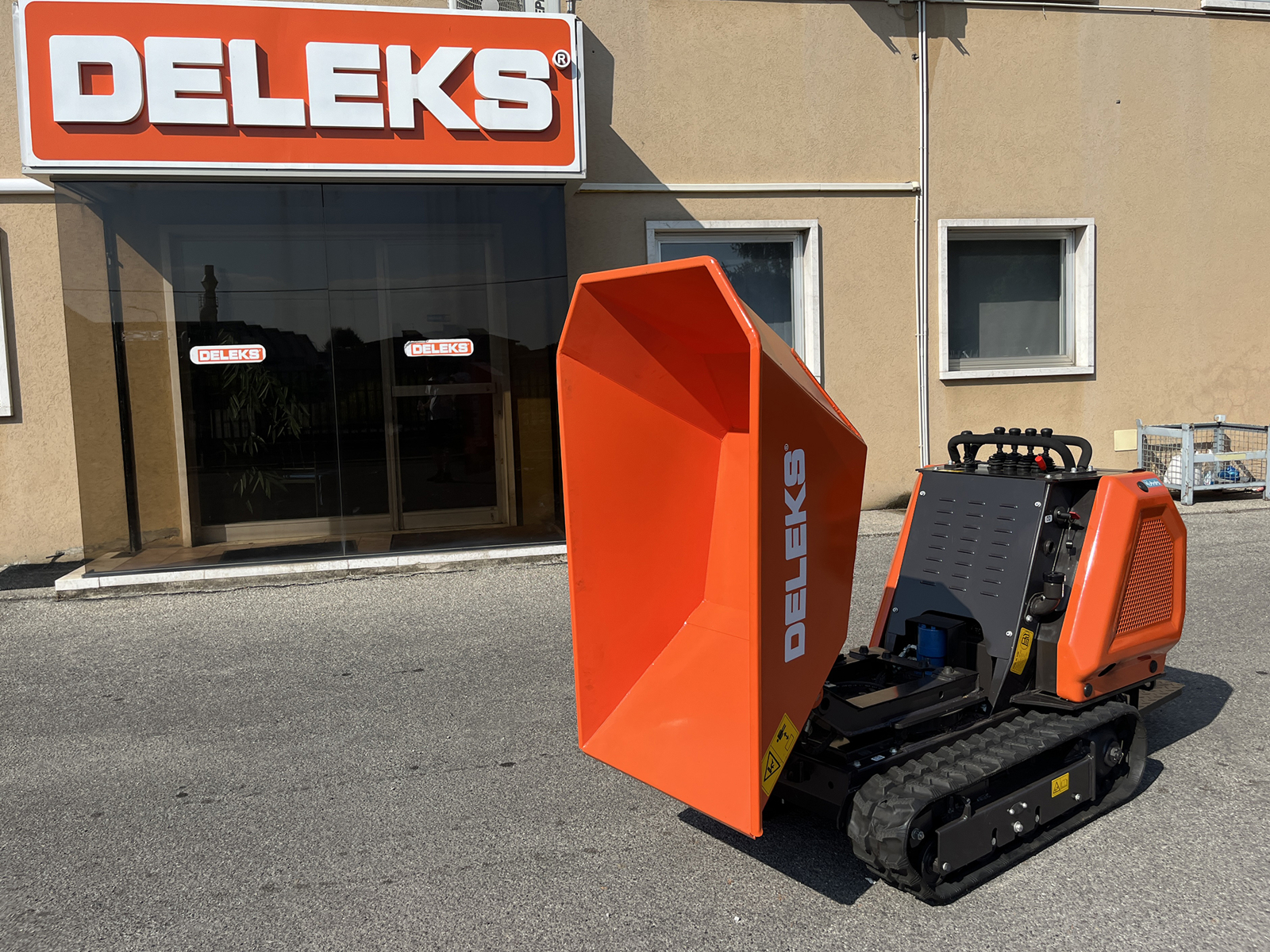

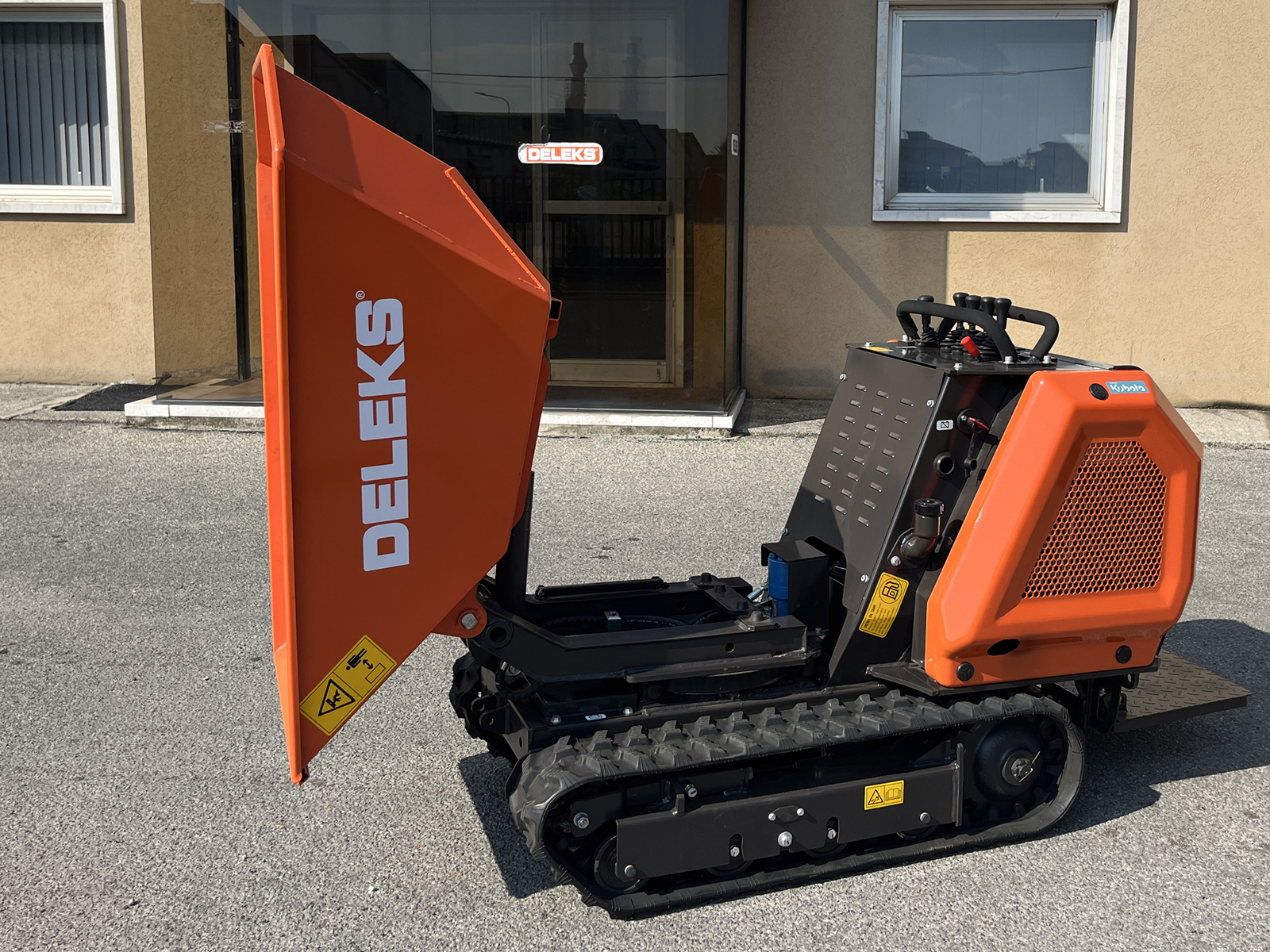

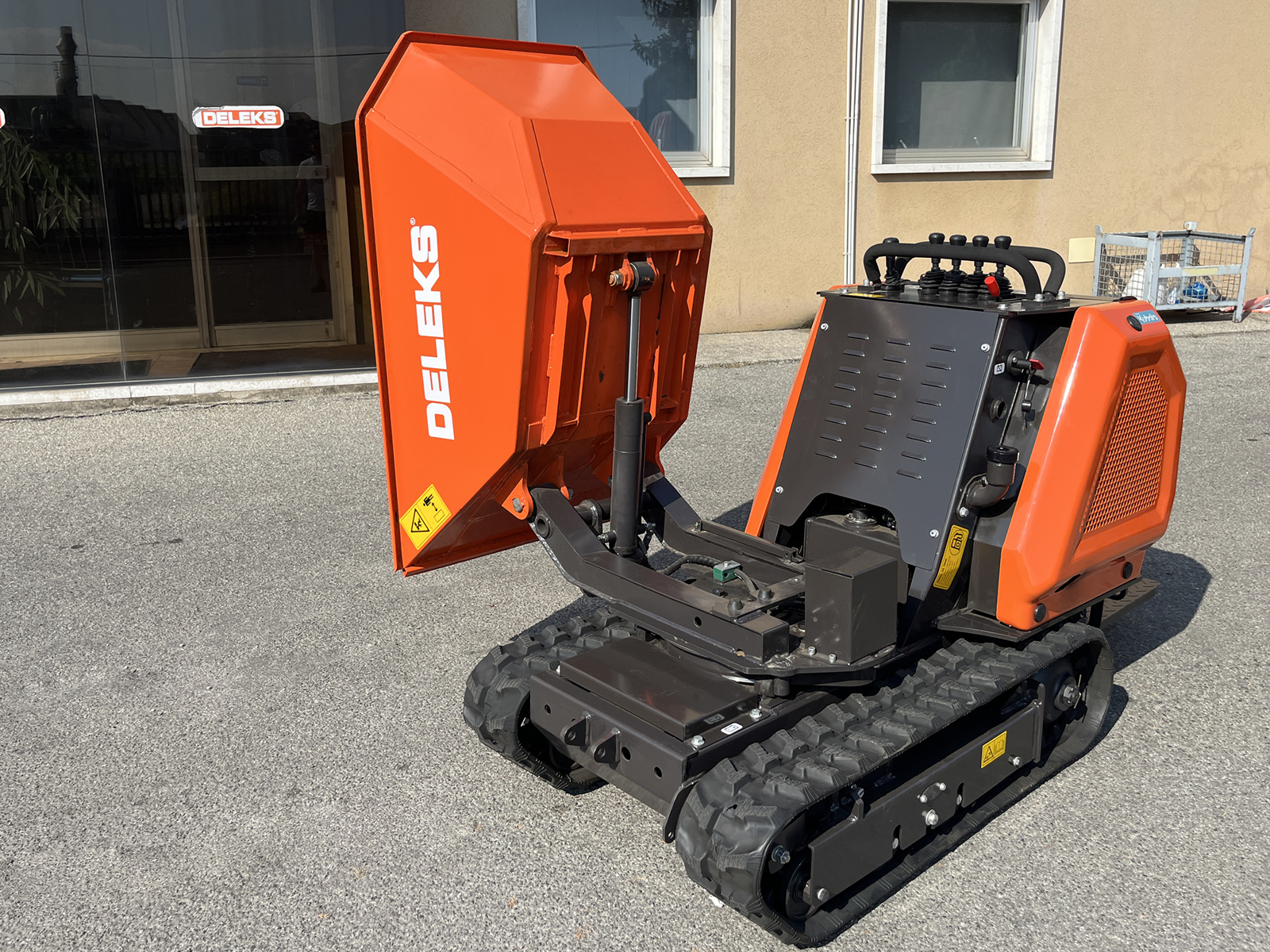

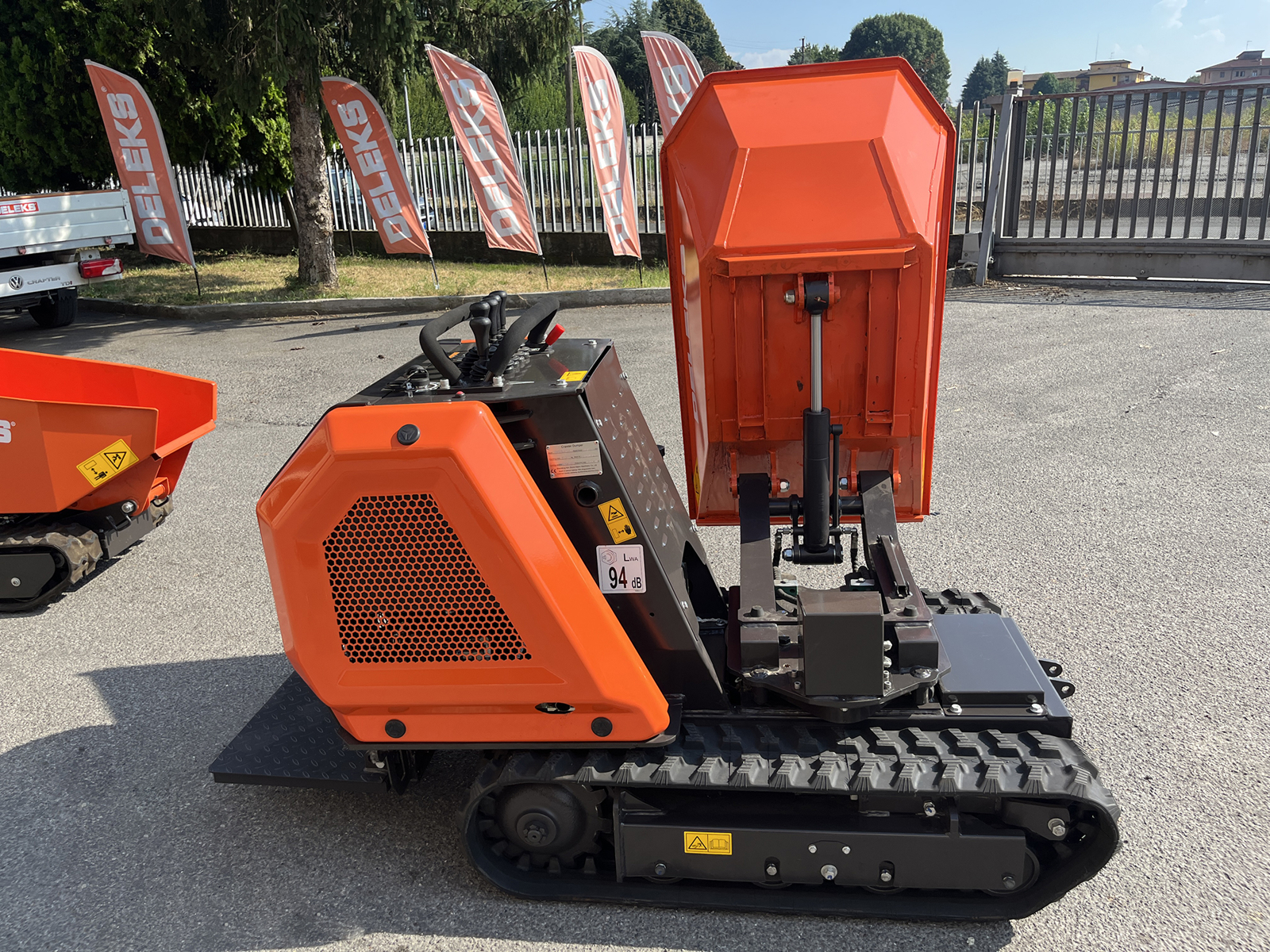

Graduated side discharge, i.e. can tip at any angle from 90° left to 90° right. Ideal in construction or gardening where there is no space to manoeuvre.

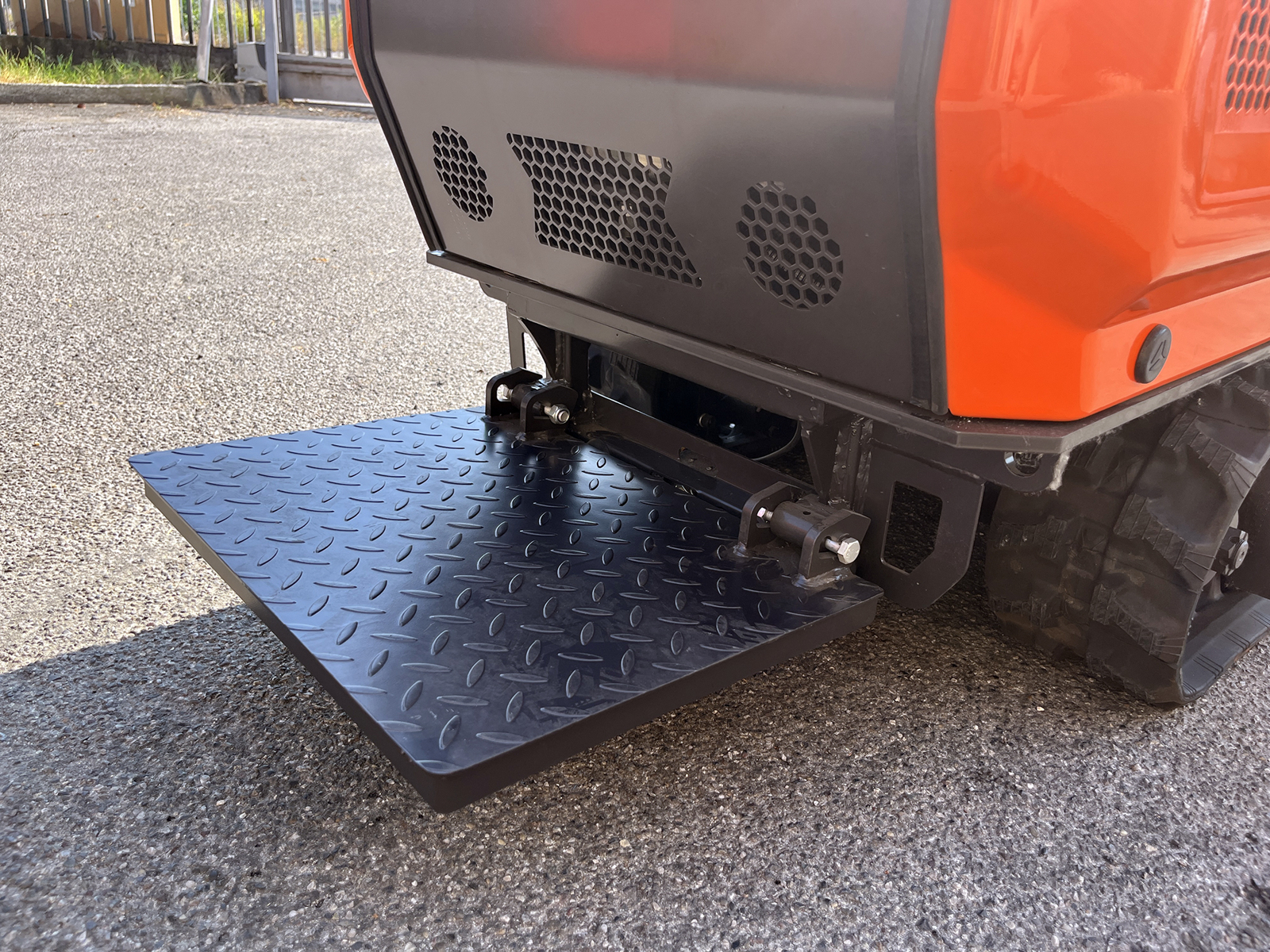

Operator platform
Hydrostatic transmission
Double speed (2 - 4 km/h)
Electric start with key
Reinforced body for heavy-duty work
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Overall width | 820.0 mm | 2.70 ft |
| Weight | 750.0 kg | 1650.0 lb |
| Load capacity | 800.0 kg | 1750.0 lb |
| Overall length | 1795.0 mm | 5.88 ft |
| Tipping Mechanism | Hydraulic | Hydraulic |
| Engine | 13.5Hp Briggs&Stratton XR2100 420cc | 13.5Hp Briggs&Stratton XR2100 420cc |
| Starter | E-start | E-start |
| Fuel consumption | 1 l/h | 1 l/h |
| Bucket capacity (m3) | 0.26 | 0.26 |
| Packing sizes | 1800.0*900.0*1200.0 mm | 5.90*2.95*3.95 ft |
