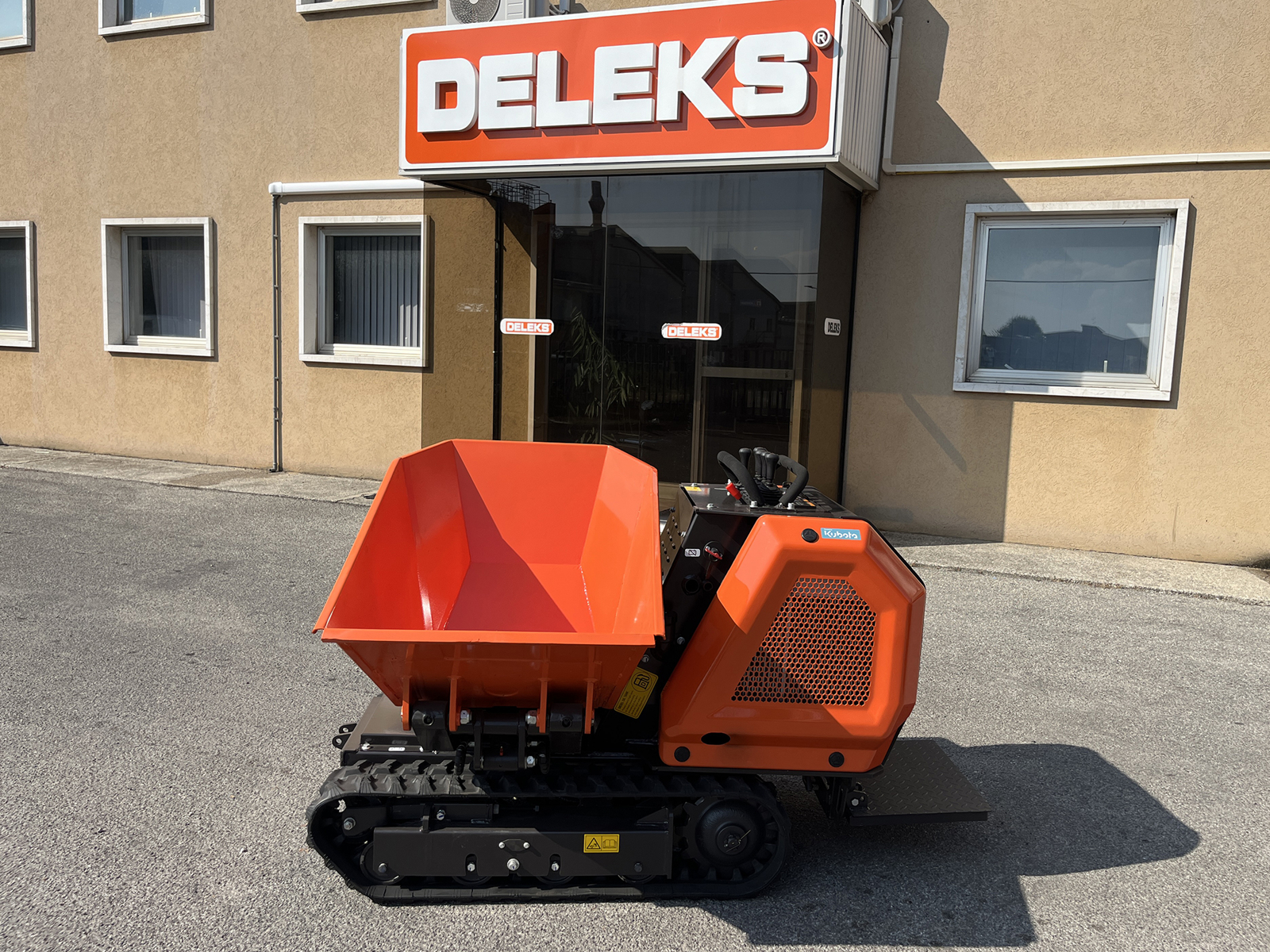

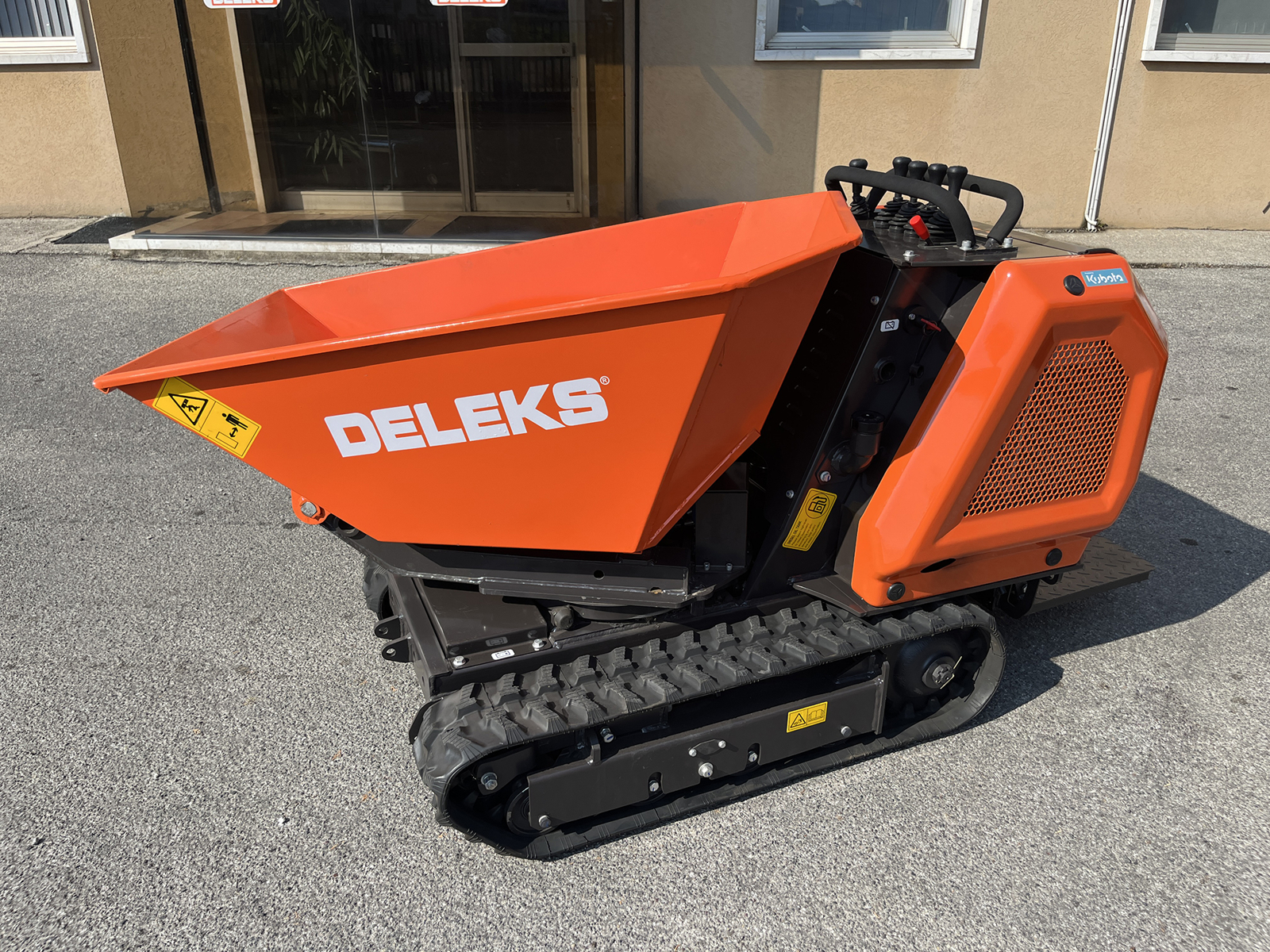

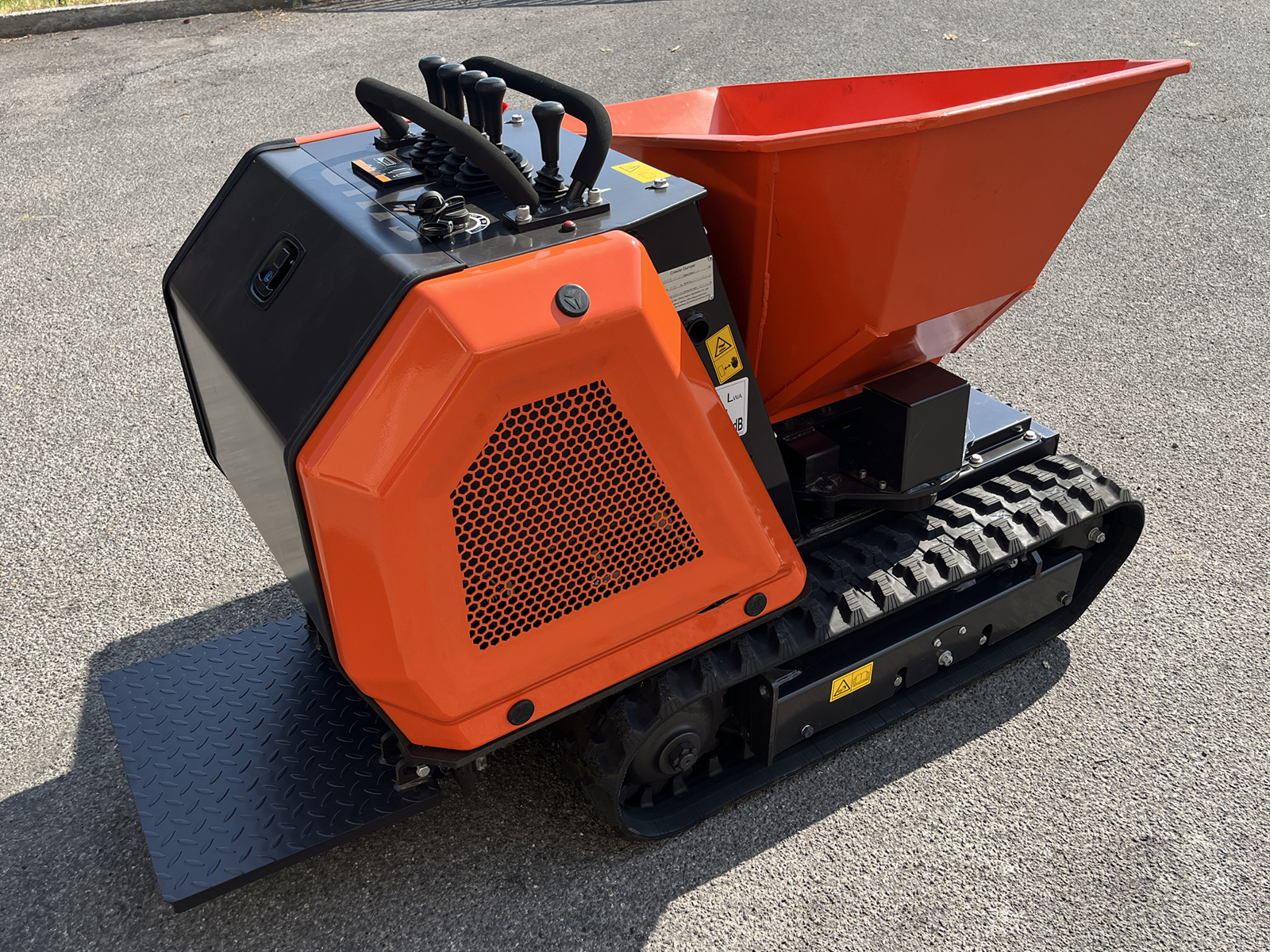

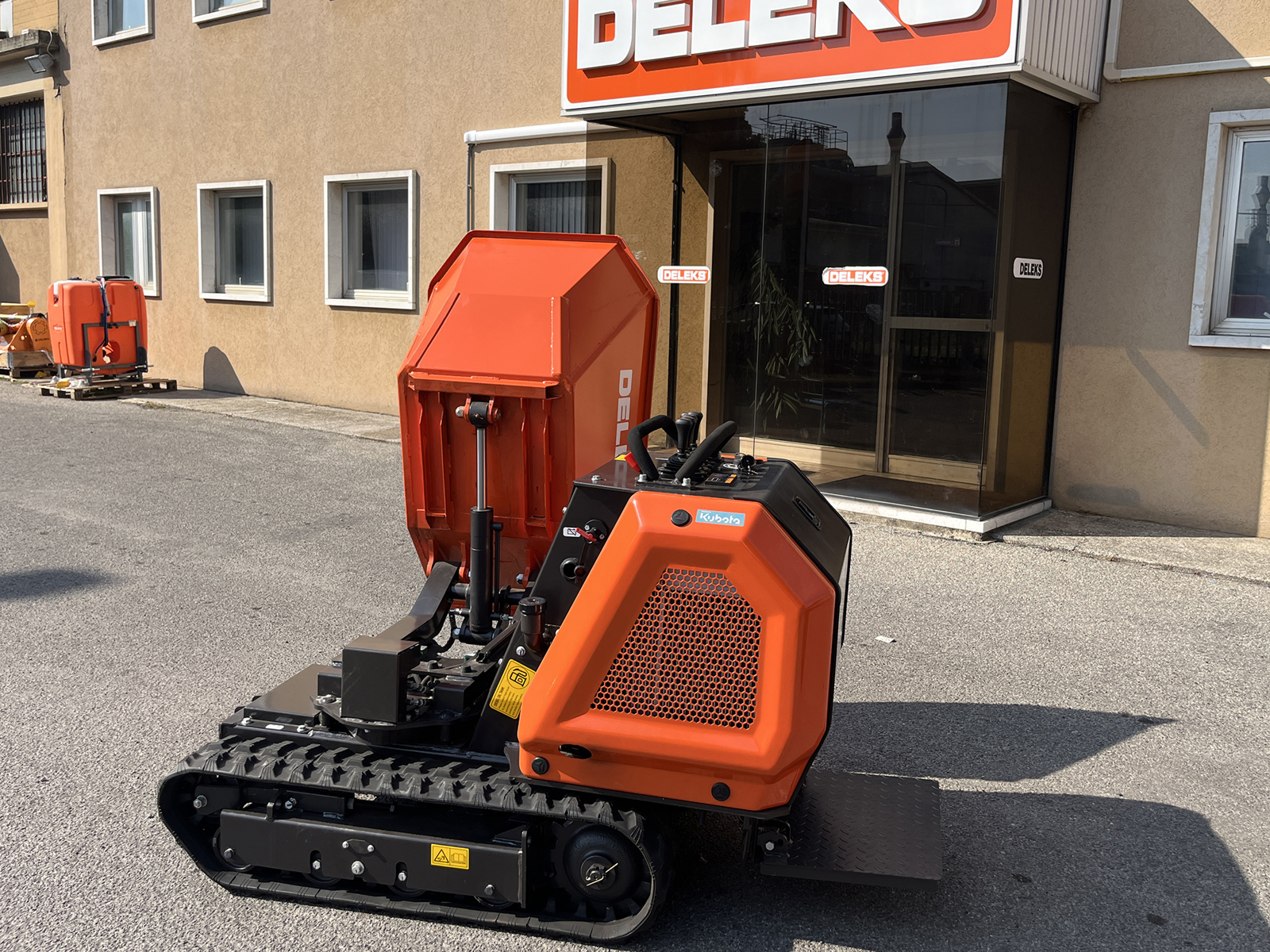

Hydrostatic Crawler Mini Dumper, side discharge, Kubota engine, E-start

DELEKS® M8000R-KUBOTA professional tracked mini dumper with 180° three-way discharge, hydraulic lift and rotation, hydrostatic transmission, operator platform and Kubota diesel engine with electric start.
Compact high-performance machine designed for material handling in confined areas, allowing controlled side discharge to the left or right.

PRODUCT DESCRIPTION

The DELEKS® M8000R-KUBOTA is a specialised version of the M8000 range, designed for professional applications where controlled side discharge offers a decisive operational advantage compared to front tipping or high-dump systems.

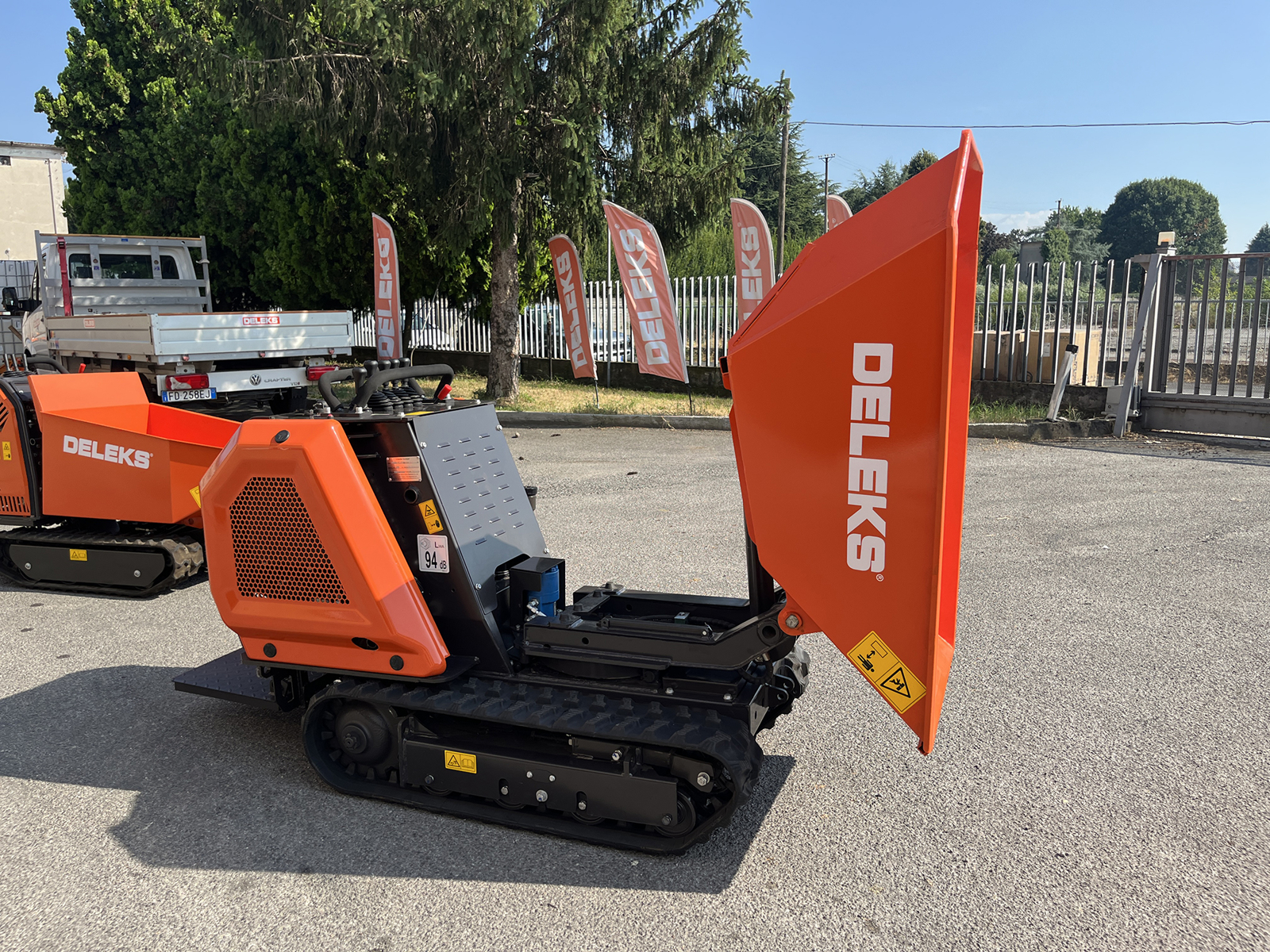

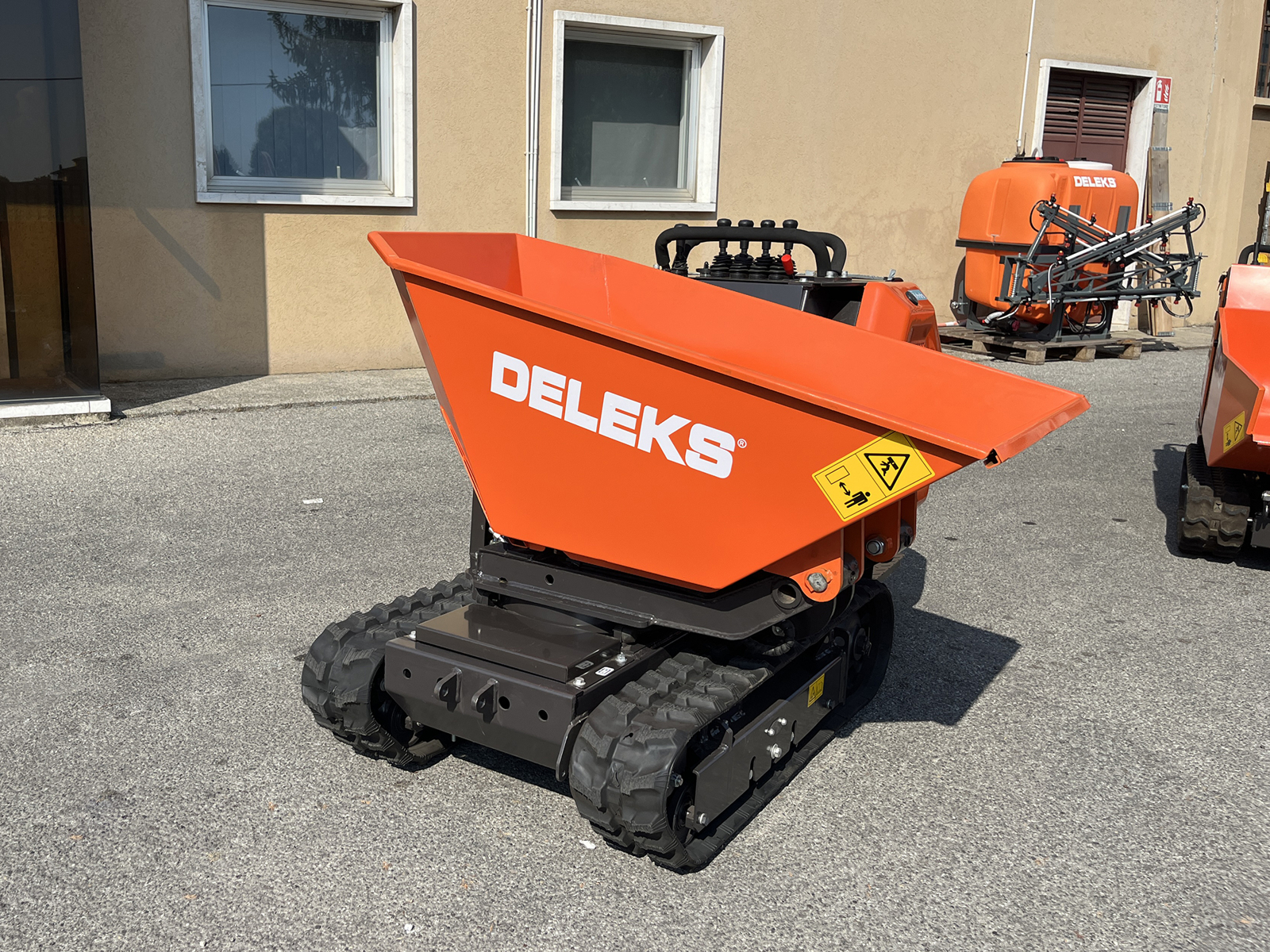

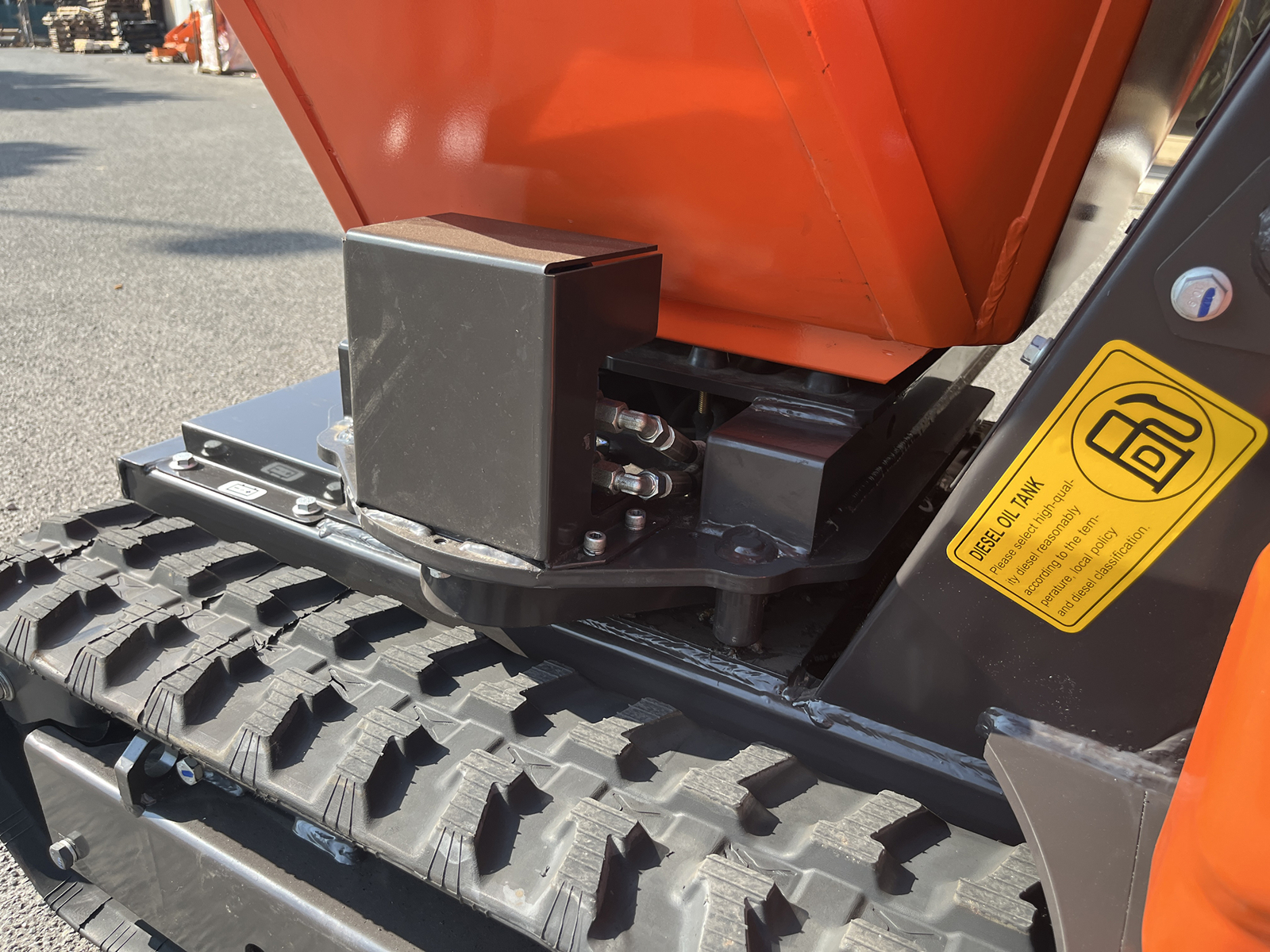

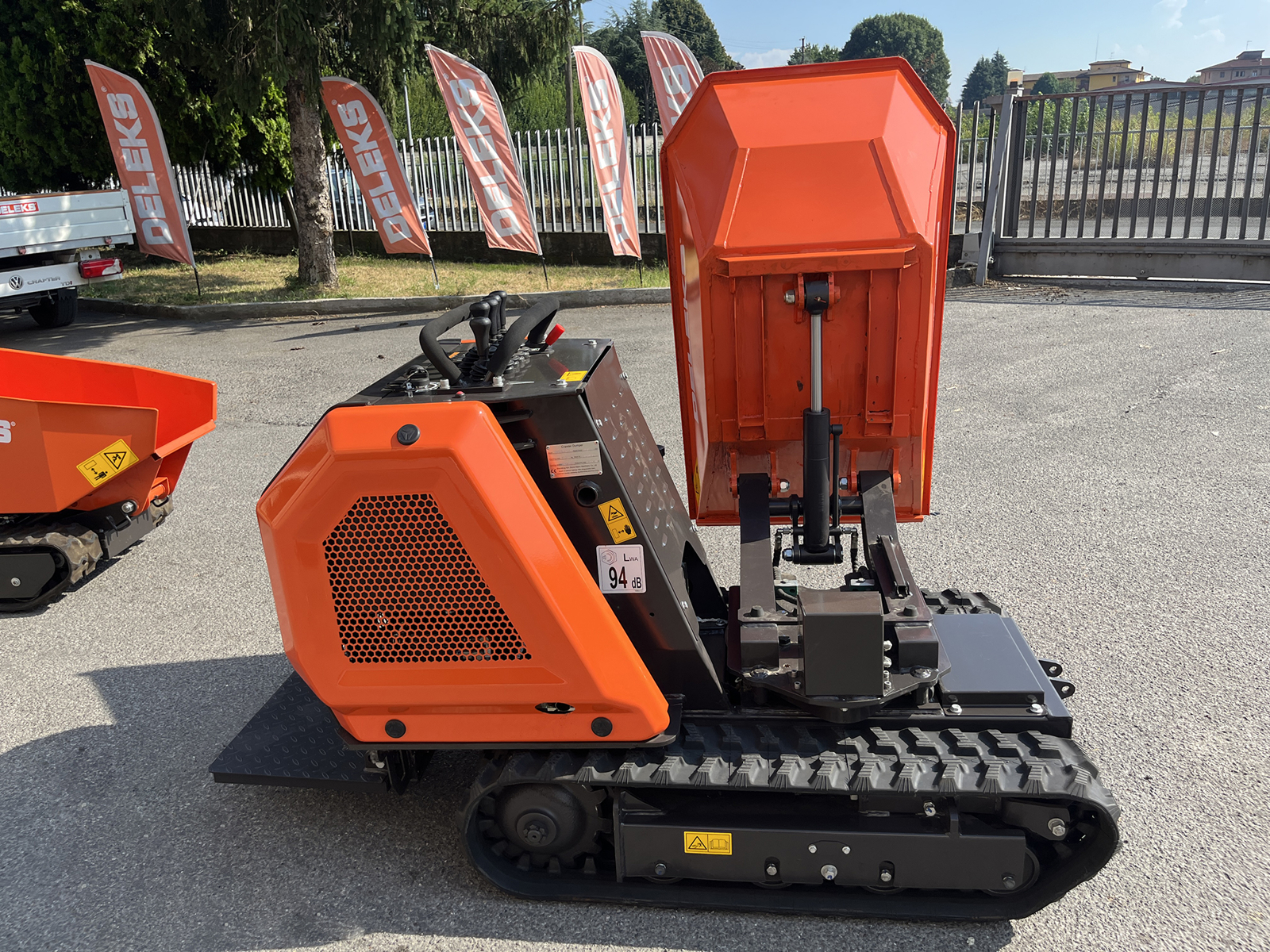

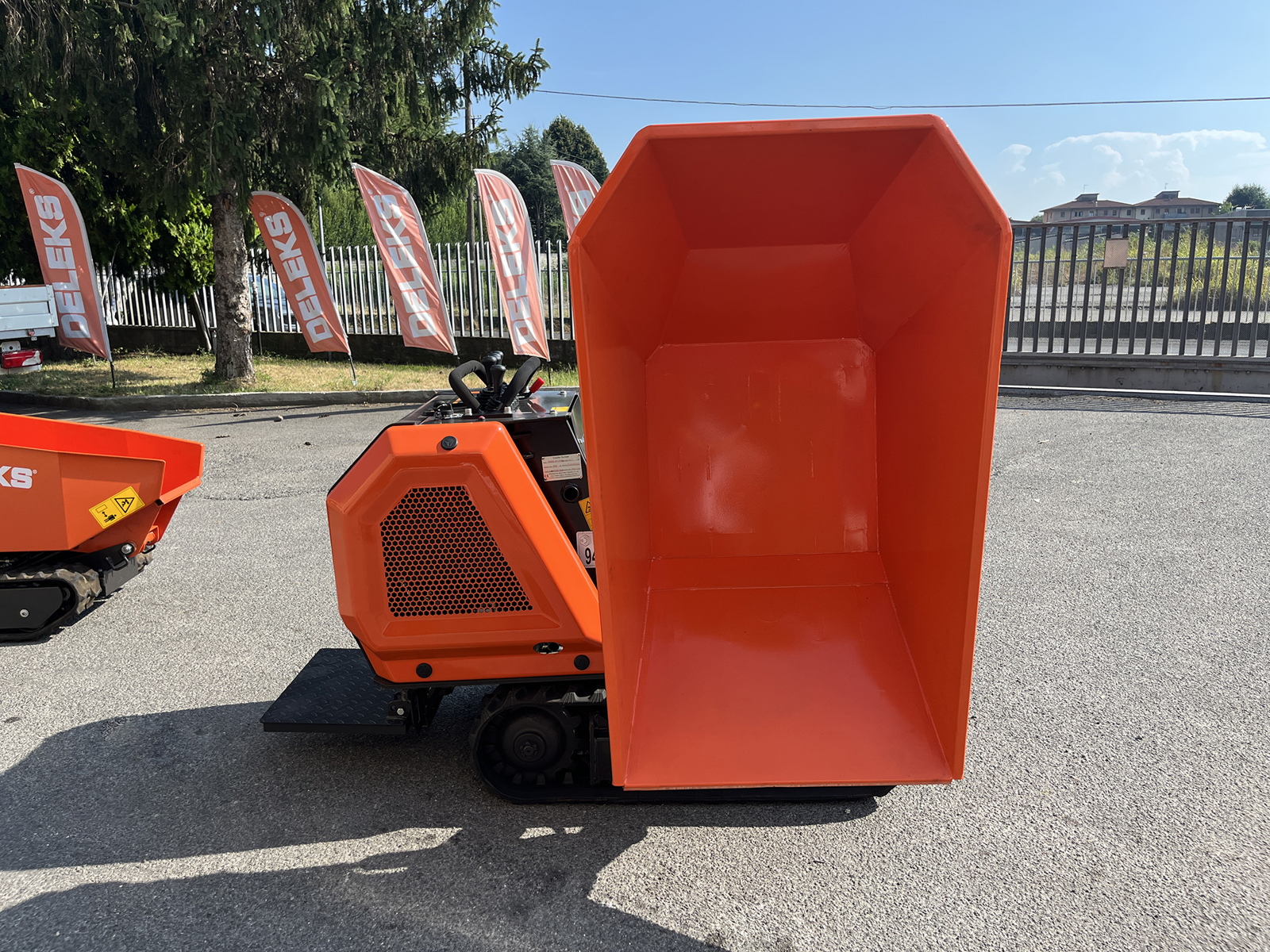

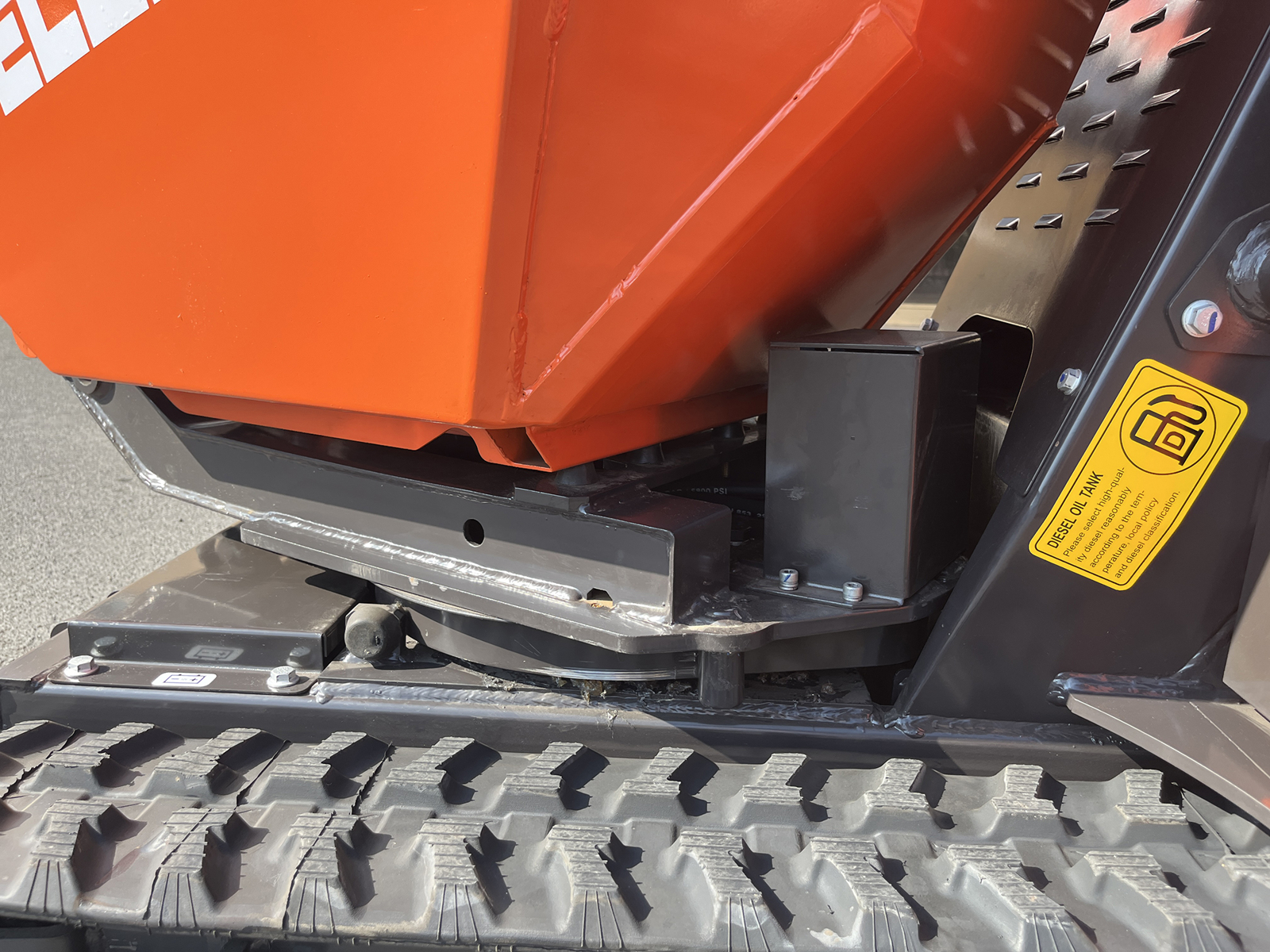

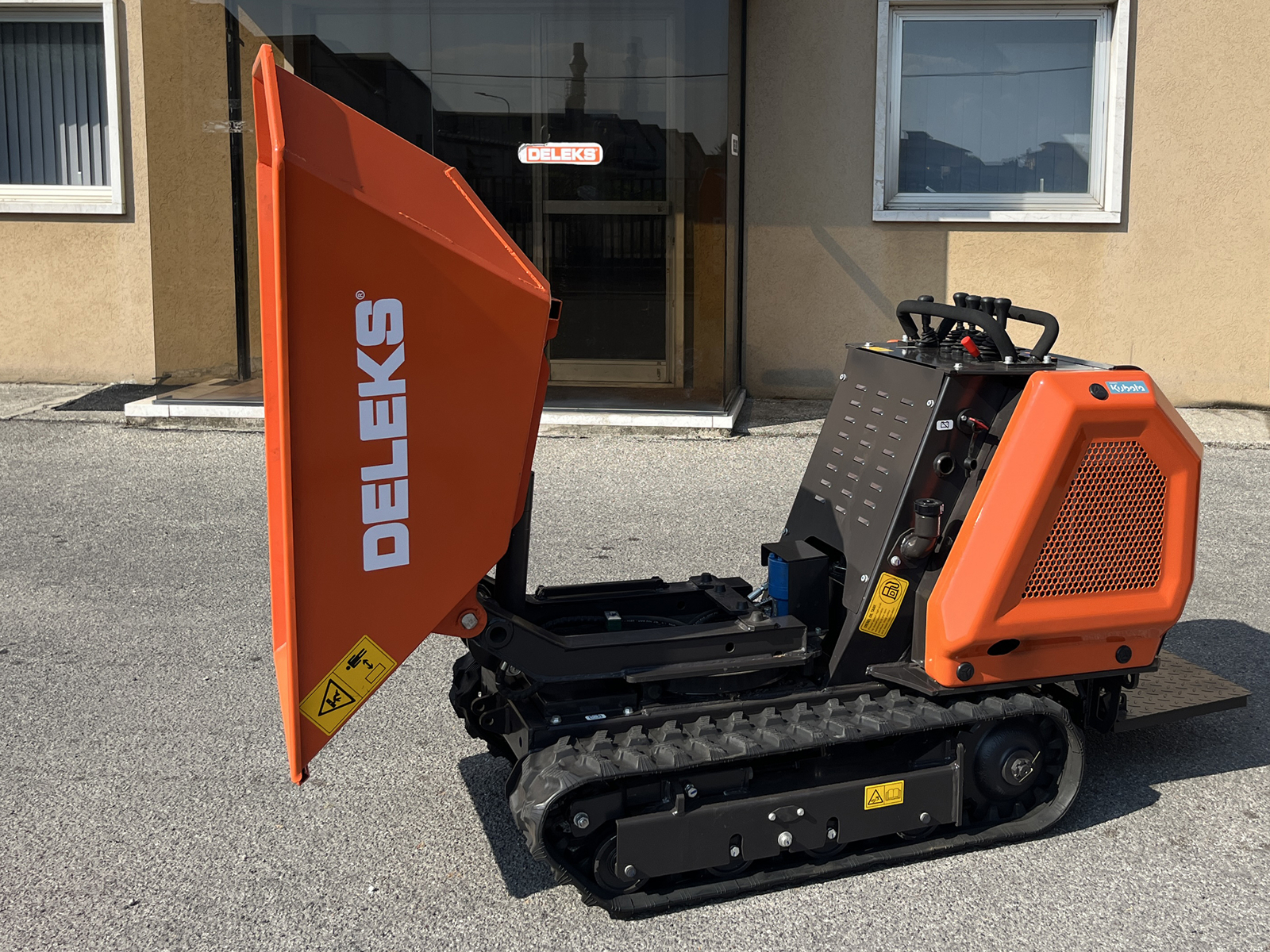

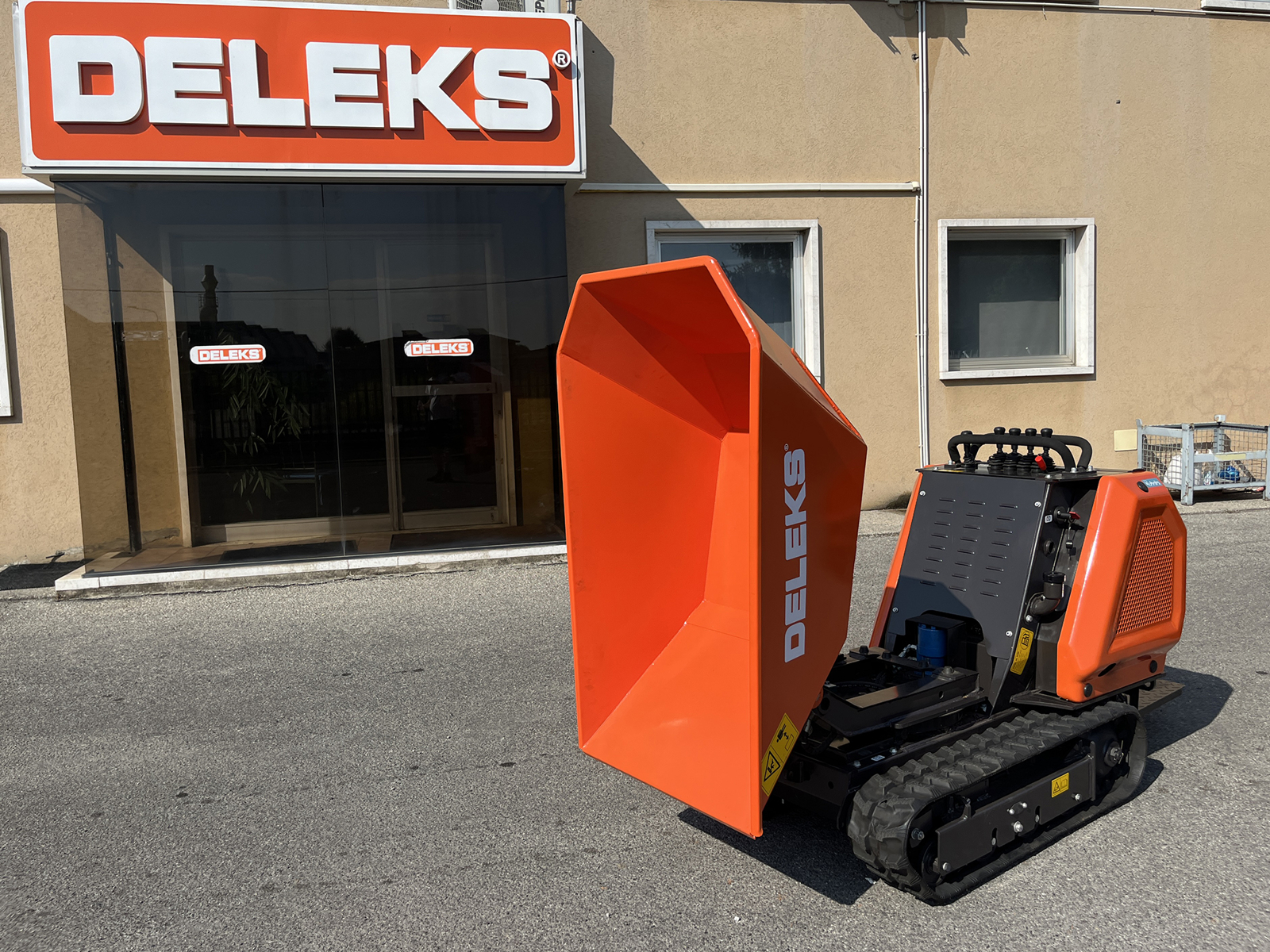

The machine is equipped with a dumper body mounted on a hydraulic slewing ring, capable of rotating over a total arc of 180°, allowing material discharge at any angle from 90° left to 90° right relative to the machine’s longitudinal axis.

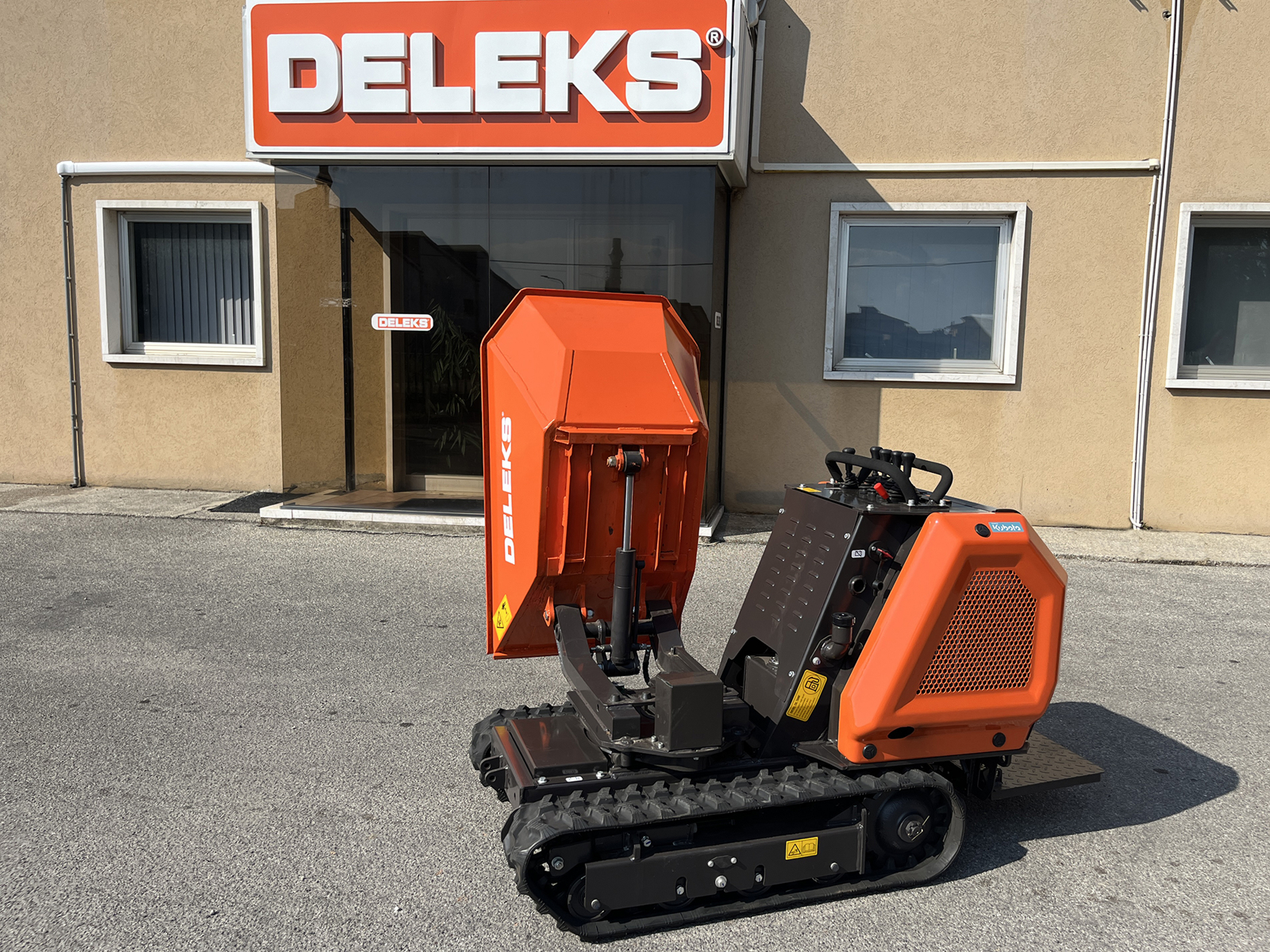

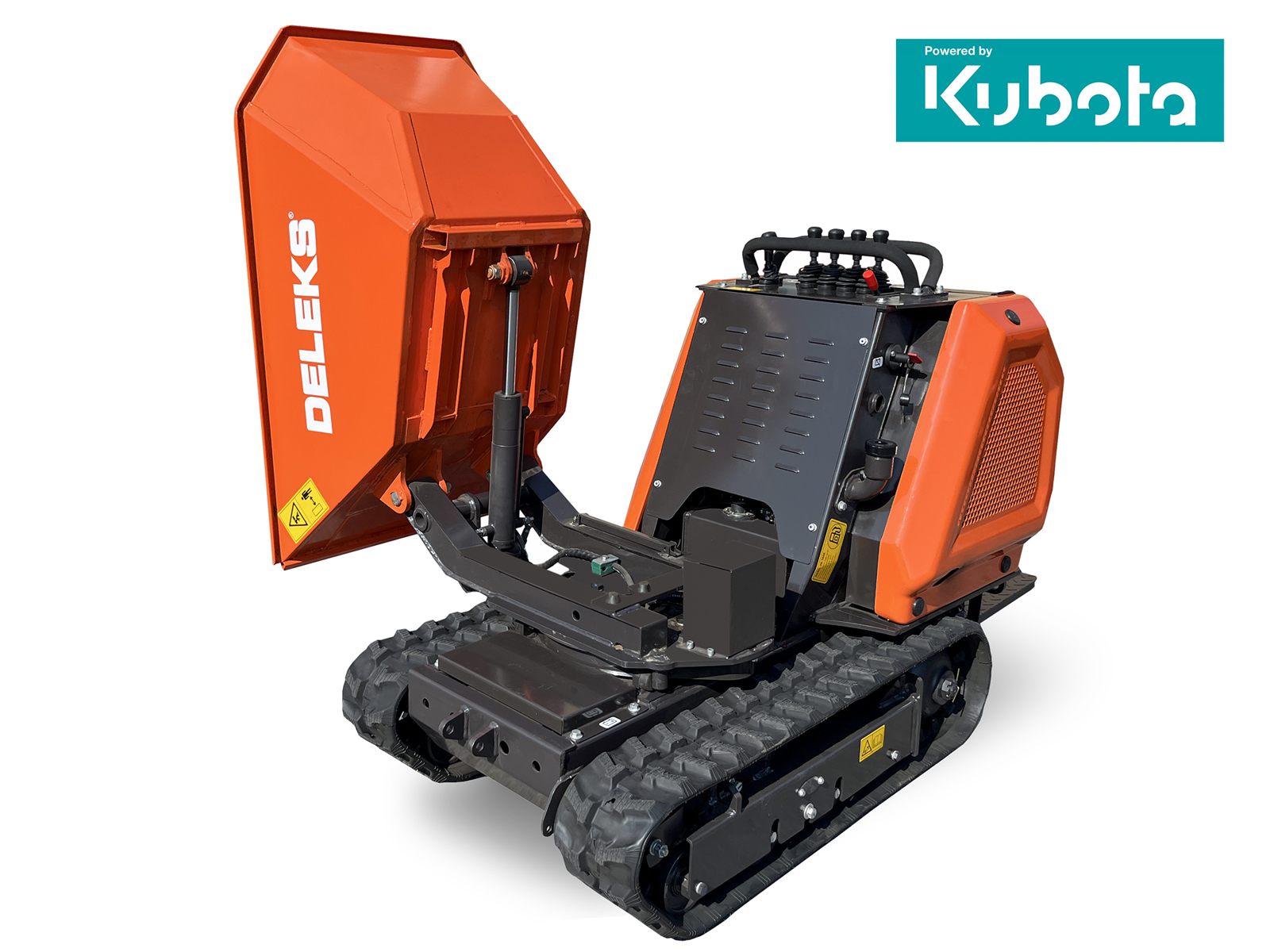

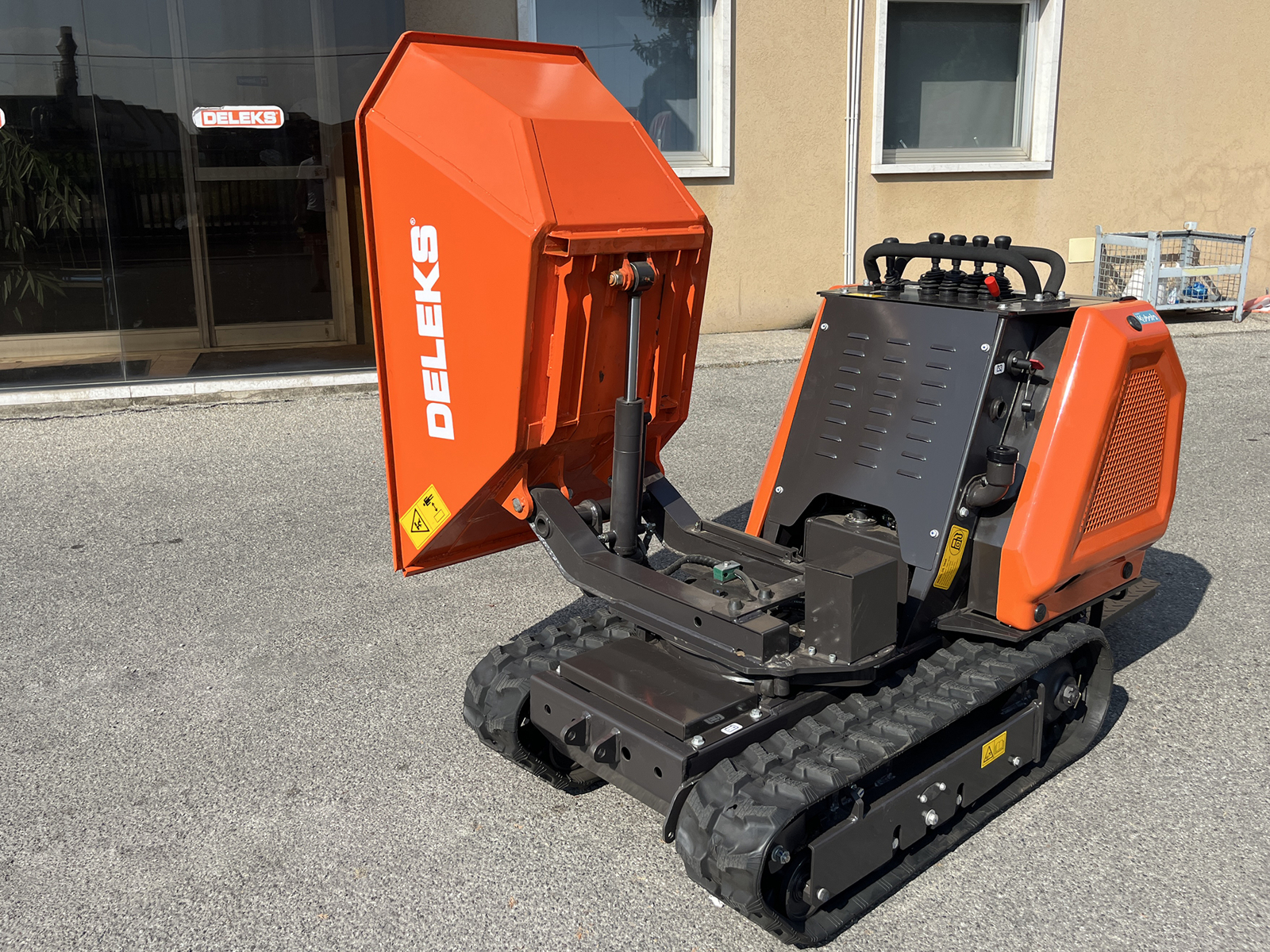

The rotation system features a hydraulic slewing ring lock, ensuring stability and safety during transport and working operations. Body tipping is hydraulic and enables accurate unloading even where manoeuvring space is limited.

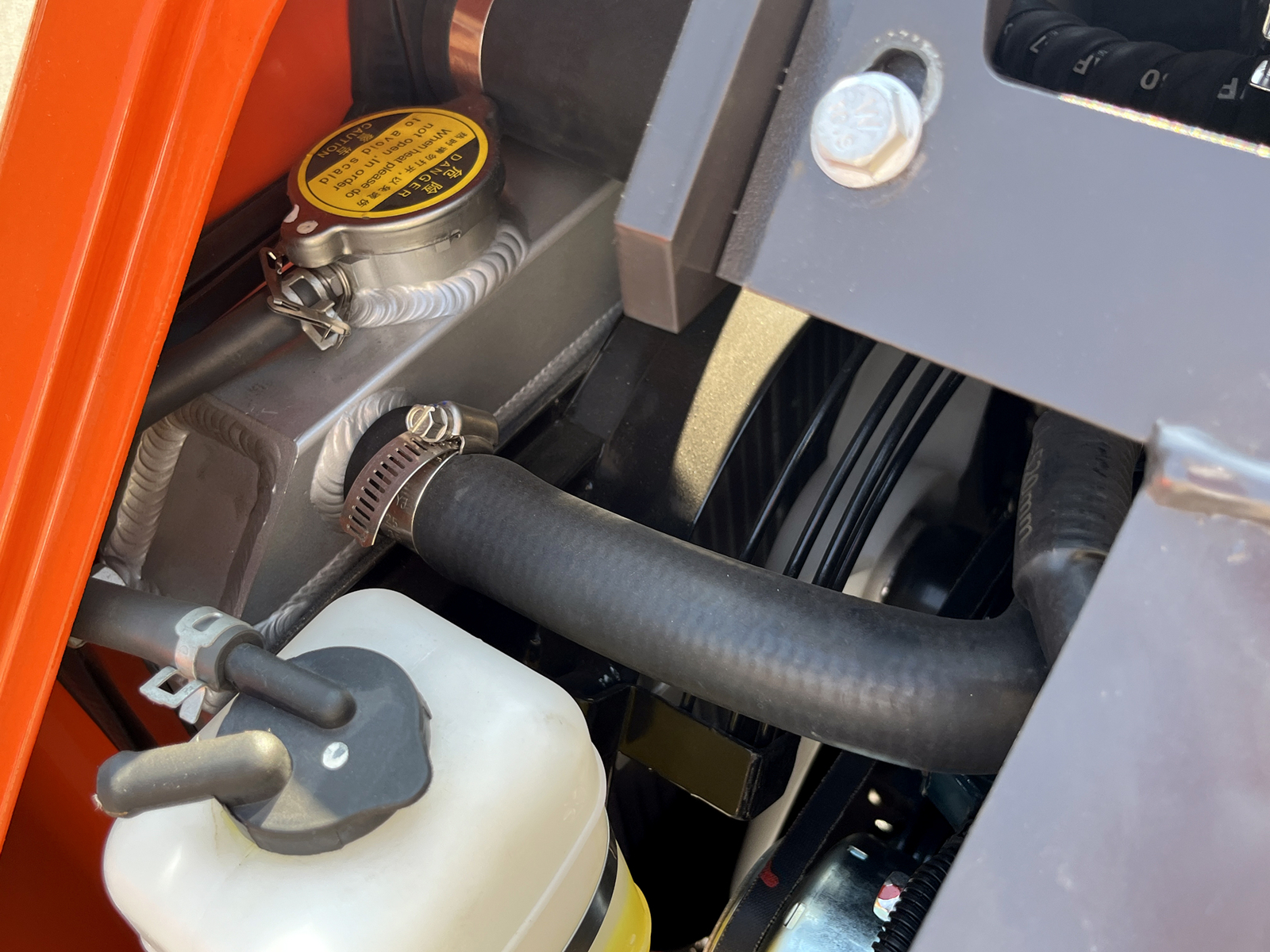

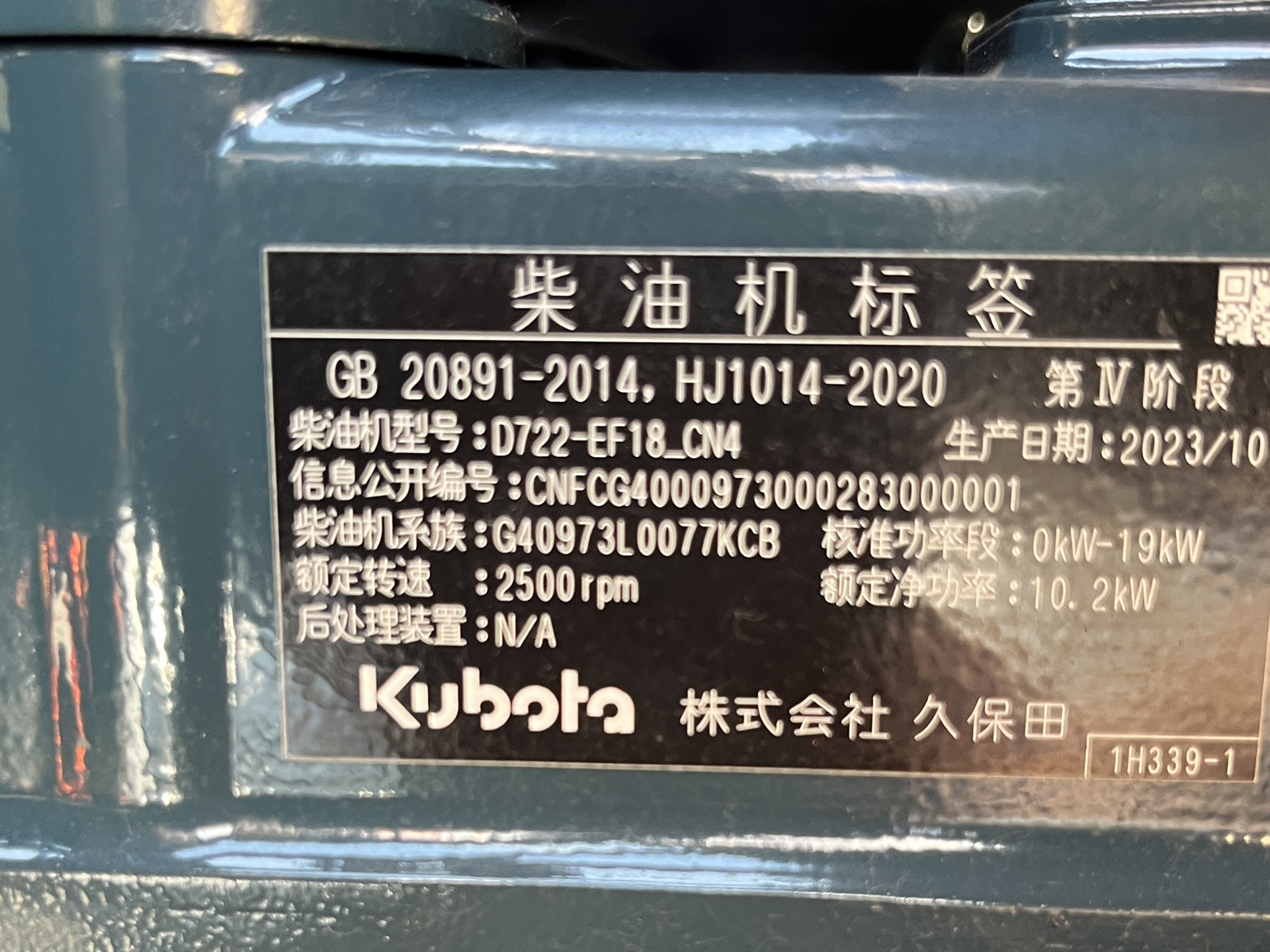

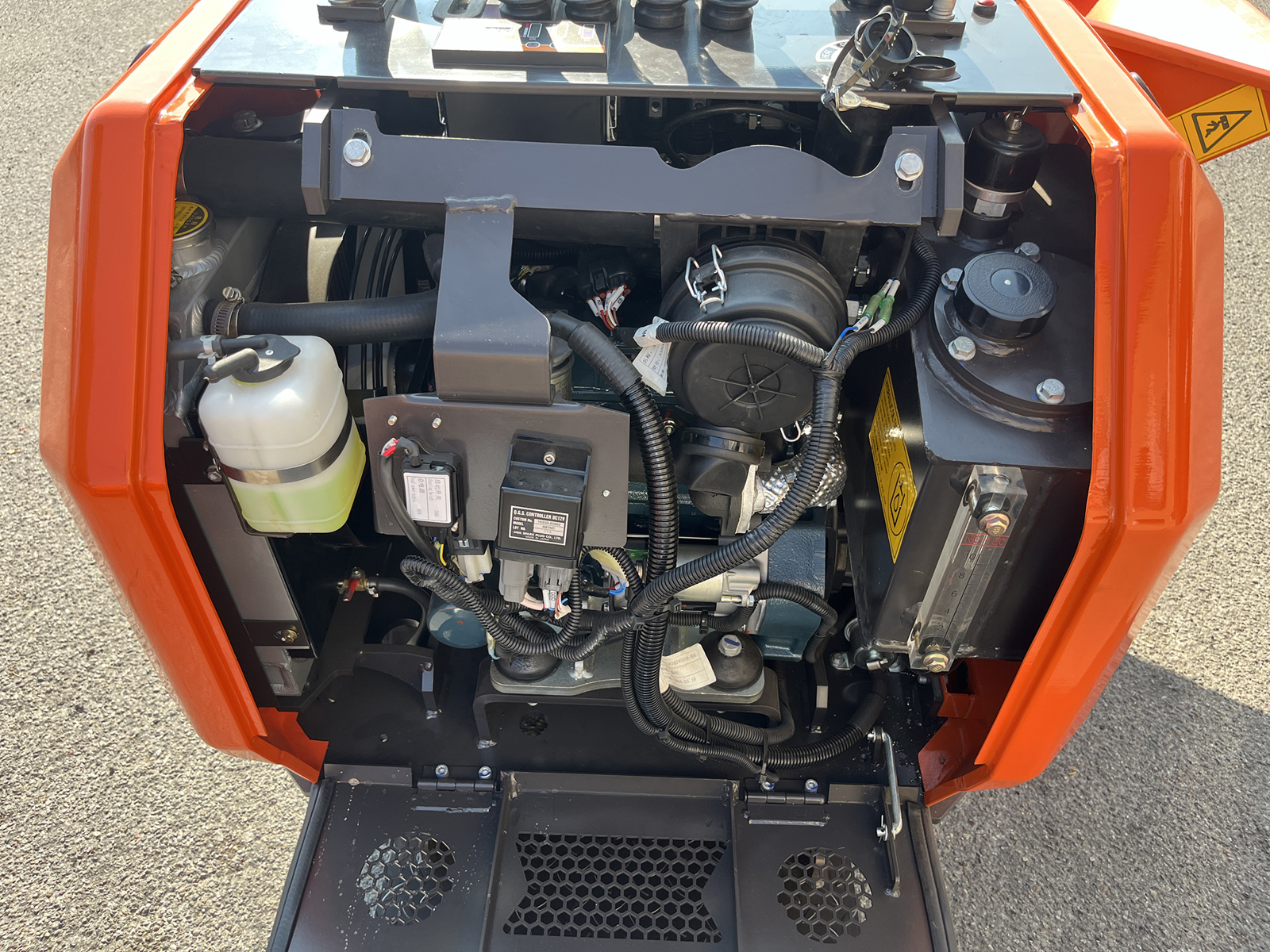

The M8000R-KUBOTA is powered by a reliable Kubota D722 three-cylinder diesel engine rated at 13.7 HP, well known for its durability, smooth torque delivery and low fuel consumption, making it ideal for intensive and continuous professional use in construction, landscaping and material handling.

The hydrostatic transmission provides smooth, progressive and precise travel control, improving handling on uneven ground and under demanding operating conditions.

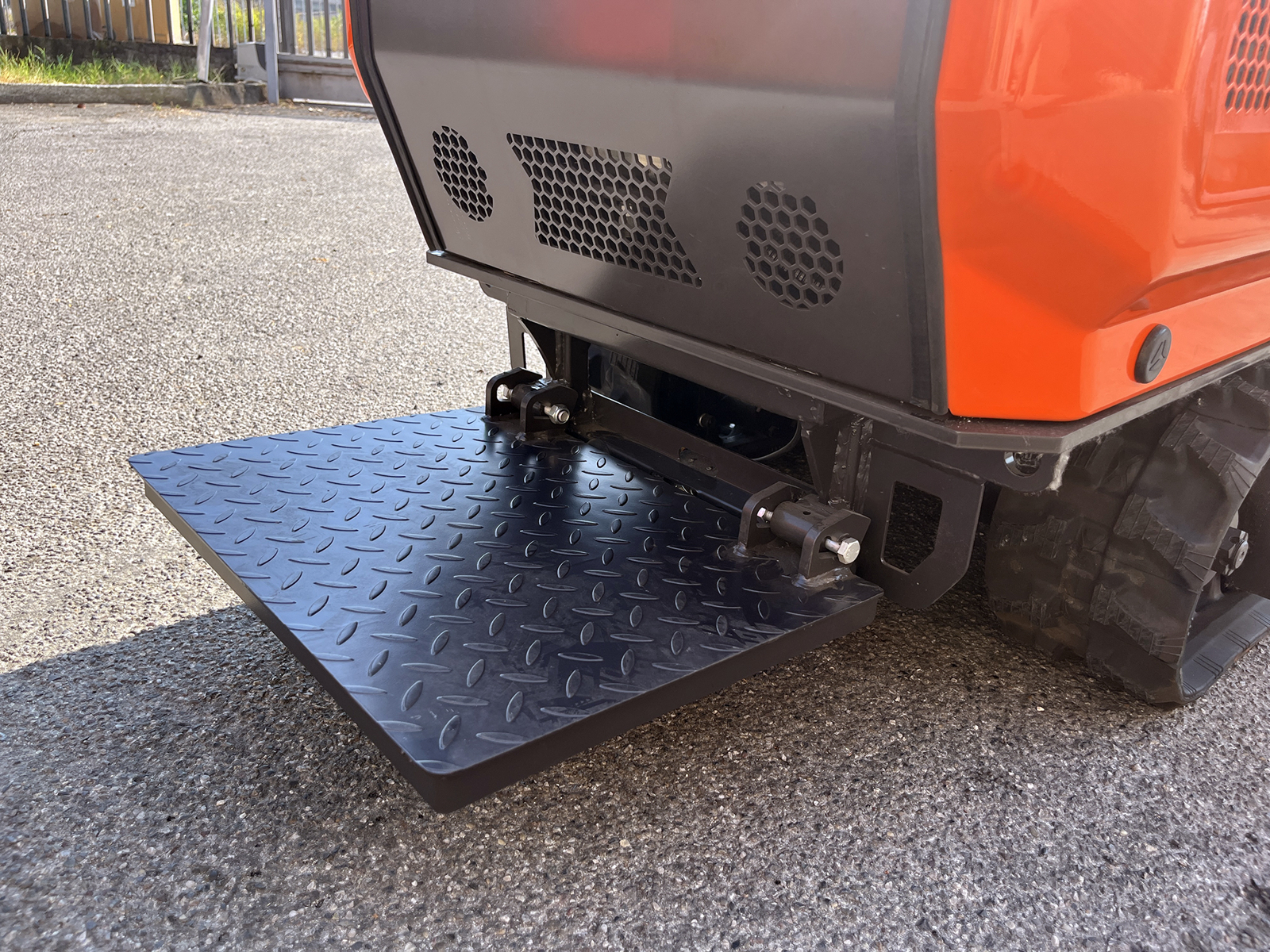

The integrated operator platform allows comfortable on-board operation, making the M8000R-KUBOTA suitable for prolonged professional use.

Tracked drive ensures high stability, excellent traction and low ground pressure, allowing safe operation on uneven, muddy or sloped terrain.

DOUBLE IN-LINE COUNTERBALANCE VALVE

The DELEKS® M8000R-KUBOTA is equipped with a double in-line counterbalance valve (Counterbalance Valve Double In Line) integrated into the hydrostatic traction circuit.

This system provides pilot-operated, progressive control of the tracks, allowing the operator to precisely modulate machine movement uphill, downhill, forward and reverse, preventing sudden or uncontrolled motion.

The valve maintains constant hydraulic pressure and prevents unwanted acceleration caused by load weight or terrain slope, significantly improving stability, control and operational safety.

APPLICATION

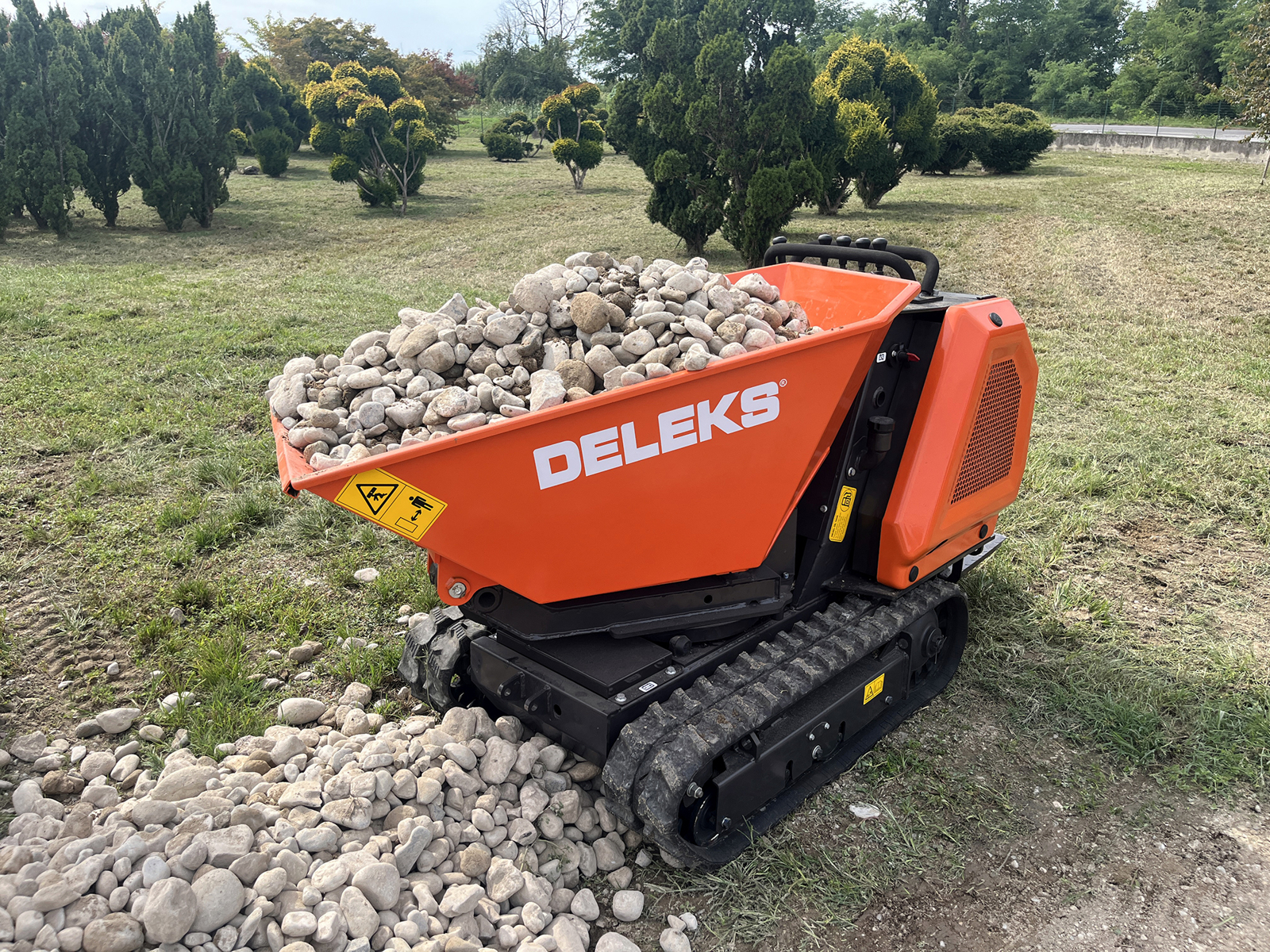

Tracked mini dumper suitable for:

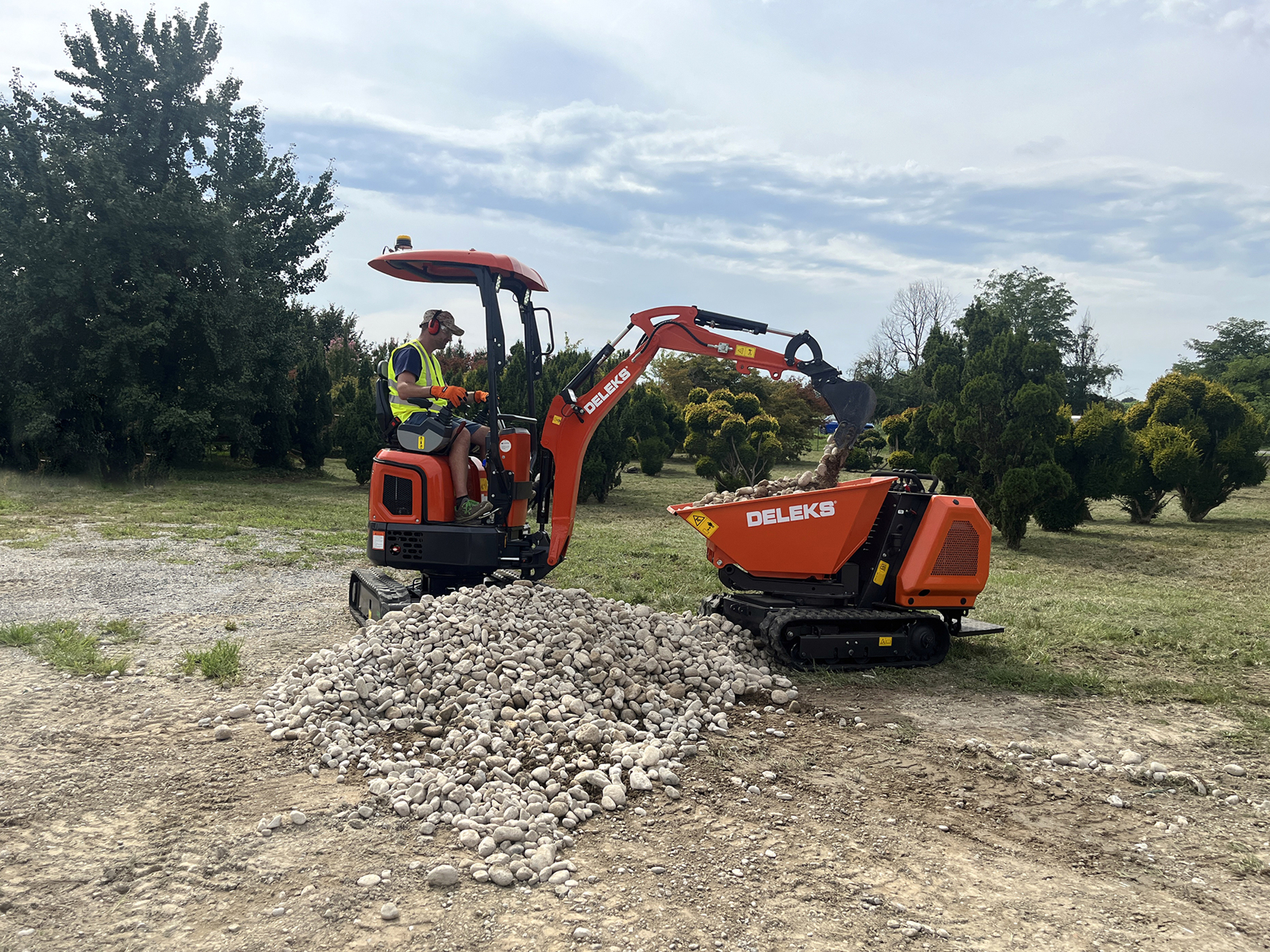

• loading and handling soil and sand

• transporting construction materials and aggregates

• moving waste and debris

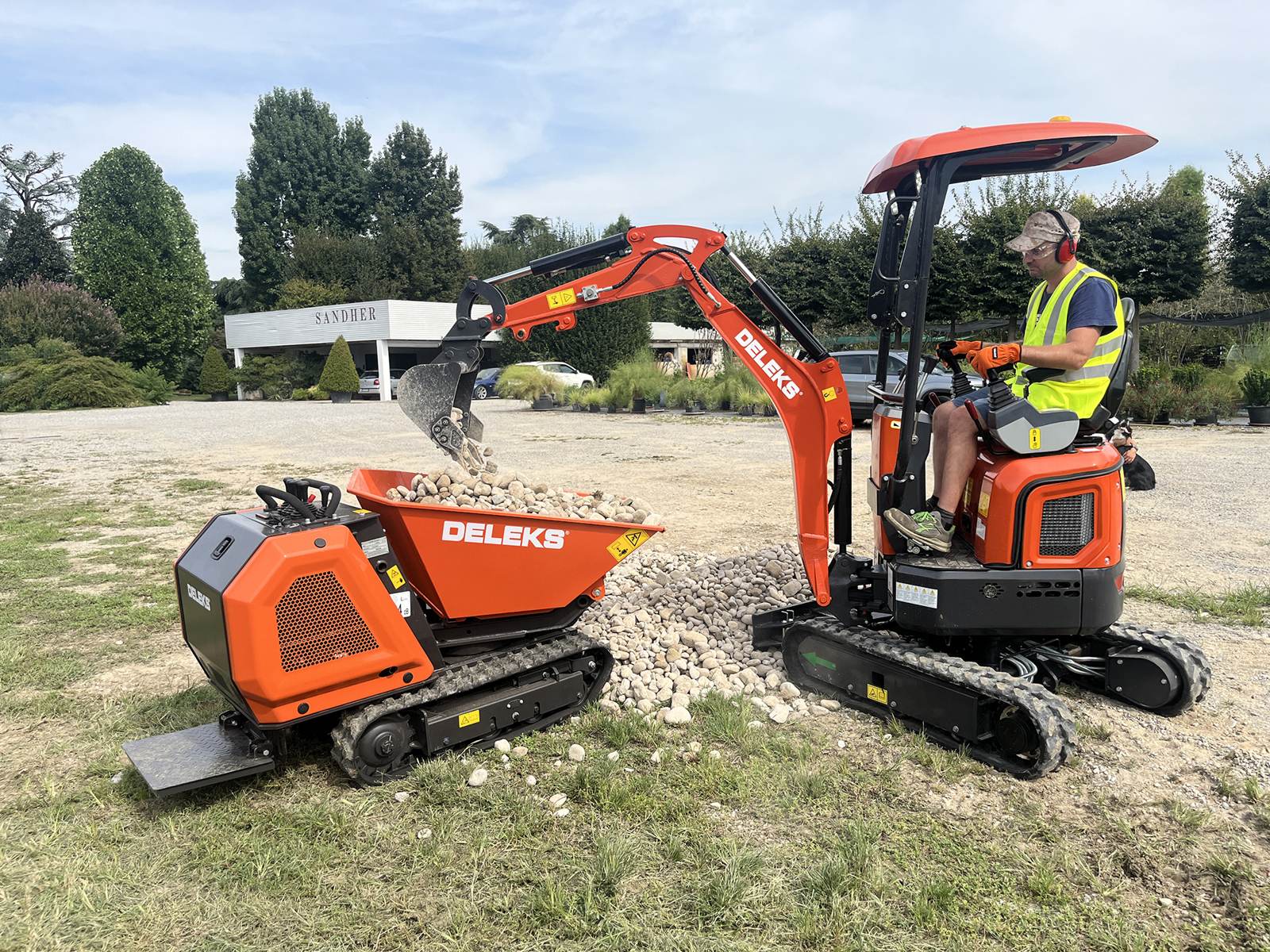

• use on construction sites, road works and professional landscaping

• operations in confined areas where controlled side discharge is required

TECHNICAL FEATURES

• Kubota D722 diesel engine

• Power output: 13.7 HP

• 3-cylinder engine

• Electric start with key

• Fuel: diesel

• Hydrostatic transmission

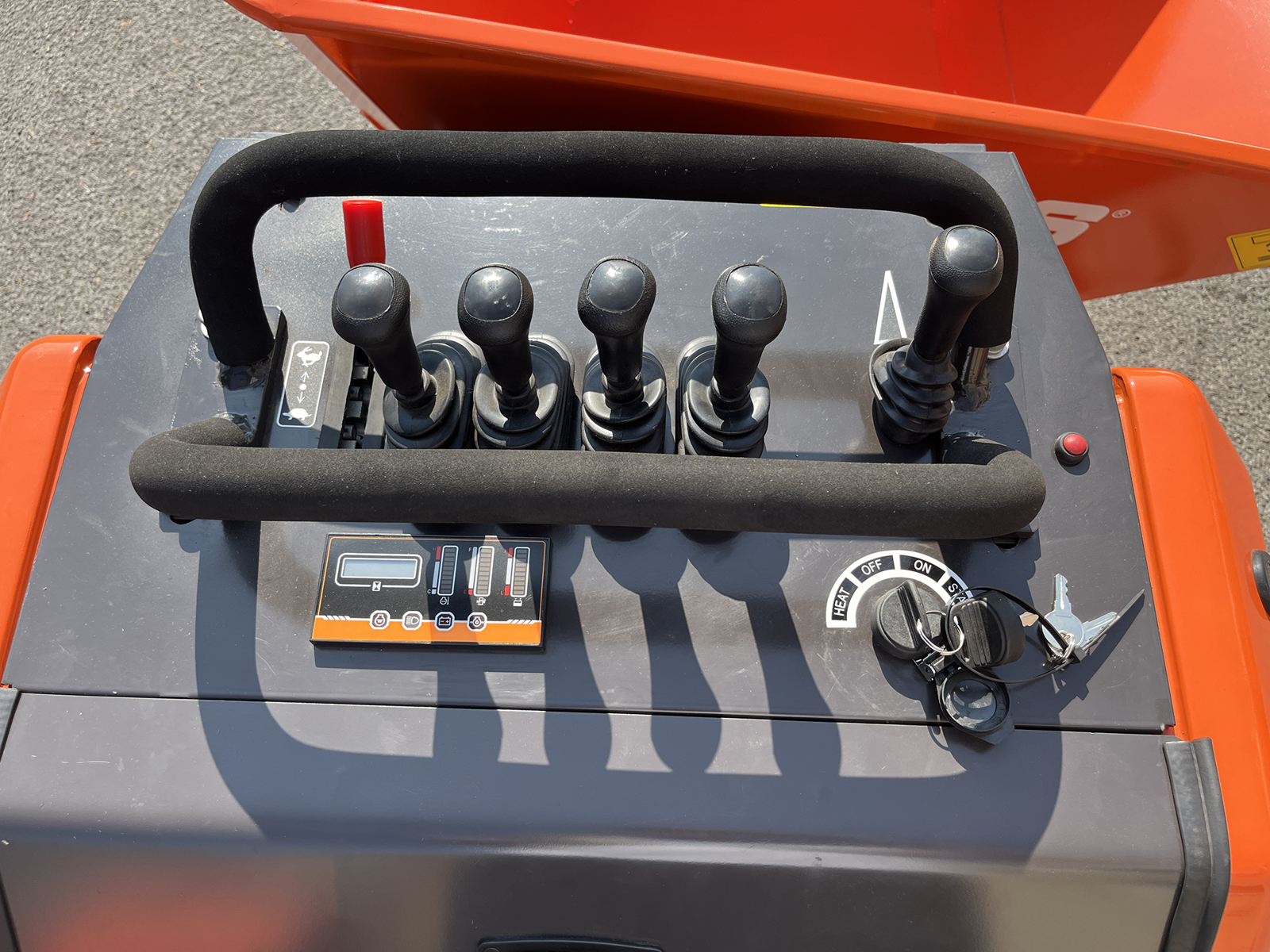

• Lever-controlled drive system

• Two travel speeds: 2 – 4 km/h

• Professional tracked drive

• Track width: 180 mm

• Track length: 1200 mm

• Dumper body with slewing ring rotation

• Total body rotation angle: 180°

• Hydraulic tipping

• Maximum load capacity: 800 kg

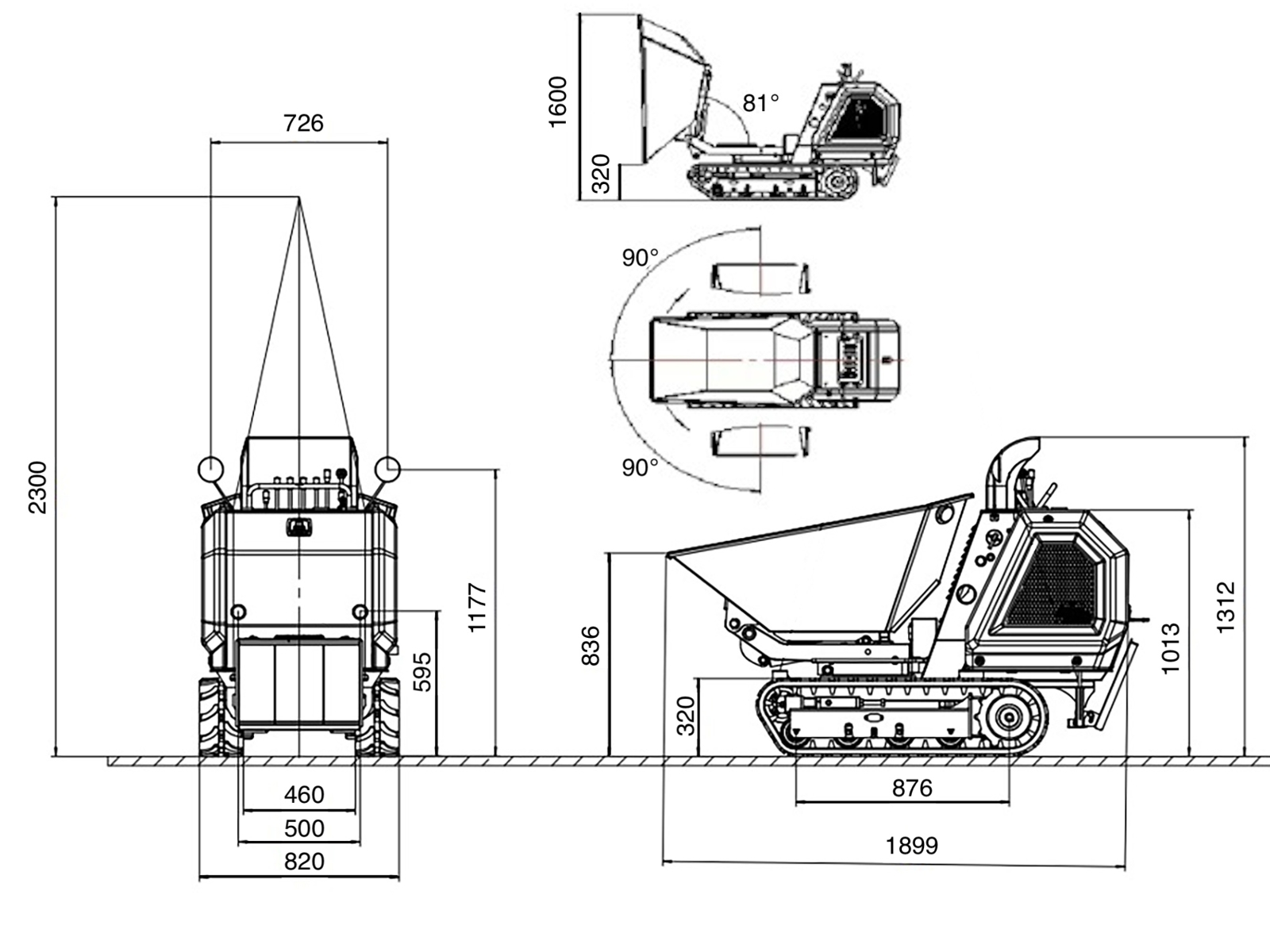

• Machine dimensions: see product images

OPERATIONAL ADVANTAGES

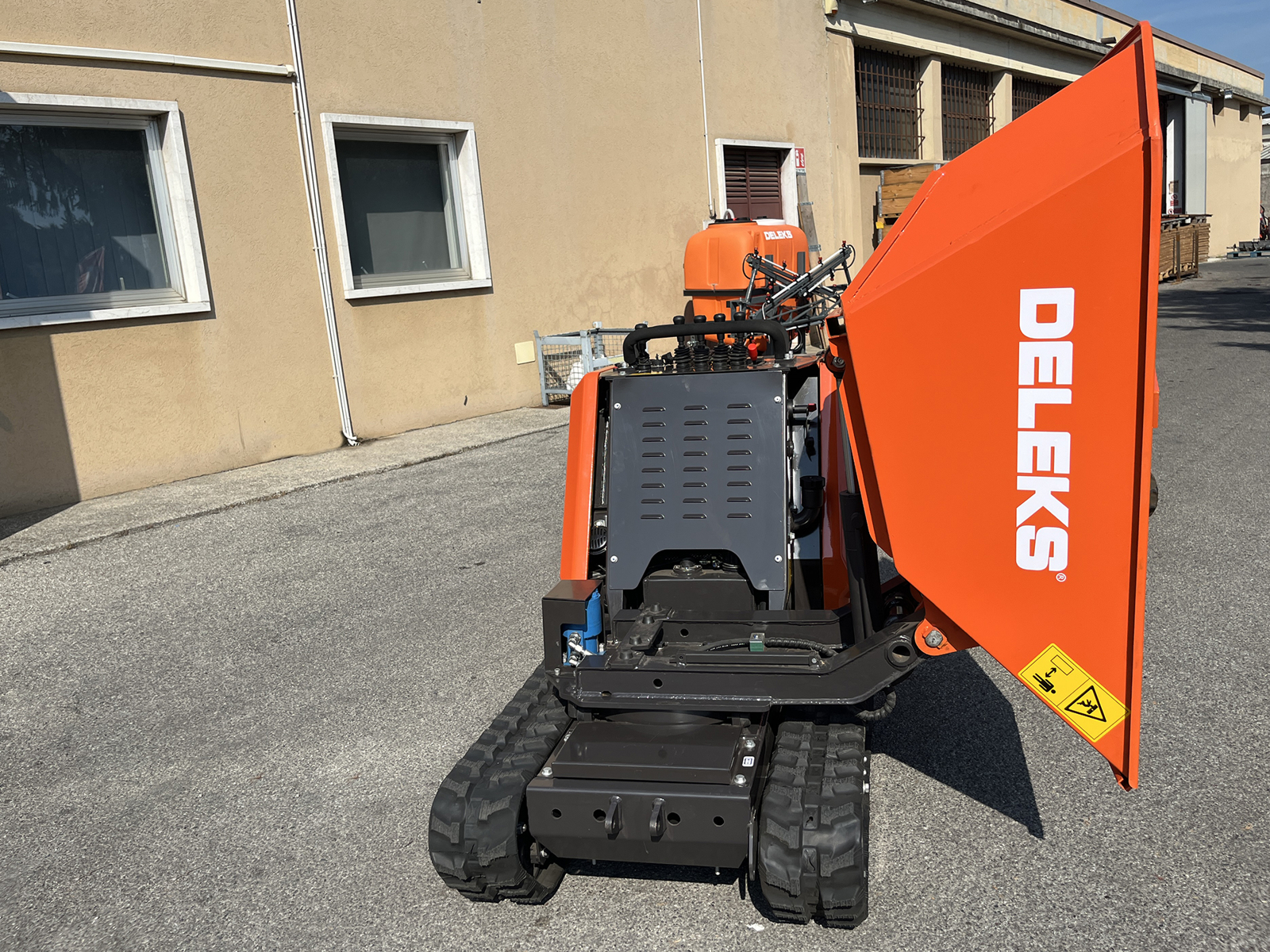

• Graduated side discharge from 90° left to 90° right

• Ideal for work in areas with limited manoeuvring space

• Hydraulic lift and rotation for precise unloading

• Hydrostatic transmission for full control

• Double in-line counterbalance valve for controlled traction

• Operator platform for continuous professional use

• Reinforced dumper body for heavy-duty work

• High stability and excellent traction on difficult terrain

• Reliable and fuel-efficient Kubota diesel engine

CERTIFICATIONS – WARRANTY – SUPPORT

• Machine compliant with CE directives

• 2-year warranty

• Equipped with safety devices

• Technical support and spare parts available

DOCUMENTATION SUPPLIED

• CE declaration of conformity

• Operation and maintenance manual

• Invoice or fiscal receipt
