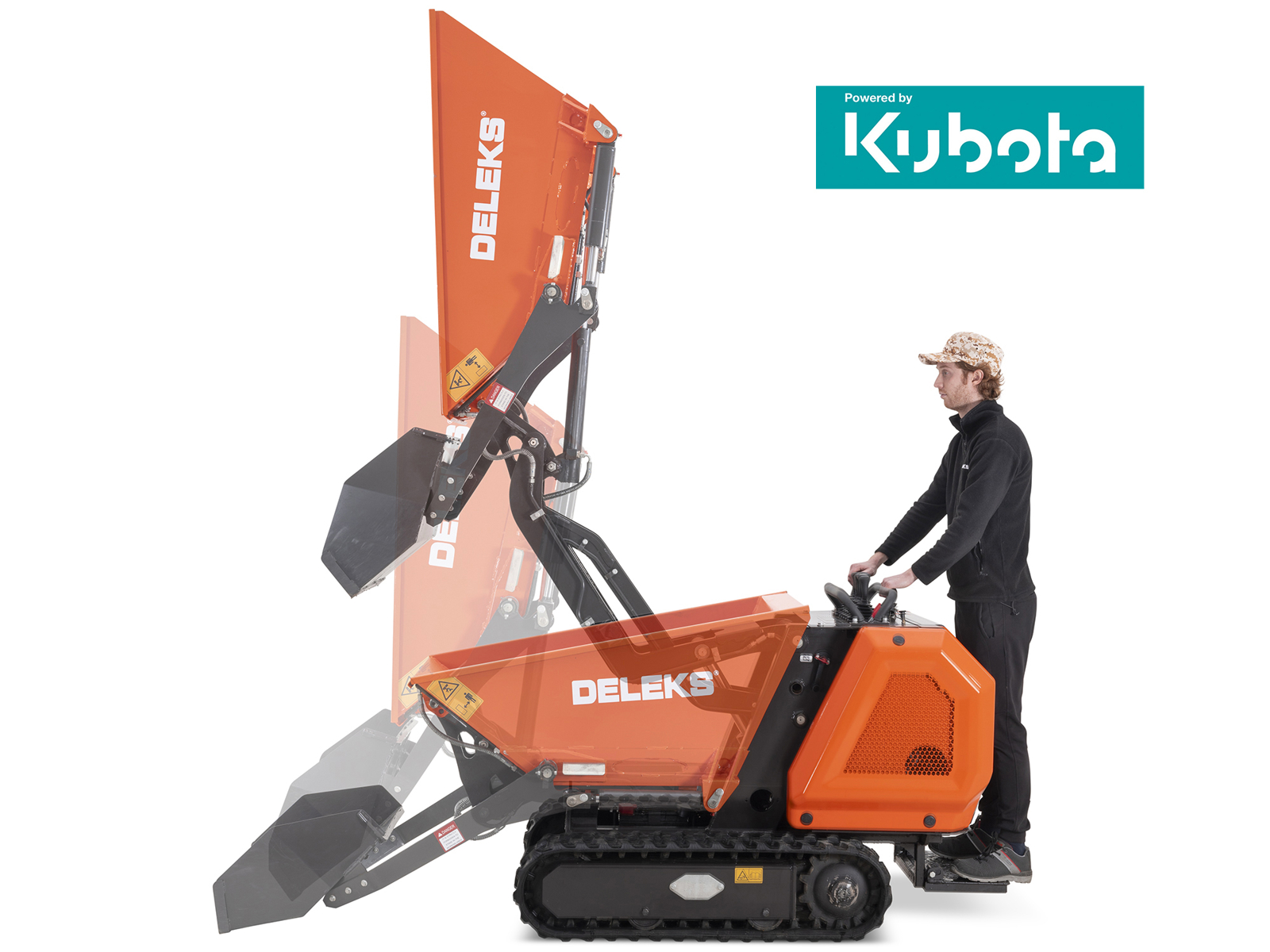

Hydrostatic Crawler Mini Dumper, High dump, Kubota engine, E-start

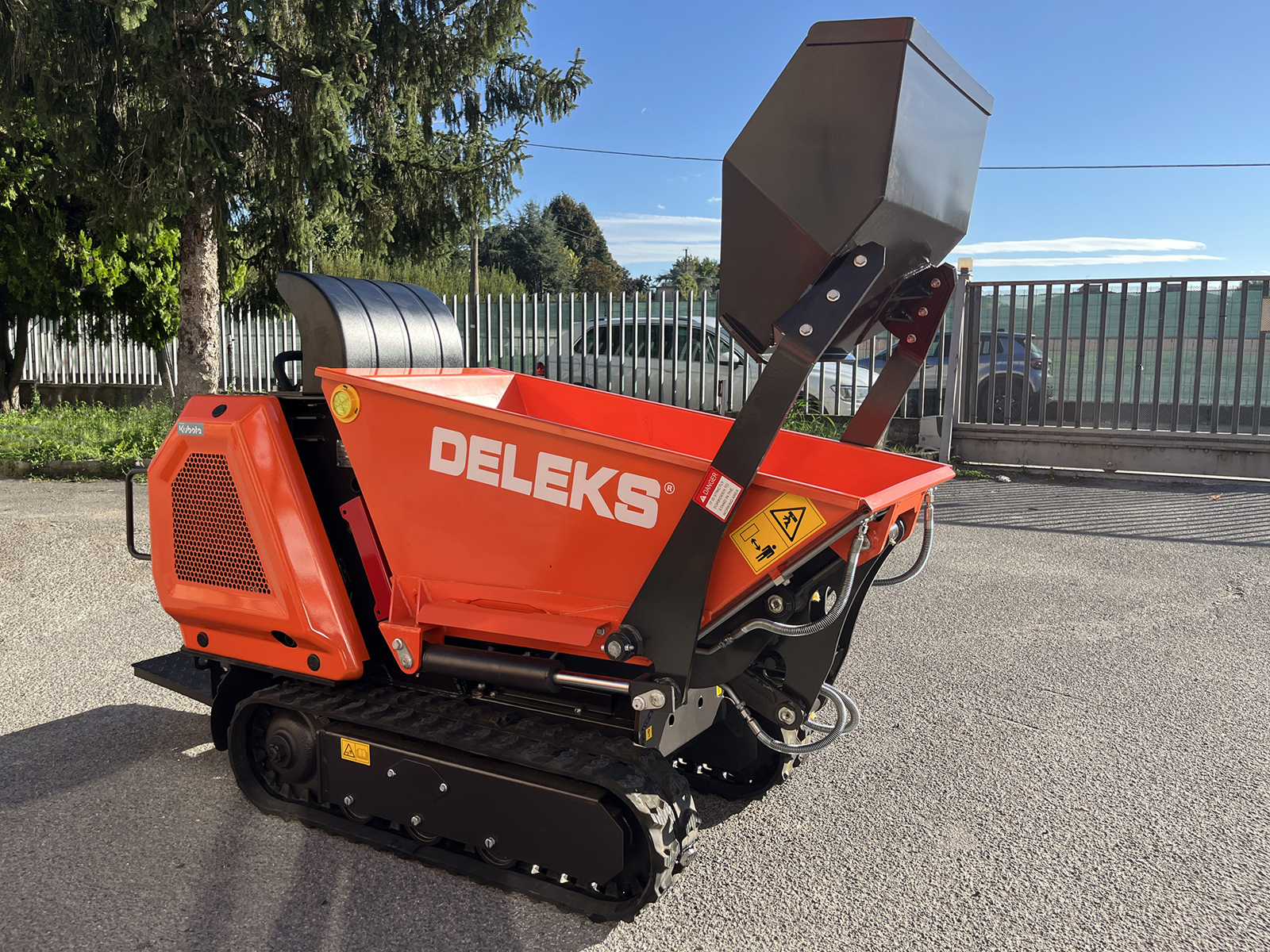

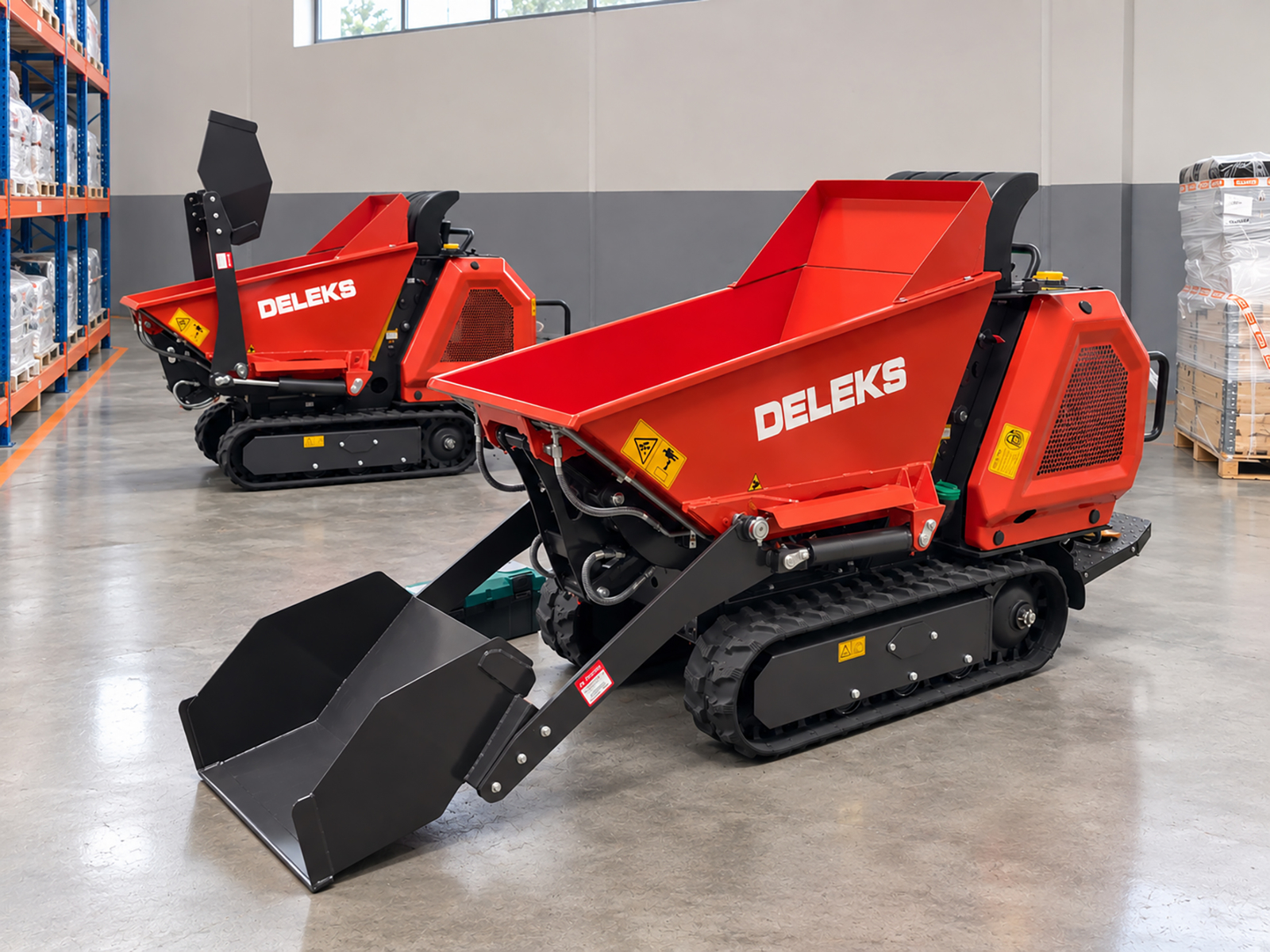

DELEKS® M8000-KUBOTA professional tracked self-loading mini dumper with hydrostatic transmission, high-tip dumper body, operator platform and Kubota diesel engine with electric start.

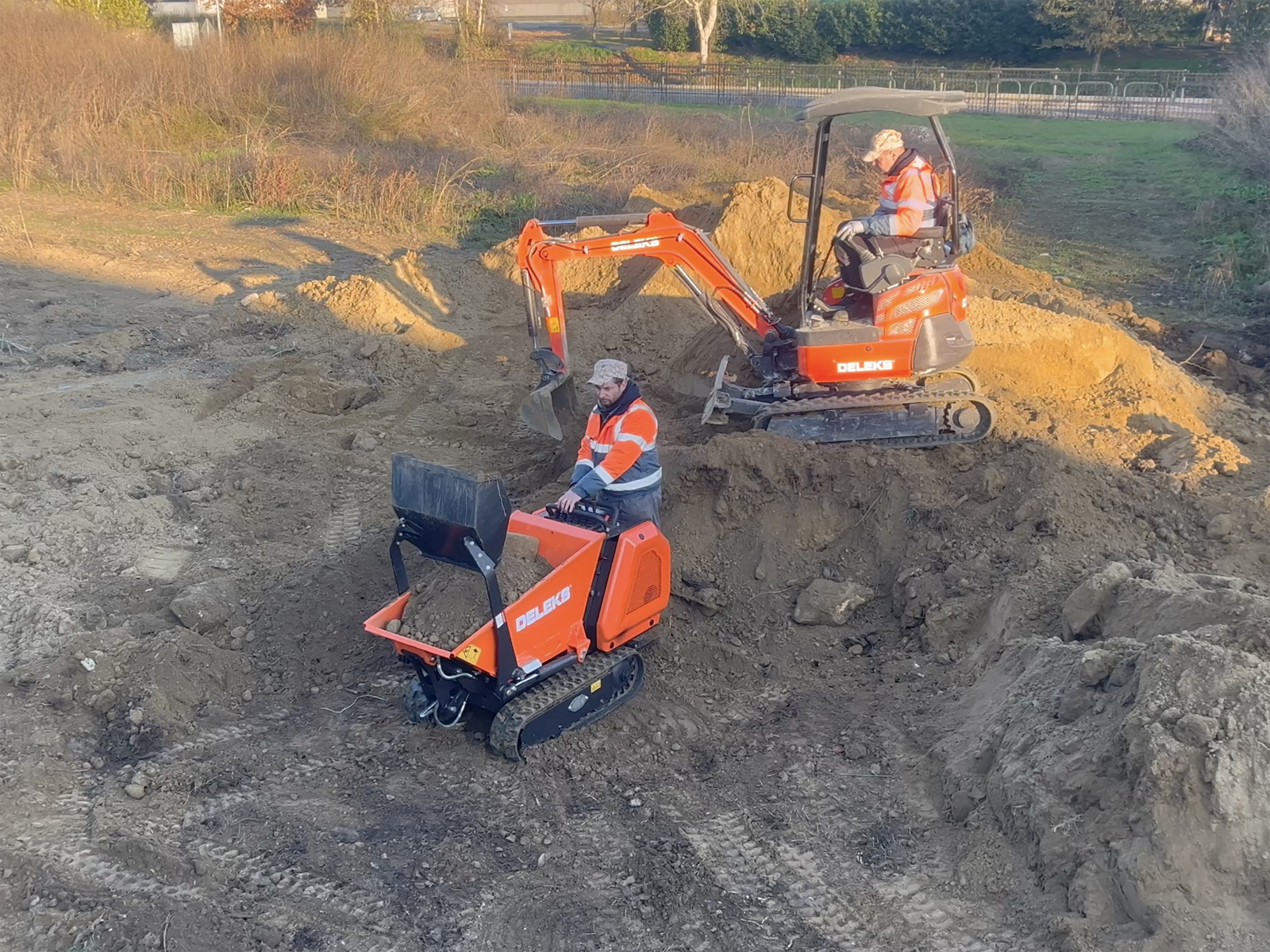

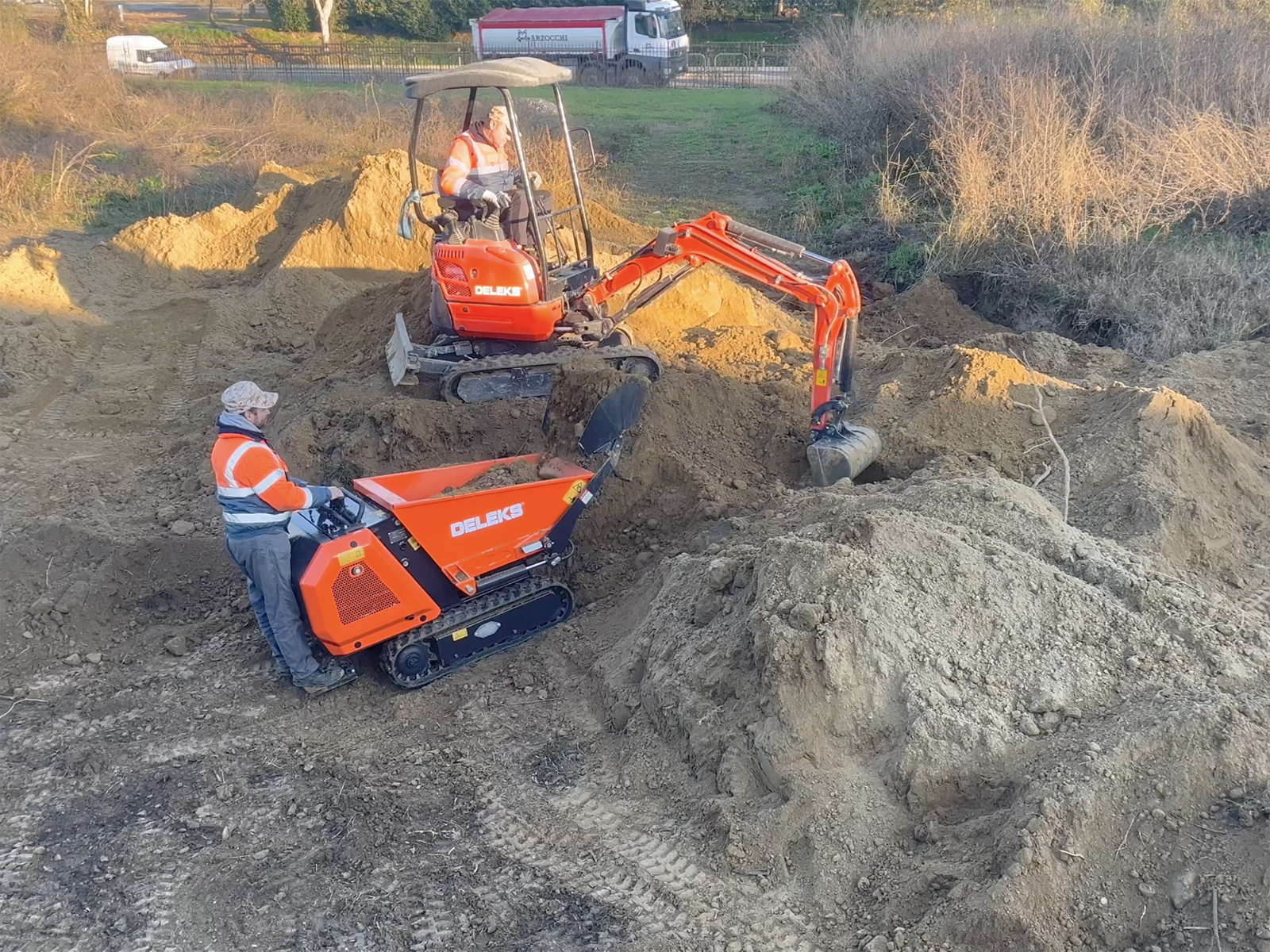

Tracked power barrow designed for intensive professional use, heavy load handling and direct unloading into trucks, even in demanding working conditions.

PRODUCT DESCRIPTION

The DELEKS® M8000-KUBOTA is designed for professional operators requiring high reliability, long service life and full machine control during loading and transport operations.

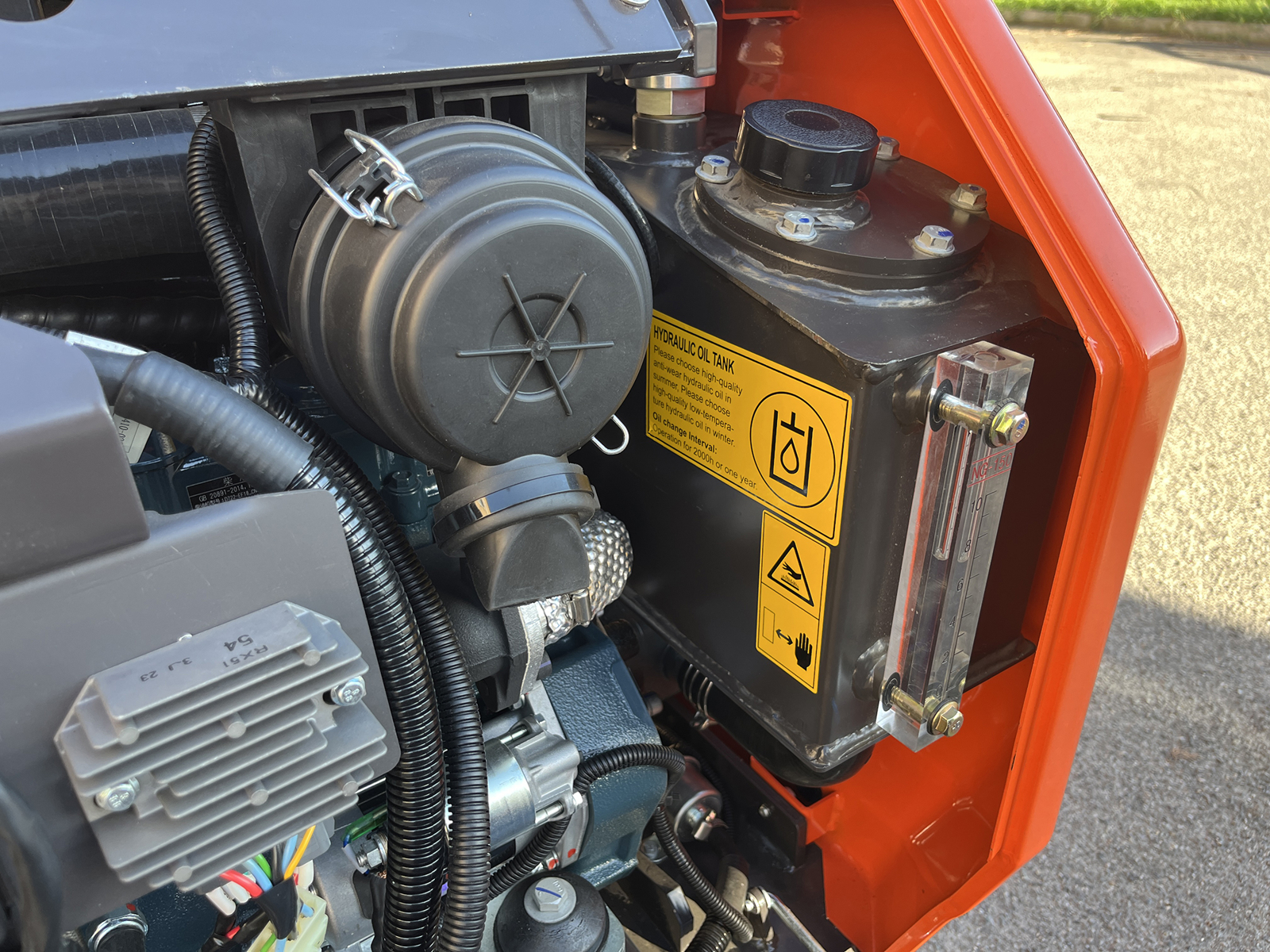

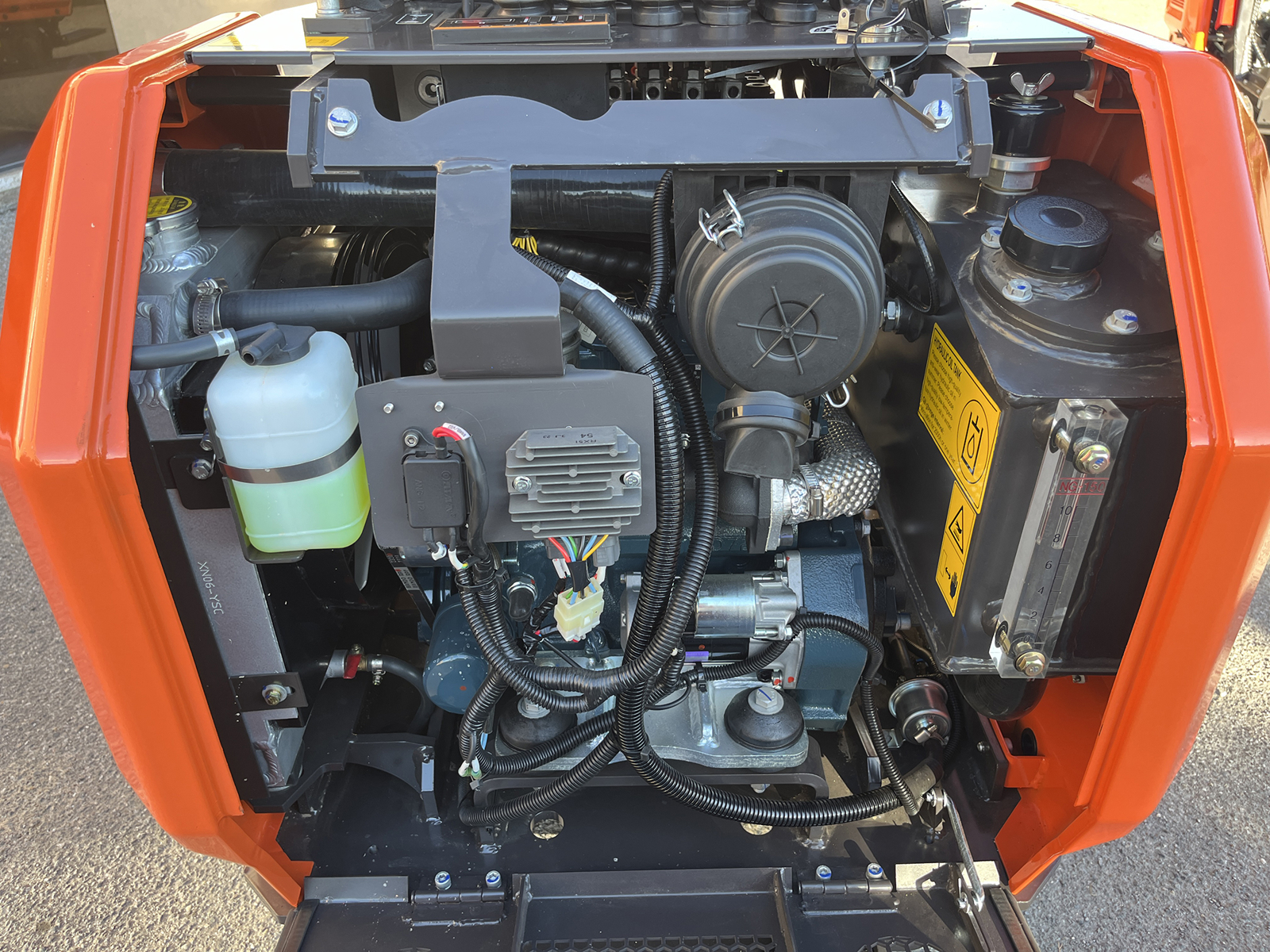

It is equipped with a Kubota D722 three-cylinder diesel engine, renowned for its robust construction, high torque at low RPM, low fuel consumption and long operating life, making it ideal for continuous use in construction, agricultural and industrial environments.

The hydrostatic transmission provides smooth, progressive and precise speed control, improving safety and manoeuvrability even on uneven terrain or in confined spaces.

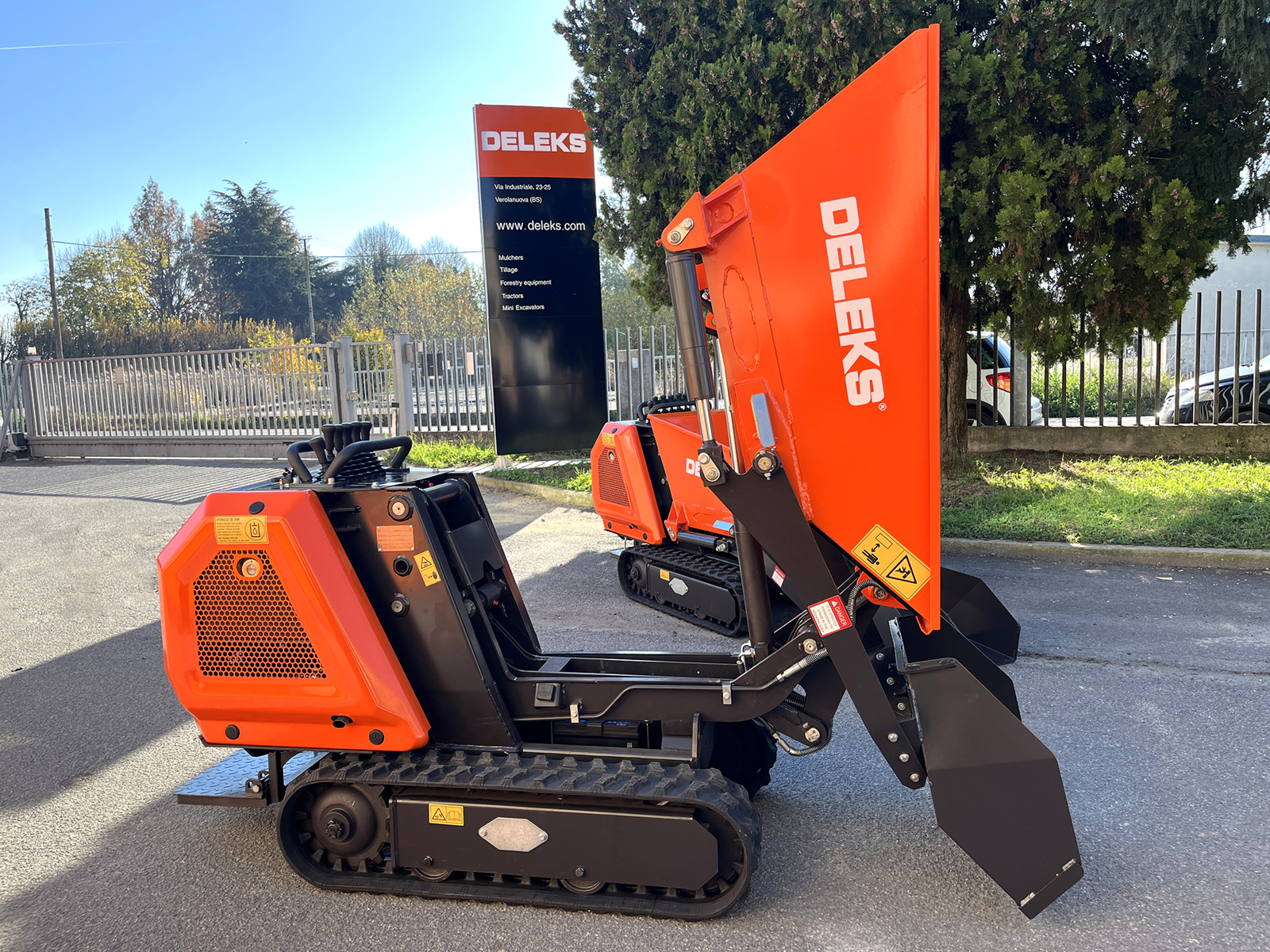

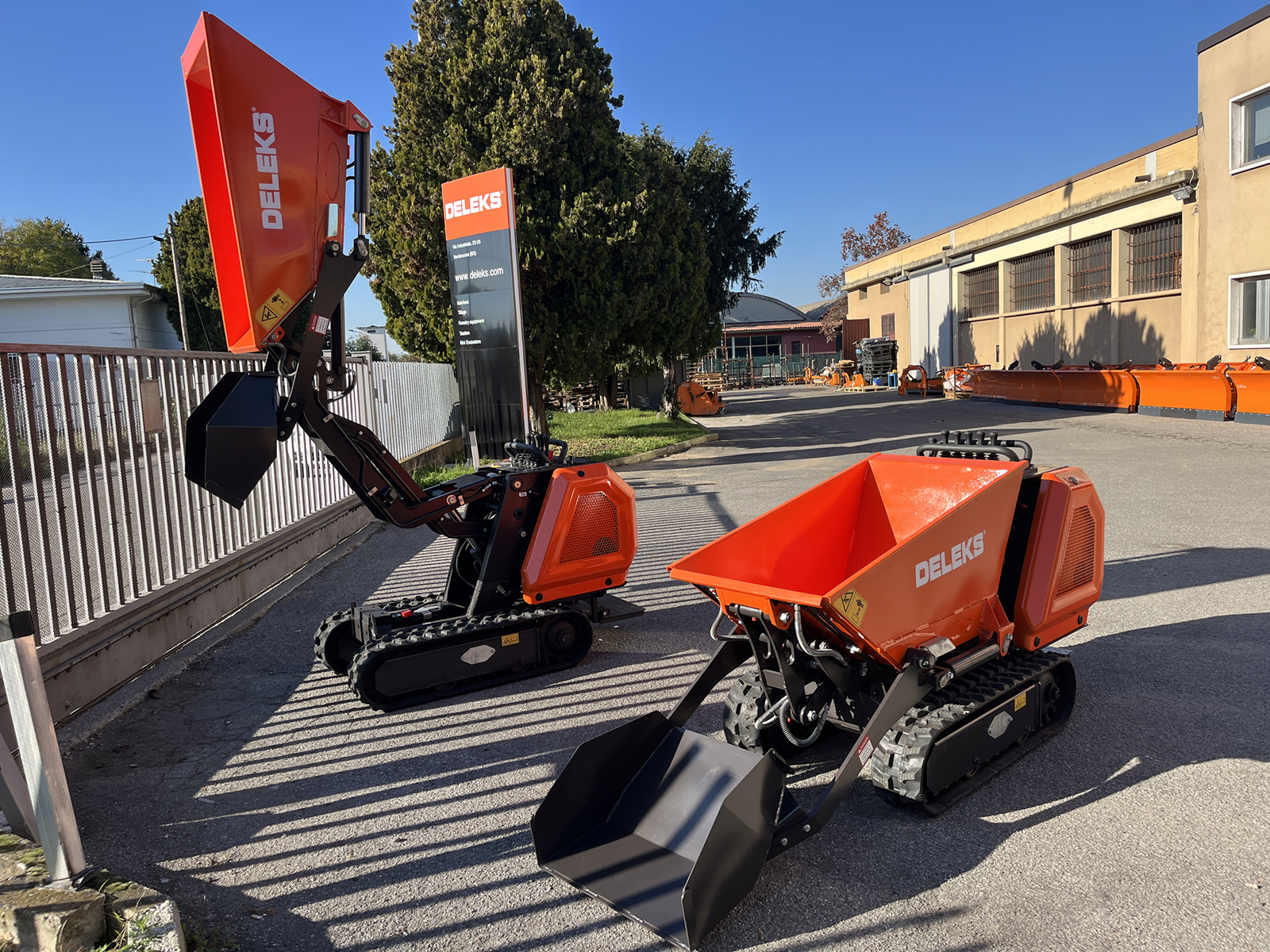

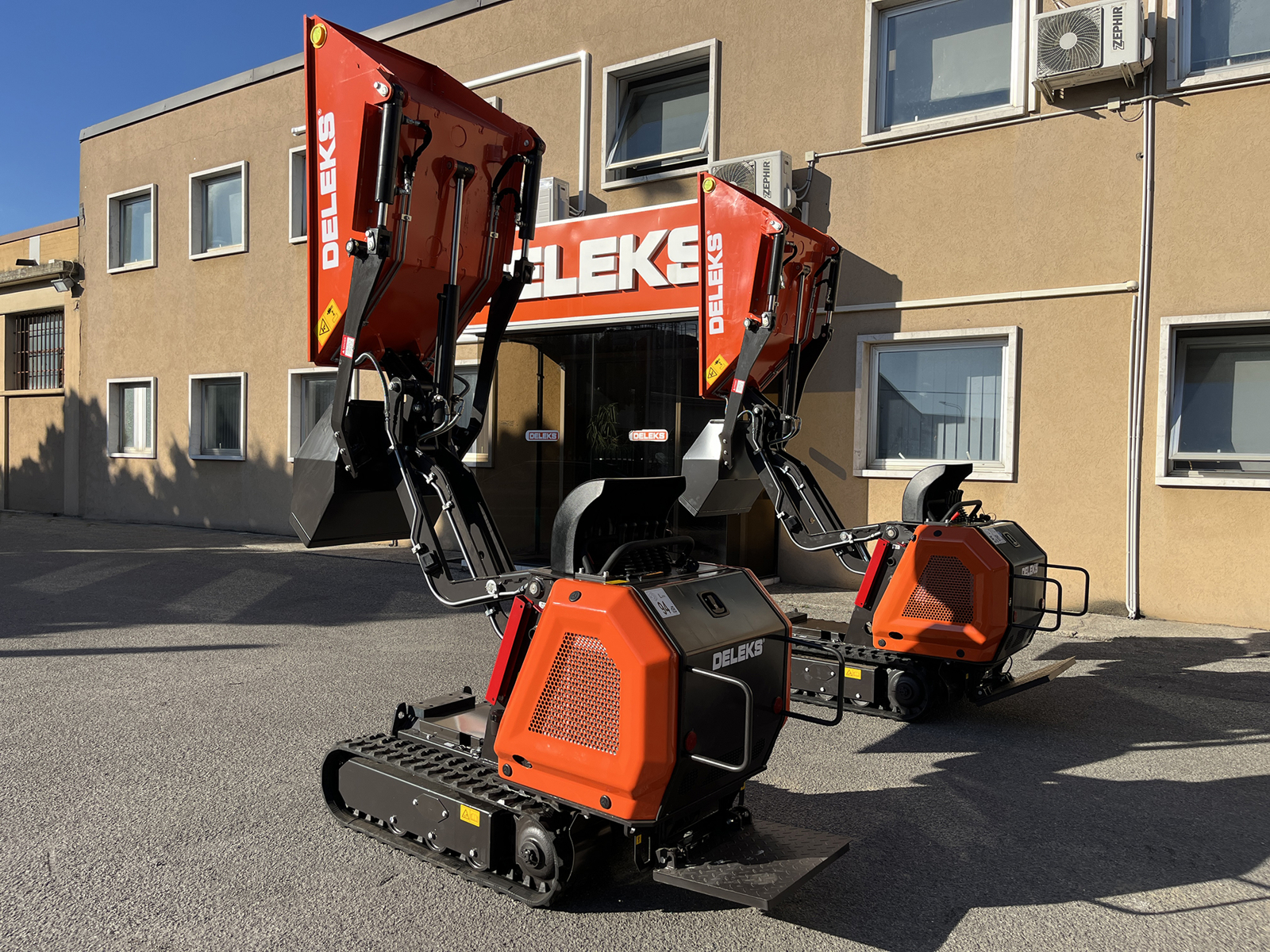

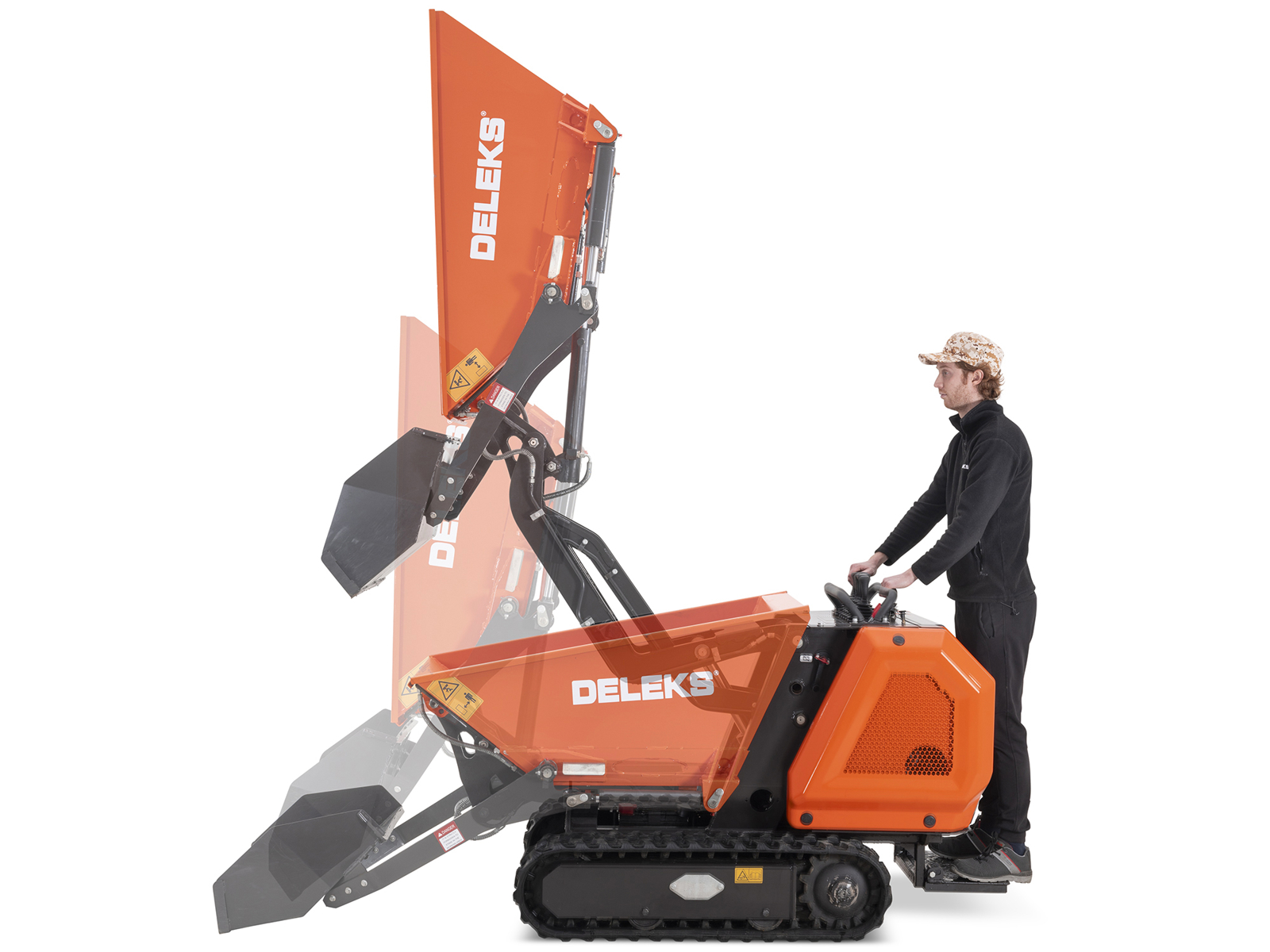

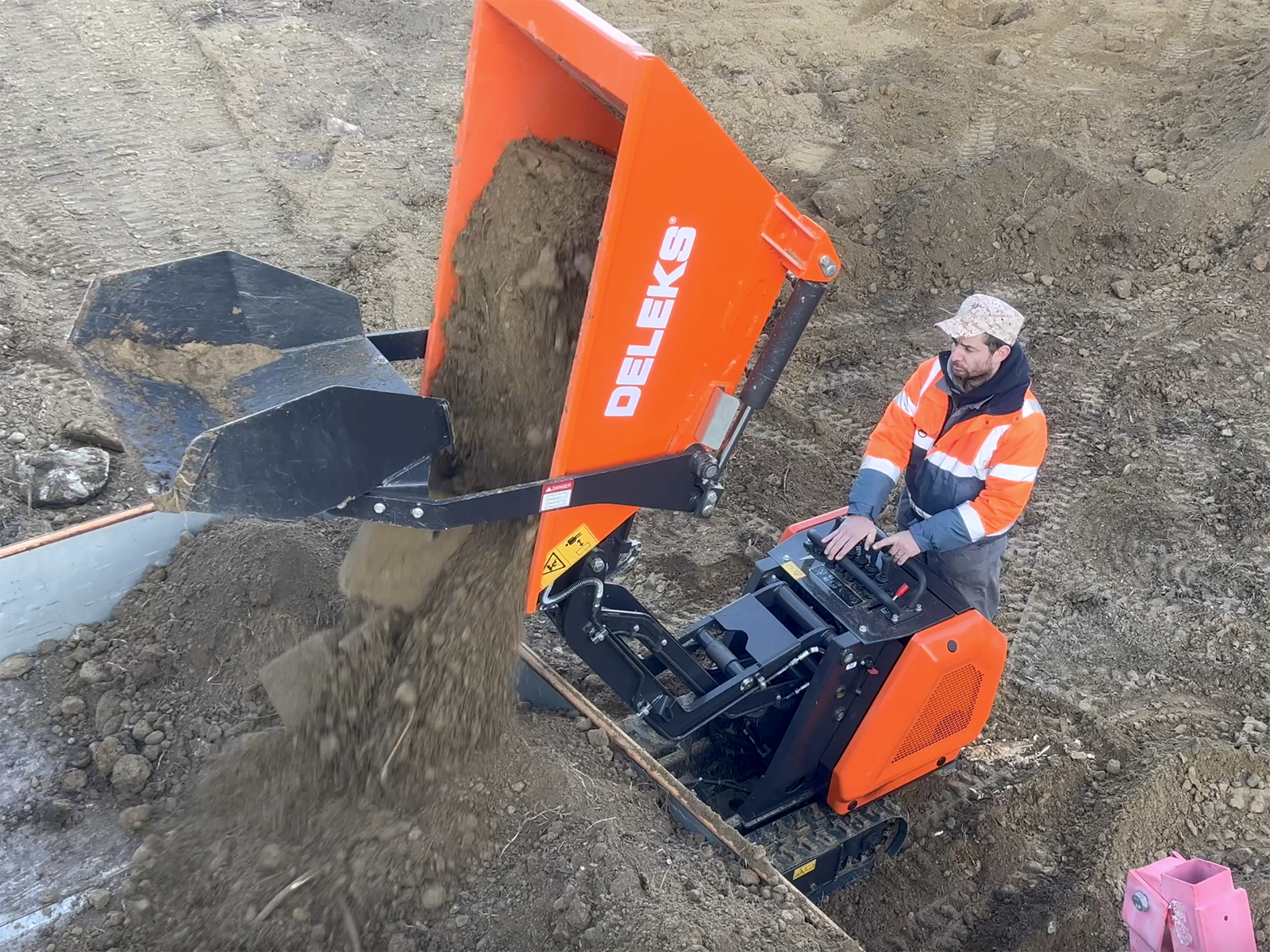

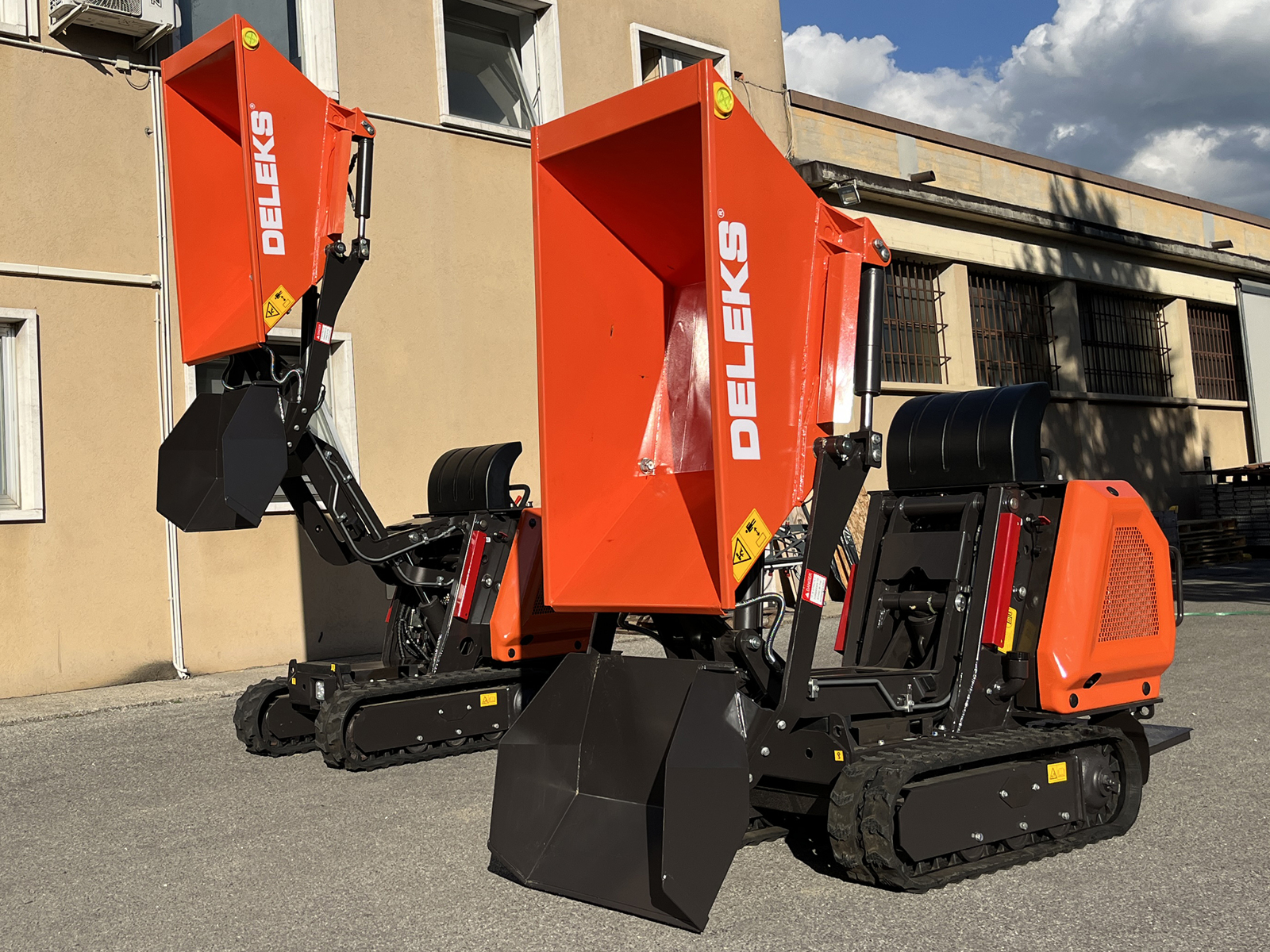

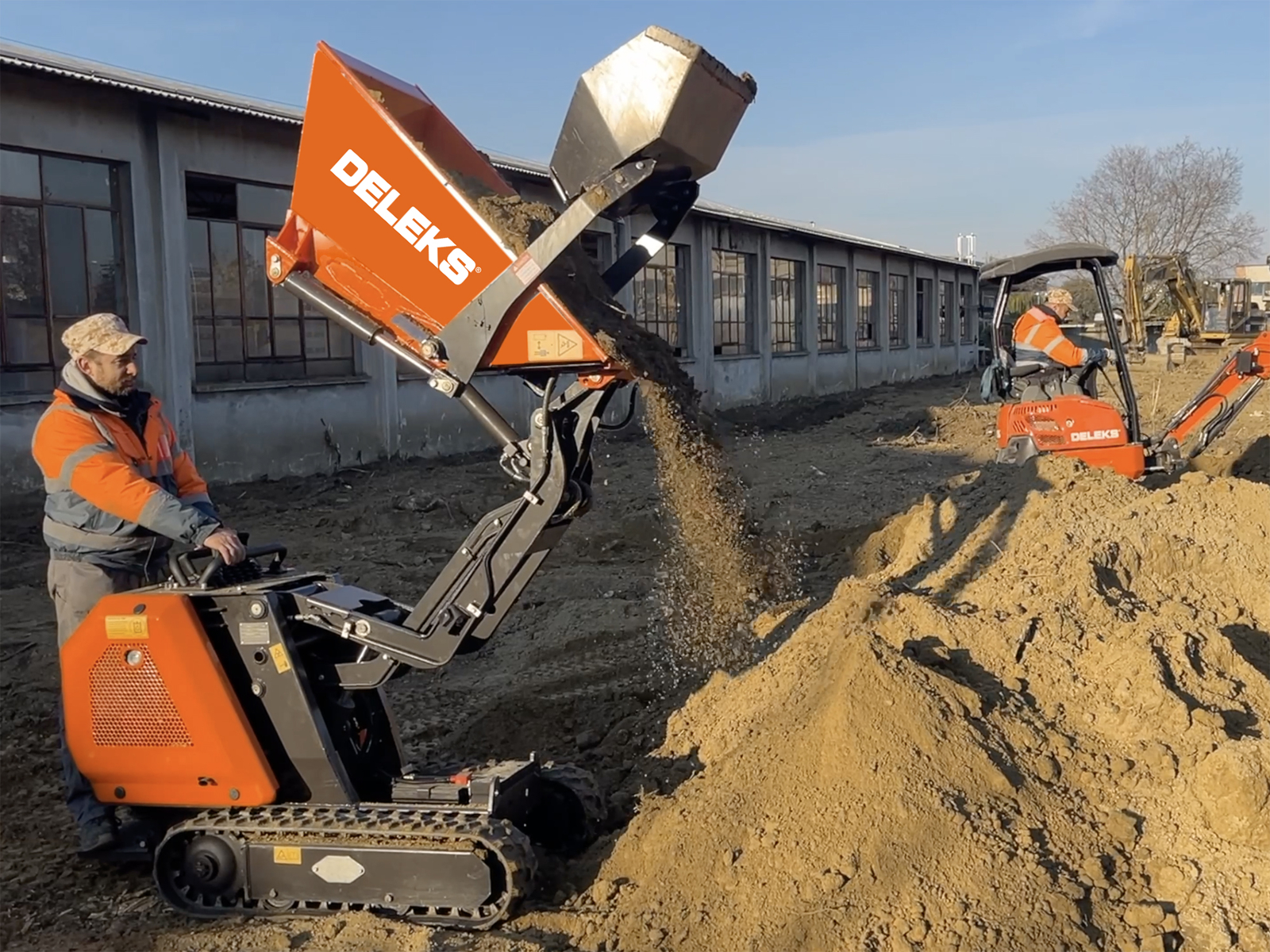

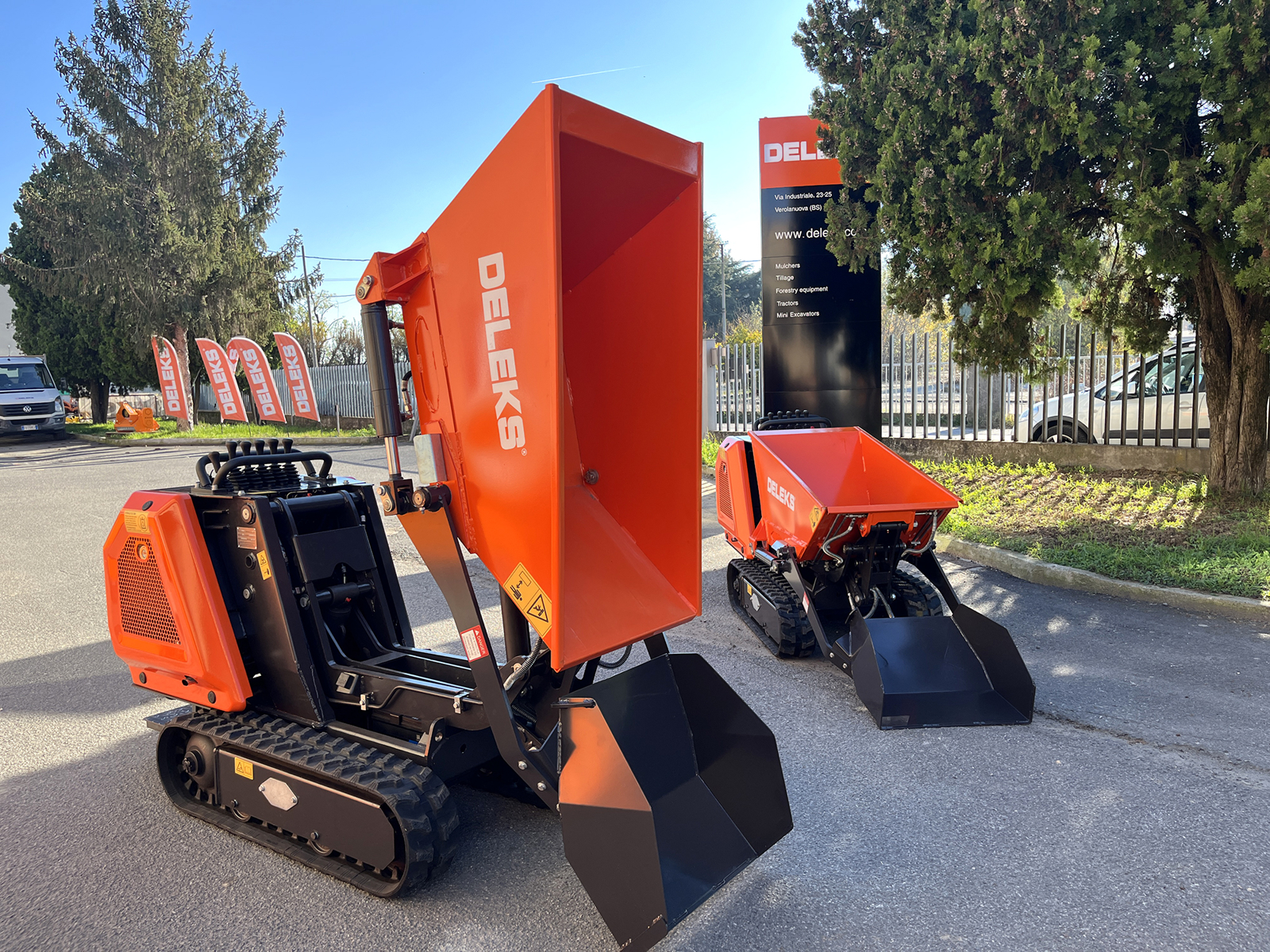

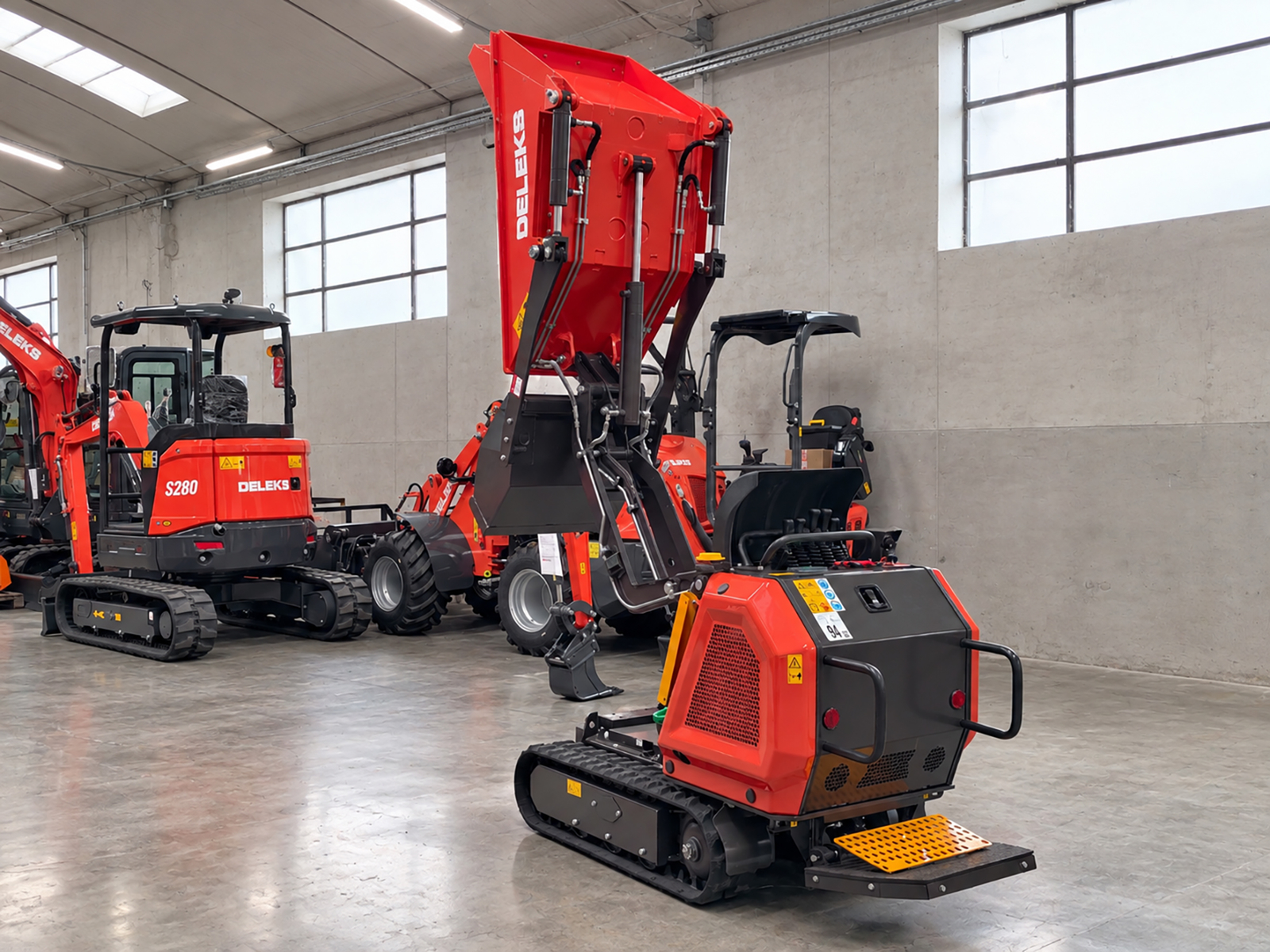

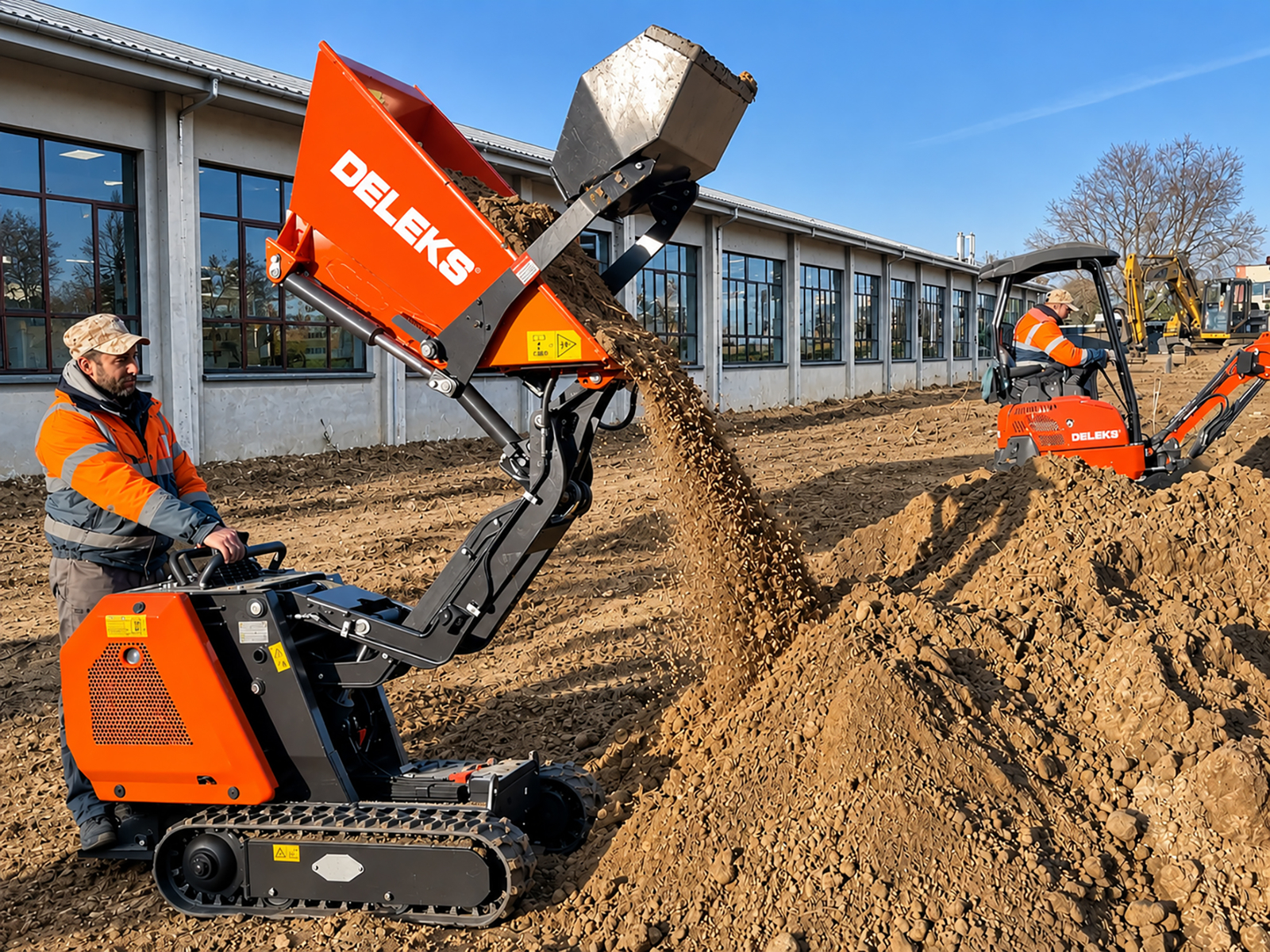

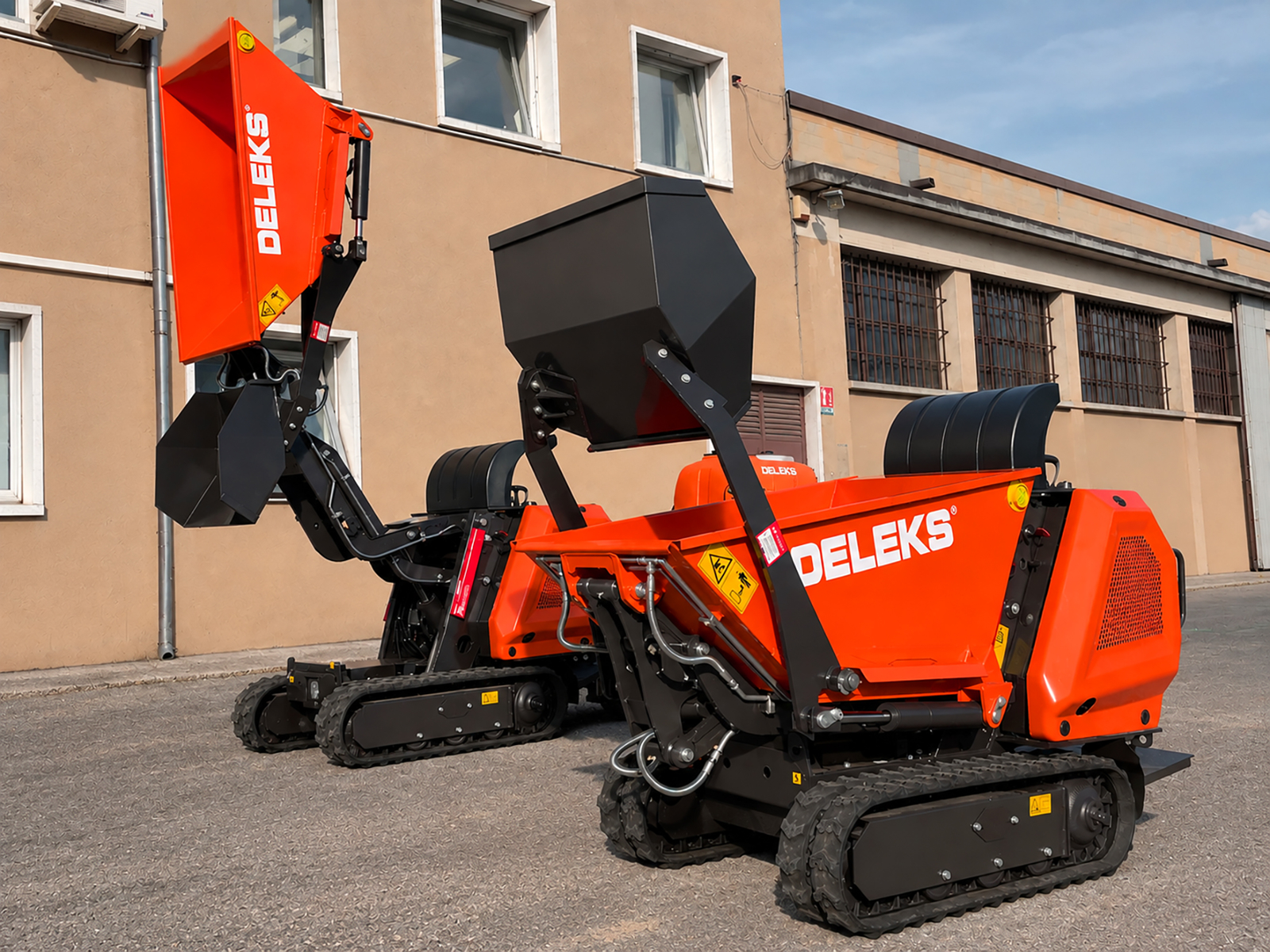

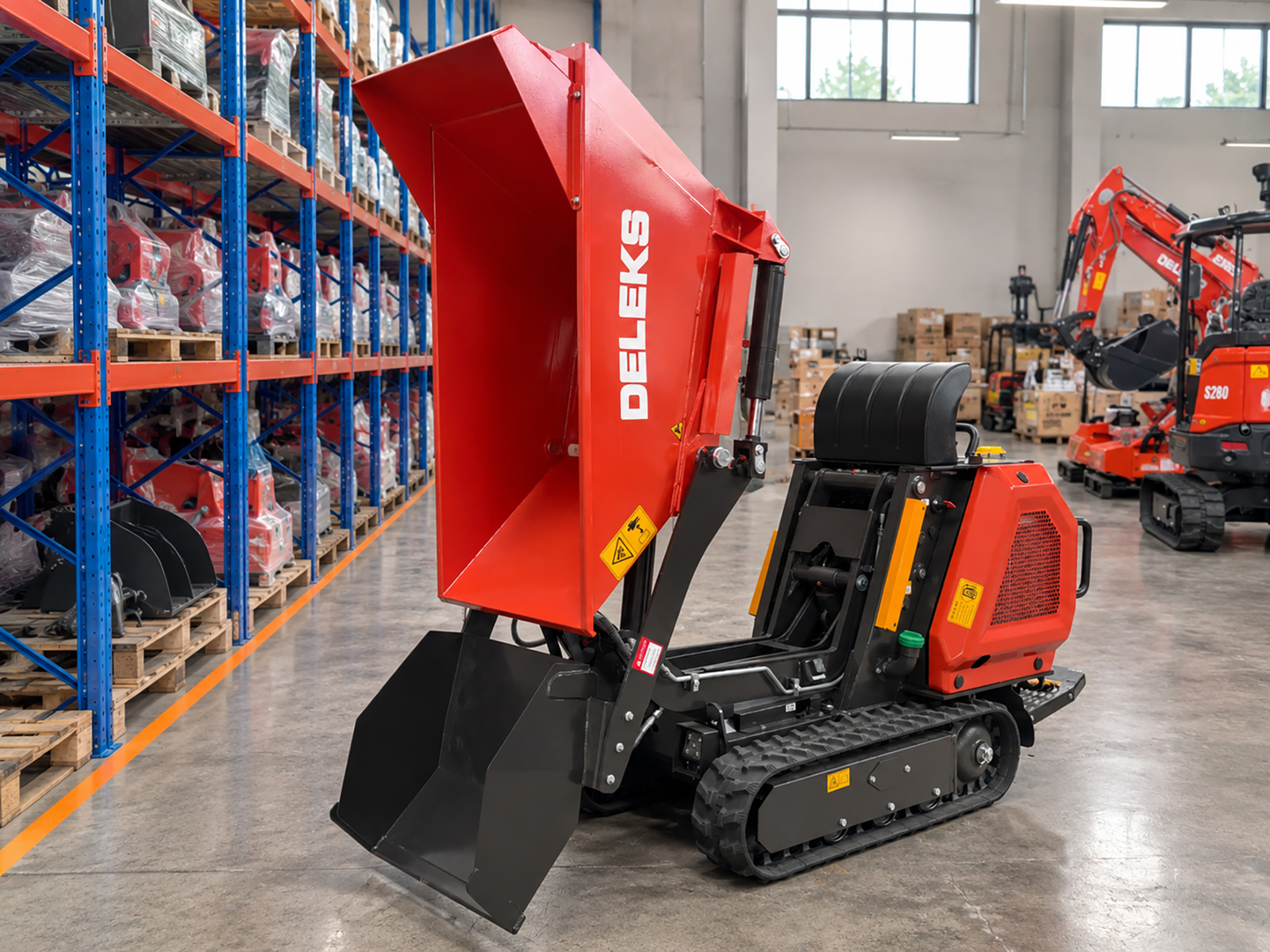

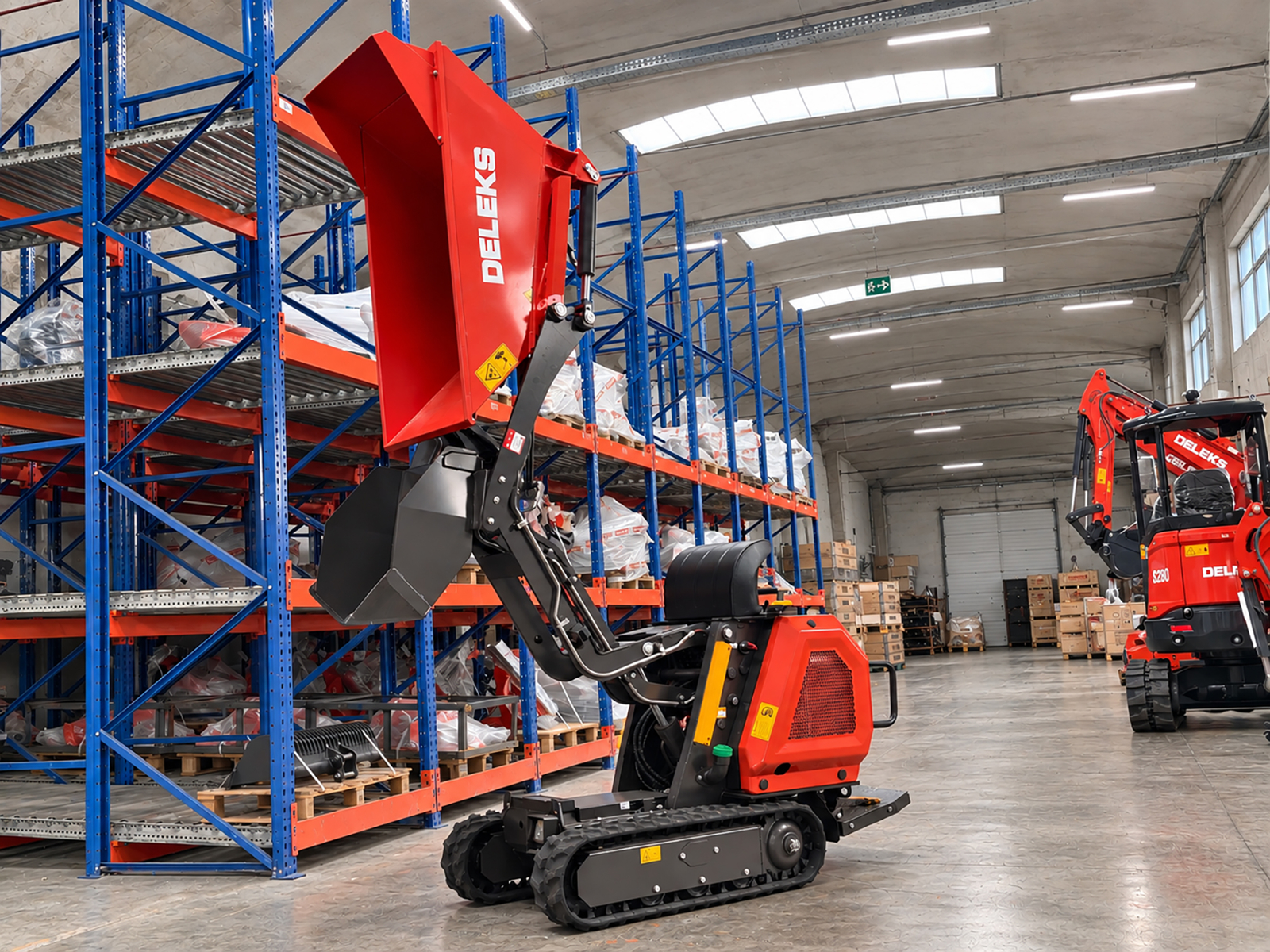

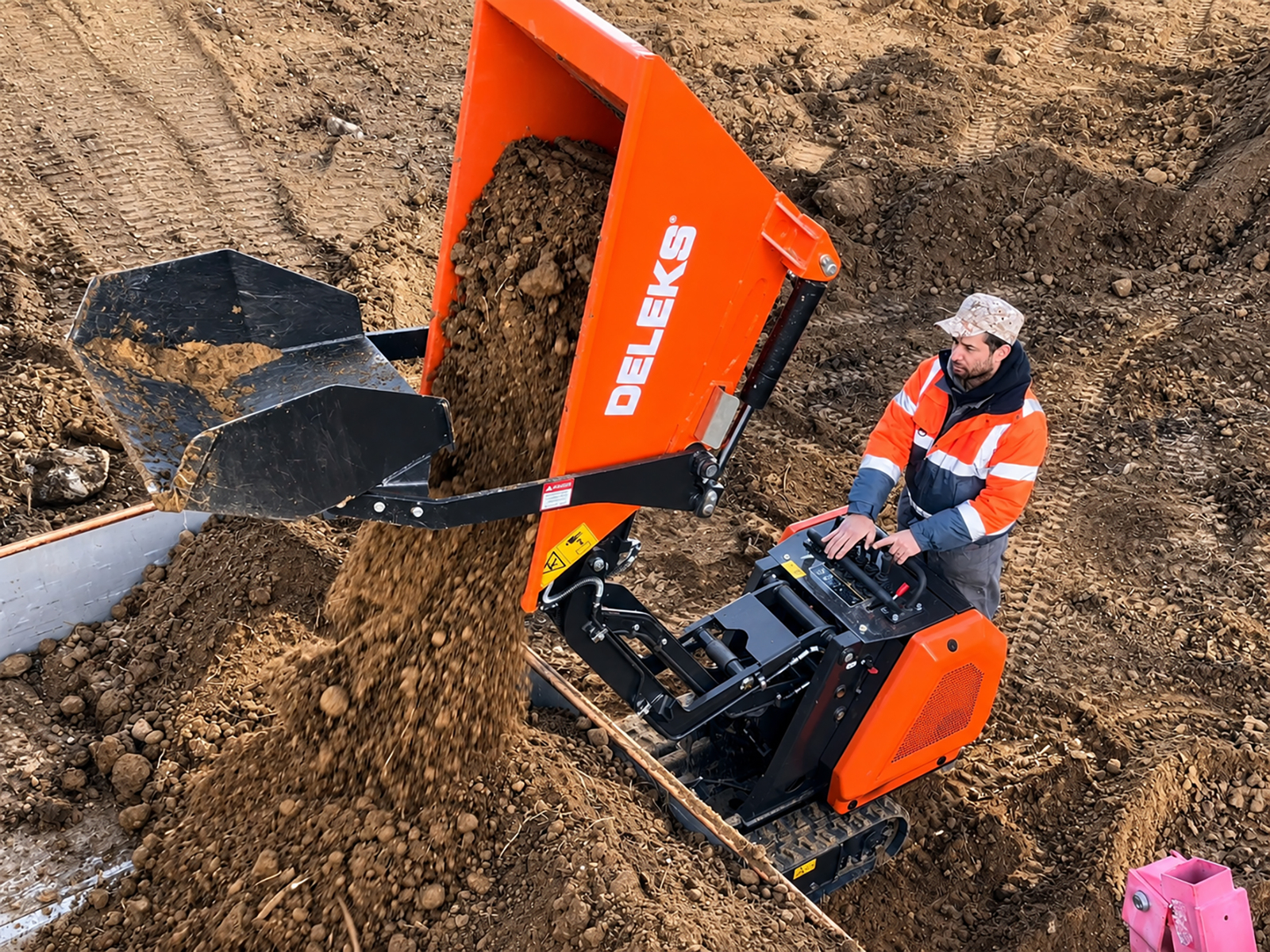

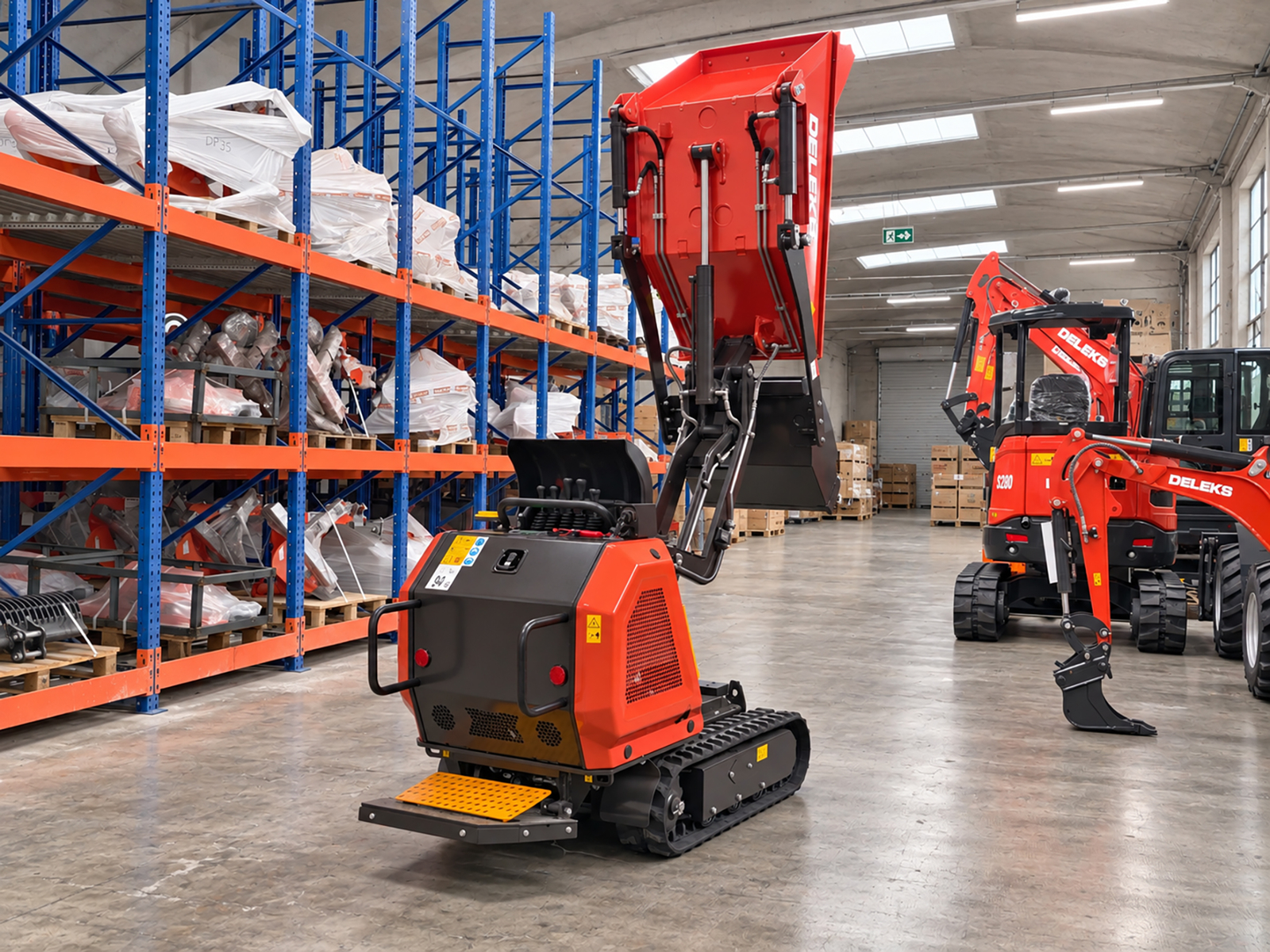

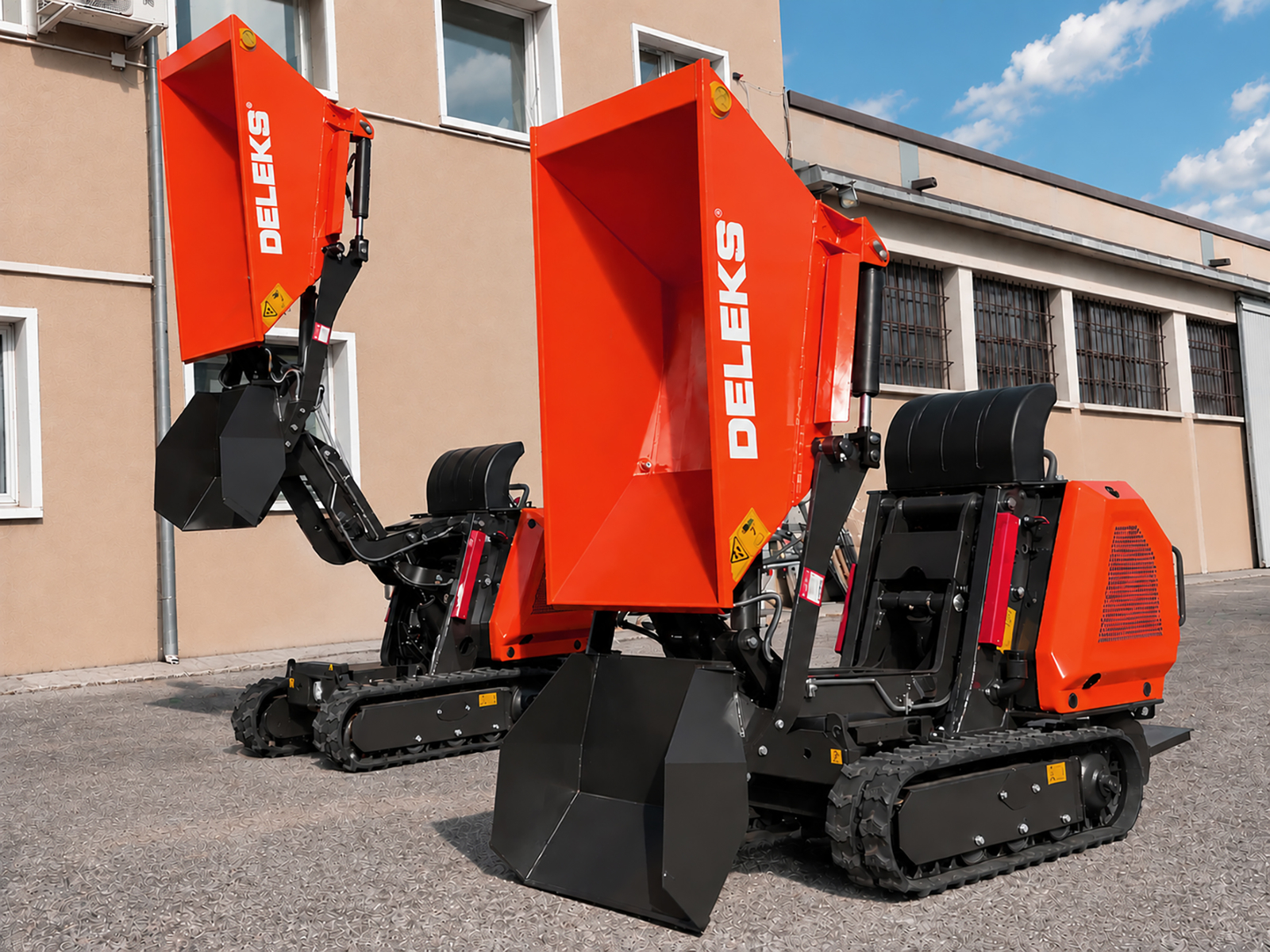

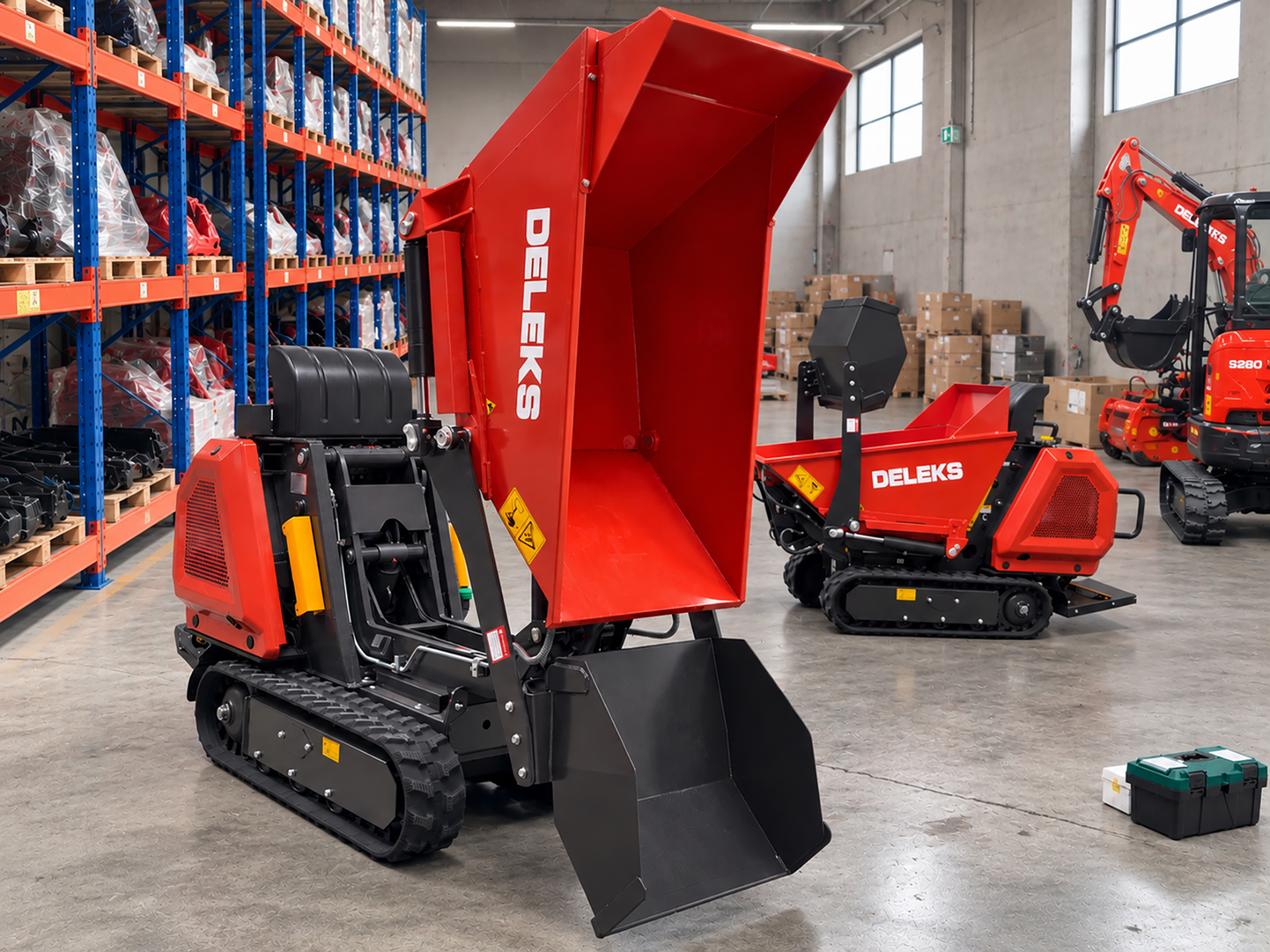

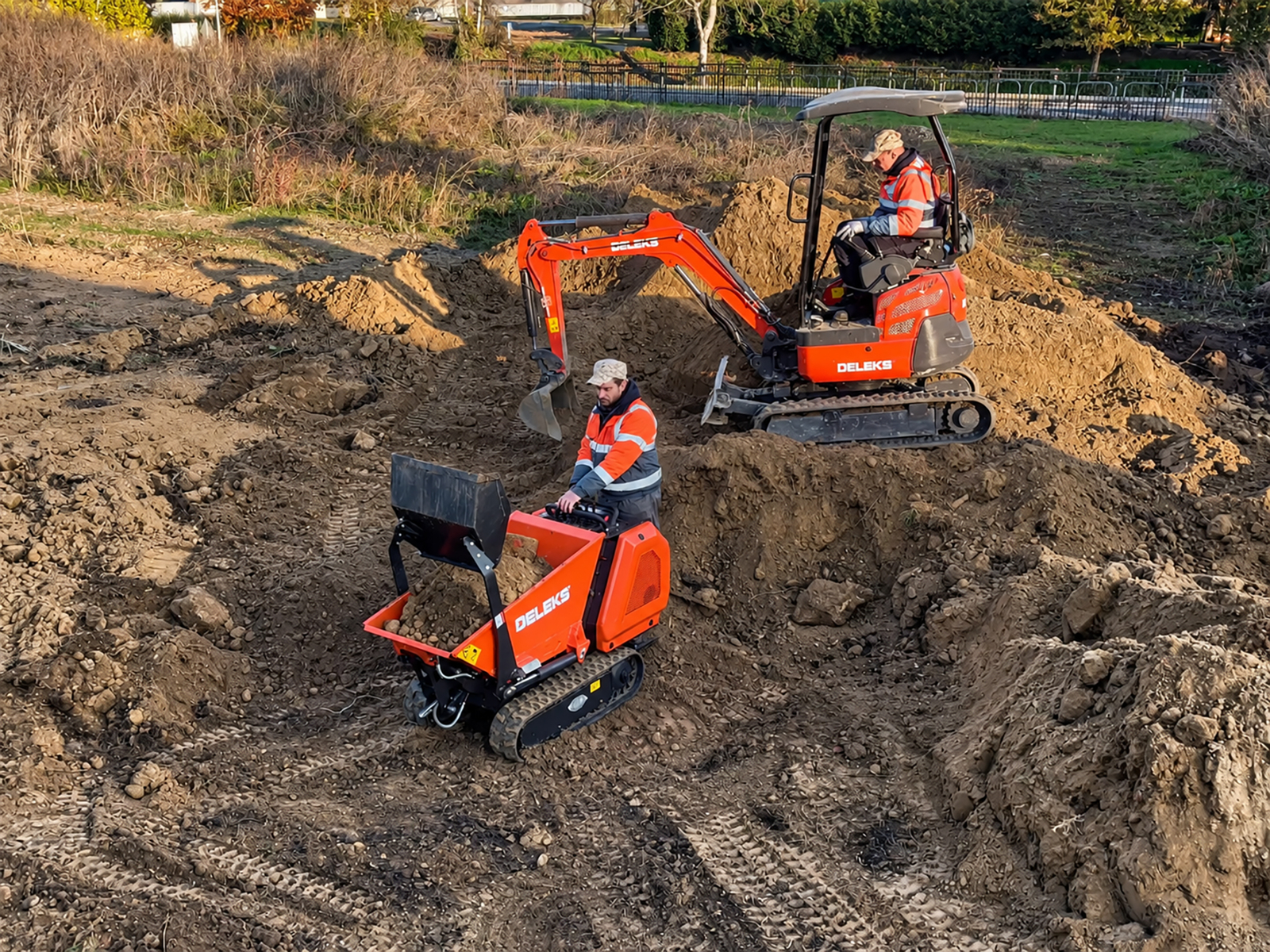

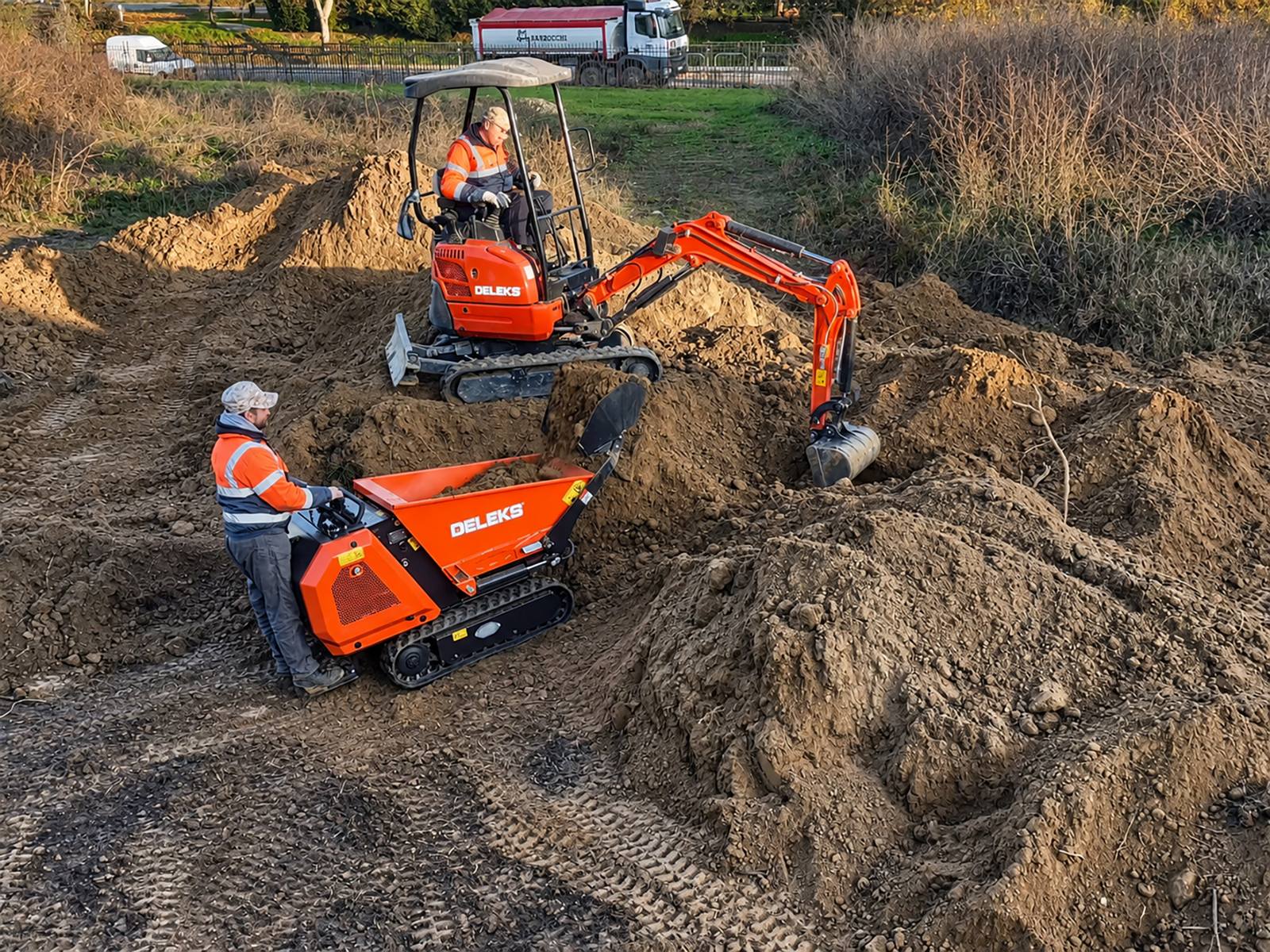

The dumper-type body with high discharge allows direct tipping into truck beds or elevated containers, significantly reducing working time and manual handling.

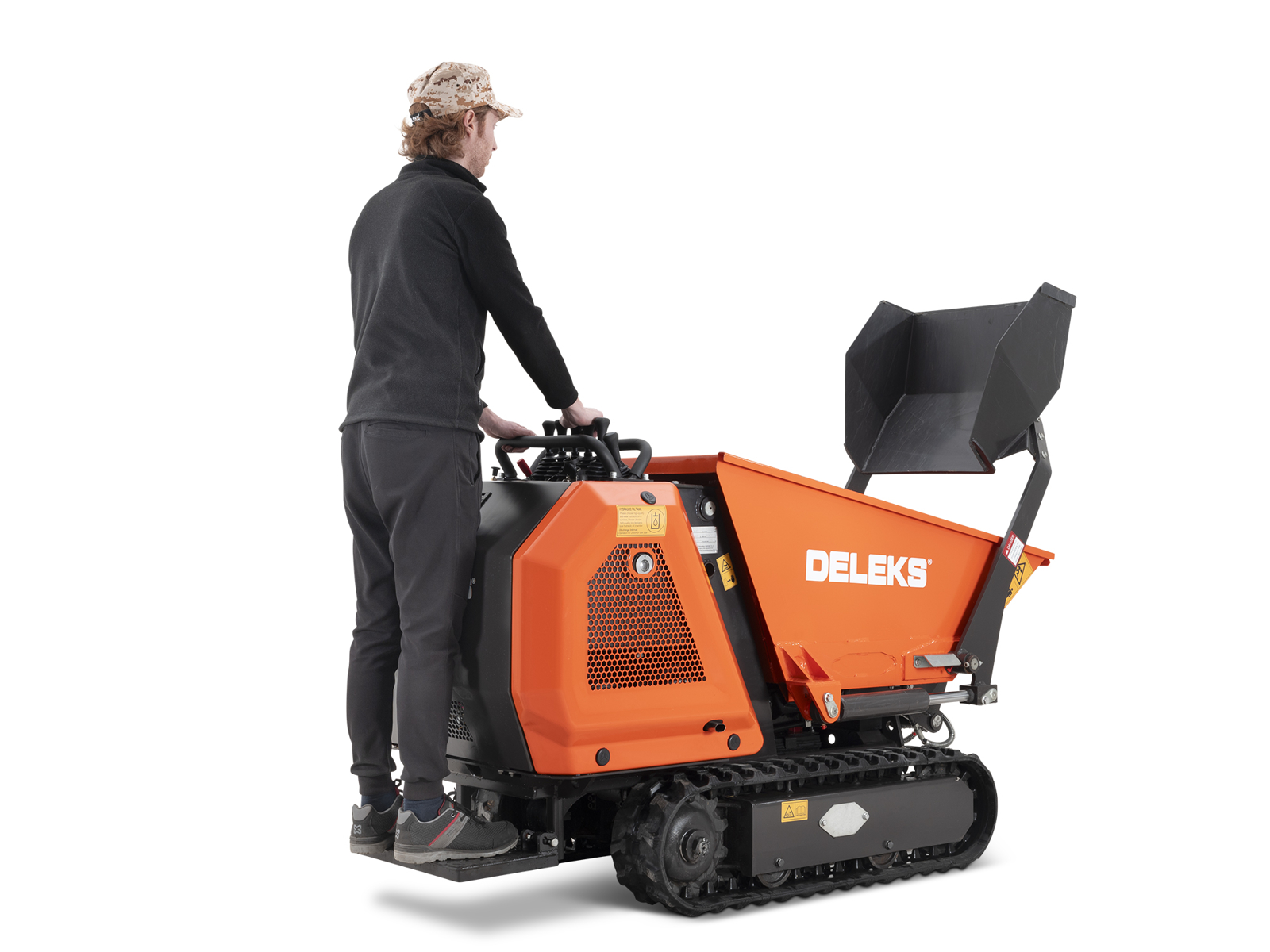

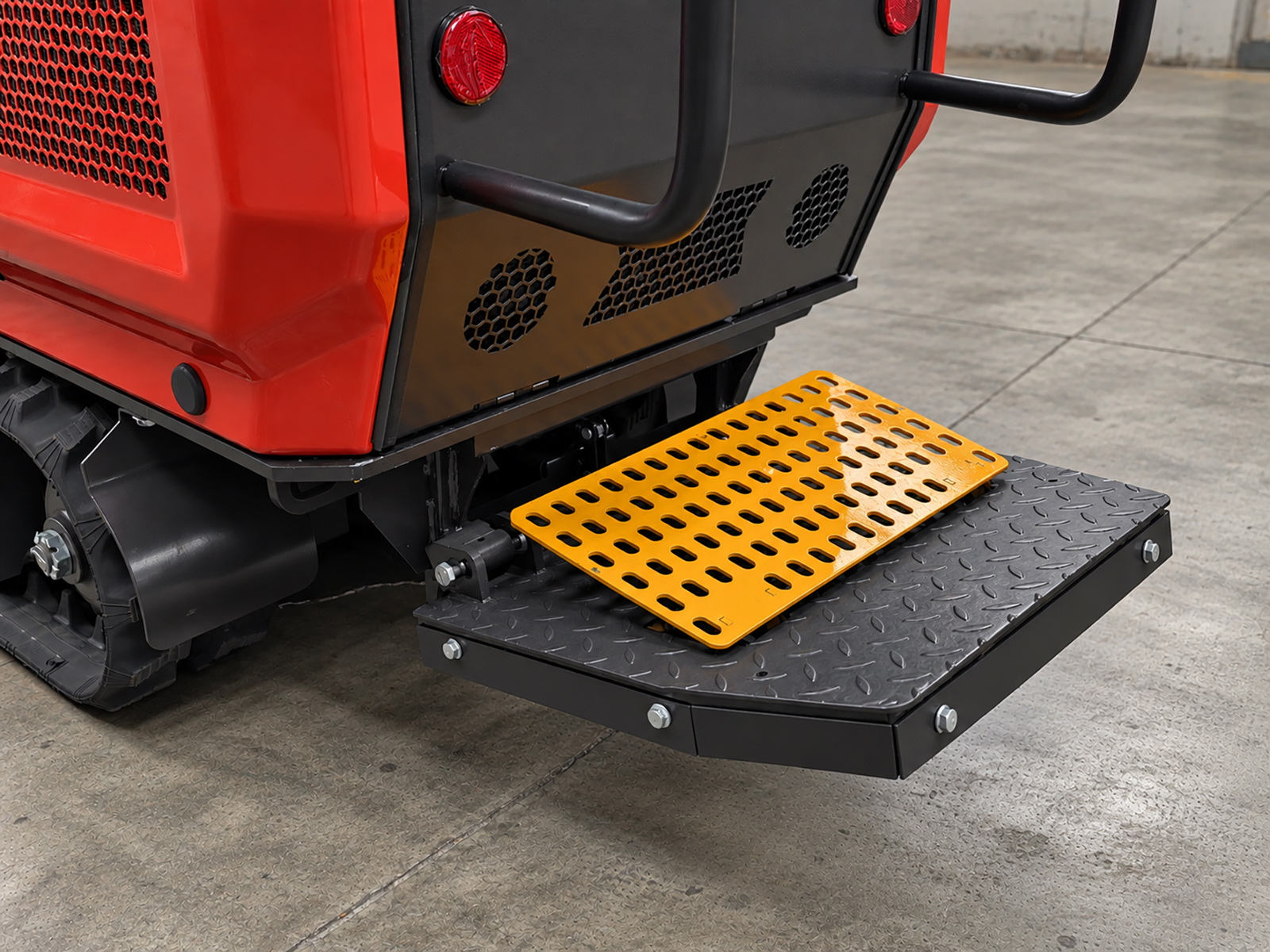

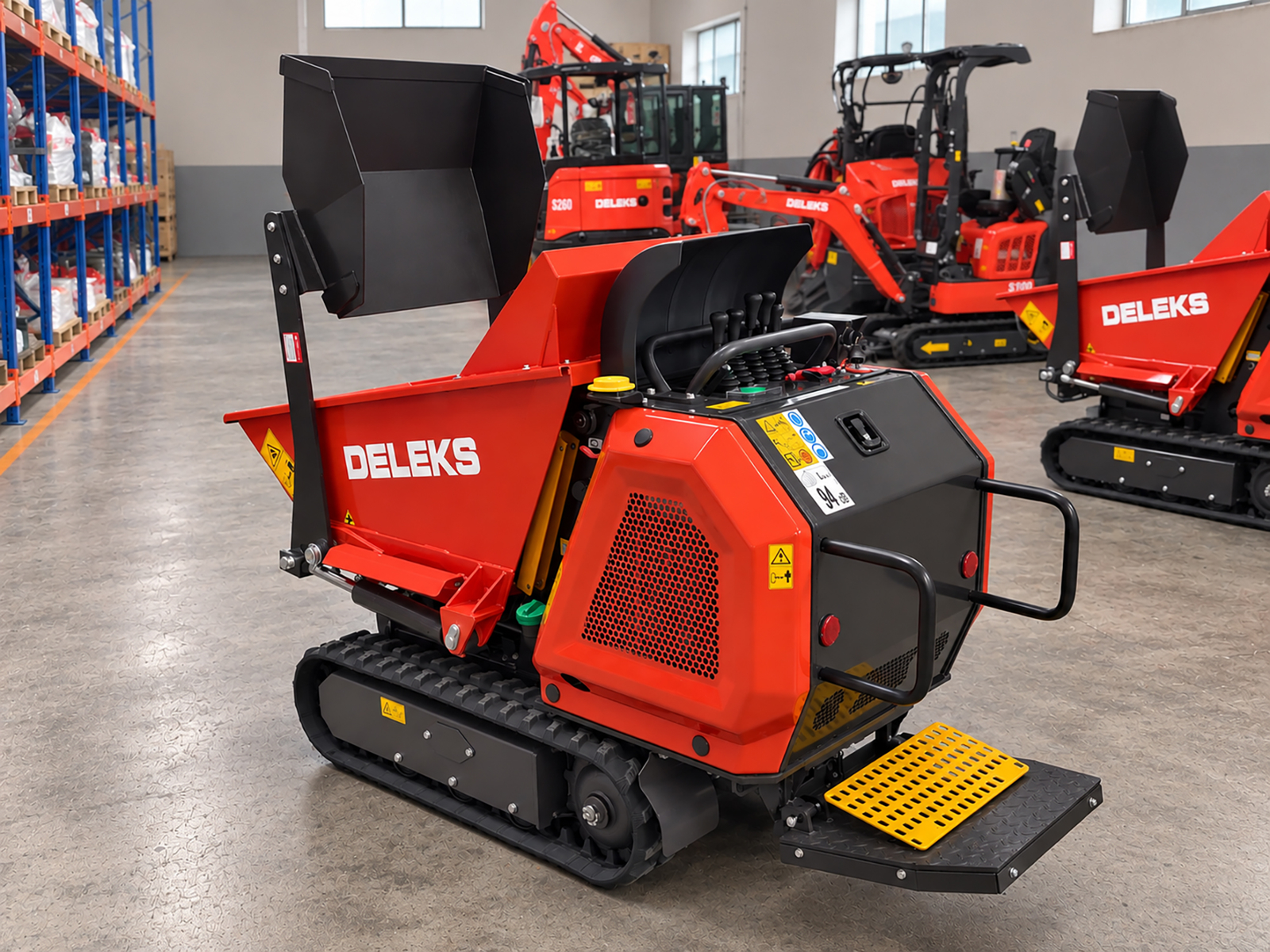

The integrated operator platform allows comfortable on-board operation, making the M8000-KUBOTA suitable for continuous professional use.

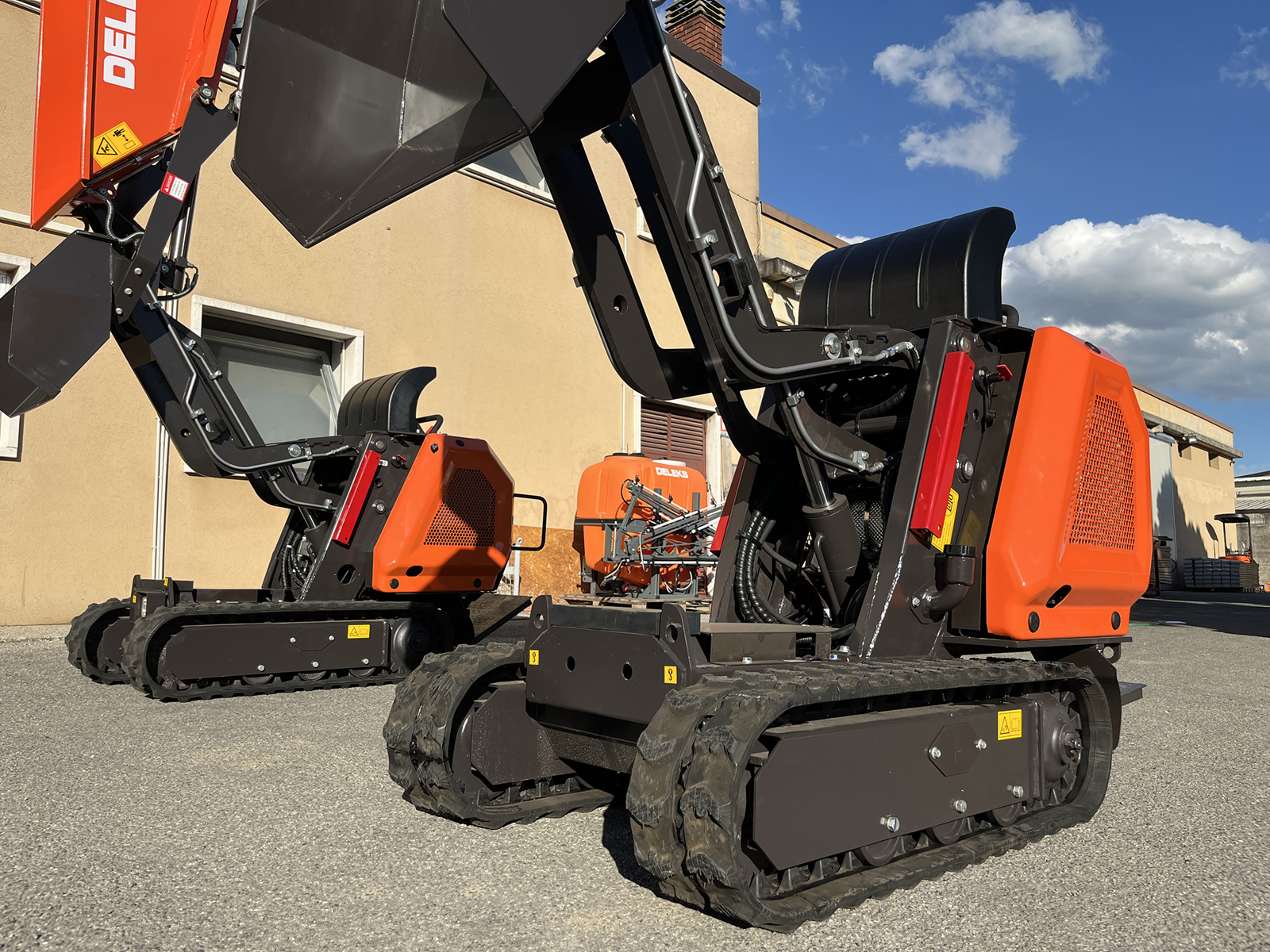

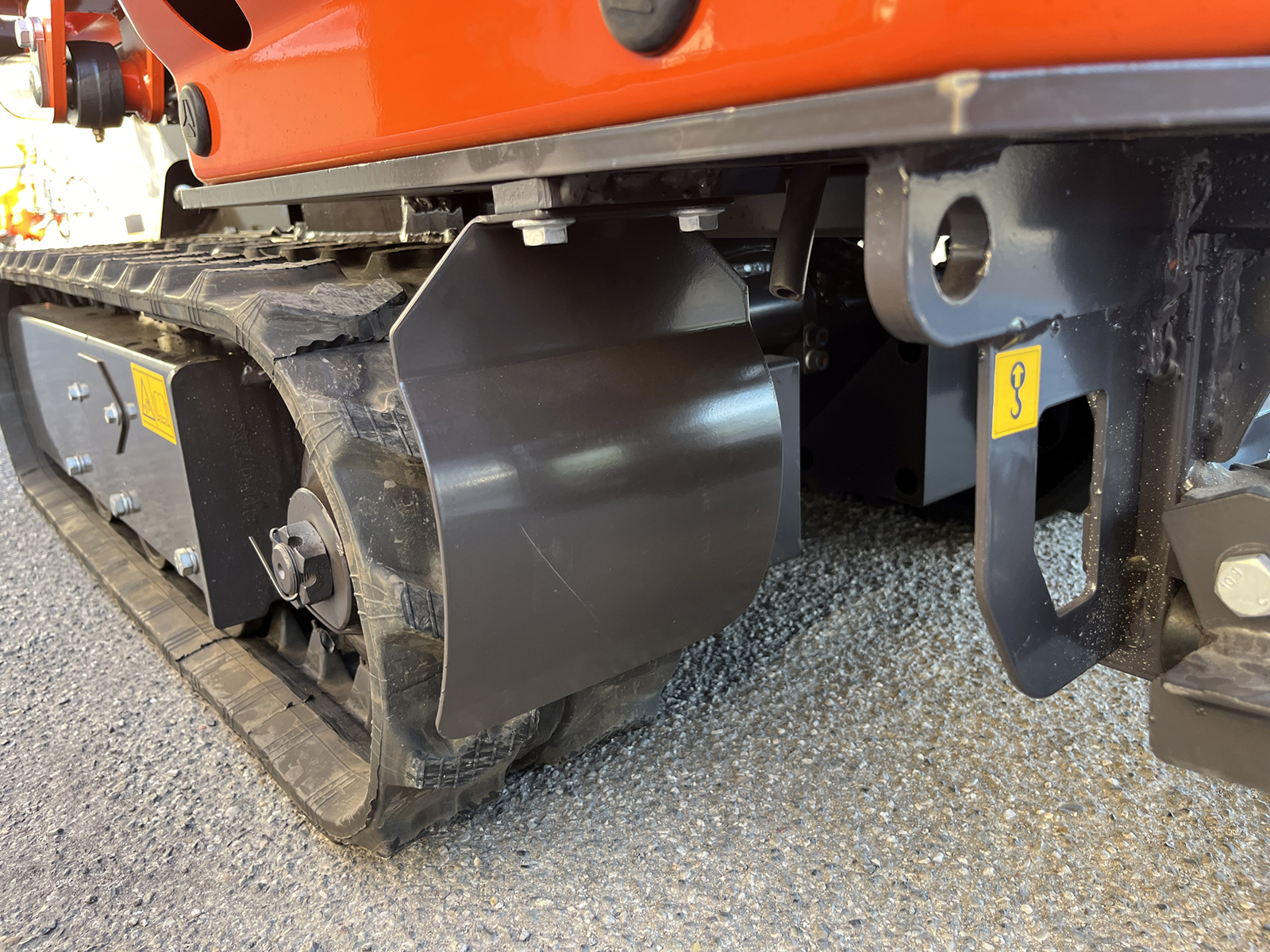

The tracked drive system ensures stability, traction and low ground pressure, allowing safe operation on uneven, muddy, sandy or steep terrain.

DOUBLE IN-LINE COUNTERBALANCE VALVE

The DELEKS® M8000-KUBOTA is equipped with a double in-line counterbalance valve integrated into the hydrostatic traction circuit.

This system allows controlled, pilot-operated track movement, enabling the operator to precisely modulate machine travel uphill, downhill, forward or reverse, preventing uncontrolled movements.

The valve maintains constant hydraulic pressure, preventing sudden acceleration caused by load weight or slope, significantly improving control, stability and operational safety.

APPLICATION

Tracked mini dumper suitable for:

• loading and transporting soil and sand

• handling construction materials and aggregates

• moving waste and debris

• use on construction sites, farms and industrial environments

• operations requiring direct unloading into trucks

TECHNICAL FEATURES

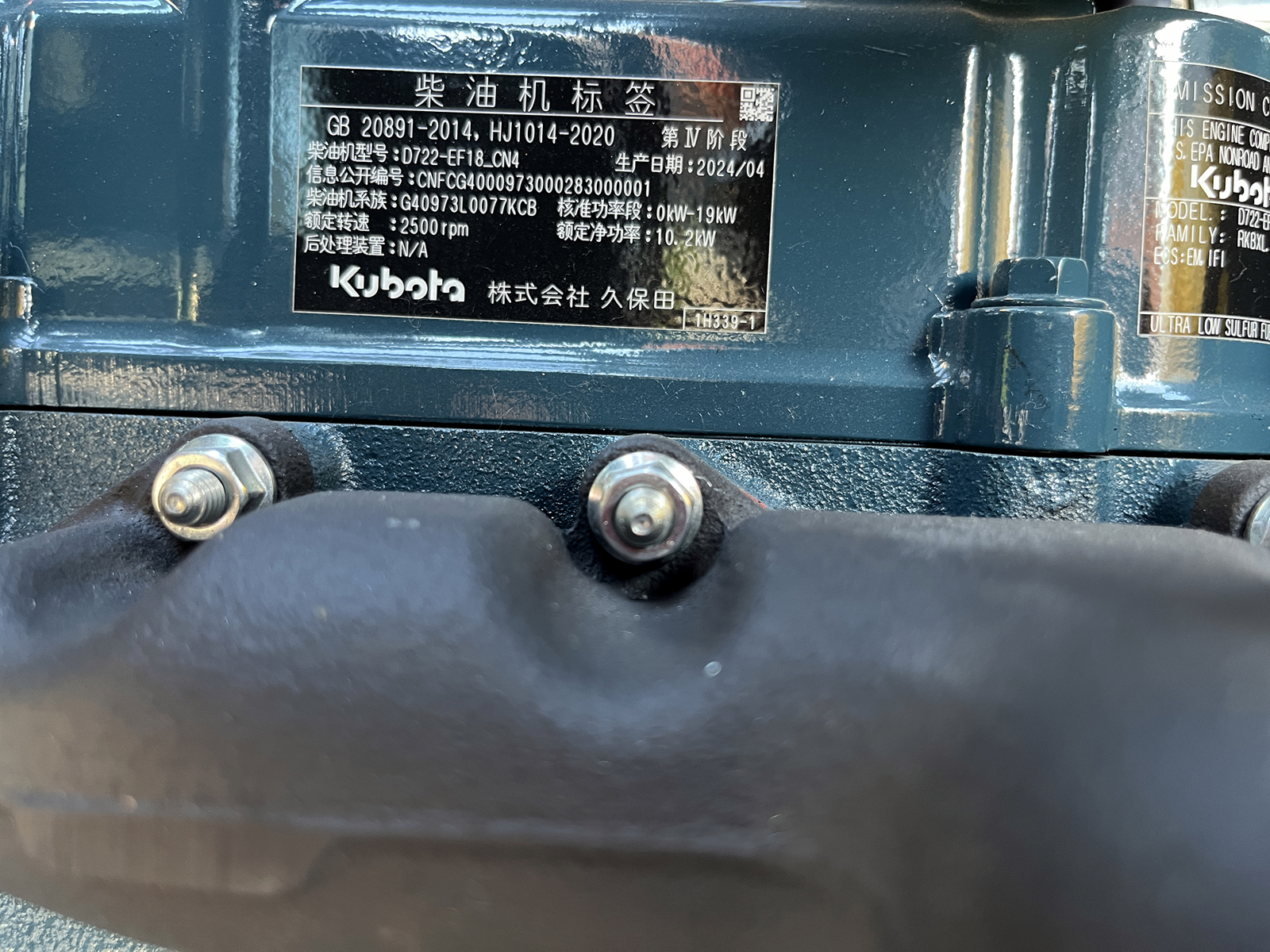

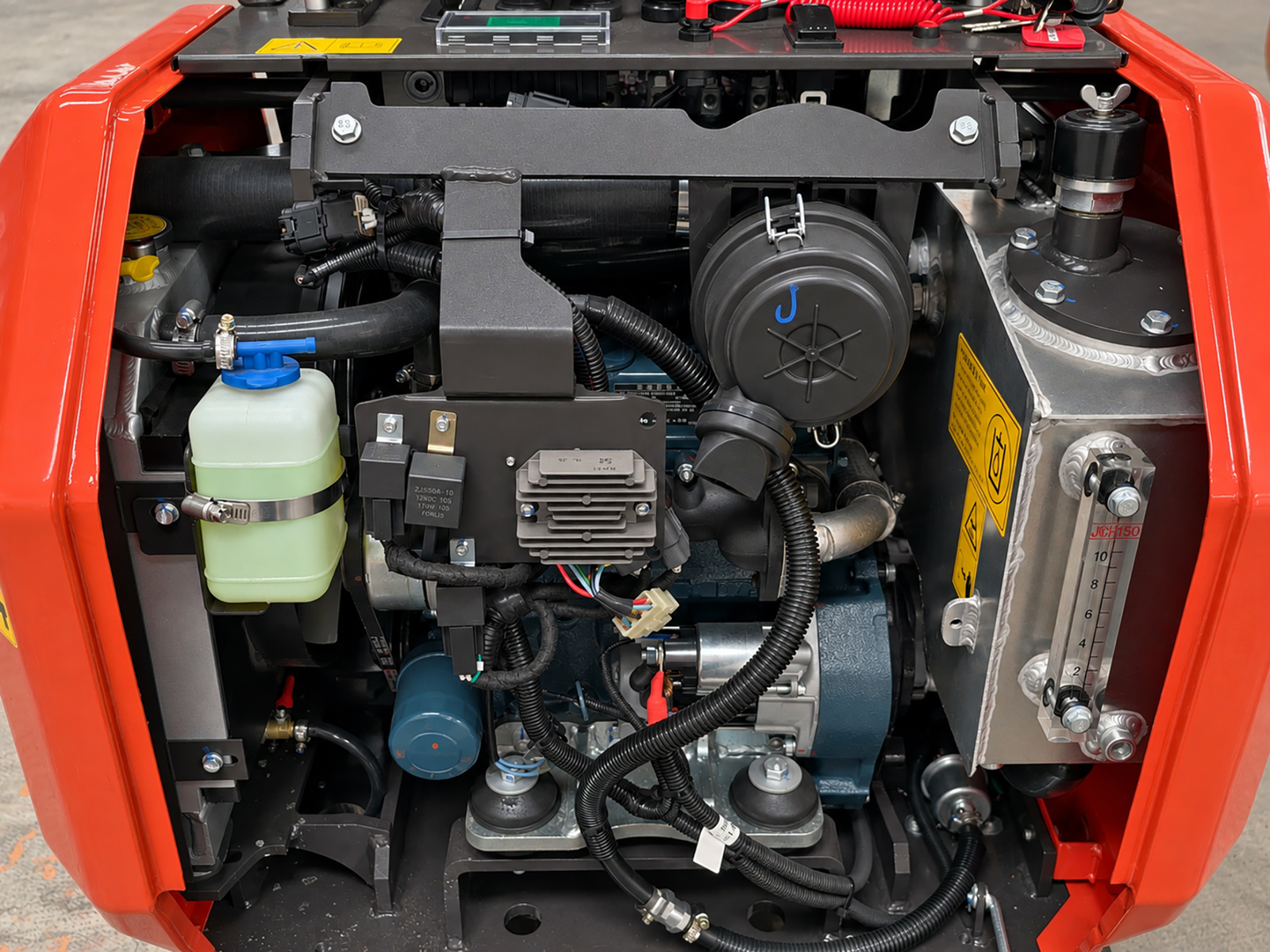

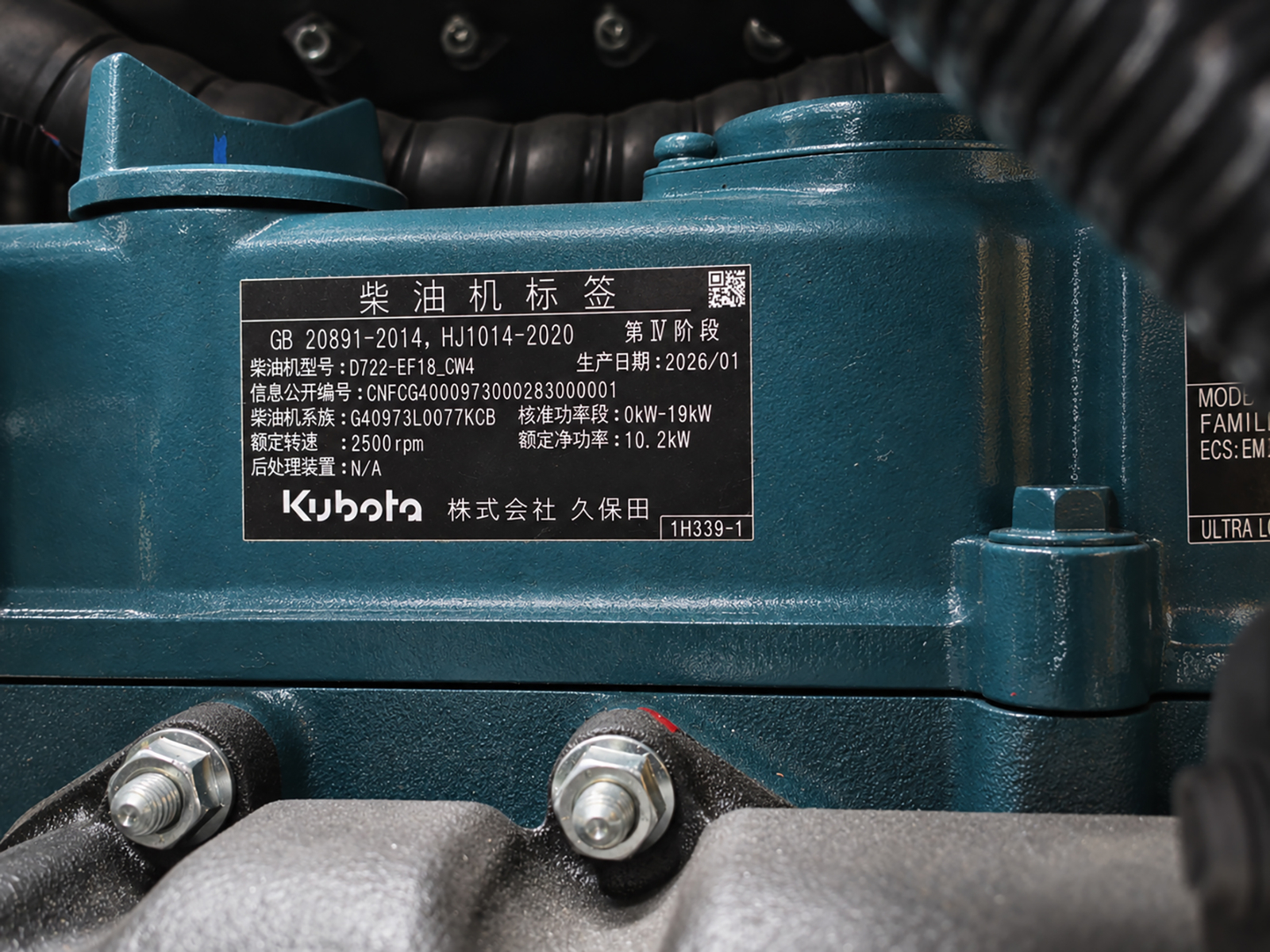

• Kubota D722 diesel engine

• Power output: 13.7 HP

• 3-cylinder engine

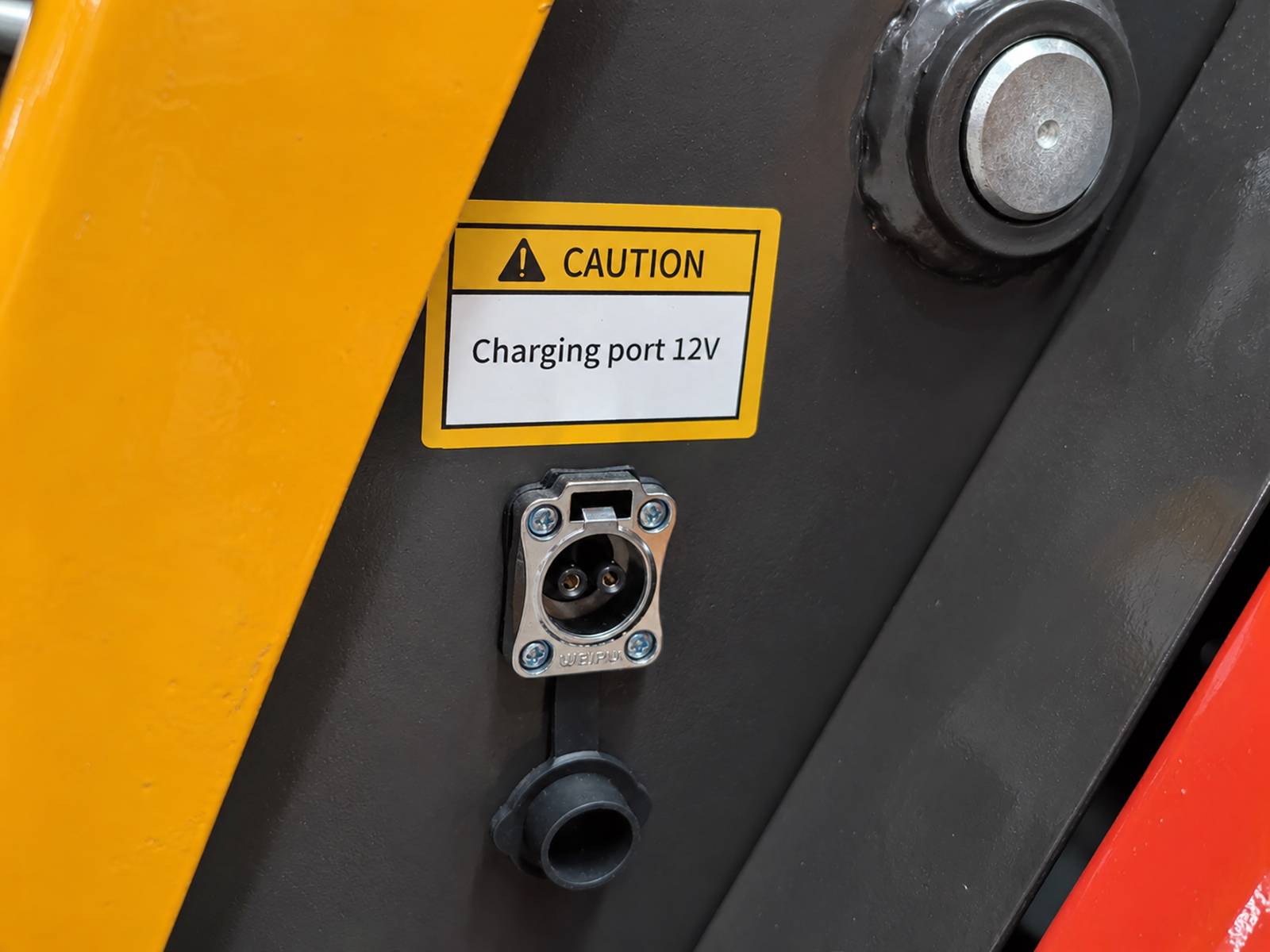

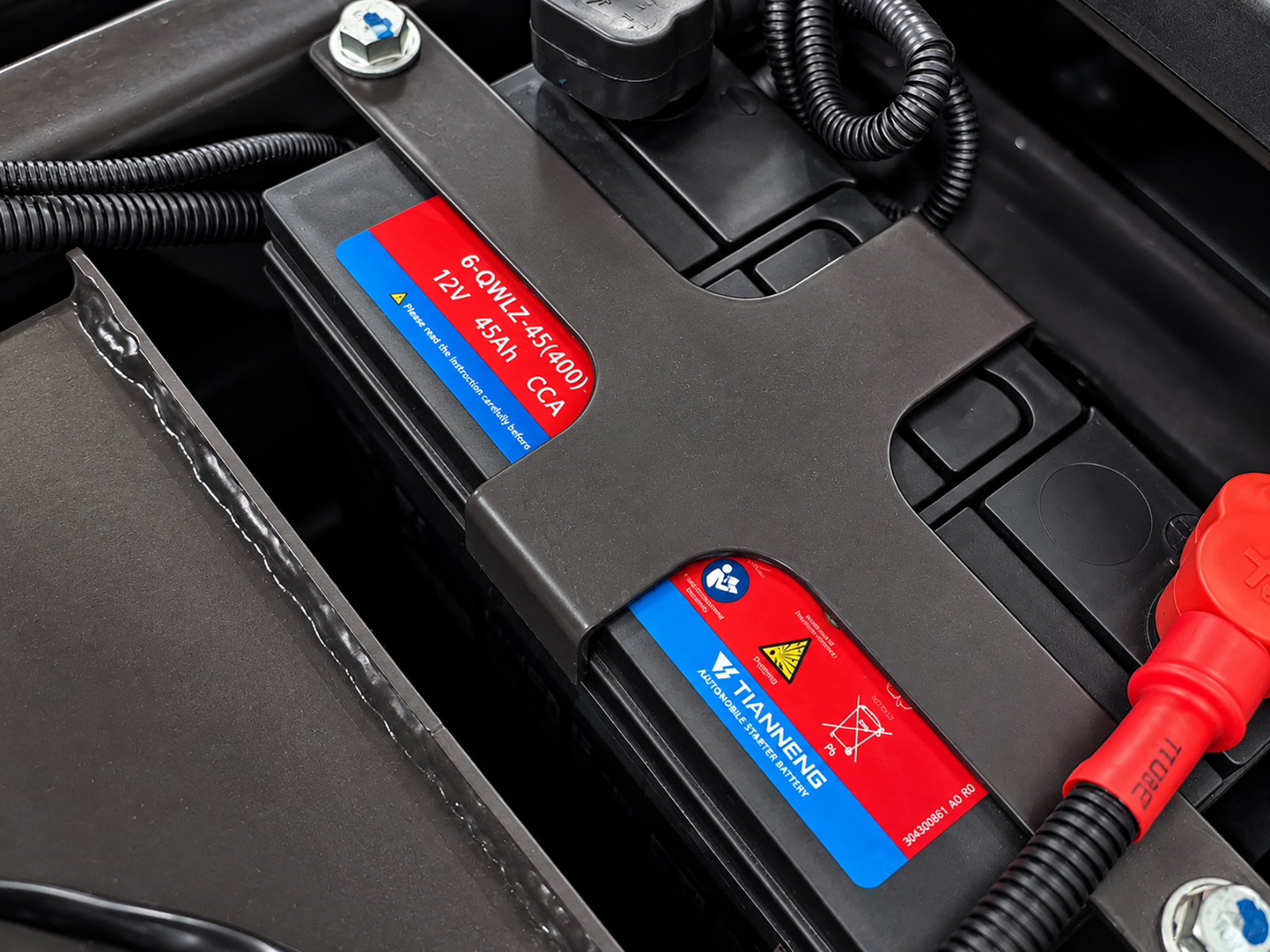

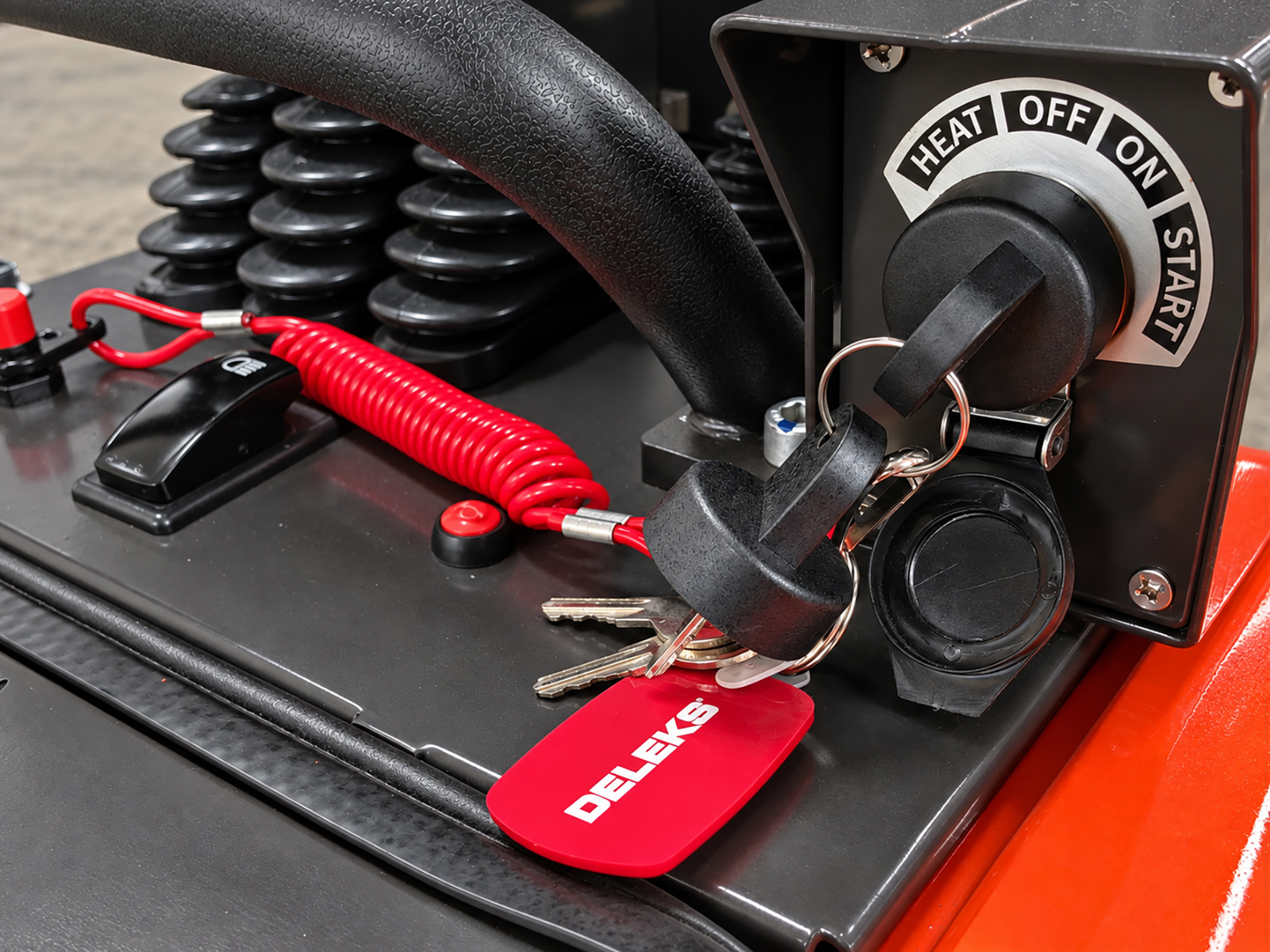

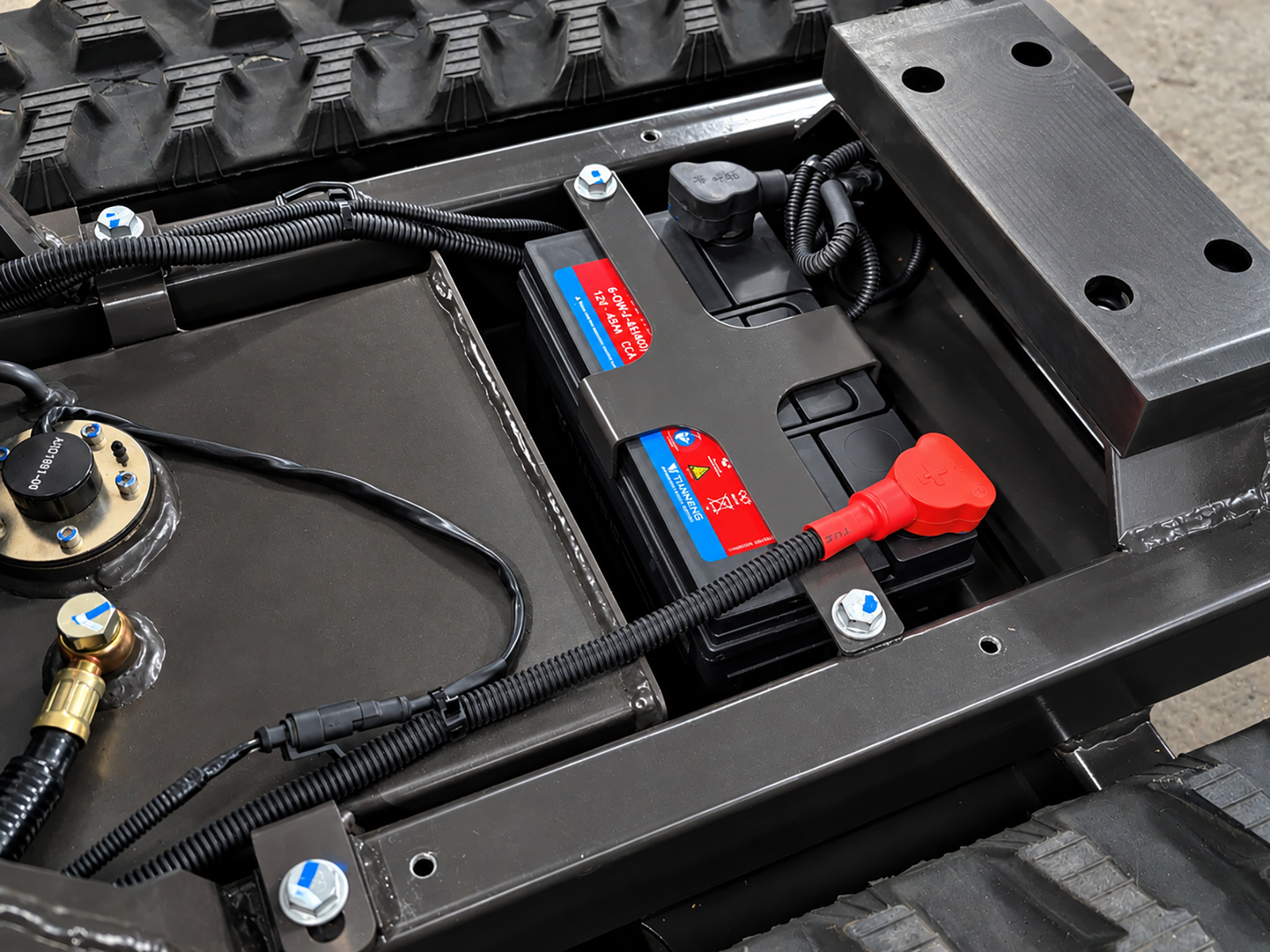

• Electric start with key

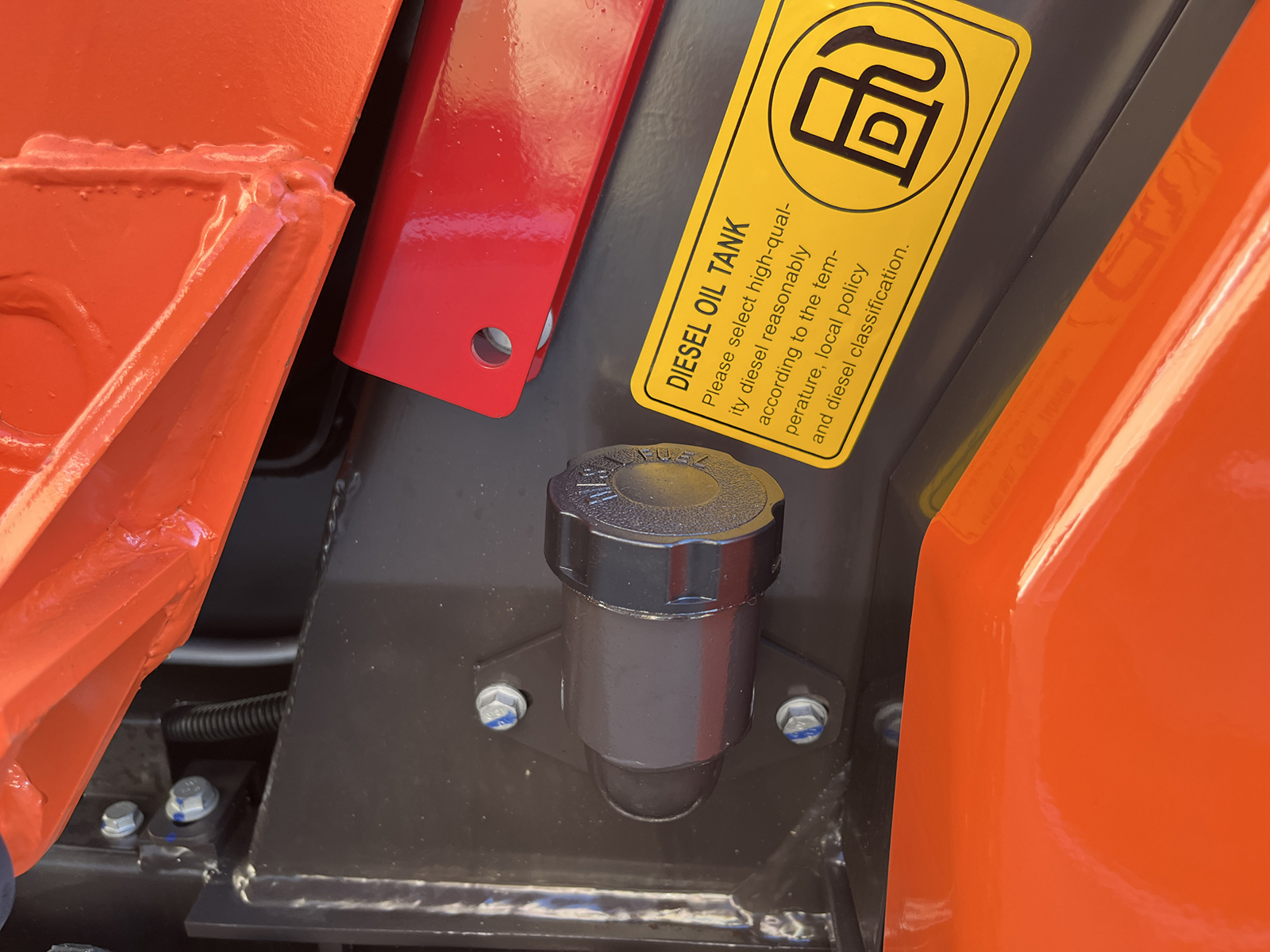

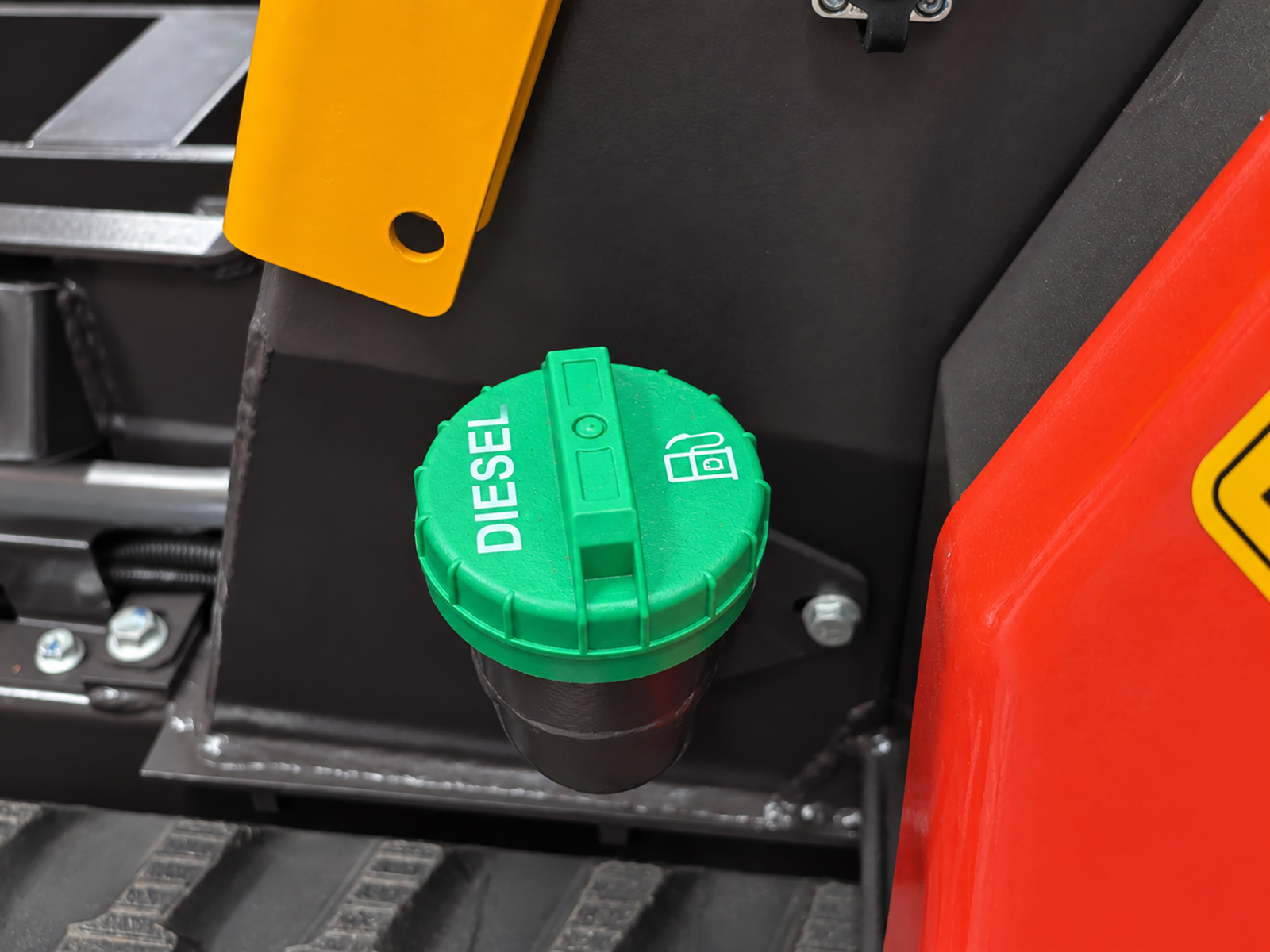

• Fuel type: diesel

• Hydrostatic transmission

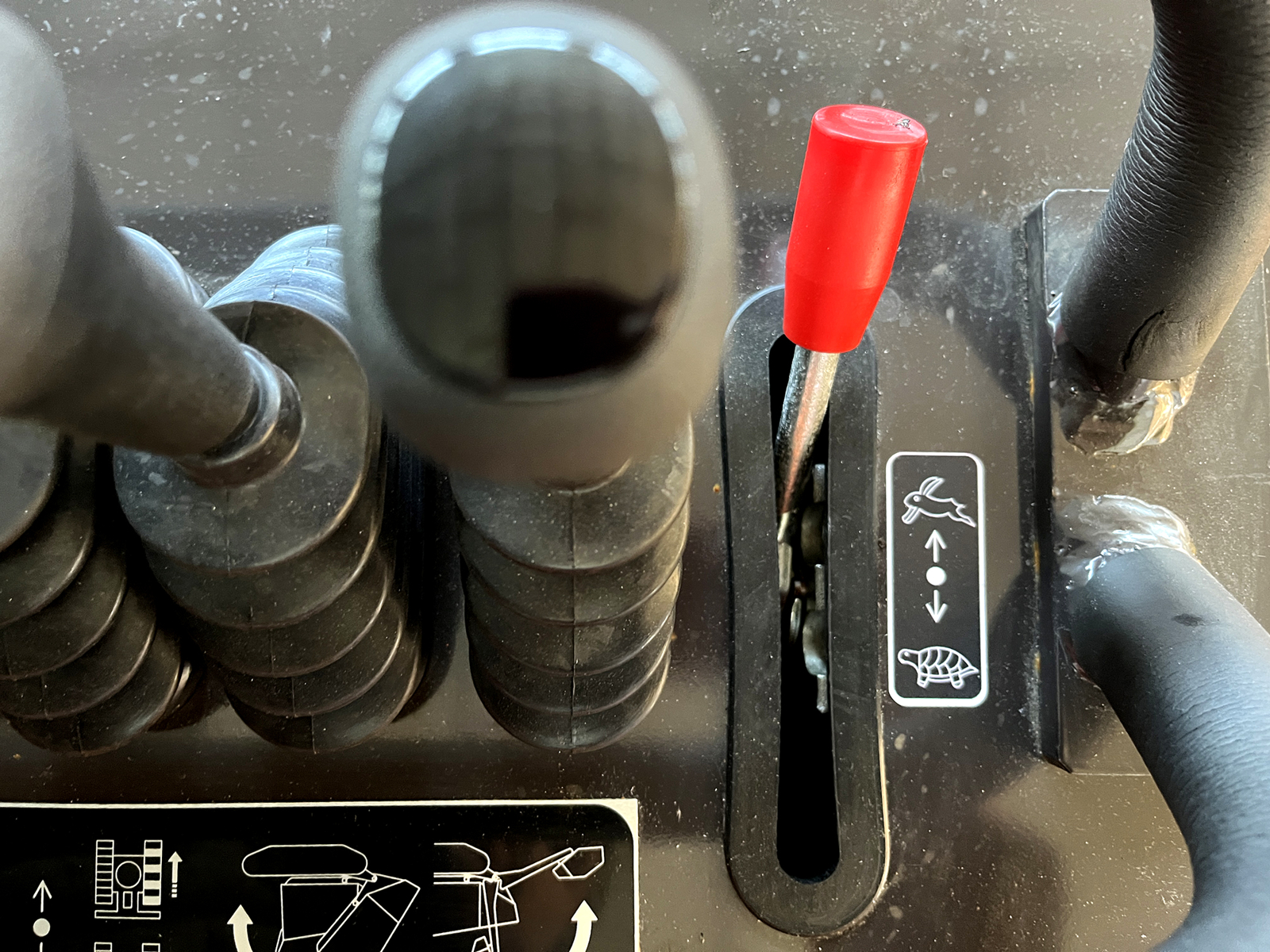

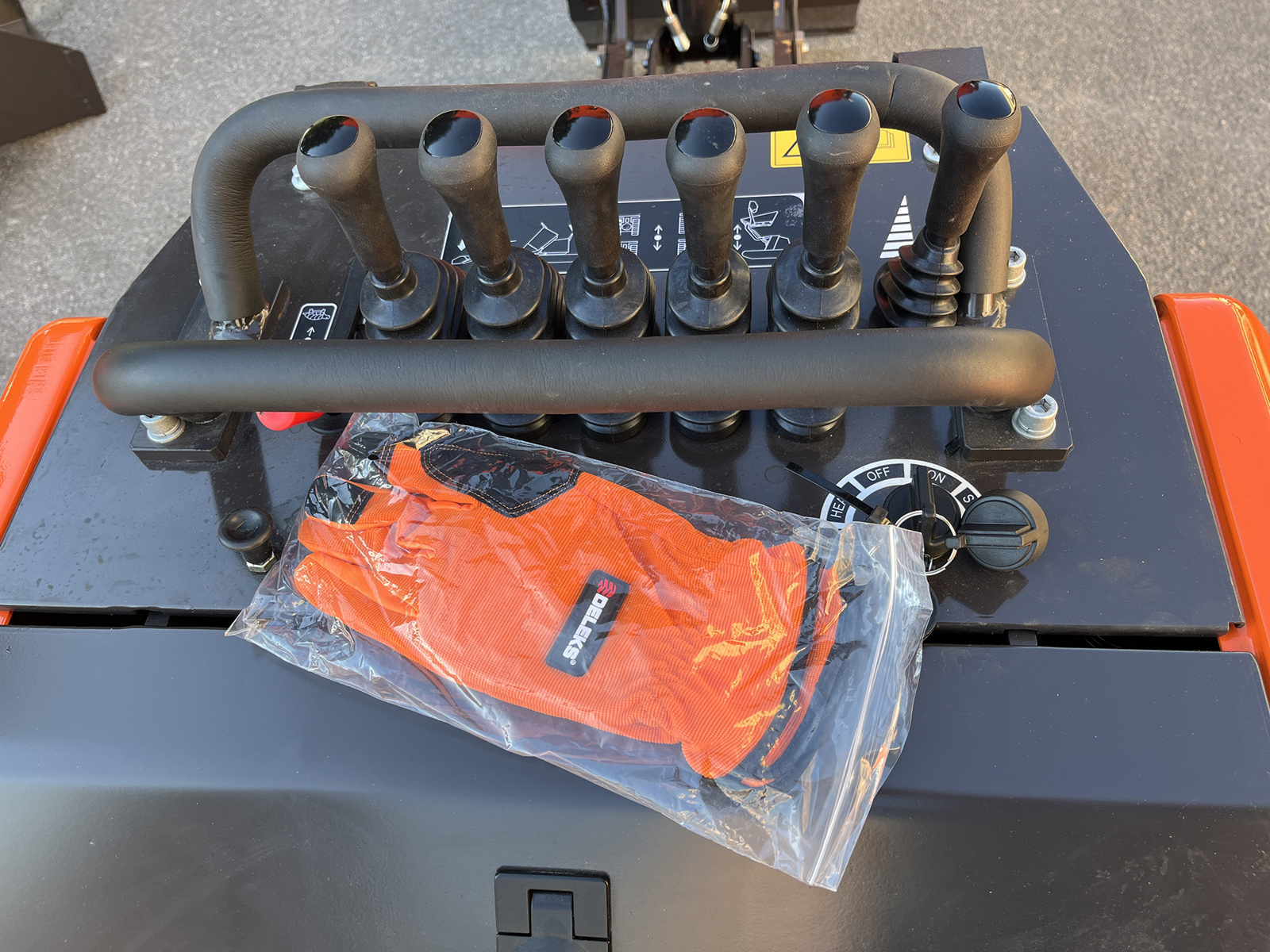

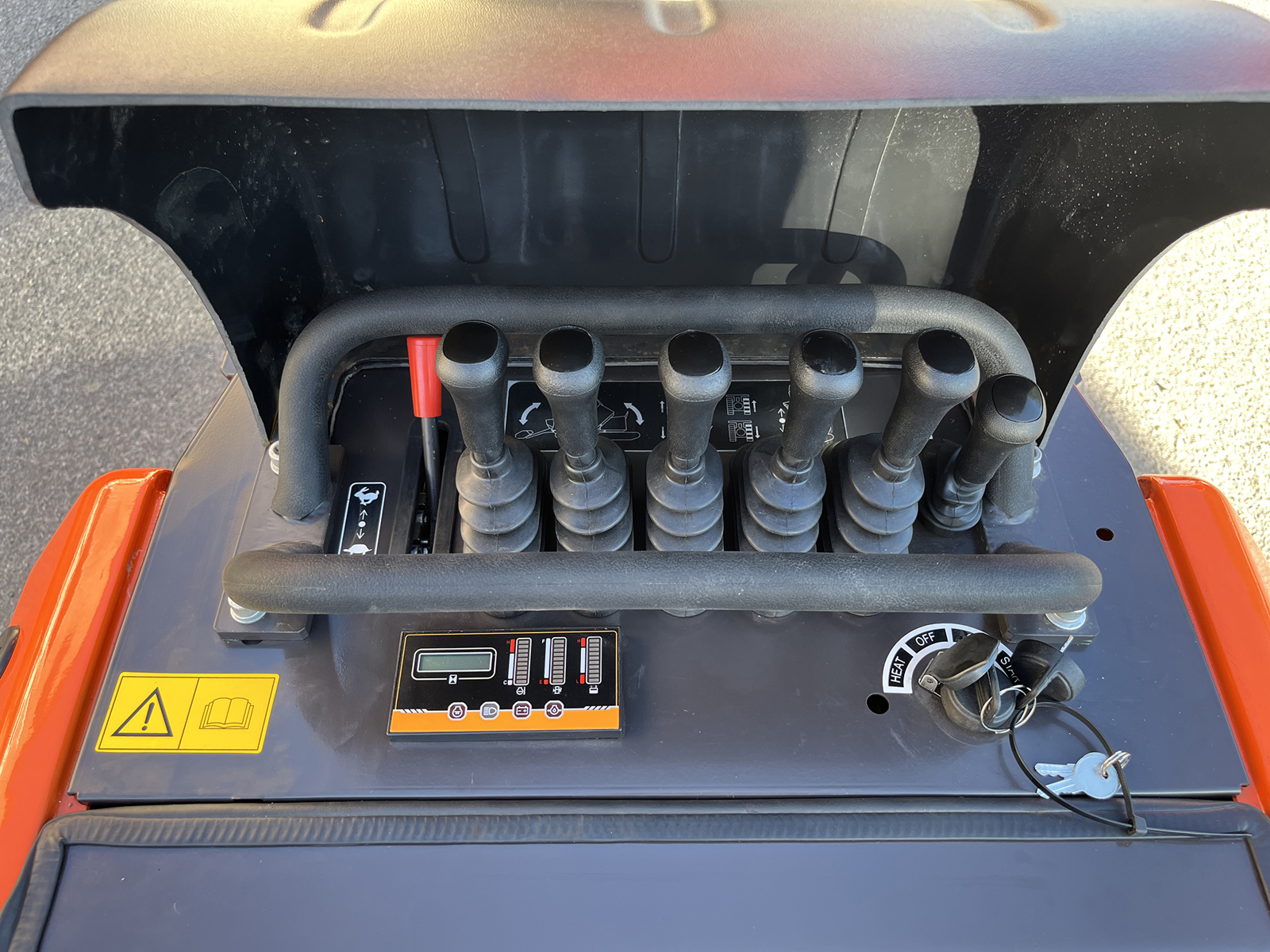

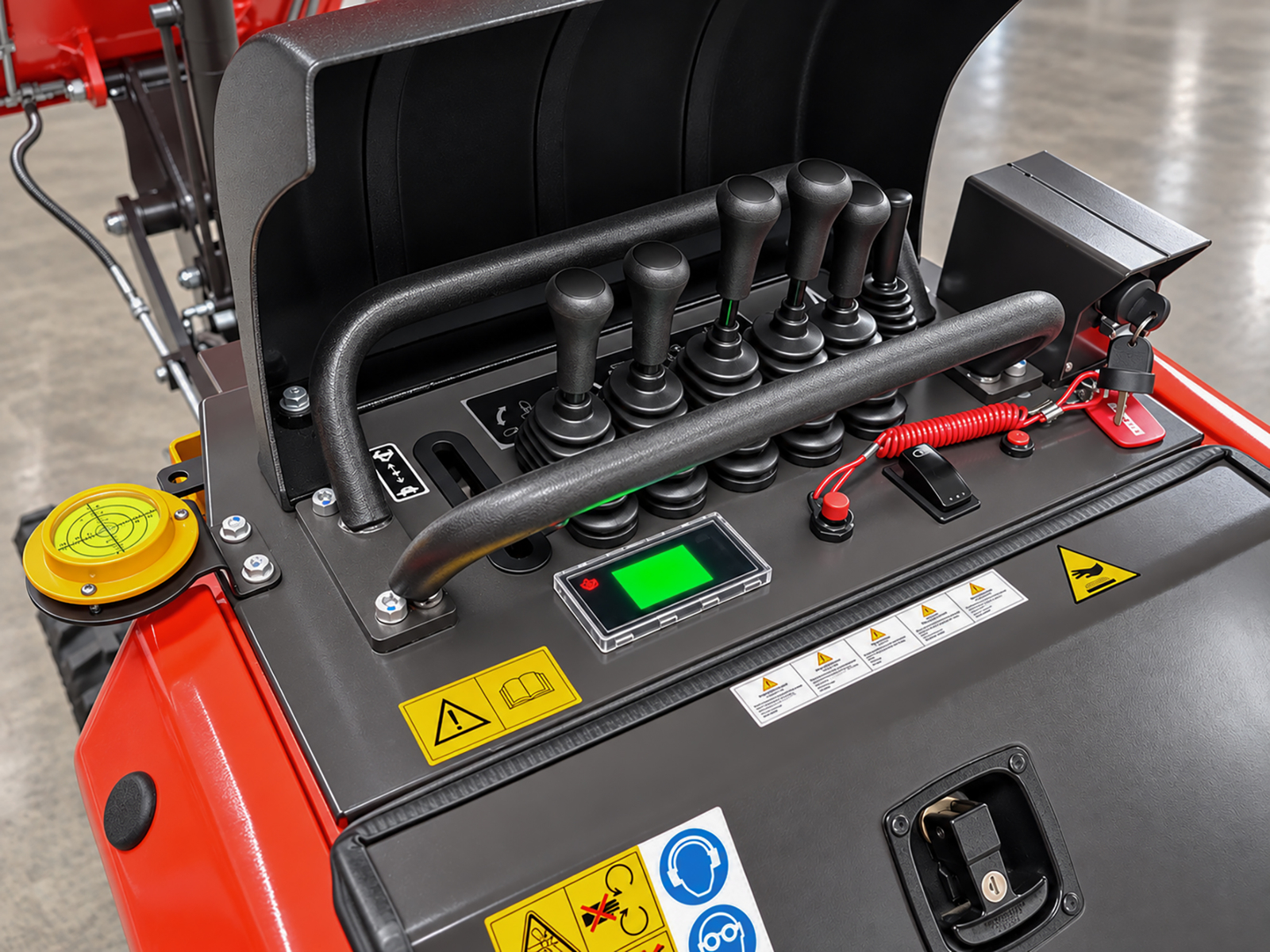

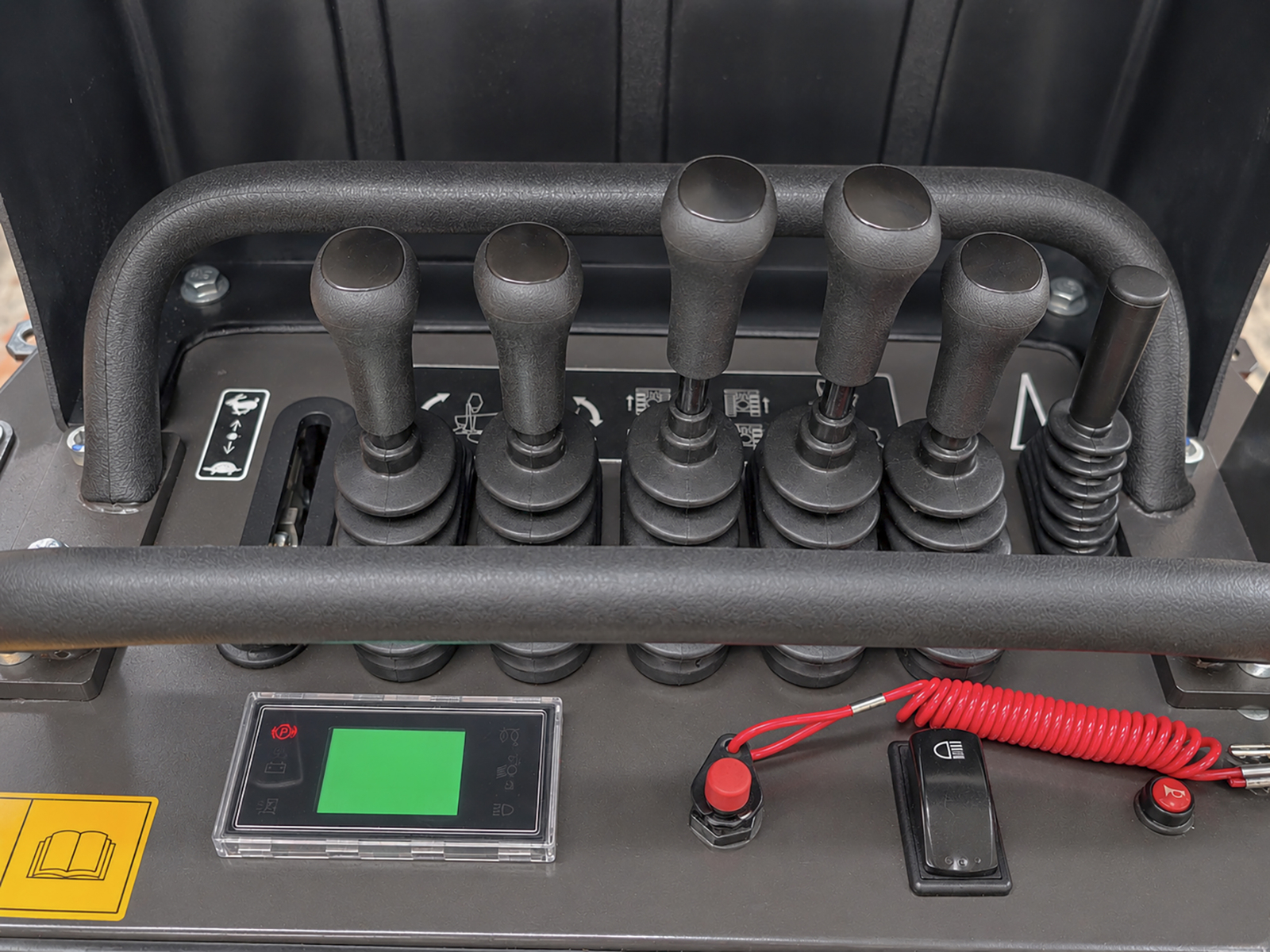

• Lever-controlled drive system

• Two travel speeds: 2 – 4 km/h

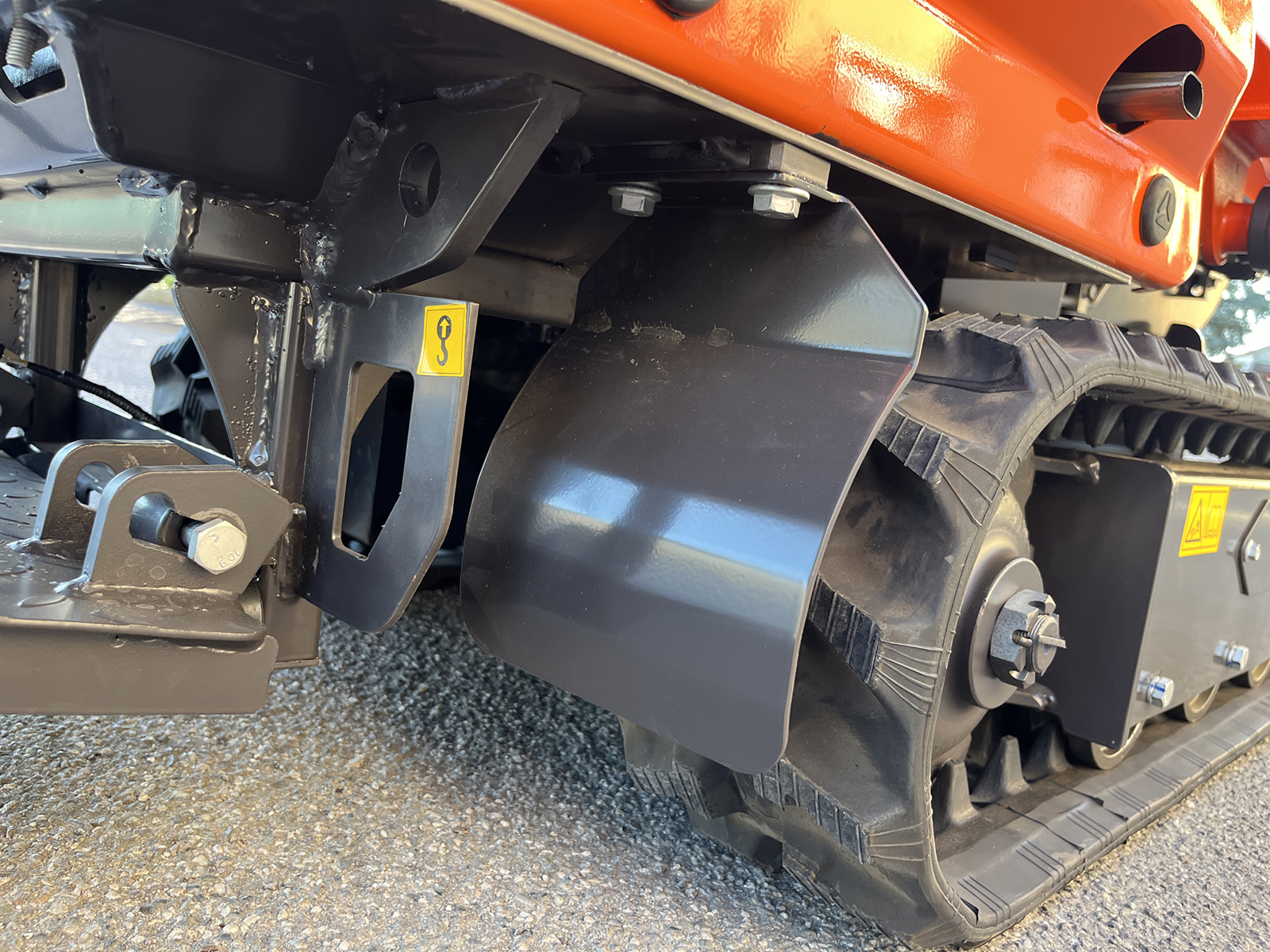

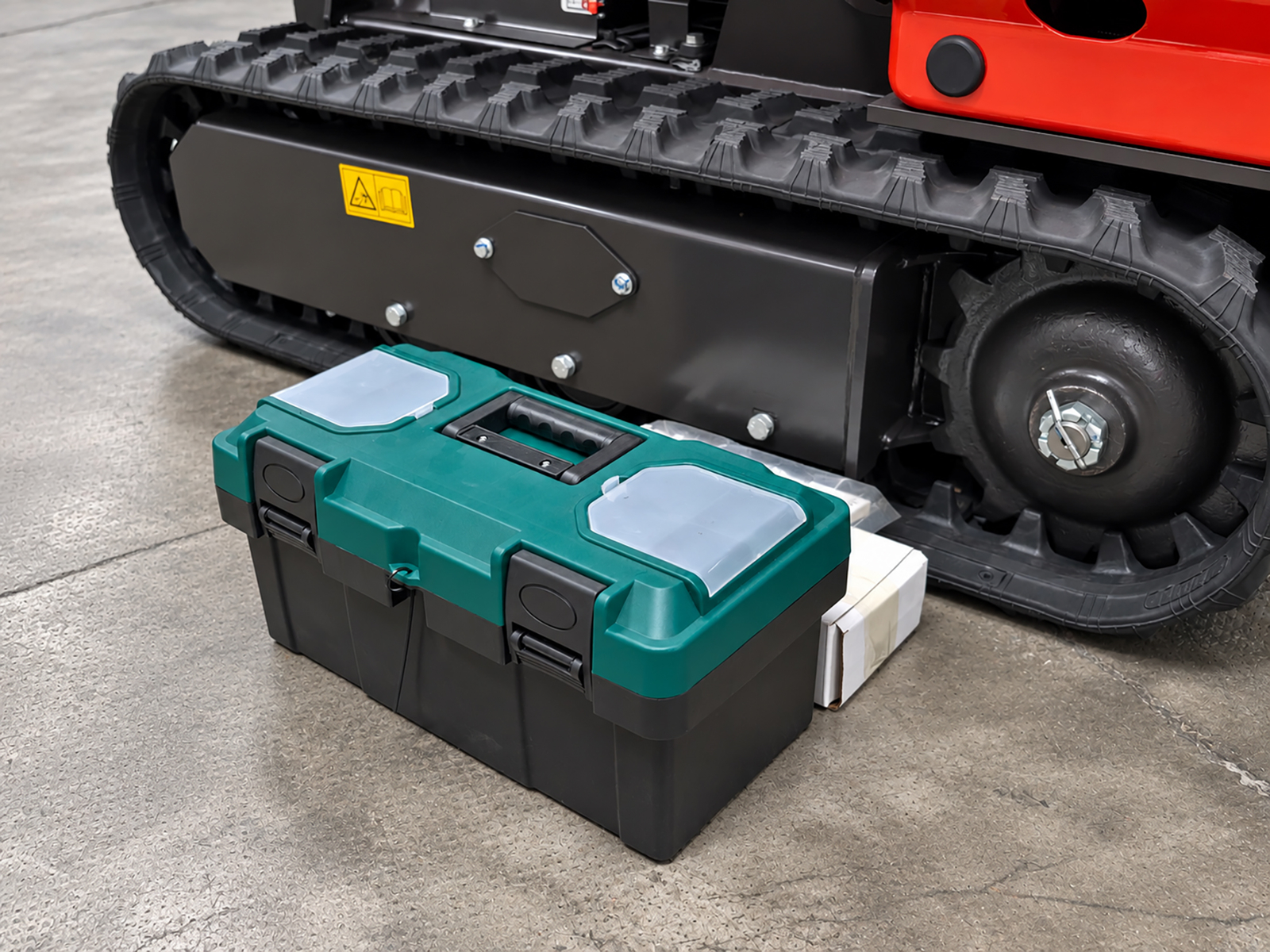

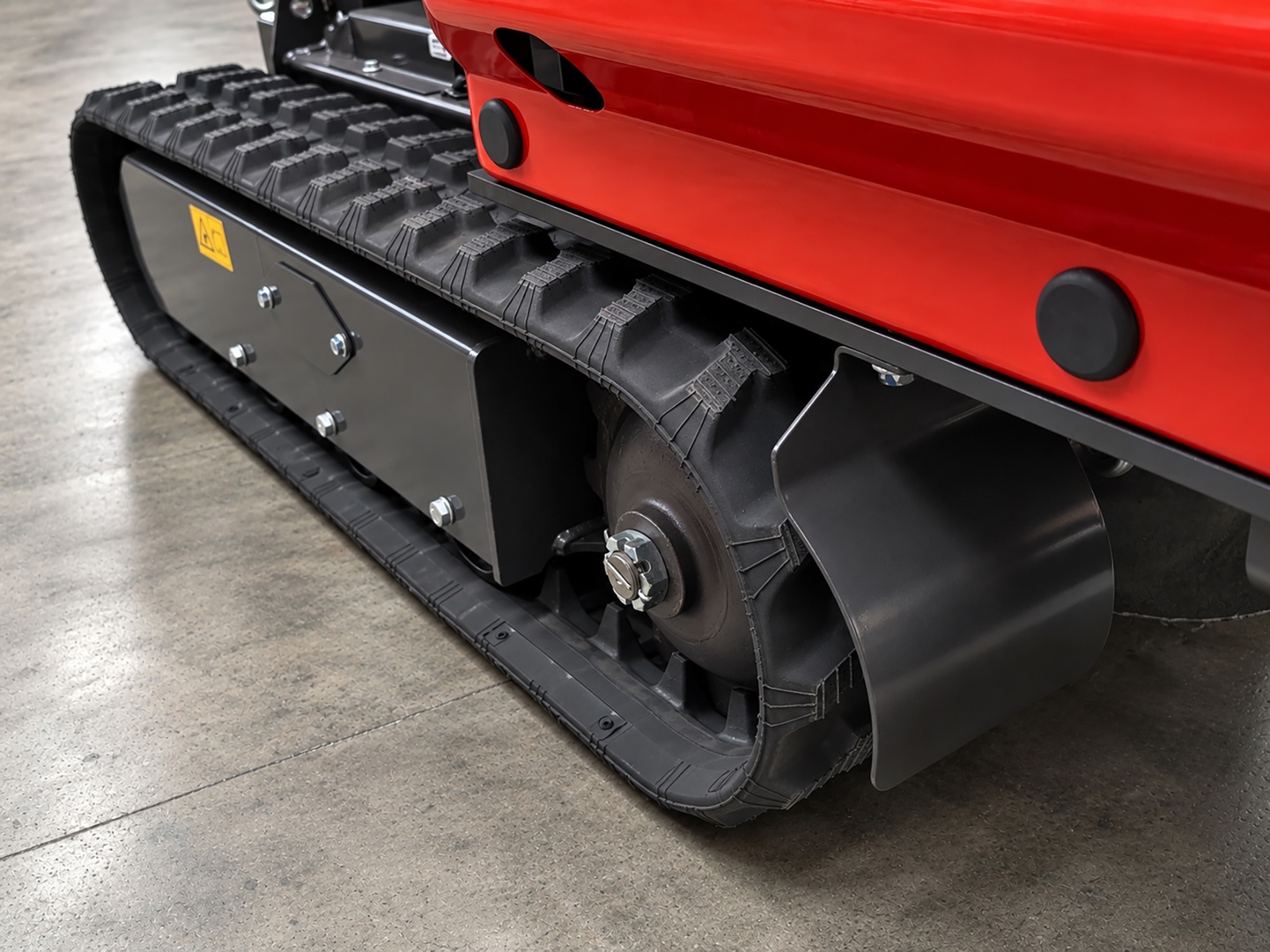

• Professional tracked drive

• Track width: 180 mm

• Track length: 1200 mm

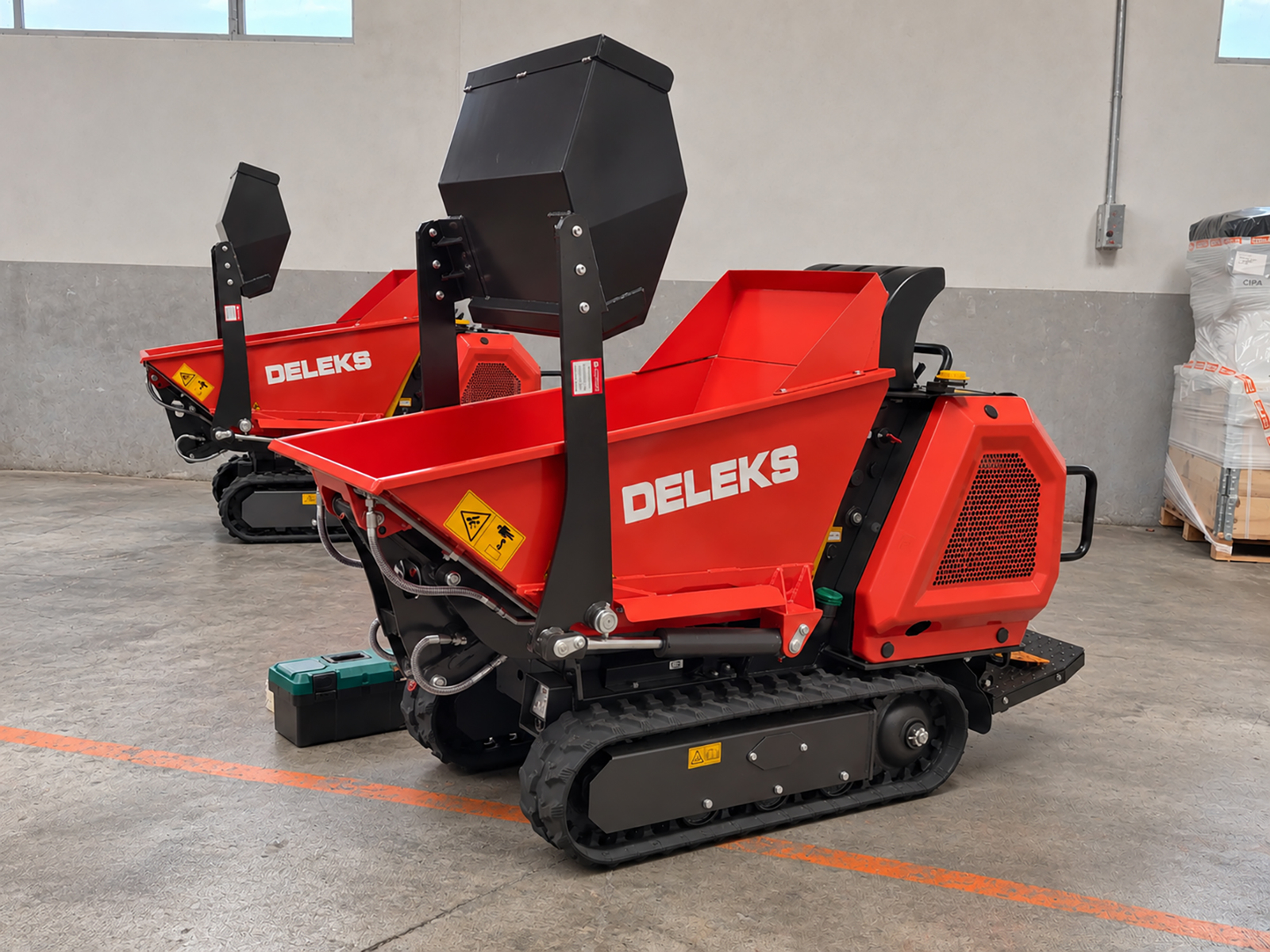

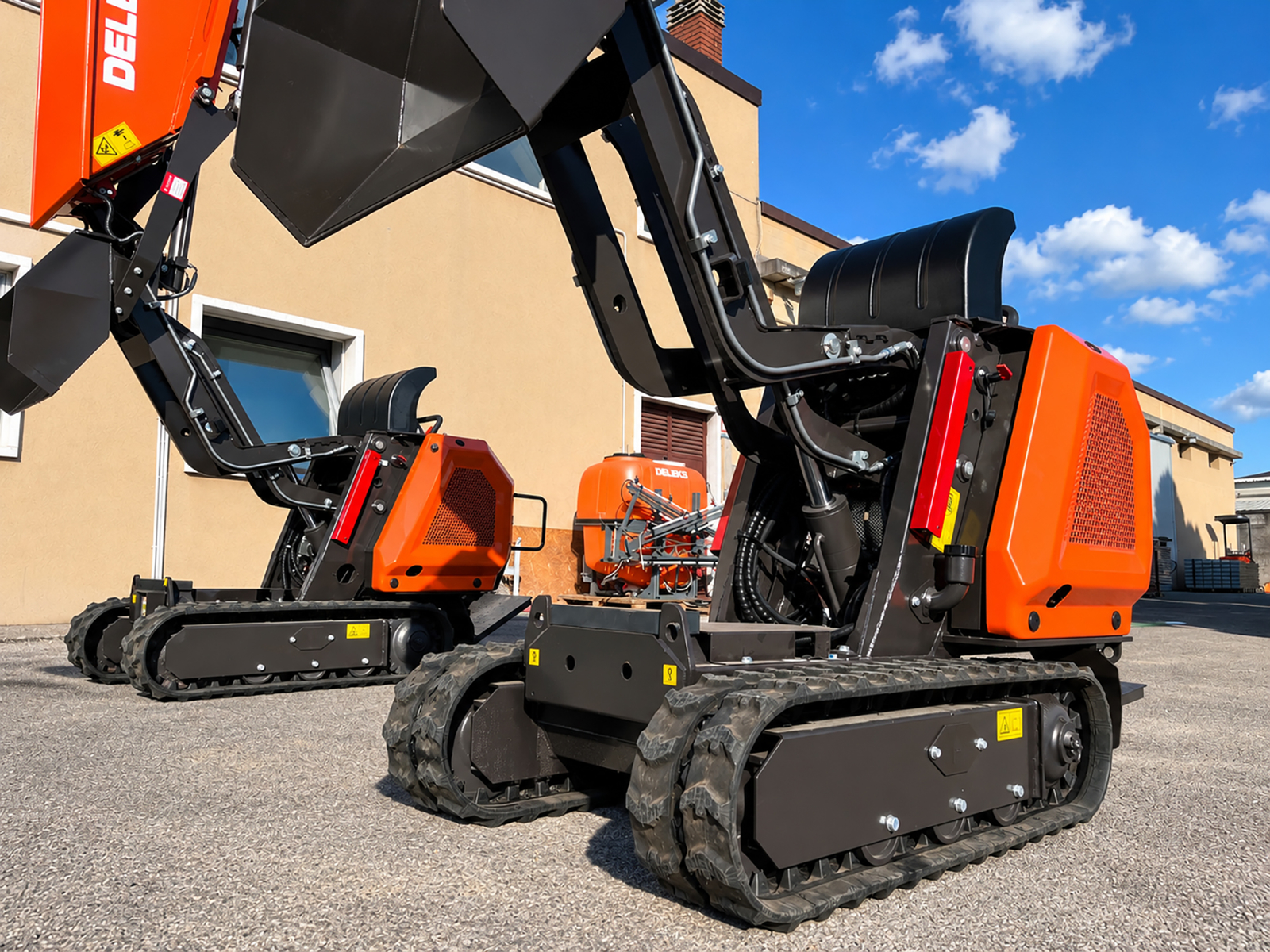

• Reinforced dumper body with high discharge

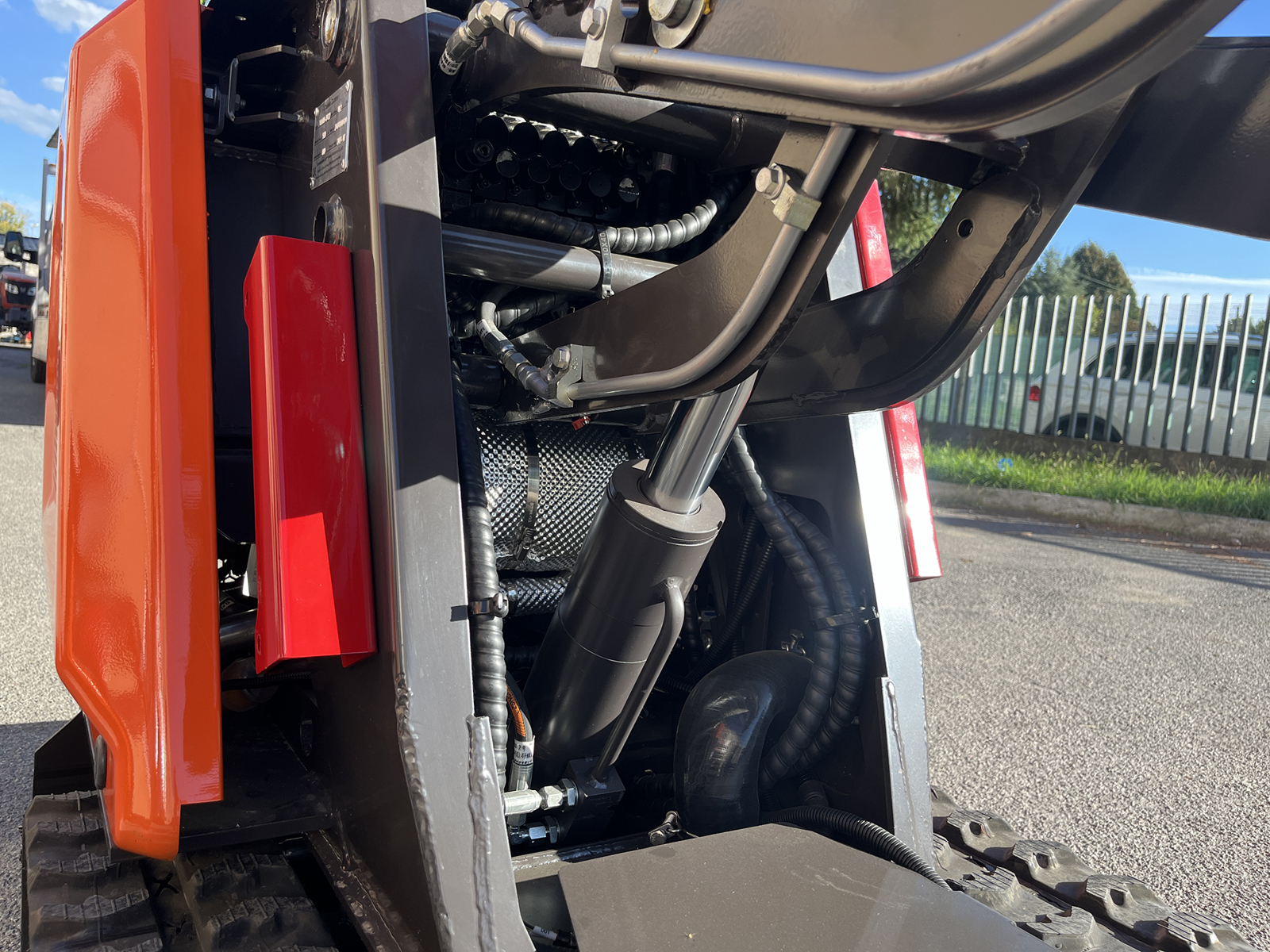

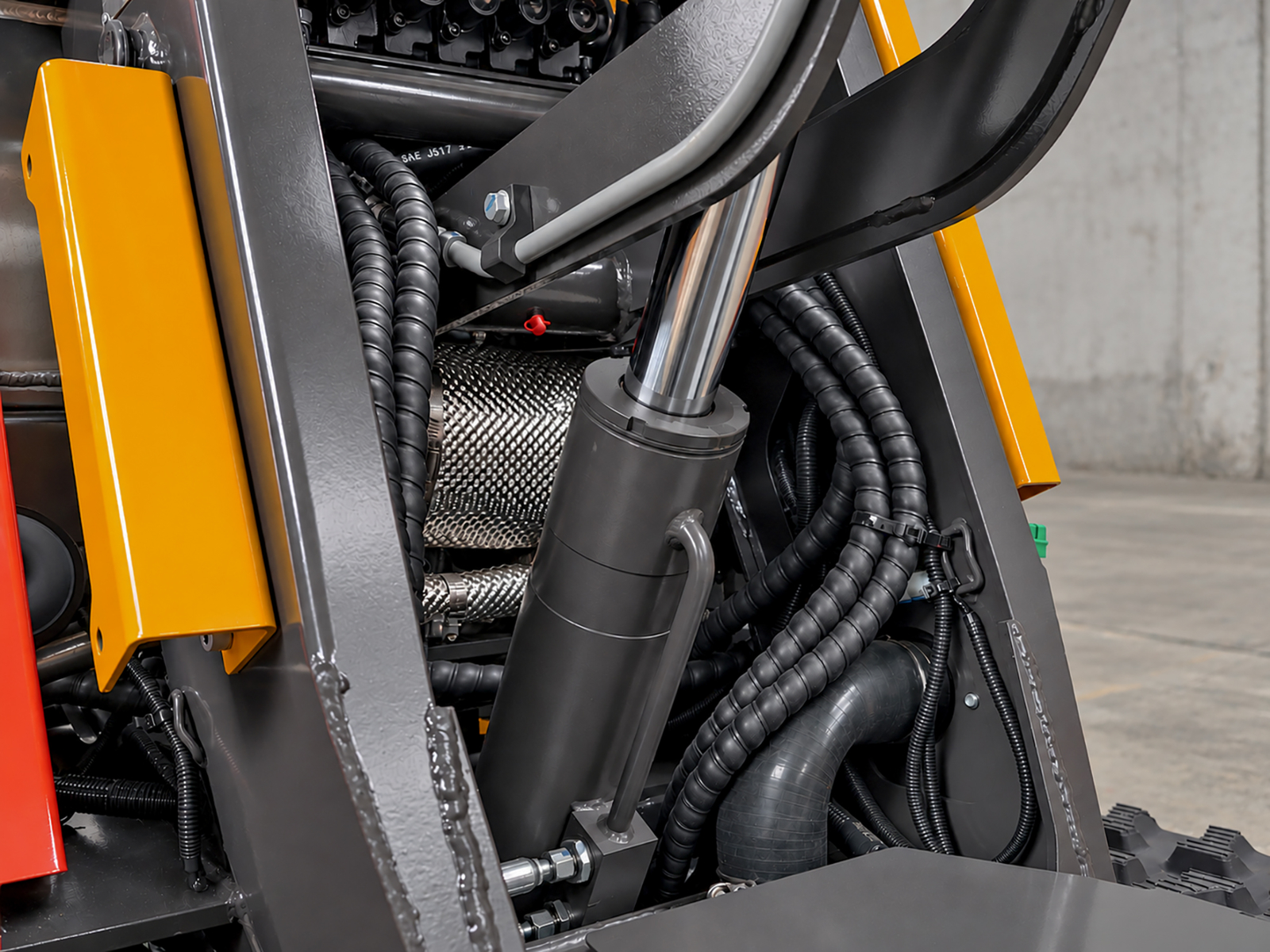

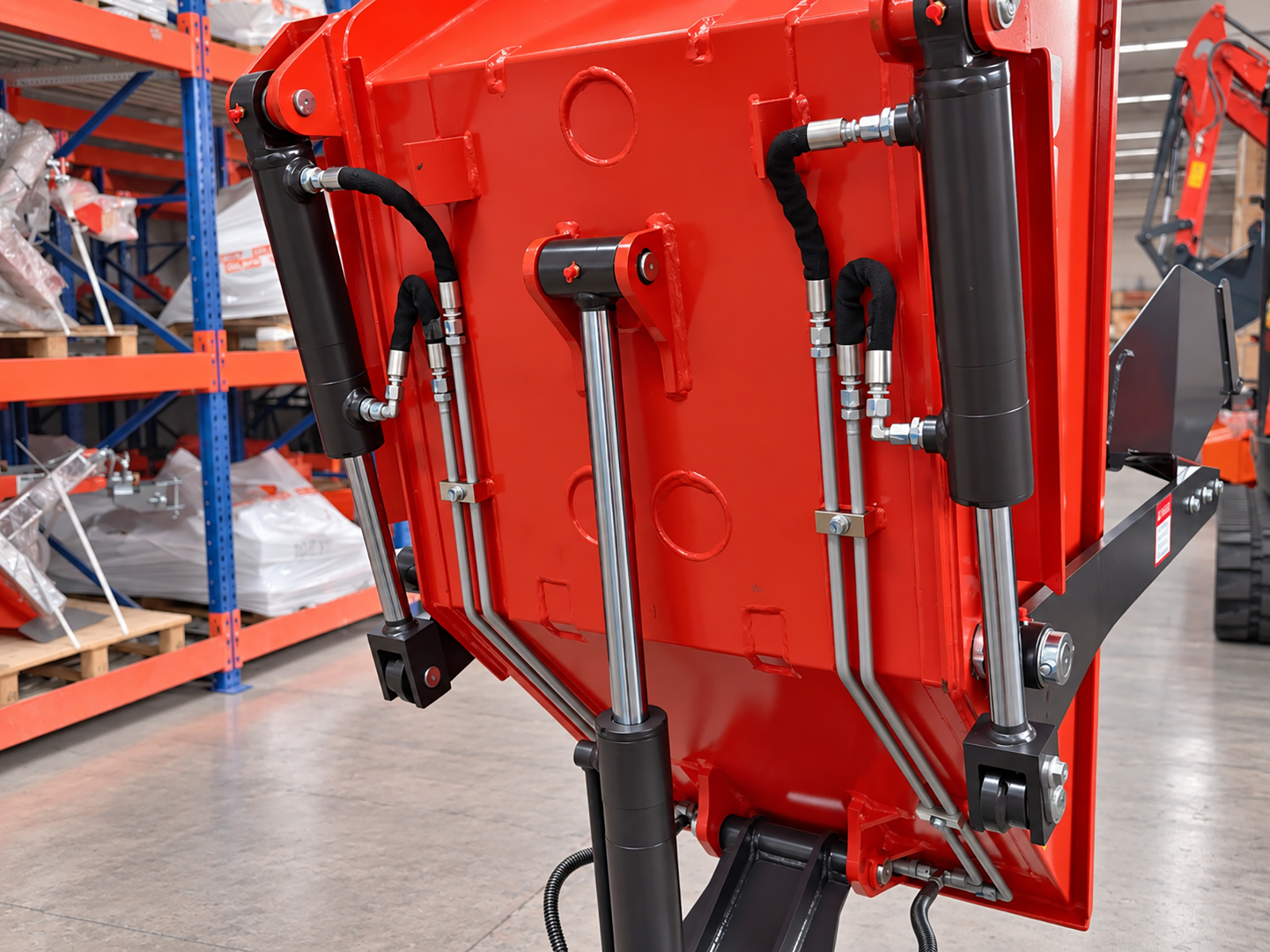

• Hydraulic tipping

• Maximum load capacity: 800 kg

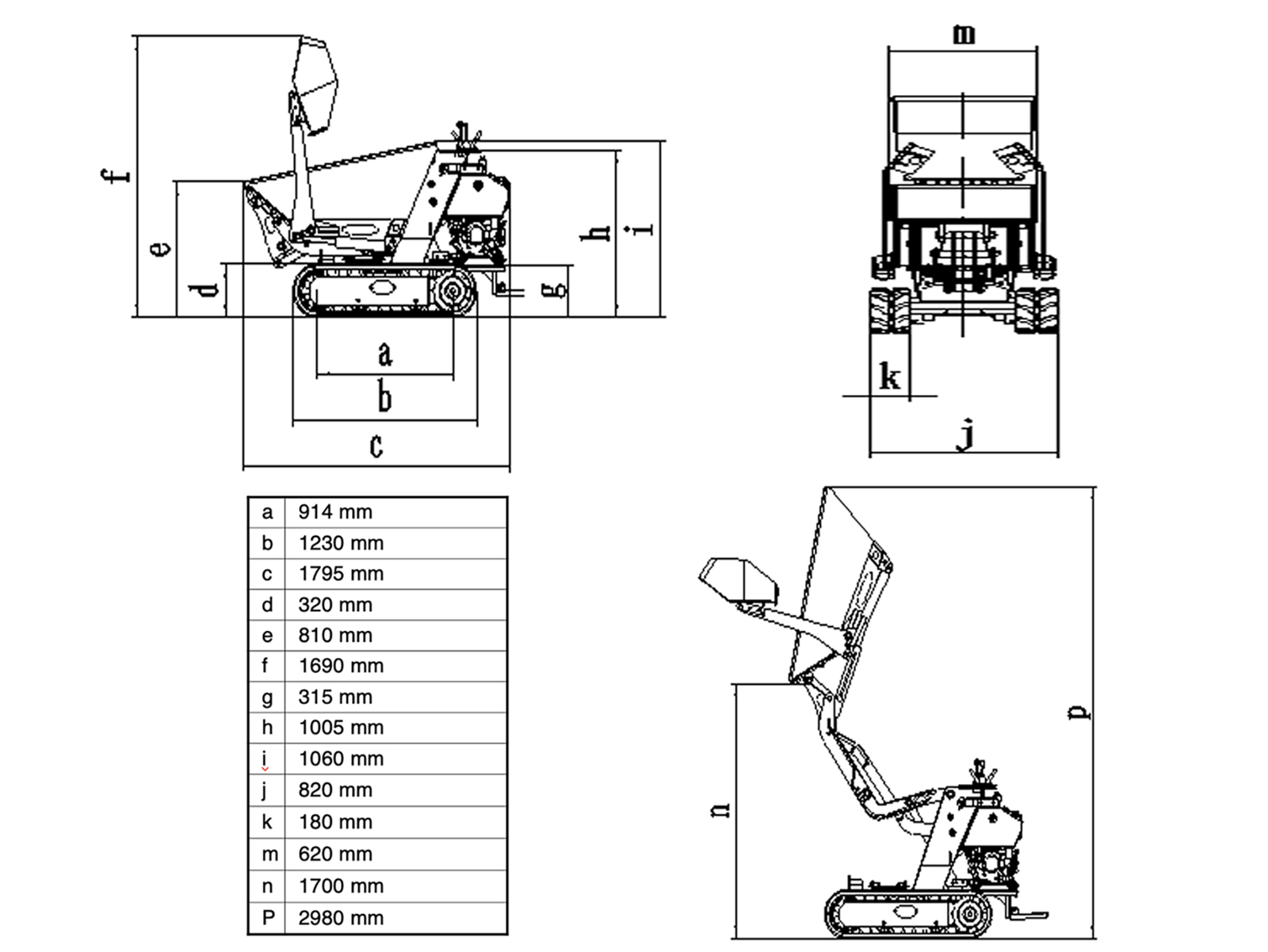

• Machine dimensions: see product images

OPERATIONAL ADVANTAGES

• Kubota diesel engine for high reliability and durability

• High discharge for direct unloading into trucks

• Hydrostatic transmission for total machine control

• Counterbalance valve for controlled traction

• Operator platform for continuous professional use

• Reinforced dumper body for heavy-duty work

• Excellent stability and traction on difficult terrain

• Reliable electric start

CERTIFICATIONS – WARRANTY – SUPPORT

• Machine compliant with CE directives

• 2-year warranty

• Equipped with safety devices

• Technical support and spare parts available

DOCUMENTATION SUPPLIED

• CE declaration of conformity

• Operation and maintenance manual

• Invoice or fiscal receipt

Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
