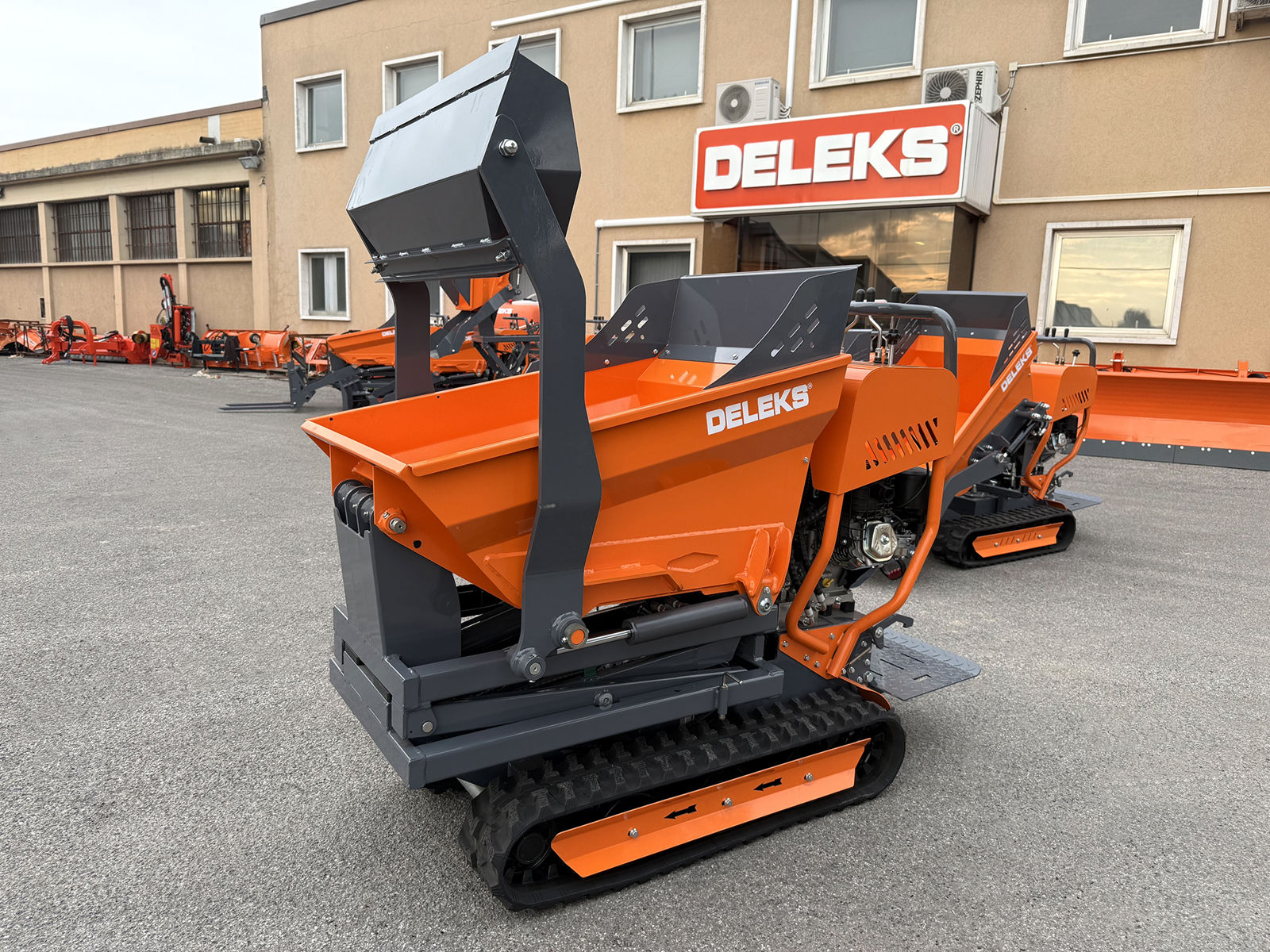

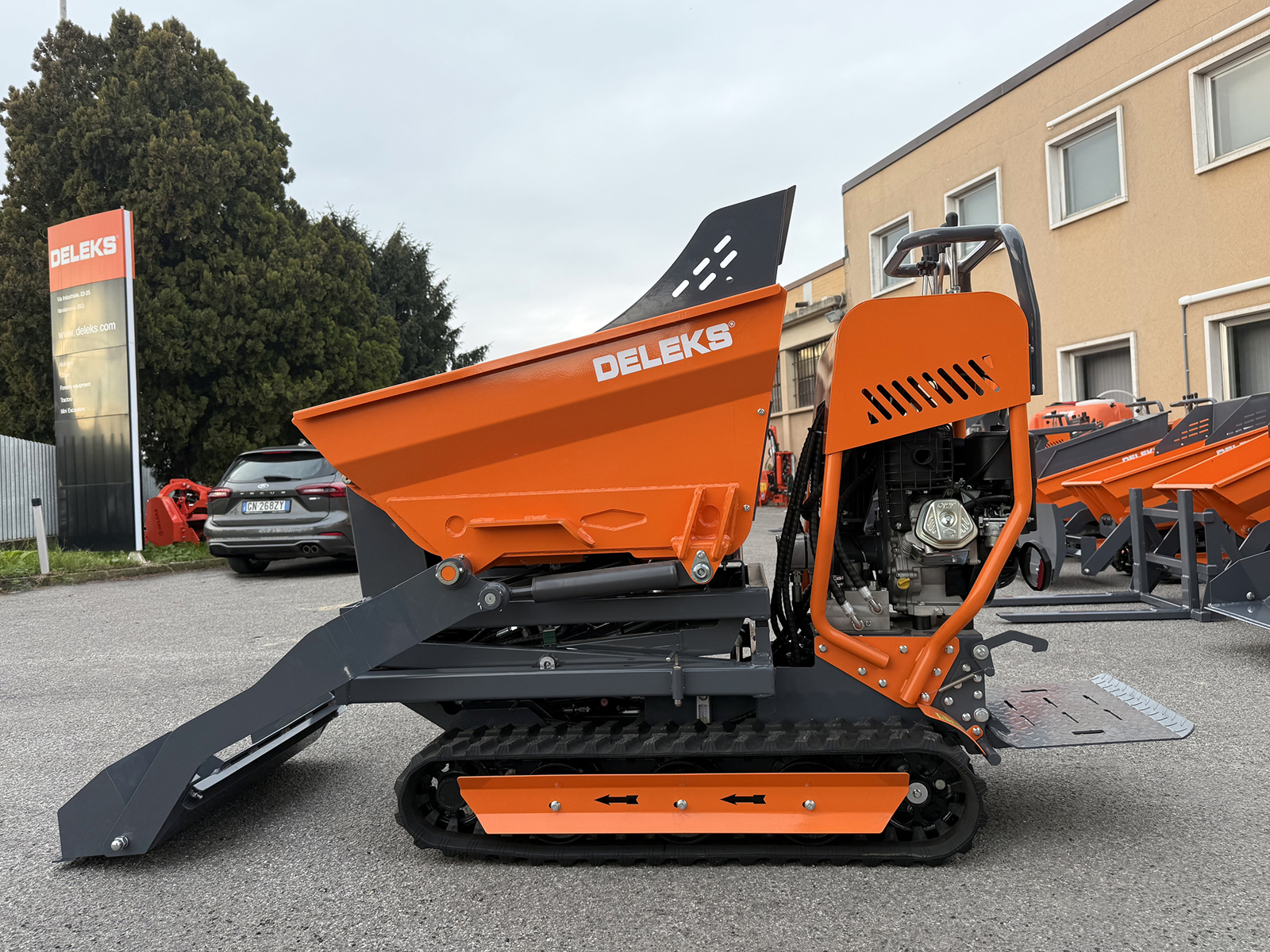

Hydrostatic Crawler Mini Dumper, High dump, Briggs&Stratton engine, E-start

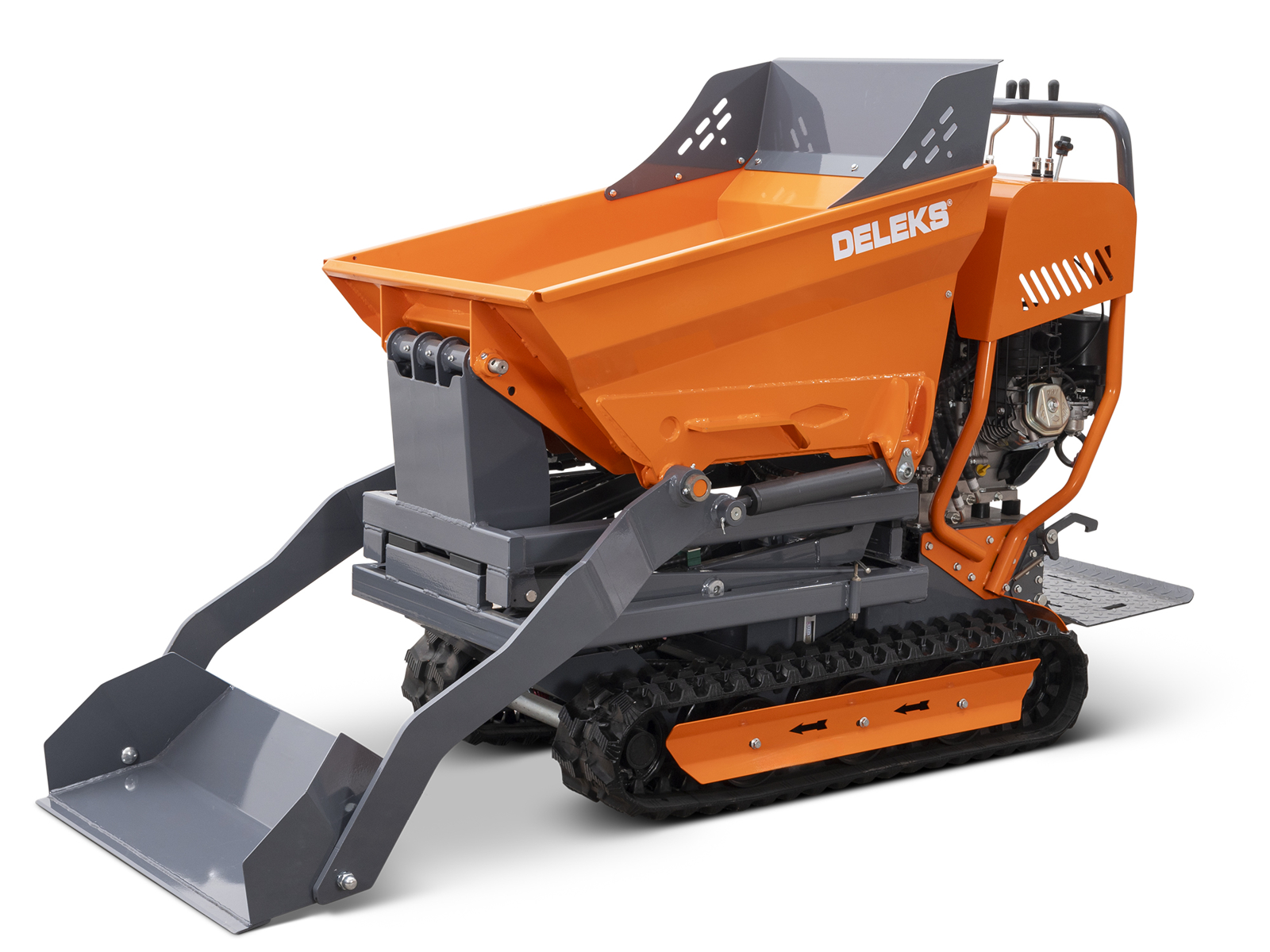

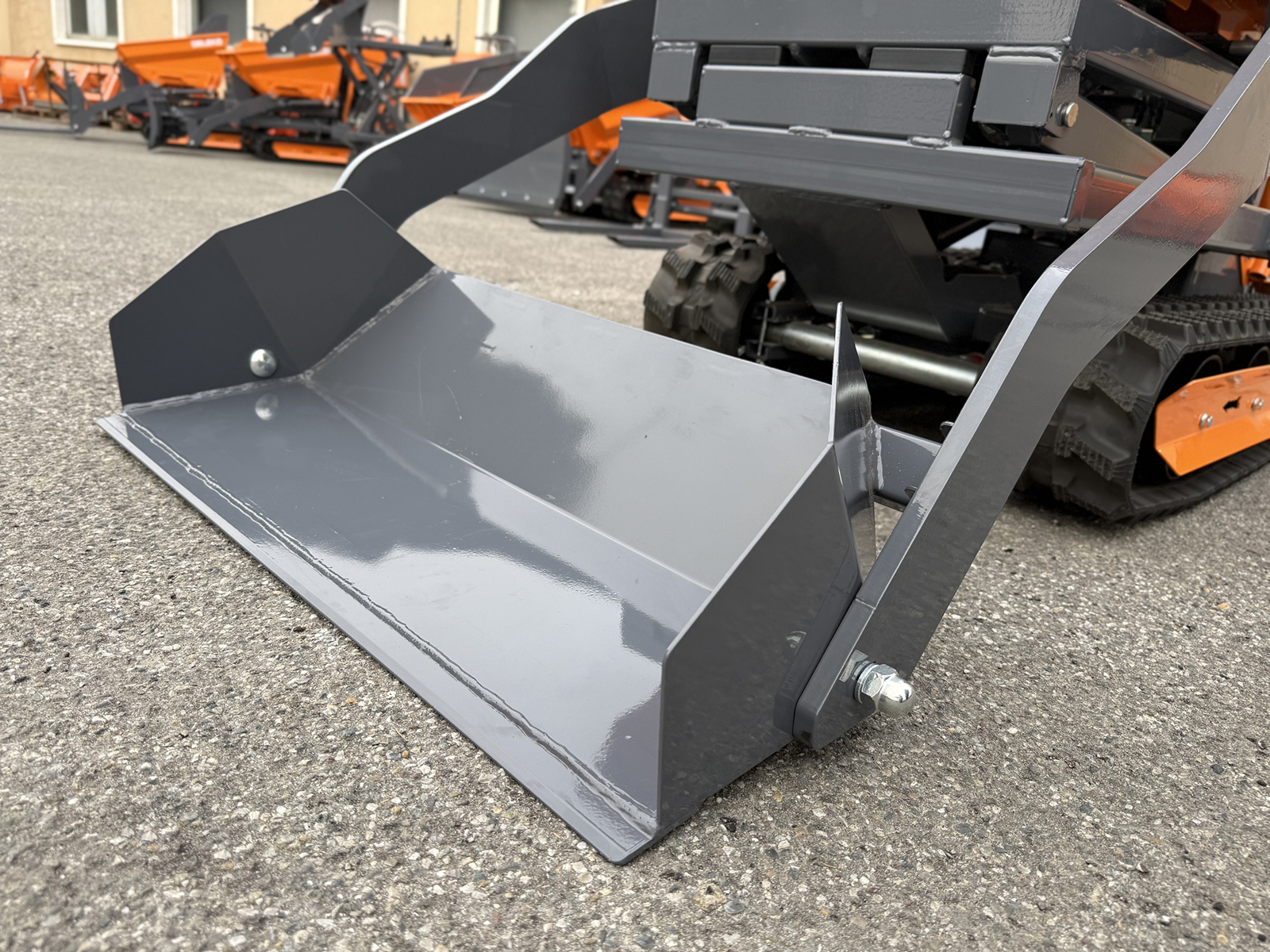

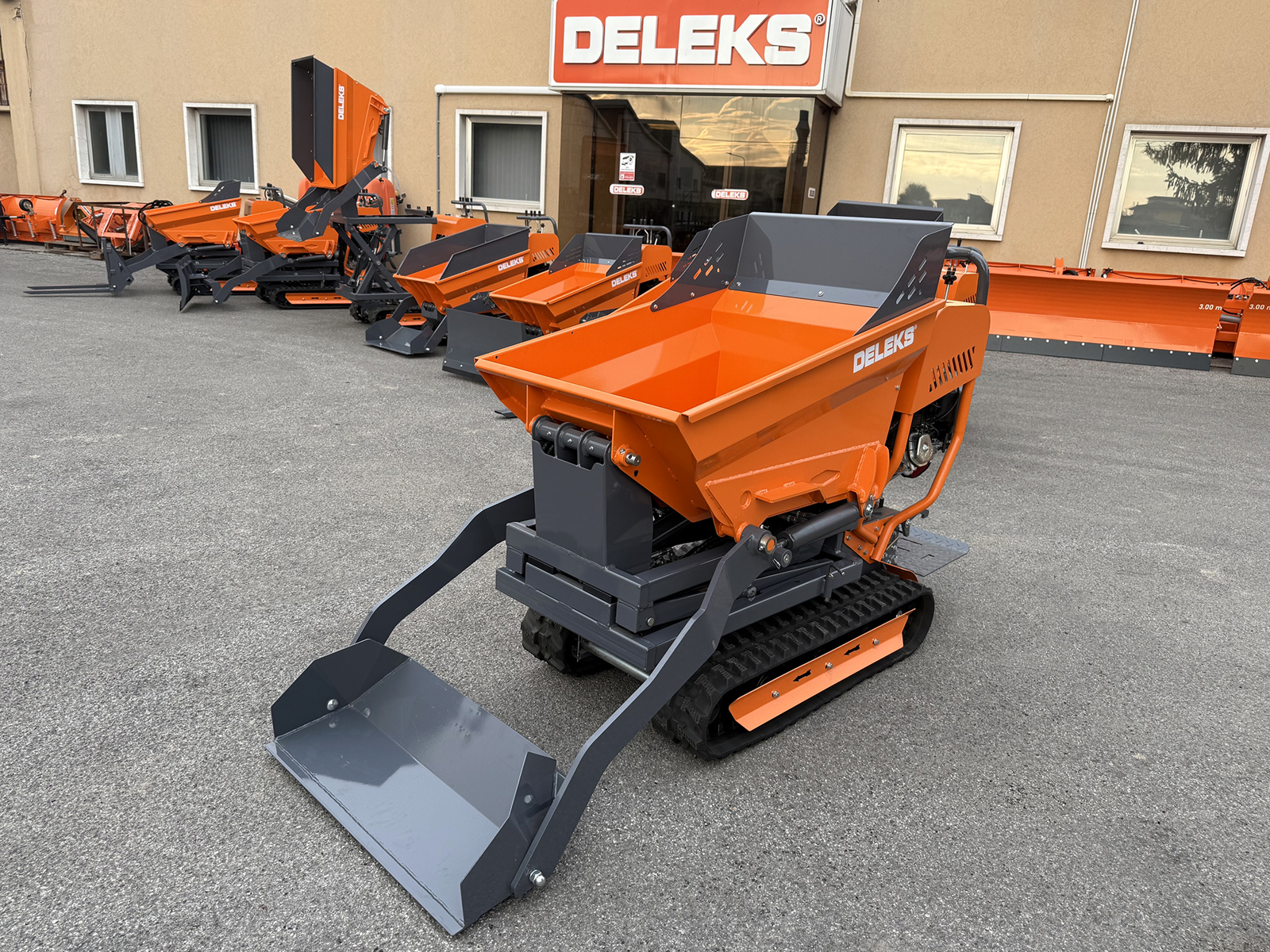

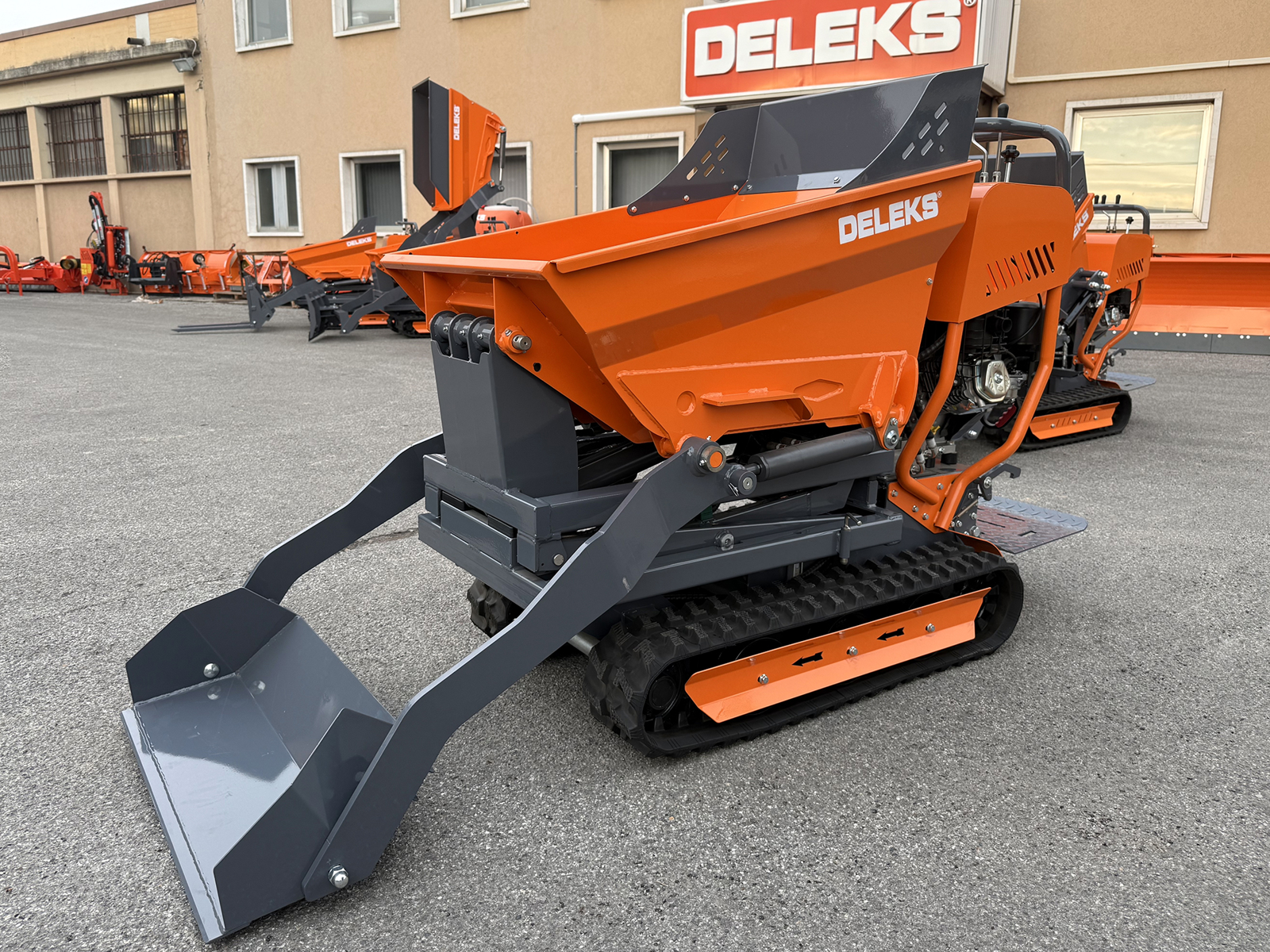

DELEKS® V3000HBS professional tracked self-loading mini dumper with high tip, hydrostatic transmission, operator platform and Briggs & Stratton engine with electric start.
Compact high-performance tracked dumper designed for material handling with raised discharge for direct unloading into vans and trucks.

PRODUCT DESCRIPTION

The DELEKS® V3000HBS is the upgraded version of the V3000 series, designed for professional operators who require higher engine power and the ability to discharge material at elevated height, while maintaining compact dimensions and excellent manoeuvrability.

It is powered by a Briggs & Stratton XR10.0 petrol engine delivering 10.0 HP, providing increased torque and power reserve compared to the standard V3000, making it particularly suitable for heavy-duty applications and intensive work cycles.

The hydrostatic transmission ensures smooth, progressive and precise speed control, allowing safe and accurate operation in all working conditions, including uneven ground and confined spaces.

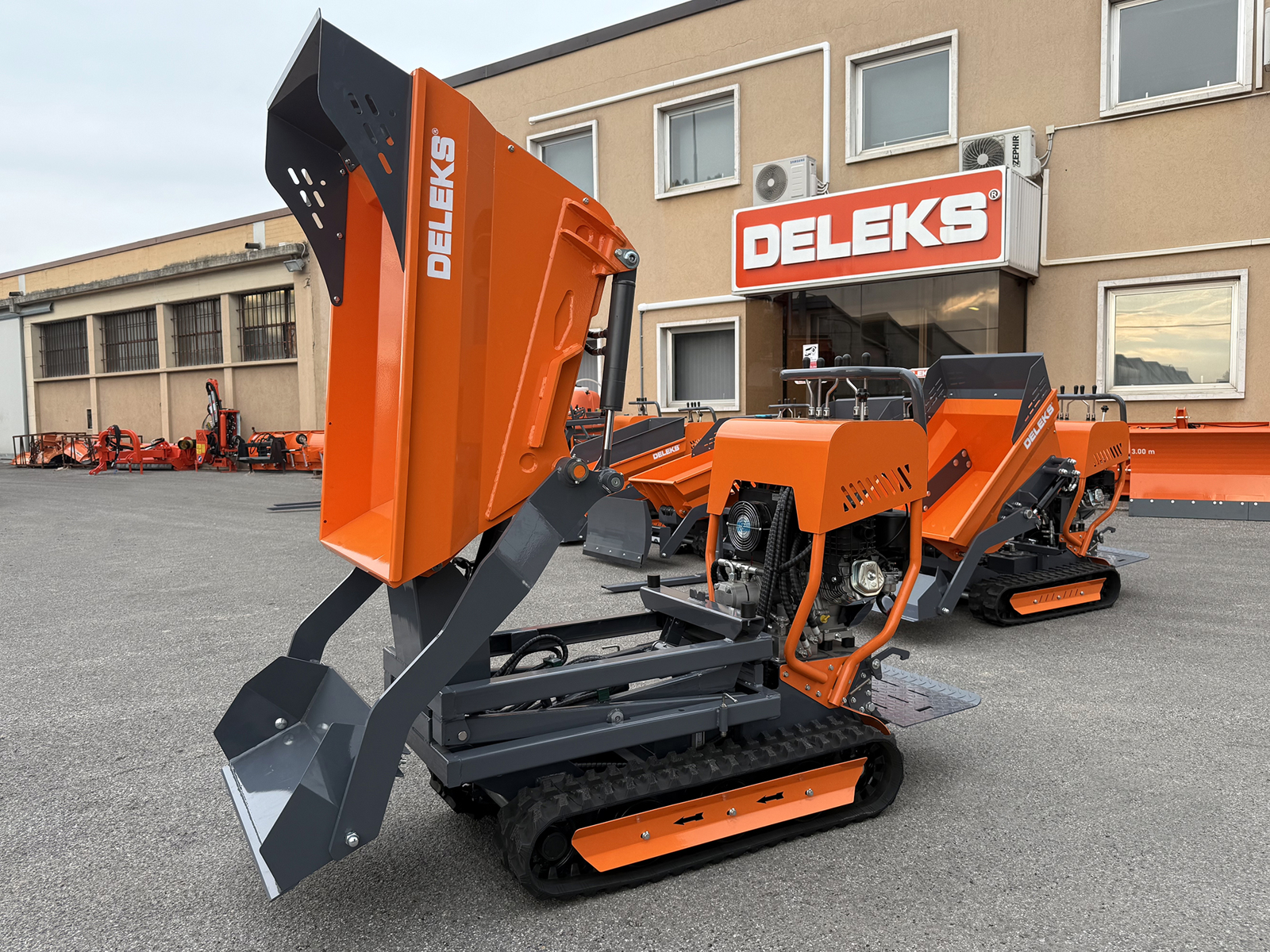

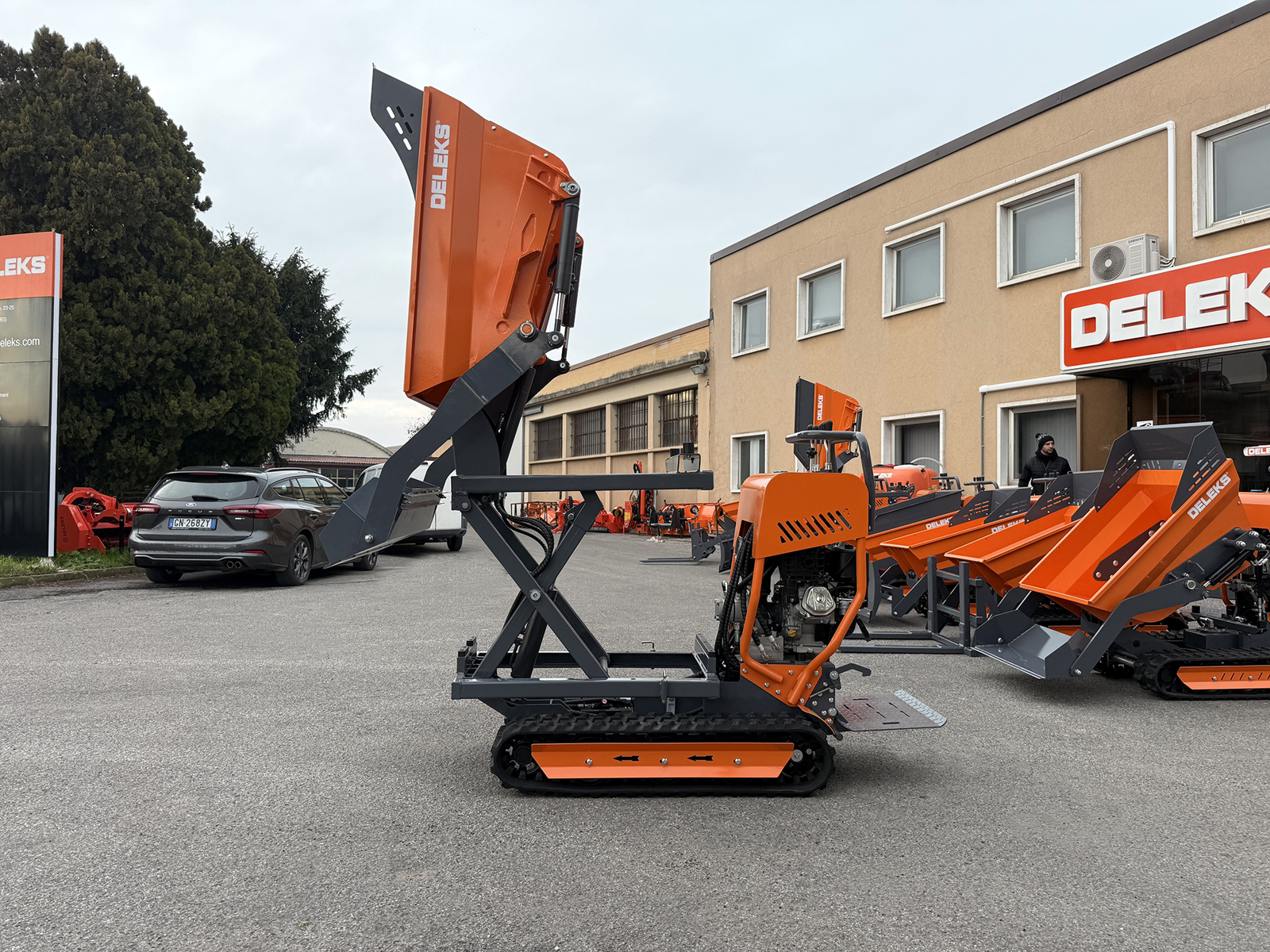

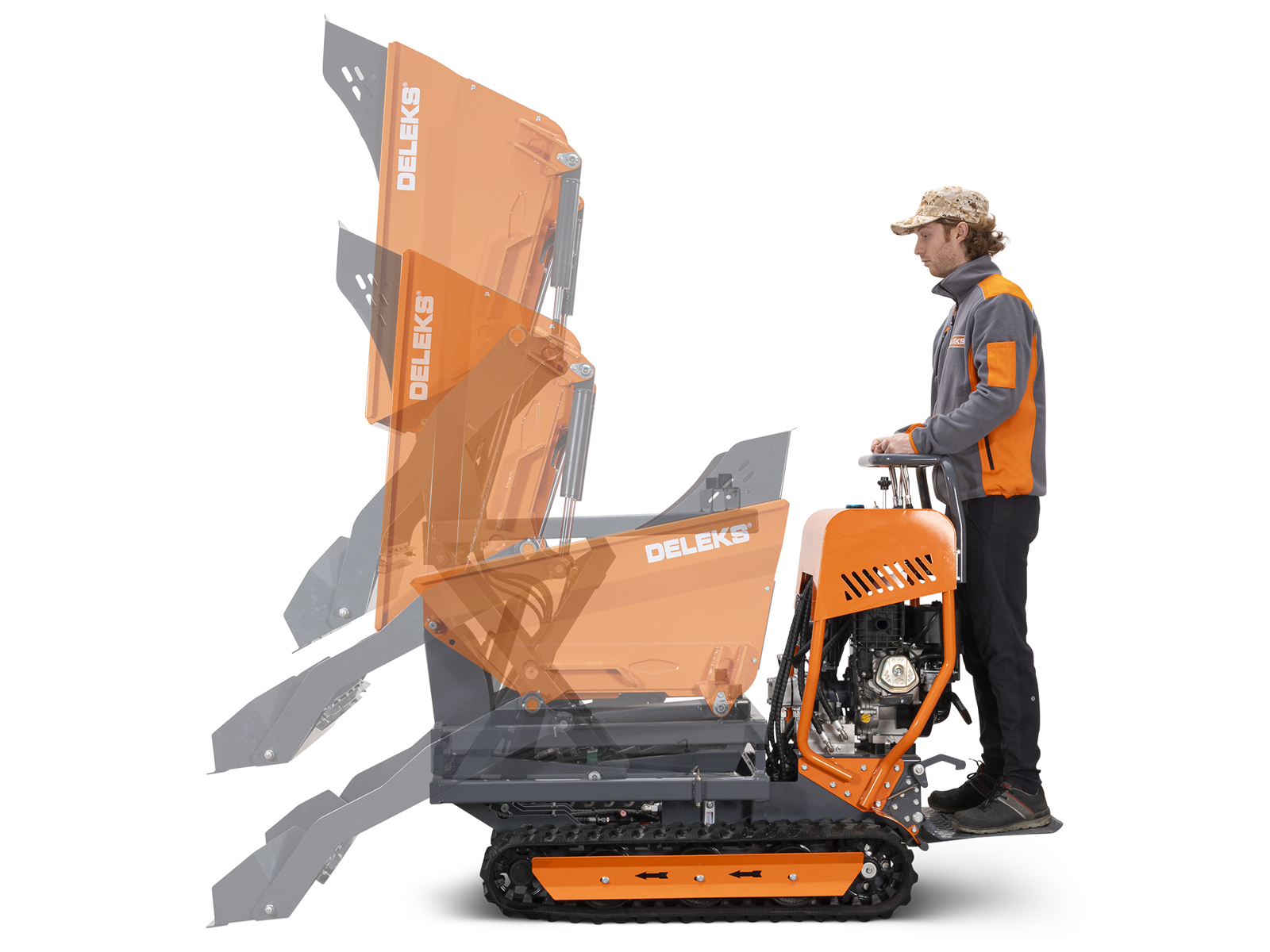

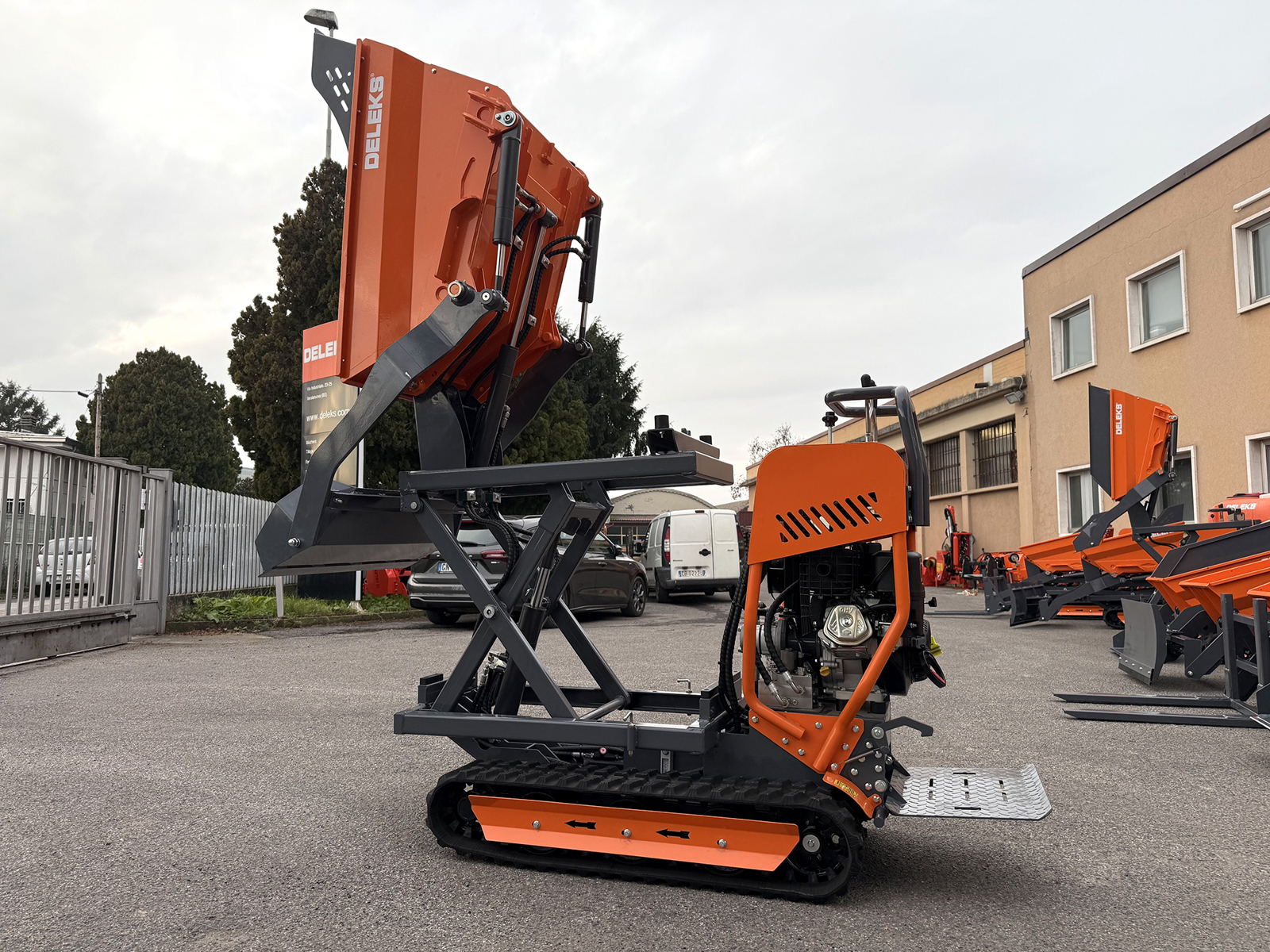

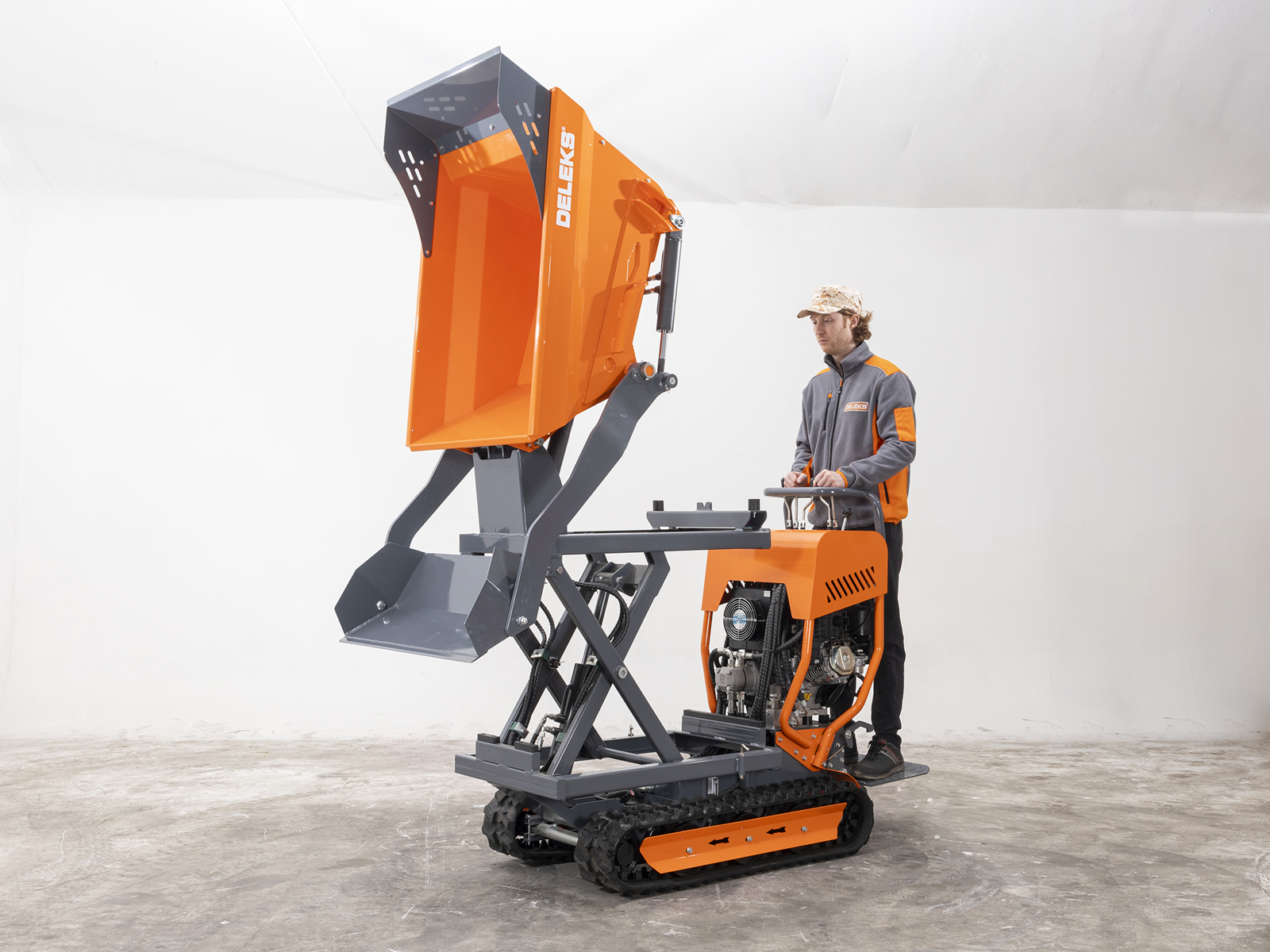

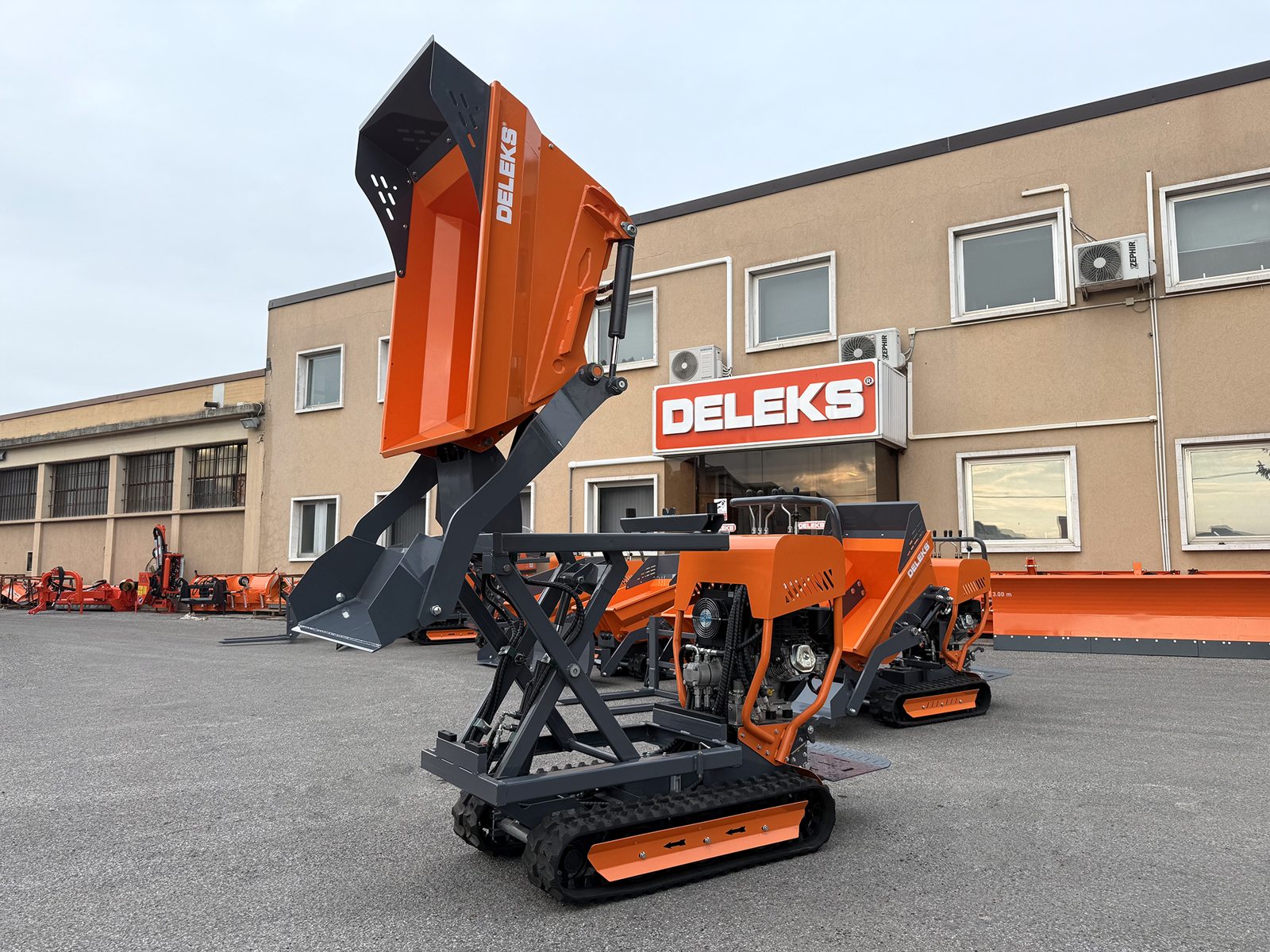

The reinforced dumper body with high tip and hydraulic tipping allows direct unloading of material into vans or trucks, significantly reducing handling time and manual effort.

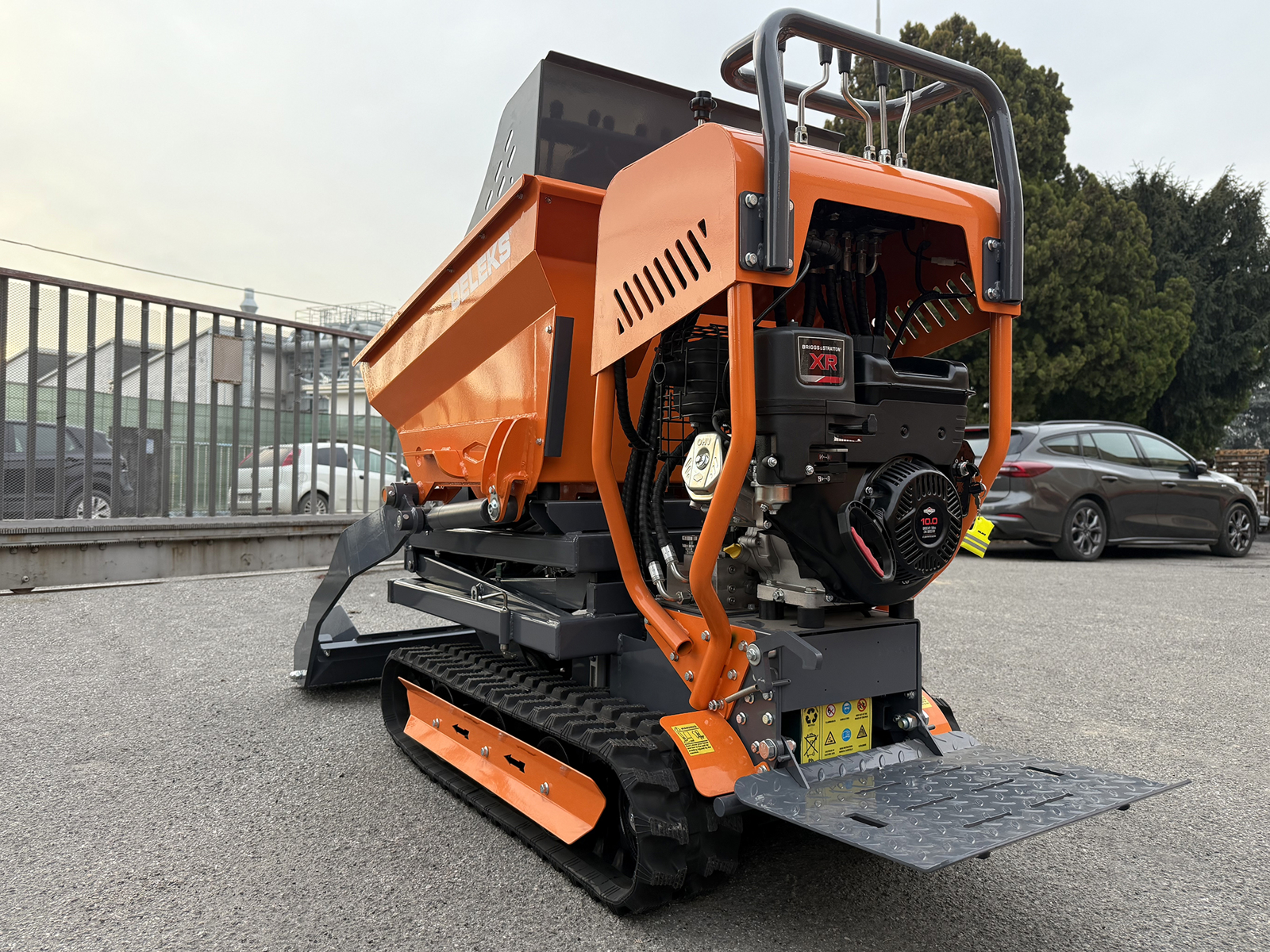

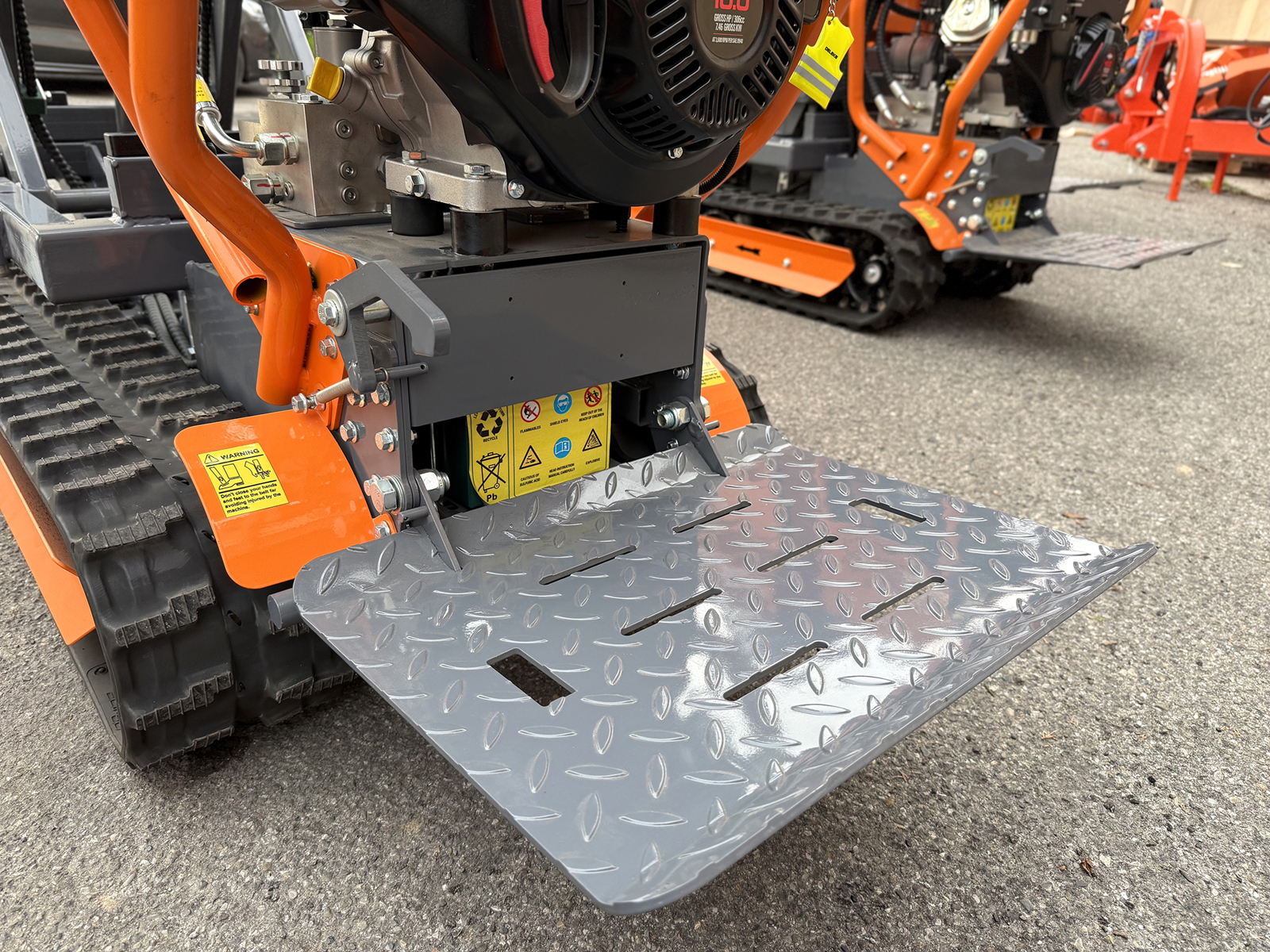

The integrated operator platform enables comfortable on-board operation, making the V3000HBS suitable for continuous professional use.

The tracked drive system guarantees excellent stability, high traction and low ground pressure, ensuring safe operation on uneven, muddy or sloping terrain.

DOUBLE IN-LINE COUNTERBALANCE VALVE

The DELEKS® V3000HBS is equipped with a double in-line counterbalance valve (Counterbalance Valve Double In Line) integrated into the hydrostatic traction circuit.

This system provides pilot-operated and progressive control of the tracks, allowing the operator to precisely modulate machine movement uphill, downhill, forward and reverse, preventing uncontrolled motion.

The valve maintains constant hydraulic pressure and prevents sudden acceleration caused by load weight or terrain slope, significantly improving control, stability and operational safety.

This system is particularly effective during:

• high-level unloading operations

• work on sloped terrain

• handling heavy loads

• precision manoeuvres in confined spaces

APPLICATION

Tracked mini dumper suitable for:

• loading and transporting soil and sand

• handling construction materials and aggregates

• moving waste and debris

• use on construction sites, farms and industrial environments

• operations requiring direct high-level discharge into vans or trucks

TECHNICAL FEATURES

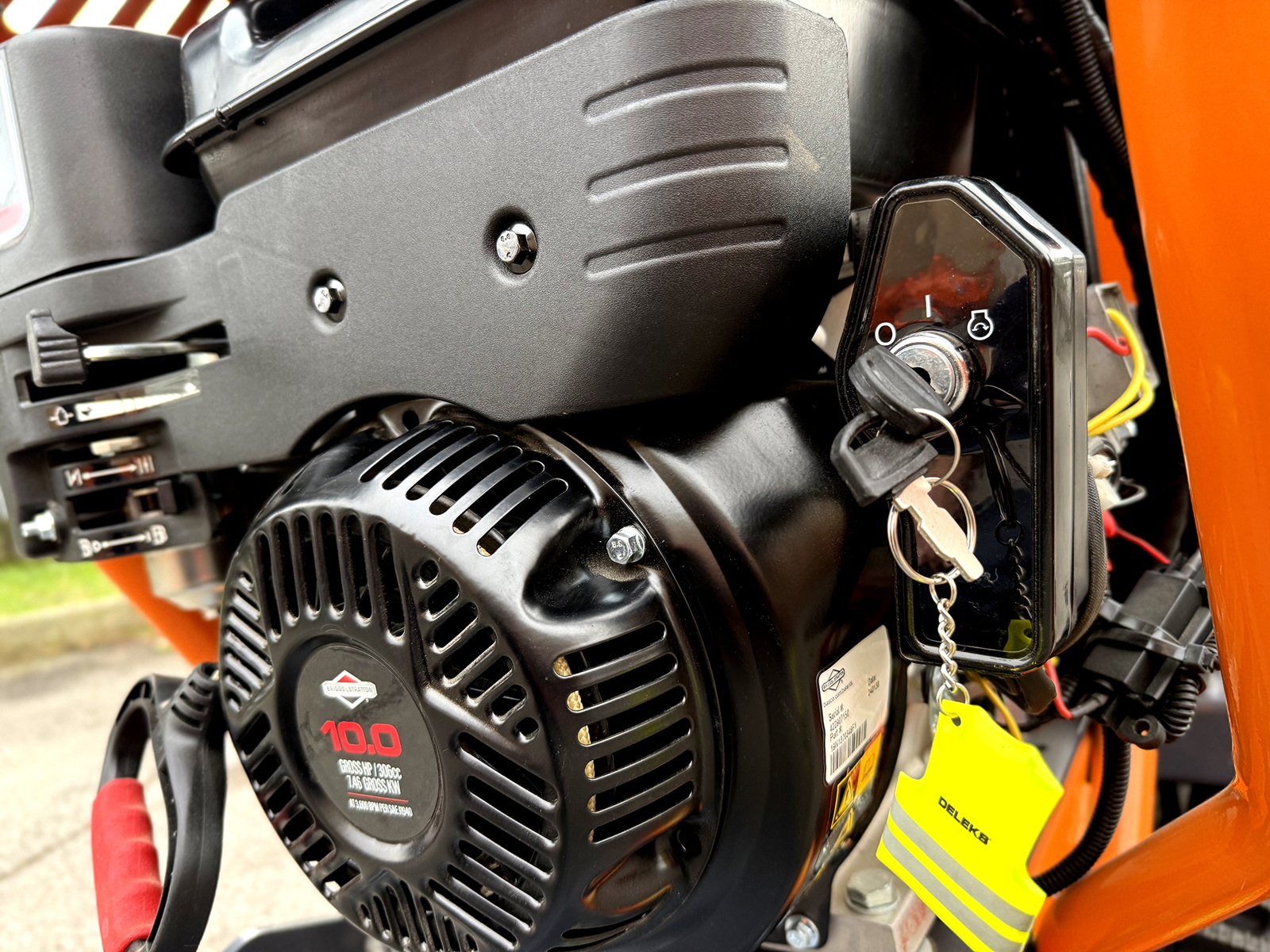

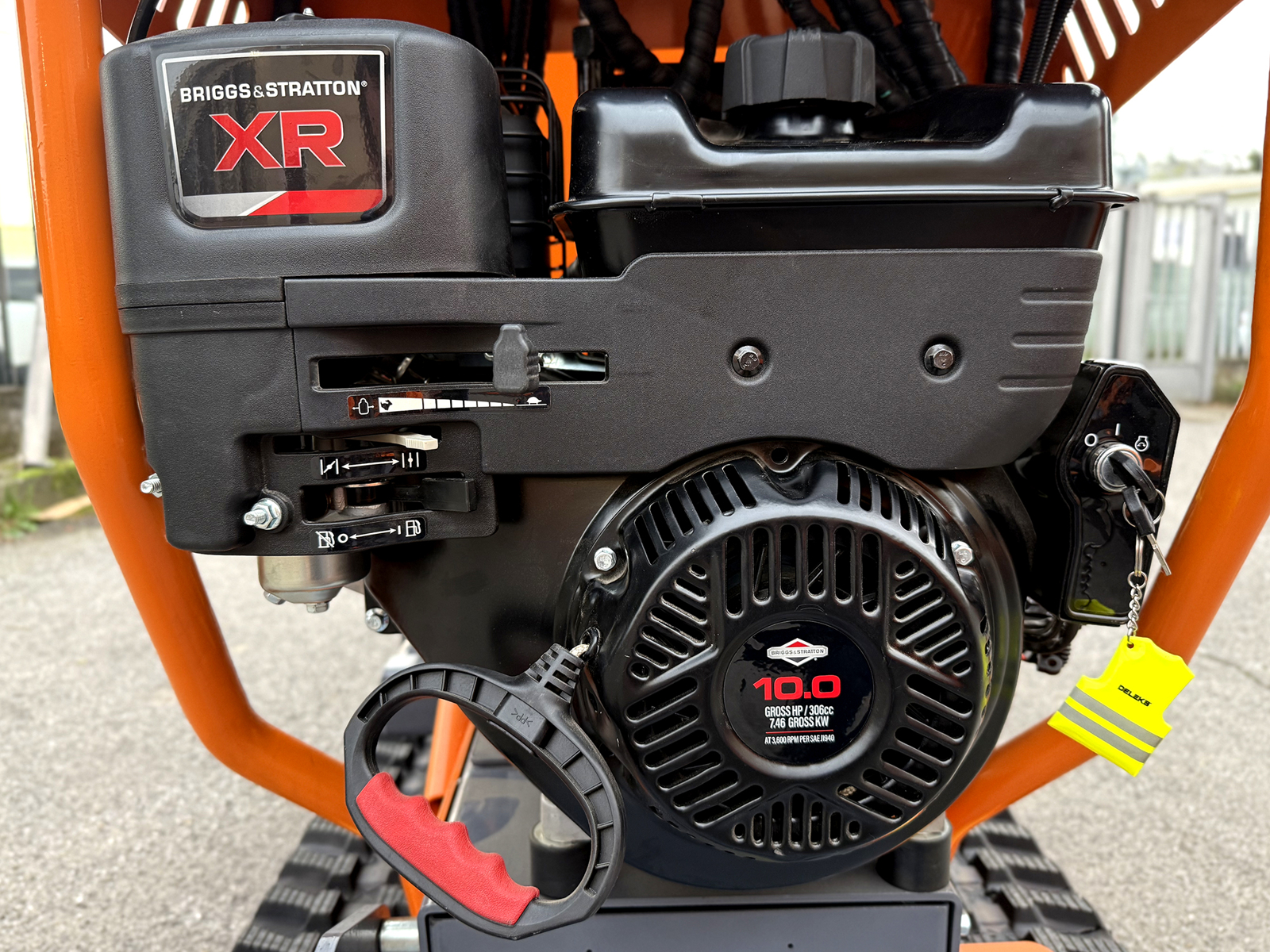

• Briggs & Stratton XR10.0 petrol engine

• Power: 10.0 HP / 7.4 kW

• Displacement: 306 cc

• Electric start with key

• Fuel type: petrol

• Hydrostatic transmission

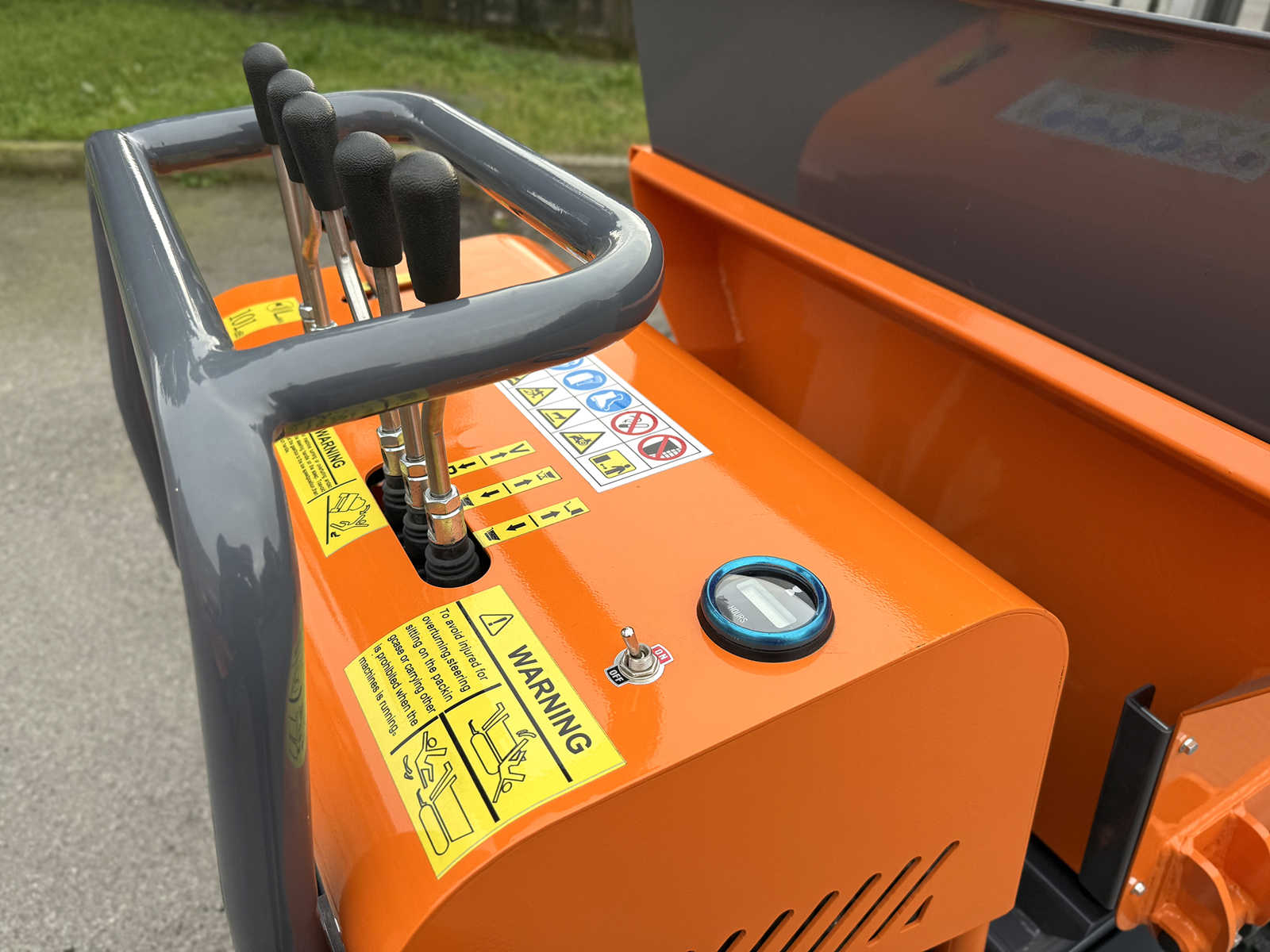

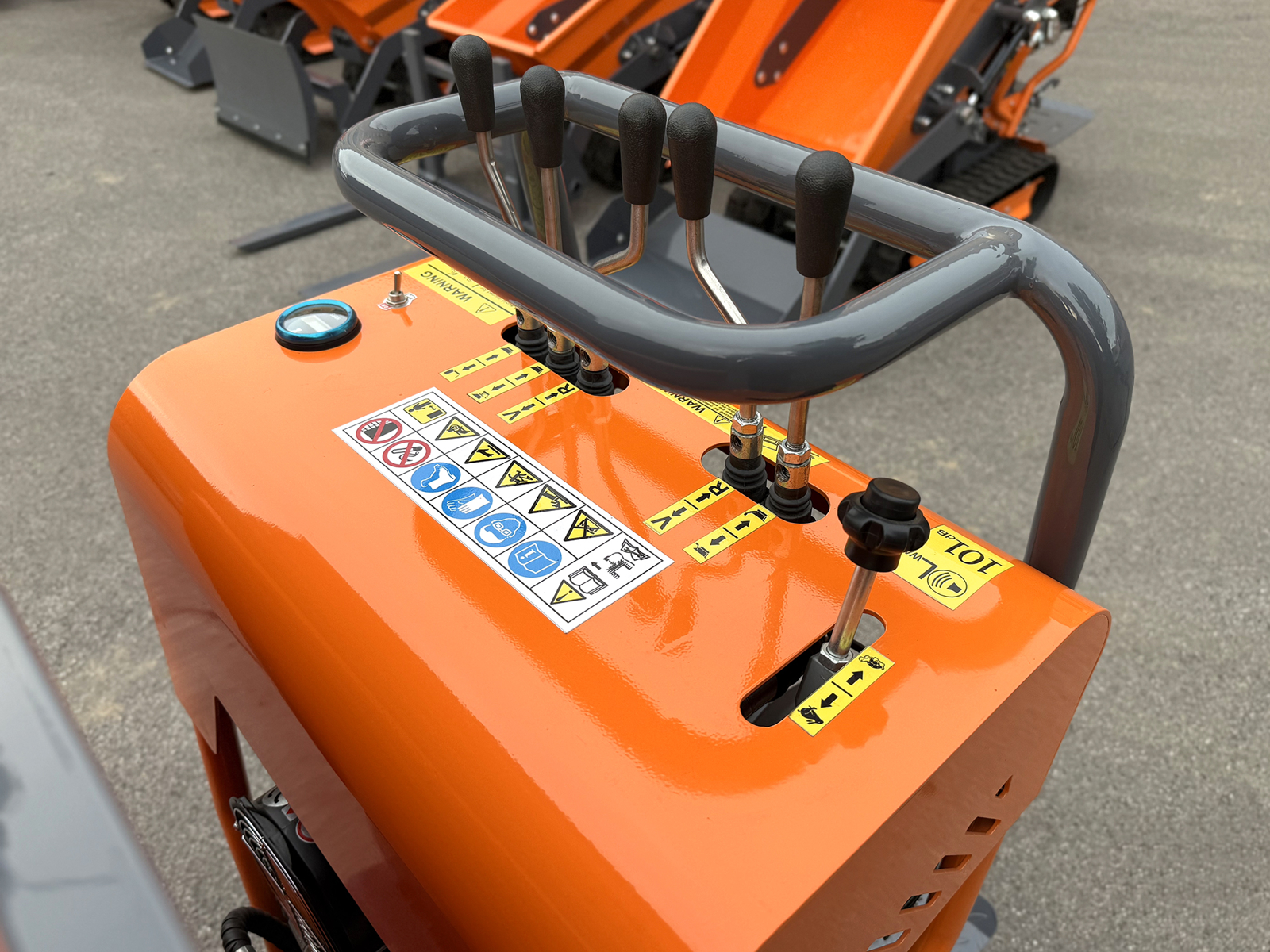

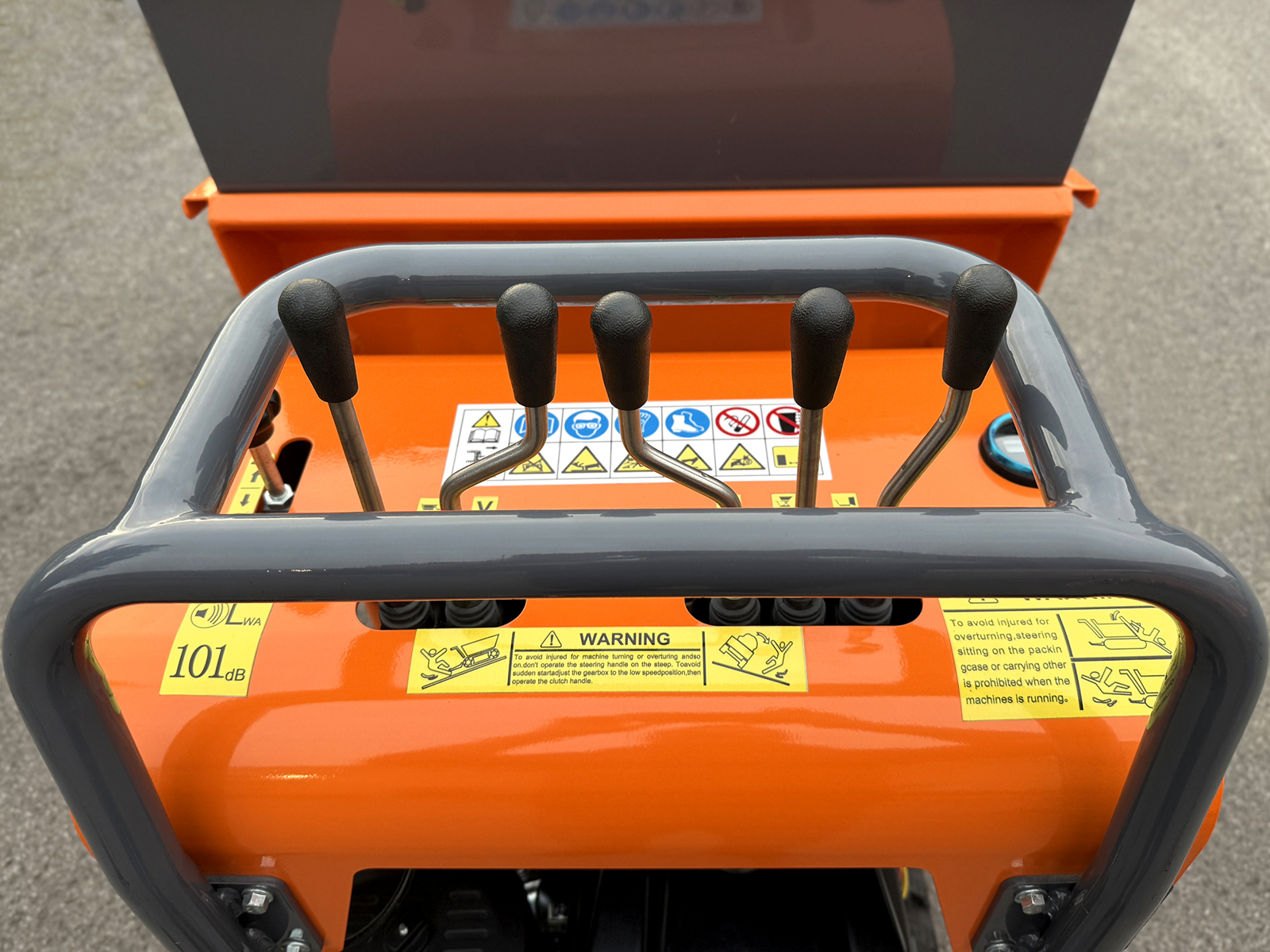

• Lever-controlled drive system

• Two travel speeds: 2 – 6 km/h

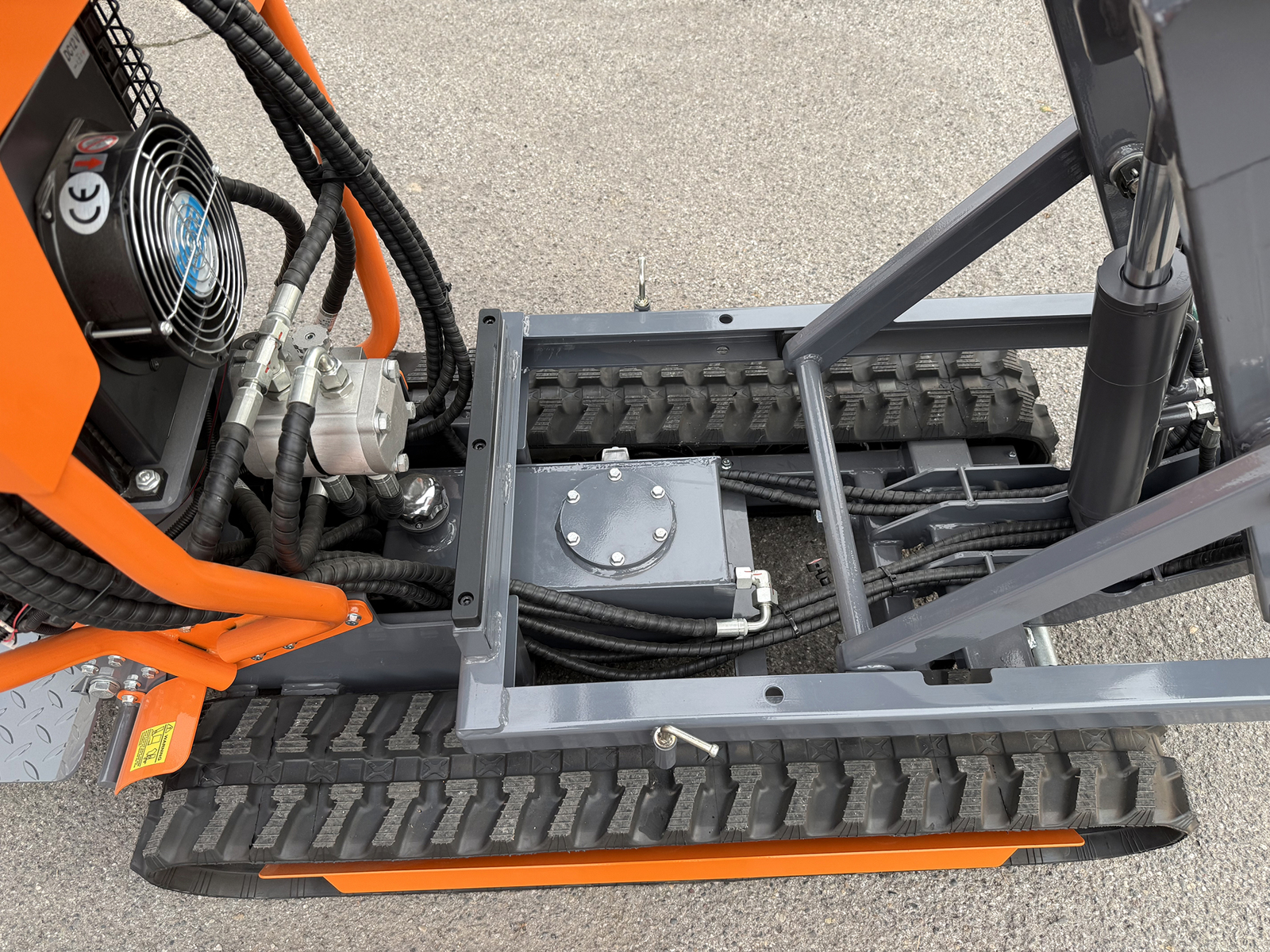

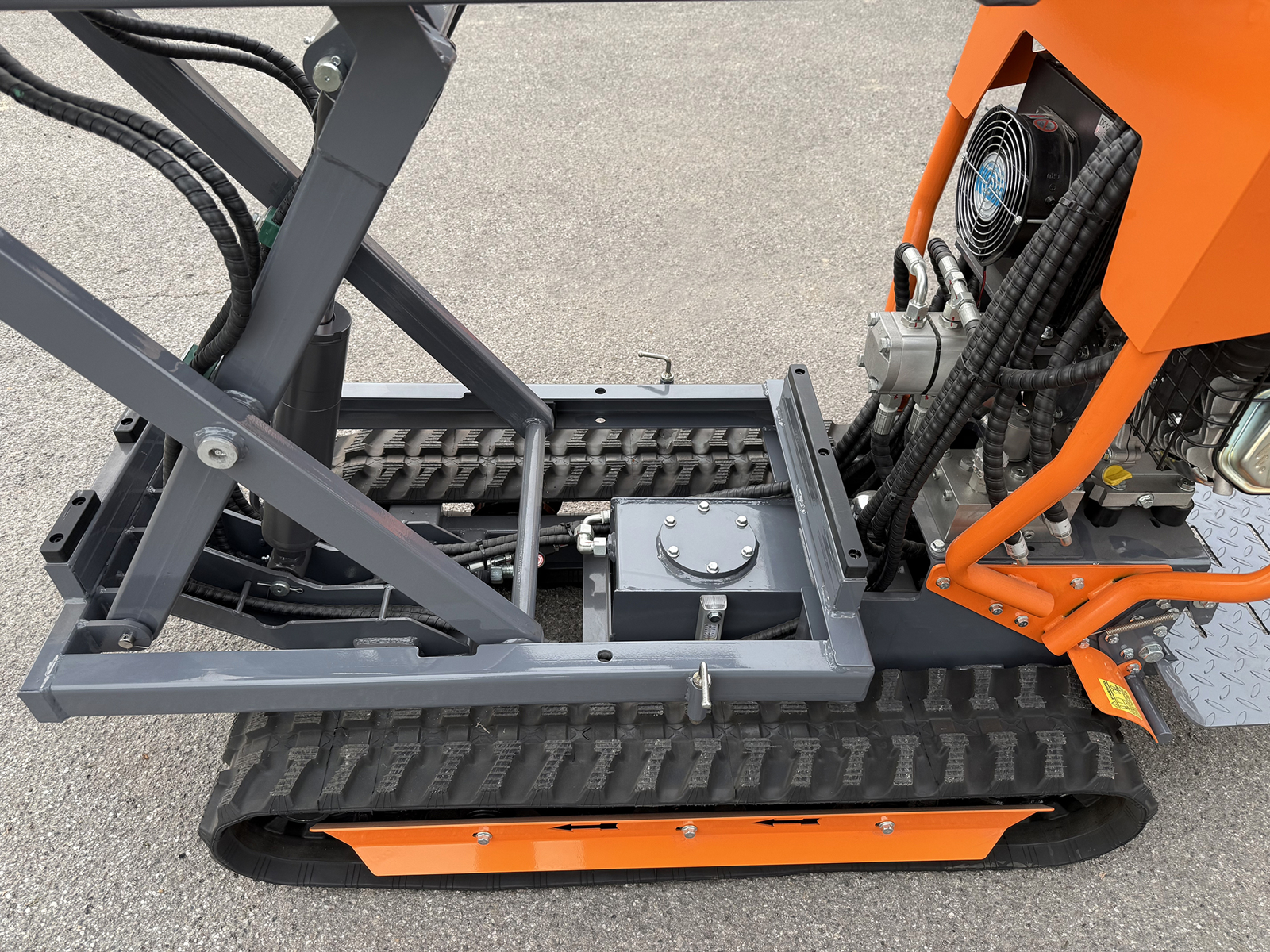

• Professional tracked drive

• Track width: 170 mm

• Track length: 1160 mm

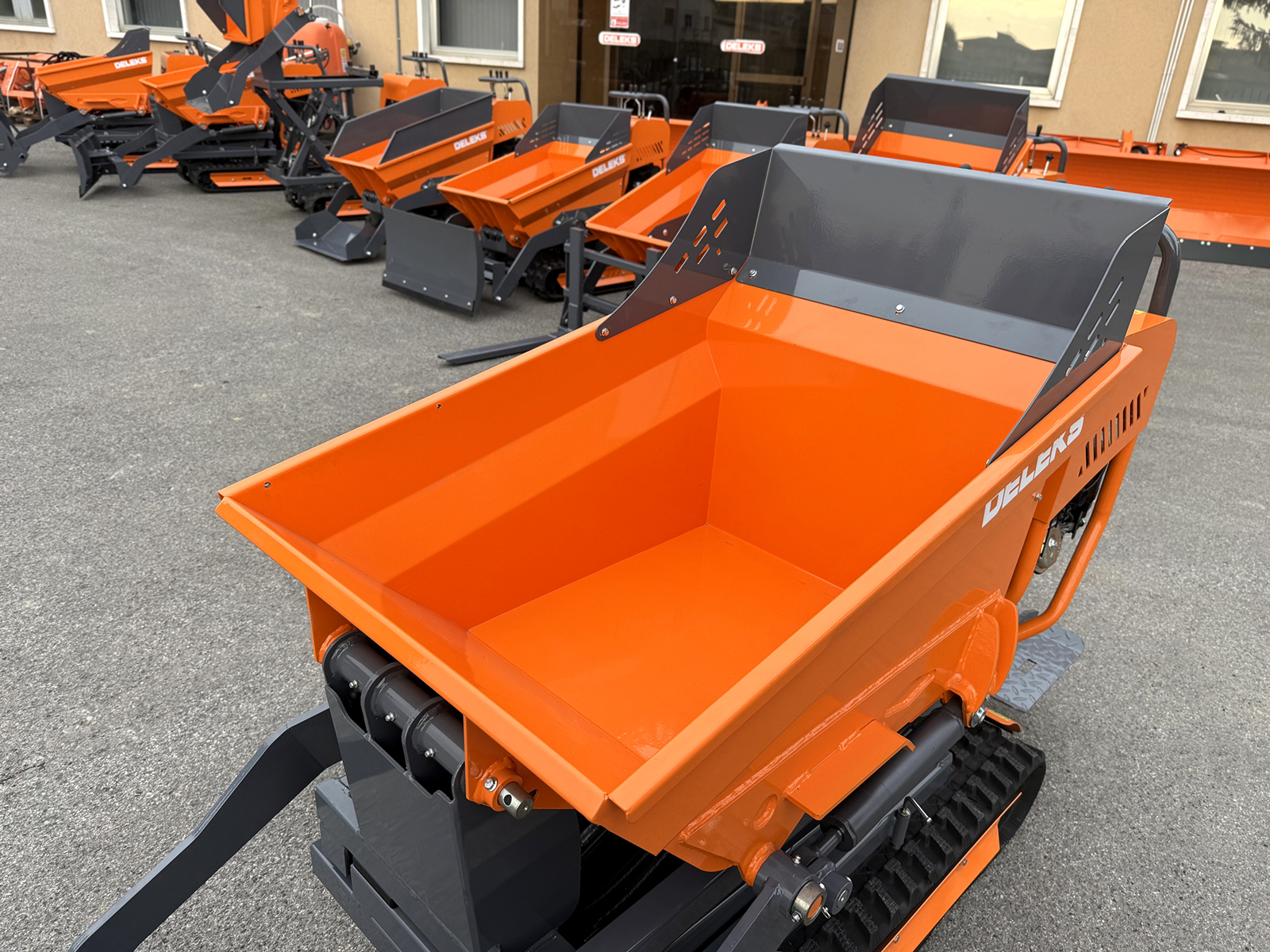

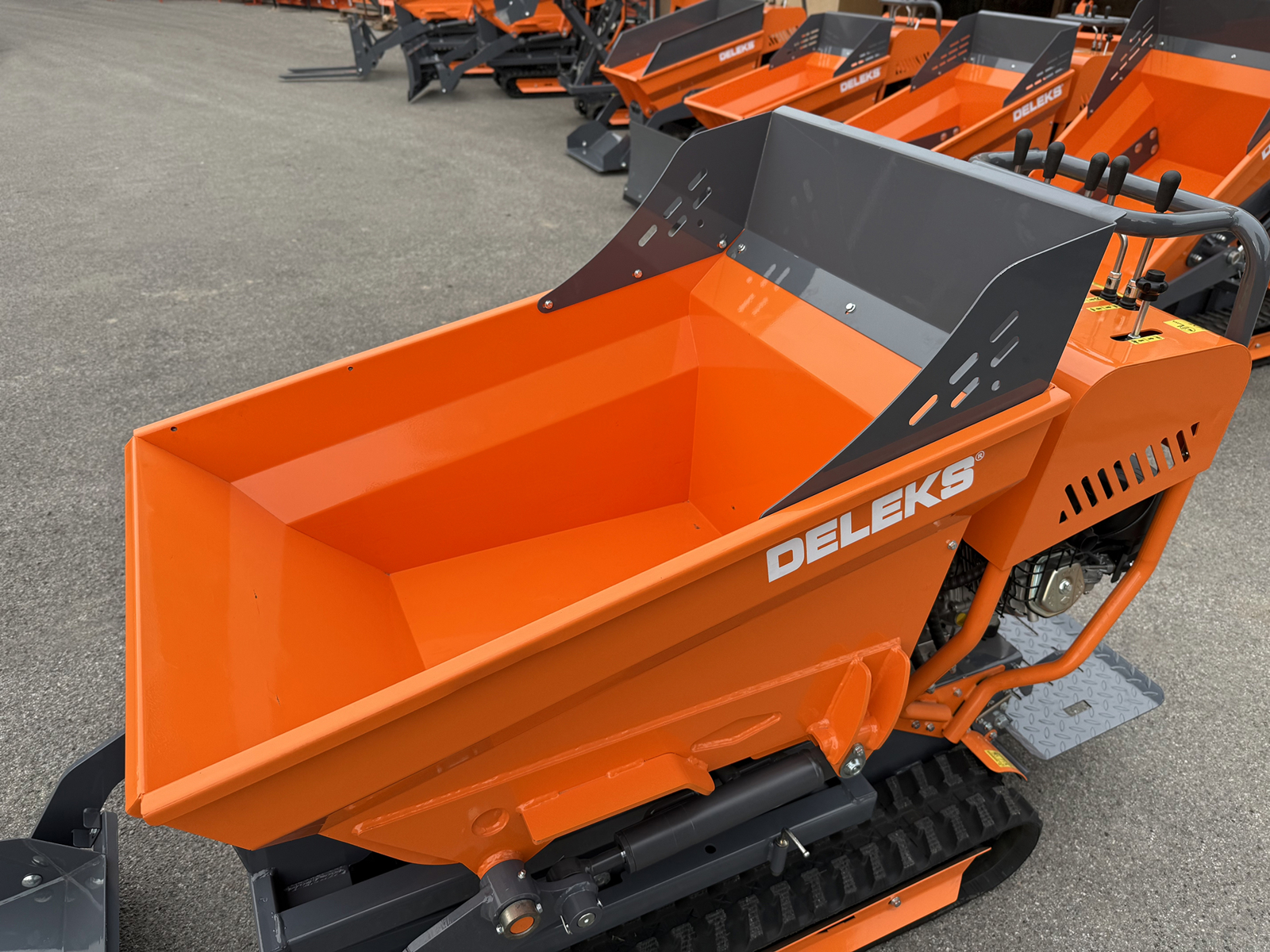

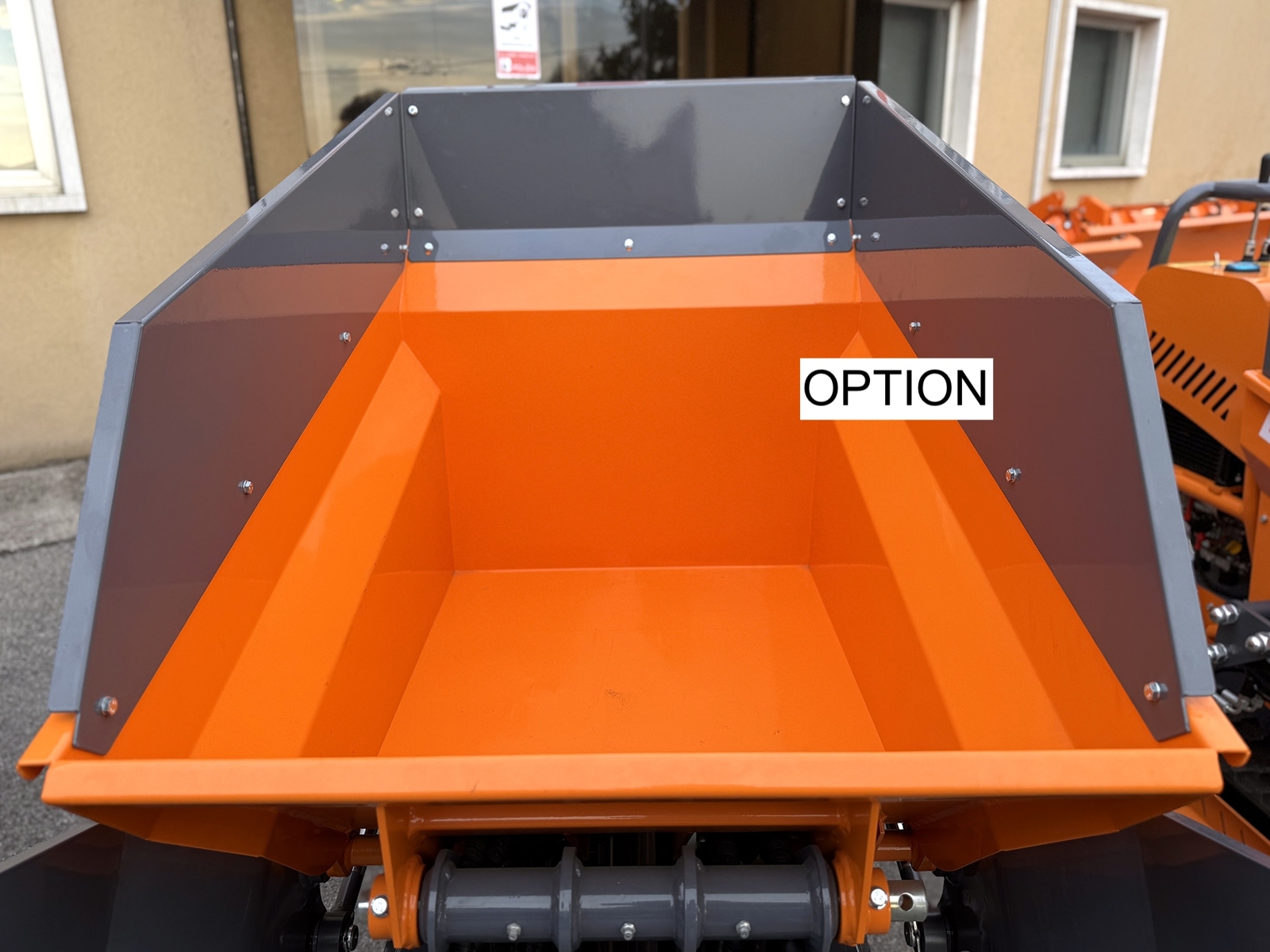

• Reinforced dumper body with high tip

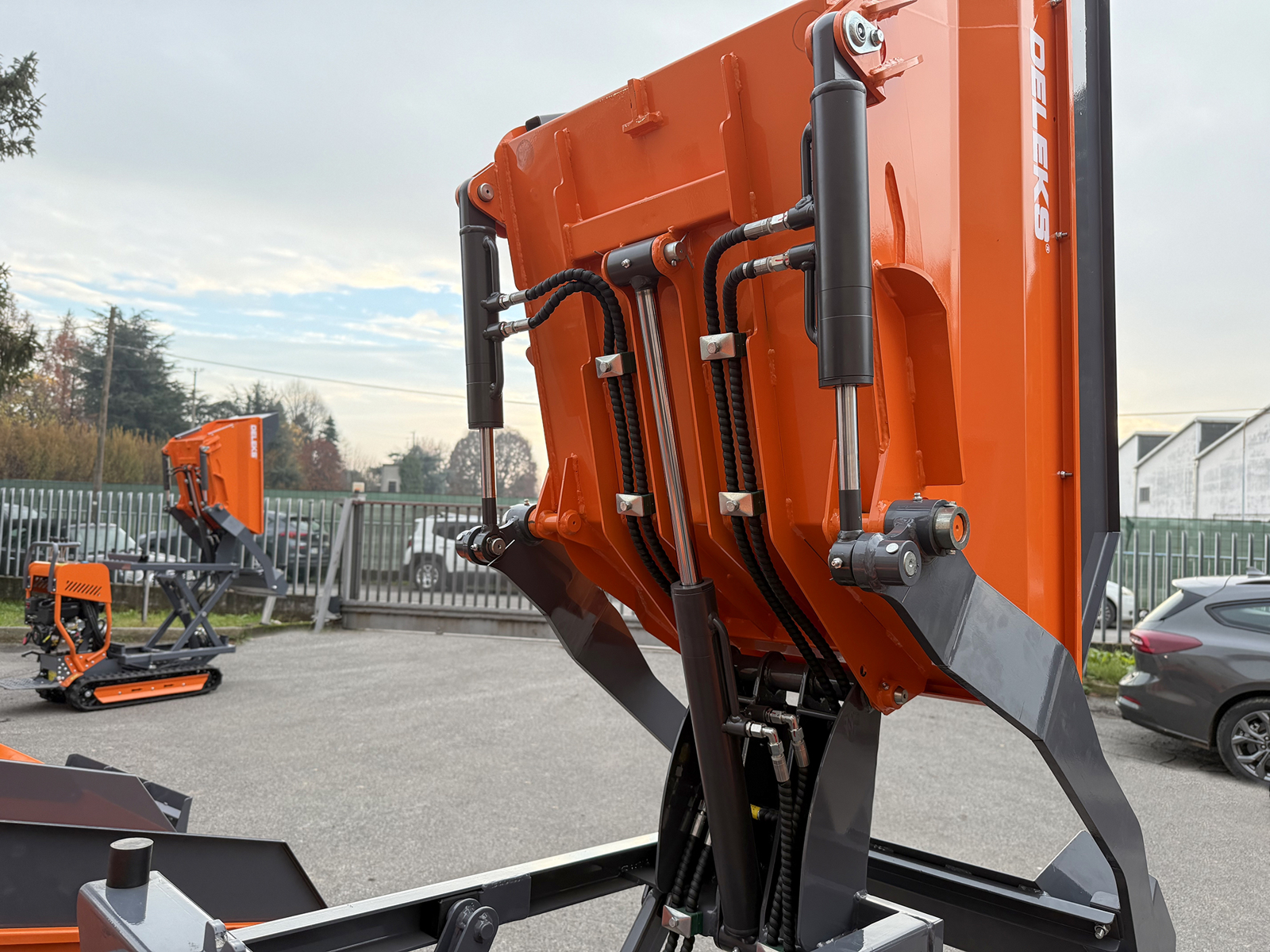

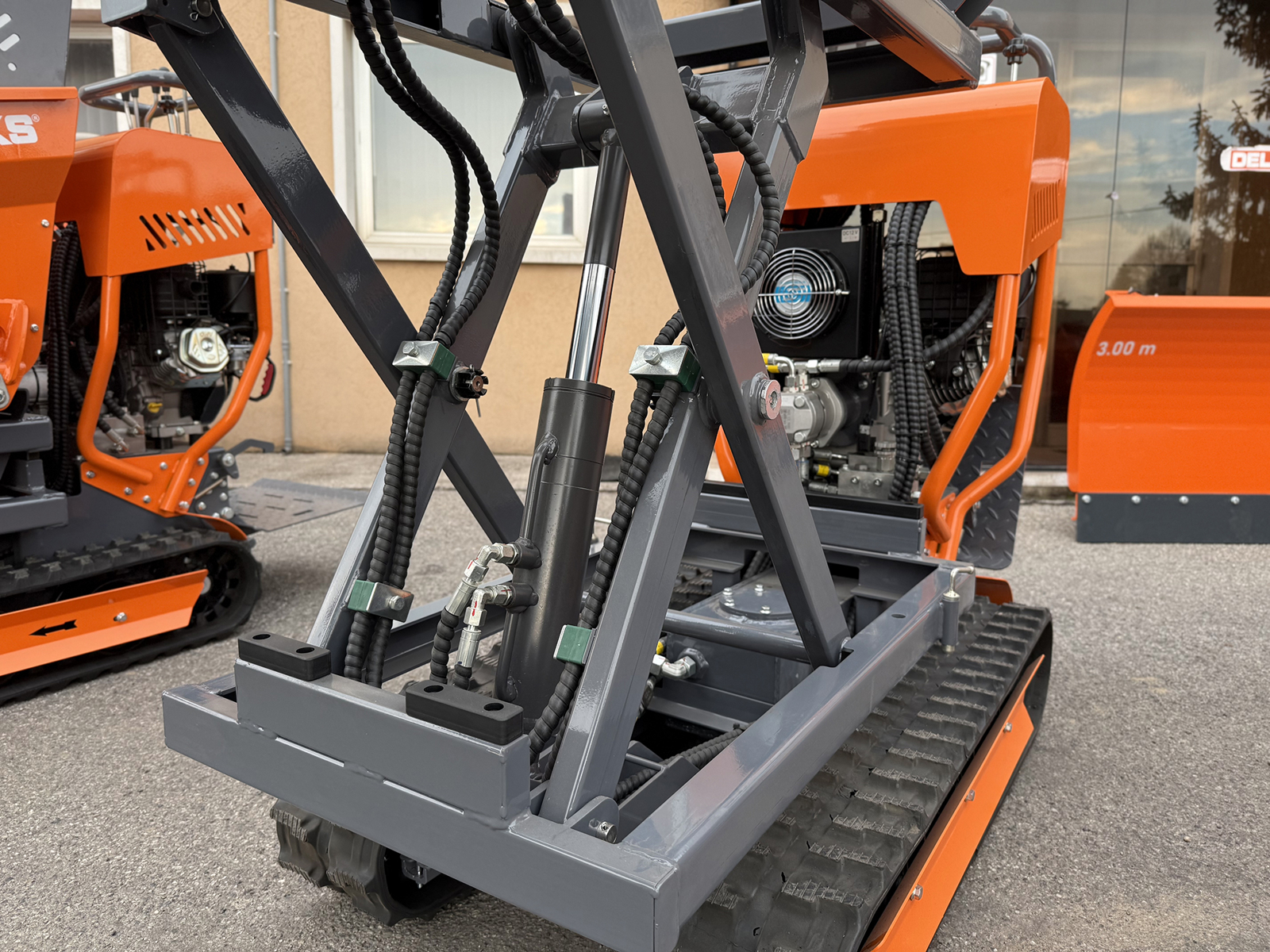

• Hydraulic tipping

• Maximum load capacity: 500 kg

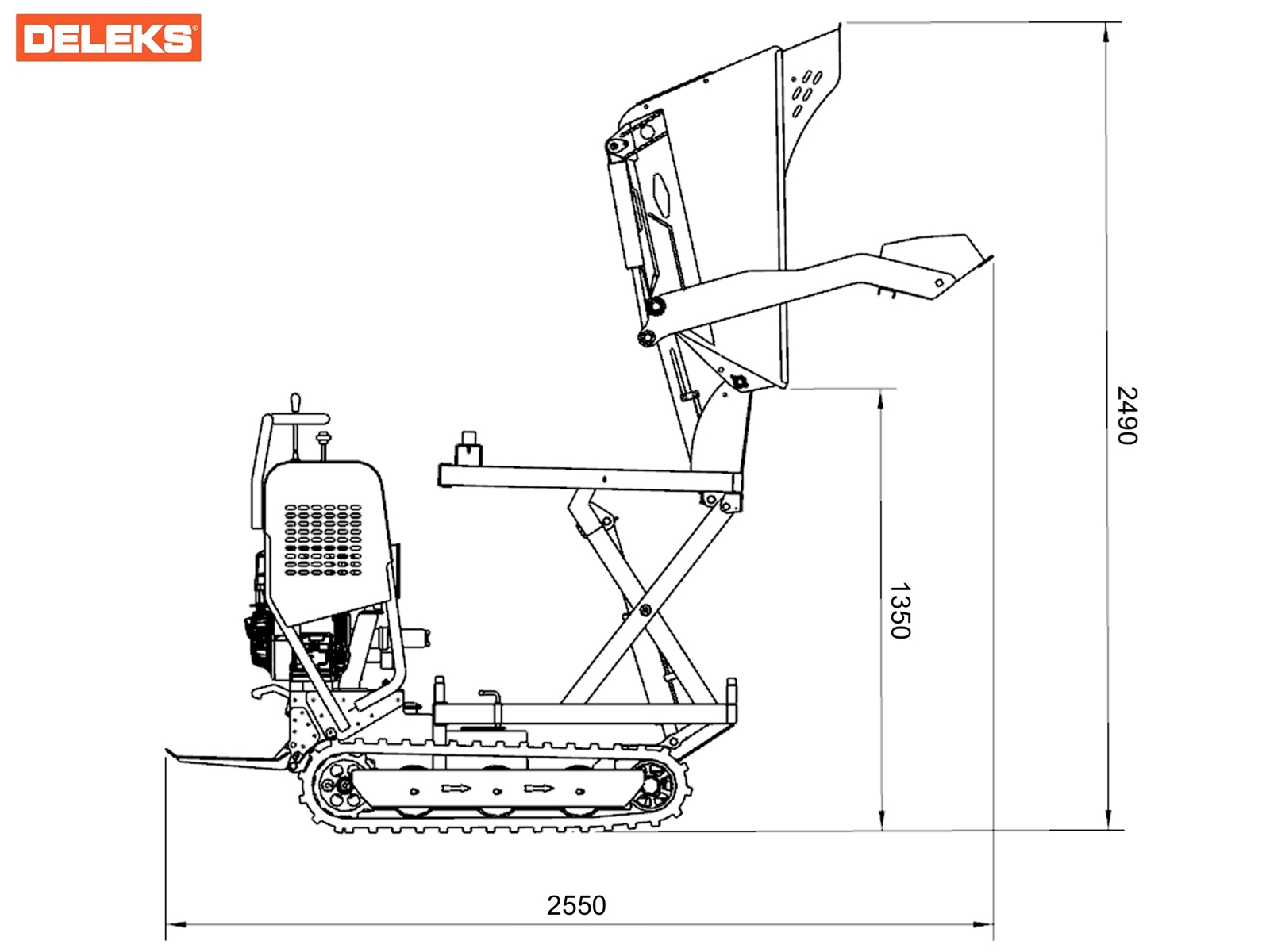

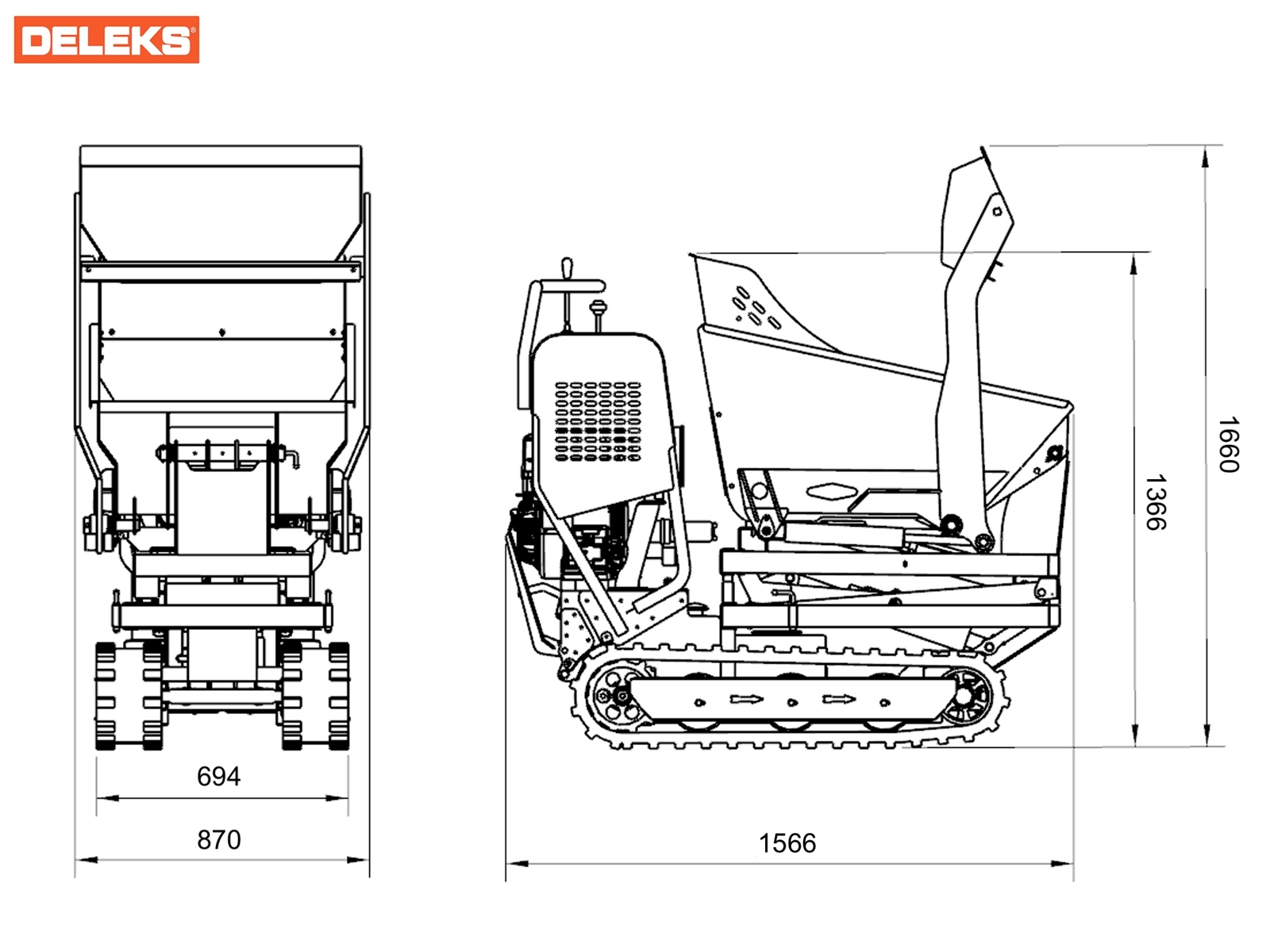

• Machine dimensions: see product images

OPERATIONAL ADVANTAGES

• More powerful Briggs & Stratton engine for demanding work

• High tip for direct unloading into vans and trucks

• Hydraulic tipping for fast, effortless discharge

• Hydrostatic transmission for full control

• Counterbalance valve for controlled traction

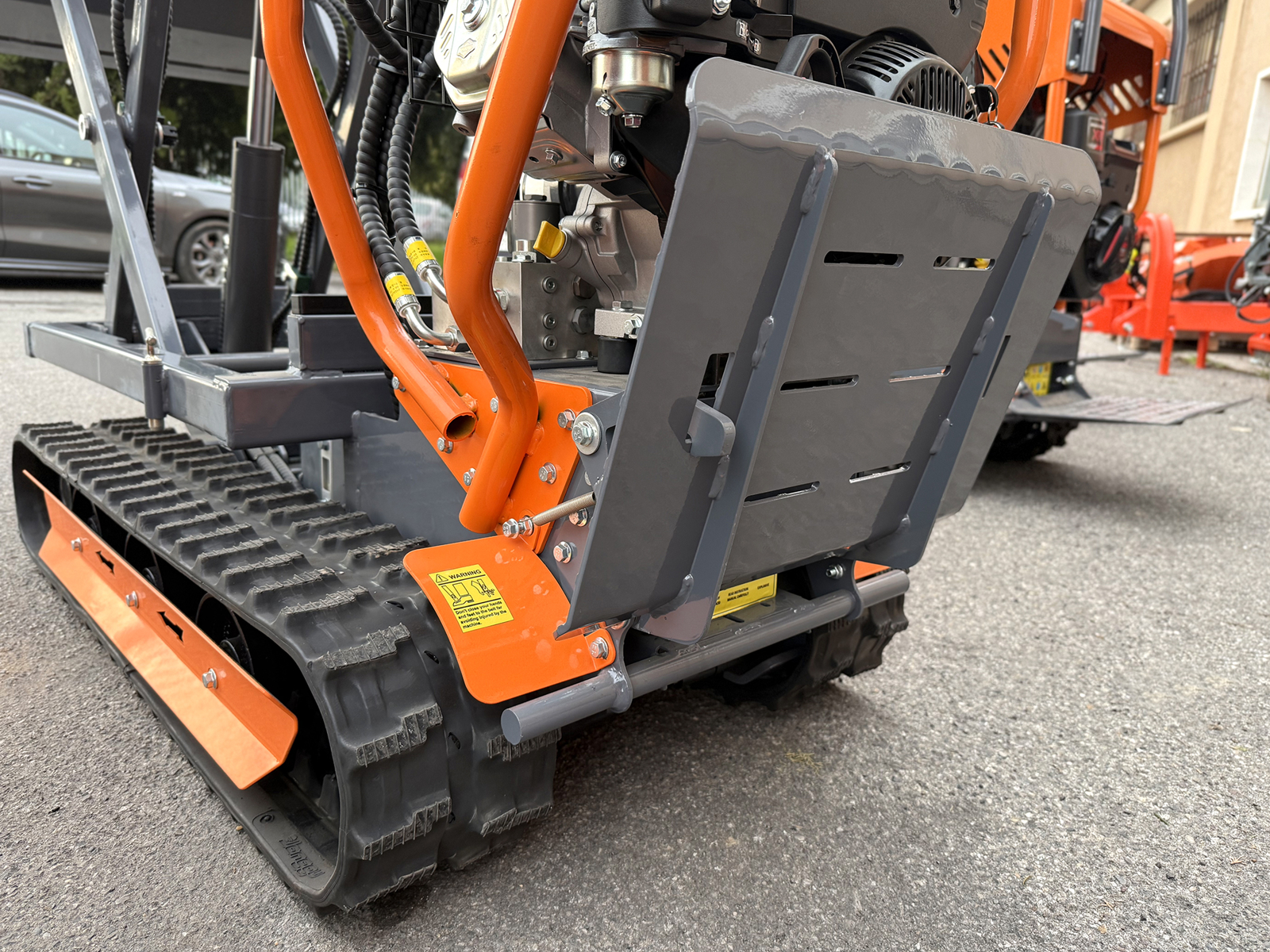

• Operator platform for continuous professional use

• Reinforced body for heavy-duty applications

• Excellent stability and traction on difficult terrain

• Reliable electric start

CERTIFICATIONS – WARRANTY – SUPPORT

• Machine compliant with CE directives

• 2-year warranty

• Equipped with safety devices

• Technical support and spare parts available

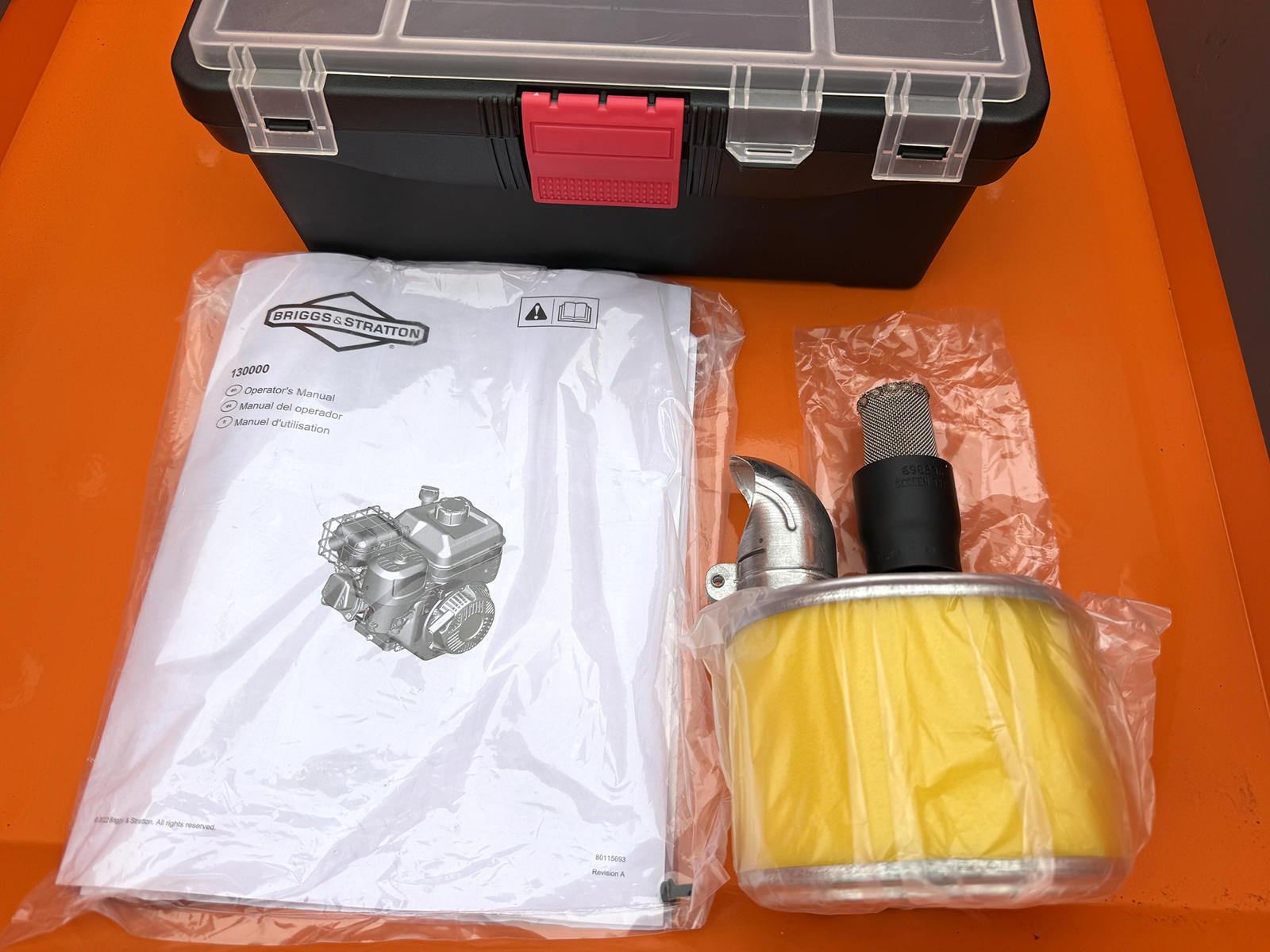

DOCUMENTATION SUPPLIED

• CE declaration of conformity

• Operation and maintenance manual

• Invoice or fiscal receipt
